Introduction

Hepatocellular carcinoma (HCC) is the fifth most common malignant tumor worldwide and the third most common cause of cancer-related death (1). Unfortunately, HCC tumors are aggressive, difficult to detect and exhibit a complex pathology, which makes them highly refractory in nature. While less than 30% of patients with HCC are suitable for resection and orthotopic liver transplantation, which is commonly accepted as the most effective treatment (2), advanced HCC cases lack adequate therapeutic treatments. Moreover, high rates of metastasis and relapse limit the long-term efficacy of surgery (3) and HCC frequently demonstrates resistance to systemic chemotherapy, with the National Comprehensive Cancer Network guidelines recommending that chemotherapeutics are not prescribed for the treatment of HCC in clinical practice (4). Although sorafenib has demonstrated potential as a drug for advanced liver cancer in the SHARP and START (5–7) studies, its application in advanced HCC is limited by poor responses and various side effects (8). Similarly, radiotherapy in HCC is also limited due to the radiation dosage and tumor positioning (9–11). Currently, the most commonly used non-surgical therapies for liver cancer are transarterial chemoembolization and transarterial embolization. Both treatments significantly improve the prognosis of patients with multiple lesions and a large tumor mass whose livers are not tolerant to surgery (12,13); however, they are often associated with incomplete embolization, the formation of collateral circulation and liver function damage following repeated procedures (14). Additionally, they do not effectively control distant metastasis rates. Thus, there is unanimous agreement for the urgent requirement to develop novel, more effective drugs and treatment methods for the clinical treatment of HCC (5,15). One suggested approach is to identify drugs that are derived from natural compounds with anticancer activity.

Musk and its preparations have been used as traditional analgesics for treating pain resulting from various types of cancer, including liver cancer (16); it is particularly popular among the Tibetans in Sichuan, China, which due to their health philosophy, receive no surgical intervention or non-surgical treatments. Over the past decade, follow-up studies in dozens of patients with advanced liver cancer from the Tibetan region observed that the use of musk as an analgesic increased their quality of life and lifespan, suggesting that the ingredients within musk may inhibit liver cancer progression in addition to their analgesic properties.

Since these observations, modern basic and clinical pharmacological studies have confirmed that musk and its preparations are effective in the treatment of central nervous system and cardiovascular/cerebrovascular diseases, as demonstrated in a previous study of the Shexiang Baoxin pill (17). Previous studies have investigated the antitumor properties of musk, including Shengjizonglu and TaipingHuiminHejijuFang (18), and musk and muscone were found to inhibit cell growth in Ehrlich ascites carcinoma, sarcoma −180 and HCC (19). Clinical studies have also reported that musk-containing compound drugs, such as Xihuangwan, Xiaojindan, and Liushenwan demonstrated certain anticancer effects (20). The active anticancer ingredients of musk are thought to include the macrocyclic ketones, of which 3-methylcyclohexanone (muscone) is the major one (21), and synthetic dextral muscone has demonstrated activities similar to natural sinistral muscone (22). However, the antitumor mechanisms of musk/muscone in liver cancer are unclear.

Based on the clinical observations that have suggested that muscone exhibits anticancer properties, the present study aimed to investigate whether it could be used as an anti-liver cancer drug for the non-surgical treatment of advanced liver cancer. The inhibitory effects of synthetic muscone were tested on various liver cancer cell lines, and its target sites and mechanisms of action were also explored. In addition, the in vitro findings were validated in vivo, in nude mice with transplanted tumors, as well as in clinical HCC specimens.

Materials and methods

Reagents and antibodies

Muscone was obtained from Chengdu Kangfei Co., Ltd. and was dissolved in DMSO (Amresco, LLC); and 4-phenylbutyrate (4-PBA) was purchased from Sigma-Aldrich; Merck KGaA. Primary antibodies against phosphorylated (p)-protein kinase R-like endoplasmic reticulum kinase (PERK) (dilution 1:1,000; cat. no. SAB4301310), p-eukaryotic initiation factor (eIF)2α (dilution 1:1,000; cat. no. SAB4504388), p-AMP kinase (p-AMPK) (dilution 1:1,000; cat. no. SAB4503754) and p-mTOR (dilution 1:1,000; cat. no. SAB4504282) were purchased from Sigma-Aldrich; Merck KGaA; the primary antibody against light chain 3B (LC3B; dilution 1:1,000; cat. no. 2775) was purchased from Cell Signaling Technology, Inc.; antibodies against Bcl-2 (dilution 1:500; cat. no. sc-7382), pro caspase-3 (dilution 1:500; cat. no. sc-7272), AMPK (dilution 1:500; cat. no. sc-74461), Bax (dilution 1:500; cat. no. sc-7480) and mTOR (dilution 1:500; cat. no. sc-517464) were purchased from Santa Cruz Biotechnology, Inc.; anti-3-methyladenine (3-MA) primary antibodies were purchased from Selleck Chemicals; the anti-activating transcription factor (ATF)4 (dilution 1:500; cat. no. AF2560) and anti-DNA damage inducible transcript (DDIT) 3 (dilution 1:500; cat. no. AF6684) antibodies were purchased from Beyotime Institute of Biotechnology; and the cleaved caspase-3 (dilution 1:1,000; cat. no. 19677-1-AP), anti-sestrin (SESN)2 (dilution 1:1,000; cat. no. 10795-1-AP), anti-β-actin primary antibodies (dilution 1:5,000; cat. no. 66009-1-Ig), horseradish peroxidase (HRP)-conjugated secondary antibodies including HRP-conjugated Affinipure goat anti-mouse IgG (H+L) (dilution 1:10,000; cat. no. SA00001-1), HRP-conjugated Affinipure goat anti-rabbit IgG (H+L) (dilution 1:10,000; cat. no. SA00001-2) and HRP-conjugated Affinipure rabbit anti-goat IgG (H+L) (dilution 1:10,000; cat. no. SA00001-4) were purchased from ProteinTech Group, Inc.

Cell culture and small interfering RNA (siRNA) transfection

Human hepatoma/liver cancer HepG2 cells, Hep3B cells, human lung carcinoma A549 cells and human colorectal cancer HCT116 cells were purchased from The Cell Bank of the Type Culture Collection of the Chinese Academy of Sciences and were validated using short tandem repeat DNA profiling. HepG2, Hep3B and A549 cells were cultured in RPMI-1640 medium (Logan), and HCT116 cells were cultured in DMEM (Logan). Both media were supplemented with 100 U/ml penicillin, 100 µg/ml streptomycin and 10% FBS (Gibco; Thermo Fisher Scientific, Inc.) and cells were cultured in a humidified atmosphere at 37°C in 5% CO2.

siRNA against SENS2 (5′-GACCAUGGCUACUCGCUGATT-3′) and the negative control (NC; 5′-UUCUCCGAACGUGUCACGUTT-3′) were purchased from Genepharm (Shanghai, China). All siRNAs were subjected to BLAST search to ensure the absence of hits with >17 nucleotide matches found in the corresponding genomes. Transfection was carried out using 100 pmol of siRNA and Lipofectamine® 3000 reagent (Invitrogen; Thermo Fisher Scientific, Inc.) according to the manufacturer's protocol. The medium was changed after 6 h.

Flow cytometric analysis of apoptosis

Following treatment with DMSO or muscone for 24 h, the apoptotic nuclear morphology of HepG2 cells was observed under a fluorescence microscope at an ×40 magnification (Olympus IX71) with 2 µg/ml DAPI staining (Sigma-Aldrich; Merck KGaA) for 20 min at room temperature. Cells were subsequently double stained with an Annexin V-FITC/propidium iodide (PI) kit (Nanjing KeyGen Biotech Co., Ltd.), according to the manufacturer's protocol. Apoptotic cells were subsequently analyzed using a flow cytometer (BD Pharmingen; BD Biosciences). The data were analyzed using FlowJo software (version 7.6.1; Tree Star, Inc., Ashland, OR, USA).

Hoechst 33342 staining

Cells were plated into 6-well plates at a density of 1×105 cells per well and pretreated with 1 mM 3-MA (Selleck Chemicals) for 2 h, prior to treatment with muscone. Cells were rinsed three times with PBS and then stained with 10 µg/ml Hoechst 33342 (Sigma-Aldrich; Merck KGaA) for 15 min at 37°C before being washed three times with PBS for a second time. Stained cells were observed under a fluorescence microscope at an ×200 magnification (Olympus IX71). Apoptotic cells were identified by the fragmentation of nuclei and condensation of chromatin, and the apoptotic index was calculated using the following equation: Number of apoptotic cells/total cell count. Experiments were performed in triplicate.

Autophagy assay

Following incubation with DMSO or muscone at 37°C for 24 h, 3×104 cells/well were stained with monodansylcadaverine (MDC, 0.1 mmol/l; Nanjing KeyGen Biotech Co., Ltd.) for 25 min at 37°C and observed using a fluorescence microscope (Olympus IX71) at an ×100 magnification. The fluorescence intensity was analyzed using a Varioskan Flash fluorescence microplate reader (Thermo Fisher Scientific, Inc.).

To examine the formation of autophagosomes, a total of 3×104 cells/well were plated into 48-well plates and ~24 h later, the cells were rinsed three times PBS. Subsequently, cells were treated with 1 mg/ml acridine orange (AO; Nanjing KeyGen Biotech Co., Ltd.) for 30 min at 37°C, and then rinsed again three times with PBS. Stained cells were visualized using a fluorescence microscope at an ×100 magnification (Olympus IX71) and the percentage of acidic vesicular organelle (AVO)-positive cells with ≥10 AVO aggregations was calculated and analyzed statistically (≥600 cells were observed). Experiments were performed in triplicate.

Reverse transcription-quantitative PCR (RT-qPCR)

Total RNA was extracted using TRIzol® reagent (Invitrogen; Thermo Fisher Scientific, Inc.) and subsequently treated with DNase I (Thermo Fisher Scientific, Inc.). Total RNA was reverse transcribed into cDNA using random hexamer primers and RevertAid Reverse Transcriptase (Thermo Fisher Scientific, Inc.). qPCR was subsequently performed using a SYBR® Premix Ex Taq II kit (Takara Biotechnology Co., Ltd.) and a StepOnePlus Real-time PCR System (Applied Biosystems; Thermo Fisher Scientific, Inc.). The following primer pairs were used for the qPCR: AFT4 forward, 5′-GTCAGTCCCTCCAACAACAGCAA-3′ and reverse, 5′-GAAGGTCATCTGGCATGGTTTCC-3′; DDIT3 forward, 5′-TTGCCTTTCTCCTTCGGGACACT-3′ and reverse, 5′-CTTGTGACCTCTGCTGGTTCTGG; FGF21 forward, 5′-CTGGAGATCAGGGAGGATGGGA-3′ and reverse, 5′-FCGTGGGCTTCGGACTGGTAAA-3′; TRIB3 forward, 5′-AAGCGGTTGGAGTTGGATGAC-3′ and reverse, 5′-CACGATCTGGAGCAGTAGGTG-3′; SESN2 forward, 5′-AAGGACTACCTGCGGTTCG-3′ and reverse, 5′-CGCCCAGAGGACATCAGTG-3′; and GAPDH forward, 5′-CCATGTTCGTCATGGGTGTGAACCA-3′ and reverse, 5′-GCCAGTAGAGGCAGGGATGATGTTC-3′. Expression levels were quantified using the 2−ΔΔCq method (23) and GAPDH was used as the internal reference control. The thermocycling conditions were as follows: 95°C for 3 min, followed by 40 cycles of 95°C for 15 sec, 60°C for 15 sec, 72°C for 20 sec; 95°C, 15 sec; 60°C, 1 min; 95°C, 15 sec; 60°C, 15 sec. Each sample was determined in duplicate. All PCR products were confirmed by 2.0% agarose gel electrophoresis.

Whole transcriptome library preparation and sequencing

Novogene Bioinformatics Technology Cooperation prepared the whole transcriptome libraries and performed deep sequencing. Following incubation with DMSO or muscone for 24 h, total RNA from HepG2 cells was extracted. Total RNA was quantified using a K5500 micro-spectrophotometer (Drawell International Technology Co., Ltd.) and the quality was determined using an Agilent 2200 TapeStation system (Agilent Technologies, Inc.). Ribosomal RNA was removed following the generation of strand-specific sequencing libraries, according to the manufacturer's protocol (Novogene Co., Ltd.). RNA sequencing (RNA-Seq) was performed using an Illumina HiSeq 2000 platform and 100 bp paired-end reads were generated according to the manufacturer's protocol (Illumina, Inc.).

RNA-Seq data analysis

Raw image data obtained from high-throughput sequencing (Illumina HiSeqTMPE125/PE150) were processed by CASAVA (version 1.8.2; Illumina, Inc.) for base calling and sequenced reads were obtained. Raw data were stored as FASTQ files, and raw reads with adapters and low-quality portions were filtered to obtain clean reads for subsequent analysis. TopHat2 (version 2.1.1) was used to map the reads to the reference genome. During RNA-Seq analysis, expression levels were determined by counting the reads that were mapped to genomic regions or exons. Subsequently, fragments/kilobases/million reads were used for differential expression analysis. Pathway enrichment associated with differentially expressed genes (DEGs) was performed using hypergeometric analysis of corresponding Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways (http://www.genome.jp/kegg/ or http://www.kegg.jp/).

Western blotting

Cells were lysed using NP-40 lysis buffer (50 mM Tris-HCl, pH 7.4, 150 mM NaCl, 1% NP-40, 0.5% NaDC, 0.1% SDS) containing a protease inhibitor cocktail proteinase inhibitor cocktail solution (Roche, Basel, Switzerland). Total protein in cell lysates was quantified using a bicinchoninic acid protein assay kit (Thermo Fisher Scientific, Inc.). Equal amounts (30 µg) of protein were separated by 10% SDS-PAGE. Separated proteins were subsequently transferred onto nitrocellulose membranes and blocked with PBS-0.2% Tween-20 (PBST) containing 5% skimmed milk powder (SMP) at room temperature for 1 h. The membranes were incubated overnight at 4°C with primary antibodies in PBST containing 5% SMP. The membranes were subsequently washed five times with PBST and incubated with secondary antibodies (1:10,000) in PBST containing 5% SMP at room temperature for 1 h. Membranes were washed five times with PBST and protein bands were visualized on X-ray film (Carestream Health, Inc.) using ECL chemiluminescence reagents (Thermo Fisher Scientific, Inc.), with β-actin as the loading control. Protein expression was quantified using ImageJ 1.51 k software (National Institutes of Health).

Cell viability assay

Cells (1×104) were incubated with muscone (concentrations of 0.5, 1, 1.5, 2 and 2.5 µM) or a corresponding volume of DMSO for 24 h, and cell viability was measured using a Cell Counting Kit-8 assay (CCK-8; Nanjing KeyGen Biotech Co., Ltd.), according to the manufacturer's protocol. Brielfly, 10 µl of CCK-8 solution was added to each well followed by 1 h of incubation at 37°C. Subsequently, the absorbance value (OD) of the cells at 450 nm was measured by using a universal microplate spectrophotometer (BioTek Instruments, Inc.).

Animal studies

All animal studies were approved by the Committee on the Use of Live Animals in Teaching and Research of Sichuan University, and were conducted in accordance with approved guidelines. BALB/c nude mice (number, 20; age, 6 weeks; sex, male; weighing approximately 18–22 g) were obtained from Chengdu Dossy Biological Technology Company (http://www.cd-dossy.cn/intro/50.html) (Chengdu, China; certificate no: SCXK Sichuan 2015-030). All mice were maintained under special pathogen-free conditions, with temperature maintained at 23±2°C, humidity of 60±10%, 12 h light-dark cycle with free access to standard rodent chow and water. A total of 3×106 HepG2 cells were resuspended in 0.2 ml serum-free DMEM with 50% Matrigel (Corning, Inc.) subcutaneously injected into the lateral flank of mice and 14 days later, mice with an average tumor diameter of 6 mm were selected for the intraperitoneal injection of 0.1 mmol/kg, 0.2 ml/20 g bw DMSO or muscone. Maximum tumor diameter exceeding 15 mm was deemed the humane endpoint of the study. The mice were sacrificed by CO2 exposure followed by cervical dislocation and efforts were made to minimize suffering. Then xenograft tumors were collected and measured.

Patient studies

The present study was approved by the Institutional Ethics Committee of the Changchun University of Traditional Chinese Medicine (approval no. CCZYFYCC2017-071) and adhered to the principles in the Declaration of Helsinki. Informed consent was obtained from each patient prior to tissue collection for experimentation. A total of 14 human HCC tissue samples were obtained from the Affiliated Hospital of Changchun University of Chinese Medicine (age range, 40–55 years; 10 males and 4 females; collected from March 2016 to March 2017). All tissues were collected from patients who underwent surgery at the hospital. The patients were diagnosed with HCC based on pathology and all patients had no history of anticancer therapy. All of the specimens were examined and evaluated by two independent pathologists. The tissues were snap-frozen and stored in liquid nitrogen immediately after dissection until required for further analysis using western blotting and RT-qPCR.

Statistical analysis

Statistical analysis was performed using GraphPad Prism version 6 software (GraphPad Software, Inc.) and based on three independent experiments; data are expressed as the mean ± SD. Student's t-tests was used to determine statistical differences between groups. Differences among three or more groups were compared using one-way ANOVA followed by a Tukey's test. P<0.05 was considered to indicate a statistically significant difference.

Results

Muscone inhibits the growth of liver cancer cells

To investigate the effects of muscone on the cell viability of liver cancer cells, HepG2 and Hep3B cells were treated with muscone (0.5, 1, 1.5, 2 and 2.5 µM) for 24 h. Results from the CCK-8 assay demonstrated that the viability of cells treated with muscone was significantly decreased compared with cells treated with DMSO, with muscone exhibiting a dose-dependent effect on cell viability (Fig. 1A and C). HepG2 cells were observed to be more sensitive to muscone treatment (Fig. 1A and C), with a half maximal inhibitory concentration (IC50) value of 0.663 µM, whereas the Hep3B IC50 value was 1.416 µM. Whilst the corresponding volume of DMSO had no effect on cell growth, 0.663 µM muscone significantly inhibited cell growth following 24 and 48 h of treatment (Fig. 1B and D). Thus, 0.663 µM muscone and the corresponding volume of DMSO were used in the following HepG2 cell experiments. To further identify whether muscone treatment affected other malignant tumors, 1 µM muscone was used to treat malignant tumor cell lines A549 and HCT116, and was found to significantly inhibit the cell viability compared with the control group (Fig. 1E and F).

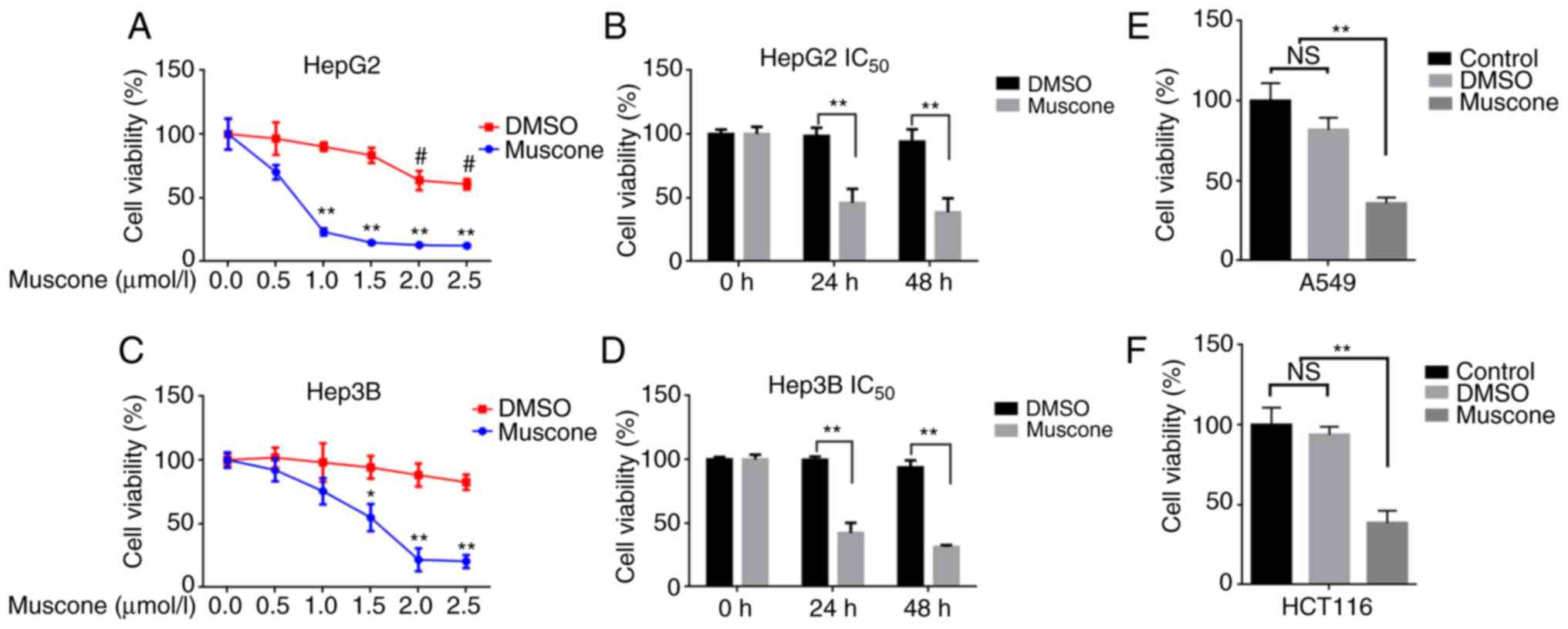

Figure 1. Muscone inhibits tumor cell viability. (A) Cell viability and IC50 of HepG2 cells treated with 0, 0.5, 1, 1.5, 2 or 2.5 µMol/l muscone or DMSO for 24 h were determined using CCK-8 assays. (B) Cell viability of HepG2 cells was determined using CCK-8 assays following treatment with 0.663 µM muscone or the corresponding volume of DMSO for 24 or 48 h. (C) Cell viability and IC50 of Hep3B cells treated with 0, 0.5, 1, 1.5, 2 or 2.5 µMol/l muscone or DMSO for 24 h was determined using CCK-8 assays. (D) Cell viability of Hep3B cells was determined using CCK-8 assays following treatment with 0.663 µM muscone or the corresponding volume of DMSO for 24 or 48 h. (E and F) Cell viability of (E) A549 and (F) HCT116 cells treated with 1 µM muscone or DMSO for 24 h was assessed using a CCK-8 assay. Control represents cells that did not receive treatment. *P<0.05, **P<0.01 vs. Control group; #P<0.05 vs. muscone group; n=3; NS, not significant; IC50, half maximal inhibitory concentration; CCK-8, Cell Counting Kit-8.

Muscone induces HepG2 cell apoptosis and autophagy

Next, it was investigated whether the effect of muscone treatment on the survival of HepG2 cells was associated with apoptosis. HepG2 cells treated with muscone and stained with DAPI demonstrated an apoptotic phenotype (Fig. 2A). Cells were subsequently subjected to double staining with Annexin V-FITC/PI and examined by flow cytometry. The apoptotic rate of HepG2 cells was significantly increased following treatment with muscone compared with the control (Fig. 2B). Apoptosis is induced following the cleavage and subsequent activation of pro-caspase-3 (24–26), as caspase-3 is an important regulator of apoptosis in the downstream caspase cascade reaction (27,28). Bcl-2 and Bax proteins belonging to the Bcl-2 family are also important regulators of apoptosis (29), thus the expression levels of Bax, Bcl-2 and caspase-3 proteins were analyzed using western blotting (Fig. 2C). Following treatment of HepG2 cells with muscone, the expression levels of cleaved caspase-3 and Bax proteins were markedly increased, whereas those of the Bcl-2 protein were decreased compared with the control.

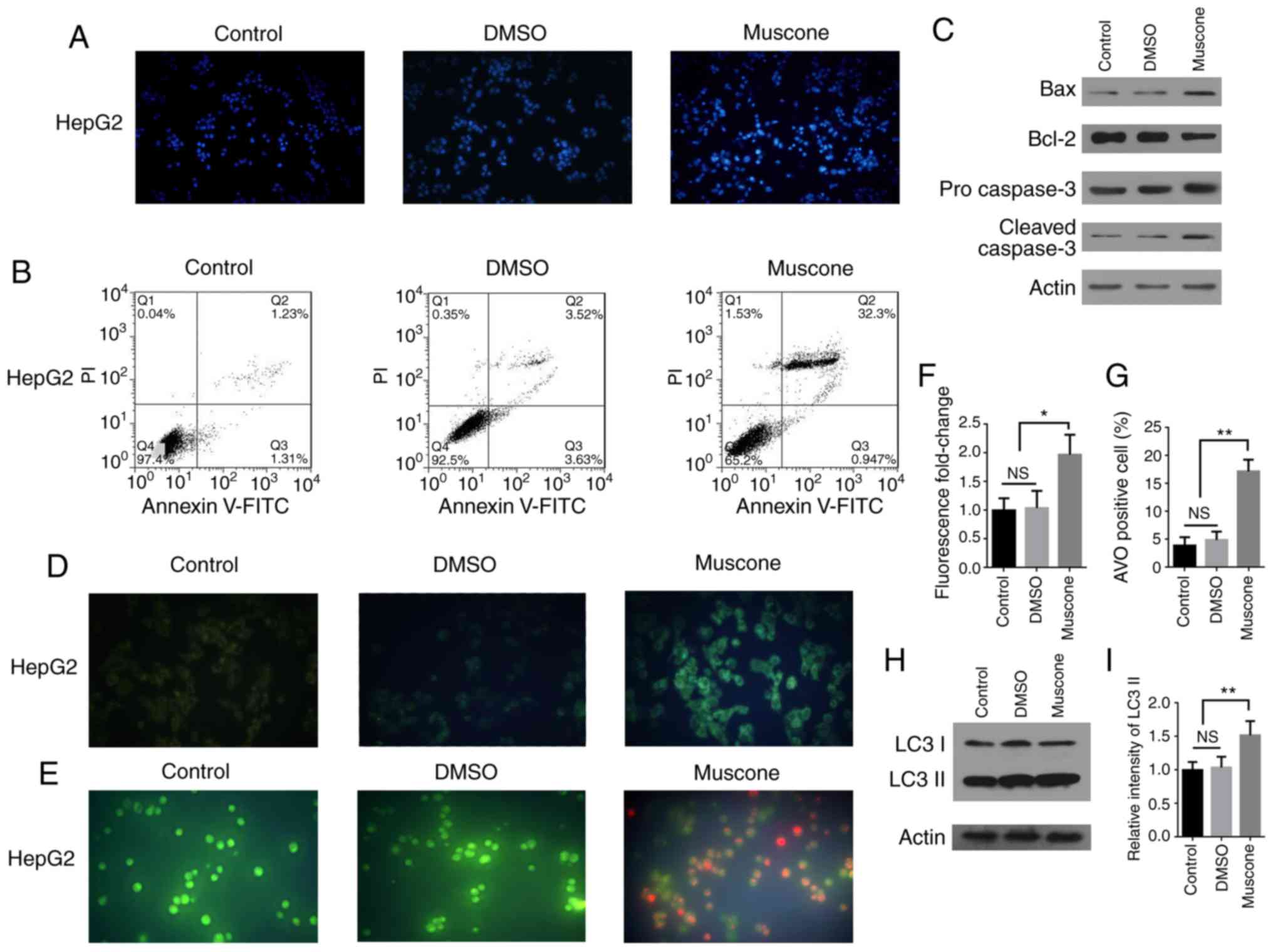

Figure 2. Muscone induces apoptosis and autophagy in HepG2 cells. (A) HepG2 cells were treated with DMSO or muscone for 24 h, and then stained with DAPI and examined by fluorescence microscopy at an ×40 magnification (Olympus IX71). Blue staining represents the cell nucleus and the control represents cells that did not receive treatment. (B) HepG2 cells were treated with DMSO or muscone for 24 h and subsequently double stained with Annexin V-FITC/PI. Apoptosis was analyzed using flow cytometry. (C) HepG2 cells were treated with DMSO or muscone for 24 h and the protein expression levels of Bax, Bcl-2, pro-caspase-3 and cleaved caspase-3 were analyzed using western blotting. (D and E) Representative micrographs (×100 magnification, Olympus IX71) of (D) MDC and (E) AO staining following treatment of HepG2 cells with DMSO or muscone for 24 h. (F) MDC fluorescence intensity fold-change was semi-quantified using a fluorescence microplate reader. (G) Positive AO staining and cell counting. (H) HepG2 cells were treated with DMSO or muscone for 24 h and LC3 I and LC3 II expression levels were analyzed using western blotting. (I) LC3 II levels were quantified by densitometric analysis relative to LC3 I. Error bars represent the standard deviations for n=3. *P<0.05, **P<0.01; n=3; NS, not significant; PI, propidium iodide; MDC, monodansylcadaverine; AO, acridine orange; LC3, light chain 3.

To investigate the effect of muscone on autophagy within HepG2 cells, AVOs were visualized using MDC staining and AO staining (Fig. 2D and E) (30). Muscone treatment significantly increased the percentage of AVO-positive HepG2 cells, which was demonstrated using fluorescence analysis (Fig. 2F) and cell counts (Fig. 2G). Moreover, western blotting was used to analyze the expression levels of microtubule-associated proteins 1A/1B light chain 3 (LC3) II protein, the lipidated form of LC3 associated with the autophagosome membrane (31), in the HepG2 cells and it was demonstrated that LC3 II expression levels were markedly increased following muscone treatment (Fig. 2H and I). These results suggest that muscone treatment may induce apoptosis and autophagy in HepG2 cells.

Muscone-induced HepG2 cell apoptosis is associated with endoplasmic reticulum (ER) stress through the PERK/ATF4/DDIT3 signaling pathway

To determine the molecular mechanism used by muscone to induce apoptosis, transcriptome sequencing analysis was performed in HepG2 cells treated with muscone. The differentially expressed genes (DEGs) [|log2 (fold-change|)>1 and q-value <0.005] were screened according to the two threshold values: Fold-change and significance level. A total of 170 genes demonstrated differential expression following muscone treatment, of which 131 genes had increased expression levels and 39 genes were found to have reduced expression levels (Fig. 3A). Statistical analysis of these data indicated that genes associated with ER stress, such as ATF4, DDIT3, TIRB3 and FGF21 (32–35), had markedly increased expression levels (Fig. 3B). These results were further confirmed by RT-qPCR analysis (Fig. 3C-F). This indicated that muscone treatment may induce HepG2 cell apoptosis through ER stress. The DDIT3 transcription factor is an important pro-apoptotic factor in ER stress that is highly expressed under such conditions (36). It is activated by three transmembrane signaling proteins on the ER membrane, including PERK (37), and during periods of excessive or long-lived ER stress, activated PERK forms a complex with eIF2α and ATF4 to induce DDIT3 expression (38,39). DDIT3 subsequently accumulates in the nucleus, promoting apoptosis and inhibiting the expression of the anti-apoptotic protein, Bcl-2 (40). Since ATF4 and DDIT3 expression levels were significantly increased following muscone treatment compared with the control (Fig. 3C and D), it was hypothesized that muscone may induce HepG2 cell apoptosis through the PERK/ATF4/DDIT3 signaling pathway. To verify this, the changes in the expression levels of relevant proteins in this pathway were investigated. Muscone treatment markedly increased the phosphorylation levels of PERK and eIF2α proteins, and the expression levels of ATF4 and DDIT3 in the downstream signaling pathway (Fig. 3G). To confirm the effects of ER stress on muscone-induced growth inhibition, ER stress was blocked by treatment with 3 mM 4-PBA for 1 h, followed by treatment with muscone for 24 h. DAPI staining and flow cytometric analysis revealed that 4-PBA treatment inhibited muscone-induced apoptosis (Fig. 3H and I). Compared with the muscone treatment group, 4-PBA treatment markedly decreased the phosphorylation of PERK and eIF2α proteins, as well as the protein expression levels of ATF4 and DDIT3 (Fig. 3J), 4-PBA treatment also partially reversed muscone-induced cell viability inhibition (Fig. 3K). These results further confirmed that muscone may induce HepG2 cell apoptosis through the PERK/ATF4/DDIT3 signaling pathway.

Figure 3. Transcriptome sequencing and gene expression analysis of HepG2 cells revealed that muscone influences the expression levels of genes associated with ER stress. (A) Volcano plot demonstrating the DEGs identified in HepG2 cells following muscone treatment. Overall, 131 upregulated genes and 39 downregulated genes were identified in the muscone group compared with the DMSO group. DEGs were screened according to fold-change and significance level [|log2 (Fold Change) | >1 and q-value <0.005]. Red, upregulated; green, downregulated; blue, no change. (B) Fold-change of genes associated with ER stress (ATF4, DDIT3, TRIB3 and FGF21) in HepG2 cells (DMSO vs. muscone) following transcriptome sequencing and gene expression analysis. (C-F) Reverse transcription-quantitative PCR analysis of (C) ATF4, (D) DDIT3, (E) TRIB3 and (F) FGF21 expression levels in HepG2 cells treated with DMSO or muscone for 24 h. Expression levels were normalized to the control group (no treatment). (G) Expression levels of proteins involved in the PERK/ATF4/DDIT3 signaling pathway in HepG2 cells treated with DMSO or muscone for 24 h were detected using western blotting. (H) Effects of 4-PBA treatment on muscone-induced apoptosis. Apoptotic cells were stained with DAPI and visualized using a microscope at an ×40 magnification (Olympus IX71). (I) Apoptotic rate was determined in muscone and muscone + 4-PBA treated cells using flow cytometry based on the percentage of Annexin V/FITC-positive cells. (J) Expression levels of PERK/ATF4/DDIT3 signaling pathway-related proteins were detected using western blotting. (K) Effects of 4-PBA inhibition on muscone cell viability in HepG2 cells. **P<0.01 vs. control group; #P<0.05 vs. muscone group; n=3; NS, not significant. PI, propidium iodide; DEGs, differentially expressed genes; ER, endoplasmic reticulum; ATF4, anti-activating transcription factor 4; DDIT3, anti-DNA damage inducible transcript 3; TRIB3, Tribbles pseudokinase 3; FGF21, fibroblast growth dactor 21; 4-PBA, 4-phenyl butyric acid.

Muscone induces HepG2 cell autophagy through the SESN2/AMPK/mTOR1 signaling pathway

To further investigate which autophagy-related signaling pathways are regulated by muscone, transcriptome sequence analysis of HepG2 cells treated with DMSO or muscone was performed. GO analysis demonstrated that the function of DEGs was associated with ‘aminoacyl tRNA ligase activity’, ‘synthesis pathways’ and ‘organic nitrogen complex metabolic pathways’ (data not shown). KEGG pathway analysis reported that the DEGs were mainly enriched in the following pathways: ‘One-carbon pool by folate’, ‘peroxisome’, ‘fatty acid metabolism (degradation, synthesis and metabolism)’, ‘pyruvate metabolism’, ‘p53 signaling’, ‘HIF-1 signaling’, ‘organic selenium compound metabolism’, ‘AMPK signaling’ and ‘PPAR signaling’ (Fig. 4A). Western blotting further revealed that muscone increased AMPK expression levels and suppressed the mTOR pathway (Fig. 4B). Among the DEGs, the autophagy-related gene SESN2 (41) was reported to be highly activated by muscone treatment (Fig. 4C and D).

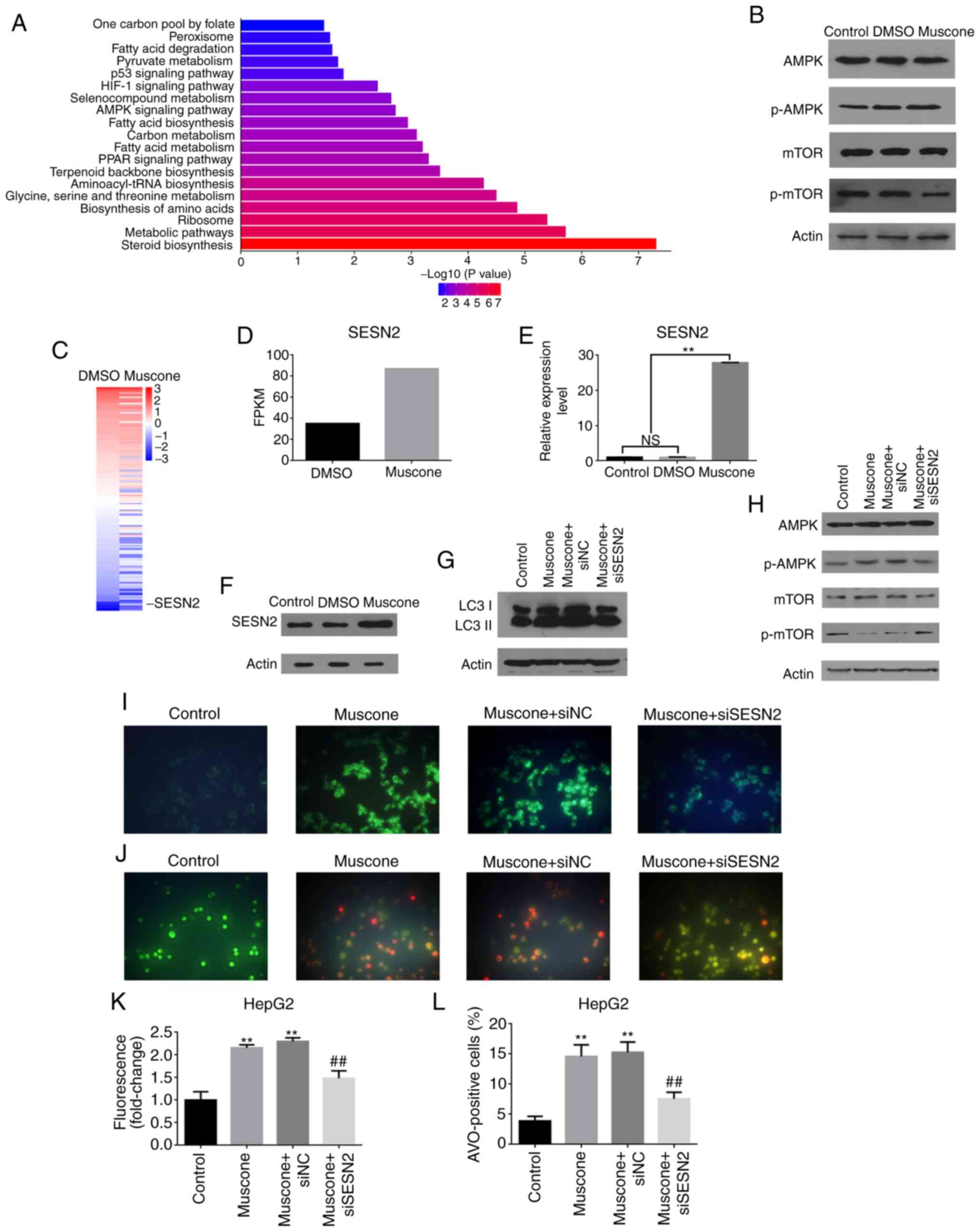

Figure 4. Muscone induces HepG2 cell autophagy through the SESN2/AMPK/mTOR1 signaling pathway. (A) Top Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways enriched in HepG2 cells following treatment with DMSO vs. muscone. (B) Expression levels of AMPK/mTOR signaling pathway proteins in HepG2 cells treated with DMSO or muscone for 24 h were assessed using western blotting. (C) SESN2 gene expression is increased by muscone treatment. (D) FPKM of SESN2 expression identified by RNA-Seq. (E) Relative expression levels of SESN2 in HepG2 cells was assessed using reverse transcription-quantitative PCR following treatment with DMSO or muscone. (F) Expression levels of SESN2 in HepG2 cells treated with DMSO or muscone were assessed using western blotting. (G) LC3 protein expression levels in siSESN2-transfected HepG2 cells treated with muscone for 24 h were assessed using western blotting. (H) Phosphorylation of mTOR and AMPK in HepG2 cells was detected using western blotting in siSESN2-transfected HepG2 cells treated with muscone for 24 h. (I and J) Representative micrographs of (I) MDC staining and (J) AO staining of HepG2 cells at an ×100 magnification. (K) MDC fluorescence intensity fold-change was measured using a fluorescence microplate reader. (L) Positive AO staining cell counting. Densitometric analysis was performed using ImageJ software. **P<0.01 vs. control group; ##P<0.01 vs. muscone group; n=3; NS, not significant; MDC, monodansylcadaverine; AO, acridine orange; LC3, light chain 3; SESN2, anti-sestrin 2; AMPK, AMP-activated protein kinase; mTOR1, mechanistic target of rapamycin kinase 1.

The involvement of SESN2 in muscone-associated autophagy was investigated further, and it was observed that the expression levels of SESN2 were significantly increased at both the mRNA and protein level by muscone treatment (Fig. 4E and F). Using siRNA targeting human SESN2 to knock down its endogenous expression in HepG2 cells, it was demonstrated that LC3 II expression levels were decreased in SESN2-knockdown cells treated with muscone compared with the control (Fig. 4G). In addition, SESN2 depletion significantly attenuated the muscone-mediated induction of AMPK and mTOR phosphorylation (Fig. 4H). AVOs were visualized using MDC staining and AO staining (Fig. 4I and J). Results showed a significantly reduced percentage of AVO-positive cells which was demonstrated using fluorescence analysis (Fig. 4K) and cell counts (Fig. 4L). These findings suggested that muscone may induce autophagy through the SESN2-mediated activation of the AMPK pathway.

Muscone induces autophagy-dependent apoptosis in HepG2 cells

Taken together, the results of the present study demonstrated that muscone triggered apoptotic cell death and simultaneously activated autophagy in liver cancer cells. To investigate whether autophagy affected muscone-induced apoptotic cell death, the autophagy inhibitor, 3-MA was used. Compared with the muscone group, the pretreatment of cells with 3-MA reduced muscone-induced autophagy, which was demonstrated through decreased expression levels of LC3 II (Fig. 5A and B). The 3-MA inhibitor relieved the muscone-induced chromatin condensation in HepG2 cells and attenuated the muscone-induced increased expression levels of caspase-3 in HepG2 cells (Fig. 5C-E). Additionally, the pretreatment of cells with 3-MA relieved the significantly decreased levels of cell viability induced by muscone (Fig. 5F). These data demonstrated that the inhibition of autophagosome formation by 3-MA attenuated muscone-induced apoptosis, suggesting that muscone-induced apoptosis may be partially autophagy-dependent.

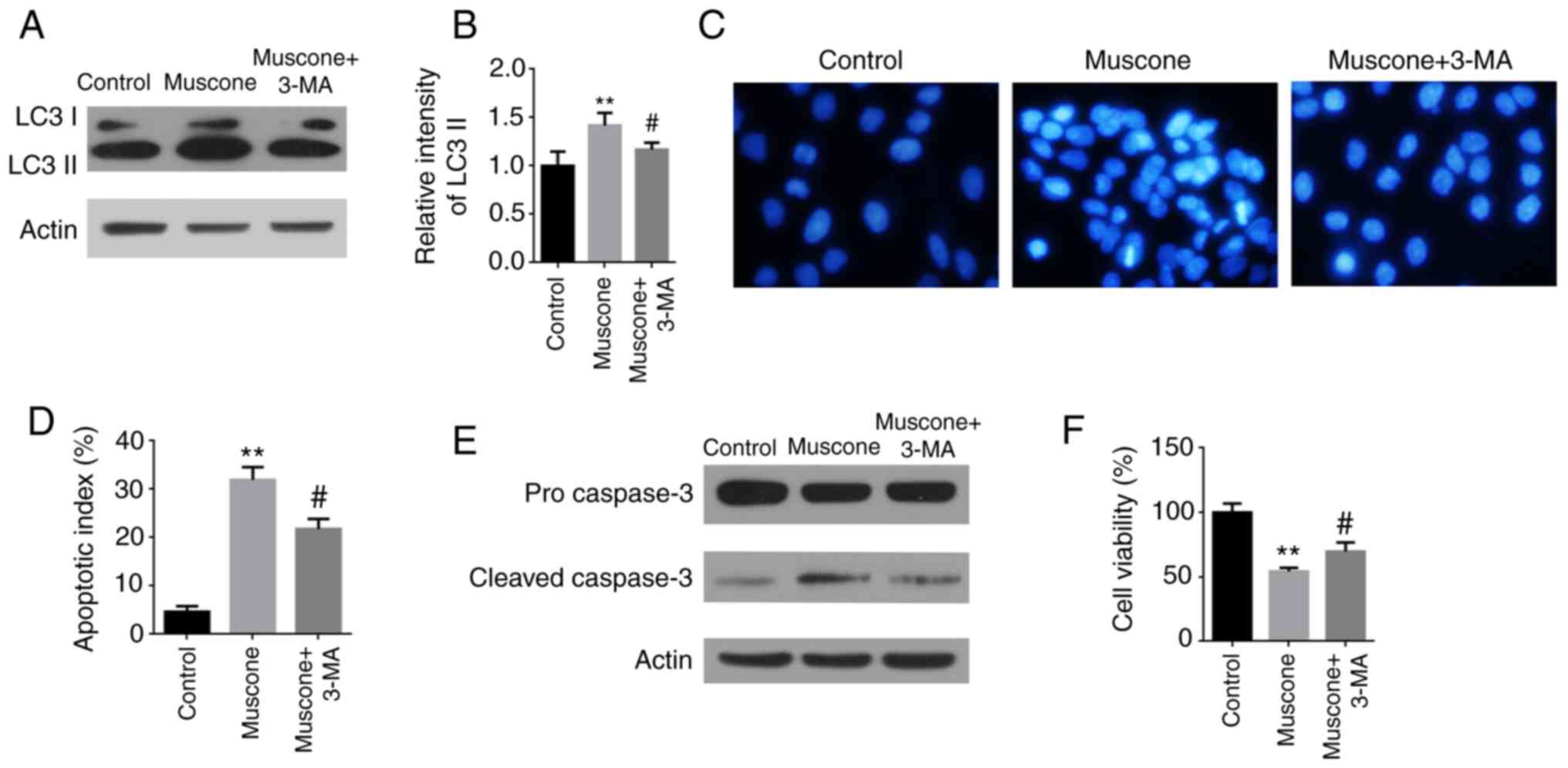

Figure 5. Effect of autophagy on muscone-induced apoptosis in HepG2 cells. HepG2 cells were pretreated with or without 1 mM 3-MA for 2 h, and then treated with muscone for 24 h. (A) LC3 I and LC3 II expression levels were measured using western blotting. (B) LC3 II levels were quantified by densitometric analysis relative to LC3 I. Error bars represent the standard deviations for n=3. (C) Apoptotic nuclear changes were assessed using Hoechst staining at an ×200 magnification (Olympus IX71). (D) Apoptotic index was determined using the micrographs obtained in part B. (E) Protein expression levels of pro-caspase-3 and cleaved caspase-3 in HepG2 cells were analyzed using western blotting. (F) Cell viability of HepG2 cells was measured using a Cell Counting Kit-8 assay. **P<0.01 vs. control group; #P<0.05 vs. muscone group; n=3. LC3, light chain 3; 3-MA, 3-methyladenine.

Muscone suppresses subcutaneous tumor growth in mice

The effects of muscone on tumor growth in vivo were subsequently investigated. HepG2 cells were injected subcutaneously into athymic nude mice as previously described (42). The transplantation of HepG2 cells into nude mice successfully induced the in-situ formation of liver cancer (Fig. 6A). Treatment with muscone for 1 week significantly reduced the tumor volume and weight compared with DMSO treatment (Fig. 6B-D). The role of apoptosis in muscone-inhibited subcutaneous tumor growth was analyzed. The apoptosis-related proteins, including Bax, Bcl-2 and caspase-3 were assayed using western blotting of two different groups (group 1: No. 1 and No. 5 subcutaneous tumor in Fig. 6B; group 2: No. 2 and No. 6 subcutaneous tumor in Fig. 6B). The protein expression levels of cleaved caspase-3 and Bax were markedly increased, whereas Bcl-2 expression levels were decreased in the muscone-treated group compared with the control (Fig. 6E). To further confirm that muscone induced subcutaneous tumor apoptosis via the PERK/ATF4/DDIT3 signaling pathway, the phosphorylation levels of eIF2α and PERK, as well as the protein expression levels of ATF4 and DDIT3 were examined. Muscone treatment increased the expression levels of the PERK/ATF4/DDIT3 signaling pathway-related proteins compared with the DMSO group (Fig. 6E). Thus, the role of autophagy in muscone-induced inhibition of tumor growth was further investigated by analyzing the protein expression levels of p-AMPK, p-mTOR, SESN2 and LC3-II. Muscone treatment markedly increased the expression levels of p-AMPK, LC3-II and SENS2, and reduced the expression levels of p-mTOR compared with the DMSO group (Fig. 6F). These results suggest that muscone may inhibit HCC-transplanted subcutaneous tumor growth in vivo by inducing apoptosis and autophagy.

Figure 6. Effects of muscone on subcutaneous tumor growth in HepG2 cells. (A and B) Morphology of HepG2 cell subcutaneous tumors in BALB/c nude mice injected with HepG2 cells and treated with muscone (no. 5-8) or DMSO (no. 1-4). (C) Tumor volumes of BALB/c nude mice injected with HepG2 cells and treated with DMSO or muscone. (D) Tumor weight (in mg) of subcutaneous tumors in BALB/c nude mice injected with HepG2 cells and treated with muscone or DMSO. (E) Expression levels of PERK/ATF4/DDIT3 signaling pathway-related proteins (p-eIF2α, p-PERK, ATF4 and DDIT3) and apoptosis-related markers (Bax, Bcl-2 and caspase-3) were detected by western blotting from two different groups of tumor tissues (group 1: no. 1 and no. 5 subcutaneous tumors; group 2: no. 2 and no. 6 subcutaneous tumors). (F) Western blotting was used to analyze the expression levels of autophagy-related markers in two different groups of tumor tissues (group 1: no. 1 and no. 5; group 2: no. 2 and no. 6). Actin was used as a loading control. (G) Reverse transcription-quantitative PCR analysis was used to analyze SESN2 expression levels in HCC tissues (T) compared with corresponding non-cancerous tissues (N). *P<0.05. (H) Western blotting was used to investigate SESN2 expression levels in 5 samples randomly selected from HCC tumor samples compared with corresponding non-cancerous tissue samples. p-eiF2α, phosphorylated eukaryotic initiation factor 2α; p-PERK, phosphorylated protein kinase R-like endoplasmic reticulum kinase; ATF4, anti-activating transcription factor 4; DDIT3, anti-DNA damage inducible transcript 3; p-AMPK, phosphorylated AMP-activated protein kinase; p-mTOR1, phosphorylated mechanistic target of rapamycin kinase 1; SESN2, anti-sestrin 2.

Finally, the prognostic role of SESN2 expression levels in HCC was investigated. RT-qPCR and western blotting demonstrated that both SESN2 mRNA and protein expression levels were significantly decreased in the 14 human HCC tissues compared with the non-cancerous tissue samples (Fig. 6G and H). Thus, these findings indicated that SESN2 may be a potential candidate for understanding the molecular mechanisms of hepatocarcinogenesis, and especially for HCC diagnosis and therapy.

Discussion

In the present study, the effects of muscone on the induction of liver cancer cell apoptosis and autophagy were investigated. Muscone exhibited a broad range of antitumor activities that were mediated by apoptotic and autophagic pathways, which is consistent with that observed in previous clinical studies. Using RNA-Seq to detect differentially expressed genes (DEGs) and signaling pathways in HepG2 cells treated with muscone, it was demonstrated that ER stress was mediated by the muscone-induced PERK/ATF4/DDIT3 apoptotic pathway and the SENS2/AMPK autophagy signaling pathway. In vivo experiments also confirmed that the intraperitoneal injection of muscone inhibited the proliferation of transplanted tumors in nude mice; this inhibition was related to the PERK/ATF4/DDIT3 apoptotic signaling pathway and the SESN2/AMPK/mTOR autophagy signaling pathway.

In previous studies, both autophagy and apoptosis have been reported to occur in the same cells (43–46), and are suggested to intersect with each other through the mTOR and AMPK signaling pathways (47,48). Several coinciding apoptotic signals, such as the AMPK signaling pathway and Bax have also been demonstrated to activate autophagy (49). In fact, autophagy-induced apoptosis has been reported by numerous studies (50,51) and it is currently hypothesized that these processes most commonly occur in sequence, with autophagy preceding apoptosis (52). The results of the present study revealed that the inhibition of autophagosome formation attenuated muscone-induced apoptosis, suggesting that muscone-induced apoptosis may be partially autophagy-dependent. In support of autophagy-dependent apoptosis, it has been suggested that autophagy may function upstream of apoptosis and participate in the process of membrane blebbing by maintaining cellular ATP levels (53,54); however, this possibility remains to be elucidated in future studies.

The present study indicated that the SESN2/AMPK/mTOR pathway may be an important pathway for mediating muscone-induced autophagy in liver cancer cells. The SESN family of proteins consists of a highly conserved group of stress-inducible proteins with molecular weights ranging between 54–57 kDa. They are activated by different environmental stresses, such as DNA damage, oxidative stress and hypoxia, and following activation, they promote the recycling of peroxiredoxin through their sulfonic reductase activity to reduce the levels of reactive oxygen species (55). SESNs have also been reported to regulate the AMPK/mTOR complex 1 signaling pathway, which is involved in cellular autophagy (56,57). Our study detected decreased expression levels of SESN2 in liver cancer tissues compared with paracancerous tissues (58), which provided clinical evidence that muscone may inhibit tumor development.

In conclusion, to the best of our knowledge, the findings from the present study were among the first to suggest that in addition to its analgesic effects, muscone may also induce liver cancer cell autophagy and apoptosis. Autophagy and apoptosis prevent necrosis-induced inflammatory responses in tumor tissues and ameliorate tissue pain caused by the compression induced by tumor growth. Another advantage of muscone is that its low toxicity prevents toxic inflammatory responses from occurring in healthy liver cells, which is of great importance for clinical practice. Thus, these findings revealed that muscone demonstrated potential for its use clinically as an anticancer drug, which may provide the basis for the development of more effective anticancer drugs derived from natural substances. Future studies are required to develop highly efficient anticancer drugs that target tumor cells.
