Introduction

Heart failure refers to a group of clinical syndromes caused by ventricular filling and/or impaired ejection capacity due to various cardiac structures and/or functional diseases, which is the end stage of various cardiovascular diseases (1). At present, scholars worldwide have agreed that cardiac remodeling is the root cause of the development and progression of heart failure (2,3). Thus, inhibition of cardiac remodeling can improve cardiac function and long-term prognosis of patients with heart failure. Under the guidance of this theory, the clinical treatment mode of heart failure has also been transformed from the simple improvement of hemodynamics to the treatment that aims to improve the cardiac remodeling (4,5), such as the inhibition of renin-angiotensin-aldosterone system (RAAS) and sympathetic nervous system. At present, the clinical drugs used to inhibit RAAS and sympathetic nervous system mainly include the β-receptor blocker, angiotensin converting enzyme inhibitor, angiotensin receptor inhibitor and aldosterone receptor antagonist. The wide application of these drugs helps significantly decrease the fatality rate and hospitalization rate of heart failure. But the morbidity and mortality of heart failure are still high, which are still the main causes of disability and death of cardiovascular diseases, seriously threatening human health (6,7). Therefore, research on new anti-heart failure drugs is still in the ascendant.

The fundamental feature of heart failure is cardiac remodeling, which is the change in myocardial structure, function and phenotype due to a series of complex molecular and cellular mechanisms, manifested as pathological hypertrophy of myocardial cells, myocardial cell apoptosis, and excessive fibrosis or increased degradation of extracellular matrix (8–10). Myocardial cell apoptosis is the main reason for the continuous loss of myocardial contraction units in the development and progression of heart failure, which is related to the progressive decrease of cardiac function, and involved in the basic pathological and physiological processes of heart failure. Therefore, the inhibition of myocardial cell apoptosis has important clinical significance for the reduction of cardiac remodeling and improvement of cardiac function. Recent studies have shown that endoplasmic reticulum stress (ERS) is associated with heart failure, and ERS-mediated myocardial cell apoptosis is an important aspect of cardiac remodeling (11,12), thus inhibiting the ERS-mediated myocardial cell apoptosis is of great importance for improvement of cardiac function.

Berberine is the main active ingredient of traditional Chinese medicine, Coptis chinensis, mainly used clinically in the treatment of bacterial infection of gastrointestinal tract. The latest study has found that berberine has not only a good anti-dysentery activity, but also a variety of cardiovascular pharmacological activity, such as antiarrhythmic effect, anti-heart failure, antihypertensive effect and regulation of blood lipids (13–16). Clinical studies have confirmed that berberine has the function to enhance myocardial contractility and improve left ventricular function (17). Berberine increasingly shows a certain function in the treatment of cardiovascular disease, especially heart failure, but its mechanism of anti-heart failure remains unclear.

This study hypothesized that the myocardial cell apoptosis caused by persistent ERS response was involved in the cardiac remodeling of heart failure, and berberine could reduce the myocardial cell apoptosis and improve cardiac remodeling through inhibiting ERS response, thereby improving the cardiac function. The rat model of heart failure after myocardial infarction was established, followed by berberine intervention, so as to study its effects on ERS-mediated myocardial cell apoptosis and its correlation with cardiac function, thereby investigating the mechanism of berberine improving the cardiac function of heart failure rats.

Materials and methods

Experimental animal and myocardial infarction model

Fifty female Wistar rats weighing 200–220 g were fed in the animal center for one week to adapt to the environment. After fasting for 4–6 h, under anesthesia via inhalation of ether, the rats were fixed on the operating table in a supine position; the chest hair was shaved and disinfected; and a purse was made in the chest to be opened using a no. 10 suture, and the pericardium was quickly opened to expose the heart. The coronary artery was found in the pulmonary arterial cone and left atrium; then the anterior descending coronary artery was ligatured using a no. 0 suture and the heart was placed back to the chest; the air and blood in the chest were squeezed out, and the purse and chest were quickly closed. The thoracotomy lasted for <30 sec in total. The steps for the Sham group were the same as those in the model group, except for stringing and no ligation. After operation, the rats received intraperitoneal injection of penicillin (200,000 U/kg) for 7 days to prevent infection. This study was approved by the Animal Ethics Committee of Fujian Medical University Animal Center (Fujian, China).

Grouping and administration

At 4 weeks after the myocardial infarction model was established, the rats were randomly divided into three groups: Sham-operation group (Sham group), myocardial infarction control group (Sal group) and berberine treatment group (Ber group). The control group and experimental group received the gavage with the same amount of normal saline and berberine (20 mg/kg) for 4 weeks.

Hemodynamic detection

After administration, rats received the intraperitoneal injection of 3% pentobarbital sodium for anesthesia, and left ventricular intubation via the right common carotid artery. The pressure transducer was connected to the carrier amplifier, the left ventricular end-systolic pressure (LVSP) and left ventricular end-diastolic pressure (LVEDP) were recorded using the 8-channel physiological recorder; the electric signal was input to the differentiator to trace the maximum ascending velocity of left ventricular pressure (+dp/dt) and the maximum descending velocity of left ventricular pressure (-dp/dt).

Determination of plasma BNP level

Before the treatment of rats, 0.5 ml serum was taken from the rat, and 0.5 ml tissue lysis buffer was added, followed by tissue homogenate at 4°C and centrifugation at 4°C for 10 min (1,750 × g); the supernatant was taken and centrifuged again at 4°C for 30 min (10,500 × g), and then recycled. The specific procedures were carried out according to the instructions of the kit.

Pathomorphological detection of myocardial tissue

The pathomorphological changes in myocardium were evaluated via H&E staining. The pathomorphological changes in myocardial tissue were observed via an optical microscope (BX-42, Olympus Corporation, Tokyo, Japan). The degree of myocardial fibrosis was analyzed via Massons staining: pale blue for collagen fibers, pink for muscle fibers, red blood cells and cytoplasm, and blue brown for nuclei.

Detection of apoptotic cells

TUNEL staining was applied to myocardial tissues, followed by counting the number of apoptotic cells under an optical microscope and then images were captured.

Immunohistochemistry

The expression levels of Bcl-2, Bax and caspase-3 were detected by immunohistochemistry. After the slices were treated according to the standard procedure, Bcl-2, Bax and caspase-3 primary antibody diluents were added for reaction at room temperature for 3 h. Then the secondary antibody was used for 30 min incubation, followed by color development using the hypersensitivity kit according to the supplier's protocol. Rabbit polyclonal Bcl-2 antibody (1:100; cat. no. ab59348), rabbit monoclonal Bax antibody (1:100; cat. no. ab32503), rabbit polyclonal caspase-3 antibody (1:100; cat. no. ab13847) and secondary goat anti-rabbit (HRP) IgG antibody (1:1,000; cat. no. ab6721) were all purchased from Abcam (Cambridge, MA, USA).

Protein extraction and western blot analysis

The heart was taken from the rat and the total protein was extracted according to the standard procedure, followed by protein quantification via BCA method. Endoplasmic reticulum stress-related proteins were detected by western blot analysis. The concentration of separation gel (15%) and the size of electrophoresis voltage were adjusted according to the molecular weight of target protein, followed by color development via chemiluminesence kit (Merck Millipore, Burlington, MA, USA) and semi-quantitative analysis via gray value. Primary rabbit polyclonal GRP78 antibody (1:500; cat. no. ab21685); rabbit monoclonal CHOP antibody (1:500; cat. no. ab179823); rabbit polyclonal caspase-12 antibody (1:500; cat. no. ab62484); rabbit polyclonal GAPDH antibody (1:500, cat. no. ab37168) and secondary goat anti-rabbit (HRP) IgG antibody (1:2,000; cat. no.. ab6721) purchased from Abcam (Cambridge, MA, USA), were used for Western blot analysis.

RNA extraction and RT-PCR

According to the standard procedure, RNA in myocardial tissues was extracted, and the primer design and synthesis were completed by Shanghai Sangon Co. (Shanghai, China). Total RNA was taken to synthesize complementary deoxyribonucleic acid (cDNA) using the RT Revert Aid First Strand cDNA Synthesis kit (Thermo Fisher Scientific, Inc., Waltham, MA, USA). PCR was performed after reverse transcription according to the instructions of Invitrogen kit (Invitrogen, Carlsbad, CA, USA). ImageJ software (version X; Media Cybernetics, Silver Spring, MD, USA) was employed for determination of bands grey values. Primer sequences used in this study was according to previous reports (11,12).

Statistical analysis

Data were analyzed using SPSS 17.0 statistical software (Chicago, IL, USA). Student's t-test was used for the comparison between the two groups, and one-way analysis of variance followed by post hoc test (Least Significant Difference) was used for the comparison of correlation among groups. P<0.05 suggested that the difference was statistically significant.

Results

Berberine improves the cardiac function of rats after myocardial infarction

Compared with those in Sham group, LVEDP in Sal group was significantly increased, but LVSP and ±dp/dt were significantly decreased at 8 weeks after myocardial infarction. After berberine treatment, LVEDP was decreased and LVSP and ±dp/dt were increased. At the end of experiment, plasma BNP levels in the Sham, Sal and Ber groups were measured. Compared with that in Sham group, BNP level in Sal group was significantly increased. By contrast, it was found that berberine significantly decreased the BNP level (Fig. 1).

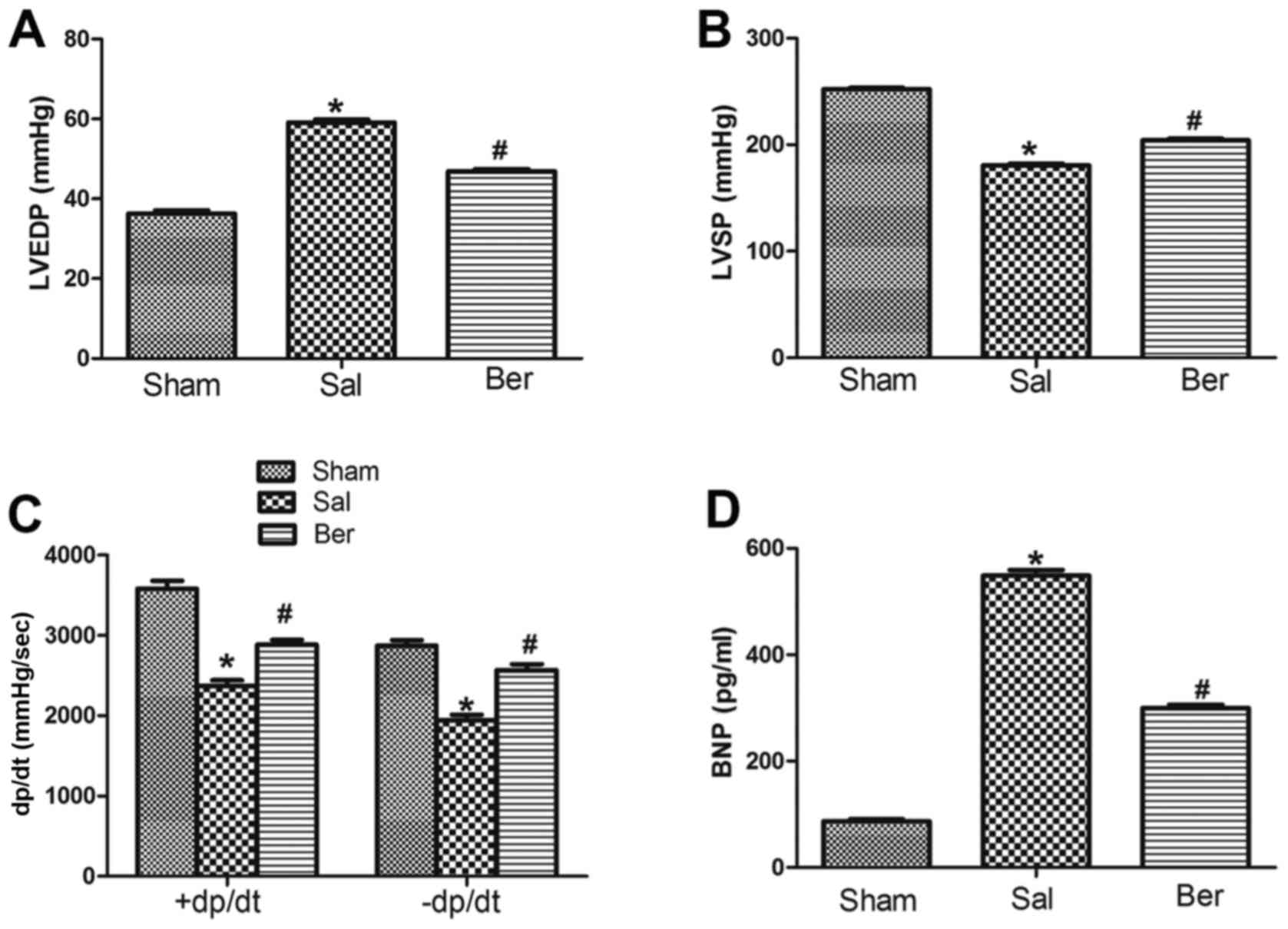

Figure 1. Berberine improves the cardiac function of rats after myocardial infarction. (A) Analysis of left ventricular end-diastolic pressure (LVEDP). (B) Analysis of left ventricular end-systolic pressure (LVSP). (C) Analysis of ±dp/dt. (D) Analysis of BNP. *P<0.05 vs. Sham group; #P<0.05 vs. Sal group.

Berberine improves the myocardial fibrosis after myocardial infarction

H&E staining showed that the myocardial cells in Sham group were neatly arranged with clear transverse striations. The myocardial cells in Sal group were swollen with irregular shape and disordered arrangement, and the gap of myocardial cells was filled with a large number of fibrous tissues, and the transverse striations were blurry and broken. After berberine treatment, myocardial cells were neatly arranged with decreased degree of fibroplasias (Fig. 2A). Massons staining showed that myocardial cells dominated in the Sham group, and there were no obvious myocardial interstitial and collagen components. In Sal group, there were obvious collagen components with a small number of myocardial cells. After berberine treatment, the number of myocardial cells and nuclei was significantly increased, but the collagen component was significantly decreased (Fig. 2B).

Figure 2. Berberine improves myocardial fibrosis after myocardial infarction. (A) Representative H&E staining images of the peri-infarct area of rats. (B) Representative Massons staining images of the peri-infarct area of rats.

Berberine reduces cell apoptosis after myocardial infarction

TUNEL staining showed that compared with that in Sham group, the myocardial cell apoptosis in Sal group was significantly increased, suggesting that berberine can inhibit myocardial cell apoptosis of heart failure (Fig. 3A). Immunohistochemical detection showed yellow brown staining region in the three groups of myocardial tissues, indicating that the protein expression in Bcl-2, Bax and caspase-3 existed in the three groups of myocardial tissues. Compared with those in Sham group, Bcl-2 in Sal group was significantly decreased, but Bax and caspase-3 were significantly increased, suggesting that berberine can increase the expression of Bcl-2 and decrease the expression of Bax and caspase-3 (Fig. 3B-D).

Figure 3. Berberine reduces cell apoptosis after myocardial infarction. (A) Representative TUNEL images of the peri-infarct area of rats. Representative immunohistochemical images of (B) Bcl-2, (C) Bax, and (D) caspase-3.

Berberine alleviates ERS response after myocardial infarction

The results of western blot analysis showed that the expression of GRP78 (Fig. 4A and B), CHOP and caspase-12 (Fig. 4C and D) in myocardium was increased significantly after myocardial infarction, suggesting that berberine can significantly decrease the expressions of GRP78, CHOP and caspase-12. The results of RT-PCR further proved that the mRNA expression in GRP78, CHOP and caspase-12 were increased after myocardial infarction, suggesting that berberine can significantly reduce the mRNA expression in GRP78, CHOP and caspase-12 (Fig. 4).

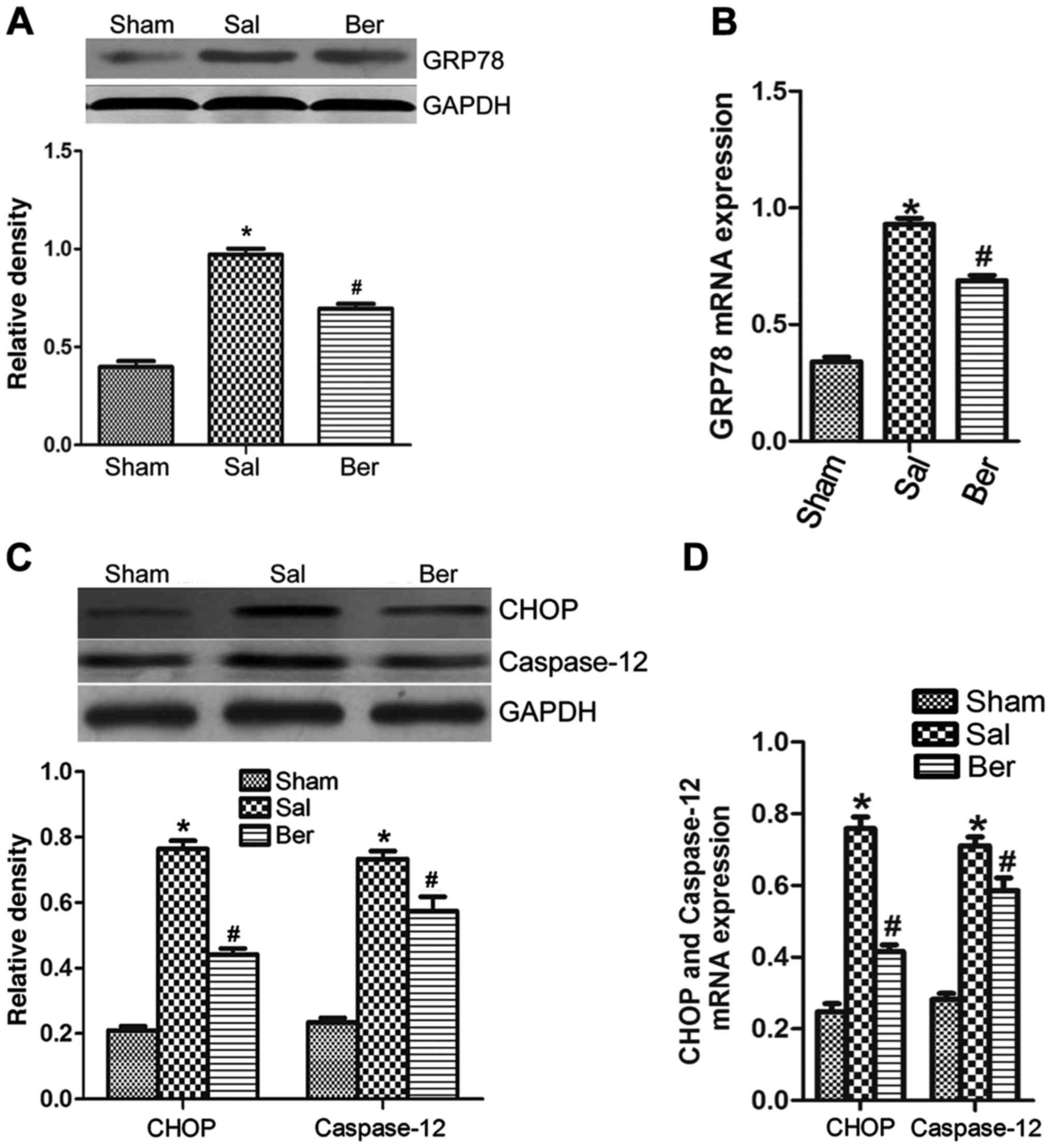

Figure 4. Berberine alleviates endoplasmic reticulum stress (ERS) response after myocardial infarction. (A) Western blot analyses reveals the expression of GRP78. (B) RT-PCR analysis reveals the level of GRP78 mRNA. (C) Western blot analyses reveals the expression of CHOP and caspase-12. (D) RT-PCR analysis reveals the level of CHOP and caspase-12 mRNA. *P<0.05 vs. Sham group; #P<0.05 vs. Sal group.

Discussion

Myocardial infarction leads to heart failure and to changes in cardiac hemodynamics. LVEDP is an index reflecting the left ventricular preload, which depends on the returned blood volume before ventricular systole and cardiac ejection function. The maximum ascending velocity (+dp/dt) of left ventricular pressure during isovolumetric contraction phase reflects the maximum velocity of tension changes in ventricular wall in systole. It is affected by cardiac afterload and myocardial contractility, which is an important index to evaluate myocardial contractility. The maximum descending velocity (-dp/dt) of left ventricular pressure during isovolumetric relaxation phase is mainly affected by the preload of myocardial relaxation. ±dp/dt will be decreased and LVEDP will be increased when myocardial systolic and diastolic function is inhibited (18). In this experiment, compared with that in Sham group, LVEDP in Sal group was significantly increased and ±dp/dt was decreased, indicating that the myocardial systolic and diastolic function of rats with heart failure after myocardial infarction was impaired. Berberine can reduce LVEDP, improve LVSP and ±dp/dt and decrease the plasma BNP level, indicating that berberine can improve the cardiac function of heart failure after myocardial infarction.

Cardiac remodeling occurs after myocardial infarction, which is manifested as the disordered arrangement of myocardial cells and significant increase of myocardial fibrosis in heart morphology (19). In this study, myocardial cells were arranged disorderly and myocardial fibrosis was obvious with cardiac remodeling in non-infarcted zone in Sal group. Berberine can significantly inhibit the left ventricular myocardial fibrosis of heart failure and reduce cardiac remodeling.

Previous findings showed that, at 1–6 h after myocardial infarction, the frequency of myocardial cell apoptosis away from the infarcted zone was significantly correlated with LVEDP, reflecting the severity of left ventricular insufficiency (20). In addition, the nitric oxide synthase gene deletion via gene knockout showed that the number of apoptotic myocardial cells was decreased and LVEF was increased after myocardial infarction, suggesting that the improvement of cardiac function in heart failure is closely related to the decrease of frequency of myocardial cell apoptosis away from the infarcted zone, and the myocardial cell apoptosis away from the infarcted zone may be one of the important reasons for cardiac remodeling and development of heart failure after myocardial infarction (20). In heart failure, the hypoxia-ischemia of myocardial cells, oxidative stress, inflammatory factors, mechanical load and neuroendocrine factors, can induce myocardial cell apoptosis (21,22), but which factor dominates in heart failure remains unclear, and the specific mechanism of myocardial apoptosis and relationship need to be further studied. At present, animal experiments and autopsy of patients with heart failure have shown that myocardial cell apoptosis exists in heart failure, but the proportion of apoptosis varies in different studies. TUNEL staining is a sensitive index of evaluating apoptosis. In this study, the level of myocardial cell apoptosis was evaluated by TUNEL staining. It was found that the proportion of myocardial cell apoptosis in non-infarcted zone in heart failure after myocardial infarction was much higher than that in Sham group, and such a change was related to the severity of cardiac remodeling; and the increased level of myocardial cell apoptosis in Sal group was related to the increased levels of plasma BNP and LVEDP and the decreased levels of LVSP and ±dp/dt, which was consistent with the results in most literature, suggesting that myocardial cell apoptosis is involved in the cardiac remodeling in heart failure after myocardial infarction, deteriorating the cardiac function.

Bcl-2 and Bax are the most important members of Bcl-2 family, which are involved in the regulation of apoptosis (23): The decreased protein expression of Bcl-2, the increased protein expression of Bax and the downregulation of Bcl-2/Bax protein expression level induce cell apoptosis. In this study, it was found that Bcl-2 protein expression was decreased in heart failure after myocardial infarction, and Bax protein expression was increased, which was consistent with increased myocardial cell apoptosis. After berberine treatment, Bcl-2 protein expression was increased, Bax protein expression was decreased and the apoptosis level was decreased, suggesting that berberine inhibits the myocardial cell apoptosis by upregulating the expression of Bcl-2/Bax. Caspase-3 is a member of caspase family, which is an important downstream effector molecule in the apoptosis process and the executor of apoptosis (24). The results of this experiment showed that caspase-3 protein expression in myocardial tissue of heart failure after myocardial infarction was increased, but caspase-3 protein expression was decreased after berberine intervention, suggesting that the inhibitory effect of berberine on caspase-3 expression is involved in the regulation of apoptosis, thus promoting cell survival.

Previous findings have confirmed ERS and ERS-induced myocardial cell apoptosis existed in the pathological process of heart failure, which is manifested as the increased GRP78 expression (25,26) of ERS response and the activation of ERS-mediated CHOP and caspase-12 pathways (12,27). The rat model of heart failure after myocardial infarction was established in this experiment. WB detection showed that compared with that in Sham group, GRP78 protein expression was increased; RT-PCR showed mRNA expression in GRP78 was increased, indicating that ERS response is activated in heart failure after myocardial infarction, and protein and mRNA expression of CHOP and caspase-12 are increased. TUNEL staining showed that the number of apoptotic myocardial cells in heart failure was increased, indicating that ERS response promotes myocardial cell apoptosis through the above apoptotic signaling pathways, which is consistent with the result of previous studies. The protein and mRNA expression of GRP78, CHOP and caspase-12 were downregulated by berberine, and the ratio of positive cells in TUNEL staining was decreased compared with that in Sal group, indicating that berberine inhibits the myocardial cell apoptosis through inhibiting the ERS response in heart failure after myocardial infarction and ERS-induced CHOP and caspase-12 apoptosis signaling pathways.

In conclusion, berberine can inhibit the myocardium cell apoptosis of heart failure after myocardial infarction, and its mechanism may be realized through affecting the ERS in myocardial tissue of heart failure after myocardial infarction and CHOP and caspase-12 apoptotic signaling pathway, upregulating Bcl-2/Bax expression and downregulating caspase-3 expression, thus inhibiting cardiac remodeling and protecting the cardiac function.

Acknowledgements

Not applicable.

Funding

This study was supported by the Medical Innovation Project of Fujian Provice of China (2014-XB-30) and the Natural Science Foundation of Fujian Provice of China (2018J01406).

Availability of data and materials

The datasets used and/or analyzed during the present study are available from the corresponding author on reasonable request.

Authors' contributions

YL, KC and XD conceived and designed the study. WL, GH and GL were responsible for the analysis of the animal data. WS, LC and YF interpreted the western blot and PCR data and drafted the manuscript. YL revised the manuscript critically for important intellectual content. All authors read and approved the final manuscript.

Ethics approval and consent to participate

This study was approved by the Animal Ethics Committee of Fujian Medical University Animal Center (Fujian, China).

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
