Introduction

Nasopharyngeal carcinoma (NPC) is an omnibus terminology for a class of head and neck malignant epithelial tumors, which is characterized by different histopathological appearances and etiopathogenesis of tumorigenesis (1). Although the incidence rate of NPC is rare in clinical settings, the mortality rate is higher in human cancer as it is highly aggressive, according to a clinical investigation (2). It has also been demonstrated that NPC initiates from the epithelial cells of the nasopharynx and is well known as leading to a high rate of regional lymph node metastasis and distant metastasis in patients (3–5). Therefore, strategies of inhibition of migration and invasion may be an efficient potential clinical regiment for NPC therapy.

Generally, radiotherapy has been regarded as a primary treatment of NPC that can temporarily control tumor growth (6). However, high-dose irradiation and/or chemical drugs exhibit high probability of toxicities and may even destroy the fragile immune system in patients with NPC, which in return leads to rapid growth and distant nasopharyngeal invasion (7–9). Iodine-131 (I-131) therapy has been accepted for the treatment of thyroid cancer due to lower radiation of β-radial and easy excretion. A number of reports have focused on I-131 therapy for the treatment of thyroid cancer (10,11). The efficacy of I-131 has been previously investigated for fewer side effects for patients with cancer. Risse et al (12) have investigated the efficacy of I-131 on hepatocellular cancer, and results indicated that I-131-lipiodol exhibited the same efficacy but with fewer side effects compared other radioactive therapy procedures. Zhao et al (13) have also explored novel specific strategies of monoclonal antibody BAC5, an anti-nasopharyngeal cancer monoclonal antibody, conjugated with Chinese cobra and I-13 for NPC therapy. Efficacies of I-131 in radiotherapy have been investigated in clinical trials (14,15). These studies indicated that I-131 combined with other anti-cancer therapy may contribute to neoplasm regression and metastasis suppression.

Lenvatinib (LEB) is a multi-targeted tyrosine kinase inhibitor targeting fibroblast growth factor receptor (FGFR)1-4, platelet-derived growth factor (PDGF) receptor (PDGFR)-β, Ret, vascular endothelial growth factor (VEGF) receptor (VEGFR)1-3 and KIT, which can bind with various receptors associated with tumor angiogenesis (16). Although anti-tumor activities of LEB against various human tumors have been reported in preclinical experiments and in clinical trials, the molecular mechanism of anti-angiogenesis mediated by LEB has not been elaborated in the progression of NPC (17–19). Previous research has indicated that LEB has clinical benefits in renal cancer cells by targeting VEGFR1-3, FGFR1-4, PDGFR-β, Ret, and KIT signaling pathways (20). In addition, several agents that target the VEGF pathway have shown clinical benefits in inhibition of metastatic tumors, which suggested that target receptors of VEGF in cancer cells serve a vital role in tumor therapy (21,22). Furthermore, clinical research has demonstrated that LEB combined with everolimus significantly extends overall survival compared with either LEB or everolimus alone in patients with metastatic renal cancer cells (23).

In the present study, the combined effects of LEB and I-131 were investigated on NPC cells both in vitro and in vivo. Preliminary results of the combined effects of LEB and I-131 on HK-1 cells are presented. The present findings suggest that combination of LEB and I-131 significantly inhibits growth and aggressiveness of NPC through upregulation of endoplasmic reticulum (ER) stress. Notably, apoptosis of NPC cells was markedly promoted via combined management of LEB and I-131.

Materials and methods

Ethics statement

The present study was approved by the Ethics Committee of the Seventh People's Hospital of Shanghai University of Traditional Chinese Medicine (Shanghai, China).

Cell culture and regents

NPC cell line HK-1 was purchased from the American Type Culture Collection (Manassas, VA, USA). HK-1 cells were cultured in Dulbecco's modified Eagle's medium (DMEM; Sigma-Aldrich; Merck KGaA, Darmstadt, Germany) supplemented with 10% fetal bovine serum (FBS; Gibco; Thermo Fisher Scientific, Inc., Waltham, MA, USA). All cells were cultured in a 37°C humidified atmosphere containing 5% CO2.

MTT assay

HK-1 cells were incubated with Lenvatinib (5 mg/ml; Sigma-Aldrich; Merck KGaA) or/and I-131 (3 mg/ml; Zhengzhou Double-radioisotope Application Technology Co., Ltd., Zhengzhou, China) in 96-well plates for 48 h in triplicate for each condition. Following incubation, 20 µl MTT (5 mg/ml) in PBS solution was added to each well and was further incubated for 4 h. the majority of the medium was removed and 100 µl dimethyl sulfoxide was added to each wells to dissolve the crystals. The optical density was measured at a wavelength of 450 nm.

Cell invasion and migration assays

Cultured HK-1 cells were suspended as a density of 1×106 cells in 100 µl serum-free DMEM medium for 24 h at 37°C. HK-1 cells were treated with Lenvatinib (5 mg/ml) or/and I-131 (3 mg/ml), with non-treated cells as a control, and then placed in the upper wells of BD BioCoat Matrigel Chambers (BD Biosciences, Franklin Lakes, NJ, USA) according to the manufacturer's instructions. RPMI-1640 (Thermo Fisher Scientific, Inc.) containing 20% FBS was used in the lower wells. Cells were incubated for 12 h at 37°C. Cells were then stained with 0.5% crystal violet at room temperature for 18 min. HK-1 cell migration and invasion were determined in at least three random fields (magnification, ×20) under light microscopy for each sample. The extent of migration and invasion of HK-1 cells was mapped and quantified using ImageJ 1.37v (National Institutes of Health, Bethesda, MD, USA).

Animal study

A total of 30 male C57BL/6 nude mice (age, 6 weeks; weight, 25–30 g) were purchased from Shanghai SLAC Laboratory Animal Co., Ltd. (Shanghai, China). All animals were housed under pathogen-free conditions at room temperature with 50% humidity and 12-h light/dark cycle, with free access to food and water. A total of 200 µl HK-1 cells (1×106) were injected into the backside of C57BL/6 nude mice. At 6 days following this administration, tumor-bearing mice were divided into four groups (n=30/group) and received treatment of PBS (5 mg/ml), or LEB (5 mg/kg) or/and I-131 (3 mg/kg). Treatments were administered once daily for 10 days. Tumor diameters were recorded every 2 days. Tumor volume was calculated according to the following formula: V=(LxWxW)/2, where V is tumor volume, W is tumor width, L is tumor length. The experimental mice were sacrificed when tumors reached a length of 18 mm.

Western blot analysis

SDS-PAGE assays were used to analyze the affect of Lenvatinib or/and I-131 on protein expression in NPC cells. HK-1 cells were treated with Lenvatinib (5 mg/ml) or/and I-131 (3 mg/ml) for 48 h, with non-treated cells as controls. HK-1 cells were harvested and homogenized at 4°C for 10 min. Radioimmunoprecipitation assay solution (Thermo Fisher Scientific, Inc.) was used to extract protein and concentrations were measured by bicinchoninic acid assay. Proteins (20 µg) were separated on 10% SDS-PAGE gels, followed by transfer to a polyvinylidene difluoride membrane. Membranes were incubated with skimmed milk (5%) for 2 h at room temperature. Membranes were incubated with primary antibodies, including c-jun N-terminal kinase (JNK; 1:1,200, ab112501), P38 (1:1,200; ab31828), activating transcription factor (ATF)6 (1:1,200; ab37149), inositol-requiring protein (IER)1 (1:1,200; ab37037; all Abcam, Cambridge, UK), protein kinase RNA-like endoplasmic reticulum kinase (RERK; 1:1,500, MA5-15705; Invitrogen; Thermo Fisher Scientific., Inc.), B cell lymphoma 2 (Bcl-2; 1:1,200; ab196495), P53 (1:1,200; ab131442), VEGF (1:1,200, ab69479), PDGF (1:1,200; ab32570), caspase-3 (1:1,200; ab13585), caspase-9 (1:1,200; ab32539), metastasis-associated protein (MTA-1; 1:1,200; ab71153), fibronectin (FIB; 1:1,200; ab3413), C/EBP homologous protein (CHOP; 1:1,200; ab11419) and β-actin (1:1,200; ab6276; all Abcam) for 2 h at 37°C. Samples were then incubated with rabbit anti-mouse IgG-horse radish peroxidase-conjugated secondary antibody (1:1,200; sc-358914; Santa Cruz Biotechnology, Inc., Dallas, TX, USA) at room temperature for 2 h and protein expression was analyzed using a Benchmark automated staining system (Ventana Medical Systems, Inc., Tucson, AZ, USA). Data were analyzed using ImageJ 1.37v (National Institutes of Health).

Immunofluorescence

HK-1 cells were treated with Lenvatinib (5 mg/ml) or/and I-131 (3 mg/ml) for 48 h at 37°C and fixed with 10% formaldehyde in 6-well plates for 30 min at 37°C. Degree of ER injury in HK-1 cells was observed via scanning electron microscopy (gold sputter coating; magnification, ×100). Additionally, HK-1 cells were incubated with DAPI for 2 h at 37°C and then incubated with mouse anti-human glucose-regulated protein 78 (GRP78) antibody (1:1,200; 119-14212; RayBiotech, Inc., Norcross, GA, USA) for 2 h at 37°C, followed by incubation with green-fluorescent Invitrogen Alexa Fluor 488 goat anti-mouse IgG1 antibody (1:1,200; A-21121; Thermo Fisher Scientific, Inc.) at room temperature for 1 h to analyze the effects of Lenvatinib or/and I-131 on GRP78 expression. A Benchmark automated staining system was used for observation of purpose protein. Results were observed under light microscope (magnification, ×20).

Immunohistochemistry

Tumors sections were obtained from NPC xenograph mice and were fixed with 10% formaldehyde at 4°C for 8 h and embedded in paraffin. Tumor samples were cut into sections (6 mm) and antigen retrieval was also performed by incubating tissue sections at 93°C for 20 min, followed by incubation on ice for 40 min. Dehydration was performed by passing a graded concentrations of ethanol (100, 95, 85, 70 and 50%) Tumor sections were incubated with rabbit anti-human JNK (1:1,200; ab112501), caspase-3 (1:1,200; ab13847), hypoxia-inducible factor (HIF)1α (1:1,200; ab51608), tumor necrosis factor (TNF)-α (1:1,200; ab6671) and VEGF (1:1,200; ab46154; all Abcam) antibodies for 2 h at 37°C, followed by incubation with anti-rabbit IgG-HRP secondary antibody (1:1,000; MBS435036; MyBioSource, San Diego, CA, USA) at room temperature for 1 h and washing with PBS. VENTANA System Software 12.3 (BenchMark, San Francisco, CA, USA) was used for observation of proteins.

Apoptosis assay

Flow cytometry and terminal deoxynucleotidyl-transferase-mediated dUTP nick end labeling (TUNEL) assays were used to analyze the apoptosis rate of HK-1 cells and apoptotic bodies in tumor tissues. Flow cytometry analyzed apoptosis rate of HK-1 cells via Annexin V-fluorescein isothiocyanate and propidium iodide staining (Annexin V-FITC kit; BD Biosciences). TUNEL assays were used to analyze the number of apoptosis body in tumors isolated form experimental mice through flow cytometry. All procedures were performed as detailed previously (24). Data were analyzed using FlowJo™ software v10.2 (FlowJo LLC, Ashland, OR, USA).

Histopathological examination using hematoxylin and eosin (H&E) staining

Tissues were fixed with 4% formaldehyde overnight at 4°C. Tissues were embedded in paraffin and cut into 6-mm slices. Hematoxylin staining was performed for 8 min at room temperature and counterstain in eosin-phloxine solution was performed for 1 min at room temperature. After staining tissues were observed under an optical microscope (magnification, ×200; Nikon Eclipse TE2000-U; Nikon Corporation, Tokyo, Japan) for histopathological analysis.

Statistical analysis

All data were presented as the means ± standard error of the mean of three independent experiments. Data comparisons between two groups were performed using Student's t-test and comparisons of data between multiple groups were evaluated via one-way analysis of variance followed by Tukey's test. P<0.05 was considered to indicate a statistically significant difference.

Results

Combined effects of LEB and I-131 on growth and aggressiveness of NPC cells in vitro

As presented in Fig. 1A, results indicated that combined treatment of LEB (5 mg/ml) and I-131 (3 mg/ml) significantly inhibited growth of HK-1 NPC cells compared with either LEB or I-131. Migration and invasion assays demonstrated that combination of LEB (10 mg/ml) and I-131 (10 mg/ml) significantly suppressed migration and invasion of HK-1 cells following incubation for 48 h (Fig. 1B and C). Western blot analysis also demonstrated that tumor metastasis-related genes MTA-1 and FIB were significantly decreased by combined treatment of LEB (5 mg/ml) and I-131 (3 mg/ml) compared with either agent alone (Fig. 1D). These data indicate that combined treatment of LEB and I-131 significantly inhibits growth and aggressiveness of NPC cells in vitro.

Figure 1. Combination of LEB and I-131 inhibits growth and aggressiveness of nasopharyngeal carcinoma cells in vitro. (A) Growth of HK-1 cells following treatment with LEB or/and I-131 determined by MTT assay. (B) Migration (magnification, ×20) and (C) invasion (magnification, ×20) of HK-1 cells following treatment with LEB or/and I-131 determined via aggression assays. (D) Expression levels of MTA-1 and FIB in HK-1 cells following treatment with LEB or/and I-131 determined by western blotting. The data are presented as the mean + standard error of the mean of three independent experiments. **P<0.01. LEB, Lenvatinib; I-131, iodine-131; MTA-1, metastasis-associated protein; FIB, fibrinogen.

Combined effects of LEB and I-131 on apoptosis of NPC cells and tumor angiogenesis-related protein in vitro

The effects of LEB and I-131 on apoptosis of NPC cells and tumor angiogenic protein expression levels were analyzed in vitro. It was observed that combined treatment of LEB (5 mg/ml) and I-131 (3 mg/ml) significantly promoted apoptosis of HK-1 cells compared with single agents (Fig. 2A). Pro-apoptosis gene expression levels of Caspase-3 and Caspase-9 were significantly upregulated by LEB and I-131 in HK-1 cells (Fig. 2B). Anti-apoptosis gene expression levels of Bcl-2 and P53 were significantly downregulated by combined treatment with LEB and I-131 in NPC cells (Fig. 2C). Furthermore, it was demonstrated that combined treatment with LEB (3 mg/ml) and I-131 (3 mg/ml) significantly inhibited tumor angiogenesis-related protein expression including VEGF and PDGF in HK-1 cells (Fig. 2D). These results suggest that combined treatment with LEB and I-131 may significantly promote apoptosis and inhibit tumor angiogenesis-related protein of NPC cells in vitro.

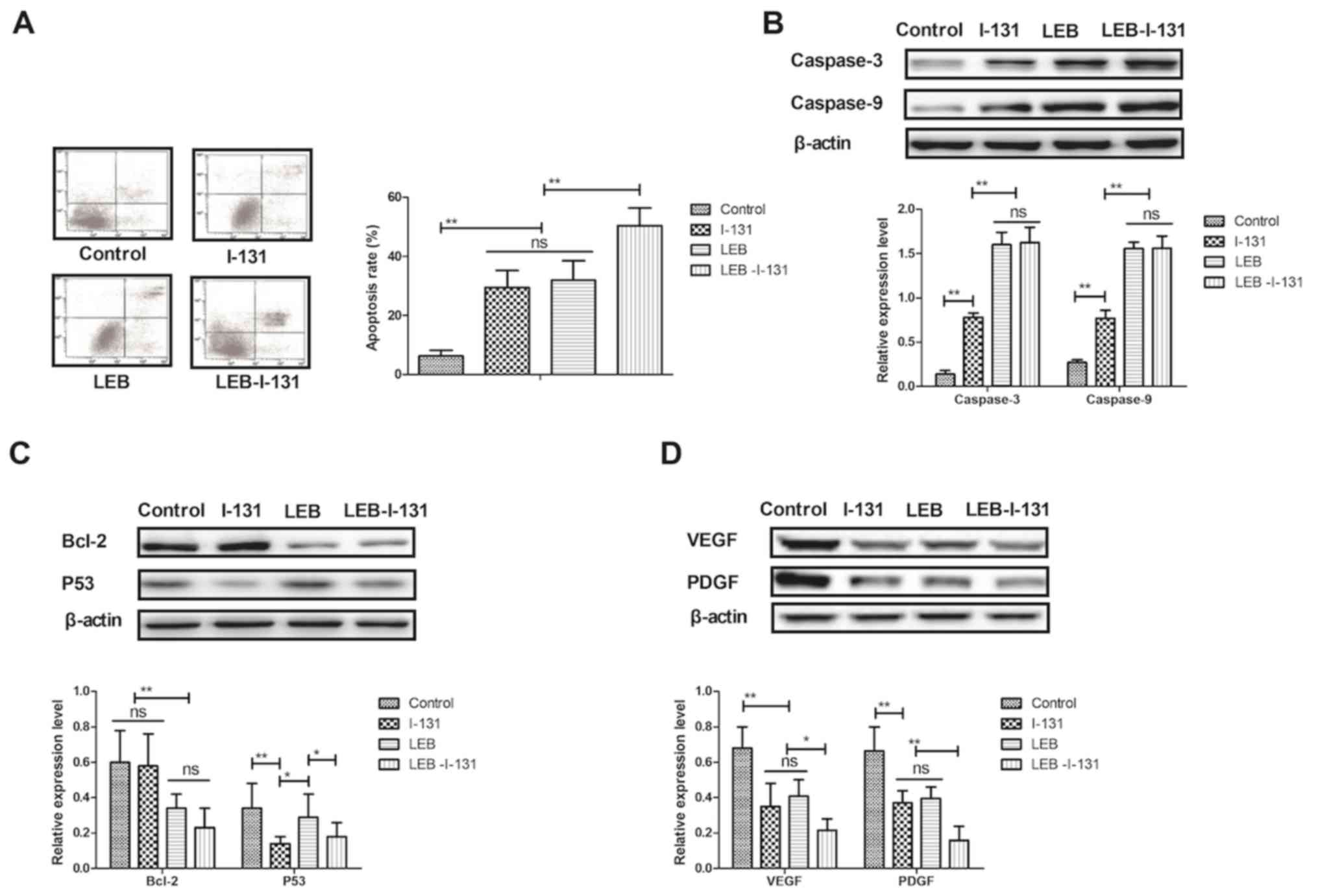

Figure 2. Combination of LEB and I-131 promotes apoptosis of nasopharyngeal carcinoma cells and inhibits tumor angiogenesis-related protein in vitro. (A) Apoptosis rate of HK-1 cells following treatment with LEB or/and I-131 determined by flow cytometry. (B) Protein expression levels of Caspase-3 and Caspase-9 in HK-1 cells determined by western blotting. (C) Protein expression levels of Bcl-2 and P53 in HK-1 cells determined by western blotting. (D) VEGF and PDGF expression levels in HK-1 cells determined by western blotting. The data are presented as the mean + standard error of the mean of three independent experiments. *P<0.05, **P<0.01. LEB, Lenvatinib; I-131, iodine-131; Bcl-2, B cell lymphoma 2; VEGF, vascular endothelial growth factor; PDGF, platelet-derived growth factor.

Combination of LEB and I-131 regulates apoptosis of NPC cells through ER stress

In order to elucidate the mechanism of NPC cells mediated by LEB and I-131, changes of ER stress in HK-1 cells were analyzed. ATF6, IER1, RERK and CHOP expression levels were analyzed in HK-1 cells. The results demonstrated that combined treatment of LEB and I-131 upregulated ATF6, IER1 RERK and CHOP expression levels in HK-1 cells (Fig. 3A). It was also demonstrated that mRNA expression levels were significantly upregulated by combined treatment with LEB and I-131 in HK-1 cells (Fig. 3B). Immunolocalization indicated that structure of ER was damaged by combined treatment of LEB and I-131, as presented by the broken ER structure visible in Fig. 3C. In addition, results demonstrated that GRP78 expression was higher in HK-1 cells following combined treatment of LEB and I-131 (Fig. 3D). It was also demonstrated that numbers of adhered HK-1 cells were decreased by combined treatment of LEB and I-131 (Fig. 3E). Furthermore, JNK and P38 expression levels in HK-1 cells were also upregulated by combined treatment of LEB and I-131 (Fig. 3F). Collectively, these results suggest that combined treatment of LEB and I-131 can promote apoptosis of NPC cells through increasing ER stress.

Figure 3. Combination of LEB and I-131 regulates apoptosis of nasopharyngeal carcinoma cells through ER stress. (A) ATF6, IER1, RERK and CHOP expression levels in HK-1 cells following treatment with LEB or/and I-131 determined by western blotting. (B) Analysis of mRNA expression levels of ATF6, IER1, RERK and CHOP expression levels in HK-1 cells. (C) Effects of LEB or/and I-131 on ER in HK-1 cells (magnification, ×100). (D) GRP78 expression in HK-1 cells following combined treatment of LEB and I-131 determined by immunofluorescence (magnification, ×20). (E) Adhered morphology of HK-1 cells following treatment with LEB or/and I-131 (magnification, ×20). (F) JNK and P38 expression levels in HK-1 following treatment with LEB or/and I-131. The data are presented as the mean + standard error of the mean of three independent experiments. **P<0.01. LEB, Lenvatinib; I-131, iodine-131; ATF6, activating transcription factor 6; IER1, inositol-requiring protein 1; RERK, protein kinase RNA-like endoplasmic reticulum kinase; CHOP, C/EBP homologous protein; GRP78, glucose-regulated protein 78; JNK, c-jun N-terminal kinase.

Combined treatment of LEB and I-131 inhibits tumor growth and promotes apoptosis in xenograft mice model

The in vivo effects of combined treatment of LEB and I-131 were analyzed in a xenograft mice model. As presented in Fig. 4A, tumor growth was significantly inhibited by combined treatment with LEB and I-131 in a 30-day observation. TUNEL assay revealed that apoptotic bodies were increased by combined treatment of LEB and I-131 in tumors in experimental xenograft mice (Fig. 4B). Immunohistochemistry demonstrated that JNK and Caspase-3 expression levels were upregulated in NPC tumors in mice treated with LEB and I-131 (Fig. 4C). In addition, TNF-α and HIF-1α expression levels were also upregulated by combined treatment of LEB and I-131 in tumors in experimental xenograft mice (Fig. 4D). Furthermore, H&E staining assay demonstrated that angiogenesis and VEGF expression levels were significantly decreased in tumors following treatment with LEB and I-131 compared with single agent and PBS groups (Fig. 4E). Collectively, these results indicate that combined treatment of LEB and I-131 inhibits tumor growth and promotes apoptosis in a xenograft mice model.

Figure 4. In vivo effects of combined treatment of LEB and I-131 in an NPC xenograft mice model. (A) Effects of combined treatment of LEB and I-131 on tumor growth in NPC xenograft mice model. (B) Apoptotic bodies in tumors following treatment with LEB or/and I-131 determined by terminal deoxynucleotidyl-transferase-mediated dUTP nick end labeling assay (magnification, ×20). (C) JNK and Caspase-3 expression levels in tumors following treatment with LEB or/and I-131 determined by immunohistochemistry (magnification, ×20). (D) Expression levels of TNF-α and HIF-1α in tumors following treatment with LEB or/and I-131 determined by immunohistochemistry (magnification, ×20). (E) Angiogenesis and VEGF expression in tumors following treatment with LEB or/and I-131 determined by hematoxylin and eosin staining (magnification, ×20). **P<0.01. LEB, Lenvatinib; I-131, iodine-131; NPC, nasopharyngeal carcinoma; JNK, c-jun N-terminal kinase; TNF-α, tumor necrosis factor-α; HIF-1α, hypoxia-inducible factor-1α; VEGF, vascular endothelial growth factor.

Discussion

NPC is a rare, highly aggressive cancer (25). Standard therapies for NPC remain toxic and ineffective (26). I-131 is known as producing relatively low radiation, and has exhibited anti-cancer effects in several types of human cancer, including thyroid and hepatocellular cancer (10–12). In addition, targeted therapy of LEB has presented the potential to completely eradicate tumors, but with low toxicity to normal human tissues during cancer treatment (27,28). In the present study, the combined effects of I-131 and LEB for the treatment of NPC were investigated in vitro and in vivo. The findings demonstrated that combined treatment of I-131 and LEB not only significantly inhibited growth, apoptosis, and aggressiveness of NPC cells in vitro, but also suppressed NPC cells growth in xenograft mice in vivo. Notably, these findings indicated that combined treatment of I-131 and LEB promoted apoptosis of NPC cells through upregulation of ER stress.

Currently, inhibition of tumor growth is the primary and most fundamental facet in the progression of cancer treatment (29). Enhancement of apoptosis in tumor tissues has been reported to contribute to inhibition of tumor growth and may lead to immunological recognition of immune system in cancer patients (30). Conventional radiotherapy is the most frequently used treatment of NPC, however, radiotherapy injury seriously may damage the immune system (31). I-131 radioimmunotherapy has proven advantageous in the treatment of human thyroid cancer due to lower radiation, easier excretion and higher accuracy (32).

Notably, the role of I-131 in theranostic action has been identified in tumor diagnostics (33,34). Ionizing effects of on I-131 target radiotherapy on cancer cells have been identified in rabbit VX2 tumor models (35). In the present study, the efficacy of I-131 was explored in NPC cells and xenograft mice. The results have indicated that I-131 inhibits growth and aggressiveness of NPC cells. I-131 induces apoptosis of NPC cells through ER stress. However, it was also observed that the efficacy of single I-131 treatment was limited and yielded unsatisfactory effects.

LEB is an oral multi-targeted tyrosine kinase inhibitor of VEGFR1-3, FGFR1-4, PDGFR-β, Ret, and KIT. Previous research has indicated that VEGF, FGFR1-4, PDGFR-β, Ret, and KIT-mediated angiogenesis is a key factor in the processes of tumor angiogenesis (36). LEB is a target-therapeutic drug due to its role as an efficient anticancer agent in patients with advanced solid tumor (37). In addition, Dubbelman et al (38) have recently explored the efficacy and pharmacokinetics of LEB in patients with advanced solid tumors or lymphomas. Tohyama et al (39) have also indicated the anti-tumor activity of LEB by targeting multiple tyrosine kinase receptors in preclinical human thyroid cancer models. In the present study, the combined efficacy of I-131 and LEB for the treatment of NPC was reported. The present findings indicate that combined treatment of I-131 and LEB significantly suppresses growth and aggression of NPC both in vitro and in vivo. Notably, the findings also indicated that apoptosis of NPC was enhanced by synergetic treatment of I-131 and LEB mediated by ER stress.

Apoptosis resistance is the most important characteristic of NPC, which limits the efficacy of anti-cancer drugs in clinical settings (40). It has been identified that upregulation of ER stress may induce apoptosis of cancer cells (41,42). ER stress upregulation potentiating apoptosis also has been observed in human triple negative breast carcinoma cells (43). In the present study, it has been demonstrated that ATF6, IER1 RERK, and CHOP expression levels were increased by synergetic treatment of I-131 and LEB in NPC cells and tumor tissues. These molecules contribute to ER stress upregulation and promote apoptosis of PC cells and tumor tissues.

In conclusion, the present study has demonstrated the inhibitory effects of I-131 and LEB in NPC cells and an NPC xenograft mice model. The combination of target therapy of LEB and lower-radiation I-131 for NPC therapy was investigated. Notably, the present data indicates that combined treatment of I-131 and LEB significantly inhibits the tumor growth in NPC xenograft mice. The findings also suggested that the combined treatment of I-131 and LEB has potential application for the treatment of patients with NPC. However, further investigations are required to identify the pharmacodynamics and toxicology of combined treatment of I-131 and LEB. Clinical experiments may be considered to confirm the conclusions of the present study.

Acknowledgements

Not applicable.

Funding

The present study was supported by the Key Discipline Construction Project of Pudong Health Bureau of Shanghai (grant no. PWZxk2017-06), the Natural Science Foundation of China (grant no. 81571718), the Science and Technology Development Fund of Shanghai Pudong New Area (rant no. PKJ2016-Y19), the Budgetary Fund of Shanghai University of TCM (grant no. 2015YSN59) and the Talents Training Program of Seventh People's Hospital of Shanghai University of TCM (grant nos. QMX2017-01 and XX2017-06).

Availability of data and materials

The datasets used and/or analyzed during the present study are available from the corresponding author on reasonable request.

Authors' contributions

GW, JZ and WX conceived and designed the study. GW and JZ performed experiments and analyzed data. JN, YY and SH interpreted the data. WX drafted the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

The present study was approved by the Ethics Committee of the Seventh People's Hospital of Shanghai University of Traditional Chinese Medicine.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
