Introduction

Knee osteoarthritis (KOA) is a common degenerative joint disease caused by several factors, such as age, obesity, inflammation and trauma, and is characterized by the degeneration of articular cartilage (1). KOA results in the destruction of articular cartilage, and triggers pathological changes in the surrounding synovial membrane, ligaments and soft tissue (2). These pathological changes result in the damage of articular cartilage and the potential destruction of the entire articular surface (3). At present, there are no available strategies for the prevention and treatment of KOA. Thus, further investigations into the mechanisms underlying KOA may provide novel treatment strategies, and research into the diagnosis of KOA and further treatment options is ongoing in a number of countries (4).

Dual specificity protein phosphatase 4 (DUSP4), also known as MAPK phosphatase 2 (MKP2), is a member of the DUSP family (5). DUSP4 serves an important role in the regulation of cell proliferation and differentiation (6). As a negative regulator of the MAPK signaling pathway, DUSP4 also plays a tumor-suppressive role in the majority of human cancer types, including colorectal, breast and pancreatic cancer (7). The results of a previous study demonstrated that DUSP4 overexpression in vascular endothelial cells reduced oxidative stress-induced cell damage and apoptosis to protect the heart following cardiac ischemia or reperfusion (8). In lipopolysaccharide (LPS)-induced acute lung injury, interference with DUSP4 expression promoted the expression of inflammatory cytokines, such as TNF α, IL-1 and IL-6(9). These results suggested that DUSP4 may serve an important role in the regulation of cell inflammation, injury and apoptosis in numerous diseases, including cancer, and inflammatory and vascular diseases. Osteoarthritis (OA) is characterized by the progressive degeneration and loss of articular cartilage caused by chondrocyte apoptosis and excessive degradation of the cartilage matrix. Cellular inflammatory factors are the main factors that promote excessive degradation of the cartilage matrix (10). Furthermore, the results of a previous study demonstrated that antisense long-non coding RNA in the INK4 locus regulated the proliferation and apoptosis of OA-related cells via the microRNA-122-5p/DUSP4 axis, indirectly suggesting that DUSP4 may be involved in the occurrence of OA (11). However, the specific mechanism underlying DUSP4 in KOA is yet to be fully elucidated.

In the present study, chondrocytes were induced with LPS to establish an OA injury model. Furthermore, the expression of DUSP4 was determined in the OA injury model to uncover the regulatory mechanism underlying DUSP4, thus providing novel insights into the occurrence and development of KOA.

Materials and methods

Cell culture and model induction

Murine cartilage ATDC5 cells were purchased from the Institute of Biochemistry and Cell Biology at the Chinese Academy of Sciences. Cells were maintained in DMEM (Gibco; Thermo Fisher Scientific, Inc.) supplemented with 10% FBS (Gibco; Thermo Fisher Scientific, Inc.) at 37˚C in a humidified incubator containing 5% CO2. Cells were pretreated with 100 ng/ml phorbol 12-myristate 13-acetate (PMA; cat. no. HY-18739; MedChemExpress) for 2 h and then treated with 5 µg/ml LPS for 24 h at 37˚C, while untreated cells served as the control group.

GSE1919 microarray analysis

The Gene Expression Omnibus (GEO) database (https://www.ncbi-nlm-nih-gov.elib.tcd.ie/geo/) was used to search for the key word ‘Osteoarthritis’, and the GSE1919 chip data were selected for further analysis (12). The healthy samples (n=5) and OA samples (n=5) were selected. The data were analyzed using GEO2R online tools, and GraphPad Prism version 8 (GraphPad Software, Inc.) was used to aggregate the data into a histogram.

Reverse transcription-quantitative (RT-q)PCR

Total RNA was extracted from ATDC5 cells using TRIzol® reagent (Invitrogen; Thermo Fisher Scientific, Inc.), according to the manufacturer's protocols. Total RNA was reverse transcribed into cDNA using the PrimeScript RT Reagent kit (Takara Bio, Inc.). cDNA was synthesized from total RNA (0.5 µg) at 48˚C for 30 min, followed by 95˚C for 10 min. The relative Mrna expression levels were determined using the One Step SYBR® PrimeScript® PLUS RT-RNA PCR Kit (Takara Biotechnology Co., Ltd.). The synthesized cDNA (0.7 µg) was subjected to qPCR under the following thermocycling conditions: Initial denaturation at 95˚C for 15 min, followed by 45 cycles of 95˚C for 10 sec, 66˚C for 20 sec, and 72˚C for 10 sec, according to the manufacturer's instructions. GAPDH was used to normalize the expression levels of the target genes and data were calculated by the 2-ΔΔCq method (13). The primer sequences used for qPCR were as follows: DUSP4 forward, 5'-TGGTTCATGGAAGCCATAGAG-3' and reverse, 5'-CCCGTTTCTTCATCATCAGG-3'; and GAPDH forward, 5'-AACTTTGGCATTGTGGAAGG-3' and reverse, 5'-GGAGACAACCTGGTCCTCAG-3'.

Western blot analysis

Total proteins were extracted from ATDC5 cells using RIPA buffer (Beijing Solarbio Science & Technology Co., Ltd.) and the protein concentration was determined using a BCA protein assay kit (Beijing Solarbio Science & Technology Co., Ltd.). Subsequently, 30 µg/lane of total protein extracts were separated via SDS-PAGE on 10% gel and transferred onto nitrocellulose membranes. Following blocking with 5% non-fat milk for 1 h at room temperature, the membranes were incubated with the following primary antibodies: anti-DUSP4 (1:1,000; cat. no. ab216576; Abcam), anti-p38 (1:1,000; cat. no. ab170099; Abcam), anti-phosphorylated (p)-p38 (1:1,000; cat. no. ab178867; Abcam), anti-ERK1/2 (1:1,000; cat. no. ab184699; Abcam), anti-p-ERK1/2 (1:1,000, cat. no. ab278538; Abcam), anti-JNK (1:1,000; cat. no. ab110724; Abcam), anti-p-JNK (1:1,000; cat. no. ab215208; Abcam), anti-IL-6 (1:1,000; cat. no. ab233706; Abcam), anti-TNF-α (1:1,000; cat. no. ab183218; Abcam), anti-IL-1β (1:1,000; cat. no. ab216995; Abcam), anti-Bcl-2 (1:1,000; cat. no. ab32124; Abcam), anti-Bax (1:1,000; cat. no. ab182733; Abcam), anti-cleaved caspase 3 (1:1,000; cat. no. ab32042; Abcam), anti-caspase 3 (1:1,000; cat. no. ab32351; Abcam) and GAPDH (1:1,000; cat. no. ab8245; Abcam) at 4˚C overnight. Following washing with PBS containing 0.05% Tween-20 (1,000 ml PBS and 5 ml Tween-20) three times, the membranes were incubated with the corresponding HRP-conjugated goat anti-rabbit (1:5,000; cat. no. LK2001; Sungene Biotech Co., Ltd.) or anti-mouse (1:5,000, cat. no. LK2003; Sungene Biotech Co., Ltd.) secondary antibodies for 1 h at room temperature. The immunoblots were detected with an ECL kit (Advansta, Inc.) and the intensity of the bands was analyzed using ImageJ software (version 146; National Institutes of Health). GAPDH served as the loading control for normalization.

Cell transfection

The DUSP4 overexpression plasmid (ov-DUSP4) was designed and synthesized by Shanghai GeneChem Co., Ltd., using the pBluescript vector. A total of 1 µg ov-DUSP4 plasmid or an empty vector (NC) were transfected into ATDC5 cells using Lipofectamine® 2000 at 37˚C for 48 h (Invitrogen; Thermo Fisher Scientific, Inc.), according to the manufacturer's protocol. Following incubation for 48 h, cells were used for subsequent experiments.

Cell Counting Kit-8 (CCK-8)

ATDC5 cells were seeded into 96-well microplates at a density of 1x104 cells/well at 37˚C for 12 h. Following cell transfection and treatment with LPS and PMA, 10 µl CCK-8 reagent (Thermo Fisher Scientific, Inc.) was added to each well and cells were cultured at 37˚C for 4 h. The Infinite™ M200 microplate reader (Tecan Group, Ltd.) was utilized to measure the optical density of each well at a wavelength of 460 nm.

Reactive oxygen species (ROS), lactate dehydrogenase (LDH), superoxide dismutase (SOD) and malondialdehyde (MDA) assays

The levels of ROS, LDH, SOD and MDA were determined using the ROS/Superoxide Detection Assay kit (cat. no. ab113851; Abcam), LDH cytotoxicity assay kit (cat. no. C0017, Beyotime Institute of Biotechnology), total SOD assay kit (cat. no. BC0175, Beijing Solarbio Science & Technology Co., Ltd.) and MDA kit (cat. no. E0597Ge, Wuhan EIAab Science Co., Ltd.) respectively, according to the corresponding manufacturers' protocols.

ELISA

The levels of IL-1β (cat. no. MLB00C), IL-6 (cat. no. D6050) and TNF-α (cat. no. MTA00B) in the cell supernatant were measured using the IL-1β, IL-6 and TNF-α ELISA kits (R&D Systems, Inc.), according to the manufacturer's protocol.

TUNEL assay

Cell apoptosis was evaluated using a TUNEL assay kit (Beyotime Institute of Biotechnology) according to the manufacturer's protocol. The cells were fixed with Immunol Staining Fix Solution (Beyotime Institute of Biotechnology) for 30 min at 37˚C, followed by washing with PBS (Thermo Fisher Scientific, Inc.). Subsequently, cells were incubated with PBS containing 0.3% Triton X-100 (Sigma-Aldrich; Merck KGaA) at room temperature for 5 min and were washed again with PBS followed by TUNEL solution for 1 h at 37˚C. Apoptotic cell nuclei were stained with fluorescein-labeled dUTP solution (Invitrogen; Thermo Fisher Scientific, Inc.) at 37˚C for 60 min, while all cell nuclei were stained with 5 mg/ml DAPI for 3 min at 37˚C. A total of 10 fields were randomly selected and observed by fluorescence microscope (magnification, x200; CKX53; Olympus Corporation). TUNEL-positive staining indicated apoptotic cells.

Statistical analysis

All data are expressed as the mean ± standard deviation. One-way ANOVA followed by Tukey's post hoc test was used for comparisons among multiple groups. P<0.05 was considered to indicate a statistically significant difference. All analyses were carried out using SPSS 22.0 statistical software (IBM Corp.). Each experiment was repeated three times.

Results

DUSP4 is downregulated in OA chondrocytes and DUSP4 overexpression inhibits the MAPK signaling pathway

GSE1919 microarray analysis revealed that DUSP4 was significantly downregulated in synovial tissues of patients with OA (Fig. 1A). Additionally, in vitro experiments demonstrated that the expression of DUSP4 was significantly decreased in LPS-induced ATDC5 cells compared with the control group at both the protein and mRNA level (Fig. 1B and C). These results indicated that the expression of DUSP4 was decreased in OA chondrocytes. The ov-DUSP4 plasmid was constructed and the subsequent transfection efficiency was verified by RT-qPCR and western blot analyses in ATDC5 cells. DUSP4 was significantly overexpressed in ATDC5 cells and LPS-induced ATDC5 cells compared with the corresponding control group at both the protein and mRNA level (Fig. 1D and E). Subsequently, cells were divided into four groups: i) Control; ii) LPS; iii) LPS + NC; and iv) LPS + ov-DUSP4. The expression of MAPK pathway-related proteins was assessed by western blot analysis. The expression levels of p-p38, p-ERK1/2 and p-JNK were significantly increased in the LPS group compared with the control group. Furthermore, the expression of p-p38, p-ERK1/2 and p-JNK was significantly downregulated following DUSP4 overexpression, compared with the LPS + NC group (Fig. 1F). The results of the present study suggested that DUSP4 may serve an important role in promoting chondrocyte injury in OA by inhibition of the MAPK signaling pathway.

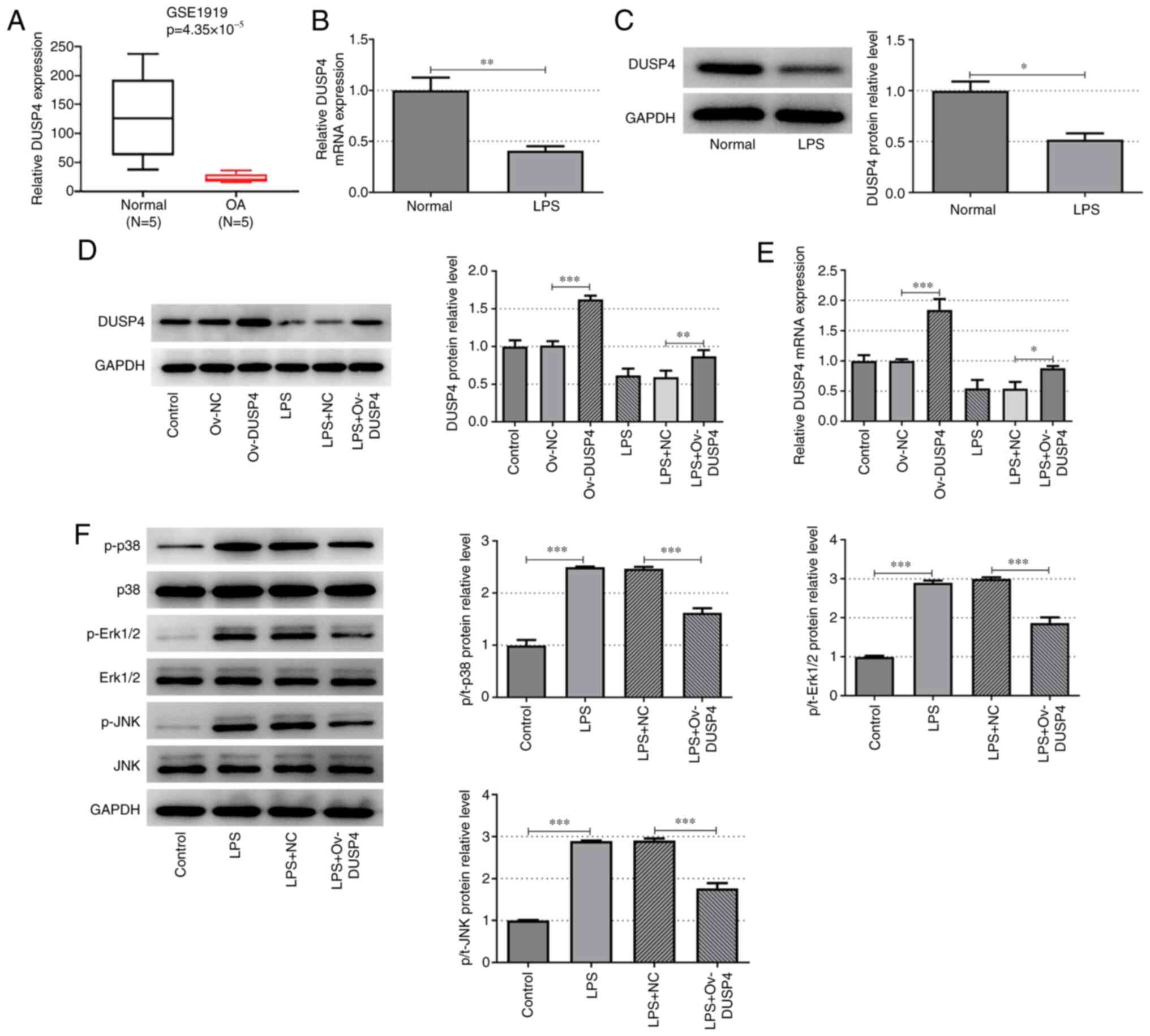

Figure 1 DUSP4 is expressed at low levels in OA chondrocytes, and upregulation of DUSP4 inhibits the MAPK signaling pathway. (A) The expression of DUSP4 in synovial tissues of patients with OA was revealed using GSE1919 chip data analysis. (B) RT-qPCR and (C) western blotting were used to detect the expression level of DUSP4. (D) Western blot analysis revealed the expression level of DUSP4 following cell transfection with Ov-DUSP4. (E) RT-qPCR was used to detect the expression level of DUSP4 following cell transfection. (F) Western blotting was used to detect the expression levels of MAPK signaling pathway proteins. *P<0.05; **P<0.01; ***P<0.001. OA, osteoarthritis; DUSP4, dual specificity protein phosphatase 4; LPS, lipopolysaccharide; Ov, overexpression; NC, negative control; p-, phosphorylated; t-, total; RT-qPCR, reverse transcription-quantitative PCR.

DUSP4 enhances cell viability and attenuates oxidative stress and inflammatory responses in OA chondrocytes via the MAPK signaling pathway

To further investigate whether DUSP4 exerts its regulatory effects on OA via the MAPK signaling pathway, cells were treated with PMA, an agonist of the MAPK signaling pathway. Cells were divided into five groups: i) Control; ii) LPS; iii) LPS + NC; iv) LPS + ov-DUSP4; and v) LPS + ov-DUSP4 + PMA. A CCK-8 assay was performed to assess cell viability and the results demonstrated that cell viability was significantly reduced in the LPS group compared with the control group. Furthermore, cell viability in the LPS + ov-DUSP4 group was significantly increased compared with the LPS + NC group, and was significantly attenuated following cell treatment with PMA compared with the LPS + ov-DUSP4 group (Fig. 2A).

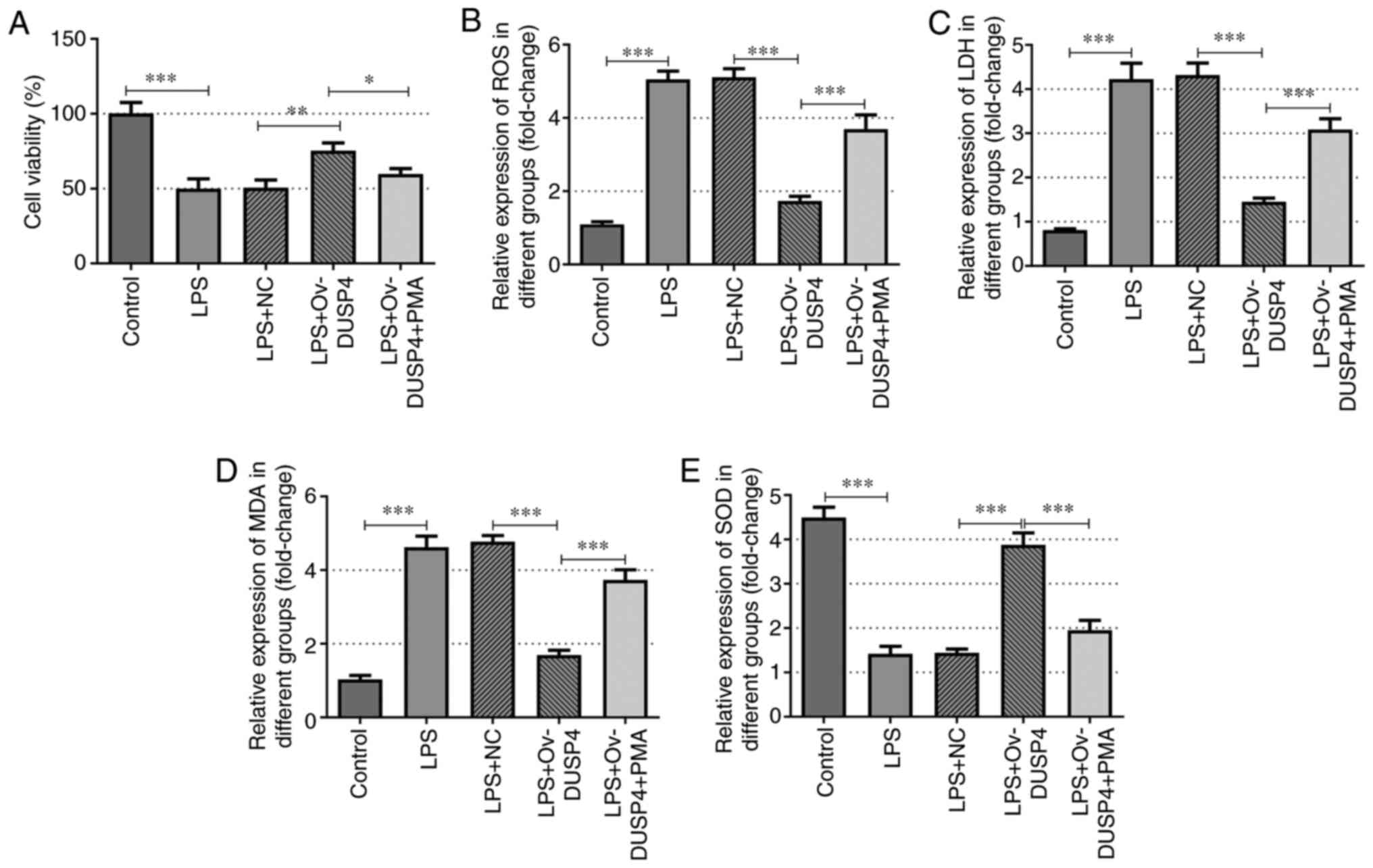

Figure 2 DUSP4 increases the activity and reduces the oxidative stress level of osteoarthritis chondrocytes via the MAPK signaling pathway. (A) MTT assays were used to detect the cell viability. ELISA assays detected the expression of (B) ROS, (C) LDH, (D) MDA and (E) SOD. *P<0.05; **P<0.01; ***P<0.001. LPS, lipopolysaccharide; NC, negative control; Ov, overexpression; DUSP4, dual specificity protein phosphatase 4; PMA, phorbol 12-myristate 13-acetate; ROS, reactive oxygen species; LDH, lactate dehydrogenase; MDA, malondialdehyde; SOD, superoxide dismutase.

The generation of ROS, the levels of LDH and MDA and the activity of SOD in cells were determined by ELISA. The results demonstrated that the levels of ROS, LDH and MDA was significantly enhanced in the LPS group, while the activity of SOD was markedly decreased compared with the control group. Additionally, the production of ROS, LDH and MDA was significantly diminished in the LPS + ov-DUSP4 group, whereas the production of SOD was significantly enhanced, compared with the LPS + NC group. In addition, the production of ROS, LDH and MDA was notably decreased in the LPS + ov-DUSP4 group compared with the LPS + ov-DUSP4 + PMA group, while the opposite trend was observed in the activity of SOD (Fig. 2B-E). Furthermore, the secretion levels of the inflammation-related factors, IL-6, TNF-α and IL-1β were measured in each group using ELISA. The results demonstrated that PMA reversed the inhibitory effect of DUSP4 overexpression on the protein expression levels of IL-6, TNF-α and IL-1β compared with the LPS + ov-DUSP4 group (Fig. 3A and B).

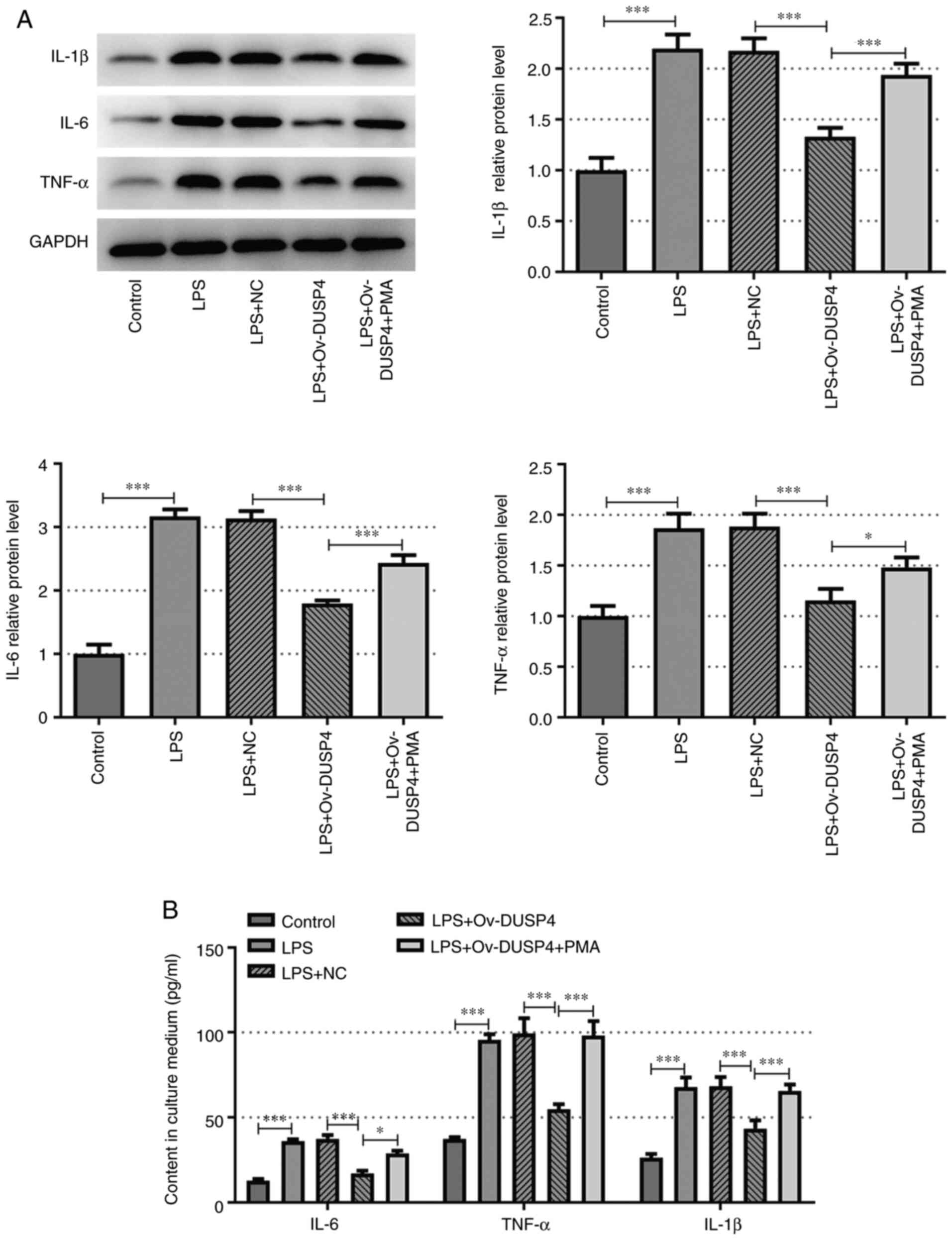

Figure 3 DUSP4 reduces the inflammatory response of osteoarthritis chondrocytes via the MAPK signaling pathway. (A) Western blot analysis was used to detect the expression levels of inflammatory-related proteins, IL-6, TNF-α and IL-1β. (B) ELISA assays were used to detect the expression levels of IL-6, TNF-α and IL-1β. *P<0.05; ***P<0.001. LPS, lipopolysaccharide; NC, negative control; Ov, overexpression; DUSP4, dual specificity protein phosphatase 4; PMA, phorbol 12-myristate 13-acetate.

DUSP4 alleviates OA chondrocyte apoptosis via the MAPK signaling pathway

TUNEL and western blotting assays were carried out to evaluate cell apoptosis. Compared with the control group, cell apoptosis was significantly increased in the LPS group, accompanied by upregulation of Bax and cleaved caspase 3, and the significant downregulation of Bcl-2. Additionally, apoptosis was reduced in the LPS + ov-DUSP4 group compared with the LPS + NC group. Consistent with the aforementioned results, the expression of Bax and cleaved caspase 3 was decreased, while that of Bcl-2 was increased in the LPS + ov-DUSP4 group compared with the LPS + NC group. The number of apoptotic cells and the expression of Bax and cleaved caspase 3 were increased in the LPS + ov-DUSP4 + PMA group compared with the LPS + ov-DUSP4 group. However, Bcl-2 was downregulated in the LPS + ov-DUSP4 + PMA group compared with the LPS + ov-DUSP4 group (Fig. 4A and B). These results indicated that DUSP4 alleviated apoptosis of OA chondrocyte by inhibition of the MAPK signaling pathway.

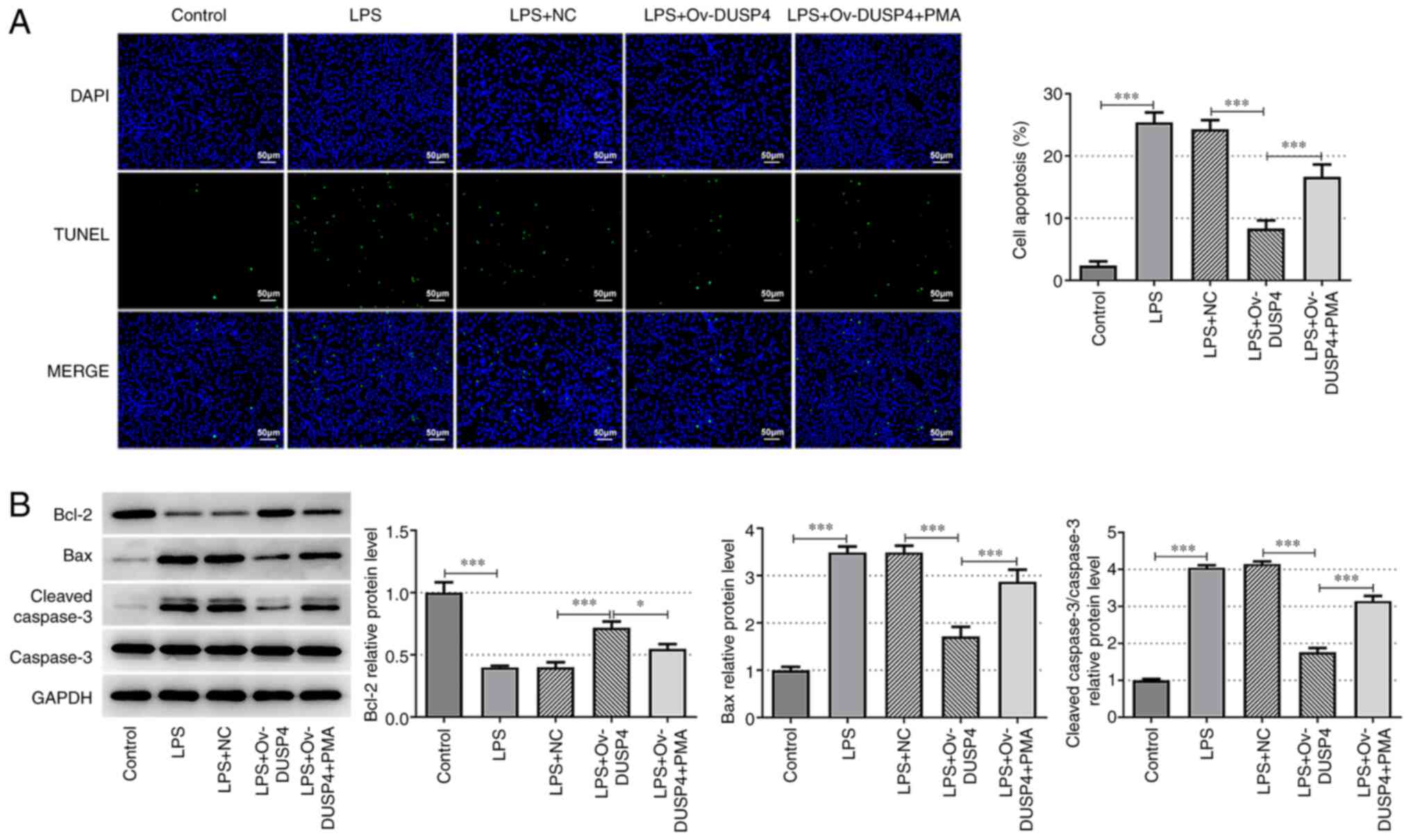

Figure 4 DUSP4 alleviates apoptosis of osteoarthritis chondrocytes via the MAPK signaling pathway. (A) TUNEL assay was performed to detect the levels of apoptosis. (B) Western blot analysis was used to detect the expression levels of Bcl-2, Bax, caspase 3 and cleaved caspase 3. *P<0.05; ***P<0.001. LPS, lipopolysaccharide; NC, negative control; Ov, overexpression; DUSP4, dual specificity protein phosphatase 4; PMA, phorbol 12-myristate 13-acetate.

Discussion

OA involves a number of complex mechanisms, including cartilage degradation, synovitis, and destruction and loss of articular cartilage (14). Chondrocytes, the only specialized cell type found in cartilage tissue, serve a critical role in maintaining joint stability (15). As prochondrocytes, ATDC5 cells differentiate in a similar way to cells that undergo chondrogenesis (16). ATDC5 cells are used as in vitro phytopharmacological models to reflect the complete process of chondrocyte proliferation, differentiation and mineralization during chondrogenesis (17). At present, the application of ATDC5 cells in OA research has been widely accepted (18-20). In the present study, ATDC5 cells were induced with LPS to establish an OA cell model, as previously described (20,21). In the present study, the mouse OA chondrocyte injury model was utilized to explore the regulatory role and mechanism underlying DUSP4 in chondrocyte injury. However, the limitations of the present study include limited cell line selection, leading to a lack of analysis in human chondrocytes. Human chondrocytes will be used for verification in future experiments.

Emerging evidence has demonstrated that DUSP4 serves a regulatory role in cell inflammation, injury and apoptosis in a variety of diseases (9,22,23). However, the exact mechanism underlying DUSP4 in OA is yet to be elucidated. In the present study, results of the GSE1919 dataset analysis demonstrated that the expression of DUSP4 was notably downregulated in OA. In addition, the expression of DUSP4 was also significantly decreased in LPS-induced ATDC5 cells. DUSP4, also known as MKP2, serves a key role as a negative regulator of the MAPK signaling pathway in a number of biological processes (24). Rapid phosphorylation of ERK1/2 following LPS induction in microglia induces the expression of DUSP1, DUSP4, DUSP2 and DUSP5(25). The result demonstrated that DUSPs exhibit different substrate preferences for specific MAPKs. In the present study, phosphorylation of p38, ERK1/2 and JNK in the MAPK signaling pathway resulted in decreased expression of DUSP4 following LPS induction. These results indicated that LPS inhibited the expression of DUSP4 by promoting p38, ERK1/2 and JNK phosphorylation. Li et al (11) demonstrated that regulation of DUSP4 expression enhanced the proliferation and apoptosis of OA cells, thus suggesting that DUSP4 may be involved in the occurrence of OA. In the present study, DUSP4 overexpression markedly enhanced LPS-induced ATDC5 cell viability and attenuated oxidative stress, cell apoptosis and inflammatory response.

DUSP4 dephosphorylates several key signaling molecules, including those involved in the MAPK signaling pathway (26). The results of a previous study indicated that DUSP4 silencing in diabetes enhanced the activity of the p38/JNK signaling pathway (27). Additionally, simultaneously activating the MAPK signaling pathway aggravated LPS-induced chondrocyte injury (28). Ham et al (25) revealed an association between LPS, DUSPs and ERK1/2 in microglia cells, and highlighted that LPS induced ERK1/2 phosphorylation, thereby regulating the expression of DUSP4 and 6. Inhibition of ERK1/2 phosphorylation also inhibited LPS-induced DUSP4 expression. In addition, inhibition of DUSP6 increased ERK1/2 phosphorylation (25). However, the role of DUSP4 in ERK1/2 phosphorylation and regulation of the MAPK signaling pathway are yet to be fully elucidated. Thus, we hypothesized that DUSP4 attenuated LPS-induced chondrocyte injury in the KOA model via inhibition of the MAPK signaling pathway. To further verify this hypothesis, cells were co-treated with the MAPK signaling pathway agonist, PMA. The results demonstrated that PMA reversed the inhibitory effect of DUSP4 overexpression on oxidative stress, inflammatory response and LPS-induced ATDC5 cell apoptosis. The aforementioned findings suggested that DUSP4 alleviated LPS-induced chondrocyte injury in the KOA model via inhibition of the MAPK signaling pathway.

Further limitations of the present study include the investigation of DUSP4 expression at a cellular level, as the mechanisms underlying the effects of DUSP4 on OA were not evaluated in vivo. Therefore, the effects of DUSP4 on OA must be further verified using in vivo experiments. In addition, it is unclear whether DUSP4 plays a role in OA by targeting the MAPK signaling pathway, or by targeting alternate genes that regulate the MAPK pathway.

The detection of inflammatory-related factors and apoptosis-related indicators were the main focus of the present study. In following experiments, the roles of these factors will be further investigated.

In conclusion, the present study demonstrated that DUSP4 alleviated LPS-induced chondrocyte injury in KOA via inhibition of the MAPK signaling pathway. The present study provided a theoretical basis for further investigation into the mechanisms underlying the development of KOA.

Acknowledgements

The authors would like to acknowledge Ganzhou Key Laboratory of Bone and Joint (Jiangxi, China), which offered help in the procurement of experimental materials and data collection, and was used to perform experiments in the present study.

Funding

The present study was supported by the Science and Technology Plan of Jiangxi Provincial Health Commission (grant no. 20204611).

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

ZL wrote the manuscript, analyzed the data, performed the experiments and supervised the study. BC searched the literature, revised the manuscript for important intellectual content, made substantial contributions to the conception and design of the study, and contributed to analysis and interpretation of data. ZL and BC confirm the authenticity of all the raw data. All authors have read and approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
