Introduction

Liver cancer was the sixth most commonly diagnosed cancer type and the fourth leading cause of cancer-associated death worldwide in 2018. Annually, ~841,000 new cases of liver cancer are diagnosed and 782,000 deaths are recorded (1). In China, liver cancer is the most commonly diagnosed cancer and the leading cause of cancer-associated death in males below the age of 60 years (2).

Hepatocellular carcinoma (HCC) accounts for 75-85% of primary liver cancer cases. Despite enormous progress in medical technologies such as surgical resection, liver transplantation, radiation and chemotherapy in recent decades, the 5-year overall survival rate for HCC remains <30% (3). Therefore, detailed mechanistic information on the tumorigenesis and progression HCC is increasingly required in order to develop more effective therapeutic strategies.

The identification of abnormally expressed genes between normal liver tissues and HCC tissues is a viable strategy for investigating the mechanisms of HCC tumorigenesis and progression. Furthermore, such differentially expressed genes (DEGs) may serve as prognostic markers for HCC. The National Center for Biotechnology Information (NCBI) Gene Expression Omnibus (GEO, http://www.ncbi.nlm.gov/geo/) is a free public repository for high-throughput gene expression data and offers submission, storage and retrieval of microarray, next-generation sequencing and other forms of functional genomic datasets (4-6). The Cancer Genome Atlas (TCGA; http://cancergenome.nih.gov/) provides both clinical and molecular data on >11,000 samples across 33 different tumor types (7). A particular advantage of the GEO and TCGA is that the data therein are collected from different independent researchers and may be integrated and applied, allowing for highly robust analyses.

The most fundamental characteristic of cancer cells is their sustained continuous proliferation, which is due to dysregulation of the cell cycle. Normal cells carefully control the release of growth-promoting signals and subtly regulate the progression of the cell cycle. However, cancer cells exhibit disrupted homeostasis, resulting in malignant proliferation, which induces the loss of normal tissue architecture and function (8).

RNA metabolism (including RNA maturation, degradation and turnover and quality control), as a mediator of regulation, is required for a wide variety of biological processes. This notably includes cell proliferation, where actively proliferating cells must double their macromolecular contents and divide into two daughter cells, necessitating an increase in the biosynthesis of RNA and other molecules. However, despite their functional importance, the metabolism of RNA and the cell cycle receive less research attention than genomics and functional genomics (9). Therefore, information on the genes involved in the metabolism of RNA and the cell cycle, and specifically their involvement in HCC, is urgently required.

In the present study, DEGs were initially screened using multiple GEO microarrays and the TCGA dataset. Subsequently, enrichment analysis and protein-protein interaction (PPI) network analysis were performed. Accordingly, the amplification, increased expression and prognostic value of several central node genes were identified.

Materials and methods

Data sources

The data of the gene expression levels and DNA copy numbers between HCC and control samples were obtained from the NCBI GEO and TCGA datasets. The GEO microarray accession numbers were GSE46408, GSE50579 and GSE74656. All included datasets met the following criteria: i) They employed human liver tissue samples; ii) they contained case-control groups; and iii) they contained at least ten samples. The platform for GSE46408 was the Agilent-014850 Whole Human Genome Microarray 4x44K G4112F (Human 1A Oligo Chip V2;Welgene Biotech Co, Ltd.) and the samples comprised six pairs of HCC and their corresponding non-tumor liver parenchyma tissues. The platform for GSE50579 was the Agilent-028004 SurePrint G3 Human GE 8x60K Microarray (Agilent Technologies 2100 Bioanalyzer; Agilent Technologies Deutchland GmbH) and the samples comprised seven normal liver tissues and 61 HCC tissues. The platform for GSE74656 was the GeneChip® PrimeView™ Human Gene Expression Array (with External spike-in RNAs), which contained five non-tumor HCC tissues. Furthermore, the data for 53 normal liver tissues and 351 HCC tissues were obtained from TCGA for analysis. Only upregulated genes at the RNA level with a fold-change of >2 and P<0.05 were considered.

Dataset analysis

Functional enrichment analysis of common DEGs was performed using the Metascape dataset (http://metascape.org/gp/index.html#/main/step1) according to methods described previously (10). A PPI network was constructed using the Search Tool for the Retrieval of Interacting Genes/proteins (STRING) online database (http://string-bd.org). The prognostic value of mRNA for HCC was assessed using the public online tool Kaplan-Meier Plotter (www.kmplot.com) according to methods described previously (11). The gene mRNA heatmap and DNA amplification numbers for small nuclear ribonucleoprotein polypeptide E (SNRPE), small nuclear ribonucleoprotein polypeptide B and B1 (SNRPB), BOP1 ribosomal biogenesis factor (BOP1), nucleoporin 37 (NUP37), Rac GTPase activating protein 1 (RACGAP1), CAP-Gly domain containing linker protein 1 (CLIP1), microtubule associated protein RP/EB family member 1 (MAPRE1), kinesin family member 20A (KIF20A), kinesin family member 2A (KIF2A), minichromosome maintenance 10 replication initiation factor (MCM10), ubiquitin conjugating enzyme E2 C (UBE2C) and hyaluronan mediated motility receptor (HMMR) were obtained from cBioPortal (http://www.cbioportal.org/).

Overall survival and progression-free survival curves were plotted by the Kaplan-Meier method with Kaplan-Meier Plotter (www.kmplot.com) using a Cox regression model and compared using the log-rank test, and the median expression level was used as the cut-off to stratify the patients into high and low expression groups.

Results

DEGs in the GSE50579, GSE74656, GSE46408 and TCGA datasets

Venn diagram was used to analyze the upregulated genes between HCC and normal controls from different studies. Since somatic copy number alterations are associated with cancer and have been suggested as a specific therapeutic target (12), upregulated genes whose DNA copy numbers are increased in HCC were screened. The downregulated genes were ignored, as our group intends to conduct further studies to investigate whether targeting these upregulated genes may be applied to HCC therapy. According to the above-mentioned principles, a total of 2,553 upregulated genes were identified from GSE50579, GSE74656, GSE46408 and TCGA along with amplified genes in TCGA (Fig. 1A).

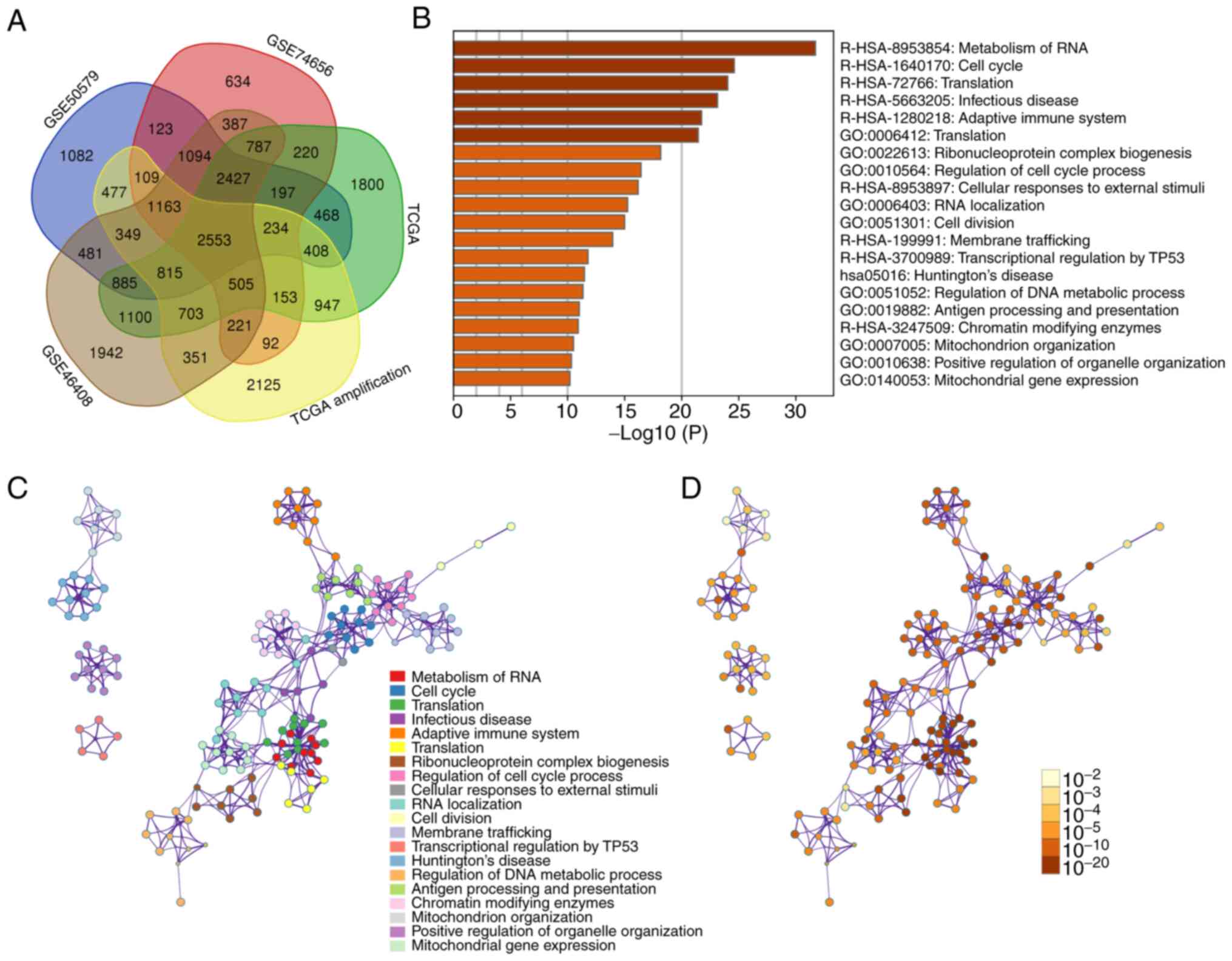

Figure 1 DEGs from the GSE50579, GSE74656, GSE46408 and TCGA datasets. (A) Venn diagram presenting the upregulated DEGs, 2,553 of which were shared between the different datasets. (B) Metascape enrichment analysis for the DEGs. (C) Enrichment networks of DEGs, represented by cluster memberships, were obtained using the Metascape dataset; (D) enrichment networks represented by statistical P-values obtained using the Metascape dataset. TCGA, The Cancer Genome Atlas; GO, gene ontology; Hsa, Homo sapiens; DEGs, differentially expressed genes.

Subsequently, functional enrichment analysis of these upregulated genes was performed using Metascape. As indicated in Fig. 1B, metabolism of RNA and the cell cycle were the most commonly enriched terms. Enrichment networks were also established by representing each enriched term as a node and a neighboring node with Kappa similarities of >0.3. Nodes are colored to represent their cluster memberships (Fig. 1C) or statistical P-values (Fig. 1D).

Identification of key candidate genes for diagnosis of HCC

The genes enriched in the metabolism of RNA and the cell cycle were used to perform a PPI network analysis using the STRING database (Fig. 2). In addition, the central node genes were identified. For the metabolism of RNA, the genes with >50 connections/interactions were further studied. The 22 most connected genes were ribosomal protein S 5, RPS28, RPS19, RPS10, RPS13, RPS20, ribosomal protein L27, UPF1 RNA helicase and ATPase, ribosomal protein lateral stalk subunit P0, RPL28, cleavage and polyadenylation specific factor 1, RPL18, SNRPE, SNRPB, ubiquitin A-52 residue ribosomal protein fusion product 1 (UBA52), protein phosphatase 2 catalytic subunit alpha (PPP2CA), RPL30, ribosomal protein L26 like 1, ribosomal protein S18, BOP1, RPL23 and RNA polymerase II, I and III subunit H (Table I). Furthermore, univariate Cox regression was performed to establish whether the above genes may serve as predictors for overall survival and progression-free survival using data from the Kaplan-Meier Plotter dataset, and sources for the database include GEO, EGA and TCGA. The median of mRNA level in the tumor samples was used as a cut-off to stratify the patients into high and low expression groups. As presented in Table I, only SNRPE, SNRPB and BOP1 were associated with the overall survival of patients with HCC. Specifically, patients with HCC and high mRNA levels for SNRPE, SNRPB or BOP1 had poorer overall survival than those with low levels of SNRPE or BOP1 (Table I; Fig. 3). However, only SNRPB appeared to be associated with progression-free survival of patients with HCC (Fig. 4).

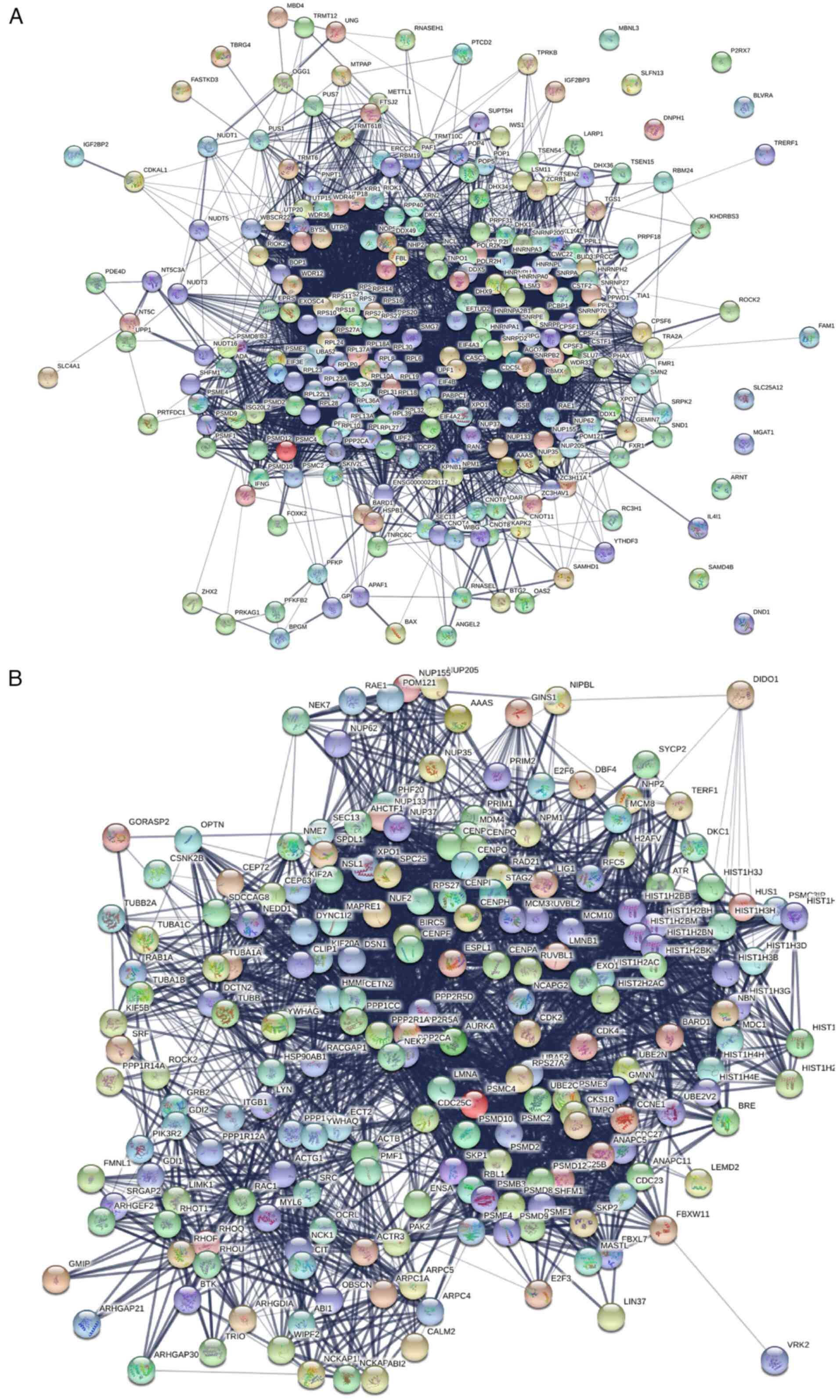

Figure 2 PPI networks according to the STRING online database. (A) PPI network for genes involved in the metabolism of RNA; (B) PPI network for genes involved in the cell cycle. PPI, protein-protein interaction.

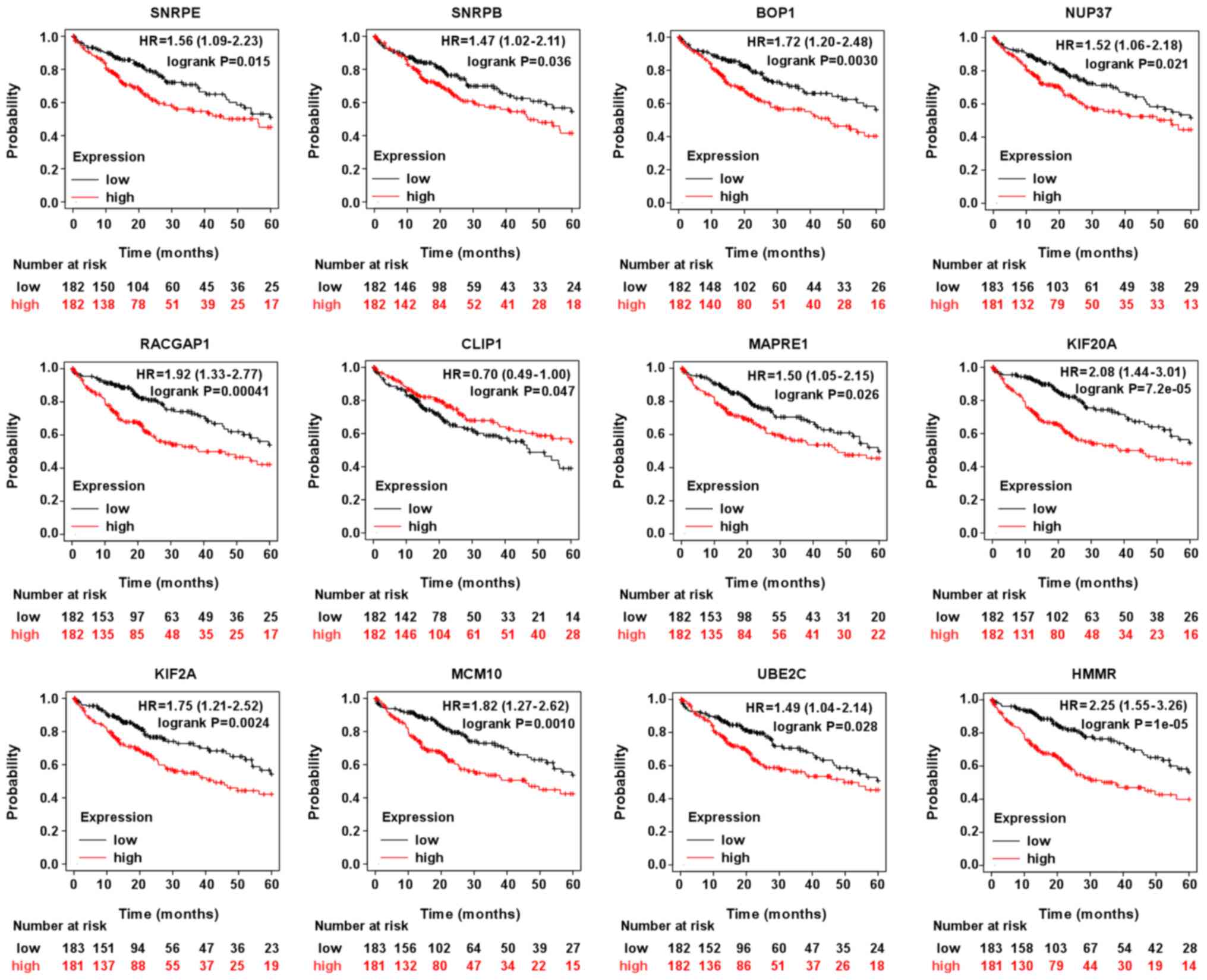

Figure 3 Prognostic value of the indicated mRNA levels on the overall survival of patients with hepatocellular carcinoma. HR, hazard ratio (provided with 95% CI). SNRPE, small nuclear ribonucleoprotein polypeptide E; BOP1, BOP1 ribosomal biogenesis factor; RACGAP1, Rac GTPase activating protein 1; MAPRE1, microtubule associated protein RP/EB family member 1; KIF; kinesin family member; MCM10, minichromosome maintenance 10 replication initiation factor; HMMR, hyaluronan mediated motility receptor; UBE2C, ubiquitin conjugating enzyme E2 C; CLIP1, CAP-Gly domain containing linker protein 1; SNRPB, small nuclear ribonucleoprotein polypeptide B and B1; NUP37; nucleoporin 37.

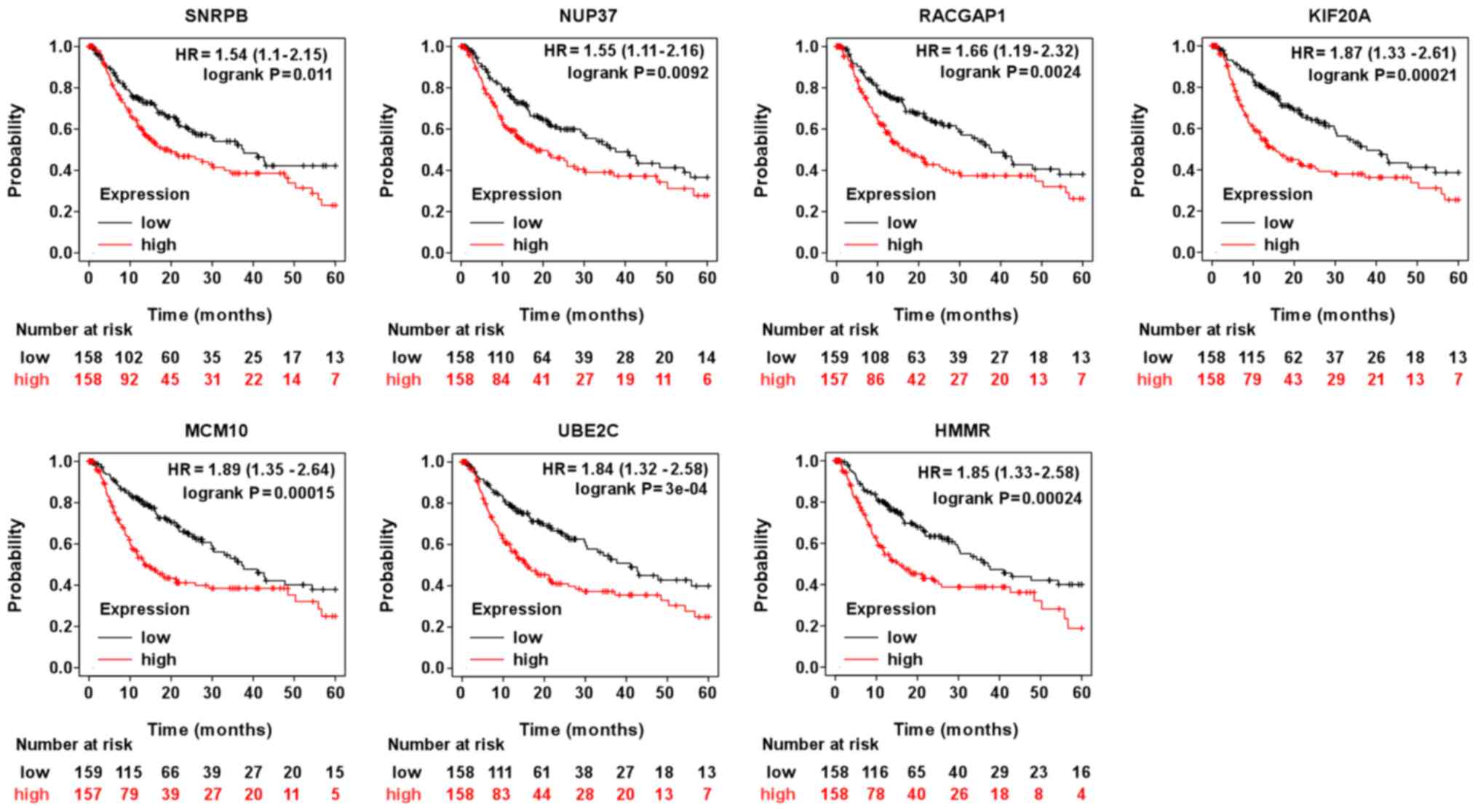

Figure 4 Prognostic value of the indicated mRNA levels on the progression-free survival of patients with hepatocellular carcinoma. Genes significantly associated with progression-free survival were selected for analysis. HR, hazard ratio (provided with 95% CI). RACGAP1, Rac GTPase activating protein 1; KIF; kinesin family member; MCM10, minichromosome maintenance 10 replication initiation factor; HMMR, hyaluronan mediated motility receptor; UBE2C, ubiquitin conjugating enzyme E2 C; NUP37; nucleoporin 37; SNRPB, small nuclear ribonucleoprotein polypeptide B and B1.

Table I Prognostic value of mRNA levels of the key genes from PPI (enriched in metabolism of RNA) for overall survival of patients with hepatocellular carcinoma using the Kaplan-Meier Plotter dataset.

Table I

Prognostic value of mRNA levels of the key genes from PPI (enriched in metabolism of RNA) for overall survival of patients with hepatocellular carcinoma using the Kaplan-Meier Plotter dataset.

Factor	Numbers of international proteins	HR (95% CI)	P value
RPS5	77	1.28 (0.89-1.83)	0.18
RPS28	77	0.95 (0.66-1.36)	0.77
RPS19	76	1.02 (0.71-1.46)	0.91
RPS10	76	1.01 (0.71-1.44)	0.96
RPS13	67	1.30 (0.91-1.86)	0.15
RPS20	65	1.12 (0.78-1.60)	0.54
RPL27	60	1.20 (0.84-1.72)	0.31
UPF1	59	0.80 (0.56-1.14)	0.21
RPLP0	58	1.14 (0.79-1.62)	0.49
RPL28	58	0.88 (0.61-1.25)	0.47
CPSF1	58	1.26 (0.88-1.80)	0.21
RPL18	57	1.08 (0.76-1.54)	0.67
SNRPE	54	1.56 (1.09-2.23)	0.015
SNRPB	54	1.47 (1.02-2.11)	0.036
UBA52	53	1.05 (0.74-1.50)	0.78
PPP2CA	53	0.99 (0.69-1.41)	0.94
RPL30	52	0.89 (0.62-1.27)	0.53
RPL26L1	52	1.12 (0.78-1.60)	0.53
RPS18	52	1.08 (0.75-1.54)	0.68
BOP1	52	1.72 (1.20-2.48)	0.0030
RPL23	51	0.84 (0.59-1.20)	0.34
POLR2H	51	1.41 (0.98-2.02)	0.06

[i] HR, hazard ratio. Numbers of international proteins, the numbers of proteins that are associated with the indicated protein from the PPI; PPI, protein-protein interactions; SNRP, small nuclear ribonucleoprotein polypeptide; BOP1, BOP1 ribosomal biogenesis factor; RPS ribosomal protein; UPF1, UPF1 RNA helicase and ATPase; RPL, ribosomal protein lateral stalk subunit; CPSF1, cleavage and polyadenylation specific factor 1; UBA52, ubiquitin A-52 residue ribosomal protein fusion product 1; PPP2CA, protein phosphatase 2 catalytic subunit α; RPL26L1, ribosomal protein L26 like 1; RPS18, ribosomal protein S18; POLR2H, RNA polymerase II, I and III subunit H.

Next, the expression profiles of SNRPE, SNRPB or BOP1 and their DNA alteration were analyzed using the cBioPortal dataset (Fig. 5). The results showed that their DNA are both amplified.

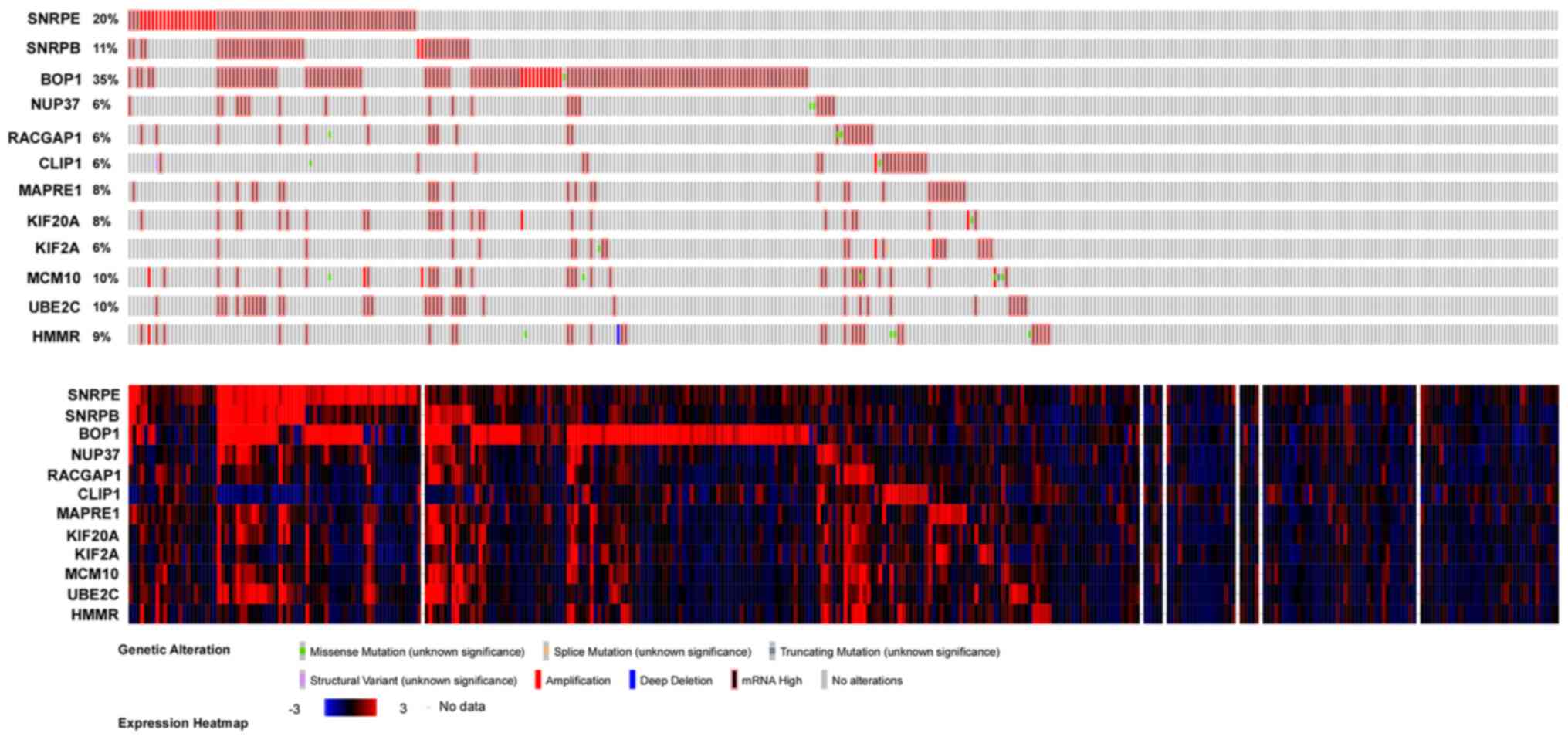

Figure 5 DNA alteration (upper panel) and mRNA profile (lower panel) data for the genes implicated in hepatocellular carcinoma. SNRPE, small nuclear ribonucleoprotein polypeptide E; SNRPB, small nuclear ribonucleoprotein polypeptide B and B1; BOP1, BOP1 ribosomal biogenesis factor; RACGAP1, Rac GTPase activating protein 1; MAPRE1, microtubule associated protein RP/EB family member 1; KIF; kinesin family member; MCM10, minichromosome maintenance 1 replication initiation factor; HMMR, hyaluronan mediated motility receptor; UBE2C, ubiquitin conjugating enzyme E2 C; NUP37; nucleoporin 37.

In terms of the cell cycle, the genes with >50 connections/interactions were further studied, and the top 23 central node genes were subjected to univariate Cox regression analysis to determine their predictive value for overall survival

These were PPP2CA, UBA52, MCM3, protein phosphatase 2 regulatory subunit B'delta, NUP37, dynein cytoplasmic 1 intermediate chain 2, RACGAP1, H2B clustered histone 15, cell division cycle 27, CLIP1, H2B clustered histone 3, exportin 1, actin gamma 1, histone cluster 1, H2bm, MAPRE1, proteasome 20S subunit beta 3, KIF20A, KIF2A, MCM10, DSN1 component of MIS12 kinetochore complex, UBE2C and HMMR (Table II). The analysis indicated that NUP37, RACGAP1, CLIP1, MAPRE1, KIF20A, KIF2A, MCM10, UBE2C and HMMR might serve as the prognostic markers for overall survival (Table II; Fig. 3). While, NUP37, RACGAP1, KIF20A, MCM10, UBE2C and HMMR also were closely correlated with progression-free survival for patients with HCC, suggesting these genes might also serve as prognostic markers for progression-free survival for patients with HCC (Fig. 4). As presented in Fig. 5, the expression profile of MCM3, RACGAP1, MAPRE1, KIF20A, KIF2A, MCM10 and HMMR and DNA alteration of these genes were analyzed using the cBioPortal dataset. The results showed that their DNA are all amplified.

Table II Prognostic value of mRNA levels of the key genes from the PPI (enriched in cell cycle) for overall survival of patients with hepatocellular carcinoma using the Kaplan-Meier Plotter dataset.

Table II

Prognostic value of mRNA levels of the key genes from the PPI (enriched in cell cycle) for overall survival of patients with hepatocellular carcinoma using the Kaplan-Meier Plotter dataset.

Factor	Numbers of international proteins	HR (95% CI)	P-value
PPP2CA	60	0.99 (0.69-1.41)	0.94
UBA52	56	1.05 (0.74-1.50)	0.78
MCM3	46	1.58 (1.10-2.26)	0.013
PPP2R5D	45	1.10 (0.77-1.57)	0.60
NUP37	43	1.52 (1.06-2.18)	0.021
DYNC1I2	43	1.12 (0.78-1.60)	0.54
RACGAP1	41	1.92 (1.33-2.77)	0.00041
HIST1H2BN	39	1.08 (0.76-1.54)	0.67
CDC27	38	1.25 (0.88-1.80)	0.22
CLIP1	38	0.70 (0.49-1.00)	0.047
HIST1H2BB	38	1.26 (0.77-2.06)	0.35
XPO1	38	1.29 (0.90-1.85)	0.16
HIST1H2BH	37	1.40 (0.97-2.00)	0.068
ACTG1	37	1.40 (0.97-2.01)	0.067
HIST1H2BM	36	0.86 (0.53-1.40)	0.55
MAPRE1	35	1.50 (1.05-2.15)	0.026
PSMB3	34	0.84 (0.59-1.21)	0.35
KIF20A	34	2.08 (1.44-3.01)	7.20x10-5
KIF2A	34	1.75 (1.21-2.52)	0.0024
MCM10	33	1.82 (1.27-2.62)	0.0010
DSN1	32	1.20 (0.84-1.71)	0.32
UBE2C	32	1.49 (1.04-2.14)	0.028
HMMR	32	2.25 (1.55-3.26)	1.00x10-5

[i] HR, hazard ratio; numbers of international proteins, the numbers of proteins that are associated with the indicated protein from the PPI; PPI, protein-protein interactions. PPP2CA, protein phosphatase 2 catalytic subunit α; UBA52, ubiquitin A-52 residue ribosomal protein fusion product 1; MCM3, minichromosome maintenance complex; PPP2R5D, protein phosphatase 2 regulatory subunit B'delta; NUP37, nucleoporin 37; DYNC1I2, dynein cytoplasmic 1 intermediate chain 2; RACGAP1, Rac GTPase activating protein; HIST1H2BN, H2B clustered histone 15; CDC27, cell division cycle 27; CLIP1, CAP-Gly domain containing linker protein 1; HIST1H2BB, H2B clustered histone 3; XPO1, exportin 1; ACTG1, actin gamma 1; HIST1H2BM, histone cluster 1, H2bm; PSMB3, MAPRE1, proteasome 20S subunit beta 3; KIF, kinesin family member; DSN1, DSN1 component of MIS12 kinetochore complex; UBE2C, ubiquitin conjugating enzyme E2 C; HMMR, hyaluronan mediated motility receptor.

Discussion

The tumorigenesis and progression of HCC involve a multistep process during which cells undergo complex changes, including accumulating mutations, which lead to activation of oncogenes and loss of tumor suppressor genes. These genes are implicated in multiple pathways that may regulate different steps of carcinogenesis. For instance, certain steps are essential for driving cell transformation, while others have indispensable roles in cancer progression or in the acquisition of characteristics required for metastasis (13). Therefore, identifying such genes is crucial for cancer therapy. However, HCC cells are morphologically and genetically heterogeneous. This heterogeneity partly accounts for the complexity of HCC (14). Therefore, in view of this complexity, it is important to integrate data from different independent studies in order to perform robust analyses.

Accordingly, in the present study, DEGs were identified from GEO and TCGA datasets. Functional enrichment analysis revealed that these genes were mainly associated with RNA metabolism and the cell cycle.

A portion of the genome is known to be transcribed into RNAs, whose biological functions are still being determined. In view of the importance of RNAs, there is a significant turnover of RNAs associated with cell maintenance, repair and modulation, even in quiescent cells. Proliferating cells must upregulate the biosynthesis of RNA and DNA to support cell division (9,15-18). Sustained chronic proliferation is the most fundamental characteristic of cancer cells (8). The proliferation of cancer cells necessitates the upregulation of RNA biosynthesis. In line with this, the present study demonstrated that the DEGs were mainly involved in RNA metabolism. Furthermore, it is widely accepted that the sustained proliferation of cancer cells is realized through deregulation of the cell cycle (19). Accordingly, in the present study, it was indicated that the upregulated genes were also implicated in the cell cycle.

PPI network analysis offers more detailed information on the connections among the upregulated genes in HCC samples. Three genes associated with the overall survival of HCC patients, i.e., SNRPE, SNRPB and BOP1, which are involved in the metabolism of RNA, were screened. SNRPE and SNRPB are a central component of U small nuclear ribonucleoproteins, which are the main components of pre-mRNA processing spliceosomes. It has been reported that SNRPE promotes the proliferation of HCC cells (20). BOP1 is a nucleolar protein that is involved in ribosomal RNA processing and ribosome assembly. It has been reported that it promotes epithelial-to-mesenchymal transition (21).

In a similar manner, seven genes, i.e., NUP37, RACGAP1, CLIP1, MAPRE1, KIF20A, KIF2A, MCM10, UBE2C and HMMR, which regulate the cell cycle in HCC, were screened. Their high expression indicated poor prognosis for patients with HCC. MCM10 belongs to the MCM protein, which is involved in the initiation of eukaryotic genome replication. Their deregulation is observed in multiple cancer types, including prostate cancer (22), HCC (23-25) and renal cell carcinoma (26). RACGAP1 is a GTPase-activating protein that is a component of the central spindlin complex. It is able to bind to activated forms of Rho GTPases and stimulates GTP hydrolysis to induce negative regulation of Rho-mediated signals. It has been reported that high RACGAP1 is correlated with a high rate of post-resection recurrent HCC and may be used as a potential molecular target in the design of therapeutic methods for HCC (27). Furthermore, RACGAP1 participates in the progression of multiple cancer types (28-31).

MAPRE1 belongs to the RP/EB family and was organically identified by its binding with the APC protein. It is involved in the modulation of microtubule structures and chromosome stability. Its deregulation is associated with various cancer types, including colorectal cancer (32), gastric cancer (33), acute lymphoblastic leukemia (34) and HCC (35).

KIF2A and KIF20A belong to the kinesin family, which is a plus end-directed motor required for normal mitotic progression. Their deregulation is implicated in multiple cancer types (36-40).

HMMR forms a complex with BRCA1 and BRCA2 to regulate cell motility. It has been documented that HMMR maintains the stemness and tumorigenicity of glioblastoma stem-like cells (41). Another study has indicated that HMMR may be used as a biomarker for neutropenia induced by chemotherapy in patients with breast cancer (42).

All of these genes are highly interacting/connected genes, suggesting that they may have important roles in HCC. Since they regulate RNA metabolism and cell cycle, targeting them as a cancer therapy would not be specific and would, therefore, be expected to have severe side effects. However, they are significantly associated with overall survival for patients with HCC; therefore, they may serve as prognosis markers for patients with HCC. As another limitation, only a univariate analysis was performed to determine the association of these genes with survival, while multivariate analysis of single genes, or of a combined gene signature, may have provided an independent prognostic marker, which might provide more valuable for prognosis of HCC, and should be provided in a future study.
