Frozen blastocysts: Assessing the importance of day 5/day 6 blastocysts or blastocyst quality
- Authors:
- Published online on: March 16, 2022 https://doi.org/10.3892/etm.2022.11262
- Article Number: 333
-
Copyright: © Jiang et al. This is an open access article distributed under the terms of Creative Commons Attribution License.
Abstract
Introduction
Extended culture leading to embryo transfer at the blastocyst stage is considered a major advance in in vitro fertilization (IVF) as it has been shown to result in higher live birth rates in comparison to cleavage-stage embryo transfer (1,2). Transferring blastocysts is therefore perceived as the best option for elective single-embryo transfer (eSET), by reducing the risk of multiple pregnancies (3,4) without compromising live birth rates. With advances in cryopreservation techniques, improved implantation rates have been achieved, and pregnancy rates after frozen embryo transfer (FET) are at least comparable with those after the transfer of fresh IVF embryos (5). How to select single-blastocyst transfer for FET to reduce the time to successful pregnancy is very important. Thus, it is crucial to determine whether blastocyst developmental stage [day 5 (D5)/day 6 (D6)] or blastocyst quality is more important for a successful pregnancy.
The comparison of pregnancy outcomes between D5 and D6 blastocysts remains controversial. Some reports have concluded that the blastocyst development time is crucial and suggest that D5 is more superior than D6 in terms of implantation rate and live birth rate (6,7). However, other reports have shown that the clinical outcomes between D5 and D6 cryopreserved blastocyst transfers did not significantly differ (8,9), while some studies recommend that blastocyst quality is an important factor that affects the pregnancy outcomes of the vitrified-warmed cycles (10,11).
Previous relevant studies only performed simple statistical analyses of the clinical outcomes of vitrified-warmed cycles (6-11). However, all frozen D5/D6 blastocysts came from IVF and intracytoplasmic sperm injection (ICSI) fresh cycles. The present study was the first to consider the D5/D6 high-quality blastocyst rate of fresh cycle without embryo transfer and the ratio if only D6 have blastocysts. The present study also aimed to analyze the pregnancy outcomes of D5/D6 blastocysts with respect to the blastocyst quality in programmed single vitrified-warmed blastocyst transfer (SVBT).
Patients and methods
Patients
This was a retrospective study carried out at The Center for Reproductive Medicine and Infertility, The Fourth Hospital of Shijiazhuang, China from March 2017 to May 2020. In total, 1,560 (IVF, 1,100 and ICSI 460) all blastocyst frozen cycles were analyzed and 1,161 SVBT cycles (D5 975 and D6 186) were included in the study. The criteria for allocating patients to IVF and ICSI were male semen factors. The women were given IVF protocol in the first assisted reproductive technology (ART) treatment cycle unless accompanied by severe male-factor infertility. Otherwise ICSI treatment was performed. Patients included in the analysis were <35 years at the oocyte collection in their first fresh cycle without fresh embryo transfer, and were undergoing their first autologous FET cycle. The Fourth Hospital of Shijiazhuang Ethics Committee approved (approval no. 20170063; approval date, January 5, 2017) this study.
Blastocyst culture and scoring
Cumulus-oocyte-complexes (COC) were isolated from follicular fluid, rinsed in G-IVF™ medium (VitroLife, Sweden) transferred to 0.5 ml G-IVF™ medium and cultured in an incubator under 5% O2, 6% CO2, and 89% N2. Sperm was used for either routine IVF insemination or ICSI procedure using a standard method as described by Jiang et al (12). Insemination were performed 38-40 h after trigger. Fertilization was identified by the presence of two pronuclei approximately 16-19 h after insemination or microinjection. On day 3, the embryos were transferred into G-2 culture medium in group culture (Vitrolife). In the morning of D5 or D6, blastocysts were scored by two experienced embryologist using the system of Gardner and Schoolcraft (13). On day 5, embryos at the morula or early blastocyst stage were left in culture for 1 day more. For blastocysts graded as 3-6 (i.e., full blastocysts onward), the development of the inner cell mass (ICM) was assessed as follows: A, tightly packed, many cells; B, loosely grouped, several cells; or C, very few cells. The trophectoderm (TE) was assessed as follows: A, many cells forming a cohesive epithelium; B, few cells forming a loose epithelium; or C, very few large cells. Blastocysts with a score ≥3, including those with grades BC, CB were selected on day 5 and day 6 for vitrification. High-quality blastocysts (HBs) were defined as blastocysts ≥3 BB (AA, AB, BA, BB). Low-quality blastocysts (LBs) were defined as vitrified blastocysts, excluding those HBs.
Blastocyst vitrification and warming procedures
The procedure was always performed using one blastocyst for each straw. An artificial shrinkage (AS), using a laser pulse was performed before vitrification. The blastocyst was then moved at room temperature (22-25˚C) to Kitazato (Japan) equilibration solution (ES). After 6-8 min, the blastocyst was quickly washed in vitrification solution (VS) for 45-60 sec and transferred onto the straw (Kitazato Japan) using a micropipette and immersed vertically into liquid nitrogen.
A Kitazato Thaw Kit Kitazato) was used for warming. The carrier containing the embryo was removed from the straw and placed quickly into the dish containing the thawing medium (thawing solution) preheated at 37˚C. The blastocysts immediately fell from the device and could be easily identified in the medium. After 1 min, the blastocysts were transferred to the DS medium (dilution solution) for 3 min at room temperature (22-25˚C). In the last two step, the blastocysts were placed for 5 min, in the WS1 medium and WS2 (washing solution). The embryo was then returned to G-2 medium for culture until transfer. At this stage, an assessment was performed on an inverted microscope to establish if the embryo survived based on morphological integrity of the ICM and trophectoderm. After 1 or 2 h of culture, the embryo was reassessed again and often the re-expansion of the blastocoel was reported; this indicated that the embryo physiologically survived the warming procedure. Embryo transfer was normally performed within 2 or 3 h. All programmed warmed cycles, both at D5 and D6, were transferred in D5 endometrium.
If the patient had both D5 and D6 blastocysts, the best quality embryo was warmed first. If blastocyst quality was the same, the D5 blastocyst was given priority to transfer. If the embryo did not survive, another embryo was warmed if the patient had any in storage, otherwise the transfer was canceled. Some patient blastocysts were not thawed, did not survived, or two blastocysts transferred were not included in this study.
Endometrial programming and observational indicators
All vitrified-warmed cycles of endometrium preparation were natural cycle (NC) or artificial cycle [hormone replacement therapy (HRT)] based on the implantation programs. NC was applicable for patients with a regular menstrual cycle. Follicular development was monitored using B ultrasound on days 8-10 of menstruation. The follicular and endometrial development conditions were assessed and combined with the estradiol (E2) and luteinizing hormone (LH) levels to confirm the ovulation time. Embryo transfer was performed on D5 of ovulation. HRT was applicable for patients with an irregular menstrual cycle, ovulation disorder, or poor endometrial and follicular development in NC. Starting from days 2-3 of menstruation, 2-6 mg/day of estradiol valerate (Progynova, Bayer) was administered, and the endometrial thickness and serum E2 levels were monitored using B ultrasound. When the endometrial thickness was at least 8 mm, progesterone 60 mg/day was additionally administered. Embryo transfer was performed on day 6 of progesterone injection. All warmed blastocysts, both vitrified on D5 or D6 were replaced in the D5 endometrium. All embryo transfers were performed using transabdominal ultrasound guidance.
Observation of the gestational sac and fetal heart by B ultrasound at 35 days after implantation was diagnosed as clinical pregnancy. The implantation rate was defined as the ratio between the number of gestational sacs and fetal heart observed under B ultrasound and the number of transferred blastocysts. Implantation rates, pregnancy rates, and twinning of D5/D6 SVBT were analyzed.
Statistical analyses
Statistical analyses were performed using SPSS 19.0 statistical software (SPSS Inc.). The data are presented as the mean ± standard deviation (SD). The mean values of two groups were compared using the independent samples t-test. Percentages were compared using the χ2 test and P<0.05 was considered statistically significant.
Results

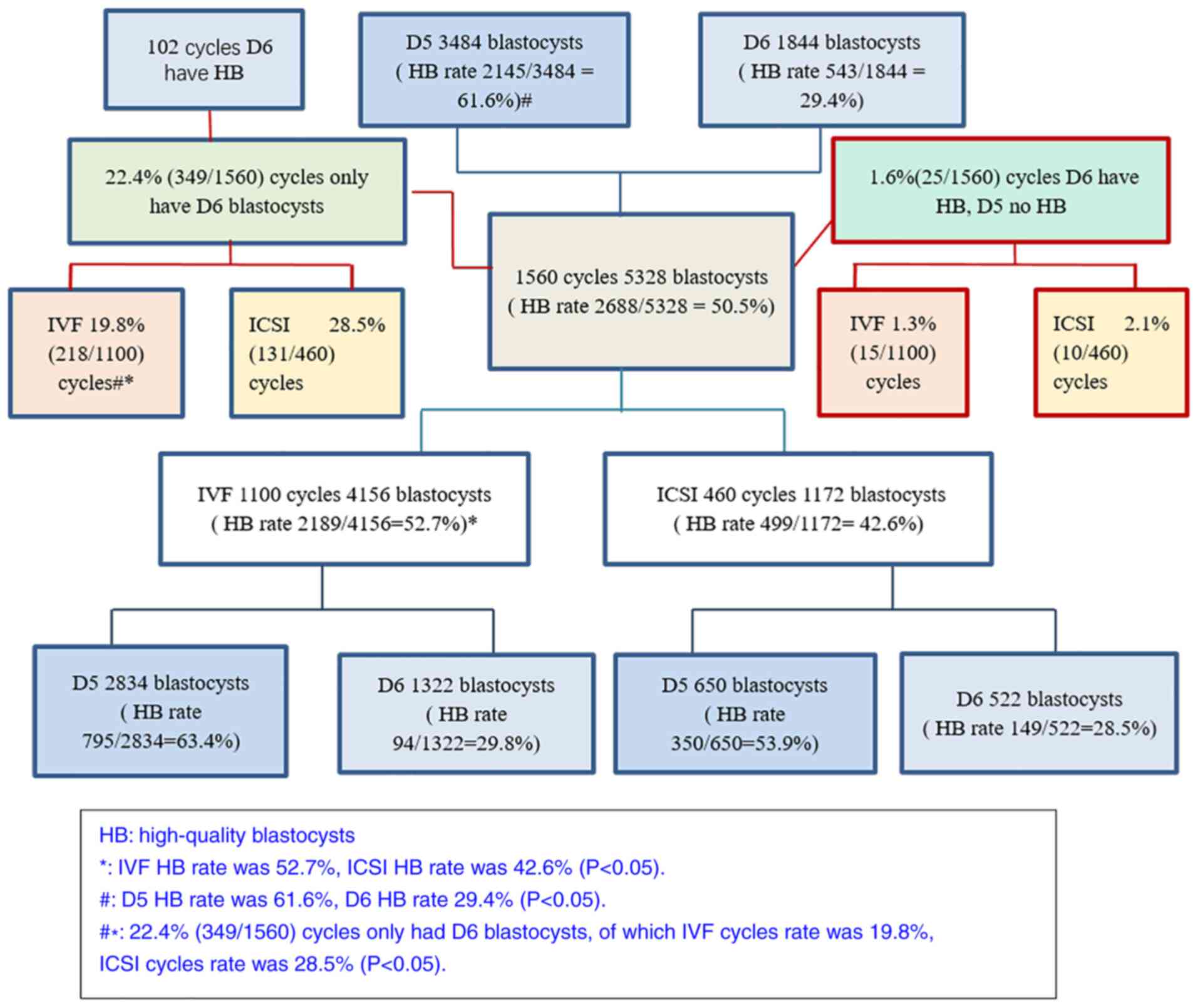

D5/D6 HB blastocyst rate in 1,560 fresh IVF/ICSI cycles
The total HB rate was 50.5% (2,688/5,328) for which IVF was higher than ICSI (52.7% vs. 42.6%; P<0.05). The D5 HB rate was much higher than the D6 HB rate (61.6% vs. 29.4%; P<0.05). There were 22.4% (349/1560) cycles of only cultured D6 blastocysts, in which IVF was lower than ICSI (19.8% vs. 28.5%; P<0.05) (Fig. 1).
Clinical pregnancy rate of HB/LB SVBT on D5 and D6 in IVF/ICSI

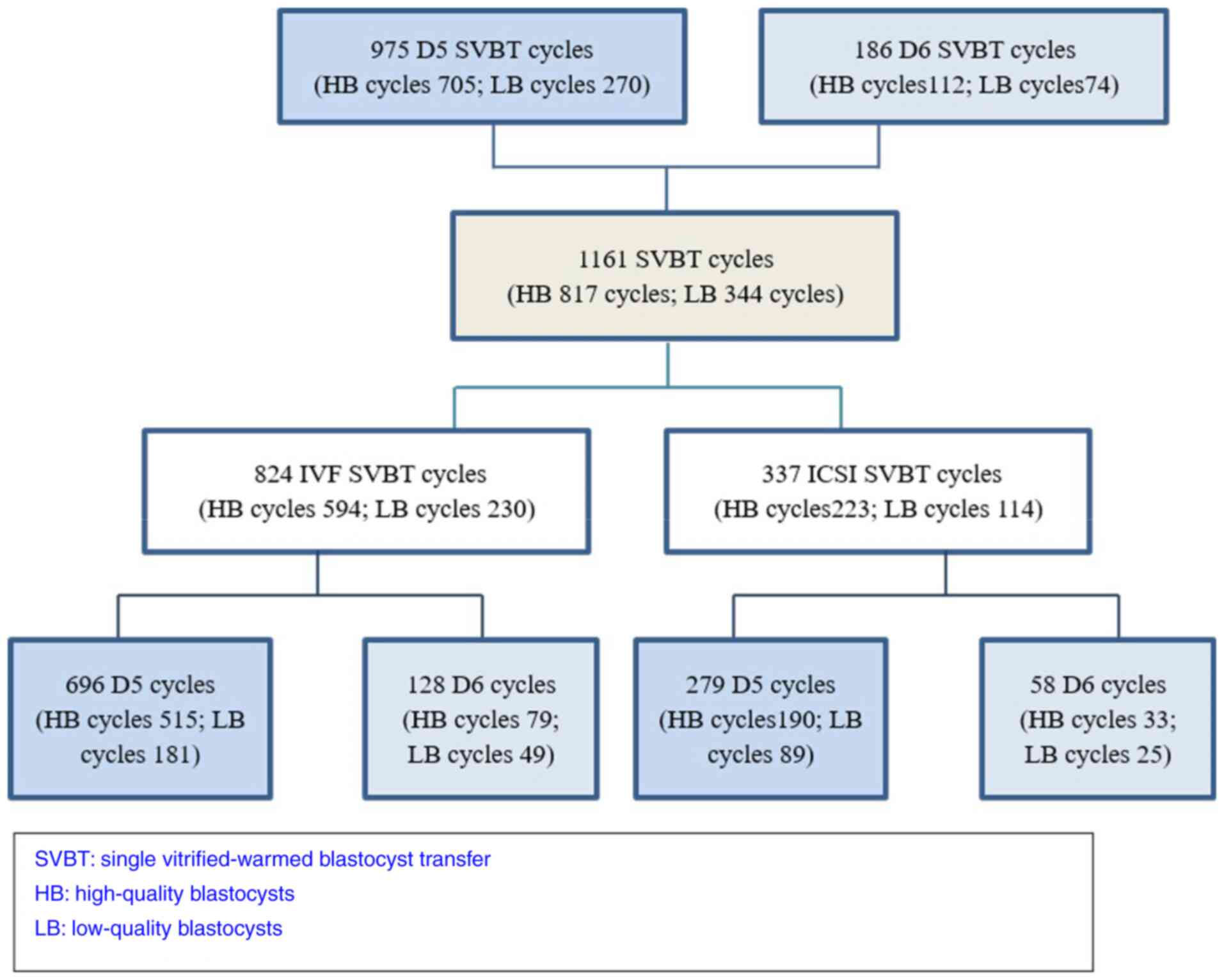

In total, 1,161 SVBT cycles (D5 975 and D6 186) were analyzed (Fig. 2). The mean age of the women in the D5 group and D6 group was not different (31.8 years vs. 31.9 years). The clinical pregnancy rate and implantation rate in the D5 group were significantly higher than these rates in the D6 group (57.4 vs. 46.2%, 58.9 vs. 47.3%; P<0.05). However, the clinical pregnancy rate and implantation rate of D5 HB were not significantly different from those of D6 HB (60 vs. 54.5%, 62 vs. 56.3%; P>0.05). The clinical pregnancy rate and implantation rate of D5 LB were higher than those of D6 LB (49.6 vs. 33.8%, 50.7 vs. 33.8%; P<0.05) (Table I). The clinical pregnancy rate and implantation rate were similar in IVF and ICSI groups (56.3 vs. 54.0%, 57.0 vs. 56.1%; P>0.05) (Table II). The multiple pregnancy rate was similar in the D5/D6 groups, and ICSI was higher than IVF, but not statistically significant (1.44 vs. 1.08%, 2.08 vs. 1.09%; P>0.05). The D5 male rate was higher than the D6 male rate (54.0 vs. 48.4%), but was not statistically significant (Table I). The male rate was similar in the IVF/ICSI groups (52.2 vs. 56.4%; P>0.05) (Table II).
Discussion
Extending embryo culture to the blastocyst stage has become a routine in many in vitro fertilization (IVF) laboratories. The most widely used grading system is that originally proposed by Gardner and Schoolcraft (13). Although the system does not cover all aspects of blastocyst morphology it has been very effective in classifying the appearance and compactness of the inner cell mass (ICM), the cohesiveness and number of trophectoderm (TE) and degree of expansion of the blastocoel cavity.
Whether there are differences in the pregnancy outcomes of blastocysts cryopreserved during different developmental stages remains under debate because the results among studies are inconsistent. A meta-analysis of clinical outcomes showed that in day 5 (D5) vs. day 6 (D6) blastocyst transfers, clinical pregnancy rate and live birth rates were significantly higher following D5 compared to D6 blastocyst transfers (14). Therefore, ART practitioners should preferably transfer D5 rather than D6 blastocysts in both fresh and frozen cycles (14). Single embryo transfers of D6 vitrified/warmed blastocysts were found to result in a lower implantation and clinical pregnancy rate compared to D5 embryos (15). The effect of delayed blastulation may be responsible for implantation failures and negatively affects outcomes (4). However, in their studies, Behr et al (16) and El-Toukhy et al (9) did not observe a significant difference in the implantation and pregnancy rates between D5 and D6 blastocysts.
In addition, blastocyst grade plays an important role in pregnancy outcomes. Blastocysts with trophectoderm grades A, B, and C were found to have euploidy rates of 71.43, 60.00 and 19.67%, respectively (P<0.05) (17). Yang et al (11) reported that high-quality D6 blastocysts in vitrified-warmed cycles had similar developmental potential and pregnancy outcomes compared to those of high-quality D5 blastocysts, while Irani et al (18) observed that embryos reaching good-quality blastocysts on day 5 yielded significantly higher implantation rate (77.7% vs. 58.7%) compared with those reaching similar quality blastocysts on day 6. Similarly, D5 average-quality embryos conveyed a significantly higher implantation rate compared with D6 embryos of the same quality (64.4% vs. 53.4%) (18).
In previous research, patients who underwent single vitrified-warmed blastocyst transfer (SVBT) cycles were able to obtain optimal pregnancy outcomes, especially in the <35 year age group (19), while those older than 35 years may have a higher probability of pregnancy failure due to chromosomal abnormalities, age or other factors (20). This is why our research selected patients age <35 years and without biopsy. The multiple pregnancy rate was 1.08% (0.98% for D5 vs. 1.3% for D6) (15), which was similar to our results.
While the previous studies focused on warming embryo of D5/D6 frozen embryo transfer (FET) cycles, the present study was the first to consider the high-quality blastocyst (HB) rate in fresh in vitro fertilization/intracytoplasmic sperm injection (IVF/ICSI) cycles, and the rate of D6 had blastocysts whereas D5 had none. The present results showed that the D5 HB rate was twice higher than the D6 HB rate in fresh cycles (61.6% vs. 29.4%; P<0.05), and this was probably the reason why the clinical pregnancy rate and implantation rate in the D5 group were significantly higher than these rates in the D6 group (57.4% vs. 46.2%, 58.9% vs. 47.3%; P<0.05).
From this research, we know that in IVF, the cultured blastocysts and HBs per cycle were more than these parameters in ICSI, and cultured blastocysts in IVF were earlier than ICSI. We concluded that the fertilization method directly influenced HB and blastocyst development rates. Therefore, the IVF/ICSI ratio needs to be considered when analyzing D5/D6 SVBT. In the present SVBT study, D5 (IVF 71.4% and ICSI 28.6%) cycles and D6 (IVF 68.8% and ICSI 31.2%) IVF/ICSI ratios were not significantly difference. Speyer et al (21) also showed that IVF-derived embryos developed to the blastocyst stage at a significantly faster rate than ICSI-derived embryos. A previous study using time-lapse showed the different developmental time between IVF and ICSI embryos. During the early cleavage stages there was a statistically significant delay (+1.5 to +1.1 h) among the IVF-fertilized embryos, and at the blastocyst stage IVF-fertilized embryos showed faster development (22). IVF/ICSI sibling oocyte split design demonstrated a higher-quality blastulation rate in the IVF group compared to the ICSI group when calculated per 2PN, but not per oocyte allocated to each insemination procedure (23).
Most patients prefer to use D5 HB in their first FET cycle, and finally choose D6 blastocysts when none of the thawed D5 blastocysts have resulted in successful pregnancy. Therefore, the inclusion criteria were patients who were in their first fresh cycle without fresh embryo transfer and who were undergoing their first SVBT cycle.
In conclusion, following control of patient age, transfer frequency, and endometrium on day 5, it is not the development stage (D5/D6) but the transfer blastocyst quality that plays an important role in achieving the optimal pregnancy outcomes. The D5 HB rate was found to be 2-times higher than D6, and the IVF HB rate was also higher than ICSI, which may be the reason for the current debate in the literature regarding the pregnancy outcomes of D5/D6 SVBT.
Acknowledgements
Not applicable.
Funding
Funding: The present research study was funded by the Shijiazhuang Science and Technology Research and Development Plan Project (grant no. 191200853).
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Authors' contributions
YJ conceived the study and wrote the paper. YJ and GS performed the experiments and analyzed the data. YJ and XHZ contributed to design and conception. SBM and XHW contributed to acquisition and interpretation of data. GS, XHZ, SBM and XHW confirmed the authenticity of all of the data. XHW supervised the study. All authors read and approved the final manuscript and agree to be accountable for all aspects of the research in ensuring that the accuracy or integrity of any part of the work are appropriately investigated and resolved.
Ethics approval and consent to participate
The Fourth Hospital of Shijiazhuang Ethics Committee approved (approval no. 20170063; approval date, January 5, 2017) this study. The procedures used in this study adhered to the tenets of the Declaration of Helsinki. Informed consent was obtained from all individual participants included in the study.
Patient consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
References
|
Revelli A, Canosa S, Carosso A, Filippini C, Paschero C, Gennarelli G, Delle Piane L and Benedetto C: Impact of the addition of early embryo viability assessment to morphological evaluation on the accuracy of embryo selection on day 3 or day 5: A retrospective analysis. J Ovarian Res. 12(73)2019.PubMed/NCBI View Article : Google Scholar | |
|
Glujovsky D, Farquhar C, Quinteiro Retamar AM, Alvarez Sedo CR and Blake D: Cleavage stage versus blastocyst stage embryo transfer in assisted reproductive technology. Cochrane Database Syst Rev. 2016(CD002118)2016.PubMed/NCBI View Article : Google Scholar | |
|
Freeman MR, Hinds MS, Howard KG, Howard JM and Hill GA: Guidance for elective single-embryo transfer should be applied to frozen embryo transfer cycles. J Assist Reprod Genet. 36:939–946. 2019.PubMed/NCBI View Article : Google Scholar | |
|
Vega M, Zaghi S, Buyuk E and Jindal S: Not all twins are monozygotic after elective single embryo transfer: Analysis of 32,600 elective single embryo transfer cycles as reported to the society for assisted reproductive technology. Fertil Steril. 109:118–122. 2018.PubMed/NCBI View Article : Google Scholar | |
|
Reljič M and Porović A: Maternal serum levels of angiogenic markers and markers of placentation in pregnancies conceived with fresh and vitrified-warmed blastocyst transfer. J Assist Reprod Gene. 36:1489–1495. 2019.PubMed/NCBI View Article : Google Scholar | |
|
Sciorio R, Thong KJ and Pickering SJ: Increased pregnancy outcome after day 5 versus day 6 transfers of human vitrified-warmed blastocysts. Zygote. 27:279–284. 2019.PubMed/NCBI View Article : Google Scholar | |
|
Kovalevsky G, Carney SM, Morrison LS, Boylan CF, Neithardt AB and Feinberg RF: Should embryos developing to blastocysts on day 7 be cryopreserved and transferred: An analysis of pregnancy and implantation rates. Fertil Steril. 100:1008–1012. 2013.PubMed/NCBI View Article : Google Scholar | |
|
Hiraoka K, Hiraoka K, Miyazaki M, Fukunaga E, Horiuchi T, Kusuda T, Okano S, Kinutani M and Kinutani K: Perinatal outcomes following transfer of human blastocysts vitrified at day 5, 6 and 7. J Exp Clin Assist Reprod. 6(4)2009.PubMed/NCBI | |
|
El-Toukhy T, Wharf E, Walavalkar R, Singh A, Bolton V, Khalaf Y and Braude P: Delayed blastocyst development does not influence the outcome of frozen-thawed transfer cycles. BJOG. 118:1551–1556. 2011.PubMed/NCBI View Article : Google Scholar | |
|
Gardner DK, Lane M, Stevens J, Schlenker T and Schoolcraft WB: Reprint of: Blastocyst score affects implantation and pregnancy outcome: Towards a single blastocyst transfer. Fertil Steril. 112 (4 Suppl 1):e81–e84. 2019.PubMed/NCBI View Article : Google Scholar | |
|
Yang H, Yang Q, Dai S, Li G, Jin H, Yao G and Sun Y: Comparison of differences in development potentials between frozen-warmed D5 and D6 blastocysts and their relationship with pregnancy outcomes. J Assist Reprod Genet. 33:865–872. 2016.PubMed/NCBI View Article : Google Scholar | |
|
Jiang Y, Cao Q, Zhao X, Li L, Li S and Gao F: Percutaneous epididymal sperm aspiration and short time insemination in the treatment of men with obstructive azoospermia. J Assist Reprod Genet. 30:1175–1179. 2013.PubMed/NCBI View Article : Google Scholar | |
|
Gardner DK and Schoolcraft WB: Culture and transfer of human blastocysts. Curr Opin Obstet Gynecol. 11:307–311. 1999.PubMed/NCBI View Article : Google Scholar | |
|
Bourdon M, Pocate-Cheriet K, Finet de Bantel A, Grzegorczyk-Martin V, Amar Hoffet A, Arbo E, Poulain M and Santulli P: Day 5 versus day 6 blastocyst transfers: A systematic review and meta-analysis of clinical outcomes. Hum Reprod. 34:1948–1964. 2019.PubMed/NCBI View Article : Google Scholar | |
|
Sciorio R, Thong KJ and Pickering SJ: Single blastocyst transfer (SET) and pregnancy outcome of day 5 and day 6 human blastocysts vitrified using a closed device. Cryobiology. 84:40–45. 2018.PubMed/NCBI View Article : Google Scholar | |
|
Behr B, Gebhardt J, Lyon J and Milki AA: Factors relating to a successful cryopreserved blastocyst transfer program. Fertil Steril. 77:697–699. 2002.PubMed/NCBI View Article : Google Scholar | |
|
Yoshida IH, Santos M, Berton CZ, Chiarella CL, Tanada MS, BCordts E, Carvalho WP and Barbosa CP: Can trophectoderm morphology act as a predictor for euploidy? JBRA Assist Reprod. 22:113–115. 2018.PubMed/NCBI View Article : Google Scholar | |
|
Irani M, O'Neill C, Palermo GD, Xu K, Zhang C, Qin X, Zhan Q, Clarke RN, Ye Z, Zaninovic N and Rosenwaks Z: Blastocyst development rate influences implantation and live birth rates of similarly graded euploid blastocysts. Fertil Steril. 110:95–102.e1. 2018.PubMed/NCBI View Article : Google Scholar | |
|
Ueno S, Berntsen J, Ito M, Uchiyama K, Okimura T, Yabuuchi A and Kato K: Pregnancy prediction performance of an annotation-free embryo scoring system on the basis of deep learning after single vitrified-warmed blastocyst transfer: A single-center large cohort retrospective study. Fertil Steril. 116:1172–1180. 2021.PubMed/NCBI View Article : Google Scholar | |
|
Ozgur K, Berkkanoglu M, Bulut H, Yoruk GDA, Candurmaz NN and Coetzee K: Single best euploid versus single best unknown-ploidy blastocyst frozen embryo transfers: A randomized controlled trial. J Assist Reprod Genet. 36:629–636. 2019.PubMed/NCBI View Article : Google Scholar | |
|
Speyer B, O'Neill H, Saab W, Seshadri S, Cawood S, Heath C, Gaunt M and Serhal P: In assisted reproduction by IVF or ICSI, the rate at which embryos develop to the blastocyst stage is influenced by the fertilization method used: A plit IVF/ICSI study. J Assist Reprod Genet. 36:647–654. 2019.PubMed/NCBI View Article : Google Scholar | |
|
Cruz M, Garrido N, Gadea B, Muñoz M, Pérez-Cano I and Meseguer M: Oocyte insemination techniques are related to alterations of embryo developmental timing in an oocyte donation model. Reprod Biomed Online. 27:367–375. 2013.PubMed/NCBI View Article : Google Scholar | |
|
Sauerbrun-Cutler MT, Huber WJ III, Has P, Shen C, Hackett R, Alvero R and Wang S: Is intracytoplasmic sperm (ICSI) better than traditional in vitro fertilization (IVF): Confirmation of higher blastocyst rates per oocyte using a split insemination design. J Assist Reprod Genet. 37:1661–1667. 2020.PubMed/NCBI View Article : Google Scholar |
