Introduction

The functional p53 pathway is critical for homeostasis and tumor inhibition. p53 mutations, which are detected in more than half of human cancers, have been associated with tumor development, poor prognosis and therapeutic resistance. Various therapeutic strategies aiming to rescue or amplify p53 pathways are being developed for cancer treatment (1–3). In particular, p53AIP1 is emerging as a therapeutic target with great potential.

The p53AIP1 gene is a p53 target gene located on chromosome 11. Alternative splicing gives rise to three isoforms (α, β and γ) of p53AIP1 proteins (4). Functional studies indicate that p53AIP1 is a potent pro-apoptotic molecule. Overexpression of p53AIP1 alone induces apoptosis (5). Blockage of p53AIP1 using specific siRNA significantly attenuates p53-induced apoptosis (4). Available data suggest that p53AIP1 induces apoptosis through the mitochondrial pathway. By interacting with Bcl-2, p53AIP1 decreases mitochondrial membrane potential and induces cytochrome c release, which leads to caspase-9 activation and the downstream activities (6).

Expression of p53AIP1 is primarily regulated by p53. Activation of p53 by a number of factors, such as DNA damage, induces the transcription of p53AIP1 (7–10). In contrast to the p53-mediated regulation of p21 and MDM2, which involves the phosphorylation of Ser-15 of p53 (11,12), induction of p53AIP1 mRNA and its apoptotic function was uniquely associated with the phosphorylation of Ser-46 of p53 (4). Substitution of Ser-46 impairs p53-mediated apoptosis and its induction of p53AIP1 transcription.

The clinical relevance of p53AIP1 is supported by reports on its association with prognosis and therapeutic potential. Sawaya et al reported that p53AIP1 mRNA levels were significantly lower in gastric carcinoma cells, as compared to chronic gastritis samples (13). Data by Yamashita et al revealed that p53AIP1 gene expression in a lymph node metastasis-positive group was significantly lower than in a negative group, and the overall survival of a p53AIP1 low expression group was significantly worse than that of a p53AIP1 high expression group (14). A study by Yoshida et al indicated that Ad-p53AIP1 induced apoptosis in a number of cancer cell lines. It appeared that cells with wild-type p53 were more sensitive to Ad-p53AIP1 than cells with mutant p53 (5). However, the mechanism of p53-related sensitivity was not elucidated.

In this study, we generated Ad-p53AIP1 and established in vitro and in vivo models to evaluate Ad-p53AIP1-induced tumor inhibition. We characterized Ad-p53AIP1-induced apoptosis and cell cycle arrest in HepG2, HeLa and 4T1 cells. Our data demonstrated that p53AIP1-induced up-regulation of p53 through MDM2 down-regulation is an important mechanism underlying Ad-p53AIP1-induced apoptosis and cell cycle arrest.

Materials and methods

Reagents

Plasmids pDC316 and pBHGloxΔE1, 3Cre were purchased from Fungenome Technology Co., Ltd. and Vector Gene Technology Co., Ltd., respectively. Ad-null viruses were a gift from Vector Gene Technology Co., Ltd. Antibodies against p53AIP1, β-actin, p21, p53 and MDM2 were purchased from Santa Cruz Biotechnology, Inc. Anti-cleaved PARP antibody was purchased from Cell Signaling Technology, Inc. Anti-CDK4 antibody was purchased from Lab Vision Inc., Fremont, CA. Rhodamine 123 was from Sigma Co., and the reverse transcription kit was purchased from Jingmei Biotech Co., Ltd.

Construction, characterization and amplification of p53AIP1-encoding adenovirus

The p53AIP1 gene was cloned from a cDNA library using the following primers: forward, 5′ ATG GGA TCT TCC TCT GAG GCG A 3′; reverse, 5′ TCA CTG CAA CCT CAA CGG TGC T 3′. The cloned gene was verified by DNA sequencing. The p53AIP1 gene was then subcloned into the pDC316 shuttle vector. For adenovirus packaging, pDC316-p53AIP1 and pBHGloxΔE1, 3Cre (the backbone vector of the AdMax adenoviral vector system) were co-transfected into HEK293 cells using Lipofectamine 2000 (Invitrogen). Twelve days after transfection, individual plaques were chosen for DNA purification. p53AIP1 integration was examined by PCR using the above mentioned primers. Viruses derived from p53AIP1-positive clones were named Ad-p53AIP1. This virus was then amplified and titrated as described previously (15).

Cell culture and viral transduction

Human hepatocellular carcinoma cell line HepG2, human embryonic kidney cell line HEK293 and murine BALB/c derived mammary tumor cell line 4T1 cells were cultured in H-DMEM medium supplemented with 10% FBS and antibiotics. For viral transduction, unless specified, the cells were infected with Ad-null or Ad-p53AIP1 at a MOI of 100 for 24 h, followed by specific examinations.

RT-PCR

To examine the mRNA levels of p53AIP1, p53 and MDM2 in HepG2 cells, total RNA was extracted from the cells 6, 12 and 24 h after transduction. First-strand cDNA was synthesized using a kit from Jingmei BioTech Co. Ltd., following the manufacturer's protocol. The primer sequences for the PCR reactions were as follows: p53 forward, 5′ AGC ACT GTC CAA CAA CAC CA 3′; reverse, 5′ TCC ATG TCA GTC TGA GTC AG 3′; MDM2 forward, 5′ CCC TGG TTA GAC CAA AGC CAT 3′; reverse, 5′ GGC ACG CCA AAC AAA TCT CC 3′. The PCR conditions were 94°C/5 min, (94°C/30 sec, 53°C/30 sec, 72°C/30 sec) 32 cycles, 72°C/7 min. PCR products (20 μl) were electrophoresed on a 2% agarose gel.

Western blotting

Cell lysates were extracted from the treated cells at indicated time-points after viral transduction, followed by protein concentration determination. The protein lysate (50 μg) from each sample was separated using 10% SDS-PAGE gel and transferred to a nitrocellulose membrane. The membrane was blocked with 5% milk and probed with the primary antibody against the protein to be detected. The specific bands were visualized with ECL.

Effect of p53AIP1 on cell survival/growth by the 3-(4, 5-dimethylthiazol-2-yl)-2, 5-diphenyltetrazolium bromide (MTT) assay

Two thousand cells were plated into each well of 96-well plates one day prior to viral transduction. The cells were then transduced with Ad-null or Ad-p53AIP1 virus at a MOI of 100 for 4 h, followed by medium replacement. Using the MTT assay, cell survival/proliferation was determined daily after treatment for 5 days. For MTT assay, the cells were incubated with MTT (500 μg/ml) for 3 h. Incorporated MTT was dissolved and measured at Dnm 570. Each data set was based on six parallel samples.

Flow cytometric detection of cell cycle distribution and mitochondrial membrane potential

For cell cycle analysis, the treated cells were trypsinized and collected at indicated times, followed by fixation with paraformaldehyde. Fixed cells were washed with PBS containing 0.1% Triton X-100 and treated with RNase A for 30 min and stained with 50 μg/ml propidium iodide. Cells were analyzed using a FACS Calibur flow cytometer. Cell cycle distribution was analyzed using MultiFit software. To measure the mitochondrial membrane potential, treated cells at indicated time points were typsinized, pelleted and washed with PBS. Cells in suspension were then stained with Rhodamine 123 (5 μg/ml) in the dark for 30 min, followed by flow cytometric analysis.

Transmission electron microscopy

Non-treated control and Ad-null or Ad-p53AIP1 transduced (100 MOI for 96 h) HepG2 cells were fixed in 2.5% glutaraldehyde for 4 h then treated with 1% OsO4. The samples were then dehydrated through a graded ethanol series and embedded, followed by ultra-thin sectioning, staining and viewing under an electron microscope.

Hoechst staining

The cells treated with either Ad-null or Ad-p53AIP1 at 100 MOI for 48 h were collected (including floating and trypsinized cells) and washed with PBS followed by fixation with 2% paraformaldehyde at 4°C for 30 min. The cells were stained with 0.5 μg/ml Hoechst 33258 for 30 min. Stained cells were then washed and mounted on slides using a cytospinner. Apoptotic cells with nuclear condensation or fragmentation were counted under an Olympus fluorescence microscope.

In vivo tumor xenograft study

Female BALB/c mice (6 weeks old, 18–22 g) and murine mammary tumor cell line 4T1 were used for this study. The first set of experiments was designed to examine in vivo tumor development of 4T1 cells transduced with Ad-p53AIP1 prior to implantation. With 7 mice in each group, the groups included PBS treatment, Ad-null transduction and Ad-p53AIP1 transduction. After exposure to PBS or Ad-null or Ad-p53AIP1 virus in vitro for 24 h, 4T1 cells from each group were injected s.c. into the flanks of the mice (1×106 cells/100 μl/mouse). After transplantation, tumor size was measured using calipers, and tumor volume was estimated according to the following formula: Tumor volume (mm3) = (A × B2)/2, where A is the length and B is the tumor width. Tumor inhibition rate (%) = [(average of control tumor volume – average of Ad-p53AIP1 tumor volume)/ average of control tumor volume] × 100%. The second set of experiments involved examining the effect of in vivo delivery of Ad-p53AIP1 on 4T1 tumor development. To this end, untreated 4T1 cells were implanted into 21 mice at a dose of 1×106 cells/100 μl/mouse. The mice were randomly divided into three groups when tumor volumes reached 4–5 mm in diameter. With 7 mice in each group, the animals were treated with a multi-spot intra tumor injection of PBS, Ad-null or Ad-p53AIP1 at 2×108 PFU/100 μl/mouse. The injections were repeated two more times with an interval of 7 days. Tumor development and documentation were performed as above.

Statistical analysis

Data were presented as the mean ± SD. Statistical analysis was performed using SAS 8.0 software package.

Results

Expression of p53AIP1 in Ad-p53AIP1-transduced HepG2 cells

We first constructed the Ad-p53AIP1 virus to deliver p53AIP1 expression in cancer cells. We then examined the protein levels of p53AIP1 in HepG2 cells transduced with Ad-null or Ad-p53AIP1. Compared to non-detectable p53AIP1 in mock-transduced cells, the cells transduced with Ad-p53AIP1 expressed high levels of p53AIP1 (Fig. 1A), which provided a solid foundation for further functional studies.

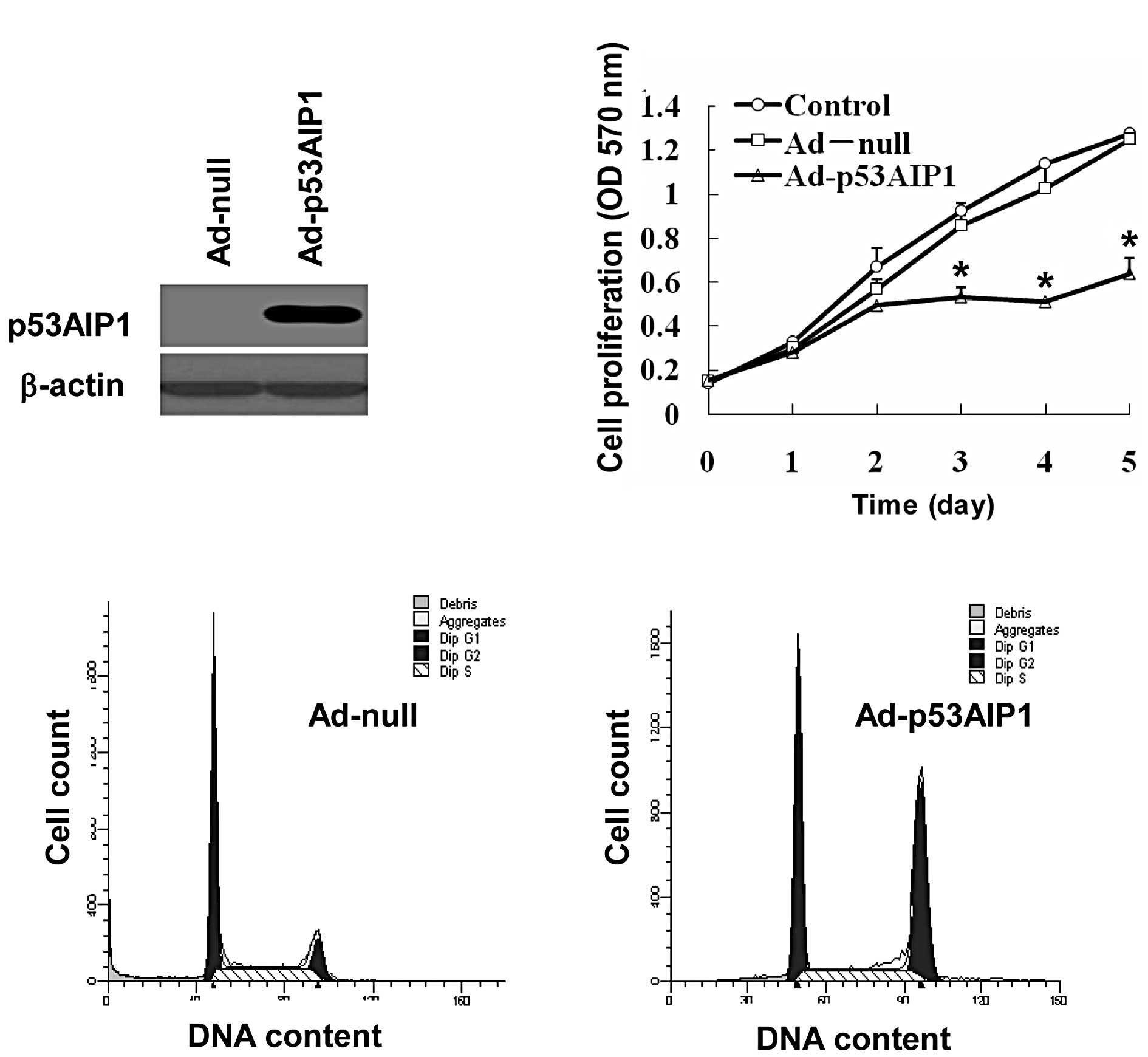

Figure 1. Adenovirus-mediated overexpression of p53AIP1 induces growth inhibition and cell cycle arrest. (A) Western blot detection of p53AIP1 expression in HepG2 cells transduced with Ad-null and Ad-p53AIP1. (B) MTT assay determination of Ad-p53AIP1-mediated growth inhibition in HepG2 cells; *p<0.01. (C) Flow cytometric analysis of cell cycle distribution of HepG2 cells 24 h after Ad-null or Ad-p53AIP1 treatment.

To test the effect of Ad-p53AIP1 transduction on cell proliferation, we treated HepG2 cells with 100 MOI of Ad-null or Ad-p53AIP1 virus and compared their proliferation rates with the non-treatment control. As shown in Fig. 1B, the proliferation of Ad-p53AIP1-transduced cells was significantly inhibited, which was approximately one half of the control cells on day 5. To test whether Ad-p53AIP1 has any effect on cell cycle progression, we analyzed the cell cycle distribution of HepG2 cells infected with Ad-p53AIP1 for 24 h. We found that p53AIP1 expression increased the number of HepG2 cells in G2/M phases. Since this was accompanied by decreased proliferation, the data suggest that Ad-p53AIP1 induced G2/M arrest in HepG2 cells, which contributed to its growth inhibition effect (Fig. 1C).

p53AIP1 expression induces apoptosis in HepG2 cells

As p53AIP1 is a pro-apoptotic molecule, we characterized Ad-p53AIP1-induced apoptosis in HepG2 cells by poly(ADP-ribose) polymerase (PARP) cleavage, electron microscopy, mitochondrial membrane potential and Hoechst staining. As shown in Fig. 2A, in contrast to non-detectable cleavage on Ad-null infected cells, PARP cleavage was readily detected in HepG2 cells infected with Ad-p53AIP1 for 48 h. Under a transmission electron microscope (Fig. 2B), apoptotic HepG2 cells induced by Ad-p53AIP1 infection for 96 h displayed chromatin condensation with clumped perinuclear distribution and nuclear fragmentation. Other features included membrane blebbing, loss of microvilli and appearance of apoptotic bodies.

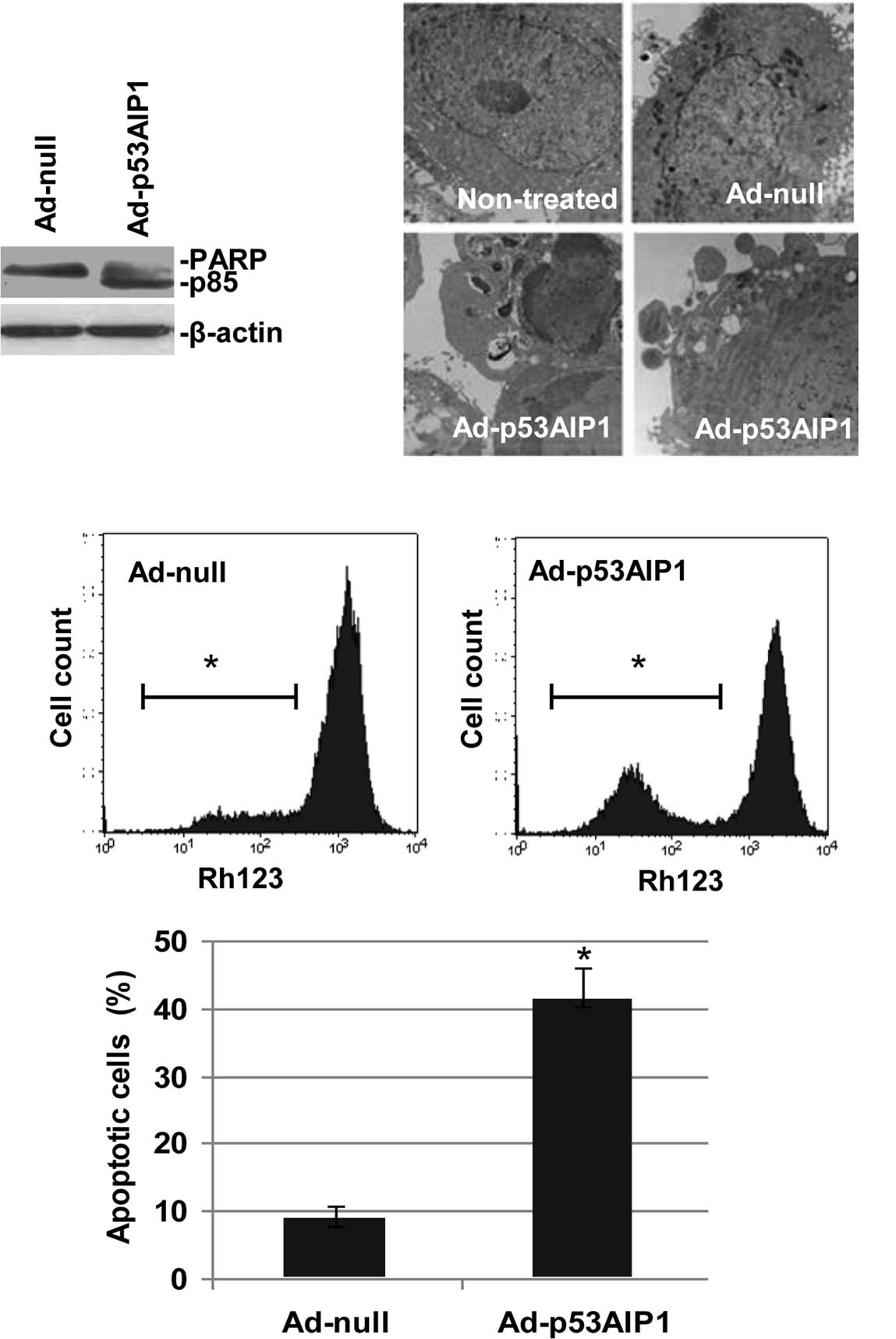

Figure 2. Ad-p53AIP1-mediated apoptosis in HepG2 cells. (A) Western blot detection of PARP cleavage, as indicated by the decrease in the intact protein and the appearance of the p85 subunit. (B) Ultrastructural change in HepG2 cells infected with Ad-p53AIP1 by transmission electron microscope observation (×6,000). (C) Flow cytometric analysis of mitochondrial membrane potential (Δψm) of Ad-null- or Ad-p53AIP1-infected HepG2 cells stained with Rhodamine 123. *Cells with low mitochondrial membrane potential were considered to undergo apoptosis. (D) Apoptosis detected by Hoechst staining. HepG2 cells treated with the indicated virus for 48 h in triplicate were stained with Hoechst 33258. Cells with nuclear condensation or fragmentation were counted as apoptotic cells; *p<0.01.

Flow cytometric analysis of mitochondrial membrane potential with Rhodamine 123 revealed that the fluorescent intensity in Ad-p53AIP1-infected HepG2 cells decreased as infection time increased. In contrast to a geometric mean value of 889.40 in Ad-null-infected cells, the fluorescent intensity decreased to 502.64 in the Ad-p53AIP1-infected cells 72 h after infection, suggesting that p53AIP1-induced apoptosis in HepG2 cells involves mitochondrial membrane potential collapse (Fig. 2C). Moreover, nuclear staining with Hoechst 33258 showed that nuclear condensation and/or fragmentation were detected in 41% of Ad-p53AIP1-induced cells, as compared to a 9% change in Ad-null-infected cells (Fig. 2D). In addition, we also observed similar apoptotic patterns in HeLa cells infected with Ad-p53AIP1 (data not shown). Taken together, these data demonstrated that Ad-p53AIP1 induced potent apoptotic activity in the infected cells.

Ad-p53AIP1 inhibits the development and growth of 4T1 breast tumors in vivo

We next examined the efficacy of Ad-p53AIP1 on tumor growth in vivo using a 4T1 breast tumor model. In the first set of experiments, 4T1 tumor cells were treated with control (PBS), Ad-null or Ad-p53AIP1 virus for 24 h before implantation. The results showed that the tumors in the control and Ad-null groups grew progressively, reaching ∼1,700 mm3 by day 30. In contrast, tumor growth was minimal in the group treated with Ad-p53AIP1. The tumors were not palpable until day 21 (Fig. 3A). The striking difference between the control and Ad-p53AIP1-treated tumors indicates that Ad-p53AIP1 has a potent tumor inhibition effect. In the second set of experiments, we tested the effect of Ad-p53AIP1 on the progression of 4T1 tumors. After the tumors were palpable, 2×108 PFU Ad-null or Ad-p53AIP1 viruses were administered to the tumors by multi-spot intra-tumor injection. As shown in Fig. 3B, tumor growth in the Ad-p53AIP1-treated group was significantly slower (p<0.05) than in the control and the Ad-null groups.

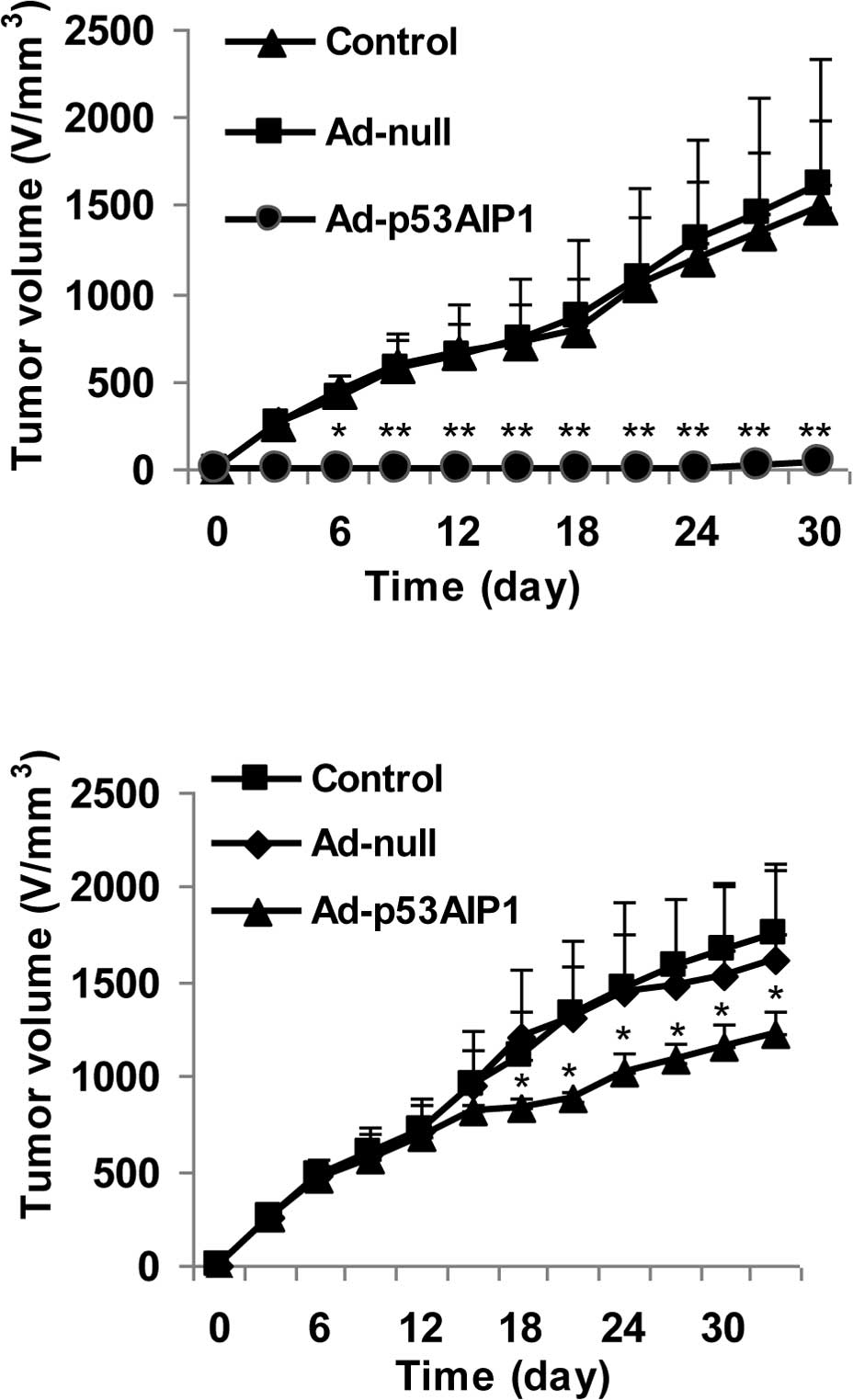

Figure 3. Ad-p53AIP1-mediated inhibition of the 4T1 mouse tumor cell line in vivo. (A) Effect of Ad-p53AIP1 on tumor development of 4T1 cells treated with Ad-p53AIP1 before implantation. (B) Effect of in vivo delivery of Ad-p53AIP1 on 4T1 tumor development. **p<0.01; *p<0.05, as compared to the Ad-null group at the same time-point.

Up-regulation of p53 in Ad-p53AIP1-transduced cells

To study the underlying mechanisms of p53AIP1 overexpression-induced growth inhibition and apoptosis, we examined the expression of a number of key factors involved in apoptosis and cell cycle regulation, including p53, p21, Bax, Bcl-2 and CDK4 in HepG2 cells. In contrast to minimal changes in Ad-null-infected cells (data not shown), we found that p53 protein levels were significantly up-regulated after Ad-p53AIP1 infection (Fig. 4A), which was accompanied by a significant increase in p21, a moderate increase in Bax and decrease in Bcl-2 and CDK4 (Fig. 4B). Since p53 mRNA levels in Ad-p53AIP1-transduced cells were not increased (Fig. 4C), p53AIP1-induced up-regulation of p53 appears to occur at the protein level rather than the transcriptional level. These results suggest that p53AIP1 not only functions as a target of p53 but also has a feedback action on p53 expression.

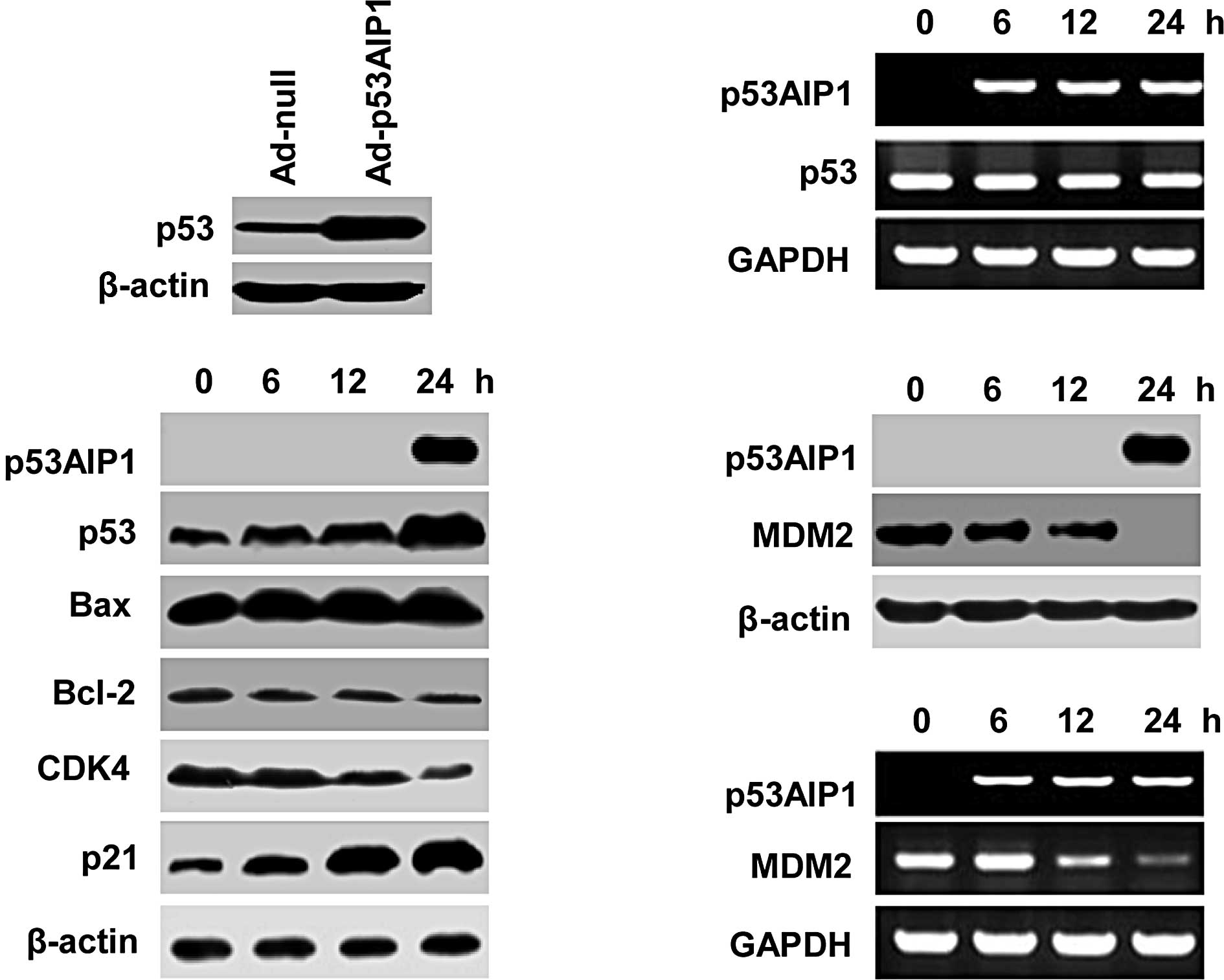

Figure 4. p53AIP1 expression induces p53 up-regulation through down-regulation of MDM2. (A) p53 protein levels in HepG2 cells infected with Ad-p53AIP1. (B) Western blot detection of p53AIP1, p53, Bax, Bcl-2, CDK4 and p21 in Ad-p53AIP1-infected HepG2 cells at different time points. (C) mRNA levels of p53AIP1 and p53 in Ad-p53AIP1-infected HepG2 cells detected with RT-PCR. (D) Protein levels of p53AIP1 and MDM2 in Ad-p53AIP1-infected HepG2 cells. (E) mRNA levels of p53AIP1 and MDM2 in Ad-p53AIP1-infected HepG2 cells detected with RT-PCR.

Ad-p53AIP1 down-regulates MDM2 transcription

To elucidate the mechanism of p53AIP1-mediated up-regulation of p53 protein levels, we examined whether the expression of MDM2, a p53-specific E3 ubiquitin ligase, was affected by p53AIP1 expression in HepG2 cells. We found that both MDM2 protein and mRNA levels were decreased in Ad-p53AIP1-transduced cells (Fig. 4D and E). A decrease in MDM2 and a corresponding increase in p53 expression in p53AIP1-overexpressing cells suggest that p53AIP1 up-regulates p53 through down-regulation of MDM2, which leads to increased p53 stability.

Discussion

Gene therapy targeting p53 pathways is a promising new approach in cancer treatment. Adenovirus-mediated p53 gene therapy for human cancers has been approved for clinical application in China (16). However, direct delivery of p53 might be compromised by certain p53 antagonists in cancer cells, such as MDM2 overexpression (17,18). Thus, identifying novel targets to rescue or augment the function of the p53 pathway has been actively pursued. In this study, we tested the effects of Ad-p53AIP1 on cancer cell proliferation and apoptosis in both in vitro and in vivo settings. We also discovered a novel mechanism of p53AIP1-induced tumor regression.

p53AIP1 is a p53 target gene and a potent pro-apoptotic molecule. Since it is downstream of p53 and can circumvent p53 compromising factors, these characteristics make it a good candidate for a p53 alternative in cancer gene therapy. Recent association between low levels of p53AIP1 in human cancer tissues and a poor prognosis further supports its implication in cancer therapy (4). Previously, Yoshida et al examined the Ad-p53AIP1-mediated apoptotic effect on a number of cancer cell lines and found that p53AIP1 alone was able to induce marked apoptosis in many cell lines. Ad-p53AIP1 appeared to be more effective in p53+/+ cells, although the mechanism was not clear (5).

In this study, we constructed Ad-p53AIP1 and established its in vitro and in vivo models for further studies, especially in mechanistic investigation. Using HepG2 cells, we demonstrated that Ad-p53AIP1, not only stimulates apoptosis, but also induces cell cycle arrest in G2/M phases. p53AIP1-induced cell cycle arrest was accompanied by p21 up-regulation and CDK4 down-regulation. This novel finding suggests that p53AIP1 may function beyond apoptotic induction and that its cell cycle regulation may also contribute to p53AIP1-mediated tumor regression. Moreover, data from in vivo experiments demonstrated that Ad-p53AIP1 effectively inhibited 4T1 tumor development and progression. Ad-p53AIP1-mediated tumor regression was more effective using pre-inoculation treatment than intra-tumor injection. This can partially be explained by the low efficiency associated with in vivo viral delivery.

One of the major findings of this study is that p53AIP1 may up-regulate p53 protein levels in HepG2 cells. We demonstrated that p53AIP1 expression up-regulated p53 protein levels but not mRNA levels. We also found that p53AIP1 down-regulated MDM2 transcription. Since MDM2 is a ubiquitin ligase that induces p53 degradation (19–21), p53AIP1-mediated inhibition of MDM2 might lead to p53 protein accumulation. This finding may partially explain why p53AIP1 is more effective in cancer cells with wild-type p53 (5) and why cell cycle regulation was modified in p53AIP1-overexpressing cells (Fig. 2). However, p53AIP1-induced up-regulation of p53 and down-regulation of MDM2 in HeLa cells were less evident when compared to HepG2 cells (data not shown). Hence, the factors that determine p53AIP1-induced MDM2-p53 interaction and cause cell line-dependent discrepancy require further investigation.

In summary, we established in vitro and in vivo models with which to study Ad-p53AIP1-mediated tumor inhibition. These can be used to explore more specific factors that may affect the efficacy of Ad-p53AIP1-induced apoptosis and cell cycle arrest. Our findings related to p53AIP1-induced MDM2-p53 interaction in HepG2 cells are of great significance. They suggest that gene therapy targeting Ad-p53AIP1 may be more advantageous for tumor cells overexpressing oncoprotein MDM2 or having a mutation in the MDM2 inhibitor p14ARF and p16INK4 (22,23). Further studies along this line may open a new avenue for fighting human cancers.

Acknowledgements

This study was supported by grants from the Major State Basic Research Development Program of China (to Dr Yinglin Lu, no. 2002CB513105).
