Introduction

Chronic liver inflammation represents a major driving force for progressive extracellular matrix (ECM) accumulation, leading to liver cirrhosis with resultant complications that include portal hypertension and hepatocellular carcinoma (1,2). The activation of hepatic stellate cells (HSCs) is one of the critical events involved in hepatic fibrosis (3). Previously, the reduction and/or reversal of liver fibrosis were shown to be associated with apoptosis of activated HSCs (4,5).

Phosphatase and tensin homology deleted on chromosome ten (PTEN) is a tumor-suppressor gene with double phosphatase activities (6). Recent studies have demonstrated that the expression of PTEN is decreased in the myofibroblasts of lung tissues in idiopathic pulmonary interstitial fibrosis. PTEN has been shown in vitro to negatively regulate the differentiation of myofibroblasts (7). Additionally, we previously showed that the expression of PTEN is reduced in activated HSCs in fibrotic hepatic tissues in vivo (8). Conversely, the upregulation of PTEN may induce apoptosis in activated HSCs in vitro (9).

Carbon tetrachloride (CCl4) is widely used to experimentally induce liver injury in rodents. Its prolonged administration leads to liver fibrosis, cirrhosis and hepatocellular carcinoma. Reversal of liver fibrosis occurs with CCl4 discontinuation (10). This model has been used extensively to examine the pathogenesis of cirrhosis.

In the current study, we exposed rats to CCl4 and discovered that PTEN expression was reduced in activated HSCs during liver fibrogenesis. Upon withdrawal of CCl4, PTEN expression was increased in apopotic activated HSCs with the reversal of liver fibrosis. Our results suggest that PTEN may be an important therapeutic target for the management of liver fibrosis.

Materials and methods

Animal models

One hundred and eight adult male Wistar rats weighing 350–450 g were obtained from the Experimental Animal Center of Hebei Medical University. The research was conducted in accordance with the internationally accepted principles for laboratory animal use and care as found in the US guidelines (NIH publication #85-23, revised in 1985). The experiment was performed in compliance with the national ethical guidelines for the care and use of laboratory animals (certificate no. 911102).

A rat model of hepatic fibrosis was established by hypodermic injection of CCl4 mixed with olive oil at the concentration of 40% (Huarui Scientific & Technological Co., Shijiazhuang, China) for 5 weeks (2 ml/kg, twice a week); the reversal model was established through 4 weeks of normal feedings based on hypodermic injection of 40% CCl4 for 5 weeks (2 ml/kg, twice a week). One hundred and eight male Wistar rats were randomly divided into the following groups (n=6 in each group): model group (containing 1, 2, 3, 4 and 5 week groups), model control group, reversal group (containing Re 1, 2, 3 and 4 week groups), and the reversal control group. Rats were sacrificed at the indicated times and their livers were harvested for subsequent analysis.

Histopathology

Liver specimens were fixed 12–24 h in 4% phosphate-buffered paraformaldehyde (Huarui Scientific & Technological Co.) and then embedded in paraffin for light microscopy examination. Tissue sections (4-μm thick) were stained with hematoxylin and eosin (H&E) for morphological evaluation and Masson trichrome (MT) for assessing the degree of fibrosis.

Immunof luorescent detection of PTEN and α-SMA

Immunof luorescent studies were performed on 4-μm frozen sections. Briefly, the sections were fixed by 4% phosphate-buffered paraformaldehyde and washed with 0.1% Triton X-100 TBS (TBSTx). Five percent bovine serum albumin (BSA) TBSTx was used as a sealed liquid and then the specimens were incubated overnight at 4°C with the primary antibody (either mouse anti-PTEN monoclonal antibody at a dilution of 1:100 or rabbit anti-α-SMA monoclonal antibody at a dilution of 1:200) (Santa Cruz Biotechnology, Inc., Santa Cruz, CA, USA). After the sections were washed, the Cy3-labeled goat anti-mouse IgG secondary antibody or FITC-labeled goat anti-rabbit (1:400 dilution) (Beyotime Institute of Biotechnology, Shanghai, China) was added and the sections were incubated at 37°C for 1 h. DAPI was used for nuclear staining. The negative control samples were processed under the same conditions, except that 5% BSA TBSTx was used in place of the primary antibody. The α-SMA and PTEN-positive expression levels were measured by a Motic Med 6.0 digital video image analysis system (Motic China Group Co., Ltd., Xiamen, China) and expressed as optical density values.

Immunofluorescence double labeling confocal laser scanning microscopy of PTEN and α-SMA

The primary antibodies used were mouse anti-PTEN monoclonal (1:100) and rabbit anti-α-SMA monoclonal (1:200) antibodies, and the secondary antibodies were avidin-Cy3-labeled goat anti-mouse and FITC-labeled goat anti-rabbit antibodies. Sections underwent the same washing, blocking and primary detection procedure as mentioned above. The co-expression of PTEN and α-SMA was observed using a confocal laser scanning microscope. PTEN-positive expression appeared as red fluorescent foci, α-SMA-positive expression appeared as green fluorescent foci and the colocalization of the two markers appeared as yellow fluorescent foci.

Immunofluorescence double labeling confocal laser scanning microscopy of TUNEL and α-SMA

Immunofluorescent studies were performed on 4-μm frozen sections. The sections were fixed by 4% phosphate-buffered paraformaldehyde and washed with PBS. Five percent BSA TBSTx was used as a sealed liquid, and the specimens were then incubated overnight at 4°C with the primary antibody mouse anti-α-SMA polyclonal (1:100 dilution). The Cy3-labeled goat anti-mouse IgG secondary antibody (1:400 dilution) and terminal deoxynucleotidyltransferase-mediated dUTP nick end labelling (TUNEL) liquid solution (TdT enzyme 2 μl + fluorescent marker liquid 48 μl for each section) (Beyotime Institute of Biotechnology) were added and the sections were incubated for 1 h. DAPI was used for nuclear staining. The negative control samples were processed under the same conditions, except that 5% BSA TBSTx was used in place of the primary antibody and TdT enzyme. The apoptotic cells appeared as green fluorescent foci by TUNEL kit and α-SMA-positive expression appeared as red fluorescent foci and colocalization of the two markers appeared as yellow fluorescent foci. The apoptotic index was calculated as the ratio of yellow cells to total green cells.

Western blot analysis

Primary antibodies used were mouse anti-PTEN monoclonal (1:200) and rabbit anti-GAPDH polyclonal (1:500) antibodies. Western blotting was performed as previously described (8).

Real-time fluorescent quantitation PCR assay

The total RNA of hepatic tissue was extracted with the TRIzol reagent (Invitrogen, USA) according to the manufacturer’s instructions. cDNA was generated by using 2 μg total RNA, 0.5 μl RNasin (50 U/μl), 1 μl random primers (500 μg/ml), 2 μl 10 mM dNTP, 4 μl 5X reverse transcription reaction buffer (Tris-HCl 250 mM, pH 8.3; KCl 375 mM; MgCl2 15 mM) and 1 μl M-MLV reverse transcriptase (200 U/μl) and were mixed to a final volume of 20 μl with DEPC water (Kangwei Corporation, Beijing, China). First, the reaction mixture was incubated at 37°C for 55 min, 94°C for 5 min (to deactivate reverse transcriptase) and then frozen at −20°C.

Primer Express 5.0 was used to design the following primers: PTEN forward primer, 5′-GGA AAG GAC GGA CTG GTG TA-3′ and reverse primer, 5′-TGC CAC TGG TCT GTA ATC CA-3′ (101 bp amplicon); GAPDH forward primer, 5′-GGC AAG TTC AAC GGC ACA G-3′ and reverse primer, 5′-CGC CAG TAG ACT CCA CGA CAT-3′ (122 bp amplicon). The primers were synthesized by Saibaisheng Gene Co., Ltd. (Beijing, China). Real-time fluorescent quantitative PCR was performed using 12.5 μl 2 UltraSYBR Mixture, 0.5 μl forward primer, 0.5 μl reverse primer and 2 μl cDNA template in a total volume of 25 μl. Reaction conditions were: 95°C for 10 min, 1 cycle; 95°C for 15 sec, 60°C for 1 min, 35 cycles. An ABI Prism 7700 real-time fluorescent quantitative PCR thermal cycler (Applied Biosystems, Foster City, CA, USA) was used. The mRNA expression of the PTEN gene was normalized to GAPDH.

Statistical treatment

Data are presented as the means ± SD and analyzed with SPSS 18.0 software. The statistical analyses that were performed included one-way ANOVA, the LSD test and Pearson’s correlation analysis. P<0.05 was considered to indicate a statistically significant difference.

Results

Gross and histopathological characterization of CCl4-induced liver fibrosis

CCl4-induced hepatic injury in rats has been used as a model system to study liver fibrogenesis. The gross appearance of the liver became progressively turgescent, coarse and relatively bloodless over 5 weeks of CCl4 administration (Fig. 1A). In contrast, withdrawal of CCl4 improved gross liver morphology (reduced surface coarseness and increased reddish color) over time (Fig. 1A).

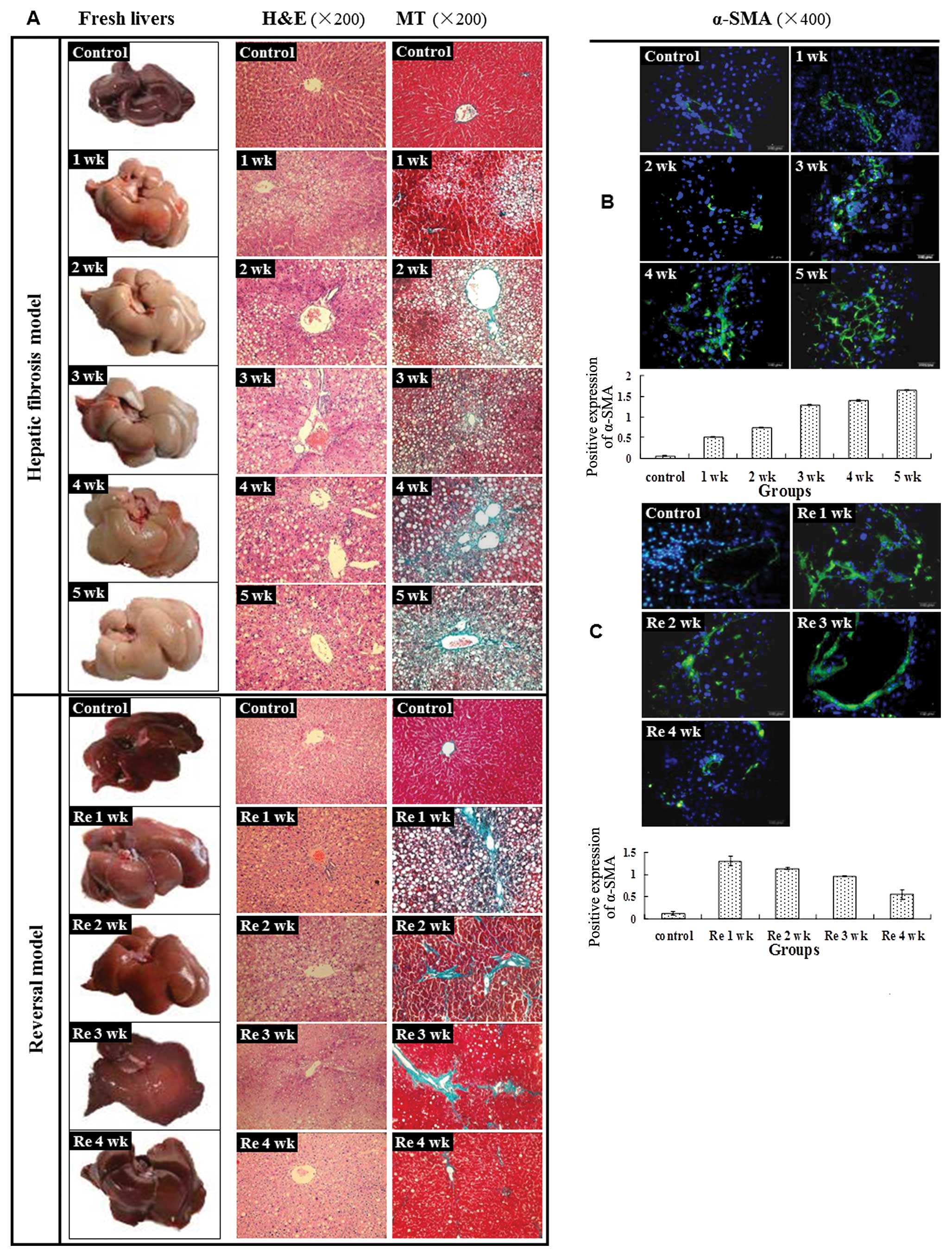

Figure 1 Hepatic fibrosis model and reversal model were successfully established. (A) Representative images of the fresh livers without fixation demonstrated that the livers of the control group were smooth, lustrous and reddish. However, after treatment with CCl4, the liver was turgescent and its surface appeared coarse and relatively bloodless. The above changes became more evident from 1 to 5 weeks. At the end of CCl4 treatment, the liver surfaces, although slightly coarse, became more reddish, lustrous and blood-filled and gradually returned to normal from Re 1 to 4 weeks. Liver sections stained with H&E demonstrated that hepatic cells were swollen and fatty degeneration, necrosis and regeneration were evident. Continuous CCl4 treatment led to worse liver damage from 1 to 5 weeks in the model group. After CCl4 treatment, the above histopathological changes gradually returned to normal. Liver sections stained with MT demonstrated that fibrosis spread from the vascular smooth muscle cells to the portal area and damaged hepatic cells; the latter appeared as fatty degeneration, necrosis and regeneration. The continuous CCl4 treatment led to an enlarged fibrotic area from 1 to 5 weeks in the model group. After termination of CCl4 treatment, the damaged hepatic cells gradually returned to normal and the fibrotic tissue area decreased from Re 1 to 4 weeks. (B) In the normal rat liver, α-SMA was occasionally detected in vascular smooth muscle cells and the expression level was low, revealing limited activation of HSCs. After CCl4 administration, the α-SMA spread to the portal area, demonstrating an increased activation of HSCs. Immunofluorescence staining was used to discover a significant increased expression of α-SMA from 1 to 5 weeks in the model group (0.51±0.02, 0.74±0.02, 1.29±0.02, 1.40±0.01, 1.65±0.02) (P<0.01), compared with the control group (0.07±0.01) (P<0.01). (C) A significant decrease in expression of α-SMA was noted from Re 1 to 4 weeks (P<0.05).

Histologic examination of the CCl4-treated liver revealed swelling of the hepatocytes, fatty degeneration, necrosis and regeneration, particularly with continued CCl4 administration (Fig. 1A). After termination of CCl4 treatment, the above histopathological changes returned to normal over time (Fig. 1A).

To determine whether there was increased collagen deposition, MT staining was performed. Increased MT staining in the periportal region was discovered with CCl4 administration from 1 to 5 weeks (Fig. 1A). At the end of CCl4 administration, the damaged hepatic cells gradually returned to normal and the degree of MT staining was reverted to the baseline level at Re 4 weeks (Fig. 1A).

Activation profile of HSCs with liver fibrosis

To assess the role of HSCs, the expression analysis of α-SMA was performed. On activation, HSCs undergo proliferation and differentiation, becoming myofibroblast-like α-smooth muscle actin (α-SMA)-positive cells that produce ECM proteins, particularly type I collagen (2). In the normal rat liver, α-SMA was occasionally detected in vascular smooth muscle cells and the expression level was low, revealing a limited activation of HSCs (Fig. 1B). After CCl4 administration, the α-SMA spread to the portal area, demonstrating an increased activation of HSCs. Compared with the control group (0.07±0.01), treatment with CCl4 led to a significant and progressively increased expression of α-SMA from 1 to 5 weeks (0.51±0.02, 0.74±0.02, 1.29±0.02, 1.40±0.01, 1.65±0.02; P<0.01) (Fig. 1B). CCl4 withdrawal resulted in a significantly decreased α-SMA expression between Re 1, 2, 3 and 4 weeks (1.31±0.11, 1.14±0.03, 0.97±0.01, 0.55±0.11; P<0.05) (Fig. 1C).

PTEN expression declines during liver fibrogenesis and increases during reversal of fibrosis

In normal rat liver tissue recent reports demonstrate that there is an inverse correlation between PTEN and fibrogenesis in pulmonary fibrosis (7). We then assessed the potential association between PTEN and liver fibrosis. In the normal rat liver tissue, PTEN protein existed in widespread areas (Fig. 2A). As the normal hepatic cells were damaged by the administration of CCl4, the PTEN expression decreased significantly from 1 to 5 weeks (2.23±0.02, 1.96±0.03, 1.61±0.02, 1.37±0.02, 0.98±0.01; P<0.01), compared with the control group (2.67±0.02) (Fig. 2A). Withdrawal of CCl4 led to the progressive increase in PTEN protein expression from Re 1 to 4 weeks (1.01±0.11, 1.46±0.09, 1.62±0.22, 1.99±0.30; P<0.01); however it remained less the normal level of the control group (2.31±0.12) (Fig. 2B).

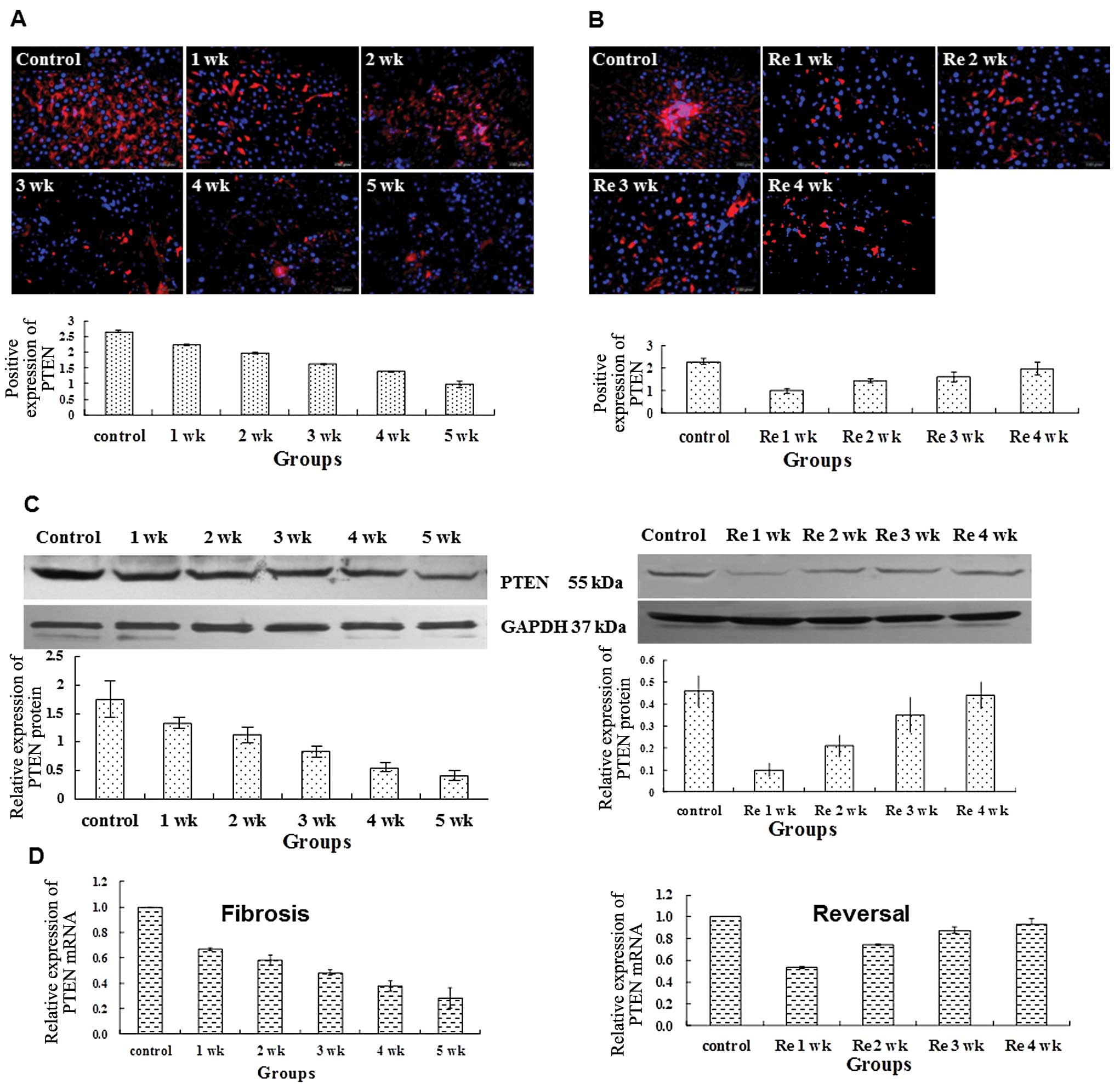

Figure 2 PTEN protein and mRNA decreased in the model groups and increased in the reversal groups. (A and B) In the normal rat liver tissue, PTEN protein as indicated in red fluorescence existed in widespread areas. Its expression decreased significantly after CCl4 administration in the model groups and increased after the end of CCl4 administration in the reversal groups. (C and D) The relative expression of PTEN protein and mRNA significantly decreased from 1 to 5 weeks (P<0.01) and increased from Re 1 to 4 weeks (P<0.01).

We next used western blot analysis and real-time (RT)-PCR to quantitate the expression change of PTEN. Compared to the control, the relative expression levels of PTEN/GAPDH in rat hepatic tissues were significantly lower at 1, 2, 3, 4 and 5 weeks. As CCl4 was withdrawn, PTEN expression increased over time (Fig. 2C). However, PTEN expression remained significantly lower compared to the control. Consistent with the changes in PTEN expression at the protein level, the relative expression levels of PTEN mRNA in rat liver tissues were significant lower at 1, 2, 3, 4 and 5 weeks in the model group compared to the control group (Fig. 2C). Withdrawing CCl4 led to a gradual increase in PTEN expression over time (Fig. 2C). Collectively, we demonstrate that PTEN expression declines during liver fibrogenesis and increases during reversal of fibrosis.

PTEN expression in activated HSCs

The potential role of PTEN in HSCs during liver fibrogenesis and reversal was investigated. We used α-SMA as a marker of HSC activation and measured the co-localization with PTEN. Administration of CCl4 led to reduced immunofluorescent staining of PTEN in activated HSCs from 1 to 5 weeks (Fig. 3A). During reversal of fibrosis, the percentage of activated HSCs expressing PTEN increased (Fig. 3B and C).

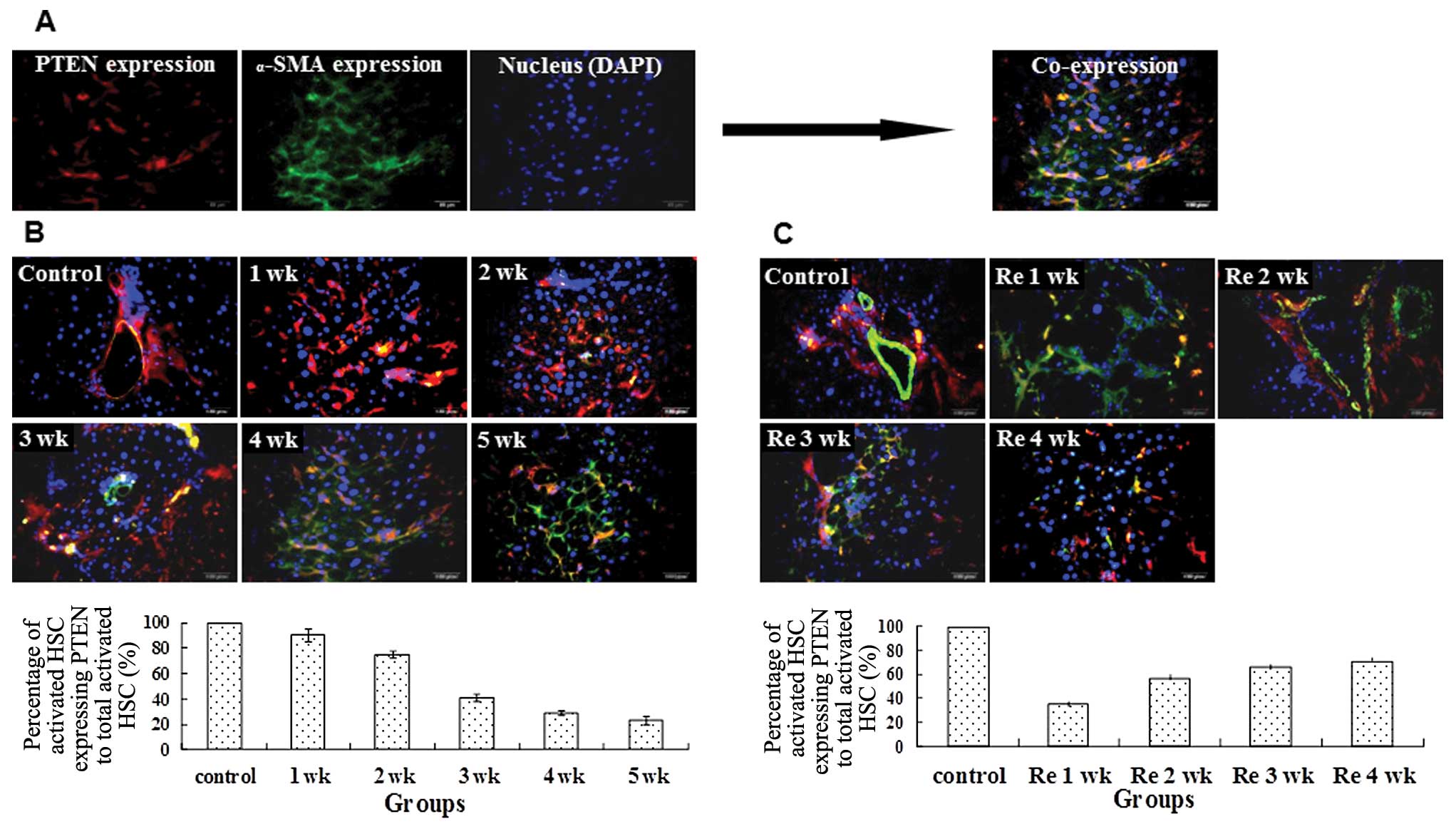

Figure 3 PTEN expression in activated HSCs decreased in the model groups and increased in the reversal groups. (A) PTEN protein is indicated by red fluorescence, α-SMA by green fluorescence and the colocalization of PTEN and α-SMA in activated HSCs in rat fibrogenic hepatic tissues are indicated in the yellow area. (B and C) From 1 to 5 weeks, the percentage of activated HSCs expressing PTEN to total activated HSCs decreased in the model group and an increasing percentage was noted from Re 1 to 4 weeks (P<0.01).

Since the number of activated HSCs was dynamic during fibrogenesis and its reversal, we assessed whether apoptosis was one of the mechanisms required to regulate the number of activated HSCs. TUNEL staining demonstrated that the percentage of apoptotic activated HSCs to total activated HSCs decreased from 1 to 5 weeks with the administration of CCl4 (Fig. 4A). By contrast, the reduced number of activated HSCs was correlated with the increased apoptotic activity during withdrawal of CCl4 (Fig. 4B).

Figure 4 The apoptotic index of activated HSCs decreased in the model groups and increased in the reversal groups. Activated HSCs expressing α-SMA are indicated by red fluorescence and apoptotic cells by green fluorescence using TUNEL staining. The two images were then combined to display the apoptotic activated HSCs indicated in yellow. The percentage of total activated HSCs (apoptotic index) significantly decreased from 1 to 5 weeks in the model group and increased from Re 1 to 4 weeks (P<0.01).

Correlation analysis

Pearson’s correlation analysis discovered a significant negative correlation between PTEN and α-SMA expression (r=−0.979, P<0.05). Significant positive correlations were observed between PTEN expression to PTEN-positive activated HSCs (r= 0.962, P<0.05) and PTEN expression and the apoptotic index of activated HSCs (r= 0.991, P<0.05). Collectively, our data demonstrate that PTEN is negatively correlated with the activation of HSCs and positively correlated with the apoptosis of activated HSCs.

Discussion

In addition to its role in cell proliferation and tumor biology (11–14), recent studies have unveiled a novel role of PTEN in fibrosis including diffuse systemic sclerosis (15) and idiopathic pulmonary interstitial fibrosis (16). Additionally, recent studies have shown that PTEN had a negative relation with the activation and proliferation of HSCs in fibrotic hepatic tissues induced by bile duct ligation (BDL) (8). The upregulation of PTEN was found to inhibit the activation and proliferation in HSCs of fresh isolated rats (17,18) and induce apoptosis of activated HSCs in vitro (9). We used the CCl4 hepatic fibrosis model to further investigate the potential role of PTEN in fibrogenesis.

Using immunofluorescent staining, PTEN protein is present mostly in cytolymph with occasional expression in the nucleus. The expression of PTEN is dynamic during fibrogenesis and reversal of fibrosis. Consistent with previous results (8,9), we revealed that PTEN expression was reduced in activated HSCs during fibrogenesis and increased in activated HSCs during reversal of fibrosis.

HSCs are typically found in the space of Disse in a quiescent state (19). HSCs may be activated to myofibroblasts expressing α-SMA by several stimuli such as cytokines and inflammatory mediators (20,21). Activated HSCs migrate to and proliferate in sites of liver injury (20,21), synthesize ECM components and upregulate the expression levels of α-SMA and collagen matrices (22). Hence, α-SMA is a marker of HSC activation and proliferation. We demonstrated that in normal rat liver, α-SMA was occasionally detected in vascular smooth muscle cells and the expression level was low, revealing limited activation of HSCs. After CCl4 administration, the α-SMA spread to the portal area, demonstrating an increased activation of HSCs. During reversal of fibrosis, the number of activated HSCs declined via apoptosis. Together, our results further implicate that PTEN may participate in the pathogenesis of hepatic fibrosis by affecting the activation state and apoptosis of HSCs. We propose that PTEN may inhibit the activation and proliferation of HSCs whereas its downregulation promotes the activation and proliferation of HSCs, leading to fibrogenesis

It has been reported that PTEN may regulate the activity of fibroblasts (23); low expression of PTEN may promote the differentiation of myofibroblasts and enhance the morbidity of pulmonary interstitial fibrosis (7). High expression of PTEN may inhibit the proliferation and migration of hepatocarcinoma cells (24) and induce apoptosis (25). Our previous study also revealed that the upregulation of PTEN expression induced apoptosis of activated HSCs in vitro (9). In this study, we demonstrated that during reversal of fibrosis, elimination of activated HSCs by apoptosis occurred. It has been previously shown that aspergillin, sulfasalazine and anti-TIMP1 antibodies promoted the reversal of liver fibrosis by inducing the apoptosis of activated HSCs (26). Since PTEN expression is positively correlated with the apoptosis of activated HSCs, one of the potential molecular mechanism for reversal of fibrosis is possibly through apoptotic elimination of activated HSCs through PTEN expression.

In conclusion, our data demonstrated that the dynamic expression of PTEN in rat liver tissues had a significant negative correlation with the activation and proliferation of HSCs and had a significant positive correlation with the apoptosis of activated HSCs in vivo. The association of PTEN expression with HSC activation and apoptosis implicates its role in liver fibrosis and its reversal. Accumulating evidence from our current study and previously published data suggest that PTEN is a novel and relevant target for the treatment of liver fibrosis.

Acknowledgements

This study was supported by the National Natural Science Foundation of China (no. 30872513), the Hebei Provincial Natural Science Foundation of China (C2010000565) and the Department of Science and Technology in Hebei Province (09966108D). The authors would like to thank the Foundations for their support.
