Anti-atherogenic effect of Humulus japonicus in apolipoprotein E-deficient mice
- Authors:
- Published online on: September 1, 2016 https://doi.org/10.3892/ijmm.2016.2727
- Pages: 1101-1110
-
Copyright: © Lim et al. This is an open access article distributed under the terms of Creative Commons Attribution License.
Abstract
Introduction
Recent statistics from the World Health Organization indicate that almost 17.5 million people died from cardiovascular disease (CVD) in 2012, which represents nearly 31% of deaths worldwide (1). Of these deaths, an estimated 7.4 million were due to coronary heart disease and 6.7 million were due to stroke (1). The principal cause of heart disease, including myocardial infarction and stroke, in Western society is atherosclerosis, a chronic inflammatory disease characterized by cholesterol and lipid accumulation within the arterial wall (2). Atherosclerotic cardiovascular disease (ACD) is affected by several factors including age, gender, genetic predisposition, smoking, stress and dietary habits (3–5). However, despite lifestyle modifications and the development of novel pharmacological therapies to lower the concentrations of plasma cholesterol, ACD remains the principal cause of death worldwide (1,6,7).
Atherosclerosis is not only a lipid disorder but also a chronic inflammatory disease affecting the arterial vessel wall (4,8,9). The first step in the pathogenesis of atherosclerosis is triggered by the deposition of low-density lipoprotein (LDL) cholesterol in the arterial endothelium. The deposited LDL is modified to oxidized LDL (oxLDL), which stimulates the endothelial cells to express adhesion molecules [vascular cell adhesion molecule-1 (VCAM-1) and intercellular adhesion molecule-1 (ICAM-1)] and chemokines [monocyte chemoattractant protein-1 (MCP-1) and interleukin (IL)-8] (10,11). During this process, the overexpression of adhesion molecules leads to the recruitment of monocytes in the arterial endothelium, which eventually migrate into the intima and differentiate into pro-atherogenic macrophages. The pro-atherogenic macrophages are activated by residual oxLDL, endotoxins, and heat-shock proteins, and release inflammatory cytokines and growth factors, thus resulting in endothelial activation. This leads to the induction of an inflammatory response through the increased recruitment of leukocytes and the proliferation of smooth muscle cells (12), which release various inflammatory cytokines, such as tumor necrosis factor-α (TNF-α), IL-1β and IL-6, consequently leading to the accumulation of lipid-laden foam cells and the development of atherosclerosis (4,13,14).
Humulus japonicus (HJ) of the family Cannabaceae, is an annual climbing vine originating from East Asia, including Korea and China (15). It is wind-pollinated and has a flowering stage that lasts from August to October. This plant grows rapidly as a vine that forms dense stands and displaces native vegetation by outcompeting them for essential resources. It may pose a threat to the environment when invading riparian habitats. It has been demonstrated that the pollen of this plant is allergenic, and is considered as one of the major causes of pollen allergy (16). To date, HJ has been reported to exert anti-mutagenic (17), antimicrobial (18), antioxidant (18,19), anticancer (19), anti-mycobacterial (20), and anti-inflammatory (21) effects. From the results of previous studies, we speculated that the antioxidant and anti-inflammatory effects of HJ may also contribute to the anti-atherosclerotic effect of HJ. Using RAW 264.7 cells, a murine macrophage cell line, and apolipoprotein E-deficient (apoE−/−) mice fed an atherogenic diet, a well-known animal model of atherosclerosis, we performed the present study in order to examine the anti-inflammatory and anti-atherogenic effects of HJ.
Materials and methods
Preparation of HJ extract
HJ was purchased from Gangwon Herbs (Wonju, Korea) in July, 2014. The voucher specimen was identified by Professor W.-K. Oh, and a voucher specimen (SNU-2014-0004) was deposited at the College of Pharmacy, Seoul National University, Seoul, Korea. Then, the HJ extract was prepared and supplied by the Korea Bioactive Natural Material Bank (Seoul, Korea). Briefly, the dried aerial parts of HJ were soaked in 100% methanol in an extraction container for 2 days at room temperature. The methanol-soluble extract was then filtered through cheesecloth, concentrated exhaustively, and dried under reduced pressure to afford a methanol extract. This HJ extract was suspended in 0.5% carboxymethyl cellulose (CMC) at a concentration of 50 mg/ml as a stock solution, and the working solution of HJ was adjusted to the intended concentrations for use in the in vitro and in vivo experiments in the present study.
Cell culture and HJ treatment
The RAW 264.7 cells, a murine macrophage cell line, were purchased from the American Type Cell Culture (ATCC; Manassas, VA, USA), cultured in Dulbecco's modified Eagle's medium (DMEM) containing 10% fetal bovine serum (FBS) and 1% penicillin/streptomycin antibiotics (Gibco, Carlsbad, CA, USA), and maintained at 37°C in a humidified 5% CO2 incubator. The cells were seeded in 12-well plates (1×105 cells/well), incubated overnight, and thereafter, co-treated with different concentrations of HJ (200 and 400 µg/ml) and lipopolysaccharide (LPS; 1 µg/ml; Sigma-Aldrich, St. Louis, MO, USA) for 24 h. The doses of HJ were determined by preliminary tests using various concentrations (50–500 µg/ml) without cell toxicity to examine the anti-inflammatory effect.
Measurement of inflammation-related gene expression in LPS-stimulated RAW 264.7 cells by reverse transcription-quantitative polymerase chain reaction (RT-qPCR)
The RAW 264.7 cells were treated with HJ extract for 1 h, and then stimulated with LPS or vehicle for 24 h. The total RNA from the cells was extracted and the samples were reverse transcribed using the iScript cDNA synthesis kit (BioRad, Hercules, CA, USA). The resulting cDNA was amplified using the Exicycler 96 quantitative Real-Time PCR system and SYBR Premix Ex Taq (both from Bioneer, Daejeon, Korea) according to the manufacturer's instructions. Oligonucleotide primers [for TNF-α, IL-1β, IL-6, cyclooxygenase-2 (COX-2) and inducible nitric oxide synthase (iNOS)] were designed by Primer Express 3.0 software (Applied BioSystems, Carlsbad, CA, USA); the primer sequences used in the experiments are listed in Table I. The cycling conditions were 95°C for 10 min, followed by 40 cycles of 95°C for 10 sec, and 60°C for 1 min. To detect and remove possible primer-dimer artifacts, a dissociation curve was generated for the following cycling conditions: 95°C for 15 sec, 60°C for 1 min, and 95°C for 15 sec. The results were normalized to 18s mRNA levels (reference gene).
Determination of pro-inflammatory cytokine secretion in LPS-stimulated RAW 264.7 cells
The secretion levels of TNF-α, IL-1-β and IL-6 were determined using culture supernatants from the LPS-stimulated RAW 264.7 cells by capture ELISA using Nunc-Immuno™ Microwell 96-well MaxiSorp™ microplates (Nunc A/S, Roskilde, Denmark). Pro-inflammatory cytokine levels were measured according to the manufacturer's instructions using the Mouse ELISA kit, BD OptEIA™ (Pharmingen, San Diego, CA, USA). Briefly, the 96-well plates were coated overnight at 4°C with a capture antibody (anti-mouse TNF-α, IL-1β and IL-6) in coating buffer (1:250). After the plates were washed with washing buffer [0.05% Tween-20 in 1X phosphate-buffered saline (PBS)], the plates were blocked with assay diluent (10% FBS in 1X PBS) for 1 h at room temperature. After the plates were washed, standards and samples were added to the wells and incubated for 2 h at room temperature. After the plates were washed, working detector (biotinylated anti-mouse cytokine and streptavidin-horseradish peroxidase conjugate in assay diluent) were added and incubated for 1 h at room temperature. The wells were again washed and the substrate solution (tetramethylbenzidine and hydrogen peroxide) was added and incubated for 30 min at room temperature in the dark. After 30 min, stop solution (1 N H2SO4) was added. The absorbance was measured using a microplate reader (Thermo Multiskan Spectrum, Thermo Fisher Scientific, Waltham, MA, USA) at 450 nm. A standard curve was obtained using serial dilutions starting from 0 upto 1,000 pg/ml.
Assessment of nitrite and prostaglandin E2 (PGE2) production in LPS-stimulated RAW 264.7 cells
The RAW 264.7 cells were plated in a 12-well plate as mentioned above, and the concentration of nitrite was measured using Griess reagent. The culture supernatant (100 µl) was mixed with Griess reagent (100 µl) [equal volumes of 1% (w/v) sulfanilamide in 5% (v/v) phosphoric acid and 0.1% (w/v) naphthyl ethylenediamine dihydrochloride], and incubated at room temperature for 15 min. The light absorbance of the mixture was read at 540 nm using a microplate reader. The concentration of nitrite was calculated from a serial dilution standard curve of sodium nitrite (NaNO2). In addition, the PGE2 concentration was measured by a PGE2 assay kit according to the manufacturer's instructions (R&D Systems, Inc., Minneapolis, MN, USA).
Animal experiments
Eight-week-old male apoE−/− mice were used in the present study. All animals were obtained from the Jackson Laboratory (Bar Harbor, ME, USA) and maintained at the Korea Research Institute of Bioscience and Biotechnology (KRIBB; Daejeon, Korea) and housed in a controlled temperature (22 ± 1°C) facility and maintained on a reverse 12 h light/dark cycle. The mice were randomly divided into three groups: those fed i) an atherogenic diet (no. 102571; Dyets Inc., Bethlehem, PA, USA) plus vehicle (0.5% CMC) as the vehicle/control group (n=9); ii) an atherogenic diet plus 100 mg/kg of HJ as the HJ100 group (n=5); and iii) an atherogenic diet plus 500 mg/kg of HJ as the HJ500 group (n=8). The doses of HJ were determined by preliminary tests using concentrations of 100, 300, and 500 mg/kg for selection of anti-atherogenic effect. HJ was administered daily by oral gavage for 12 weeks and changes in body weight were measured each week. All animal experiments were approved by the Institutional Animal Care and Use Committee (IACUC) of KRIBB and were performed in accordance with the institutional guidelines at KRIBB.
Plasma analysis
At the end of the experimental period, blood samples were collected from the orbital venous sinuses of the mice to analyze the concentrations of plasma lipid as well as various biomarkers. Plasma was prepared by centrifuging the blood at 10,000 × g for 5 min at 4°C and subsequently storing it at −70°C until analysis. Plasma total cholesterol and triglyceride levels were analyzed using a kit (Asan Pharm, Seoul, Korea), and other biomarkers including aspartate transaminase (AST), alanine transaminase (ALT), blood urea nitrogen (BUN), creatinine (Crea), glucose (Glu), and non-esterified fatty acid (NEFA) were measured using an automatic blood chemical analyzer (Hitachi, Tokyo, Japan).
Analysis of atherosclerotic lesion formation in the aorta of apoE−/− mice
The mice were euthanized with CO2 gas, and then the whole aortas were isolated from the vehicle group (n=4), the HJ100 group (n=3), and the HJ500 group (n=4), and the adventitial tissue was removed. After fixation in 10% neutral formalin, the whole aortas were longitudinally dissected, and pinned flat on a rubber plate. Lipid plaques in the whole aorta were stained with oil-red O (Sigma-Aldrich), and en face images were captured using a digital camera (Canon, Tokyo, Japan). The whole aorta surface and stained plaque areas were analyzed by digital image analysis software (Image Inside; GS Media, Daejeon, Korea).
Analysis of atherosclerotic lesion formation in the aortic sinus of apoE−/− mice
The aortic sinuses were isolated from the vehicle group (n=8), the HJ100 group (n=4), and the HJ500 group (n=7), and fixed in 10% neutral formalin. After fixation, the aortic sinuses were embedded in a Tissue-Tek optimal cutting temperature (OCT) compound and sectioned at a thickness of 8 µm using a cryotome (both from Sakura Finetek, Tokyo, Japan). Cryostat sections of the aortic sinus were stained with oil-red O. After oil-red O staining, photographs were captured under a light microscope (BX51; Olympus Corp, Tokyo, Japan) and the atheroma areas of the aortic sinus were quantified using digital image analysis software (Image Inside).
Analysis of monocyte/macrophage infiltration in the aortic sinus of apoE−/− mice
The infiltration of monocytes and macrophages was detected using anti-MOMA-2, a mouse monocyte/macrophage-specific antibody (Abcam, Cambridge, UK). The aortic sinuses were embedded in a Tissue-Tek OCT compound, and then sections of the aortic sinus (8 µm) were incubated with anti-MOMA-2 (1:200), followed by Alexa Fluor 488 nm goat anti-rat IgG (1:250) (Invitrogen, Carlsbad, CA, USA) for visualization. Images of the aortic sinus were captured under a dual fluorescence microscope (Carl Zeiss, Oberkochen, Germany). The positively stained areas in the aortic sinus were quantified using digital image analysis software (Image Inside).
Assessment of the aortic expression of atherogenic genes in apoE−/− mice
Total RNA from the whole aorta in each group was extracted using TRIzol reagent (Invitrogen) according to the manufacturer's instructions, quantified by a NanoDrop ND-1000 spectrophotometer (NanoDrop Technologies, San Diego, CA, USA), and stored at −70°C until analysis. Relative quantification of the gene expression was performed using an Exicycler 96 Real-Time PCR System (Bioneer) with SYBR-Green dye (Takara). Oligonucleotide primers (VCAM-1, ICAM-1, iNOS, COX-2, MCP-1, CD68, IL-1β, IL-6 and IL-18) were designed by Primer Express 3.0 software (Applied Biosystems), and the primer sequences used in the experiments are listed in Table I. The cycling conditions were 95°C for 10 min, followed by 40 cycles of 95°C for 10 sec, and 60°C for 1 min. To detect and remove possible primer-dimer artifacts, a dissociation curve was generated by adding a cycle of 95°C for 15 sec, 60°C for 1 min, and 95°C for 15 sec. The results were normalized to 18s RNA levels (reference gene).
Statistical analysis
All data are presented as the means ± standard error of the mean (SEM). For two-group comparisons, a Student's t-test was used. A P-value of <0.05 was considered to indicate a statistically significant difference.
Results

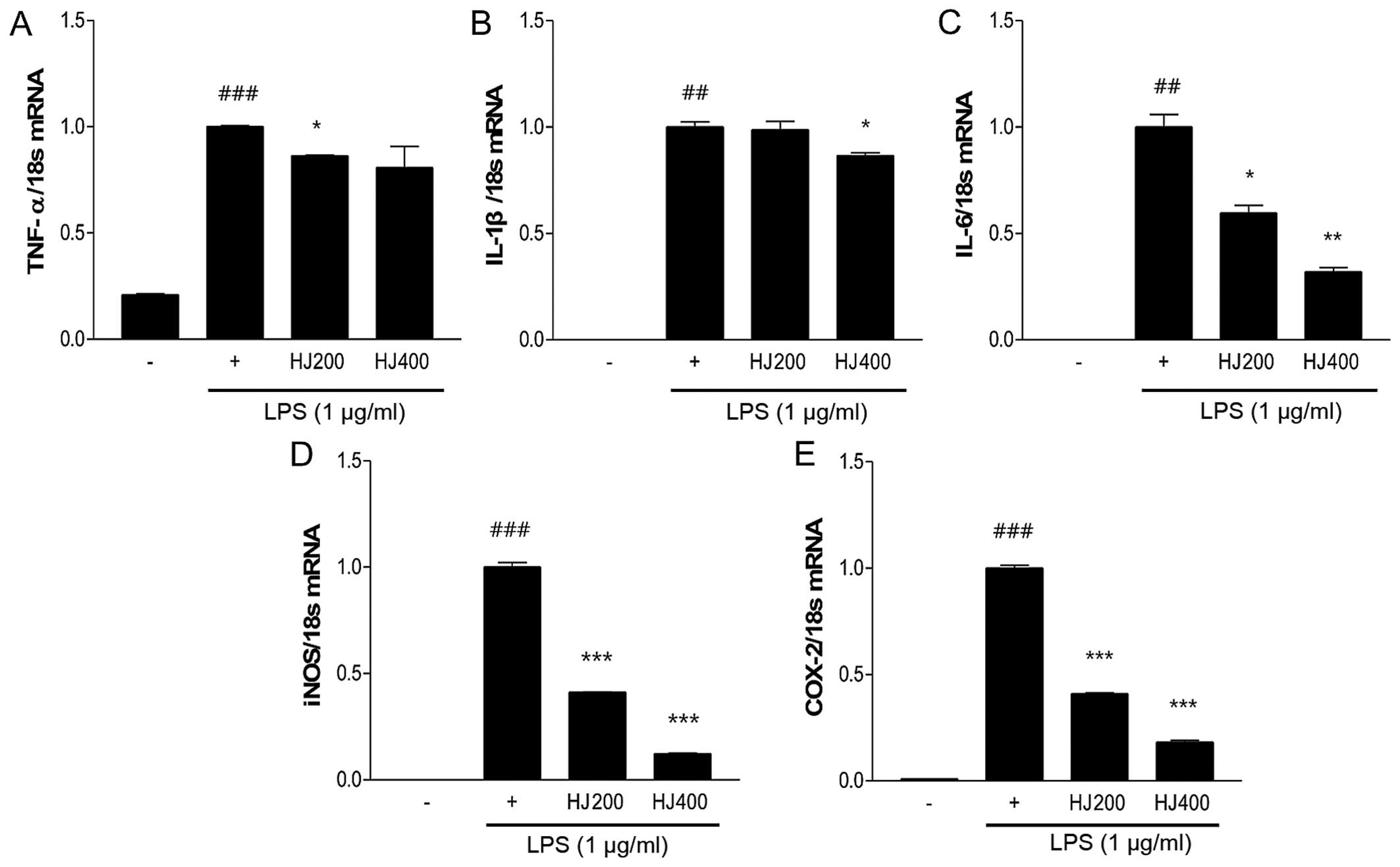

HJ inhibits the mRNA expression of inflammation-related genes in LPS-stimulated RAW 264.7 cells
To examine the anti-inflammatory effect of HJ, the mRNA expression of inflammation-related genes (TNF-α, IL-1β, IL-6, COX-2 and iNOS) was measured in HJ-treated RAW 264.7 cells stimulated with LPS. LPS stimulation significantly induced the increased expression of pro-inflammatory genes compared with the non-treated cells. The mRNA expression of TNF-α and IL-1β was significantly decreased in the HJ-treated cells (Fig. 1A and B). In addition, IL-6 mRNA expression was markedly reduced in the HJ-treated groups, particularly in the HJ400 group (by 68%) compared with IL-6 mRNA expression in the cells treated with LPS only (Fig. 1C). The expression of other inflammatory mediators, such as iNOS and COX-2, markedly decreased after HJ treatment in a dose-dependent manner. Particularly, the mRNA expression of these two genes decreased by >80% in the HJ400 group compared with that in the cells treated with LPS only (Fig. 1D and E).

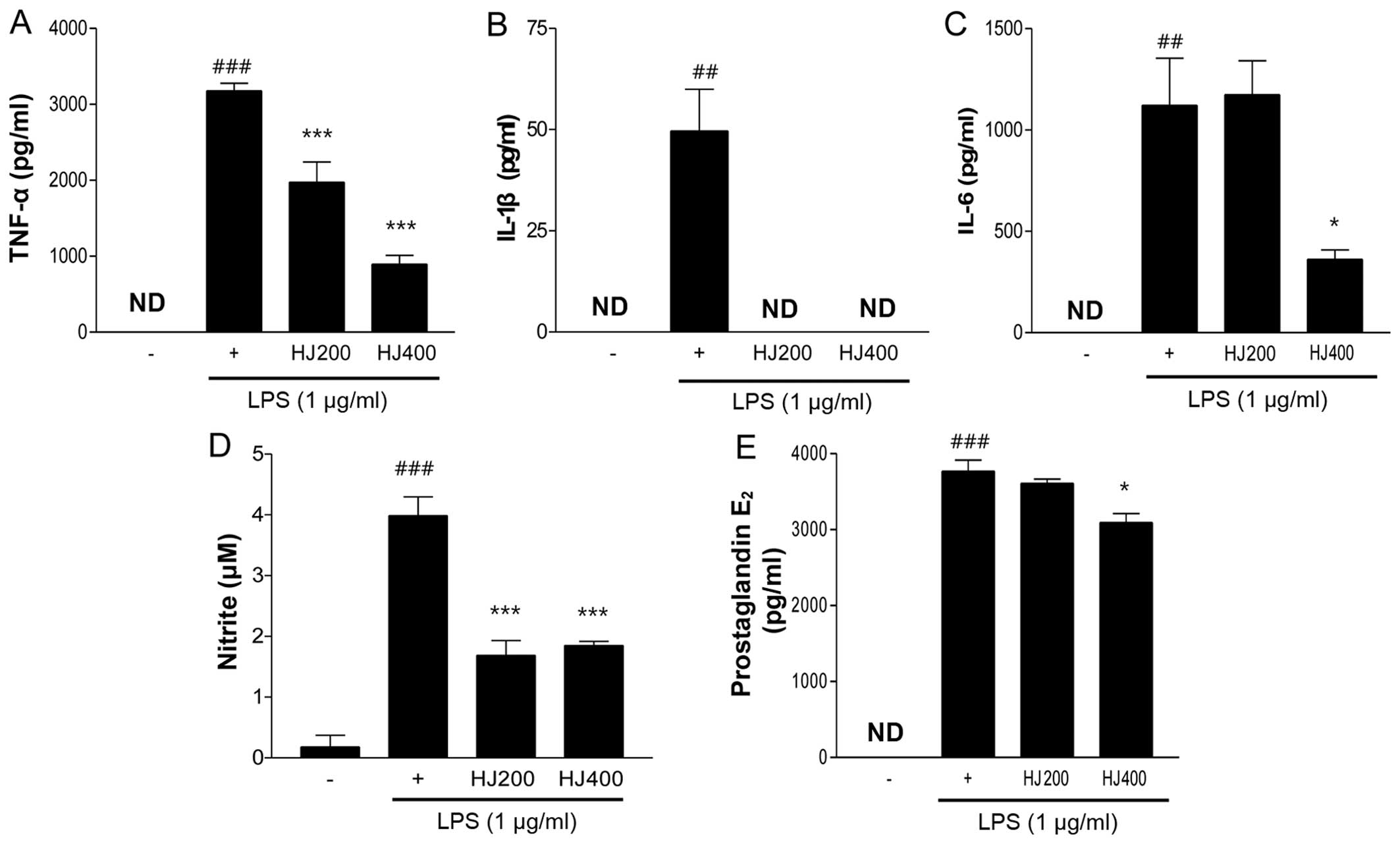

HJ suppresses the secretion of pro-inflammatory cytokines and production of nitrite and PGE2 in LPS-stimulated RAW 264.7 cells
In addition to assessing the mRNA expression of pro-inflammatory cytokines and inflammatory mediators, we measured the secretion levels of TNF-α, IL-1β, IL-6, nitrite and PGE2 in the LPS-stimulated RAW 264.7 cells following HJ treatment. As expected, the TNF-α and IL-6 secretion levels were significantly decreased by HJ treatment (Fig. 2A and C). Particularly the HJ400 group showed a >50% decrease compared with the cells treated with LPS only. Notably, IL-1β secretion was completely inhibited by HJ treatment regardless of the concentration (Fig. 2B). In general, the increased expression of iNOS leads to the production of high quantities of nitrite, nitrate and superoxide (O2−) (22). The release of nitrite in HJ-treated cells was markedly reduced by >50% compared with the level of nitrite release in the cells treated with LPS only (Fig. 2D). The effects of PGE2, an inflammatory mediator, are mediated through the induction of COX-2 expression resulting in inflammation (23). The treatment of LPS-stimulated RAW 264.7 cells with 400 µg/ml of HJ significantly reduced PGE2 levels by 12% compared with the PGE2 levels in the LPS-only treated cells (Fig. 2E). Taken together, these findings suggest that HJ inhibits the secretion of pro-inflammatory cytokines and inflammatory mediators in the LPS-stimulated RAW 264.7 cells.

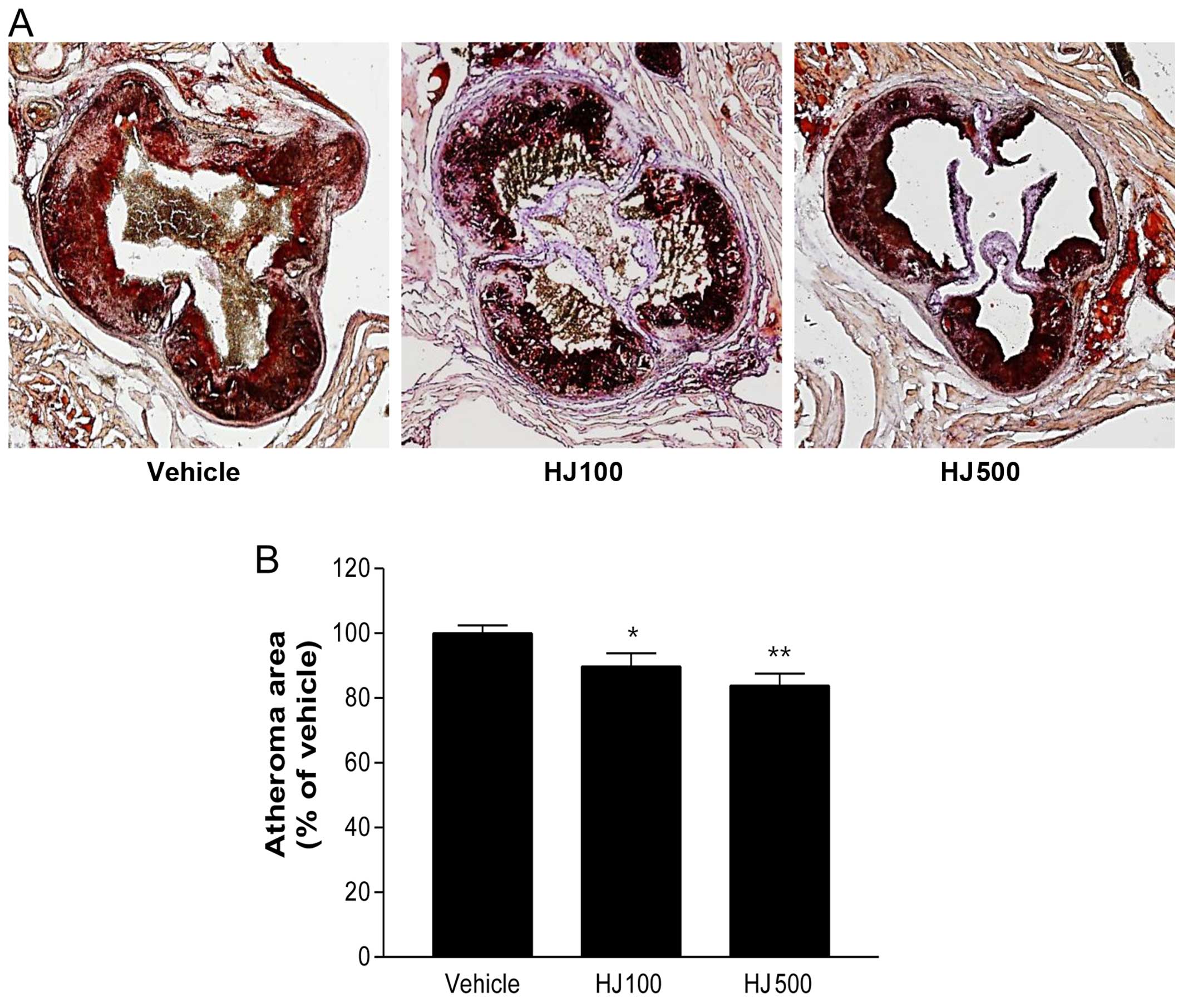

HJ reduces the formation of atherosclerotic lesions in the aortic sinus and the aorta of apoE−/− mice
To examine the effect of HJ on the formation of atherosclerotic lesions in vivo, HJ was administered to apoE−/− mice for 12 weeks, and the whole aorta was obtained, stained with oil-red O, and analyzed. No significant change in the number of atherosclerotic lesions in the aortic en face images of the HJ100 group was observed, whereas the number of aortic lesions was markedly reduced in the HJ500 group (72.09±14.16%), compared with the number of lesions in the vehicle group (Fig. 3). Furthermore, the number of atherosclerotic lesions in the aortic sinus was compared following oil-red O staining. The atherosclerotic area was significantly and dose-dependently decreased in the HJ treatment groups (HJ100 group, 89.71±4.75%; HJ500 group, 83.87±3.97%), compared with that in the vehicle group (Fig. 4). These results indicate that high-dose treatment with HJ clearly reduces the formation of atherosclerotic lesions.
HJ inhibits monocyte/macrophage infiltration in the aortic sinus of apoE−/− mice
To examine the infiltration of monocytes and macrophages in the arterial intima, we performed immunofluorescence staining for MOMA-2 in the aortic sinus (Fig. 5A). HJ decreased the levels of MOMA-2-positive areas in a dose-dependent manner. Moreover, the areas of the aortic sinus stained by MOMA-2 were quantified using image analysis software, and a significantly decreased monocyte/macrophage infiltration was observed in the HJ-treated mice, compared with that in the control apoE−/− group (Fig. 5B). This finding suggests that HJ treatment strongly inhibits the infiltration of monocytes and macrophages in the aortic sinus.
HJ reduces aortic atherogenic gene expression in apoE−/− mice
To further examine the aortic expression of atherogenic genes in HJ-treated apoE−/− mice, we measured the mRNA levels of adhesion molecules (VCAM-1 and ICAM-1), inflammatory mediators (iNOS and COX-2), the monocyte/macrophage marker, CD68, and MCP-1, as well as the pro-inflammatory cytokines (IL-1β, IL-6 and IL-18) in the HJ500 and the control groups. Among the analyzed parameters, the mRNA expression of ICAM-1, MCP-1, CD68 and IL-18 was significantly decreased in the HJ500 group compared with that in the control group (Fig. 6). These results indicate that HJ may reduce the expression of the pro-inflammatory cytokines and atherogenic genes, thereby regulating the migration and the infiltration of mainly monocytes/macrophages, in the aorta of HJ-treated apoE−/− mice.
Plasma analysis
Plasma lipid and other physiological biomarkers were also determined in the HJ- or vehicle-treated apoE−/− mice. Apart from a decrease in plasma triglyceride levels in both the HJ100 and the HJ500 groups compared with the control group, no significant changes were found in cholesterol, NEFA, AST, ALT, BUN, Crea and Glu levels (Table II). Moreover, the changes in body weight were not significantly different among groups during the whole period of the experiments (data not shown). Based on these results, it is suggested that long-term treatment with HJ, at least for 12 weeks in apoE−/− mice, does not induce significant toxic effects.
Discussion
The present study showed that HJ effectively inhibits atherogenesis by suppressing inflammation and the development of atherosclerotic lesions in LPS-stimulated RAW 264.7 cells and apoE−/− mice, respectively. Inflammation caused by inflammatory cytokines and chemokines is the response of tissue to injury (24). LPS is one of the most well-known macrophage-activating factors, and is usually used for evaluating anti-inflammatory effects (25). In addition, LPS stimulates the production of various inflammatory cytokines and mediators such as nitric oxide (NO), TNF-α, and ILs, thereby affecting the immune response (26,27). To determine whether HJ exerts an anti-inflammatory effect, we measured the gene expression of pro-inflammatory cytokines and mediators, and their secretion levels in LPS-stimulated RAW 264.7 cells. Pro-inflammatory cytokines (TNF-α, IL-1β and IL-6) play crucial roles in the initiation of inflammatory processes including immune cell recruitment, thereby promoting the formation of atherosclerotic lesions (28). Moreover, iNOS and COX-2 are crucial mediators of inflammation. iNOS catalyzes the oxidative deamination of L-arginine to produce NO, a highly reactive free radical involved in several physiological and pathological processes (29,30). The modulation of iNOS-mediated NO release is a major step in the inflammatory process (31). COX-2, an inducible isoform of COX, plays an important role in inflammation and produces PGE2, also involved in inflammation (32). In this study, HJ demonstrated a potent anti-inflammatory effect by suppressing the expression of pro-inflammatory cytokines and mediators, and their secretion in LPS-stimulated RAW 264.7 cells. These findings suggest that the anti-inflammatory activity of HJ may contribute to its anti-atherosclerotic effect.
In order to observe the effect of HJ on the development of atherosclerotic lesions, the lesions in the whole aorta and aortic sinus of apoE−/− mice were analyzed after staining with oil-red O. Indeed, HJ treatment for 12 weeks markedly reduced lesion formation in both the aorta (en face) and the aortic sinus in apoE−/− mice fed an atherogenic diet, particularly in the HJ500 group. It is well known that macrophages produce a variety of cytokines and tissue factors in atherosclerotic lesions. Thus, -the inhibitory effect of HJ on monocyte and macrophage infiltration was investigated in the aortic sinus of apoE−/− mice fed an atherogenic diet by immunofluorescent staining with MOMA-2. Quantitative analysis showed that the degree of infiltration was significantly reduced in the HJ500 group compared with the degree of infiltration in the vehicle group. These histological findings indicate that HJ exerts an anti-atherogenic effect and may potentially be used as a novel natural compound for inhibiting the development of atherosclerosis.
Previously, it was reported that atherosclerotic lesions form and develop as a consequence of lipid uptake as well as monocyte recruitment in arterial intima, and subsequent transformation into macrophage foam cells (4). During this process, activated arterial endothelial cells express various leukocyte adhesion molecules and chemokines which affect the progression of atherogenesis (33,34). The role of adhesion molecules in atherosclerosis has been reported previously (35,36). These studies suggest that the expression of adhesion molecules affects the recruitment of immune cells to the arterial intima. Among them, VCAM-1 and ICAM-1, well-known endothelial adhesion molecules of the Ig gene superfamily, may participate in the pathogenesis of atherosclerosis by promoting monocyte accumulation in the arterial intima. Particularly ICAM-1 has well-established roles in T cell activation and in interactions between leukocytes and endothelial cells (37,38). MCP-1, a member of the cysteine-cysteine chemokine family, is responsible for both lipid accumulation and monocyte recruitment into the arterial walls which affects the progression of atherosclerosis (39). Previously, studies have reported that the absence of MCP-1 or the inhibition of adhesion molecule expression ameliorates atherosclerosis in various models of atherosclerosis, including apoE−/− mice (40), LDL receptor-deficient mice (41), and double-knockout (apoE−/−/ICAM-1−/−) mice (42). Moreover, CD68, a pan-macrophage marker, is involved in the inflammation of carotid plaques. It contributes to the formation of a fibrous cap and negatively correlates with plaque cap thickness (43–45). IL-18, a member of the IL-1 family of cytokines, has been widely studied in inflammatory diseases including atherosclerosis (46–48). It was highly expressed in atherosclerotic plaques compared with the normal and control human carotid atherosclerotic plaques, and was localized in plaque macrophages (49). Therefore, the downregulation of pro-atherogenic genes may suppress the development of atherosclerotic lesions. In the present study, the expression of pro-atherogenic genes (ICAM-1, MCP-1, CD68 and IL-18) significantly decreased following HJ treatment in apoE−/− mice fed an atherogenic diet. These findings suggest that HJ inhibits atherosclerosis, in part, by downregulating the expression of atherogenic genes, such as adhesion molecules (ICAM-1) and cytokines, leading to a reduction in vascular inflammation, and in monocyte and neutrophil recruitment.
To the best of our knowledge, this is the first study to report that HJ suppresses the development of atherosclerosis by inhibiting the expression of pro-atherogenic factors, such as pro-inflammatory cytokines, chemokines and adhesion molecules, which is followed by the prevention of lipid accumulation in the aortic endothelium in apoE−/− mice. In conclusion, HJ may have potential applications as an effective, therapeutically potent natural product for preventing atherosclerosis.
Abbreviations:
VCAM-1 |
vascular cell adhesion molecule-1 |
ICAM-1 |
intercellular adhesion molecule-1 |
iNOS |
inducible nitric oxide synthase |
COX-2 |
cyclooxygenase-2 |
MCP-1 |
monocyte chemoattractant protein-1 |
TNF-α |
tumor necrosis factor-α |
IL-1β |
interleukin-1β |
IL-6 |
interleukin-6 |
IL-18 |
interleukin-18 |
Acknowledgments
The present study was supported by the KRIBB Research Initiative Program of the Republic of Korea. The authors wish to thank In-Bok Lee, Jung-Hyun Choi, and Yun-Jeong Seo for their technical assistance.
References
World Health Organization: Cardiovascular diseases (CVDs). http://www.who.int/mediacentre/factsheets/fs317/en. Accessed March 12, 2015. | |
Lusis AJ: Atherosclerosis. Nature. 407:233–241. 2000. View Article : Google Scholar : PubMed/NCBI | |
Rosamond WD, Chambless LE, Folsom AR, Cooper LS, Conwill DE, Clegg L, Wang CH and Heiss G: Trends in the incidence of myocardial infarction and in mortality due to coronary heart disease, 1987 to 1994. N Engl J Med. 339:861–867. 1998. View Article : Google Scholar : PubMed/NCBI | |
Ross R: Atherosclerosis - an inflammatory disease. N Engl J Med. 340:115–126. 1999. View Article : Google Scholar : PubMed/NCBI | |
Zernecke A and Weber C: Chemokines in atherosclerosis: proceedings resumed. Arterioscler Thromb Vasc Biol. 34:742–750. 2014. View Article : Google Scholar : PubMed/NCBI | |
Braunwald E: Shattuck lecture - cardiovascular medicine at the turn of the millennium: triumphs, concerns, and opportunities. N Engl J Med. 337:1360–1369. 1997. View Article : Google Scholar : PubMed/NCBI | |
Breslow JL: Cardiovascular disease burden increases, NIH funding decreases. Nat Med. 3:600–601. 1997. View Article : Google Scholar : PubMed/NCBI | |
Hansson GK and Libby P: The immune response in atherosclerosis: a double-edged sword. Nat Rev Immunol. 6:508–519. 2006. View Article : Google Scholar : PubMed/NCBI | |
Wildgruber M, Swirski FK and Zernecke A: Molecular imaging of inflammation in atherosclerosis. Theranostics. 3:865–884. 2013. View Article : Google Scholar : PubMed/NCBI | |
Stocker R and Keaney JF Jr: Role of oxidative modifications in atherosclerosis. Physiol Rev. 84:1381–1478. 2004. View Article : Google Scholar : PubMed/NCBI | |
Witztum JL and Steinberg D: Role of oxidized low density lipoprotein in atherogenesis. J Clin Invest. 88:1785–1792. 1991. View Article : Google Scholar : PubMed/NCBI | |
Janeway CA Jr and Medzhitov R: Innate immune recognition. Annu Rev Immunol. 20:197–216. 2002. View Article : Google Scholar : PubMed/NCBI | |
Moore KJ, Sheedy FJ and Fisher EA: Macrophages in atherosclerosis: a dynamic balance. Nat Rev Immunol. 13:709–721. 2013. View Article : Google Scholar : PubMed/NCBI | |
Peiser L, Mukhopadhyay S and Gordon S: Scavenger receptors in innate immunity. Curr Opin Immunol. 14:123–128. 2002. View Article : Google Scholar : PubMed/NCBI | |
Park JW, Ko SH, Kim CW, Jeoung BJ and Hong CS: Identification and characterization of the major allergen of the Humulus japonicus pollen. Clin Exp Allergy. 29:1080–1086. 1999. View Article : Google Scholar : PubMed/NCBI | |
Jeong KY, Han IS, Choi SY, Lee JH, Lee JS, Hong CS and Park JW: Allergenicity of recombinant profilins from Japanese hop, Humulus japonicus. J Investig Allergol Clin Immunol. 23:345–350. 2013.PubMed/NCBI | |
Park SW, Chung SK and Kim SH: Antimutagenic effects and isolation of flavonoids from Humulus japonicus extract. Korean Soc Food Sci Technol. 27:879–901. 1995. | |
Park SW, Woo CJ, Chung SK and Chung KT: Antimicrobial and antioxidative activities of solvent fraction from Humulus japonicus. Korean Soc Food Sci Technol. 26:464–470. 2000. | |
Lee YR, Kim KY, Lee SH, Kim MY, Park HJ and Jeong HS: Antioxidant and Antitumor Activities of Methanolic Extract form Humulus japonicus. Korean Soc Food Sci Technol. 25:357–361. 2012. | |
Hong MS, Son ES, Lee SJ, Lee SK, Lee YJ, Song SD, Cho SN, Clifton E and Eum SY: Anti-mycobacterial effects of the extract of Humulus japonicus. Korean Soc Food Sci Technol. 46:94–99. 2014. View Article : Google Scholar | |
Hwang SY, Jung HJ, Jang WS, Jo MJ, Kim SC and Jee SY: Anti-inflammatory effects of the MeOH extract of Humulus japonicus in vitro. J Korean Med Ophthalmol Otolaryngol Dermatol. 22:71–79. 2009.In Korean. | |
Xia Y, Roman LJ, Masters BS and Zweier JL: Inducible nitric-oxide synthase generates superoxide from the reductase domain. J Biol Chem. 273:22635–22639. 1998. View Article : Google Scholar : PubMed/NCBI | |
Surh YJ, Chun KS, Cha HH, Han SS, Keum YS, Park KK and Lee SS: Molecular mechanisms underlying chemopreventive activities of anti-inflammatory phytochemicals: down-regulation of COX-2 and iNOS through suppression of NF-kappa B activation. Mutat Res. 480–481:243–268. 2001. View Article : Google Scholar | |
Park CM and Song YS: Luteolin and luteolin-7-O-glucoside inhibit lipopolysaccharide-induced inflammatory responses through modulation of NF-κB/AP-1/PI3K-Akt signaling cascades in RAW 264.7 cells. Nutr Res Pract. 7:423–429. 2013. View Article : Google Scholar : PubMed/NCBI | |
Chun SC, Jee SY, Lee SG, Park SJ, Lee JR and Kim SC: Anti-inflammatory activity of the methanol extract of moutan cortex in LPS-activated Raw264.7 cells. Evid Based Complement Alternat Med. 4:327–333. 2007. View Article : Google Scholar : PubMed/NCBI | |
Kubes P and McCafferty DM: Nitric oxide and intestinal inflammation. Am J Med. 109:150–158. 2000. View Article : Google Scholar : PubMed/NCBI | |
Watson WH, Zhao Y and Chawla RK: S-adenosylmethionine attenuates the lipopolysaccharide-induced expression of the gene for tumour necrosis factor alpha. Biochem J. 342:21–25. 1999. View Article : Google Scholar : PubMed/NCBI | |
Adams DO and Hamilton TA: The cell biology of macrophage activation. Annu Rev Immunol. 2:283–318. 1984. View Article : Google Scholar : PubMed/NCBI | |
Moncada S, Palmer RM and Higgs EA: Nitric oxide: physiology, pathophysiology, and pharmacology. Pharmacol Rev. 43:109–142. 1991.PubMed/NCBI | |
Wink DA, Vodovotz Y, Laval J, Laval F, Dewhirst MW and Mitchell JB: The multifaceted roles of nitric oxide in cancer. Carcinogenesis. 19:711–721. 1998. View Article : Google Scholar : PubMed/NCBI | |
Kim ND, Kim EM, Kang KW, Cho MK, Choi SY and Kim SG: Ginsenoside Rg3 inhibits phenylephrine-induced vascular contraction through induction of nitric oxide synthase. Br J Pharmacol. 140:661–670. 2003. View Article : Google Scholar : PubMed/NCBI | |
Vane JR, Bakhle YS and Botting RM: Cyclooxygenases 1 and 2. Annu Rev Pharmacol Toxicol. 38:97–120. 1998. View Article : Google Scholar : PubMed/NCBI | |
Collins RG, Velji R, Guevara NV, Hicks MJ, Chan L and Beaudet AL: P-Selectin or intercellular adhesion molecule (ICAM)-1 deficiency substantially protects against atherosclerosis in apolipoprotein E-deficient mice. J Exp Med. 191:189–194. 2000. View Article : Google Scholar : PubMed/NCBI | |
Cybulsky MI and Gimbrone MA Jr: Endothelial expression of a mononuclear leukocyte adhesion molecule during atherogenesis. Science. 251:788–791. 1991. View Article : Google Scholar : PubMed/NCBI | |
Braunersreuther V and Mach F: Leukocyte recruitment in atherosclerosis: potential targets for therapeutic approaches? Cell Mol Life Sci. 63:2079–2088. 2006. View Article : Google Scholar : PubMed/NCBI | |
Huo Y and Ley K: Adhesion molecules and atherogenesis. Acta Physiol Scand. 173:35–43. 2001. View Article : Google Scholar : PubMed/NCBI | |
Broide DH, Humber D, Sullivan S and Sriramarao P: Inhibition of eosinophil rolling and recruitment in P-selectin- and intracellular adhesion molecule-1-deficient mice. Blood. 91:2847–2856. 1998.PubMed/NCBI | |
Kuhlman P, Moy VT, Lollo BA and Brian AA: The accessory function of murine intercellular adhesion molecule-1 in T lymphocyte activation. Contributions of adhesion and co-activation. J Immunol. 146:1773–1782. 1991.PubMed/NCBI | |
Parhami F, Fang ZT, Fogelman AM, Andalibi A, Territo MC and Berliner JA: Minimally modified low density lipoprotein-induced inflammatory responses in endothelial cells are mediated by cyclic adenosine monophosphate. J Clin Invest. 92:471–478. 1993. View Article : Google Scholar : PubMed/NCBI | |
Nagarajan S, Burris RL, Stewart BW, Wilkerson JE and Badger TM: Dietary soy protein isolate ameliorates atherosclerotic lesions in apolipoprotein E-deficient mice potentially by inhibiting monocyte chemoattractant protein-1 expression. J Nutr. 138:332–337. 2008.PubMed/NCBI | |
Gu L, Okada Y, Clinton SK, Gerard C, Sukhova GK, Libby P and Rollins BJ: Absence of monocyte chemoattractant protein-1 reduces atherosclerosis in low density lipoprotein receptor-deficient mice. Mol Cell. 2:275–281. 1998. View Article : Google Scholar : PubMed/NCBI | |
Bourdillon MC, Poston RN, Covacho C, Chignier E, Bricca G and McGregor JL: ICAM-1 deficiency reduces atherosclerotic lesions in double-knockout mice (ApoE(−/−)/ICAM-1(−/−)) fed a fat or a chow diet. Arterioscler Thromb Vasc Biol. 20:2630–2635. 2000. View Article : Google Scholar : PubMed/NCBI | |
Medbury HJ, James V, Ngo J, Hitos K, Wang Y, Harris DC and Fletcher JP: Differing association of macrophage subsets with atherosclerotic plaque stability. Int Angiol. 32:74–84. 2013.PubMed/NCBI | |
Medbury HJ, Tarran SL, Guiffre AK, Williams MM, Lam TH, Vicaretti M and Fletcher JP: Monocytes contribute to the atherosclerotic cap by transformation into fibrocytes. Int Angiol. 27:114–123. 2008.PubMed/NCBI | |
Ren S, Fan X, Peng L, Pan L, Yu C, Tong J, Zhang W and Liu P: Expression of NF-κB, CD68 and CD105 in carotid atherosclerotic plaque. J Thorac Dis. 5:771–776. 2013. | |
Ghayur T, Banerjee S, Hugunin M, Butler D, Herzog L, Carter A, Quintal L, Sekut L, Talanian R, Paskind M, et al: Caspase-1 processes IFN-gamma-inducing factor and regulates LPS-induced IFN-gamma production. Nature. 386:619–623. 1997. View Article : Google Scholar : PubMed/NCBI | |
Gu Y, Kuida K, Tsutsui H, Ku G, Hsiao K, Fleming MA, Hayashi N, Higashino K, Okamura H, Nakanishi K, et al: Activation of interferon-gamma inducing factor mediated by interleukin-1beta converting enzyme. Science. 275:206–209. 1997. View Article : Google Scholar : PubMed/NCBI | |
Seta Y, Kanda T, Tanaka T, Arai M, Sekiguchi K, Yokoyama T, Kurimoto M, Tamura J and Kurabayashi M: Interleukin 18 in acute myocardial infarction. Heart. 84:668–669. 2000. View Article : Google Scholar : PubMed/NCBI | |
Mallat Z, Corbaz A, Scoazec A, Besnard S, Lesèche G, Chvatchko Y and Tedgui A: Expression of interleukin-18 in human atherosclerotic plaques and relation to plaque instability. Circulation. 104:1598–1603. 2001. View Article : Google Scholar : PubMed/NCBI |
