Introduction

Duchenne muscular dystrophy is a devastating muscle wasting disease of early childhood (1) and the most frequently inherited neuromuscular disorder (2). It has an X-linked mode of inheritance and is primarily caused by abnormalities in the Dmd gene, which trigger the almost complete absence of the membrane cytoskeletal protein dystrophin of 427 kDa (3). The loss of dystrophin results in a significant reduction of dystrophin-associated glycoproteins, which in turn impairs the linkage between the extracellular matrix component laminin and the actin membrane cytoskeleton (4). In addition to destabilizing the fibre periphery and thereby making muscle cells more susceptible to micro-rupturing during excitation-contraction-relaxation cycles (5), a variety of secondary changes play a key role in the molecular pathogenesis of X-linked muscular dystrophy (6). This includes reactive myofibrosis resulting in tissue scarring and loss of fibre elasticity, abnormal calcium regulation and increased proteolytic degradation, impaired cellular signalling and disturbed excitation-contraction coupling, as well as sterile inflammation of dystrophin-deficient muscle tissue (7–10). Therefore, the immune system appears to play a critical role in X-linked muscular dystrophy (11–14). It is debatable whether the inflammatory pathology of dystrophic muscles is based on a reactive and relatively non-specific invasion of immune cells in damaged muscle fibres or represents a separate mechanism that promotes fibre degeneration independent of sarcolemmal destabilisation (15–17). Thus, although dystrophinopathies are triggered by a single gene defect, the pathophysiological consequences and adaptive responses of dystrophic muscles are highly complex.

In the pre-proteomic era, a variety of muscle-derived protein markers have been established for general diagnostic purposes. Serum markers with an association to tissue damage and muscular injury include creatine kinase, pyruvate kinase, hemopexin, adenylate kinase, carbonic anhydrase and lactate dehydrogenase (18–22). However, the concentration of some of these serum markers vary considerably in healthy individuals, lack a high degree of specificity and/or exhibit inconsistencies in their concentration changes during acute vs. chronic disease stages. This potential lack of diagnostic reliability and limited robustness restricts the clinical usefulness of many general protein biomarkers of skeletal muscle damage for accurate sample screening, prognosis or clinical outcome measures. More specific serum proteins that exhibit elevated levels in Duchenne patients seem to be the tissue inhibitors of metalloproteinase-1, transforming growth factor TGF-β1 and the matrix metalloproteinase MMP-9 (23–26). In contrast to traditional biochemical studies that usually focus on the characterization of a restricted number of specific candidate molecules, large-scale biochemical approaches promise to gain new global insights into the molecular and cellular mechanisms of muscular dystrophy. Mass spectrometry-based proteomics is highly suitable to improve our general understanding of complex changes in dystrophinopathies (27). Systems biological methods promise to determine potential pathophysiological hierarchies and interconnectivities between differing secondary mechanisms within muscle tissues that are downstream of the pathobiochemical collapse of the dystrophin-glycoprotein complex (28). Most importantly, the systematic proteomic identification of new serum biomarkers is crucial for the improved diagnostic and prognostic evaluation of Duchenne muscular dystrophy and animal models of dystrophin deficiency (29).

In the field of muscular dystrophy research, the systematic screening of body fluids from Duchenne patients and established animal models of dystrophinopathies using proteomic technology has recently established a variety of new biomarker candidates, including fibronectin, the coagulation factor XIIIa, titin, various myosin light chain isoforms, myomesin-3, filamin-C, lysosomal-associated membrane protein LAMP1 and its accompanying vesicle proteins, aldolase, phosphoglycerate mutase, enolase, glycogen phosphorylase, fatty acid-binding protein, myoglobin, cytochrome c, malate dehydrogenase, fibrinogen, parvalbumin, electron transfer flavoprotein A, troponin, Ca2+/calmodulin-dependent protein kinase Camk2b, metalloproteinase Adamts5, troponin-1, myoglobin and heat-shock protein HSPA1A (30–39). In analogy to these studies and to establish new biomarker candidates for the improved evaluation of animal models of dystrophinopathy, we analysed serum from the dystrophic mdx-4cv mouse (40). The mdx-4cv model exhibits substantially less revertant dystrophin-positive fibres than the conventional mdx mouse (41), which is advantageous for outcome measurements in experimental treatment studies, such as exon-skipping therapy (42). Comparative proteomics of mdx-4cv vs. wild-type serum established a significantly increased concentration of the inflammation-inducible plasma marker haptoglobin (43). The elevated levels of this acute phase response protein agree with skeletal muscle damage and sterile inflammation in muscular dystrophy. This establishes haptoglobin as a novel biomarker candidate of the inflammatory response in dystrophinopathy.

Materials and methods

Materials

Immunodepletion of serum samples was carried out with Proteome Purify 2 Mouse Serum Protein Immunodepletion Resin (R&D Systems, Inc., Minneapolis, MN, USA). Ultrapure acrylamide stock solutions for gel electrophoresis were purchased from National Diagnostics (Atlanta, GA, USA). Invitrogen (Carlsbad, CA, USA) supplied Whatman nitrocellulose transfer membranes. The chemiluminescence substrate and protease inhibitors were obtained from Roche Diagnostics GmbH (Mannheim, Germany). Superfrost Plus positively-charged microscope slides were obtained from Menzel Glaser (Braunschweig, Germany). Sequencing grade modified trypsin and Lys-C were purchased from Promega Corp. (Madison, WI, USA). Pierce C18 Spin Columns were obtained from Thermo Fisher Scientific (Dublin, Ireland). Primary antibodies were purchased from Abcam (Cambridge, UK) (ab131236 to haptoglobin, ab14225-200 to albumin, ab52488 to lactate dehydrogenase, ab9033-1 to transferrin, ab15277 to dystrophin and ab11427 to parvalbumin) and Santa Cruz Biotechnology, Santa Cruz, CA, USA (sc-25607 to myoglobin). Chemicon International, Inc. (Temecula, CA, USA) provided peroxidase-conjugated secondary antibodies. Enzyme-linked immunosorbent assay assays (ELISA) were purchased from Abcam (ab157714 to haptoglobin and ab157711 to complement C3) and R&D Systems (FABP-1/L-FABP). Normal goat serum and Cy3-conjugated antibodies were obtained from Jackson ImmunoResearch Laboratories, Inc. (West Grove, PA, USA). The embedding medium Fluoromount-G was obtained from Southern Biotech (Birmingham, AL, USA). A variety of other general chemicals, including bis-benzimide Hoechst-33342, were of analytical grade and obtained from Sigma Chemical Company (Dorset, UK).

Dystrophic mdx-4cv animal model of Duchenne muscular dystrophy

In order to investigate the serum proteome and identify potential biomarkers of dystrophinopathy, the mdx-4cv animal model was employed in the present study. This mouse model has been generated using N-ethylnitrosourea to induce a premature stop codon in exon 53 of the Dmd gene (44). The mdx-4cv model has 10-fold fewer dystrophin-positive revertant fibres (41) than the conventional mdx mouse (45) and thus its serum proteome may be more representative of the human condition. Mice were bred in the Bioresource Unit of the University of Bonn under standard conditions (46) with the authorization by the District Veterinary Office in Bonn, Germany. Tissue and organ harvesting was regularly reported to the District Veterinary Office. Serum and muscle samples from 6-month-old mdx-4cv and age-matched wild-type C57BL6 mice were obtained after sacrificing the animals by cervical dislocation. Samples were immediately quick-frozen in liquid nitrogen and stored at −80°C prior to usage. Samples were transported to Maynooth University on dry ice in accordance with the Department of Agriculture (animal by-product register number 2016/16 to the Department of Biology, National University of Ireland, Maynooth).

Immunodepletion of mouse serum samples

One of the main challenges with the proteomic profiling of biofluids, particularly for serum and plasma, is the wide dynamic range of protein expression (47). Since highly abundant proteins such as albumin and IgG constitute the majority of plasma proteins, and this seriously interferes with the detection of low-copy-number proteins by mass spectrometry (48), many profiling studies use immunodepletion strategies to achieve an enriched pool of low-abundance proteins. We here used the Proteome Purify 2 Mouse Serum Protein Immunodepletion Resin to remove the highly abundant proteins albumin and IgG from the murine serum samples. In summary, 10 µl of serum was added to a micro-centrifuge tube containing 1 ml of immunodepletion resin. The tubes were placed on a rotary shaker for 1 h at room temperature. After the incubation period, the mixture was added to the upper chamber of a Spin-X filter unit (centrifuge tube with a 0.22-µm cellulose acetate membrane) and centrifuged for 2 min at 2,000 × g. The filtrate was collected and used for further analysis.

Sample preparation for mass spectrometry

Immunodepleted serum samples were acetone precipitated and the resulting pellets were re-suspended in label-free solubilisation buffer (6 M urea, 2 M thiourea, 10 mM Tris, pH 8.0 in LC/MS grade water). Protein concentrations were determined by the Bradford assay system (49) and sample volumes were equalised with label-free solubilisation buffer. Samples were reduced for 30 min at 37°C with 10 mM dithiothreitol and alkylated with 25 mM iodoacetamide in 50 mM ammonium bicarbonate for 20 min in the dark at room temperature (50). To limit alkylation of trypsin by any remaining unreacted iodoacetamide, samples were reduced with a further 10 mM dithiothreitol for 15 min in the dark at room temperature. Proteolytic digestion of serum proteins to their constitutive peptides was carried out in two steps. Firstly samples were digested with sequencing grade Lys-C at a ratio of 1:100 (protease:protein) for 4 h at 37°C, followed by dilution with four times the initial sample volume in 50 mM ammonium bicarbonate. Secondly, samples were digested with sequencing-grade trypsin at a ratio of 1:25 (protease:protein) overnight at 37°C (51). Samples were acidified with 2% trifluoroacetic acid (TFA) in 20% acetonitrile (ACN) [3:1 (v/v) dilution]. Peptide suspensions were purified using Pierce C18 Spin Columns, dried through vacuum centrifugation and suspended in loading buffer consisting of 2% ACN and 0.05% TFA in LC-MS grade water. Samples were vortexed and sonicated to ensure an even suspension of peptides prior to mass spectrometric analysis.

Label-free liquid chromatography mass spectrometric analysis

The label-free liquid chromatography mass spectrometric (LC-MS/MS) analysis of mdx-4cv vs. wild-type serum samples was carried out using an Ultimate 3000 NanoLC system (Dionex Corporation, Sunnyvale, CA, USA) coupled to a Q-Exactive mass spectrometer (Thermo Fisher Scientific). Peptide mixtures (5 µl, corresponding to 1 µg protein) were loaded by an autosampler onto a C18 trap column (C18 PepMap, 300 µm id × 5 mm, 5 µm particle size, 100 A pore size; Thermo Fisher Scientific). The trap column was switched on-line with an analytical Biobasic C18 Picofrit column (C18 PepMap, 75 µm id × 50 cm, 2 µm particle size, 100 A pore size; Dionex Corporation). Serum-derived peptides were eluted using the following gradient (solvent A: 80% (v/v) ACN and 0.1% (v/v) formic acid in LC-MS grade water): 5% solvent A for 120 min, 45% solvent A for 2.5 min, 90% solvent A for 9 min and 3% solvent A for 43 min (52). The column flow rate was set to 0.3 µl/min. Data were acquired with Xcalibur software (Thermo Fisher Scientific). The Q-Exactive was operated in positive and data-dependent mode and was externally calibrated. Survey MS scans were conducted in the 300–1,700 m/z range with a resolution of 140,000 (m/z 200) and lock mass set to 445.12003. Collision-induced dissociation fragmentation was carried out with the 15 most intense ions per scan and at 17,500 resolution. Within 30 sec, a dynamic exclusion window was applied. An isolation window of 2 m/z and one microscan were used to collect suitable tandem mass spectra.

Quantitative proteomic profiling by label-free LC-MS/MS analysis

Quantitative analysis of the raw data generated from LC-MS/MS was conducted with Progenesis QI for Proteomics software (version 3.1; Nonlinear Dynamics, Ltd., Newcastle upon Tyne, UK). A reference run was selected based on the highest number of peptide ions and the retention times of all the other runs were aligned to this reference run. This accounted for any drift in LC retention time, thus giving an adjusted retention time for all runs in the analysis (53). The data were filtered using the criteria listed below and were then exported as a Mascot generic file to Proteome Discoverer 2.0 (Thermo Scientific); i) peptide features with ANOVA ≤0.05 between experimental groups, ii) mass peaks with charge states from +1 to +5 and iii) greater than one isotope per peptide. The exported MS/MS spectra from Progenesis software were used for peptide identification using Proteome Discoverer 2.0 against Mascot (version 2.3) and Sequest HT and searched against the UniProtKB-SwissProt database (taxonomy: Mus musculus). The following search parameters were used for protein identification: i) peptide mass tolerance set to 10 ppm, ii) MS/MS mass tolerance set to 0.02 Da, iii) up to two missed cleavages were allowed, iv) carbamidomethylation set as a fixed modification and v) methionine oxidation set as a variable modification (54). For re-importation back into Progenesis LC-MS software for further analysis, only peptides classified as high confidence peptides and with ion scores of 40.00 or more (from Mascot) and/or XCorr scores >1.5 for singly charged ions, >2.0 for doubly charged ions and >3.0 for triply charged ions (Sequest HT, Thermo Fisher Scientific) were selected. The following criteria were applied to assign a protein as properly identified and with differential abundance: i) an ANOVA score between experimental groups of ≤0.05, and ii) proteins with ≥2 peptides matched (55). The PANTHER database of protein families (http://pantherdb.org; version 10.0) was used to group proteins based on their protein class (56).

Immunoblot analysis

Immunoblotting using a panel of select antibodies was used for the independent verification of the proteomic findings. Immunoblotting was performed using routine conditions as previously described in detail (57). Briefly, crude serum samples were separated by gel electrophoresis using 10% 1D polyacrylamide gels, followed by wet transfer to nitrocellulose membranes at 100 V for 70 min at 4°C in a Trans-Blot cell from Bio-Rad Laboratories (Richmond, CA, USA). Transfer efficiency was assessed using Ponceau reversible stain and membranes were then blocked for 1 h at room temperature using a milk protein solution [2.5% (w/v) fat-free milk powder in phosphate buffered saline] (58). Membranes were incubated with appropriately diluted primary antibodies overnight at 4°C with gentle agitation. Membranes were then washed with the milk protein solution twice for 10 min and incubated with peroxidase-conjugated secondary antibodies for 1.5 h at room temperature with gentle agitation. Following a series of washing steps with the milk protein solution and phosphate-buffered saline, antibody-labelled protein bands were visualised using enhanced chemiluminescence. Densitometric scanning and statistical analysis of immunoblots were performed using a HP PSC-2355 scanner and ImageJ software [National Institutes of Health (NIH), Bethesda, MA, USA] along with Graph-Pad Prism software (San Diego, CA, USA), in which a P<0.05 was deemed to be statistically significant.

ELISA

ELISA was employed to independently verify key findings from the mass spectrometric analysis. Crude serum samples were screened using quantitative sandwich enzyme immunoassays to haptoglobin, FABP-1 and complement C3. Appropriately diluted serum samples (1:400 for FABP-1, 1:1,000 for haptoglobin, and 1:30,000 for complement C3 assay) were added to antibody-coated microtiter wells and were incubated at room temperature for 20 min (for complement C and haptoglobin) or 2 h (for FABP-1). After the incubation period, wells were washed and a peroxidase-labelled secondary detector antibody was added. After incubation at room temperature for 20 min in the dark, tetramethylbenzidine chromogen substrate was added. The reaction was stopped after 10 min (for complement C and haptoglobin) or 30 min (for FABP-1) and absorbance was measured at λ=450 nm on a microplate reader (33). The quantity of protein in the test samples was interpolated from the standard curve and was corrected for sample dilution. All ELISA assays were carried out with crude serum from wild-type (n=5) and mdx-4cv (n=8 for complement C3; n=7 for haptoglobin and FABP-1) mice. All test samples were assayed in triplicate. The intraplate % CV was calculated and was found to be less than 10% for all assays. Statistical ROC (receiver operating characteristics) analyses were performed using MedCalc for Windows, version 16.8 (MedCalc Software BVBA, Ostend, Belgium) to determine representaive AUC values for individual ELISA assays.

Immunofluorescence microscopy

To establish the mutant and dystrophic status of mdx-4cv mice at the age of 6 months, deficiency in the dystrophin protein isoform Dp427 and histological skeletal muscle changes were established by immunofluorescence microscopy and histological analysis, respectively (59). Dystrophic mdx-4cv and wild-type gastrocnemius muscles were freshly dissected and then quick-frozen in liquid nitrogen. Histochemical staining was carried out with routine haematoxylin and eosin staining. Cryo-sectioning was employed to generate 10 µm muscle tissue sections, which were placed on Superfrost Plus positively-charged microscope slides. Skeletal muscle cryosections were then boiled to reduce background staining (60) and permeabilized in 0.1% (v/v) Triton X-100 in phosphate-buffered saline for 30 min at room temperature (61). Tissue sections were blocked in 20% (v/v) normal goat serum in phosphate-buffered saline for 30 min and incubated overnight at 4°C with an appropriately diluted antibody to dystrophin. Following a careful washing step, skeletal muscle sections were incubated with Cy3-conjugated anti-IgG antibodies (1:200) for 30 min at room temperature. Primary antibodies were omitted for control staining. Antibody-labelled skeletal muscle sections were embedded in Fluoromount-G medium and viewed under a Zeiss Axioskop 2 epi-fluorescence microscope equipped with a digital Zeiss AxioCam HRc camera (Carl Zeiss Jena GmbH, Jena, Germany).

Results

In order to evaluate whether the dystrophic phenotype of the mdx-4cv mouse is reflected by an altered rate of protein release into the circulatory system or other plasma fluctuations, potential changes in the mdx-4cv serum proteome were determined by label-free mass spectrometry. Key findings from the proteomic profiling of serum samples were verified by comparative immunoblotting and enzyme-linked immunosorbent assays.

Dystrophic mdx-4cv model of dystrophinopathy

Prior to the proteomic profiling of serum samples, the mutant and dystrophic status of the 6-month-old mdx-4cv animal model of Duchenne muscular dystrophy was established using immunofluorescence microscopy and histological assessment. Fig. 1 clearly demonstrates the dystrophic phenotype of the mdx-4cv gastrocnemius muscle (45). In contrast to the relatively regular cell shape and peripheral nucleation in wild-type (wt) mouse muscle (Fig. 1A), transverse sections of the mdx-4cv mouse muscle showed central nucleation and the infiltration of immune cells in areas of fibre damage (Fig. 1B). The peripheral labelling of dystrophin isoform Dp427 in wt muscle by immunofluorescence microscopy (Fig. 1C) was in stark contrast to the lack of dystrophin staining in mdx-4cv mutant muscle (Fig. 1D).

Figure 1 Histological and immunofluorescence microscopic analysis of 6-month-old mdx-4cv mouse gastrocnemius muscle. Shown are histological staining with haematoxylin and eosin (A and B) and immunofluorescence labelling with an antibody to dystrophin isoform Dp427 (C and D) of muscle sections from wild-type (A and C) vs. mdx-4cv (B and D) mouse gastrocnemius muscle. Scale bars represent 10 and 40 µm in panels (A and B) and (C and D), respectively.

Pre-fractionation of mdx-4cv serum

Protein depletion, pre-fractionation and post-fractionation are routinely employed methods in proteomic studies of body fluids that exhibit a complex proteome with the presence of a few highly abundant proteins. These protein species may mask the detection of low-copy-number protein species. Albumin and IgG molecules are major classes of abundant plasma proteins and may therefore interfere with the detection of low-abundance proteins in comparative proteomic studies (48). We therefore employed an immunodepletion strategy to reduce sample complexity and enrich the starting material in serum proteins with a relatively low concentration (62).

In general, immunodepletion is a widely employed and internationally accepted approach for studying complex biofluids (63). This protein depletion technique decisively reduces the problem of dynamic range in both LC-MS/MS and gel-based biomarker studies (64–68). However, albumin and other major plasma proteins have been shown to bind a diverse range of minor peptides and proteins and thus the albumin- and IgG-depleted serum proteome may be slightly altered in relation to the composition of select protein species (69–71), in what is generally referred to as the 'carrier-and-cargo' effect of the albuminome.

Thus, although albumin/IgG depletion can result in a concomitant decrease in certain low-molecular-mass proteins due to their biological interactions with albumin or IgG molecules, the analytical advantages of reducing sample complexity outweigh this issue (62). Fig. 2 illustrates the successful depletion of albumin and IgG from the crude serum samples derived from dystrophic mdx-4cv mice and wild-type animals. A representative silver-stained gel confirmed the alteration in the overall protein composition of crude serum vs. immuno-depleted serum (Fig. 2A). In contrast to transferrin, for which the abundance was not highly altered following pre-fractionation (Fig. 2B), the amounts of albumin, IgG heavy chain and IgG light chain were markedly decreased in the immuno-depleted fractions (Fig. 2C and D).

Figure 2 Immunoblot analysis of the pre-fractionation immunodepletion of mdx-4cv mouse serum. Prior to the proteomic screening of mdx-4cv serum, immunodepletion was used to reduce sample complexity and enrich the starting material in serum proteins with a relatively low concentration. Shown is a silver-stained gel (A) and corresponding immunoblots labelled with antibodies to transferrin (B), albumin (C) and IgG (D). Lanes 1 to 4 represent 6-month-old wild-type vs. mdx-4cv crude serum (CS) and immuno-depleted serum (ID), respectively. Molecular mass standards are marked at the left of the panels.

Proteomic profiling of 6-month-old mdx-4cv serum

The proteomic profiling approach used in the present study is summarized in the flow chart of Fig. 3. Following pre-fractionation, the albumin/IgG-depleted serum from wild-type vs. dystrophic mdx-4cv mice was analysed by comparative label-free mass spectrometry to establish the serum signature of dystrophinopathy. The proteomic survey of 2 technical repeats each of 4 biological samples identified 461 changed serum protein species consisting of 360 increased and 101 decreased proteins in mdx-4cv serum. As an illustrative example, the crucial proteomic identification and mass spectrometric fingerprint of the acute response phase protein haptoglobin (Q61646) is shown in Fig. 3. The independent verification of key proteomic findings was carried out by immunoblotting and enzyme-linked immunosorbent assays, as outlined below. Identified proteins with a high degree of increase vs. decrease are listed in Tables ITable II–III, respectively. The tables list information in relation to accession number, protein name, number of unique peptides, confidence score and fold change.

Figure 3 Overview of the proteomic strategy to determine global changes in the protein constellation of mdx-4cv mouse serum. The flow chart outlines the comparative analysis of wild-type vs. mdx-4cv serum samples and shows the mass spectrometric fingerprint of the acute phase plasma protein haptoglobin as a major finding of this proteomic study

Table I List of increased proteins in 6-month-old mdx-4cv mouse serum vs. age-matched wild-type mouse serum as determined by label-free mass spectrometry.

Table I

List of increased proteins in 6-month-old mdx-4cv mouse serum vs. age-matched wild-type mouse serum as determined by label-free mass spectrometry.

Accession no.	Protein name	Unique peptides	Confidence score	Fold change
P70441	Na(+)/H(+) exchange regulatory cofactor NHE-RF1	2	128.77	384.8
Q9D5J6	Sedoheptulokinase	3	181.59	213.1
Q19LI2	α-1B-glycoprotein	3	201.11	199.9
Q99020	Heterogeneous nuclear ribonucleoprotein A/B	2	120.87	131.4
P09405	Nucleolin	2	66.85	104.3
Q62446	Peptidyl-prolyl cis-trans isomerase FKBP3	2	69.16	89.1
Q8BG05	Heterogeneous nuclear ribonucleoprotein A3	2	132.17	72.8
Q08331	Calretinin	5	174.3	59.9
P07361	α-1-acid glycoprotein 2	2	101.47	56.8
P00493	Hypoxanthine-guanine phosphoribosyltransferase	2	73.54	53.3
Q61646	Haptoglobin	14	826.52	50.3
Q9D0R2	Threonine-tRNA ligase, cytoplasmic	5	187.79	48.4
P48428	Tubulin-specific chaperone A	2	59.15	46.8
Q99KP3	Lambda-crystallin homolog	3	173.73	43.3
A2ABU4	Myomesin-3	9	588.37	38.6
Q99KC8	von Willebrand factor A domain-containing protein 5A	2	41.66	37.2
P05366	Serum amyloid A-1 protein	2	135.98	36.9
Q8VC12	Urocanate hydratase	10	751.33	36.9
P47199	Quinone oxidoreductase	4	206.42	36.8
Q91X52	L-xylulose reductase	2	99.38	32.8
Q8VCX1	3-oxo-5-β-steroid 4-dehydrogenase	5	177.09	31.2
Q9WTP6	Adenylate kinase 2, mitochondrial	2	67.03	31.2
A3KMP2	Tetratricopeptide repeat protein 38	4	177.89	30.6
Q5SX40	Myosin-1	62	4670.12	30.3
A2ASS6	Titin	88	4357.28	30.2
P99027	60S acidic ribosomal protein P2	2	162.5	30.1
Q8VCT4	Carboxylesterase 1D	5	114.1	26.8
P53026	60S ribosomal protein L10a	2	97.35	26.5
P68040	Guanine nucleotide-binding protein subunit β-2-like 1	2	48.55	25.6
Q9QXE0	2-Hydroxyacyl-CoA lyase 1	4	252.9	24.5

Table II List of previously established increased serum marker proteins that were also identified in 6-month-old mdx-4cv mouse serum vs. age-matched wild-type mouse serum by label-free mass spectrometry.

Table II

List of previously established increased serum marker proteins that were also identified in 6-month-old mdx-4cv mouse serum vs. age-matched wild-type mouse serum by label-free mass spectrometry.

Accession no.	Protein name	Unique peptides	Confidence score	Fold change
Q05816	Fatty acid-binding protein, epidermal	8	385.47	18.3
P13412	Troponin I, fast skeletal muscle	3	131.21	18.2
P62897	Cytochrome c, somatic	5	543.08	15.2
P05063	Fructose-bisphosphate aldolase C	9	679.32	14.8
P05977	Myosin light chain 1/3, skeletal muscle isoform	9	561.43	12.0
P52480	Pyruvate kinase PKM	46	4564.3	10.4
Q9ET01	Glycogen phosphorylase, liver form	36	2184.82	9.7
P12710	Fatty acid-binding protein, liver	11	928.62	8.4
Q04447	Creatine kinase B-type	17	1492.20	8.2
P11499	Heat shock protein HSP 90-β	4	202.62	7.6
Q9WUB3	Glycogen phosphorylase, muscle form	48	4290.78	7.0
Q91Y97	Fructose-bisphosphate aldolase B	20	1745.78	6.4
P17183	γ-enolase	6	437.74	5.7
P08249	Malate dehydrogenase, mitochondrial	6	274.29	5.7
P20801	Troponin C, skeletal muscle	3	192.78	5.6
Q9D0F9	Phosphoglucomutase-1	22	1318.77	4.0
Q61316	Heat shock 70 kDa protein 4	20	1146.72	3.9
P53657	Pyruvate kinase PKLR	3	119.98	3.7
Q6P8J7	Creatine kinase S-type, mitochondrial	10	596.62	3.7
P14602	Heat shock protein β-1	3	150.33	3.3
P14152	Malate dehydrogenase, cytoplasmic	13	1108.02	3.3
P05064	Fructose-bisphosphate aldolase A	30	3015.5	3.1
P16125	L-lactate dehydrogenase B chain	12	1000.89	2.9
P07901	Heat shock protein HSP 90-α	4	172.93	2.8
P17182	α-enolase	25	1951.59	2.7
P32848	Parvalbumin α	16	1096.30	2.6
P63017	Heat shock cognate 71 kDa protein	18	1479.96	2.5
P16015	Carbonic anhydrase 3	15	830.57	2.4
P07310	Creatine kinase M-type	30	2895.13	2.4
P11276	Fibronectin	6	298.37	2.3
P04117	Fatty acid-binding protein, adipocyte	9	800.82	2.2
Q9R0Y5	Adenylate kinase isoenzyme 1	3	247.3	2.2
O70250	Phosphoglucomutase 2	10	714.82	2.2
P21550	β-enolase	23	2090.28	2.1
P11404	Fatty acid-binding protein, heart	5	281.57	1.6
Q91X72	Hemopexin	32	2684.29	1.5
O88783	Coagulation factor V	6	223.63	1.3

Table III List of decreased proteins in 6-month-old mdx-4cv mouse serum vs. age-matched wild-type mouse serum exhibiting a fold-change above 2 as determined by label-free mass spectrometry.

Table III

List of decreased proteins in 6-month-old mdx-4cv mouse serum vs. age-matched wild-type mouse serum exhibiting a fold-change above 2 as determined by label-free mass spectrometry.

Accession no.	Protein name	Unique peptides	Confidence score	Fold change
P09470	Angiotensin-converting enzyme	2	97.76	3.5
O35930	Platelet glycoprotein Ib α chain	11	865.35	3.4
Q07456	Protein AMBP	4	362.51	3.1
P28665	Murinoglobulin-1	116	12973.81	2.9
B5X0G2	Major urinary protein 17	5	231.6	2.8
Q00898	α-1-antitrypsin 1-5	14	1024.28	2.7
P05208	Chymotrypsin-like elastase family member 2A	3	230.49	2.7
O08742	Platelet glycoprotein V	5	601.56	2.6
Q03311	Cholinesterase	7	362.36	2.6
P01942	Hemoglobin subunit α	7	448.81	2.6
P42703	Leukemia inhibitory factor receptor	28	2444.33	2.5
Q62351	Transferrin receptor protein 1	5	278.54	2.5
Q9DBB9	Carboxypeptidase N subunit 2	15	1509.87	2.4
Q8QZR3	Pyrethroid hydrolase Ces2a	2	114.66	2.4
Q8BPB5	EGF-containing fibulin-like extracellular matrix protein 1	4	182.66	2.4
O88968	Transcobalamin-2	9	577.32	2.4
Q61704	Inter-α-trypsin inhibitor heavy chain H3	7	627.52	2.3
Q03734	Serine protease inhibitor A3M	9	788.27	2.3
E9Q414	Apolipoprotein B-100	35	1947.84	2.3
Q07235	Glia-derived nexin	5	234.21	2.3

The most markedly elevated levels included Na+/H+ exchange regulatory cofactor NHE-RF1, sedoheptulokinase, α-1B-glycoprotein, heterogeneous nuclear ribonucleoprotein A/B and A3, nucleolin, peptidyl-prolyl cis-trans isomerase FKBP3, calretinin, α-1-acid glycoprotein 2, hypoxanthine-guanine phosphoribosyl-transferase, haptoglobin, cytoplasmic threonine-tRNA ligase, tubulin-specific chaperone A, lambda-crystallin homolog, myomesin-3, von Willebrand factor A domain-containing protein 5A, serum amyloid A-1 protein, urocanate hydratase, quinone oxidoreductase, L-xylulose reductase, 3-oxo-5-β-steroid 4-dehydrogenase, mitochondrial adenylate kinase 2, tetratricopeptide repeat protein 38, myosin-1 and titin. A very interesting finding was the identification of increased haptoglobin, which represents a typical acute phase plasma marker protein of tissue damage and the inflammatory response. The elevated concentration of haptoglobin was further investigated by immuno-labelling approaches, as outlined below. Besides serum haptoglobin, elevated levels of another acute phase plasma protein were established for amyloid A-1 protein (Table I).

Importantly, a variety of common serum markers of dystrophinopathy were verified by mass spectrometry (Tables I and II), including increased amounts of creatine kinase isoforms CK-B, CK-S and CK-M, pyruvate kinase isoforms PKM and PKLR, hemopexin, adenylate kinase isoforms AK1 and AK2, carbonic anhydrase isoform CA3 and lactate dehydrogenase, which have been previously established by non-proteomic techniques (18–22). Elevated levels of previously identified proteomic serum markers were also confirmed (Tables I and II), such as fibronectin, coagulation factor V, titin, myosin light chain 1/3, fructose-bisphosphate aldolase (isoforms A–C), phosphoglucomutase (isoforms 1 and 2), enolase (isoforms α, β and γ), glycogen phosphorylase (muscle and liver isoforms), fatty acid-binding protein (adipocyte, epidermal, liver and heart isoforms), cytochrome c, malate dehydrogenase (cytoplasmic and mitochondrial isoform), parvalbumin, troponin (muscle isoforms TnI and TnC) and various heat-shock proteins (HSP90-β, HSP90-α, HSP70, HSP β-1, HSP cognate 71) (30–39). These findings demonstrate the reproducibility of the findings from a large number of biochemical and proteomic surveys of serum and plasma preparations from dystrophic patients and animal models of Duchenne muscular dystrophy.

The degree of decreased serum proteins was markedly less pronounced as compared to the increased protein species. Moderately reduced levels were shown to include angiotensin-converting enzyme, platelet glycoprotein Ib α chain, protein AMBP, murinoglobulin-1, major urinary protein 17, α-1-antitrypsin 1–5, chymotrypsin-like elastase family member 2A, platelet glycoprotein V, cholinesterase, hemoglobin subunit α, leukemia inhibitory factor receptor, transferrin receptor protein 1 and carboxypeptidase N subunit 2 (Table III). Figs. 4 and 5 show the bioinformatic PANTHER analysis of protein families (56) that were established to exhibit an altered concentration in mdx-4cv mouse serum.

Figure 4 Summary of increased protein classes in mdx-4cv mouse serum. The bioinformatic software programme PANTHER (56) was employed to establish the clustering of protein classes based on the mass spectrometric analysis of the albumin/IgG-depleted protein fraction from mdx-4cv serum vs. wild-type serum (Tables I and II).

Figure 5 Summary of decreased protein classes in mdx-4cv mouse serum. The bioinformatic software programme PANTHER (56) was employed to establish the clustering of protein classes based on the mass spectrometric analysis of the albumin/IgG-depleted protein fraction from mdx-4cv serum vs. wild-type serum (Table III).

Verification of proteomic profiling findings

Following the identification of a large number of altered serum proteins in the mdx-4cv model of dystrophinopathy, we focused our study on the verification of a few key proteomic findings with a special emphasis on haptoglobin. Proteomic results were confirmed by immunoblotting and enzyme-linked immunosorbent assays with specific antibodies to a select number of serum proteins (Figs. 6Figure 7–8). The immunoblot analysis of crude serum showed no significant changes in the abundance of serum transferrin, myoglobin and parvalbumin (Fig. 6B–D). In contrast, lactate dehydrogenase and the FABP-1 isoform of fatty acid binding protein exhibited elevated levels in crude mdx-4cv serum (Figs. 6E and F). Most importantly, the highly increased concentration of serum haptoglobin in dystrophic mice, as shown by mass spectrometric analysis (Table I) was confirmed by immunoblotting with two different antibodies to this acute phase plasma protein (Fig. 6G and H). The statistical evaluation of immunoblotting is summarized in Fig. 7 and establishes the significant elvation of lactate dehydrogenase, fatty acid binding protein FABP-1 and haptoglobin in crude mdx-4cv serum.

Figure 6 Immunoblot survey of proteins in mdx-4cv mouse serum. Shown is a (A) silver-stained gel and corresponding immunoblots labelled with antibodies to (B) transferrin, (C) myoglobin, (D) parvalbumin, (E) LDH, (F) FABP-1 and (G and H) HPG. HPG expression was evaluated with 2 different antibodies, (G) ab157714 and (H) ab131236. Lanes 1 and 2 represent crude serum from 6-month-old wild-type (wt) vs. dystrophic mdx-4cv mice, respectively. Molecular mass standards are marked at the left of the panels. LDH, lactate dehydrogenase; FABP, fatty acid binding protein; HPG, haptoglobin.

Figure 7 Significant changes of proteins in the mdx-4cv mouse serum. Shown is the graphical presentation of the statistical evaluation of the immunoblots depicted in Fig. 6. The comparative blotting between crude serum samples from 6-month-old wild-type (wt) vs. mdx-4cv mice was statistically evaluated using an unpaired Student's t-test (n=4; *P<0.05, **P<0.01, ***P<0.001). Shown is the analysis of (A) transferrin, (B) myoglobin, (C) parvalbumin, (D) LDH, (E) FABP-1, and (F and G) HPG. LDH, lactate dehydrogenase; FABP, fatty acid binding protein; HPG, haptoglobin.

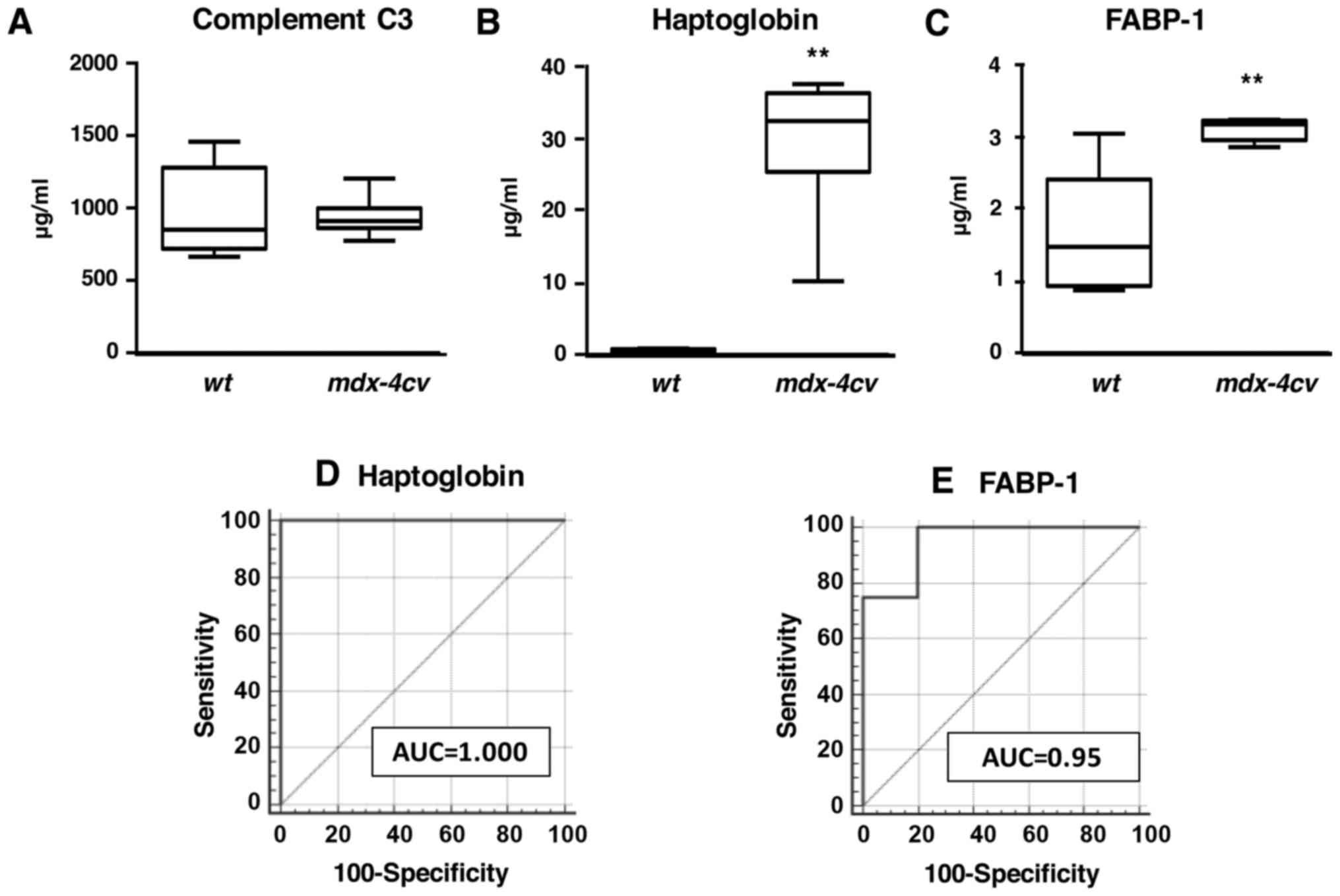

Figure 8 Enzyme-linked immunosorbent assays. Shown are the findings from enzyme-linked immunosorbent assays of crude serum samples that were screened with antibodies to: (A) complement C3, (B) HPG and (C) FABP-1. Statistical analyses using (B and C) the Mann-Whitney U test (wt serum samples: n=4; mdx-4cv serum samples: n=8; **P≤0.01 and (D and E) statistical ROC curve analyses demonstrated that the increases in (B and D) HPG and (C and E) FABP-1 in mdx-4cv serum were highly significant. HPG. haptoglobin; FABP, fatty acid binding protein; ROC, receiver operating characteristic.

In analogy to immunoblot analyses, enzyme-linked immunosorbent assays with antibodies to haptoglobin and FABP-1 also showed increased levels of these two proteins in crude serum from dystrophic animals (Figs. 8B and C). Statistical ROC analyses demonstrated that these findings were highly significant (Figs. 8D and E). In contrast, values for complement C3 were found to be comparable between wild-type and mdx-4cv serum (Fig. 8A).

Discussion

A key step in the molecular pathogenesis of X-linked muscular dystrophy is mediated by the disintegration of the dystrophin-glycoprotein complex (4) resulting in sarcolemmal destabilisation, impaired cellular signalling, abnormal ion fluxes and increased proteolysis (6). This primary mechanism of fibre damage is accompanied by adaptive responses, such as myofibrosis (10), and secondary changes related to an inflammatory pathology (16). In addition to massive proteome-wide changes within skeletal muscle fibres (46,50–52,60,72–74), the deficiency in dystrophin isoform Dp427 also causes substantial alterations in the rate of protein release from muscle tissues into the circulatory system and other plasma fluctuations (30–39). This includes actively secreted proteins and passively released components from mechanically damaged fibres and other types of tissue (29). In this respect, one of the major findings of the proteomic serum study presented here is the identification of elevated haptoglobin levels in mdx-4cv serum by mass spectrometry, immunoblotting and enzyme-linked immunosorbent assays.

This acute phase plasma protein is a tissue damage marker and is often increased in serum in relation to cellular degeneration and inflammation (75). Since there is an urgent need to establish new biomarker candidates of X-linked muscular dystrophy (76), the proteomic identification of elevated haptoglobin levels in dystrophinopathy is an encouraging result. Haptoglobin, in conjunction with other altered serum proteins, may represent a novel diagnostic, prognostic and/or therapy-monitoring biomarker candidate for the improved evaluation of sterile inflammation in the mdx-4cv animal model of dystrophinopathy. Haptoglobin is a major acute phase plasma protein that acts as a high-affinity hemoglobin-binding protein and protective anti-oxidant (77). The liver is the main site of haptoglobin synthesis, but this protein is also produced in other organs (43). The increased serum haptoglobin levels established here by mass spectrometry agree with a pre-proteomic analysis by two-dimensional gel electrophoresis and densitometric scanning by John and Purdom (78). A recent serum proteomic profiling study by Rouillon et al (37) with a focus on the characterization of the myofibrillar structural protein myomesin isoform MYOM3 also identified haptoglobin as a potential biomarker candidate for monitoring the outcome of therapeutic interventions in Duchenne muscular dystrophy.

The cellular disturbances and multi-system pathology of dystrophinopathy are closely associated with highly complex and interconnecting damage pathways, including modifying factors such as abnormal Ca2+ flux, increased proteolytic degradation, elevated extracellular ATP levels and altered cytokine signalling (6,8). In addition to promoting hyperactive extracellular matrix remodelling and resulting fibrotic scarring, these processes stimulate harmful inflammatory responses (79). Macrophages are intrinsically involved in both the natural repair of acutely injured skeletal muscle fibres and the pathological exacerbation of chronically damaged contractile cells (80). Inflammatory monocyte-derived macrophages appear to be closely associated with disturbed chemokine levels and are key cell types that promote changes in dystrophin-deficient and degenerating skeletal muscles (13,81). Sterile tissue injury that occurs chronically in muscular dystrophy initiates a local inflammatory response. This in turn triggers the mobilization of the acute phase reaction causing a massive increase in the level of acute phase plasma proteins in the circulatory system.

As a biomarker of dystrophinopathy, the advantages of serum haptoglobin are manifold as compared to muscle-associated proteins, since the application of diagnostic or prognostic biomarkers associated with the skeletal muscle interior would require the undesirable usage of invasive methodology (62). In contrast, the systematic mining of the biofluid proteome promises to identify novel marker molecules that can be assayed in a minimally invasive or non-invasive manner and may also result in the proteomic identification of new therapeutic targets (82–84). However, it is important to emphasise that the field of predictive and diagnostic medicine has had only limited success in the translation from biomarker discovery to clinical utility, especially in relation to biomarker specificity (85). This would also be a critical issue in the future application of haptoglobin as a biomarker, since this serum protein was recently identified as a novel marker molecule, which is potentially suitable for predicting a variety of human diseases including colorectal cancer hepatic metastasis (86).

In the case of muscular dystrophy, one can assume that damaged and leaky skeletal muscle tissue has an enhanced tendency to actively release or passively shed proteins, metabolites and other biomolecules into their external environment. These factors also trigger secondary changes in other tissue and organ systems in the body and thereby cause considerable plasma fluctuations. The range and density of released protein species relates relatively well to the degree of cellular damage (29). In addition to the effects on acute phase plasma protein concentration, this proteomic study has shown that highly complex proteome-wide alterations occur in the serum in a dystrophic organism. As established by the systems bioinformatic analysis of the proteomic mdx-4cv serum data (56), affected protein families include cytoskeletal proteins, hydrolases, oxidoreductases, transferases, nucleic acid binding proteins, molecular chaperones, proteases, signalling molecules and ion-handling proteins. These proteins with an altered serum concentration are involved in many complex cellular activities, such as energy metabolism, physiological regulation, fibre adaptations, intercellular and intracellular signalling, the stress response, fibre transitions and the excitation-contraction-relaxation cycle. The proteomic findings emphasize the pathobiochemical complexity of the dystrophic phenotype and suggest that future therapeutic approaches have to address a variety of downstream changes from the primary abnormality in the membrane cytoskeleton (3).

In conclusion, the identification of robust and unambiguous biomarkers of high biomedical and clinical value is an important aim of the systematic assessment of pathological specimens related to X-linked muscular dystrophy. Here, we identified elevated levels of the acute phase plasma protein haptoglobin in the serum from dystrophic mdx-4cv mice as a new potential indicator molecule of the inflammatory phenotype of dystrophinoapthy. Since antibody-based tests have confirmed the significantly increased concentration of serum haptoglobin, this protein represents a solid biomarker candidate. Haptoglobin is easily assessable, exhibits a high diagnostic potential and has suitable physicochemical properties. Hence, this serum protein is an ideal candidate molecule for the future establishment of a sensitive and cost-effective test system to evaluate inflammatory processes related to skeletal muscle damage in muscular dystrophy.
