Introduction

Bone homeostasis is controlled by the balance between resorption and bone formation, mediated by osteoblasts and osteoclasts (1,2). The excessive bone loss results in osteoporosis which is a common disease among women worldwide after menopause (3). However, current treatments for bone mass recovery are still limited. Osteoblasts are a specialized subset of cells that play an important role in bone formation (1). Osteoblasts originate from mesenchymal stem cells that secrete alkaline phosphatase (ALP) and bone matrix proteins, including osteopontin (OPN) and collagen type Iα1 (COL1A1) (4). Targeting osteoblast differentiation has become a promising therapeutic strategy for osteoporosis.

Osteoblast differentiation is mediated by a variety of multiple factors, including microRNAs (miRNAs or miRs) (5). miRNAs are a group of small RNAs, ~22 nucleotides in length, which negatively regulate gene expression by targeting the 3′-untranslated regions (3′-UTR) (6–8). By post-transcriptionally modulating gene expression, miRNAs can regulate numerous biological processes, including cell proliferation, apoptosis and differentiation (6–8). In recent years, a growing body of evidence has reported that miRNAs play a critical role in regulating osteoblast differentiation (9–12). Therefore, targeting osteoblast differentiation by miRNAs may show great promise for the treatment of bone loss diseases, such as osteoporosis.

Runt-related transcription factor 2 (Runx2) is a master transcription factor for controlling osteoblast differentiation (13–16). The signal transducer and activator of transcription 1 (STAT1) has been found to be a critical regulator for Runx2 (17). STAT1 can interact with Runx2 and thus restrain Runx2 in the cytoplasm leading to the inhibition of osteoblast differentiation (18). STAT1 has been shown to promote bone resorption in mice (19,20). Interestingly, B cell lymphoma 6 (Bcl6) has been reported as a transcriptional repressor for STAT1 (21). Bcl6 is primarily expressed in B lymphocytes and plays an important role in regulating B lymphocyte growth and development (22,23). It has been found that Bcl6 inhibits the expression of STAT1 and thus promotes osteoblast differentiation (21). Therefore, Bcl6/STAT1/Runx2 signaling plays an important role in bone homeostasis targeting which may provide a novel strategy for the control of osteoblast differentiation.

miR-10b has been suggested as a regulator for cell differentiation (24,25). A recent study has reported that miR-10b shows decreased expression during osteoblast differentiation (26). However, the precise effect of miR-10b on osteoblast differentiation remains unknown. In this study, we aimed to investigate the potential role of miR-10b and the potential underlying mechanism in regulating osteoblast differentiation. We found that miR-10b was downregulated during osteoblast differentiation. Overexpression of miR-10b inhibited osteoblast differentiation, whereas suppression of miR-10b promoted osteoblast differentiation. Bcl6 was identified as a target gene of miR-10b in osteoblast differentiation. miR-10b regulated Bcl6 expression as well as STAT1/Runx2 signaling. However, the miR-10b suppression-induced effects were partially reversed by Bcl6 knockdown. Taken together, our study suggests that miR-10b contributes to osteoblast differentiation through targeting Bcl6, providing novel insight into understanding the molecular mechanism underlying osteoblast differentiation and suggesting a potential target for inhibiting bone loss.

Materials and methods

Cell culture

Pre-osteoblast MC3T3-E1 cells were purchased from the Type Culture Collection of the Chinese Academy of Sciences (Shanghai, China) and cultured in Alpha Modified Eagle′s Medium (α-MEM; Invitrogen, Carlsbad, CA, USA) containing 10% fetal bovine serum (FBS; Gibco, Rockville, MD, USA) and 1% penicillin/streptomycin (Sigma-Aldrich, St. Louis, MO, USA). The cells were grown in a humidified atmosphere of 5% CO2 at 37°C. To induce osteoblast differentiation, cells were grown in osteogenic differentiation medium (HyClone, Logan, UT, USA) supplemented with 10% FBS, 50 µg/ml ascorbic acid and 10 mM sodium β-glycerophosphate. The medium was refreshed every two days for the induction of osteoblast differentiation (27).

Quantitative (real-time) polymerase chain reaction (RT-qPCR)

Total RNAs or miRNAs were extracted by TRIzol (Invitrogen) or mirVana miRNA isolation kit (Applied Biosystems, Foster City, CA, USA), respectively. For mRNA detection, total RNAs were reverse-transcribed into cDNA by M-MLV reverse transcriptase (Takara, Dalian, China). For miRNA detection, miRNAs were reverse-transcribed into cDNA by the TaqMan microRNA reverse transcription kit (Applied Biosystems). qPCR was performed using Power SYBR-Green PCR Master Mix on an Applied Biosystems AB7500 Real-Time PCR system (both from Applied Biosystems) following the procedures: 94°C for 5 min, 30 cycles of two-step cycling program (94°C for 10 sec, 60°C for 20 sec and 72°C for 30 sec), and 72°C for 10 min. Glyceraldehyde 3-phosphate dehydrogenase (GAPDH) and small nuclear RNA U6 served as the internal controls. Relative gene expression was quantified by using the 2−ΔΔCt method. The primer sequences were as follows: miR-10b forward, 5′-TACCCTGTAGAACCGAATTTG-3′ and reverse, 3′-GTGCGTGTCGTGGAGTC-5′; U6 forward, 5′-CGCTTCACGAATTTGCGT-3′ and reverse, 5′-CTCGCTTCG CAGCACA-3′; Bcl6 forward, 5′-AGACGCACAGTGACAAACCATACA-3′ and reverse, 5′-CTCCACAAATGTTACAGCGATAGG-3′; ALP forward, 5′-CACCATTTTTAGTACTGGCCATCG-3′ and reverse, 5′-GCTACATTGGTGTTGAGCTTTGG-3′; OPN forward, 5′-TCTCCTTGCGCCACAGAATG-3′ and reverse, 5′-TCCTTAGACTCACCGCTCTT-3′; COL1A1 forward, 5′-CCCCGGTCAGAGAGGAGAAA-3′ and reverse, 5′-TCC AGAAGGACCTTGTTTGC-3′; GAPDH forward, 5′-AATGG ATTTGGACGCATTGGT-3′ and reverse, 5′-TTTGCACTGGTACGTGTTGAT-3′.

Transfection

The miR-10b mimics, miR-10b inhibitor and negative control (NC) were purchased from GenePharma (Shanghai, China) and transfected into cells using Lipofectamine 2000 (Invitrogen) according to the manufacturer's protocols. Bcl6 siRNA and NC siRNA were obtained from Santa Cruz Biotechnology, Inc. (Santa Cruz, CA, USA) and transfected into cells as per the recommended methods. The transfection efficiency was evaluated by RT-qPCR or western blot analysis.

ALP activity assay

Cells were transfected with miR-10b mimics or miR-10b inhibitor followed by the induction of osteoblast differentiation for 6 days. Then, the cells were harvested and detected by ALP assay kit. Briefly, the cells were lysed in lysis buffer and the supernatants were collected and incubated with SensoLyte p-nitrophenylphosphate at 37°C for 30 min. The absorbance at a wavelength of 405 nm was detected by an enzyme-linked immunosorbent assay (ELISA) reader (Bio-Rad, Hercules, CA, USA).

Measurement of matrix mineralization

After the induction of osteoblast differentiation, cells were harvested and fixed in 70% ethanol for 1 h. Then, cells were incubated with 40 mM Alizarin Red S solution (Sigma-Aldrich) for 10 min. The mineral deposits stained by Alizarin Red S were isolated and dissolved in 0.1 N NaOH. The absorbance at a wavelength of 540 nm was measured by an ELISA reader (Bio-Rad).

Dual-luciferase reporter assay

Bioinformatics analysis was performed by using microRNA.org-Targets and Expression (http://www.microrna.org/) and TargetScan (http://www.targetscan.org/). The miR-10b target region of Bcl6 3′-UTR was inserted into a pmirGLO luciferase vector (Promega, Madison, WI, USA) to obtain wild-type pmirGLO-Bcl6 3′-UTR. Meanwhile, Bcl6 3′-UTR sequences containing the mutant binding sites for miR-10b were cloned into a pmirGLO luciferase vector (Promega) to obtain mutant-type pmirGLO-Bcl6 3′-UTR. To confirm the interaction between miR-10b and Bcl6 3′-UTR, wild-type or mutant-type pmirGLO-Bcl6 3′-UTR was co-transfected into MC3T3-E1 cells with miR-10b mimics or miR-10b inhibitors. After incubation for 48 h, the cells were harvested and the relative luciferase activity was measured by Dual-GLO Luciferase assay system (Promega).

Western blot analysis

Cytosolic and nuclear fractions were extracted using the nuclear extraction kit (Beyotime, Haimen, China) according to the manufacturer's protocols. Briefly, cells were harvested and washed with phosphate-buffered saline (PBS) followed by centrifugation at 8,000 × g for 15 min at 4°C. The cell sediments were treated with buffer A containing 1 mM pheylmethylsulfonyl fluoride (PMSF) and incubated in an ice bath for 10 min. Afterward, buffer B was added and incubated for 1 min followed by centrifugation at 12,000 × g for 15 min at 4°C. The supernatants containing cytoplasmic fractions were collected. The sediments were collected and re-suspended in nuclear protein extraction agent and subjected to an ice bath for 30 min with vortexing at an interval of 2 min. After centrifugation (12,000 × g for 15 min at 4°C), the supernatants containing nuclear protein was collected. Protein concentration was measured by a BCA kit (Beyotime). Equal amounts of proteins were loaded on 10% sodium dodecyl sulfate polyacrylamide gels for separation. The separated proteins were electro-blotted to a polyvinylidene fluoride membrane (Millipore, Boston, MA, USA). The membrane was blocked with 3% non-fat milk in Tris-buffered saline containing 0.1% Tween-20 (TBST) for 1 h at 37°C. Then, the membrane was blotted with primary antibodies at appropriate dilutions at 4°C overnight. After washes with TBST, the membrane was incubated with horseradish peroxidase-conjugated secondary antibodies (1:2,000; goat anti-rabbit IgG; sc-2004; Santa Cruz Biotechnology, Inc.) for 1 h at 37°C. The protein signals were visualized using Pierce ECL Western Blotting kit (Pierce, Rockford, IL, USA). Quantitative analysis of the protein bands was performed by Image-Pro Plus 6.0 software (Media Cybernetics, Inc., Rockville, MD, USA). The primary antibodies including anti-Bcl6 (sc-368), anti-STAT1 (sc-346), anti-Runx2 (sc-10758), anti-GAPDH (sc-25778) and anti-Lamin B (sc-6217) were purchased from Santa Cruz Biotechnology, Inc.

Data analysis

All data are presented as means ± standard deviation. The statistical analysis was performed by SPSS version 18.0 (SPSS Inc., Chicago, IL, USA). Differences were assessed by one-way analysis of variance followed by a Bonferroni correction. A p-value of <0.05 was regarded as indicative of statistically significance.

Results

miR-10b is downregulated during osteoblast differentiation

To investigate the potential role of miR-10b in osteoblast differentiation, we examined the expression pattern of miR-10b during osteoblast differentiation in MC3T3-E1 cells by RT-qPCR. The results showed that miR-10b was significantly downregulated post-osteoblast differentiation (Fig. 1A), indicating a critical role of miR-10b involved in osteoblast differentiation.

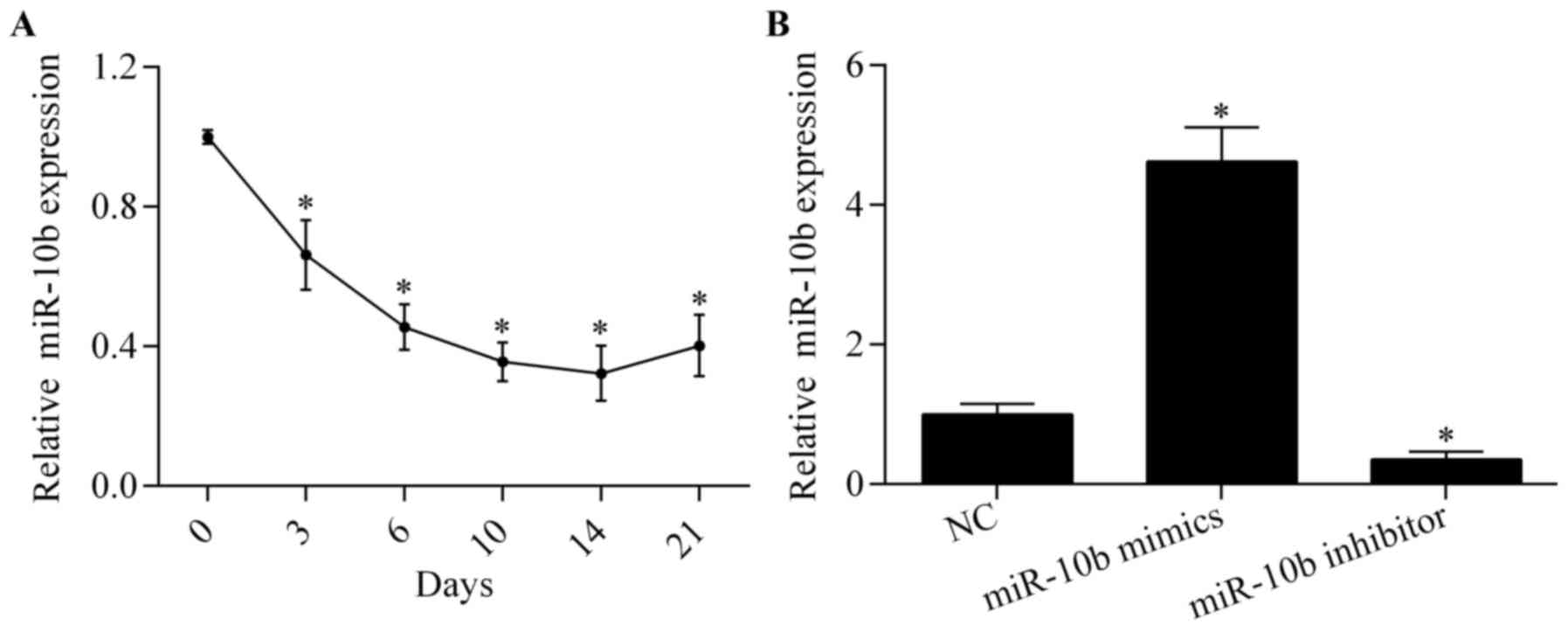

Figure 1 Expression of miR-10b during osteoblast differentiation. (A) RT-qPCR analysis of miR-10b expression in MC3T3-E1 cells post-osteoblast differentiation induction. *p<0.05 vs. day 0. (B) The expression of miR-10b in MC3T3-E1 cells transfected with miR-10b mimics or miR-10b inhibitor was detected by RT-qPCR after transfection of 24 h. *p<0.05 vs. NC.

miR-10b regulates osteoblast differentiation

To explore the exact biological effect of miR-10b on osteoblast differentiation, miR-10b was overexpressed or suppressed by transfecting miR-10b mimics or miR-10b inhibitors, respectively (Fig. 1B). We then examined the effect of miR-10b overexpression or suppression on osteoblast differentiation by evaluating ALP activity and matrix mineralization. The results showed that both ALP activity (Fig. 2A) and matrix mineralization (Fig. 2B) were markedly repressed by miR-10b overexpression. Conversely, the suppression of miR-10b significantly promoted ALP activity (Fig. 2A) and matrix mineralization (Fig. 2B). Moreover, we detected the expression of osteoclast marker genes, including ALP, COL1A1 and OPN by RT-qPCR. We found that the expression of these genes was significantly suppressed by miR-10b overexpression, while miR-10b suppression markedly elevated the expression of these genes (Fig. 3). Overall, these results suggest that miR-10b suppression promotes osteoblast differentiation.

Figure 2 miR-10b regulates osteoblast differentiation. Cells were transfected with miR-10b mimics or inhibitor for 24 h and then cultured in differentiation medium for inducing osteoblast differentiation for 6 days. (A) Alkaline phosphatase (ALP) activity was detected by an ALP activity assay kit and the absorbance was measured at 405 nm. (B) Matrix mineralization was determined by Alizarin Red S staining and the absorbance was measured at 540 nm. *p<0.05 vs. NC.

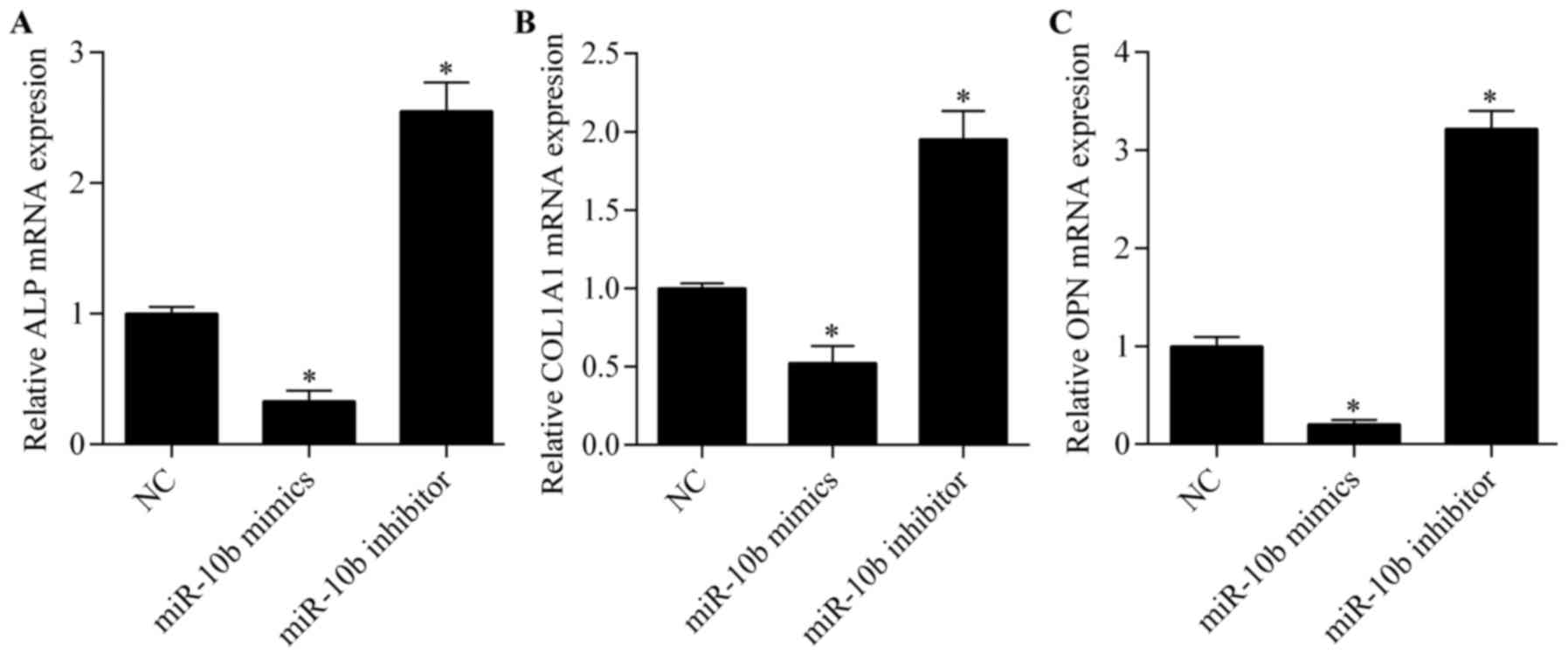

Figure 3 miR-10b affects the expression of osteoclast marker genes. The mRNA expression of (A) alkaline phosphatase (ALP), (B) collagen type Iα1 (COL1A1) and (C) osteopontin (OPN) was detected by RT-qPCR analysis in MC3T3-E1 cells. Cells were transfected with miR-10b mimics or inhibitor for 24 h and then cultured in differentiation medium to induce osteoblast differentiation for 6 days. *p<0.05 vs. NC.

Bcl6 is a target gene of miR-10b in osteoclasts

To investigate the underlying mechanism by which miR-10b regulates osteoblast differentiation, we predicted the potential target genes of miR-10b by bioinformatics analysis. Among these putative target genes, Bcl6, a critical regulator of osteoblast differentiation (21), gained our interest for further analysis. The complementary seed-matched wild-type or mutant-type binding sites between miR-10b and Bcl6 3′-UTR are described in Fig. 4A. To verify the interaction between miR-10b and Bcl6 3′-UTR, wild-type or mutant-type pmirGLO-Bcl6 3′-UTR was co-transfected into MC3T3-E1 cells with miR-10b mimics or miR-10b inhibitor. The results showed that miR-10b overexpression significantly inhibited the luciferase reporter activity of wild-type luciferase vector while miR-10b suppression increased the luciferase reporter activity (Fig. 4B). However, no obvious effect of miR-10b overexpression or suppression on mutant-type luciferase vector was observed (Fig. 4B). These data indicated that miR-10b directly targeted the 3′-UTR of Bcl6. To further confirm that this interaction is effective, we then examined the effect of miR-10b on Bcl6 expression. The results showed that miR-10b significantly suppressed the mRNA (Fig. 4C) and protein (Fig. 4D) expression of Bcl6, whereas miR-10b suppression increased Bcl6 expression. Taken together, these results suggest that Bcl6 is the target of miR-10b in osteoblasts.

Figure 4 B cell lymphoma 6 (Bcl6) is a target gene of miR-10b. (A) Sequence alignment of seed-matched binding sites between mouse miR-10b with Bcl6 3′-UTR. (B) The effect of miR-10b on luciferase activity in MC3T3-E1 cells transfected with the Bcl6 3′-UTR luciferase reporter. The luciferase activity was detected by dual-luciferase method after a 48-h transfection. *p<0.05 vs. NC. (C) mRNA and (D) protein expression of Bcl6 were detected by RT-qPCR or western blot analysis, respectively. MC3T3-E1 cells were transfected with miR-10b mimics or miR-10b inhibitors for 24 h. *p<0.05 vs. NC.

miR-10b regulates STAT1/Runx2 signaling

Considering the regulatory effect of miR-10b on Bcl6 expression, we detected the effect of miR-10b on downstream target genes of Bcl6 involved in osteoblast differentiation. STAT1, which is an important regulator for osteoblast differentiation (21), has been reported as a target gene of Bcl6 (21). STAT1 negatively regulates osteoblast differentiation by repressing Runx2 nuclear translocation (18). We found that the overexpression of miR-10b increased while the suppression of miR-10b decreased STAT1 expression (Fig. 5A). Moreover, the Runx2 nuclear translocation was significantly blocked by miR-10b overexpression whereas miR-10b suppression promoted Runx2 nuclear translocation (Fig. 5B). These results indicate that miR-10b affects STAT1/Runx2 signaling.

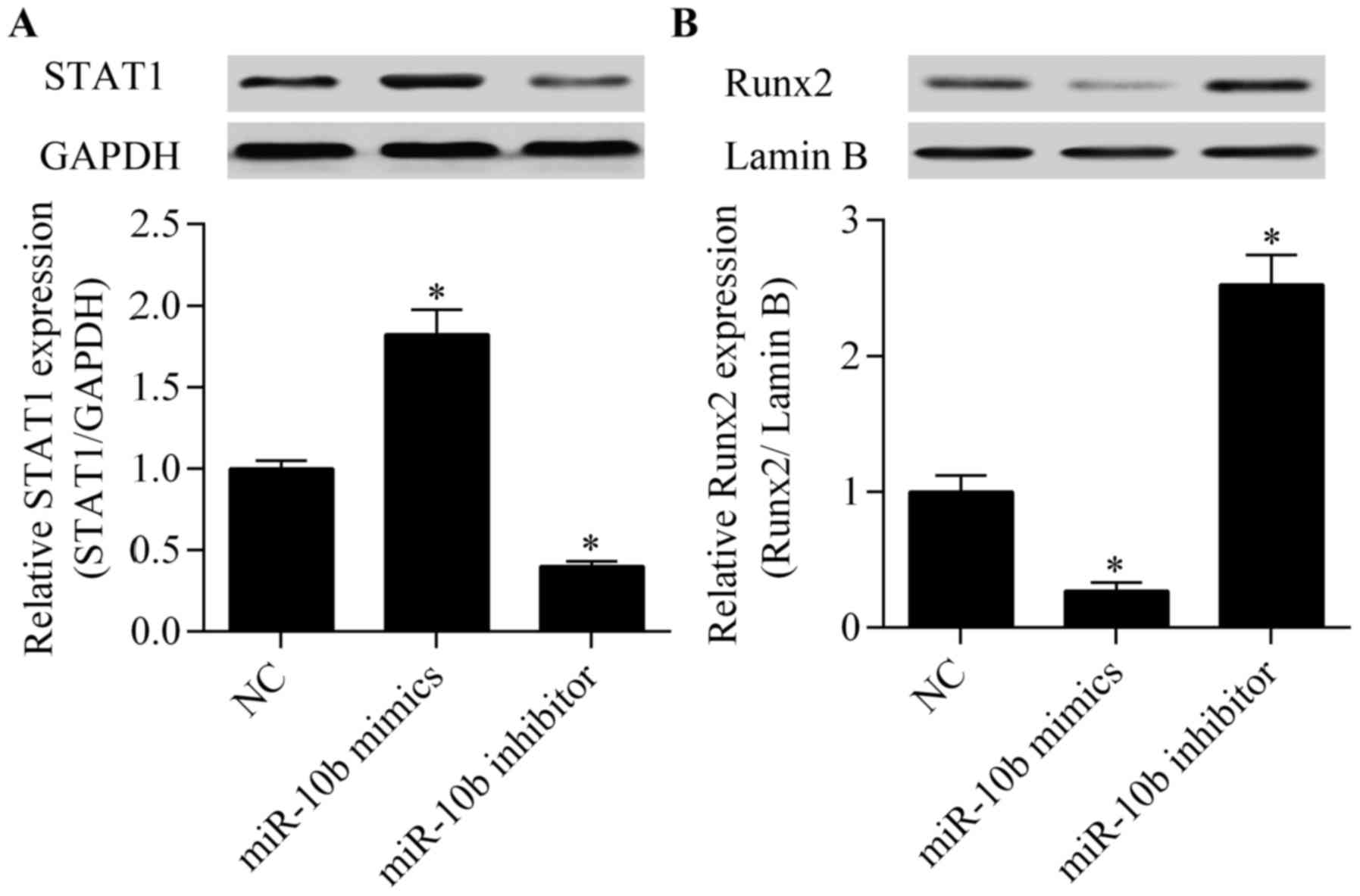

Figure 5 miR-10b regulates signal transducer and activator of transcription 1 (STAT1)/Runt-related transcription factor 2 (Runx2) signaling. MC3T3-E1 cells were transfected with miR-10b mimics or miR-10b inhibitors for 24 h, followed by osteoblast differentiation for 6 days. (A) Western blot analysis of STAT1 protein expression. Glyceraldehyde 3-phosphate dehydrogenase (GAPDH) was used for normalization. (B) Western blot analysis of Runx2 protein expression in nuclear fractions. Lamin B was used for normalization. *p<0.05 vs. NC.

miR-10b regulates osteoblast differentiation through targeting Bcl6

To confirm that the regulatory effect of miR-10b on osteoblast differentiation is regulated by targeting Bcl6, we silenced Bcl6 expression along with miR-10b suppression. The results showed that the promotive effect of miR-10b suppression on Bcl6 expression was significantly blocked by Bcl6 knockdown (Fig. 6A). As expected, the osteoblast differentiation promoted by miR-10b suppression was apparently abolished by Bcl6 knockdown (Fig. 6B and C). Moreover, the miR-10b suppression-induced inhibitory effect on STAT1 expression (Fig. 7A) and the promotive effect on Runx2 nuclear translocation (Fig. 7B) were significantly reversed by Bcl6 knockdown.

Figure 6 B cell lymphoma 6 (Bcl6) knockdown abrogates the effects of miR-10b suppression on osteoblast differentiation. (A) Western blot analysis of Bcl6 protein expression in MC3T3-E1 cells co-transfected with miR-10b inhibitor and Bcl6 siRNA for 24 h. After the induction of osteoblast differentiation for 6 days, (B) alkaline phosphatase (ALP) activity and (C) mineralization were detected. *p<0.05.

Figure 7 B cell lymphoma 6 (Bcl6) knockdown reverses the effects of miR-10b suppression on signal transducer and activator of transcription 1 (STAT1)/Runt-related transcription factor 2 (Runx2) signaling. MC3T3-E1 were cells co-transfected with miR-10b inhibitor and Bcl6 siRNA for 24 h, followed by osteoblast differentiation for 6 days. (A) Western blot analysis of STAT1 protein expression. Glyceraldehyde 3-phosphate dehydrogenase (GAPDH) was used for normalization. (B) Western blot analysis of Runx2 protein expression in nuclear fractions. Lamin B was used for normalization. *p<0.05.

Discussion

A growing body of evidence has highlighted the critical role of miRNAs in bone homeostasis (28). Osteoblasts secrete ALP and bone matrix proteins to promote bone formation (4). Through targeting critical genes involved in osteoblast differentiation, miRNAs regulate osteoblast differentiation (9–12). Targeting osteoblast differentiation by miRNAs has become a promising therapeutic strategy for inhibiting bone loss. In this study, we showed that miR-10b is a novel miRNA involved in regulating osteoblast differentiation. We delineated that miR-10b regulates osteoblast differentiation through targeting Bcl6, implying an important role of miR-10b in bone homeostasis.

miR-10b has been widely studied in cancer (29,30), angiogenesis (31) and embryonic development (32) by focusing on different targets. It has been found that miR-10b regulates myeloid differentiation and neuroblastoma cell differentiation (24,25). Okamoto et al found that miR-10b was significantly downregulated during osteoblast differentiation (26). In line with these findings, our results also showed decreased miR-10b expression during osteoblast differentiation. Functional experiments demonstrated that the overexpression of miR-10b suppressed osteoblast differentiation while the suppression of miR-10b promoted osteoblast differentiation. Our results suggest that miR-10b is an osteoblast differentiation-related miRNA. However, the underlying mechanism needs to be investigated.

To investigate the underlying mechanism by which miR-10b regulates osteoblast differentiation, we aimed to identify the functional target of miR-10b. Through bioinformatics analysis, we found that Bcl6 is a putative target gene of miR-10b. Bcl6 has been reported to positively regulate osteoblast differentiation (21). Bcl6 is a transcriptional repressor primarily expressed in B lymphocytes and regulates B lymphocyte growth and development (22,23). Bcl6 participates in the regulation of B-cell lymphomas and numerous types of human cancer (33,34). Bcl6 also regulates T follicular helper cell differentiation (35,36) and germinal center formation (37,38). A previous study showed that Bcl6 inhibits osteoclast differentiation (39). Bcl6 suppresses the expression of nuclear factor of activated T cells c1 (NFATc1) which promotes osteoclast differentiation (40–42). Importantly, Bcl6 also participates in osteoblast differentiation (21). It has been reported that Bcl6 promotes osteoblast differentiation through the transcriptional repression of STAT1 (21). STAT1 is a negative regulator of osteoblast differentiation (18–20). The lack of STAT1 promotes bone formation and bone mass (18). STAT1 inhibits osteoblast differentiation by blocking Runx2 nuclear translocation (18). Targeting the inhibition of STAT1 by various agents showed a promotive effect on osteoblast differentiation (43–46). In this study, we demonstrated that inhibition of STAT1 by miR-10b suppression-induced Bcl6 promoted Runx2 nuclear translocation and osteoblast differentiation, indicating a potential strategy for the control of osteoblast differentiation by targeting STAT1.

Several studies have reported that Bcl6 is targeted by various miRNAs (47,48). Bcl6 has been reported to be targeted by miR-155 in macrophages involved in atherosclerosis (49). miR-127 regulates breast cancer cell proliferation and senescence by targeting Bcl6 (50). miR-187 suppresses lung cancer development by targeting Bcl6 (51). Consistently, the targeting of Bcl6 by miR-187 also functions in regulating diffuse large B-cell lymphoma cell apoptosis (52). Here, our study for the first time reported that miR-10b is a novel miRNA that targets and modulates Bcl6 expression in osteoblasts. Taken together, these findings suggest that Bcl6 undergoes epigenetic regulation in various cell types and pathological processes.

Overall, this study showed that miR-10b participates in osteoblast differentiation by targeting Bcl6 and STAT1/Runx2 signaling. Our findings provide novel insight into understanding the molecular mechanism of osteoblast differentiation. miR-10b has great potential to serve as an effective target for bone formation.
