Introduction

Periodontitis is a chronic inflammation of supporting tissues caused by specific bacteria adhering to and growing on the surfaces of the teeth, which can even cause dental pulp defects and numerous systemic diseases, including pneumonia and cancer (1–3). Available treatments, such as gingivectomy, orthodontic therapy and periodontal splint fixation, are associated with high recurrence rate and pain (4,5). Recently, stem cell regeneration appears to provide a new direction in the treatment of periodontitis (6). Dental pulp stem cells (DPSCs) and periodontal ligament stem cells (PLSCs) represent the basis for an effective treatment due to their regenerative ability (7). Short treatment time, absence of pain and no recurrence are the most marked advantages of using these stem cells (8–10). However, local inflammation not only blocks the normal physiological cell activities, but also damages the cells (7). Therefore, enhancing the treatment effect associated with the understanding of the mechanism is of utmost importance, while improving the inflamed microenvironment and/or promoting rapid cell proliferation and differentiation may represent potential therapeutic strategies.

Periodontitis is characterized by neutrophils and macrophages (MΦs) that infiltrate the tissues surrounding the teeth and mediate inflammation, representing the main reason for the worsening of the microenvironment, causing damage and bone resorption (11). MΦs can be divided into M1 and M2, depending on their metabolism (12). M1 secret pro-inflammatory cytokines and chemokines, while M2 secret cytokines that decrease inflammation, including interleukin (IL)-10 and transforming growth factor (TGF)-β (12,13). Previous studies have reported that certain inflammatory factors or a specific local microenvironment promote stem cell proliferation (14,15). Therefore, promoting MΦ transformation from M1 to M2 can reduce inflammation and achieve a therapeutic effect.

High-fluence low-power laser irradiation (HF-LPLI) serves an important role in regulating cell proliferation, differentiation, apoptosis and other cell physiological activities (16). It has been demonstrated that HF-LPLI can also serve a role in regulating inflammation when used for an appropriated period of time (17). HF-LPLI light sources include the He-Ne laser and the GaAs semiconductor laser. In addition, this technique has been reported to promote inflammation resolution, which in turn is associated with myeloperoxidase activity, as well as cyclooxygenase (COX)-1 and COX-2 gene expression (17).

Therefore, in the present study, it was hypothesized that HF-LPLI may also promote inflammation resolution by inducing neutrophil apoptosis and MΦ reprogramming subsequent to appropriate inflammation activation of stem cells, as well as consequent improvement of osteogenic differentiation, thereby enhancing the efficacy of stem cell treatment to combat periodontitis. Following in vitro validation of this hypothesis and the associated mechanism of action by several techniques, an animal periodontitis model was designed. Stem cell therapy was used, while HF-LPLI was subsequently administered. Finally, the difference in cell proliferation and osteogenic differentiation was evaluated between the control and experimental groups.

Materials and methods

DPSC and PLSC isolation, identification and culture

DPSCs were obtained from dental pulp tissue explants. The third molars of adult patients (age, 16–25 years) were obtained from the Department of Stomatology at the Liaocheng People's Hospital (Liaocheng, China). All the patients included were informed of the condition and agreed to participate in the research. Teeth were first cleaned by normal saline containing 3% antibiotic-antimycotic solution (Gibco; Thermo Fisher Scientific, Inc.), and then sterilized dental fissure burs were used to expose the pulp chamber. Subsequently, dental pulp tissues were dissected into fragments (<0.5 mm), placed into a 6-cm dish containing Dulbecco's modified Eagle's medium (DMEM; Gibco; Thermo Fisher Scientific, Inc., Waltham, MA, USA) supplemented with 20% fetal bovine serum (FBS; Gibco; Thermo Fisher Scientific, Inc.) and incubated at 37°C with 5% CO2 for 2–3 weeks. DPSCs were routinely passaged, and third passage cells were used for further experiments. An inverted phase contrast microscope (Nikon Corporation, Tokyo, Japan) was used to observe the cell morphology (18,19).

PLSCs were obtained from teeth from the same hospital. Initially, the tooth was washed by normal saline containing 3% antibiotic-antimycotic solution (Gibco; Thermo Fisher Scientific, Inc.). Pulp tissues were separated from the surface of the tooth. In total, 1 g/l collagenase type I and 2.4 g/l dispase (Gibco; Thermo Fisher Scientific, Inc.) were used to digest the tissues for 1 h at 37°C. Samples were then centrifuged at 400 × g for 4 min at 4°C by TD5Z Multi-frame Centrifuge (Jintan Changzhou Instrument Factory, Changzhou, China), and the pellet was collected. Cells were resuspended in DMEM containing 20% FBS. Cells at the sixth passage were used in subsequent experiments (20,21).

Flow cytometry

DPSCs and PLSCs were identified by flow cytometry. The cell suspension was prepared using an icy buffer (PBS), the cell concentration was adjusted to 5×105 cells/ml. Next, samples were centrifuged at 1,500 × g for 3 min at 37°C and the appropriate fluorescent-labeled antibodies were added to each sample. Anti-STRO-1 antibody was used in DPSCs (cat. no. ab214086; 1 μg/ml), cluster of differentiation (CD)44 antibody was used in PLSCs (cat. no. ab157107; 1 μg/ml), and CD133 antibody was used in both cell samples (cat. no. ab19898; 1 μg/ml; all purchased from Abcam (Cambridge, MA, USA). Subsequent to antibody addition, the samples were centrifuged at 1,500 × g for 3 min at 37°C, followed by the addition of 0.5 ml formaldehyde and incubated for 24 h in −4°C. Rabbit Anti-Rat IgG H&L (horseradish peroxidase; cat. no. ab6734; Abcam) was added as seconded antibody and incubated for 8 h in −4°C. Samples were kept at 4°C until the end of the experimental analysis. Flow cytometry (BD LSRFortessa™ cell analyzer; BD Biosciences, San Jose, CA, USA) was finally used to identify the cells (18–21).

The two types of stem cells were cultured into 6-wells plates (5×104 cells/well). Cells were divided into four groups, including the control, MΦ, MΦ+HF-LPLI, and the MΦ followed by HF-LPLI groups. In these groups, the concentration of MΦ was 1×104 cells/well. In the MΦ group, the cells were co-cultured with MΦ for 6 h and without HF-LPLI treated. In the MΦ+HF-LPLI group, stem cells were treated with HF-LPLI and simultaneously co-cultured with MΦ. In the MΦ followed by HF-LPLI group, stem cells were treated with HF-LPLI subsequent to co-culturing with MΦ for 6 h.

Neutrophil and MΦ isolation and culture

Male Sprague Dawley (SD) rats (age 6–8 weeks old, 250–280 g, n=10) were obtained from the Laboratory Animal Center of Taishan Medical University (Taian, China). SD rats were cultured in 37°C, relative humidity 45% and 12-h light/dark environment with low fat diet and free to water. The rats were then subjected to an intraperitoneal injection of 1 ml 4% thiogly-collate (Guangzhou SWAN Chemical Co., Ltd., Guangzhou, China; cat. no. 2365-48-2). After 24 h, 10 ml cold Dulbecco's phosphate-buffered saline containing 100 U/ml penicillin was injected into the peritoneum. Peritoneal lavage fluids were mixed thoroughly and collected. Neutrophils from the fluid were spun and re-suspended with pre-warmed serum-free RPMI-1640 medium containing 0.05% bovine serum albumin (WelGENE, Inc., Pohang, Korea). Cells were plated into a 6-well plate (5×106 cells/well) (22), and divided into the control and lipopolysaccharide (LPS) group for apoptosis detection by flow cytometry. In the LPS group, cells were cultured in medium containing 1 μg/ml LPS (Sigma-Aldrich; Merck KGaA, Darmstadt, Germany) which was used to create an inflammatory culture condition.

Rat MΦs were purchased from the Shanghai Institutes for Biological Sciences of the Chinese Academy of Sciences (Shanghai, China). Cells were cultured in RPMI-1640 medium (WelGENE, Inc.) containing 10% FBS, 100 U/ml penicillin and 100 μg/ml streptomycin, followed by plating in a 6-well plate (4×106 cells/well) and incubation at 37°C in 5% CO2 for 48 h. MΦs were divided into three groups, including the control, LPS and HF-LPLI groups, for immunofluorescence detection. In the HF-LPLI group, HF-LPLI treatment was applied following 1 μg/ml LPS incubation for 24 h.

HF-LPLI application

In the present study, a He-Ne laser with output power at 632.8 nm and a 10.5-mW red laser were used for HF-LPLI application. For in vitro experiments, samples were directly treated under 20 J/cm2 HF-LPI for 1 h. Furthermore, oral radiation was performed by optical fiber, 20 J/cm2 for 1 h to the first molars and their periodontal tissue with other teeth covered by aluminum foil paper (16).

Apoptosis detection by flow cytometry

Neutrophils and MΦs cultured in vitro were divided into the control and LPS groups. The supernatant of cells was collected into a 15 ml centrifuge tube. EGTA-free trypsin was added to digest the neutrophils, and trypsin was added to the corresponding centrifuge tube. Next, PBS was added to wash down the cells attached on the tube. Samples were centrifuged at 1,000 × g for 3 min, and then PBS was used to wash the cells twice, following by further centrifugation at 1,000 × g for 3 min. Subsequently, Annexin V was added according to the manufacturer's protocol described in the FITC Annexin V Apoptosis Detection kit (BD Biosciences). Flow cytometry (BD LSRFortessa™ cell analyzer; BD Biosciences) was finally used to evaluate apoptosis (23–25).

Caspase-3 activity analysis

The caspase-3 activity of neutrophils was detected by a Caspase-3 Activity Assay kit (Beyotime Institute of Biotechnology, Haimen, China) according to the manufacturer's protocol. Briefly, samples at 0, 2, 4 and 6 h following HF-LPLI treatment were ground and then incubated in lysis buffer on ice for 15 min. The mixture was centrifuged at 16,000 × g for 10 min at 4°C, followed by the addition of 2 mmol Ac-DEVD-pNA (Sigma-Aldrich; Merck KGaA) for 1 h. Absorbance was measured at 405 nm using a microplate reader (Thermo Fisher Scientific, Inc.). The caspase-3 activity of each sample was calculated according to the standard curve and normalized to the total protein concentration (26,27).

Immunofluorescence analysis

MΦs were seeded into 6-well plates at a density of 5×104 per well and incubated for 48 h, and then were washed three times with PBS, fixed with 4% paraformaldehyde for 15 min and subsequently treated with 0.5% Triton X-100 for 20 min at room temperature. Sufficient dilution of primary polyclonal anti-rat CD86 (cat. no. MA110293; 1:1,000) or CD163 (cat. no. AB-2716934; 1:1,000) antibodies against M1 and M2 (Thermo Fisher Scientific, Inc.) was added to each slide, and incubated overnight at 4°C. The slides were washed three times with PBS/Tween-20 for 3 min each time and then treated with secondary antibodies at 20–37°C in the dark for 1 h. Next, samples were incubated with DAPI (Beyotime Institute of Biotechnology) for 5 min. Slides were dried using an absorbent paper, mounted with liquid sealing agents containing anti-fluorescence quenching reagents and observed under a fluorescent microscope for image acquisition (28,29).

NO concentration detection

DAF-FM DA (Beyotime Institute of Biotechnology) was used to detect the NO concentration in adherent neutrophils. DAF-FM DA was diluted to 1:1,000 using the dilution buffer provided in the kit. Next, samples were incubated in an incubator for 20 min. Cells were collected, treated with 5 μmol/l DAF-FM DA, incubated at 37°C for 20 min and subjected to flow cytometry analysis (30).

A total of 7 scalp needles were used to draw blood from the caudal vein of the SD rats, then centrifuged 2,000 × g for 2 min at 37°C to obtain the rat serum. In order to detect the NO concentration in the rat serum, a Nitric Oxide Assay kit (Sigma-Aldrich; Merck KGaA) was used. The assay was conducted according to the protocol provided in the kit, and NO was measured using the Thermo Scientific™ SPECTRONIC™ 200 spectrophotometer (Thermo Fisher Scientific, Inc.) (31).

Reverse transcription-quantitative polymerase chain reaction (RT-qPCR) analysis

RT-qPCR was used to evaluate if DPSCs and PLSCs maintained stem cell properties and osteogenesis differentiation using the GoTaq® qPCR Master Mix, Promega A60021000 Reactions (Promega Corporation, Madison, WI, USA). Cells were digested by TRIzol RNA separation reagent (Thermo Fisher Scientific, Inc.). The RNA concentration was determined by ultraviolet spectrophotometer. DEPC H2O was used to zero instrument, it's also used to dilute RNA. The absorbance of RNA in 260 nm (A260) was tested. The analytical formula of RNA concentration is A260X dilution multiple ×40 μg/ml. qPCR reaction was then performed in a thin wall 0.5-ml reaction tube, and the mixture consisted of 13.5 μl DEPC water, 2 μl dNTP Mix, 1 μl oligo(dT) 12–18, 1 μl AMV/Tfl 5X reaction buffer, 0.5 μl RNase inhibitor, 1 μl AMV-RT reverse transcriptase. Firstly, samples were incubated at 42°C for 1 h, 95°C for 5 min, the cDNA templates were produced. Secondly, 10 μl cDNA tempaltes, 10 μl 2Xtap mix, 31.5 μl DEPC water, 1 μl dNTP Mix, 2 μl specific upstream and downstream primers of the target genes, including Sox2, Oct4, Klf4, ALP, OCN and Runx2 (Table I), 5 μl 10X buffer and 0.5 μl DNA polymerases were add to a new PCR tubes. The PCR thermal cycling conditions were: 95°C (5 min), 95°C (1 min), 55°C (90 sec), 72°C (90 sec) at 72°C and (10 min) at 4°C. The number of cycles (step 2-step 4) was 30. A total of 10 μl PCR product was detected by 0.5% agarose gel electrophoresis. Agarose gel electrophoresis was used to analyze the PCR products observed under UV light. Analysis of relative gene expression data using the 2−ΔΔCq method (32–34).

Table I Primers used in quantitative polymerase chain reaction.

Table I

Primers used in quantitative polymerase chain reaction.

Target gene	Primer sequence	Annealing temperature (°C)	Cycles	Product size (bp)
Oct4	F: 5′-CAGTGCCCGAAACCCACAC-3′ R: 5′-GGAGACCCAGCAGCCTCAAA-3′	60	40	161
Sox2	F: 5′-ACACCAATCCCATCCACACT-3′ R: 5′-GCAAACTTCCTGCAAAGCTC-3′	60	40	224
Klf4	F: 5′-GAGCCCAAGCCAAAGAGG-3′ R: 5′-ATCCACAGCCGTCCCAGT C-3′	60	40	183
ALP	F: 5′-CCACGTCTTCACATTTGGTG-3′ R: 5′-AGACTGCGCCTGGTAGTTGT-3′	60	40	196
OCN	F: 5′-GGCAGCGAGGTAGTGAAGAG-3′ R: 5′-CTGGAGAGGAGCAGAACTGG-3′	60	40	230
Runx2	F: 5′-CCCGTGGCCTTCAAGGT-3′ R: 5′-CGTTACCCGCCATGACAGTA-3′	60	40	179
GAPDH	F: 5′-GGGAAACTGTGGCGTGAT-3′ R: 5′-GAGTGGGTGTCGCTGTTGA-3′	60	40	299

[i] F, forward; R, reverse.

EdU assay

In order to detect the proliferation and vitality of cells, Click-iT™ EdU Flow Cytometry Assay kit (Alexa Fluor™ 488; Thermo Fisher Scientific, Inc.) was used according to the manufacturer's protocol. Briefly, cells were washed three times in PBS containing 0.05% Triton X-100 prior to EdU-DNA detection. For nuclear staining (blue), stem cell samples were treated with 1 μg/ml DAPI in PBS containing 0.1% Triton X-100. Next, the samples were incubated for 1 h at 37°C in the dark. Newly proliferating nucleotides were stained red by 2X EdU solution according to the manufacturer's protocol. Then, the samples were visualized under a fluorescence inverted microscopy (VMF400I, Suzhou Jing Tong Instrument Co., Ltd. Suzhou, China) (35–37).

ELISA

The MΦ supernatant was collected from the three MΦ groups cultured in vitro, including the control, LPS and HF-LPLI cell groups. In addition, serum samples from the hearts of rats in the control, periodontitis, and 1 or 3-week HF-LPLI treatment groups were obtained by 2,000 × g for 15 min at 37°C. Subsequently, 100 μl Standards and 100 μl samples were added into the corresponding reaction plate well. Subsequent steps were conducted according to the protocol provided by the MitoBiogenesis™ In-Cell ELISA kit (Colorimetric; cat. no. ab110217; Abcam). Finally, the optical density was measured at 450 nm (38,39).

Alizarin red S staining

For the evaluation of osteogenesis differentiation, local tissues obtained from the animal model were washed twice with PBS, fixed with 10% formaldehyde for 20 min and washed twice with PBS. Cells were treated with 40 mM alizarin red S solution (Sigma-Aldrich; Merck KGaA) for 20 min at room temperature. Finally, samples were washed with distilled water for four times for further evaluation under a microscope (40).

Animal experiment

Male SD rats (age 6–8 weeks old, 250–280 g) were obtained from the Laboratory Animal Center in Taishan Medical University (N=24 in total, n=8 for a group). SD rats were housed at 37°C, relative humidity 45% and dark environment with low fat diet and free to water. All animal procedures were performed according to the Guide for the Care and Use of Laboratory Animals (18), following the ARRIVE guidelines (41), and were approved by the Institutional Clinical Experiments Committee of the Liaocheng People's Hospital (Liaocheng, China) and the Animal Care Committee. Rats were divided into three groups of 8 rats each, including the control, periodontitis and HF-LPLI groups. Subsequent to gingival peeling and high-sugar feeding, all rats received azithromycin (10 mg/500 ml; Shanghai Yingrui Biopharma Co., Ltd., Shanghai, China) for 4 days, followed by a 7-day antibiotic-free period. Next, rats were anes-thetized with 10% chloral hydrate. A 0.2-mm wire was placed in the dentogingival area of both mandibular first molars in the periodontitis and HF-LPLI groups for 48 h, while the wire was placed and immediately removed in the control group. All rats were fed with the same food (at 8:00 a.m. and 8:00 p.m.). Rats in the HF-LPLI groups underwent surgery, followed by a 1-week 20-J/cm2 HF-LPLI treatment for 1 h/day after local injection of 1×105/ml stem cells in 100 μl, followed by the in vivo bioluminescence imaging and H&E staining (42,43). The Height of bone regeneration was calculated as 8 mm−(a1 + a2 + a3)/3. In the formula, a1, a2 and a3 were three random height measurements of residual defect height following bone regeneration.

In vivo bioluminescence imaging

SD rats were divided into three groups, including the control (6 weeks), HF-LPLI/6-week and HF-LPLI/12-week groups, and were analyzed at the corresponding time point. Rats were anesthetized with 10% chloral hydrate and treated with fluorescein that was injected through the tail vein. At 60 min post-infection images were obtained after intraperitoneal injection of D-luciferin (150 mg/kg body weight; Thermo Fisher Scientific, Inc.), followed by 50 μl D-luciferin (0.75 mg in PBS) through the oral cavity. The IVIS Lumina image system (Xenogen Corporation, Alameda, CA, EUA) was used to capture the images (44).

Hematoxylin and eosin (H&E) staining

Periodontal tissue ~200×200 μm fragments from the animal model were dewaxed by xylene, washed with an alcohol gradient and then soaked in distilled water. Next, tissues were stained with Harris hematoxylin solution for 5 min. Subsequent to rinsing, sections underwent color separation in 0.5% hydrochloric-alcohol solution for 5 sec, followed by washing two times with 95% ethyl alcohol for 5 min each, two times with absolute ethyl alcohol for 5 min each and xylene + ethyl alcohol (1:1) for 5 min. Finally, samples were subjected to xylene cleaning and neutral gum sealing, and followed by visualization under light microscope (Nikon Corporation, Tokyo, Japan) (35–37).

Statistical analysis

Statistical analysis was performed using the SPSS software package (version 13; SPSS, Inc., Chicago, IL, USA). The results are expressed as the mean ± standard deviation, and the analysis of variance test was used to evaluate the statistical significance between two groups. P<0.05 was considered to indicate a statistically significant when the.

Results

HF-LPLI induces MΦ transformation and neutrophil apoptosis

The inflammatory reaction is one of the causes of periodontal tissue damage. The results of the present study revealed that HF-LPLI promoted inflammation resolution in vitro by promoting neutrophil apoptosis and MΦ reprogramming. Flow cytometry demonstrated that cells obtained and labeled by STRO-1 and CD 44 were the DPSCs and PLSCs we wanted (data not shown). Furthermore, it also demonstrated neutrophil apoptosis increased subsequent to HF-LPLI treatment, ranging between 7.28 and 18.1% (Fig. 1A). In addition, HF-LPLI induced a time-dependent increase of caspase-3 activation, which was 2.8±0.17 times higher than the initial value at 6 h (Fig. 1B). This further demonstrated the role of HF-LPLI in promoting apoptosis. In fact, the MΦ apoptosis was also tested following HF-LPLI treatment, and the results indicated that HF-LPLI had no effect on MΦ apoptosis (data not shown). In the pre-experiments, it was observed that 6 h was the best time period for inflammation to promote the function of stem cells (data not shown). In the tests conducted in the present study, all the related experimental design selected inflammation treatment to last 6 h (data not shown). Immunofluorescence analysis detected no significant differences in the morphology of different types of MΦs, while the reprogramming of MΦs was confirmed. The LPS group exhibited an increase in the number of CD86-M1 (red staining), while the HF-LPLI-treated group mainly exhibited green staining, corresponding to CD163-M2 (Fig. 1C). Following HF-LPLI treatment, the number of CD86-M1 decreased from 73.21±2.23% to 18.29±1.47% (P<0.05), while CD163-M2 increased from 9.26±1.07% to 58.88±1.97% (Fig. 1D). In addition, DAF-FM IL-6 and tumor necrosis factor α (TNF-α) levels significantly decreased following HF-LPLI treatment, while the levels of anti-inflammatory cytokines, including IL-10 and TGF-β, secreted by M2 were increased (Fig. 1E and F).

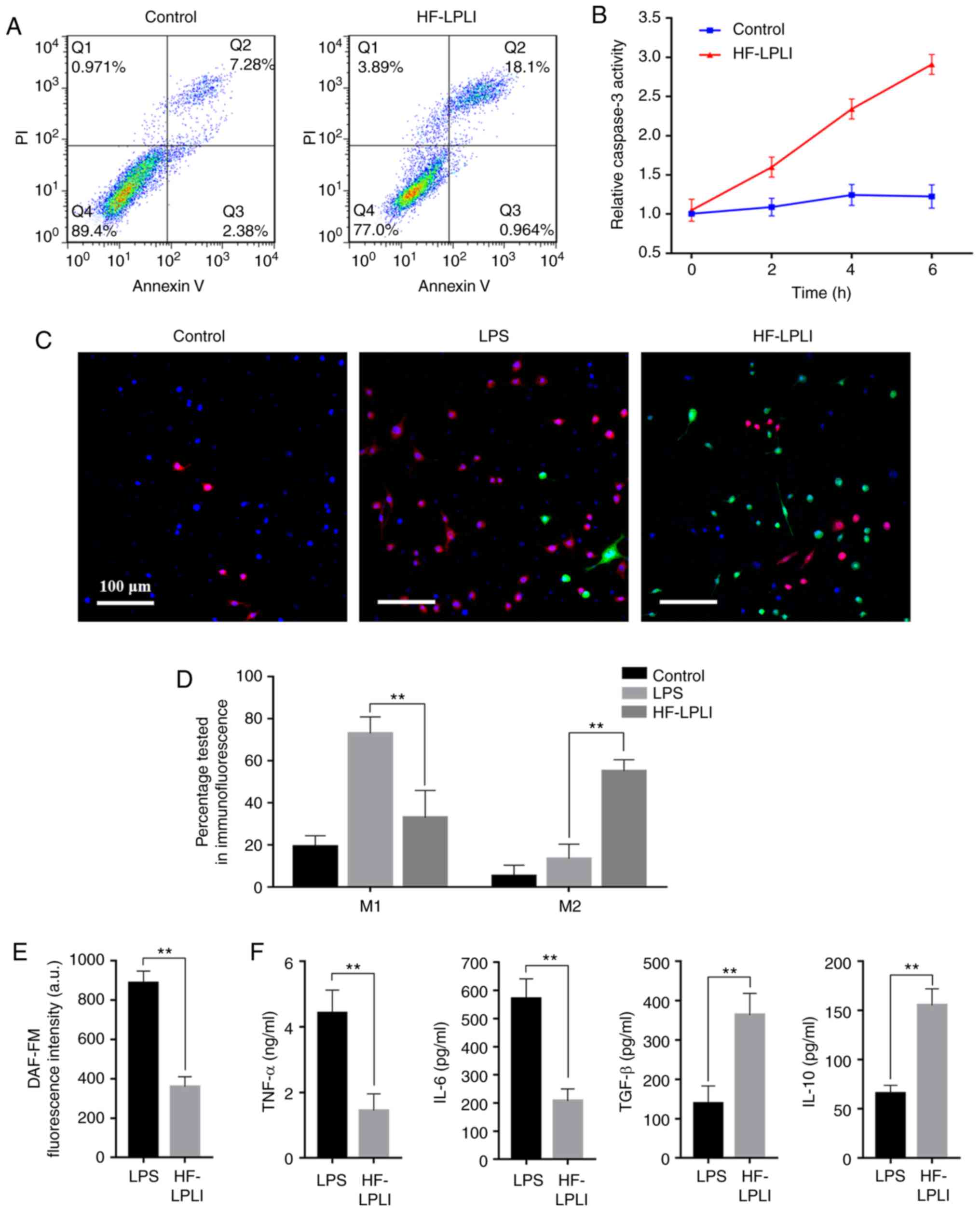

Figure 1 HF-LPLI promoted neutrophil apoptosis and MΦ reprogramming, and inhibited the release of inflammatory factors. (A) Apoptosis of HF-LPLI-treated neutrophils was detected by flow cytometry. (B) Apoptosis activation in neutrophils, detected by caspase-3 activity assay. (C) CD86 and CD163 immunofluo-rescent staining using red and green fluorophores, respectively, and nuclei stained with DAPI (scale bar, 100 μm). (D) Bar graph of CD86- and CD163-positive MΦ percentage by immunofluorescent staining. (E) NO concentration examined by DAF-FM DA. (F) Concentration of inflammatory factors, including TNF-α, IL-6, IL-10 and TGF-β, determined by ELISA. The results are representative of 10 independent experiments, and are expressed as the mean ± standard deviation. **P<0.01 vs. LPS group (n=10). HF-LPLI, high-frequency low-power laser irradiation; MΦ, macrophage; TNF-α, tumor necrosis factor α; IL, interleukin; TGF-β, transforming growth factor-β; LPS, lipopolysaccharide.

HF-LPLI maintains the stem cell properties of DPSCs and PLSCs

RT-qPCR was used to detect the mRNA expression levels of genes associated with the reprogramming of stem cells, including Sox2, Oct4 and Klf4, prior to and following HF-LPLI treatment. The results indicated that Sox2, Oct4 and Klf4 expression levels in DPSCs and PLSCs in the control group treated with HF-LPLI slightly increased as compared with those in cells without HF-LPLI treatment, although a significant difference was not observed (P>0.05; Fig. 2A and B). When stem cells were co-cultured with MΦs or neutrophils, the expression of these three genes was significantly decreased (P<0.05), while HF-LPLI treatment inhibited this effect and increased the gene levels. More specifically, Oct4 expression in PLSCs was decreased to a value of 4.3±0.2 and 4.2±0.2 when stem cells were co-cultured with MΦs or neutrophils, respectively, while this level was 10.2±0.3 in the culture of stem cells without inflammatory cells, and HF-LPLI treatment was able to raise this level to 6.0~8.0±0.4 to a value of <3 (Fig. 2A). In DPSCs, inflammatory cells exhibited a marked effect on Sox2 expression, which was decreased from 6.2±0.4 to a value of <3. However, HF-LPLI attenuated this effect, increasing the Sox2 expression to ~5 (Fig. 2B).

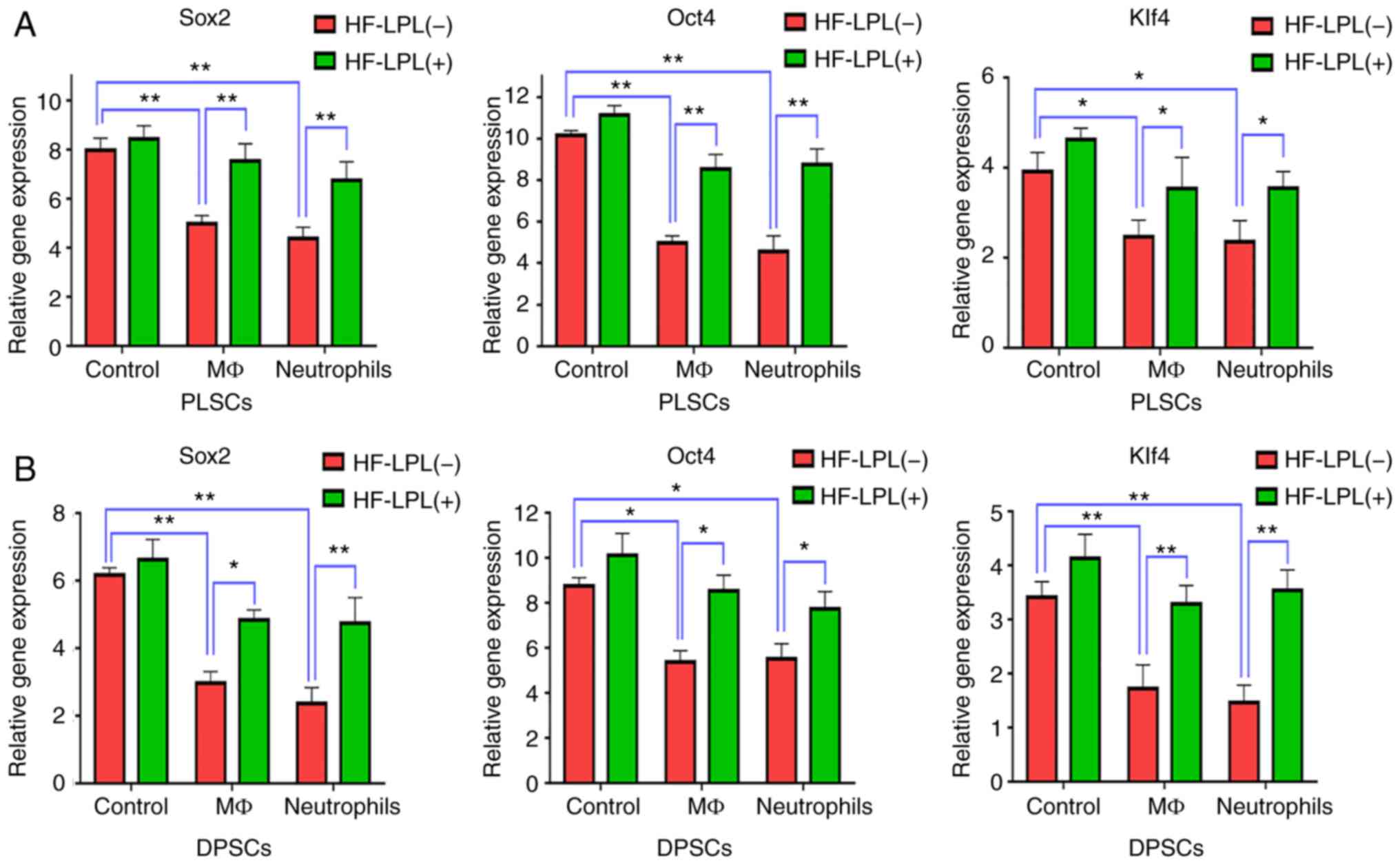

Figure 2 HF-LPLI maintained the stemness of PLSCs and DPSCs. Sox, Oct4 and Klf4 expression levels in (A) PLSCs and (B) DPSCs in the control and experimental groups, as examined by reverse transcription-quantitative polymerase chain reaction. *P<0.05 and **P<0.01. HF-LPLI, high-frequency low-power laser irradiation; MΦ, macrophage; PLSC, periodontal ligament stem cell; DPSC, dental pulp stem cell.

HF-LPLI improves DPSC and PLSC proliferation

EdU assay results demonstrated that stem cell proliferation was not evident when these cells were cultured alone, while their proliferation was evident when co-cultured with MΦs. When stem cells were co-cultured with MΦs and simultaneously treated with HF-LPLI, the HF-LPLI treatment did not increase the promotion of stem cell proliferation induced by inflammatory cells. However, after co-culture for 6 h followed by treatment with HF-LPLI, the stem cell proliferation was greatly improved, as shown by the EdU results (Fig. 3A), and the difference with the other experimental groups and the control group was statistically significant (P<0.05). The number of EdU-positive cells in the MΦ group was 13±1 and 19±1 for DPSCs and PLSCs, respectively, while the number of cells was 5±1 and 6±1 in the control group, respectively. When HF-LPLI treatment was performed simultaneously with the MΦ co-culture in the stem cells, the number of EdU-positive cells was 8±1 or 7±1 for DPSCs and PLSCs, respectively. However, the number of proliferating cells was 21±2 or 29±2, respectively, when HF-LPLI treatment was performed at 6 h after MΦ co-culture (Fig. 3B).

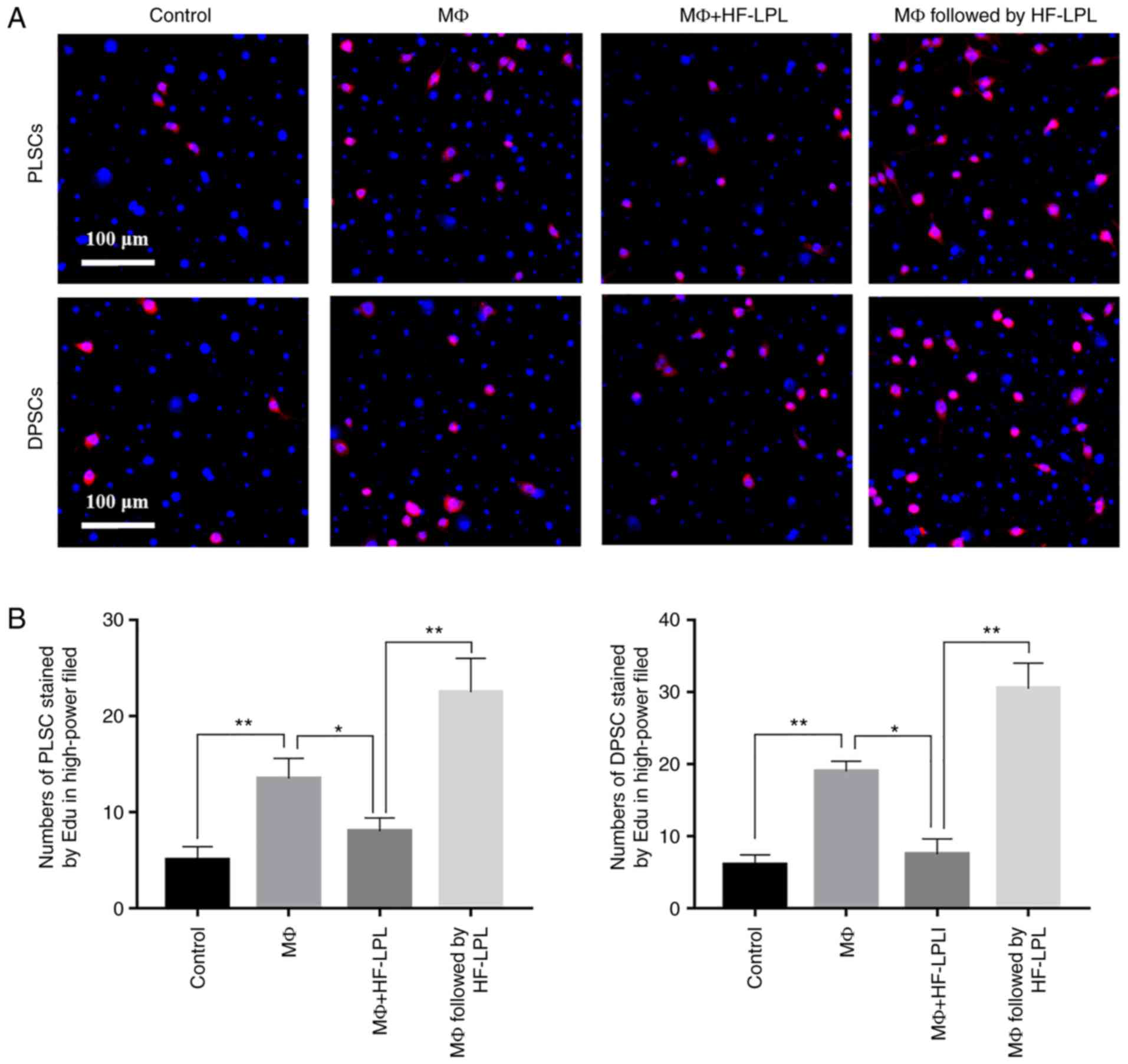

Figure 3 HF-LPLI improved stem cell proliferation. (A) Cell nuclei were stained blue by DAPI, and newly proliferating nucleotides were stained red by EdU in PLSCs and DPSCs (scale bar, 100 μm). (B) Bar graph of stem cell proliferation as determined by EdU assay. *P<0.05 and **P<0.01. HF-LPLI, high-frequency low-power laser irradiation; MΦ, macrophage; PLSC, periodontal ligament stem cell; DPSC, dental pulp stem cell.

HF-LPLI promotes DPSC odontoblastic differentiation

The present study next focused on the establishment of the HF-LPLI ability to induce cell differentiation. ALP, OCN and Runx2 gene expression levels were evaluated in cells obtained after 2 weeks of proliferation, as described earlier. The results demonstrated that the relative expression levels of the three genes in the MΦ group were significantly increased to ~2-3±0.2 (P<0.05; Fig. 4A). However, gene expression was inhibited to nearly 1.3±0.2 when co-culture with MΦs and HF-LPLI treatment were performed simultaneously, while gene expression was promoted when HF-LPLI was performed after 6 h of MΦ co-culture. In addition, OCN expression in DPSCs reached 4.7±0.8 (Fig. 4A).

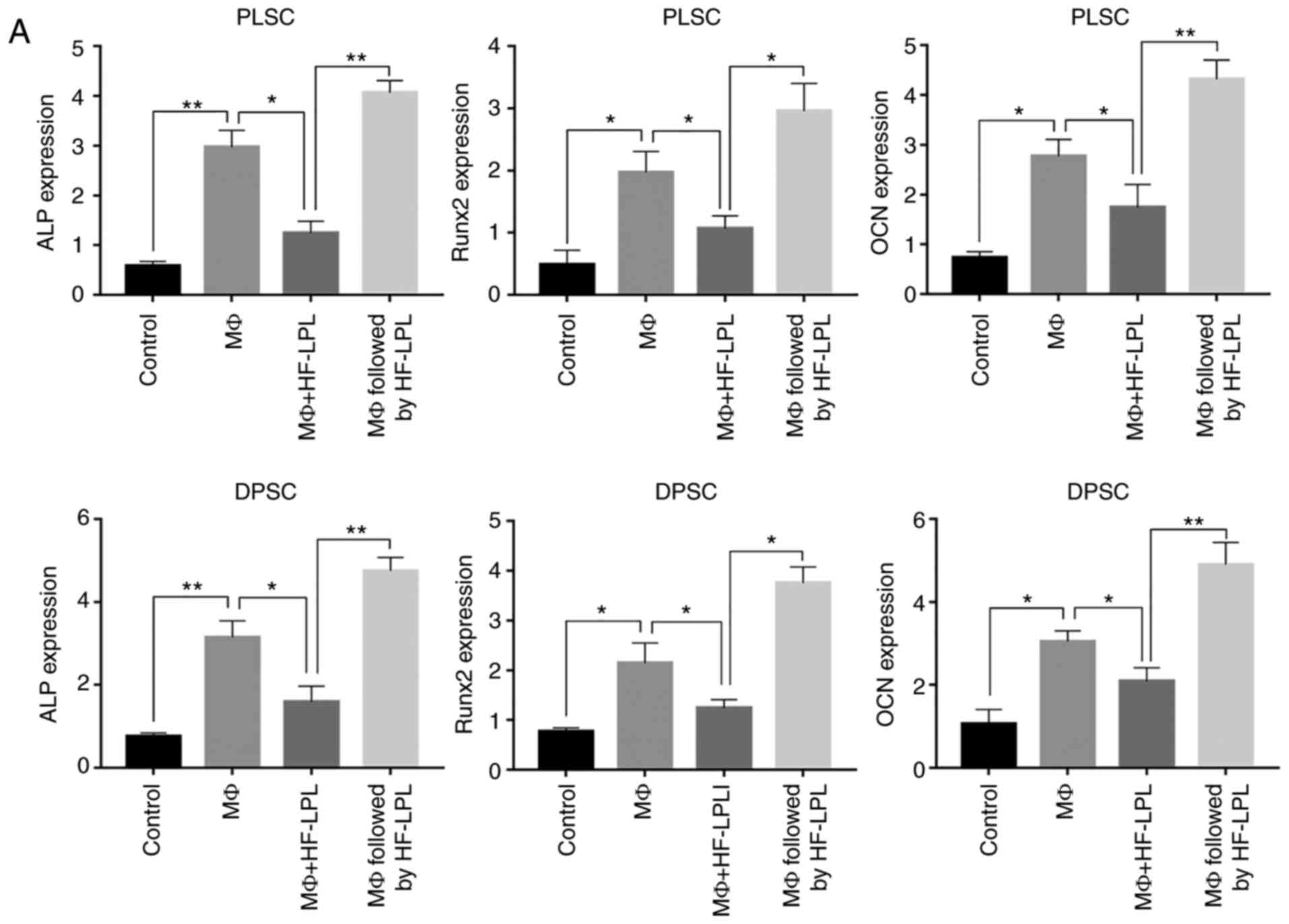

Figure 4 HF-LPLI improved stem cell odontoblastic differentiation. (A) Expression levels of ALP, OCN and Runx2 genes in stem cells, detected by reverse transcription-quantitative polymerase chain reaction. (B) Odontoblastic differentiation in stem cells, represented by the alizarin red S stained area (scale bar, 100 μm). (C) Bar graph results of alizarin red S staining at 570 nm. *P<0.05 and **P<0.01. HF-LPLI, high-frequency low-power laser irradiation; MΦ, macrophage; PLSC, periodontal ligament stem cell; DPSC, dental pulp stem cell.

Stem cells in the different MΦ and HF-LPLI groups were then subjected to alizarin red S staining to identify the calcium salt components in the cells. A significant increase in the calcium ion composition was found in the MΦ followed by HF-LPLI treatment group (Fig. 4B). For alizarin red S staining, the absorbance at 570 nm was ~0.6 at 2 weeks and 0.9 at 4 weeks in the group with MΦ co-culture followed by HF-LPLI treatment, while it was <0.5 in the control and MΦ co-culture alone groups (Fig. 4C).

HF-LPLI reduces the infiltration of inflammatory cells and release of inflammatory factors in periodontitis rats

A large number of neutrophils and MΦs were detected in the inflammatory sites in periodontitis rats during immunofluorescence analysis. After 1 week of HF-LPLI treatment, the number of neutrophils and MΦs in the surrounding tissues decreased significantly from 131±6 and 119±5 to 44±3 and 52±4, respectively. After 3 weeks of detection, further improvement in the number of inflammatory cells was achieved, which were inhibited to 9±2 and 11±2, respectively. CD11b-labeled neutrophils and CD86-labeled MΦs were abundant in the surrounding tissues of periodontitis rats, while HF-LPLI application significantly decreased the staining for the inflammatory cells. Furthermore, this effect was found to be enhanced with time (Fig. 5A and B).

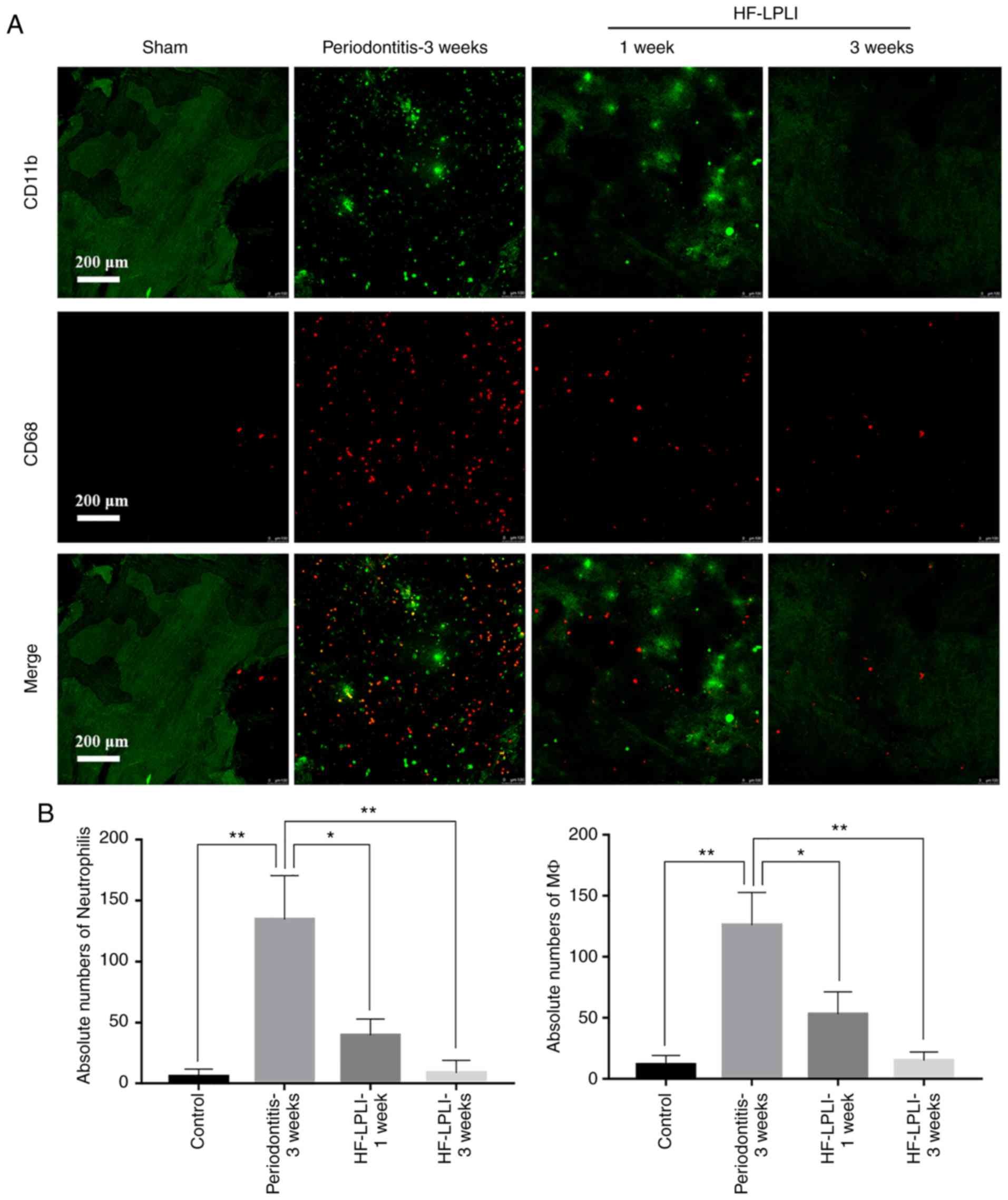

Figure 5 HF-LPLI reduced inflammatory cell infiltration in a periodontitis rat model. (A) Immunofluorescence analysis demonstrating green-stained CD11b neutrophils and red-stained CD86 macrophages (scale bar, 100 μm). (B) Bar graph of inflammatory cell number in the local periodontitis tissue in the rat model, examined by immunofluorescence. *P<0.05 and **P<0.01. HF-LPLI, high-frequency low-power laser irradiation.

IL-1β, IL-6, TNF-α and NO levels in the blood of rats belonging to different groups were subsequently examined, and significantly increased plasma concentrations of pro-inflammatory cytokines in rats with periodontitis were detected, as compared with the control group. The levels observed in the periodontitis rats were 173±12.6 pg/ml for IL-1β, 1,237±94.1 pg/ml for IL-6, 496±17.2 pg/ml for TNF-α and 0.02±0.004 μmol/ml for NO (Fig. 6A–D). After 1-week HF-LPLI treatment, these concentrations were significantly decreased, with IL-6 reduction to a level of 733±62.3 pg/ml representing the best result (Fig. 6B). After 3 weeks of treatment, the concentration of pro-inflammatory cytokines reached approximately the normal level. Taken together, these results indicated that appropriate HF-LPLI treatment was able to decrease the level of pro-inflammatory cytokines.

Figure 6 HF-LPLI inhibited the release of inflammatory factors in the rat model of periodontitis. (A) IL-1β, (B) IL-6 and (C) TNF-α concentrations, detected by ELISA. (D) NO production determined by nitrate reductase analysis. **P<0.01 vs. periodontics 3-weeks, #P<0.05 and ##P<0.01 vs. the control. HF-LPLI, high-frequency low-power laser irradiation; TNF-α, tumor necrosis factor α; IL, interleukin; NO.

HF-LPLI induces dentin repair and tertiary dentin in a rodent model

The results were further confirmed in the animal model by evaluating the effectiveness of treating a dental defect (3×3×8 mm) with stem cells (Fig. 7A). The results of in vivo imaging demonstrated the presence of significant inflammation in the oral cavity of the animal model, and the inflammation was reduced after 6 weeks of treatment with stem cells followed by HF-LPLI (Fig. 7B). In addition, H&E staining results revealed that the pulp defect was successfully reconstructed in the rat model, and cell proliferation was clearly time-dependent (Fig. 7C). Calcification observed under a microscope indicated the occurrence of osteogenic differentiation. A statistically significant difference in osteogenesis was observed among the periodontitis animal model, the 6-week treatment and 12-week treatment groups (P<0.05; Fig. 7D), suggesting that HF-LPLI treatment was effective in vivo.

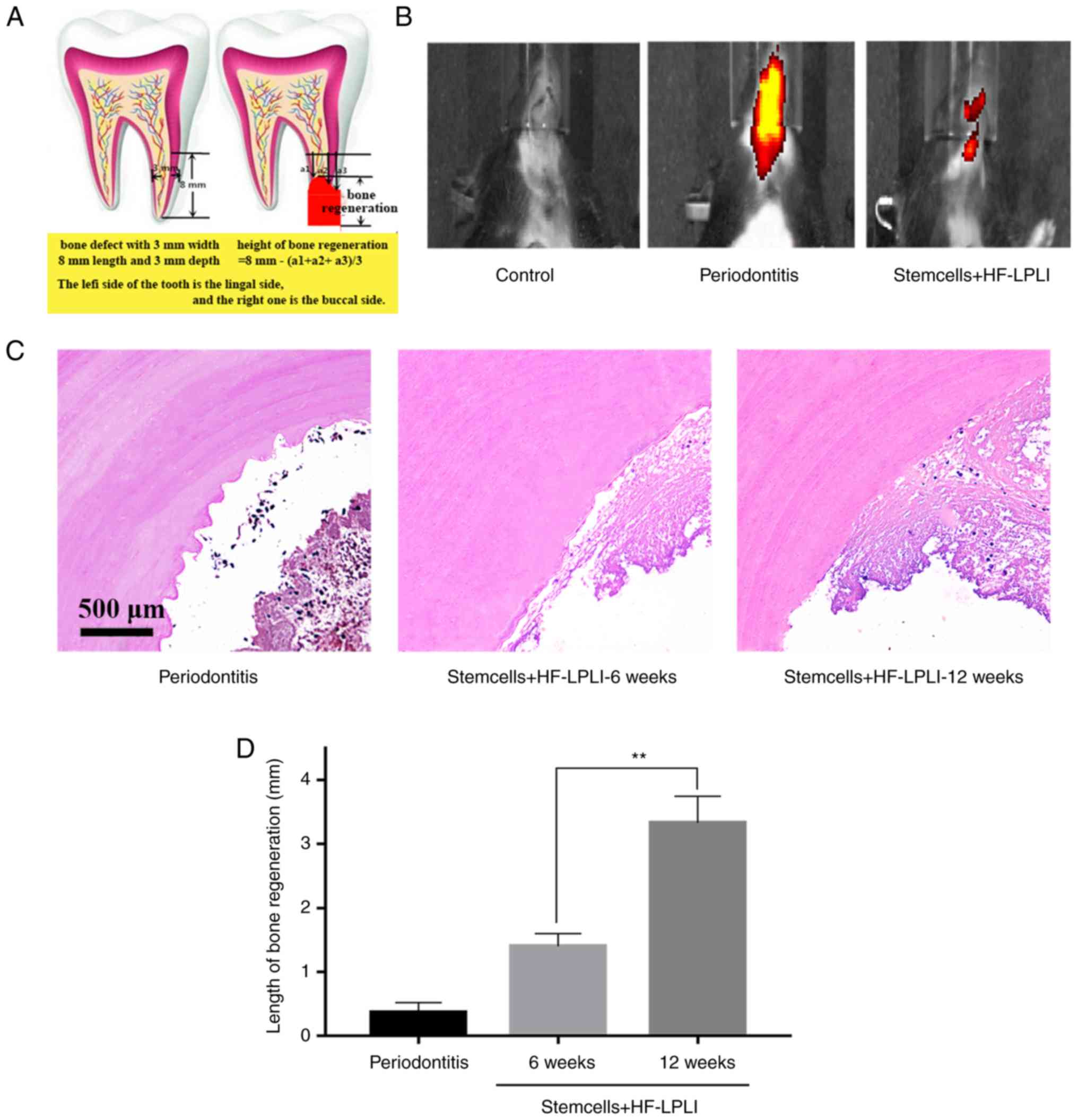

Figure 7 HF-LPLI induced dentin repair and tertiary dentin in the rat model of periodontitis. (A) A 3×3×8-mm pulp defect was performed in the rat model. Bone regeneration was evaluated as follows: Height of bone regeneration = 8 mm − (a1 + a2 + a3)/3. (B) Inflammation in the oral cavity of the periodontitis model, examined by in vivo bioluminescence imaging. (C) Hematoxylin and eosin staining of tissues around the focus, showing stem cell proliferation and differentiation (scale bar, 500 μm). (D) Bar graph displaying the difference in bone regeneration over time. **P<0.01. HF-LPLI, high-frequency low-power laser irradiation.

Discussion

DPSCs and PLSCs have previously been used in the treatment of periodontal tissue for regeneration studies (45); however, the improvement of their therapeutic effect and the underlying mechanism of their action remain under debate. In order to identify a new strategy for the application of DPSCs and PLSCs in the treatment of periodontitis, HF-LPLI was used in the current study to induce cell orientation and to identify the potential mechanism of promoting inflammation reduction by enhancing neutrophil apoptosis and MΦ reprogramming.

In the experiments of the present study, HF-LPLI was found to promote neutrophil apoptosis and MΦ reprogramming, which may via the inactivation of Akt/GSK3β signaling pathway (17). Neutrophil apoptosis reduced the inflammatory response induced by periodontitis, while the transformation of MΦs reduced the secretion of pro-inflammatory cytokines and increased the release of anti-inflammatory cytokines, such as IL-10 and TGF-β. M1 MΦs secrete ROS, RNS, TNF-α, IL-1, IL-12, IL-23 and other chemokines, which are mainly involved in the inflammatory response and host immune functions, and cause inflammatory damage to normal tissues. Under the action of IL-4, IL-13, IL-10 and TGF-β, the M1 MΦs are polarized to M2, which secrete TGF-β, VEGF, EGF and other factors, particularly at the late stage of inflammation, and promote the repair of trauma and fibrosis (46). Thus, the transformation of M1 to M2 can effectively promote the regression of inflammation. Notably, the current study findings reported that HF-LPLI promotes neutrophil apoptosis, but did not promote MΦ apoptosis, and the mechanism involved in this effect warrants further investigation.

This mechanism by which HF-LPLI promotes neutrophil apoptosis and MΦ reprogramming led to the maintenance of stem cell viability and increased the expression of stemness-associated genes. The proliferation of stem cells was guaranteed at an early stage of the treatment i.e., the stemness of the cells was well maintained allowing for unhindered proliferation. These results suggested a key role of HF-LPLI in the treatment of periodontitis.

As shown by EdU proliferation assay, stem cell proliferation was not significantly different from that in MΦ+HF-LPLI simultaneously-treated groups when stem cells were co-cultured with MΦs to create the inflammatory environment and subjected to HF-LPLI simultaneous treatment. However, when HF-LPLI treatment was applied 6 h after co-culture with MΦs, cell proliferation was significantly enhanced. These results suggested that inflammation obtained by HF-LPLI treatment for a certain period of time served a role in starting and promoting the proliferation of stem cells, while excessive inflammatory response was reduced by HF-LPLI treatment at 6 h, improving the micro-environment and further promoting stem cell proliferation. Gene expression and alizarin red S staining demonstrated similar results, further indicating that HF-LPLI promoted differentiation following activation by appropriate inflammation. The results also revealed that MΦ followed by HF-LPLI induced a better bone differentiation at 4 weeks, particularly when DPSCs were used, which achieved a better differentiation result compared with PLSCs.

In the in vivo experiments, after induced periodontitis was treated with stem cells, no treatment was administered to the model to induce inflammation in 6 h. Proper inflammation promoted the proliferation of stem cells and was beneficial to subsequent differentiation. Subsequently, HF-LPLI was used to reduce the number of inflammatory cells and inhibited the release of inflammatory cytokines. The in vivo bioluminescence imaging revealed that, after 6 weeks of HF-LPLI treatment, the inflammation was reduced. As soon as inflammation was inhibited, H&E staining indicated tissue regeneration due to stem cell proliferation, and further osteogenic differentiation. Therefore, stem cells appeared to successfully achieve peri-odontitis treatment. At 12 weeks, the best treatment effect was obtained, which was markedly greater than the effect at 6 weeks, suggesting a better osteogenic differentiation after an additional 6 weeks.

In conclusion, HF-LPLI may represent a novel strategy for improving the effect of stem cells treatment. However, how to use HF-LPLI for achieving the best effect in the treatment of periodontitis should be confirmed. Furthermore, the treatment dose and the time required to maximize an anti-inflammatory effect, as well as the effect of HF-LPLI on human periodontitis require additional experiments.
