Introduction

Multiple myeloma is a plasma cell malignancy that often remains fatal despite the use of high dose chemotherapy with hematopoietic stem cell transplantation (1). Most multiple myeloma patients are elderly; therefore, severe adverse effects and complications such as serious infection due to anticancer drugs are major problems in clinical practice. Since 2000, novel agents such as thalidomide, lenalidomide, and the proteasome inhibitor bortezomib have been introduced for the treatment of this disease and have remarkably improved patient outcome (2–4). However, adverse events and complications of these agents are often problematic in the clinical setting. In addition, prolonged use and repeated disease relapse may lead to the development of drug resistance in myeloma cells (5). Therefore, novel effective and less toxic therapeutic strategies are desired in order to improve clinical outcomes.

Extracts of the herb Tripterygium wilfordii Hook F have been used for more than two centuries as the traditional Chinese medicine to treat a variety of autoimmune and inflammatory diseases including rheumatoid arthritis (6,7). In addition, recent studies have demonstrated that triptolide has potential antitumor properties by inhibiting cell growth and inducing apoptotic cell death (8–11). Furthermore, triptolide shows antitumor effects on various hematological malignancies, and many studies have been performed to elucidate the molecular mechanism of triptolide-induced antitumor activities (12–15). Previous studies have shown that triptolide induces apoptosis of multiple myeloma cells mediated through the PI3K/Akt and NF-κB pathway and further associated with the MAPK pathway via mitochondrial cell death signaling and caspase activation (16,17). However, a more detailed mechanism of triptolide-induced apoptotic cell death in multiple myeloma cells remains unknown.

In the present study, we investigated the effects of triptolide on myeloma cells and showed that triptolide at low nanomolar concentrations induced apoptotic cell death in various multiple myeloma cell lines. We also examined the molecular mechanisms of triptolide-induced cell death in myeloma cells.

Materials and methods

Cells and cell culture

Human myeloma cell lines, HS-sultan, IM9, RPMI8226 and U266, were cultured in RPMI-1640 medium (Gibco BRL, Grand Island, NY, USA) supplemented with 10% fetal bovine serum (FBS) (Gibco BRL) in a humidified atmosphere with 5% CO2 at 37°C. These cell lines were obtained from the Japan Cancer Research Resources Bank (Tokyo, Japan). Cell morphology was evaluated using cytospin slide preparations with Giemsa staining and viability was assessed by trypan blue dye exclusion.

Reagents

Triptolide (Fig. 1A) was purchased from Sigma-Aldrich Japan (Tokyo, Japan) and was dissolved in PBS.

Figure 1. Effect of triptolide treatment on myeloma cell proliferation. (A) Chemical structure of triptolide. (B and C) Various myeloma cell lines [HS-sultan (♦), IM9 (▪), RPMI8226 (▴) and U266 (•)] were treated with various concentrations (0–100 nM) of triptolide for 24 h (B) or were cultured with 25 nM of triptolide for the indicated times (0–24 h) (C). Growth inhibition was assessed using the MTT growth inhibition assay. Results are expressed as the mean ± SD of three independent experiments. RPMI8226 cells were the most sensitive to triptolide, with an IC50 of 17 nM at 24 h.

Cell proliferation assay

Cell proliferation was measured using an MTT proliferation assay kit (Roche Molecular Biochemicals, Mannheim, Germany). Cells were plated in 96-well culture plates at 5×104 cells/ml in a total volume of 100 ml with the indicated reagents. After a 2-day incubation, cellular proliferation was measured using the MTT assay. Mean and standard deviation were calculated from triplicate experiments.

Assays for apoptotic cell death

Cell death was determined by assessing morphological changes as well as by staining with Annexin V-FITC and PI labeling. Apoptotic cells were quantified with Annexin V-FITC and PI double staining by using a staining kit purchased from Pharmingen (San Diego, CA, USA). In addition, induction of apoptotic cell death was detected using a DNA fragmentation assay. Cells (1×106) were harvested and incubated in a lysis buffer [10 mM Tris-HCl (pH 7.4), 10 mM EDTA, 0.5% Triton-X] at 4°C. After centrifugation, supernatants were collected and incubated with RNase A (Sigma) at 50 mg/ml and proteinase K (Sigma) for 1 h at 37°C. The DNA samples was elevtrophoresed on a 2% agarose gel and visualized with ethidium bromide staining. The mitochondrial transmembrane potential (Δψm) was determined by flow cytometry (FACSCalibur; Becton-Dickinson, San Jose, CA, USA). Briefly, cells were washed twice with PBS and incubated with 1 mg/ml Rhodamine-123 (Sigma) at 37°C for 30 min. Rhodamine-123 intensity was determined by flow cytometry.

Cell cycle analysis

Cells (1×105) were suspended in hypotonic solution [0.1% Triton X-100, 1 mM Tris-HCl (pH 8.0), 3.4 mM sodium citrate, 0.1 mM EDTA] and stained with 50 mg/ml of PI. DNA content was analyzed by flow cytometry and the population of cells in each phase of the cell cycle was determined using ModiFIT software (Becton-Dickinson).

Caspase activation assays

The activation of caspase-3 was analyzed using a caspase-3 assay kit from BD Biosciences (San Jose, CA, USA). Briefly, the FITC-conjugated antibody against the active form of caspase-3 provided in the kit was used for FACS analysis according to the manufacturer’s instructions (BD Biosciences).

Reverse transcription-polymerase chain reaction (RT-PCR) analysis

Total cellular RNA was extracted using the RNeasy Mini kit (Qiagen, Valencia, CA, USA) according to the manufacturers’ instructions. Ten pmol of primers for Mcl-1 (forward, 5′-GCCAAGGACACAAAGCCAAT-3′; and reverse, 5′-AACT CCACAAACCCATCCCA-3′) were used in the PCR reactions. Primer sets for β-actin (forward, 5′-TCCTTCTGCATCCTG TCGGCA-3′; and reverse, 5′-CAAGAGATGGCCACGGCT GCT-3′) was used as the internal control. After an initial denaturation at 94°C for 2 min, 30 cycles of 30 sec at 94°C, 30 sec at 54°C, 1 min at 72°C, and final extension at 72°C for 7 min were performed using the Superscript III First-Strand Synthesis System for RT-PCR (Invitrogen Co., Carlsbad, CA, USA). The PCR products were electrophoresed in 2% agarose gels.

Cell lysate preparation and western blotting

Cells were collected by centrifugation at 700 g for 10 min and the pellets were resuspended in lysis buffer (1% NP-40, 1 mM phenylmethylsulfonyl fluoride (PMSF), 40 mM Tris-HCl (pH 8.0), 150 mM NaCl), and incubated at 4°C for 15 min. Mitochondrial and cytosolic fractions were prepared with digitonin-nagarse treatment. Protein concentrations were determined using the protein assay DC system (Bio-Rad, Richmond, CA, USA). Cell lysates (20 μg protein per lane) were fractionated in 12.5% SDS-polyacrylamide gels prior to transfer to membranes (Immobilon-P membranes, Millipore, Bedford, MA, USA) using standard protocol. Antibody binding was detected using an enhanced chemiluminescence kit for western blotting detection with hyper-ECL film (Amersham, Buckinghamshire, UK). Blots were stained with Coomassie brilliant blue to confirm equal loading of protein extracts. The following antibodies were used in this study: anti-caspase 3, anti-caspase-8, anti-caspase-9, anti-cytochrome c (Pharmingen), Bcl-2, anti-Bcl-XL, anti-Mcl-1, anti-cyclin D1, anti-β-actin (Santa Cruz Biotech, Santa Cruz, CA, USA), anti-Bax, anti-Smac (second mitochondria-derived activator of caspases)/DIABLO (MBL, Nagoya, Japan), and anti-RNA polymerase II CTD (phosphor, serine 7) (Funakoshi Co. Ltd., Tokyo, Japan).

Statistical analysis

All data are presented as the mean ± SD. Statistical significance was examined using Student’s t-test analysis and p<0.05 was considered statistically significant.

Results

Triptolide inhibits cellular proliferation of various myeloma cells

We first examined whether triptolide inhibited cellular growth of myeloma cells (HS-sultan, IM9, RPMI8226 and U266 cells). Triptolide inhibited the cellular growth of all myeloma cells dose- (0–100 nM) and time (0–24 h)-dependently (Fig. 1B and C). Among the cells tested, RPMI8226 cells were the most sensitive to triptolide with an IC50 of 17 nM (Fig. 1B). Therefore, we used RPMI8226 cells for further experiments. Interestingly, cell growth was suppressed as early as 6 h with low concentrations with typical apoptotic morphology observed, including condensed chromatin and fragmented nuclei with apoptotic bodies (Fig. 2A).

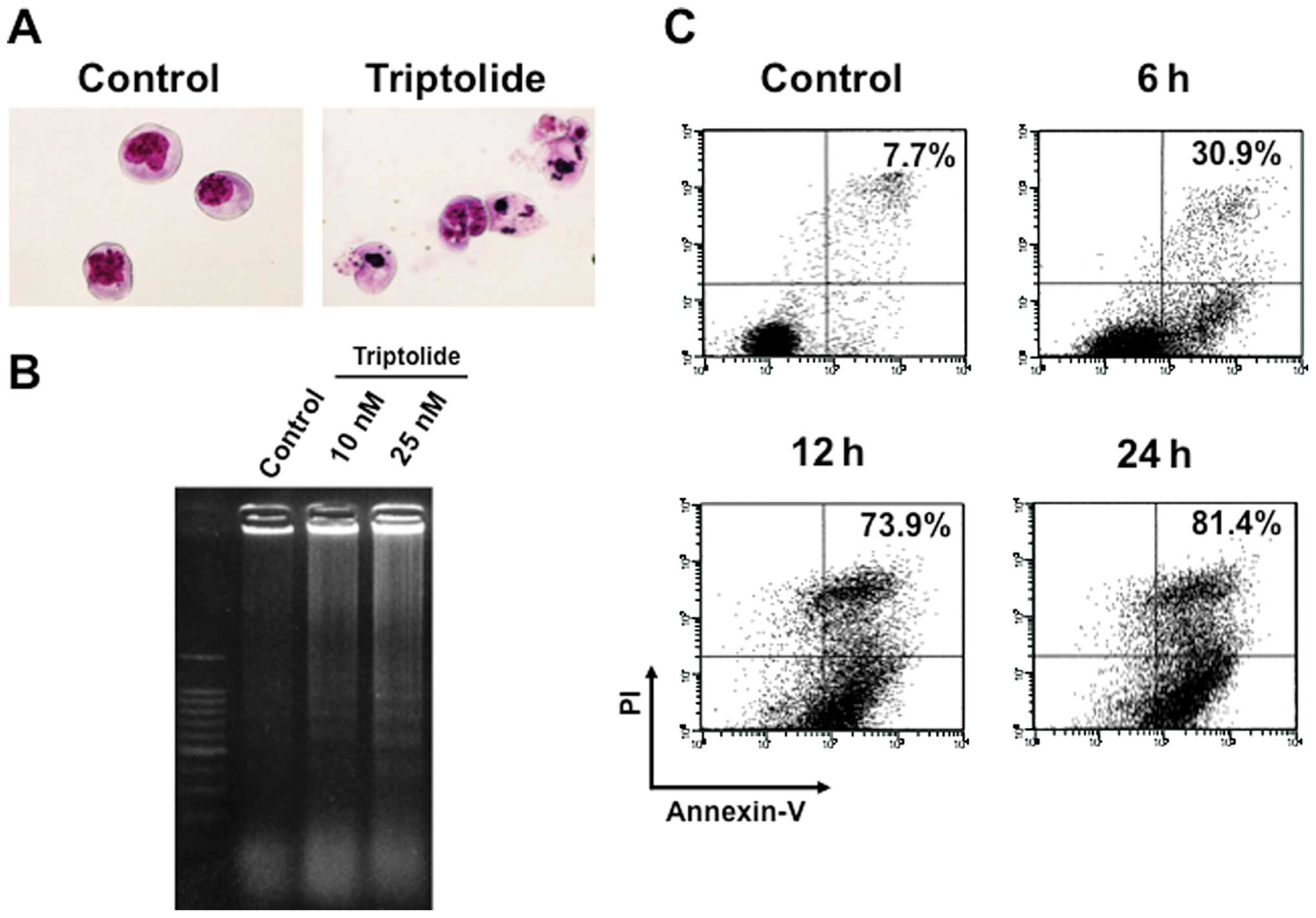

Figure 2. Triptolide-induced apoptotic cell death of myeloma cells. (A) Morphological changes characteristic of apoptosis in RPMI8226 cells. RPMI8226 cells were treated with 25 nM triptolide for 24 h, and then cytospin slides were prepared and stained with Giemsa. Original magnification, ×1,000. (B) Agarose gel electrophoresis demonstrating DNA fragmentation in triptolide-treated RPMI8226 cells treated with 10 or 25 nM triptolide for 24 h. (C) Detection of apoptotic cells by Annexin V and PI double staining. RPMI8226 cells were cultured with 25 nM triptolide for 0, 6, 12 and 24 h, stained with Annexin V-FITC and PI labeling and analyzed by flow cytometry. Three independent experiments were performed and all gave similar results.

Triptolide induces G1 cell cycle arrest followed by apoptotic cell death

The effects of triptolide on cell cycle progression were investigated using RPMI8226 cells. The cells were treated with 25 nM triptolide for the indicated times and analyzed for cell cycle distribution by means of flow cytometry. Cultivation with triptolide increased the population of cells in the G0/G1 phase with a reduction of cells in the S phase (Fig. 3). In addition, a strong induction of apoptosis was shown by the appearance of a haplodiploid DNA peak with sub-G1 DNA contents after triptolide treatment. These results indicate that triptolide led to cell cycle arrest at the G1 phase followed by apoptosis. We thus confirmed the induction of apoptosis by triptolide by means of DNA ladder formation and Annexin V/PI staining. DNA ladder formation was confirmed at time-points as early as 6 h by electrophoresis of genomic DNA extracted from RPMI8226 cells treated with 25 nM triptolide (Fig. 2B). Consistent with these results, Annexinn V-positive cells dramatically increased in a time-dependent manner (Fig. 2C), indicating that triptolide rapidly induced apoptotic cell death in RPMI8226 cells.

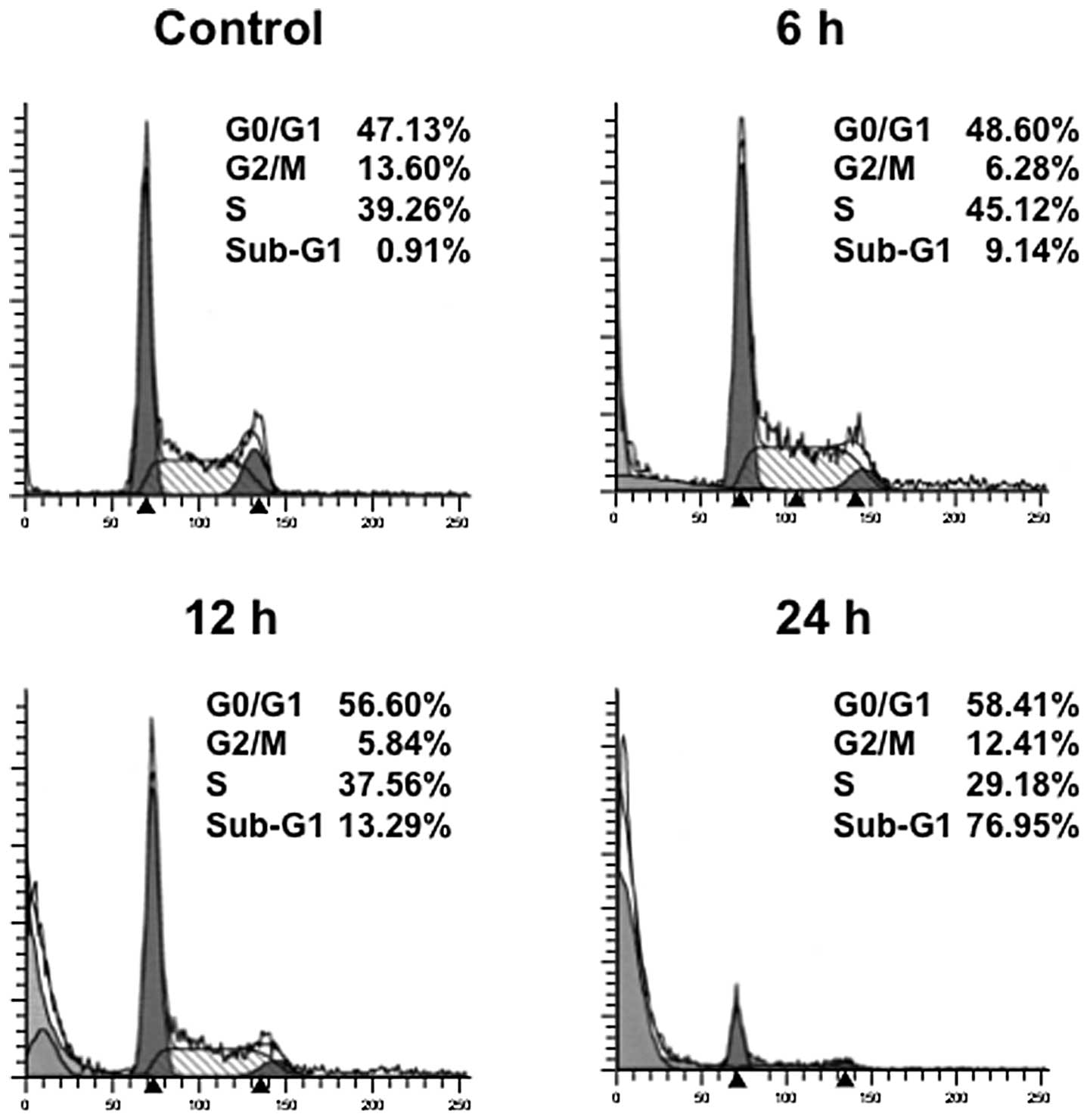

Figure 3. Effect of triptolide treatment on cell cycle progression in myeloma cells. RPMI8226 cells were treated with 25 nM triptolide for the indicated times, and subsequently stained with PI. DNA content was analyzed by flow cytometry. The sub-G1 DNA content refers to the proportion of apoptotic cells. Similar results were obtained in three independent experiments.

Triptolide induces caspase-dependent cell death in myeloma cells

Caspases are believed to play a central role in mediating various apoptotic responses. To address the apoptotic cell death pathway in triptolide-treated RPMI8226 cells, we next examined the activation of caspases by western blot analysis. The downregulation of procaspase-3, procaspase-9 and procaspase-8 were detected after treatment with 25 nM triptolide for the indicated times (Fig. 4A). To clarify the activation of caspase-3, the percentage of cells expressing the active form of caspase-3 was analyzed by FACS. After incubation with 25 nM triptolide for 6 h, the percentage of RPMI8226 cells expressing the active form of caspase-3 was increased (Fig. 4B). These results indicated that triptolide induces apoptotic cell death of myeloma cells via a caspase-dependent pathway.

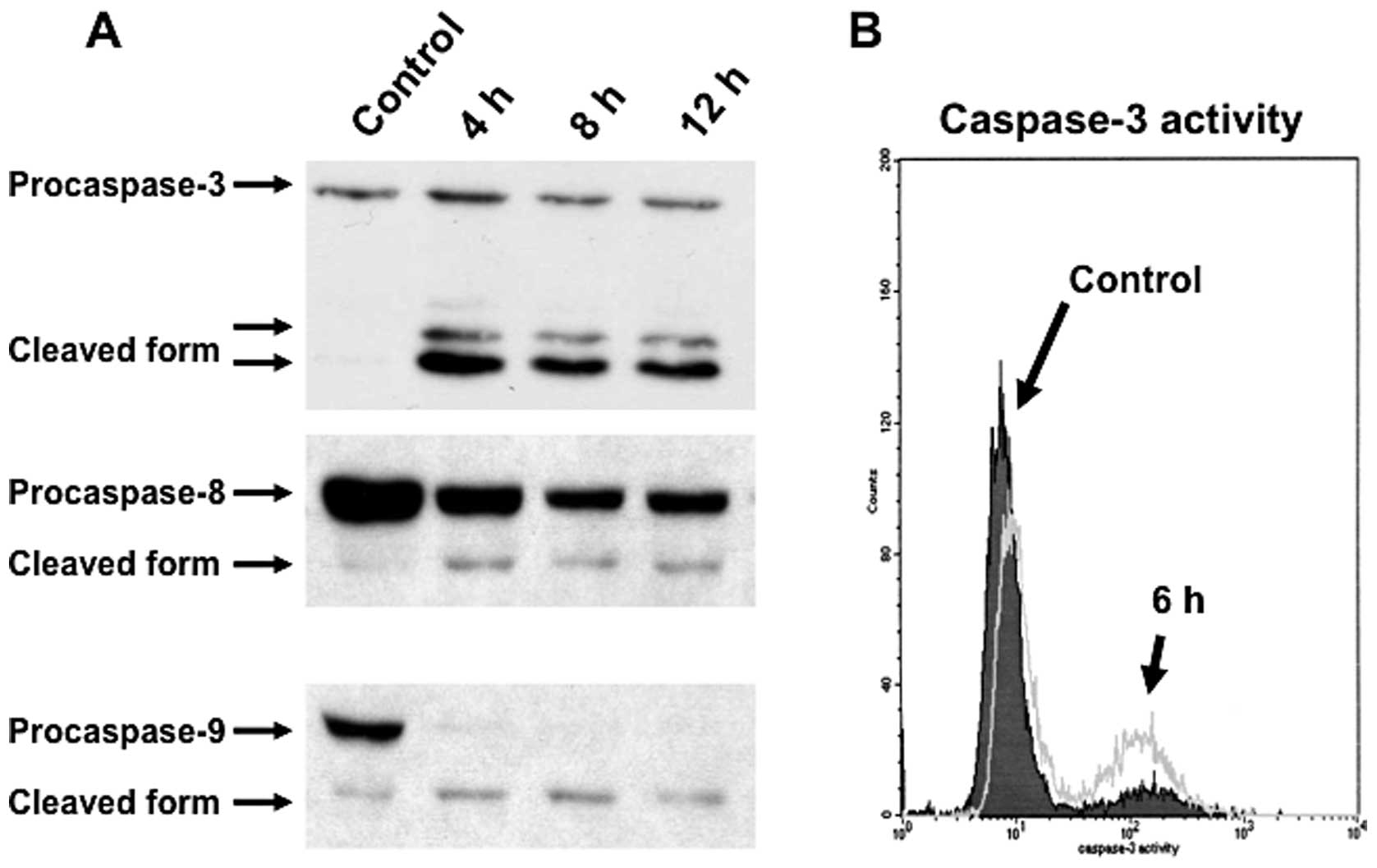

Figure 4. Effect of triptolide treatment on caspase activation. (A) Western blot analysis of caspases. Total cellular proteins (20 μg per lane) were separated on 12.5% SDS-polyacrylamide gels and membrane transferred. Protein levels of caspase-3, caspase-8 and caspase-9 were detected by western blot analysis using antibodies against each caspase. Triptolide treatment-induced processing of caspase-3 (32 kDa), caspase-8 (57 kDa) and caspase-9 (47 kDa) is indicated by the appearance of 17, 43 and 35 kDa cleaved active forms, respectively. (B) RPMI8226 cells were cultured with 25 nM triptolide for 6 h and analyzed for activation of caspase-3 by flow cytometry.

Triptolide induces cell death of myeloma cells with downregulation of Mcl-1

To investigate the molecular mechanisms of triptolide-induced apoptosis in RPMI8226 cells, the expression of several apoptosis-associated proteins were examined. Mcl-1, a critical survival factor for myeloma cells, was down-regulated with triptolide treatment in various myeloma cells (Fig. 6A). In contrast, triptolide did not modulate the levels of pro-apoptotic Bax or anti-apoptotic Bcl-2 and Bcl-XL proteins in RPMI8226 cells (data not shown).

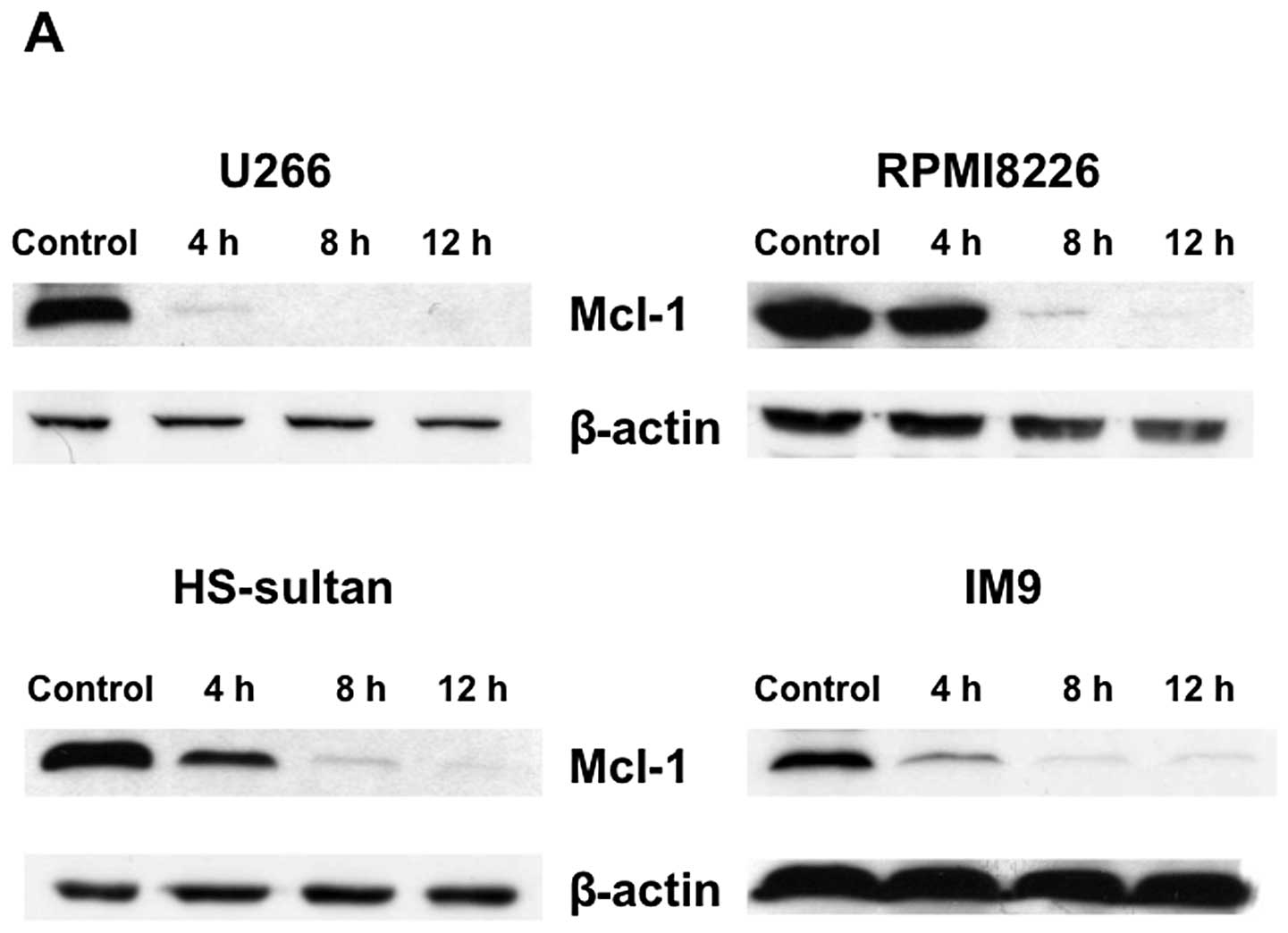

Figure 6. Mcl-1 protein and mRNA expression in various myeloma cells. Myeloma cells (U266, RPMI8226, HS-sultan and IM9) were treated with 25 nM triptolide for the indicated times. (A) The level of Mcl-1 expression was analyzed by western blotting. Cell lysates (20 μg per lane) were fractionated on 12.5% SDS-polyacrylamide gels and analyzed by western blotting with anti-Mcl-1 antibody. Re-blotting with β-actin confirmed that equal amounts of protein were present in each lane. Similar results were obtained in three independent experiments. (B) Semi-quantitative RT-PCR analysis was carried out in order to quantify Mcl-1 mRNA levels following triptolide treatment in various myeloma cells for the indicated times.

Triptolide-induced death signaling is mediated through the mitochondrial pathway

Recent studies have suggested that mitochondria play an essential role in death signal transduction. Mitochondrial changes, including permeability transition pore opening and the collapse of the mitochondrial Δψm, result in the release of cytochrome c into the cytosol, which subsequently causes cell death by the activation of caspases (19). After treatment with 25 nM triptolide for 3 h, low Rh123 staining in RPMI8226 cells indicated an increase in the loss of mitochondrial Δψm (Fig. 5A). The loss of Δψm appeared in parallel with the activation of caspase-3 and caspase-9, as well as with apoptosis. In addition, triptolide induced a substantial release of various mitochondrial apoptogenic proteins, cytochrome c, Smac/DIABLO from the mitochondria into the cytosol in RPMI8226 cells (Fig. 5B). These results suggest that mitochondrial dysfunction causes the release of cytochrome c, Smac/DIABLO into the cytosol; caspase-9 and caspase-3 were then activated, thereby propagating the death signal.

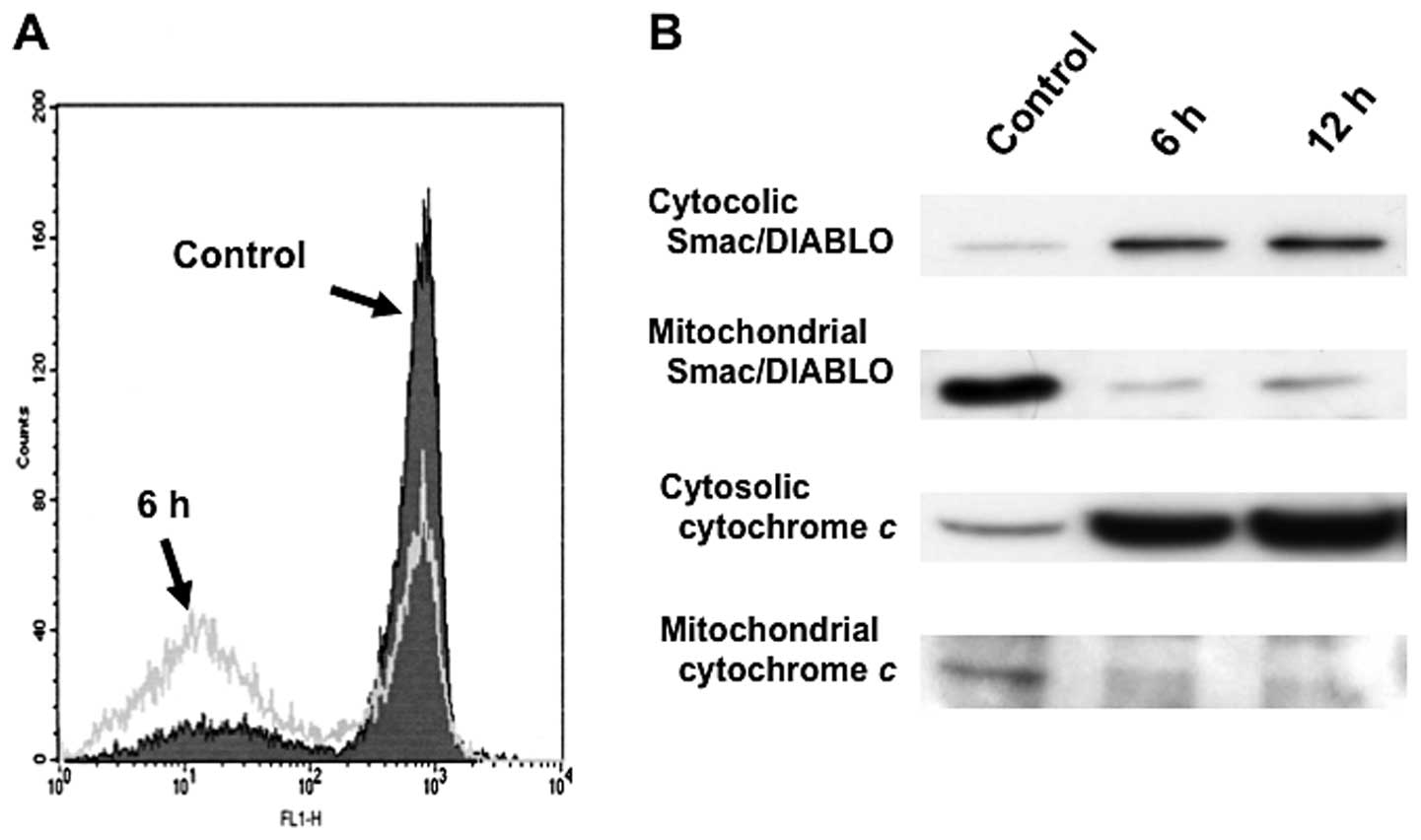

Figure 5. Triptolide-induced apoptotic cell death involves mitochondria in myeloma cells. (A) Flow cytometric analysis of mitochondrial transmembrane potential (Δψm) as estimated by the Rhodamine-123 intensity. RPMI8226 cells were cultured with 25 nM triptolide for 6 h and Rhodamine-123 fluorescence was analyzed by flow cytometry. (B) Western blot analysis of mitochondrial apoptogenic proteins in triptolide-treated RPMI8226 cells. Cells were incubated with 25 nM triptolide for the indicated duration. The cytosolic and mitochondrial proteins were analyzed by western blotting with anti-cytochrome c, Smac/DIABLO antibodies.

Triptolide downregulates Mcl-1 expression through a transcriptional mechanism in association with the inhibition of RNA polymerase II CTD phosphorylation

To address the mechanism underlying triptolide-induced downregulation of Mcl-1, expression of Mcl-1 mRNA was examined using RT-PCR (Fig. 6B). Expression of Mcl-1 mRNA was decreased by triptolide treatment in various myeloma cell lines (U266, RPMI8226, HS-sultan, and IM9) in a time-dependent manner. Reductions in Mcl-1 mRNA levels were observed at 25 nM triptolide by 2–4 h and roughly paralleled the extent of protein downregulation (Fig. 6). We next examined the phosphorylation of the RNA polymerase II C-terminal domain (CTD) by triptolide treatment. Exposure to triptolide inhibited phosphorylation of RNA polymerase II CTD at serine 7, consistent with the inhibition of cyclin D1 expression (Fig. 7). These results suggest triptolide blocks RNA polymerase II CTD phosphorylation to repress Mcl-1 transcription.

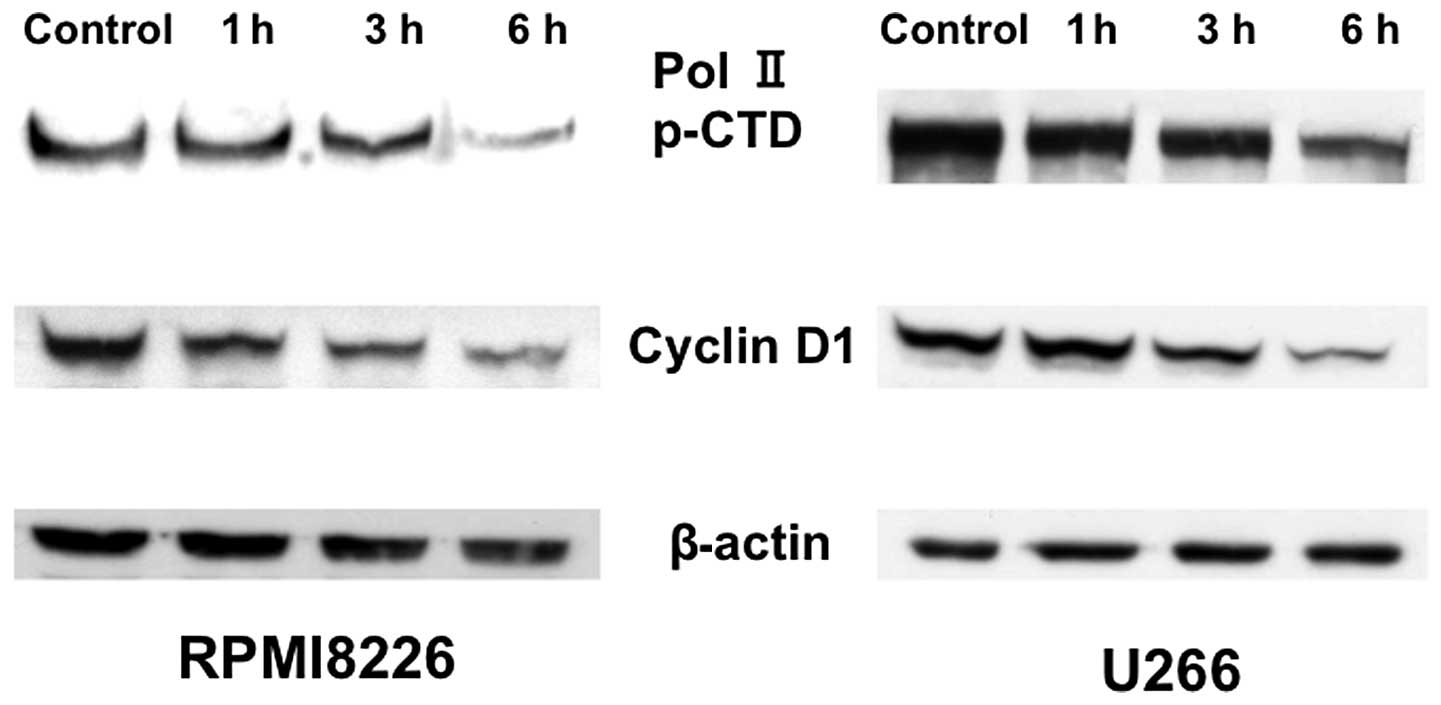

Figure 7. Phosphorylation of RNA polymerase II CTD in triptolide-treated myeloma cells. RPMI8226 and U266 cells were treated with 25 nM triptolide for the indicated durations, and then cell lysates (20 μg per lane) were fractionated on 12.5% SDS-polyacrylamide gels and analyzed by western blotting. The levels of phosphorylation at Ser7 in the Pol II CTD (RNA polymerase II CTD) and the total cyclin D1 protein were shown by western blot analysis and normalized to β-actin.

Discussion

Multiple myeloma is a plasma cell neoplasm derived from clonal B cell lineage cells. The development of new agents such as the proteasome inhibitor, bortezomib, and the immunomodulatory drugs, thalidomide and lenalidomide, has led to improved outcomes in patients with multiple myeloma (2–4). However, a high proportion of patients cannot expect long-term remission due to drug-resistance, minimal residual disease, or complications such as severe infections (1–4). Therefore, new potent therapeutic agents and substantial therapeutic advances are needed for the treatment of multiple myeloma.

Triptolide has been found to have potent anti-inflammatory, immunosuppressive and antitumor properties (6–11). Recent studies have suggested that triptolide inhibits NF-κB activity via downregulation of Bcl-2 expression and the inhibition of p53 transcription activity in various p53-wild-type human tumor cells (18–20). It has also been reported that triptolide has antitumor activity against hematological malignancies. Triptolide induces apoptosis in chronic myeloid leukemia (CML) cells via downregulation of BCR-ABL (21,22), and inhibits MDM2 in acute lymphoblastic leukemia (ALL) cells through a p53-dependent pathway (23). In multiple myeloma, it was reported that triptolide inhibits NF-κB and induces apoptosis in RPMI8226 and U266 myeloma cells (17). It has also been suggested that triptolide enhances PS-341-induced apoptosis via the PI3K/Akt/NF-κB pathways in human multiple myeloma cells (16) and overcomes dexamethasone resistance in myeloma through upregulation of IL-6-independent expression of glucocorticoid receptors (24). There have been many studies on the antitumor activity of triptolide; however, its mechanism of action remains unclear, especially with respect to multiple myeloma.

In the present study, we showed that triptolide induced G0/G1 cell cycle arrest followed by apoptotic cell death at low nanomolar concentrations in human multiple myeloma cells in association with the downregulation of Mcl-1 at the level of mRNA transcription, loss of mitochondrial transmembrane potentials (Δψm), the release of mitochondrial apoptotic proteins such as cytochrome c, Smac/DIABLO into the cytosol, and the activation of caspase-3 and caspase-9.

Recent studies have reported that the Bcl-2 family member, Mcl-1, plays a critical role in multiple myeloma pathogenesis and drug-resistance by preventing the activation of endogenous apoptotic pathways and may represent a promising therapeutic target (25–28). In addition, it has been reported that drug-induced generation of Mcl-1 fragments followed by c-Jun upregulation may also be a novel therapeutic approach (29). In our study, Mcl-1 protein levels rapidly decreased after triptolide treatment. This suggests that the loss of Mcl-1 expression may play a significant role in triptolide-induced apoptosis of myeloma cells. In addition, triptolide inhibited phosphorylation of RNA polymerase II CTD at serine 7, indicating that triptolide blocks RNA polymerase II CTD phosphorylation to repress Mcl-1 transcription elongation. Consistent with our data, it has been reported that triptolide inhibits de novo total RNA transcription in leukemic cells, and induces changes in the nuclear substructure that are associated with decreased RNA polymerase II CTD serine phosphorylation (30). Recently, the effects of triptolide on gene expression was examined using whole human genomic DNA microarrays and it was found that 4-h triptolide treatment upregulated 160 genes and downregulated 1,511 genes in the non-small cell lung cancer cell line A549 (31). Additionally, it was reported that triptolide significantly suppresses apoptosis related genes, such as XIAP, Bcl-2, Mcl-1, as well as cell cycle regulators including CDC25A, Polo-like kinases, in various human tumor cells (9,10,32). Taken together, our results and the previously published data indicate that triptolide suppresses a broad range of gene expression by inactivation of NF-κB and other signal transduction pathways, as well as by global suppression of transcription (33).

We also found that Smac was released from mitochondria to the cytosol during triptolide-induced apoptotic cell death in myeloma cells. Smac binds to XIAP and eliminates its inhibitory effect on caspase-9. Various anti-myeloma agents trigger the loss of Δψm, and the release of the mitochondrial apoptogenic proteins cytochrome c and Smac/DIABLO (34,35). It has also been reported that PS-341-induced apoptosis in myeloma cells is associated with activation of JNK, translocation of JNK from the cytosol to mitochondria, and release of Smac from mitochondria to the cytosol (36). Other studies showed that 2-methoxyestradiol (2ME2)-induced apoptosis in multiple myeloma cells is mediated by JNK activation and JNK-dependent release of Smac from mitochondria to the cytosol (37). Various studies have shown that stress-induced changes in Δψm correlate with an increase in reactive oxygen species (ROS) and the release of mitochondrial cytochrome c and Smac/DIABLO. The role of ROS in mediating apoptosis in various cancer cells is well established (34,38). The generation of ROS have been linked to the release of Smac or cytochrome c from mitochondria to the cytosol during apoptosis (39,40). Therefore, it will be important to address the effects of ROS on triptolide-induced apoptotic cell death in multiple myeloma cells.

Many natural products have been used as anticancer agents in a clinical setting, and have provided lead chemical structures with which to develop new agents with enhanced biological properties and decreased adverse effects (41). Natural compounds appear to be safer than popular chemotherapeutic agents; therefore, they might be useful in older patients or in immunocompromised patients because of their safety and lack of known toxicity. Furthermore, it would be useful to design clinical trials with myeloma patients to evaluate their anti-myeloma effects.

In conclusion, triptolide may have potential as a novel therapeutic agent to replace or augment the more cytotoxic agents currently used to treat myeloma patients. Further studies are warranted to evaluate this possibility.

Acknowledgements

We thank Chika Nakabayashi for her helpful technical assistance. This study was supported in part by the Ministry of Education, Culture, Sports, Science and Technology of Japan, and by the National Cancer Center Research and Development Fund of Japan (23-A-17).
