Introduction

Ovarian cancer is the second most common gynecologic cancer and causes more deaths than any other malignant tumor of the female reproductive system (1). Unfortunately, the relatively asymptomatic nature of early ovarian cancer leaves most patients undiagnosed until advanced stages, which are usually incurable by surgery or chemotherapy. The majority of patients are diagnosed at an advanced stage, with a 5-year survival rate of only 35%, compared to 90% for early-stage tumors, according to the International Federation of Gynecology and Obstetrics (FIGO) in 2013 (2–4). Identifying tumor biomarkers in biological fluids, such as serum, plasma and urine, is one of the most significant aspects of proteomic research. For this reason, it is necessary to understand the molecular alterations that occur during the development of ovarian cancer and use the information to more efficiently identify sensitive biomarkers suitable for the early detection of ovarian cancer.

Cancer cells secrete different kinds of proteins that can enter the blood circulation. Consequently, the serum proteome may reflect the abnormality or pathologic state of the disease (5). Comparative protein profiling is a promising way of detecting of specific protein expression of cancer, which may serve as a novel serum biomarker. Surface-enhanced laser desorption/ionization time-of-flight mass spectrometry (SELDI-TOF-MS) is a better tool for proteomic research than classic 2-dimensional electrophoresis. It combines chromatography with mass spectrometry, and it can provide rapid, reproducible, high-throughput protein profiles from trace biological samples (6,7). Many studies have reported the use of SELDI-TOF-MS in the early diagnosis of cancers, such as lung cancer, esophageal cancer and breast cancer (8–11).

SELDI-TOF-MS was used to profile changes in the serum proteome changes of Fischer 344 rats with ovarian cancer during tumor development. The differential expression of proteinogram before and after tumor generation in rats offered useful information regarding proteins and genes that may be a key to carcinogenesis. It may also facilitate identification of novel serum biomarkers suitable for detection of ovarian cancer (7,12).

Materials and methods

Cell lines and culture conditions

The Fischer 344-rat-derived epithelial ovarian carcinoma cell line NuTu-19 was a kind gift provided by Dr Airong Zhang of the Second Hospital of Shandong University. The NuTu-19 cells were maintained in complete media consisting of Dulbecco’s modified Eagle’s medium (DMEM; Gibco-Life Technologies) with 10% heat-inactivated fetal bovine serum (Gibco-Life Technologies) at 37°C, 5% CO2 and 100% humidity.

The animal model

Female pathogen-free Fischer 344 rats (100–125 g) were obtained from Weitong Lihua, Inc., Beijing, China, and housed in a pathogen-free animal facility. Rats were kept in an environment with a 12-h light 12-h dark cycle and free access to food and water in the animal facility of the Shandong University Medical School. The present study was carried out in strict accordance with the guidelines for the Animal Care and Use of the Shandong University, China. The protocol was approved by the Committee on the Ethics of Animal Experiments in Qilu Hospital of Shandong University, and an informed consent form was provided by them. Surgery was performed under sodium pentobarbital anesthesia, and all efforts were made to minimize suffering.

NuTu-19 cells were harvested with 0.25% trypsin and 0.01% ethylenediaminetetraacetic acid (EDTA) and washed twice with phosphate-buffered saline (PBS) solution. Then a total of 106 cells were injected intraperitoneally into each rat. The animals were observed daily and weighed weekly. All animals grew in parallel and the body weight of each rat was kept uniform throughout the experiment.

Serum sample preparation

Peripheral blood (0.5 ml) was collected from the axillary vein of rats on day A (1 week before tumor cell injection), day B (4 weeks after injection), and day C (6 weeks following injection). Each blood sample was allowed to clot and was centrifuged at 3,000 rpm for 20 min soon after collection to remove all cellular components. Then, serum samples were aliquoted into 10-μl sections and kept at −80°C until use. The serum samples were centrifuged at 10,000 rpm for 20 min at 4°C and then diluted 1:3 into 20 μl U9 buffer solution (9 mol/l urea, 2% CHAPS, 50 mmol/l Tris-HCl, pH 9.0, 1% DTT) before testing. After incubation on ice for 30 min, the samples were diluted again 1:13 into 360 μl of sodium acetate buffer solution (50 mmol/l NaAc, pH 4.0). Then the samples were ready for SELDI testing.

SELDI analysis

Four different types of chip (Ciphergen Biosystems, Inc., Fremont, CA, USA) with surface chemistry of hydrophobic (H50), ionic (CM10), cationic (WCX2), and metal binding (IMAC3) were tested to determine which produced the best serum profiles. The CM10 ProteinChip, which is a weak cationic exchanger, was selected for the present study (7,8). The CM10 ProteinChip was activated with 10 mM HCl and equilibrated with binding buffer (100 mM ammonium acetate). Then serum samples were added to the 8-spot ProteinChip. The samples were allowed to incubate at room temperature for 60 min on a platform shaker, and then the array was washed twice with 200 μl binding buffer for 5 min, followed by two quick rinses with HEPES water. Before SELDI analysis, 0.5 μl saturated EAM solution (sinapinic acid in 50% aqueous acetonitrile and 0.5% trifluoroacetic acid) was loaded onto each spot twice, allowing the surface of the array to air-dry between each EAM application (8,13,14).

Chips loaded with samples were placed on the Protein Biological System II mass spectrometer reader (Ciphergen Biosystems). Time-of-flight spectra were generated by averaging 60 laser shots and collected in the positive mode at laser intensity 185 and detector sensitivity 8 with molecular weight optimized from 2,000 to 10,000 Da (15). Mass accuracy was calibrated on the day of measurements before data collection using the All-in-one peptide molecular mass standard (8).

The reproducibility of SELDI spectra from array to array on a single chip (intra-assay) and between chips (inter-assay) was determined using the pooled normal serum quality control (QC) sample (16). Three peaks in the range of 5,000–10,000 Da were selected randomly on spectra and used to calculate the coefficient of variance. The intra-assay analyses were performed in quadruplicate and the inter-assay analyses were performed on three different days.

Peak detection, data analysis and decision tree classification

Data analysis involved peak detection, alignment and selection of peaks with the highest discriminatory power. All spectra were collected using ProteinChip Biomarker software version 3.2 (Ciphergen Biosystems). Spectra range from 2,000 to 20,000 m/z was selected for analysis. The study focused on this region to eliminate low-mass (m/z <1,000) and low-intensity peaks (m/z >20,000). Peak detection involved baseline subtraction, mass accuracy calibration and automatic peak detection (17). Mean spectra generated from different times were compared using the t-test.

Decision tree analyses were performed using Biomarker Patterns Software (BPS; Bio-Rad Laboratories). For each sample, the intensity values for each protein peak were entered in BPS and classified according to the tree analysis described. The BPS program can combine multiple biomarkers to distinguish between independent groups, thereby increasing sensitivity and specificity compared with single biomarker predictors. BPS was also used to perform a 10-fold cross-validation because the size of the data set was too small for an independent validation set. This process allows the sensitivity and specificity to be predicted for future data and provides an accurate estimate of the predictive accuracy of the selected decision tree (7,13,15).

Results

Tumor model

NuTu-19 cells grew progressively in the abdominal cavity in a manner typical of human ovarian epithelial carcinomas. At the fourth week after injection of 106 cells, the rats showed no obvious features of cancer. However, during the sixth week, all animals developed cancer in the peritoneal cavity, represented by numerous serosal nodules (peritoneum, omentum, diaphragm and bowel), omentum contraction and malignant bloody ascites. Characteristics of cachexia such as pallor (anemia), marasmus and abundance of bloody ascites appeared gradually. At the end of the study, all animals were sacrificed and tumor tissues were removed for section and H&E staining. Pathohistological results confirmed the existence of adenocarcinoma tissue (Fig. 1).

Figure 1 Tumor model. (A–C) At the 6th week after NuTu-19 cell injection, animals developed cancer in the peritoneal cavity, here represented by numerous serosal nodules (peritoneum, omentum, diaphragm and bowel), omentum contraction and malignant bloody ascites. (D) Pathohistological results: adenocarcinoma tissue with H&E staining.

Reproducibility

Accurate and reproducible feature selection is essential for SELDI application. The reproducibility of the current SELDI spectra was confirmed successfully, using a QC sample. The intra and inter-assay coefficients of variance for peak location were both 0.05%, and the intra- and inter-assay coefficients of variance for normalized intensity were 12 and 18%, respectively. Little variation was shown across day-to-day sampling and differences in instrumentation and chips (16,18).

SELDI spectra of rat serum

SELDI spectra of rat serum samples showed a total of 126 raw peaks in the m/z region of 1,000–20,000 Da. Using biomarker pattern software, the spectrum generated from pre-injection rats (1 week before injection) was compared to the spectrum generated from post-injection rats (4 and 6 weeks after injection, respectively). This comparison yielded a model consisting of 10 peaks that discriminated between pre-injection and post-injection rats during the development of ovarian cancer (P<0.05) (19). Among these 10 peaks, the 3 peaks that were found to be most valuable after comprehensive selection had peak intensity levels above 5. These 3 peaks corresponded to m/z ratios of 3759, 4659 and 9318 (Fig. 2) (8,19).

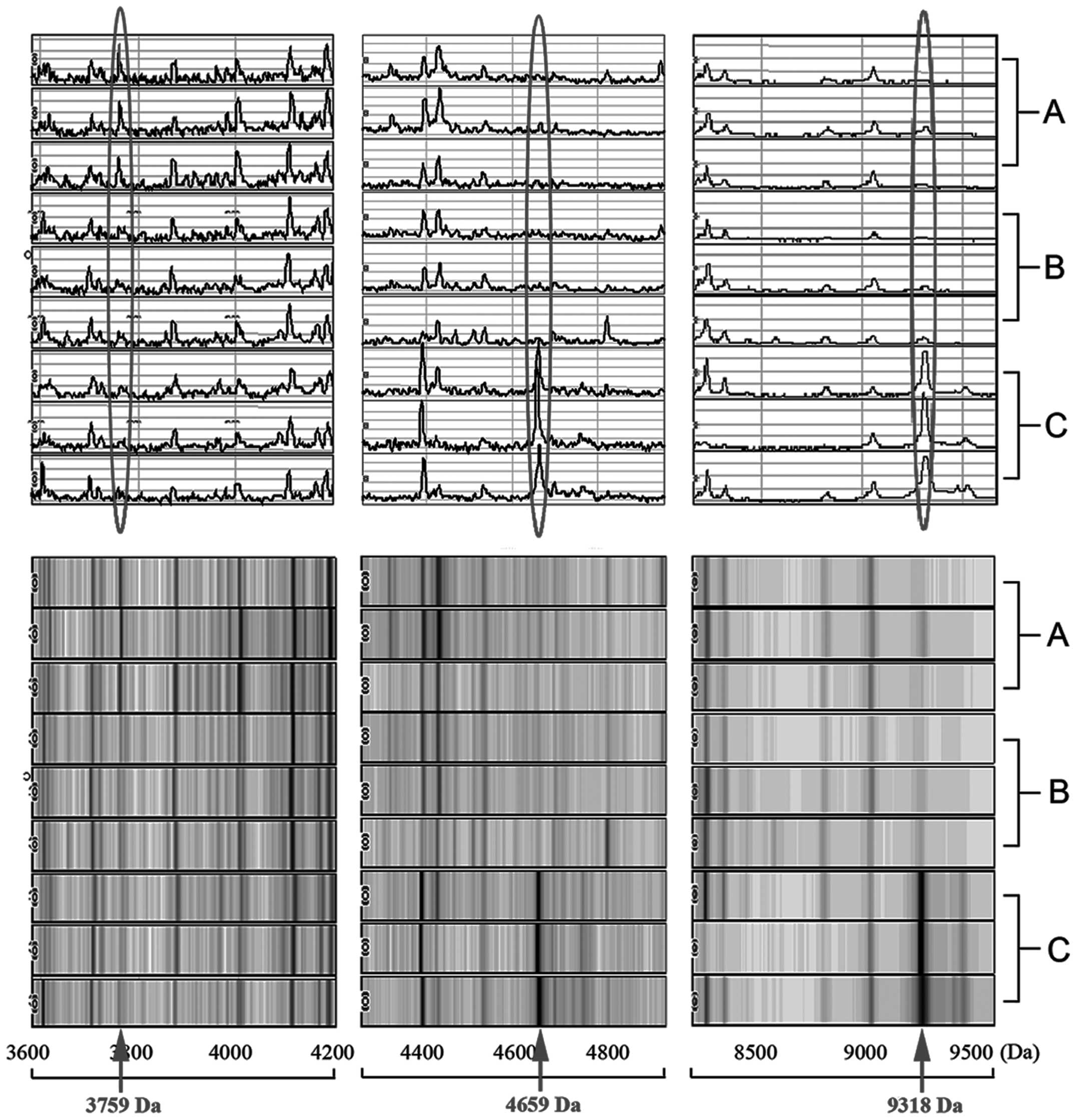

Figure 2 SELDI spectra of rat serum. Using biomarker pattern software, the spectrum generated from (A) rats 1 week before injection, (B) rats 4 weeks after injection and (C) rats 6 weeks after injection. These comparisons and comprehensive selection showed 3 peaks to be the most valuable. All had peak intensity above 5. These 3 peaks corresponded to m/z ratios of 3759, 4659 and 9318.

Expression frequency of key proteins

The expression frequency of m/z 3759 peaks was downregulated and that of the other two peaks (4659 and 9318) was upregulated during the development of ovarian cancer. The protein with molecular weight 3759 Da was expressed in 86.8% of the rats before injection of ovarian cancer cells. However, 4 weeks after injection, the frequency dropped to only 35.2%. At 6 weeks after injection, it had dropped to 8.4%. None of the proteins of 4659 Da were detected before injection but levels increased to 2.7 and 39.0% at 4 and 6 weeks, respectively. Similarly, the expression rates of the 9318-Da protein were 31.6% before injection and 67.6 and 75.0% at 4 and 6 weeks (Fig. 3A) (20–22).

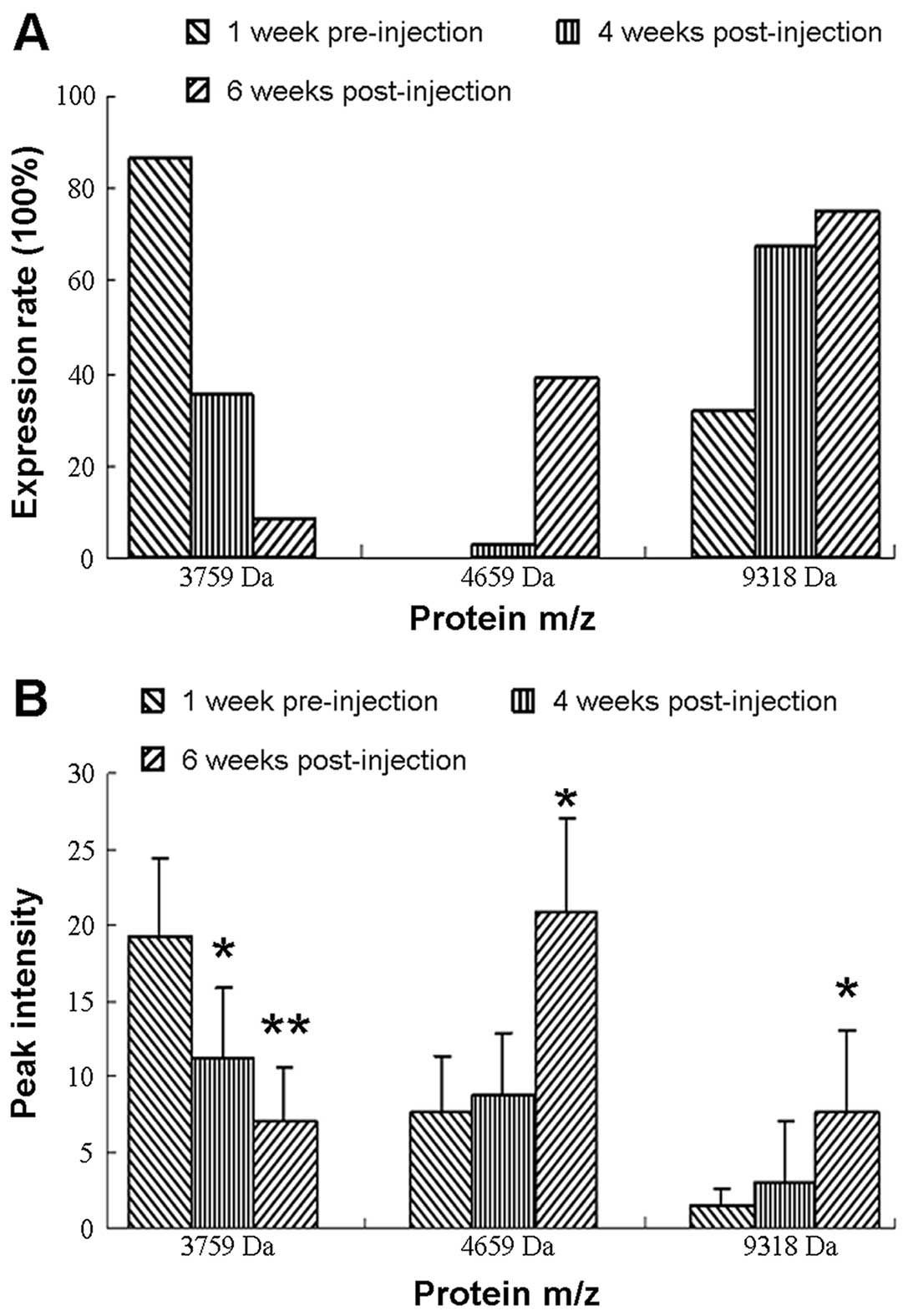

Figure 3 (A) Expression frequency/rate of key protein detection (3759, 4659 and 9318 Da). The 3759-Da protein was expressed in 86.8% of the rats before ovarian cancer cell injection, and the expression frequency dropped to only 35.2% at 4 weeks after injection and to 8.4% at 6 weeks. No 4659-Da proteins were detected before injection but it was found in 2.7 and 39.0% of rats at 4 and 6 weeks after injection, respectively. The expression rate of the 9318-Da protein was 31.6% before injection and 67.6 and 75.0% at 4 and 6 weeks after injection, respectively. (B) Peak intensity of key proteins (3759, 4659 and 9318 Da). The peak intensity of 3759-Da protein dropped from 19.19±5.2 before injection to 11.14±4.62 (*P<0.05) and 7.01±3.65 (**P<0.001) at 4 and 6 weeks after injection. The peak intensity of 4659-Da protein was 7.73±4.52 before injection and it increased gradually after injection to 8.78±4.21 (P>0.05) at 4 weeks and 21.37±6.19 (*P<0.05) at 6 weeks. The peak intensity of the 9318-Da protein before injection was 1.5±1.03, and it increased to 3.01±4.07 (P>0.05) at 4 weeks and 7.67±4.99 (*P<0.05) at 6 weeks after tumor cells injection. N=6 for all experiments. Data are expressed as mean ± SD. P vs. 1 week pre-injection.

Expression levels of key proteins

The expression levels of the 3759-, 4659- and 9318-Da proteins, here indicated by the peak intensity of each protein, showed the same tendency as the expression frequency before and after injection. The peak intensity of the 3759-Da protein dropped from 19.19±5.2 before injection to 11.14±4.62 (P=0.0177) and 7.01±3.65 (P=0.0008) at 4 and 6 weeks after. The peak intensity of the 4659-Da protein was 7.73±4.52 before injection and increased gradually after tumor injection to 8.78±4.21 (P>0.05) at 4 weeks and 21.37±6.19 (P=0.0014) at 6 weeks. Similarly, the peak intensity of protein 9318 Da before injection was 1.5±1.03, which was rather low, and subsequently increased to 3.01±4.07 (P>0.05) at 4 weeks and 7.67±4.99 (P=0.0141) at 6 weeks after tumor injection (Fig. 3B).

Establishment of a diagnostic decision tree

The decision classification tree was used as a predictive tool to distinguish the pre-injection rats from post-injection groups (23). The classification tree used 6 splitters with distinct masses of 4427.86, 9309.30, 5883.54, 4390.31, 5645.01 and 8219.00 Da, respectively. Cases were classified into 7 terminal nodes (Fig. 4). The error rate of the classification tree was estimated using cross-validation (24). At 4 and 6 weeks post-injection, the algorithm diagnosed 76.30% (29 of 38) and 81.08% (30 of 37) of cancer-bearing rats correctly and 86.84% (33 of 38) of the pre-injection rats were also diagnosed correctly. The total diagnostic accuracy rate of cancer-bearing rats at 4 and 6 weeks after injection were 94.7 and 97.3%, respectively, in the present study (Table I).

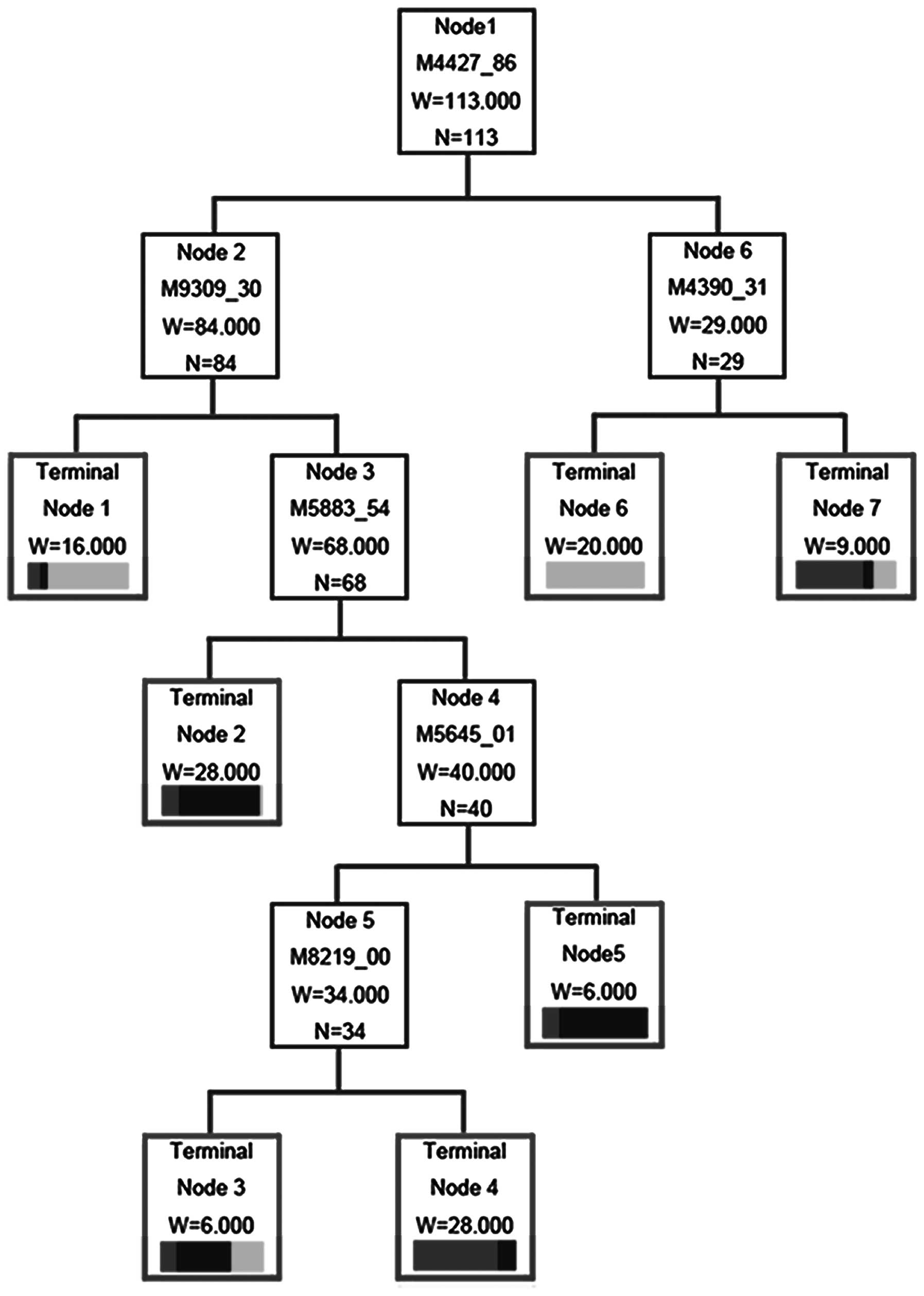

Figure 4 Diagnostic decision tree. Diagnostic decision tree used 6 splitters with distinct masses of 4427.86, 9309.30, 5883.54, 4390.31, 5645.01 and 8219.00 Da, respectively, and cases were classified into 7 terminal nodes.

Table I Diagnostic accuracy of tumor-bearing rats using diagnostic decision tree.

Table I

Diagnostic accuracy of tumor-bearing rats using diagnostic decision tree.

		Diagnosis accuracy rate (%)
	N	Pre-injection	4 weeks post-injection	6 weeks post-injection
Pre-injection	38	86.84	5.26	7.89
4 weeks post-injection	38	5.26	76.30	18.42
6 weeks post-injection	37	2.70	16.22	81.08

Discussion

For most types of cancers, survival rates depend on early diagnosis of the disease. For example, the 5-year survival rate of patients diagnosed at an advanced stage is ~35%, compared with 90% for cancers at stage I (2–4). According to the newest National Comprehensive Cancer Network (NCCN) guidelines for ovarian cancer, the diagnosis of ovarian cancer still depends mainly on imaging techniques and serum tumor markers testing. Current evidence shows that ultrasound imaging, CA-125, and human epididymis protein 4 (HE4) are useful in cancer diagnosis, but several of the markers used in recent studies, including CA-125, HE, B7-H4, mesothelin, decoy receptor 3 (DcR3) and spondin-2, are not adequately sensitive for use in early detection (25). However, the pathophysiological mechanisms of cancer development are not yet clear. Proteins carry out most cellular functions. The measurement of protein concentrations and activity levels can facilitate understanding of cancer pathogenesis. Once their roles in biology and pathology are understood, they may be used in the early detection of cancer. Traditional proteomics profiling techniques involve 2D gel electrophoresis, which is a low-throughput approach to proteomic analysis. Surface-enhanced laser desorption/ionization time-of-flight mass spectrometry (SELDI-TOF-MS) technology, which is high-throughput, may also serve as an alternative to the 2D PAGE approach (26). SELDI-TOF-MS may help researchers better understand cellular functions at the protein level.

Mass spectrometry based on proteomics has been widely used in many related studies to identify and map proteins in bodily fluids, and proteomics profiling is one commonly used approach in proteomics (27). In recent years proteomics profiling using SELDI-TOF-MS has shown considerable potential in the field of biomarker discovery (28). Changes in proteomic profiles that occur around the time of tumorigenesis can facilitate understanding of the mechanism of cancer development. However, most of these experiments have involved non-clinical research and it is difficult to obtain proteomic profiles of patients before their diseases are diagnosed (29). In a previous study, serum samples from ovarian cancer rats and non-cancer controls were obtained using SELDI-TOF-MS. A four-peak model was established in the training set. It was found capable of distinguishing cancerous from non-cancerous samples with a sensitivity of 90.8% and specificity of 93.5%. In a blind test of the same model, a sensitivity of 87.0% and a specificity of 95.0% were recorded (20). The purpose of the present study was to explore the changes in the proteomics profiles before and after tumor development using a Fischer 344 rat ovarian cancer model. As anticipated, key proteins were found during the development of ovarian cancer. A total of 126 raw peaks were found in the m/z region of 1000–20,000 Da. A model consisting of 10 peaks was established to distinguish between pre-injection and post-injection rats. Of these 10 peaks, 3 peaks (m/z ratios of 3759, 4659 and 9318) were found to be the relevant. The expression frequency of m/z 3759 peaks was downregulated and that of the other two peaks (4659 and 9318) was upregulated. This indicated that the first is a tumor suppressing gene and the other two are oncogenes. Any of these 3 proteins may serve as molecular targets in cancer therapy. They may also play key roles during tumorigenesis. Through establishing and analyzing a decision classification tree, we found the total diagnostic accuracy rate was also high enough (94.7% at 4 weeks and 97.3% at 6 weeks). Studies have pointed out that the act of identifying these protein peaks is significant in some way. These protein signatures may facilitate the identification of populations at high risk of cancer and monitoring of patients’ response to chemotherapy (30).

The present study evaluated the alterations in the proteomic profiling of the serum of tumor-bearing rats using SELDITOF-MS. These protein markers may be novel oncogenes or tumor suppressing proteins and may provide useful information on tumor cell growth and metastasis, genes related to the tumor cell microenvironment and specific molecular targets (31,32). It may be helpful in the diagnosis and monitoring of ovarian cancer and the development of individualized treatment. Further research is needed to identify relevant proteins and to confirm the current findings in humans. Hopefully, new cancer biomarkers in human bodily fluids can be used to trace cancer development through proteomic analysis, providing an opportunity to put forward cancer control measures, design novel drugs and optimize the use of molecularly targeted agents (31). Although SELDI-TOF-MS is not a current state-of-the-art proteomics technology, it is still a guide to human ovarian cancer early diagnostics. We will focus further on the identity of the proteins for their eventual functional validation on cancer biology relevance in our subsequent experiments.

Acknowledgements

This study was funded by research grants from the National Natural Science Foundation of China (nos. 81100403) and Foundation for Outstanding Young Scientist in Shandong Province of China (BS2013YY035).
