Introduction

Hepatocellular carcinoma (HCC) is the sixth most common cancer and the third most frequent cause of cancer death worldwide (1). Although partial liver resection and liver transplantation have significantly improved survival in patients with small tumors, the prognosis for HCC remains poor because of tumor invasiveness, frequent intrahepatic spread and extrahepatic metastases (2). Thus, effective non-surgical strategies and identification of the molecular mechanisms are crucially responsible for control of the growth, invasive and metastatic potential of HCC.

Therefore, a clearer understanding of the molecular mechanisms underlying tumor invasiveness and migration is essential for the development of new therapies for HCC. Epithelial-mesenchymal transition (EMT) is defined as a process during which epithelial cells lose their cell polarity, phenotypic characteristics and acquire mesenchymal cell features (3). It has been suggested that EMT might be closely associated with the acquisition of aggressive traits by tumor cells, thus facilitating the early stages of metastasis and the subsequent dissemination of carcinoma cells (4–6). Increasing evidence indicates that aberrant regulation of EMT is a determinant of the cancer cell invasive and metastatic behavior. Therefore, targeting EMT may serve as an efficient strategy for the treatment of malignant and metastatic tumors.

All-trans retinoic acid (ATRA), as a predominant natural metabolite of vitamin A, is involved in many important biological processes, including vision, morphogenesis, differentiation, growth, metabolism, and cellular homeostasis (7). ATRA is currently used to induce remission in patients with acute promyelocytic leukemia and has the potential for use in the treatment of solid tumors including HCC (8–11). Many studies have reported that ATRA has anti-HCC ability. Additionally, ATRA combined with other chemotherapeutic agents could induce cancer cell differentiation, increase the sensitivity of hepatocarcinomas to chemotherapy, reduce cell migration in vitro and metastasis in vivo (12,13). However, the mechanisms underlying the effect of ATRA on HCC are largely unknown. It has been revealed that ATRA can induce mesenchymal to epithelial transition of HCT116 cells (10), while ATRA modulates epithelial-to-mesenchymal-transition of mammary tumor cells via the TGFβ and NOTCH pathways (11). Thus, we raised a hypothesis that the anti-HCC effect of ATRA might be closely related to the reverse process of EMT.

In this study, we demonstrated that ATRA could inhibit the proliferation, migration, invasion of mouse hepa1-6 hepatocarcinoma cell lines, as well as induce their differentiation and hepatic function. Then, we found that the antitumor process was correlated with the decreased expression of mesenchymal marker genes and the increased expression of epithelial marker genes by regulation of ATRA. Our study may support the understanding of anti-HCC effect of ATRA and promote its clinical application to this disease.

Materials and methods

Cell and chemicals

The mouse hepa1-6 hepatocarcinoma cell lines was purchased from the American Type Culture Collection (Manassas, VA, USA) and maintained in complete Dulbecco's modified Eagle's medium (DMEM, Gibco Life Technologies, Carlsbad, CA, USA) supplemented with 10% fetal bovine serum (FBS, Gibco Life Technologies), 100 U/ml penicillin, and 100 μg/ml streptomycin at 37°C in 5% CO2. Unless indicated otherwise, all chemicals were purchased from Sigma-Aldrich (St. Louis, MO, USA), all antibodies were purchased from Santa Cruz (USA). PCR primers were synthesized by Huada Gene Inc (Shenzhen, China).

Treatment of ATRA

The Hepa1-6 cells were treated with complete DMEM medium containing different concentrations of ATRA (0.1, 1.0 and 10.0 μmol/l). The culture was replaced every three days. The group without ATRA treatment was set up as control group. Three independent experiments were performed in duplicate.

Trypan blue staining

Cells were incubated in 24-well plates at 5.0×104 cells per well with different concentrations of ATRA treatment. Cell viability was measured by trypan blue staining after treatment at days 0, 2, 4 and 6. Both adherent and suspended cells were collected and mixed with 0.4% 2X trypan blue buffer. Cell mixture (10 μl) (~106 cells/ml) was counted using hemocytometer under a microscope (Nikon Eclipse Ti, Japan). The dead cells were stained blue. The mean and standard deviation were calculated.

Colony formation assay

The colony formation rate indicates the independent proliferation and viability of cells. Briefly, logarithmic phase cells were planted in 12-well plates at 500 cells per well. Culture medium was replaced when the generative cells attached to the wall. After incubation for 20 days, the visible colonies were fixed with 4% paraformaldehyde for 30 min and then stained with 0.1% crystal violet for 10 min. Cells were washed twice with PBS after each step. The cell colonies were observed and counted under the inverted microscope. Fifty cells are equivalent to one colony and the cell colony formation rate was calculated as follows, Rcf = Ncf/Nvc × 100%, where Rcf is the rate of colony formation, Ncf is the number of colonies formed, Nvc is the number of vaccinated cells.

Wound-healing assay

To determine the cell migratory ability, the classical scratch would-healing assay was performed as described (14). Briefly, 5.0×104 cells per well were incubated in 6-well plates. A linear wound was made by scraping a pipette tip across the cell layer. After washing three times with PBS to remove floating cells and debris, cells were incubated in culture medium with different concentrations of ATRA. Then the scratched fields were photographed at 0, 24 and 48 h to calculate the wound healing.

Transwell migration and invasion assay

For Transwell invasion assay, logarithmic phase cells were trypsinized and re-suspended in DMEM/ATRA without FBS. Cell suspension (200 μl) was added to the Transwell upper chamber coated with Matrigel membrane in triplicate. DMEM culture solution containing 10% FBS was added to the lower chamber of each well and incubated for 48 h at 37°C. The non-invasive cells on the upper surface of the membrane were removed and the invasive cells were stained in 100 μl crystal violet (Bioteke, Beijing, China). The invasive cells in five random high power fields were counted. The Transwell migration assay was the same as the invasion assay, with the exception of the Matrigel coating. The cells were stained and counted, as aforementioned.

RNA extraction and quantitative real-time polymerase chain reaction (real-time qPCR)

Cells were incubated with different ATRA treatments for 2, 4 and 7 days. As previously described (15), total RNA was extracted by using an RNA Extraction kit (Bioteke) according to the manufacturer's instructions and then reverse transcribed into cDNA by using Superscript II reverse transcriptase (Thermo Fisher Scientific, USA). The PCR templates were prepared with 5- to 10-fold dilution of the first strand cDNA products. The cDNA samples at days 2 and 4 were used to detect the EMT genes (E-cadherin, N-cadherin, vimentin, snail, twist and fibronectin). N-cadherin, vimentin, snail, twist and fibronectin are mesenchymal markers, E-cadherin is an epithelial marker (16,17). The cDNA samples at day 7 were detected for the differentiation genes as follows ALB (albumin), CK18 (cytokeratin 18), TAT (tyrosine aminotransferase), ApoB (apolipoprotein B), and AFP (α fetoprotein). The genes of interest were amplified with qPCR primers which were designed using the Primer 3.0 program (Table I). A real-time PCR protocol for real-time PCR amplification was performed as follows: 72°C × 3 min, 94°C × 3 min, 92°C × 20 sec, 72°C × 20 sec, 9 cycles, with 1°C degree decrease per cycle, followed by 94°C × 20 sec, 55°C × 20 sec, 72°C × 20 sec for 25–30 cycles and 72°C × 3 min. All samples were normalized by endogenous levels of β-actin.

Table I Sequences of primers for real-time qPCR.

Table I

Sequences of primers for real-time qPCR.

Name of genes	Sequences of primers (5′-3′)
	Forward	Reverse
β-actin	AGGGAAATCGTGCGTGAC	CGCTCGTTGCCAATAGTGA
ALB	CCAGACATTCCCCAATGC	CAAGTTCCGCCCTGTCAT
AFP	ACGAGGAAAGCCCCTCAG	GCCATTCCCTCACCACAG
CK18	CTGGGCTCTGTGCGAACT	ACAGAGCCACCCCAGACA
TAT	ACCTTCAATCCCATCCGA	TCCCGACTGGATAGGTAG
ApoB	CATGTGATCCCCACAGCA	TCCCAGGACCATGGAAAA
E-cadherin	CAAGGACAGCCTTCTTTTCG	TGGACTTCAGCGTCACTTTG
N-cadherin	CTGGGACGTATGTGATGACG	TGATGATGTCCCCAGTCTCA
vimentin	CAGATGCGTGAGATGGAAGA	TCCAGCAGCTTCCTGTAGGT
snail	AAACCCACTCGGATGTGAAG	GAAGGAGTCCTGGCAGTGAG
twist	CAGCGGGTCATGGCTAACG	CTTGTCCGAGGGCAGCGT
fibronectin	GCAGAACCAGAGGAGGCACA	CAATGGCGTAATGGGAAACC

Western blot analysis

After treatment of ATRA for 7 days, total proteins of each group were extracted. Thereafter 20 μg of total protein per group were separated on a 10% SDS-PAGE (Beyotime Institute of Biotechnology, Shanghai, China) and electrophoretically transferred to PVDF membrane (Milipore, Billerica, MA, USA). After blocked with 5% fat-free skim milk at room temperature for 2 h, membranes were incubated at 4°C overnight with primary antibodies against AFP (1:200; goat. no. sc-8108; Santa Cruz Biotechnology, Inc., Dallas, TX, USA), ALB (1:200; goat. no. sc-46293; Santa Cruz Biotechnology, Inc.), CK18 (1:200; mouse. no. sc-51582; Santa Cruz Biotechnology, Inc.) and β-actin (1:200; mouse. no. sc-47718; Santa Cruz Biotechnology, Inc.), followed by probing with the appropriate second antibody at room temperature for 1 h. The presence of the proteins of interest was detected by using the G-BOX iChemi XR gel documentation system (Syngene, Cambridge, UK).

Immunofluorescence staining

Cells receiving the indicated treatments were cultured in 24-well plates for 7 days; immunofluorescence staining was carried out as previously reported (15). Cells were fixed with 4% paraformaldehyde for 15 min and then perforated with 5% triton for 20 min. The fixed cells were blocked with 5% goat serum for 1 h, followed by incubation with primary antibodies against AFP and CK18 at 4°C overnight, then incubated with DyLight® 594- or 488-conjugated secondary antibody (Jackson ImmunoResearch Laboratories, Inc., West Grove, PA, USA) for 1 h. Nuclei were stained with DAPI. Cells were washed twice with PBS after each step. The presence of proteins was examined under a fluorescence microscope (TE2000-S, Nikon).

Indocyanine green (ICG) uptake and release

Cells in 24-well plates were washed twice with PBS and incubated with DMEM supplemented with freshly prepared ICG at a final concentration of 1 mg/ml for 1 h at 37°C 5% CO2. Then DMEM was removed and cells were gently washed three times with PBS, the green-stained cells were photographed under a microscope. Complete medium was then added and the cells were incubated for >6 h; the cells were then observed under a microscope to ensure ICG release. At least 10 non-overlapping fields of vision were recorded.

Periodic acid-Schiff (PAS) staining

Cells cultured as described above were fixed with 4% paraformaldehyde at day 7. Subsequently, cells were stained by 0.5% periodic acid for 5 min, and Schiff's solution for 15 min, in turn. All steps were carried out at room temperature and cells were washed with ddH2O gently after each step. The positive cells stained purple. More than 10 non-overlapping fields of vision in each group were recorded under a microscope.

Statistical analysis

The data are presented as mean ± standard deviation (SD) and analyzed using the SPSS 15.0 software package. A two-tailed Student's t-test assuming equal variances was performed to measure significant differences between two groups and variance analysis was performed to measure significant differences among at least three groups. A p<0.05 was considered to be statistically significant.

Results

ATRA inhibits proliferation and colony formation of hepa1-6 cells

As shown in Fig. 1A, ATRA effectively inhibited cell proliferation compared with blank control. The inhibition efficiency of ATRA was enhanced gradually with the increase of concentration, which was strongest at day 6 with 10.0 μmol/l ATRA treatment. The colony formation rate indicates the independent viability of cells. Treatment with ATRA significantly exhibited inhibitory effects on cell colony formation. Moreover, the rate of cell colony formation also decreased gradually with the increase of ATRA concentration. The colony formation rates of ATRA at concentration of 0, 0.1, 1.0, 10.0 μmol/l were 10, 5.75, 5.25 and 3.25%, respectively (Fig. 1B, p<0.05). Therefore, this result suggested that ATRA inhibited cell proliferation in a dose-dependent manner.

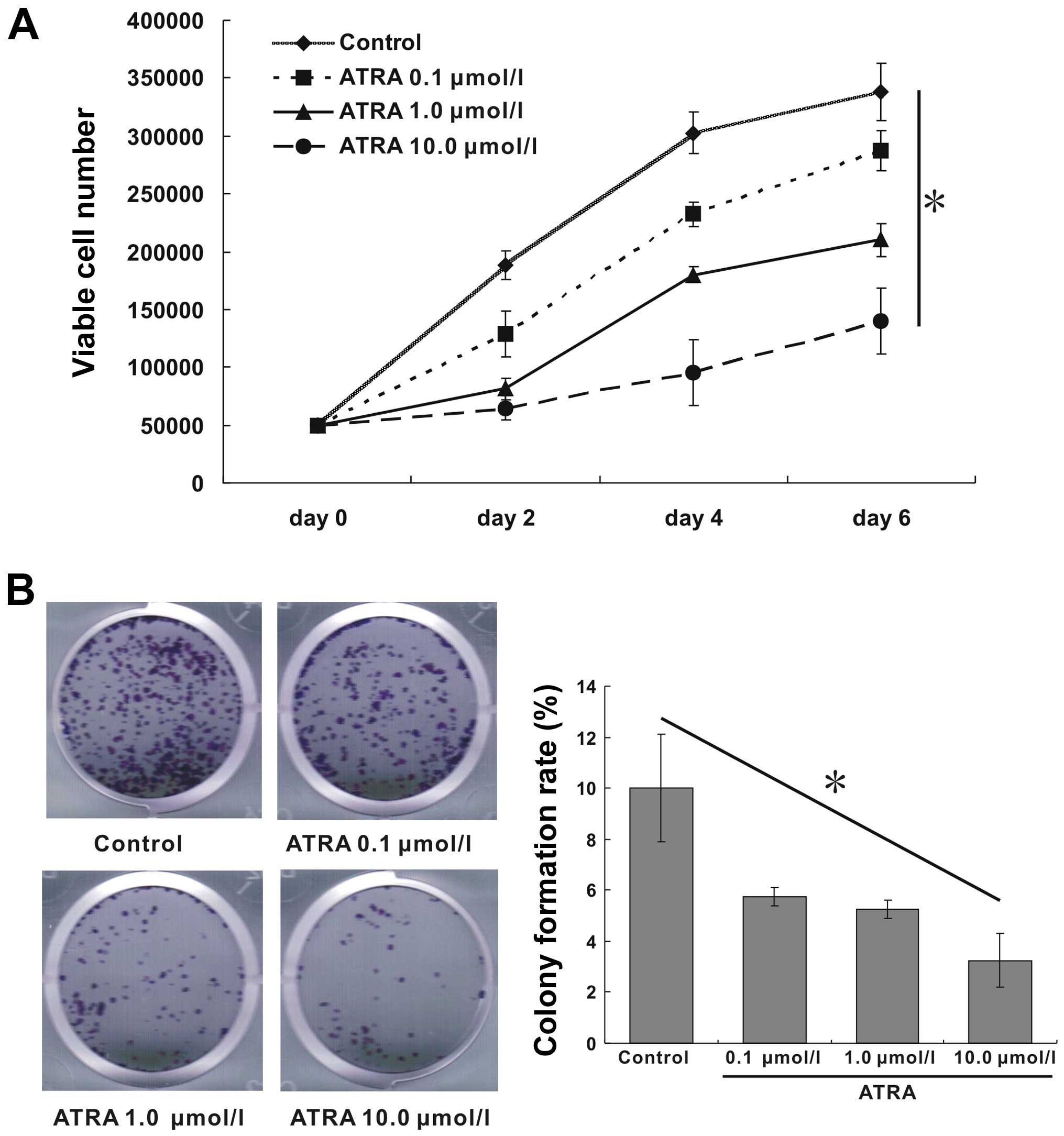

Figure 1 ATRA inhibited hepa1-6 cell proliferation and colony formation in a dose-dependent manner. (A) Cell growth curve was evaluated by trypan blue staining to measure viable cells. (B) Colony formation assay. Three independent experiments were performed in duplicate, and representative results are shown (*p<0.05).

ATRA suppresses the migration and invasion of hepa1-6 cells

HCC has highly metastatic capacity because of its strong migratory ability. Wound-healing assay was used to detect the horizontal migration capability of cells. We found that ATRA inhibited the horizontal migration ability of hepa1-6 cells (Fig. 2A). The similar results of Transwell migration assay showed, that cell migration followed a downward trend as the concentration of ATRA increased. The migration rates in 0, 0.1, 1.0, 10.0 μmol/l ATRA treated groups were 52.14, 45.17, 29.24 and 22.68%, respectively, the migration rate of 10.0 μmol/l group declined by >56.50% compared with blank control (Fig. 2B, p<0.05). The invasive ability of the cells induced by ATRA was detected by the Matrigel invasion assay. The invasive ability of hepa1-6 cells after ATRA treatment was remarkably attenuated and also exhibited a dose-dependent manner. The positive invasive rates at corresponding ATRA concentration were 6.25, 3.92, 3.36 and 3.12%, respectively, the invasive rate of 10.0 μmol/l group reduced by 50% compared with blank control (Fig. 3, p<0.05). These results indicated that ATRA possessed excellent inhibitory effects on the migration and invasion of hepa1-6 cells.

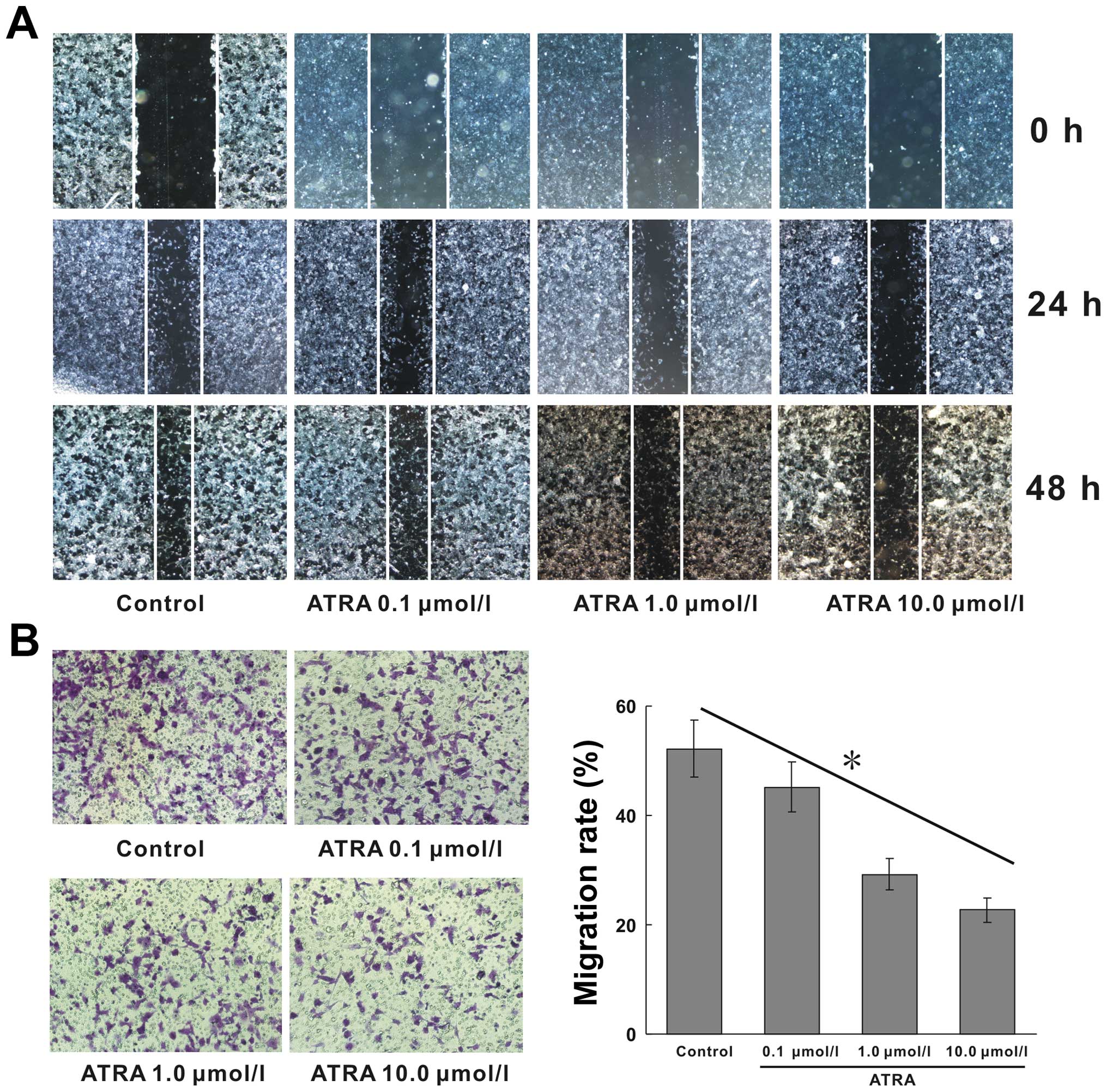

Figure 2 ATRA inhibits the migration of hepa1-6 cells. (A) The migration of hepa1-6 cells were determined by Wound-healing assay. (B) Transwell migration assay. The number of migratory cells detected by Transwell migration assay at different concentrations of ATRA (*p<0.05).

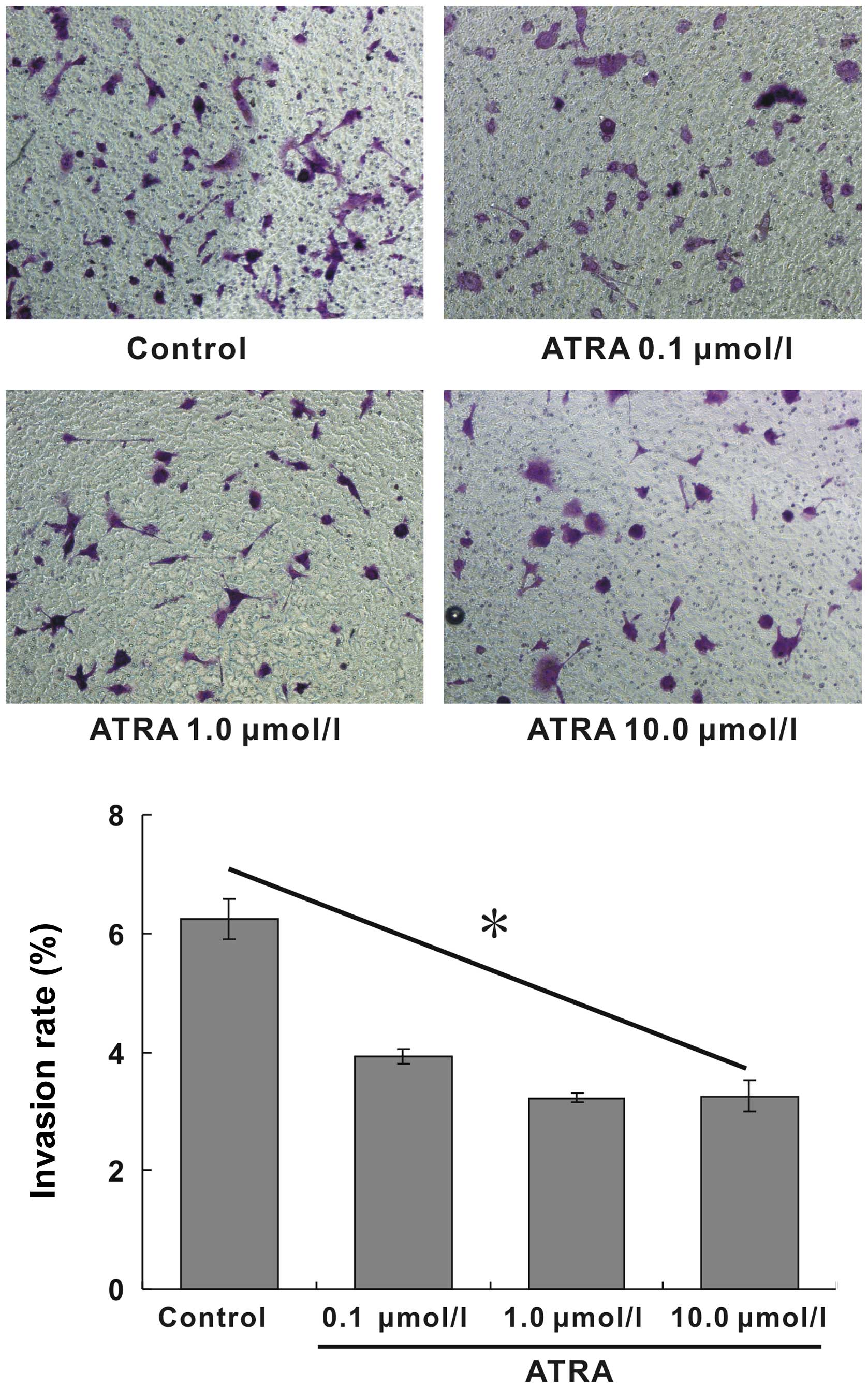

Figure 3 ATRA suppresses the invasion of hepa1-6 cells. Transwell Matrigel invasion assay was used to determine the invasion ability of hepa1-6 cells receiving treatment of ATRA (*p<0.05).

ATRA induces the differentiation of hepa1-6 cells

Due to the inhibitory ability of ATRA on mesenchymal phenotype in hepa1-6 cells, we tried to further detect the regulation of ATRA on its epithelial phenotype. ALB, CK18, TAT, and ApoB are important molecules associated with mature hepatocytes. As shown in Fig. 4A, all the mRNA expression of these markers were upregulated by ATRA. Moreover, the regulation effect appeared to be strengthened with the increasing concentration of ATRA (p<0.05). Additionally, AFP, a marker of hepatocarcinoma, was downregulated (p<0.05). The patterns of the protein expression of ALB, CK18 and AFP as detected by the western blotting results (Fig. 4B), largely corresponded to those observed by quantitative real-time PCR. In addition, immunofluorescence staining carried out to detect the protein expression of AFP and CK18 also showed a similar trend (Fig. 4C). All these results indicated that ATRA could effectively induce hepa1-6 cells to mature hepatocytes at least in the mRNA and protein levels.

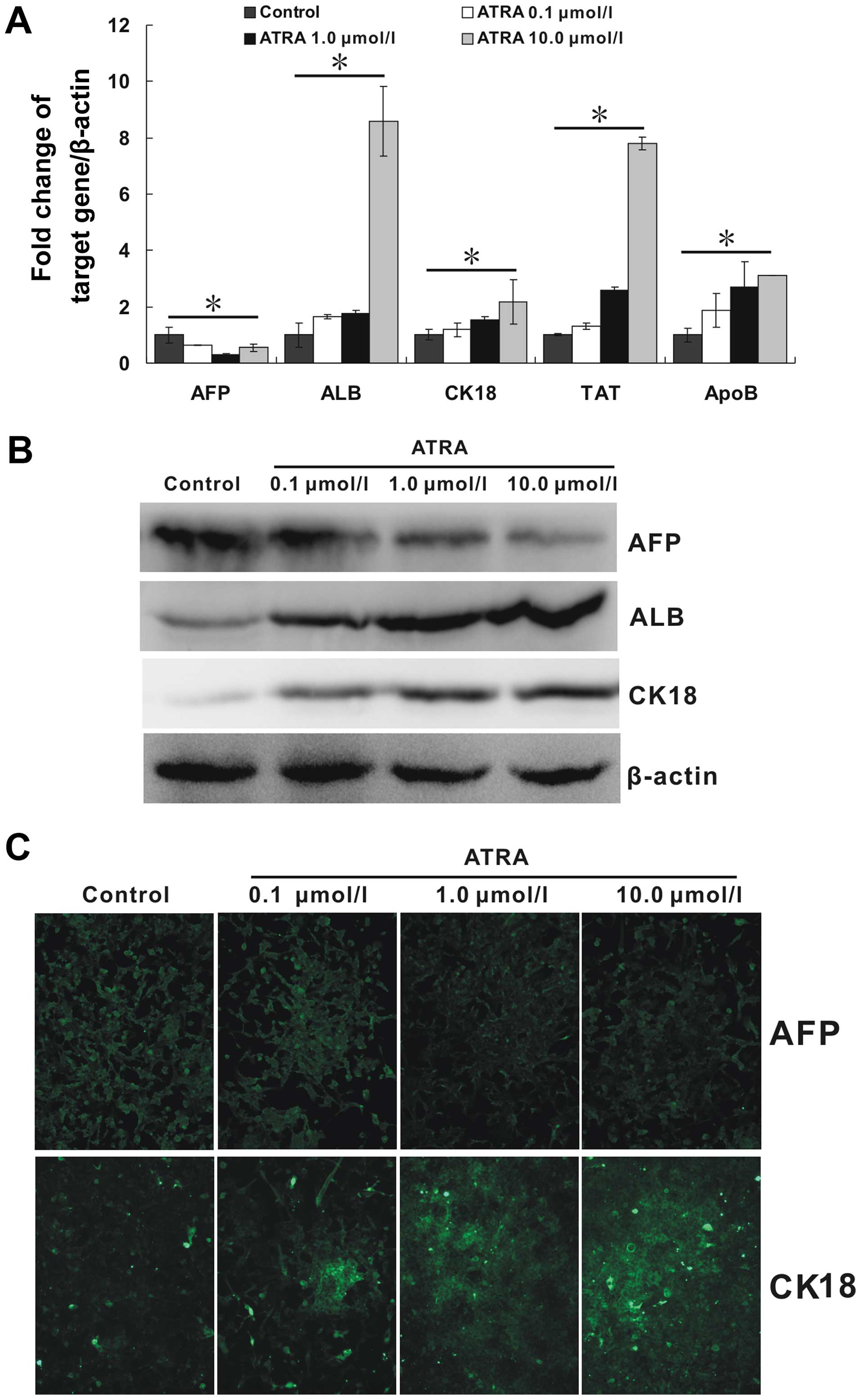

Figure 4 ATRA promotes hepa1-6 cells to functional hepatocytes in the mRNA and protein expression levels. (A) qRT-PCR analysis of the mature hepatocytes and hepatocarcinoma related genes, ALB, CK18, TAT, ApoB and AFP. The qRT-PCR results were confirmed in at least 3 batches of independent experiments, and representative results are shown (*p<0.05). (B) Western blotting of AFP, ALB and CK18 was analyzed with β-actin normalization. Each bar represents the mean ± SD, n=4 (*p<0.05). (C) Immunofluorescence staining of AFP and CK18.

ATRA induces hepa1-6 cells to display functions

To further substantiate the hypothesis that ATRA may induce hepa1-6 cells to be functional cells; we performed ICG uptake and PAS staining. The evaluation of ICG uptake is a common way to estimate liver function (18). As shown in Fig. 5, almost no the green-positive cells were observed in blank control, while many areas of cells in the treatment groups were stained green. On the other hand, mature hepatocytes have the ability of glycogen synthesis and storage. PAS staining method is used to detect glycogen which is displayed by a purple color in the cytoplasm (19). Following ATRA treatment indicated above, the purple color in cytoplasm was significantly increased. Furthermore, with the increasing concentration of ATRA, the positive rate in both ICG uptake and PAS staining were increasing. Taken together, these results suggested that ATRA induction could not only improve the expression of hepatic markers and inhibit hepatocarcinoma markers, but also effectively induced hepa1-6 cells to display functions similar to those of mature hepatocytes.

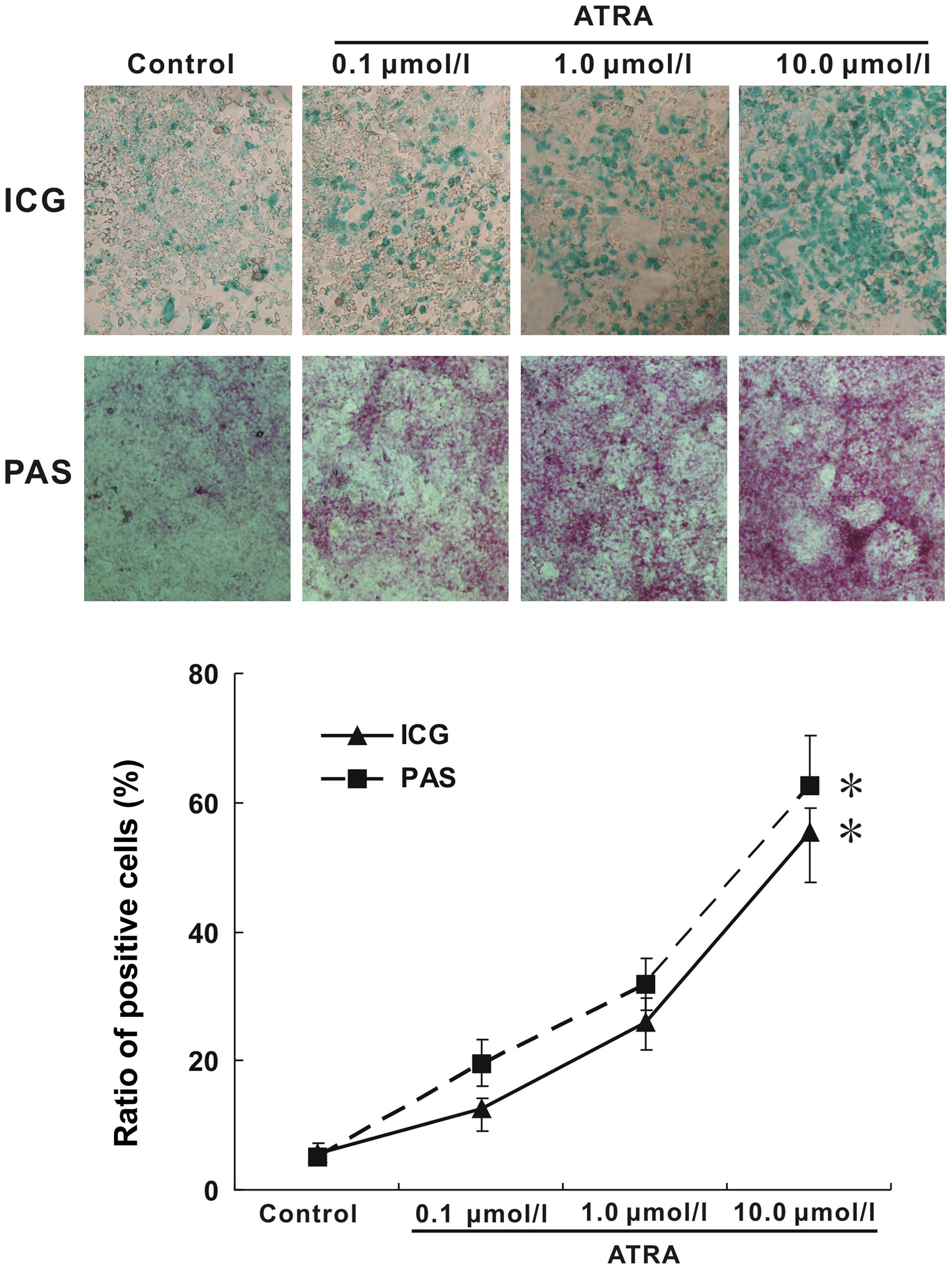

Figure 5 ATRA induces hepa1-6 cells to restore mature hepatocyte functions. Function analysis was performed on day 7 following treatment. Indocyanine green (ICG) uptake assay: cells with a green-stained nucleus are the positive-stained cells. Periodic acid-Schiff (PAS) staining, purple color in cell plasma indicates glycogen accumulation (*p<0.05).

ATRA regulates the expression of EMT markers

Finally, we investigated whether the regulation effect of ATRA on hepa1-6 cells had association with EMT. For this purpose, mRNA expression of critical genes for EMT process including E-cadherin, N-cadherin, vimentin, snail, twist, and fibronectin were assessed by real-time PCR at days 2 and 4. E-cadherin plays a central role in maintaining epithelial cell-cell adhesion and polarity (20). Compared to control, E-cadherin expression had a remarkable increase in the ATRA groups, and its expression between days 2 and 4 had statistical significance. In contrast, ATRA treatment resulted in a strong repression on the expression of mesenchamal markers, including N-cadherin, vimentin, snail and twist. However, there was no difference between days 2 and 4. Moreover, the expression presented a dose-dependent trend. The expression of fibronectin could not be regulated by ATRA (data not shown). Especially, the expression of E-cadherin of 10.0 μmol/l group at day 4 was remarkably enhanced, with a >3.7-fold increase, the expressions of N-cadherin and twist at day 2, vimentin and snail at day 4 in 10.0 μmol/l group were decreased by 75, 56.1, 51.2, and 67.7%, respectively, compared with blank control (Fig. 6, p<0.05). Therefore, we demonstrated that ATRA was able to reverse EMT process of hepa1-6 cells by regulating EMT marker genes.

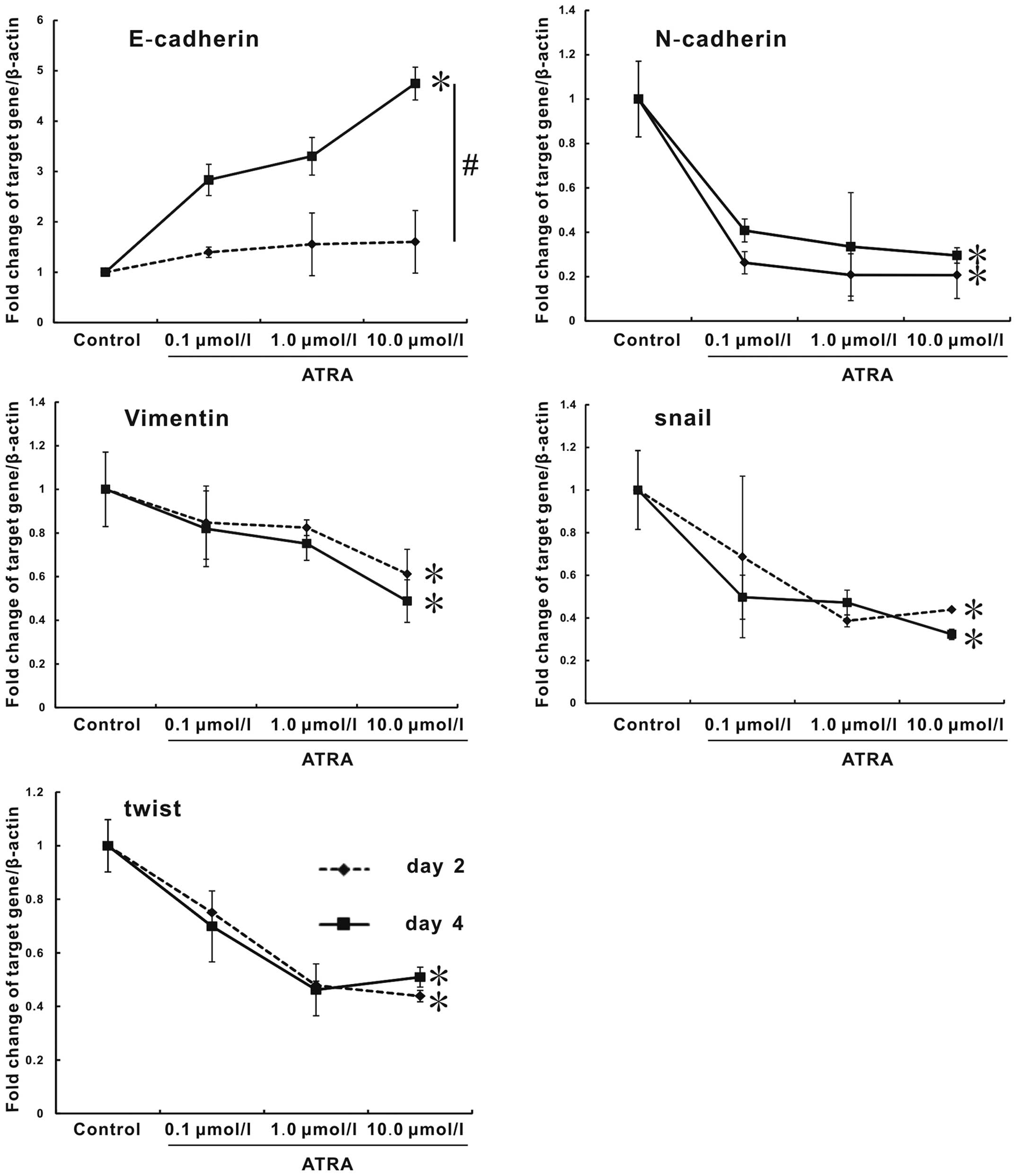

Figure 6 ATRA regulated the expression of EMT markers. The mRNA expression of EMT markers including E-cadherin, N-cadherin, vimentin, snail and twist were measured by real-time PCR analysis at days 2 and 4. The results were confirmed in at least 3 batches of independent experiments, and representative results are shown. *p<0.05, #p<0.05 at day 2 compared with day 4.

Discussion

Recurrence and metastasis are characteristic features of HCC and the main factors related to poor prognosis in patients with HCC. In recent years, an increasing number of researchers have reported the role for EMT in tumor invasion and metastatic spread. On the other hand, the transition from primary CSCs (cancer stem cells) to EMT-positive CSCs is a significant step in HCC progression. Studies suggest that CSCs having EMT phenotypes are associated with sensitivity and resistance to chemotherapy in various tumor models. Therefore, chemotherapeutics which can inhibit or reverse EMT process would be effective for the treatment of malignant and metastatic tumors including HCC. ATRA, the most important active form of vitamin A, is especially required with respect to embryonic development, growth, night vision, and the maintenance of the immune system. ATRA also functions as a hormone-like growth factor for epithelial and other cells, can induce differentiation in many cell types and is the most widely used differentiating therapeutic agent (21,22). ATRA is the first example of a clinically useful cyto-differentiating agent to be used in the treatment of acute promyelocytic leukemia (23). Now it is proposed as an antitumor agent not only in the context of hematological malignancies but also the chemo-prevention and treatment of many cancers including HCC (8–11). In addition, it has been reported that ATRA could be used as a chemopreventive agent to inhibit the progression of premalignant lesions of the breast (24,25). In the present study, we investigated the effect of ATRA on the proliferation, migration, invasion and differentiation of hepatocarcinoma cells and explored whether ATRA regulate EMT in the antitumor process.

In this study, we investigated whether ATRA at different concentrations influence the cell phenotype and biological characteristics of hepatocarcinoma hepa1-6 cells. We found that ATRA significantly inhibited the proliferation, migration and invasion capability of cells in a dose-dependent manner. It is worth mentioning, the trypan blue exclusion assay is a very common assay for evaluating the cell viability (26,27), the blue stained cell indicates incomplete cell membrane, whereas live and apoptosis cells possess intact cell membranes that remain unstained. In this study, proportions of unstained and stained cells among control group and all the ATRA treatment groups were not significantly different (data not shown). Thus, we suggested ATRA at the concentration range of 0.1–10.0 μmol/l had almost no cytotoxicity to hepa1-6 cells. In addition, the cell density of each group in the wound-healing assay exhibited no difference after 2 days of ATRA treatment, indicating the reduced cell migration was mainly attributed to the decreased migratory capability of hepa1-6 cells, rather than the decreased cell number caused by apoptosis. Furthermore, it was reported that ATRA at low concentration (0.1 μmol/l) could generate these influences. In addition, with the increasing of concentration, the inhibitory effects were enhanced. It has been reported that ATRA at 10 μg/ml (=33.3 μmol/l) inhibited lung adenocarcinoma A549 cell activity (28), 50.0 μmol/l ATRA treatment could shorten the G2/M phase of A549 cell cycle and keep it at G0/G1 phase (29). ATRA (1 μmol/l) was able to re-differentiate trMCF (transformed breast epithelial cells) at their early stages by regulating breast cancer associated genes. While, the invasive and tumorigenic breast cells did not show any changes in morphology after ATRA treatment (24). Thus, hepatocarcinoma hepa1-6 cells may be more sensitive to the low concentration of ATRA, supporting a beneficial clinical application of ATRA on the therapy of HCC. Next, we further evaluated the effects of ATRA on cell differentiation. Studies have reported ATRA induced maturation of certain kinds of cancer cells. For example, ATRA facilitates the differentiation of acute promyelocytic leukemia cells toward mature granulocytes (30). Oral administration of ATRA induces differentiation of promyelocytic leukemic cells to mature neutrophils (31). Our results also proved that ATRA could effectively induce the expression of late hepatic markers of hepa1-6 cells and improved their hepatic function of metabolism and synthesis. Moreover, this regulation appeared to be strengthened with the increasing concentration of ATRA. Migration and invasion capability are indicators of mesenchymal phenotype, while matured differentiation of hepa1-6 cells represents the enhancement of their epithelial phenotype. Therefore, our results indicated that ATRA might reverse EMT of hepa1-6 cells.

The downregulation of epithelial markers and the upregulation of mesenchymal markers are both characteristic of EMT. E-cadherin is a key protein in cell polarity and epithelial organization. The reduction or loss of E-cadherin has become one of the hallmarks of EMT, and was frequently associated with dedifferentiation, metastasis and invasion in a variety of human malignancies, including HCC. N-cadherin, vimentin, snail, twist, and fibronectin are known as mesenchymal markers, which are closely linked to several human malignancies (32–34). Moreover, combined detection of these EMT markers has more significance for the mechanism of cancers. Ye et al (34) reported that the low expression of E-cadherin and high expression of N-cadherin were significantly related with local infiltration depth, tumor staging, vascular invasion, and tumor differentiation level. The combined detection of E-cadherin and vimentin has a prognostic value for the patients with oral squamous cell carcinoma (35). Some anticancer drugs targeting these EMT markers are currently used in clinic (36–38), such as silibinin, which inhibits HCC cell proliferation, migration, and invasion via the inhibition of vimentin expression (36). Here we investigate whether ATRA regulates the EMT process and related markers of hepa1-6 cells. We found that ATRA treatment significantly modulated these markers including enhanced expression of E-cadherin and suppressed the expression of N-cadherin, vimentin, snail and twist in HCC cells. In addition, CK18 is one of the epithelial markers associated with EMT and closely related to various cancers (39,40). The expression of CK18 was upregulated by ATRA and was dose-dependent, as was E-cadherin. However, the expression of fibronectin could not be regulated by ATRA (data not shown). Interestingly, the expression of E-cadherin showed significant difference between days 2 and 4, but no difference of all mesenchymal marker genes was obtained between days 2 and 4, which suggested that the regulation of ATRA on mesenchymal phenotype was triggered probably earlier than the epithelial phenotype. These results indicated that ATRA could inhibit EMT and promote the reverse process in HCC cells. In conclusion, this study demonstrated that ATRA remarkably suppressed hepatocarcinoma proliferation, migration and invasion, as well as effectively induced hepatic tumor cells to restore mature function in vitro through reversing EMT. Interestingly, these effects of ATRA displayed a strengthened trend with the increasing concentration. Our results will contribute to a better understanding of the regulatory mechanisms of ATRA in HCC and provide a strong foundation for the clinical application of ATRA for HCC therapy.

Acknowledgements

This study was supported by grants from the National Natural Science Foundation of China (no. 81100309 to Y.B).
