Introduction

Osteosarcoma (OS) is the most common type of primary malignant bone tumor diagnosed in children and adolescents (1). Despite advancements in multi-agent chemotherapies and surgical techniques, the prognosis for patients with OS remains poor, owing to its high recurrence rate and metastatic potential (2,3). The precise mechanisms underlying OS carcinogenesis and progression remain largely unknown. Therefore, the elucidation of the mechanisms that mediate the initiation and progression of OS carcinogenesis, and an exploration of potential therapeutic agents are urgently required (4).

MicroRNAs (miRNAs) are a class of small non-coding regulatory RNAs (19–25 nucleotides) that serve roles essential for diverse biological processes, including cellular proliferation, migration, invasion and apoptosis (5–8). miRNAs usually bind imperfectly to the 3′-untranslated regions (3′-UTRs) of target mRNAs. Previous studies have demonstrated that miR-544 serves pivotal roles in various types of cancer. miR-544 was reported to suppress proliferation, invasion and migration, and to induce cell apoptosis, in glioma by targeting Parkinsonism-associated deglycase (9). miR-544 was demonstrated to act as an oncogene in gastric cancer by repressing Iroquois homeobox 1 (10). However, to the best of our knowledge, the role of miR-544 in OS has not yet been reported. In the present study, we detected miR-544 expression in human OS tissues and cell lines, the biological effects and potential mechanisms of miR-544 in OS were investigated.

Materials and methods

Cell culture

Human OS cell lines, U2-OS, SAOS-2, MG-63 and SOSP-9607, and the human osteoblast cell line h-FOB, were purchased from the Cell Bank of Chinese Academy of Sciences (Shanghai, China) and grown in Dulbecco's modified Eagle's medium (DMEM; Gibco; Thermo Fisher Scientific, Inc., Waltham, MA, USA) supplemented with 10% fetal bovine serum (FBS; Sigma-Aldrich; Merck KGaA, Darmstadt, Germany) and 100 U/ml penicillin/streptomycin (Invitrogen; Thermo Fisher Scientific, Inc.). Cell lines were cultured in a humidified incubator at 37°C in an atmosphere containing 5% CO2.

Clinical specimens

A total of 8 pairs of human OS tissues and tumor-adjacent normal tissues (TATs) were obtained from 8 patients (4 females and 4 males; age range, 31–55) with OS at the Department of Orthopedics, Guangzhou First People's Hospital (Guangzhou, China) from August 2014 to October 2015. The present study was approved by the Ethics Committee of Guangzhou First People's Hospital (Guangzhou, China). OS diagnosis was confirmed pathologically by 2 pathologists independently. Informed consent was obtained from all patients for tissue collection during surgery. Tissues were immediately frozen in liquid nitrogen, and stored at −80°C until use.

Plasmids, small interfering (si)RNA and transfection

miR-544 mimics (HmiR0234), miR-544 inhibitor (miR-544-in, HmiR-AN0623), and the negative control miRNAs (CmiR0001 and CmiR-AN0001) were purchased from GeneCopoeia, Inc., (Rockville, MD, USA), and each miRNA (30 nM) was transfected into OS cells using Lipofectamine® 2000 reagent (Invitrogen; Thermo Fisher Scientific, Inc.), according to the manufacturer's protocol. The time interval between transfection and subsequent experimentation was 48 h.

AXIN2-siRNA (5′-GCAGAGGGACAGGAATCAT-3′) and the negative control siRNA (5′-GCAGGGACAAGGTAGACAT-3′) were purchased from Qiagen, Inc., (Valencia, CA, USA). Transfection with 50 nM siRNA was performed using Lipofectamine® 2000 reagent, according to the manufacturer's protocol. The time interval between transfection and subsequent experimentation was 48 h.

RNA extraction and reverse transcription-quantitative polymerase chain reaction (RT-qPCR)

Total RNA, including miRNA, was extracted from OS cells and clinical tissues using TRIzol® (Life Technologies; Thermo Fisher Scientific, Inc.), according to the manufacturer's protocol. miRNA was converted to cDNA using a TaqMan® miRNA Reverse Transcription kit (Applied Biosystems; Thermo Fisher Scientific, Inc.). The expression levels of miR-544 (HmiRQP0623, GeneCopoeia™, Guangzhou, China) were quantified using primers within a miRNA-specific TaqMan® miRNA assay kit (Applied Biosystems; Thermo Fisher Scientific, Inc), according to the manufacturer's protocol. PCR was performed to detect the expression of Cyclin D1 (CCND1, HQP016204, GeneCopoeia™, Guangzhou, China) and c-Myc (HQP011597, GeneCopoeia™, Guangzhou, China using the ABI 7500 Fast Real-Time PCR system (Thermo Fisher Scientific, Inc.) with SYBR Green Mix Taq kit (Takara Bio, Inc., Otsu, Shiga, Japan). The thermocycling conditions were as follows: At 95°C for 30 sec, followed by 40 cycles of amplification at 95°C for 5 sec, at 59°C for 30 sec and at 72°C for 30 sec. U6 (HmiRQP9001, GeneCopoeia™, Guangzhou, China) and GAPDH (HQP064347, GeneCopoeia™, Guangzhou, China) served as internal controls for the miRNA and mRNA assays, respectively. Expression was quantified using the 2−ΔΔCq method (11).

MTT assay

Transfected SOSP-9607 cells were seeded into 96-well plates, in medium containing 10% FBS, at a density of 1×103 cells/well. The cells were stained with 20 µg MTT dye (0.5 mg/ml; Sigma-Aldrich; Merck KGaA). The formazan crystals formed were dissolved in 150 µl dimethyl sulfoxide (DMSO; Sigma-Aldrich; Merck KGaA) at 1, 2, 3, 4 or 5 days, and the absorbance was recorded at 490 nm using a spectro-photometric plate reader.

Colony formation assay

SOSP-9607 cells were seeded into 6-well plates (1×103 cells/well) and incubated for 10 days in medium containing 10% FBS. The colonies were stained with 0.5% crystal violet at room temperature for 15 min following fixation in 4% paraformaldehyde for 5 min at room temperature. The number of colonies, each defined as a group of >50 cells, was counted per plate.

Anchorage-independent growth assay

SOSP-9607 cells were trypsinized, and 2×103 cells were suspended in complete medium (Dulbecco's modified Eagle's medium supplemented with 10% FBS and 100 U/ml penicillin/streptomycin) containing 0.3% agar (Sigma-Aldrich; Merck KGaA), and applied onto a layer of 1% agar in complete medium in 6-well plates. Cells were incubated for 2 weeks at 37°C prior to subjection to a colony formation assay, as aforementioned, and cell colonies were imaged at magnification ×100. Only cell colonies >0.1 mm in diameter were counted.

MiRNA target prediction and Dual-luciferase reporter assay

Based on the miR sequences, target genes were predicted using TargetScan (version 3.1; http://www.targetscan.org/mamm_31/). AXIN2 was amplified from SOSP-9607 cell cDNA and was sub-cloned into a firefly luciferase reporter pGL3 plasmid (cat. no., GUR100013-P-2; Guangzhou RiboBio Co., Ltd., Guangzhou, China). Cells were seeded in triplicate in 24-well plates (5×104 cells/well) and cultured for 24 h. pGL3-AXIN2-3L3-luciferase reporter pGL3 plasmids were co-transfected into the cells with the pRL-TK Renilla plasmids (Promega Corporation, Madison, WI, USA) using Lipofectamine® 2000 (Invitrogen; Thermo Fisher Scientific, Inc.), according to the manufacturer's protocol. After 48 h of transfection, the luciferase activities of the transformed cells were assayed using a Dual-Luciferase Reporter assay system (Promega Corporation), according to the manufacturer's protocol. Firefly luciferase activity was normalized to Renilla luciferase activity.

Western blotting

Total protein was extracted using radioimmunoprecipitation assay buffer (Beyotime Institute of Biotechnology, Haimen, China), and protein concentrations were determined with BCA Protein Assay Kit (Beyotime, Institute of Biotechnology), accoding to the manufacturer's protocol. A total of 50 µg protein extracts were separated via 10% SDS-PAGE and transferred onto PVDF membranes. The membranes were blocked with 5% non-fat milk in TBS-T (20 mM Tris, pH 7.6, 137 mM NaCl, 0.05% Tween-20) for 0.5 h at room temperature, and then incubated overnight with anti-AXIN2 (catalog no., 2151), anti-CCND1 (catalog no., 2978) and anti-c-Myc (catalog no., 13987) antibodies (all at a dilution of 1:1,000; Cell Signaling Technology Inc., Danvers, MA, USA) at 4°C overnight. α-tubulin (catalog no., 2144; 1:5,000; Sigma-Aldrich; Merck KGaA) was used as the loading control. The blots were then incubated for 2 h with a horseradish peroxidase-conjugated anti-rabbit immunoglobulin secondary antibody (cat no. P0023D; 1:5,000; Beyotime Institute of Biotechnology) at 37°C. Signals were visualized using enhanced chemiluminescence (Thermo Fisher Scientific, Inc.) as a substrate, and images were analyzed using an automated chemiluminescence system (LAS500; GE Healthcare, USA) according to protocol of the manufacturer.

Statistical analysis

All data are presented as the mean ± standard deviation, and all experiments were repeated independently at least 3 times. Statistical analyses, specifically a one-way analysis of variance (ANOVA) or the Student's t test, were performed using SPSS 17.0 software (SPSS Inc., Chicago, IL, USA). P<0.05 was considered to indicate a statistically significant difference.

Results

miR-544 expression is upregulated in OS cell lines and tissues

To investigate the role of miR-544 in OS development, miR-544 expression was examined in OS cells and clinical tissue samples. RT-qPCR analysis indicated that miR-544 expression was significantly increased in the OS cell lines, U2-OS, SAO-2, MG-63 and SOSP-9607, compared with in the human osteoblast h-FOB cells (Fig. 1A). Furthermore, miR-544 expression was markedly upregulated in the OS tissues, as compared with in the matched TATs (Fig. 1B). This suggests that miR-544 is upregulated in OS and that it may serve a role in promoting OS development.

Figure 1. Expression of miR-544 in human OS cell lines and tissues. (A) RT-qPCR analysis of miR-544 expression in human osteoblast h-FOB cells, and in the OS cell lines U2-OS, SAO-2, MG-63 and SOSP-9607. *P<0.05 vs. h-FOB. (B) Relative miR-544 expression levels in eight paired primary Ts and TATs from 8 patients were detected by RT-qPCR. Each bar represents the mean of 3 independent experiments, and error bars represent the standard deviation. miR, microRNA; OS, osteosarcoma; RT-qPCR, reverse transcription-quantitative polymerase chain reaction; T, OS tissue; TAT, tumor-adjacent normal tissues.

miR-544 promotes OS cell proliferation and cell cycle progression

To explore the effect of miR-544 on OS cell proliferation, SOSP-9607 cells were transfected with miR-544 mimics, a miR-544-in or the respective controls, and the expression of miR-544 in the stably transfected SOSP-9607 cell line was confirmed by RT-qPCR (Fig. 2A). MTT and colony formation assays revealed that the overexpression of miR-544 increased the proliferation of SOSP-9607 cells, as compared with those cells transfected with negative control miRNA (Fig. 2B and C). Overexpression of miR-544 in SOSP-9607 cells also significantly enhanced their anchorage-independent growth ability (P<0.05; Fig. 2D). By contrast, SOSP-9607 cells were transfected with miR-544-in or the respective control, and the expression of miR-544 in the stably transfected SOSP-9607 cell line was confirmed by RT-qPCR (Fig. 3A). MiR544-in-transfected SOSP-9607 cells exhibited decreased proliferation rates, colony formation ability, and anchorage-independent cell growth ability, compared with in the negative control cells (Fig. 3B-D). Collectively, these data indicate that miR-544 acted as a tumor promoter to endorse OS cell proliferation.

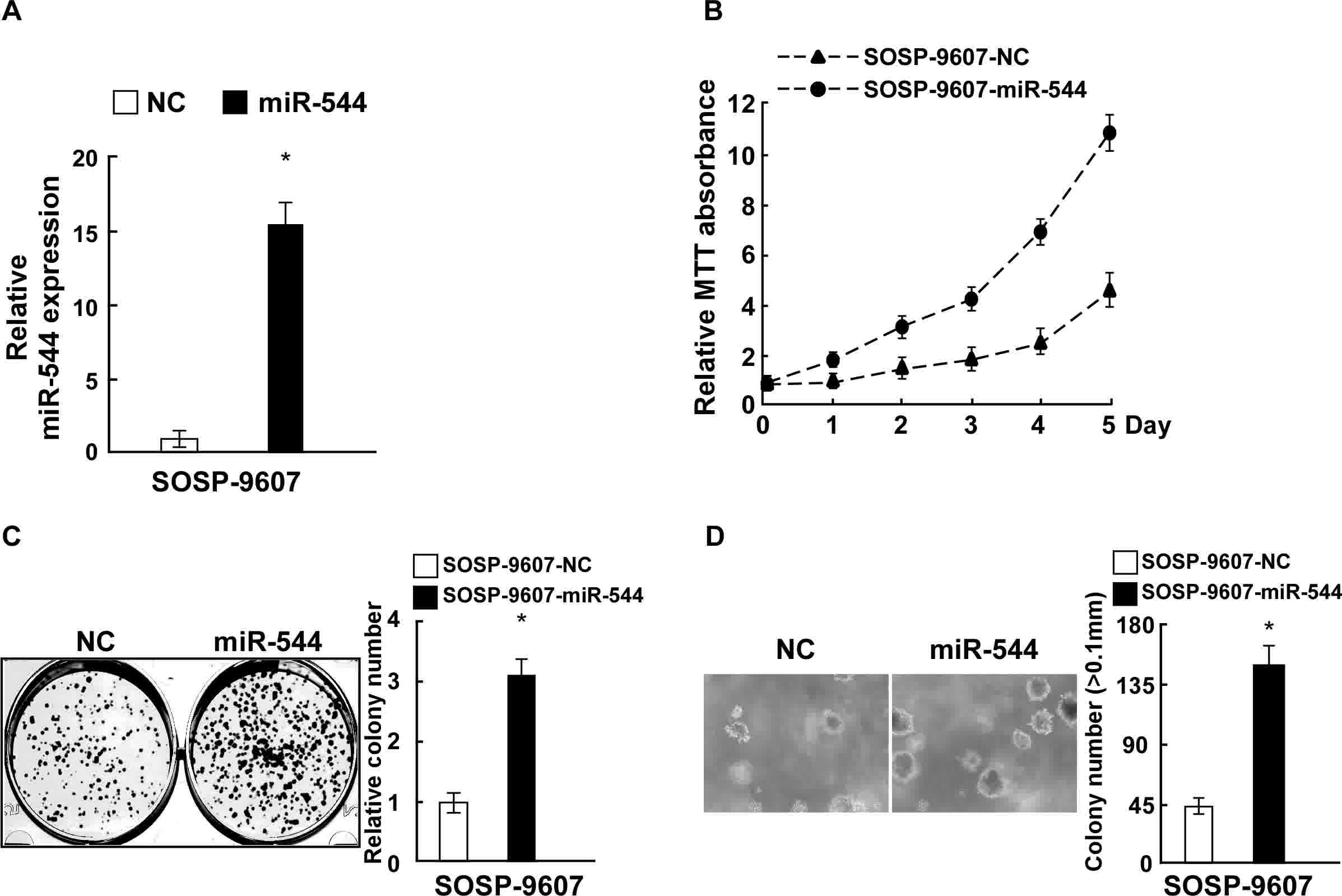

Figure 2. miR-544 upregulation promotes OS cell proliferation. (A) RT-qPCR analysis validation of increased miR-544 expression after transfection with miR-544 mimics. (B) MTT assays showed that the result of relative MTT absorbance (relative to the results at day 0) revealed that miR-544 promoted the growth of SOSP-9607 OS cells. (C) Quantification of crystal violet-stained cell colonies, relative to those cells transfected with the NC. (D) Upregulation of miR-544 promoted the anchorage-independent growth of SOSP-9607 cells. Representative micrographs (left, ×200 magnification) and quantification of colony numbers (right). Each bar represents the mean of 3 independent experiments, and the error bars represent the standard deviation. *P<0.05, compared with cells transfected with the NC. miR, microRNA; OS, osteosarcoma; RT-qPCR, reverse transcription-quantitative polymerase chain reaction; NC, negative control.

Figure 3. Inhibition of miR-544 reduced OS cell proliferation. (A) Validation of miR-544 expression levels following transfection with miR-544-in by RT-qPCR analysis. (B) MTT assay showed that the result of relative MTT absorbance (relative to the results of each group at day 0) revealed that the downregulation of miR-544 inhibited the growth of SOSP-9607 cells. (C) Quantification of crystal violet-stained cell colonies, relative to cells transfected with the NC. (D) Inhibition of miR-544 decreased the anchorage-independent growth of SOSP-9607 cells. Representative micrographs (left, ×200, magnification) and quantification of colony number (right). Each bar represents the mean of 3 independent experiments, and the error bars represent the standard deviation. *P<0.05, compared with cells transfected with the NC. miR, microRNA; OS, osteosarcoma; RT-qPCR, reverse transcription-quantitative polymerase chain reaction; NC, negative control.

miR-544 directly targets AXIN2 by binding its 3′-UTR in OS and alters the expression of proliferation-associated proteins

According to bioinformatical predictions, AXIN2 is a putative target gene of miR-544. To verify this prediction, WT AXIN2 3′UTRs were generated (Fig. 4A). To determine whether miR-544 affected AXIN2 expression, AXIN2 expression was analyzed by western blotting. Overexpression of miR-544 inhibited the protein expression of AXIN2, while SOSP-9607 cells transfected with miR-544-in exhibited enhanced protein expression of AXIN2 (Fig. 4B). To investigate whether AXIN2 could be regulated by miR-544, AXIN2 3′-UTR was co-transfected into SOSP-9607 cells with miR-544 mimics, miR-544-in or miR-544-mut, followed by the measurement of luciferase activity. As demonstrated in Fig. 4C, luciferase activity was markedly reduced in cells that were co-transfected with the WT AXIN2 3′-UTR and miR-544. By contrast, miR-544-in transfection increased luciferase activity in cells transfected with WT AXIN2 3′-UTR. miR-544-mut transfection did not alter the luciferase activity of cells transfected with AXIN2 3′-UTR. These findings indicate that miR-544 downregulated the protein expression of AXIN2 via direct binding to the seed sequences in its 3′-UTR.

Figure 4. miR-544 suppresses AXIN2 expression by directly targeting the AXIN2 3′-UTR, and alters the levels of proteins associated with proliferation in SOSP-9607 cells. (A) Predicted miR-544 target sequence in the three cells ng AXIN2 (AXIN2-3′-UTR) and positions of three mutated nucleotides (green) in the 3′-UTR of miR-544 mut. (B) Western blotting analysis of AXIN2 expression in cells transfected with miR-544 or the miR-544-in. α-tubulin served as the loading control. (C) Luciferase reporter assay of SOSP-9607 cells transfected with the pGL3-AXIN2-3′-UTR and miR-544 or miR-544-in or miR-544-mut siRNA. *P<0.05 vs. NC. (D) Reverse transcription-quantitative polymerase chain reaction analysis of the expression of CCND1 and c-Myc in the indicated SOSP-9607 cells. vs. NC *P<0.05 (E) Western blot analysis of the expression of CCND1 and c-Myc in SOSP-9607 cells. α-tubulin served as the loading control. miR, microRNA; AXIN2, axis formation inhibitor 2; UTR, untranslated region; CCND1, cyclin D1; NC, negative control; -in, inhibitor; mut, mutated; si, small interfering.

It has been reported that the Wnt signaling pathway serves an essential role in the cancer cell cycle and proliferation (12,13). C-Myc, CCND1, and AXIN2 are well-known target genes of the Wnt signaling pathway (14–17). The expression of these Wnt/β-catenin signaling pathway downstream genes was determined in miR-544-transfected cells. Using RT-qPCR and western blotting, it was demonstrated that the mRNA and protein expression levels of CCND1 and c-Myc were upregulated in miR-544-transfected SOSP-9607 cells, while transfection with miR-544-in resulted in the opposite effect (Fig. 4D and E). This suggests that miR-544 modulated downstream genes of the Wnt signaling pathway (AXIN2, CCND1 and c-Myc).

AXIN2 suppression counteracts the proliferation arrest induced by miR-544-in

The effects of AXIN2 downregulation on proliferation were examined in OS cells transfected with miR-544-in. siRNA-mediated knockdown of AXIN2 was performed in miR-544-in-transfected SOSP-9607 cells, and confirmed through western blotting (Fig. 5A). Results from the colony formation and anchorage-independent growth assays indicated that the suppression of AXIN2 expression by AXIN2-siRNA reversed the effects of miR-544-in in SOSP-9607 cells (Fig. 5B and C). Taken together, these results demonstrated that the downregulation of AXIN2 counteracts the cell proliferation arrest induced by miR-544-in.

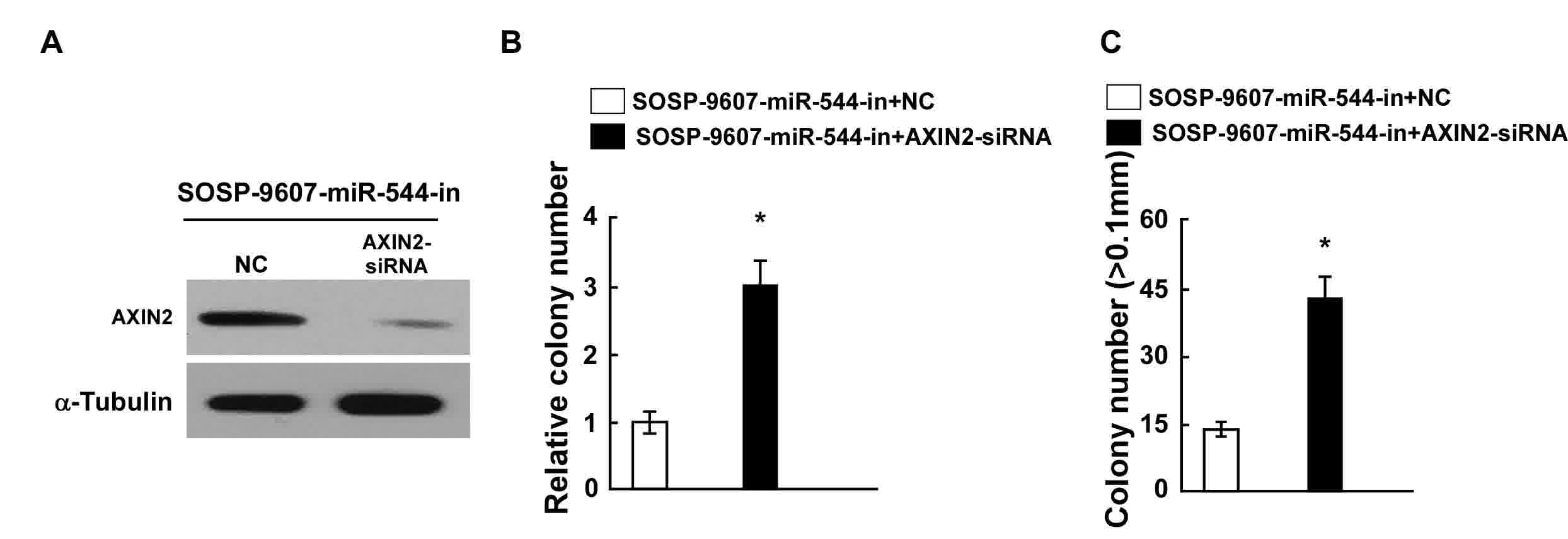

Figure 5. AXIN2 suppression counteracts the proliferation arrest induced by miR-544-in. (A) Western blot analysis verified that AXIN2 siRNA transfection effectively decreased the expression of AXIN2 in miR-544-in-transfected SOSP-9607 cells. (B) miR-544-in and AXIN2-siRNA-transfected SOSP-9607 cells exhibited increased colony formation, relative to the NC cells. (C) miR-544-in and AXIN2-siRNA-transfected SOSP-9607 cells exhibited increased anchorage-independent growth, relative to the NC. *P<0.05, compared with the NC. miR, microRNA; AXIN2, axis formation inhibitor 2; NC, negative control, -in, inhibitor; si, small interfering.

Discussion

Prior studies have demonstrated that microRNAs negatively regulate their target mRNAs in a sequence-specific manner (18,19), to serve roles in the development of human cancer types, including OS. miR-143 was reported to promote the apoptosis of OS cells by targeting Bcl-2 (20). miR-99a was demonstrated to inhibit cell proliferation by targeting TNF-α-induced protein 8 in OS cells (21). Zhang et al (22) indicated that miR-30a regulates the proliferation, migration and invasion of human OS by regulating Runt-related transcription factor 2. However, to the best of our knowledge, the role of miR-544 in OS has not been previously investigated. miR-544 was demonstrated to suppress tumor growth in human triple-negative breast cancer by downregulating both B-cell CLL/lymphoma 6 and signal transducer and activator of transcription 3 (23). In the present study, it was demonstrated that miR-544 serves a role in promoting OS cell proliferation. miR-544 expression was increased in OS cell lines and tissues, compared in with h-FOB cells and TATs. The overexpression of miR-544 significantly increased OS cell proliferation. By contrast, miR-544-in-transfection significantly decreased cell proliferative ability, suggesting that miR-544 may be a novel tumor promoter and serve a critical role in OS carcinogenesis.

The results of the present study indicate that AXIN2 was a direct target gene of miR-544, and that it was implicated in the functional effect of miR-544 on OS carcinogenesis. It has been reported that AXIN2 is an important regulator of the Wnt/β-catenin signaling pathway, and participates in various cellular functions (24,25). Wei et al (26) suggested that AXIN2 expression was downregulated in ameloblastoma, and was involved in its tumorigenesis. Koinuma et al (27) indicated that epigenetic silencing of AXIN2 was associated with colorectal cancer carcinogenesis. Growing evidence suggests that AXIN2 can act as a tumor suppressor gene or an oncogene, regulated by several miRNAs. miR-374a was reported to promote esophageal cancer cell proliferation by suppressing AXIN2 expression (28). Additionally, miR-107 was determined to promote hepatocellular carcinoma cell proliferation by regulating AXIN2 (29). Similarly, Kim et al (30) indicated that miR-205 inhibited oral carcinoma oncogenic activity by downregulating AXIN2 expression. In the present study, the expression of CCND1 and c-Myc was upregulated, AXIN2 expression was suppressed by miR-544, and cell proliferation was elevated in OS. Furthermore, the knockdown of AXIN2 in miR-544-in-transfected SOSP-9607 OS cells counteracted the proliferation arrest induced by miR-544-in.

In conclusion, the results of the present study demonstrated that miR-544 directly regulates AXIN2 expression and, thus, contributes to OS tumorigenesis. This provides a novel insight into the biology of OS, and suggests that miR-544 may be a promising prognostic factor and therapeutic target for future OS therapy.

Acknowledgements

Not applicable.

Funding

This work was supported by Guangdong Science and Technology Project (2017ZC0320) and the Department of Orthopedics of Guangzhou First People's Hospital (Guangzhou, China).

Availability of data and materials

All data generated or analyzed during this study are included in this published article.

Author's contributions

GMZ and MC conceived and designed the experiments. MC, YYL, MQZ and XLW performed the experiments. XHG and LC collected the samples and analyzed the data. MC wrote the paper. The final manuscript was also approved by all authors.

Ethics approval and consent to participate

The present study was approved by the Ethics Committee of Guangzhou First People's Hospital (Guangzhou, China), and informed consent was obtained from all patients for tissue collection during surgery.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
