Time‑series clustering of cytokine expression after transarterial chemoembolization in patients with hepatocellular carcinoma
- Authors:
- Published online on: December 11, 2019 https://doi.org/10.3892/ol.2019.11209
- Pages: 1175-1186
-
Copyright: © Qi et al. This is an open access article distributed under the terms of Creative Commons Attribution License.
Abstract
Introduction
Hepatocellular carcinoma (HCC) is a heterogeneous malignant tumor that ranks as the fifth most common primary malignancy and the third leading cause of cancer-associated mortality worldwide (1). Several studies, including studies in North America, Europe, Asia and Australia, have shown that the prognosis is poor in patients with HCC (2–4). Despite recent advances in treatment methods, such as surgical resection and liver transplantation, curative treatment for advanced tumor stages and patients with metastasis is often not feasible. As a standard therapeutic option for intermediate-stage or non-resectable HCC, transarterial chemoembolization (TACE) has been shown to have benefits (5). According to the Barcelona Clinic Liver Cancer (BCLC) staging system, TACE has been identified as an alternative or combination therapy in patients with early or advanced HCC (6). In patients with BCLC stage A, TACE combined with radiofrequency ablation (RFA) exerts better local tumor control compared with that achieved by RFA alone. For patients with BCLC stage C, sorafenib plus TACE significantly delays tumor progression and provides improved survival (7).
Cytokines are a broad and loose category of small proteins that include chemokines, interferons, interleukins, lymphokines and tumor necrosis factors (TNFs), and are produced and released by different cells in the liver; cytokines play an important role in inflammation and tumor progression (8). As such, TNF-α acts as a master switch in establishing an intricate link between proinflammation and disease progression in patients with glioblastoma (9). Through a granulocyte-macrophage colony-stimulating factor- and interleukin (IL)-5-dependent mechanism, obesity-mediated low-grade inflammation increases breast cancer metastasis to the lung (10). IL-10 is associated with numerous malignancies, including non-small cell lung cancer (NSCLC), diffuse large B-cell lymphoma, and cervical and oral cancer (11–15). Moreover, Zhang et al (16) identified a hypoxia-inducible factor (HIF)-1α/IL-1β signaling loop in the tumor microenvironment that results in liver cancer cell epithelial-mesenchymal transformation (EMT) and metastasis. Chemokine ligand 5 (CCL5) plays an important role in the process of chronic liver inflammation, which leads to HCC development by reducing immune cell infiltration, such as CD4+ and CD8+ T cells (17).
To date, little is known about the detailed changes that occur in cytokine profiles after TACE. Due to its rarity, the majority of previous studies have focused on individual cytokines, and prior to the present study, few studies have explored changes in serum cytokines, signaling pathways and disease prognosis based on microarray data (18–22). The general focus of the present study was to identify differences in the cytokine expression profiles of patients with HCC undergoing TACE with a specific interest in identifying significantly changed biological processes and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways. The specific aims of the present study were to investigate the associations among time-dependent changes in cytokine panels and immune reactions, and to evaluate the circulating levels of cytokines as prognostic markers.
Materials and methods
Patients
A total of 60 patients admitted to the Zhongshan Hospital (Shanghai, China) who received TACE therapy at the Liver Cancer Institute, and 10 healthy controls (≥18 years old; 5 males and 5 females), were prospectively recruited between January 2013 and December 2014 and enrolled in the present study (the patient characteristics are shown in Table I). All patients possessed a diagnosis of HCC according to histological evidence or elevated α-fetoprotein (AFP) levels (>200 ng/ml) with positive radiological findings using CT/MRI. The primary inclusion criteria were as follows: i) Hepatitis B virus as the cause of HCC; ii) patients with Child-Pugh class A or B who had a non-resectable tumor (23); iii) an age ≥18 years; iv) definite BCLC staging (6); and v) clinical and laboratory data, including biochemical parameters, hematological parameters, such as albumin, AFP, alanine transaminase and bilirubin, and tumor sizes, which were recorded at baseline and post-TACE. All chemoembolization procedures were conducted via the right femoral artery and all patients undergoing treatment via TACE were examined by computed tomography or magnetic resonance imaging to evaluate the curative effect based on RECIST 1.1 and mRECIST (24), designated as complete response (CR), partial response (PR), stable disease (SD), or progressive disease (PD). CR and PR were further summarized into objective response (OR). Patients were excluded if there was no clear survival time. A total of 10 patients (≥18 years old; 5 males and 5 females) were randomly selected from the 60 patients with HCC to compare their serum cytokine levels with those of healthy controls, with the samples collected at the pre-intervention time point. Informed written consent was provided by each patient, and the present study was approved by the Ethics Committees of Zhongshan Hospital. The study protocol was conducted in accordance with the ethical standards specified in the Declaration of Helsinki.
 | Table I.Characteristics of 60 patients with hepatocellular carcinoma treated with transarterial chemoembolization. |
Treatment and follow-up laboratory data
Clinical and laboratory data of enrolled patients were recorded at baseline (pre-TACE day 0) and at regular intervals (post-TACE day 3, 7, 14 and 21) during the follow-up period, including patient age, sex, hematologic parameters, alanine/aspartate aminotransferases (AST/ALT), albumin, total bilirubin and portal vein invasion. The 60 patients with HCC were subsequently divided into 2 groups based on tumor size (≤5 and >5 cm) and ALT levels (≤40 and >40 U/l) for further analysis.
Microarray data and processing
Serum samples were collected prior to TACE therapy and again on days 3, 7, 14 and 21 after the procedure. All samples were stored at −80°C, and 9 serum samples randomly selected from the 60 patients with HCC were labelled (Table SI), hybridized and washed using an Agilent hybridization 5188–5242 kit (Agilent Technologies, Inc.). Slides were analysed using an Agilent Microarray Scanner with Feature Extraction G4463AA software (Agilent Technologies, Inc.). Each serum sample obtained pre-TACE (day 0) was compared with those obtained on days 3, 7, 14 and 21 and used the limma package of R 3.6.1 software (25) to identify differentially expressed cytokine genes (DECs). P<0.05 and |log fold-change (FC)| >1 were counted as detected signals. Subsequently, the pheatmap package in R 3.6.1 software (25) was used to construct a heat map of differentially expressed genes. To ensure specificity, the DECs of all four groups (day 3, 7, 14 and 21 vs. day 0, respectively) were integrated using venn2.1 (http://bioinfogp.cnb.csic.es/tools/venny/index.html).
Short time-series expression miner (STEM)
First, the STEM algorithm and 1.3.12 software was used to analyse the dataset using the 507 identified cytokine microarray (http://www.cs.cmu.edu/~jernst/stem) (26). Following the input phase, the STEM clustering algorithm was executed and displayed the clustering results. The clustering algorithm that STEM implements takes advantage of a point-in-time of the dataset and selects a set of distinct and representative temporal expression profiles called model profiles (Fig. 1A). Each gene was assigned to the model profile that most closely matched that gene's expression profile as determined by the correlation coefficient. Next, the standard hypothesis testing was used to determine which model profiles had significantly more genes assigned to them under the true ordering of the time points in the permutation runs. The parameters used for STEM clustering were set at a maximum of 50 model profiles, a maximum unit change between time points of 2 and a minimum correlation for clustering similar profiles >0.7. Finally, clusters based on the expression trend of significant genes were screened out (P<0.05).
Gene Ontology (GO) and signaling pathways
DECs were determined by means of a significance analysis of the microarray and model profile data. GO analysis determined that there were 284 DECs through use of the Database for Annotation, Visualization and Integrated Discovery (https://david.ncifcrf.gov/) (27) online tool (P<0.05). The signaling pathways that were likely impacted by the DECs were predicted using the KEGG pathway map tool (P<0.05) (28).
Protein-protein interaction (PPI) network
The Search Tool for the Retrieval of Interacting Genes/Proteins (STRING) 5.18 (https://string-db.org/) is a repository of known and predicted protein interrelationships (29) and was used to identify possible interacting proteins between the DECs.
ELISA
Serum samples were collected pre-TACE and on days 3, 7, 14, and 21 after the initiation of treatment from 60 evaluable patients who underwent transarterial chemotherapy. The cytokine levels of IL-1B, IL-10, IL-5 and CNTF were analysed using a multiplex immunoassay Bio-Plex 200 array system and Bio-Plex Manager v6.0 software [Hangzhou Multisciences (Lianke) Biotech Co., Ltd] according to the manufacturer's instructions.
Statistical analysis
Student's t-test was used for continuous data, and χ2 test was used for categorical data. The comparison of multiple groups was performed with ANOVA and Tukey's post hoc test. The criteria for screening DECs were |logFC|>1.0 and a false discovery rate <0.05. Spearman's correlation was also used to measure the correlation between different cytokine levels as well as between cytokine levels and clinical data. Receiver operating characteristic (ROC) curves were used by plotting sensitivity against 1-specificity. The optimal cut-off values for ROC curves were obtained using the Youden index. The survival curve was plotted using the Kaplan-Meier method, and the overall survival (OS) rate between subgroups was compared using the log-rank test. The Cox proportional hazard regression model was used to evaluate prognostic factors, and hazard ratio (HR) and 95% confidence interval was determined. The aforementioned statistical data were analysed using SPSS v22.0 software (IBM, Corp.) and GraphPad Prism 6 (GraphPad Software, Inc.). P<0.05 was considered to indicate a statistically significant difference.
Results
Identification of time-series cytokine genes after TACE

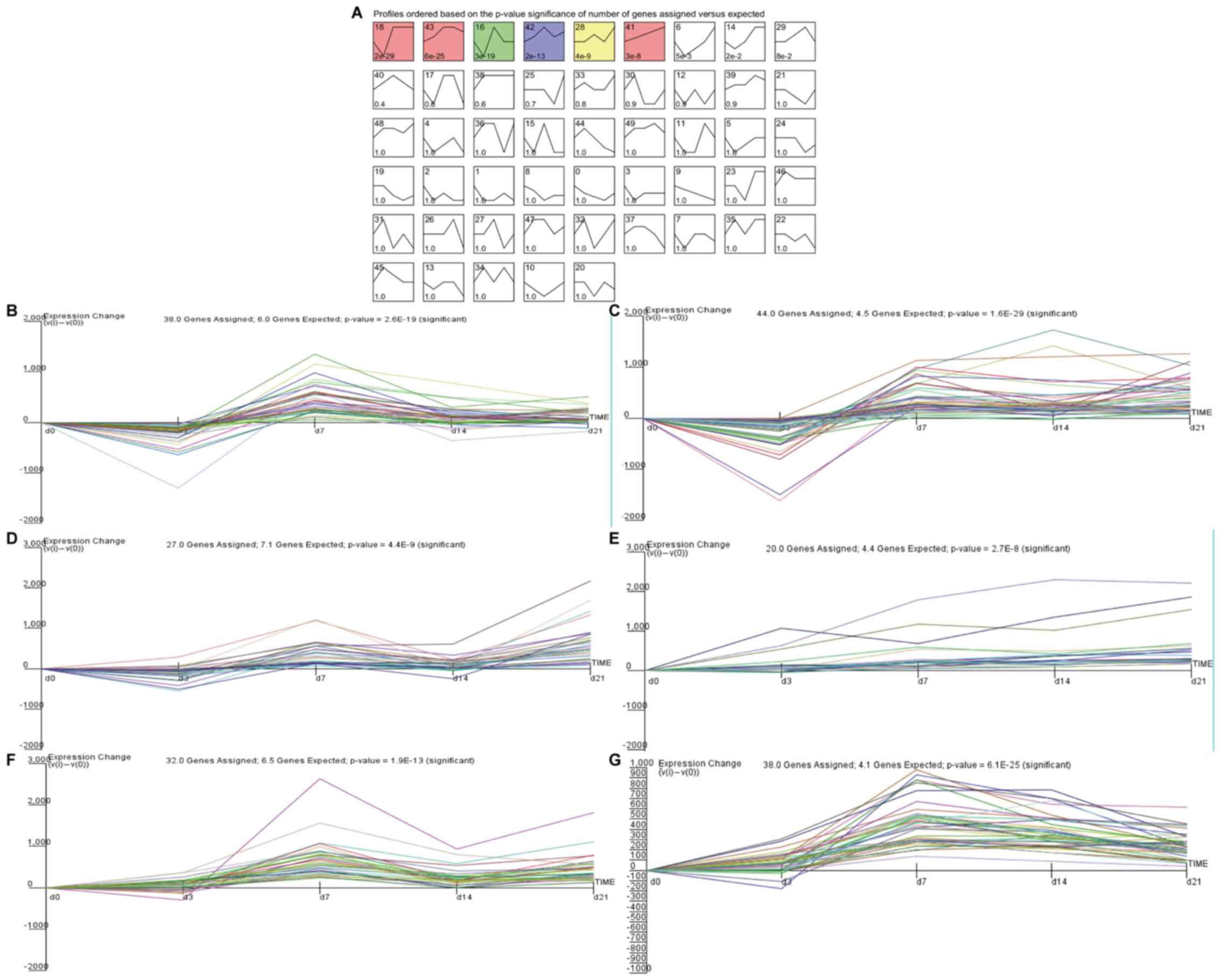

The Agilent cytokine genome microarrays were used to measure the relative gene expression levels in 9 patients with HCC pre-TACE and on days 3, 7, 14 and 21 post-TACE. In addition, 9 patients with HCC were selected for microarray analysis based on objective response, including three OR and six non-OR patients. A total of 507 cytokine genes were identified and the differentially expressed genes on days 3, 7, 14 and 21 were compared with day 0. Given the limited overlap of the differentially expressed genes among the four datasets (data not shown), only five genes, including neural differentiation 1 (NEUROD1), triggering receptor expressed on myeloid cells 1 (TREM1), neuregulin 3 (NRG3), Charcot-Leyden crystal galectin (CLC) and TNFα-induced protein 6 (TNFAIP6) were identified. Hence, the relevant gene clusters were identified based on the STEM algorithm. The input parameters c=2 and m=50 were used, where c indicates the units of change and m indicates the number of candidate profiles. In all, 284 out of 507 differentially expressed genes were significantly clustered in eight models, including profiles 6, 14, 16, 18, 28, 41, 42 and 43. However, <10 genes were clustered in profiles 6 and 14 and therefore were eliminated in further analysis (Fig. 1A). Fig. 1 shows the fold-changes and P-values of the gene expression profiles for the six significant clusters, and their gene symbols and relative expressions are listed in Table SII. Based on STEM analysis, CTNF and IL-5 were found to cluster in profile 18, IL-1β and IL-10 were found to cluster in profile 41, CCL2 and MMP9 were found to cluster in profile 43, CCR7 and CCR1 were found to cluster in profile 16, INS and BMP7 were found to cluster in profile 42, and IL-4 and IL-17RA were found to cluster in profile 28 (Fig. 1B-E and Table II). The trend curves of the gene signatures clustered in profiles 28, 41, 42 and 41 were similar and were all gradually upregulated (Fig. 1B-G). However, some cytokines were not significant in this study, such as IL-6 and IL-8 associated with TACE prognosis. The trend result of CTNF, IL-5, IL-1β and IL-10 was identified according to ELISA data (Fig. 2A-D). Subsequently, the baseline serum levels of CTNF, IL-5, IL-10 and IL-1β from patients with HCC who underwent TACE and healthy controls were compared. The pre-TACE serum levels of CTNF, IL-5, IL-10 and IL-1β were significantly elevated compared with that in the healthy controls (Fig. 2E-H).
GO and KEGG pathway analyses of time-series cytokine genes after TACE

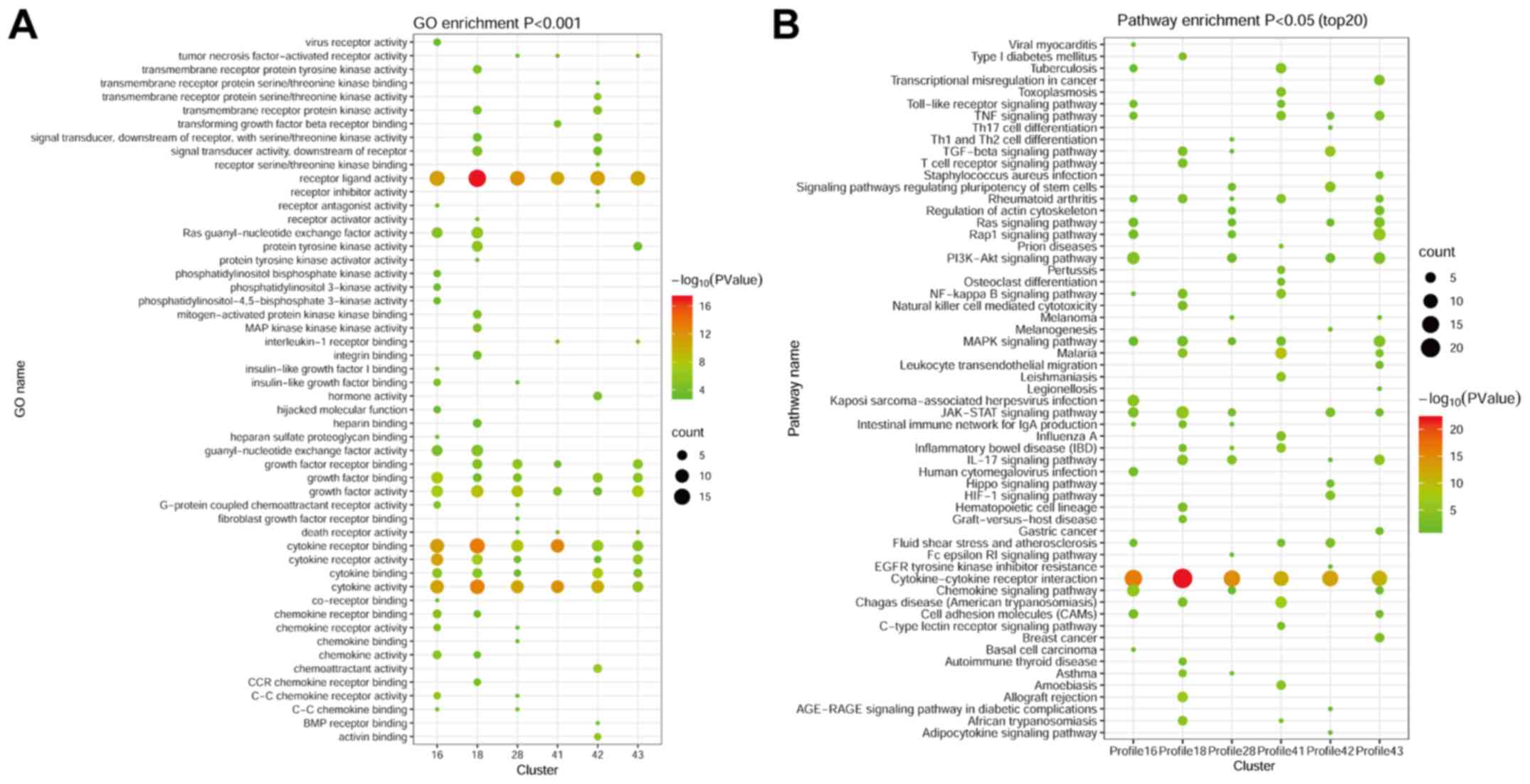

Based on the six significant clusters, GO analysis was performed. The results demonstrated that the DECs in the six significant clusters were related to ‘cytokine receptor binding’, ‘receptor ligand activity’ and ‘cytokine activity’ (Fig. 3A). In profile 18, the DECs were also enriched in ‘growth factor receptor binding’.
According to STEM analysis, KEGG signaling pathways were examined to determine whether they were dysregulated in the six significant clusters. ‘Cytokine-cytokine receptor interactions’ and ‘JAK-STAT signaling’ were significantly different in all profiles, with the exception of profile 41 (Fig. 3B). The IL-17 signaling pathway was present in four of the six significant clusters (profile 18, 28, 42 and 43) and included IL-5, IL-4, IL-1β, IL-17D and CCL2. Intriguingly, the signaling pathway exhibited differences in profile 41, which included cytokines IL-1β and IL-10. Likewise, the MAPK/RAS and Toll-like receptor signaling pathways, which are associated with cancer (30), were detected in profiles 16 and 43, and profiles 16 and 41, respectively, suggesting that these cytokines could be involved in inflammation and cancer transformation in HCC. The CNTF, colony stimulating factor 2 receptor α subunit, interferon-γ, IL-5, platelet-derived growth factor receptor β (PDGFRB), prolactin (PRL) and IL-27 receptor subunit α genes were differentially expressed and enriched in the JAK-STAT signaling pathway in profile 18. Similar to profile 18, the DECs and pathways clustered in profile 16 also included inflammatory signaling pathways (the JAK-STAT and NF-kB pathways), as well as CCR1, CCR7, ICAM1 and BMP4 (Table SIII).
PPI network

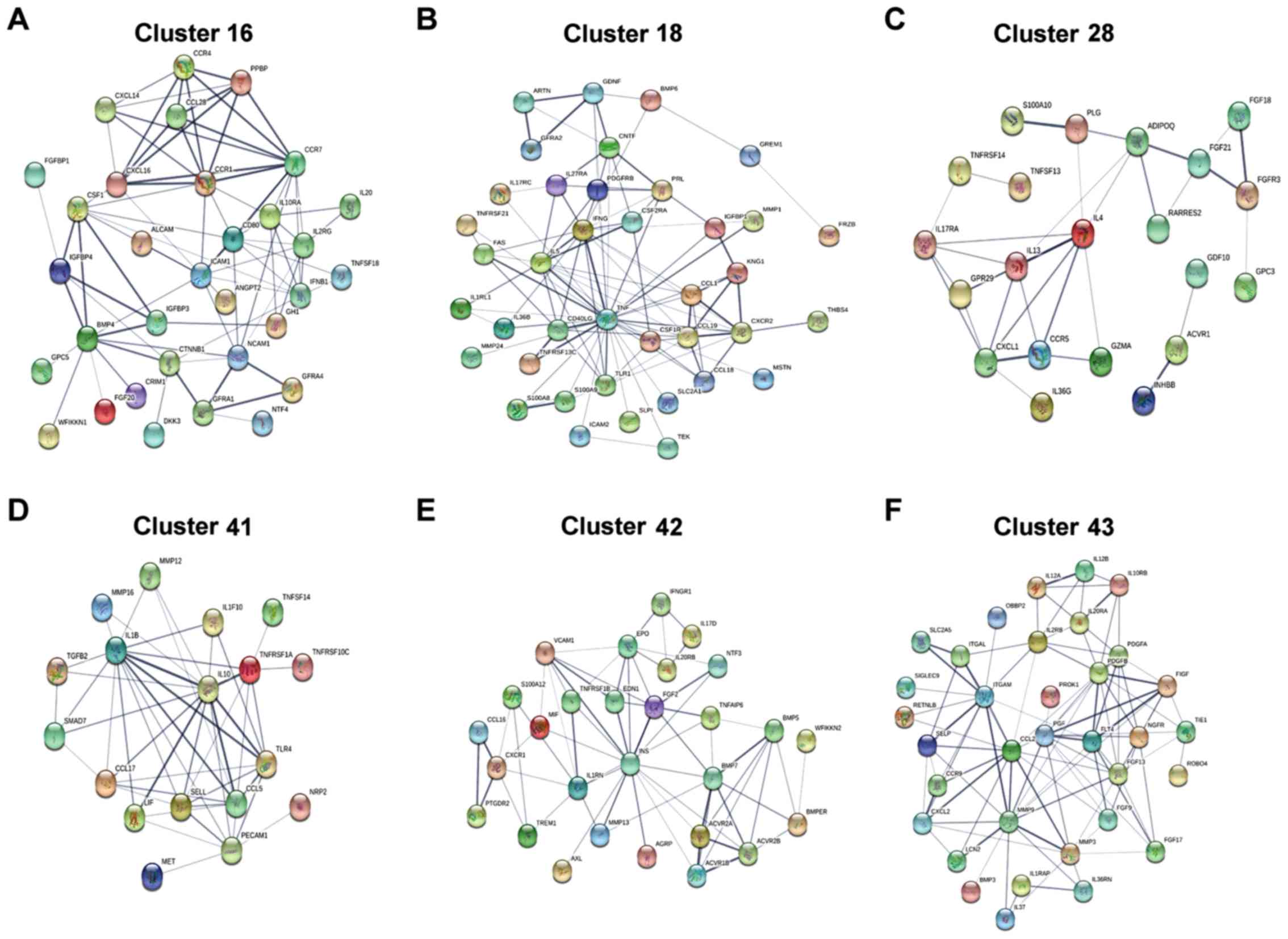

To examine the associations among the DECs in each significant cluster, a PPI network was constructed (Fig. 4). The STRING database was used to identify possible interactions of each cytokine expression profile. The results demonstrated that the 32, 39, 21, 18, 28 and 34 cytokines identified in profiles 16, 18, 28, 41, 42 and 43, respectively, were interacting with each other. In each profile, the high degree of cytokines, which were based on the degree and the association with tumors, including CTNF, IL-5, IL-10 and IL-1β, were selected. Additionally, the cytokines with the highest association in each respective cluster were CCR7, TNF, IL-4, IL-10, INS and CCL2 (Table II).
Correlation between liver function and the post-treatment cytokine CNTF levels

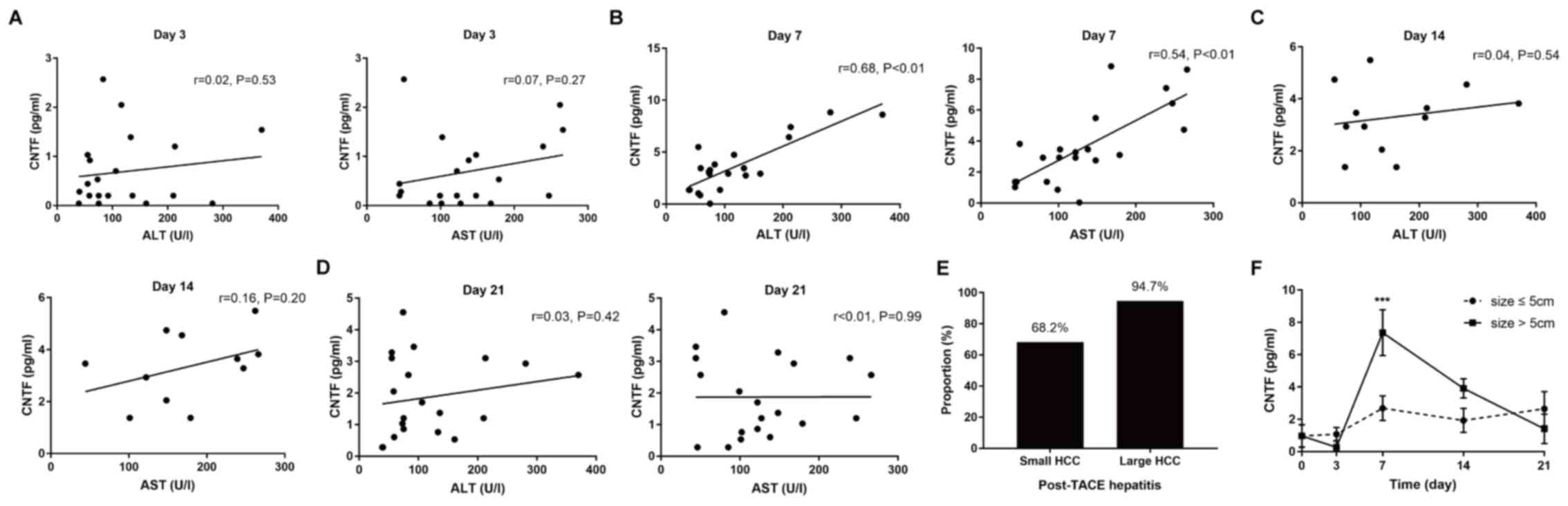

The association between the level of ALT or AST and the CNTF cytokine levels during treatment was investigated in patients with HCC undergoing TACE. There was no significant correlation between serum ALT (P=0.53) or AST (P=0.27) levels and CNTF levels on post-treatment day 3. Positive correlations with CNTF levels appeared over time and were significant on day 7 for the ALT (r=0.68; P<0.01) and AST (r=0.54; P<0.01) levels. However, on days 14 and 21 after TACE, there was no longer a correlation between the level of ALT or AST and the CNTF levels (Fig. 5A-D). Subsequently the changes in ALT and CNTF levels between small and large HCC tumors were measured. In 60 patients with HCC, those with large tumors (>5 cm) exhibited more frequent episodes of severe hepatitis (ALT elevation >40 U/l) compared with those with small tumors [36/38 (94.7%) vs. 15/22 (68.2%); Fig. 5E and F]. Patients with large tumors (>5 cm) had a higher baseline and greater increases in CNTF day 7 after TACE, whereas patients with small HCC (≤5 cm) exhibited only minor rises in CNTF levels. This characteristic change in CNTF that occurred following TACE suggests that there is an increase in CNTF levels in patients with tumors >5 cm, on day 7.
Pretreatment serum levels of IL-10 and post-treatment serum levels of IL-1β predict an objective response to TACE therapy

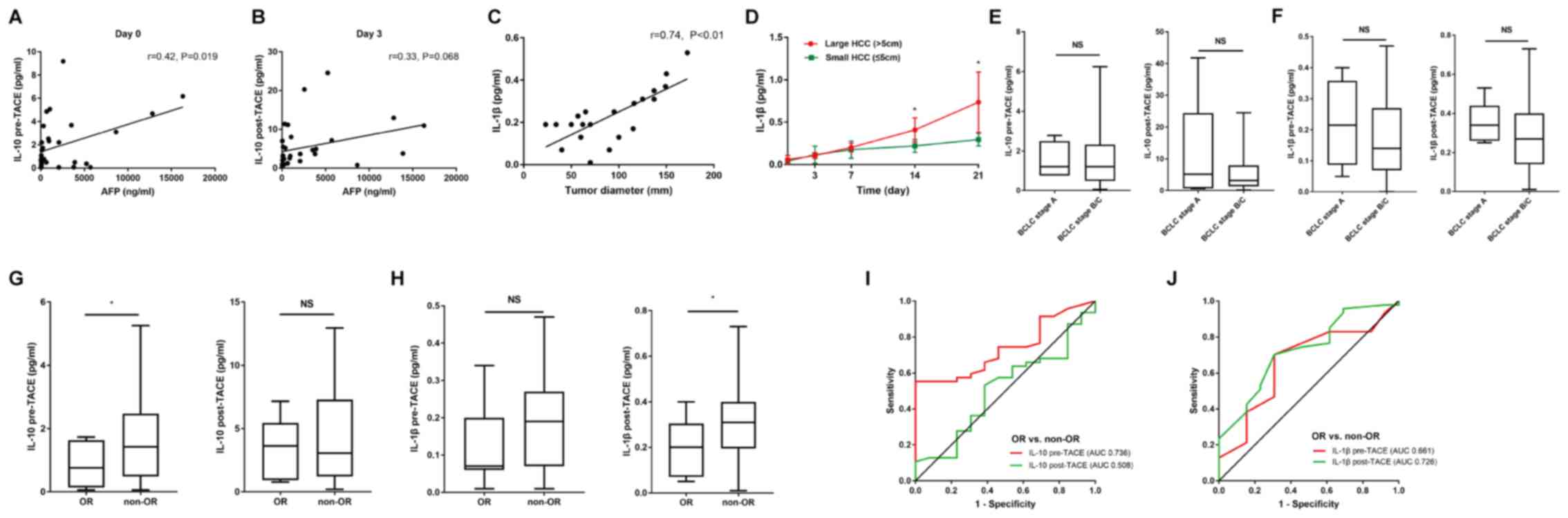

Subsequently it was investigated whether the serum levels of IL-10 and IL-1β had predictive value regarding the trend curve from the microarray data observed for profile 41 (Fig. 1E). The correlations between serum AFP and IL-10/IL-1β were investigated, and there was a significant correlation between the serum AFP and pre-TACE IL-10 levels (Fig. 6A and B). However, tumor diameter was positively associated with IL-1β levels, and patients with large tumors (>5 cm) had higher baseline levels and greater increases in post-TACE levels of IL-1β (Fig. 6C and D). This characteristic pattern of IL-1β release might be associated with larger tumors, which have increased hypoxic areas. However, there was not a significant association between the serum levels of IL-10 and IL-1β and BCLC stage, including BCLC stage A (n=5) and B/C (n=55) (Fig. 6E and F) on day 0 pre-treatment and day 3 post-treatment.
The cohort was further divided into two groups: Patients with an OR (complete or partial remission; n=13) and patients who showed a non-OR (stable or progressive disease; n=47). In the analysis, the pretreatment levels of IL-10 and post-treatment levels of IL-1β were significantly higher in patients who showed a non-OR after TACE compared with that in patients with an OR, while the post-treatment levels of IL-10 and pretreatment levels of IL-1β were not significantly different between OR and non-OR patients (Fig. 6G and H). In line with this finding, ROC curve analysis of the differences between patients with either an OR or non-OR revealed that the area under the curve (AUC) value of 0.736 for pre-TACE IL-10 was higher than that for post-TACE IL-10 (AUC, 0.508) and that the AUC value of 0.726 for post-TACE IL-1β was higher than that for pre-TACE IL-1β (AUC, 0.661) (Fig. 6I and J).
Serum levels of pretreatment IL-10 predict OS time after TACE

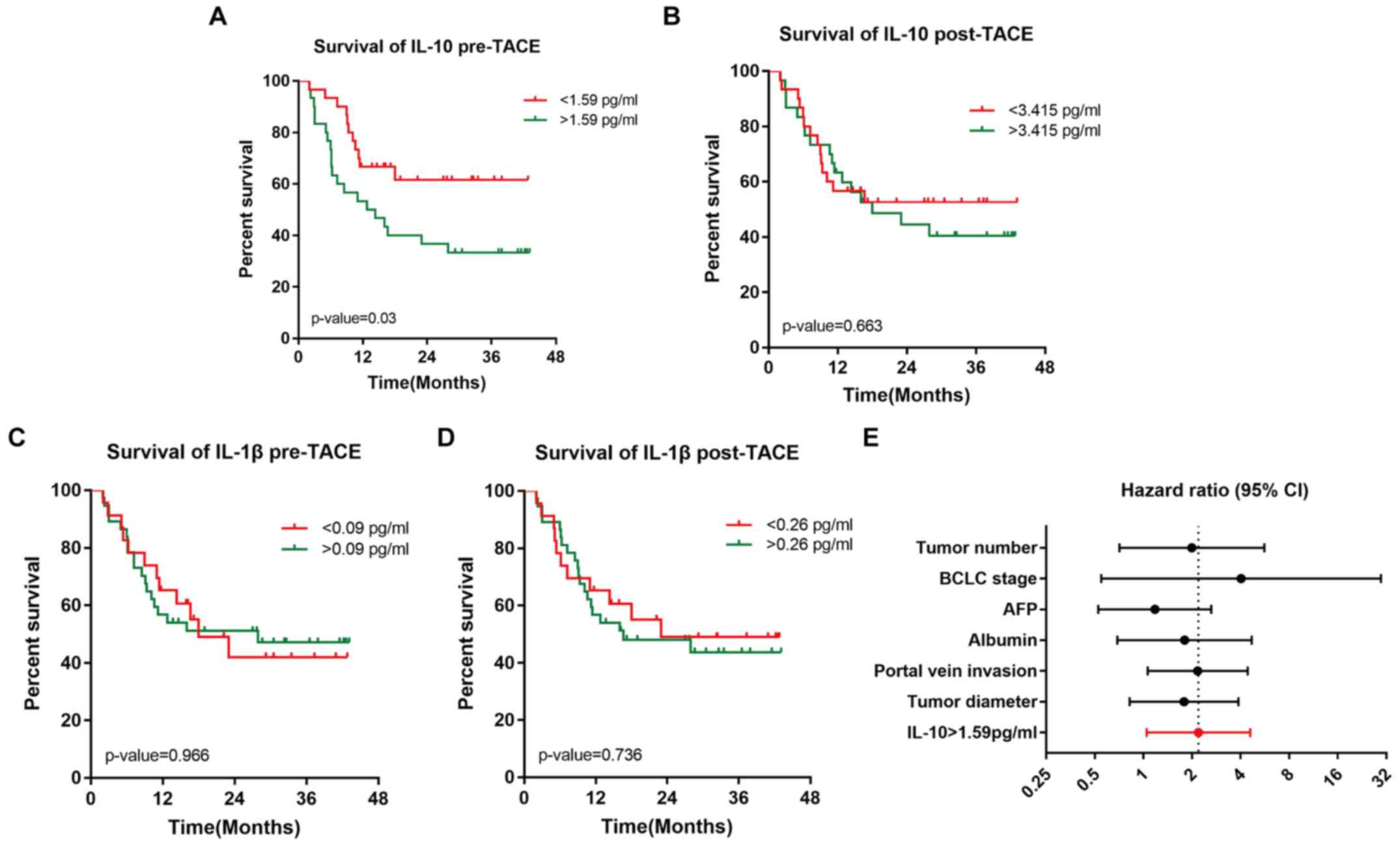

Based on the predictive value of the pretreatment serum levels of IL-10 and post-treatment serum levels of IL-1β, the serum levels of IL-10 and IL-1β was subsequently evaluated to determine whether they influenced patient OS. Based on the Youden index of the ROC curve analysis, which is used to identify the ideal cut-off values for cytokines, Kaplan-Meier analysis showed that patients with pretreatment serum levels of IL-10 above the ideal cut-off value (1.59 pg/ml) experience reduced survival compared to patients with levels below the ideal cut-off values [mOS: 13.55 months vs. undefined (median OS not reached); P=0.03] (Fig. 7A). By contrast, the ideal cut-off values for post-treatment IL-10, pretreatment IL-1β and post-treatment IL-1β levels did not effectively identify patients with a poor prognosis (Fig. 7B-D).
To further investigate prognostic factors, the results of the Kaplan-Meier analysis for OS were further analysed using univariate and multivariate Cox regression models. Fig. 7E summarizes the univariate factor analysis, and the HR for IL-10 was 2.193 (P=0.037; 95% CI, 1.048–4.589; Table III). Subsequently parameters with P<0.70 from the univariate Cox regression models (IL-10, tumor diameter, portal vein invasion, BCLC stage B/C vs. A, albumin and AFP) were removed and multivariate Cox analysis (Table IV) was performed. Importantly, the prognostic value of the pretreatment serum level of IL-10 was independent of those parameters.
Discussion
TACE is considered one of the most effective treatments for non-resectable liver cancer (31). At present, numerous studies have reported that changes in cytokines occur in patients with liver cancer after TACE, and these changes may be related to acute inflammatory reactions, acute liver injury and prognostic factors (18,19). However, the potential mechanisms involving these cytokines in patients with a post-TACE prognosis have not been completely elucidated. In the present study, the cytokine expression profiles of 9 patients with HCC at different time points after TACE using a cytokine mRNA microarray were analysed. Subsequently, the cytokine mRNA expression profiles post-TACE on days 3, 7, 14 and 21 were compared to the profiles obtained preintervention (day 0). Venn 2.1 was used for differential gene integration. The data demonstrated that five genes, including NEUROD1, TREM1, NRG3, CLC and TNFAIP6, were present in four groups: Day 3 vs. 0, day 7 vs. 0, day 14 vs. 0 and day 21 vs. 0. Borromeo et al (32) reported that NEUROD1 plays crucial roles in promoting malignant behaviour and survival in patients with SCLC. TREM2, a novel pattern recognition receptor family member, is generally regarded to be an enhancer of immune responses (33). According to pharmacogenomics, NRG3 rs1649942 genetic variants have been validated to affect epithelial ovarian cancer first-line treatment outcomes, which confirmed patients carrying the NRG3 rs1649942 A allele presented a significantly longer OS time (34). In addition, CLC and TNFAIP6, which are cytokine receptors, are involved in disease progression and the immune response (35) in a variety of tumors, such as gastric cancer (36), breast cancer (37) and urothelial carcinomas (38).
STEM was used to reveal temporal gene expression profiles and identify significant patterns from the day before TACE (day 0) to day 21 post-TACE that were >2-fold different (P<0.05). A total of 6 separate and significant time-varied expression patterns among 507 genes were identified, including profiles 16, 18, 28, 41, 42 and 43. DECs were identified, and their functions were predicted through GO and signaling pathway analyses.
The clustered profile 18 showed initial downregulation before TACE and subsequent upregulation after TACE (Fig. 1). These results might suggest that genes that are downregulated during the initial phase after TACE might be turned off and could therefore be responsible for hindering the HCC-like phenotype and hepatic injury after a tumor-intervening event. The CNTF, colony stimulating factor 2 receptor α subunit, interferon-γ, IL-5, PDGFRB, PRL and IL-27 receptor subunit α genes were differentially expressed and enriched in the JAK-STAT signaling pathway in profile 18 (Table SIII). Previous studies showed that JAK-STAT signaling was closely associated with cytokine signalling, as it regulates essential cellular mechanisms, such as proliferation, invasion, survival, inflammation and immunity (39,40). In addition, CNTF is an important hepatoprotective agent in carbon tetra chloride (CCl4)-induced hepatic injury (41). In a retrospective cohort study, IL-5, PDGFRB and PRL predicted survival benefits in patients with advanced HCC treated with sorafenib (42). Similar to profile 18, the DECs and pathways clustered in profile 16 also included inflammatory signaling pathways (the JAK-STAT and NF-kB pathways), as well as CCR1, CCR7, ICAM1 and BMP4 (Table SIII). CCR1 and CCR7 play important roles in head and neck squamous cell carcinoma progression and regional lymph node metastasis and recurrence. CCR1 were highly expressed in primary carcinomas and CCR7 was associated with disease-free survival time (43). The trend curves of the gene signatures clustered in profiles 28, 41, 42 and 41 were similar and were all gradually upregulated (Fig. 1B-G). The DECs clustered in profile 28, including CXCL1, IL-4, IL-13 and IL-17RA, and in profile 43, including LCN2, CCL2, CXCL2, MMP3 and MMP9, were enriched in the IL-17 signaling pathway (Table SIII). A previous study demonstrated a relationship between the IL-17/IL-17R axis and the tumor inflammatory microenvironment in patients with NSCLC. Immunoreactivity for IL-17A, IL-17F, IL-17RA and IL- 17RC was significantly elevated, while IL-17E was reduced (44). In profile 41, IL-1β, IL-10 and CCL5 were differentially expressed and enriched in the NF-kB, TNF and Toll-like receptor signaling pathways. Meanwhile, JAK-STAT and IL-17 signalling pathways were not associated in profile 41. In line with previous results, IL-1β, IL-10 and CCL5 were involved in multiple signaling pathways that affect the development and progression of tumors. IL-1β caused expansion of the bone metastatic niche and led to tumor proliferation in breast cancer (45). IL-10 and integrin pathways have been reported to be strongly associated with head and neck cancer progression (46). In addition, it has been reported that CCl5/CCR1/β-catenin/Slug via mesenchymal stem cells promotes colorectal cancer development (47). In addition to these common signaling pathways, HIF-1 signaling was also significantly enriched in profile 42. It was previously demonstrated that HIF-1, a key transcription factor involved in hypoxia and inflammation, induces HCC cells to undergo EMT (48,49).

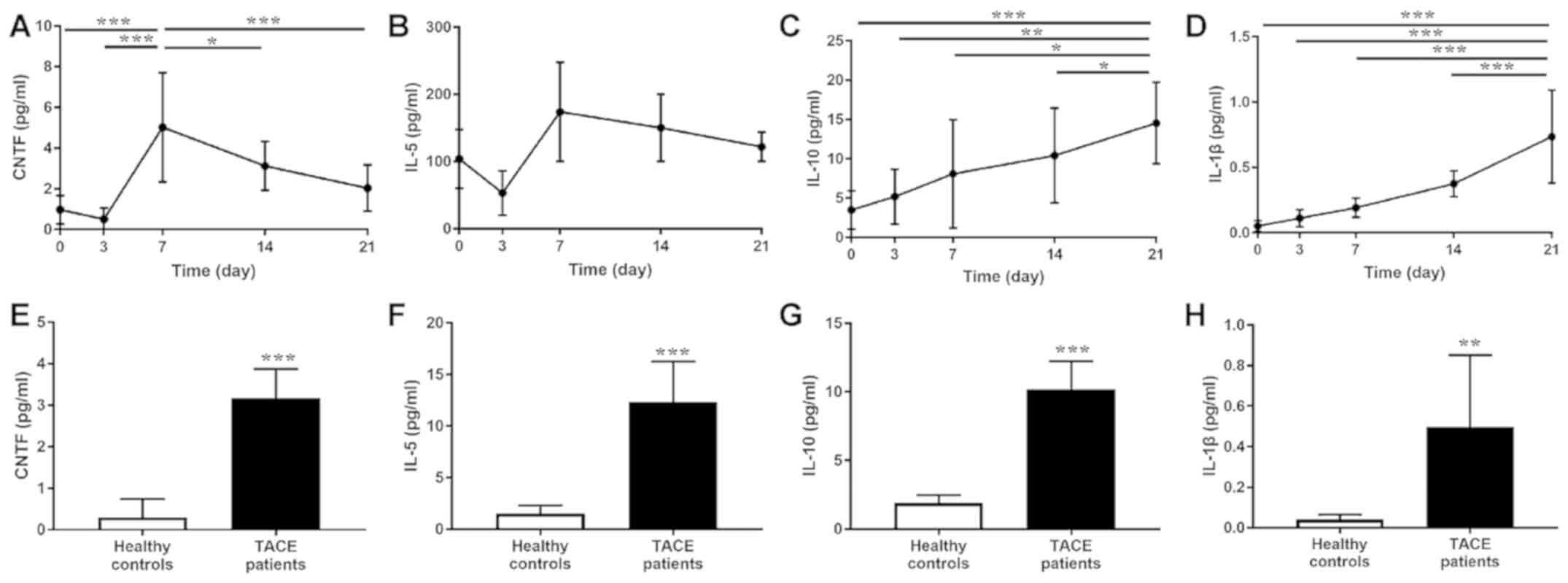

To better understand the role of cytokine expression during TACE, ELISA was performed and demonstrated that the temporal variations in cytokines were similar to the results obtained by STEM. The CNTF gene, which clustered in profile 18, was acutely increased after TACE but decreased after day 7 and reached baseline levels thereafter, while the trend for IL-5 was not statistically significant. Hu et al (50) reported that CNTF regulates PI3K and AMP-activated protein kinase (AMPK) and is therefore involved in metabolic diseases and hepatocarcinogenesis. CNTF acts as a hepatoprotective agent against CCl4-induced hepatic injury, and a correlation between the post-treatment day 7 serum aminotransferase and CNTF levels was observed in the present study. In agreement with previous data (41) the proportion of released CNTF was positively correlated with the degree of hepatic damage, which inhibited lipoprotein secretion and impaired the ability to act as transport vehicles for lipids from the liver to the circulation. According to the trend curve and signaling pathway of profile 41, the survival and prognostic value of IL-1β and IL-10 was investigated further in clinical features. The results of the present study demonstrated that the pre-TACE serum levels of IL-10 predicted the local tumor response and OS time of a patient, while the post-TACE serum levels of IL-1β only indicated the local tumor response. In addition, multivariate Cox regression analysis revealed that the prognostic value of the pre-TACE IL-10 levels was independent of tumor diameter, BCLC stage, AFP, portal vein invasion and liver function. However, studies of the effect of IL-10 on tumor progression have previously concentrated on antitumor immune effects (51). IL-10 is an immunomodulatory cytokine that has previously been shown to participate in T-cell inactivation and the impairment of adaptive immunity (52–54). Regarding its prognostic value, high IL-10 expression was found to be a marker of longer survival prognosis in breast cancer in addition to decreased tumor cell migration (55). In HCC, IL-10 and IL-12 have been shown to be involved in the progression of chronic inflammation leading to HCC, and they could therefore be considered biomarkers that reflect the degree of inflammation in HCC development (56). Meanwhile, the pre-TACE serum levels of IL-10 exhibited better survival prediction compared with post-TACE levels. One possible reason for this result is that TACE may disturb the tumor microenvironment, which contributed to hypoxia for killing tumor cells. In the current study, the role of the serum IL-10 level as a good prognostic marker seems to be dependent on the tissue microenvironment.
However, there are many limitations to the present study. First, a cytokine microarray was used to detect differential gene expression. In accordance to a previous study, this study also reported that some cytokines were undetectable in a number of patients, and many differences were not significant, such as IL-6 and IL-8 associated with TACE prognosis (19). Second, due to lack of an accepted interventional animal model and limited number of healthy controls, the effect of TACE on cytokine levels in normal liver tissue could not be evaluated. Meanwhile, as TACE is a minimally invasive surgery, it is difficult to obtain a large number of liver tissue samples for further study, such as immunohistochemistry and western blot analyses. Third, the present study was conducted using a small cohort of patients, and only four cytokines were identified using ELISA. Moreover, determining the mechanisms underlying the effects of cytokines in HCC after TACE requires further study.
In summary, a time series of cytokine expression profiles in patients with HCC undergoing TACE was identified. Early phase increases in CNTF serum levels observed after TACE may exert hepatoprotective effects and are associated with post-treatment hepatic injury. Changes in the expression of IL-1β and IL-10 during the process of TACE are associated with long-term outcomes and prognostic survival. These data provide insight into the respective contributions to different biological functions of cytokines released after TACE and their clinical value.
Supplementary Material
Supporting Data
Acknowledgements
Not applicable.
Funding
This study was supported by the National Natural Science Foundation of China (grant nos. 81772590 and 81572395), Shanghai Municipality: Shanghai Outstanding Academic Leaders Plan (grant no. 2013-48) and Shanghai Program of Shanghai Academic Research Leader (grant no. 14XD1401100).
Availability of data and materials
The datasets used and/or analyzed during the present study are available from the corresponding author on reasonable request.
Author' contributions
FQ, LW and PH designed the study. FQ, LW, PH and ZZ recruited the patients. FQ performed the experiments. JX, ZZ and BY designed the stufy and performed the assessment of the radiological TACE response. FQ and ZZ performed statistical analyses and generated the figures and tables. FQ and JX drafted the manuscript. All authors read and approved the final manuscript.
Ethics approval and consent to participate
Informed consent was obtained from each patient, and the present study was approved by The Ethics Committees of Zhongshan Hospital.
Patient consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
Glossary
Abbreviations
Abbreviations:
|
HCC |
hepatocellular carcinoma |
|
STEM |
Short Time-series Expression Miner |
|
TACE |
transarterial chemoembolization |
