Introduction

Bladder cancer (BCa) is one of the most common types of urological cancer, resulting in ~150,000 deaths worldwide every year (1). Approximately 75% of new BCa cases present as non-muscle-invasive BCa (NMIBC) and up to 50% of them will recur with 20% of these recurring cases progressing (2). Treatment options for BCa vary based on the stage at diagnosis. For MIBC and recurrent NMIBC, radical cystectomy (RC) is usually the mainstay of treatment, where the goal is to provide optimal cancer control by removal of whole bladder tissue (3). Despite this, ~4-10% of patients are still susceptible to secondary urothelial tumors following RC and frequently have an adverse prognosis due to late diagnosis (4). Although numerous serum and urine biomarkers have been suggested, their precision and specificity still require further evidence (5). Therefore, identification of a novel molecular mechanism or biomarker that may provide a novel treatment option, retard the progression of Bca, improve the prediction of the prognosis of BCa may provide a significant benefit in terms of benefiting clinical treatment greatly.

Apurinic/apyrimidinic endodeoxyribonuclease 1 (APE1) protein, also known as redox factor-1 (Ref-1), was originally identified as a multifunctional protein involved in DNA base excision repair (BER) and redox signaling. Previous studies have indicated that APE1 expression is not only significantly higher in multiple cancer types, including liver cancer, ovary cancer and osteosarcoma, but also highly associated with prognosis (6–8). Although APE1 was suggested as a urinary biomarker (5,9), its prognostic value in cancer tissue has not been verified with sufficient cases.

Previously, Sun and Nelson (10) suggested that the DNA repair gene APE1 is able to promote the production of a spectrum of cytokines, growth factors and proteases, including vascular endothelial growth factor (VEGF), by the DNA damage secretory program. In the tumor microenvironment (TME), VEGF is secreted by tumor cells and diffuse through the tissue contributing to angiogenesis (11). Furthermore, VEGF has a role as an immunosuppressive gene, inducing a ‘tumor endothelial barrier’ to promote T-cell arrest, or the loss of T cell motility (12). In BCa, VEGF has been indicated to be associated with stage and recurrence. Wheeler et al (13) suggested that VEGF is able to recruit macrophages and polarize them to the M2 phenotype in the decidua. This may provide a novel mechanism to how VEGF is able to worsen the clinical outcomes of BCa through tumor-associated macrophage (TAM) manipulation. The study of TAMs impacting the progression and metastasis of cancer has been fruitful. Alternatively activated M2 macrophages in TME are responsible for angiogenesis and tissue remodeling and feature an immunosuppressive phenotype, which may have an important role in tumor progression (14). In BCa, M2 type macrophages are usually associated with poor response to BCG therapy and may significantly limit its efficacy (15). Of note, in MIBC, TAMs mostly infiltrate into the tumor areas as opposed to stroma-tumor margins in NMIBC, which is associated with an unfavorable clinical outcome (16).

Therefore, the present study sought to evaluate the association among the expression of APE1 and vascular endothelial growth factor A (VEGFA) and the infiltration of M2 macrophages, as detected via the M2 marker CD163, as well as their prognostic significance in BCa. To the best of our knowledge, the present study was the first to implicate APE1 as a key factor in the DNA damage response with polarization of TAM, laying a foundation for elucidating the mechanism of the recurrence of BCa and exploring the efficacy of immunotherapy for this neoplasm.

Materials and methods

Patients and data collection

A total of 167 patients with BCa subjected to radical cystectomy at Daping Hospital between January 2013 and January 2017 were recruited without any restriction by age or sex. Data collection was closed by May 2019. Those patients who did not have a reported event of death at the time of closure were included for calculation of the median follow-up time. Patient follow-up was usually performed every 3 months in the first year post-surgery and then every 6 months. The cause of death was determined by chart review from patients' medical records or from the death certificate. The follow-up time was 4–78 months and the median follow-up time was 48 months. Cases with non-urothelial carcinoma types and patients who died of causes not associated with cancer were excluded, and cases without precise follow-up were also excluded, resulting in 127 remaining cases. All subjects were from a Han Chinese population and were subjected to radical cystectomy at Daping Hospital (Chongqing, China) with the diagnosis made based on pathology. The general characteristics of the patients are summarized in Table SI. The median age was 64.25 years (range, 39–88 years). There were 45 cases of NMIBC and 82 cases of MIBC. In total, 10 cases were low-grade carcinoma and 117 were high-grade carcinoma, and 36 of the latter were indicated to have lymphovascular invasion (LVI). Regarding the smoking history, a person who had at least one pack of cigarettes/day for >1 year in his/her lifetime was regarded as having a positive smoking history; otherwise, they were considered as a non-smoker (17). The study was approved by the Ethics Committee of Daping Hospital (Chongqing, China).

Pathological evaluation and immunohistochemistry (IHC)

Tumor tissues were fixed overnight in 4% paraformaldehyde, dehydrated, embedded in paraffin and sectioned into 8–10 mm (RM2235; Leica Microsystems). Experienced pathologists blinded to the clinical outcomes reviewed these pathological specimens. The tumors were staged according to the 8th AJCC TNM staging classification (18). Grading was performed following the 1998 WHO/ISUP consensus classification (19). The presence of LVI was assessed in all specimens. IHC staining for APE1, VEGFA and CD163 was conducted utilizing the following antibodies: APE1 (1:2,000 dilution; mouse monoclonal; cat. no. ab194; Abcam), VEGFA (1:150 dilution; mouse monoclonal; cat. no. ab52917; Abcam) and CD163 (1:150 dilution; mouse monoclonal; cat. no. TA506388; Origene). Goat antibodies conjugated to horseradish peroxidase (HRP) (working solution, Kit-5030; MXB) was used as a secondary antibody, 3,3-diaminobenzidine was used as a chromogenic substrate and the sections were counterstained with hematoxylin. The results were analyzed by an experienced pathologist (HX) blinded to the clinical outcomes. APE1 and VEGFA expression were graded based on the staining intensity of the nuclei and cytoplasm, respectively, in the tumor area. Necrotic areas were ignored. Grade 0 had the weakest staining and grade 3 had the strongest staining. In the evaluation of APE1 expression, grade 0–2 was considered to indicate low expression, while grade 3 was considered to indicate high expression. For VEGFA expression, grade 0–1 was considered low expression, while grade 2–3 was considered as high expression. For CD163, the percentage of stained macrophages in the tumor stroma compared to the total number of nucleated stromal cells was scored using a scale from 0 to 100% and graded as follows: 0, 0–5%; 1, 6–30%; 2, 31–50%; and 3, >50%. For evaluation purposes, grade 0–1 is considered as low TAM ratio, inversely grade 2–3 is considered as high ratio. The cutoff is set by mainly taking the median grade value in consideration.

Multiple immunofluorescence staining

Multiple immunofluorescence staining was performed on paraffin-embedded tissues. Sections of 4 µm thickness were cut from selected BCa tissues. The slides were deparaffinized in xylene, rehydrated and washed with tap water prior to boiling in Tris-EDTA buffer (pH 9, 643901; Klinipath) for epitope retrieval/microwave treatment. Endogenous peroxidase was blocked using Antibody Diluent/Block (cat. no. 72424205; Perkin Elmer) and incubated at room temperature. Protein blocking was performed using Antibody Diluent/Block at 37°C for 1 h. The slides were incubated with primary antibodies to CD163 (1:150 dilution; cat. no. ZM0428; Zsbio), APE1 (1:2,000 dilution; cat. no. ab194; Abcam) and VEGFA (1:100 dilution; cat. no. ab52917; Abcam) for 1 h at 37°C, and then incubated with antibody to CD34 (cat. no. kit-0004; MXB) at 4°C overnight. Next, incubation with Opal Polymer HRP Ms+Rb (cat. no. 2414515; Perkin Elmer) was performed at 37°C for 10 min. Tyramide signal amplification (TSA) visualization was performed with the Opal eight-color IHC kit (cat. no. NEL797B001KT; Perkin Elmer), containing fluorophores DAPI, Opal 690 (CD34), Opal 650 (VEGFA), Opal 570 (APE1) and Opal 520 (CD163), as well as a TSA Coumarin system (cat. no. NEL703001KT; Perkin Elmer).

Slides were scanned using the Perkin Elmer Vectra (Vectra 3.0.5; Perkin Elmer). Multispectral images were unmixed using spectral libraries built from images of single stained tissues for each reagent using the inform Advanced Image Analysis software (inForm 2.3.0; Perkin Elmer). A selection of 5–10 representative original multispectral images was used to train the inForm software (tissue segmentation, cell segmentation, phenotyping tool and positivity score). All the settings applied to the training images were saved within an algorithm to allow the inForm software (PerkinElmer; v2.3.0) batch analysis of multiple original multispectral images of the same tissue (20).

Statistical analysis

Data analysis was performed using SPSS (version 22; IBM, Corp.) and GraphPad Prism 7 (GraphPad Software, Inc.). Cumulative survival probabilities were estimated using the Kaplan-Meier method and differences between survival rates were tested for significance using the log-rank test. Univariate and multivariate Cox regression analyses were calculated using SPSS. Hazard ratios (HRs) and 95% confidence intervals (95% CI) were used to present the associations of dependent and independent variables with the risk of mortality. The χ2 test was employed to assess differences between two groups. All tests were two-sided with a 95% CI and P<0.05 was considered to indicate statistical significance. Receiver operating characteristic (ROC) analysis was conducted for further evidence. Correlation of APE1, VEGFA and CD163 expression in muscle invasive bladder cancer tissues with multiple immunofluorescence staining was analyzed with Pearson correlation.

Results

Expression of APE1, VEGFA and CD163+ TAMs in BCa tissues

IHC was used to estimate the expression of APE1 and VEGFA, as well as the ratio of CD163+ TAMs, and the association between each of them with the clinicopathological characteristics was determined. APE1 was mainly localized in the nuclei with a certain amount residing in the cytoplasm, whereas VEGFA appeared in the cytoplasm only (Fig. 1). Among the 127 patients, 62 (48.82%) and 67 (52.76%) exhibited elevated levels of APE1 and VEGFA, respectively. The APE1 levels appeared to be associated with LVI (P=0.019) but not with the tumor stage or grade (Table SII). The levels of VEGFA were not associated with the tumor stage, grade or LVI. CD163+ TAMs were present in the tumor stroma and tumor islets. The tumor stroma included the papillary axis, lymphoid aggregates and the stroma. In certain specimens, staining for CD163 was positive in the cytoplasm and membrane of tumor cells. Of the 127 cases, 62 (48.82%) had a high grade regarding CD163+ TAMs but this was not associated with the tumor stage, grade or LVI.

Figure 1. (A) Representative immunohistochemistry results for APE1, VEGFA and CD163 indicated that APE1 staining was mainly located in the nuclei and partly in the cytoplasm and VEGFA was present in the cytoplasm of tumor cells, while CD163 was expressed on the infiltrating macrophages (magnification, ×200). The staining was rated as 0, 1+, 2+ or 3+ based on intensity for APE1 and VEGFA and based on the percentage of positive cells for CD163. (B) Heatmap presentation of the gradings of APE1, VEGFA and CD163 among the 127 patients. VEGFA, vascular endothelial growth factor A; APE1, apurinic/apyrimidinic endodeoxyribonuclease 1.

APE1 and VEGFA expression is correlated with the CD163+ TAM ratio in BCa

The correlation between the expression of APE1 and VEGFA and the proportion of CD163+ M2 macrophages was then assessed. The results suggested that high expression of APE1 in tumor cells was positively correlated with the grade regarding CD163+ TAMs (r=0.196, P=0.027), as well as with VEGFA expression (r=0.208, P=0.018). Furthermore, VEGFA expression was strongly correlated with the grade regarding CD163+ TAMs (r=0.408, P<0.001; Table SIII). To further assess the expression of APE1 and VEGFA in BCa tissues and their correlation with the CD163+ TAM ratio, multiple immunofluorescence staining for APE1, VEGFA, CD163 and CD34 was performed. The results suggested that APE1 and VEGFA were co-expressed in tumor cells, and CD163+ TAMs were mostly distributed around the microvasculature of tumor stroma or between tumor cells (Fig. 2). Further analysis using inForm software suggested that APE1 expression is positively correlated with VEGFA and CD163 expression (Table SIV).

Figure 2. Multiple immunofluorescence staining for APE1, VEGFA, CD163 and CD34 in bladder cancers. (A) Representative sample with high expression of APE1 and VEGFA in which the intratumor CD163-labeled M2 macrophages are easily distinguishable. (B) Example of a sample with high expression of APE1 and VEGFA in which the CD163-labeled M2 macrophages are easily distinguishable in the tumor stroma. (C) Representative sample with low expression of APE1 and VEGFA, in which the CD163-labeled M2 macrophages are less distinguishable. APE1-positive staining in tumor epithelial cells displayed as orange and VEGFA-positive staining in tumor epithelial cells was cyan, while CD163-positive infiltrating M2 macrophages were green and CD34-positive vascular endothelial cells displayed as magenta (magnification, ×200). VEGFA, vascular endothelial growth factor A; APE1, apurinic/apyrimidinic endodeoxyribonuclease 1.

APE1 and CD163 are independent prognostic factors for OS in BCa

KM analysis revealed that high APE1 expression and a high CD163+ TAM ratio were associated with a shorter OS (Fig. 3). A univariate Cox regression analysis for the expression of APE1, VEGFA, CD163+ TAMs and clinical characteristics was performed, indicating that the T-stage (HR=8.279, 95% CI: 2.948–23.255, P<0.001), N-stage (HR=4.265, 95% CI: 2.262–8.045, P<0.001), LVI (HR=2.974, 95% CI: 1.642–5.387, P<0.001), APE1 expression (HR=2.797, 95% CI: 1.486–5.267, P=0.001) and CD163+ TAMs (HR=2.425, 95% CI: 1.300–4.521, P=0.005) were associated with prognosis. In addition, a multivariate analysis for OS was performed by combining the marker panel and clinical variables, suggesting that the T-stage (HR=8.279, 95% CI: 2.948–23.255, P<0.001), N-stage (HR=4.265, 95% CI: 2.262–8.045, P<0.001), APE1 expression (HR=2.797, 95% CI: 1.486–5.267, P=0.001) and CD163+ TAMs (HR=2.425, 95% CI: 1.300–4.521, P=0.005) were independent prognostic factors (Table I). Area under the curve are shown in Table SV.

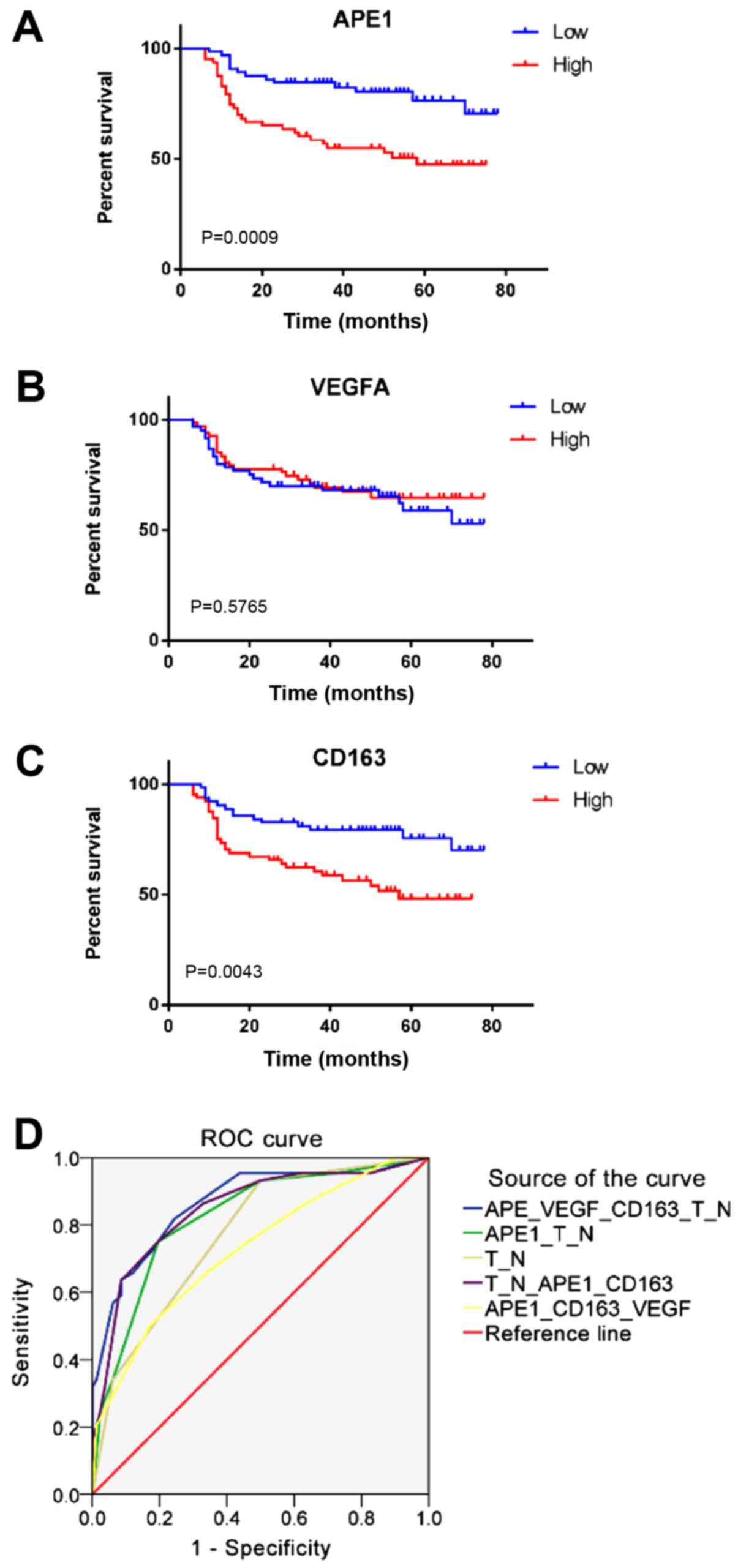

Figure 3. Factors influencing the survival of patients with bladder cancer. (A-C) Kaplan-Meier survival curves; (A) High expression of APE1 was associated with shorter OS; (B) VEGFA expression was not significantly associated with OS; (C) a high ratio of CD163+ tumor-associated macrophages was associated with shorter OS. (D) ROC curves of APE1, VEGFA and CD163 were assessed with T stage and N stage for best prediction efficiency. VEGFA, vascular endothelial growth factor A; APE1, apurinic/apyrimidinic endodeoxyribonuclease 1; OS, overall survival; ROC, receiver operating characteristic; m, months.

Table I. Univariate and multivariate COX analysis of the prognosis of IHC marker for OS.

Table I.

Univariate and multivariate COX analysis of the prognosis of IHC marker for OS.

	Univariate			Multivariate
Variable	HR	95% CI	P-value	HR	95% CI	P-value
Agea	1.492	0.829–2.687	0.182
Sexb	1.047	0.413–2.654	0.923
Smokingc	0.913	0.479–1.741	0.783
LVId	2.974	1.642–5.387	<0.001
T-stagee	8.279	2.948–23.255	<0.001	12.857	3.883–42.575	<0.001
N-stagef	4.265	2.262–8.045	<0.001
Gradeg	2.201	0.530–9.135	0.277
APE1h	2.797	1.486–5.267	0.001	3.644	1.863–7.129	<0.001
VEGFAi	0.860	0.479–1.544	0.613	0.410	0.217–0.773	0.006
CD163j	2.425	1.300–4.521	0.005	2.883	1.480–5.617	0.002

a Age, ≤65 vs. >65 years

b sex, male vs. female

c smoking: positve smoking history vs. negative smoking history

d LVI, lymphovasular invasion vs. no lymphovascular invasion

e T-stage, Tis and T1 vs. T2, T3 and T4

f N-stage, N0 vs. N1 and N2

g grade, high grade vs. low grade

h APE1, high APE1 expression vs. low APE1 expression

i VEGFA, high VEGFA expression vs. low VEGFA expression

j CD163, high CD163 ratio vs. low CD163 ratio. Analysis were performed utilizing logistic regression using the Cox proportional hazards model on SPSS 17.0. Area under the curve is shown in Table SV. HR, hazard ratio; VEGFA, vascular endothelial growth factor A; APE1, apurinic/apyrimidinic endodeoxyribonuclease 1; LVI, lymphovascular invasion.

Discussion

Multiple nomograms and models have been constructed in the past to predict the outcomes of Bca (21). Accurate risk stratification may provide a marked benefit for patients with NMIBC that qualify for early RC, as well as for patients with MIBC, who gain from perioperative chemotherapy. The identification of new characteristics will substantially increase the fidelity of such models.

The presence of LVI, defined as the presence of tumor cells in the lymphatic vessel and in vascular walls, has been reported to be of prognostic value in patients with Bca. Evidence suggests that LVI is a characteristic of biologically and clinically aggressive BCa and may be of prognostic value. In the present study, 34 out of 127 patients were identified to have LVI, 32 of which had MIBC and 2 had NMIBC (Table SII). In addition, the presence of LVI is associated with an unfavorable prognosis. This is consistent with other studies (22).

Aromatic amines are well-known risk factors for BCa (23). Interaction between environmental exposure and genetic susceptibility may markedly increase DNA damage and thus trigger urothelial precancerous events; therefore, prompt elimination of such damage counteracts malignant transformation. The BER pathway has a critical role in DNA repair mechanisms by removing nucleobase modifications by oxidation, alkylation and deamination, and also repairs backbone single-strand DNA breaks (24). The enzyme APE1 has a mainframe role in BER by correcting apurinic/apyrimidinic sites, which are pre-mutagenic lesions able to stall DNA replication forks. Studies have indicated above-basal expression levels of APE1 and other DNA repair pathway proteins in high-grade BCa (25). Choi et al (5) proposed that APE1 may be used as a non-invasive urinary biomarker for BCa; however, its sensitivity and specificity are not satisfying for immediate clinical results. Recently, Fishel et al (26) reported that APE1 was overexpressed in human BCa tissue and that APE1 redox signaling-specific inhibitor APX3330 was able to attenuate the proliferation of BCa cells and increase their apoptosis. However, the potential capability of APE1 expression levels to differentiate between NMIBC and MIBC has not been previously reported. The present study suggested an even distribution of APE1 expression in both NMIBC and MIBC, with no significant difference between the two (P=0.711). Furthermore, no significant difference in APE1 expression was determined between high-grade and low-grade BCa (P=0.744). However, high APE1 expression was associated with the presence of LVI and unfavorable prognosis in patients with BCa. APE1 expression was also positively correlated with VEGFA and CD163+ TAM ratio in BCa tissue.

Previous studies have indicated that high expression of APE1 in lung cancer and osteosarcoma is associated with upregulated VEGF through hypoxia-inducible factor-1α activation and retardation of APE1 results in a significant drop in VEGF expression (27). Of note, Pignot et al (28) analyzed the angiogenic pathways in human transitional cell carcinoma of the bladder using a large-scale real-time reverse transcription-PCR approach, indicating that VEGFA, MET, C-X-C motif chemokine receptor 4 and interleukin-8 were significantly overexpressed in tumor samples, but only VEGFA overexpression was an independent prognostic factor for overall and disease-free survival. This did not align with the present analysis of VEGFA expression at the protein level, as no significant prognostic value for VEGFA was determined in BCa; perhaps a further study with more cases will better indicate the correlation between transcriptional levels and protein expression of VEGFA in BCa.

VEGF and its receptors have profound effects on the early development and differentiation of both vascular endothelial and hematopoietic progenitors. Kloepper et al (29) further suggested that when subjecting glioblastoma to anti-VEGF/angiopoietin-2 blockade, TAMs along the M1 to M2 continuum are being reprogrammed toward the M1 phenotype to provide a greater survival benefit. This suggested that VEGF may have a novel role in immunosuppression by M2 polarization.

Macrophage infiltration is associated with significantly better cancer-specific survival in patients with CD163+ TAM-associated tumors. A meta-analysis of 1,400 cases of BCa including 13 studies further indicated that only CD163+ TAMs, not CD68+ TAMs, were closely associated with OS, recurrence-free survival and progression-free survival (30). Consistent with the present results, macrophage infiltration was indicated to be associated with the prognosis of BCa. The present study demonstrated through IHC and multiple immunofluorescences staining that a high CD163+ macrophage ratio is associated with an unfavorable prognosis.

Recently, Hudson et al (31) published a comparative study of 19 glioma specimens with recurrence after treatment. Through screening of 96 gene expressions, APE1 expression in tumor tissues was significantly increased after treatment. In addition, genes linked to immunosuppression, invasion and metastasis (glycoprotein nmb, C-C motif chemokine ligand 5 and killer cell lectin-like receptor C1) and an M2 phenotype (CD163) were also detected. The polarized genes were significantly upregulated. In 2018, Yan et al (32) reported that the APE1-specific redox inhibitor APX3330 directly affected the polarization of M2 macrophages in the role of neurological recovery after stroke in type I diabetic rats. However, the specific mechanism by which APE1 regulates M2 polarization has remained elusive. The present results confirmed a positive correlation between APE1, VEGFA and CD163 at the protein level, suggesting that APE1 may be involved in the regulation of macrophage polarization through VEGFA.

In the univariate linear regression analysis performed in the present study, VEGFA was indicated to have no association with OS but it was a confounding factor in the multivariate analysis. This is possibly due to several reasons: i) The number of cases was too low to accurately present the association; ii) VEGFA may not be a decisive factor on OS in BCa, but may still be a contributing factor due to its association with other meaningful factors, including APE1 and CD163 expression. Further studies on this mechanism will be required to draw a conclusion.

The present study demonstrated that high APE1 expression is associated with the presence of LVI in BCa. APE1 expression was also determined to be positively associated with VEGFA expression and increased infiltration of CD163+ TAM. LVI, high APE1 expression and a high ratio of CD163+ TAM in BCa may lead to a reduced survival time of patients. The results may add valuable insight to optimize models predicting BCa prognosis, consequently guiding perioperative treatments that benefit patients the most. The present study also indicated that there may be a mechanism by which high APE1 expression contributes to an increase of M2-type TAMs by definition as CD163+, possibly involving regulation of VEGFA expression through its redox function. However, the present results are limited in that only patients subjected to radical cystectomy were recruited, and studies including patients with broader recruitment criteria (not only restricting to patients who underwent cystectomy but, for example, also those who underwent transurethral resection) will provide a better analysis. In addition, only paraffin-embedded tissues were assessed and there was a lack of fresh tissues, which may limit the conclusions of the present study. Further prospective studies with standardized protocols should be performed to fully assess the impact of LVI, APE1 and VEGFA expression, as well as the CD163+ TAM ratio, on the outcomes for patients with BCa.
