Introduction

Mitochondria are the main producer of energy (1) and an essential component of redox control in cancer cells (2). Since high levels of reactive oxygen species (ROS) are toxic to cancer cells, mitochondria are a promising target for novel anti-cancer therapeutics. Elesclomol is a first-in-class investigational mitochondria-targeting agent for treating solid tumors (3). Although elesclomol has been reported to induce oxidative stress (4,5), several factors may limit its efficacy for eradicating tumors when used as a single agent. For instance, cancer cells shift energy metabolism from oxidative phosphorylation to glycolysis (6), which helps to prevent excessive ROS accumulation. Cancer cells can also increase tolerance to mitochondria-targeting agents through antioxidant mechanisms (7).

Another potentially major protective mechanism against excessive ROS generation is mitochondrial uncoupling proteins (UCPs), specialized mitochondrial anion transporters that mediate leakage of protons at the inner mitochondrial membrane (8). Among the five types of UCPs in mammalian cells, UCP2, which has been previously linked to obesity and diabetes (9), has gained increasing interest; studies have demonstrated high UCP2 expression in various cancer cells, including those of the breast, ovary, bladder, esophagus, liver, colon, lung and pancreas (10,11). By reducing electron transport chain efficiency, UCP2 increases energy expenditure (9) and reduces ROS generation (8). UCP2 is thus involved in various metabolic disorders (12) and cellular ROS regulation (8). In particular, UCP2-mediated mitochondrial uncoupling exerts protective effects under various stressful conditions, such as excessive production of mitochondrial superoxide ions and aerobic glycolysis stimulation (13). Previous studies have also reported that UCP2 serves a role in tumor aggressiveness and anticancer resistance (14,15), which is considered to be associated with its ability to attenuate mitochondrial ROS production (13,16). Thus, blocking UCP2 function may be a viable strategy for eliminating chemotherapy-resistant cancer cells (17).

A promising drug with highly selective inhibitory action against UCP2 activity is a natural compound termed genipin, an aglycone of geniposide present in an extract from Gardenia jasminoides, which has been demonstrated to block UCP2-mediated proton leak in several cell types, such as pancreatic islet cells (9). Previous studies have reported that genipin stimulates ROS generation (18) and induces cytotoxic effects on leukemia and liver cancer cells (19,20). Although combination chemotherapy for cancer has been extensively studied (21,22), the present study focused on combination therapy for cancer cells with poor response to the promising ROS inducer elesclomol and hypothesized the lack of effects of elesclomol on A549 lung cancer cells to UCP2 activity for the first time.

We hypothesized that UCP2 may protect cancer cells from elesclomol cytotoxicity, and that blocking UCP2 function with genipin may enhance the antitumor efficacy of elesclomol. The aim of the present study was to investigate the combined therapeutic effect of genipin and elesclomol, indicating the potential of a cancer inhibition strategy using co-treatment with the UCP2 inhibitor genipin in A549 lung cancer cells, where there are currently limited effects on ROS induction due to the high expression levels of UCP2.

Materials and methods

Cell culture and reagents

A549 human lung cancer cells from the American Type Culture Collection were maintained in RPMI-1640 medium (Lonza Group, Ltd.) supplemented with 10% FBS (Serana Europe GmbH) and 1% penicillin/streptomycin (Gibco; Thermo Fisher Scientific, Inc.) at 37°C with 5% CO2 in a humidified atmosphere. Cells were sub-cultured twice a week and used at passages <15. The cells were confirmed to be mycoplasma free and authenticated by the Samsung Medical Center institutional research support center. All experiments were performed at cell confluence of 70–80%.

Genipin, N-acetylcysteine (NAC) and tert-butylhydroperoxide (TBHP) were obtained from Sigma-Aldrich; Merck KGaA. Treatment concentrations of NAC and TBHP were 10 mM and 200 µM, respectively, and were co-treated with elesclomol and genipin at 37°C for 24 or 48 h. Elesclomol was obtained from Biorbyt. Elesclomol and genipin stocks were dissolved in DMSO at 20 and 250 mM, respectively, and further diluted with DMSO. 5-(And-6)-Chloromethyl-2′, 7′-dichlorodihydrofluoresscein diacetate acetyl ester (CM-H2DCFDA), MitoSOX Red and Lipofectamine® LTX were obtained from Invitrogen; Thermo Fisher Scientific, Inc. Non-targeting small interfering RNA (siRNA), siRNA targeting UCP2 and the anti-β-actin antibody (cat. no. 18470) were obtained from Santa Cruz Biotechnology, Inc. Primary anti-UCP2 (cat. no. 89326), anti-cleaved caspase-3 (cat. no. 9661) and anti-PARP (cat. no. 9542), and secondary anti-rabbit (cat. no. 7074) and anti-mouse IgG (cat. no. 7076) antibodies were obtained from Cell Signaling Technology, Inc.

Silencing of UCP2 by siRNA transfection

After the culture medium was changed to that containing 5% FBS without antibiotics, 80% confluent A549 cells were transfected with 40 nM UCP2-specific or non-targeted siRNA mixed with Lipofectamine® RNAiMAX (Invitrogen; Thermo Fisher Scientific, Inc.) in opti-MEM (Gibco; Thermo Fisher Scientific, Inc.). At 24 h, the medium was replaced with fresh medium containing 10% FBS and antibiotics, and the cells were incubated for another 24 h prior to subsequent experiments.

Clonogenic assay

A549 cells treated with elesclomol and genipin on 100 mm plates were washed twice with 4°C cold PBS, harvested by trypsinization and seeded in 6-well plates at 500 cells/well. After 9 days, the cells were fixed with 100% methanol at room temperature (RT) for 2 min and washed twice with cold PBS. The cells were then stained with crystal violet solution (Sigma-Aldrich; Merck KGaA) at RT for 2 min and washed twice with cold PBS. The number of colonies containing ≥50 cells were finally manually counted in each well using an inverted phase contrast microscopy (magnification, ×4; Olympus Corporation).

Sulforhodamine B (SRB) assay

Cell survival was evaluated by SRB assay in 1×104 cells/well seeded overnight in a 96-well plate. Following treatment for 24 and 48 h, A549 cells were fixed in 10% (wt/vol) trichloroacetic acid at 4°C for 2 h. After the cells were stained with SRB dye at RT for 30 min, excess dye was removed by repeated washing with 1% (v/v) acetic acid. The protein-bound dye was dissolved in 10 mM Tris base solution, and absorbance at 510 nm was measured using a VERSA max microplate reader (Molecular Devices, LLC).

Lactate dehydrogenase (LDH) activity assay

A549 cells were seeded in a 12-well plate at a density of 2×105 cells/well and genipin and elelsclomol treated the following day for 24 h. LDH activity was measured in 500 µl cell culture medium for released LDH and 20 µg cell lysate for intracellular LDH using a Cobas c501 assay kit (cat. no. c501; Roche Diagnostics) according to the manufacturer's instructions. Tumor tissues were homogenized with T-PER™ tissue protein extraction reagent (Thermo Fisher Scientific, Inc.) on ice and centrifuged for 10 min at 10,000 × g at 4°C. Subsequently, 20 µg of supernatants were assayed for LDH activity as above.

Mitochondrial membrane potential (MMP) measurement

A549 cells were seeded in a black 96-well plate at a density of 4×104 cells/well and genipin and elesclomol treated the following day for 24 h. The culture medium was replaced with 100 µl phenol red-free RPMI-1640 medium containing 2% FBS and 500 nM MitoTracker™ Red FM (Invitrogen; Thermo Fisher Scientific, Inc.), a fluorescent dye that stains the mitochondria of live cells as a function of MMP The cells were incubated for 30 min at 37°C in 5% CO2 and washed with 100 µl cold PBS per well. The fluorescence in each well was measured using a microplate reader (Mithras LB 940; Titertek-Berthold) using 594 nm excitation and 642 nm emission wavelengths.

Annexin V and propidium iodide (PI) flow cytometric analysis

A549 cells at density of 5×105 cells/ml were genipin and elesclomol treated for 24 h, and apoptotic rates were determined using an Annexin V-FITC Apoptosis kit (BD Biosciences) according to the manufacturer's instructions. Annexin V for early apoptotic cells and propidium iodide (PI) for late apoptotic cells were used. A total of 10,000 cells per sample underwent FACS analysis on a Calibur flow-cytometer (BD Biosciences) using CellQuest software version 5.1 (Becton-Dickinson and Company).

Intracellular ROS measurement

Intracellular ROS levels were quantified using the cell permeant indicator CM-H2DCFDA. Briefly, A549 cells were seeded at a density of 4×104 cells/well in a black 96-well plate. After 24 h, the culture medium was changed to 10% FBS-containing phenol red-free RPMI-1-1640 medium (Gibco; Thermo Fisher Scientific, Inc.) and cells were treated with genipin and elesclomol or transfected with UCP2 siRNA. Following incubation with 10 µM CM-H2DCFDA at 37°C for 30 min, fluorescence was measured using a GloMax®-Multi Detection System microplate reader (Promega Corporation) at 490 nm excitation and 510–570 nm emission wavelengths.

Mitochondrial ROS measurement

Mitochondrial ROS was measured using MitoSOX Red with dihydroethidium conjugated to a mitochondria-localization tag. A549 cells were seeded at a density of 4×104 cells/well in a black 96-well plate, and the culture medium was changed the next day to 10% FBS-containing phenol red-free RPMI-1640 medium. Following genipin and elesclomol treatment, the culture medium was removed, and MitoSOX dye in HBSS buffer (Lonza Group, Ltd.) containing 2% bovine serum albumin (Bovogen Biologicals Pvt. Ltd.) was added. Following incubation at 37°C for 10 min, the buffer was changed to HBSS without dye, and fluorescence was measured on a Mithras LB 940 microplate reader at 510 nm excitation and 580 nm emission wavelengths.

Glucose uptake measurement

A549 cells in 24-well plates at a densities of 5×104 cells/well were incubated for 40 min with 100–250 kBq 18F-fluorodeoxyglucose (FDG) (provided by Samsung Medical Centre) added to the culture medium at 37°C in 5% CO2. The cells were rapidly washed twice with cold PBS and lysed with 0.05 N NaOH, and cell-associated radioactivity was measured on a Wallac high-energy γ-counter (PerkinElmer, Inc.). Glucose uptake levels were corrected for cell protein content as assessed by Bradford assay.

Immunoblotting

Immunoblotting was performed in A549 cells and tumor tissues lysed with cold PRO-PREP™ protein extraction solution (iNtRON Biotechnology, Inc.) and T-PER™ tissue protein extraction reagent (Thermo Fisher Scientific, Inc.), respectively, with protease inhibitor cocktail (Sigma-Aldrich; Merck KGaA). Cell experiments were performed by obtaining cell lysates following 24-h incubation with 250 µM genpin and 0.1 µM elesclomol Following Bradford assays, 30 µg of proteins were separated by 10% sodium dodecyl sulfate polyacrylamide gel electrophoresis, followed by transfer to a polyvinylidene difluoride membrane. The membrane was blocked with 5% skim milk in Tris-buffered saline and 0.1% Tween-20 for 1 h at room temperature and incubated overnight at 4°C with primary antibodies (1:1,000 dilution), followed by 1 h incubation at room temperature with secondary antibodies (1:2,000 dilution). Immunoreactive protein was detected by chemiluminescence (Pierce ECL plus western blotting substrate; Pierce; Thermo Fisher Scientific, Inc.), and band intensities were quantified using a GS-800 densitometer with Quantity One software version 4.6.6 (Bio-Rad Laboratories, Inc.).

Mouse tumor model and drug treatment

Animal experiments were performed in accordance with the National Institutes of Health Guide for Care and Use of Laboratory Animals and approved by the Institutional Animal Care and Use Committee of Samsung Biomedical Research Institute at Samsung Medical Center (approval no. 20200413001). The tumor model was established in 5-week-old male BALB/c-nude mice weighing 20–25 g (Orient Bio, Inc.) by subcutaneous injection of 5×106 A549 cells into the right shoulder. After two weeks, when tumors reached a diameter of ~0.5 cm, the animals were treated with intraperitoneal injections of DMSO control (n=6), 60 mg/kg genipin (n=6), 30 mg/kg elesclomol (n=7) or 60 mg/kg genipin plus 30 mg/kg elesclomol (n=7) three times per week for a total of four weeks. The dosages of genipin and elesclomol were based on previous studies (23,24). The mice were weighed and the tumor size was measured with a caliper before each injection. The experiment was repeated twice for a final total of 6–7 animals per treatment group.

In vivo imaging of tumor FDG uptake

Positron emission tomography (PET) imaging was performed on living tumor-bearing mice on the day following the final drug injection. At 1 h post-injection with 7.4 MBq of FDG via the tail vein, the animals were anesthetized by isoflurane inhalation, and PET images were acquired on an Inveon micro-PET scanner (Siemens Healthineers). Non-attenuation-corrected tomographic images were analyzed on an Inveon Research Workplace workstation version 4.2 (Siemens Healthineers). Polygonal regions of interest were manually drawn with care to include all tumor mass while excluding adjacent tissue. After PET imaging, the anesthetized mice were sacrificed by cervical dislocation, and the tumor tissues were excised.

Statistical analysis

Data are presented as mean ± standard deviation or the mean ± standard error of the mean. Significant differences between groups were analyzed by paired Student's t-test for two groups and one-way ANOVA with Bonferroni post hoc test for multiple groups. P<0.05 was considered to indicate a statistically significant difference.

Results

Effects of UCP2 knockdown on A549 cell FDG uptake, ROS production and survival

Western blot analysis demonstrated that A549 cells exhibited high protein expression levels of UCP2. Transfection with UCP2-specific siRNA effectively knocked down UCP2 expression to 34.8±8.0% of that in the non-targeted siRNA-transfected control cells (Fig. 1A).

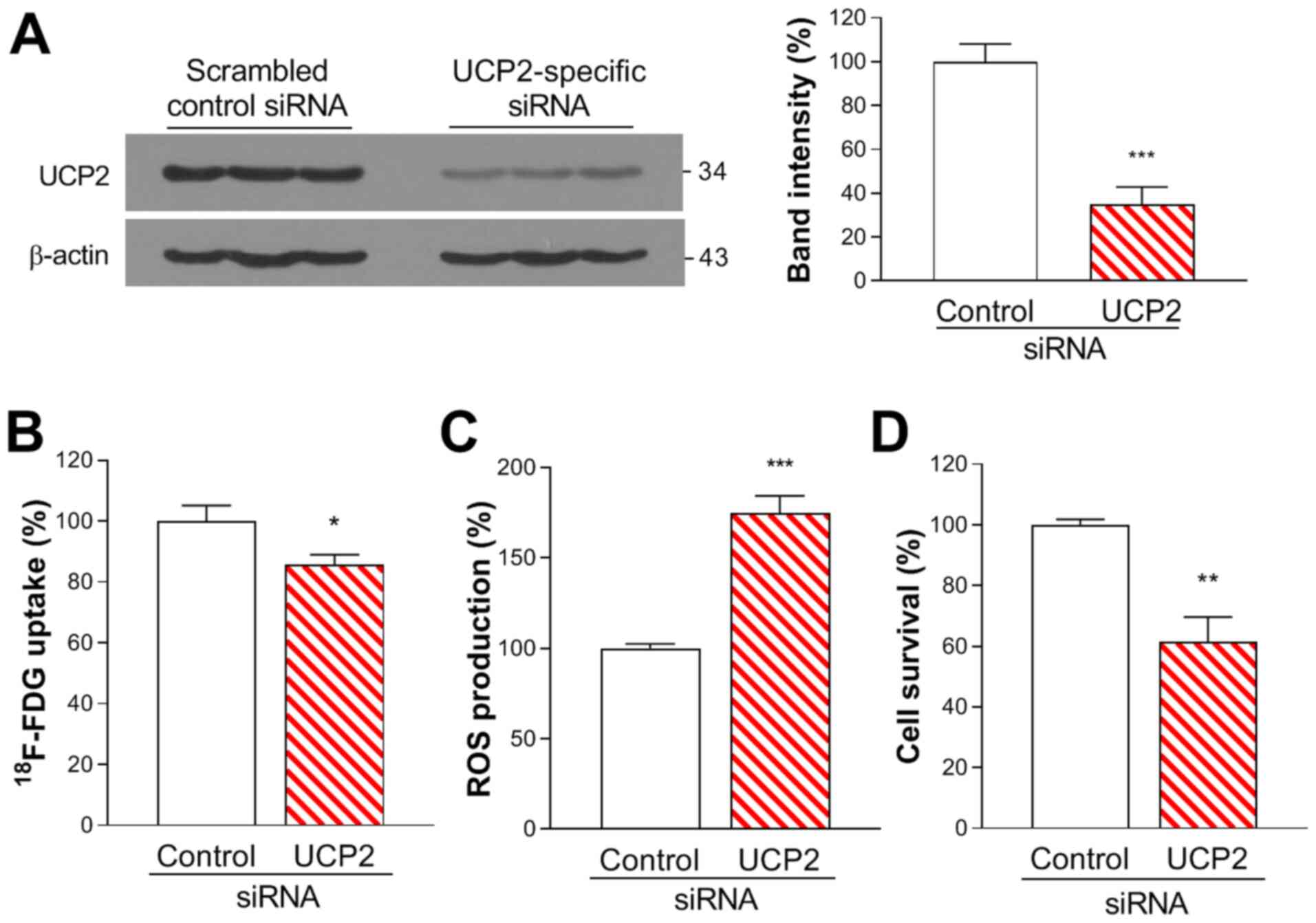

Figure 1. Effects of UCP2 knockdown in A549 lung cancer cells. (A) Western blots of UCP2 protein expression in A549 lung cancer cells transfected with scrambled control or UCP2-specific siRNA. Quantified band intensities were normalized to those of β-actin. (B) FDG uptake, (C) ROS production and (D) survival of cells transfected with the control or UCP2-specific siRNA. Data are presented as the mean ± SD of values obtained from triplicate samples of a single representative experiment expressed as percentage values relative to the control siRNA group. *P<0.05, **P<0.01 and ***P<0.001 vs. control siRNA. UCP2, uncoupling protein-2; siRNA, small interfering RNA; FDG, 18F-fluorodeoxyglucose; ROS, reactive oxygen species.

Silencing of UCP2 expression with siRNA slightly suppressed FDG uptake to 88.5±3.3% of that in control cells (Fig. 1B. ROS production was significantly enhanced by UCP2 knockdown to 174.7±9.6% of that in controls (Fig. 1C). SRB assays results revealed that UCP2 silencing significantly decreased A549 cell viability to 60.8±7.9% of that in the control group (Fig. 1D).

Effects of genipin and elesclomol on FDG uptake and ROS production

Treatment of A549 cells for 24 h with 250 µM genipin, which blocks UCP2 function without reducing its expression (16), did not affect the protein expression levels of UCP2 (Fig. 2A). FDG uptake was unaffected by 24-h treatment with 0.1 µM elesclomol alone, but was significantly suppressed by 250 µM genipin alone or by 250 µM genipin plus 0.1 µM elesclomol to 72.0±7.1 and 65.8±4.6% of that in the control group, respectively (Fig. 2B).

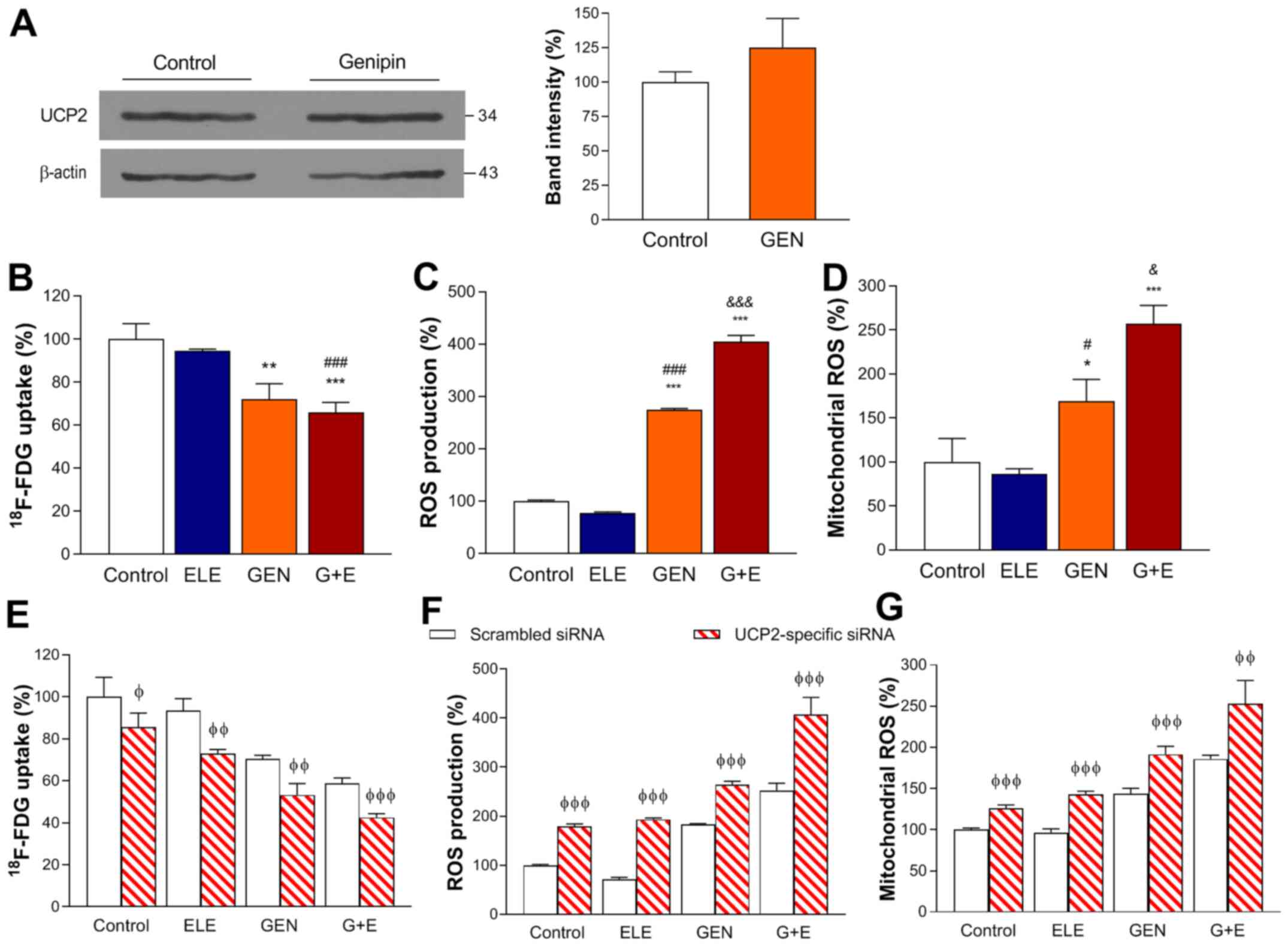

Figure 2. Effects of GEN and ELE treatment on A549 lung cancer cells with or without UCP2 knockdown. (A) Western blots of UCP2 expression in A549 cells following 24-h treatment with 250 µM GEN or vehicle (control). Quantified band intensities were normalized to those of β-actin. (B) FDG uptake, (C) intracellular and (D) mitochondrial ROS production following 24-h treatment with 0.1 µM ELE, 250 µM GEN, G + E or vehicle (control). (E) FDG uptake, (F) intracellular and (G) mitochondrial ROS production following 48-h ELE, GEN and G + E treatment in cells transfected with scrambled control or UCP2-specific siRNA. Data are presented as the mean ± SD of values obtained from triplicate samples of a single representative experiment expressed as percentage values relative to the control group. *P<0.05, **P<0.01 and ***P<0.001 vs. control; #P<0.05, ###P<0.001 vs. ELE; &P<0.05, &&&P<0.001 vs. GEN; φP<0.05, φφP<0.01 and φφφP<0.001 vs. scrambled siRNA. GEN, genipin; ELE, elesclomol; G + E, genipin and elesclomol; UCP2, uncoupling protein-2; siRNA, small interfering RNA; FDG, 18F-fluorodeoxyglucose; ROS, reactive oxygen species.

Intracellular ROS production was also unaffected by 0.1 µM elesclomol alone. However, it was increased to 274.9±1.8% of that in the control group following 6-h treatment with 250 µM genipin, and was further increased to 404.3±21.4% of that in the control group when elesclomol was also present (Fig. 2C). Similarly, mitochondrial ROS production, which was unaffected by elesclomol alone, increased to 169.3±24.5% of that in the control group in the cells treated with 250 µM genipin and further increased to 256.9±36% of that in the control group following co-treatment with genipin and elesclomol (Fig. 2D).

Effects of genipin and elesclomol following UCP2 knockdown

Following UCP2 knockdown, the effects of genipin and elesclomol were more pronounced compared with those in cells transfected with the scrambled control. FDG uptake was decreased to 58.6±2.6% of that in the control group by genipin plus elesclomol in the scrambled siRNA-transfected group, and it was further reduced to 42.4±1.8% when UCP2 was knocked down (Fig. 2E). Similarly, cytosolic and mitochondrial ROS production levels, which were increased to 252.3±14.8 and 186.0±4.5% of those in controls by genipin plus elesclomol, respectively, were further increased to 406.8±35.0 and 253.2±27.9%, respectively, when UCP2 was knocked down (Fig. 2F and G).

Effects of genipin and elesclomol on cell clonogenic capacity and survival

The anticancer effects of co-treatment with genipin and elesclomol were analyzed in vitro. Clonogenic assays demonstrated that, when used alone, 0.1 µM elesclomol and 250 µM genipin exerted limited effects on the colony formation capacity of A549 cells. However, combining the two drugs reduced cell colony numbers to 50.6±7.4% of those in the control group following 48-h treatment (Fig. 3A).

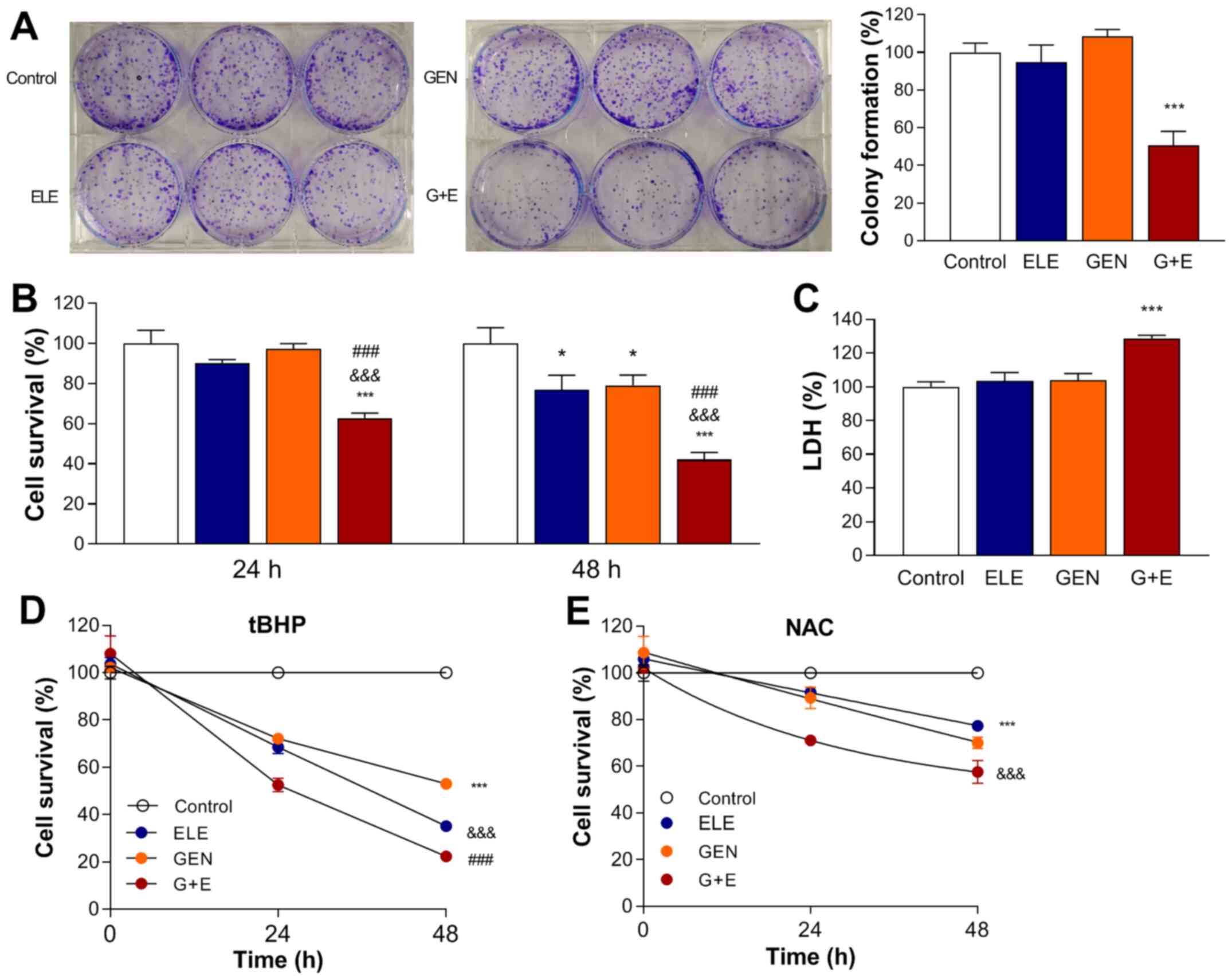

Figure 3. Effects of GEN and ELE on A549 cancer cell viability in vitro. (A) Colony forming capacity of A549 cells following 48-h treatment with 0.1 µM ELE, 250 µM GEN, G + E or vehicle (control). (B) Cell survival following 24- or 48-h ELE, GEN and G + E treatment and (C) LDH release after 24-h treatment. (D) Effects of 250 µM GEN and 0.1 µM ELE on A549 cell survival under co-treatment with 200 µM ROS inducer TBHP or (E) 10 mM ROS scavenger NAC. Data are presented as the mean ± SD of the percentage of the control values obtained from triplicate samples of a single representative experiment. *P<0.05 and ***P<0.001 vs. control; ###P<0.001 vs. ELE; &&&P<0.001 vs. GEN. GEN, genipin; ELE, elesclomol; G + E, genipin and elesclomol; LDH, lactate dehydrogenase; NAC, N-acetylcysteine; TBHP, tert-butylhydroperoxide; ROS, reactive oxygen species.

Similarly, the results of the SRB assay demonstrated that 48-h treatment with 0.1 µM elesclomol or 250 µM genipin alone suppressed cell survival to 78.9±5.2 and 76.9±7.1% of that in the control group, respectively. However, combining the two drugs significantly reduced cell survival to 42.0±3.4% of controls (Fig. 3B, middle). Furthermore, LDH release, assessed as a measure of cytotoxicity, was unaffected by 24-h treatment with 0.1 µM elesclomol or 250 µM genipin alone, but was increased to 128.8±1.6% of that in the control group by co-treatment (Fig. 3C), accompanied by decreased intracellular LDH to 63.8±1.3% of that in the control group (data not shown).

The role of ROS on the cytotoxic effects of the two drugs was assessed in the presence of the exogenous ROS inducer TBHP and ROS scavenger NAC. The results demonstrated that the cytotoxic effects of genipin, elesclomol and their combination were enhanced by TBHP and reduced by NAC; the cell survival in the elesclomol and genipin co-treated cells at 48 h was decreased to 22.3±1.9% of that in the control group by TBHP (Fig. 3D) and was partially recovered to 57.5±4.8% of that in the control group by NAC (Fig. 3E).

Effects of genipin and elesclomol on A549 cell apoptosis

The present study next evaluated whether the antitumor effect of combining elesclomol with genipin involved the induction of apoptosis. The results of the MitoTracker Red assay demonstrated that co-treatment with elesclomol and genipin for 24 h significantly reduced A549 cell MMP to 70.4±2.5% of that in the control group (Fig. 4A). This was accompanied by a 6-fold increase in the percentage of Annexin V-positive apoptotic cells (Fig. 4B). In addition, the co-treatment induced a marked increase in the levels of cleaved PARP to 837.6±221.9% and of cleaved caspase-3 to 495.9±68.6% of those in untreated controls (Fig. 4C and D).

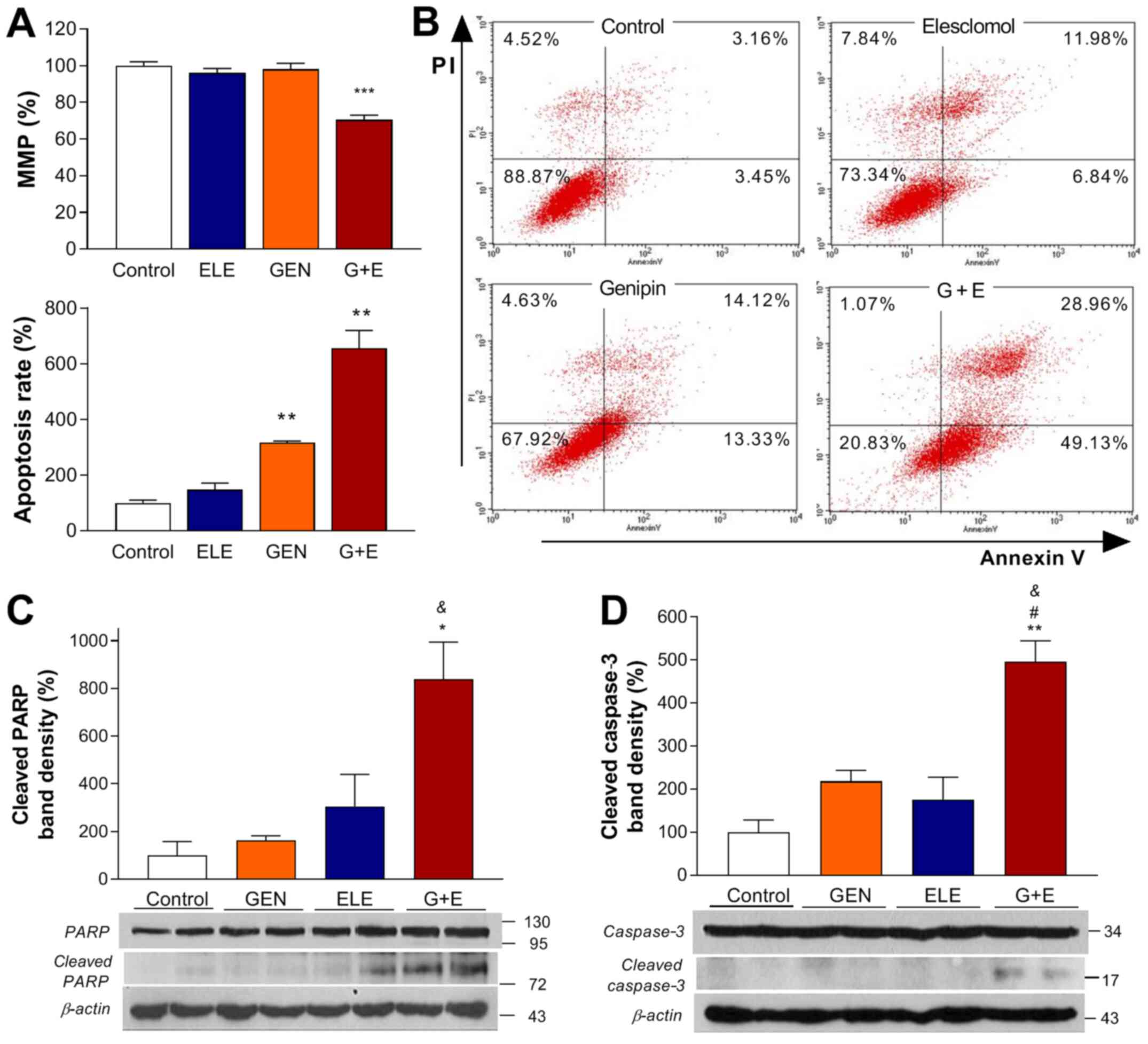

Figure 4. Effects of GEN and ELE on apoptosis in A549 cells. (A) MMP was measured by MitoTracker Red FM, and (B) apoptosis was analyzed using FITC-Annexin V and PI staining following 24-h treatment with 0.1 µM ELE, 250 µM GEN, G + E or vehicle (control). (C) Western blots of PARP, cleaved PARP, (D) caspase-3 and cleaved caspase-3 following 24-h treatment with ELE, GEN or G + E. Quantified band intensities were normalized to those of β-actin. Data are presented as the mean ± SD of the percentage of the control values obtained from (A and B) triplicate or (C and D) duplicate samples of a single representative experiment. *P<0.05, **P<0.01, ***P<0.001 vs. control; #P<0.05 vs. ELE; &P<0.05 vs. GEN. GEN, genipin; ELE, elesclomol; G + E, genipin and elesclomol; MMP, mitochondrial membrane potential; PARP, poly(ADP-ribose) polymerase.

In vivo antitumor effects of genipin and elesclomol on A549 ×enografts in mice

Treatment of A549 tumor xenografts in mice with genipin or elesclomol led to similar magnitudes of modest retardation in tumor growth (280.1±130.8 and 310.1±114.6 mm3 on day 31, respectively) compared with that in the vehicle-treated control mice (584.2±482.5 mm3 on day 31; Fig. 5A). By contrast, combination therapy with elesclomol plus genipin resulted in near complete suppression of tumor growth (Fig. 5A); the tumor volume in the co-treatment group (84.0±27.8 mm3 on day 31) was significantly lower compared with that in the control group No significant differences were observed in animal weight during treatment (Fig. 5A).

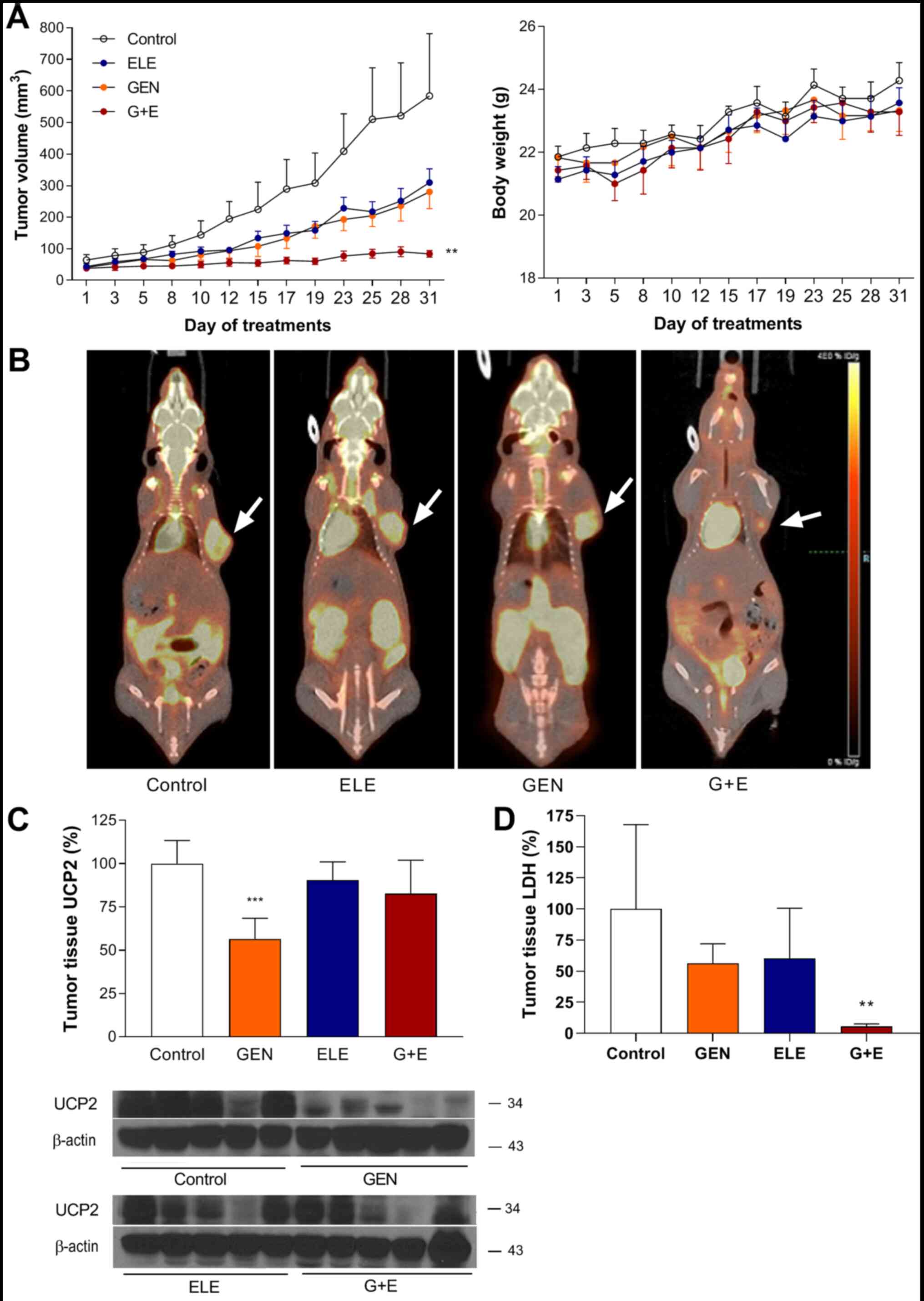

Figure 5. Antitumor effects of GEN and ELE in vivo. (A) Growth of A549 ×enograft tumors in mice intraperitoneally injected with DMSO control (n=6), 30 mg/kg ELE (n=7), 60 mg/kg GEN (n=6) or G + E (n=7). The weights of the mice are presented on the right. Data are presented as the mean ± SEM. †P=0.008 vs. control. (B) Representative coronal positron emission tomography/CT tomographs of mice demonstrating tumor 18F-fluorodeoxyglucose uptake (arrow) after the final treatment. (C) Western blots of UCP2 protein expression and (D) LDH assays in mouse xenograft tumor tissues. Data are presented as the mean ± SD of the percentage of the control values obtained from 4–5 mice per group. **P<0.01 and ***P<0.001 vs. control. GEN, genipin; ELE, elesclomol; G + E, genipin and elesclomol; UCP2, uncoupling protein-2; LDH, lactate dehydrogenase.

PET/CT performed after the final treatment revealed significantly smaller tumors with lower FDG uptake in animals co-treated with elesclomol and genipin compared with those in animals treated with control or with elesclomol or genipin alone (Fig. 5B).

Western blots analysis of UCP2 protein expression in the xenograft tumor tissues demonstrated that UCP2 expression levels in the tumors isolated from genipin-treated mice was reduced to 56.4±12.0% of those in the tissues from the untreated control group (Fig. 5C). In addition, the LDH levels were lower in the tumor tissue of mice treated with genipin plus elesclomol compared with the control groups (Fig. 5D).

Discussion

Elesclomol enters cells in a complex with copper, which it transports into the mitochondria to stimulate ROS generation; dissociated elesclomol then effluxes out of the cells to repeat mitochondrial copper shuttling and accumulation (25). However, despite its high potential for treating various malignancies including lung cancer (3–5), elesclomol has been limited in increasing ROS and eliminating small and non-small lung cancer cells (26). Although a number of studies have examined the beneficial effects of combining chemotherapeutic drugs for cancer therapy, the present study tested a unique hypothesis that the natural compound genipin may enhance the efficacy of elesclomol to induce ROS generation and promote cell death through the suppression of UCP2 function.

The present study first confirmed that A549 cancer cells exhibited a high level of UCP2 protein expression. In these cells, UCP2 knockdown with a specific siRNA mildly decreased FDG uptake, significantly elevated ROS production and suppressed cell survival compared with those in the control group. When the biological effects of elesclomol and genipin were compared, it was observed that elesclomol monotherapy was unable to significantly affect FDG uptake or ROS production. By contrast, genipin mildly decreased FDG uptake and significantly elevated cellular and mitochondrial ROS production in a manner similar to that obtained by UCP2 knockdown. Furthermore, the effects were substantially enhanced in cells treated with a combination of elesclomol and genipin. In these experiments, elesclomol and genipin were used at the concentrations of 0.1 and 250 µM, respectively, which were slightly lower compared with the 0.5 µM (4) and 400 µM (27) used in previous studies, respectively, to determine their anticancer effects.

Genipin is an inhibitor of UCP2 function rather than expression (16,20,28–30), which is consistent with the result of the present study that the protein levels of UCP2 were not reduced by the genipin treatment. The major role of UCP2 is to inhibit ROS generation (15–19). Inhibition of UCP2 function by genipin may therefore be demonstrated by an increase of ROS production or a reduction of proton leak on oxygen consumption rate analysis. This has been confirmed in various cancer cell types, such as pancreatic cancer cells, breast cancer cells by our group and others (11,19,20,29–31). Thus, the results of the present study that the significantly increased ROS production induced by UCP2 knockdown or genipin may represent the blocking of UCP2 activity-mediated protection against oxidative stress. In addition, the mild reduction of glucose uptake by UCP2 knockdown or by genipin may be explained by the inhibition of the UCP2-mediated glucose expenditure that shifts glucose metabolism toward glycolytic flux (31,32). These effects were more pronounced when genipin treatment was performed in UCP2-knockdown cells, which may indicate a more complete blockage of mitochondrial proton leakage.

When in vitro cytotoxic effects were assessed in the present study, elesclomol alone exhibited limited efficacy in suppressing the colony forming capacity and survival of A549 cells. High UCP2 expression has been previously indicated to attenuate the ROS-stimulatory and cytotoxic effects of paclitaxel (33). Therefore, the limited cytotoxicity of elesclomol observed in the present study may be attributed to the protective action of UCP2 against mitochondrial ROS buildup. This was supported by substantial enhancement by genipin of the ability of elesclomol to suppress A549 cell colony formation and survival, as well as by enhanced cell death in the presence of an ROS donor and suppressed cell death in the presence of a ROS scavenger.

The results of the present study also demonstrated that co-treatment with elesclomol and genipin significantly reduced A549 cell MMP and induced apoptosis, as assessed by Annexin V FACS analysis. This was accompanied by markedly increased levels of the cleaved forms of caspase-3 and PARP proteins. These results were consistent with the notion that UCP2 protects cancer cells from ROS stress-induced apoptosis (34–36), which occurs through the intrinsic apoptotic pathway (37). Taken together, these results indicated that combining the UCP2 inhibitor genipin enhanced the capacity of elesclomol to induce cancer cell death by activating the intrinsic apoptotic pathway through ROS stimulation and MMP suppression.

Notably, in the present study, the in vivo antitumor effect was also augmented when genipin and elesclomol were used in combination. For these experiments, A549 tumor-bearing mice were treated with 60 mg/kg genipin, which was within the range of 10–100 mg/kg previously administered to mice in combination with other drugs (23,38). Elesclomol was administered at a dose of 30 mg/kg, which was in the lower range of the doses previously used for treating tumor-bearing mice (24). These doses were selected to demonstrate that the natural compound genipin may be safely added to enhance the anticancer effects of low-dose elesclomol. The results revealed that elesclomol and genipin therapy alone exhibited modest antitumor efficacies that led to similar retardations of tumor growth. By contrast, combining genipin with elesclomol nearly completely suppressed tumor growth.

Further analysis of the xenograft tumor tissues revealed that the protein levels of UCP2 in tumors isolated from the genipin-treated mice were reduced compared with the control group. This result may indicate the preferential killing of tumor cells with greater UCP2 expression by genipin, which led to the remaining tumor tissue containing cells with lower UCP2 levels. Tumor tissue LDH level was reduced in mice treated with genipin plus elesclomol compared with the control group. This finding may indicate that fewer dying cancer cells exist in the reduced tumor tissues after long-term treatment with genipin and elesclomol.

Fig. 6 illustrates our proposed model for the synergistic anticancer effects of elesclomol and genipin. In this model, elesclomol enters cancer cells to induce an increase of mitochondrial oxidative stress, but this effect can be alleviated by UCP2-mediated oxygen consumption uncoupling. UCP2 inhibition with genipin or UCP2 siRNA blocks this protective response and augments the stimulation of ROS production by elesclomol, which in turn triggers apoptosis of the cancer cells.

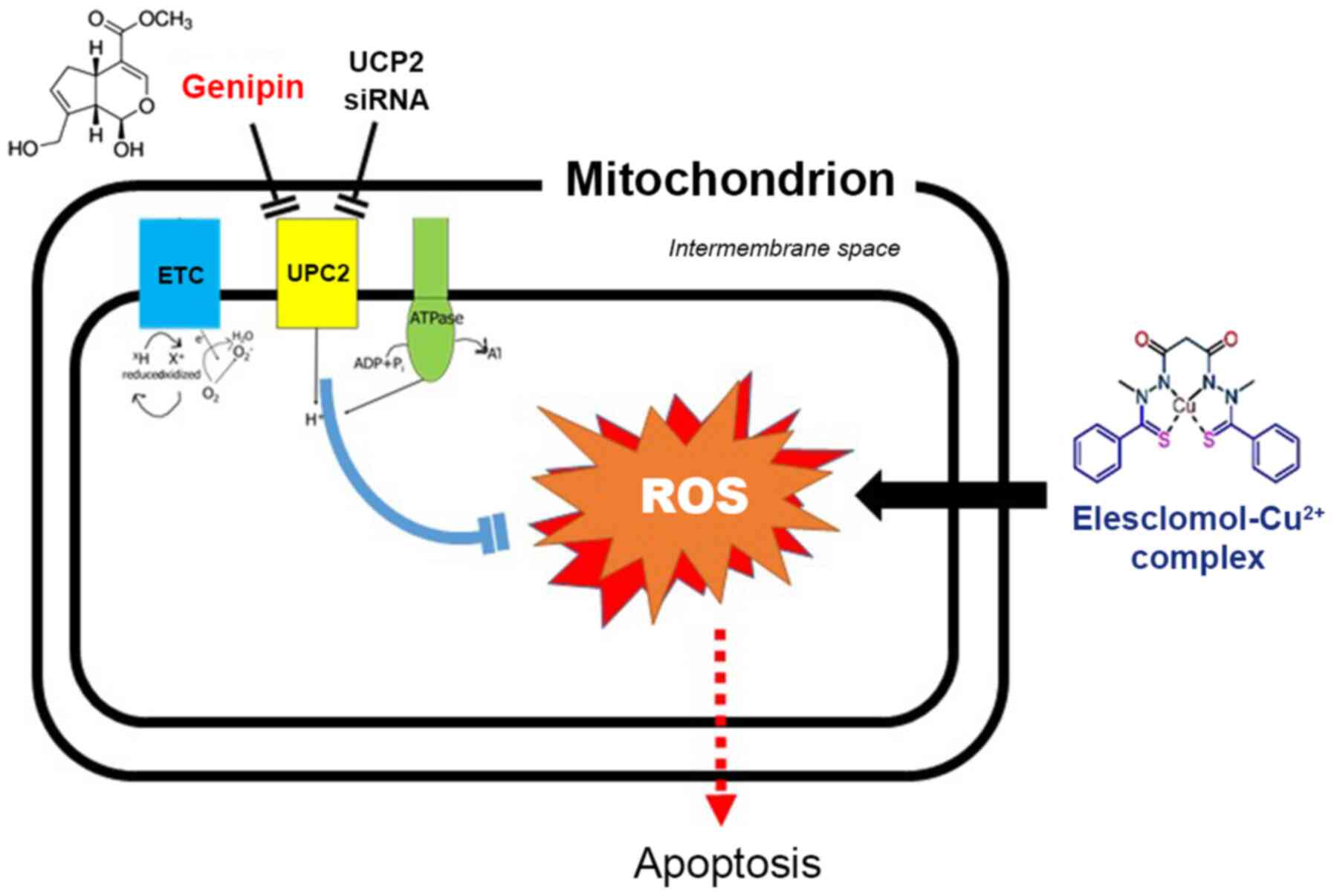

Figure 6. Schematic diagram illustrating the proposed model for the synergistic anticancer effects of elesclomol and genipin. The elesclomol-Cu2+ complex enters cancer cells to induce an increase of mitochondrial oxidative stress, which can be reduced by UCP2-mediated uncoupling of oxygen consumption with ATP synthesis. UCP2 inhibition with genipin or UCP2 siRNA blocks this protective response and augments ROS production, which in turn triggers apoptosis. UCP2, uncoupling protein-2; siRNA, small interfering RNA; ROS, reactive oxygen species; ETC, electron transport chain.

A limitation of the present study was that the results were restricted to A549 lung cancer cells, which exhibit an efficient UCP2 function, and therefore may not apply to other cancer cell types. It is possible that cancer cells with low UCP2 expression may respond to elesclomol monotherapy without the need for UCP2 inhibition. By contrast, cancer cells with greater UCP2 activity may benefit even more from the combination of UCP2 inhibitors and elesclomol. In addition, the results of the UCP2 western blots in tumor tissue were limited as only some of the tumor samples were included for analysis. In the animal experiments conducted in the present study, some tumor samples included in the tumor growth data were not included in the UCP2 western data. These issues require validation by further studies.

In conclusion, high UCP2 expression may limit the antitumor effect of elesclomol by attenuating ROS response. This can be overcome by blocking UCP2 function using the natural product genipin, which suppresses glucose uptake, augments mitochondrial ROS production and enhances cytotoxic effects in cancer cells. Therefore, a combination of elesclomol with genipin may be an effective strategy for the treatment of tumors with high UCP expression.
