Introduction

Hepatocellular carcinoma (HCC) is one of most prevalent malignancies worldwide with a high mortality (1). According to the American Epidemiological Survey of Liver Cancer, the adjusted incidence of HCC increased at a rate of 4.5% annually between 2000 and 2009, making it the fastest-growing cause of cancer-associated mortality in the United States (2). HCC is also a highly invasive tumor with frequent intrahepatic or pulmonary metastasis, both of which account for the high disease recurrence and poor survival following liver resection (3). HCC diagnosis and metastasis identification are usually based on imaging and occasionally verified using biopsy results (4). Although advances in MRI and computed tomography have improved the imaging of focal hypervascular masses consistent with HCC, these procedures are costly and not suitable for daily practice (5). In addition, pathological biopsies are the gold standard for HCC diagnosis, yet biopsy results are associated with a high false negative rate (6), and the procedure can cause discomfort or pain. The detailed molecular mechanisms that contribute to HCC metastasis are largely unknown. Furthermore, effective targeted therapeutic drugs for HCC remain unavailable. Therefore, the identification of non-invasive diagnostic and predictive biomarkers of HCC metastasis is essential.

Exosomes are microscopic vesicles that serve important roles in cell-cell communication and signal transduction (7). Exosomes transport biologically active molecules (8) to target cells, in order to initiate signaling and mediate intercellular communication. Furthermore, the potential use of exosomes as biomarkers has been demonstrated for other cancer types, such as breast cancer and gastric cancer (9), which demonstrates that the use of exosomes as a tumor marker for clinical diagnosis and prediction is feasible. Li et al (10) have highlighted the significance of exosomes in the development of HCC; however, the role of exosomes in tumor growth and metastasis remains a matter of debate. Therefore, the aim of the present study was to identify exosomal molecules that may be used as metastasis-related biomarkers in patients with HCC.

MicroRNAs (miRNAs/miRs) are a class of non-coding RNAs ~22 nucleotides in length, which can modulate gene expression (11). Tumor cells can secrete miRNAs that mediate intracellular signaling cascades, which in turn can affect various physiological processes, such as angiogenesis, metabolic reprogramming and metastasis (12). A number of studies (13,14) have indicated that secretory miRNAs, particularly exosomal miRNAs, are involved in promoting metastasis (15), highlighting the potential for exosomal miRNAs as promising biomarkers. For example, Lin et al (16) identified an miRNA classifier containing seven differentially expressed miRNAs that allows early detection of HCC. However, the role of metastasis-associated miRNAs in HCC has yet to be determined.

The aim of the present study was to identify a comprehensive circulating exosomal miRNA profile in plasma from patients with metastatic HCC. Furthermore, bioinformatics analysis was used to screen target genes of differentially expressed miRNAs and to evaluate their potential role in HCC metastasis. Furthermore, the prognostic efficiency of candidate miRNAs, and their association with overall survival (OS) were also assessed. The study identified a panel consisting of three miRNAs that could be used to discriminate metastatic HCC cases from non-metastatic HCC cases. Overall, the present findings may provide insights into the mechanisms that lead to metastasis and the role of exosomes in this context. The present study also suggested that exosomal miRNAs may represent potential biomarkers for HCC.

Materials and methods

Plasma and human tissue sample collection

A total of 40 patients with HCC diagnosed by clinical pathology at Nanfang Hospital (Guangzhou, China) between January 2017 and April 2018 were recruited. Among them, 20 patients with HCC (13 men and 7 women) with lung metastasis and 20 sex-matched primary cases were enrolled. The median age (age range, 50–80 years) of the metastatic group was 68 years and that of the non-metastatic group (age range, 50–81 years) was 67.5 years. All patients did not undergo radiotherapy and chemotherapy prior to surgery. All patients were referred for extensive evaluation, including measurement of α-fetoprotein levels and MRI before surgical resection. The tumor was examined by postoperative pathology. A 5-ml sample of peripheral venous blood was collected from all patients into EDTA tubes, and then centrifuged at 2,500 × g for 10 min at room temperature. The supernatant was transferred into RNase-free Eppendorf tubes and stored at −80°C until use. In 10 of the patients with metastatic HCC, lung metastasis biopsies were also collected, and stored in the −80°C ultra-low temperature refrigerator until further use. Informed consent was obtained from each patient on the day of admission.

Isolation of exosomes

Exosomes were purified from the plasma of patients with HCC by ultracentrifugation. The plasma was thawed on ice and centrifuged at 500 × g for 10 min and the supernatant was collected. The following steps were completed continuously and without interruption as soon as possible. The supernatant was ultracentrifuged using a W32Ti rotor (L-80XP; Beckman Coulter, Inc.) at 16,800 × g for 30 min to pellet the exosomes. Subsequently, the pellet was washed in PBS to eliminate contaminating proteins, and centrifuged again at 110,000 × g for 70 min. PBS was subsequently removed and the exosomes were re-suspended in 100 µl PBS. All centrifugation steps were performed at 4°C. All samples were stored in a −80°C ultra-low temperature refrigerator until use (within 1 month).

NTA

Exosome pellets were resuspended in PBS at a concentration of 1×107−109/ml, and then examined using a NanoSight NS300 instrument (Malvern Panalytical) to determine the size and concentration. Particle movement was analyzed and recorded in a real-time video using the NTA software (version 2.3; Malvern Panalytical). Exosome size and concentration were determined using NTA v3.2 software (Malvern Panalytical).

Western blotting

Western blotting was performed as previously described (17) Exosome lysates were prepared using RIPA buffer (Nanjing KeyGen Biotech Co., Ltd.). Protein concentrations were determined using a Bradford protein assay (Nanjing KeyGen Biotech Co., Ltd.). The samples were resolved using SDS-PAGE, transferred to PVDF membranes (EMD Millipore) and incubated with primary antibodies overnight at 4°C, as previously described (17). Primary antibodies specific for 70 kilodalton heat shock protein (HSP70; cat. no. ab194360; 1:1,000), CD63 (cat. no. ab59479; 1:1,000) and GAPDH (cat. no. ab8245; 1:10,000) were purchased from Abcam. Following primary antibody incubation, a HRP-conjugated secondary antibody (cat. nos. FDM007 and FDR007; 1:10,000; Fdbio Science) was added. The Fdbio-Femto ECL western blotting detection reagent (Fdbio Science) was used to visualize protein bands.

RNA processing and miRNA profiling

Exosomes from the plasma of 4 patients with primary HCC and 4 patients with HCC lung metastasis were analyzed using Affymetrix miRNA 4.0 arrays (Thermo Fisher Scientific, Inc.). The RNA processing and miRNA profiling experiments were performed at the laboratory of Gene-Cloud of Biotechnology Information (GCBI; Shanghai, China).

RNA extraction and reverse transcription-quantitative PCR (RT-qPCR)

The initial miRNA microarray results from the plasma exosomes samples were validated using RT-qPCR. Exosome and tissue miRNA purification and RT-qPCR were performed as described previously (18). Briefly, total RNA from stored plasma exosome and tissue samples was extracted using TRIzol reagent (Thermo Fisher Scientific, Inc.) according to the manufacturer's protocols. RT-qPCR was performed using SYBR Green and detected using the Applied Biosystems Real-Time PCR system (Thermo Fisher Scientific, Inc.). Each sample was analyzed in triplicate. The primers used for RT-qPCR are listed in Table I. The U6 small nuclear RNA was used as an internal control. The results were quantified using the 2−ΔΔCq method (19) and normalized to U6 expression.

Table I. Primer sequences for reverse transcription-quantitative PCR used in exosome and tissue miRNA experiments.

Table I.

Primer sequences for reverse transcription-quantitative PCR used in exosome and tissue miRNA experiments.

Primer of miRNA	Sequence (5′-3′)
hsa-let-7e	TGAGGTAGGAGGTTGTATAGTT
hsa-miR-18a	CCCATCTAGTGCAGATAGAAA
hsa-miR-27a	TTCACAGTGGCTAAGTTCCGC
hsa-miR-221	CTACATTGTCTGCTGGGTTTC
hsa-miR-185	GAGAGAAAGGCAGTTCCTGA
hsa-miR-361	TTATCAGAATCTCCAGGGGTA
hsa-miR-20b	AGTGCTCATAGTGCAGGTAG
hsa-miR-652	CGCCACTAGGGTTGTGAAAA
hsa-miR-4454	CTGAGCGCTGCCAGTCAAA
hsa-miR-4720	CCCTGGCATATTTGGTATAAC
hsa-miR-5189	CAACCGTCAGAGCCCAGAA
U6-forward	GGAACGATACAGAGAAGATTAGC
U6-reverse	TGGAACGCTTCACGAATTTGCG

[i] miR, microRNA.

Gene Expression Omnibus (GEO) miRNA dataset and patient information

Datasets that met the following criteria were selected for study: i) The patients did not undergo chemoradiotherapy before surgery and only datasets containing >20 samples were included; and ii) HCC with lung-metastasis and without metastasis was confirmed by postoperative pathology and the patients had complete follow-up data. The Cancer Genome Atlas (https://www.cancer.gov/about-nci/organization/ccg/research/structural-genomics/tcga) and GEO database were used to mined the data. A dataset containing 91 human HCC tumor samples without vascular invasion/metastasis and 81 samples with vascular invasion/metastasis was downloaded from the GEO (https://www.ncbi.nlm.nih.gov/geo/) database [dataset accession no. GSE67140 (20)]. Receiver operating characteristic (ROC) analysis was carried out on these data using GraphPad Prism 8.0 software (GraphPad Software, Inc.).

Survival data from the Kaplan-Meier plotter database

The present study used the online Kaplan-Meier plotter database (http://www.kmplot.com/analysis/index.php?p=service&cancer=liver_mirna) tool to evaluate the prognostic values of candidate miRNAs (21). Original data were downloaded and Kaplan-Meier plots were generated to analyze potential prognostic values of candidate miRNAs with the platform of RNA sequencing. Analysis was performed by excluding patients who survived >80 months because there might be unrecognized confounding bias. In addition, the online plotter was used to perform the survival analysis, and hazard ratios with 95% confidence intervals and log rank P-values were calculated. P<0.05 was considered to indicate a statistically significant difference.

Bioinformatics analysis of differentially expressed exosomal miRNAs

The miRanda (22) (release miRanda-aug2010; http://www.microrna.org/) and TargetScan (release 7.0; http://www.targetscan.org/vert_70/) databases were used to predict the target genes of candidate exosomal miRNAs. Gene Ontology (GO; release 2019-12; http://geneontology.org/) and Kyoto Encyclopedia of Genes and Genomes (KEGG; release 92; http://www.kegg.jp/) analyses were performed to identify the biological functions and pathways for which P<0.05 and false discovery rate <0.05. R language (version 3.6.0; http://cran.r-project.org/) and ggplot2 (version 3.3.2) were used to generate the image (23,24). The miRNA-mRNA networks were generated using GCBI (https://www.gcbi.com.cn/gclib/html/index) and Cytoscape (version 3.6; http://www.cytoscape.org/).

Statistical analysis

Statistical analysis was performed using GraphPad Prism (version 8.0; GraphPad Software, Inc.) or SPSS version 24.0 statistical software (SPSS, Inc.). Data are presented as the mean ± standard deviation. Differences between two groups were analyzed using a two-tailed unpaired Student's t-test. Pearson correlation and residual analysis were used to measure and assess the correlation between candidate plasma exosome miRNA levels, and tissue ROC curves were established by plotting sensitivity against 1-specificity. The diagnostic values of candidate miRNAs and the panel were evaluated using the area under the curve (AUC). Comparisons of AUC values were based on Delong's test in SPSS using R plug-in package pROC (R 4.0.3 package/pROC v1.16.2), and P-values were adjusted using the Bonferroni strategy when multiple comparisons were conducted (25). Graphs were generated using GraphPad Prism 5.0. P<0.05 was considered to indicate a statistically significant difference.

Results

Identification and characterization of exosomes

Using NTA, 30–150-nm vesicles were identified, consistent with previously reported features of exosomes (26), suggesting that the isolated particles were likely exosomes (Fig. 1A). Additionally, western blot analysis indicated that the particles were positive for exosome markers CD63 and HSP70 (Fig. 1B). These results demonstrated that the particles isolated from the plasma of patients with HCC were exosomes.

Figure 1. Identification of exosomes in patients with metastatic and non-metastatic HCC. (A) Nanoparticle tracking analysis profile of exosomes from the plasma of patients with metastatic and non-metastatic HCC. The number of particles/ml (in millions/ml) is indicated on the y-axis. The x-axis indicates the diameter of particles (in nm). (B) Presence of typical exosome-associated proteins (CD63 and HSP70) in exosomes from the plasma of patients with HCC. HCC, hepatocellular carcinoma; HSP70, 70 kilodalton heat shock protein.

Exosomal miRNA profiles are altered between patients with metastatic and non-metastatic HCC

A total of 32 differentially expressed exosomal miRNAs were detected in 4 patients with HCC lung metastasis and 4 sex- and age-matched patients with non-metastatic HCC (Table II). Among these, 18 miRNAs (let-7e, miR-18a, miR-27a, miR-181a, miR-221, miR-27b, miR-185, miR-361, miR-20b, miR-652, miR-140, miR-1280, miR-151b, miR-4253, miR-1268b, miR-4454, miR-6798 and miR-1273h) were significantly upregulated and 5 miRNAs (miR-4330, miR-2277, miR-4720, miR-5189 and miR-8075) were significantly downregulated (fold change >1.2; P<0.05). Group-specific signal intensities of the exosomal miRNA profile and the volcano plot for the differentially expressed miRNAs are shown in Fig. 2. These data indicated that exosomal miRNAs were differentially expressed between patients with HCC with lung metastasis and patients with non-metastatic HCC.

Figure 2. Microarray analysis of exosomal miRNAs differentially expressed in plasma samples from patients with metastatic and non-metastatic HCC. (A) Heat map of the differential expression of exosomal miRNAs from patients with metastatic and non-metastatic HCC. Each column represents an individual sample and each row represents a single miRNA. The expression levels of each miRNA in a single sample is depicted according to the color scale. Red represents high expression levels, whereas green represents low expression levels. (B) Volcano plot of the association between the logarithm of the fold change on the x-axis and log of P-value between patients with metastatic and non-metastatic HCC on the y-axis. Red represents miRNAs with expression changes of >1.2 from the remaining miRNAs while blue represents miRNAs with expression changes of <-1.2 fold from the remaining miRNAs. HCC, hepatocellular carcinoma; miRNA/miR, microRNA.

Table II. Differentially expressed exosomal microRNAs (n=32) in plasma from patients with hepatocellular carcinoma with metastasis and without metastasis.

Table II.

Differentially expressed exosomal microRNAs (n=32) in plasma from patients with hepatocellular carcinoma with metastasis and without metastasis.

MicroRNA	Fold change	diffState	P-value
hsa-let-7e	2.01425971	Up	0.01445168
hsa-miR-18a	1.91615029	Up	0.00600160
hsa-miR-27a	2.41141531	Up	0.03514587
hsa-miR-181a	1.44064685	Up	0.04755760
hsa-miR-221	2.00841888	Up	0.04713177
hsa-miR-27b	1.49297559	Up	0.04580692
hsa-miR-185	2.92150796	Up	0.00614653
hsa-miR-361	2.00636979	Up	0.00671691
hsa-miR-20b	1.60817127	Up	0.02009393
hsa-miR-652	1.59785688	Up	0.02407410
hsa-miR-140	1.38821462	Up	0.01697033
hsa-miR-1281	1.54732638	Up	0.00569455
hsa-miR-1908	−0.98002981	Down	0.03410698
hsa-miR-151b	1.27543975	Up	0.02927815
hsa-miR-4253	1.50611955	Up	0.04447737
hsa-miR-4330	−1.47908532	Down	0.00890724
hsa-miR-2277	−1.93607770	Down	0.02324236
hsa-miR-3180	0.93363816	Up	0.04959451
hsa-miR-1268b	1.46370203	Up	0.03639235
hsa-miR-4454	2.07258859	Up	0.02816307
hsa-miR-4635	−1.13383056	Down	0.04346026
hsa-miR-4720	−2.26430974	Down	0.00572943
hsa-miR-371b	1.03442024	Up	0.04597321
hsa-miR-766	0.81375899	Up	0.04659530
hsa-miR-619	−0.99689872	Down	0.02691538
hsa-miR-668	−1.06214814	Down	0.02606566
hsa-miR-5189	−2.18451380	Down	0.00521571
hsa-miR-6798	1.27908232	Up	0.02282279
hsa-miR-6808	1.13920150	Up	0.04899890
hsa-miR-6880	−1.19417658	Down	0.03378472
hsa-miR-1273h	1.26636581	Up	0.01870905
hsa-miR-8075	−1.58600573	Down	0.01690265

[i] diffState, difference State; miR, microRNA.

RT-qPCR validation of exosomal miRNA expression profiles

Using RT-qPCR, the eight most dysregulated miRNAs from the miRNA microarray were validated in plasma exosome samples collected from 20 paired patients with HCC with lung metastasis and without metastasis. A total of six exosomal miRNAs (let-7e, miR-27a, miR-221, miR-185, miR-20b and miR-4454) were statistically significantly upregulated in exosome samples from patients with HCC with lung metastasis (P<0.05). The expression levels of the remaining two miRNAs (miR-4720 and miR-5189) were significantly downregulated in samples from patients with metastatic HCC compared with in samples from patients with non-metastatic HCC (P<0.05; Fig. 3). Therefore, the miRNA microarray results were consistent with the results of RT-qPCR.

Figure 3. Validation of differential exosomal miRNAs in plasma exosomes by reverse transcription-quantitative PCR between patients with metastatic and non-metastatic HCC. Relative expression levels of let-7e, miR-27a, miR-221, miR-185, miR-20b, miR-4454, miR-4720 and miR-5189 in the plasma of 16 patients with lung-metastatic HCC and 16 patients with primary HCC. U6 was used as a reference gene. Data are presented as the mean ± SD of three independent experiments. Student's t-test was used to analyze the data. **P<0.01, ***P<0.001. HCC, hepatocellular carcinoma; miRNA/miR, microRNA.

Correlation analysis of differentially expressed miRNAs in exosomes and matched HCC tissue samples from patients with lung metastasis

Several significant differentially expressed miRNAs were randomly selected to verify the association between exocrine expression and corresponding tissue expression. The expression levels of the eight highly expressed miRNAs (let-7e, miR-18a, miR-27a, miR-221, miR-185, miR-361, miR-20b and miR-652) in 10 matched plasma exosome samples and tissue samples from patients with HCC with lung metastasis were analyzed by RT-qPCR. The results demonstrated that the expression levels of let-7e, miR-18a, miR-27a, miR-221, miR-20b, miR-361 and miR-652 were positively correlated in exosome and tissue samples (Fig. 4), indicating consistency between plasma and metastatic tissue expression of these miRNAs. However, the levels of miR-185 were not correlated in exosome samples and matched tissue samples. Residual analysis was performed when the correlation was assessed, and these data are shown in Fig. S1. Additionally, a spline curve was used to explore how it may fit the data, and this revealed that the model was suitable (Fig. S2). Therefore, the seven uniformly expressed miRNAs were selected as candidate biomarkers for subsequent experiments.

Figure 4. Correlation and linear regression analysis of the expression levels of selected miRNAs from plasma exosomes and matched tissue samples in patients with HCC lung metastasis (n=10). The results revealed the correlation of let-7e, miR-18a, miR-27a, miR-221, miR-20b and miR-652 levels between plasma exosomes and lung metastatic tissue samples from 10 cases of HCC lung metastatic patients. The P-value and Pearson's coefficient were displayed from Pearson's test. Linear fit-line, 95% confidence interval band and r2 are shown to indicate the linear correlation between both variables. HCC, hepatocellular carcinoma; miRNA/miR, microRNA.

Candidate exosomal miRNAs and miRNA panels predict HCC metastasis

The diagnostic value of each of the six plasma miRNAs (let-7e, miR-18a, miR-27a, miR-221, miR-20b and miR-652) was evaluated using ROC analysis of a GEO dataset. The GEO dataset (accession no. GSE67140) included 172 patients with HCC with or without vascular invasion/metastasis. miR-18a, miR-27a and miR-20b had high AUC values (0.7722, 0.8282 and 0.8661, respectively; Fig. 5A-C). However, the AUC values for the other three miRNAs (let-7e, miR-221 and miR-652) suggested weak classification accuracy (Fig. 5D-F).

Figure 5. Plasma exosome miRNA score performance. Receiver operating characteristic curves were presented for (A) miR-18a, (B) miR-27a, (C) miR-20b, (D) miR-let-7e, (E) miR-221, (F) miR-652 and (G) for the combination of miR-18a, miR-20b and miR-221. The AUC with 95% CI was used to evaluate the levels of discrimination. 95% CI, 95% confidence interval; AUC, area under the curve; miRNA/miR, microRNA.

Delong's test and Bonferroni correction were performed on various combinations of the miRNA biomarkers. This analysis demonstrated that the combined expression levels of miR-18a, miR-20b and miR-221 exhibited the best diagnostic performance (Fig. 5G). The combination of these three miRNAs increased the AUC to 0.9040 (Tables III and SI). Overall, these findings, combined with the consistent expression levels between plasma exosome samples and tissue samples, demonstrated that the three exosomal miRNAs could be used as a panel for improved detection of vascular invasion/metastasis in patients with HCC.

Table III. AUC, 95% CI and P-values of the individual candidate microRNAs and the combined panel.

Table III.

AUC, 95% CI and P-values of the individual candidate microRNAs and the combined panel.

Exosomal miRNAs	AUC	95% CI	P-value
let-7e	0.6122	0.5270-0.6973	0.0101
miR-18a	0.7722	0.7021-0.8423	<0.0001
miR-27a	0.8282	0.7963-0.8872	<0.0001
miR-221	0.5816	0.4964-0.6669	0.0612
miR-20b	0.8661	0.8142-0.9179	<0.0001
miR-652	0.6116	0.5258-0.6974	0.0105
miR-18a + miR-20b + miR-221	0.9040	0.8612-0.9473	<0.0001

[i] 95% CI, 95% confidence interval; AUC, area under the curve; miR, microRNA.

Candidate exosomal miRNAs are associated with poor prognosis in patients with HCC

Kaplan-Meier analysis was used to determine whether the candidate miRNAs were associated with OS or disease-free survival (DFS) in patients with HCC using follow-up data collected for 80 months. As shown in Fig. 6, high expression levels of let-7e, miR-18a, miR-27a, miR-221, miR-20b and miR-652 were significantly associated with poor OS (Fig. 6A-F). Furthermore, high expression levels of miR-652 were associated with shorter DFS (Fig. 6G). However, the other miRNAs did not exhibit significant associations with DFS based on the results of the analysis using the Kaplan-Meier plotter tool (data not shown). These results demonstrated that the upregulation of the six exosomal miRNAs was significantly associated with poor survival and increased risk of metastasis in HCC.

Figure 6. Kaplan-Meier analysis of the prognostic values of the six miRNAs in hepatocellular carcinoma. Kaplan-Meier curve for OS according to the expression levels of (A) let-7e, (B) miR-18a, (C) miR-27a, (D) miR-221 and (E) miR-20b. Kaplan-Meier curve for (F) OS and (G) DFS according to miR-652 expression. HR, hazard ratio (95% confidence interval); miRNA/miR, microRNA; OS, overall survival; DFS, disease-free survival.

Bioinformatics prediction and functional analysis of exosomal miRNAs in HCC metastasis

The target genes and signaling pathways associated with the candidate miRNAs were identified using bioinformatics tools. The results were summarized and shown in Tables SII and III). The GO analysis of target gene was mainly classified into three functional groups: Cellular component (CC), molecular function (MF) and biological process (BP). GO enrichment analysis of upregulated miRNAs suggested that most significantly predicted target genes were involved in ‘transforming growth factor beta receptor signaling pathway (BP)’, ‘response to transforming growth factor beta (BP)’, ‘AP-3 adaptor complex (CC)’, ‘PcG protein complex (CC)’ and ‘core promoter sequence-specific DNA binding (MF)’, and these were among the top 5 BP, CC and MF terms (Fig. 7A; Table SII).

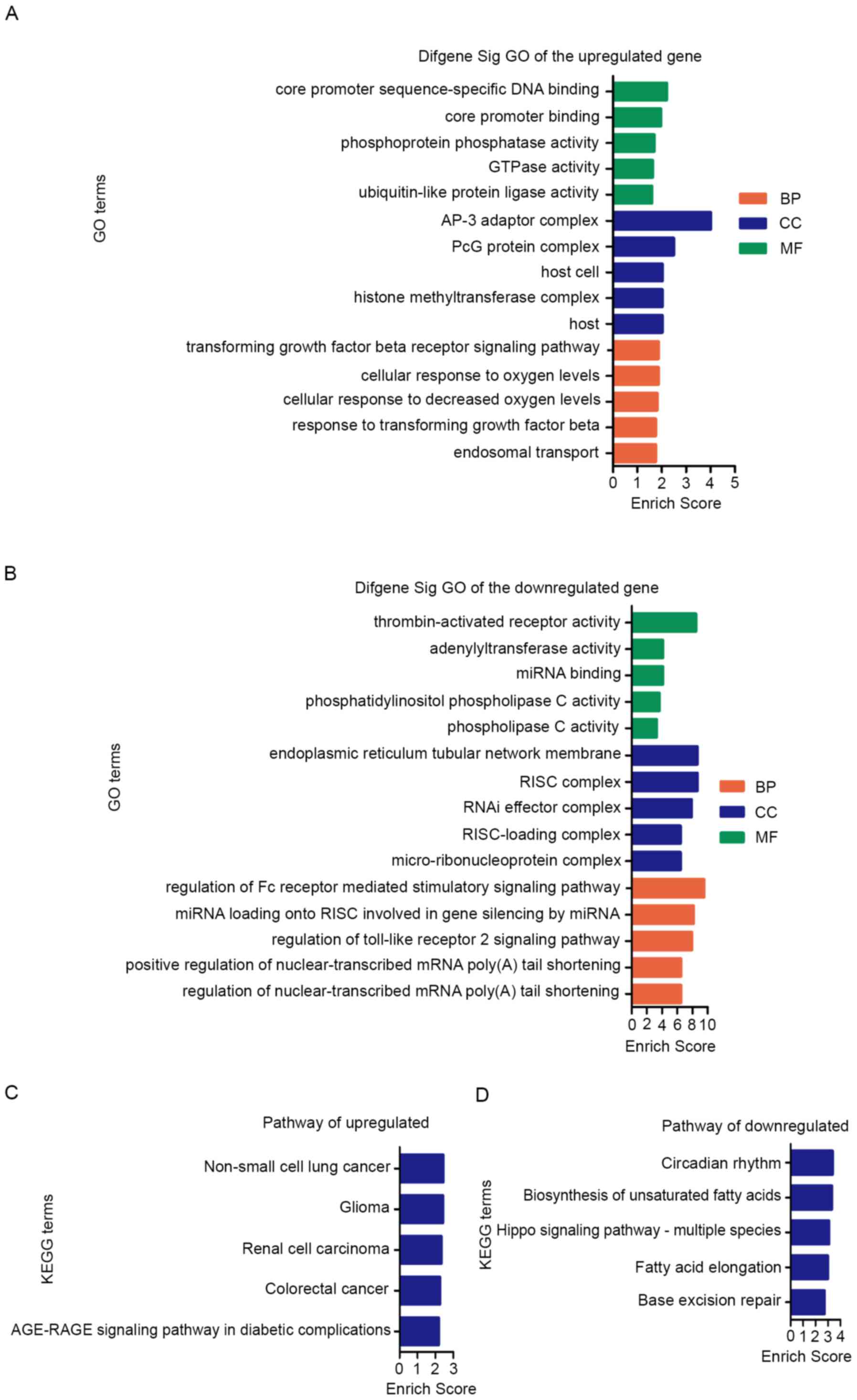

Figure 7. Top 5 enrichment scores in GO enrichment analysis and KEGG pathway enrichment analysis of predicted function of differential exosomal miRNAs. GO terms and signaling pathways terms were sorted by enrichment scores of genes in descending order from top to bottom. In GO analysis, green bars represent MF terms, blue bars represent CC terms and orange red bars represent BP terms of (A) upregulated and (B) downregulated miRNAs. The KEGG analysis was based on potential target genes of (C) upregulated and (D) downregulated miRNAs. miRNA, microRNA; GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; BP, biological process; CC, cellular component; MF, molecular function.

KEGG pathway analysis of upregulated miRNAs revealed that the top 5 enriched signaling pathways were ‘Non-small cell lung cancer’, ‘Glioma’, ‘Renal cell carcinoma’ and ‘colorectal cancer’ (Fig. 7C; Table SII).

Furthermore, GO enrichment analysis of downregulated miRNAs revealed that most predicted target genes were involved in ‘regulation of the Fc receptor mediated stimulatory signaling pathway’, ‘endoplasmic reticulum tubular network membrane’, ‘RISC complex’, ‘thrombin-activated receptor activity’ and ‘miRNA loading onto RISC involved in gene silencing by miRNA’ (Fig. 7B; Table SIII).

In addition, KEGG pathway analysis of downregulated miRNAs suggested that the top 5 enriched pathways were ‘Circadian rhythm’, ‘Biosynthesis of unsaturated fatty acids’ and ‘Hippo signaling pathway’ (Fig. 7D; Table SIII). To study the regulatory association between the miRNAs and target genes, a miRNA-mRNA network was constructed for the upregulated miRNAs (Fig. 8). Collectively, these findings suggested that the six upregulated exosomal miRNAs were involved in regulating physiological processes associated with metastasis.

Figure 8. miRNA-gene network. The cyan circles represent genes, whereas the squares represent the miRNAs (let-7e, miR-18a, miR-27a, miR-20b, miR-221 and miR-652). The black-bold genes are upregulated candidate genes, and the blue-bold genes are the target genes that are closely associated with metastasis. The associations between miRNAs and genes are represented by gray lines. miRNA/miR, microRNA.

Discussion

In the present study, plasma exosomal miRNA expression was evaluated in patients with HCC with and without metastasis. A total of 32 exosomal miRNAs were differentially expressed between patients with metastatic and non-metastatic HCC. Among the upregulated miRNAs, the expression levels of six miRNAs were consistent between plasma exosome samples and matched metastatic tissue samples. When comparing the diagnostic value of individual and combined biomarkers, different combination strategies were considered and the combinations were compared with each individual biomarker. Comparisons of AUC values were based on Delong's test and the P-value was adjusted using the Bonferroni strategy for multiple comparisons. The results demonstrated that miR-18a, miR-27a and miR-20b had a high AUC, and the combination of miR-18a, miR-20b and miR-221 exhibited improved performance compared with single miRNA expression. The combined panel had an AUC of 0.9040 in discriminating metastatic cases from non-metastatic cases. Furthermore, high expression levels of let-7e, miR-18a, miR-27a, miR-221, miR-20b and miR-652 were associated with poor OS in patients with HCC.

The aforementioned process was the discovery step. To verify the hypothesis with the help of the public databases, two databases, namely, The Cancer Genome Atlas and GEO, were searched to identify datasets with specific clinical information (patients with HCC with lung-metastasis and without metastasis who did not undergo chemoradiotherapy before surgery). Unfortunately, only the GSE67140 dataset in the GEO database met the inclusion criteria. The other datasets were either too small or scattered to utilize. In the next step, large samples and corresponding follow-up data will be collected to verify the results of OS, DFS and ROC curve results, and to assess the possibility of plasma exosomal miRNA markers for diagnosis or prognosis of patients with HCC. Additionally, clinicopathologic variables, including tumor diameter, number of tumor nodules, histopathologic classification, vein invasion and clinical TNM classification, are also being collected.

Let-7e expression has previously been reported to be downregulated in several human cancer types, and acts as a tumor suppressor that promotes apoptosis and inhibits proliferation, migration and invasion (27,28). By contrast, in the present study, the expression levels of let-7e were increased in plasma from patients with metastatic HCC and high let-7e levels predicted shorter OS. These findings are inconsistent with previous studies (29,30) and require further study. The predicted target genes of let-7e were identified using the miRanda database. High mobility group AT-hook 2 (HMGA2) was among the identified target genes. According to the literature, HMGA2 mediates epithelial-mesenchymal transition (EMT) and regulates transcription factors linking various signaling pathways, such as the TGF-β and MAPK signaling pathways, to regulators of tumor invasiveness and metastasis (31).

miR-18a regulates metastasis in gastric cancer (32), colon cancer (33), breast cancer (34), HCC and nasopharyngeal carcinoma (35,36). In the present study, miR-18a demonstrated a good diagnostic value in discrimination of metastasis. PTEN was among the predicted targets of miR-18a according to the bioinformatics analysis. A previous study has indicated that PTEN-dependent signaling pathways can drive EMT and consequently increase migration, invasion and metastasis (37).

miR-27a influences tumorigenesis, tumor cell proliferation, apoptosis, invasion, migration and angiogenesis by regulating various target genes and could affect clinical therapy, drug sensitivity of patients and patient prognosis (38). Additionally, miR-27a can act as a promising biomarker in serum and is a potential therapeutic target in various tumor types (39). In the present study, miR-27a could accurately predict HCC metastasis. Bioinformatics target prediction demonstrated miR-27a could target SMAD4, a gene involved in the TGF-β signaling pathway. SMAD4/TGF-β signaling is a pivotal regulator of tumor invasion and metastasis following EMT (40). The present study demonstrated that miR-27a served an important role in tumor metastasis.

Dysregulated miR-20b levels are associated with metastasis of breast cancer, colorectal cancer and gastric cancer (41). However, to the best of our knowledge, the potential of miR-20b as an HCC biomarker has not been reported. In the present study, miR-20b could discriminate metastatic HCC from non-metastatic HCC and could be used as a predictive biomarker of HCC metastasis. Target prediction analysis identified STAT3 as a miR-20b target. STAT3 signaling is central to the regulation of metastasis via EMT (42).

miR-652 is defined as an oncomir and can promote metastasis in endometrial cancer, pancreatic cancer, non-small cell lung cancer and prostate cancer cells (43). In the present study, ROC analysis of miR-652 did not demonstrate a high diagnostic accuracy. However, the DFS and OS rates of patients with high miR-652 expression were significantly worse than those of patients with low miR-652 expression.

Finally, bioinformatics tools were used to analyze the possible mechanisms involved in HCC metastasis in the exosomes. The results suggested that the dysregulated miRNAs were involved in various signaling pathways, including ‘GTPase activity’ and ‘cell adhesion molecule binding’, which constitute a complex regulatory network that is relevant to metastasis. An miRNA-mRNA regulatory network was also constructed to examine the associations among the targets of the differentially expressed miRNAs. Nevertheless, bioinformatics prediction can only provide clues for elucidating the role of miRNAs in HCC metastasis and the possible underlying mechanisms. Further experimental validation is still necessary to clarify the detailed regulatory relationship between miRNAs and their target genes in the future.

In conclusion, to the best of our knowledge, the present study was the first to investigate metastasis-associated miRNA profiles in plasma exosomes from patients with HCC. Furthermore, comprehensive analysis of this profile, together with target prediction and survival analysis provided novel insights into the role of exosomes in HCC lung metastasis. A panel consisting of three miRNAs that might serve as an accurate and non-invasive tool for HCC metastasis prediction using plasma exosomes was identified. The present findings suggested that exosomal miRNAs served important roles in HCC metastasis and could represent a complementary clinical tool for the assessment of HCC prognosis.

Supplementary Material

Supporting Data

Acknowledgements

The authors would like to thank Professor Zhao Liang and Professor Lin Jie (Southern Medical University, Guangzhou, China) for linguistic advice and experimental assistance.

Funding

The present study was supported by grants from the President Foundation of Nanfang Hospital, Southern Medical University (grant no. 2017B005) and the Natural Science Foundation of Guangdong Province, China (grant no. 2014A030310425).

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

BX, CH and ST conceived the study and were responsible for confirming the authenticity of all raw data. CH and ST performed outpatient service, obtained the informed consents, preserved the samples, and performed analysis and interpretation of data. Experiments were performed by BX, ST, CH and XL. BX and CH drafted the manuscript. DS, XL and LL organized the tables and prepared the figure. Data were analyzed by LL, YD and DS. All authors read and approved the final manuscript.

Ethics approval and consent to participate

The Ethics Committee of Southern Medical University Nanfang Hospital (Guangzhou, China) approved the present study. All patients provided written informed consent.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
