Introduction

Tumor-derived cytokines and growth factors have been reported to alter the process of hematopoiesis, which regulates the myeloid cell differentiation process, and to promote the proliferation and expansion of cells with immunosuppressive properties, namely myeloid-derived suppressor cells (MDSCs) (1,2). MDSCs enhance tumor growth not only by shaping immune responses towards tumor tolerance, but also by supporting several processes required for the neoplastic progression, including tumor angiogenesis and cancer metastasis dissemination (3,4).

Murine MDSCs have been identified to exclusively bear the markers CD11b (also known as integrin αM) and granulocyte receptor-1 (Gr-1; the anti-Gr-1 monoclonal antibody recognizes epitopes common to Ly6C and Ly6G) (5). Tumors have been reported to secrete a large array of tumor-derived factors (TDFs), which work synergistically to accelerate the accumulation of functional MDSCs (6). The three major regulators of the proliferation and differentiation of myeloid cells are macrophage colony-stimulating factor (M-CSF), granulocyte colony-stimulating factor (G-CSF) and granulocyte-macrophage colony-stimulating factor (GM-CSF), and these are produced by tumor cells and the tumor stroma (7). GM-CSF exhibits a dual role in cancer, since it has been identified to drive cell differentiation towards either an immunosuppressive (involving MDSCs) or immunostimulatory (involving dendritic cells) phenotype, depending on the strength of the stimulus and the overall cytokine landscape (8,9). G-CSF has been reported to promote the differentiation of myeloid precursors to polymorphonuclear-MDSCs and to stimulate their preferential recruitment towards tumors (10,11). Therefore, GM-CSF and G-CSF may serve a crucial role in MDSC activation and the progression of tumorigenesis, and altering their levels with targeted compounds may represent a potential therapeutic strategy.

Inflammation in solid tumors has been demonstrated to enhance cancer growth and metastasis (12). Sustained inflammation is associated with not only the activation of the NF-κB signaling pathway in cancer cells, but also the recruitment of immature myeloid derived cells (such as MDSCs) (13). In cancer cells, overactive NF-κB has been demonstrated to promote the excessive production of pro-inflammatory cytokines, such as IL-6, IL-1β and TNF-α, which establishes an inflammatory microenvironment and recruits MDSCs (14). Recruited MDSCs have been demonstrated to further secrete pro-inflammatory cytokines, causing a vicious circle, while also participating in angiogenesis and immune tolerance (15–17). Toll-like receptors (TLRs) have crucial roles in inflammation and cancer, and proteins downstream of the receptors, such as myeloid differentiation primary response 88 (MyD88) and NF-κB, enable cancer cells to escape from the immune system, which contributes to cancer progression (18). Notably, the inhibition of the NF-κB-mediated secretion of pro-inflammatory cytokines, including TNF-α, IL-6, IL-8, IL-1β and IL-4, has been revealed to decrease the volume of xenograft tumors and the accumulation of MDSCs (19). Therefore, blocking the TLR4/NF-κB signaling pathway and inhibiting MDSC recruitment may be an effective strategy for the treatment of numerous types of cancer.

Curcumin, a diketone compound, can be isolated from the rhizomes of the plant Curcuma longa. The anticancer effects of curcumin have been established through multiple in vivo and in vitro studies (20,21). Curcumin exhibits pharmacological activities and has been demonstrated to exert beneficial health effects through its ability to regulate cancer cell proliferation (20), tumor growth (21), apoptosis (22), migration, invasion, angiogenesis, metastasis, bioenergetics (23), oxidation (24) and the inflammatory environment (25,26). Previous studies have demonstrated that curcumin prevents cancer progression through its antioxidant, anti-inflammatory and immunoregulatory properties (27–30). Although the anticancer properties of curcumin have been extensively investigated, whether its effects are mediated by modulating MDSCs and the mechanism by which MDSCs are regulated remains elusive. Based on the aforementioned findings, it was hypothesized that curcumin may inhibit MDSC-mediated angiogenesis and immune tolerance in liver cancer by attenuating the TLR4/NF-κB-induced inflammatory microenvironment and reducing the levels of GM-CSF and G-CSF.

Materials and methods

Drugs and reagents

Curcumin (batch number, SLBN7214V; molecular weight, 368.39 kDa) was purchased from Sigma-Aldrich; Merck KGaA. Fluorouracil (5-Fu; batch number, FA170415) was obtained from Shanghai Xudong Haipu Pharmaceutical Co., Ltd., and cisplatin (DDP; batch number, 8A0075B02) was purchased from Qilu Pharmaceutical Co., Ltd. The anti-CD11b-PE/Cy7 (cat. no. ab218786) and anti-Gr-1-FITC (cat. no. ab25024) antibodies were purchased from Abcam. PBS, DMEM and BSA were purchased from Sigma-Aldrich; Merck KGaA. HRP-conjugated goat anti-mouse IgG antibody (cat. no. SA00001-1), HRP-conjugated goat anti-rabbit IgG antibody (cat. no. SA00001-2) and HRP-conjugated donkey anti-goat IgG antibody (cat. no. SA00001-3) were purchased from ProteinTech Group, Inc. Protease inhibitors and protein phosphatase inhibitors were purchased from Roche Diagnostics.

Cell culture

The human liver cancer cell lines (HepG2, Huh-7 and MHCC-97H) were purchased from The Cell Bank of Type Culture Collection of The Chinese Academy of Sciences and stored at the Cell Center of Xiangya Medical College of Central South University (Changsha, China). The cells were cultured in DMEM supplemented with 10% FBS (Gibco; Thermo Fisher Scientific, Inc.) and 1X penicillin/streptomycin, and maintained in a humified atmosphere at 37°C with 5% CO2. Curcumin was dissolved in DMSO to make a 9.6 mg/ml stock solution. HepG2, Huh-7 and MHCC-97H cells were co-incubated with curcumin (1.2, 2.4, 4.8 or 9.6 µg/ml) for 24 and 48 h at 37°C. In addition, HepG2 cells in the exponential growth phase were transplanted into mice to generate tumors as described subsequently.

Cell Counting Kit-8 (CCK-8) assay

Huh-7, MHCC-97H and HepG2 cells were seeded into 96-well plates at a density of 4,000 cells/well. Once attached, the cells were treated with 1.2, 2.4, 4.8 or 9.6 µg/ml curcumin for 24 or 48 h at 37°C. Cell viability was analyzed using CCK-8 reagent (cat. no. C0038; Beyotime Institute of Biotechnology) according to the manufacturer's protocol. Briefly, 10 µl CCK-8 reagent was added into each well, and cells were incubated for 1 h in the dark. Subsequently, the absorbance was measured at a wavelength of 450 nm using a microplate reader (BioTek Instruments, Inc.).

Flow cytometry

The cells were collected by trypsinization and adjusted to a density of 3×105 cells/ml. The cell samples were washed twice with PBS via centrifugation for 10 min at 1,000 × g at 4°C, and resuspended in 1 µg anti-CD11b-PE/Cy7 (dilution, 1:100) and anti-Gr-1-FITC (dilution, 1:100) antibodies. Following 30 min of incubation at 37°C in the dark, the samples were performed on a Gallios flow cytometer (Beckman Coulter, Inc.) and analyzed using FlowJo V.10 software (Tree Star, Inc.). MDSCs were identified based on double positivity for CD11b and Gr-1.

Xenograft experiments

BALB/c-nu nude mice [specific pathogen-free (SPF) grade; male; weight, 18–22 g; age, 21–28 days] were provided by Hunan SJA Laboratory Animal Co., Ltd. Mice were raised in an animal room (SPF grade) at Xiangya Medical College (Changsha, China). The animal experiment protocols were performed in accordance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals (2011) (31) and approved by the Animal Research Ethics Committee of Central South University (approval no. 2018SYNKW0181; Changsha, China). A total of 28 mice were maintained at 25.0±2.0°C and 55.0±5.0% relative humidity with a 12-h light/dark cycle, and ad libitum access to food and water. Following acclimation for 1 week, 1×107 HepG2 cells in 0.1 ml saline were injected into the right flank from the back of the mice to form subcutaneous xenograft tumors. Mice were divided into the following 4 groups (n=7/group) on the 5th day after injection when the tumor volume of HepG2 cells reached ~50 mm3: i) Model group (injected with cancer cells and administered intragastrically with the equivalent volume of 0.5% carboxymethylcellulose sodium, served as the negative control); ii) curcumin low dose group (Cur L; injected with cancer cells and administered intragastrically with 120 mg/kg curcumin daily); iii) curcumin high dose group (Cur H; injected with cancer cells and administered intragastrically with 240 mg/kg curcumin daily); and iv) chemotherapy group (injected with cancer cells and intraperitoneally injected with 50 mg/kg 5-Fu + 5 mg/kg DDP once a week; positive control). The regimens of 5-Fu+DDP and curcumin were based on their clinical application and a previous study, respectively (32,33). Furthermore, 240 mg/kg curcumin used in mice is equivalent to ~1.3 g/day in humans based on the body surface area (m2/kg) conversion between humans and mice, with a postulated adult body weight of 75 kg (human dosage=(240 mg/kg/14.16) ×75 kg), which was considered safe for humans according to a phase I clinical trial (34). The body weight and tumor volume of each mouse were measured every 3 days over a period of 15 days. The tumor volume was calculated using the following equation: Tumor volume=length × width × width/2. Animals were euthanized when >20% of weight loss was recorded, tumors were 1.0–1.5 cm in diameter or severe disease signs (e.g., difficulty breathing or paralysis) were observed. On day 15, a total of 28 mice (n=7/group) were sacrificed by intraperitoneal injection with an overdose of sodium pentobarbital (200 mg/kg), followed by cervical dislocation and rigor mortis as confirmation of death. The duration between injection and final tumor growth measurement was 20 days. The tumor tissues were removed, weighed and immediately stored at −80°C for further analysis. The maximum tumor diameter and volume observed in the present study was 15.83 mm and 516.32 mm3, respectively.

Western blotting

Total protein was extracted from tissues using 200 µl RIPA lysis buffer (Beyotime Institute of Biotechnology). Total protein was quantified by BCA and proteins (50 µg/lane) were separated via 10–12% SDS-PAGE and distinguished according to their molecular weights: TLR4, 75 kDa; TNF-α, 17 kDa; nuclear factor-κB kinase α (IKKα), 88 kDa; nuclear factor-κB kinase β (IKKβ), 85 kDa; phosphorylated (p-)IKKα, 88 kDa; p-IKKβ, 85 kDa; NF-κB, 65 kDa; MyD88, 33 kDa; IL-6, 24 kDa; IL-1β, 35 kDa; prostaglandin E2 (PGE2), 53 kDa; cyclooxygenase-2 (COX-2), 74 kDa; vascular endothelial growth factor (VEGF), 25 kDa; and β-actin, 42 kDa. The separated proteins were subsequently transferred onto nitrocellulose membranes, which were blocked with 5% BSA at room temperature for 2 h and incubated with the following primary antibodies at 4°C overnight: Anti-TLR4 (dilution, 1:700; cat. no. ab13556; Abcam), anti-TNF-α (dilution, 1:2,000; cat. no. 17590–1-AP; ProteinTech Group, Inc.), anti-IKKα (dilution, 1:10,000; cat. no. ab32041; Abcam), anti-IKKβ (dilution, 1:200; cat. no. 15649-1-AP; ProteinTech Group, Inc.), anti-p-IKKα (dilution, 1:500; cat. no. ab38515; Abcam), anti-p-IKKβ (dilution, 1:500; cat. no. ab59195; Abcam), anti-NF-κB (dilution, 1:500; cat. no. 10745-1-AP; ProteinTech Group, Inc.), anti-MyD88 (dilution, 1:500; cat. no. 23230-1-AP; ProteinTech Group, Inc.), anti-IL-6 (dilution, 1:500; cat. no. 21865-1-AP; ProteinTech Group, Inc.), anti-IL-1β (dilution, 1:200; cat. no. 16806-1-AP; ProteinTech Group, Inc.), anti-PGE2 (dilution, 1:1,000; cat. no. ab2318; Abcam), anti-COX-2 (dilution, 1:500; cat. no. 12375-1-AP; ProteinTech Group, Inc.), anti-VEGF (dilution, 1:500; cat. no. 19003-1-AP; ProteinTech Group, Inc.) and β-actin (dilution, 1:5,000; cat. no. 60008-1-Ig; ProteinTech Group, Inc.). Following the primary antibody incubation, the membranes were incubated with anti-rabbit secondary antibody (dilution, 1:6,000; cat. no. A0208; Beyotime Institute of Biotechnology) or HRP-conjugated goat anti-mouse IgG antibody (dilution, 1:500; cat. no. SA00001-1; ProteinTech Group, Inc.) for 1 h at room temperature. The protein bands were visualized using an ECL Western Blotting Substrate kit (cat. no. P0018FS; Beyotime Institute of Biotechnology). Bands were semi-quantified using ImageJ software (ImageJ 1.8.0; National Institutes of Health).

ELIAS assay

Mouse Granulocyte Colony Stimulating Factor and mouse Granulocyte Macrophage Colony Stimulating Factor ELISA kits were respectively used to determine G-CSF (cat. no. CSB-E04564m; Cusabio Biotech Co., Ltd.) and GM-CSF levels (cat. no. CSB-E04569m; Cusabio Biotech Co., Ltd.) in tumor tissues according to the manufacturer's protocols.

Immunohistochemistry (IHC) staining

The tumor tissues were fixed in 10% neutral buffered formalin for 24 h at room temperature, and then embedded in paraffin. The paraffin-embedded tumor tissue sections (thickness, 5 µm) were deparaffinized in xylene, rehydrated using an ascending series of alcohol in the following sequence: 100% ethanol for 3 min, 90% ethanol for 3 min, 80% ethanol for 3 min and 70% ethanol for 3 min and subsequently flushed with distilled water, followed by washing thoroughly with 0.01 M PBS (pH 7.2–7.6). For antigen retrieval, trypsin antigen retrieval solution was directly pipetted onto the tissue on the slide for 10 min at 37°C. Subsequently, endogenous peroxidase activity was quenched by a 30-min incubation in methanolic hydrogen peroxide (2.5%). After being sealed with 5% BSA for 1 h at room temperature, the slides were incubated overnight at 4°C with the following primary antibodies: Anti-CD31 (dilution, 1:500; cat. no. 11265-1-AP; ProteinTech Group, Inc.), anti-α-smooth muscle actin (αSMC; dilution, 1:300; cat. no. ab21027; Abcam) and anti-VEGF (dilution, 1:500; cat. no. 19003-1-AP; ProteinTech Group, Inc.). Following the primary antibody incubation, the sections were incubated with the corresponding HRP-conjugated anti-rabbit secondary antibody (dilution, 1:500; cat. no. A0208; Beyotime Institute of Biotechnology) or HRP-conjugated donkey anti-goat IgG antibody (dilution, 1:500; cat. no. SA00001-3; ProteinTech Group, Inc.) at 37°C for 30 min. Subsequently, the slides were stained with 3,3′-diaminobenzidine at 25°C for 5 min. All sections were observed under a light or fluorescence microscope (magnification, ×400) and analyzed using HistoQuest 4.0 software (TissueGnostics GmbH) as previously described (35).

Statistical analysis

Statistical analysis was performed using SPSS version 21.0 software (IBM Corp.) and the results are presented as the mean ± SD, except cell viability assay data which are presented as the mean ± SEM. All data were from at least three independent triplicate experiments. Statistical differences among groups were analyzed using one-way ANOVA followed by Tukey's multiple comparisons test and the normality of data was determined using a Kolmogorov-Smirnov test. P<0.05 was considered to indicate a statistically significant difference.

Results

Curcumin inhibits the viability of liver cancer cells

To investigate the role of curcumin in regulating liver cancer cell proliferation, the effects of treatment with 1.2–9.6 µg/ml curcumin on the viability of Huh-7, MHCC-97H and HepG2 cells were determined. The results revealed a dose-dependent reduction in cell viability following 24 and 48 h of treatment (Fig. 1A and B). To verify the results in vivo, a HepG2 ×enograft nude mouse model was used. Similarly, 120 and 240 mg/kg/day curcumin progressively decreased the tumor volume compared with the model group, which was measured for 15 days (Fig. 1C). Treatment with curcumin was observed to cause a decrease in body weight on the 10th day; however, the body weight subsequently increased and was not affected by curcumin treatment by the 15th day (Fig. 1D). As expected, the curcumin-induced decline in tumor volume was also associated with a marked decrease in tumor weight, revealing comparable tumor growth inhibition efficacy between curcumin and chemotherapy treatments, which indicated the therapeutic potential of curcumin in liver cancer (Fig. 1F). The evaluation of tumor histology using hematoxylin and eosin staining indicated that the groups treated with curcumin (120 and 240 mg/kg/day) and the chemotherapy treatment group exhibited necrosis and lower cellularity compared with the model group (Fig. 1H). As shown in Fig. 1E and G, the in vivo and ex vivo images of the tumors further indicated the tumor-suppressive effects of curcumin.

Figure 1. Curcumin suppresses liver cancer growth in vivo and in vitro. Viability of HepG2, Huh-7 and MHCC-97H cells following curcumin treatment at (A) 24 and (B) 48 h. The x-axis presents the concentration of curcumin (µg/ml). Effects of curcumin on (C) tumor volume and (D) body weight were measured every 3 days. (E) Representative images of excised tumors in each group. (F) Weight of tumor tissues on day 15. (G) Representative images of nude mice with tumor xenografts in each group. (H) Hematoxylin and eosin staining of tumor tissues (magnification, ×100; scale bar, 200 µm). Data are presented as the mean ± SD (n=7). *P<0.05 and **P<0.01 vs. model group or vehicle control in CCK-8 assay. Cur L, curcumin low dose group (120 mg/kg); Cur H, curcumin high dose group (240 mg/kg).

Curcumin suppresses MDSCs and the secretion of modulatory-related factors GM-CSF and G-CSF

MDSCs serve a crucial role in the immunology of the majority of tumors, and are responsible for inhibiting the immune function of T cells and promoting angiogenesis (36). It was hypothesized that curcumin may inhibit the expansion of MDSCs, which would subsequently enhance immune function. To test this hypothesis, flow cytometry was used to determine CD11b+Gr-1+ expression in mouse xenograft tumor tissues. As shown in Fig. 2A and B, compared with the model group, treatment with 120 or 240 mg/kg curcumin or chemotherapy significantly reduced the percentage of MDSCs (in 7 mice). Notably, the treatment with curcumin at both a low (120 mg/kg) and high (240 mg/kg) dose exhibited a comparable inhibitory effect on MDSCs, suggesting that there were no dose-dependent effects when comparing low and high doses of curcumin. These results suggested that curcumin may inhibit the expansion of MDSCs in mice xenograft tumor tissues, but not in a dose-dependent manner.

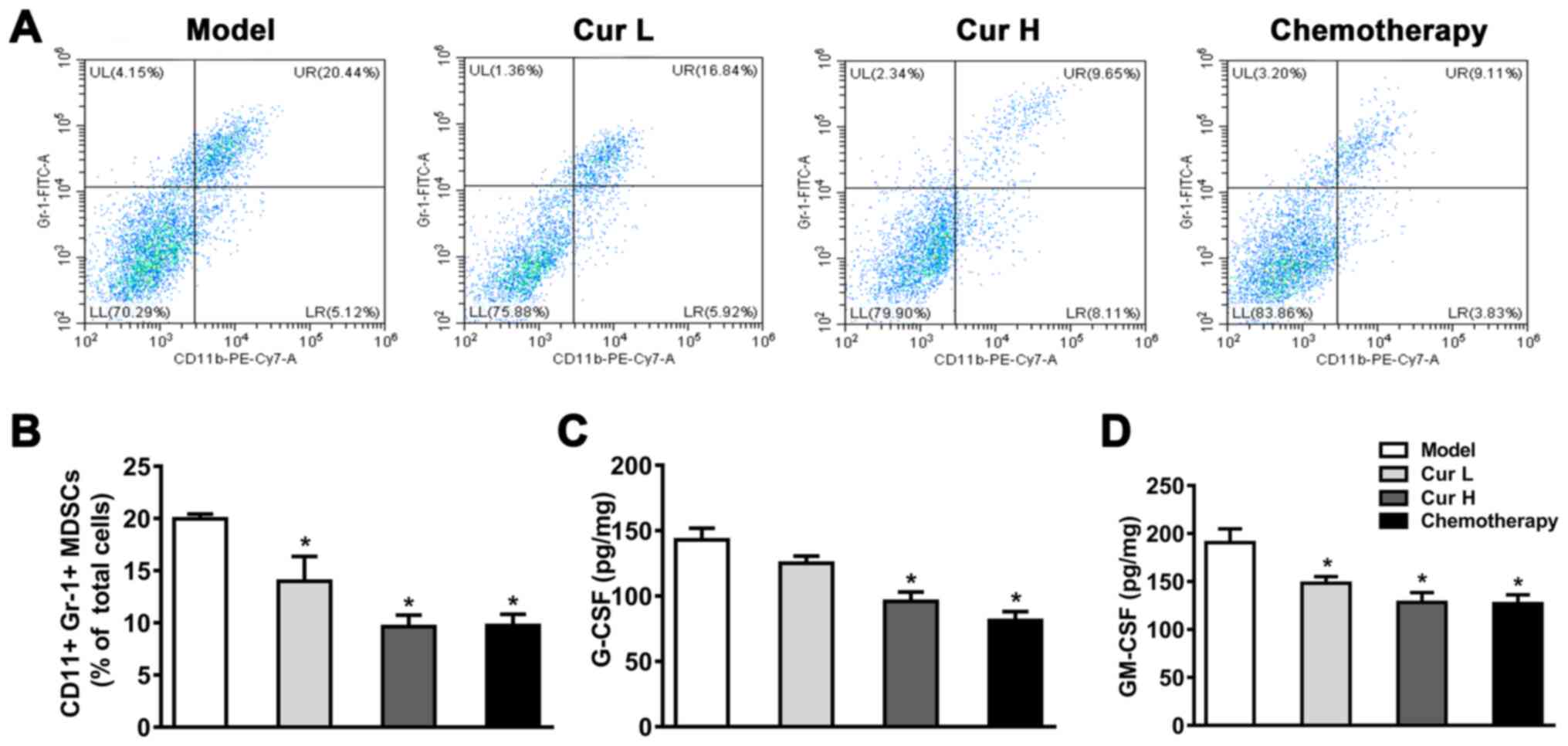

Figure 2. Curcumin inhibits MDSCs in tumor tissues. (A) Flow cytometric analysis of CD11b+/Gr-1+ cells in murine tumor tissues. (B) Quantitative analysis of MDSCs in murine tumor tissue. Secretory levels of (C) G-CSF and (D) GM-CSF in the tumor tissues were measured using ELISAs. Tumor tissue samples were collected within 24 h following the attenuation of treatment with all drugs. Data are presented as the mean ± SD (n=7). *P<0.05 vs. model group. MDSCs, myeloid-derived suppressor cells; GM-CSF, granulocyte-macrophage colony-stimulating factor; G-CSF, granulocyte-colony-stimulating factor; Cur L, curcumin low dose group (120 mg/kg); Cur H, curcumin high dose group (240 mg/kg); Gr-1, granulocyte receptor-1; UL, upper left; UR, upper right; LL, lower left; LR, lower right.

To investigate whether the inhibitory effect of curcumin on MDSCs could be attributed to M-CSF and GM-CSF secretion, ELISAs were used to determine the secretory levels of GM-CSF and G-CSF. As illustrated in Fig. 2C and D, treatment with Cur H and chemotherapy notably reduced G-CSF and GM-CSF levels compared with the model group, whereas Cur L only significantly decreased GM-CSF levels. These data indicated that curcumin may suppress M-CSF and GM-CSF secretion, which could lead to the inactivation of MDSCs, and thereby restrict cancer cell proliferation.

Alterations in the expression levels of TLR4/NF-κB signaling pathway-related proteins account for the inhibition of MDSCs

To investigate the latent molecular mechanism underlying the curcumin-modulated activity of MDSCs, the expression levels of proteins associated with the TLR4/NF-κB signaling pathway were analyzed using western blotting. The results revealed that both curcumin and chemotherapy treatment significantly decreased TLR4, MyD88, p-IKKα/IKKα, p-IKKβ/IKKβ and NF-κB expression compared with the model group. Notably, high doses of curcumin (Cur H) exhibited greater effects than the treatment with chemotherapy in terms of the inhibition of the TLR4/NF-κB signaling pathway, except the ratios of p-IKKα/IKKα and p-IKKβ/IKKβ (Fig. 3A-E). Considering that the TLR4/NF-κB signaling pathway is the major inflammatory signaling pathway that mediates the expression levels of numerous inflammatory cytokines in cancer (37), and that inflammation serves an important role in cancer progression and MDSC recruitment and activation (38), the expression levels of TNF-α, IL-6, IL-1β, PGE2 and COX-2 in xenograft tumor tissues were analyzed. As shown in Fig. 3, treatment with curcumin at two doses (Cur L and Cur H) and chemotherapy significantly blocked the increased expression of TNF-α, IL-6, IL-1β, PGE2 and COX-2 compared with the model group (Fig. 3F-I). Notably, Cur H was at least comparable or superior to the chemotherapy treatment in terms of its ability to downregulate the expression levels of the proteins. These data indicated that curcumin may suppress the TLR4/NF-κB signaling pathway and control the inflammatory response, which may be the underlying mechanism inhibiting MDSC activity and thus, inhibiting cancer progression.

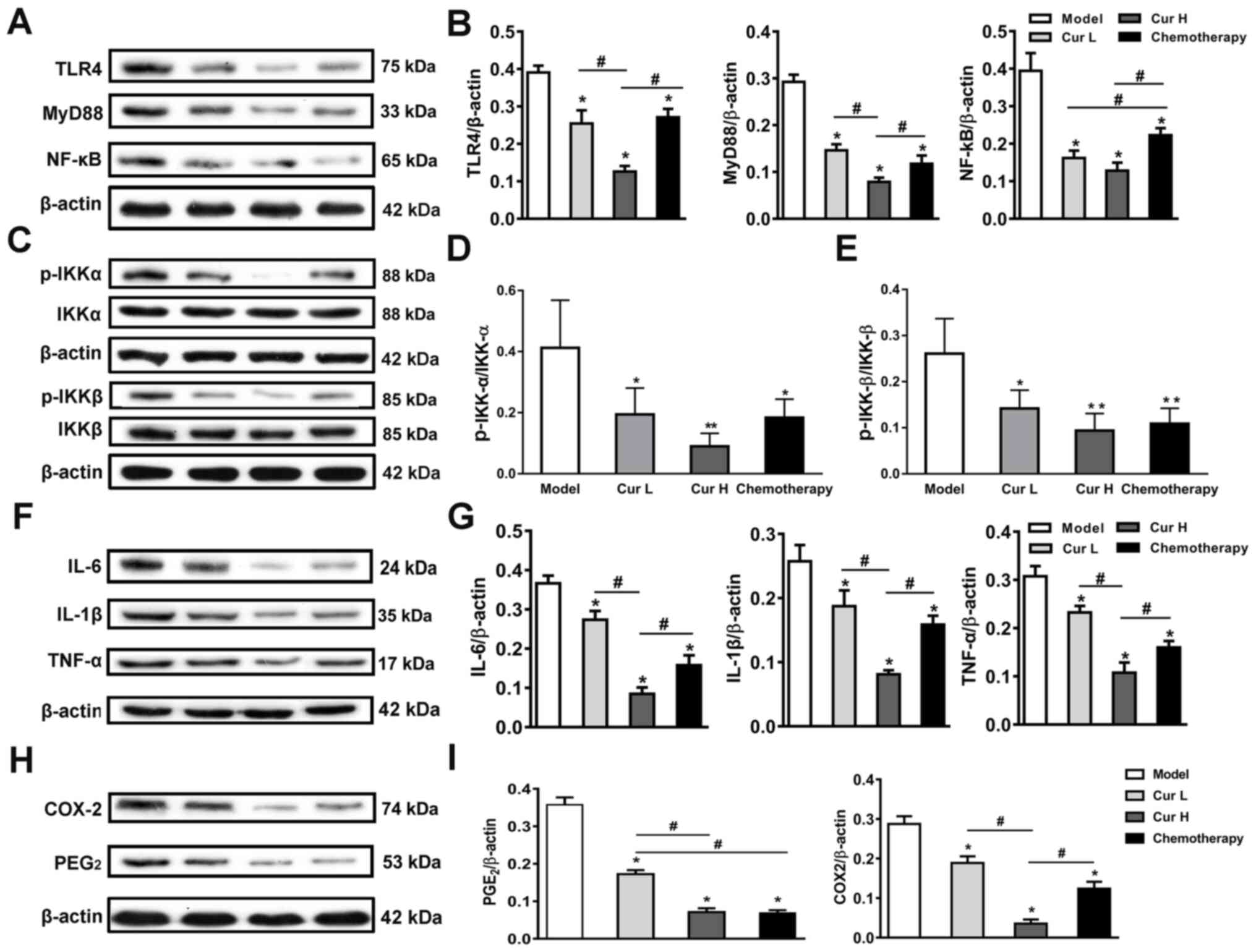

Figure 3. Inhibition of the TLR4/NF-κB signaling pathway-mediated inflammatory response. (A) Western blotting was used to analyze and (B) semi-quantify the expression levels of TLR4, MyD88 and NF-κB in murine tumor tissues. (C) Expression levels and semi-quantitative analysis of (D) IKK-α, p-IKK-α, (E) IKK-β and p-IKK-β in murine tumor tissues. (F) Expression levels and (G) semi-quantitative analysis of IL-6, IL-1β and TNF-α in murine tumor tissues. (H) Expression levels and (I) semi-quantitative analysis of PGE2 and COX-2 in murine tumor tissues. Data are presented as the mean ± SD (n=7). *P<0.05 and **P<0.01 vs. model group; #P<0.05, as indicated. TLR4, toll-like receptor 4; MyD88, myeloid differentiation primary response 88; IKKα, nuclear factor-κB kinase α; IKKβ, nuclear factor-κB kinase β; PGE2, prostaglandin E2; COX-2, cyclooxygenase-2; p-, phosphorylated; Cur L, curcumin low dose group (120 mg/kg); Cur H, curcumin high dose group (240 mg/kg).

Curcumin suppresses tumor angiogenesis

The angiogenic programming of neoplastic tissue is a multidimensional process that is regulated by cancer cells in concert with a variety of tumor-associated stromal cells and their bioactive products. MDSCs promote tumor angiogenesis by producing pro-angiogenic growth factors, such as VEGF (39). The results of the western blot analysis demonstrated that 120 and 240 mg/kg curcumin, particularly Cur H, significantly downregulated VEGF expression in vivo compared with that in the model group (Fig. 4A). To further verify the anti-angiogenic effect of curcumin in vivo, the excised tumor tissues were analyzed using IHC for CD31 expression (a platelet endothelial cell adhesion molecule) and VEGF, and by immunofluorescence using anti-αSMC (an arterial smooth muscle cell marker) and anti-CD31 antibodies. The observed downregulated expression levels of VEGF, CD31 and αSMC in the tumor tissues indicated that angiogenesis may be suppressed by curcumin treatment (Fig. 4B). Overall, these findings indicated that curcumin may inhibit VEGF and CD31-induced angiogenesis in vivo.

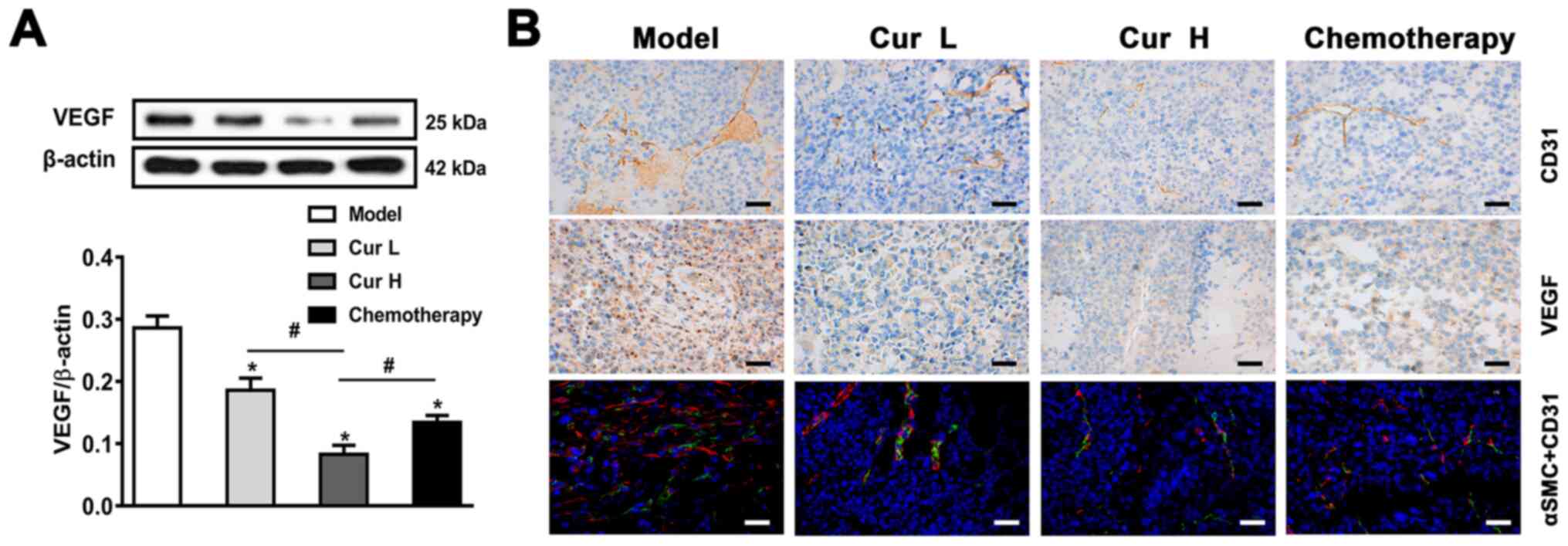

Figure 4. Curcumin suppresses tumor angiogenesis. (A) Western blotting was used to analyze and semi-quantify the expression levels of VEGF. (B) Immunohistochemistry analysis of CD31 and VEGF expression in murine tumor tissues, and immunofluorescence analysis of αSMC and CD31 expression in murine tumor tissues (magnification, ×400; scale bar, 50 µm). Data are presented as the mean ± SD (n=7). *P<0.05 vs. model group; #P<0.05, as indicated. VEGF, vascular endothelial growth factor; αSMC, α-smooth muscle cell actin; Cur L, curcumin low dose group (120 mg/kg); Cur H, curcumin high dose group (240 mg/kg).

Discussion

Curcumin has been reported to be a promising anticancer agent in various types of cancer. In the present study, data obtained from the xenograft nude mouse model provided further evidence that curcumin effectively suppressed the growth of liver cancer. Similarly, numerous previous in vitro and in vivo studies have demonstrated that curcumin inhibits the growth cancer in both animals and humans (40–42), including hepatocellular carcinoma (43). Several reports have suggested that curcumin or its derivative alone or in combination with other drugs exhibit favorable anti-liver cancer activity (44–46). Shao et al (47) reported that bisdemethoxycurcumin, a natural dimethoxy derivative of curcumin, decreases the number of tumor-infiltrating MDSCs in MB49 metastasized bladder cancer cells. In addition, curcumin could suppress MKN-45 human gastric cancer cell and CT26 mouse colon cancer cell proliferation by blocking the STAT3 and NF-κB signaling pathway-mediated activation and expansion of MDSCs, in addition to the interaction of cancer cells with MDSCs (48). However, to the best of our knowledge, no previous study has investigated the anti-liver cancer activity of curcumin, and in particular the association among inflammation, MDSCs and angiogenesis in tumor tissues. Therefore, the present study was the first to report that the anticancer activity of curcumin may be due to the inactivation of MDSCs, which was associated with the ability of curcumin to inhibit TLR4/NF-κB-mediated inflammation and decrease GM-CSF and G-CSF secretion, which subsequently repressed angiogenesis and tumor growth.

In-depth research on the pathogenesis of cancer has revealed that inflammation and the immune microenvironment are key players in cancer growth, spread and metastasis (49). Defined immune cell subsets have been reported to dictate cancer fate by their expansion and recruitment within the loco-regional tumor microenvironment (50). High numbers of myeloid cells, particularly MDSCs, have been associated with tumor promotion, metastasis and a poor prognosis (2). MDSCs are found in the peripheral blood and solid tumors, where they are known to maintain an immunosuppressive network in the tumor microenvironment (50,51). In particular, they constitute a key checkpoint that prevents an immune response against tumors (51). Previous studies have reported that the inhibition of MDSCs in the tumor may weaken the tumor defense mechanisms and inhibit tumor progression, including in lung cancer (52,53), malignant melanoma (54) and liver cancer (55). Previous evidence has indicated that curcumin suppresses and prevents carcinogenesis via multifaceted molecular targets; however, to the best of our knowledge, there are few studies reporting the role of curcumin in regulating MDSCs (48), particularly in liver cancer.

TDFs, which are mainly cytokines, chemokines and metabolic soluble mediators, promote and sustain the expansion of the heterogeneous population of myeloid cells, skew myeloid cells towards an immunosuppressive phenotype and endow them with regulatory functions (2). TDFs, such as GM-CSF, G-CSF and inflammatory factors (TNF-α, IL-1β and IL-6), are crucial mediators in MDSC modulation (4). G-CSF and GM-CSF have been discovered to be the main regulators of the proliferation and differentiation of myeloid cells (56). A recent study demonstrated that cancer cell-derived GM-CSF serves a key role in cancer progression, and GM-CSF is indispensable for the tuning of the tumor microenvironment and MDSCs (57). Furthermore, the inflammatory microenvironment in cancer, which is established by multiple inflammatory factors, recruits and activates MDSCs (58). The results of the present study revealed that curcumin markedly suppressed the levels of M-CSF, GM-CSF and numerous inflammatory factors, which provided evidence for the inhibitory effect of curcumin on MDSCs and its subsequent anti-liver cancer activity.

The immunosuppressive potential of MDSCs is mainly dependent on the expression of inflammation-related proteins (59). TLR4/NF-κB is a canonical inflammatory signaling pathway that has a prominent role in mediating the inflammatory response in multiple types of disease, including cancer (12). Activated TLR4 interacts with MyD88, and then induces IKK phosphorylation (18). IKK phosphorylation triggers the activation of NF-κB, which in turn promotes the expression of inflammation- and immune-suppressive signaling pathway genes (60). Several previous studies have demonstrated that the TLR4 axis enhances the immunosuppressive function of MDSCs (61) and that curcumin inhibits liver cancer via the TLR4/NF-κB signaling pathway (62). The present study investigated whether curcumin alleviated the MDSC-mediated immunosuppressive function via the TLR4/NF-κB signaling pathway. The data revealed that curcumin treatment decreased the protein expression levels of TLR4, MyD88, p-IKK and NF-κB. This indicated that curcumin may inactivate the TLR4/NF-κB signaling pathway, which may in turn result in a decreased inflammatory response.

In addition, MDSCs promote tumor angiogenesis by producing pro-angiogenic growth factors, such as VEGF, and endothelial cell adhesion molecules, such as CD31 (63). Additionally, the inhibition of inflammatory factors, such as IL-6, has been associated with the attenuation of angiogenesis (64). In a previous study, curcumin inhibited hepatocellular carcinoma growth by downregulating VEGF expression (65). Similarly, the present results demonstrated that curcumin treatment suppressed angiogenesis by downregulating VEGF and CD31 expression in the tumor tissues, which was demonstrated using western blotting, IHC and immunofluorescence staining experiments. These results might be attributed to the inhibitory effect of curcumin on MDSCs and inflammation.

The doses of curcumin used in the present study were selected based on our preliminary experiment and a pervious study (33). In addition, 120 and 240 mg/kg curcumin used in mice is equivalent to ~0.65 and 1.3 g/day, respectively, in humans, based on the mouse/human dose conversion coefficient. Furthermore, a phase I clinical trial has demonstrated that curcumin is safe even at high doses (12 g/day) in humans (34). Therefore, from the perspective of safety, the dosage is acceptable when it comes to humans. In respect to efficacy, curcumin could efficaciously delay liver cancer growth, almost equivalent to the chemotherapy group. Even marketed anticancer drugs, such as sorafenib and lenvatinib, cannot prevent the growth of liver cancer (66). Therefore, the anti-liver cancer effect of curcumin revealed in the present study is of values. Importantly, the present study revealed a novel mechanism in which curcumin suppressed the growth of liver cancer by impairing MDSCs in murine tumor tissues.

Although curcumin is deemed safe and nontoxic, even at high doses (12 g/day), in humans, the low aqueous solubility, poor absorption and rapid metabolism of curcumin severely impedes its bioavailability and thus, prevents its application as a therapeutic agent (34,67). To overcome this challenge, various strategies have been explored, including the alteration of the administration route of curcumin, blocking the metabolism of curcumin with other agents, altering the structural modifications of curcumin and investigating the possibility of oral delivery systems (34,68). Among them, oral delivery systems, a novel delivery strategy established in recent years, has offered significant promise in enhancing the bioavailability of curcumin, and this involves the use of nano and microparticles, polymeric micelles, nanosuspensions or lipid-based nanocarriers (67,69). Further studies should aim to introduce the aforementioned bioavailable curcumin-based formulations to explore the efficacy of the anti-liver cancer effects of curcumin through this delivery method, with a specific focus on its ability to affect inflammation, MDSCs and their interactions.

There are certain limitations of the present study: i) The HepG2 cell line was not authenticated; ii) in vivo imaging of tumors and Kaplan-Meier curves of mice were not provided; iii) no information was provided regarding the effectiveness of either curcumin or chemotherapy on tumor once the treatment was discontinued; and iv) the effect of curcumin on the TLR4/NF-κB signaling pathway in isolated MDSCs from xenografts was not determined. Based on the aforementioned limitations, in future research, authentication of HepG2 cells is warranted, Kaplan-Meier curves, in vivo imaging of tumors, and a prolonged period of time effectiveness of curcumin, particularly once the treatment is discontinued, should be provided to comprehensively evaluate the effect of curcumin on liver cancer. MDSCs should be isolated from xenografts and IKK activator should be applied to examine whether curcumin exerts its anti-liver cancer effect via blocking of the TLR4/NF-κB signaling pathway in MDSCs.

In conclusion, the findings of the present study indicated that curcumin may effectively prevent liver cancer by impairing MDSCs in tumor tissues, which was demonstrated by the inhibition of GM-CSF and G-CSF secretion, and TLR4/NF-κB-mediated inflammation (Fig. 5). The present study provided novel insights into the anti-liver cancer mechanism of curcumin and a theoretical basis for anti-liver cancer drug development targeting MDSCs.

Figure 5. Schematic diagram of the inhibitory effect of curcumin on MDSCs and liver cancer. Curcumin exerted an inhibitory effect on MDSCs by inhibiting the TLR4/NF-κB-mediated inflammatory microenvironment and attenuating G-CSF and GM-CSF secretion. This subsequently suppresses tumor angiogenesis and ameliorates immune tolerance in liver cancer, thus exhibiting anti-liver cancer effects. TLR4, toll-like receptor 4; MyD88, myeloid differentiation primary response 88; IKK, nuclear factor-κB kinase; PGE2, prostaglandin E2; COX-2, cyclooxygenase-2; MDSCs, myeloid-derived suppressor cells; G-CSF, granulocyte-colony stimulating factor; GM-CSF, granulocyte-macrophage colony-stimulating factor; VEGF, vascular endothelial growth factor.

Acknowledgements

The authors would like to thank Dr Yiming Tao (Xiangya Medical College, Central South University, Changsha, China) for providing the reagents used in the present study and for help revising the manuscript.

Funding

The present study was supported by grants from the National Natural Science Foundation of China (grant no. 81473617), the Science and Technology Department of Hunan Province (grant no. 2017SK50310), the Innovation Platform Open Foundation of Hunan Educational office (grant no. 16K066) and Hunan Province ‘domestic first-class cultivation discipline’ Integrated Traditional Chinese and Western medicine open fund project (2018ZXYJH03, 2019ZXJH02).

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

XT conceived, designed and guided the study. ST and LL performed the experiments. QZ, XH, PZ and YG analyzed the data and generated the graphs. TD and XT helped analyze the experimental results and provided technical guidance. XT and ST drafted the manuscript. XT and ST are responsible for confirming the authenticity of all the raw data. All authors read and approved the final manuscript.

Ethics approval and consent to participate

All experimental protocols were approved by the Institute Review Board of Xiangya Medical College (Changsha, China).

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
