Introduction

Cell cycle progression is regulated by a series of cyclin-dependent kinases (CDKs) and cyclin-dependent kinase inhibitors (CDKIs). p16INK4a, a member of the INK4 family of CDKIs and a tumor suppressor, inhibits CDK4, maintaining the hyperphosphorylation of retinoblastoma (Rb) that suppresses cell cycle progression (1). The p16-cyclin D1-CDK4-Rb pathway regulates cell cycle transition from the G1 to the S phase; point mutations and/or epigenetic modifications in this pathway are observed in almost all human cancers (2,3). In addition to regulating the CDK4-Rb pathway, p16INK4a decreases eukaryotic elongation factor (eEF) 1A2 expression, reducing cancer cell proliferation (4). It also induces cellular senescence in a cooperative manner with p21Waf1/Cip1, which was confirmed in double-knockout mice that were more susceptible to skin tumor formation (5). Moreover, enforced expression of p16INK4a in cisplatin-resistant non-small cell lung cancer cells increased their sensitivity to low cisplatin concentrations (6). Thus, treatments that increase p16INK4a expression may be beneficial in reducing cancer cell growth.

Epigenetic modifications, such as the methylation of CpG islands within gene promoters and histone deacetylation, can inactivate tumor-suppressor genes, including p16INK4a. Specifically, epigenetic regulation of p16INK4a expression through DNA methylation and/or histone deacetylation has been observed in many types of human cancers (2). Methylation of p16INK4a may be an early event in carcinogenesis (7). Furthermore, the detection of p16INK4a hypermethylation at higher concentrations in the plasma of breast cancer patients than in healthy control patients suggests that it may be a suitable tool for cancer screening, and its prognostic value has been suggested for breast and prostate cancer patients (7,8).

Epigallocatechin-3-gallate (EGCG), a green tea-derived polyphenol, was found to reduce DNA methylation of the p16INK4a promoter, reactivating its expression in the human pancreatic carcinoma cell line, PANC-1 and in human skin cancer cells (9,10). In addition, trichostatin A (TSA), a histone deacetylase (HDAC) inhibitor, elevated histone deacetylation of the HBP1 region, thereby inducing p16INK4a expression and subsequent cell apoptosis and differentiation (11). Thus, DNA methyltransferases (DNMTs) and HDACs may represent important therapeutic targets for the design of antitumor drugs (12,13).

The present study sought to prove the hypothesis that EGCG and TSA may synergistically enhance p16INK4a expression via epigenetic modification. After treatment with EGCG and TSA alone or in combination, cell proliferation, cell cycle progression, promoter methylation, and p16INK4a expression were examined in human Burkitt lymphoma CA46 cells.

Materials and methods

Reagent preparation and cell culture

EGCG (Sigma, St. Louis, MO, USA) was diluted to 10 mg/ml with phosphate-buffered saline (PBS) (pH 7.4). TSA (Sigma) was diluted to 2 mg/ml with dimethyl sulfoxide (DMSO). Both were stored at −20°C until further use. The CA46 human Burkitt lymphoma cell line (CRL-1648™, ATCC, Atlanta, GA, USA) was maintained in RPMI-1640 complete medium (Gibco, Carlsbad, CA, USA) containing 10% fetal bovine serum (FBS) (Sijiqing, Zhejiang, China) at 37°C with 5% CO2.

Cell proliferation analysis

Cell proliferation was assessed with the MTT assay (Sigma) following the manufacturer’s instructions. Cells (4×103/well) were seeded onto 96-well plates in 90 μl of growth medium containing the indicated treatment. On days 1, 2, 3 and 4, 10 μl of MTT solution was added. After 2–3 h at 37°C, optical density (OD) was measured at 450 nm, and the inhibition rate was determined as follows: [1 − (ODexperiment − ODblank)/(ODnegative − ODblank)] × 100%. This experiment was performed three times.

Cell cycle analysis

CA46 cells (1×106/well) were cultured with the indicated treatment for 48 h after which the cells were collected and washed twice with PBS. After fixing with 70% ethanol at 4°C overnight, the cells were stained with 40 μg/ml propidium iodide (PI; Sigma). Flow cytometry was performed with a FACSCalibur flow cytometer (Becton-Dickinson, Franklin Lakes, NJ, USA). WinList v6.0 software (Topsham, ME, USA) was used to set the gate, and data were analyzed with ModFit LT V3.0 (Invitrogen). The proliferative index was determined as follows, where the G1, S, G2, and M values represent the proportion of cells in the corresponding phase: (S + G2/M)/(GO/G1 + S + G2/M) ×100%. This experiment was performed three times.

Nested methylation-sensitive PCR (n-MSP)

Genomic DNA was isolated from 2×106 CA46 cells using the traditional chloroform extraction method followed by bisulfite modification using the EpiTect Bisulfite kit (Qiagen, Gaithersburg, MD, USA) following the manufacturer’s instructions and was stored at −20°C. n-MSP was performed with a two-stage nested approach as previously described by Palmisano et al(14) using the 2720 Thermal Cycler (Applied Biosystems, Foster City, CA, USA). Briefly, PCR amplification of a sequence of the p16 gene that was 280 bp in length and included a promoter region rich in CpG was undertaken using primers specific for bisulfite modification (primers for the first stage; Table I) and the following PCR conditions: one cycle at 95°C for 10 min; 40 cycles at 95°C for 30 sec, 60°C for 30 sec, 72°C for 30 sec; and one cycle at 72°C for 10 min. All primers were synthesized by Invitrogen. After the products were diluted 30-fold, 2 μl was used for the second stage PCR using primers specific for methylated and unmethylated templates (Table I). The PCR conditions were as follows: 40 cycles of 95°C for 30 sec, 60°C for 30 sec and 72°C for 30 sec and a final extension at 72°C for 10 min. The final products were subjected to gel electrophoresis and sequencing. Sensitivity for detecting methylated alleles was determined using DNA from peripheral lymphocytes of healthy subjects which served as a control.

Table I Primer sequences for n-MSP and real-time PCR.

Table I

Primer sequences for n-MSP and real-time PCR.

	Primer sequence (5′-3′)
n-MSP
p16 for first stage	F: GAAGAAAGAGGAGGGGTTGG R: CTACAAACCCTCTACCCACC
p16 for methylated	F: TTATTAGAGGGTGGGGCGGATCGC R: GACCCCGAACCGCGACCGTAA
p16 for unmethylated	F: TTATTAGAGGGTGGGGTGGATTGT R: CAACCCCAAACCACAACCATAA
q-PCR
p16	F: GAATTGGAATCAGGTAGC R: GAGGAGGTCTGTGATTAC
GAPDH	F: GAAGGTGAAGGTCGGAGTCAAC R: CAGAGTTAAAAGCAGCCCTGGT

[i] F, forward, R, reverse.

Real-time PCR analysis

Total RNA was extracted from cells (2×106) with TRIzol (Invitrogen) according to the manufacturer’s instructions. The Reverse Transcription system (Promega, Madison, WI, USA) was used for the reverse transcription into cDNA, and real-time PCR was undertaken using the SYBR Green Master (ROX, Roche, Germany), primers (Table I) and an ABI 7500 thermal cycler. The conditions were as follows: 40 cycles of 95°C for 1 min, 95°C for 15 sec and 60°C for 30 sec. The melting curve was subsequently performed to ensure primer specificity. Relative gene expression was determined using the 2−ΔΔCt method. Untreated cells served as the control. This experiment was carried out seven times in triplicate.

Western blot analysis

Cells (2×106) were collected after the indicated treatments for 72 h and lysed in RIPA buffer (Thermo Fisher Scientific, Waltham, MA, USA). The protein concentration was determined with a BCA kit (Pierce, Rockford, IL, USA) after which 60 μg was separated by SDS-PAGE and transferred onto nitrocellulose membranes (Bio-Rad Laboratories, Hercules, CA, USA). After the membrane was blocked in non-fat milk at room temperature for 2 h, it was incubated with primary antibodies specific for p16 or β-actin (Abcam®, Hong Kong) at 4°C overnight. After washing, the membrane was incubated with a horseradish peroxidase-conjugated secondary antibody (Pierce) at room temperature for 2 h. Visualization was carried out using the ECL Plus kit (Pierce).

Statistical analysis

The continuous variables are presented as the mean and standard deviation. For comparisons of the experimental groups, one-way ANOVA was used. When a significant difference between groups was apparent, multiple comparisons were performed using the Bonferroni procedure with type-I error adjustment. SAS software package, version 9.2 (SAS Institute, Inc., Cary, NC, USA) was used for the statistical analysis. All statistic assessments were evaluated at a two-sided α level of 0.05.

Results

Effects of EGCC and TSA on CA46 cell growth

As shown in Fig. 1, both EGCG and TSA inhibited CA46 cell proliferation after 48 h. Increasing EGCG concentrations did not further inhibit CA46 cell growth when compared to the growth of cells treated with 6 μg/ml EGCG (Fig. 1A), while significant inhibition was observed with 24 and 48 ng/ml TSA at 48 h when compared to the cells treated with 3 ng/ml TSA (both P≤0.001; Fig. 1B). The effects of EGCG and TSA co-treatment on CA46 cell proliferation was assessed using various concentrations of each. Significantly greater growth inhibition was observed with 12 μg/ml EGCG + 30 ng/ml TSA, 6 μg/ml EGCG + 15 ng/ml TSA and 3 μg/ml EGCG + 7.5 ng/ml TSA when compared to cells treated with 1.5 μg/ml EGCG + 3.75 ng/ml TSA (all P<0.001; Fig. 1C).

Figure 1 Effects of EGCC and TSA on CA46 cell growth. CA46 cell proliferation after 48 h was assessed in the presence of increasing concentrations of (A) EGCG and (B) TSA using the MTT assay. Data are presented as cell growth inhibition. (C) CA46 cell growth inhibition after co-administration of EGCG and TSA at the indicated concentrations for 48 h. Combination treatment consisting of EGCG at 6 μg/ml and TSA at 15 ng/ml was selected for the subsequent experiments. (D) CA46 cell growth over various time periods following incubation with the indicated treatments. Data represent the means ± SD of three independent experiments. *Indicates a significant difference compared with the group treated with the lowest concentration; P<0.001.

Analysis of the effects of EGCG and TSA alone or in combination on CA46 proliferation over time was also assessed (Fig. 1D). From 24 to 96 h, CA46 cell survival was significantly higher in the untreated group when compared to cell survival in all of the treatment groups (all P<0.001). Furthermore, significantly reduced CA46 cell growth was observed in the combined treatment group (6 μg/ml EGCG and 15 ng/ml TSA) at 24 h and the effect continued until the end of the study (all P<0.001; Fig. 1D).

Effects of EGCG and TSA on CA46 cell cycle progression

Flow cytometry was performed to observe the effects of EGCG and TSA alone and in combination on cell cycle progression. With the exception of CA46 cells treated with 6 μg/ml EGCG, the proportion of cells in the G0/G1 phase was significantly higher in the treatment groups when compared to the proportion of cells in the control group (all P≤0.002; Fig. 2A). Among the groups tested, the cells treated with 24 μg/ml EGCG and the combined treatment had the greatest proportion of cells in the G0/G1 phase. In contrast, with the exception of CA46 cells treated with 6 μg/ml EGCG, the proportion of cells in the S phase was significantly lower in the treatment groups when compared to the proportion of cells in the control group (all P<0.001; Fig. 2A). Finally, the proportion of cells in the G2/M phase was significantly higher in the combined treatment group when compared to this proportion in the control group (P≤0.002; Fig. 2A). Subsequent analysis of the proliferative index revealed that the cells treated with 12 μg/ml EGCG, 24 μg/ml EGCG, 30 ng/ml TSA or the combination treatment had lower proliferative indices than the control group (Fig. 2B).

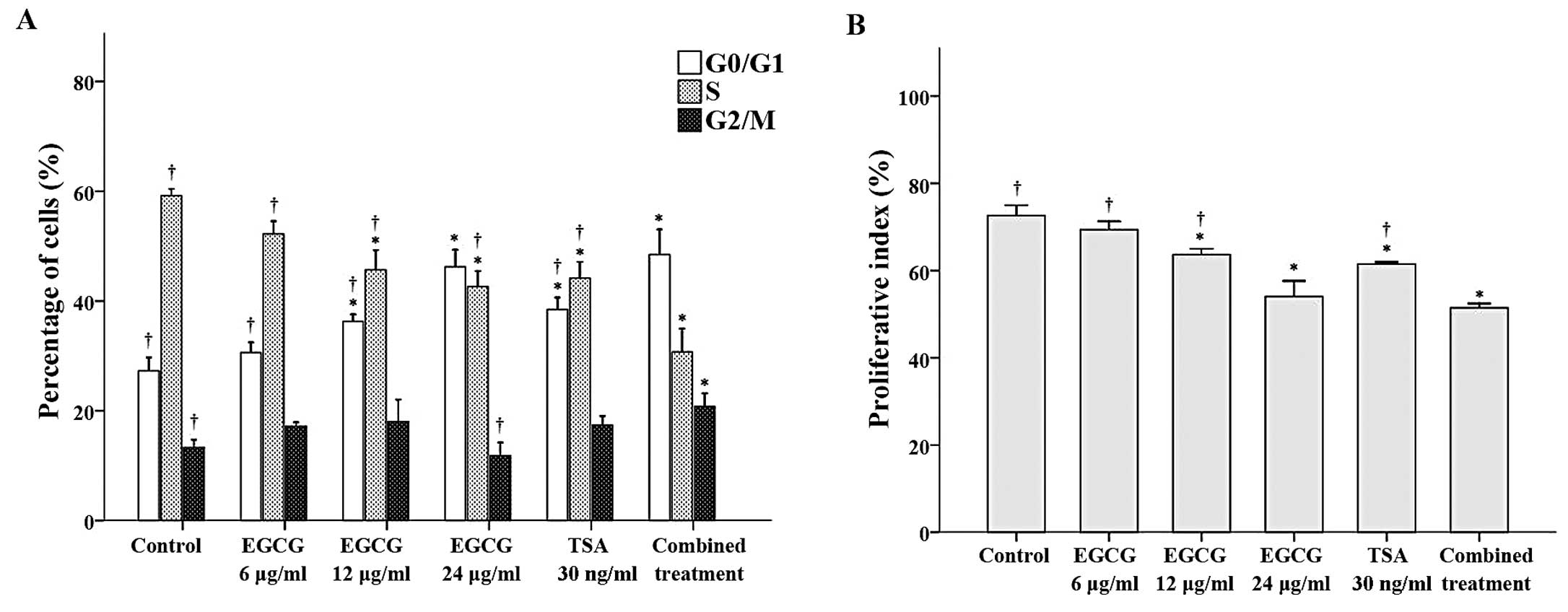

Figure 2 Effects of EGCG and TSA on CA46 cell cycle progression. (A) The cell cycle phases and (B) proliferative indices of CA46 cells were determined after treatment with EGCG and TSA for 48 h using flow cytometry. Combination treatment consisted of 6 μg/ml EGCG and 15 ng/ml TSA. Data represent the mean ± SD of three independent experiments. *Indicates a significant difference compared with the untreated control group.

Effects of EGCG and TSA on the methylation of the p16INK4a gene in CA46 cells

As shown in Fig. 3A, n-MSP analysis revealed a 151-bp band, corresponding to a methylated product, in the untreated controls, which decreased with increasing concentrations of EGCG. A corresponding increase in the 150-bp unmethylated product was observed with EGCG treatment at increasing concentrations (Fig. 3B). Whereas TSA did not dramatically alter the methylation status of the p16INK4a gene, the combination treatment (6 μg/ml EGCG and 15 ng/ml TSA) decreased p16INK4a methylation and concurrently increased the unmethylated status of the p16INK4a gene to a greater degree than the untreated control (Fig. 3C and D).

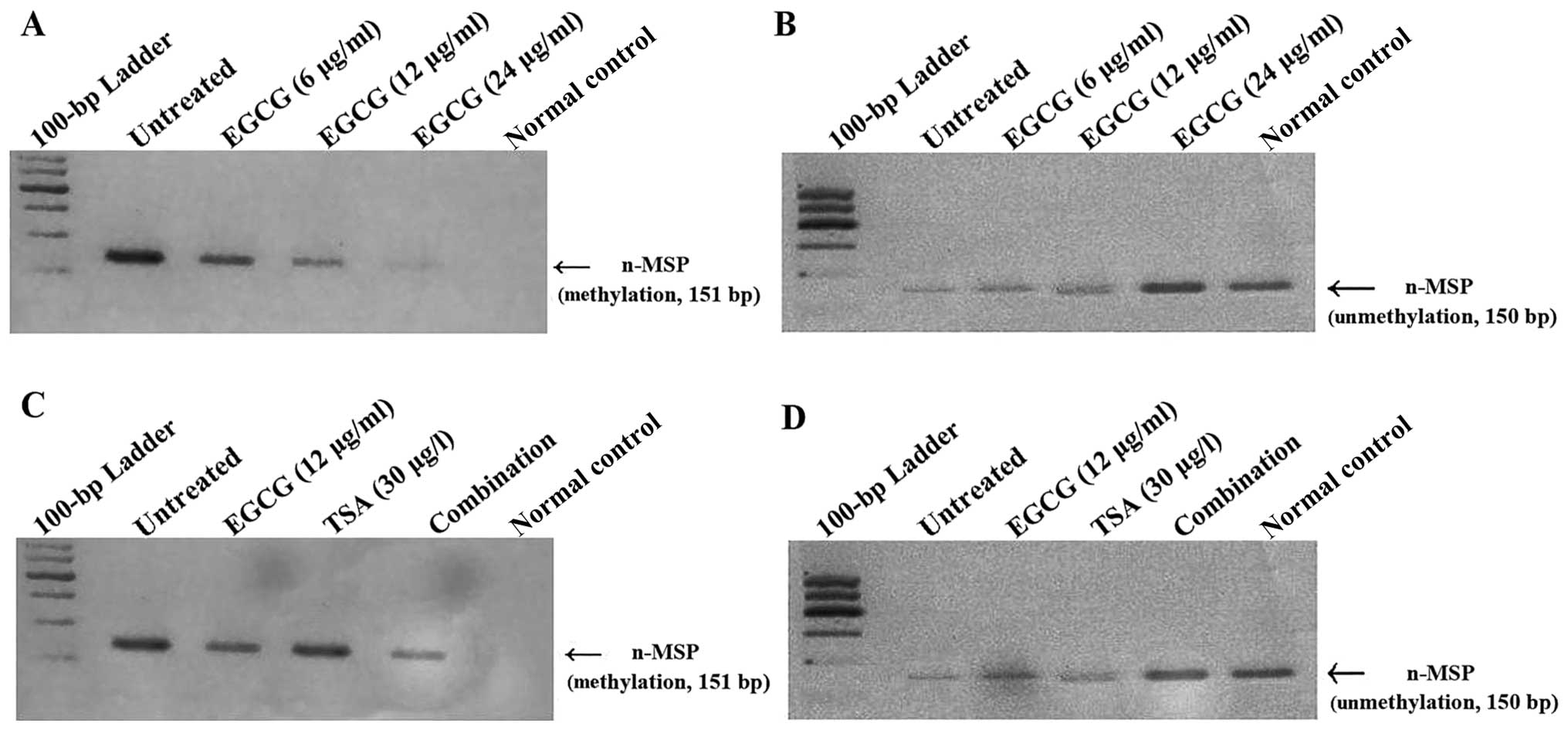

Figure 3 Effects of EGCG and TSA on the methylation of the p16INK4a gene in CA46 cells. n-MSP was performed using (A and C) methylated- and (B and D) unmethylated-specific primers after CA46 cells were treated with the indicated concentrations of EGCG and TSA for 48 h. Combination treatment consisted of 6 μg/ml EGCG and 15 ng/ml TSA. Normal controls consisted of DNA from peripheral lymphocytes of healthy subjects. Data are representative of three independent experiments.

Effects of EGCG and TSA on p16INK4a expression

The effects of EGCG and TSA on p16INK4a mRNA and protein expression were determined by RT-PCR and western blot analyses, respectively. As shown in Fig. 4A, p16INK4a mRNA expression significantly increased with 24 μg/ml EGCG, 30 ng/ml TSA, and the combined treatment when compared to p16INK4a mRNA expression in the control group (all P≤0.003). Notably, p16INK4a mRNA expression in the combined treatment group was significantly higher than that of the other groups (all P<0.001; Fig. 4A). Similar results were observed for p16 protein expression. Both EGCG and TSA increased p16 protein expression in a dose-dependent manner (Fig. 4B and C). Furthermore, a combination of EGCG and TSA increased p16 expression to a greater extent than that observed with EGCG treatment alone (Fig. 4B).

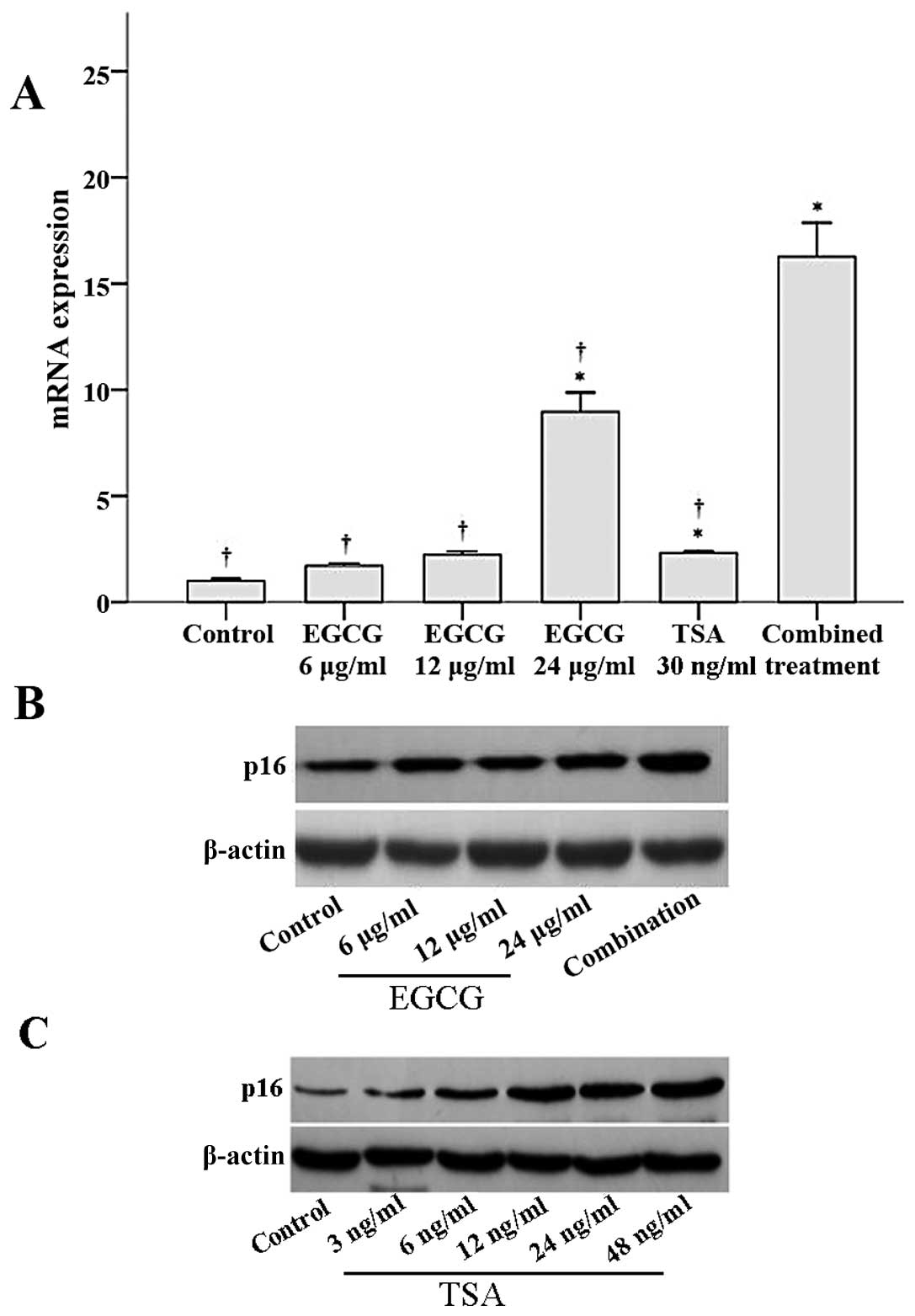

Figure 4 Effects of EGCG and TSA on p16INK4a mRNA and protein expression. (A) After CA46 cells were treated with the indicated concentrations of EGCG and TSA for 48 h, p16INK4a mRNA expression was determined using RT-PCR analysis. Data represent the mean ± SD of seven independent experiments. *Indicates a significant difference compared with the control group; †indicates a significant difference compared with the combined treatment (6 μg/ml EGCG and 15 ng/ml TSA) group. (B and C) After CA46 cells were treated with the indicated concentrations of EGCG and TSA for 72 h, p16INK4a protein expression was determined using western blot analysis. Data are representative of three independent experiments.

Discussion

Methylation of the p16INK4a promoter and histone deacetylation have been associated with the occurrence and development of many types of cancers (2,15–18). Abnormal CpG methylation of the tumor-suppressor gene, p16INK4a, may significantly inhibit its expression. In the present study, co-treatment of CA46 cells with EGCG and TSA reduced p16INK4a gene methylation, reactivated p16INK4a expression and reduced cell proliferation to a greater extent than either agent alone. EGCG and TSA may modulate p16INK4a expression through epigenetic modification, reducing DNA methylation and histone acetylation.

In the present study, co-treatment with EGCG and TSA inhibited the proliferation of CA46 cells, by arresting these cells in the G0–G1 phase, to a greater extent than either agent alone. These results are similar to the additive effects of EGCG and TSA on NF-κB activity and cell invasion as previously reported (19). These effects may be mediated at least in part through increased p16INK4a expression, which inhibits cancer cell proliferation and induces cellular senescence (4,5). Reduced p16INK4a expression may result in sustained binding of CDK4/CDK6 to cyclin D and subsequent phosphorylation of Rb protein, resulting in uncontrolled cell proliferation (2,3). p16INK4a expression may also mediate cell senescence (5,20); it may also inhibit cell growth by directly interacting with the eukaryotic elongation factor 1A2 (eEF1A2), reducing its expression (4). In addition, EGCG-induced apoptosis of Jurkat cells through hydrogen peroxide production has been demonstrated (21). Further analyses may determine whether the anti-proliferative effects of EGCG and TSA combination therapy are mediated by altered p16INK4a expression.

DNMT inhibitors not only interfere with the binding of methylation-sensitive transcription factors to target genes and directly inhibit RNA polymerase activity, but also indirectly alter histone acetylation (10). The methyl-CpG-binding protein (MeCP) can specifically bind to methylated DNA and recruit HDACs, thereby inducing focal histone deacetylation and transcription inhibition (22–24). Furthermore, TSA can reactivate the expression of genes which were reduced as a result of DNA methylation (25,26). In AML1/ETO-positive leukemia cells, the methyltransferase inhibitor, 5-azacytidine, increased the activity of FR901228, a histone deacetylase inhibitor, to elevate histone acetylation (27). In the present study, co-treatment with EGCG and TSA increased DNA demethylation of the p16INK4a gene to a greater extent than EGCG alone, which upregulated its expression. These results are similar to a study with leukemia cell lines (28), in which TSA and 5-aza-2′-deoxycytidine co-treatment reactivated the expression of genes with high methylation and static transcription; however, similar changes were not observed after treatment with TSA alone. Similarly, in the present study, TSA treatment alone did not dramatically alter the methylation status of the p16INK4 gene, suggesting that chromatin is maintained in a closed formation through DNA methylation, thus impairing the effect of TSA. In human skin cancer cells, EGCG not only inhibited DNA methylation but also increased histone acetylation (10). Therefore, further studies are necessary to analyze the levels of histone acetylation following EGCG treatment with and without TSA.

The mechanism underlying the EGCG-induced DNA demethylation is largely unclear. For example, it may inhibit dihydrofolate reductase and subsequent folate metabolism, thereby inhibiting DNA and RNA synthesis and reversing p16INK4a methylation (29,30). Conversely, EGCG may directly inhibit DNMT activity, inducing reactivation of methylation-silenced genes as previously reported (10,31–34). Direct interaction of EGCG to the catalytic site of DNMT 1 has been reported (32), in addition to oxidation of DNMT by EGCG (20). Furthermore, inhibition of HDACs by EGCG has been reported (21). Although the mechanism by which EGCG altered p16INK4a methylation in the present study was not determined, we speculate that it may directly inhibit DNMT activity or indirectly reduce their expression via interfering with folate metabolism. Further studies will be undertaken to test these postulations.

Reactivation of p16INK4a will likely be of clinical benefit to cancer patients as its expression has been associated with longer disease-free survival and better prognosis in human breast cancer (35). In addition, the prognostic value of determining p16INK4a promoter methylation has been reported for breast (7) and prostate cancers (8). Further in vivo studies are needed to evaluate the possible benefits of combining EGCG with a clinically useful HDAC inhibitor, such as suberoylanilide hydroxamic acid.

The present study is limited in that the mechanisms by which EGCG and TSA co-treatment reduced CA46 cell proliferation and reversed p16INK4a promoter methylation were not assessed. Further studies will be conducted to analyze HDAC and DNMT activity and histone acetylation after treatment with TSA and EGCG. In addition, the IC50 values of EGCG and TSA were not determined in the present study and, therefore, will be undertaken in further analyses.

Taken together, the additive effect of EGCG and TSA co-treatment on the increase in the expression of p16INK4a tumor suppressor and the inhibition of CA46 cell proliferation suggests that combination treatment containing HDAC and DNMT inhibitors may be useful in cancer treatment. Further in vivo study will be undertaken to fully elucidate the benefits of epigenetic modifications using EGCG with an HDAC inhibitor, such as suberoylanilide hydroxamic acid.
