Introduction

Lung cancer is one of the most common malignant tumors in the world, with non-small cell lung cancer (NSCLC) accounting for 80–85% of all cases. Although many methods have been developed for the treatment of NSCLC, such as surgical resection, chemotherapy and radiotherapy, the prognosis of NSCLC remains poor and the 5-year survival rate is only about 50% (1). In recent years, although many single tumor biomarkers which may be predictive of response and prognosis, including epidermal growth factor receptor (EGFR), the canonical Wnt pathway and Notch3 have been developed, there is still lack of specific and sensitive enough molecular biomarkers to accurately predict the survival of NSCLC patients (2–4).

Rho guanine nucleotide exchange factor 5 (ARHGEF5) is a member of guanine nucleotide exchange factors family (GEFs) (5,6). Some studies have shown that ARHGEF5 can prompt the tumor metastasis and infiltration through its effects on adhesion and cytoskeletal functions by activating Rho GTPase (7,8). Debily et al(9) revealed that ARHGEF5 is overexpressed in breast tumor, and might play a crucial role in breast tumor progression. ARHGEF5 expression leads to altered growth properties and tumorigenesis in mouse (5). Xie et al(10) also showed that ARHGEF5 mRNA levels were dramatically elevated in NSCLC cell lines compared to normal lung tissue. However, the expression of ARHGEF5 in the lung cancer tissues is unknown.

Src, a member of the Src family of tyrosine kinases, is a key regulator of cellular proliferation, survival, motility and invasiveness (11). In NSCLC, overexpression of Src has been shown to play an important role in tumor development and metastases. ARHGEF5 is crucial for Src-induced podosome formation (12). Overexpression of ARHGEF5 promotes actin stress fiber remodeling through activating RhoA, and the activation of RhoA or Cdc42 is required for Src-induced podosome formation.

In light of the above mentioned considerations, we examined the expression of ARHGEF5 and Src in resected NSCLC tissues and evaluated the correlation between ARHGEF5 and Src. Furthermore, we explored the relationship between the expression of ARHGEF5 and Src and the prognosis of resected NSCLC patients.

Materials and methods

Patients and cell lines

Consecutive cohorts of NSCLC tumors resected from 193 NSCLC patients from July, 2010 to December, 2011 were analyzed. Information on baseline demographics, clinicopathological characteristics and surgical approach was collected after review of clinical notes and histopathology reports. Patients who did not receive a curative resection and had a previous history of cancer, pre-surgical chemotherapy or radiotherapy were excluded. All patients gave their written informed consent for participation in this study. This study was approved by the Southwest Hospital Ethics Committee. Another four NSCLC tissue samples as well as their corresponding normal tissues adjacent to resection margins from patients for western blot analysis were also obtained.

Normal human bronchus epithelial cell (HBE) and NSCLC cells H322, SPC-1, H1650 (adenocarcinima) and H520 (squamous cell) were obtained from Academy of Military Medical Science (Beijing, China) and maintained in RPMI-1640 or DMEM (Trace, Melbourne, Australia) supplemented with 10% fetal bovine serum (FBS), 100 U/ml penicillin, and 100 μg/ml streptomycin at 37°C, in a humid atmosphere of 5% CO2.

Tissue microarray

Tissue microarrays (TMAs) were constructed as previously described (13). Briefly, using the H&E sections as templates, representative areas of each tumor were identified and marked on a section of the donor block. Approximately 4 μm-thick (1.5-mm diameter) tissue cylinders were punched from each donor paraffin block using a TMA instrument (Beecher Instruments; Silver Spring, MD, USA). The donor cores were placed into the corresponding recipient block holes that were punched in advance using the same TMA instrument. To better represent each case, two tumor and two normal tissue cores that were located adjacent to the tumor were punched from each case. After construction, recipient blocks were placed into an oven at 37°C for 20 min, rapidly removed, and pressed down by a slide for a moment to flatten the surface. Serial 4 μm-thick sections were cut with a Leica microtome (Leica Microsystems; Wetzlar, Germany) and mounted onto polylysine-coated slides.

Immunohistochemistry

All tissue sections were routinely dewaxed, rehydrated, and prepared for immunohistochemistry. Sodium citrate buffer (pH 6.0) was used as an antigen retrieval solution, and the sections were blocked with 5% BSA, and incubated with 1:50 polyclonal rabbit anti-ARHGEF5 (11379-1-AP, Proteintech Group), 1:50 polyclonal goat anti-Src antibody (AF3389, R&D) overnight. The tissue sections were then incubated with secondary antibodies and DAB reagent (Gene Tech, Shanghai, China), and counterstained with hematoxylin, followed by dehydration and visualization with 3.3-diaminobenzidine (Gene Tech, Shanghai, China). Negative controls were performed in each case by replacing the primary antibody with PBS.

Expression of ARHGEF5 and Src was evaluated as the percentage of positive cells in a specimen, and by staining intensity as previously described (14). The percentage of positive cells was evaluated quantitatively and scored as 0 for staining of ≤1% of total cells counted, 1 for staining of 2–25%, 2 for staining of 26–50%, 3 for staining of 51–75%, and 4 for staining of >75% of the cells examined. Intensity was graded as follows: 0, no signal; 1, weak; 2, moderate; and 3, strong staining. A total ‘staining score’ of 0–12 was calculated and graded as negative (−, score 0–1), weak (+, score 2–4), moderate (++, score 5–8), or strong (+++, score 9–12). The staining score was evaluated by two experienced pathologists. Discrepant cases were reviewed in a multi-head microscope and reported as a consensus.

Fluorescent immunohistochemistry

Immunofluorescent staining was conducted to localize the expression of Src and ARHGEF5. The frozen surgically resected sections from NSCLC patients were fixed for 20 min in 4% paraformaldehyde. The lung tissues of patient were then rinsed 3 times with PBS for 5 min each time, and incubated in a protein-blocking solution for 20 min at room temperature. After incubation with the primary antibody against either human ARHGEF5 (1:50; 11379-1-AP, Proteintech Group) or human Src (1:50; AF3389, R&D) overnight at 4°C, followed by incubation with the secondary antibody (either myc-conjugated IgG, 1:50, Santa Cruz; or Cy3-conjugated IgG, 1:50, Beyotime) at 37°C for 1 h, the cells and lung tissue of patient were counterstained with Hoechst 33342 to reveal the nuclei. Cells or slides without incubation primary antibodies were served as negative controls. The cells or slides were then analyzed by confocal laser scanning microscopy.

Western blot analysis

Tumor cells or cell lines were lysed in lysis buffer: 50 mmol/l Tris-HCl (pH 8.0), 150 mmol/l NaCl, 0.5% NP40, 0.5% sodium deoxycholate, and Protease Inhibitor Cocktail Set III (Calbiochem). The protein concentration was determined using a Bio-Rad protein assay (Bio-Rad) with bovine serum albumin as standard. Each lysate (10 μg) were resolved on 10–12% denaturing polyacrylamide gels (with 3% polyacrylamide stacking gel) and transferred electrophoretically onto a nitrocellulose membrane (GE Healthcare Biosciences). After blocking with 5% nonfat dry milk in TBST, the membrane was incubated with a rabbit polyclonal antihuman ARHGEF5 antibody or a goat polyclonal antihuman Src antibody for 1 h at room temperature. Immunoreactive proteins were incubated with horseradish peroxidase-conjugated mouse HRP-linked IgG antibody (1:700 dilution in TBSTT with 2% dry milk) (GE Healthcare Biosciences) for 1 h at room temperature. After washing with TBST, the reactants were developed using the enhanced chemiluminescence kit (GE Healthcare Biosciences).

Co-immunoprecipitation and immunoblot analyses

The Co-immunoprecipitation analysis was performed as previously described (15). In briefly, H322 or H1650 cell lysate were immunoprecipitated overnight with 3 μg of the Polyclonal Goat anti-Src antibody (AF3389, R&D). Immunoprecipitates were collected on protein A/G beads (30 μl per immunoprecipitation). Beads were washed three times in lysis buffer, resuspended in 35 μl of Laemmli sample buffer, and resolved on 7.5% SDS-polyacrylamide gels. Proteins were transferred to nitrocellulose membranes (Protran; Schleicher and Schuell), immunoblotted with the Polyclonal Rabbit anti-ARHGEF5 (11379-1-AP, Proteintech Group), and subjected to chemiluminescent detection.

Statistical analysis

SPSS 18.0 (SPSS Inc., Chicago, IL, USA) was used to perform the statistical analysis. Chi-square test and likelihood ratio test were used to illustrate the significance of various clinical characteristics. The χ2 test was used to assess the association between clinical features and the expression of biological factors. OS and the 95% confidence intervals (CIs) were evaluated by the Kaplan-Meier method comparing the different groups by log-rank test. The Cox proportional hazards model was used to evaluate the prognostic role of each single studied parameter on OS, in univariate and multivariate analyses. P-values were considered statistically significant at <0.05.

Results

Clinical characteristics of the patients

The patient clinical characteristics are summarized according to the histologic types (Table I). A total of 193 NSCLC patients (male, 145; female, 48; average age, 61.84 years; age range, 31–84) were enrolled in this study, of which 99 cases were squamous cell carcinoma (SCC) (51.30%) and 94 cases were adenocarcinomas (ADC) (48.70%). Of the patients enrolled in the study, 83 cases (43.01%) had tumor metastasis in the lymph nodes and 110 cases (56.99%) did not (Table I).

Table I Characteristics of the NSCLC patients.

Table I

Characteristics of the NSCLC patients.

Characteristics	Cases (%)
Histology
SCC	99 (51.30)
ADC	94 (48.70)
Age (years)
<60	70 (36.27)
≥60	123 (63.73)
Gender
Male	145 (75.13)
Female	48 (24.87)
Pathologic Stage
I	68 (35.23)
II	61 (31.61)
III	64 (33.16)
Tumor Grade
I	15 (7.78)
II	108 (55.96)
III	70 (36.27)
Lymph node metastasis
Positive	83 (43.01)
Negative	110 (56.99)

Expression of ARHGEF5 in NSCLC

As shown in Fig. 1, ARHGEF5 expression was detected in the ADC and SCC tissues, but not in the adjacent tissues. The ARHGEF5 was mainly located in the cytoplasma of tumor cells. In all 193 cases, ARHGEF5 was positive in 133 cases (68.91%) and negative in 60 cases (31.09%) (Table II). According to the histological subtypes, ARHGEF5 was detected in 64 of 94 cases of ADC (68.09%) and 69 of 99 cases of SCC (69.70%) (Table II). The level of ARHGEF5 in poorly differentiated tumors was significantly higher than that in moderately-to-well differentiated tumors (P=0.032, Table II). Younger patients (<60 years) also exhibited higher ARHGEF5 expression than older ones (P=0.043, Table II). Furthermore, the level of ARHGEF5 was significantly associated with tumor stage (P=0.027, Table II).

Figure 1 ARHGEF5 expression in tumor and adjacent tissues. The ARHGEF5 expression was determined by immunostaining. Expression of ARHGEF5 in ADC tissue (A, ×50; D, ×200), SCC tissue (B, ×50; E, ×200) and adjacent tissue (C, ×50; F, ×200).

Table II Relationship between the clinical characteristics and the expression of ARHGEF5.

Table II

Relationship between the clinical characteristics and the expression of ARHGEF5.

Characteristics	ARHGEF5 positive cases (%)	ARHGEF5 negative cases (%)	Total	P-value
Histology
SCC	69 (69.70)	30	99	0.931
ADC	64 (68.09)	30	94
Gender
Male	103 (71.03)	42	145	0.299
Female	30 (62.5)	18	48
Age (years)
≥60	78 (63.41)	45	123	0.043
<60	55 (78.57)	15	70
Differentiation
Well/moderately	71 (57.72)	52	123	0.032
Poorly	52 (74.29)	18	70
Tumor stage
I	39 (57.35)	29	68	0.027
II	48 (78.69)	13	61
III	45 (70.31)	19	64
Lymph node metastasis
Yes	60 (72.29)	23	83	0.469
No	73 (66.36)	37	110

In addition, we examined the expression of ARHGEF5 in lung cancer tissues and NSCLC cell lines by western blotting. The level of ARHGEF5 protein was obviously higher in tumor tissues than in adjacent tissues (Fig. 2A). Similar results were observed in NSCLC cell lines than in human broncho-epithelial (HBE) cells (Fig. 2B).

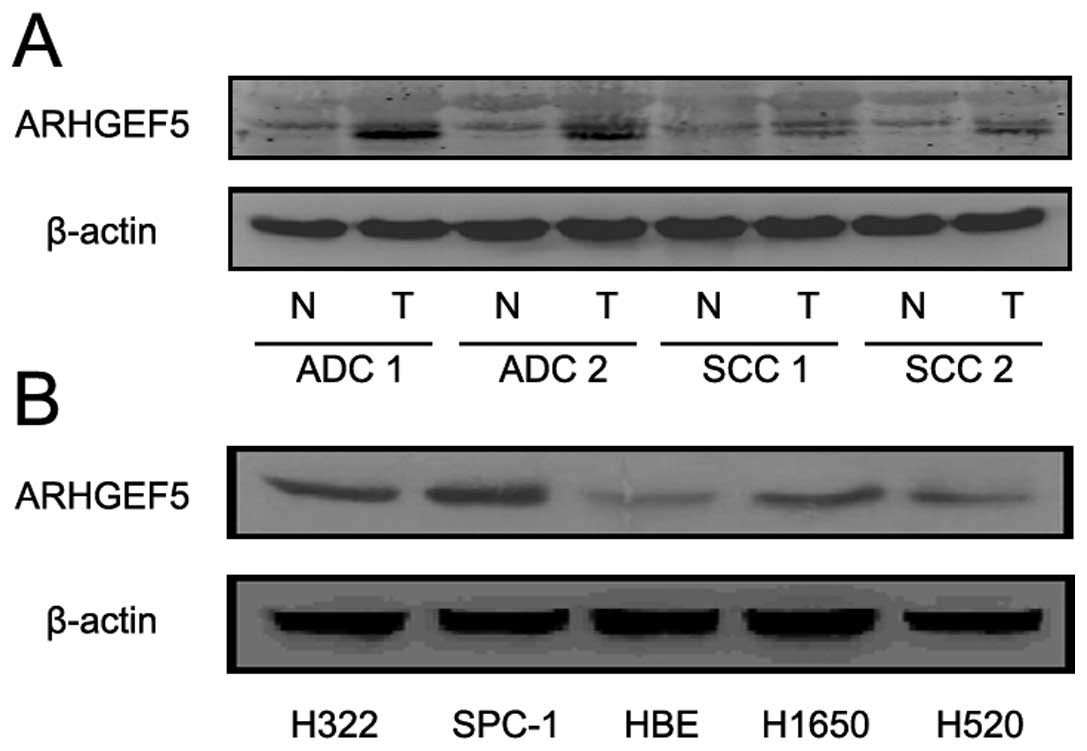

Figure 2 Western blot analysis of ARHGEF5 expression in the NSCLC tissues and lung cancer cell lines. (A) The ARHGEF5 expression in the NSCLC tissues (T) and adjacent normal tissues (N). (B) The ARHGEF5 expression in the lung cancer cell lines.

Expression of Src in NSCLC

As shown in Table III, among the 133 NSCLC patients with positive ARHGEF5 expression, 110 cases (56.99%) showed positive Src expression, whereas 23 cases showed negative Src expression. In contrast, among the 60 patients with negative ARHGEF5, 25 patients showed negative Src expression, whereas 35 patients showed positive Src protein expression. Among the 64 ADC patients with positive ARHGEF5 expression, 59 showed positive Src expression, whereas 5 patients had negative Src expression. In contrast, among the 30 patients with negative ARHGEF5, 12 patients showed negative Src expression, whereas 18 patients had positive Src protein expression. A significant correlation between ARHGEF5 and Src expression in NSCLC (χ2=11.874, P=0.001) and in ADC (χ2=12.194, P=0.000) was found. However, there was no correlation between ARHGEF5 and Src expression in SCC.

Table III Correlation between ARHGEF5 and Src expression in the tumor tissues of NSCLC patients.

Table III

Correlation between ARHGEF5 and Src expression in the tumor tissues of NSCLC patients.

Subtypes	Group	ARHGEF5 (+)	ARHGEF5 (−)	Total	P-value
NSCLC	Src (+)	110	35	145	0.001
	Src (−)	23	25	48
	Total	133	60	193
SCC	Src (+)	50	17	67	0.107
	Src (−)	18	14	32
	Total	68	31	99
ADC	Src (+)	59	18	77	0.000
	Src (−)	5	12	17
	Total	64	30	94

ARHGEF5 interacts with Src directly in NSCLC

To confirm the interaction between ARHGEF5 and Src, fluorescent immunohistochemistry and co-immunoprecipitation were performed with the tumor tissues and lung cancer cell lines, respectively. It was shown that ARHGEF5 and Src were co-expressed in NSCLC patient tumor tissues (Fig. 3) and the interaction between Src and ARHGEF5 was revealed by co-immunoprecipitation in NCI-H322 cells and NCI-H1650 cells (Fig. 4).

Figure 3 Lung cancer tissues were stained with anti-ARHGEF5 and anti-Src antibodies. Immunofluorescent staining of NSCLC tissues was performed with (A) anti-Src antibody or (B) anti-ARHGEF5 antibody. (C) Merged image. Scale bar 50 μm.

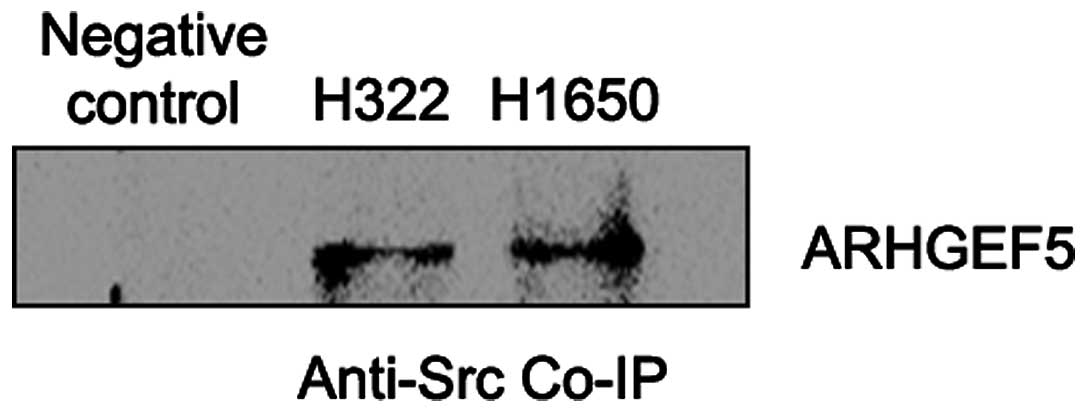

Figure 4 Western blot analysis of ARHGEF5 protein by anti-Src Co-IP.

Survival analysis

A total of 107 patients completed the overall survival (OS) follow-up and 86 patients were lost to follow-up. The median follow-up time was 34.29 months. There was a significant difference in the OS time of patients in different clinical stages (Fig. 5). To further explore whether there was a correlation between the co-expression of ARHGEF5 and Src and OS time, the patients were stratified into 2 groups according to ARHGEF5 and Src expression: group 1, ARHGEF5(+)/Src(+) patients (n=56); group 2, other patients (n=51). The median survival times for group 1 and group 2 were 29.37 months and 39.90 months, respectively. The patients in ARHGEF5(+)/Src(+) group showed a worse OS compared with the other patients (29.37 months versus 39.90 months, P=0.029, Fig. 6).

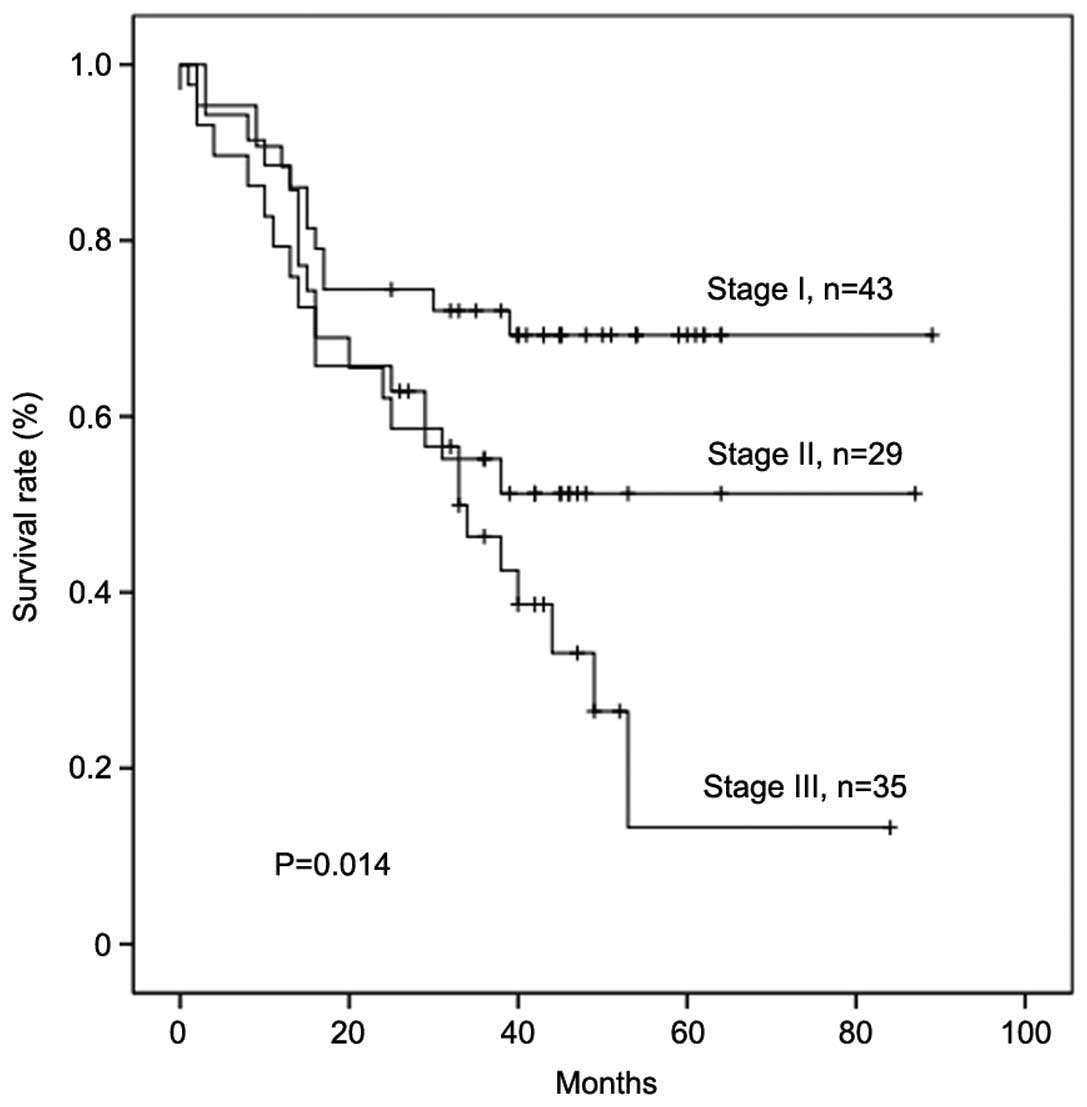

Figure 5 Kaplan-Meier survival plot by stage of 107 patients with resected NSCLC.

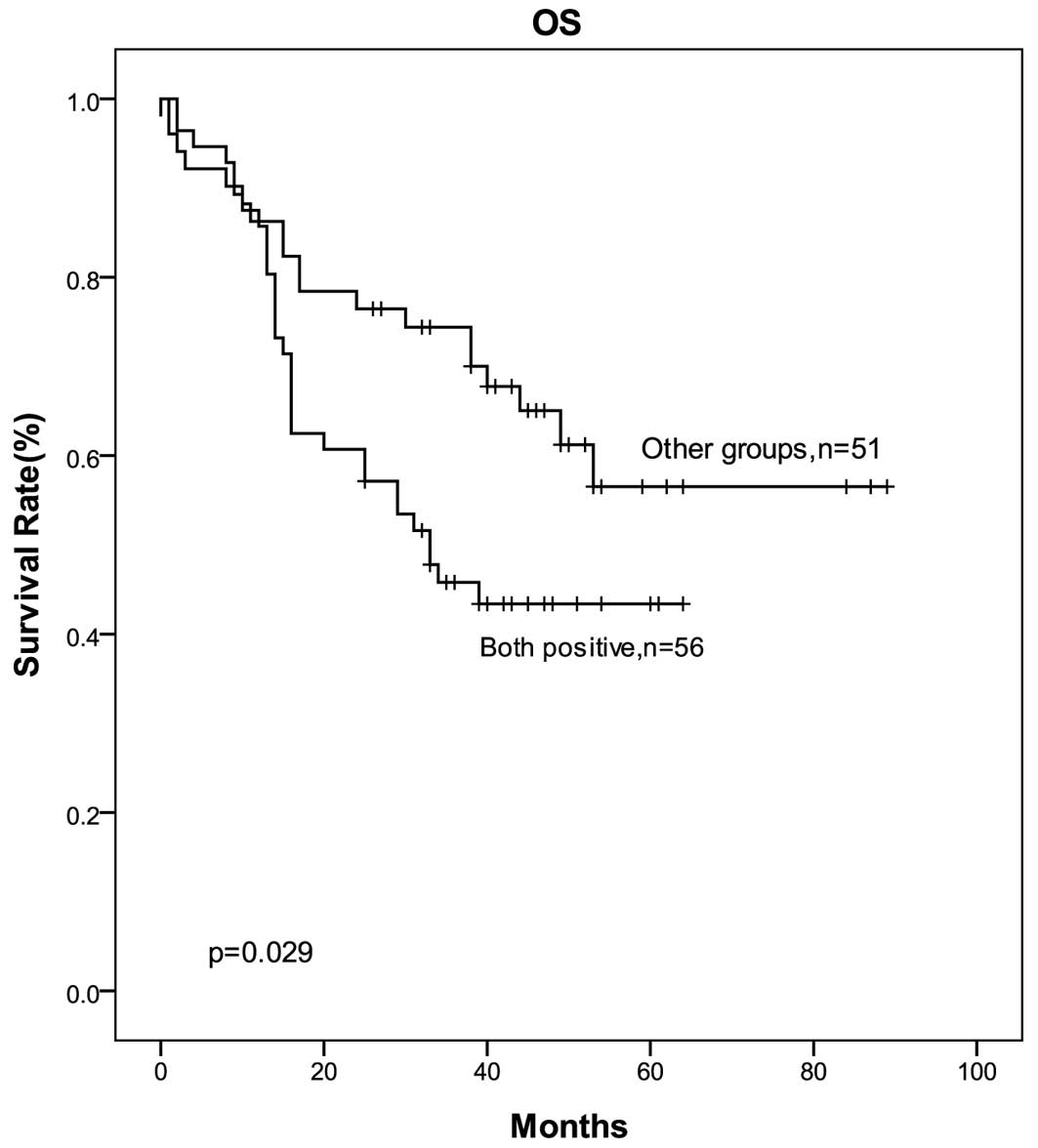

Figure 6 The overall survival rate between the both ARHEGF5/Src positive, and the other patients.

Discussion

In the present study, we assessed the expression of ARHGEF5 in NSCLC tissues and the possible correlation of ARHGEF5 and Src co-expression with the survival time of NSCLC patients. The results revealed a significant increase of ARHGEF5 expression in NSCLC tissues and cultured cell lines compared with in matched adjacent tissues and HBE cells, respectively. Notably, an interaction between ARHGEF5 and Src was detected in both NSCLC tissues and cultured lung cancer cells. Among the cases completing the OS follow-up, the patients with ARHGEF5(+)/Src(+) showed a worse OS time compared with the other patients.

In the development and progression of human lung cancer, many recent studies have revealed a link with the deregulation of GEFs (16). The expression of Rac1-GEF Tiam1 is higher in high-metastatic cells than in low-metastatic cells, and downregulation of Tiam1 can reduce the invasiveness of high-metastatic human giant-cell lung cancer cells (17). ECT2, a member of the human Dbl family GEFs, is overexpressed in the lung and esophageal cancers. Furthermore, high level of ECT2 was found to be associated with poor prognosis of lung cancer patients (18). Aberrant expression of Vav1 was found in 42% of 78 lung cancer cell lines examined and 46% of 57 human primary lung cancer specimens and the depletion of Vav1 expression in H358 and H441 lung cancer cells resulted in the reduction of colony formation in soft agar in vitro and tumor size in nude mice (19,20). A recent study showed that Vav2- and Vav3-deficiency reduced microvascular density, tumor cell growth and survival in the transplanted B16 melanoma and Lewis lung carcinoma models in vivo(21). In the present study, we showed that ARHGEF5 was also highly expressed in the resected NSCLC tissues and cultured lung cancer cell lines. In addition, we showed that ARHGEF5 was closely correlated with age, tumor stage and differentiation. It is well known that younger NSCLC patients usually display a more aggressive disease course (22,23). In the present study, we found that the expression of ARHGEF5 in young patients (<60 years) was significantly higher than that in older patients (>60 years). Since the tumor stage and differentiation had a high correlation with the prognosis, the level of ARHGEF5 might correlate with the prognosis of NSCLC patients. Thus, the overexpression of ARHGEF5 in young patients may be related to the aggressive disease course.

High levels of Src kinase activity, which can promote tumor cell growth and differentiation (24,25) have been observed in many cancer types, including lung cancer (26–28). Src may stimulate tumorigenesis in NSCLC in a variety of ways, such as the signal transducer and activator of transcription 3 (STAT-3) and focal adhesion kinase (FAK)-related pathways, both of which are involved in tumor survival (29,30). Src activates the VEGF pathway via STAT-3 (31) and in response to hypoxia in human lung adenocarcinoma cells, thus increasing the blood supply to the oxygen-starved tumor (32). In this study, we found that Src was extensively expressed in NSCLC tissues. Then we further analyzed the co-expression of ARHGEF5 and Src in SCC and ADC, the results showed that the positive rate of ARHGEF5 and Src co-expression was higher in ADC (62.77%) than in SCC (50.51%) and the expression of ARHGEF5 was associated with the expression of Src ADC (χ2=12.194, P=0.000), but not in SCC. Furthermore, it has been reported that ARHGEF5 is able to be phosphorylated by Src and then bound to Src to form a complex with Src and PI3K (12). Our results showed that there was a dynamic interaction between ARHGEF5 and Src in the lung cancer tissues and lung cancer cell lines, indicating that the Src-ARHGEF5 pathway may play a role in the tumorigenesis and development of ADC rather than SCC.

To explore the clinical significance of co-expression of ARHGEF5 and Src in patients with resected NSCLC, we analyzed the correlation of ARHGEF5 and Src co-expression and the OS in NSCLC patients. Noteworthy, we found patients with ARHGEF5(+)/Src(+) had a significantly shorter OS than the other patients. Therefore, ARHGEF5/Src can be considered a candidate prognostic biomarker for patients with resected NSCLC. Furthermore, activation of STAT-3 and FAK by Src is required for anchorage-dependent and -independent cell growth in a range of human tumors including NSCLC (30). Therefore, Src, a cellular tyrosine kinase, offers a particularly promising molecular target for anticancer therapy, as inhibition of Src may lead to the inhibition of multiple signaling pathways, and thereby the inhibition of tumor progress. However, although a number of Src inhibitors are currently being investigated as potential therapies for NSCLC, such as dasatinib (11,33), the antitumor activity of Src inhibitors is limited. Thus, the combination with other signal protein inhibitors is often needed (34). In the present study, we showed that ARHGEF5 was overexpressed in the lung cancer tissues and correlated with tumor stage and differentiation. In addition, co-expression of ARHGEF5 and Src was correlated with the prognosis of NSCLC patients and there was an interaction between ARHGEF5 and Src in the lung cancer tissues. These findings suggest that inhibition of both Src and ARHGEF5 in NSCLC may be a promising cancer therapy for patients with resected NSCLC.

In conclusion, our study found an obvious expression of ARHGEF5 in the NSCLC tissues and lung cancer cell lines. The expression of ARHGEF5 correlated with age, tumor stage and the differentiation. In addition, Src was also expressed in the NSCLC tissues, and co-expression of Src and ARHGEF5 correlated with shorter OS time, indicating ARHGEF5/Src can be considered as a prognostic biomarker and a therapeutic target for patients with resected NSCLC.

Acknowledgements

This study was supported by the National Natural Science Foundation of China (No. 81001045).
