Introduction

Over half the cases of hepatocellular carcinomas (HCCs) are found to be inoperable by curative treatments such as surgery and radiofrequency ablation (RFA). Alternatively, transarterial chemoembolization (TACE) and sorafenib therapy are ideal palliative treatment options for HCC (1). However, TACE or sorafenib therapy alone rarely achieves a complete or satisfactory response. Therefore, a combination of additional treatments, such as radiotherapy (RT), with conventional ones are under consideration. Recent studies reported RT as a salvage treatment option for HCCs that are difficult to operate by TACE (2–6).

Irradiation induces pro-inflammatory signaling associated with anti-apoptosis, proliferation, angiogenesis and invasiveness, which are mediated through the activation of nuclear factor-κB (NF-κB) (7). The pro-survival pathways impart radioresistance to tumor cells. In addition, hypoxia inhibits the repair of DNA damage caused by irradiation and induces several signaling factors such as hypoxia inducible factor-1α (HIF-1α), resulting in the development of radioresistance (8,9). HCC is frequently exposed to hypoxia due to rapid cell growth. Moreover, TACE or sorafenib can be used to produce a hypoxic environment via embolization of the feeding artery or anti-angiogenesis.

Emodin (1,3,8-trihydroxy-6-methylanthraquinone), a plant-derived polyphenol, has been reported to possess anti-cancer properties (10). It was previously reported that emodin inhibits cell growth by suppressing NF-κB and increases apoptosis in human HCC cell lines (11–13). Other studies reported that emodin inhibits hypoxia-induced signaling factors, such as HIF-1α, in several cell lines (10,14,15).

However, the data regarding the role of emodin as a radiosensitizer in human HCC cell line are limited. Therefore, in this study, we investigated whether emodin attenuates hypoxia-induced radioresistance in the HepG2 human HCC cell line as well as the underlying mechanism of radiosensitization.

Materials and methods

Cell culture and treatment

The HepG2 human HCC cell line was obtained from the American Type Culture Collection (Rockville, MD, USA) and maintained in Dulbecco’s modified Eagle’s medium (DMEM) (Welgene, Daegu, Korea) supplemented with 1 mM sodium pyruvate, 10% fetal bovine serum (FBS; HyClone, Logan, UT, USA), and 2% penicillin/streptomycin (Gibco, Carlsbad, CA, USA). The cells were cultured at 37°C under a humidified atmosphere of 5% CO2. The media were supplemented with fresh media every 3 days. The cells were maintained under hypoxia in a glove box-type anaerobic chamber (Thermo Forma, Marietta, OH, USA). Hypoxia was created by maintaining the gas composition at <1% O2, 5% CO2, 10% H2, and 85% N2 (under continuous computerized monitoring), indicating a partial oxygen pressure of <15 mmHg at 37°C. Oxygen-dependent experiments were performed in hypoxic and normoxic incubators.

Irradiation and emodin treatment

Overnight cells incubated at 37°C were exposed to normoxia (20% O2) or hypoxia (1% O2) for 24 h. The cells were then exposed to 10 μM emodin under normoxia for 24 h, followed by exposure to gamma-rays from a 137Cs-ray source (Eckert & Ziegler, Berlin, Germany) at a dose rate of 2.6 Gy/min. Following irradiation with 10-Gy dose, the cells were incubated under normoxia or hypoxia at 37°C (Fig. 1B).

Figure 1 (A) The effect of emodin on the viability of HepG2 cells after 24 and 72 h. Cell growth was suppressed in a dose-dependent manner. (B) Schematic diagram of all the experiments. Cells were seeded on Day 0 and incubated at 37°C overnight and exposed to normoxia (20% O2) or hypoxia (1% O2). After 24 h (Day 1), the cells were exposed to 10 μM emodin. After 24 h (Day 2), the cells were exposed to gamma-rays at a dose rate of 2.6 Gy/min. Following IR at a 10-Gy dose, the cells were incubated at 37°C for 48 h and then collected. (C) Morphology and (D) viability changes of HepG2 cells. Cells were treated with emodin and irradiation under normoxic and hypoxic conditions. After 72 h, the cells were observed with (C) inverted microscopy (x40) and (D) viability was analyzed with MTT assay. Cell growth was maximally suppressed in the combination of radiation and emodin treatments. 10 Gy, radiation at a 10 Gy dose; 10 μM, emodin at a 10 μM dose; 10 μM + RT, combination of emodin and irradiation.

Antibodies and reagents

The antibody against poly(ADP-ribose) polymerase 1 (PARP1) was obtained from Santa Cruz Biotechnology, Inc. (Mouse; 1:1,000; Santa Cruz, CA, USA). JMJD1A and JMJD2B antibodies were purchased from Abcam (Cambridge, UK). HIF-1α antibody was purchased from Novus Biologicals (Littelton, CO, USA). Anti-β-actin antibody was purchased from Sigma-Aldrich (St. Louis, MO, USA) and was incubated with specific horseradish peroxidase-conjugated secondary antibodies (Invitrogen, Carlsbad, CA, USA). Emodin was purchased from LC Laboratories (Woburn, MA, USA) and solubilized in DMSO. DMSO was used in all the experiments as a vehicle control.

Cell proliferation assay

The 3-(4,5-dimethylthiazol-2-yl)- 2,5-diphenyltetrazolium bromide (MTT) assay, which is based on the conversion of MTT to MTT-formazan by mitochondria, was conducted. HepG2 cells were resuspended and plated in 96-well plates at 1×104 cells/200 μl concentration in culture media supplemented with 5% FBS and incubated with or without drugs for 24–72 h, followed by incubation with MTT (5 mg/ml in phosphate-buffered saline; PBS) for 3 h. The plate was then centrifuged at 2,000 rpm for 5 min at 4°C, and the MTT solution was removed from the wells by aspiration. Formazan crystals were dissolved in 2 ml of DMSO. The absorbance was recorded on the Paradigm Detection Platform (Beckman Coulter, Inc., Fullerton, CA, USA) at a wavelength of 540 nm.

Cell cycle analysis

The cells were exposed to 10 μg/ml emodin or 10 Gy radiation for 24 h and then harvested. The harvested cells were trypsinized, resuspended in 3 ml PBS, centrifuged, and washed with 3 ml PBS. The cells were then fixed in 70% ethanol for 16 h at −20°C and stained with propidium iodide (PI, 40 μg/ml) and RNAse A (50 μg/ml). The stained cells were subjected to cell cycle analysis by using the FACSAria (BD Biosciences, San Jose, CA, USA).

Apoptosis analysis

The Annexin V/PE Apoptosis Detection kit (BD Biosciences, Bedford, MA, USA) was used to assess Annexin V-positive cells. Briefly, fresh cell preparations were incubated with 1X Annexin binding buffer, Annexin V/PE (2.5 μg/ml)-conjugated primary antibody, and 7-amino actinomycin D (7-AAD) (5 μl) for 15 min in an ice bath. After incubation, 10 μg/ml of PI was added to the cells, and the cells were analyzed by FACSAria.

Western blotting

The cells were collected with ice-cold PBS and re-suspended in lysis buffer [20 mM Tris-HCl (pH 7.5), 150 mM NaCl, 1 mM Na2EDTA, 1 mM EGTA, 1% Triton, 2.5 mM sodium pyrophosphate, 1 mM β-glycerophosphate, 1 mM Na3VO4, 1 μg/ml leupeptin, and 1 mM phenylmethanesulfonyl fluoride]. The suspension was diluted with a mixture of lithium dodecyl sulfate (LDS) sample buffer and heated at 95°C for 5 min. The samples were electrophoresed on 10% sodium dodecyl sulfate-polyacrylamide gels (Invitrogen) and transferred onto nitrocellulose membranes (GE Healthcare Life Sciences, Piscataway, NJ, USA). The blots were saturated in TBS-T buffer (20 mM Tris, 137 mM NaCl, 0.05% Tween-20; pH 7.6) containing 3% bovine serum albumin (BSA) for 1 h at room temperature and then incubated overnight at 4°C with primary antibodies. The immunoreactive proteins were detected by enhanced chemiluminescence (Thermo Scientific, Rockford, IL, USA). The immunoblots were quantified by the ImageMaster densitometry program.

Statistical analysis

Paired Student’s t-test and Microsoft Excel were used to assess the data obtained from MTT assays, cell proliferation, mammosphere formation, and FACSAria, which were conducted in triplicate and repeated three times. The percentage inhibition of the western blot data was determined from the ratio of band density. P<0.05 was considered statistically significant.

Results

Emodin and radiation additively inhibit HCC cell growth

To investigate the effect of emodin on cell growth or viability of HepG2, we treated HepG2 cells with emodin for 24 and 72 h and measured the cell viability by the MTT assay. The viability of cells treated with emodin was decreased in a dose-dependent manner (Fig. 1A). The viability of HepG2 cells decreased to 80% following treatment with 10 μM emodin. Hypoxia is known to hinder effective RT in cancer (8,9). Therefore, we investigated whether emodin increases the radiosensitivity of HepG2 cells after irradiation under both normoxia and hypoxia (Fig. 1B). For this, we first investigated the effects of radiation and/or emodin treatment on the morphological changes under the two environmental conditions. The density of HepG2 cells under normoxia was decreased by irradiation or emodin after 72 h of treatment (lanes 2 and 3) under microscopy (Fig. 1C, upper panel). Moreover, the combination treatment with radiation and emodin induced significant decreases in HepG2 cell density (Fig. 1C, lane 4). However, the density of HepG2 cells decreased less after radiation or emodin treatment under hypoxia as compared to under normoxia (Fig. 1C, lower panel).

We also analyzed the effects of radiation and emodin treatment on cell viability using the MTT assay. The cell viability of HepG2 cells exposed to radiation and/or emodin for 24 h did not change compared to that in the control group (data not shown). However, changes were observed in the cell viability of HepG2 cells after radiation and emodin treatment for 72 h (Fig. 1D, left panel, lane 1 vs. lanes 2 and 3) under normoxia. In addition, we observed a synergistic effect of the combination of radiation and emodin on HepG2 cell death (Fig. 1D, left panel, lane 1 vs. lane 4). Under hypoxia, the viability of HepG2 cells was minimally decreased after exposure to radiation and/or emodin for 72 h (Fig. 1D, right panel, lane 1 vs. lanes 2 and 3). On the other hand, the combination treatment with radiation and emodin induced a significant decrease in HepG2 cell viability (Fig. 1D, right panel, lane 1 vs. lane 4). These results suggested that cancer cell survival during RT under hypoxia may decrease significantly by co-treatment of cells with emodin.

Emodin and radiation modulate HCC cell cycle progression

Radiation and emodin treatments are known to modulate several biological processes such as cell death, proliferation, and differentiation in various cancer types (10,14,15). Therefore, we investigated the cell cycle changes during these treatments to identify the possible action mechanism of these agents. The results for irradiation treatment (left panel, 10 Gy) showed arrest of more populations of HepG2 cells in the G2/M phase than was observed for the control conditions under normoxia (Fig. 2A and B). The cells treated with emodin (10 μM) showed a pattern similar to that of the untreated control cells (Fig. 2, left panel). Of note, the G2/M population of HepG2 cells in the combination treatment group [radiation (10 Gy) + emodin (10 μM)] showed a greater increase than those in the radiation treatment (10 Gy) group (Fig. 2, left panel). Under hypoxia, emodin treatment showed a similar effect on the cell cycle regulation of HepG2 cells as that by control treatment, except that the G2/M population was slightly decreased (Fig. 2, left panel G2/M vs. right panel G2/M).

Figure 2 (A and B) Cell cycle analysis. Cells were stabilized for 24 h prior to treatments. After 24 h of treatment, the cell cycle was evaluated by flow cytometric analysis. Arrest in G2/M phase was maximized by a combination of emodin and irradiation. 10 Gy, Radiation at a 10 Gy dose; 10 μM, emodin at a 10 μM dose; 10 Gy + 10 μM, combination of emodin and irradiation.

Emodin and radiation induce HCC cell apoptosis

As viability of HepG2 cells was decreased by radiation and emodin (Fig. 1D), we assessed the apoptotic populations by Annexin V/PE staining after radiation and emodin treatment (Fig. 3A and B). Under normoxia, the apoptotic population of HepG2 cells was slightly increased 24 h after emodin treatment (Fig. 3A, upper panel; 10 μM, 9.8 vs. 13.3%). By contrast, compared to the findings for the control, irradiation was found to significantly stimulate the apoptotic populations (Fig. 3A, upper panel; 10 Gy, 9.8 vs. 16.6%).

Figure 3 Apoptosis assay of HepG2 cells compared with (A) control treatment and (B) fold induction ratio. Cells were treated with emodin and irradiation under normoxic and hypoxic conditions. After 24 h, apoptosis was analyzed with Annexin V/PE and MTT assays and the fold induction ratio was estimated. Apoptosis and fold induction of cells was maximally expressed in the combination of radiation and emodin treatments. 10 Gy, radiation at a 10 Gy dose; 10 μM, emodin at a 10 μM dose; 10 Gy + 10 μM, combination of emodin and irradiation.

Unlike the results for the control, the combination treatment with radiation and emodin (10 Gy + 10 μM) showed a synergistic effect in increasing the apoptotic population of HepG2 cells (Fig. 3A, upper panel; 9.8 vs. 28.8%). This result is consistent with previous cell viability results (Fig. 1D). In addition, the combination treatment increased the apoptotic population of HepG2 cells to a greater extent than the control treatment under hypoxia (Fig. 3B, lower panel; 10 Gy + 10 μM, 12.2 vs. 22.7%), albeit to a lesser extent than that under normoxia.

Emodin and radiation induce the upregulation of cleaved PARP1 and downregulation of JMJD1A and JMJD2B

To investigate the potential factors that can be regulated to modify the cell cycle and death of hepatoma cells by radiation and emodin exposure, we determined the level of cleaved PARP1 protein by western blotting. Cleaved PARP1 is a well-known indicator of cell apoptosis. The level of cleaved PARP1 usually increases by radiation and/or genotoxic reagents. The level of cleaved PARP1 was significantly increased by irradiation (lane 1 vs. lane 2), whereas it was only minimally increased by emodin treatment under normoxia (Fig. 4, lane 1 vs. lane 3). Moreover, combination treatment of HepG2 cells with radiation and emodin maximized the level of cleaved PARP1 (lane 1 vs. lane 4). Under hypoxia, the level of cleaved PARP1 was minimally increased by irradiation or emodin treatment. However, a significant increase was observed in the level of cleaved PARP1 after the combination treatment (lane 5 vs. lane 8).

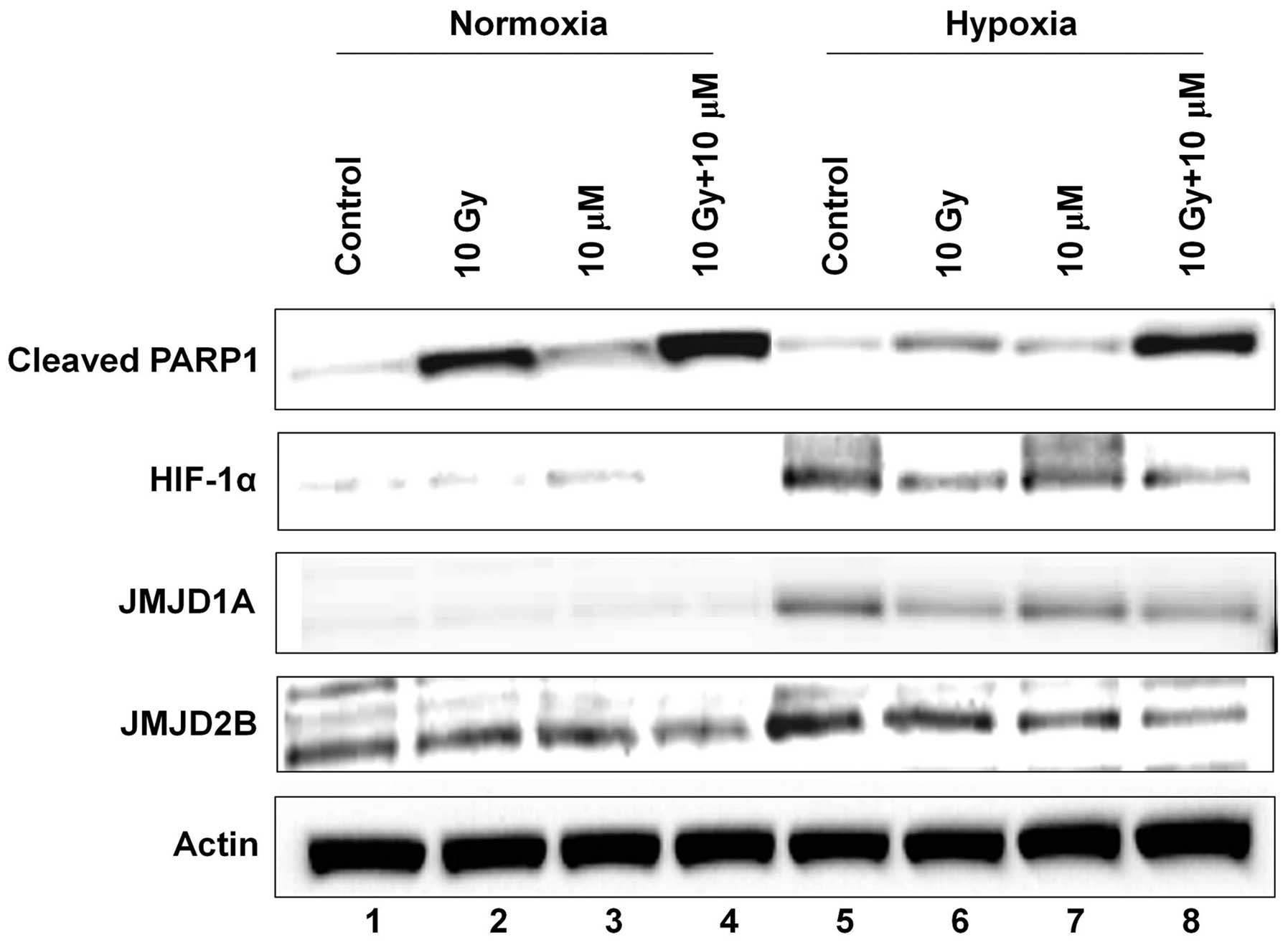

Figure 4 Western blot analysis. Cells were treated with emodin and irradiation under normoxic and hypoxic conditions. After 24 h, several cell signals were evaluated with immunoblotting. In the combination of radiation and emodin treatments, apoptotic signals were enhanced and proliferative signals were suppressed compared with the control group. 10 Gy, Radiation at a 10 Gy dose; 10 μM, emodin at a 10 μM dose; 10 Gy + 10 μM, combination of emodin and irradiation.

Hypoxia induces HIF-1α-mediated biological processes in cancer cells (9,14,16,17). Therefore, we measured the level of HIF-1α and the expression of its target genes, JMJD1A and JMJD2B. JMJD1A and JMJD2B are known to regulate the cell cycle and cell proliferation under hypoxia (16,17). The levels of HIF-1α, JMJD1A, and JMJD2B were minimally detected under normoxia (lanes 1–4), whereas these levels were clearly detected under hypoxia (lanes 5–8). Radiation downregulated the levels of HIF-1α, JMJD1A, and JMJD2B (lane 5 vs. lane 6), whereas emodin downregulated only JMJD2B levels (lane 5 vs. lane 7). Of note, the expression of HIF-1α, JMJD1A, and JMJD2B significantly decreased after the cells were exposed to the combination treatment (lane 5 vs. lane 8).

These results suggested that emodin may be crucial in HCC regulation and that HIF-1α, JMJD1A, and JMJD2B may constitute a novel therapeutic target to overcome hypoxia-induced radioresistance, thereby improving the efficiency of RT.

Discussion

HCC is the fifth-most common malignancy and causes one million deaths annually worldwide (1). Approximately 70% of patients with HCC are detected with unresectable or terminal stage cancer, leaving only palliative treatment options such as TACE or sorafenib for curative therapy (1,18).

The application of RT for treating HCC is limited by critical hepatotoxicity (radiation-induced liver disease; RILD) at doses lower than the therapeutic doses (19,20). Recent advances in RT technology such as three-dimensional conformal RT or stereotactic body RT enables the precise delivery of a focused high drug dose on limited volumes of the tumorous liver a allows reduction in the irradiation doses to the remaining non-tumorous liver in order to minimize toxicity (21–24). RT can be considered a salvage treatment option for inoperable HCC that is unsuitable or refractory for TACE therapy, as well as a potentially curative option for operable HCC that is unsuitable for surgery or RFA (25–27). Despite the noteworthy development of RT technology, effective RT is often unsatisfactory owing to suboptimal delivery of doses associated with poor liver function reserves or large tumor sizes. In such cases, the study of the mechanism of radioresistance is important to optimize the irradiation effect.

Irradiation activates transcription factors such as NF-κB that can upregulate anti-apoptosis, pro-survival and invasive signaling to confer radioresistance (7). PARP1 has been essential for irradiation-induced NF-κB activation. Additionally, inhibition of PARP1 increases cell death by irradiation and decreases the X-linked inhibitor of apoptosis expression in breast cancer cell lines (28). Overexpression of cyclin D1 is associated with acquired radioresistance in HeLa (a cervical cancer cell line) cells that was induced by fractionated radiation. The inhibition of cyclin D1 by using small interfering RNA (siRNA) decreased the radioresistance (29).

Hypoxia in tumors is associated with the induction of radioresistance. HCC cells are frequently exposed to hypoxic conditions during several mechanisms. Intrinsic tumor characteristics of HCC are also associated with hypoxia. HCC generally develops through chronic hepatitis or cirrhosis, which can damage hepatic blood supply. Highly proliferative characteristics of tumor cells induce local hypoxia inside HCC due to a shortage of blood supply. The extrinsic modification by anticancer treatment is also associated with inducing hypoxia in cancer cells; for example, TACE induces hypoxia in tumor via embolization of the tumor-feeding artery. Absorption of the ionizing radiation by tissue leads to the generation of free radicals and reactive oxygen species, which are chemically active oxygen molecules that induce oxidative stress under which chemical bonds break and a chain of events is initiated that results in DNA damage. Oxygen molecules can react with these free radicals to repair the DNA damage. Therefore, hypoxia interferes with the repair of DNA damage caused by irradiation and induces radioresistance (8,9).

Hypoxia also activates several hypoxia-induced signaling factors such as HIF-1α, vascular endothelial growth factor (VEGF), histone-modifying enzymes such as histone deacetylase, and demethylase. High levels of serum VEGF are associated with poor tumor response and the survival rates of patients with advanced HCC who received TACE (30–33). Findings of previous study showed that inhibition of HIF-1α by siRNA decreased radioresistance in chemical hypoxic SMMC-7221 (human HCC cell line) cells (34). Jumonji C-terminal-domain-containing histone demethylase (JHDM) gene, JMJD1A, acts as a co-activator of nuclear hormone receptors by demethylating dimethyl lysine 9 on histone H3 (H3K9me2) of the target promoters. Findings of recent study showed that the expression of JMJD1A mRNA is increased in hypoxic PLC, HepG2, and Huh7 (human HCC cell lines) cells and that the inhibition of JMJD1A by siRNA enhanced the cell-killing effect (35). It has been suggested that JMJD1A decreased H3K9 methylation and induced the target gene such as adrenomedullin and that this cascade was regulated by HIF-1α (36).

Emodin possesses anticancer, antibacterial, and anti-inflammatory properties (37–40). Emodin has been shown to inhibit cell growth by suppressing NF-κB, increasing apoptosis and arresting the cell cycle at the G2/M phase in human HCC cell lines via stimulation of p53 expression (11–13). Emodin has also been shown to induce apoptosis in human cervical cancer cells via the induction of PARP1 cleavage and caspase-9 activation (41). In addition, emodin inhibited hypoxia-induced signaling factors such as HIF-1α, VEGF, and histone deacetylase in several cell lines (10,14,15).

In this study, we have shown that hypoxia induced radio-resistance in HepG2 cells and that the combination treatment of emodin and radiation attenuated radioresistance. We also found that emodin increased apoptosis and the G2/M phase arrest of HepG2. We suggest that the possible mechanism of radioresistance attenuation induced by hypoxia is a result of the upregulation of apoptotic signaling factors such as cleaved PARP1, caspase-9, and p53. These findings are associated with apoptosis and are consistent with findings reported by previous studies (42–44). Moreover, we have shown that epigenetic signaling such as JMJD2B was maximally downregulated in the combination of emodin and irradiation even though emodin only slightly inhibited hypoxia-induced signaling factors such as HIF-1α, and histone demethylase (JMJD1A). We therefore suggest that the emodin dose used in this study was not sufficient to suppress HIF-1α, because higher doses (25 and 50 μM) of emodin have been previously reported to satisfactorily inhibit HIF-1α and VEGF (10,15). Future studies using different doses of emodin are necessary to investigate the epigenetic mechanism involved in hypoxic HCC.

The limitations of this study include that the experiments were performed using only one human HCC cell line and no in vivo experiments were conducted. In addition, although emodin induced the additional suppression of HepG2 cells, it cannot be concluded that emodin completely overcame the radioresistance of hypoxic HCC. Future studies using a wide range of emodin doses are required to completely understand the synergistic cell-killing effect of emodin in hypoxic HCC.

In conclusion, emodin can attenuate radioresistance, induced by hypoxia, in HepG2 cells via the enhancement of PARP1 cleavage, activation of caspase-9 and inhibition of JMJD2B. Thus, our findings can provide new insights of the pharmacological mechanism of emodin and its role as a radiosensitizer in HCC as well as facilitate designing new therapeutic strategies for radioresistant HCC.
