Introduction

Cyclin-dependent kinases (CDKs), are members of the serine-threonine protein kinase family and are responsible for taking control of cell cycle regulation in eukaryotic cells. CDKs show their action by interacting with cyclins and different CDK-cyclin complexes regulate the cell cycle in the G1, S and G2/M phases (1). New anticancer therapy strategies refer to the inhibition of CDK-cyclin complexes as an important target to prevent uncontrolled proliferation and induce apoptosis in cancer cells (2). Olomoucine, roscovitine and purvalanol are examples of CDK inhibitors (CDKIs) designed and investigated for their apoptotic potential on cancer cells (3). Purvalanol is a purine-derived CDKI that binds with a high selectivity and competitively to the ATP binding side of CDK1/2 and leads to G2/M cell cycle arrest (4). Τheir impact on the apoptotic cell death mechanism requires further elucidation. Natural polyamines, putrescine, spermidine and spermine, play essential roles in the regulation of cell growth and proliferation. Increased levels of polyamines in cells are considered to be involved in cancer progression. Intracellular polyamine levels are under the control of several catabolic enzymes, such as spermidine/spermine-N-acetyl transferase (SSAT). Although purvalanol-induced cell cycle arrest and apoptotic cell death were demonstrated in prostate (5), breast (6) and colon cancer cells (7), the exact molecular mechanism of purvanol-induced apoptosis has not been elucidated yet.

Endoplasmic reticulum (ER) is an essential organelle responsible for protein synthesis, folding, post-translational modification of proteins and protein trafficking in eukaryotes (8). ER alerts a self-protective mechanism that is called ER stress during nutrient deprivation, pathogen infection, alterations in redox status, intraluminal Ca2+ levels and folding defective protein conditions (9). ER stress response is initiated by activation of three types of ER membrane receptors; inositol-requiring enzyme 1 (IRE1α), PRKR-like ER kinase (PERK) and activating transcription factor-6 (ATF-6). Activated and released IRE1α acts as an RNase to initiate transcription of XBP1 mRNA and it becomes a transcriptional activator for unfolded protein response (UPR) gene targets, such as BiP and calreticulin (10). Activation of ER membrane receptor PERK, during prolonged UPR, phosphorylates eIF2α to attenuate mRNA transcription within the cell (11). Recently, autophagy, a cytoprotective intracellular degradation system, is assumed to be activated by both IRE1α and PERK as an alternative way to degrade accumulated misfolded proteins (12). Concominantly, during UPR stress, ATF-6 is released from BiP and translocates from the ER to the Golgi. Cleaved ATF-6 migrates to the nucleus and transactivates various chaperones and major ER stress markers such as the CAAT-enhancer binding protein (CHOP) gene. CHOP is a transcription factor that regulates the expression of the Bcl-2 family members. Overexpression of CHOP induces apoptosis and its deficiency has been shown to protect cells from apoptotic cell death. Prolonged severe ER stress could eventually activate caspase-12 and caspase-dependent apoptosis (13). Thus, our aim in the present study was to understand the molecular basis of purvalanol-induced ER stress which leads to cell death in HCT 116 colon cancer cells.

Materials and methods

Drugs and antibodies

Purvalanol was purchased from Tocris Bioscience (Bristol, UK), dissolved in DMSO to make a 10 mM stock solution and stored at −20°C. Phospho-Rb, p53, p21, Bad, Bid, Bik, PUMA, Mcl-1, Bcl-xl, pro-caspase-3, pro-caspase-7, PARP, Beclin-1, p62, LC3, Atg-5, Atg-12, PERK, XBP1, caspase-12, JNK, ATF-6, CHOP, BiP, IRE1α, calnexin, calreticulin, PDI, c-jun, GAPDH and β-actin (each diluted 1:1,000) rabbit antibodies were purchased from Cell Signaling Technology (CST, Danvers, MA, USA). HRP-conjugated secondary anti-rabbit antibodies (diluted 1:3,000) were from CST.

Cell culture

HCT 116 colon cancer cells (CCL 247) were purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA). Cells were maintained in McCoy’s 5A medium (Gibco, Invitrogen, Carlsbad, CA, USA) with 10% fetal bovine serum (Pan Biotech, Aidenbach, Germany) and 100 U/100 mg/ml penicilin/streptomycin and grown in the presence of 5% CO2 in humidified air at 37°C (Heracell 150; Thermo Electron Corporation, Waltham, MA, USA).

Cell viability assay

The effects of purvalanol on cell viability were determined by colorimetric 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-tetrazolium bromide (MTT; Roche, Indianapolis, IN, USA) assay. Cells were seeded at a density of 1×104 cells/well in 96-well plates, allowed to attach overnight and treated for 24 and 48 h with various concentrations of purvalanol (0–30 μM). After purvalanol treatment, 10 μl of MTT reagent (5 mg/ml) was added to the cell culture medium for 4 h. Following removal of media, 200 μl DMSO was added to dissolve the formazan crystals, which are produced due to activated mitochondria. The absorbance of the suspensions was determined at 570 nm with a microplate reader (Bio-Rad, Hercules, CA, USA).

Trypan blue dye exclusion assay

Cells were seeded on 6-well plates (5×104 cells/well) and treated with purvalanol (15 μM) for 96 h. Every 24 h, the cells were trypsinized and stained with trypan blue and viable and dead cells were counted under light microscopy. Data were platted on a graph indicating the number of cells (y-axis) vs. time (x-axis).

Fluorescence microscopy

PI staining

HCT 116 cells (1×105) were seeded into 12-well plates and treated with purvalanol (0–30 μM) for 24 h. Following a dose-dependent purvalanol treatment, the cells were washed once with 1X PBS and stained with propidium iodide (PI) (50 mg/ml stock concentration in 1X PBS) fluorescent probe and were incubated for 10 min in the dark. Purvalanol-induced cell death was detected with fluorescence microscopy (Olympus, Tokyo, Japan).

DAPI staining

The cells were seeded in 12-well plates at a density of 1×105 cells/well and treated with purvalanol (0–30 μM) for 24 h. After treatment, the cells were washed once with 1X PBS. The cells were stained with 1 μl/ml 4′,6-diamidino-2-phenylindole (dAPI) (1 mg/ml stock concentration in 1X PBS) fluorescent probe and were incubated for 10 min in the dark. Dose-dependent purvalanol-induced nuclear DNA fragmentation was visualized using fluorescence microscopy.

DiOC6 staining

HCT 116 (1×105) cells were seeded into 12-well plates. Following exposure of cells to purvalanol (0–30 μM), they were washed once with 1X PBS, and then stained with 4 nM 3,3′-dihexyloxacarbocyanine iodide [DiOC6(3)] (40 nM stock concentration in DMSO; Calbiochem, La Jolla, CA, USA) fluorescent probe. Mitochondrial membrane potential (MMP) disruption was visualized by fluorescence microscopy.

Cell cycle analysis by PI staining

HCT 116 colon carcinoma cells at a density of 2×105 cells/well were seeded in 6-well plates, and then subsequently treated with purvalanol (15 μM) for 12, 24 and 48 h. Both floating and adherent cells were collected and fixed with 70% ethanol. Following incubation on ice for 30 min, the cells were diluted with 1X PBS. Samples were then centrifuged at 1,200 rpm for 5 min. Pellets were resuspended in 1X PBS, RNase (100 μg/ml) and PI solution (40 μg/ml). Samples were kept for 30 min at 37°C in the dark. Cell cycle distribution was analyzed by Accuri C6 (BD Biosciences, Oxford, UK). 10,000 events/sample were acquired and evaluated using BD Accuri C6 software (BD Biosciences).

CHOP activation by FACS flow analysis

HCT 116 colon carcinoma cells were seeded in 6-well plates and transfected with CHOP promoter (−649/+136) pmCherry-1 plasmid (0.5 mg/ml) using the Fugene6 (Promega, Sunnyvale, CA, USA). After a 24 h transfection, the cells were exposed to purvalanol (15 μM) for 12, 24 and 48 h. Following purvalanol treatment, mCherry-CHOP plasmid-transfected 10,000 cells/sample were determined by flow cytometry using FL-3 (red fluorescence) (FACScan, Attune; Applied Biosciences, Foster City, CA, USA).

GFP-LC3 localization by FACS flow analysis

HCT 116 colon carcinoma cells were seeded in 6-well plates and transfected with a green fluorescent protein (GFP)-tagged LC3-expressing vector (0.5 μ/ml) using Fugene6. After a 24 h transfection, the cells were exposed to purvalanol (15 μM) for 12, 24 and 48 h. Following purvalanol treatment, GFP-LC3 plasmid-transfected 10,000 cells/sample were determined by flow cytometry using FL-1 (green fluorescence) (FACScan, Attune; Applied Biosciences).

Cell death ELISA assay

HCT 116 cells (1×104) were seeded in 96-well plates and treated with 15 μM purvalanol for 12, 24 and 48 h. Cytoplasmic histone-associated-DNA fragments (mono- and oligonucleosomes) were determined using Cell Death detection ELISA Plus assay, according to the manufacturer’s instructions (Roche). Briefly, cell lysates were placed in a streptavidin-coated microplate. A mixture of anti-histone-biotin and anti-DNA-POD was added and incubated for 2 h at 15–25°C. Following the removal of unbound antibodies by a washing procedure, POD was determined photometrically at 405 nm with 2,2′-azino-di-[3-ethylbenzthiazoline sulfonate (6)] diammonium salt (ABTS) as a substrate. In order to determine the DNA fragments following drug treatment in colon carcinoma cells, total DNA content was isolated.

Protein extraction and immunoblotting

HCT 116 colon carcinoma cells were treated with the appropriate concentrations of purvalanol in a time-dependent manner. First, all the samples were washed with ice-cold 1X PBs and lysed on ice in a solution containing 20 mM Tris-HCl (pH 7.5), 150 mM NaCl, Nonidet P-40 0.5%, (v/v), 1 mM EDTA, 0.5 mM PMSF, 1 mM DTT and protease inhibitor cocktail (Complete, Roche). After cell lysis, the cell debris were removed by centrifugation for 15 min at 13,200 rpm, and protein concentrations were determined by the Bradford protein assay (BioRad). Total protein lysates (30 μg) were separated on a 12% SDS-PAGE and transferred onto PVDF membranes (Roche). The membranes were then blocked with 5% milk blocking solution in Tris buffer saline (TBS)-Tween 20 (Sigma) and incubated with appropriate primary and horseradish peroxidase (HRP)-conjugated secondary antibodies (CST) in antibody buffer containing 5% (v/v) milk blocking solution. Following a gentle washing step with 1X TBS-Tween 20, the proteins were analyzed using an enhanced chemiluminescence detection system (ECL). Bands were exposed to Lumi-Film Chemiluminescent Detection (Roche).

Statistical analysis

All the experiments were statistically analyzed by two-way ANOVA using GraphPad Prism 6 (GraphPad Software, La Jolla, CA, USA). Statistically significant results by ANOVA were further analyzed by Bonferroni post-hoc analysis (where indicated). A p<0.05 was considered to indicate a statistically significant result. Error bars in the graphs were generated using ± standard deviation (SD) values. Band intensities were quantified using imageJ software and normalized to β-actin or GAPDH.

Results

Purvalanol inhibits cell viability and proliferation in a dose-dependent manner

In order to understand the time- and dose-dependent effects of purvalanol treatment on HCT 116 cell viability, we performed an MTT assay. According to the MTT assay, 15 μM of purvalanol decreased the cell viability by 25% in HCT 116 cells within 24 h. Exposure to purvalanol for 48 h decreased cell viability by 40% (Fig. 1A). Moreover, PI and DAPI staining of cells after dose-dependent purvalanol treatment for 24 h showed that cell death and nuclear condensation were increased in the HCT 116 colon cancer cells. In addition, we also determined that MMP disruption was increased in dose-dependent manner in the HCT 116 colon cancer cells (Fig. 1B). Cell survival analysis with trypan blue dye exclusion assay showed that 15 μM purvalanol inhibited cell proliferation after 24 h and this cytostatic effect was maintained until 72 h (Fig. 1C).

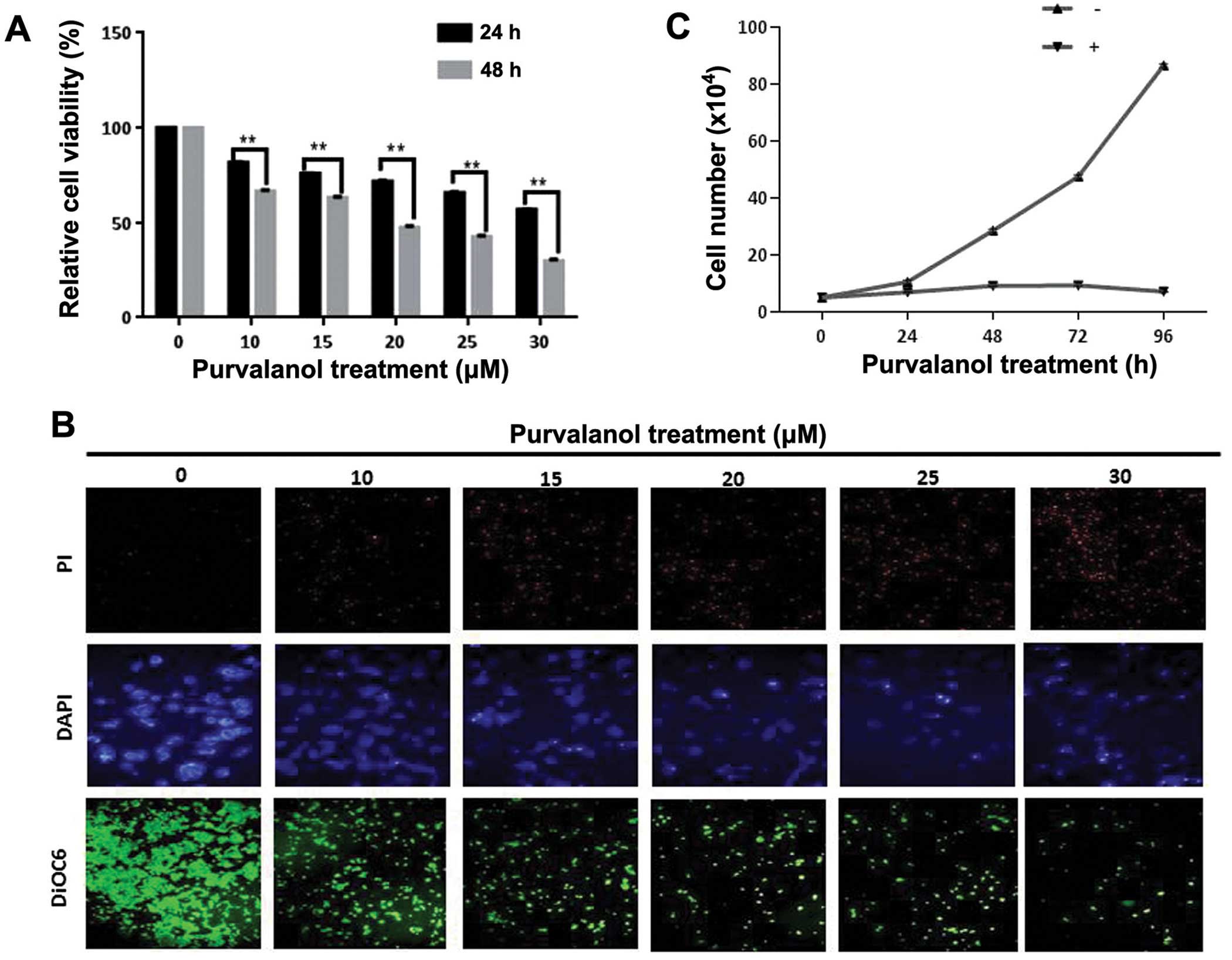

Figure 1 Purvalanol decreases cell viability, inhibits cell proliferation and induces cell death in a dose- and time-dependent manner in the HCT 116 colon cancer cells. (A) Cells were seeded into a 96-well plate and treated with purvalanol (0–30 μM) for 24 and 48 h. Cell viability was determined by an MTT assay. Values represent the mean ± SD of three different experiments with at least three replicates. (B) dose-dependent purvalanol effects on cell death and nuclear condensation were determined by PI, DAPI staining, respectively and the disruption of MMP was visualized by DiOC6 staining after a 24 h exposure of HCT 116 cells to 0–30 μM purvalanol. (C) Cells were seeded into a 6-well plate and treated with purvalanol (15 μM) for 24, 48, 72 and 96 h. Cell proliferation was determined by the trypan blue dye exclusion method. Values represent the mean ± SD of three different experiments with at least three replicates. PI, propidium iodide.

Purvalanol induces cell cycle arrest in a time-dependent manner

The effect of purvalanol on the cell cycle profile of HCT 116 cells was examined following PI staining by FACS flow analysis. 15 μM of purvalanol increased the subG1 population in a time-dependent manner (12, 24 and 48 h), to 1.7, 2 and 8.9%, respectively (Fig. 2A). In order to confirm FACS flow analysis, we analyzed major cell cycle coordinating proteins such as phosphorylated Rb, p53 and p21 by immunob-lotting. According to the immunoblotting results, purvalanol treatment increased the expression of p53 in a time-dependent manner, but significant upregulation was determined after a 48 h purvalanol treatment in the HCT 116 colon cancer cells. However, expression of p21 was increased only after a 24 h purvalanol treatment. Moreover, protein expression of the phosphorylated form of Rb (807/811) was sharply downregulated only after 12 h in HCT 116 colon cancer cells (Fig. 2B).

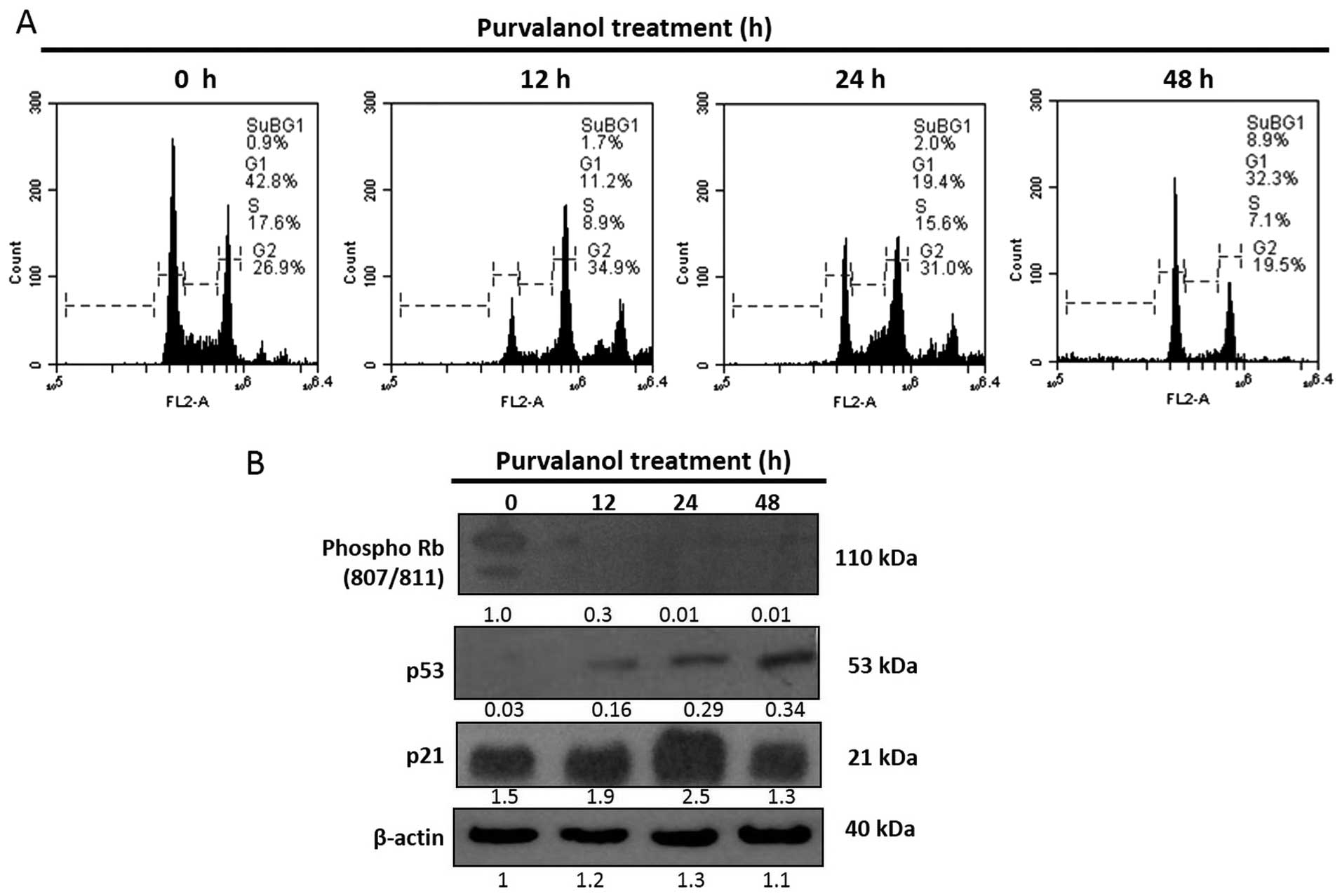

Figure 2 Effects of purvalanol on cell cycle progression. (A) HCT 116 cells were treated with 15 μM purvalanol for 12, 24 and 48 h and then the cells were harvested, fixed with ethanol and stained with PI. The cellular DNA contents were determined by flow cytometric analysis to detect the cell cycle distribution. Results shown are reprensentative of three independent experiments. (B) the effect of purvalanol treatments on the p53, p21 and the retinoblastoma (Rb) gene expression profiles are shown by the immunoblotting method. β-actin was used as a loading control.

Purvalanol activates ER stress

In order to evalute the time-dependent effect of purvalanol on ER stress via activated Ca2+ metabolism, we performed immunoblotting. According to the immunblotting results, purvalanol upregulated both PDI and calnexin expression levels within 1 h of purvalanol exposure in the HCT 116 colon cancer cells. However, calre-ticulin, an ER resident protein with Ca2+ buffering effect, was downregulated in a time-dependent manner following 15 μM of purvalanol treatment (Fig. 3A). We next examined the expression profiles of ER membrane proteins and their downstream target key molecules by immunoblotting. BiP expression was upregulated after a 3 h purvalanol treatment and this effect was increased in a time-dependent manner. Moreover, a 1 h purvalanol treatment induced PERK expression and phosphorylation of eIF-2α within a 3 h drug exposure in the HCT 116 cells. Another ER membrane receptor, IRE1α, was also upregulated following time-dependent purvalanol treatment. Late response of cells to purvalanol treatment related with ER stress was determined by the cleavage of ATF-6 after 12 h. CHOP, a transcriptional target of both cleaved ATF-6 and ATF-4, was found to be significantly upregulated following a 12 h purvalanol treatment (Fig. 3B). In order to examine the purvalanol-induced CHOP activation, we performed FACS flow analysis after transfection of the CHOP promoter (−649/+136) pmCherry-1 plasmid (Fig. 3C). According to FACS flow analysis, purvalanol-induced CHOP activation via ATF-4 transcriptional activity was determined after 48 h.

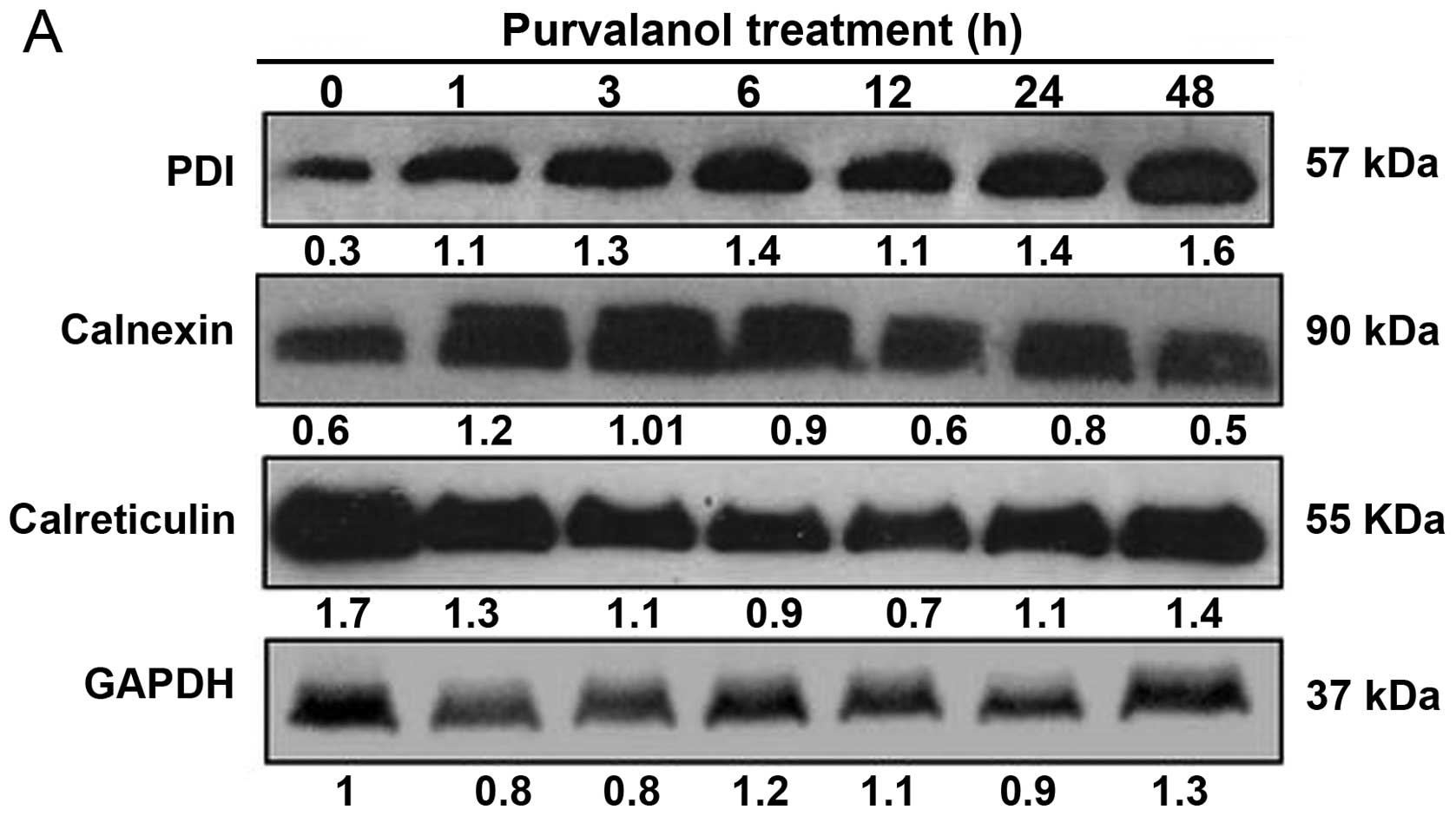

Figure 3 Purvalanol triggers ER stress in a time-dependent manner. Following time-dependent purvalanol treatment, total proteins were isolated and separated on 12% SDS gel, transferred onto PVDF membranes and blotted with (A) PDI, calnexin, calreticulin, (B) ATF-6, BiP, IRE1a, PERK, XBP1, JNK, eIF-2a, ATF-4, caspase-12 and CHOP antibodies. GAPDH and β-actin were used as a loading control. (C) Cells (3×105) were transfected with the mCherry CHOP plasmid and following 24 h, the cells were treated with 15 μM purvalanol for 12, 24 and 48 h. Purvalanol-induced CHOP activation was examined by FACS flow analysis at FL-3 channel.

Purvalanol-induced ER stress activates autophagy in HCT 116 colon cancer cells

To evaluate the effect of purvalanol on autophagic regulation related with its influence on ER membrane receptor activation, we examined the involvement of LC3 via GFP-LC3 plasmid transfection in the HCt 116 cells. According to FACS flow analysis, purvalanol induced GFP-LC3 intensity within a 12 h drug exposure and this effect was maintained for 24 h (Fig. 4A). Moreover, Beclin-1, Atg-5 and Atg-12 expression levels were upregulated; p62 degradation and LC3 cleavage were observed at early time-points following purvalanol treatment in the HCT 116 colon cancer cells (Fig. 4B).

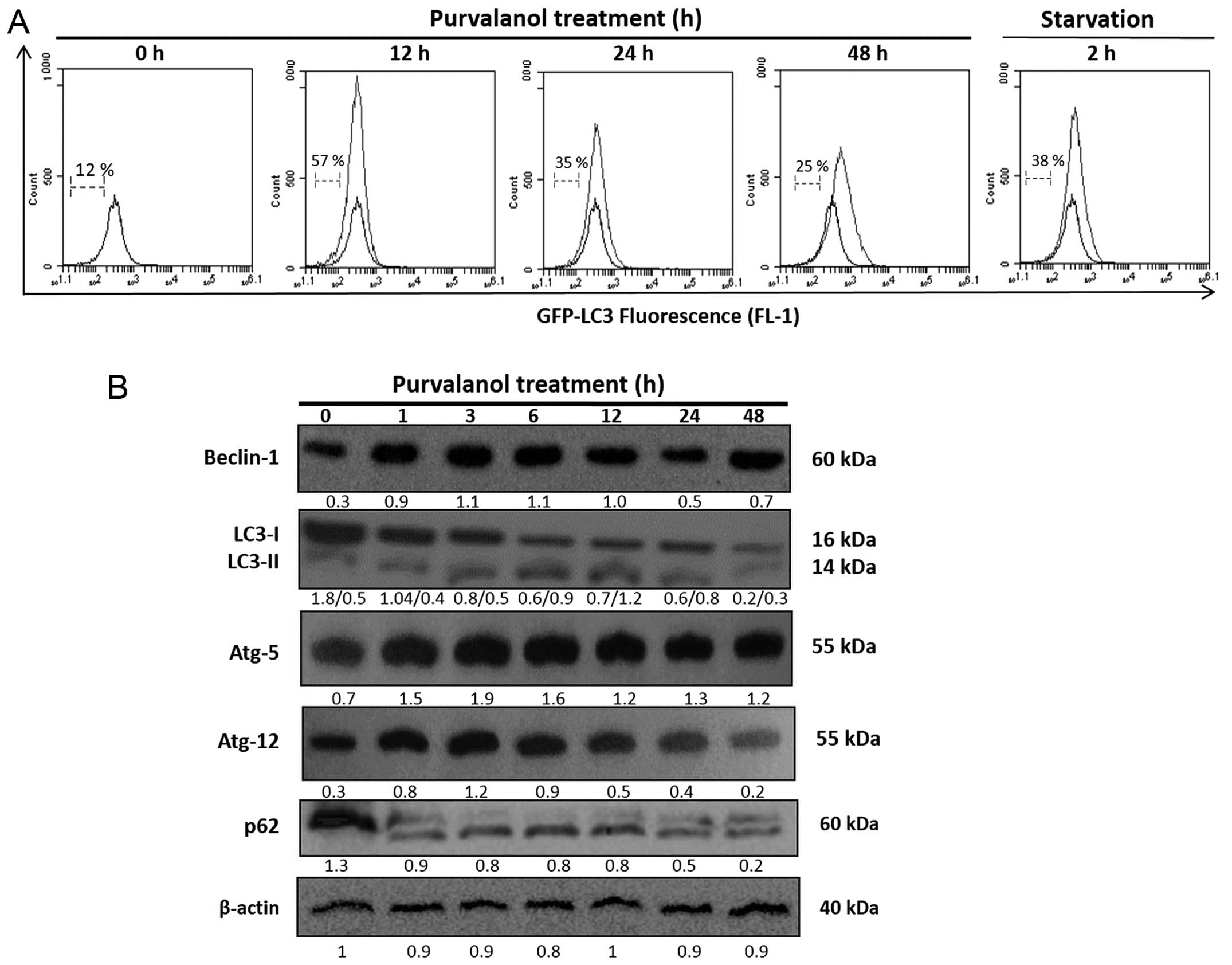

Figure 4 Purvalanol activates autophagy. (A) GFP-LC3 in purvalanol-treated HCT 116 colon cancer cells. Following a 24 h transfection of the HCT 116 colon cancer cells with the GFP-LC3 plasmid, the cells were treated with 15 μM purvalanol for 12, 24 and 48 h. Purvalanol induced LC3 degradations were examined by FACS flow analysis at FL-1 channel. (B) the effects of purvalanol on Beclin-1, LC3, Atg-5, Atg-12 and p62 gene expression profiles were determined by immunoblotting in HCT 116 colon cancer cells following 0–48 h purvalanol (15 μM) treatments. β-actin was used as a loading control. GFP, green fluorescent protein.

Prolonged purvalanol treatment causes apoptotic cell death by modulating the Bcl-2 family members in HCT 116 colon cancer cells

The apoptotic induction due to purvalanol was determined by Cell Death ELISA assay. As shown in Fig. 5A, exposure of cells to 15 μM purvalanol for 12, 24 and 48 h induced apoptosis by 2.5-, 3.5- and 5.5-fold compared to the untreated control cells (p<0.05 and p<0.001), respectively. The apoptotic induction of purvalanol was found to be caspase-dependent. As shown in Fig. 5B, caspase-7 and caspase-3 were activated by causing PARP cleavage. As shown in Fig. 5C, 15 μM purvalanol for 12, 24 and 48 h induced MMP loss by 75, 55 and 40%, respectively (p<0.05 and p<0.001). To analyze the functional role of Bcl-2 family members in mitochondria-mediated apoptosis due to purvalanol treatment, the modulation of the expression levels of anti- and pro-apoptotic proteins was examined in the HCT 116 cells by western blot analysis. Purvalanol down-regulated Bcl-xl and Mcl-1 and upregulated Bik, Bad, Bid, Bad and PUMA protein expression levels (Fig. D). Therefore, we conclude that purvalanol induced mitochondria-mediated apoptosis by activating caspases and modulating Bcl-2 family members.

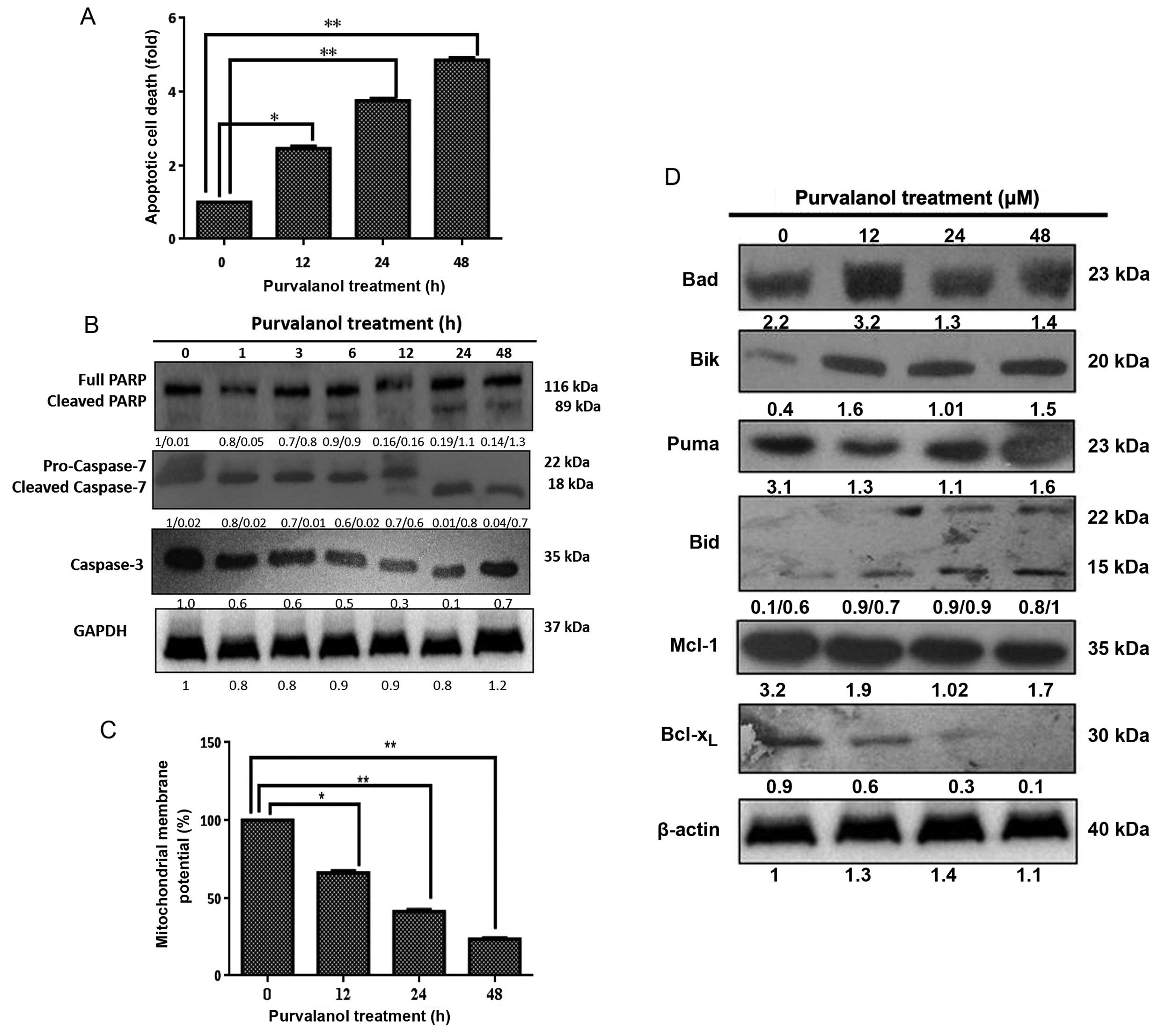

Figure 5 Purvalanol induces apoptosis by modulating the expression of Bcl-2 family proteins. (A) Apoptotic cell death was determined by using Cell Death ELISA Plus assay following exposure of HCT 116 colon carcinoma cells to purvalanol. (B) time-dependent PARP cleavage and caspase-3 and caspase-7 activation were determined by immunoblotting in the purvalanol-treated HCT 116 colon carcinoma cells. (C) The disruption of MMP loss was measured after DiOC6 staining using a fluorometer (Ex=485 nm; Em=538 nm). (d) Following time-dependent purvalanol treatment, total proteins were isolated and separated on 12% SDS gel, transferred onto PVDF membranes and blotted with Bad, Bik, Puma, Bid, Mcl-1, Bcl-xl antibodies. The columns represent the mean ± SD of two independent trials with at least 2 replicates. Statistical difference was analyzed using an unpaired t-test; *p<0.05, **p<0.001. GAPDH and β-actin were used as a loading control.

Discussion

Dysregulation of molecular machinery of the cell cycle process plays an important role in tumor progression and malignancy (1). Thus, control of the cell cycle by pharmacological CDKIs, is believed to be an important therapeutic target for cancer therapy. CDKIs have been shown to be promising chemotherapeutic agents in various cancer types such as colon (7), prostate (5) and breast cancer (6). Purvalanol, a new generation CDKI, has been shown to cause cell cycle arrest at the G2/M checkpoint of the cell cycle by inhibiting the ATP binding site of CDK1 and CDK2 (14) and to induce apoptosis through activating caspases and cytochrome-c release in gastric cancer cells (15). In our previous study, we determined that 30 μM purvalanol induced apoptotic cell death by modulating the expression of the Bcl-2 family members via activating polyamine catabolic metabolism in HCT 116 colon cancer cells (7). Another previous study from our laboratory showed that 25 μM purvalanol induced apoptosis via activation of caspases, which led to dysfunction of MMP in MCF-7 breast cancer cells (6). A lower dose of purvalanol (15 μM) used in this study also inhibited cell proliferation via cell cycle arrest and induced cell death through MMP loss (Figs. 1 and 2). Although a number of reports have demonstrated the molecular action of roscovitine, there are few research studies concerning purvalanol-induced apoptotic cell death. Thus, clarification of molecular targets of purvalanol treatment on apoptosis and autophagic mechanisms might increase the therapeutic efficiency of the drug.

During homeostatic conditions in eukaryotic cells, ER is essential in biosynthesis and signaling functions, and several resident chaperones, Ca2+ binding proteins and folding enzymes such as calnexin, calreticulin and protein disulfide isomerase (PDI) are known to monitor ER biological functions (16). It was shown that a lack of calnexin within the cell induced a resistant profile against ER stress-mediated apoptosis as it acts with caspase-8 for Bap31 protein cleavage (17). In addition, although overexpression of calreticulin in HeLa cells was shown to enhance the sensitivity against ceramide-induced apoptosis (18), knockout of calreticulin increased the resistance phenotype (19). Moreover, silencing of calreticulin in bladder cancer cells suppressed cell proliferation, migration and attachment, whereas overexpression of calreticulin enhanced cell migration and attachment (20). Thus, in the present study, we determined that purvalanol induced UPR as a first response. Both PDI and calnexin expression profiles were upregulated following a 1 h purvalanol treatment and this effect was observed until 12 h. In addition, calreticulin expression was downregulated at early time-points following purvalanol treatment which modulated Ca2+ levels and cell adhesion (Fig. 3A). These results suggest that purvalanol might first trigger ER stress via ER chaperone activation in HCT 116 colon cancer cells.

Accumulation of unfolded or misfolded proteins in the ER lumen during hypoxia, oxidative injury, a high-fat diet or viral infections was found to induce various intracellular signaling pathways via activation of receptors localized on the ER membrane (9). During ER stress, disassociation of ER membrane receptors from their ligand BiP caused receptor-mediated nuclear activation of various transcription factors such as ATF-6, ATF-4 and CHOP (12). ER stress- activated ER membrane receptor, ATF-6 p90, is activated following BiP disassociation and cleavage to form ATF-6 p50, a regulatory protein of X-box binding protein 1 (XBP-1) mRNA (21). Cleaved and activated ATF-6 p50 protein translocates to the nucleus and triggers UPR target genes such as BiP and XBP1 (22). Similar to this finding, N-butylidenephthalide was shown to induce ER-stress by triggering ATF-6 cleavage and BiP upregulation within 6 h after drug exposure in LNCaP and PC3 prostate cancer cell lines (23). Both ATF-6 and IRE1α trigger the transcription of ER chaperones during ER stress conditions via acting on XBP1 mRNA (24). Moreover, IRE1α interaction with TRAF-2 triggers apoptotic cell death via JNK activation (25). Although 6-shogaol induced apoptosis without any significant effect on IRE1α in SMMC-7721 hepatocellular carcinoma cells (26), 20-O-(β-D-glucopyranosyl)-20(S)-protopanaxadiol activated the IRE1α phosphorylation and splicing of XBP1 in Ht29 human colon cancer cells (27). In addition, upregulation of IRE-1α was determined after a 6-h N-butylidenephthalide treatment in prostate cancer cell lines (23). In the present study, although we demonstrated upregulation of IRE-1α expression and an increase in XBP1 splicing, a significant upregulation of JNK expression was observed after a 24-h purvalanol treatment (Fig. 3B). Concominantly, purvalanol induced apoptotic cell death via activation of caspase-3 and caspase-7 and PARP cleavage (Fig. 5B). Thus, we conclude that short-term purvalanol treatment induces ATF-6-mediated ER stress and long-term purvalanol induces apoptotic cell death through activation of JNK in HCT 116 colon cancer cells.

The third ER membrane receptor, PERK, is dimerized, and auto-phosphorylation of itself activates the phosphorylation of eIF-2α that attenuates protein translation (11). PERK activation and eIF-2α phosphorylation were determined after a 6-h 20-O-(β-D-glucopyranosyl)-20(S)-protopanaxadiol treatment in HT29 human colon cancer cells (27). 6-shogaol induced apoptosis via activation of PERK and its downstream target eIF-2α in SMMC-7721 hepatocellular carcinoma cells (26). In addition, luteolin-induced eIF-2α phosphorylation within a 2 h drug treatment triggered the ER stress-mediated apoptosis in NCI-H460 lung carcinoma cells (28). We determined that PERK expression was upregulated only after a 1 h purvalanol treatment and phosphorylation of eIF-2α was also observed during 1–6 h of purvalanol treatment (Fig. 3B). Purvalanol might induce UPR and attenuate protein translation at early time-points in HCT 116 cells by activating the PERK/eIF-2α/ATF-4 signaling axis.

CHOP, is a key ER stress-induced transcription factor and transcription activation is through ATF-6 and ATF-4 (29). Deficiency of CHOP protected cells from ER-induced apoptotic cell death (30) and overexpression of CHOP stimulated cell cycle arrest and apoptosis (31). Activated CHOP expression has been implicated to repress anti-apoptotic Bcl-2 protein (32) and induce apoptotic cell death by activating Bim (33). We showed that CHOP expression was significantly upregulated after a 6 h purvalanol treatment and this effect was increased in a time-dependent manner (Fig. 3B). Moreover, when we analyzed the activation of CHOP via the CHOP promoter (−649/+136) inserted mCherry expression plasmid, mCherry expression was found to be elevated following a 48 h purvalanol treatment (Fig. 3C). CHOP-mediated ER stress-induced apoptotic cell death occurred after a 48 h purvalanol treatment in the HCT 116 colon cancer cells.

ER stress-induced autophagy is assumed to be activated as an alternative way to degradate accumulated unfolded/misfolded protein aggregates instead of the proteasome degradation system (12). Both IRE1α and PERK pathways were demonstrated to be associated with ER stress-induced autophagy regulation in cancer cells (34). In contrary, other studies reported that only PERK-eIF-2α signaling was involved in autophagy induction by ER stress (35). Autophagy, an evolutionarily conserved process, characterized by massive degradation of cytosolic contents initiates the fusion of autophagosomes to endosomes and lysosomes, which engulf cytoplasmic contents within a double-membrane vacuole (36). This physiological process is carried out through interaction of various molecules such as Bcl-2, Beclin-1, Atg-5 and Atg-12 (37). During autophagic induction, LC3-I (16 kDa) is cleaved to form LC3-II (14 kDa) that is involved in autophagic vacuole membrane formation by interacting with cytoplasmic protein p62 (38). As autophagy is assumed to be a cell survival mechanism against chemotherapeutic drugs in cancer cells, inhibition of autophagy by specific inhibitors induced drug-mediated apoptotic cell death in prostate (39), breast (40) and colon (41) cancer cells. Moreover, in NCI-H460 lung carcinoma cells, although luteolin induced ER stress activated apoptosis, autophagy was shown to be activated and inhibition of autophagy induced apoptotic cell death (28). Thus, in our present study we determined that another CDKI, purvalanol, induced autophagy induction by upregulation of Beclin-1, Atg-5, Atg-12 protein expression and LC3-II formation during a 6–12 h purvalanol treatment (Fig. 4B) only after Perk/eIF-2α induced ER stress.

The inactive state of ER membrane receptors can be stimulated by slight ER stress conditions leading to translation inhibition. Under this situation, autophagy induction could occur as a cell protection mechanism. However, prolonged ER stress can also result in apoptotic cell death through various molecular key players such as caspase-12, JNK and CHOP (42). Our previous studies found that long-term exposure of purvalanol triggered mitochondrial-mediated and caspase-dependent apoptotic cell death in MCF-7 cells following treatment with 25 μM purvalanol (6) and in HCT 116 colon cancer cells after of 30 μM purvalanol (7). In the present study, a lower dose of purvalanol for a long-term exposure triggered caspase-dependent apoptotic cell death via modulation of Bcl-2 family members and this effect was significant after a 24 h purvalanol treatment in the HCT 116 colon cancer cells (Fig. 5A–D). Finally, we conclude that purvalanol induced ER stress-mediated autophagy as a first response in HCT 116 colon cancer cells against purvalanol. Prolonged ER stress activated both CHOP and JNK- mediated apoptotic cell death.

Acknowledgments

The present study was supported by the Istanbul Kultur University Scientific Projects Support Center and the TUBITAK Scientific Projects Support Center (2209 program).
