Introduction

Pediatric malignancies are the leading cause of disease-related death in children and the second overall cause of death after accidents (1). Pediatric head and neck cancers account for overall 12% of all pediatric cancers (2). Recently, pediatric head and neck cancers were shown to increase faster than pediatric cancers overall. Lymphoma, particularly non-Hodgkin lymphoma, rhabdomyosarcoma (RMS), and nasopharyngeal carcinoma (NPC) are the most common pediatric cancers of the head and neck region (3,4). Among them, RMS is the most common soft-tissue sarcoma found in children and adolescents (5). The currently available treatments include surgery, chemotherapy, and radiation. In view of their high metastatic potential, chemotherapy has become one of the main treatments recently. Despite recent advances in therapeutic modalities, children with tumor metastasis have poor prognosis. Therefore, there is an unmet need for new and effective treatment modalities for pediatric head and neck cancers.

Platinum-based agents form the backbone of the standard chemotherapeutic regimens for head and neck cancers of both children and adults. Specifically, cisplatin (CDDP) is the most commonly used drug in the treatment of RMS and NPC, the two most common pediatric cancers of the head and neck region (6,7). However, CDDP is nephrotoxic with the toxicity profile increasing with increase in dose; development of drug resistance and several dose-limiting toxicities have severely led to poor patient compliance and failure of chemotherapy (8,9). Therefore, any strategy that would reduce the dose and toxicity of CDDP-based chemotherapy consequently is a welcome measure in oncology practice.

The combination of CDDP with other therapeutic methods, such as gene therapy, has become an attractive treatment project for head and neck cancers (10,11). Nanocarrier-based chemotherapeutic drugs, either alone or in combination with gene anticancer therapies, are currently under development with the goal of improving survival and clinical outcome (12–14). Among the various non-viral gene vectors, cationic lipids are ideal gene carriers because of their superior transfection efficiency, excellent gene-incorporation ability (15). Cationic lipid-polymer hybrid nanoparticles (CLPNs), which may take advantage of the unique strengths of both polymeric nanoparticles (PNPs) and liposomes, are the ideal carriers for co-delivery of chemotherapeutics and genes (16–19). CLPNs are core-shell nanoparticle structures comprising polymer cores and lipid layers (20). Recently, LPNs of CDDP with high drug-loading capability were investigated and showed excellent safety and antitumor efficacy in mice (14,21). Nano-combination delivery systems of CDDP with DNA may reverse drug resistance and hence enhance the efficacy of CDDP to eventually improve overall treatment outcomes.

The present study describes a simple and efficient method for fabrication of CLPNs for co-delivery of CDDP and DNA (CDDP/DNA CLPNs). Plasmid-enhanced green fluorescent protein was selected as the model DNA. CDDP-loaded CLPNs (CDDP CLPNs), CDDP-loaded PNPs (CDDP PNPs), and DNA-loaded Lipofectamine® 2000 (DNA LIPO) were also prepared for comparison. The influence of cationic lipid concentration on the characteristics of CLPNs was evaluated. In vitro anticancer effect of free drug and CLPNs, and in vitro transfection efficiency were investigated on human RMS cell line, RD-4 cells. Finally, in vivo antitumor efficacy study was performed in the xenograft tumor model.

Materials and methods

Materials

CDDP, PLGA (50:50) [molecular weight (MW), 7,000–17,000], poly(vinyl alcohol) (PVA) (87–89% hydrolyzed; MW, 13,000–23,000), 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) were purchased from Sigma-Aldrich (Shanghai, China). Plasmid EGFP (pEGFP) was obtained from Clontech Laboratories, Inc. (Palo Alto, CA, USA). Cationic lipid 1,2-di-(9Z-octadecenoyl)-3-trimethylammonium-propane (DOTAP) was purchased from Avanti Polar Lipids (Alabaster, AL, USA). Lipofectamine® 2000 Transfection Reagent was obtained from Thermo Fisher Scientific (Waltham, MA, USA). Quant-iT™ PicoGreen® dsDNA quantitation reagent was obtained from Invitrogen by Life Technologies (Carlsbad, CA, USA). Fetal bovine serum (FBS) was the product of Thermo Fisher Scientific (Fairlawn, NJ, USA). All other chemicals were of analytical grade and used as obtained without further purification.

Preparation of CDDP/DNA CLPNs and CDDP CLPNs

CDDP/DNA CLPNs were prepared by the modified double emulsion solvent evaporation method with self-assembly (Fig. 1) (18). Briefly, CDDP (0.1 g), PLGA (0.3 g), and DOTAP were dissolved in dichloromethane (10 ml) to form the organic phase. pEGFP (0.1 g) was dissolved in an aqueous solution (1 ml). The water-in-oil emulsion was formed by the addition of an aqueous phase into an organic phase with sonication. The primary emulsion was transferred to 1% w/v PVA aqueous solution and sonicated in an ice bath. The resultant secondary (water-in-oil-in-water) emulsion was stirred overnight at room temperature until the evaporation of dichloromethane was complete. The final formulated CDDP/DNA CLPNs were washed three times by a repeating centrifugation step and freeze-dried at −20°C. To investigate the influence of cationic lipid concentrations on size, charge, and in vitro performance, five formulation groups of CDDP/DNA CLPNs were prepared with different concentrations of cationic lipid (DOTAP) to polymer (PLGA) ratio (5, 10, 15, 20 and 25%), named CDDP/DNA CLPNs 1 (5%), CDDP/DNA CLPNs 2 (10%), CDDP/DNA CLPNs 3 (15%), CDDP/DNA CLPNs 4 (20%), CDDP/DNA CLPNs 5 (25%).

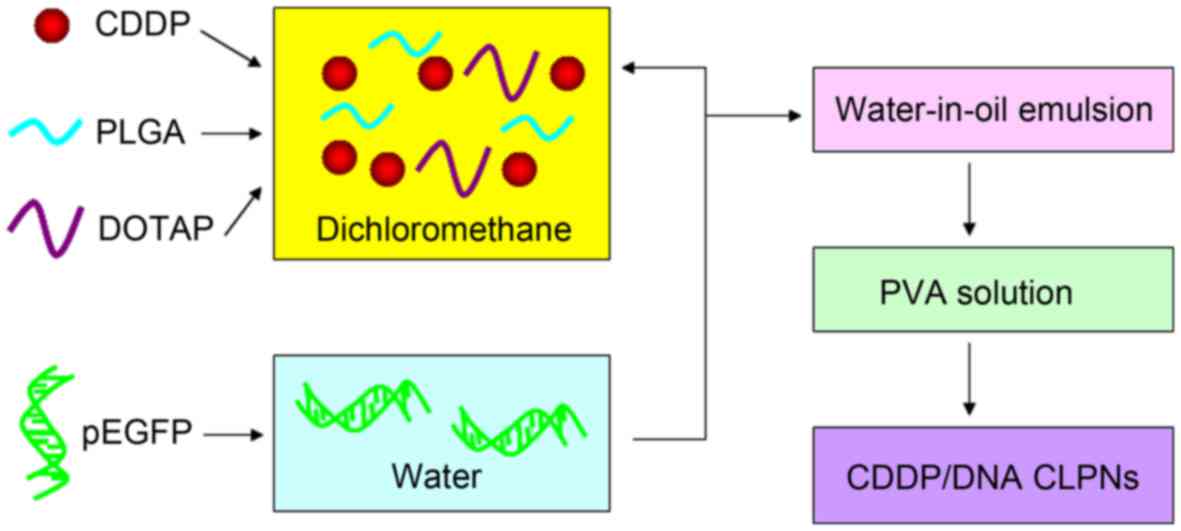

Figure 1. Scheme of the preparation of CDDP/DNA CLPNs. CDDP, cisplatin; CLPNs, cationic lipid-polymer hybrid nanoparticles.

CDDP CLPNs were prepared by the same method without the use of pEGFP.

Blank CLPNs were prepared by the same method without the use of pEGFP and CDDP.

Preparation of CDDP PNPs

CDDP PNPs were prepared by the emulsion solvent evaporation method (22). Briefly, CDDP (0.1 g), PLGA (0.3 g) were dissolved in dichloromethane (10 ml) to form the organic phase. The organic phase was added drop-wise into 1% w/v PVA aqueous solution being stirred at 400 rpm at room temperature until the evaporation of dichloromethane was complete. Then the resulting suspension was washed three times by repeating the centrifugation step and freeze-dried at −20°C to get the final formulated CDDP PNPs.

Blank PNPs were prepared by the same method without the use of CDDP.

Preparation of DNA LIPO

For the comparison of the gene transfection efficacy of CDDP/DNA CLPNs, DNA LIPO complexes were prepared by the following method (12): DNA and Lipofectamine® 2000 (1:2 w/w) was mixed for 30 sec using a vortex mixer. Then, the DNA LIPO was obtained by incubating the mixture for 30 min and freeze-dried at −20°C.

Characterization

The morphology of CDDP/DNA CLPNs, and CDDP PNPs was examined by transmission electron microscopy (TEM) (JEM-200CX; JEOL Co., Ltd., Tokyo, Japan) (23). Samples were stained at room temperature with freshly prepared and sterile-filtered 1% (w/v) phosphotungstic acid aqueous solution. The samples were then placed in a carbon-coated copper grid and air-dried prior to imaging (24).

The mean particle diameter, size distribution (polydispersity index), and surface charge (ζ potential) of CDDP/DNA CLPNs and other nanoparticles were determined by dynamic light scattering (DLS) using a Zetasizer Nano ZS (Malvern Instruments, Malvern, UK) (25).

The DE of CDDP/DNA CLPNs was determined by the PicoGreen fluorometry method (26). Briefly, free pEGFP was isolated from the CDDP/DNA CLPNs by centrifugation at 15,000 rpm and 4°C for 30 min, the supernatants were collected, and the concentration of pEGFP was assessed by a fluorescence spectrophotometer (Ex/Em = 480/520 nm) (Hitachi F-2500; Hitachi High-Technologies Corp., Tokyo, Japan). The amount of DNA loaded in the CDDP/DNA CLPNs was calculated as:

The CE in the CDDP/DNA CLPNs and CDDP PNPs was determined by inductively coupled plasma-optical emission spectrometry (ICP-OES) (27). The detection was carried out at λ=265.9 nm. The amount of CDDP was calculated as:

The plasma stability of the CDDP/DNA CLPNs and other nanoparticles was determined in the presence of 50% plasma (v/v) (28,29). The formulations were incubated in phosphate-buffered saline (PBS) solution containing 50% FBS at 37°C for 24 h, separately. At scheduled times (0, 2, 4, 8, 12 and 24 h), 1 ml of each sample was diluted with 2 ml THF and the mixture was bath-sonicated for 5 min, followed by centrifugation at 10,000 rpm for 5 min. The variation trends of the size, CE, and DE were calculated by the method indicated above.

Human RMS cell line, RD-4 cells, were obtained from the American Type Culture Collection (Manassas, VA, USA) and cultured at 37°C and 5% CO2 in DMEM supplemented with 10% FBS and 1% penicillin (5,000 U/ml)-streptomycin (5,000 U/ml).

The in vitro cytotoxicity of CDDP/DNA CLPNs and other nanoparticles was evaluated on RD-4 cells by MTT assay (30). Cells cultured in the above section were seeded in a 96-well plate at a seeding density of 104 cells/well. The culture medium was then replaced with various doses of CDDP/DNA CLPNs and other nanoparticles. Culture medium was used as a blank control. After 48 h of incubation, the media were replaced with 90 µl of free-serum medium and 10 µl of MTT solution (5 mg/ml in sterile PBS). After a 4-h incubation at 37°C, the MTT solution in the wells was replaced with 100 µl dimethylsulfoxide (DMSO). The absorption at 570 nm (OD570) was measured on a spectrophotometer. The cell viability was converted and expressed as the percentage of the control, and the IC50 values were calculated accordingly.

The in vitro transfection efficacy of CDDP/DNA CLPNs and DNA LIPO was evaluated on RD-4 cells, using CDDP CLPNs and blank CLPNs as control (24). Cells cultured in the above section were seeded in a 96-well plate at a seeding density of 104 cells/well, 24 h prior to transfection. The media were replaced with 200 µl serum-free media containing CDDP/DNA CLPNs and other nanoparticles at 37°C. Naked DNA solution was used as a negative control. DNA LIPO was used as a positive control. The original incubation medium was replaced with 1 ml of complete medium after incubation for 4 h at 37°C in a 5% CO2 incubator, and then cells were incubated sequentially until 48 h post-transfection.

Flow cytometry was carried out for the quantitation of the cells which were successfully transfected. At the end of the incubation, cells were washed once with 1 ml of PBS and were detached with trypsin/EDTA. Then the cells were centrifuged at 1,500 rpm, at 4°C for 5 min, the supernatant was discarded, and the cells were washed once with 1 ml of PBS, centrifuged again (1,500 rpm, 4°C for 5 min), the supernatant was discarded, and the cells were re-suspended in 300 µl of PBS and directly introduced to a BD FACSCalibur flow cytometer (Becton, Dickinson and Co., Franklin Lakes, NJ, USA).

BALB/c nude mice (5–6 week-old, 18–22 g) were purchased from the Shanghai Slack Laboratory Animal Co., Ltd. (Shanghai, China) and were maintained under specific pathogen-free conditions. Ethics approval was received from the Medical Ethics Committee of Kunming Medical University (no. KMMU20160316-1).

The in vivo antitumor efficacy of CDDP/DNA CLPNs and other nanoparticles was investigated in RD-4 tumor-bearing BALB/c nude mouse models, which were developed by injection of RD-4 cells in the right armpit of BALB/c mice (31). When tumor volume reached ~50 mm3, transplanted mice were randomly divided into seven groups (8 mice/group) separately. Formulations for the seven groups were as follows: group 1, 0.9% saline (control group); group 2, CDDP solution (8 mg/kg); group 3, blank PNPs; group 4, CDDP PNPs (4 mg/kg); group 5, blank CLPNs; group 6, CDDP CLPNs (4 mg/kg); group 7, CDDP/DNA CLPNs (4 mg/kg). The mice of each group were given the above formulations by tail vein injection once every 3 days. Three weeks later, all the mice were sacrificed by cervical dislocation and the tumor tissue samples were taken out. Tumor volume of each mouse was measured with a digital caliper every 3 days, and was calculated according to the equation:

The antitumor efficacy of each formulation was evaluated by tumor inhibition rate (TIR), which was calculated by measuring the tumor weight (TW) using the following formula:

The RD-4 tumor-bearing BALB/c nude mouse model was designed by the method indicated in the above section. Then, six groups of tumor-bearing mice received a 300-µl intravenous injection: group 1, 0.9% saline (control group); group 2, naked DNA solution; group 3, DNA LIPO; group 4, blank CLPNs; group 5, CDDP CLPNs; group 6, CDDP/DNA CLPNs, respectively. After 48 h, mice were sacrificed by cervical dislocation, and their tumor tissues were taken and washed with cold saline twice. Tissues were homogenized in lysis buffer (0.05% Triton X-100, 2 mM EDTA, 0.1 M Tris-HCl, pH 7.8). After several cycles of freezing and thawing, the homogenates were centrifuged at 10,000 rpm for 5 min to obtain the cells. Cells were cultured by the method of ‘In vitro cytotoxicity’ section.

For qualitative analysis, fluorescent cells were observed using an inverted fluorescence microscope (Olympus ZX71; Olympus Corp., Tokyo, Japan) and the picture was captured. The transfection efficiency of the fluorescent cells was quantified using the flow cytometry method described in the ‘In vitro transfection’ section.

The data are presented as means ± standard deviation (SD). Statistical analysis was performed by a one-tailed Student's t-test in Excel. Statistical significance was established at the 5% level (P<0.05) for all statistical analyses.

Results

Optimization of CDDP/DNA CLPNs

In order to optimize cationic lipid (DOTAP) to polymer (PLGA) ratio, CDDP/DNA CLPNs with different concentrations of lipids were prepared using different ratios of cationic lipid to polymer: 5, 10, 15, 20 and 25%. The influence of the lipid to the polymer ratio was determined in terms of particle size, polydispersity index, surface charge, DE and CE (Table I).

Table I. Optimization and characterization of nanoparticles.

Table I.

Optimization and characterization of nanoparticles.

Nanoparticles	Particle diameter (nm)	Polydispersity index	Surface charge (mV)	DE (%)	CE (%)
DNA LIPO	139.4±4.8	0.10±0.015	+43.1±4.7	91.5±3.9	N/A
Blank PNPs	78.3±2.9	0.08±0.009	−26.3±2.8	N/A	N/A
CDDP PNPs	82.1±3.2	0.09±0.010	−28.9±3.2	N/A	83.6±2.4
Blank CLPNs	118.3±3.8	0.12±0.013	+41.6±2.5	N/A	N/A
CDDP CLPNs	117.6±4.4	0.16±0.012	+39.8±3.3	N/A	85.3±2.8
CDDP/DNA CLPNs 1	335.2±36.8	0.67±0.094	+6.6±1.4	35.7±7.4	17.5±5.3
CDDP/DNA CLPNs 2	243.1±21.9	0.36±0.062	+12.8±2.7	53.8±8.9	63.8±6.5
CDDP/DNA CLPNs 3	137.6±3.3	0.10±0.008	+25.4±3.5	90.7±3.1	82.1±2.7
CDDP/DNA CLPNs 4	133.6±3.7	0.12±0.010	+31.1±4.4	88.6±4.2	62.5±4.9
CDDP/DNA CLPNs 5	141.2±4.5	0.13±0.014	+36.9±3.8	89.3±6.1	51.6±8.3

[i] DE, DNA-binding efficiency; CE, CDDP encapsulation efficiency; DNA LIPO, DNA-loaded Lipofectamine^® 2000; PNPs, polymeric nanoparticles; CDDP, cisplatin; CLPNs, cationic lipid-polymer hybrid nanoparticles.

It was observed that the particle diameters of CDDP/DNA CLPNs 1, CDDP/DNA CLPNs 2, CDDP/DNA CLPNs 3, CDDP/DNA CLPNs 4, and CDDP/DNA CLPNs 5 were 335.2, 243.1, 137.6, 133.6 and 141.2 nm, respectively. The polydispersity index of CDDP/DNA CLPNs 1 (0.67) and CDDP/DNA CLPNs 2 (0.36) were significantly higher than other formulations, suggesting that the ratios of 5 and 10% were not suitable. The obviously lower DE and CE of CDDP/DNA CLPNs 1 and CDDP/DNA CLPNs 2 also confirmed this conclusion. The CE of CDDP/DNA CLPNs 4 (62.5) and CDDP/DNA CLPNs 5 (51.6) were significantly lower than CDDP/DNA CLPNs 3 (82.1) (P<0.05). So the optimized lipid (DOTAP) to polymer (PLGA) ratio was 15% (CDDP/DNA CLPNs 3).

Characterization

The overall morphology of the CDDP/DNA CLPNs was a clear core-shell type spherical nanoparticle (Fig. 2A). The core-shell structure was clearly visible with a white core and the shell is grey. In comparison, the morphology of CDDP PNPs was white spherical particle without outer layer (Fig. 2B). The size scales in the images show that the size of CDDP/DNA CLPNs was slightly larger than 100 nm, while the diameter of CDDP PNPs was smaller than 100 nm.

Figure 2. TEM images of (A) CDDP/DNA CLPNs and (B) CDDP PNPs. TEM, transmission electron microscopy; CDDP, cisplatin; CLPNs, cationic lipid-polymer hybrid nanoparticles; PNPs, polymeric nanoparticles.

The size of CDDP/DNA CLPNs, CDDP CLPNs, blank CLPNs, CDDP PNPs, and blank PNPs was 137.6±3.3, 117.6±4.4, 118.3±3.8, 82.1±3.2 and 78.3±2.9 nm, respectively. The size of CDDP CLPNs and blank CLPNs, CDDP PNP and blank PNPs had no obvious difference (P>0.05). The size of CDDP CLPNs was larger than CDDP PNPs (P<0.05). The size of CDDP/DNA CLPNs was the largest.

The surface charge of CDDP/DNA CLPNs, CDDP CLPNs, and CDDP PNPs was +25.4±3.5, +39.8±3.3 and −28.9±3.2 mV. CDDP PNPs have negative ζ potential. In contrast, CLPNs have positive charges. The surface charge of CDDP/DNA CLPNs was lower than CDDP CLPNs.

The DE of CDDP/DNA CLPNs and DNA LIPO was 90.7±3.1 and 91.5±3.9%, respectively. The CE of CDDP/DNA CLPNs, CDDP CLPNs, and CDDP PNPs was 82.1±2.7, 85.3±2.8 and 83.6±2.4, respectively. These results illustrated that the loading capacity of CDDP and binding ability of DNA was outstanding for all the drug-loaded nanoparticles prepared in this study.

Fig. 3 illustrated the changes in size, drug and gene-loading efficiency of different particles in the presence of serum. The particle diameter, CE or DE had no significant variation up to 24 h. Due to these results, CDDP/DNA CLPNs, and CDDP PNPs were considered very stable after intravenous administration.

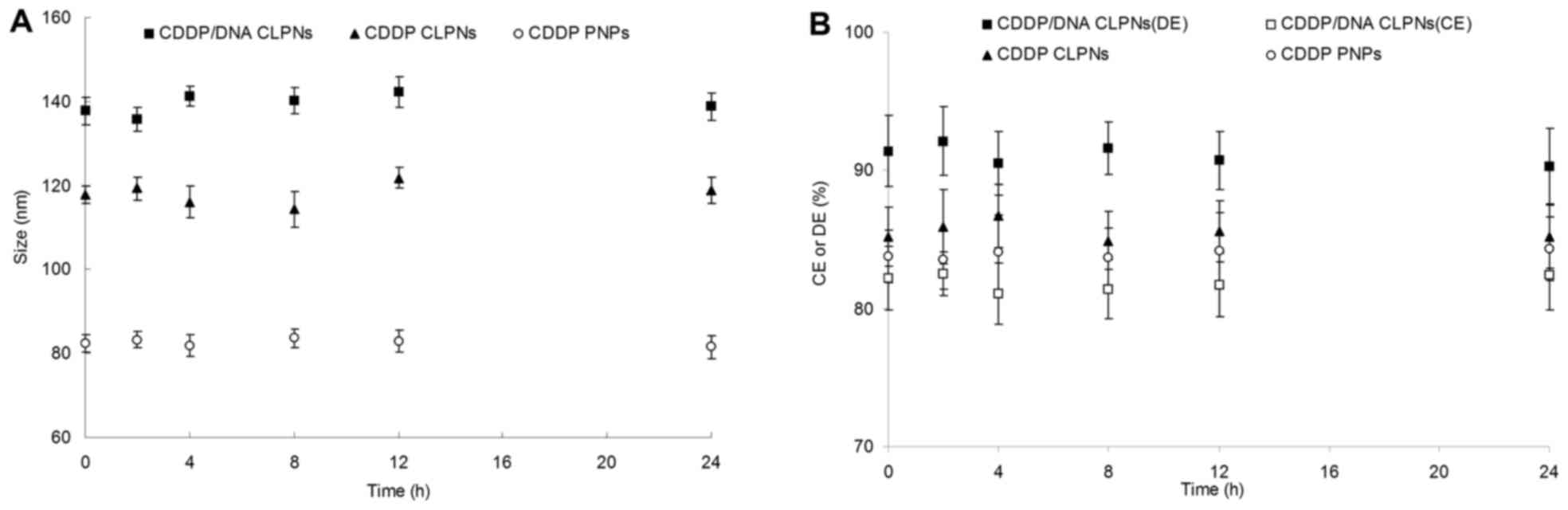

Figure 3. Changes in (A) size, (B) drug- and gene-loading efficiency of different particles in the presence of serum.

As shown in Fig. 4, treatment with various concentrations of CDDP-loaded particles for 48 h caused various viability reductions in RMS cell lines. IC50 of CDDP/DNA CLPNs (0.54±0.06 µM) and CDDP CLPNs (0.58±0.07 µM) showed no significant difference in RD-4 cells (Table II). The cytotoxicity of CDDP/DNA CLPNs was significantly higher (IC50 was 8 times dose advantage) than CDDP PNPs (4.12±0.36 µM). IC50 of CDDP solution was 20.36±3.85 µM.

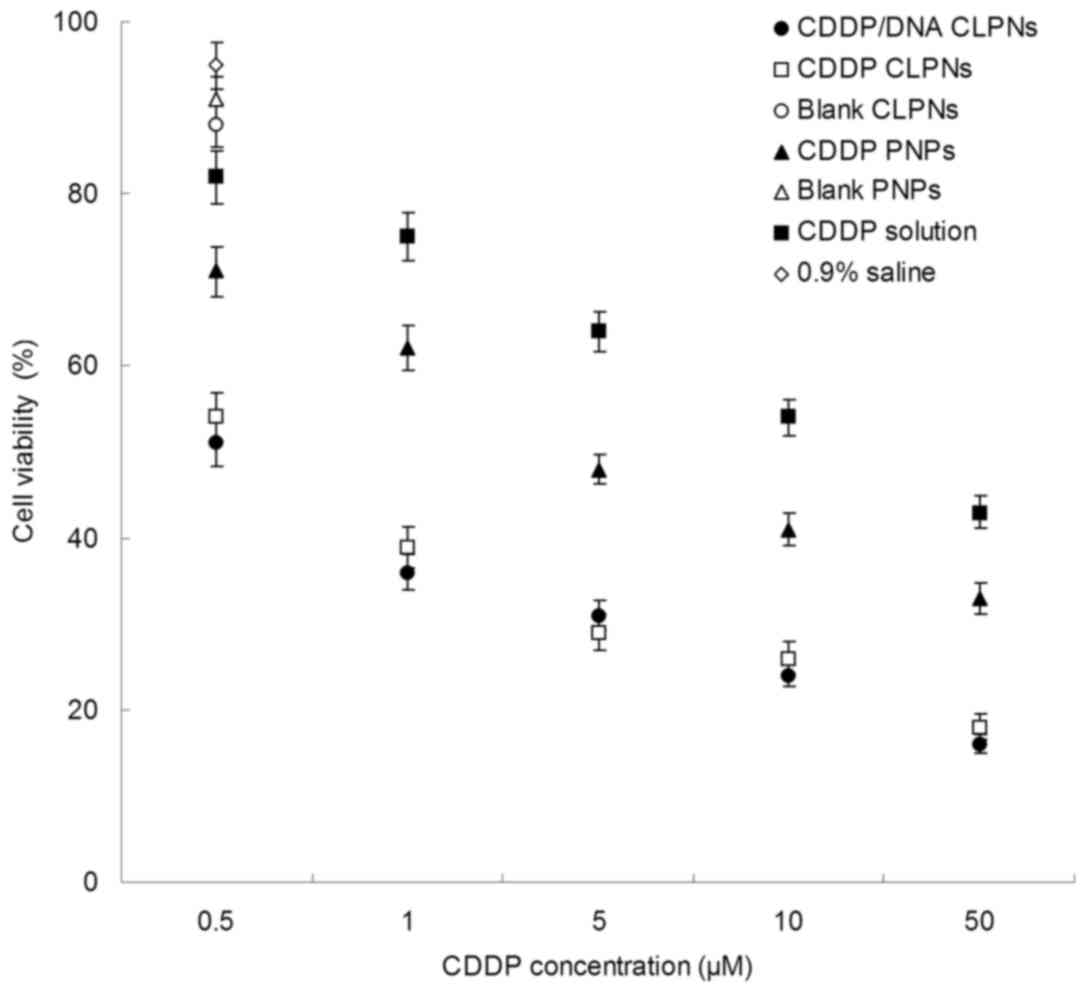

Figure 4. Cell viability of various concentrations of nanoparticles for 48 h in RMS cell lines. RMS, rhabdomyosarcoma.

Table II. IC50 values of samples.

Table II.

IC50 values of samples.

Samples	CDDP/DNA CLPNs	CDDP CLPNs	CDDP PNPs	CDDP solution
IC50 of CDDP (µM)	0.54±0.06	0.58±0.07	4.12±0.36	20.36±3.85

[i] CDDP, cisplatin; CLPNs, cationic lipid-polymer hybrid nanoparticles; PNPs, polymeric nanoparticles.

Fig. 5 exhibits the in vitro transfection efficacy of CDDP/DNA CLPNs and DNA LIPO evaluated on RD-4 cells. Gene transfection efficiency was measured by analyzing the expression of the EGFP by flow cytometry. When delivering genes into RD-4 cells for 24 h, CDDP/DNA CLPNs showed the same transfection efficiency as DNA LIPO (P>0.05). However, after 48-h post-transfection, the CDDP/DNA CLPNs was more efficient than the DNA LIPO (P<0.05). Naked DNA solution group got no obvious gene expression, indicating that DNA cannot successfully transfect the cancer cells without carriers. CDDP CLPN and blank CLPN groups showed no gene expression in RD-4 cells, ruling out the fluorescent cells caused by the CLPNs and CDDP.

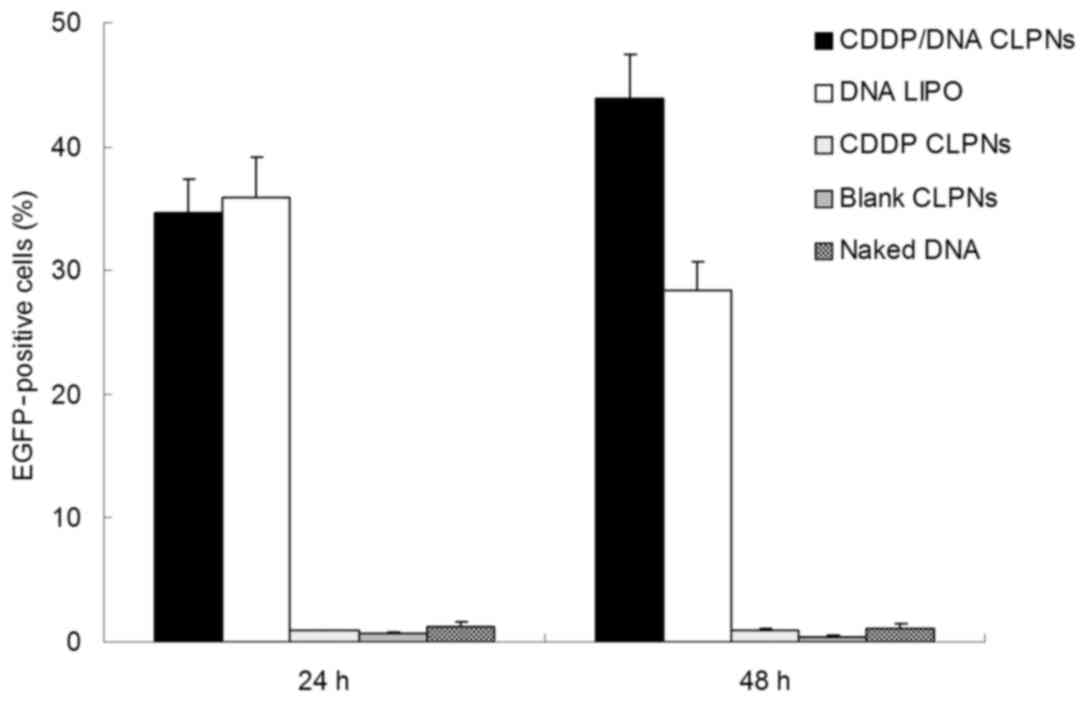

Figure 5. In vitro transfection efficacy of CDDP/DNA CLPNs and DNA LIPO evaluated on RD-4 cells. CDDP, cisplatin; CLPNs, cationic lipid-polymer hybrid nanoparticles; DNA LIPO, DNA-loaded Lipofectamine® 2000.

Fig. 6 shows the in vivo antitumor efficacy of CDDP/DNA CLPNs and other nanoparticles was investigated in RD-4 tumor-bearing BALB/c nude mouse models. CDDP/DNA CLPNs, CDDP CLPNs, CDDP PNPs and CDDP solutions showed significant tumor regression in tumor-bearing mice, with a reduction in tumor volume. Mice in the other three groups shared similar tumor-growth pattern. At 21 days of administration, the TW and TIR of tumor-bearing mice are given in Table III. CDDP/DNA CLPN and CDDP CLPN groups exhibited the highest TIR (90 and 91%), followed by CDDP PNPs (52%) and CDDP solution (25%).

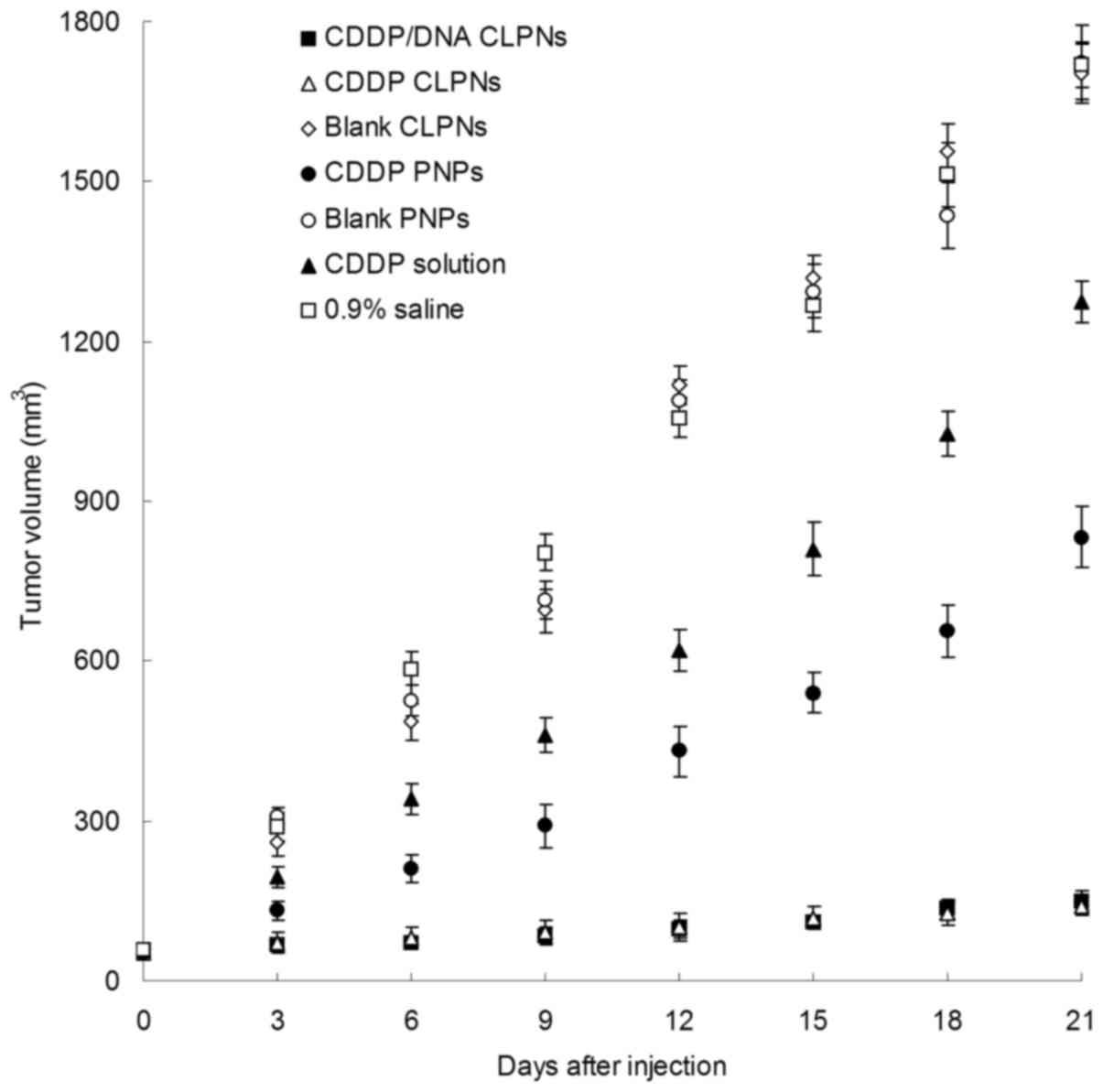

Figure 6. In vivo antitumor efficacy of CDDP/DNA CLPNs and other nanoparticles in RD-4 tumor-bearing BALB/c nude mouse models. CDDP, cisplatin; CLPNs, cationic lipid-polymer hybrid nanoparticles.

Table III. TW and TIR of samples.

Table III.

TW and TIR of samples.

Samples	CDDP/DNA CLPNs	CDDP CLPNs	CDDP PNPs	CDDP solution	0.9% Saline
TW (g)	0.12±0.02	0.11±0.02	0.61±0.09	0.95±0.12	1.26±0.23
TIR (%)	90	91	52	25	100

[i] TW, tumor weight; TIR, tumor inhibition rate; CDDP, cisplatin; CLPNs, cationic lipid-polymer hybrid nanoparticles; PNPs, polymeric nanoparticles.

Fig. 7 illustrates the images of the fluorescent cells after 48 h of administration. The highest transfection efficiency appeared in the pictures is CDDP/DNA CLPNs group. The image of DNA LIPO group came in the second place. The naked DNA solution group has slightly weaker fluorescence. Other groups do not have any fluorescence according to the images. The transfection efficiency of the fluorescent cells was quantified using a flow cytometry method (Fig. 8). Substantially higher transfection efficiency was observed in CDDP/DNA CLPNs than DNA LIPO group at both 24- and 48-h post-administration (P<0.05). One explanation may be that as an in vitro transfection vector, Lipofectamine® 2000 transfection reagent was not so stable and might have some toxicity in vivo. The highest in vivo gene transfection efficiency of CDDP/DNA CLPNs was detected after 48 h, showing the stability and controlled release of the CLPNs.

Figure 7. Images of the fluorescent cells for (A) 0.9% saline (control group), (B) naked DNA solution, (C) DNA LIPO, (D) blank CLPNs, (E) CDDP CLPNs, and (F) CDDP/DNA CLPNs in the evaluation of in vivo gene delivery (48 h after administration). DNA LIPO, DNA-loaded Lipofectamine® 2000; CLPNs, cationic lipid-polymer hybrid nanoparticles; CDDP, cisplatin.

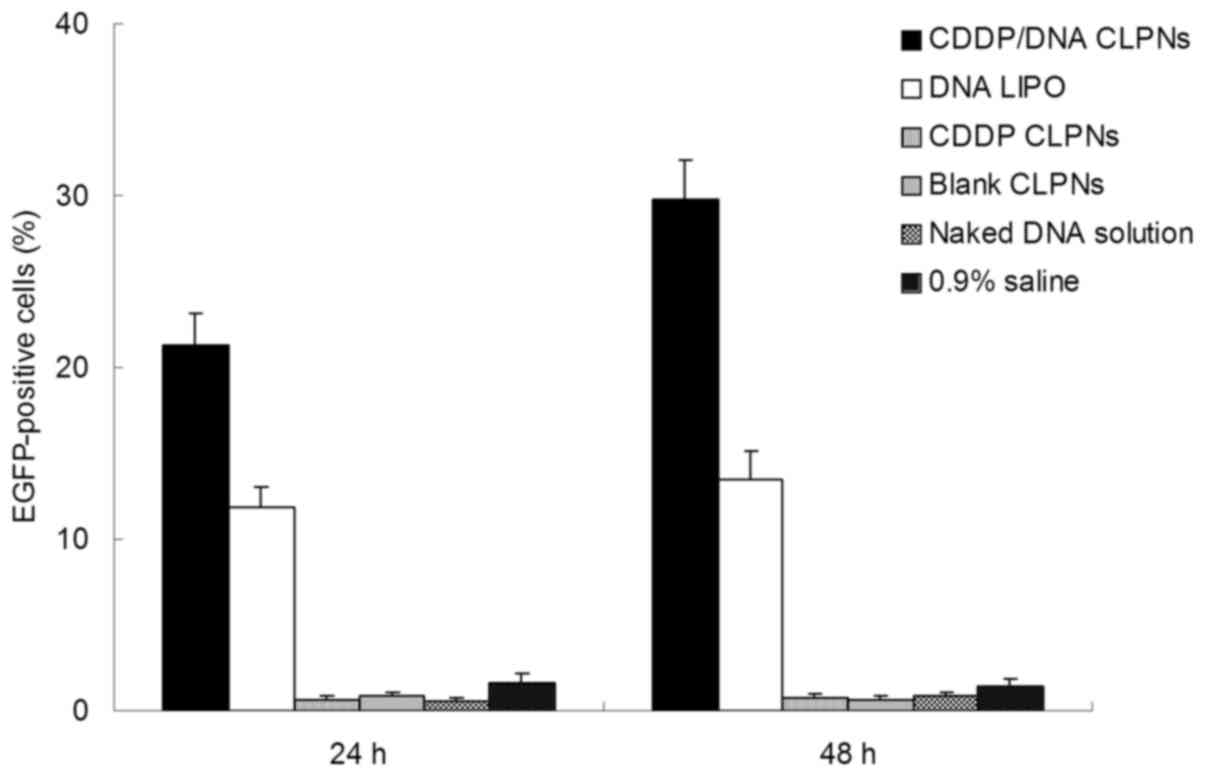

Figure 8. In vitro transfection efficacy of CDDP/DNA CLPNs and DNA LIPO evaluated in RD-4 tumor-bearing BALB/c nude mouse models. CDDP, cisplatin; CLPNs, cationic lipid-polymer hybrid nanoparticles; DNA LIPO, DNA-loaded Lipofectamine® 2000.

Discussion

The aim of the present study was to develop nanoparticles for co-delivery of CDDP and DNA. The influence of cationic lipid concentration on the characteristics of CLPNs was evaluated. In order to optimize cationic lipid (DOTAP) to polymer (PLGA) ratio, CDDP/DNA CLPNs with different concentrations of lipids were prepared using different ratios of cationic lipid to polymer: 5, 10, 15, 20 and 25%. The influence of the lipid to polymer ratio was determined in terms of particle size, polydispersity index, surface charge, DE and CE (Table I). It was observed that the particle diameters of CDDP/DNA CLPNs 1, CDDP/DNA CLPNs 2, CDDP/DNA CLPNs 3, CDDP/DNA CLPNs 4, and CDDP/DNA CLPNs 5 were 335.2, 243.1, 137.6, 133.6 and 141.2 nm, respectively. It was also found that there was a decrease in particle size as the lipid concentrations increased. The concentration of cationic lipids could play a significant role in controlling the size of CDDP/DNA CLPNs, possibly reducing the coalescence of particles (32). The polydispersity index of CDDP/DNA CLPNs 1 (0.67) and CDDP/DNA CLPNs 2 (0.36) was significantly higher than other formulations, suggesting that the ratios of 5 and 10% were not suitable. The obviously lower DE and CE of CDDP/DNA CLPNs 1 and CDDP/DNA CLPNs 2 also confirmed this conclusion. The CE of CDDP/DNA CLPNs 4 (62.5) and CDDP/DNA CLPNs 5 (51.6) were significantly lower than CDDP/DNA CLPNs 3 (82.1) (P<0.05). So the optimized lipid (DOTAP) to polymer (PLGA) ratio was 15%.

The core-shell structure of CDDP/DNA CLPNs was clearly visible with a white core and the shell is grey (Fig. 2). In comparison, the morphology of CDDP PNPs was white spherical particles without outer layer. The TEM image illustrates the self-assembly process of the lipid-polymer core-shell structure by forming a lipid layer on the surface of the inner polymer core (33,34). The size scales in the images show that the size of CDDP/DNA CLPNs was slightly larger than 100 nm, while the diameter of CDDP PNPs was smaller than 100 nm.

The size of CDDP CLPNs and blank CLPNs, CDDP PNP and blank PNPs had no obvious difference (P>0.05). This means that the loading of CDDP did not change the size of the particles. The size of CDDP CLPNs was larger than CDDP PNPs (P<0.05). This could be explained by the lipid shell on the polymer core enlarged the size of the particles. The size of CDDP/DNA CLPNs was the largest; indicating that the DNA could attribute to the increase of the particle diameter. Surface charge is an important indication of the stability of a colloidal system in a particular medium (35). The surface charge of CDDP/DNA CLPNs, CDDP CLPNs, and CDDP PNPs was +25.4±3.5, +39.8±3.3 and −28.9±3.2 mV. For CDDP PNPs, negatively charged PLGA gave the PNPs negative ζ potential. In contrast, inclusion of cationic lipids changed the surface charges of the particles; CLPNs have positive charges. The surface charge of CDDP/DNA CLPNs was lower than CDDP CLPNs, suggesting that the combination of anionic DNA decreased the charge of the CLPNs. The DE of CDDP/DNA CLPNs and DNA LIPO was ~90%. The CE of CDDP/DNA CLPNs, CDDP CLPNs, and CDDP PNPs was >80%. These results illustrated that the loading capacity of CDDP and binding ability of DNA was outstanding for all the drug-loaded nanoparticles prepared in this study.

The plasma stability of the CDDP/DNA CLPNs and other nanoparticles was determined in the presence of plasma. The particle diameter, CE or DE had no significant variation up to 24 h (Fig. 3). This stability would be advantageous when the complexes are administered in vivo. One of the major concerns for cationic non-viral vectors is the disassociation of DNA from the vectors due to electrostatic interaction between the vectors and the plasma composition such as proteins (29). The dissociated DNA would be quickly degraded by enzymolysis. Thus, the stability of the cationic non-viral vectors in human plasma is one of the most essential properties. Also the stability in the plasma is required for the drug-loaded nanoparticles. These would increase the stability of the loaded drug and DNA during the circulation after intravenous administration and enhance the targeting proportion of the vector to the target organ, and thus would be favorable to improve the therapeutic effects.

In vitro cytotoxicity of CDDP/DNA CLPNs was evaluated against RD-4 cells, and was compared with the cytotoxicity induced by free-CDDP solution, blank nanoparticles, and 0.9% saline solution. As showed in Fig. 4, treatment with various concentrations of CDDP-loaded particles for 48 h caused various viability reductions in RMS cell lines. IC50 of CDDP/DNA CLPNs (0.54±0.06 µM) and CDDP CLPNs (0.58±0.07 µM) showed no significant difference in RD-4 cells, indicating that DNA does not affect the ability of the CDDP loaded in the CLPNs (Table I) (P>0.05). The cytotoxicity of CDDP/DNA CLPNs was significantly higher (IC50 was 8 times dose advantage) than CDDP PNPs (4.12±0.36 µM). This result may suggest that the in vitro tumor cell inhibition of drug-loaded CLPNs was more efficient than drug-loaded PNPs (P<0.05). IC50 of CDDP solution was 20.36±3.85 µM. These results indicate that CDDP/DNA CLPNs exhibited superior cytotoxicity to RD-4 cells as evidenced by its significantly decreased CDDP IC50 values.

In vitro transfection efficacy of CDDP/DNA CLPNs and DNA LIPO was evaluated on RD-4 cells, using CDDP CLPNs and blank CLPNs as control. Gene transfection efficiency was measured by analyzing the expression of the EGFP by flow cytometry. When delivering genes into RD-4 cells for 24 h, CDDP/DNA CLPNs showed the same transfection efficiency as DNA LIPO (P>0.05). However, after 48-h post-transfection, the CDDP/DNA CLPNs were more efficient than the DNA LIPO (P<0.05). This could be explained by the polymer core and the lipid shell controlling the release of the DNA thus gaing the long-lasting efficiency (36). Naked DNA solution group had no obvious gene expression; indicating that DNA cannot successfully transfect the cancer cells without carriers. CDDP CLPNs and blank CLPN groups showed no gene expression in RD-4 cells, ruling out the fluorescent cells caused by the CLPNs and CDDP. The results illustrated that CLPNs are able to condense DNA efficiently, deliver DNA into the cells by ionic interactions with the cell membrane and release DNA into the cytoplasm from endocytic vesicles (37). Better transfection efficiency than commercial Lipofectamine 2000 and DNA complex indicates that the CLPNs can be a good transfection reagent (38).

In vivo antitumor efficacy of CDDP/DNA CLPNs and other nanoparticles was investigated in RD-4 tumor-bearing BALB/c nude mouse models (Fig. 5). CDDP/DNA CLPNs, CDDP CLPNs, CDDP PNPs and CDDP solution showed significant tumor regression in tumor-bearing mice, with a reduction of tumor volume. Mice in the other three groups shared similar tumor-growth pattern, suggesting that blank carriers were not capable of inhibiting tumor growth (19). At 21 days of administration, the TW and TIR of tumor-bearing mice are shown in Table III. CDDP/DNA CLPN and CDDP CLPN groups exhibited the highest TIR (90 and 91%), followed by CDDP PNPs (52%) and CDDP solution (25%). Fig. 7 illustrates the images of the fluorescent cells. The highest transfection efficiency appearing in the images is in CDDP/DNA CLPN group. The image of DNA LIPO group comes in the second place. The naked DNA solution group has slightly weaker fluorescence. Other groups have no fluorescence according to the images. The transfection efficiency of the fluorescent cells was quantified using a flow cytometry method (Fig. 8). Significantly higher transfection efficiency was observed in CDDP/DNA CLPNs than DNA LIPO group at both 24- and 48-h post-administration (P<0.05). One explanation may be that as an in vitro transfection vector, Lipofectamine® 2000 Transfection Reagent was not so stable and might have some toxicity in vivo. The highest in vivo gene transfection efficiency of CDDP/DNA CLPNs was detected after 48 h, showing the stability and controlled release of the CLPNs. These results could be explained as the lipid shell of CLPNs has high affinity to the lipid-structured cell surface, the cationic surface charge could absorb onto the negatively charged cell surface, promote the fusion of the nanocarriers to the cell membrane and deliver more drug and gene into the tumor cells (39). The structure of CLPNs may delay the drug/gene release more than other vectors, bring about the long-lasting drug/gene delivery effect in tumor tissues (40). Outstanding delivery ability of CLPNs for both CDDP and DNA could combine the therapeutic efficiency of both drug and gene for the treatment of pediatric RMS.

In the present study, we described a simple and efficient method for the fabrication of CLPNs for co-delivery of CDDP and DNA for the therapy of childhood head and neck cancers. The results illustrated that the concentration of the cationic lipid has influence on the characteristics of CLPNs. In vitro anticancer effect, in vitro transfection efficiency, in vivo antitumor and gene delivery efficacy of CDDP/DNA CLPNs have advantages over other formulations tested. Excellent ability of CLPNs for co-delivery of CDDP and DNA could combine the therapeutic efficiency of both drug and gene for the treatment of pediatric RMS.
