Chemotherapy enhances programmed cell death 1/ligand 1 expression via TGF-β induced epithelial mesenchymal transition in non-small cell lung cancer

  • Authors:
    • Soichiro Funaki
    • Yasushi Shintani
    • Tomohiro Kawamura
    • Ryu Kanzaki
    • Masato Minami
    • Meinoshin Okumura
  • View Affiliations

  • Published online on: August 9, 2017     https://doi.org/10.3892/or.2017.5894
  • Pages: 2277-2284
Metrics: Total Views: 0 (Spandidos Publications: | PMC Statistics: )
Total PDF Downloads: 0 (Spandidos Publications: | PMC Statistics: )


Abstract

In cancer immunology, the programmed cell death 1-programmed cell death 1/ligand 1 (PD-1/PD-L1) pathway plays a major role. Anti-PD-1 and anti-PD-L1 antibodies provide reliable immunotherapy when given as treatment for various types of malignancy including lung cancer. PD-L1 expression in cancer cells has been reported to be a predictive factor for the therapeutic effects of immunotherapy. However, the mechanism of PD-L1 expression remains unclear. Another key process in cancer progression is epithelial-mesenchymal transition (EMT). In the present study, we investigated the mechanism of PD-L1 expression as well as changes in its expression during the EMT process in non-small cell lung cancer (NSCLC). In this study, A549 cells underwent EMT by treatment with TGF-β or chemotherapeutic agents and then PD-L1 expression was evaluated. The alterations of PD-L1 expression was also examined during the reverse EMT process; mesenchymal-epithelial transition (MET). The relationship between for PD-L1 expression and EMT status in clinical specimens with NSCLC after induction chemotherapy were analyzed by immunohistochemical staining. We found that PD-L1 expression was upregulated following TGF-β induction; in contrast, it was downregulated by TGF-β receptor-kinase inhibitors and the MET process. Furthermore, chemo-treatment increased TGF-β expression and enhances PD-L1 expression via autocrine TGF-β induced EMT. Analysis of clinical samples revealed a significant relationship between PD-L1 expression and EMT status (P<0.05). In conclusion, our results suggest that PD-L1 expression is regulated by TGF-β induced EMT and enhanced by chemo-treatment via the chemo-induced TGF-β signaling. The anti-PD-1/PD-L1 blockade may provide more effective anticancer activities in combination with chemotherapy in NSCLC.

Introduction

Non-small cell lung cancer (NSCLC) is a leading cause of cancer-related death in most of the industrial countries. Chemotherapy, radiation therapy and surgery are the main therapeutic options. Despite these therapies, the prognosis for NSCLC has not improved as expected, and the mortality rate remains high. Therefore, additional therapeutic options are needed.

Recently, cancer immunotherapy has been developed and shown promising results against some malignancies in clinical trials (14). One of immuno-check-point proteins, the programmed cell death 1/programmed cell death 1/ligand 1 (PD-1/PD-L1) pathway has attract attention as playing a main role in cancer immunology (5). PD-1 (also known as CD279) is a receptor expressed on immune cells, and when combined with its ligand, PD-L1 (also known as CD274) expressed on cancer cells, induces the immunosuppression of cancer cells and blocks the attack by host immunity (5). Anti-PD-1/PD-L1 immunotherapies have recently been developed and has shown promising results against several malignancies (14). The expression of PD-L1 in cancer cells reportedly is a useful predictive factor for the therapeutic effect of anti-PD-1 or anti-PD-L1 antibody immunotherapies (6).

However, the mechanism of PD-L1 expression in cancer cells remains unclear. In addition, immunotherapy has other problems to be solved (e.g. the selection of suitable patients and the timing of administration of the immunotherapy). Elucidation of the mechanism of PD-L1 expression may provide useful information to solve those problems.

Epithelial-mesenchymal transition (EMT) is a key process in cancer progression and is induced by several factors, including transforming growth factor (TGF-β). We previously showed that chemo-treatment increased TGF-β expression in human adenocarcinoma cell lines, and this autocrine TGF-β lead to higher malignant characteristics of cancer cells via EMT process (7,8). We also revealed the clinical significance of the EMT in NSCLC after induction chemotherapy (7,8). In the present study, we explored the mechanism by which TGF-β controls PD-L1 expression and elucidated the clinical relationships between the PD-L1 expression and EMT status in NSCLC after induction chemotherapy.

Materials and methods

Cell culture, reagents and antibodies

The human lung adenocarcinoma cell lines A549 and NCI-H358 were purchased from the American Type Culture Collection (ATCC; Manassas, VA, USA) and maintained in RPMI-1640 medium with 10% fetal bovine serum (FBS) and streptomycin and penicillin. Carboplatin was purchased from Sigma-Aldrich (St. Louis, MO, USA; cat, no. C2538) and TGF-β1 was from R&D Systems (Minneapolis, MN, USA; cat. no. 240-B). SB 431542, a specific and selective inhibitor of TGF-β1 receptor kinase inhibitor, was purchased from Tocris Bioscience (St. Louis, MO, USA; cat. no. 1614).

Reversion assay [mesenchymal-epithelial transition assay (MET)]

To determine whether there is a causal relationship between PD-L1 expression EMT, reversion assay was performed. We analyzed the gene expression of PD-L1 and N-cadherin in A549 cells under MET (EMT reverse process). First, we induced EMT in the cells by using culture medium including TGF-β1 (1 ng/ml) for 3 days, and then we promoted MET by changing to culture medium without TGF-β1.

Immunohistochemical staining analysis of EMT status and PD-L1 expression in clinical samples

IHC staining was performed as follows. Formalin-fixed paraffin-embedded tissue sections of non-small cell lung cancer from patients who underwent surgical resection after induction chemotherapy were deparaffinized and rehydrated. For antigen retrieval, the sections were brought to boil in 1 mM EDTA pH 8.0 and then maintained for 15 min at a sub-boiling temperature. EMT status was evaluated according to N-cadherin, E cadherin and TGF-β1 staining intensities. The evaluation of EMT status and PD-L1 were based on a previous study (9). In brief, the stained specimens were scored in a semi-quantitative manner (H score): the staining percentages (0–100%) and the intensity 0 (no staining), +1 (weak staining), +2 (distinct staining), +3 (very strong staining) H score was calculated by multiplying the percentage by the intensity. In addition, H score was classified as 0 (score <10), +1 (≥10 or <30), or +2 (≥30 or <70), +3 (>70). We defined a positive change in EMT status as either or both H score classifications decrease in staining for E-cadherin and increase in the staining for N-cadherin, respectively, between the biopsy samples before induction chemotherapy and the surgical samples after induction chemotherapy (CT). The PD-L1 immunohistochemistry was evaluated based on the method described by Koh et al (9). Briefly, the intensity and proportion of membranous and/or cytoplasmic staining in tumor cells were scored as follows: 0, negative; 1, weak or moderate in <10% of tumor cells; 2, moderate in ≥10% of tumor cells; 3, strong (more intense than alveolar macrophages for PD-L1) in ≥10% of tumor cells. Cases with scores of 2 or 3 were deemed positive for PD-L1 expression. The antibody used for immunohistochemistry (IHC) were as follows: monoclonal mouse anti-human N-cadherin (6G11/M3613,1/50; Dako, Glostrup, Denmark), monoclonal mouse anti-human E-cadherin (NCH-38/M3612; Dako), polyclonal rabbit anti-human TGF-β1 (ab66043; Abcam, Cambridge, UK) and polyclonal rabbit anti-human PD-L1 (EIL3N/13684, 1/200; Cell Signaling Technology, Inc., Danvers, MA, USA).

Reverse transcription polymerase chain reaction (RT-PCR)

Total RNA was isolated from cell lines by using an RNeasy Mini kit (Qiagen, Tokyo, Japan). Real-time RT-PCR was conducted with a TaqMan assay; the relative expression levels were calculated by the comparative Ct method. The TaqMan gene assays (Applied Biosystems, Carlsbad, CA, USA) for GAPDH (Hs02758991_g1), E-cadherin (Hs01023894_m1), N-cadherin (Hs00983056_m1), PD-L1 (Hs01125301_m1) and TGF-β (Hs00998133_m1) were used. All experiments were performed in triplicate and the results are presented as means ± SD. The significance of differences between the untreated cells and the treated cells was tested with the Mann-Whitney U test.

Western blot analysis

Monolayers of cultured cells were treated with TGF-β or carboplatin, and the proteins were extracted with RIPA buffer (Cell Signaling Technology; cat. no. 9806). Cell extracts were separated with sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and immunoblotted as previously described (10,11). Western blotting after extraction of membrane proteins was performed by using a Cell Surface Protein Isolation kit (P74008; Takara Bio, Tokyo, Japan). The following antibodies were used for detection: mouse anti-human E-cadherin (monoclonal, M106, 2 µg/ml; Takara), mouse anti-human N-cadherin (monoclonal, sc-59987; Santa Cruz Biotechnology, Santa Cruz, CA, USA), rabbit anti-human GAPDH (monoclonal, G9545; Sigma-Aldrich) and rabbit anti-human TGF-β (polyclonal ab66043; Abcam).

Study population

Twenty-eight patients underwent induction chemotherapy and pulmonary resection between 1996 and 2010 at the Osaka University Hospital. Osaka University Hospital Review Board approved this retrospective study, and written informed consent for this retrospective study and surgery was obtained from each patient. Each patient received two cycles of cisplatin- or carboplatin-based chemotherapy every 4 weeks in one of three regimens: cisplatin at 80 mg/m2 on day 1 and vindesine at 3 mg/m2 on days 1 and 8, with or without mitomycin at 8 mg/m2 on day 1 (PV(M) regimen), cisplatin at 80 mg/m2 on day 1 and vinorelbine at 20 mg/m2 on days 1 and 8 (nPV regimen), or cisplatin at 80 mg/m2 on day 1 and docetaxel at 60 mg/m2 on day 1 (DP regimen) (Table I). A surgical resection was performed 6–8 weeks after induction chemotherapy.

Table I.

Patients characteristics.

Table I.

Patients characteristics.

VariablesN
Age (mean years)63.1
Sex
  Male22
  Female  6
Clinical stage
  II  3
  III25
Pathological stage
  I  9
  II  6
  III13
Histopathology
  Adenocarcinoma14
  Squamous cell carcinoma12
  Others  2
Chemotherapy
  1st
    CDDP13
    CBDCA15
2nd
    ETP  1
    PTX10
    TXT  9
    VDS  6
    VNR  2
Surgical procedure
  Lobectomy23
  Pneumonectomy  2
  Bi-lobectomy  3

[i] CDDP, cisplatin; CBDCA, carboplatin; ETP, etoposide; PTX, paclitaxel; TXT, docetaxel; VDS, vindesine; VNR, vinorelbine.

Statistical design and data analysis

A χ2 test, Mann-Whitney U test, or repeated-measures analysis of variance were used to compare the RT-PCR results. The correlations between PD-L1 IHC status and EMT markers were analyzed by the Pearson's Chi-squared test. Disease-free survival (DFS) and overall survival (OS) were analyzed by using the Kaplan-Meier method, and the log-rank test was used to compare the survival distributions of subgroups. All statistical analyses were performed by using the JMP version 11 for Windows (SAS Institute, Inc., Cary, NC, USA). P<0.05 is considered to be statistically significant.

Results

PD-L1 is enhanced in TGF-β induced EMT and decreased in MET induced by removal of TGF-β stimulation

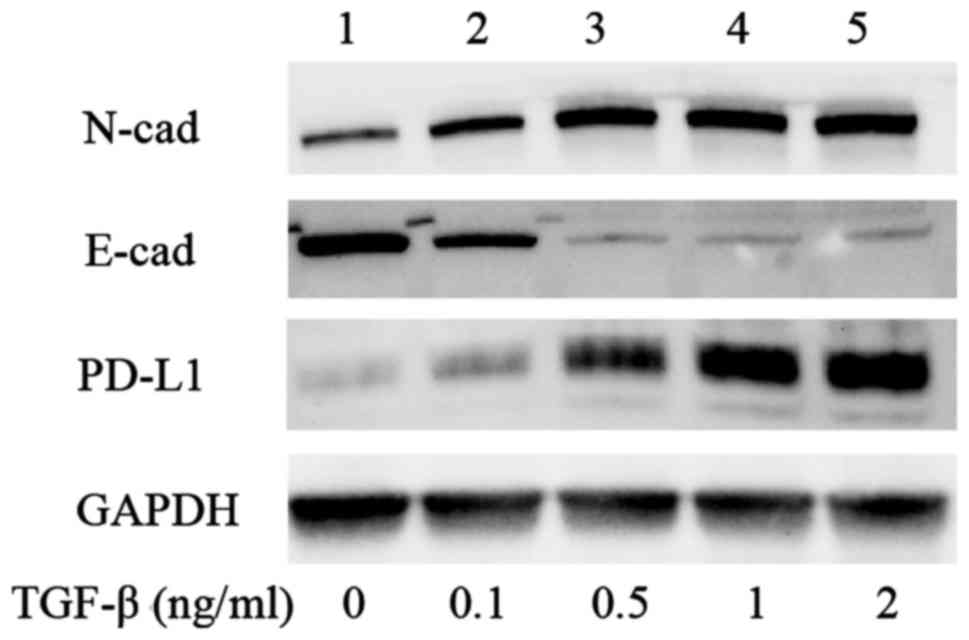

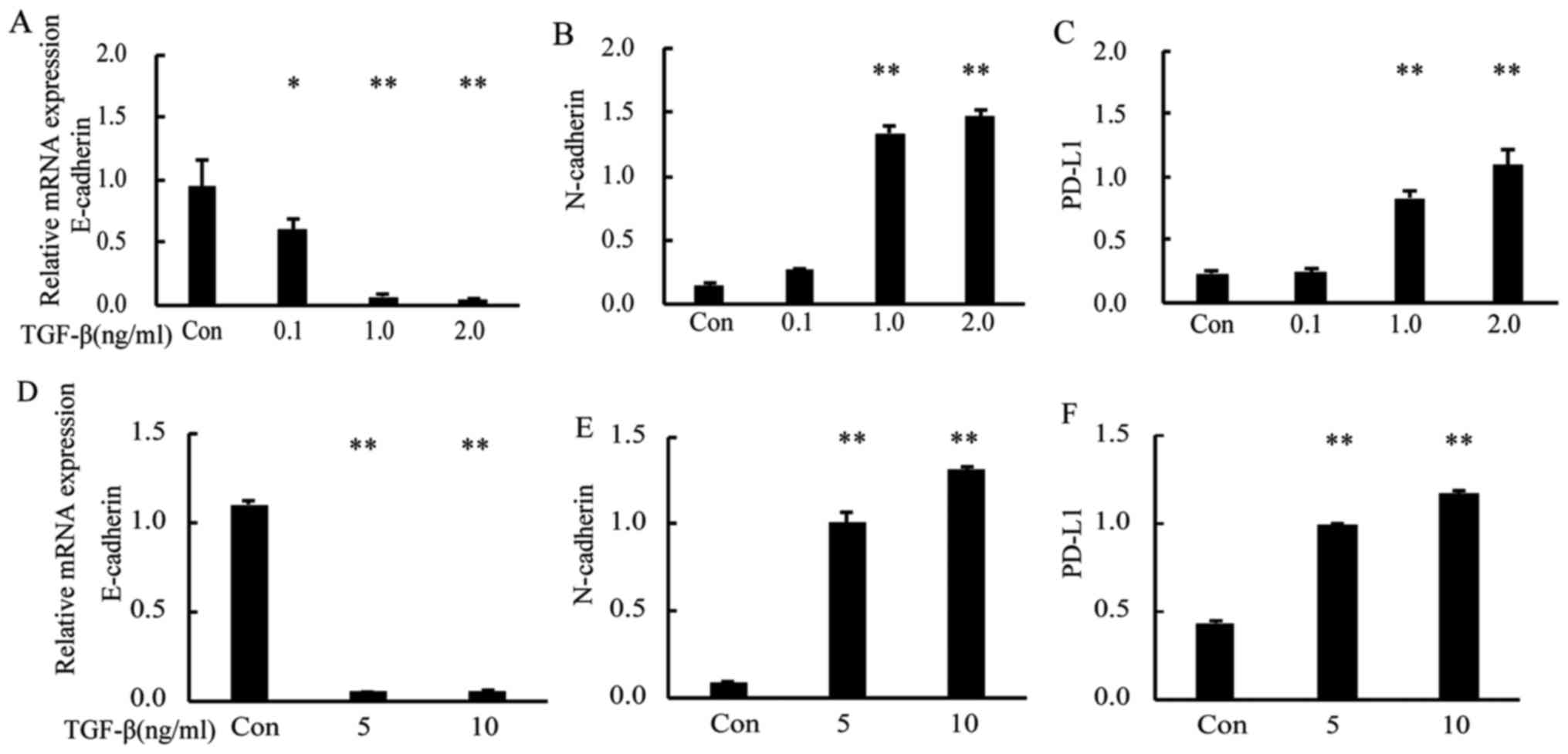

To examine the relationship between PD-L1 and EMT status, we induced EMT in A549 and NCI-H358 cells by using TGF-β1 at 0.1–2 ng/m. RT-PCR analysis showed that, after TGF-β1 treatment, the gene expression of E-cadherin (as the epithelial marker) was downregulated compared with that in control cells, whereas that of N-cadherin (as the mesenchymal marker) and PD-L1 were upregulated in a dose-dependent manner (Fig. 1A-C; P<0.05 and P<0.01 vs. Con). We also analyzed the PD-L1 gene expression in the human Caucasian bronchioalveolar carcinoma cell line H358 and obtained similar results (Fig. 1D-F; P<0.01 vs. Con). Western blot analysis of A549 with TGF-β1 revealed that equivalent differences were observed at the protein level (Fig. 2). Immunofluorescence analysis showed that the expression levels of PD-L1 and N-cadherin were enhanced by TGF-β treatment and those on the cell surface became co-localized (Fig. 3).

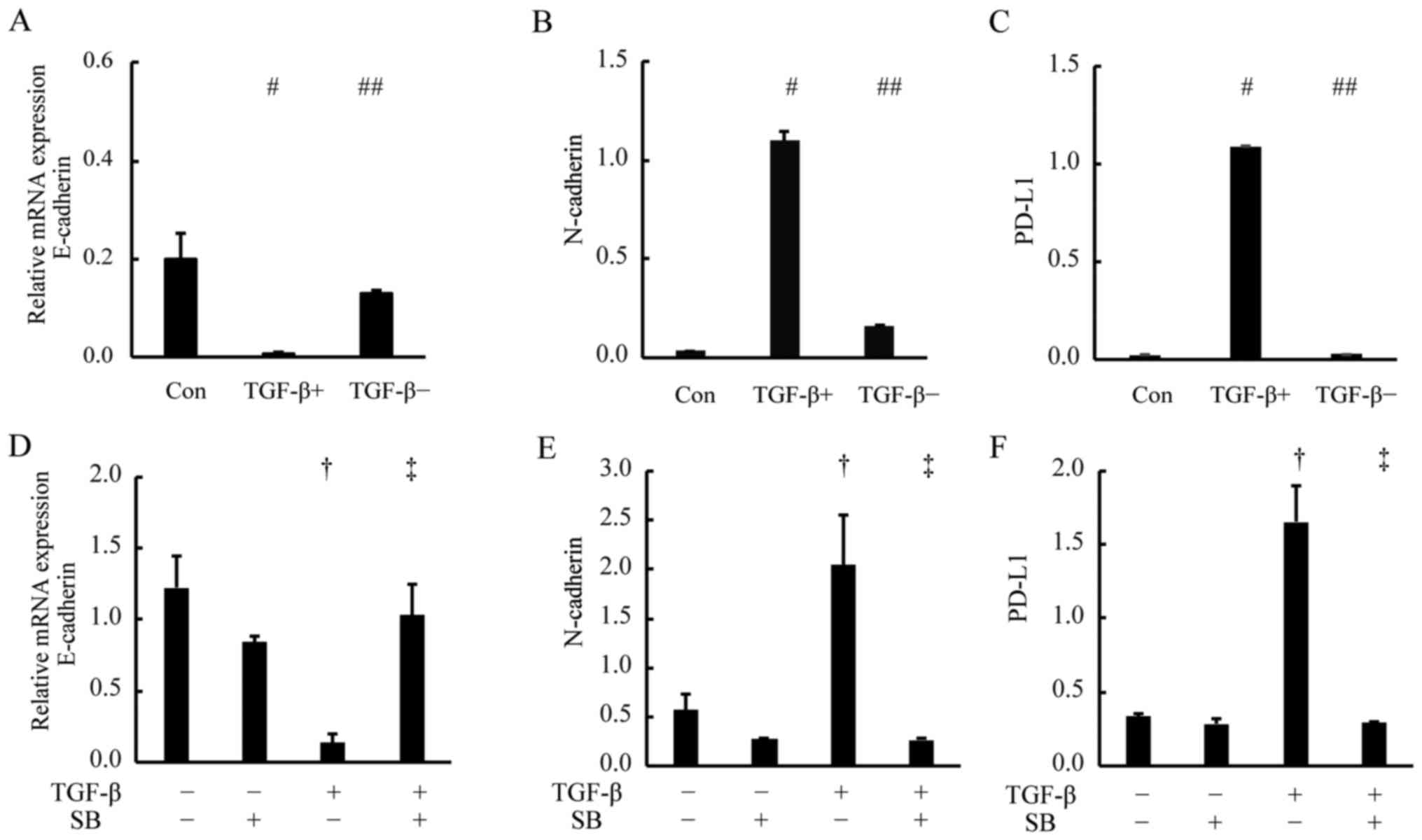

To determine whether there is a causal relationship between the PD-L1 expression and TGF-β induced EMT, reversion assay was performed. We used RT-PCR assays to analyze the gene expression of PD-L1, E-cadherin and N-cadherin in the cells under EMT and MET (Fig. 4A-C). The gene expression levels of PD-L1, E-cadherin and N-cadherin changed with significant difference as compared with the pre-treatment levels (Con; control) (P<0.01 vs. Con) and reverted to pre-treatment (TGF-β) levels after the change to culture medium without TGF-β (##P<0.01 vs. TGF-β+). These results suggest that the PD-L1 expression is regulated by the TGF-β signaling and changes in parallel with the EMT status.

TGF-β inhibitors block the expression of PD-L1

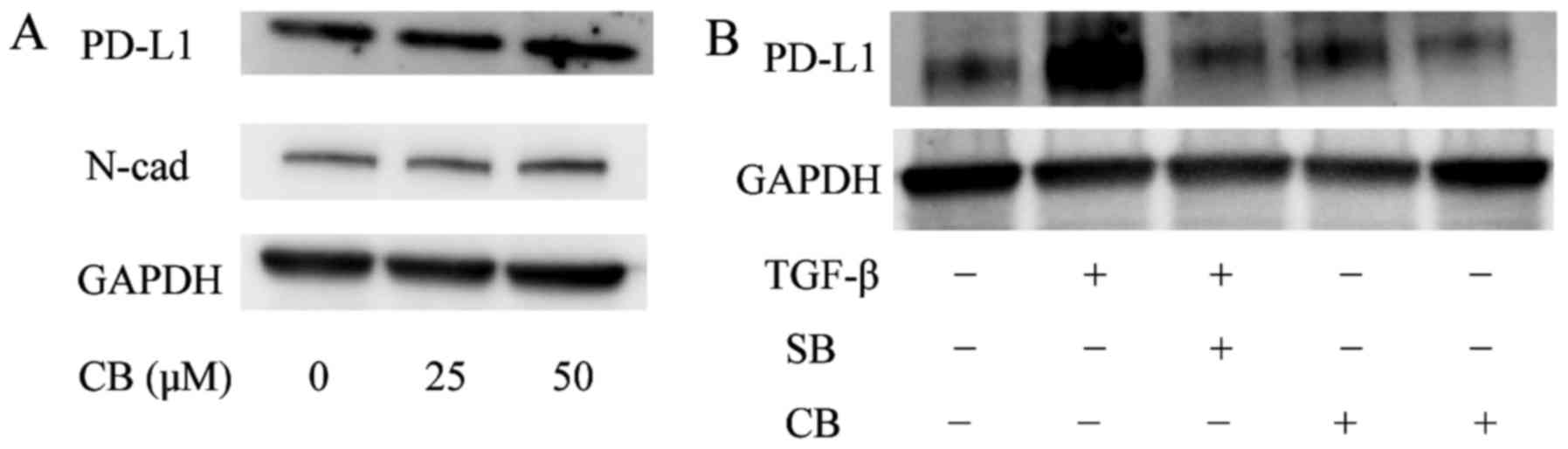

Next, to examine whether the PD-L1 expression was regulated through the TGF-β signal pathway, we treated A549 cells for 2 days with medium alone (Fig. 4D-F, Con; TGF-β/SB), the TGF-β1 receptor kinase inhibitor; SB 431542 (Fig. 4D-F, TGF-β/SB+), or TGF-β1 plus SB 431542(Fig. 4D-F, TGF-β+/SB+). Next, we examined PD-L1, E-cadherin and N-cadherin expression by RT-PCR and western blot analysis. The RT-PCR results showed that the upregulation of PD-L1 and N-cadherin mRNA expression after TGF-β1 treatment was suppressed by SB 431542 (Fig. 4D-F; P<0.01 vs. TGF-β/SB, P<0.01 vs. TGF-β+/SB) and the western blot analysis demonstrated that the PD-L1 protein level was suppressed by SB 431542 (Fig. 5, lane 2 vs. 3). Taken together, these results suggest that the PD-L1 expression is regulated through the TGF-β signal pathway.

PD-L1 expression was enhanced by chemo-induced TGF-β pathway

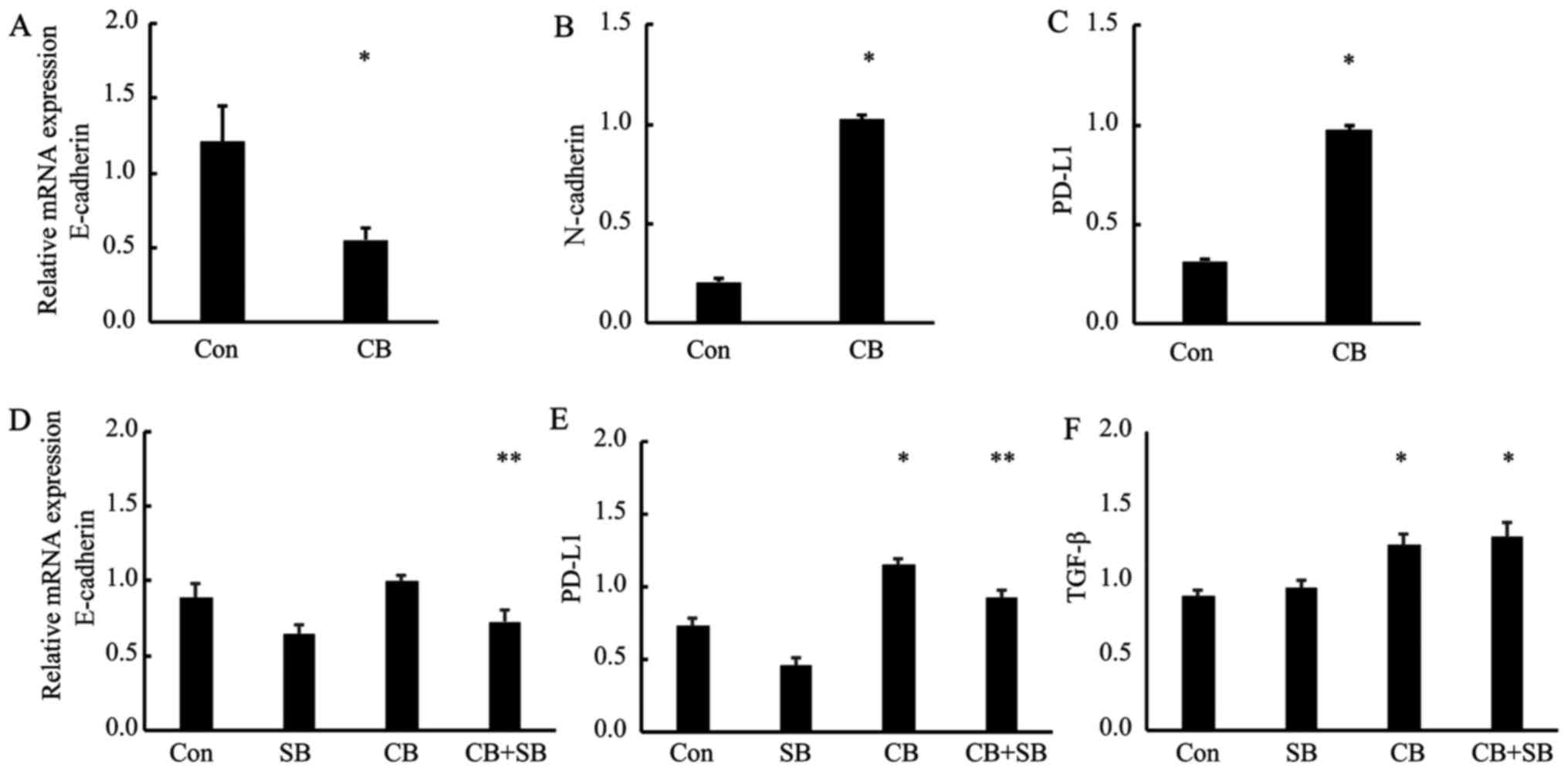

We previously reported that chemo-treatment increased the expression of TGF-β and the autocrine TGF-β induced EMT in A549 cells (12,13). In this study, we hypothesized that chemo-treatment enhanced PD-L1 expression through the TGF-β pathway. We evaluated the TGF-β, EMT markers and PD-L1 mRNA and protein expression in the A549 cells treated with carboplatin (25 µM) for 4 days. The RT-PCR results indicated that, for E-cadherin, N-cadherin and PD-L1, the expression patterns of the control versus treatment subline (Fig. 6A-C) were similar to those for control vs. TGF-β treatment (P<0.05; vs. Con). Next, to examine whether PD-L1 upregulation under chemo-treatment was via TGF-β pathway, we examined PD-L1 expression of the cells after treatment with carboplatin alone (CB) and carboplatin plus SB 43152 (CB+SB), by RT-PCR and western blot analysis. Fig. 6E showed the results of RT-PCR that PD-L1 gene expression after chemo-treatment (CB) increased significantly as compared with no-treated cell lines (Con). In contrast, the upregulation of the mRNA levels of PD-L1 and N-cadherin was attenuated by SB 431542 (CB+SB) (Fig. 6D-E, P<0.05 vs. Con, P<0.01 vs. CB). While, TGF-β mRNA expression was upregulated by carboplatin as previously described (12) (Fig. 6F; P<0.05 vs. Con); however, TGF-β upregulation with carboplatin treatment was not attenuated by SB 431542. Fig. 6F shows that there was no significant difference in TGF-β mRNA levels between carboplatin alone (CB) and carboplatin plus SB 431542 treatment (CB+SB). Moreover, in western blot analysis, the expression of PD-L1 was upregulated by chemo-treatment in a dose-dependent manner (Fig. 7A), and this upregulation was abolished by SB 431542 (Fig. 7B; lane 4 vs. 5). These results suggest that the PD-L1 gene expression is upregulated through the chemo-induced TGF-β pathway.

High expression of PD-L1 in non-small cell lung cancer cases after induction chemotherapy

To elucidate the relationship between PD-L1 and EMT status in clinical samples of NSCLC, we performed IHC staining of clinical specimens obtained from samples resected from 28 patients with NSCLC after induction chemotherapy.

The patient characteristics are listed in Table I. IHC staining was used to analyze the expression of EMT markers, TGF-β and PD-L1. Fig. 8A shows the representative images of low expression of PD-L1 and Fig. 8B shows those of high expression of PD-L1. Fig. 8C-E shows the representative images of E-cadherin, N-cadherin and TGF-β positive IHC. A total of 28 patients with NSCLC underwent induction chemotherapy followed by complete surgical resection. All cases underwent carboplatin or cisplatin-based doublet chemotherapy. The patients comprised 22 men and 6 women with a mean age of 63.1.

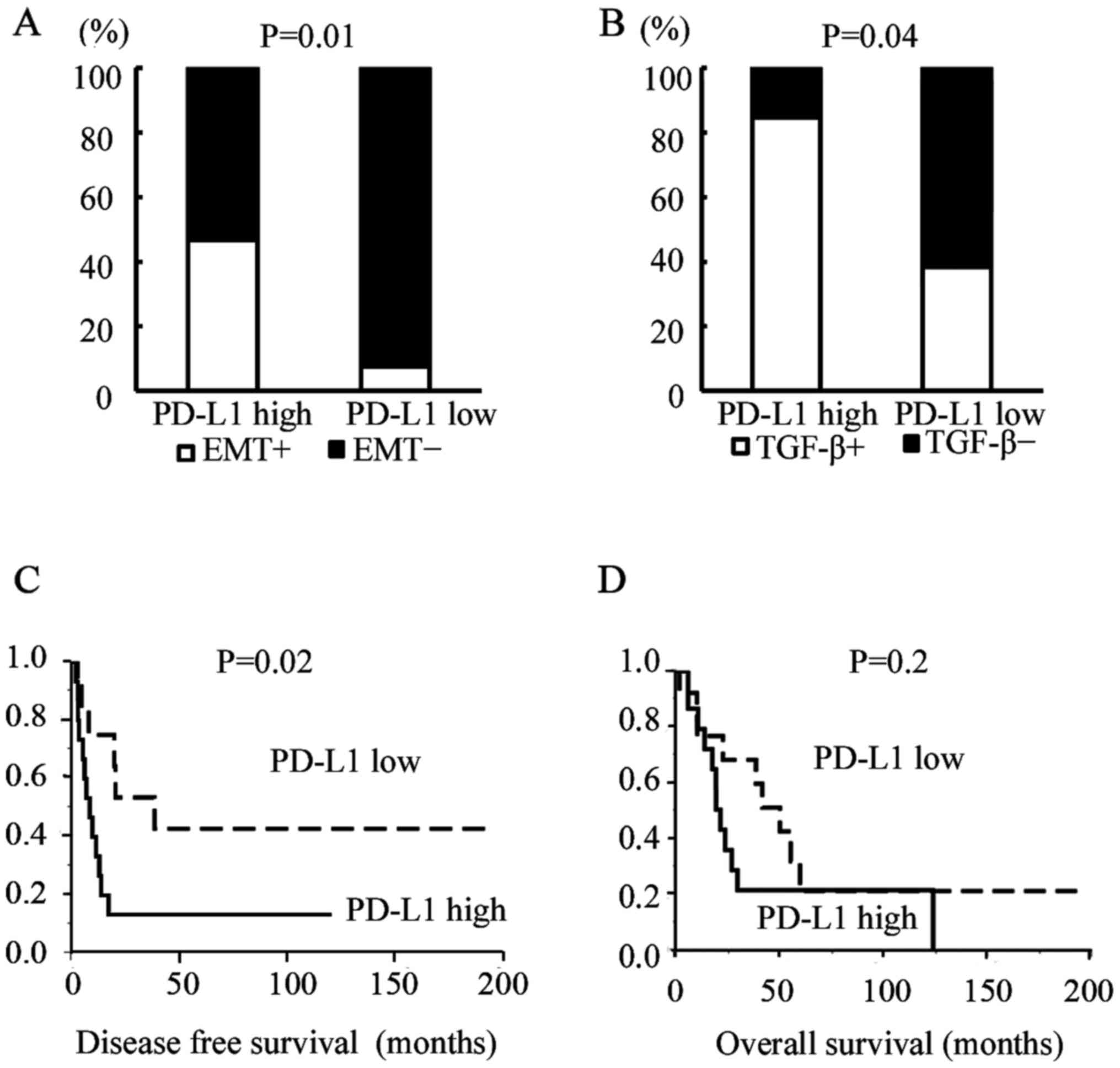

Eight cases (28.6%) showed a positive EMT change. Of them, 7 (87.5%) showed positive results for PD-L1 staining. The proportion of EMT-change positive cases among PD-L1-high expression cases was significantly higher than that among PD-L1-low expression cases (Fig. 9A, Pearson's chi-square test; P=0.01). In TGF-β IHC analysis, there were also significant relationships between PD-L1 expression and TGF-β expression (Fig. 9B, Pearson's chi-square test; P=0.04). The DFS (measured as no recurrence of cancer) in PD-L1-high expression cases was significantly worse than that of PD-L1-low expression cases (Fig. 9C, P=0.02; log-rank test); however, the OS rate was not significantly related to PD-L1 status (Fig. 9D, P=0.2; log-rank test).

Univariate and multivariate analyses showed that high PD-L1 expression was an independent prognostic factor for NSCLC surgically resected after induction chemotherapy (Table II).

Table II.

Univariate and multivariate analyses of disease-free survival.

Table II.

Univariate and multivariate analyses of disease-free survival.

A, Univariate analysis of disease-free survival

FactorsHazard ratio95% CIP-value
Sex
  Male1
  Female0.590.03–2.930.58
Histology
  Adeno1
  Sq0.790.28–2.320.66
  other0.420.02–2.310.36
p-Stage
  I+II1
  III+IV2.290.83–6.270.1
Down-stage
  Positive1
  Negative2.270.73–10.030.16
PD-L1
  Low1
  High2.971.13–8.540.02

B, Multivariate analysis of disease-free survival

FactorsHazard ratio95% CIP-value

PD-L1
  Low1
  High2.81.00–8.410.04
Histology
  Adeno1
  Sq0.80.26–2.420.7
  other0.70.1–3.170.69
p-Stage
  I+II1
  III+IV2.950.83–11.70.09
Down-stage
  Positve1
  Negative1.070.32–3.470.9

[i] Adeno, adenocarcinoma; Sq, squamous cell carcinoma; CI, confidence interval.

Discussion

In the present study, we showed that PD-L1 was regulated by TGF-β, and that chemo-treatment enhanced the PD-L1 expression through the chemo-induced TGF-β signal pathway in NSCLC cell lines. We also performed IHC staining of surgically resected NSCLC after induction chemotherapy and thus revealed a significant relationship between PD-L1 expression and EMT status.

To overcome advanced NSCLC, surgery and chemotherapy are the most important therapeutic options; however, their results are far from satisfactory. Immunotherapy has been recently developed as another option; in particular, anti-PD-1/PD-L1 blockade agents have exhibited dramatic antitumor efficacy in clinical trials for patients with a variety of cancer types (14). However, immunotherapy likewise is associated with several problems to be solved, as outlined below.

The first problem is the selection of suitable patients. The current selection method depends on PD-L1 IHC results as a predictor of therapeutic effect. PD-L1 expression by IHC has been also reported to be a useful prognostic indicator (15); however, staining intensity and sensitivity vary according to the type of PD-L1 IHC antibody (15,16). The next problem is when to start this immunotherapy. Understanding the mechanism of PD-L1 expression will yield important information regarding potential solutions to these problems. To elucidate this mechanism, we focused on EMT.

EMT plays a crucial role in cancer progression, and this phenomenon can be found in this cancer microenvironment. EMT is promoted by TGF-β secreted from not only the cancer cell itself but also from other cell types, and it gives cancer cells the invasive and metastatic abilities necessary for successful metastasis (7,8,12,17). In the present study, we demonstrated that PD-L1 expression in cancer cells was regulated by TGF-β signal pathway. Other groups showed a significant relationship between PD-L1 expression and EMT status by IHC staining analysis on several malignancies including NSCLC (18,19). Together, these data support our notion that the TGF-β pathway is an important regulator of PD-L1 expression, and EMT markers may be useful for selecting patients that would likely benefit from immunotherapy.

We previously reported that chemo-treatments increased TGF-β production and autocrine TGF-β induced EMT in human lung adenocarcinoma cell lines (7,12). Based on our previous results, we showed that chemo-treatment enhanced PD-L1 expression through the chemo-induced TGF-β signal pathway. Moreover, from the IHC analysis, we revealed the significant relationship between PD-L1 expression and EMT status of resected samples after induction chemotherapy. Zhang et al (20) demonstrated that chemo-preventive agents induced PD-L1 in human breast cancer cells and promoted PD-L1-mediated INF-γ by T-cell apoptosis. Hecht et al (21) also showed that PD-L1 expressing cells in rectal adenocarcinoma were upregulated after chemoradiotherapy (CRT) as compared with before CRT. Other groups have shown that several stimuli, such as hypoxia and radiation induction, enhance PD-L1 expression (2224). Those results suggested that PD-L1 is enhanced by chemo-treatment and the PD-L1 blockade after chemotherapy or in combination with chemotherapy could be a more effective anticancer activity than the monotherapy.

This study has some limitations. The limitation is the small sample size analyzed. In our hospital, adjuvant chemo-radiation therapy was usually performed in most of advanced cases. As mentioned above, the radiation, like chemotherapy, enhances the expression of PD-L1 (2224). Since the effect of radiation cannot be ignored, we analyzed only cases after induction chemotherapy alone. Moreover, the predictive role of PD-L1 expression is still controversial. Our results showed the PD-L1 expression was a prognostic indicator. However, our sample size was small as mentioned. Therefore, further investigation will be needed.

In conclusion, the present study provides new and important information regarding the mechanism of PD-L1 expression. The results suggest that EMT markers could be a surrogate marker for the selection of patients for immunotherapy and that a combination of immunotherapy and chemotherapy could be a new therapeutic option to overcome NSCLC.

Acknowledgements

The present study was supported by KAKENHI (Grants-in-Aid for Scientific Research) 16K10680.

References

1

Bordon Y: Immunotherapy: Checkpoint parley. Nat Rev Cancer. 15:32015. View Article : Google Scholar : PubMed/NCBI

2

Reck M, Rodríguez-Abreu D, Robinson AG, Hui R, Csőszi T, Fülöp A, Gottfried M, Peled N, Tafreshi A, Cuffe S, et al: KEYNOTE-024 Investigators: Pembrolizumab versus chemotherapy for PD-L1-positive non-small-cell lung cancer. N Engl J Med. 375:1823–1833. 2016. View Article : Google Scholar : PubMed/NCBI

3

Brahmer J, Reckamp KL, Baas P, Crinò L, Eberhardt WE, Poddubskaya E, Antonia S, Pluzanski A, Vokes EE, Holgado E, et al: Nivolumab versus docetaxel in advanced squamous-cell non-small-cell lung cancer. N Engl J Med. 373:123–135. 2015. View Article : Google Scholar : PubMed/NCBI

4

Weber JS, DAngelo SP, Minor D, Hodi FS, Gutzmer R, Neyns B, Hoeller C, Khushalani NI, Miller WH Jr, Lao CD, et al: Nivolumab versus chemotherapy in patients with advanced melanoma who progressed after anti-CTLA-4 treatment (CheckMate 037): A randomised, controlled, open-label, phase 3 trial. Lancet Oncol. 16:375–384. 2015. View Article : Google Scholar : PubMed/NCBI

5

Iwai Y, Ishida M, Tanaka Y, Okazaki T, Honjo T and Minato N: Involvement of PD-L1 on tumor cells in the escape from host immune system and tumor immunotherapy by PD-L1 blockade. Proc Natl Acad Sci USA. 99:12293–12297. 2002. View Article : Google Scholar : PubMed/NCBI

6

Yang Y, Pang Z, Ding N, Dong W, Ma W, Li Y, Du J and Liu Q: The efficacy and potential predictive factors of PD-1/PD-L1 blockades in epithelial carcinoma patients: A systematic review and meta analysis. Oncotarget. 7:74350–74361. 2016.PubMed/NCBI

7

Shintani Y, Okimura A, Sato K, Nakagiri T, Kadota Y, Inoue M, Sawabata N, Minami M, Ikeda N, Kawahara K, et al: Epithelial to mesenchymal transition is a determinant of sensitivity to chemoradiotherapy in non-small cell lung cancer. Ann Thorac Surg. 92:1794–1804; discussion 1804. 2011. View Article : Google Scholar : PubMed/NCBI

8

Shintani Y, Abulaiti A, Kimura T, Funaki S, Nakagiri T, Inoue M, Sawabata N, Minami M, Morii E and Okumura M: Pulmonary fibroblasts induce epithelial mesenchymal transition and some characteristics of stem cells in non-small cell lung cancer. Ann Thorac Surg. 96:425–433. 2013. View Article : Google Scholar : PubMed/NCBI

9

Koh J, Go H, Keam B, Kim MY, Nam SJ, Kim TM, Lee SH, Min HS, Kim YT, Kim DW, et al: Clinicopathologic analysis of programmed cell death-1 and programmed cell death-ligand 1 and 2 expressions in pulmonary adenocarcinoma: Comparison with histology and driver oncogenic alteration status. Mod Pathol. 28:1154–1166. 2015. View Article : Google Scholar : PubMed/NCBI

10

Shintani Y, Maeda M, Chaika N, Johnson KR and Wheelock MJ: Collagen I promotes epithelial-to-mesenchymal transition in lung cancer cells via transforming growth factor-beta signaling. Am J Respir Cell Mol Biol. 38:95–104. 2008. View Article : Google Scholar : PubMed/NCBI

11

McCarty KS Jr, Szabo E, Flowers JL, Cox EB, Leight GS, Miller L, Konrath J, Soper JT, Budwit DA, Creasman WT, et al: Use of a monoclonal anti-estrogen receptor antibody in the immunohistochemical evaluation of human tumors. Cancer Res. 46 (Suppl):4244s–4248s. 1986.PubMed/NCBI

12

Shintani Y, Fujiwara A, Kimura T, Kawamura T, Funaki S, Minami M and Okumura M: IL-6 decreted from cancer-associated fibroblasts mediates chemoresistance in NSCLC by increasing epithelial-mesenchymal transition signaling. J Thorac Oncol. 11:1482–1492. 2016. View Article : Google Scholar : PubMed/NCBI

13

Abulaiti A, Shintani Y, Funaki S, Nakagiri T, Inoue M, Sawabata N, Minami M and Okumura M: Interaction between non-small-cell lung cancer cells and fibroblasts via enhancement of TGF-β signaling by IL-6. Lung Cancer. 82:204–213. 2013. View Article : Google Scholar : PubMed/NCBI

14

Borghaei H, Paz-Ares L, Horn L, Spigel DR, Steins M, Ready NE, Chow LQ, Vokes EE, Felip E, Holgado E, et al: Nivolumab versus docetaxel in advanced nonsquamous non-small-cell lung cancer. N Engl J Med. 373:1627–1639. 2015. View Article : Google Scholar : PubMed/NCBI

15

Schats KA, Van Vré EA, De Schepper S, Boeckx C, Schrijvers DM, Waelput W, Fransen E, Vanden Bempt I, Neyns B, De Meester I, et al: Validated programmed cell death ligand 1 immunohistochemistry assays (E1L3N and SP142) reveal similar immune cell staining patterns in melanoma when using the same sensitive detection system. Histopathology. 70:253–263. 2017. View Article : Google Scholar : PubMed/NCBI

16

Smith J, Robida MD, Acosta K, Vennapusa B, Mistry A, Martin G, Yates A and Hnatyszyn HJ: Quantitative and qualitative characterization of Two PD-L1 clones: SP263 and E1L3N. Diagn Pathol. 18:442016. View Article : Google Scholar

17

Thomson S, Petti F, Sujka-Kwok I, Mercado P, Bean J, Monaghan M, Seymour SL, Argast GM, Epstein DM and Haley JD: A systems view of epithelial-mesenchymal transition signaling states. Clin Exp Metastasis. 28:137–155. 2011. View Article : Google Scholar : PubMed/NCBI

18

Shimoji M, Shimizu S, Sato K, Suda K, Kobayashi Y, Tomizawa K, Takemoto T and Mitsudomi T: Clinical and pathologic features of lung cancer expressing programmed cell death ligand 1 (PD-L1). Lung Cancer. 98:69–75. 2016. View Article : Google Scholar : PubMed/NCBI

19

Ock CY, Kim S, Keam B, Kim M, Kim TM, Kim JH, Jeon YK, Lee JS, Kwon SK, Hah JH, et al: PD-L1 expression is associated with epithelial-mesenchymal transition in head and neck squamous cell carcinoma. Oncotarget. 7:15901–15914. 2016. View Article : Google Scholar : PubMed/NCBI

20

Zhang P, Su DM, Liang M and Fu J: Chemopreventive agents induce programmed death-1-ligand 1 (PD-L1) surface expression in breast cancer cells and promote PD-L1-mediated T cell apoptosis. Mol Immunol. 45:1470–1476. 2008. View Article : Google Scholar : PubMed/NCBI

21

Hecht M, Büttner-Herold M, Erlenbach-Wünsch K, Haderlein M, Croner R, Grützmann R, Hartmann A, Fietkau R and Distel LV: PD-L1 is upregulated by radiochemotherapy in rectal adenocarcinoma patients and associated with a favourable prognosis. Eur J Cancer. 65:52–60. 2016. View Article : Google Scholar : PubMed/NCBI

22

Noman MZ, Desantis G, Janji B, Hasmim M, Karray S, Dessen P, Bronte V and Chouaib S: PD-L1 is a novel direct target of HIF-1α, and its blockade under hypoxia enhanced MDSC-mediated T cell activation. J Exp Med. 211:781–790. 2014. View Article : Google Scholar : PubMed/NCBI

23

Dovedi SJ, Adlard AL, Lipowska-Bhalla G, McKenna C, Jones S, Cheadle EJ, Stratford IJ, Poon E, Morrow M, Stewart R, et al: Acquired resistance to fractionated radiotherapy can be overcome by concurrent PD-L1 blockade. Cancer Res. 74:5458–5468. 2014. View Article : Google Scholar : PubMed/NCBI

24

Deng L, Liang H, Burnette B, Beckett M, Darga T, Weichselbaum RR and Fu YX: Irradiation and anti-PD-L1 treatment synergistically promote antitumor immunity in mice. J Clin Invest. 124:687–695. 2014. View Article : Google Scholar : PubMed/NCBI
