Introduction

Cervical cancer is one of the most commonly diagnosed malignancies in the world (1). The mortality rate associated with cervical cancer is the highest among all female reproductive tract malignant tumors, and cervical cancer seriously threatens the health of women worldwide (2,3). Although improvements in preventative measures and expansion of cervical cancer screening have significantly diminished the incidence and mortality rate in the developed world, there is a lack of cervical cancer screening in developing countries (4). Cervical cancer has a poor prognosis due to local invasion and lymphatic metastasis (5). Thus, it is necessary to investigate the biological mechanisms driving cervical cancer to provide novel insight into the prevention and therapeutic management of this disease.

The expression and dysfunction of homeobox (HOX) genes play an important role in the development of various malignant tumors, such as lung cancer, breast cancer, colon cancer, prostate cancer and leukemia (6–9). HOXA5 is a member of HOX gene family and is a transcriptional regulator that regulates cell growth, differentiation and apoptosis (10,11). As the HOX genes have become a ‘hot topic’ in cancer research, more researchers have paid close attention concerning the relationship between HOXA5 and multiple malignancies in recent years. It has been found that lack of HOXA5 function and other genetic damage can lead to breast cancer development (12). It has been reported that HOXA5 induces cell apoptosis and decreases cell drug resistance in breast cancer, lung cancer and glioblastoma (13,14). Moreover, a reduction in HOXA5 expression was recognized to be closely related to cell proliferation and invasion in tumors such as non-small cell lung cancer and esophageal squamous (15,16). However, the role of HOXA5 in cervical carcinoma development still remains unclear. In the present study, we aimed to investigate and acquire insight into the molecular mechanisms of HOXA5 in cervical cancer to improve treatment of the disease.

Protein kinase B (AKT) is a homologue of v-AKT, a proto-oncogene that exists in human chromosomes (17). A variety of hormones, growth factors and cytokines can stimulate Akt activation, thereby regulating cell growth, proliferation, motility, invasion, apoptosis and other processes (18). Studies have indicated that phosphorylation of AKT is increased in prostate, breast and cervical cancer cells (19–21). AKT was found to induce cell proliferation and survival in β cells, endothelial cells, cardiomyocytes and tumor cells (21,22). It has been reported that AKT activation can be constrained by HOXA5 in mouse white adipocytes (13). Nevertheless, the effect of HOXA5 on AKT phosphorylation in cervical cancer cells remains unknown. In our study, we explored the correlation between HOXA5 and AKT phosphorylation in cervical cancer. p27 is an important member of the p21 family of cyclin-dependent kinase inhibitors and is a broad-spectrum cyclin-dependent kinase (CDK) inhibitor that blocks the cell cycle through the transition point into the S phase, and then inhibits cell growth and proliferation, and is widely recognized as a tumor-suppressor gene in various types of cancer, including cervical cancer (23–25). Moreover, p27 expression could be regulated via AKT activation (26) and thus we hypothesized that HOXA5 regulates cell proliferation and apoptosis via AKT/p27 in cervical cancer.

We aimed to probe into the molecular mechanisms of HOXA5 in cervical cancer by assessing the expression of HOXA5 in cervical cancer cells. We investigated the cell proliferation and apoptosis in cervical cancer cell lines after overexpressing HOXA5. We also investigated the molecular mechanism of cell proliferation and apoptosis following the overexpression of HOXA5 in cervical cancer.

Materials and methods

Cell culture and tissues

The cervical cancer cell lines ME-180 (cat. no. HTB-33™), HT-3 (cat. no. HTB-32™), HeLa (cat. no. CCL-2™) and SiHa (cat. no. HTB-35™) (ATCC; Manassas, VA, USA) were grown in Dulbecco's modified Eagle's medium (HyClone; GE Healthcare Life Sciences, Logan, UT, USA) supplemented with 10% fetal bovine serum (FBS; HyClone; GE Healthcare Life Sciences), 100 U/ml of penicillin, and 100 µg/ml of streptomycin. Human cervical epithelial cells (HCerEpiC; ScienCell Research Laboratories, Carlsbad, CA, USA; cat. no. CP7060) (27), were cultured in cervical epithelial cell medium (ScienCell Research Laboratories). Cells were cultured in an atmosphere of 5% CO2 at 37°C.

Cervical tumor samples (n=10, 40–50 years of age) were collected in the Fourth People's Hospital of Shaanxi from women with the average year of 42 years undergoing hysterectomies without having been treated with radiotherapy or chemotherapy. Two patients had a diagnosis of squamous cell carcinoma (SCC), 6 presented with adenomatous carcinoma (ADC) and 2 patients had an intermediate diagnosis of adenosquamous cell carcinoma (ASC). Normal tissues (n=10, 40–50 years of age) were collected in the Fourth People's Hospital of Shaanxi from women with the average year of 45 years old undergoing surgery for myoma or adenomyoma. Normal tissue samples were non-malignant and negative for human papilloma virus and ThinPrep cytologic tests. The collections were performed between August 2017 and September 2017 and were approved by the Ethics Committee of The Fourth People's Hospital of Shaanxi. Informed consent was obtained from all of the patients.

RT-qPCR assay

Total RNA of cells was extracted by using TRizol (Gibco; Thermo Fisher Scientific, Inc., Waltham, MA, USA) and reverse-transcribed into cDNA using the PrimeScript™ First Strand cDNA Synthesis kit (Takara Biotechnology Co., Ltd., Dalian, China). The volume of reverse-transcription polymerase chain reaction (RT-qPCR) was 20 µl and it contained 10 µl SYBR Premix Ex Taq II (Takara Biotechnology Co., Ltd.). The primers were as follows: HOXA5, sense primer: 5′-AGCCACAAATCAAGGACACA-3′ and antisense primer: 5′-GCTCGCTCACGGAACTATG-3′; GAPDH, sense primer: 5′-CGAAGGTGAAGGTCGGAGT-3′ and antisense primer: 5′-GAAGATGGTGATGGGATTTC-3′. The cycling parameters consisted of 94°C for 30 sec; 40 cycles of 94°C for 40 sec, 60°C for 30 sec and 72°C for 30 sec and 72°C for 10 min. The relative levels of gene expression were quantified using the 2−ΔΔCt method (28). GAPDH was the reference gene. The experiment was repeated three times.

Western blot analysis

Cells were treated with lysate and protein was extracted. Then, the protein was quantified with a BCA kit (Beyotime Institute of Biotechnology, Nantong, China). After loading 25 µg of the protein onto gel for 12% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE), the proteins were separated and transferred onto polyvinylidene fluoride (PVDF) membranes (Bio-Rad Laboratories, Hercules, CA, USA) by electrophoretic transfer. The PVDF membranes were then incubated with 5% skim milk for 1.5 h, followed by incubation overnight at 4°C with the primary antibodies (all from Abcam Inc., Cambridge, MA, USA): anti-HOXA5 (dilution 1:800; cat. no. ab82645) anti-AKT (dilution 1:500; cat. no. ab8805), anti-Akt (phospho S473) (dilution 1:600; cat. no. ab81283), anti-p27 (dilution 1:1,000; cat. no. ab32034) and anti-GAPDH (dilution 1:500; cat. no. ab9485). Next, the polyvinylidene fluoride was incubated with a secondary antibody (dilution 1:800; cat. no. ab7090) diluted in the blocking buffer. Finally, the protein was detected using enhanced chemiluminescence. The experiment was repeated three times.

Construction of the recombinant plasmids

The full-length HOXA5 gene (GenBank™ accession number NM_019102.3) was amplified using RT-PCR, followed by insertion into the plasmid pcDNA.3.1 (Clontech Inc., Palo Alto, CA, USA). The restriction enzymes used for the cDNA and plasmid pcDNA.3.1 were EcoRI and BamHI. The recombinant plasmid was then transducted into Escherichia coli DH5α cells (Tiangen, Beijing, China), followed by amplification at 37°C. Afterwards, the recombinant plasmids were extracted using a plasmid DNA extraction kit (Takara Biotechnology Co., Ltd.). The recombinant plasmid containing the correct sequence was named pcDNA.3.1-HOXA5.

Cell transfection

The ME-180 and HT-3 cell lines were separately cultured in 96-well plates and incubated in an incubator (Thermo Fisher Scientific, Inc.) with 5% CO2 for 24 h. The cells were transfected with pcDNA.3.1-HOXA5 (0.2 µg), pcDNA.3.1 (0.2 µg) or pcDNA.3.1-p27 (0.2 µg) using Turbofect (0.5 µl; Thermo Fisher Scientific, Inc.) and incubated at 37°C in 5% CO2 for 24, 36, 48 or 72 h. Transfection efficiency was measured by RT-qPCR and western blot assays.

Flow cytometric analysis

Cell apoptosis was examined using an Annexin V-fluorescein isothiocyanate (FITC) and propidium iodide (PI) kit (Jiancheng Bioengineering Institute, Nanjing, China) in accordance with the supplier's instructions. Briefly, cells were harvested and centrifuged at 200 × g for 5 min. The cells (5×105 cells/ml) were resuspended in the binding buffer and mixed with 5 µl of Annexin V-FITC in 195 µl of the cell suspension for 30 min at 4°C. Afterwards, cells were incubated with PI (6 µl) for 8 min. The apoptotic cells were quantified by FACS analyzer (Beckman Coulter, Brea, CA, USA). The experiment was repeated three times.

Caspase-3 activity assay

Caspase-3 activity in the cells was measured in line with the explanatory memorandum of a caspase-3 activity assay kit (Beyotime Institute of Biotechnology). In brief, cells (1×106) were centrifugated, washed trice with PBS and incubated in 500 µl lysis buffer on ice for 15 min. The activity of caspase-3 was tested by a 200 mmol/l AcDEVD-MCA fluorogenic substrate in the assay buffer, and fluorescence intensity was quantified with spectrofluorometry. The experiment was repeated three times.

Cell viability

3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay was used to quantify cell viability according to the specifications. Firstly, cells were incubated in a 96-well plate in humid atmosphere of 5% CO2 at 37°C for 24 h followed by transfection. MTT (5 g/l) diluted in phosphate-buffered saline (PBS) was added and incubated at 37°C for 6 h. Subsequently, dimethyl sulfoxide (DMSO) (160 µl/well) was added to dissolve the formazan, and the absorbance (OD) values were read using an microplate reader at 490 nm (Thermo Fisher Scientific, Inc.). The experiment was repeated three times.

Bromodeoxyuridine (BrdU) assay

Cell proliferation was tested using a BrdU kit (Roche Applied Science, Mannheim, Germany) on the basis of the instructions. Cells were plated in 96-well plates and transfections were performed. Cells were incubated with BrdU solution (10 µl/well) for 1.5 h and then denaturing solution (100 µl/well) for 25 min. Cells were then stained with anti-BrdU antibody for 1.5 h at room temperature followed by staining with secondary antibody solution. Next, 100 µl of tetramethyl benzidine substrate was added and allowed to incubate for 30 min. Finally, the results were detected at 450 nm using a SpectroFluor Plus multiwell plate reader (Tecan Group, Ltd., Mannedorf, Switzerland). The experiment was repeated three times.

Transwell invasion assays

Bio-Coat cell migration chambers (BD Biosciences, San Jose, CA, USA) were used to assess cervical cancer cell invasion. Chambers were coated with Matrigel (Becton Dickinson; BD Biosciences), and the transfected cells were suspended using 350 µl serum-free medium (1×105 cells) and added to the top chamber. Then, the cells were cultured with 5% CO2 at 37°C for 48 h followed by the addition of culture medium (500 µl) with 10% FBS to the lower chamber. Non-invading cells were gently removed using a cotton swab, and invasive cells were fixed with 95% ethanol and stained with trypan blue. The invasive cells were quantified as the mean count of stained cells in six random fields under bright field microscopy (×400 magnification) using an Olympus IX70 inverted microscope (Olympus Corp., Tokyo, Japan). The experiment was repeated three times.

Statistical analysis

Statistical significance was determined by the Student's t-test between two groups and by one-way ANOVA followed by a Bonferroni test for multiple groups. A P-value of <0.05 was considered to indicate a statistically significant result. Data are expressed as the mean ± standard deviation (SD). Statistical analyses were processed with SPSS version 22.0 software (IBM Corp., Armonk, NY, USA).

Results

Downregulation of the expression of HOXA5 in cervical cancer

We quantified the expression of HOXA5 in cervical cancer cell lines and tissues to explore the expression of HOXA5 in cervical cancer. The results showed that mRNA expression (Fig. 1A) of HOXA5 as determined by RT-qPCR in cervical cancer cell lines and tissues was significantly decreased in both when compared with human cervical epithelial HCerEpic cells and normal tissues. The mRNA reduction of HOXA5 in ME-180, HT-3, HeLa and SiHa cells exhibited no significant differences between each cell line; thus we detected the protein expression of HOXA5 in ME-180 and HT-3 cells. The protein expression (Fig. 1B) of HOXA5 as determined by western blot analysis in ME-180 and HT-3 cells was also significantly decreased when compared with the HCerEPic cell line.

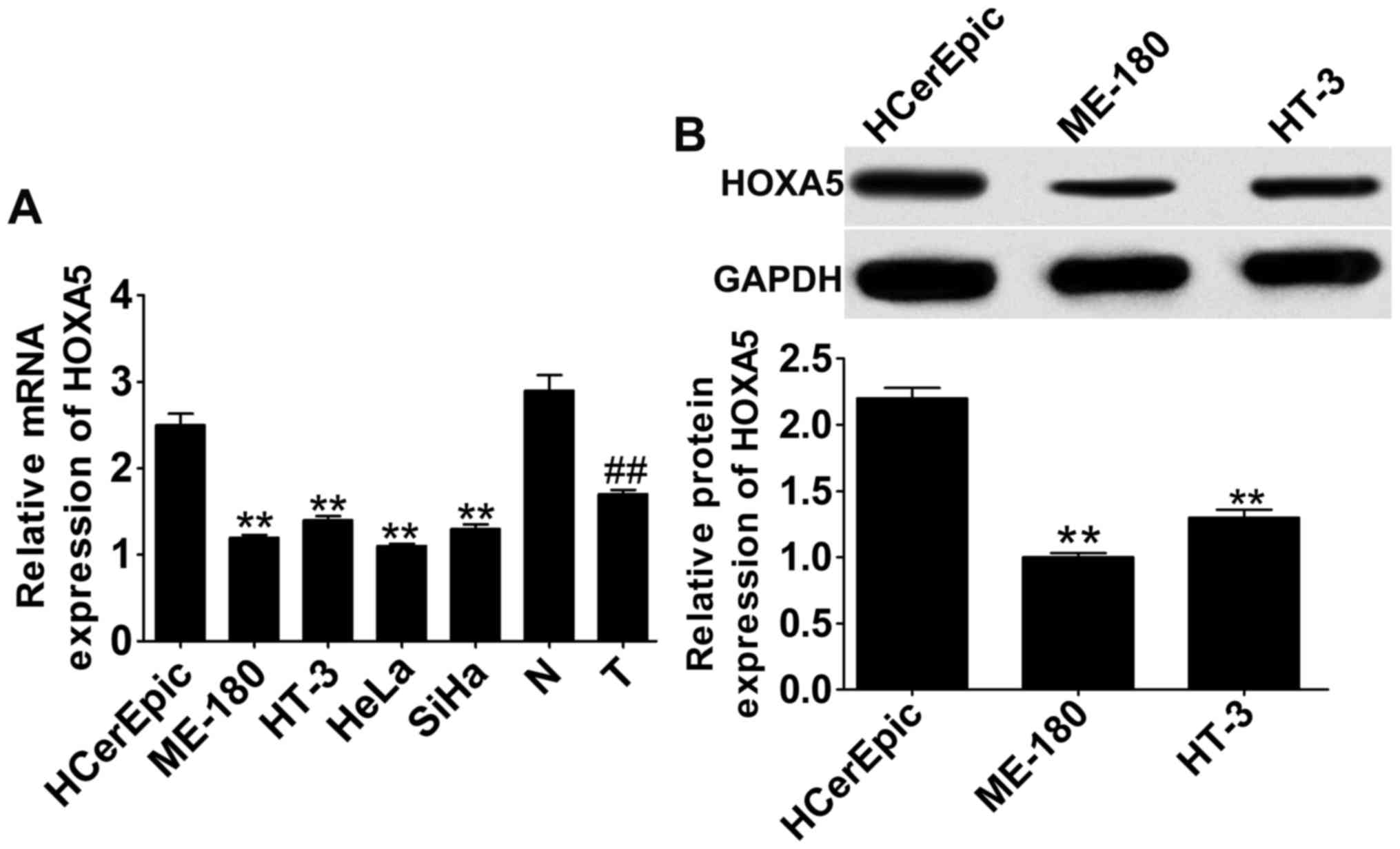

Figure 1. Relative expression of HOXA5 in cervical cancer cell lines. The relative mRNA (A) and protein (B) levels of HOXA5 were separately assessed by qRT-PCR and western blot analyses. HCerEpic, human cervical epithelial cells; ME-180, HT-3, HeLa and SiHa: Cervical cancer cell lines. GAPDH was the normalization gene. n=3, **P<0.01 vs. the HCerEpic cells indicates a significant difference. N, normal cervical tissues; T, cervical cancer tissues. n=10, ##P<0.01 vs. N group indicates a significant difference.

HOXA5 overexpression induces cell apoptosis in cervical cancer cell lines

To investigate the potential role of HOXA5 in cervical cancer, we measured cell apoptosis by using Annexin V-FITC/PI assay and caspase-3 activity testing after HOXA5 overexpression in ME-180 and HT-3 cells. Firstly, we overexpressed HOXA5 by cells transfection with pcDNA.3.1-HOXA5, and the data indicated that mRNA (Fig. 2A) and protein (Fig. 2B) expression of HOXA5 were both increased twice. Thus, the gain-of-function experiment of HOXA5 was successful. Subsequently, the effect of HOXA5 upregulation on cell apoptosis in ME-180 and HT-3 cells were tested. In the Annexin V-FITC/PI assay (Fig. 2C), cell apoptosis was significantly induced by upregulation of HOXA5. Moreover, caspase-3 activity (Fig. 2D) was also significantly facilitated after pcDNA.3.1-HOXA5 transfection.

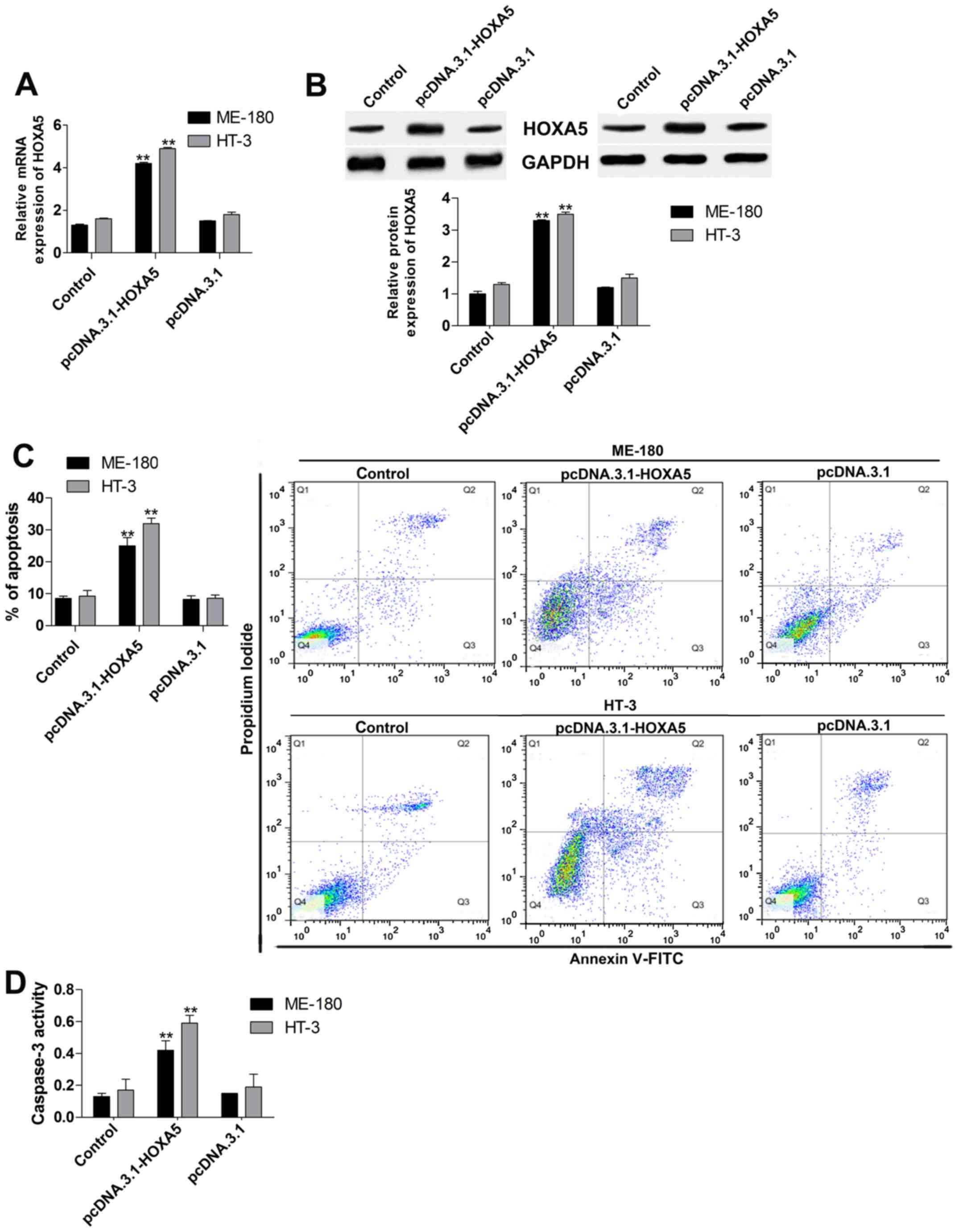

Figure 2. Effect of HOXA5 upregulation on cervical cancer cell apoptosis. The relative mRNA (A) and protein (B) levels of HOXA5 were separately measured by qRT-PCR and western blot analyses in cells treated with pcDNA.3.1-HOXA5. Apoptosis of ME-180 and HT-3 cells was determined by the Annexin V-FITC/PI assay (C) and caspase-3 activity (D) in cells treated with pcDNA.3.1-HOXA5. Control, cervical cancer cells; pcDNA.3.1-HOXA5, cervical cancer cells transfected with pcDNA.3.1-HOXA5 for 24 h; pcDNA.3.1, cervical cancer cells transfected with pcDNA.3.1 for 24 h. n=3, **P<0.01 vs. the pcDNA.3.1 group.

HOXA5 overexpression suppresses cell proliferation and invasion in cervical cancer cell lines

To further estimate the influence of HOXA5 overexpression on cervical cancer, we tested cell viability and proliferation using MTT and BrdU assays, respectively. The results revealed that cell viability (Fig. 3A) was markedly suppressed in the pcDNA.3.1-HOXA5 group when compared to that noted in the pcDNA.3.1group. We also assessed the proliferation (Fig. 3B) of cells transfected with pcDNA.3.1-HOXA5 for 24, 48 and 72 h, and it was showed that the proliferation in the pcDNA.3.1-HOXA5 (24 h) group was significantly inhibited in contrast to the pcDNA.3.1 group, and the suppression was slightly time-dependent. Additionally, cell invasion (Fig. 3C) was detected by Transwell invasion assay, and the data showed a significant decrease in cell invasion after HOXA5 overexpression. Therefore, HOXA5 displayed a valid inhibitory effect on cell proliferation and invasion in cervical cancer cell lines.

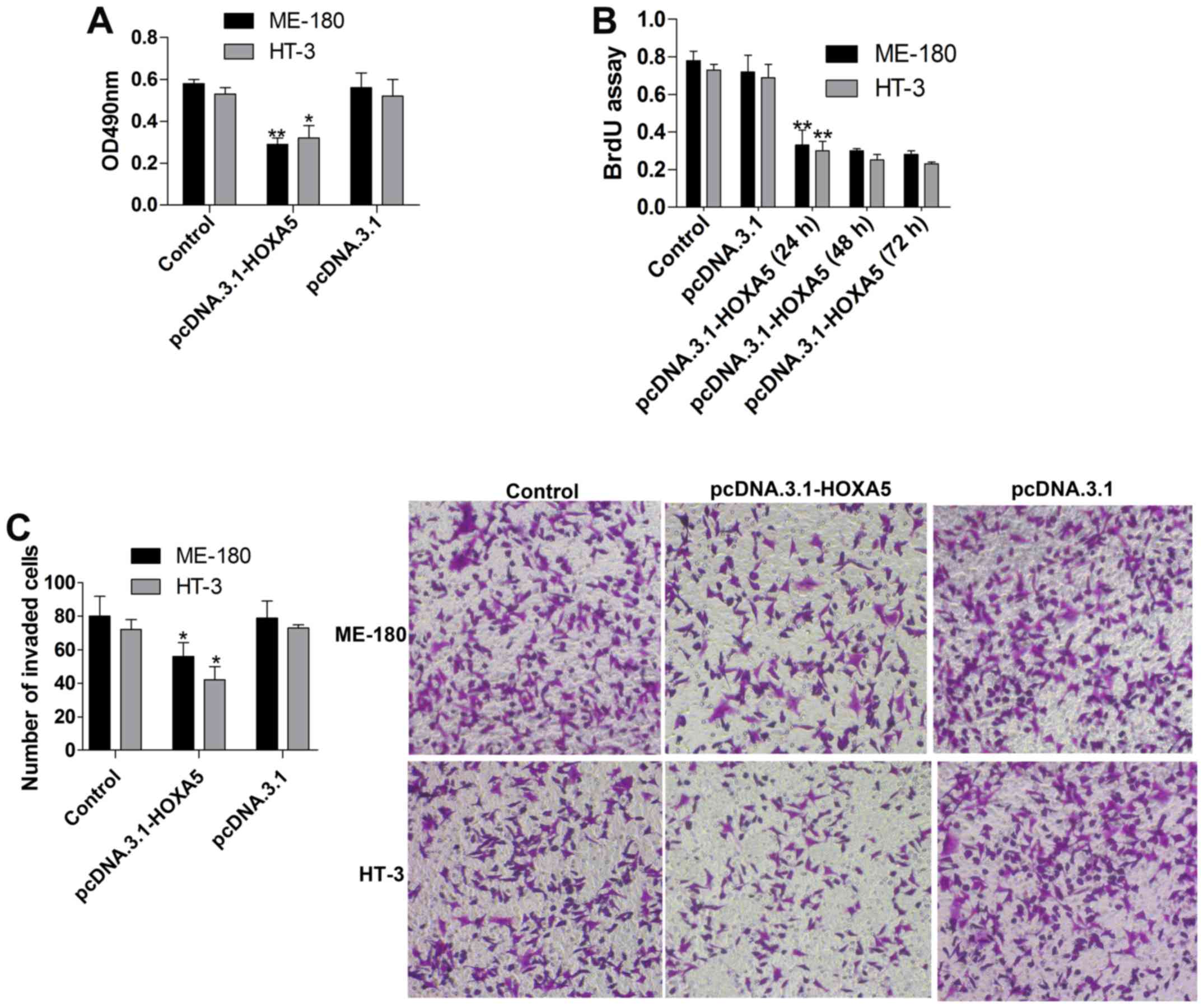

Figure 3. Effects of HOXA5 overexpression on proliferation and invasion in cervical cancer cells. The proliferation capacity was determined by MTT (A) and BrdU (B) assays in cells transfected with pcDNA.3.1-HOXA5. (C) Invasion was assessed in cells transfected with pcDNA.3.1-HOXA5 using the Transwell invasion assay. pcDNA.3.1-HOXA5 (24 h), cervical cancer cells transfected with pcDNA.3.1-HOXA5 for 24 h; pcDNA.3.1-HOXA5 (48 h), cervical cancer cells transfected with pcDNA.3.1-HOXA5 for 48 h; pcDNA.3.1-HOXA5 (72 h), cervical cancer cells transfected with pcDNA.3.1-HOXA5 for 72 h. n=3, *P<0.05, **P<0.01 vs. the pcDNA.3.1 group.

Regulation of AKT activity and p27 expression by HOXA5

To gain insight into the molecular mechanisms of HOXA5 in cervical cancer, we determined the protein expression of p-AKT and p27 via western blot assay in ME-180 and HT-3 cells with HOXA5 upregulation. The results indicated that the protein level of p-AKT (Fig. 4) in the pcDNA.3.1-HOXA5 group was significantly reduced in contrast to the pcDNA.3.1 group. Meanwhile, p27 (Fig. 4) expression was increased in the pcDNA.3.1-HOXA5 group. Moreover, we treated ME-180 and HT-3 cells with SC79 (AKT activator, 0.1–10 µg/ml) for 1 h after HOXA5 overexpression. We found that SC79 (1–10 µg/ml) markedly activated AKT (p-AKT intensity increase) in both the ME-180 and HT-3 cells and the activity on p-AKT was dose-dependent (Fig. 5A). Thus, we measured the protein expression of p27 in ME-180 and HT-3 cells with HOXA5 overexpression and SC79 (1 µg/ml) incubation for 1 h, and the results showed that p27 was obviously downregulated (Fig. 5B). Meanwhile, caspase-3 activity (Fig. 5C) was inhibited and cell viability (Fig. 5D) and invasion (Fig. 5E) were elevated. Thus, HOXA5 controls cervical cancer cell proliferation and apoptosis via the regulation of p-AKT/p27.

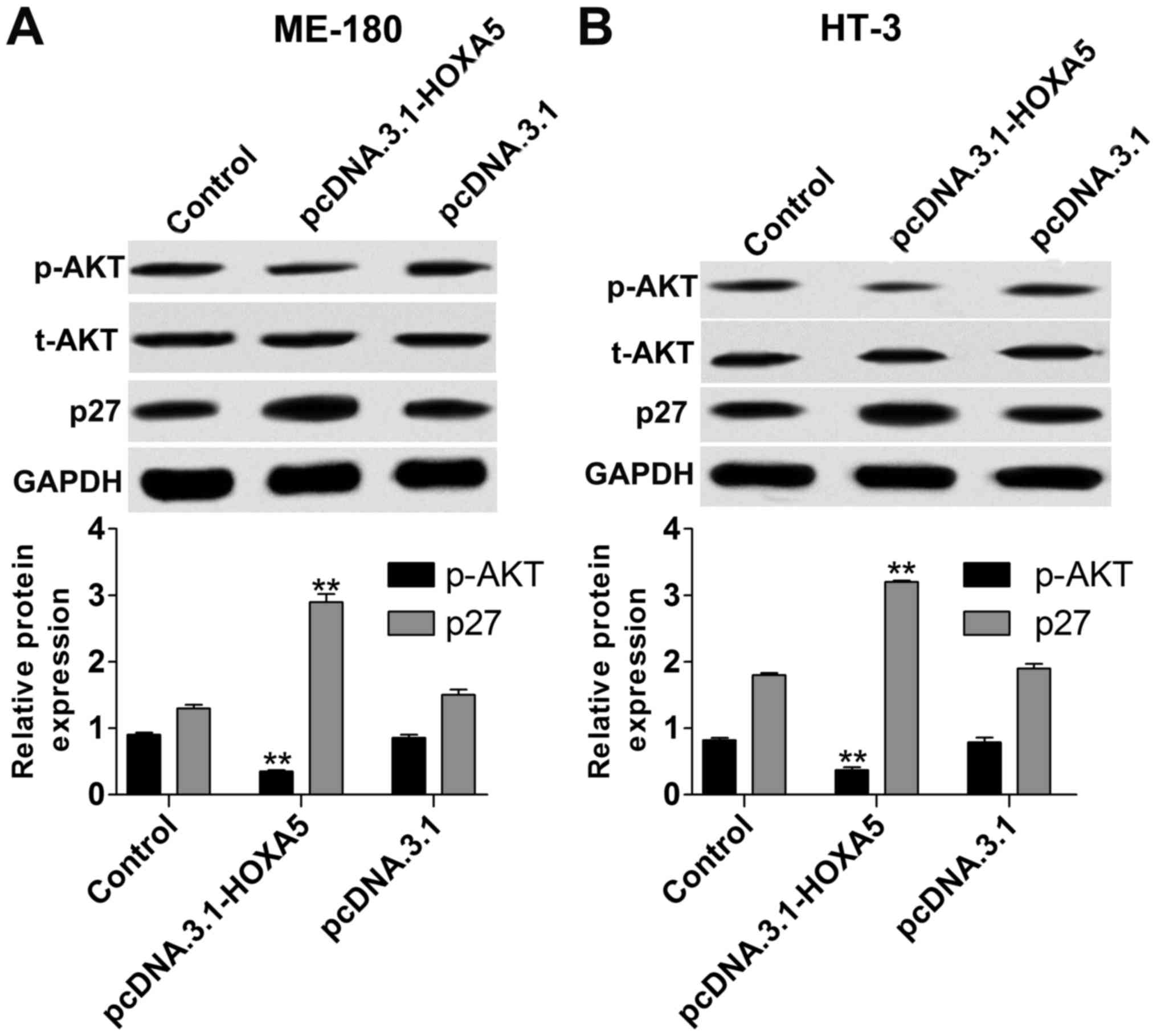

Figure 4. Effect of HOXA5 overexpression on AKT activity and p27 expression in cervical cancer cells. The relative protein levels of p-AKT and p27 were measured by Western blot analyses in ME-180 (A) and HT-3 (B) cells after HOXA5 upregulation. GAPDH was the normalization protein. n=3, **P<0.01 vs. the pcDNA.3.1 group.

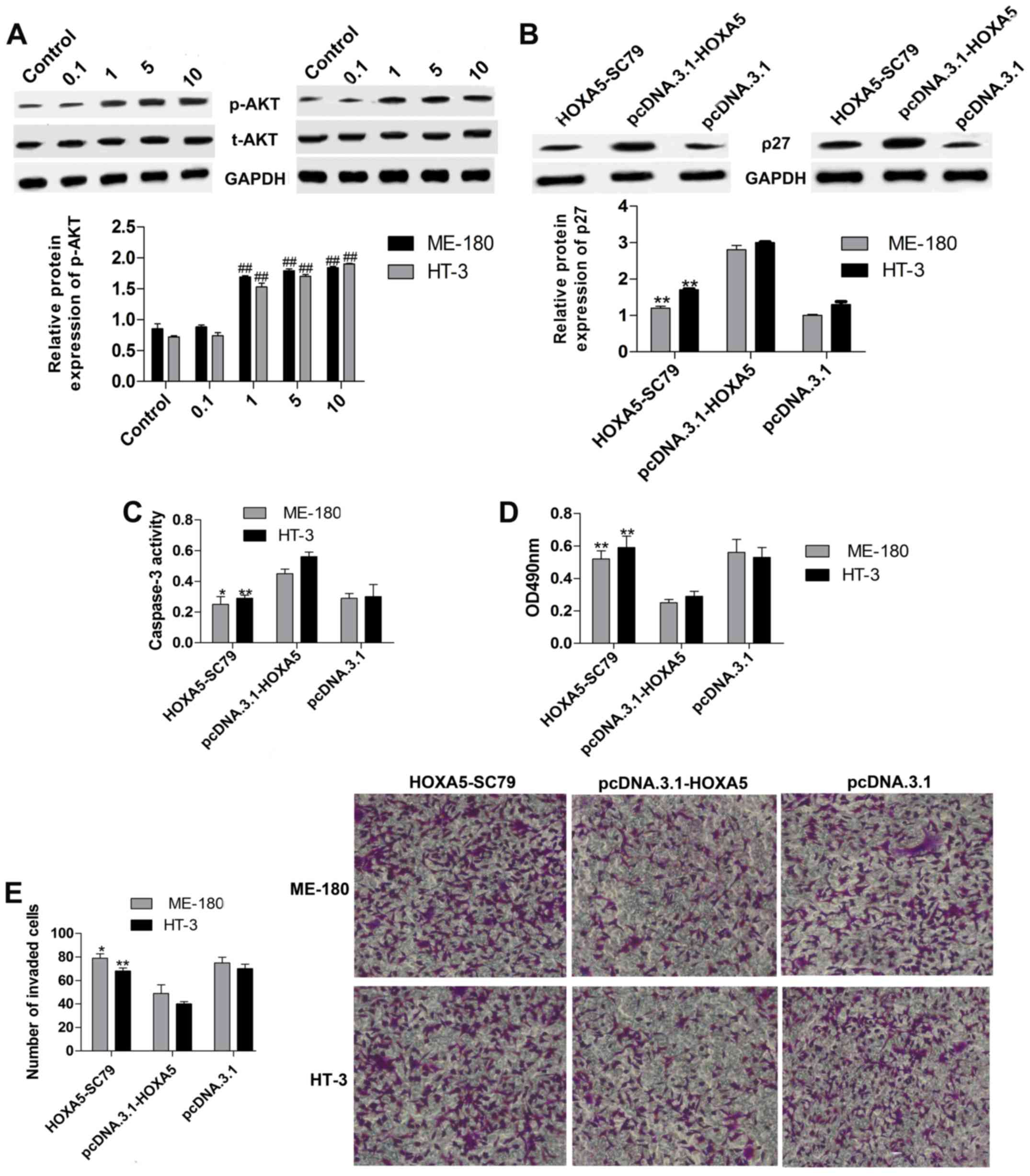

Figure 5. HOXA5 regulates p27 expression via controlling AKT activity. (A) The relative protein levels of p-AKT were measured by western blot analyses in ME-180 and HT-3 cells treated with SC79 (AKT activator, 0.1–10 µg/ml) for 1 h after HOXA5 overexpression. 0.1, 1, 5, 10: Cells treated with SC79 (0.1, 1, 5, 10 µg/ml) for 1 h after HOXA5 overexpression. n=3, ##P<0.01 vs. the control group. (B) The relative protein levels of p27 were determined by western blot analyses in ME-180 and HT-3 cells treated with SC79 (AKT activator, 1 µg/ml) for 1 h after HOXA5 overexpression. (C) Caspase-3 activity was detected by a kit in ME-180 and HT-3 cells treated with SC79 (1 µg/ml) for 1 h after HOXA5 overexpression. (D) and (E) Cell proliferation and invasion abilities were separately measured by the MTT and Transwell invasion assays in ME-180 and HT-3 cells treated with SC79 (1 µg/ml) for 1 h after HOXA5 overexpression. HOXA5-SC79: Cells treated with SC79 (1 µg/ml) for 1 h after HOXA5 overexpression. n=3, *P<0.05, **P<0.01 vs. the pcDNA.3.1-HOXA5 group.

Discussion

Early symptoms of cervical cancer are not obvious, and the malignant potential in advanced stages reaches a high degree (29). Currently, lack of effective treatment and poor prognosis give rise to the high mortality rate associated with cervical cancer (30). Therefore, the study of the pathogenesis of cervical cancer and the discovery of molecular markers for clinical diagnosis and treatment are crucial to improve the survival of patients with cervical cancer. Studies have demonstrated that HOXA5 plays a significant role in tumor development. The heterotopic expression of HOXA5 was found to promote the proliferation and differentiation of esophageal cancer (31). Zhang et al demonstrated that HOXA5 could constrain cell proliferation via modulating p21 in non-small cell lung cancer (32). Wang et al demonstrated that HOXA5 inhibition by miR-1271 facilitated non-small cell lung cancer cell proliferation and invasion (11). Ectopic expression of HOXA5 was found to induce apoptosis in human liposarcomas (33). Liu et al found that HOXA5 upregulation inhibits the proliferation and promotes apoptosis in K562 leukemia cells (34). However, the role of HOXA5 in cervical cancer is still unclear. In the present study, we found that HOXA5 was suppressed in cervical cancer cell lines and tissues. Overexpression of HOXA5 was achieved by transfection with pcDNA.3.1-HOXA5, which distinctly accelerated caspase-3 activity and cell apoptosis in cervical cancer cell lines. Moreover, HOXA5 overexpression had inhibitory effects on cell viability, proliferation and invasion of cervical cancer cell lines. The role of HOXA5 in cervical cancer was found to be consistent with that in different cancers in the literature mentioned above.

Feng et al found that HOXA5 could restrain AKT activity in the white adipocytes in mice (13). AKT, a proto-oncogene, has a significant regulatory effect on cell proliferation, apoptosis and invasion of cancer cells. Palacios et al found that AKT activation results in chronic lymphocytic leukemia (CLL) B-cell proliferation (35). Yang et al demonstrated that inhibition of AKT activation by Matrine inhibited bladder cancer cell proliferation and invasion in vitro (36). Upregulation of AKT phosphorylation was also found to induce cell growth and invasion in non-small cell lung cancer (37). Targeting of the PI3K/AKT pathway by microRNA-29b promoted the apoptosis of hepatic stellate cells in liver fibrosis (38). Das et al demonstrated that suppression of AKT promoted FOXO3a-dependent apoptosis in prostate cancer (39). Moreover, Jeyamohan et al found that inhibition of the PI3K/Akt signaling pathway could induce cell apoptosis in cervical cancer (40). In the present study, we investigated whether AKT plays a role in the regulation of cervical cancer development by HOXA5. Analysis of the results showed that AKT phosphorylation was suppressed by HOXA5 overexpression in cervical cancer lines. Additionally, AKT activation by SC79 visibly abolished the effect of HOXA5 overexpression on caspase-3 activity, cell apoptosis, cell viability, proliferation and invasion in cervical cancer cell lines. Therefore, AKT plays an important role in the regulation of cervical cancer development by HOXA5.

p27, as a tumor suppressor, has been found to display inhibitory effects on cervical cancer cells. miR-196a was found to elevate cell proliferation via decreasing p27 expression in laryngeal cancer (41). Singh et al reported that resveratrol increases cell apoptosis via the p27 pathway in prostate cancer cells (42). Cui et al showed that upregulation of p27 by Snai2 inhibited the proliferation and tumor formation of human cervical cancer cells (43). It was reported that AKT phosphorylation could elicit p27 transcription in HeLa cells (44). Thus, we assumed that HOXA5 could regulate p27 via controlling AKT phosphorylation in cervical cancer cell lines. In the present study, data showed that HOXA5 overexpression increased the expression of p27, and inhibited cervical cancer development. In addition, elevation of AKT phosphorylation reversed the effect of HOXA5 upregulation on p27 expression. Therefore, HOXA5 overexpression inhibits cervical cancer development via modulating p-AKT/p27.

In summary, the results of the present study revealed that HOXA5 is down-regulated in cervical cancer cell lines and tissues. The gain-of-function of HOXA5 markedly decreased cell viability, proliferation and invasion. Meanwhile, HOXA5 overexpression induced caspase-3 activity and increased cell apoptosis in cervical cancer cell lines. Furthermore, overexpression of HOXA5 upregulated p27 expression via controlling the activation of AKT, providing a novel target for the treatment of cervical cancer.

Acknowledgements

Not applicable.

Funding

No funding was received.

Availability of data and materials

The datasets used during the present study are available from the corresponding author upon reasonable request.

Authors' contributions

ZW designed and prepared the experiments, performed the experiments and wrote the manuscript. CY contributed to the reagents/materials/analysis tools. HW wrote, modified and revised the manuscript and was also involved in the conception of the study. All authors read and approved the manuscript and agree to be accountable for all aspects of the research in ensuring that the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Ethics approval and consent to participate

This research was approved by the Ethics Committee of The Fourth People's Hospital of Shaanxi. Informed consent was obtained from all of the patients.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
