Introduction

The multidrug resistance toward anticancer drugs caused by efflux transporters, such as multidrug resistance-associated protein (MRP/ABCC), P-glycoprotein (P-gp/ABCB1), and breast cancer resistance protein (BCRP/ABCG2), is a barrier to effective chemotherapy. The increased activities of these transporters accompanying the malignant progression of tumor cells results in the reduction of intracellular drug concentrations in the tumors. The plasma membrane localization of efflux transporters is important for transport activity, as well as the expression levels of efflux transporters. The plasma membrane localization of efflux transporters is governed by scaffold proteins, such as the ezrin/radixin/moesin (ERM) proteins. For example, the interaction of MRP2 with ezrin and/or radixin causes the localization of MRP2 in the canalicular membrane in hepatocytes (1–3). Ezrin and moesin are involved in the plasma membrane localization of P-gp in brain capillary cells (4,5). ERM proteins activated via phosphorylation by Rho-kinase (6) and cholecystokinin-8 (7), function as anchoring proteins for efflux transporters and Na+-H+ exchanger regulatory factor 1 (8). Some reports have shown that ERM proteins are involved in the localization of transporters in tumor cells, as well as in normal tissues (9–11).

Thus, reduction of the anchor function of ERM proteins in tumor cells may decrease the transport activity of efflux transporters, possibly leading to increased intracellular accumulation and efficiency of anticancer drugs as substrates of efflux transporters. However, it is unclear whether ERM proteins can be used as target molecules for overcoming multidrug resistance in tumor cells.

Therefore, the effect of the knockdown of ERM proteins on the transport activities of MRP2, P-gp and BCRP was examined in multiple carcinoma cell lines, and on the intracellular accumulation and efficiency of methotrexate (MTX) as an anticancer drug.

Materials and methods

Ethical approval

The study protocol was approved by the Committee for the Care and Use of Laboratory Animals of the School of Pharmacy of Kindai University (Osaka, Japan).

Chemicals and reagents

Silencer Select siRNA for human ezrin (s14796), human radixin (s11899), human moesin (s8984), and Stealth RNAi siRNA negative control, Lipofectamine RNAiMAX Transfection Reagent, Opti-MEM I, BCA protein assay kit, Mem-PER Eukaryotic Membrane Protein Extraction Kit, and D-luciferin monosodium salt were obtained from Thermo Fisher Scientific, Inc. (Waltham, MA, USA). Rabbit monoclonal anti-rat ezrin (EP886Y; cat. no. ab40839), rabbit monoclonal anti-radixin antibody (EP1862Y; cat. no. ab52495) and rabbit monoclonal anti-moesin antibody (EP1863Y. cat. no. ab52490) (all from Abcam, Cambridge, UK), mouse monoclonal anti-β-actin antibody (cat. no. AM00194PU-N; Acris Antibodies GmbH, Herford, Germany), peroxidase-labeled anti-rabbit IgG antibody (cat. no. ab214880) and peroxidase-labeled anti-mouse IgG antibody (cat. no. ab97040; both from Abcam), and peroxidase-labeled anti-mouse IgG antibody (cat. no. 5220-0341; KPL, Gaithersburg, MD, USA) were commercially obtained. For assay of transport activities, 5(6)-carboxy-2′,7′-dichlorofluorescein diacetate promoiety (CDFDA, a precursor of MRP substrate (CDF); Sigma-Aldrich; Merck KGaA, Darmstadt, Germany), MTX (an MRP substrate) and Rhodamine 123 (R123, a P-gp substrate; both from Wako Pure Chemical Industries, Osaka, Japan), Hoechst 33342 hydrochloride (H33342, a BCRP substrate; Cayman Chemical, Ann Arbor, MI, USA), MK571 sodium salt hydrate (an MRP inhibitor; Sigma-Aldrich; Merck KGaA), verapamil (Nacalai Tesque, Inc., Kyoto, Japan) and Ko143 (MedChemExpress, Monmouth Junction, NJ, USA) were used. RIPA lysis buffer, including protease inhibitors, was obtained from Santa Cruz Biotechnology, Inc. (Dallas, TX, USA). For LC-MS/MS-based targeted proteomics, MS grade porcine pancreatic trypsin and OASIS HLB were obtained from Wako Pure Chemicals and Waters Corporation (Milford, MA, USA), respectively. Sepasol RNA I Super G and MTT cell count kits were purchased from Nacalai Tesque, Inc. In vivo jetPEI was obtained from Polyplus-transfection® (New York, NY, USA). ECL Prime blocking reagent, Hybond-P polyvinylidene difluoride membranes and the ECL Prime Western Blotting Detection system were purchased from GE Healthcare (Milwaukee, WI, USA). All other chemicals and solvents were of the highest purity commercially available or of mass spectrometry grade.

Cell culture and transfection of siRNA

Human liver cancer HepG2 cells, human lung carcinoma A549 cells, and human breast carcinoma MDA-MB-453 cells were obtained from the RIKEN Cell Bank (Ibaraki, Japan). Cells were maintained in Dulbecco's modified Eagle's medium (DMEM; Nacalai Tesque, Inc.) supplemented with 10% fetal bovine serum (FBS; 100 U/ml penicillin, and 100 µg/ml streptomycin at 37°C in the presence of 5% CO2 and 95% air.

Cells were seeded at 1×105 cells/well onto a 24-well plate (Sumitomo Bakelite Co., Ltd., Tokyo, Japan), and were transfected with siRNA (siEzrin, siRadixin, siMoesin, or siNegative, 5 pmol/well) complexed with Lipofectamine RNAiMAX in Opti-MEM. The medium was replaced with fresh DMEM 48 h after transfection and the cells were used in the downstream experiments.

Evaluation of siRNA knockdown by real-time reverse transcription polymerase chain reaction (RT-PCR) and western blotting

mRNA and protein expression levels were assessed using RT-PCR and western blotting, as previously described (12,13). Cells treated with siRNA for 48 h were washed twice with cold phosphate-buffered saline (PBS). Total RNA was extracted from each sample and reverse-transcribed to complementary DNA. PCRs were incubated at 95°C for 10 sec, and then amplified at 95°C for 5 sec, 55°C for 20 sec, and 72°C for 31 sec for 40 cycles. After RIPA buffer was added to the cells, the cells were collected by cell scrapers. Cells were sonicated for 30 sec and were centrifuged at 14,000 × g for 15 min at 4°C. The protein concentrations in the supernatant were determined using a BCA protein assay kit. Sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) was performed using 7.5% e-Pagell (ATTO Corp., Tokyo, Japan) and 20 µg of proteins/well. Resolved proteins were transferred onto Hybond-P polyvinylidene difluoride membranes and subjected to semi-dry blotting using a Trans-blot SD (Bio-Rad Laboratories, Hercules, CA, USA). After a membrane blocking in a 5% (w/v) solution of ECL Prime blocking reagent in PBS for 1 h at room temperature, immunoreactive ezrin, radixin, moesin, and β-actin were detected using antibodies, and an ECL Prime Western Blotting Detection system. Primary antibodies and secondary antibodies were used for immunoblotting at a 1:1,000 and 1:10,000 dilution for 1 h each, respectively. The densitometric intensity of each band was detected with Ez capture and was calculated using CS analyzer 3 (both from ATTO Corp.).

Transporter activity assays

CDFDA (10 µM), MTX (100 µM), R123 (50 µM) and H33342 (10 µM) with or without each inhibitor (50 µM MK571, 50 µM verapamil and 10 µM Ko143) were added 30 min before the cells were treated with siRNA for 48 h. All transporter substrates were initially dissolved in dimethyl sulfoxide (DMSO). The final concentration of DMSO in the medium was <0.5%. After a 1 h-incubation for CDFDA, MTX and H33342 and a 2 h-incubation for R123, the cells were washed twice with PBS. Then, 100 µl of 1 M NaOH was added to lyse the cells, and the fluorescence intensity in the cells was measured using a fluorescence microplate reader (SH-9000; Corona Electric Co., Ibaraki, Japan) at Ex/Em wavelengths of 495/530 nm for CDF, 480/530 nm for R123, and 355/460 nm for H33342. The determination of MTX concentrations in the cell lysates was performed by liquid chromatography-tandem mass spectrometry (LC-MS/MS) as previously described (14). The LC-MS/MS equipment consisted of an LC system (UltiMate 3000 series) and a TSQ Endura Triple Quadrupole Mass Spectrometer with electrospray ionization (both from Thermo Fisher Scientific, Inc.). For data recording and analysis, Finnigan XCalibur software version 3 (Thermo Fisher Scientific, Inc.) was used.

Determination of the expression of MRP2, P-gp and BCRP in the cytoplasm and plasma membrane by targeted proteomics

Cytoplasm and plasma membrane proteins were extracted from HepG2 cells transfected with siRNA using a Mem-PER Eukaryotic Membrane Protein Extraction Kit. Proteins (10 µg) diluted in 25 µl of phase transfer surfactant buffer were reduced with 10 µM dithiothreitol at room temperature for 30 min. Free cysteines were alkylated in 42 µM iodoacetamide at room temperature for 20 min. A total of 50 µM ammonium bicarbonate and 1 µg of trypsin was added to the cell lysates. After trypsin digestion at 37°C for 18 h, 10 pmol of isotope-labeled peptides were added. The digested samples were desalted by OASIS HLB. The eluted samples were dried under vacuum at 50°C and were resuspended in 100 µl of the initial mobile phase (4.5% acetonitrile with 0.1% formic acid). Peptides were separated on a reversed-phase column (AdvanceBio Peptide Map C18, 2.1×150 µm, 2.7 µm; Agilent Technologies, Inc., Santa Clara, CA, USA). The column temperature was set at 50°C and the autosampler was maintained at 4°C. The mobile phase (A: 0.1% formic acid in water; B: 0.1% formic acid in 90% acetonitrile) was pumped at a flow rate of 0.1 µl/min. The column was conditioned at 5% mobile phase B. From 2 to 26 min, mobile phase B increased linearly from 5 to 60%. From 26 to 27 min, mobile phase B increased linearly to 98%. From 28 to 35 min, the mobile phase was maintained at 5% mobile phase B. The peptide sequences of surrogate peptides determined in this study were as follows; LTIIPQDPILFSGSLR for MRP2, IATEAIENFR for P-gp, SSLLDVLAAR for BCRP, DLTDYLMK for β-actin, and IVEIPFNSTNK for Na+/K+ ATPase. The protein expression levels of MRP2, P-gp and BCRP in the cytoplasm and plasma membrane proteins were corrected by the intensities of surrogate marker peptides of β-actin and Na+/K+-ATPase, respectively (15–17).

Evaluation of the cytotoxicity of MTX by MTT assay

MTX (100 µM) was added to HepG2 cells treated with siRadixin or siNegative and incubated for 48 h. At 24 h after MTX treatment, 10 µl of MTT cell count kit was added to the HepG2 cells for 3 h. The absorbance was measured at 570 nm by Sunrise R (Tecan Group, Ltd., Männedorf, Switzerland).

Inoculation of tumor cells

Male BALB/c nu/nu (4-week-old, body weight 15–17 g) mice were purchased from Japan SLC (Shizuoka, Japan). The animals were housed in an air-conditioned room at 22±0.5°C and relative air humidity of 55±10% with a 12-h lighting schedule (7:00 a.m.-7:00 p.m.) and had free access to standard laboratory food (MF; Oriental Yeast Co., Ltd., Tokyo, Japan) and water on the light/dark schedule for a week before they were divided into each group. The total number of mice used in the present study was 67.

Firefly luciferase-expressing HepG2 cells (HepG2-Luc; JCRB Cell Bank, Tokyo, Japan) were trypsinized and suspended in Hank's buffered salt solution (HBSS). The cells (1×105 cells in HBSS) were inoculated by subcutaneous injection into the back of the mice.

Determination of the mRNA levels of radixin in tumor-bearing mice by real-time reverse transcription polymerase chain reaction (RT-PCR)

Total RNA was extracted from the mouse tumors using Sepasol I super G, 48 h after treatment with 10 µg of siRadixin or siNegative, complexed with in vivo jetPEI (N/P=6). The mRNA expression was assessed using RT-PCR, as previously described (18,19). The following primer sequences were used: Sense primer, 5′-TTTGGCTTCGTATGCTGTCC-3′ and antisense primer, 5′-TGTTCCAAAACACGCTGTGG-3′ for mouse radixin and sense primer, 5′-CATTGCTGACAGGATGCAGAA-3′ and antisense primer, 5′-CCGATCCACACAGAGTACTTGC-3′ for mouse β-actin. Data were analyzed using the StepOne Real-Time PCR System (Thermo Fisher Scientific, Inc.), using the multiplex comparative method, as previously reported (20). The amount of target mRNA was normalized to β-actin as the internal control.

Accumulation of MTX in the tumors of tumor-bearing mice

HepG2-Luc suspended in HBSS was inoculated by subcutaneous injection into the back of the mice (1×105 cells/mice). At 1 week after inoculation of HepG2-Luc cells, the mice received injections of MTX using a 27-gauge needle for 10 sec at 30 µg/kg into the tumors (the long axis at ~4 µm in tumor diameter) 48 h after treatment with 10 µg of siRadixin or siNegative, complexed with in vivo jetPEI (N/P=6). At 1 h after MTX treatment, the tumors were excised from mice euthanized by cervical dislocation and the blood samples were collected in heparinized tubes, and immediately centrifuged at 6,700 × g for 10 min at 4°C to obtain plasma. The MTX levels in the tumors and plasma were determined by LC-MS/MS, as previously described (14). The ratio of the MTX level in the tumor to that in the plasma was used to indicate the accumulation of MTX in the tumor.

IVIS imaging

The IVIS imaging was performed according to the procedure of Puaux et al (21). Mice were injected intraperitoneally with D-luciferin at a dose of 150 µg/kg, 1, 2 and 3 weeks after inoculation with HepG2-Luc cells. The mice were anesthetized with isoflurane and placed on the imaging stage of the IVIS apparatus in the abdominal position with a continuous supply of isoflurane through the gas anesthesia manifold. Images were collected 15 min after D-luciferin injection using the IVIS Lumina XRMS Imaging System and photons emitted from the tumor and its surroundings were quantified using Living Image Software version 4 (both from PerkinElmer, Inc., Waltham, MA, USA).

Statistical analysis

The significance of differences between mean values was determined by Dunnett's test after analysis of variance (ANOVA) using GraphPad Prism software version 5 (GraphPad Software, Inc., La Jolla, CA, USA). Values of P<0.05 were considered to indicate statistically significant differences.

Results

Efficiency of the knockdown of the ERM proteins in HepG2 cells by siRNA transfection

To confirm the efficiency of the knockdown of the ERM proteins in HepG2 cells by the siRNA, the mRNA and protein expression levels in the cell lysate were determined 48 h after siRNA transfection (Fig. 1). The knockdown of ERM proteins by siRNA was observed in the mRNA levels (Fig. 1A). The protein levels of the ERM proteins were significantly decreased by siRNA knockdown (Fig. 1B).

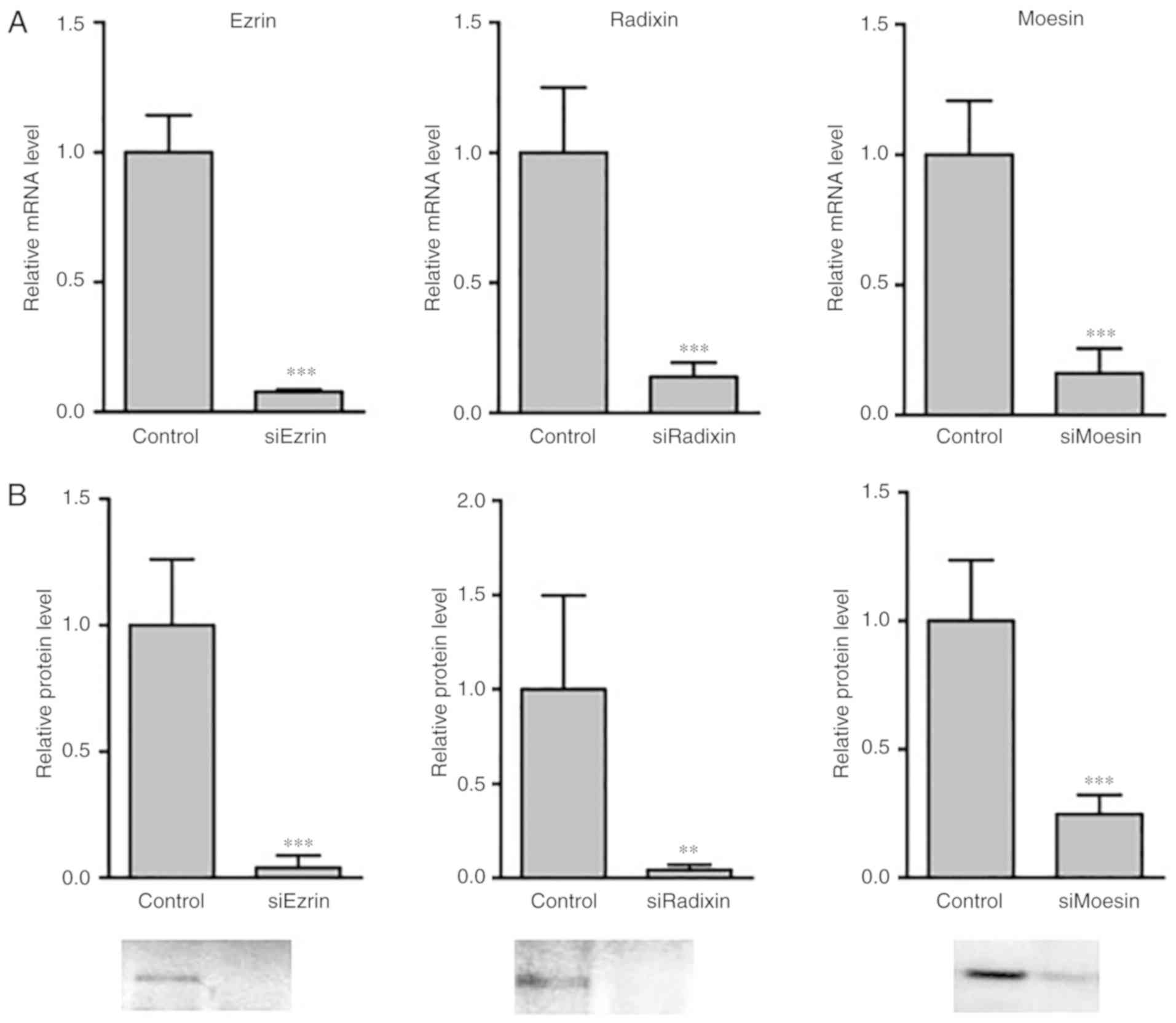

Figure 1. Relative (A) mRNA and (B) protein levels of ERM proteins in cell lysates 48 h after transfection with siEzrin, siRadixin, or siMoesin in HepG2 cells. The results are expressed as the mean ± SD of each group (n=4). Significant differences (**P<0.01 and ***P<0.001) between the control and siRNA treatments were observed. ERM, ezrin/radixin/moesin.

Efflux activity of MRP, P-gp, and BCRP in ERM protein-knockdown cells

To clarify the effect of ERM protein knockdown on the transport activity of MRP, P-gp and BCRP, the intracellular fluorescence intensities of transporter substrates in HepG2 cells with ERM protein knockdown were determined (Fig. 2). The knockdown of radixin, but not ezrin or moesin, resulted in a significantly higher intracellular accumulation of CDF compared with control HepG2 cells without ERM protein knockdown. There was little change in the intracellular accumulation of R123 and H33342 by ERM protein knockdown. Whether the effects of radixin knockdown on the intracellular accumulation of CDF were distinct to HepG2 cells (Fig. 3) was revealed. The radixin knockdown in A549 and MDA-MB-453 cells led to significant increases in intracellular CDF accumulation.

Figure 2. Relative intracellular accumulation of CDF, R123, and H33342 in HepG2 cells 48 h after transfection with siEzrin, siRadixin, or siMoesin. The results are expressed as the mean ± SD of each group (n=4-6). Significant differences (***P<0.001) between the control and siRNA treatments were observed. CDF, 5(6)-carboxy-2′,7′-dichlorofluorescein; R123, Rhodamine 123; H33342, Hoechst 33342.

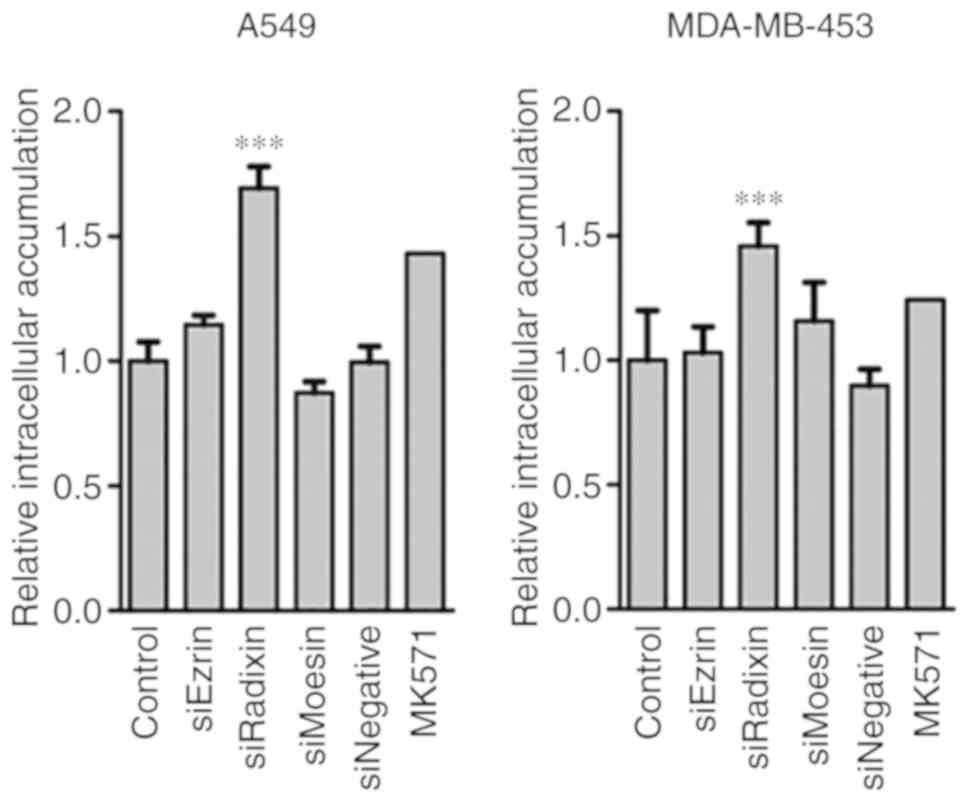

Figure 3. Relative intracellular accumulation of CDF in A549 and MDA-MB-453 cells 48 h after transfection with siEzrin, siRadixin, or siMoesin. The results are expressed as the mean ± SD of each group (n=6). Significant differences (***P<0.001) between the control and siRNA treatments were observed. CDF, 5(6)-carboxy-2′,7′-dichlorofluorescein.

Levels of MRP2, P-gp and BCRP in radixin-knockdown cells

The levels of MRP2, P-gp, and BCRP in the cytoplasm and plasma membrane of HepG2 cells with radixin knockdown were determined (Fig. 4). The levels of MRP2, but not P-gp or BCRP, in the plasma membrane were significantly decreased by radixin knockdown (Fig. 4). In the cytoplasm, the levels of MRP2, P-gp, and BCRP were unaltered by radixin knockdown.

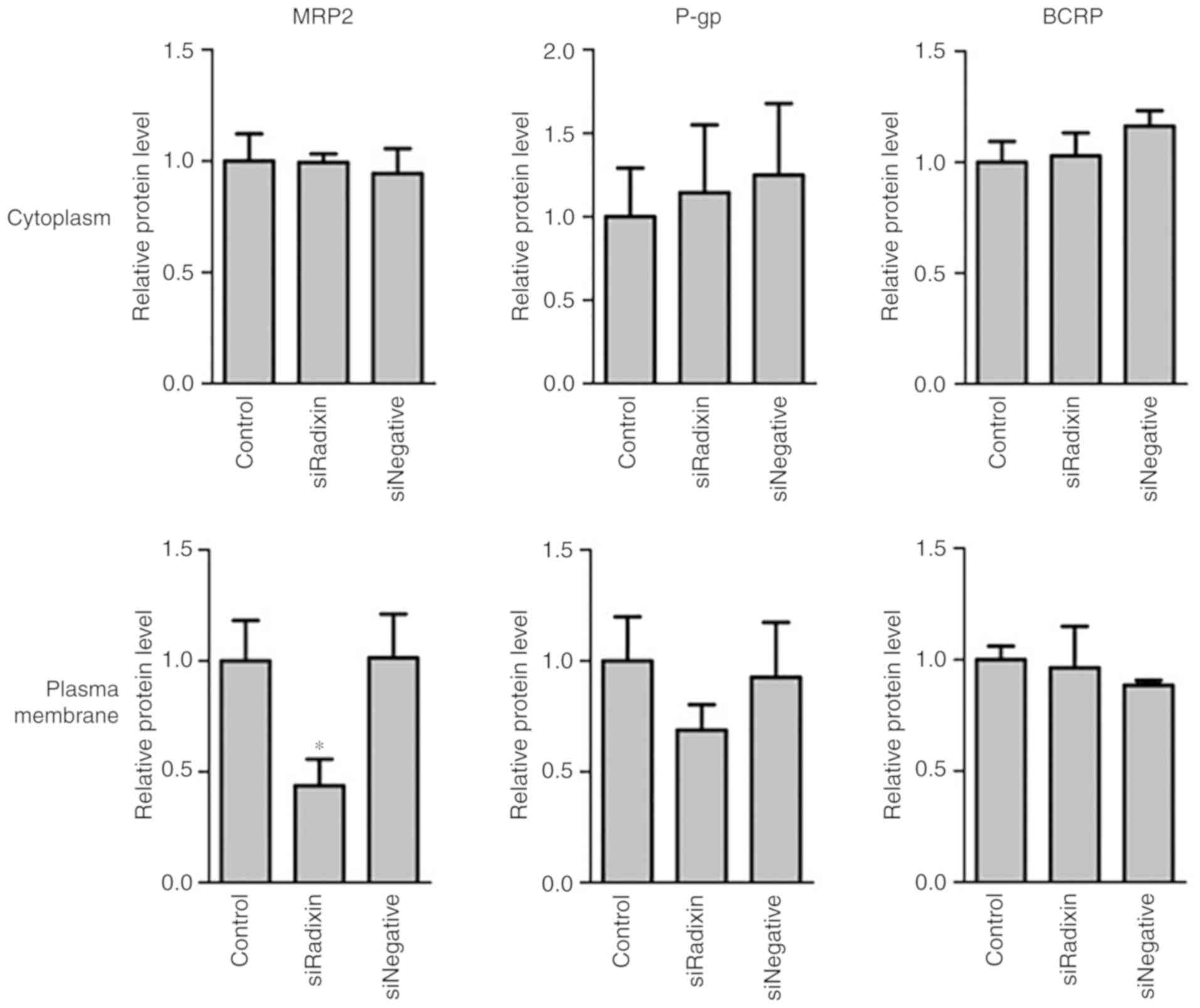

Figure 4. Relative levels of MRP2, P-gp, and BCRP in the cytoplasm and plasma membrane 48 h after transfection of siRadixin HepG2 cells. The results are expressed as the mean ± SD of each group (n=4). A significant difference (*P<0.05) between the control and siRadixin treatment was observed. MRP2; multidrug resistance-associated protein 2; P-gp, P-glycoprotein; BCRP, breast cancer resistance protein.

Intracellular MTX accumulation and cytotoxicity in radixin-knockdown cells

The effect of radixin knockdown on intracellular MTX accumulation and cytotoxicity was examined (Fig. 5). The intracellular MTX accumulation was significantly increased by radixin knockdown compared with control and siNegative (Fig. 5A). The MTX cytotoxicity was also increased by radixin knockdown (Fig. 5B).

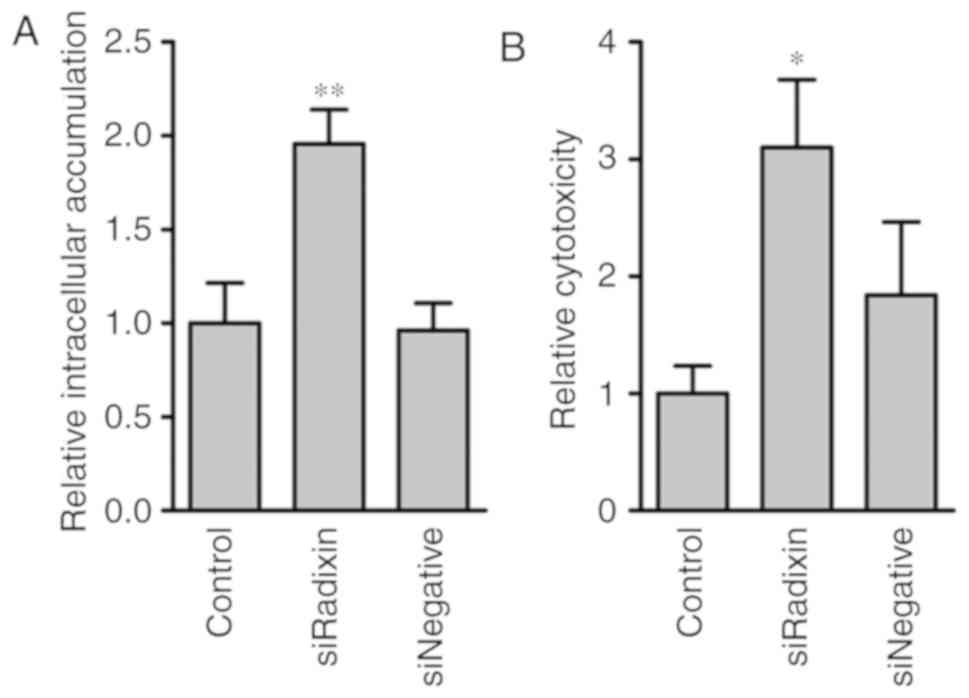

Figure 5. Relative intracellular accumulation of (A) MTX in HepG2 cells and (B) relative MTX cytotoxicity 48 h after transfection with siRadixin or siNegative in HepG2 cells. The results are expressed as the mean ± SD of each group (n=4-11). Significant differences (*P<0.05 and **P<0.01) between the control and siRadixin treatment were observed. MTX, methotrexate.

In vivo effects of radixin knockdown on the accumulation and efficiency of MTX

The in vivo knockdown efficiency of radixin in tumors after siRadixin treatment was determined (Fig. 6A). Significant decreases in radixin mRNA were observed in tumors, as well as in in vitro knockdown experiments. To clarify whether the treatments of siRadixin caused the topical knockdown of radixin, the radixin mRNA levels in liver were determined. The radixin mRNA levels in liver were unaltered between the control and siRadixin 48 h after intratumoral injection of siRNA complexed with in vivo jetPEI (data not shown). To clarify whether the radixin knockdown affected the accumulation of MTX in the tumors, the levels of MTX remaining in the tumors 1 h after MTX administration were determined (Fig. 6B). Higher concentrations of MTX were observed in the tumors of mice with radixin knockdown, although the plasma concentrations of MTX were unchanged by treatment of siRadixin. The anticancer effects of MTX after radixin knockdown were examined using in vivo imaging (Fig. 7). Tumor proliferation in the mice was suppressed by radixin knockdown. A significant decrease in the photon bioluminescence derived from HepG2-Luc cells was observed 3 weeks after inoculation of mice with HepG2-Luc cells. MTX alone revealed a lower anticancer effect compared with MTX with siRadixin. There was little effect with either siRadixin alone (20.8×105 photons/sec, n=2) or in vivo jetPEI alone (22.8×105 photons/sec, n=2) on the relative intensity of the photon bioluminescence 3 weeks after inoculation of mice with HepG2-Luc cells.

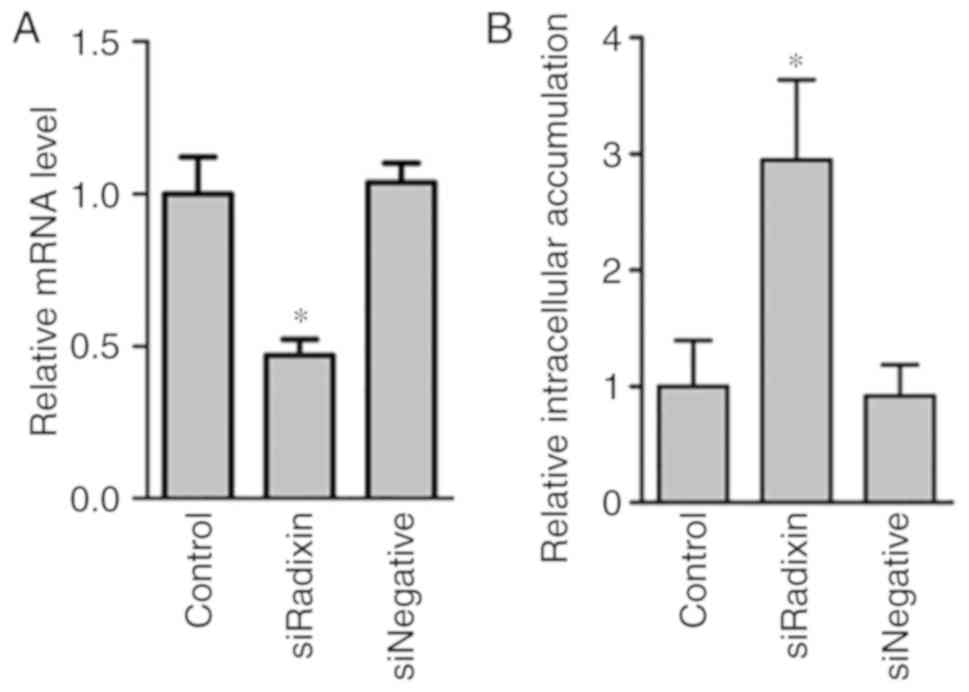

Figure 6. (A) Relative mRNA levels of radixin 48 h after treatment with siRadixin or siNegative, complexed with in vivo jetPEI and (B) MTX accumulation 1 h after MTX injections to mice treated with siRadixin or siNegative, complexed with in vivo jetPEI, for 48 h. The results are expressed as the mean ± SD of each group (n=3). Significant differences (*P<0.05) between the control and siRadixin treatment were observed. MTX, methotrexate.

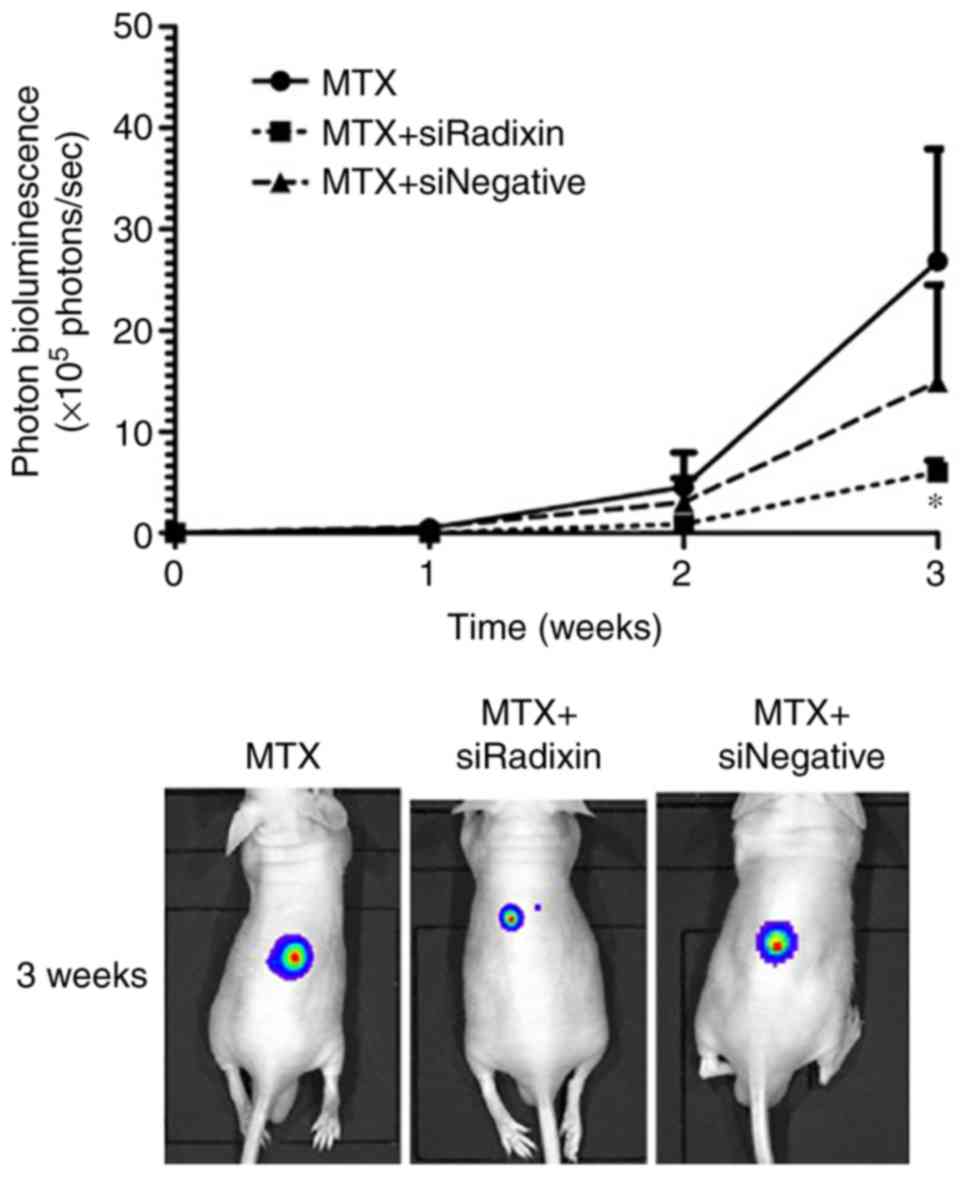

Figure 7. Photon bioluminescence of HepG2-Luc in mice treated with MTX with or without siRadixin or siNegative, complexed with in vivo jetPEI. The results are expressed as the mean ± SD of each group (n=3). Significant differences (*P<0.05) between the control and siRadixin treatment were observed. MTX, methotrexate.

Discussion

It was unclear whether ERM proteins could be target proteins for the modulation of efflux transporter activity in tumor cells, although ERM proteins have important roles in the regulation of transporter localization and activity in normal tissues. In the liver, radixin deficiency causes hyperbilirubinemia with loss of MRP2 from bile canalicular membranes (1). The plasma membrane localization and transport activity of MRP2 were inhibited by radixin knockdown in HepG2 cells (Figs. 2 and 4). An in vivo study revealed the potential of radixin knockdown in tumor cells to improve the efficiency of MTX (Fig. 7). Radixin knockdown could promote the MRP2 internalization from the plasma membrane surface. However, the changes of absolute amounts of MRP2 in HepG2 cells remains unclear, because the protein expression levels were represented by relative amounts for control expression levels.

ERM proteins are involved in the distinct regulation of the localization and/or translation of transporters in normal tissues. For example, radixin knockout resulted in the reduction of P-gp expression and transport activity in the small intestine (22). Activation of ezrin led to apical localization of MRP2 in the small intestine (23). Radixin deficiency caused a loss of MRP2 from bile canalicular membranes (1). In the present study, it was examined whether ERM proteins participated in the plasma membrane localization and transport activity of transporters in tumor cells. The transport activity of MRP2 was significantly decreased by radixin knockdown in HepG2, A549, and MDA-MB-453 cells (Figs. 2 and 3), indicating that radixin is involved in the MRP2 function in tumor cells as well as in normal cells. Pokharel et al revealed that ERM proteins are involved in the regulation of the expression and function of P-gp in breast cancer cells (24). Yano et al demonstrated that the role of ERM proteins in the regulation of P-gp was different in Caco-2 and Caki-1 cells (11), indicating that the tissue-specific participation of ERM proteins in the regulation of P-gp in tumor cells was maintained as in the corresponding normal tissues. In HepG2 cells, the intracellular CDF accumulation was particularly increased by radixin knockdown compared with A549 cells and MDA-MB-453 cells, indicating a marked higher expression of MRP2 and/or higher interaction between radixin and MRP2 in the liver, because the inhibition of MRP activity by MK571 was insufficient in A549 and MDA-MB-453 cells. In addition to the regulation of the plasma membrane localization of transporters, ezrin was revealed to regulate the translational process of P-gp in HepG2 cells (25). However, in tumor cells, the participation of ezrin and moesin in the transport activity of MRP2, P-gp and BCRP may be reduced compared with radixin.

Multiple MRPs, including MRP1, MRP2 and MRP3, exhibit resistance to MTX exposure (26,27). Both the MRP2 activity and expression levels in the plasma membrane of HepG2 cells were significantly decreased by radixin knockdown. In preliminary experiments, the expression of MRP1 and MRP3 in the cytoplasm and plasma membrane were unaltered by radixin knockdown (data not shown). He et al demonstrated that radixin knockdown in human gastric carcinoma SGC-7901 cells led to the specific knockdown of MRP2, not MRP1 or MRP3 (9). These findings were consistent with the decreased expression and activity of MRP2, compared with other MRP family members, after radixin knockdown in HepG2 cells.

There was little effect of ERM protein knockdown on the transport activity and expression levels of P-gp and BCRP in HepG2 cells (Figs. 2 and 4). In HepG2 cells, it was difficult to determine alterations in BCRP activity, because the intracellular accumulation of H33342 was slightly increased by Ko143. An improved evaluation system for BCRP activity is required to clarify the effect of ERM protein knockdown on the interactions between BCRP and ERM proteins. There was little effect of radixin knockdown on the expression of P-gp and BCRP in the cytoplasm and plasma membrane (Fig. 4). The changes in transporter expression by radixin knockdown corresponded with the alterations in the transport activity. Kano et al demonstrated that radixin knockdown in HepG2 cells decreased the protein expression of P-gp in plasma membrane (25). In our results, the activities of P-gp and the protein levels of P-gp in plasma membrane were tendency decreased, not statistically significant, although the detailed reasons for these differences remains unclear.

Based on the results of transport activity using typical fluorescent substrates for efflux transporters, radixin has potential as a target protein to improve the delivery efficiency of anticancer drugs recognized by MRP2. To clarify the effects of radixin knockdown on the efficiency of an anticancer drug in vitro and in vivo, the accumulation and efficiency of MTX as a typical anticancer drug which is an MRP substrate were examined (26–31). The intracellular accumulation of MTX was significantly increased by radixin knockdown (Figs. 5A and 6B). Increased cytotoxicity in HepG2 cells treated with MTX was observed with radixin knockdown (Fig. 5B), indicating that the reduction of MRP2 activity in HepG2 cells led to an increase in the anti-cancer effects of MTX. In an in vivo study, tumor proliferation after inoculation of HepG2-Luc cells to mice was significantly delayed by radixin knockdown (Fig. 7). There was little effect with MTX alone, siRNA alone, or in vivo jetPEI alone, on the relative intensity of the photon bioluminescence. The dose of MTX was set to evaluate the effects of radixin knockdown on the tumor onset after ascertaining the anticancer effects of that dose of MTX on HepG2-Luc and referencing a previous study (32). The anticancer effects of MTX were enhanced possibly due to the reduction in the transport activity of MRP2 by radixin knockdown. Alternative sustained knockdown methods, such as viral vectors or peptides, should be used to increase the efficiency of MTX, although radixin is a useful target for the modulation of MRP2 in tumor cells. Further studies are required to clarify the effects of radixin knockdown on the other doses of MTX and on the anticancer efficiency of other drugs, such as doxorubicin, a substrate for MRP, P-gp, and BCRP (33,34).

In conclusion, the present study provides information on radixin as a target molecule for the modulation of MRP activity in tumor cells. It would be useful to further investigate whether other transporter-associated proteins could be target proteins for the modulation of transporter functions.

Acknowledgements

Dr Victoria Muir edited a draft of this manuscript.

Funding

The present study was supported by JSPS KAKENHI grant no. 18K06806 from the Japanese Ministry of Education, Culture, Sports, Science, and Technology (MEXT). This research was also supported in part by the MEXT-Supported Program for the Strategic Research Foundation at Private Universities, 2014–2018 (S1411037).

Availability of data and materials

The datasets used during the present study are available from the corresponding author upon reasonable request.

Authors' contributions

AK and MI participated in the research design. AK, YI, SN and EK conducted the experiments and performed the data analysis AK and MI contributed to the writing of the manuscript. All authors read and approved the manuscript and agree to be accountable for all aspects of the research in ensuring that the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Ethics approval and consent to participate

The study protocol was approved by the Committee for the Care and Use of Laboratory Animals of the School of Pharmacy of Kindai University (Osaka, Japan).

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
