Introduction

Myocardial ischemia and reperfusion (I/R) injury is a primary risk factor for causing myocardial infarctions (MI), which is the most common cause of mortality in developed countries (1-3). It has been estimated that ~15.9 million individuals worldwide suffered from MI in 2015 (4). Although reperfusion therapy has been demonstrated to be able to restore impaired cardiac function and to mitigate the infarct size following ischemic events, the additional tissue injury caused by reperfusion is almost inevitable (5).

Multiple mechanisms are hypothesized to be involved in I/R injury (1). The inflammatory response to I/R is common in myocardial I/R injury (6). Various cytokines will be released during the inflammation reactions (7). Reactive oxygen species (ROS) generation also occurs in the myocardium; however, if ROS cannot be cleared promptly, intracellular oxidative stress will be initiated, finally leading to cell apoptosis. Cellular apoptosis is known to be triggered shortly following MI, and it is evidently increased during reperfusion (8,9). Apoptosis has been recognized as a crucial factor in the progression of I/R injury in cultured myocardial cells (10,11). Therefore, a decrease in inflammation, ROS generation and/or apoptosis may be therapeutic targets against I/R injury. Various apop-tosis pathways, including the mitochondrial pathway and the tumor necrosis factor receptor superfamily member 6 (Fas)/Fas ligand (FasL) death receptor-mediated pathway, have been demonstrated to be essential for the apoptosis observed in the myocardium following I/R (11-14). Therefore, depressing apoptotic signaling may be a promising strategy to decrease I/R injury.

Carthamus tinctorius L. has been applied extensively in the treatment of cerebrovascular and cardiovascular diseases. Hydroxysafflor Yellow A (HSYA) is the primary active component of this compound, commonly used in Chinese medicine. The antioxidant effect of HSYA has been validated (15), and it has been demonstrated that HSYA may improve I/R injury by decreasing oxidative stress in brain tissue (16). Nevertheless, the mechanisms of HSYA-mediated protection from I/R injury are not completely understood.

The Janus kinase (JAK)/signal transducers and activators of transcription (STAT) pathway is able to modulate stress-responsive gene expression (17,18). The phosphorylation of STATs mediated by JAK triggers alteration of gene transcription (19,20). In addition, STATs have been demonstrated to regulate apoptosis in multiple cell types (21). Previous studies identified that STATs may modulate the opening of mitochondrial permeability transition pores (22,23). In addition, activation of JAK/STAT signaling was identified in the development of renal I/R injury, in which the release of inflammatory promotion factors was enhanced (24). Previous data have also demonstrated that STAT1 is able to induce the expression levels of pro-apoptotic genes including Fas and FasL (25), and to repress the expression levels of anti-apoptotic gene including B-cell lymphoma 2 (Bcl-2) (26).

The present study was undertaken to examine the potential role of HSYA in myocardial I/R injury in vivo and in vitro. Furthermore, considering the crucial role of JAK/STAT1 in tissue protection, the potential role of this signaling pathway in HSYA-mediated protection against myocardial I/R injury was also examined.

Materials and methods

Chemical preparation

HSYA powder (95-99.0% purity, determined by high performance liquid chromatography) was obtained from Shanghai Yuanye Biotechnology Co., Ltd. (Shanghai, China). Sodium pentobarbital was obtained from Sigma-Aldrich; Merck KGaA (Darmstadt, Germany). Cardiac troponin I (cTnI; cat. no. ml059498) and interleukin-6 (IL-6; cat. no. ml064292) ELISA kits were obtained from Shanghai Enzyme-linked Biotechnology Co., Ltd. (Shanghai, China). The superoxide dismutase (SOD; cat. no. S0101), lactate dehydrogenase (LDH; cat. no. C0016) and malondialdehyde (MDA; cat. no. S0131) kits were purchased from Beyotime Institute of Biotechnology (Haimen, China). Dulbecco's modified Eagle's medium (DMEM) and other cell culture reagents were purchased from Gibco; Thermo Fisher Scientific, Inc. (Waltham, MA, USA). Evans blue and 2,3,5-triphenyltetrazolium chloride (TTC) were obtained from Sigma-Aldrich; Merck KGaA. The specific inhibitors of JAK2 and STAT1 (named AG490 and S1491, respectively) were purchased from MedChemExpress (Monmouth Junction, NJ, USA). The antibodies used were purchased from Abcam (Cambridge, MA, USA) and Cell Signaling Technology, Inc. (CST, Inc.; Danvers, MA, USA), and were as follows: Anti-cleaved caspase (cat. no. ab49822; dilution, 1:500; Abcam), anti-Fas (cat. no. ab82419; dilution, 1:1,000; Abcam), anti-FasL (cat. no. ab15285; dilution, 1:500; Abcam), anti-Bcl-2 (cat. no. ab59348; dilution, 1:1,000; Abcam), anti-Bcl-2-associated X protein (Bax; cat. no. ab32503; 1:3,000; Abcam), anti- phosphorylated (p)-JAK2 (cat. no. 4406; dilution, 1:1,000; CST, Inc.), anti-p-STAT1 (cat. no. 7649; dilution, 1:1,000; CST, Inc.), anti-β-actin (cat. no. ab8226; dilution, 1:5,000; Abcam), anti-GAPDH (cat. no. ab9385; dilution, 1:1,000; Abcam) and horseradish peroxidase (HRP)-conjugated secondary antibodies (cat. no. ab205718; dilution, 1:5,000; Abcam).

I/R model in vivo

The present study was performed, according to the Guide for the Care and Use of Laboratory Animals, 8th Edition (27) and approved by the Animal Subjects Committee of the Affiliated Hospital of Hangzhou Normal University (Hangzhou, China). The experiments were performed on 40 healthy adult male Sprague-Dawley rats (weighing 250±20 g; 2 months old) obtained from Guangdong Medical Laboratory Animal Center (Foshan, China). The animals were housed in a pathogen-free environment and maintained following standard laboratory animal feeding protocols. The animals had ad libitum access to food and water in a light/dark cycle (12/12 h). The animals were given 2 weeks to acclimate prior to the experiments. The local myocardial I/R model was constructed as follows: The animals were anesthetized by intraperitoneal administration of sodium pentobarbital (60 mg/kg); ligation of the anterior descending thoracic branch of the coronary artery was performed for 30 min prior to 2 h of perfusion. The animals were randomly divided into four groups, which were: Control (control), which comprised rats without I/R treatment; the Sham operated group (sham), in which open heart surgery was performed but the anterior descending branch of the coronary artery was not ligated; the I/R group (I/R), which included rats that underwent I/R treatment; and the I/R+HSYA group (I/R+H), which included rats that underwent I/R treatment, but 5 mg/kg HSYA was intraperitoneally injected 30 min prior to ischemia. As previously described and following our preliminary experiments, concentration of HSYA was determined (28,29). Following perfusion, the anesthetized animals were prepared for subsequent experiments. Finally, the animals were sacrificed by intraperitoneal injection of sodium pentobarbital (200 mg/kg). Mortality was verified by lack of visible signs of respiration and measurable heartbeat.

I/R model in vitro

H9c2 cells (American Type Culture Collection, Manassas, VA, USA) were cultured in DMEM medium containing fetal bovine serum (10%) and streptomycin/penicillin (1%) in an incubator with 5% CO2. The cells were seeded at a density of 2.5×103 cell/well. The cells were randomly grouped as follows: i) Control group (control); ii) the hypoxia/reoxygenation group (H/R); iii) the H/R +20 µM HSYA group (H/R + H); iv) the H/R +10 µM AG490 group (H/R + A); v) the H/R +10 µM AG490 +20 µM HSYA (H/R + H + A) group; and vi) the H/R +5 µM S1491 +20 µM HSYA (H/R + H + S1491) group. As previously described and following our preliminary experiments, the doses of each agent were selected (29-32). The cells were collected for the following experiments.

Infarct size measurement

As described previously, the risk area and infarct size was calculated using a double-staining method with TCC and Evans blue stains (33). In brief, following perfusion, the heart was perfused with 3% Evans blue to indicate the area at risk (AAR). Then, the tissues were incubated with 2% TTC solution in the dark at 37°C for 15 min, and then were then stored in 4% paraformaldehyde overnight at 4°C to demarcate the infarct area. Areas with non-perfusion and blue staining were considered AAR, while areas with non-perfusion with TTC staining were labeled as the infarct area. The AAR and infarct area were calculated using Image-Pro Plus software V6.0 (Media Cybernetics, Inc., Rockville, MD, USA). The infarct size was measured as a percentage of the infarct area over the AAR.

Analysis of myocardial damage and oxidative stress markers

Following reperfusion, blood samples in rats and cells in the culture medium were harvested. The blood and cells were then centrifuged at 3,000 × g for 15 min at room temperature to obtain sera and cell supernatant. The levels of cTnI, IL-6 and LDH release were examined to estimate myocardial damage. The levels were measured using commercially available ELISA kits according to the manufacturer's protocol. The absorbance was read on a microplate reader (Thermo Fisher Scientific, Inc.). The serum and the cell culture supernatant were also used to estimate oxidative stress markers, including the content of MDA and the activity of SOD, which were detected with commercial assay kits using fluorescence spectrophotometry (F-7100; Hitachi, Ltd., Tokyo, Japan) following the manufacturer's protocols.

Detection of myocardial apoptosis

A terminal deoxynucleotidyl transferase-mediated dUTP nick-end labeling (TUNEL) assay and flow cytometry analysis were performed to detect the apoptosis levels in heart tissue and cardiomyocytes, respectively. The heart tissue was fixed in 4% paraformaldehyde for 10 min at room temperature and embedded in paraffin. The tissue was subsequently cut into 4-5 µm sections, and the slides were incubated with TUNEL mixture reagent (Sigma-Aldrich; Merck KGaA) at 37°C for 1 h. The cells were also incubated with DAPI (1 µg/ml) for 30 min at room temperature to stain the nuclei. ProLong™ Gold Antifade Mountant (cat. no. P36930; Thermo Fisher Scientific, Inc.) was used to prevent photo-bleaching. The apoptotic cells in ≥6 fields were randomly selected. The percentage of apop-tosis was calculated as the number of TUNEL-positive cells within the total populations of cardiomyocytes. The images and the ratios were obtained using an Olympus fluorescence microscope (BX51; Olympus Corporation, Tokyo, Japan) and ImageJ software (version 2.0.0; National Institutes of Health, Bethesda, MD, USA), respectively. An Annexin V-fluorescein isothiocyanate (FITC) and propidium iodide (PI) staining kit (BD Biosciences, San Jose, CA, USA) was used to assess cell apoptosis in vitro according to the manufacturer's protocols. The collected cells were stained with 5 µl Annexin V-FITC and 10 µl PI in the dark at room temperature for 10-15 min. Apoptosis was determined by a FACSCalibur flow cytometer (BD Biosciences) and analysis software BD CellQuest™ Pro Software version 1.2 (BD Biosciences).

Cell viability and caspase-3 activity

The cells (5×103 per well) were seeded in a 96-well plate and treated as described. Next, the cells were incubated with Cell Counting Kit-8 (CCK-8; Beyotime Institute of Biotechnology) reagent (10 µl) at 37°C in an incubator for 3 h. The absorbance was determined on a microplate reader (Bio-Rad Laboratories, Inc., Hercules, CA, USA) at 450 nm. Caspase-3 activity (cat. no. 69-21755; MSK Laboratory, Wuhan, China) was determined in the cell lysate by conducting an ELISA assay. The treated cells were collected and plated in a 96-well plate. Cell lysates were subject to protein quantitation using a Bicinchoninic Acid Protein Assay kit (Bio-Rad Laboratories, Inc.) prior to detection. Each well was incubated with substrate solution. Then, the 96-well plate was maintained at 37°C for 30 min. Finally, the reaction was terminated with a stop solution. A microplate reader was used to read the absorbance at a wavelength of 405 nm.

Determination of mitochondrial membrane potential (MMP) and ROS generation

The alteration of MMP was measured by Rhodamine-123 (Rho-123) dye (Sigma-Aldrich; Merck KGaA). Following reperfusion, the cells were incubated with 10 µg/ml Rho-123 working buffer at 37°C for 30 min. The cells were then washed, and analyzed using a flow cytometer and BD Accuri™ C6 software (BD Biosciences). Subsequently, 2,7-dichlorofluorescein diacetate (DCFH-DA) dye (Sigma-Aldrich; Merck KGaA) was used to detect the ROS level. Briefly, prior to fixation with 4% paraformaldehyde at room temperature for 15 min, the cells were stained with 20 µM DCFH-DA at 37°C for 30 min. ROS generation was then determined at wavelength 488 nm using a fluorescence plate reader (BioTek Instruments, Inc., Winooski, VT, USA).

Reverse transcription quantitative polymerase chain reaction (RT-qPCR)

Cells were pretreated as described. The total RNA was isolated with TRIzol® reagent (Thermo Fisher Scientific, Inc.). DNaseI was used to digest the genomic DNA. Reverse transcription was completed with random hexamer primers using a Moloney-Murine Leukemia Virus Enzyme (Promega Corporation, Madison, WI, USA). RT-qPCR was performed on ABI Prism 7500 using the SYBR Premix Ex Taq II (Takara Bio, Inc., Otsu, Japan). The qPCR conditions were set as follows: 10 min pretreatment at 95°C, 96°C for 15 sec, 63°C for 45 sec (35 cycles) and a final extension at 75°C for 10 min. The specific PCR primers used were as follows: Fas forward, 5′-CCAGCCACAAAGAGAGGAGA-3′; Fas reverse, 5′-AACGGTTCCTCTCAACACCT-3′; FasL forward, 5′-TGCTGTGTGACAATGCAGAG-3′, FasL reverse, 5′-GAGCCTCCTTTCTCACCCTT-3′; Bcl-2 forward, 5′-CCTGGCATCTTCTCCTTCCA-3′; Bcl-2 reverse, 5′-GGACATCTCTGCAAAGTCGC-3′; Bax forward, 5′-TGGCCTCCTTTCCTACTTCG-3′; Bax reverse, 5′-AAAATGCCTTTCCCCGTTCC-3′; β-actin forward, 5′-TCTATGAGGGTTACGCGCTC-3′; β-actin reverse, 5′-GCTGTGGTGGTGAAGCTGTA-3′. The 2−ΔΔCq method was used to quantify gene expression levels (34).

Western blot analysis

The harvested cells were treated with radioimmunoprecipitation assay lysis buffer (Beyotime Institute of Biotechnology). A Bicinchoninic Acid Protein Assay kit (Bio-Rad Laboratories, Inc.) was used to assess protein concentration. Following denaturation in boiling water for 5 min, the proteins (20 µg/lane) were separated by electrophoresis on 10% SDS-PAGE gels. Then, the cells were transferred onto a polyvinylidene fluoride membrane. Subsequently, 5% skimmed milk was incubated with the membrane to block the non-specific antigens at room temperature for 2 h. The primary antibodies were then added, to interact with the target proteins, at 4°C overnight. Next, the membrane was incubated with HRP-coupled secondary antibodies at 4°C for 1 h. Blots were visualized using enhanced chemiluminescence reagent (Thermo Fisher Scientific, Inc.) An enhanced chemiluminescence system (GE Healthcare, Chicago, IL, USA) was adopted to detect the bands. The protein gray intensity was calculated using Quantity one software (4.6.2; Bio-Rad Laboratories, Inc.).

Statistical analysis

GraphPad Prism Software 6 (GraphPad Software, Inc., La Jolla, CA, USA) was used for statistical analysis. Statistical analysis was conducted by one-way analysis of variance with Dunnett's post-test comparison. Data are presented as the mean ± standard deviation from three independent experiments. P<0.05 was considered to indicate a statistically significant difference.

Results

HSYA ameliorates myocardial I/R injury and oxidant stress in vivo

Infarct size and the release of cTnI and IL-6 were measured to estimate the effect of HSYA on I/R injury. In contrast to the Sham group, animals in the I/R group exhibited a significant increase in myocardial infarct size. The infarct size was markedly decreased in the HSYA group in comparison with that in the I/R group (Fig. 1A and B). In addition, animals in the I/R group exhibited a marked increase in serum cTnI and IL-6 levels, compared with those rats in the Sham group. Notably, the treatment with HSYA was associated with a minor increase in cTnI and IL-6 levels compared with the I/R group (Fig. 2A and B). Furthermore, as a marker of tissue damage, the increased activity of LDH induced by I/R injury was decreased by the treatment with HSYA (Fig. 2C). In addition, the animals in the I/R group exhibited a noticeable increase in the content of MDA and a significant decrease in SOD activity compared with the Sham group. The administration of HSYA in animals with I/R injury exhibited cardio-protective effects by alleviating oxidative stress (Fig. 2D and E).

Figure 1 Myocardial infarct size in I/R rats is decreased by HSYA. (A) The effect of HSYA was examined by double-staining technique of 2,3,5-triphenyltetrazolium chloride and Evans blue. (B) The percentage of the AAR (IS/AAR%) was indicated the infarct size. **P<0.01 vs. control group; #P<0.05 vs. I/R group. AAR, area at risk; I/R, ischemia/reperfusion; H/HSYA, Hydroxysafflor Yellow A.

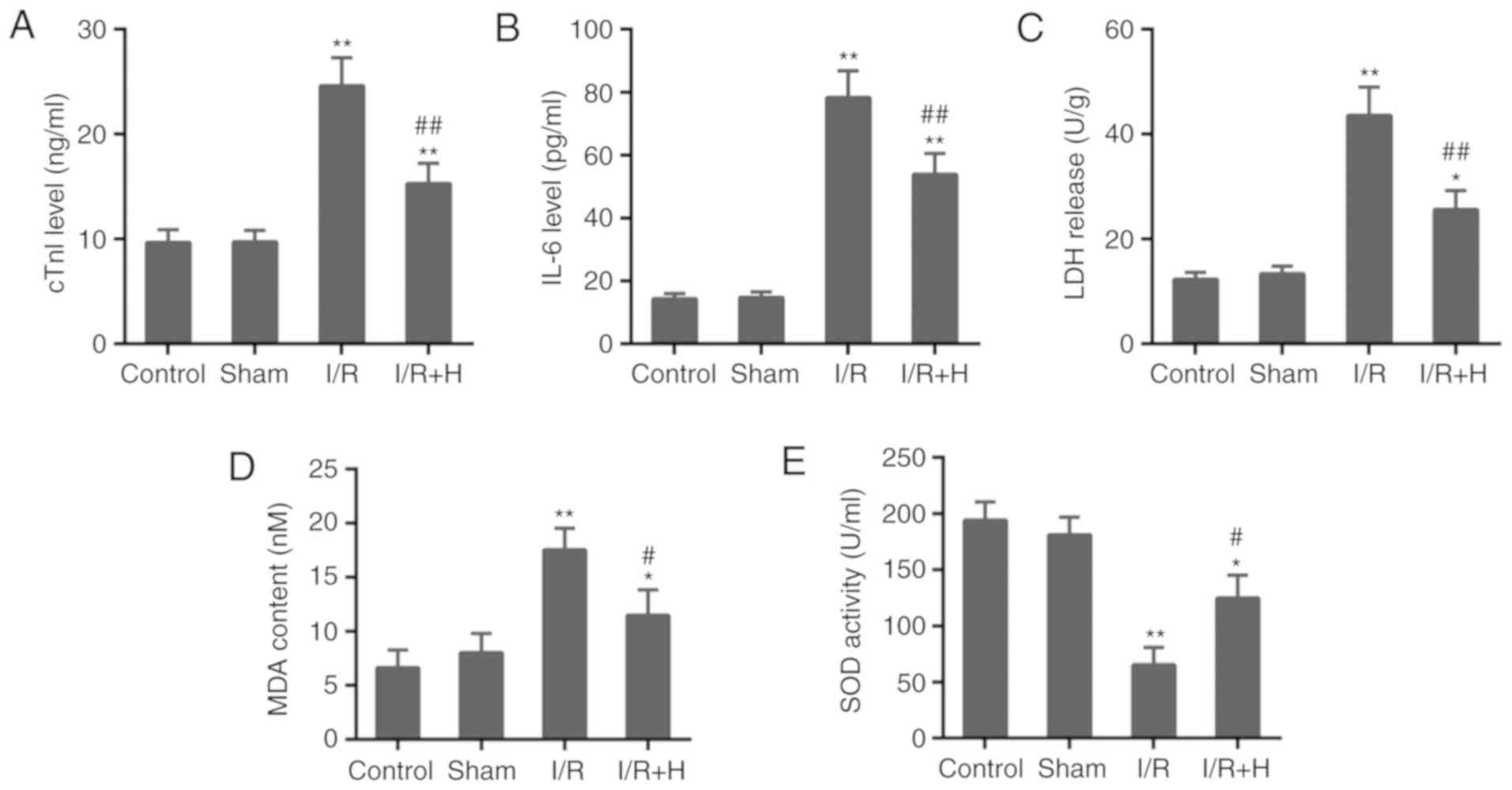

Figure 2 Effect of HSYA on indicators for myocardial injury and oxidative stress. The serum levels of (A) cTnI, (B) IL-6, (C) LDH, (D) MDA and (E) SOD in rats. *P<0.05 and **P<0.01 vs. control group; #P<0.05 and ##P<0.01 vs. I/R group. I/R, ischemia/reperfusion; H/HSYA, Hydroxysafflor Yellow A; cTnI, cardiac troponin; IL-6, interleukin 6; LDH, lactate dehydrogenase; MDA, malondialdehyde; SOD, superoxide dismutase.

HSYA decreases myocardial apoptosis in vivo

To estimate the effect of HSYA on apoptosis, the TUNEL-positive cardiomyocytes and the expression levels of apoptosis-associated proteins were determined in vivo. The percentage of TUNEL-positive cells was elevated in the I/R group in comparison with the Sham group. Compared with the I/R group, HSYA significantly decreased the number of TUNEL-positive cardiomyocytes (Fig. 3A and B). In addition, the expression levels of pro-apoptotic proteins, including cleaved caspase-3, Fas, FasL and Bax, were markedly induced by I/R. However, the administration of HSYA decreased their expression levels. Concomitantly, the level of anti-apoptotic protein Bcl-2 was decreased in the I/R group, but it was recovered in the I/R + HSYA group (Fig. 3C and D).

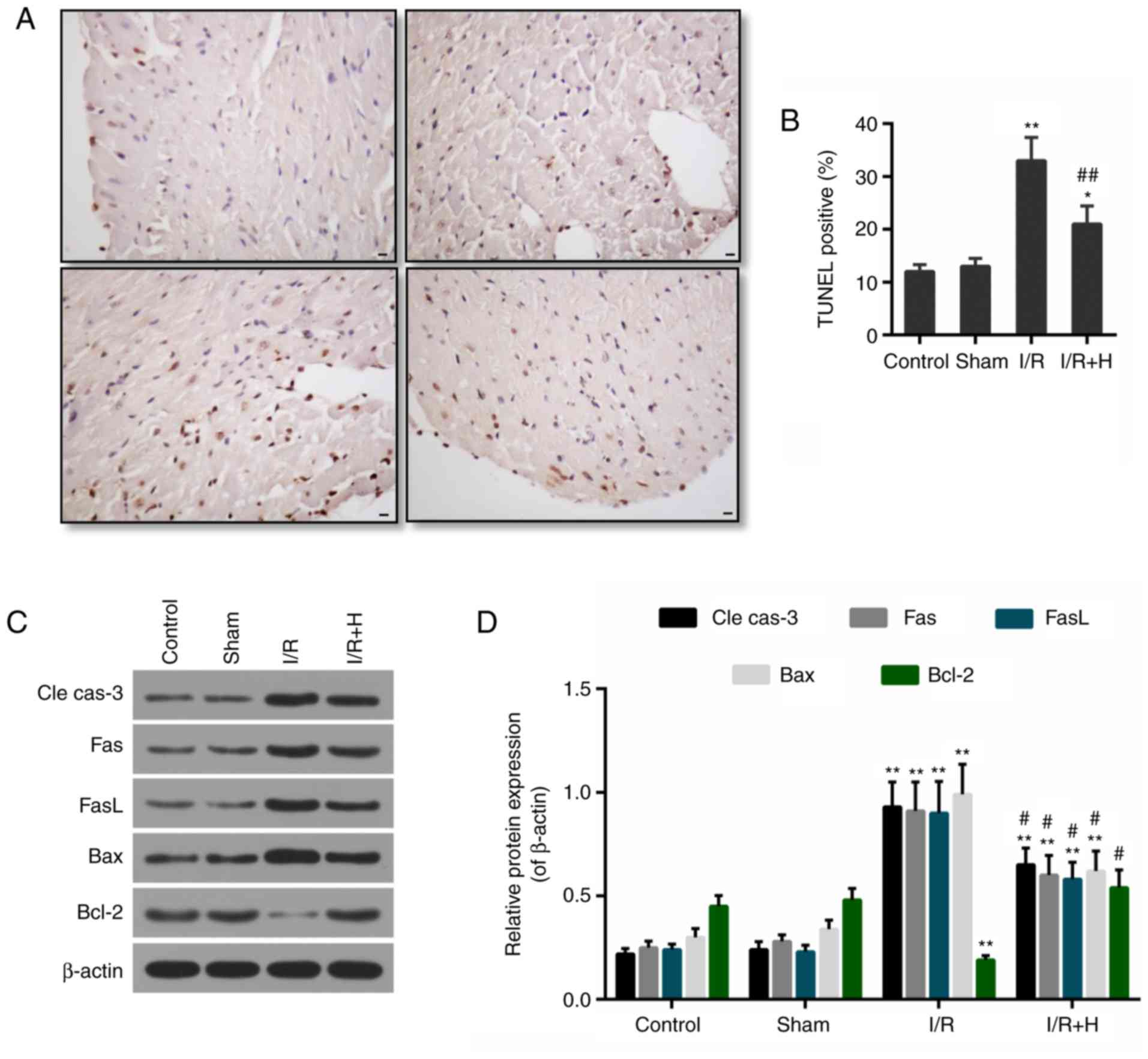

Figure 3 Effect of HSYA on myocardial apoptosis. (A) Representative TUNEL staining images in each group. Scale bar=100 µM. (B) Apoptosis was determined by the number of TUNEL-positive cells. (C) Western blot analysis for the protein expression levels of cle cas-3, Fas, FasL, Bax and Bcl-2. (D) Densitometric analysis of the western blot analysis data. *P<0.05 and **P<0.01 vs. control group; #P<0.05 and ##P<0.01 vs. I/R group. I/R, ischemia/reperfusion; H/HSYA, Hydroxysafflor Yellow A; TUNEL, terminal deoxynucleotidyl transferase-mediated dUTP nick-end labeling; cle cas-3, cleaved caspase-3; Fas, tumor necrosis factor receptor superfamily member 6; FasL, Fas ligand; Bcl-2, B-cell lymphoma 2; Bax, Bcl-2-associated X protein.

HSYA suppresses myocardial p-JAK2 and p-STAT1 protein expression levels

The expression levels of p-JAK2 and p-STAT1 were markedly increased in animals with I/R injury. No significant difference in the expression levels of total JAK2 and STAT1 between Sham and I/R group was identified. The administration of HSYA decreased the levels of p-JAK2 and p-STAT1 (Fig. 4A-D).

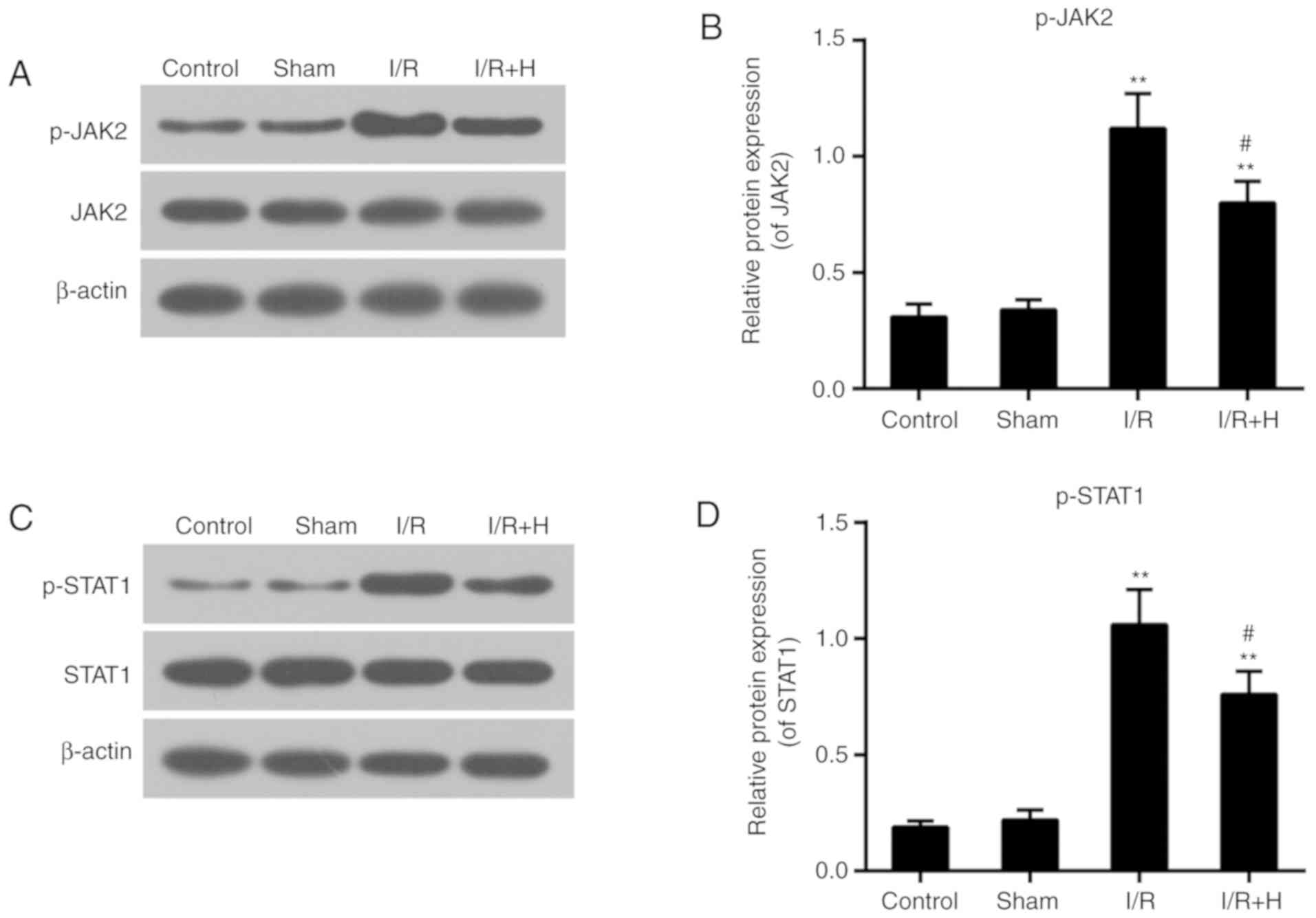

Figure 4 Effect of HSYA on the JAK2/STAT1 pathway. (A) Western blot analysis of the protein expression levels of JAK2 and p-JAK2. (B) Quantification of the western blot analysis data. (C) Western blot for the protein expression levels of STAT1 and p-STAT1. (D) Quantification of the western blot analysis data. **P<0.01 vs. control group; #P<0.05 vs. I/R group. I/R, ischemia/reperfusion; H/HSYA, Hydroxysafflor Yellow A; JAK2, janus kinase 2; STAT1, signal transducer and activator of transcription 1; p, phosphorylated.

Inhibition of JAK2/STAT1 signaling HSYA prevents H9c2 cardiomyocytes against I/R injury

CCK-8 data indicated that compared with the control group, the cell viability was significantly inhibited following I/R injury, while pretreatment with HSYA or inhibitors of JAK2/STAT1 (AG490 or S1491) significantly rescued the cell viability (Fig. 5A). In addition, the release of cTnI and IL-6 was decreased in the H/R group compared with the control group, while such a release was decreased by the pretreatment of HSYA, AG490 or S1491 (Fig. 5B and C). The protective effect appeared more apparent in the HR + A + H or H/R + S + H group compared with the H/R + H group.

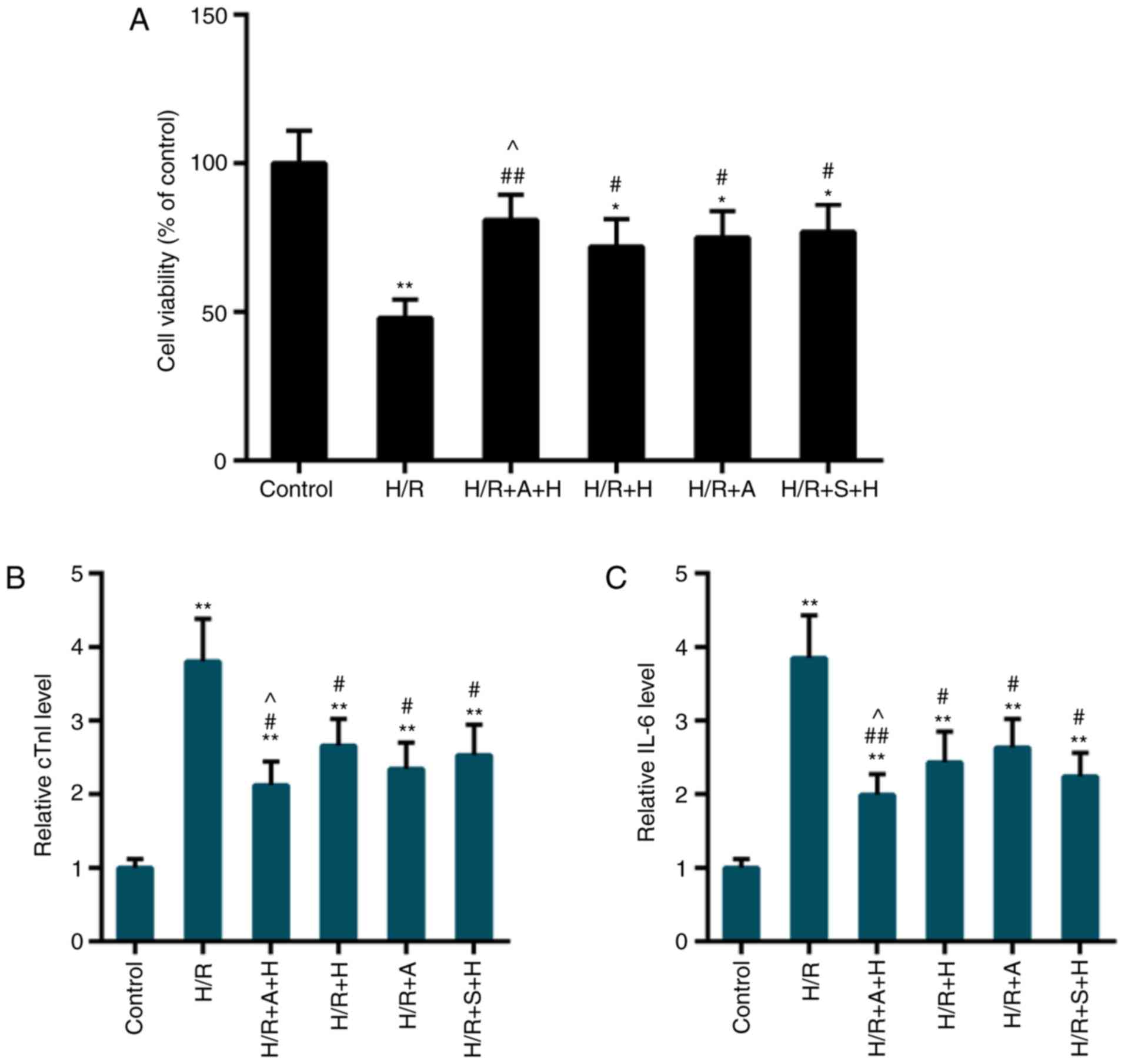

Figure 5 Effect of inhibition of janus kinase 2/signal transducer and activator of transcription 1 on myocardial injury in vitro. (A) The cell viability was detected by Cell Counting Kit-8 method. The levels of (B) cTnI and (C) IL-6 were estimated by ELISA. *P<0.05 and **P<0.01 vs. control group; #P<0.05 and ##P<0.01 vs. H/R group; ^P<0.05 vs. H/R+H group. H/R, hypoxia/reoxygenation; H, Hydroxysafflor Yellow A; A, AG490; S, S1491; cTnI, cardiac troponin; IL-6, interleukin 6.

Inhibition of JAK2/STAT1 signaling strengthens the anti- oxidant effects of HSYA in H9c2

Data from the assays for MDA content and SOD activity demonstrated that I/R injury accelerated the rate of oxidative stress compared with the control. The MDA content and SOD activity were markedly decreased and recovered, respectively, in the group pretreated with HSYA. Although no significant difference was identified in the MDA content and SOD activity in H/R + S + H group when compared with those in the H/R + H group, the protective effects of HSYA were more significantly enhanced by the combined use with AG490 or S1491 (Fig. 6A and B). Loss of MMP may be associated with the disruption of redox status, which then leads to ROS-triggered oxidative stress. The results indicated that the loss of MMP was all partially alleviated in H/R + A + H, H/R + H, H/R + A and H/R + S + H groups, compared with the control group. Consistently, the ROS contents in these groups were decreased compared with those in the control group. The ROS level was significantly decreased in the H/R + A + H and H/R + S + H groups, compared with the H/R + H group. Although no significant difference was identified in the H/R + S + H group in comparison with that in the H/R + H group, the MMP level was also decreased in the H/R + A + H and H/R + S + H groups, compared with the H/R + H group (Fig. 6C-E).

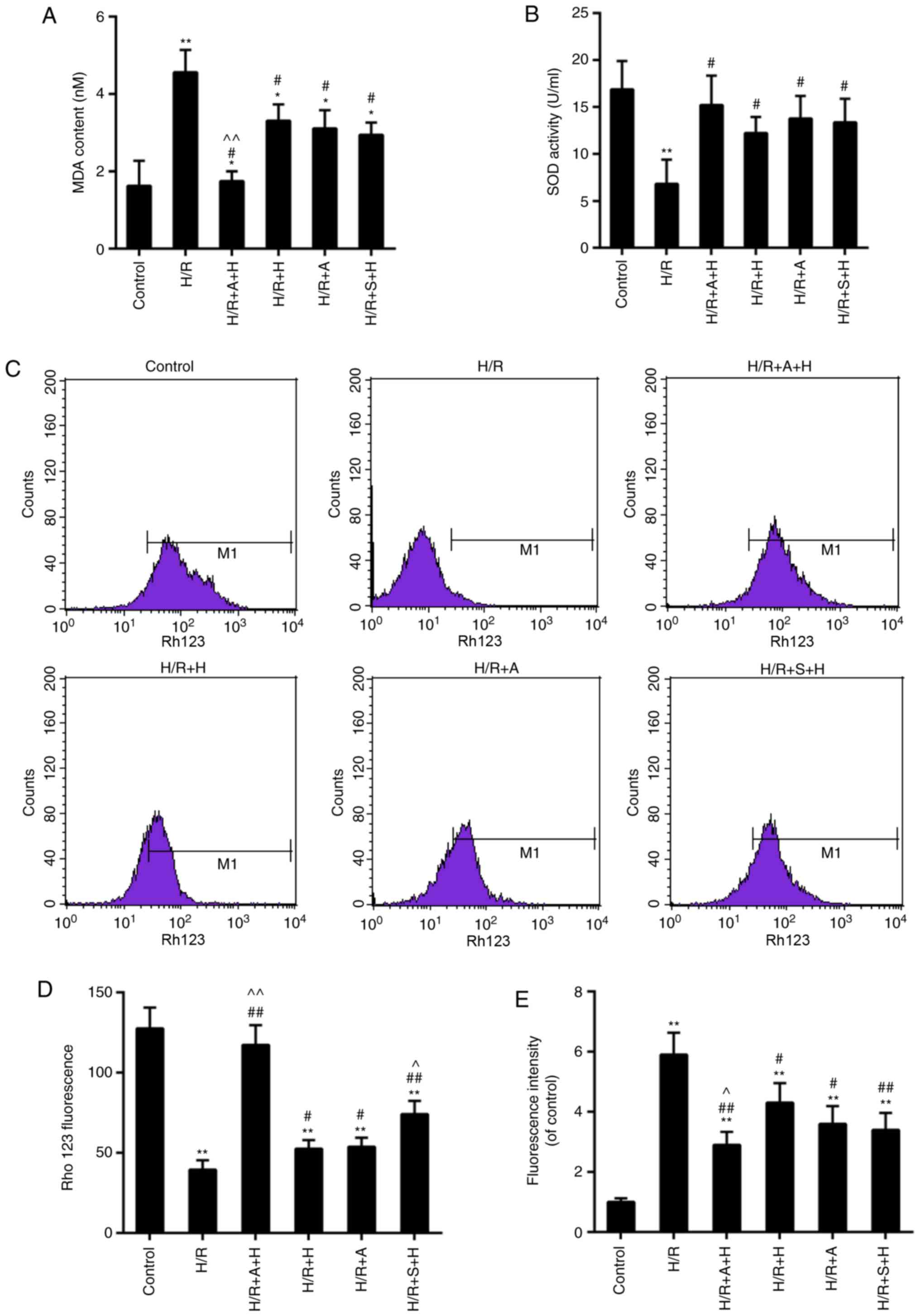

Figure 6 Effect of inhibition of janus kinase 2/signal transducer and activator of transcription 1 on oxidative stress in vitro. The release of (A) MDA and (B) SOD. (C) The alteration of mitochondrial membrane potential was examined by flow cytometry analysis. (D) Quantification of Rho 123 cytometry data. (E) The reactive oxygen species production in H9c2 cells was detected by 2,7-dichlorofluorescein diacetate fluorescence signals. *P<0.05 and **P<0.01 vs. control group; #P<0.05 and ##P<0.01 vs. H/R group; ^P<0.05 and ^^P<0.01 vs. H/R+H group. H/R, hypoxia/reoxygenation; H, Hydroxysafflor Yellow A; A, AG490; S, S1491; MDA, malondialdehyde; SOD, superoxide dismutase; Rho 123, rhodamine 123.

Inhibition of JAK2/STAT1 signaling enhances the anti- apoptotic effect of HSYA in H9c2

To confirm the effect of HSYA on apoptosis, the levels of apoptosis were detected by flow cytometry. The results revealed that the apoptosis rate was accelerated in the H/R group, while decreased cell apoptosis was identified in the H/R + A + H, H/R + H, HR + A and H/R + S + H groups compared with the H/R group (Fig. 7A and B). Furthermore, the caspase-3 activity was decreased in the H/R + A + H, H/R + H, HR + A and H/R + S + H groups compared with the H/R group (Fig. 8A). Additionally, the expression levels of apoptosis-associated factors were evaluated. The data from the in vitro analyses were compatible with those from the in vivo experiments, which demonstrated that the expression levels of pro-apoptotic proteins (cleaved caspase-3, Fas, FasL and Bax) were decreased and anti-apoptotic protein Bcl-2 was increased in the H/R + A + H, H/R + H, H/R + A and H/R + S + H groups compared with that in the H/R group (Fig. 8B and C). Similar results were obtained with regards to the mRNA expression levels of these apoptosis-associated factors (Fig. 8D). Therefore, the treatment with AG490/S1491 enhanced the protective effect of HSYA.

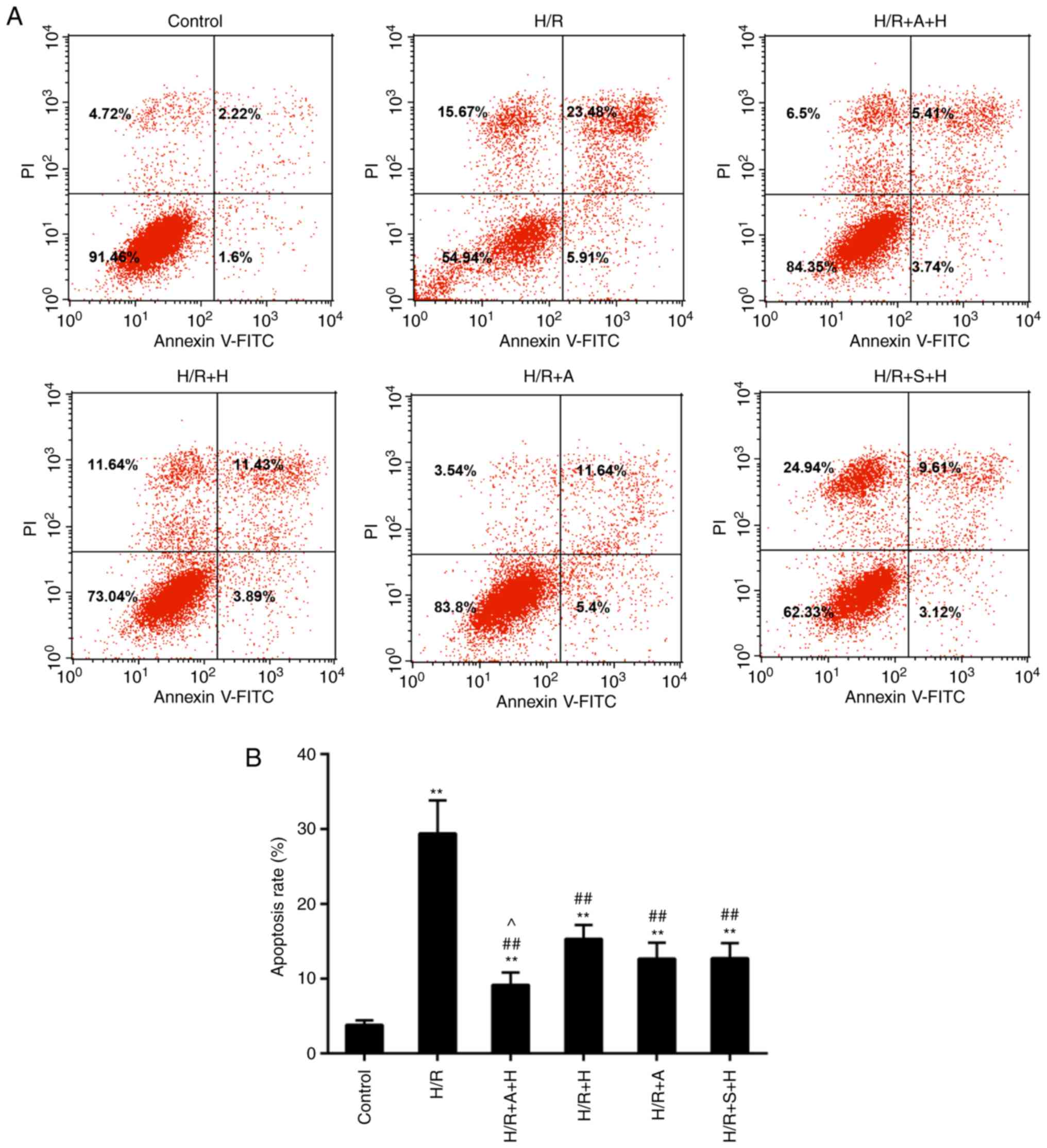

Figure 7 Effect of inhibition of janus kinase 2/signal transducer and activator of transcription 1 on apoptosis in vitro. (A) The apoptosis of H9c2 was assessed by flow cytometry analysis. (B) Quantification of flow cytometry data. **P<0.01 vs. control group; ##P<0.01 vs. H/R group; ^P<0.05 vs. H/R+H group. H/R, hypoxia/reoxygenation; H, Hydroxysafflor Yellow A; A, AG490; S, S1491; PI, propidium iodide; FITC, fluorescein isothiocyanate.

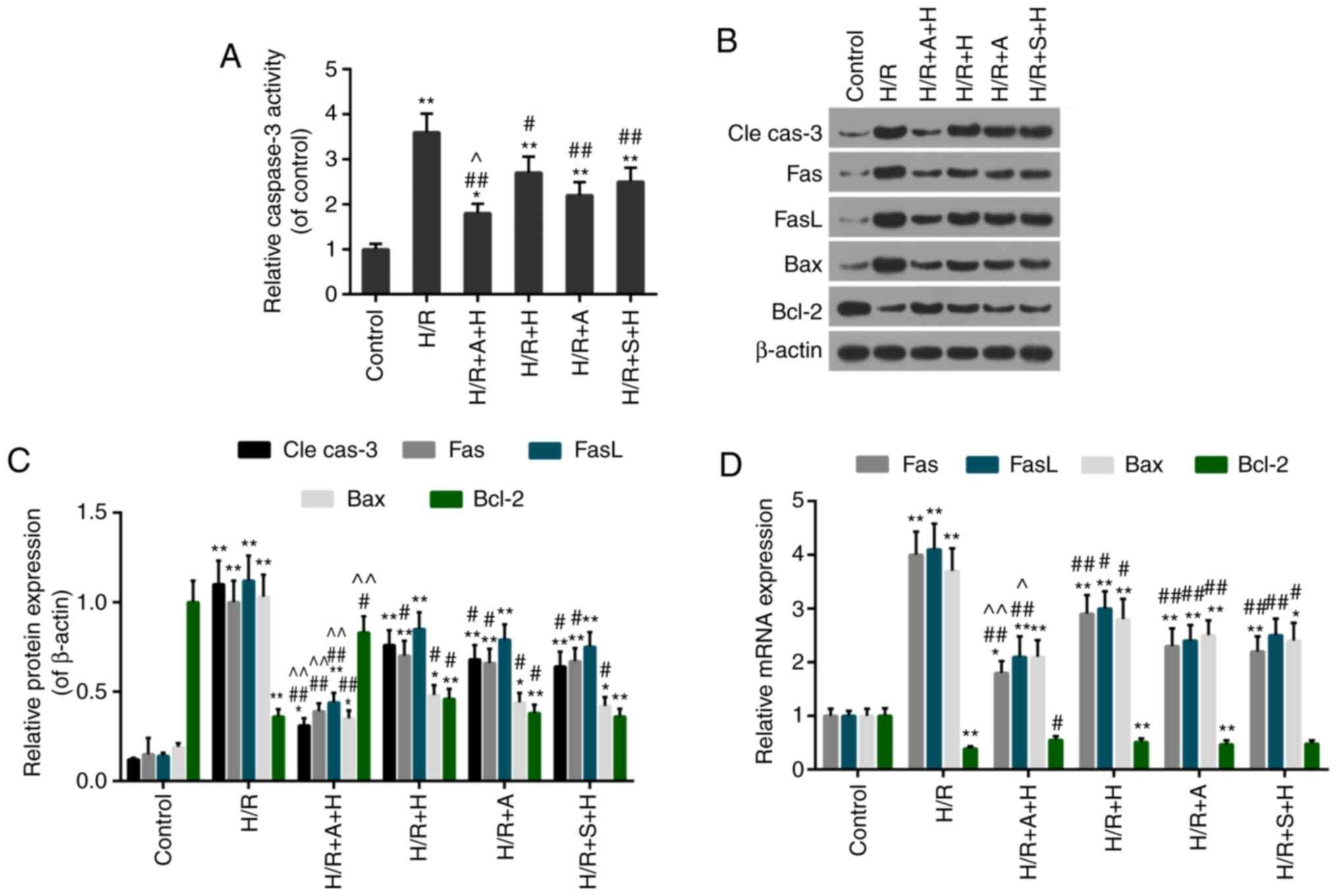

Figure 8 Effect of inhibition of janus kinase 2/signal transducer and activator of transcription 1 on the activity of apoptosis-associated proteins. (A) Caspase-3 activity was estimated using an ELISA kit. (B) Western blot analysis gel examining the protein levels of cle cas-3, Fas, FasL, Bax and Bcl-2. (C) Quantification of the western blot analysis data. (D) Reverse transcription quantitative polymerase chain reaction assay of the expression levels of Fas, FasL, Bax and Bcl-2. *P<0.05 and **P<0.01 vs. control group; #P<0.05 and ##P<0.01 vs. HR group; ^P<0.05 and ^^P<0.01 vs. H/R+H group. cle cas-3, cleaved caspase-3; H/R, hypoxia/reoxygenation; H, Hydroxysafflor Yellow A; A, AG490; S, S1491; Fas, tumor necrosis factor receptor superfamily member 6; FasL, Fas ligand; Bcl-2, B-cell lymphoma 2; Bax, Bcl-2-associated X protein.

Discussion

I/R injuries are one of the primary causes of MI (3). HSYA, the primary active component of Carthamus tinctorius L., has been suggested to be able to protect against multiple types of cell injuries (35,36). In the present study, the protective role of HSYA was demonstrated, following I/R injury in an in vivo animal model and in vitro experiments using cultured H9c2 cells. The signaling pathway by which HSYA delivers its protective effect was also explored.

Infarct size is considered an important index in determining the severity of I/R injury in heart muscle (37). Therefore, the present study first determined the effects of HSYA on infarct size. With the administration of HSYA, the infarct size was decreased compared with the Sham group. In addition, the levels of cTnI and IL-6, sensitive markers of cardiac injury (38), were decreased in the I/R+HSYA treatment group compared with the I/R group. Furthermore, the release of LDH, which may reflect the degree of I/R damage, was also decreased following pretreatment with HSYA, indicating that HSYA is capable of decreasing myocardial injury caused by I/R in vivo.

The mechanism by which HSYA realized its protective effects was then investigated. The increased production of free radicals and the decreased activities of antioxidant enzymes are closely associated with myocardial I/R injury (39). The disrupted redox status will trigger oxidative stress (OS). SOD and MDA are common indicators of OS. The former is responsible for decomposing O2 and H2O2, while the latter is the product of lipid peroxidation (40,41). The results from the present study revealed that these indicators of oxidative stress were alleviated by HSYA, indicating an antioxidant scavenger capacity of HSYA.

Apoptosis is involved in the destruction of cardiomyocytes following I/R injury (29,42). It has been recognized that Bcl-2 and Bax are essential proteins in apoptosis (29). The Bax/Bcl-2 ratio regulates the cell sensitivity death signals by modulating the function of the mitochondria. Caspase-3 is a key gene of the apoptotic pathways and may be processed into cleaved caspase-3 (43). Additionally, the Fas/FasL death receptor-mediated pathway may be activated in I/R injury (11-14). In the present study, HSYA decreased cleaved caspase-3, Fas and FasL levels, increased the Bcl-2/Bax ratio and mitigated TUNEL-positive staining in comparison with the I/R group. Taken together, the results demonstrated an anti-apoptotic effect of HSYA following I/R injury.

Subsequently, the present study aimed to explore the molecular signaling methods by which HSYA exerted its effective role. The JAK/STAT pathway is important in signal transduction and is involved in mediating cell growth, proliferation and differentiation, and apoptosis. JAK and STAT family members are located in myocardial cells and are closely associated with myocardial I/R injury (44). STAT-1, a member of the STATs, is able to regulate intracellular signaling. It has been demonstrated that STAT1 was activated following myocardial ischemia (45). Therefore, the present study focused particularly on the potential role of JAK2/STAT1 in HSYA-mediated anti-MI activity. The activity of the JAK2/STAT1 pathway in I/R injury was determined. HSYA treatment was observed to prevent the phosphorylation of JAK2, and it also decreased the phosphorylation of downstream STAT1. Altogether, these results suggested that the protective effect of HSYA was, at least, partially dependent on suppressing the JAK2/STAT1 pathway.

JAK/STAT pathways are important signaling pathways in response to stress, including ischemia, hypoxia and oxidative stress (46,47). JAK2 may be activated by ROS and hypoxic conditions (48). STAT-1 is phosphorylated by JAK2, and it serves a critical role in cerebral I/R injury in vivo (49). To additionally confirm the potential role of the JAK2/STAT1 signaling pathway in the HSYA-mediated protective effect, in vitro experiments using H9c2 cells were performed in the present study. The data indicated that the inhibition of JAK2 (by AG490) or STAT1 (by S1491) enhanced the protective role of HSYA by improving cell viability and decreasing the release of cTnI, IL-6 and LDH. In addition, the HSYA-derived antioxidant capacity was strengthened by the inhibition of JAK2 or STAT1. The imbalance between the generation and removal of free radicals will lead to ROS accumulation. Mitochondria, the primary sites for ROS production, are associated with the loss of MMP (50). Therefore, the MMP and ROS content in H9c2 was measured, and it was identified that the loss of MMP and the ROS generation were additionally deteriorated by H/R injury, while the HSYA treatment reversed this phenomenon. Notably, AG490 or S1491 increased the protective abilities of HSYA. Furthermore, the caspase-3 activity and the expression levels of cleaved caspase-3, Fas, FasL and Bax were additionally decreased in cells treated with AG490 or S1491, compared with the HSYA treatment alone. By contrast, the expression levels of Bcl-2 were increased in the groups treated with AG490 or S1491 compared with that in the H/R+H group. Additionally, examination of the apoptosis rate demonstrated that AG490 or S1491 treatment markedly enhanced the anti-apoptotic effect of HSYA, suggesting that HSYA and JAK2/STAT1 signaling have similar mechanisms of action. Previous studies suggested that the JAK/STAT signaling pathway may regulate apoptotic signals by decreasing caspase 3 protein expression and increasing anti-apoptotic Bcl-2 levels (51,52). It has also been identified that JAK2 and STAT1 were activated following reperfusion, and that AG-490 may abrogate the activation of JAK2 (47,53). The results from the present study were in concordance with these conclusions. The combined effects of HSYA and AG490/S1491 in an in vivo I/R rat model would provide additional supporting evidence for the involvement of the JAK/STAT pathway in I/R injury. Altogether, the results from the present study indicated that JAK2/STAT1 may serve as therapeutic targets to mitigate I/R injury. However, a previous study revealed that activating the JAK2/STAT3 signaling pathway may decrease HR-induced mitochondrial oxidative damage (54). We hypothesized that the discrepancy may be caused by distinct cell context and study model. In addition, previous studies have demonstrated that JAK2 may activate STAT3, STAT5a, STAT5b and STAT6 (55-57), therefore the role of these proteins in mediating the protective effects of HSYA in I/R injury should be additionally investigated in future studies.

Certain previous studies have documented the role of HSYA in myocardial IR injury (58-60). These studies suggested that HSYA exerted its cardio-protective effect by decreasing inflammation or oxidative stress via toll-like receptor 4 signaling or the extracellular signal-regulated kinase/glycogen synthase kinase 3β pathway. This was a limitation of the present study. However, the mechanism of the protective effect of HSYA demonstrated in the present study was different from that in these previous studies. We hypoth-esized that these results together confirm the protective effects of HSAY on myocardial I/R injury and potentially provide insight for future clinical studies into HSYA.

In conclusion, HSYA attenuated myocardial injury in vitro and in vivo by inhibiting oxidative stress and apoptosis, in which the JAK2/STAT1 signaling pathway was partly involved. The results from the present study offered insight into the effects and the mechanisms of HSYA. It may provide effective therapeutic strategies to combat MI.

Acknowledgments

Not applicable.

Funding

The present study was supported by The Natural Science Foundation of Zhejiang Province, China (grant no. LY17H020001).

Availability of data and materials

The analyzed data sets generated during the study are available from the corresponding author on reasonable request.

Authors' contributions

DZ and TD made substantial contributions to the conception and design of the study. BL, YJ and SL contributed to data acquisition, and data analysis and interpretation. DZ and TD drafted the article and critically revised it for important intellectual content. All authors agreed to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of the work are appropriately investigate and resolved. All authors read and approved the final manuscript.

Ethics approval and consent to participate

The present study was performed according to the Guide for the Care and Use of Laboratory Animals, 8th Edition and approved by Animal Subjects Committee of the Affiliated Hospital of Hangzhou Normal University (Hangzhou, China).

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
