Introduction

Progress in peri-operative management and adjuvant therapy has led to the improved survival of patients with lung cancer (1–3). It has been reported that adjuvant radiation therapy is effective and is often performed to eliminate lung cancer cells (4,5). However, radiation therapy often induces radiation resistance and severe side-effects, including radiation-induced lung disease (RILD), which may range from treatable acute pneumonitis to lethal fibrosis (6–8). Therefore, overcoming resistance to radiation without inducing additional severe side-effects is vital for the treatment of patients with refractory lung cancer.

Rapidly growing tumors located at a distance from the supporting vasculature results in the characteristic tumor microenvironment of low oxygen and nutrients (9,10). The hypoxia-inducible factor-1α (HIF-1α) subunit is an important regulator of cellular oxygen homeostasis and hypoxia adaptation (11–13). In general, it has been reported that cancer cells under hypoxic conditions acquire resistance to radiation therapy, and to most types of chemotherapy in various types of cancer, via the accumulation of HIF-1α (14–19).

High expression levels of HIF-1α have been reported to be associated not only with radiation resistance, but also with a poor prognosis of patients with lung cancer (20–23). Shibamoto et al reported that the administration of a HIF-1 inhibitor, in adjunction with radiation, significantly suppressed the proliferation of lung cancer cell lines in vivo (24). However, some HIF-1 inhibitors may induce deleterious side-effects in non-cancerous tissues. Therefore, a therapeutic HIF-1-targeting strategy without side-effects may be an ideal radiation sensitizer for refractory cancers which are resistant to radiation in clinical practice.

Strategies for the treatment of hypoxia to overcome resistance to radiation have included the development of several radiosensitizers, and methods for directly increasing blood oxygenation, such as pure oxygen or carbogen breathing, ozone therapy, hyperbaric oxygen therapy, hydrogen peroxide injections and the administration of suspensions of oxygen carrier liquids, including ultrafine oxygen nanobubble water (25). However, these experimental models have shown limited success owing to unwanted side-effects and insufficient efficacy. To improve the therapeutic significance of HIF-1α targeting, we focused on the creation of oxygen nanobubbles in a single-nanometer range. As previously indicated, smaller bubbles are more stable and possibly more effective in penetrating target cells (26).

In this study, we sought to validate a newly developed method to create oxygen nanobubble water in the single nanometer range, and to examine its effect on HIF-1α expression and hypoxia-induced resistance to radiation across multiple cancer cell lines.

Materials and methods

Formation of nanobubble by ΣPM-5

Oxygen nanobubble water was prepared by a nanobubble water preparation device ΣPM-5 (bellows pump type) (27). In brief, oxygen and pure water were mixed at 0.4 MPa and pushed out from the nozzle. The oxygenated water collided at high velocity to create nanobubble.

Characterization of nanobubble using a cryo-transmission electron microscope

The nanobubble water was diluted 100-fold for measurement. Pure water with or without diluted nanobubble was rapidly frozen using Vitrobot Mark IV (FEI Co., Ltd., Hillsboro, OR, USA). The samples were embedded in amorphous ice for observation. The sample thickness was 200 nm. Nanobubbles embedded in amorphous ice at a sample temperature of about −193°C were directly observed using a cryo-transmission electron microscope Titan Krios (FEI Co., Ltd.). The electron beam used for observation is approximately 20 electrons/Å2 by the low-dose technique, and there is almost no increase in sample temperature during photography.

Cell lines

The EBC-1 human lung cancer cell line was purchased from the RIKEN Cell Resource Center of Biomedical Research (Tsukuba, Japan), and the MDA-MB-231 human breast cancer cell line and BEAS-2S non-cancerous human bronchial cell line were from the American Type Culture Collection (Manassas, VA, USA). Baseline culture medium was prepared using RPMI-1640 medium (Wako, Osaka, Japan), which was dissolved in water with or without the oxygen nanobubble. The cells were cultured in filtered (0.22 μm) nanobubble or normal RPMI-1640 supplemented with 10% fetal bovine serum and 1% penicillin and streptomycin antibiotics, and incubated at 37°C and 5% CO2. For hypoxia, the cells were incubated under hypoxic conditions (1% O2) using the BIONIX-1 hypoxic culture kit (Sugiyamagen, Tokyo, Japan) for 24 h.

Analysis of cell viability under normoxic and hypoxic conditions

Cell viability was analyzed using the Cell Counting kit-8 (CCK-8; Dojindo Laboratories, Kumamoto, Japan). The cells were seeded 4×103/100 μl per well in 96-well plates. After 24 h, normal RPMI-1640 medium was changed with meda with or without oxygen nanobubbles, and the cells were incubated under normoxic (21% O2, room air) or hypoxic conditions (1% O2). Following 24 h of incubation, the cells were irradiated at 2, 6, 10, and 14 Gy doses using an X-ray machine (Faxitron RX-650; Faxitron X-Ray LLC, Lincolnshire, IL, USA) with 100 kV, Al 0.3 mm filter. Following a 72-h incubation post-radiation, 10 μl of CCK-8 solution were added to each well and the plates were incubated at 37°C for 2 h. The absorbance was detected at 450 nm using a plate reader (Bio-Rad, Hercules, CA, USA).

Protein extraction and western blot analysis

Protein extraction was performed using lysis buffer [10% glycerol, 10 mM Tris-HCl (pH 7.5), 1 mM EDTA, 400 mM NaCl, 0.5% NP40, 4 μg/ml aprotonin, PMSF, proteasome inhibitor MG-132 and 1 mM DTT]. Total protein (10 μg) was electrophoresed on a 10% polyacrylamide gel, and then electroblotted at 300 mA for 90 min on a nitrocellulose membrane (Invitrogen, Carlsbad, CA, USA). Western blot analysis was used to confirm the protein expression of HIF-1α and HSC70: These proteins were detected using anti-HIF-1α rabbit polyclonal antibody (1:1,000) (Cell Signaling Technology, Cat. no. 3716) and anti-HSC70 mouse monoclonal antibody (1:1,000) (Santa Cruz Biotechnology, Cat. no. sc-7298). HSC70 expression was used as a loading control. The signals were detected using the ECL Select Western Blotting Detection System (GE Healthcare Life Sciences, Pittsburgh, PA, USA) and Image Quant LAS 4000 software (GE Healthcare Life Sciences).

Radiation treatment under normoxic and hypoxic conditions

Following a 24-h pre-incubation, the EBC-1 and MDA-MB231 cells in 96-well plates were exposed to hypoxic (1% O2) and normoxic conditions with normal or oxygen nanobubble medium for 6 and 24 h, and then treated with radiation. The O2 concentration was continuously evaluated using O2 concentration measuring devices (Oxy-M O2 monitor, Jikco) in the bags. Cell viability was evaluated by CCK-8 assay after 72 h of incubation under normoxic conditions. An X-ray machine (Faxitron RX-650; Faxitron X-Ray LLC) with 100 kV, Al 0.3 mm filter was used as the radiation source for treatment.

Clonogenic assay under normoxic and hypoxic conditions

The cells plated into 6-well plates with RPMI-1640 normal medium and incubated at 37°C in humidified 5% CO2 for 24 h. Follwing a medium change, using the medium with or without oxygen nanobubble, the hypoxic plates were directly incubated under hypoxic conditions (1% O2). After 24 h, the cells were irradiated at various doses (0, 2, 6, 10, and 14 Gy). After 72 h, the medium was changed to normal RPMI-1640 medium and the cells were monitored every 3 days until colonies were visible. The plates were rinsed with phosphate-buffered saline (PBS), and the colonies were fixed with 99.5% ethanol and stained with 0.5% crystal violet (Sigma-Aldrich, St. Louis, MO, USA). The colonies counted up to at least 50 cells after staining. The surviva fraction (SF) was calculated as the mean (number of colonies counted/number of cells plated)/plating efficiency.

Statistical analysis

For continuous variables, the data are expressed as the means ± standard deviation. Cell viability between the treatment groups was analyzed using JMP software (SAS Institute, Cary, NC, USA). A Student’s t-test was used to compare the oxygen nanobubble group with the control group. A probability P-value <0.05 was considered to indicate a statistically significant difference.

Results

Characterization of ΣPM-5

The schematic representation of ΣPM-5 is shown in Fig. 1A. The oxygen was mixed with the water in the pressurized tank at 0.4 MPa. The oxygenated water was then pumped out from the small hole (diameter, 0.3–0.6 mm) in the nozzle (Fig. 1B). The velocity of water through the hole was calculated based on the flow rate measurement (Fig. 2A).

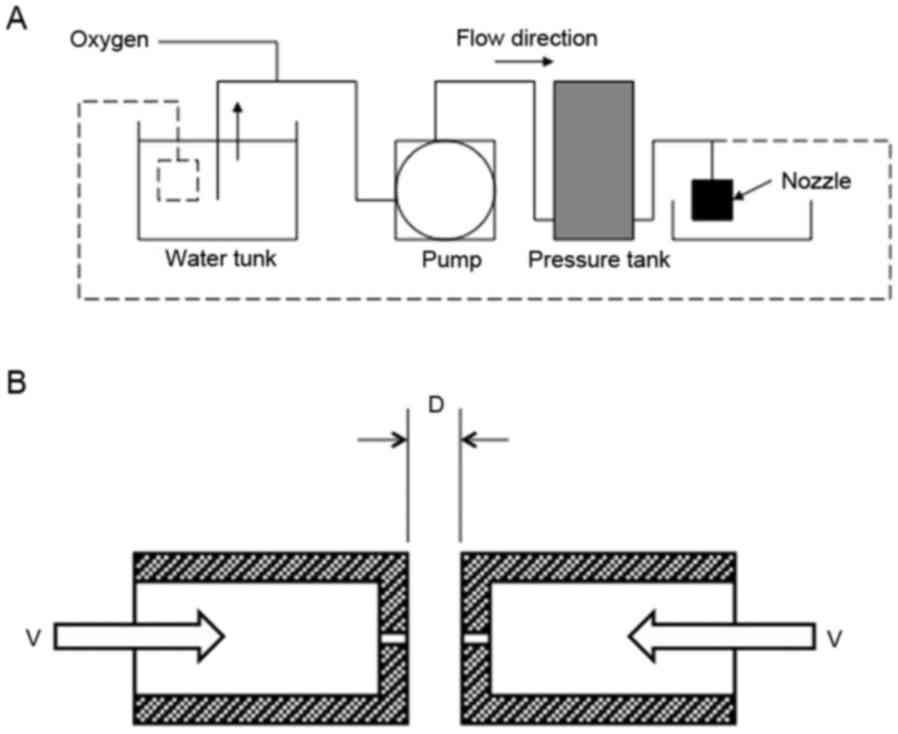

Figure 1 ΣPM-5 nanobubble generator. (A) Schematic representation of ΣPM-5. Water was pumped into the pressure tank where water and oxygen were mixed at 0.4 MPa. The oxygenated water was then pushed out through the small holes in the nozzle. (B) The schematic representation of the nozzle. Two small holes were placed horizontally in the nozzle. The pressurized and oxygenated water pushed out from these holes will collide to create the nanobubbles.

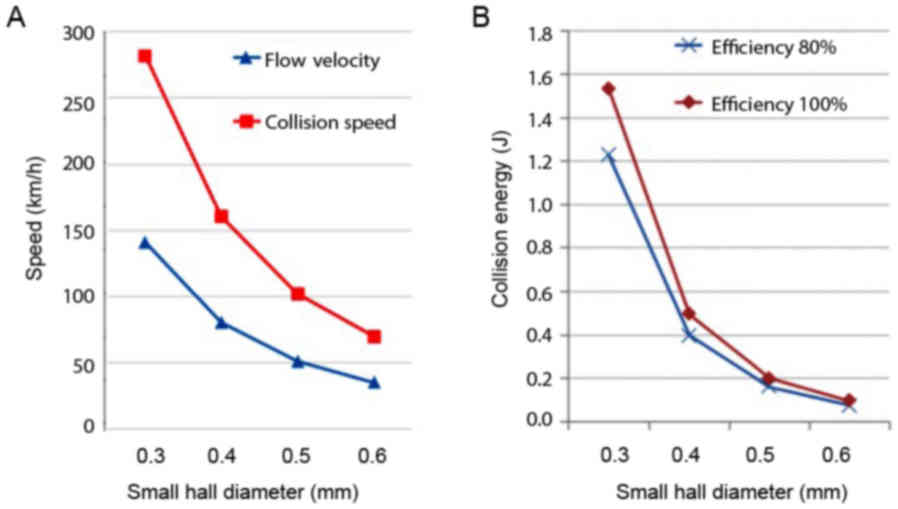

Figure 2 Speed and energy of water in the ΣPM-5 nozzle. (A) The calculated speed of water collision based on the diameter of the small holes in the nozzle. Flow velocity through the small holes (blue) and the collision speed of water in the nozzle (red) are shown. (B) The calculated collision energies of water in the nozzle are shown.

The high velocity water through the small hole will collide with the water from the other small hole placed horizontally. The energy of water collision was calculated as follows: 1/2 mV2 + 1/2 mV2 = mV2 (m, mass). The impact force was then calculated as follows: F = mV2/½ D (D, distance between the small hole). The collision energy force with the distance adjusted at 2 mm is shown in Fig. 2B.

Characterization of nanobubbles

The oxygen nanobubble-containing water was created by ΣPM-5 from pure water and oxygen. The nanobubble water was then diluted to 1:100 and embedded in amorphous ice. The samples were then observed using a cryo-transmission electron microscope. Pure water was used as the control. As shown in Fig. 3A, no particles appeared in amorphous ice prepared from pure water. As shown in Fig. 3B, the amorphous ice prepared from the oxygen nanobubble-containing water contained oxygen nanobubbles. In the area encircled by red broken lines, a dark contrast originating from the isolated nanobubbles was observed. The mean size was approximately 2–3 nm in diameter. On the other hand, in the area encircled by yellow broken lines, a necklace-like dark contrast originating from linear arrangement of nanobubbles was recognized. This result indicated that the nanobubbles partly aggregated. The volume of amorphous ice used for measurement was 1.8×10−14 ml (300×300×200 nm thickness) and contained around 360 bubbles inside. Since the nanobubble water sample was diluted 100-fold, the particle number of oxygen nanobubbles was calculated to be 2×1018 particles/ml.

Figure 3 Characterization of nanobubbles produced by the ΣPM-5 device. (A) Representative image of amorphous ice prepared from pure water by cryo-transmission electron microscopy. No contrast from nanobubbles appears in the image. (B) Representative image of oxygen nanobubble water. Nanobubbles are visible as darker spots in the image. The area encircled in red highlights isolated nanobubbles, and the area encircled in yellow highlights linear arrangement of nanobubbles. Scale bar, 50 nm.

Oxygen nanobubble medium suppresses hypoxia-induced HIF-1α expression

The overexpression of HIF-1α correlates with the resistance of cells to radiation (21,22). We thus examined whether treatment with oxygen nanobubble medium can overcome the hypoxia-induced resistance of human cancer cells to radiation. The EBC-1 and MDA-MB-231 cells were pre-incubated in medium with or without oxygen nanobubbles for 24 h, and were then analyzed for HIF-1α expression after 6 and 24 h of exposure to hypoxic conditions. We found that the oxygen nanobubble water clearly suppressed hypoxia-induced HIF-1α expression in the EBC-1 and MDA-MB-231 cells (Fig. 4A). We validated that this hypoxic condition induced the resistance of both the EBC-1 and MDA-MB231 cells to radiation (Fig. 4B).

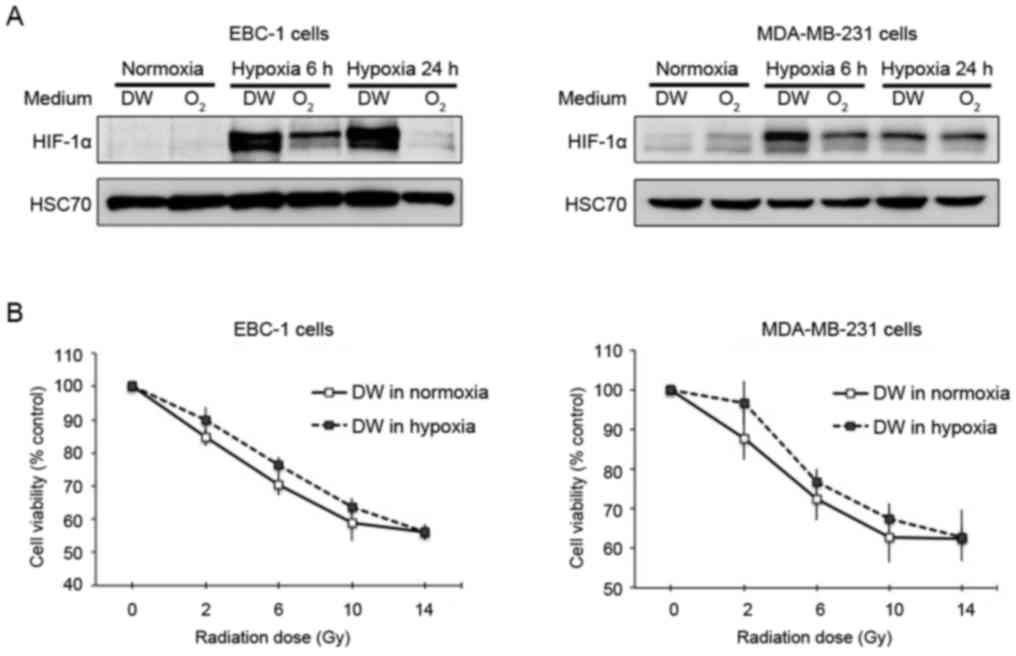

Figure 4 Oxygen nanobubble water suppresses HIF-1α accumulation in hypoxic cancer cells. (A) HIF-1α and HSC70 protein expression in the EBC-1 lung cancer cell line and MDA-MB-231 breast cancer cell line was evaluated by western blot analysis after 6 and 24 h of exposure ot hypoxia. Oxygen nanobubble medium clearly suppressed HIF-1α induction under hypoxic conditions. (B) Hypoxia-induced radiation resistance was validated in both the EBC-1 and MDA-MB-231 cells. DW, normal medium; O2, oxygen nanobubble medium.

Oxygen nanobubble medium alters cancer cell viability upon exposure to hypoxic conditions and radiation treatment

We treated the EBC-1 and MDA-MB-231 cells with radiation at doses of 0, 2, 6, 10, and 14 Gy to examine their sensitivities to radiation under both normoxic and hypoxic conditions (Fig. 5). Under hypoxic conditions, we demonstrated that our oxygen nanobubble medium enhanced the sensitivity of the EBC-1 cells to radiation compared to the normal medium at 2, 6, 10, and 14 Gy doses of radiation. as evidenced by a decreased cell viability upon oxygen nanobubble treatment (Fig. 5A, left panel). This effect was not significant in the MDA-MB-231 cells; however, we observed a similar tendency in these cells as in the EBC-1 cells (Fig. 5A, right panel). On the other hand, colony formation assay revealed that the oxygen nanobubble medium significantly suppressed the hypoxia-induced resistance of both the EBC-1 and MDA-MB231 cells to radiation compared to the normal medium at 2, 6, 10, and 14 Gy doses of radiation (Fig. 5B).

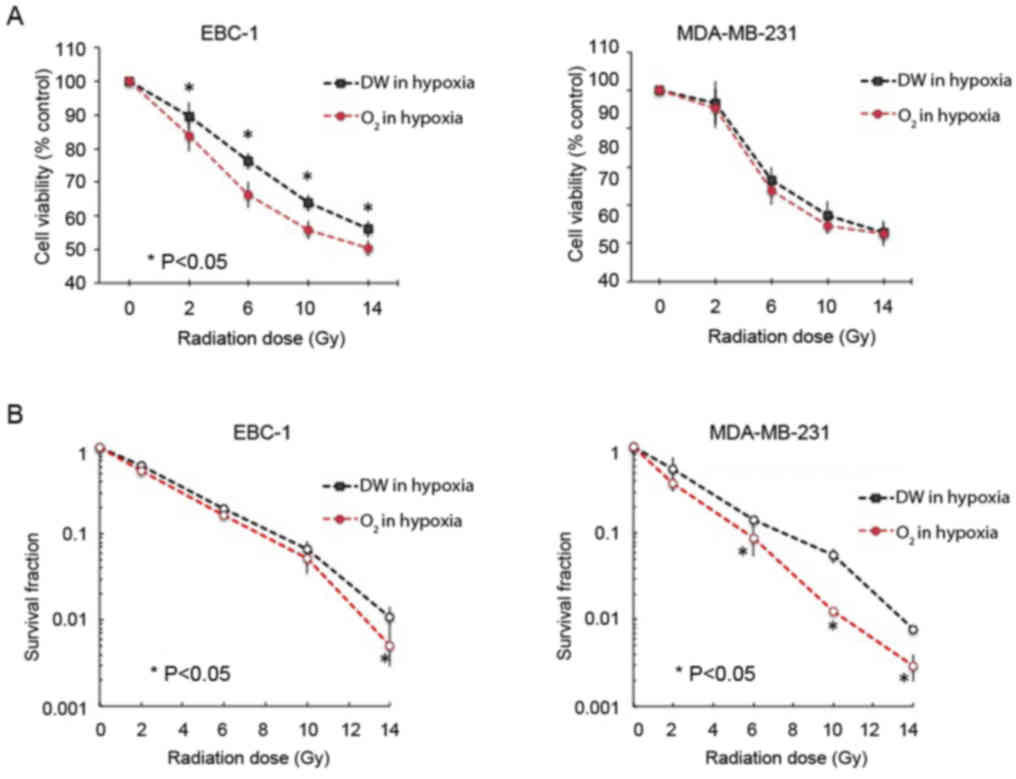

Figure 5 Oxygen nanobubble medium reverses hypoxia-induced radiation resistance in EBC-1 lung cancer and MDA-MB-231 breast cancer cells. (A) Cell viability assay showed that oxygen nanobubble medium suppressed hypoxia-induced radiation resistance in EBC-1 cells. A similar effect was observed with the MDA-MB-231 cells, although this was not significant; however, a similar tendency was validated. (B) Clonogenic assay revealed that oxygen nanobubble medium suppressed the hypoxia-induced resistance of EBC-1 and MDA-MB-231 cells to radiation. DW, normal medium; O2, oxygen nanobubble medium.

Normoxic application of oxygen nanobubble medium does not affect the survival or radiosensitivity of lung cancer, breast cancer, or non-cancer cell lines

The viability of the EBC-1 lung cancer, MDA-MB-231 breast cancer and non-cancerous BEAS-2B bronchial cells was not affected by treatment with oxygen nanobubble medium under normoxic conditions (Fig. 6A). Furthermore, the sensitivity of the EBC-1, MDA-MB231 and BEAS-2B cells to radiation was not affected by oxygen nanobubble treatment under normoxic conditions (Fig. 6B).

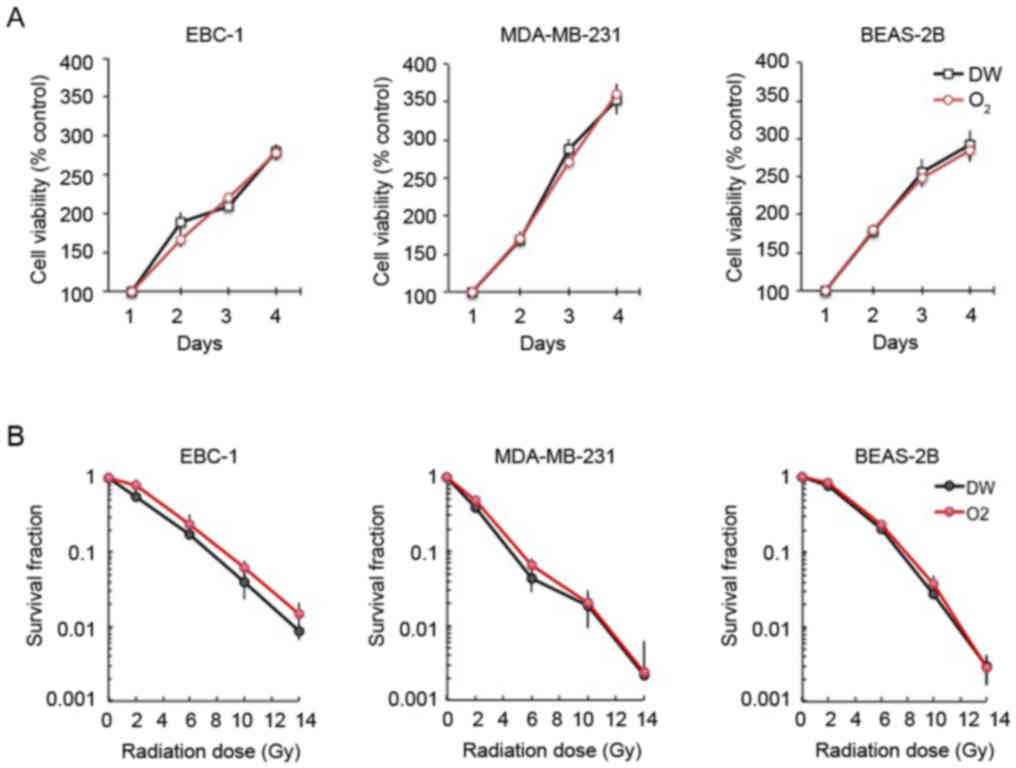

Figure 6 Oxygen nanobubble medium treatment under normoxic conditions is non-toxic to cancer and non-cancer cell lines. (A) CCK8 assay revealed that oxygen nanobubble medium did not reduce the viability of EBC-1 lung cancer, MDA-MB-231 breast cancer, or non-cancerous BEAS-2B bronchial cells compared to normal medium. (B) Clonogenic assay revealed that oxygen nanobubble medium did not affect the radiation sensitivity of EBC-1, MDA-MB-231, or BEAS-2B cells compared to normal medium.

Discussion

In this study, we produced oxygen nanobubble water at a single nanometer size using the nanobubble water preparation device, ΣPM-5. The characterization of the oxygen nanobubbles using a cryo-transmission electron microscope verified that the nanobubbles were at the single-nanometer range. Moreover, the results of in vitro experiments demonstrated that the oxygen nanobubble water significantly enhanced the the sensitivity of human lung cancer and breast cancer cell lines to radiation under hypoxic conditions via the suppression of HIF-1α expression.

Nanobubble water refers to a liquid containing small bubbles typically with <200 nm in diameter (26). Unlike larger sized microbubbles which disappear relatively quickly, nanobubbles remain stable in water for a long period of time (28). Khier et al utilized oxygen gas filled particles to efficiently oxygenate human blood ex vivo without complement activation or hemolysis (29). Recently, Owen et al reported the delivery of oxygen through the oral administration of oxygen nanobubbles (25). Both research groups utilized lipid or surfactant to create and stabilize oxygen nanobubbles in a 50–200 nm range. In this study, we reported a newly developed method to create oxygen containing nanobubbles in the single-nanometer range. By utilizing a novel water hammer method, in which the pressurized oxygen saturated water collides in a high velocity, we produced oxygen-containing nanobubble water without any additives. The results from cryo-transmission electron microscopy measurement revealed stable oxygen nanobubbles in the single-nanometer range. To the best of our knowledge, this is the first study to demonstrate the creation and characterization of single nanometer-sized nanobubbles.

Resistance to radiation causes serious complications for patients with lung cancer. This resistance has been reported to be induced by several pathways, including those associated with hypoxia, tyrosine kinase receptors, AKT serine/threonine kinases, DNA damage repair, developmental pathways, adhesion pathways and inflammation (30,31). The decreased oxygen concentration, and subsequent increase in HIF-1α activity, is known to be associated with resistance to radiation, cell survival, angiogenesis and the proliferative activity of cancer cells (32–34). Therefore, in this study, we focused on the use of oxygen nanobubbles as a method to reoxygenate hypoxic cells and downregulate HIF-1α activity. Several downstream targets of HIF, such as mediators of angiogenesis, including vascular endothelial growth factor (VEGF), cell survival regulators including insulin-like growth factor (IGF)-related factors, and cell proliferation regulators, such as c-MYC and insulin-like growth factor 2 (IGF2), are strongly associated with resistance to radiation and cancer aggressiveness under hypoxic conditions (35). In this study, we demonstrated the ability of our oxygen nanobubble preparation to significantly reduce HIF-1α activity under hypoxic conditions; therefore, it may also modulate several of the important downstream mediators of radiation resistance and malignancy previously described.

This study utilized our oxygen nanobubble water as a modulator of radiation sensitivity under hypoxic conditions. This nanobubble water included only water and single nanometer-range oxygen bubbles, with an average size of 2–3 nm, without any chemical compounds. Small size bubbles have some advantages, including high stability and high oxygen occupancy compared to larger ones. On the other hand, the continuous administration of a high oxygen concentration is known to induce oxygen toxicity due to the production of reactive oxygen species (36,37). However, our nanobubble water did not affect the viability of human lung cancer, breast cancer, or non-cancerous bronchial cells under normoxic conditions. Additionally, the O2 concentration-measuring devices demonstrated that the low oxygen concentration of our experimental hypoxia bags was not altered by the oxygen nanobubble medium during exposure to hypoxia. Therefore, our data suggests that our nanobubble water functions to modulate intracellular hypoxia in cancer cells via the suppression of hypoxia-induced HIF-1α expression in spite of continuous hypoxic culture conditions.

Neo-adjuvant radiation and chemoradiotherapy (CRT) have been considered as effective therapeutic tools to accomplish radical resection and down-staging in patients with lung cancer (38,39). Complete response is estimated as 14–40% by CRT (40,41); on the other hand, patients with lung cancer that develop disease refractory to these therapies often have poor outcomes (42). Radiation is known to cause severe side-effects, including lethal radiation fibrosis. However, modern radiation methodologies (including proton beam, heavy ion, stereotactic ablative body and intensity-modulated radio-therapies) are able to deliver precisely focused radiation to protect surrounding non-cancerous tissues, and effectively target refractory-prone hypoxic areas of tumors (43–45). Our data demonstrated that oxygen nanobubbles enhanced the sensitivity of human lung cancer cells and breast cancer cells to radiation under hypoxic conditions. In this study, we validated the efficacy of our oxygen nanobubble, across multiple tumor types, against radiation resistance and HIF-1α accumulation under hypoxic conditions. Therefore, oxygen nanobubble water may serve as a sensitizing adjuvant when administered in combination with low dose radiation, which may enhance the efficacy of treatment, without increasing toxicity, in cancer patients.

In conclusion, in this study, we developed and characterized pure oxygen nanobubble water, in the single nanometer range, without any additives other than water and oxygen. In our human cancer cell-based experiments, oxygen nanobubble water demonstrated the ability to protect against hypoxia-induced radiation resistance through the suppression of HIF-1α. Our additive-free single nanometer-range oxygen nanobubble water may prove to be a promising modulator against hypoxia/HIF-1α-mediated radiation refractory cancers, although further studies are required in order to test its safety and effectiveness. Future studies are warranted to examine the preventative and therapeutic potential of our nanobubble water in mouse tumor models of radiation resistance. Additionally, an important challenge for future experiments will be to validate the stability of nanobubbles in vivo. Recently, Bandhari et al demonstrated the ability to detect oxygen nanobubbles via hyperspectral dark-field microscopy in live cells in vitro and tumor tissue ex vivo, and via ultrasound imaging of in vivo tumors (46,47). Thus, we aim to employ these previously validated techniques for the detection of oxygen nanobubbles in tissue to examine the stability our oxygen nanobubbles in vivo. In addition, our in vitro experiments were performed in the presence of serum, therefore, the possibility exists that serum-specific cellular responses were elicited. However, we consider that serum may not be a critical factor to evaluate the relationship of hypoxia-induced radiation resistance and radiation sensitizers due to previous studies that have examined this relationship using serum-containing media (48–50). Nevertheless, to rule out any potential artifactual responses in our experiments due to the presence of serum, additional experiments are warranted under serum-free conditions.
