Introduction

The tumor suppressor gene PTEN is frequently deleted or mutated in human prostate cancer (1). Prostate-specific PTEN knockout in transgenic mice was revealed to promote prostate cancer progression and metastasis (2). PTEN encodes a dual-specificity protein phosphatase and negatively regulates the phosphatidylinositol 3-kinase (PI3K)/AKT signaling pathway. Loss of PTEN leads to the activation of the PI3K/Akt signaling pathway and tumorigenesis (3). Furthermore, PTEN can interact directly with p53 and regulate p53 stability and transcriptional activity in an Akt-independent manner (4,5). In addition, PTEN loss can also lead to the activation of the c-Jun NH2-terminal kinase (JNK) pathway independent of the PI3K/Akt signaling pathway (6). Therefore, PTEN loss changes several pathways to promote prostate cancer development.

Different from well-differentiated tissue cells, which mainly depend on the energy supplied by mitochondrial oxidative phosphorylation to keep cellular activities, tumor cells prefer aerobic glycolysis. This preference generates energy by converting glucose to lactate in an aerobic environment as the main way to supply ATP for their proliferation and other cellular processes. This paradox phenomenon is named the Warburg effect (7). Compared with other epithelial cancers, there are more changes in lipid metabolism of prostate cancers (8,9). PTEN loss can lead to the overexpression of fatty acid synthase (FAS), which is associated closely with both cholesterol and fatty acid biosynthesis in human tumors, especially in prostate cancer (10). In addition, the transgenic mouse model with global PTEN overexpression resulted in reduced glucose and glutamine uptake, increased mitochondrial oxidative phosphorylation, and was resistant to oncogenic transformation (11). The inhibition of the metabolic reprogramming induced by PTEN loss is possibly a potential target for cancer prevention and therapy.

In the present study, the metabolic reprogramming in siRNA-mediated PTEN knockdown prostate cancer cells DU-145 was examined with a novel comprehensive metabolomics analysis method. Comprehensive metabolic analysis is a breakthrough method capable of clarifying the global profiles of abundant metabolites. The glucose, glutamine and fatty acid metabolic pathways were focused on, and the related metabolic changes induced by PTEN loss in DU-145 cells were reported.

Materials and methods

Cell culture and treatment with siRNAs

DU-145 and 22Rv1 cells were purchased from the American Type Culture Collection (ATCC; Manassas, VA). DU-145 cells were cultured in Gibco DMEM (Thermo Fisher Scientific, Inc., Waltham, MA, USA) and 22Rv1 cells were cultured in Gibco RPMI-1640 (Thermo Fisher Scientific, Inc.) containing 10% fetal calf serum, 100 U/ml penicillin and 100 µg/ml streptomycin in a humidified atmosphere containing 5% CO2 set at 37°C. Every two days, media were changed to provide cells with optimal growth conditions.

All siRNA oligonucleotides were purchased from GenePharma Co., Ltd. (Shanghai, China). The sequences of all specific siRNAs targeted to human PTEN are displayed in Fig. 1A. The siRNAs were transfected into cells with Lipofectamine 2000 (Invitrogen; Thermo Fisher Scientific, Inc.). In the small interfering RNA (siRNA) data set, prostate cancer cells were divided into 3 groups. The control group was transfected with control siRNA at a dose of 40 nM. The experimental group was transfected with either PTEN siRNA-1 or PTEN siRNA-2 at a dose of 20 or 40 nM. The media of the different groups were replaced by the fresh complete culture media after transfection for 6 h. Recombinant lentiviral vectors were constructed with an Invitrogen ViraPower™ Lentiviral System (Thermo Fisher Scientific, Inc.) in our laboratory. The lentiviral vectors pLKO-Scramble/PTEN shRNA-1/PTEN shRNA-2, PAX2 and PMD2G were transfected into 293T cells using Lipofectamine 2000 (Invitrogen; Thermo Fisher Scientific, Inc.) according to the manufacturer's instructions. DU-145 and 22Rv1 cells were infected with the viral medium from 293T cells 48 h after transfection.

Figure 1. PTEN knockdown by siRNAs promotes glucose consumption and lactate production. (A) The siRNA sequences used in this experiment. (B) DU-145 and 22Rv1 cells were transfected with 40 nM control siRNA and indicated concentrations of two different siRNAs targeting PTEN (PTEN siRNA-1 and PTEN siRNA-2) for 48 h, after which samples were collected for quantitative real-time PCR and (C) Western blotting with antibodies against PTEN and β-actin. (D) DU-145 and 22Rv1 cells were transfected with 40 nM control siRNA and PTEN siRNAs (PTEN siRNA-1 and PTEN siRNA-2) for 48 h, after which samples were collected for Western blotting with antibodies against PTEN, phospho-Akt (Ser473), Akt and β-actin. (E) Glucose consumption and lactate production was assessed in DU-145 cells and 22Rv1 cells which were transfected with 40 nM control siRNA and PTEN siRNAs (PTEN siRNA-1 and PTEN siRNA-2) for 48 h. (F) The expression of catalytic enzymes in glycometabolism was detected by western blotting in DU-145 cells and 22Rv1 cells which were transfected with 40 nM control siRNA and PTEN siRNAs (PTEN siRNA-1 and PTEN siRNA-2) for 48 h. (G) DU-145 and 22Rv1 cells which were infected with lentivirus containing PTEN shRNA or scramble shRNA, then cell viability was analyzed by MTT assay. HK1, hexokinase 1; HK2, hexokinase 2; PKM1/2, pyruvate kinase isozymes M1/M2; PKM2, pyruvate kinase isozyme M2; LDHA, lactate dehydrogenase A; PDH, pyruvate dehydrogenase; PFKP, phosphofructokinase platelet type; PC, pyruvate carboxylase; PTEN, gene of phosphate and tension homology deleted on chromosome ten. *P<0.05, **P<0.01 compared with the cells transfected with control siRNA.

Quantitative real-time PCR

After transfection with siRNAs for 48 h, total RNA was isolated from cells using TRIzol Reagent (Invitrogen; Thermo Fisher Scientific, Inc.), and then complementary DNA (cDNA) was synthesized using AMV reverse transcriptase (Promega Corporation, Madison, WI, USA) according to the manufacturer's instructions. The cDNA was used as a template for quantitative real-time PCR using an ABI Prism 7500 real-time PCR instrument (Applied Biosystems; Thermo Fisher Scientific, Inc.). The primer sequences for PTEN and β-actin were as follows: PTEN forward primer, 5′-CGACGGGAAGACAAGTTCAT-3′ and reverse, 5′-AGGTTTCCTCTGGTCCTGGT-3′; β-actin forward primer, 5′-CGCGAGAAGATGACCCAGAT-3′ and reverse, 5′-GTACGGCCAGAGGCGTACAG-3′. The following thermocycling conditions were maintained: 95°C for 3 min; 95°C for 10 sec and 58°C for 30 sec for 39 cycles; and melting curve analysis using an increase from 65.0 to 95.0°C in 0.5°C increments for 5 sec. Independent experiments were repeated three times. The relative expression levels of mRNA were analyzed using Bio-Rad CFX Manager v3.1 software (Bio-Rad Laboratories, Inc., Hercules, CA, USA) with the 2−∆∆Cq method (12).

Immunoblot analysis

After transfection with siRNAs for 48 h, cells were lysed in cell lysis buffer containing 20 mM Tris-HCl, 0.5 M NaCl, 0.25% Triton X-100, 1 mM EDTA, 1 mM EGTA, 10 mM β-glycophosphate, 300 µM Na3VO4, 10 mM NaF, 1 mM benzamidine, 2 µM PMSF and 1 mM DTT. Protein concentrations were determined by a BCA protein assay (Thermo Fisher Scientific, Inc.). Proteins were subjected to 10% SDS-PAGE, transferred on to nitrocellulose membranes, blocked in 5% BSA, and followed by washing with TBS with Tween-20. The blots were then incubated with primary antibodies for 12 h at 4°C followed by incubation with the secondary antibody for 2 h at room temperature. The following primary antibodies were used: polyclonal rabbit anti-human phospho-Akt (Ser473) (dilution, 1:1,000; cat. no. 9271S), polyclonal rabbit anti-human Akt (dilution, 1:1,000; cat. no. 9272S), polyclonal rabbit anti-human PTEN (dilution, 1:1,000; cat. no. 9552S), polyclonal rabbit anti-human HK1 (dilution, 1:1,000; cat. no. 2024S), polyclonal rabbit anti-human HK2 (dilution, 1:1,000; cat. no. 2106S), polyclonal rabbit anti-human PKM1/2 (dilution, 1:1,000; cat. no. 3186S), polyclonal rabbit anti-human PKM2 (dilution, 1:1,000; cat. no. 3198S), polyclonal rabbit anti-human LDHA (dilution, 1:1,000; cat. no. 2012S), polyclonal rabbit anti-human PDH (dilution, 1:1,000; cat. no. 3205S), polyclonal rabbit anti-human PFKP (dilution, 1:1,000; cat. no. 5412S) all from Cell Signaling Technology, Inc. (Danvers, MA, USA), and monoclonal rabbit anti-human PCB (dilution, 1:2,000; cat. no. ab126707; Abcam, Cambridge, UK), or polyclonal rabbit anti-human β-actin (dilution, 1:1,000; cat. no. 4970S; Cell Signaling Technology, Inc.). Membranes were then incubated with horesradish peroxidase-conjugated secondary antibody polyclonal goat anti-rabbit IgG (dilution, 1:3,000; cat. no. ab97051; Abcam) for 1 h and visualized with SuperSignal™ West Femto Maximum Sensitivity Substrate (Thermo Fisher Scientific, Inc.) according to the manufacturer's recommended protocol. Quantification was performed using Image J software version 1.45S (National institutes of Health, Bethesda, MD, USA).

Glucose consumption and lactate production

After 48 h of transfection, all culture media were collected for glucose consumption and lactate production analysis. The concentrations of glucose in culture media were assessed after 24 h using a Glucose Detection Kit (Invitrogen; Thermo Fisher Scientific, Inc.). Briefly, the culture media was mixed with the colorimetric substrate and horseradish peroxidase and the reaction was initiated by the addition of glucose oxidase in a 96-well plate. The reaction was incubated for 30 min at room temperature and the product was assessed by a microplate reader at an absorbance of 560 nm. Glucose consumption was the difference of the glucose concentration between the spent medium and the unused medium. The concentrations of lactate in the culture media were assessed using a Lactate Assay Kit (Jiancheng Bioengineering, Nanjing, China). Briefly, the culture media was mixed with lactate assay buffer in a 96-well plate. Then reaction buffer was added to every well and incubated for 30 min at room temperature. The lactate production was assessed by a microplate reader at an absorbance of 570 nm.

MTT assay

Cells infected with lentivirus containing PTEN shRNA or control shRNA were seeded into 96-well plates in triplicate at a starting density of 1×104 cells/well. Treated cells were washed and incubated with tetrazolium salt (MTT, 100 µg/ml; Sigma-Aldrich; Merck KGaA, Darmstadt, Germany) at 37°C for 4 h. The supernatant was removed, and 150 µl of dimethyl sulfoxide (DMSO) was added to each well. The absorbance (OD) of the reaction solution at 490 nm was recorded.

Metabolomics analysis of organic acid

Sample preparation for metabolic profiling

The siRNA-treated cells were washed twice with room temperature D-Hank's solution, digested with trypsin for 5 min and then collected in a culture tube. The collected solution was centrifuged (4°C, 380 × g, 2 min), and the supernatant was discarded. Next, 500 µl of methyl alcohol (4°C) was added to the tube containing the cell pellet and was vortexed for 30 sec. After three freeze-thaw cycles, the mixture was centrifuged (4°C, 15,000 × g, 10 min). The upper layer was used for organic acid and fatty acid metabolomics analysis.

For organic acid analysis, the supernatant was placed in a 1.5 ml polypropylene centrifuge tube, then 25 µl each of margarate (MGA) and tetracosane (C24) and 40 mg of tropate (TA) were added as internal standards. Subsequently, 50 µl of hydroxylamine hydrochloride, sulfuric acid and saturated ammonium chloride were added to the fouling reaction. The the mixed solution was extracted twice by ether. After centrifugation for 5 min, the supernatant was placed in a 1.5 ml vial. The aliquots were evaporated to dryness in a vacuum concentrator. The final dry residue, 110 µl of a mixture of BSTFA and TMCS (10:1, v:v) were added and dissolved. The solution was then transferred to a 1-ml screw top vial, tightly capped and trimethylsilyl (TMS)-derivatized at 80°C for 30 min. The samples were then ready for GC-MS analysis.

Mass spectrometry

Samples were analyzed using a Gas Chromatography-Mass Spectrometer (GC-MS, 7890–5975; Agilent Technologies, Inc., Santa Clara, CA, USA). The capillary column was a fused-silica DB-5 column (30 m × 0.25 mm i.d.) with a 0.25-µm film thickness of 5% phenylmethylsilicone. Mass spectra were obtained by standard electron impact ionization scanning from m/z 50 to m/z 750 at a rate of 0.35 sec/cycle. The temperature program started at 150°C with an initial hold for 1 min, and the temperature was then increased at a rate of 10°C/min to 285°C with a final hold for 8 min. The temperatures of the injection port and transfer line were both 280°C. The flow rate of the helium carrier was 1.5 ml/min, and the linear velocity was 38.5 m/sec. One ml of the final derivatized aliquot was injected into the GC-MS and analyzed in the split mode (10:1).

GC-MS data processing and identification of the metabolites

The compounds were identified by automatically comparing the MS spectra, in-source fragments, and ion features of each peak in the experimental samples with those of reference standards or those available in libraries, such as Mainlib and Publib in the National Institute of Standards and Technology (NIST) library 2.0 (2012) or Wiley 9 (Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany).

Metabolomics analysis of fatty acid

Sample preparation for metabolic profiling

For fatty acid analysis, the supernatant was placed in a polypropylene microtiter plate. Methanolic internal standard solution (150 µl) was added manually. The microtiter plate was gently shaken during the 30 min extraction of acyl-carnitine markers. The methanol extract was then manually transferred to a second polypropylene microtiter plate and dried by a Pressure Blowing Concentrator at 50°C. Butanol-HCl (60 µl) was manually placed in each sample well and the microtiter plate was covered with a thin Teflon sheet under a heavy weight and placed at 70°C in a forced air oven for 15 min. After the plate was removed from the oven, the Pressure Blowing Concentrator removed the remaining butanol-HCl. The butanol-derivatized samples were reconstituted with 100 µl of acetonitrile and water (70:30 by volume), and each plate was covered with aluminum foil. The samples were then ready for LC-MS analysis.

Mass spectrometry

Samples were analyzed using liquid chromatograph-tandem mass spectrum (LC20AD; Shimadzu, Kyoto, Japan; API 4000+; AB-Sciex, Framingham, MA, USA).

LC

A mixture of acetonitrile and water (70:30, v/v) was used as carrier solution at a flow rate of 0.14 ml/min. A step gradient program was developed for the best separation of amino acids: 0.14 ml/min, 0.2 min; 0.03 ml/min, 1 min; 0.3 ml/min, 0.2 min. An 18-µl sample was injected into the carrier solution. Then, the stream was introduced to the ion source for MS/MS without column separation.

Mass spectrometer

The mass spectrum (MS) parameters in positive ion mode (ESI + MODE) were as follows: Heater Temp, 300°C; Capillary Temp, 350°C; Sheath Gas Flow rate, 45 arb; Aux Gas Flow Rate, 15 arb; Sweep Gas Flow Rate, 1 arb; Spray voltage, 3.0 KV. Product Ion Scan modes were defined to analyze fatty acid metabolism. All data acquisition and processing were carried out using Analyst 1.5.2 software (AB-Sciex).

Statistical Analysis

Statistical analysis was performed using SPSS 17.0 software (SPSS, Inc., Chicago, IL, USA). The chi-square test was used to evaluate the significance of the differences in the cell line samples. Statistical significance was assumed at a threshold of P<0.05. Metabolic pathway analysis and enrichment analysis were performed by MBROLE 2.0 (http://csbg.cnb.csic.es/mbrole2/) and KEGGgraph (http://www.bioconductor.org/packages/2.4/bioc/html/KEGGgraph.html). The function of KEGGgraph suggested that > library (KEGG.db), > tmp <- tempfile, > pName <- ‘Phe signaling pathway’, > pId <- mget (pName, KEGGPATHNAME2ID), > retrieveKGML(pId, organism=‘cel’, destfile=tmp, method=‘wget’, quiet=TRUE).

Results

Enhanced glucose consumption and lactate production

To investigate the metabolic changes in PTEN knockdown prostate cancer, we synthesized two pairs of PTEN siRNAs and a control siRNA (Fig. 1A). After the prostate cancer cell line DU-145 was transfected with 20 or 40 nM siRNAs for 48 h, the endogenous PTEN expression level was detected by quantitative real-time PCR and western blotting. The results revealed that endogenous PTEN was significantly decreased in 22Rv1 and DU-145 cells transfected with 40 nM PTEN siRNAs compared with the control siRNAs (Fig. 1B and C). Furthermore, the phosphorylation of Akt at Serine 473 was significantly increased in DU-145 and 22Rv1 cells that were transfected with 40 nM PTEN siRNAs after 48 h (Fig. 1D). Accompanying the activation of Akt, glucose consumption and lactate production was also significantly increased in PTEN knockdown DU-145 and 22Rv1 cells (Fig. 1E). Therefore, aerobic glycolysis was possibly increased in PTEN knockdown DU-145 and 22Rv1 cells. Furthermore, the expression of metabolic molecules related to glucose metabolism were detected and it was demonstrated that hexokinase HK2, the first key enzyme involved in glycolysis, was upregulated in PTEN knockdown DU-145 and 22Rv1 cells, especially in DU-145 cells (Fig. 1F). Upregulation of HK2 may be one of the contributors to the Warburg effect in PTEN knockdown DU-145 and 22Rv1 cells. Tumor metabolic reprogramming fuels the malignant growth and proliferation of cancer cells (13–15). Therefore, cell viability was increased in DU-145 cells that were infected with lentivirus containing PTEN shRNA compared with control shRNA (Fig. 1G). However, cell viability was not significantly altered in 22Rv1 cells that were infected with lentivirus containing PTEN shRNA. Although the PI3K/AKT/mTOR and RAF/MEK/ERK signaling pathways play an important role in prostate cancer progression, 22Rv1 prostate cancer cells have been revealed to be more dependent on the MEK/ERK pathway (16). Collectively, cell metabolism and cell viability was significantly altered in PTEN-loss DU-145 cells. Thus, metabolism reprogramming occurred, induced by PTEN deficiency in prostate cancer cells.

Intracellular metabolism reprogramming

High rates of loss of heterozygosity are observed at the 10q23.3 region containing the human PTEN gene in prostate cancer. The phenotypes of PTEN+/− DU-145 cells are similar to prostate cancers with loss of heterozygosity in the PTEN gene (17–19). In addition, the cell viability induced by PTEN loss increased significantly in DU-145 cells. Therefore, we assessed the changes of key metabolites in PTEN knockdown DU-145 cells by metabolomics analysis. There are several metabolic pathway changes in tumor metabolism reprogramming, such as glycolysis, glutaminolysis, fatty acid de novo synthesis and fatty acid β-oxidation. Accordingly, the changes of key metabolites in these metabolic pathways were assessed in prostate cancer cells DU-145 transfected with PTEN siRNAs.

Glycolysis and glutaminolysis

Since glucose and glutamine are the main energy production and carbon sources for the malignant growth of tumor cells, we assessed the levels of metabolites in glycolysis and glutaminolysis. As revealed in Fig. 2, many organic acids involved in glycolysis and glutaminolysis were significantly increased, such as lactate, pyruvic acid, succinic acid, citric acid, fumaric acid, malic acid, and 2-ketoglutarate. In addition, the level of intracellular glutamine was decreased in PTEN knockdown DU-145 cells. Therefore, PTEN knockdown led to enhanced glycolysis and glutaminolysis in prostate cancer DU-145 cells.

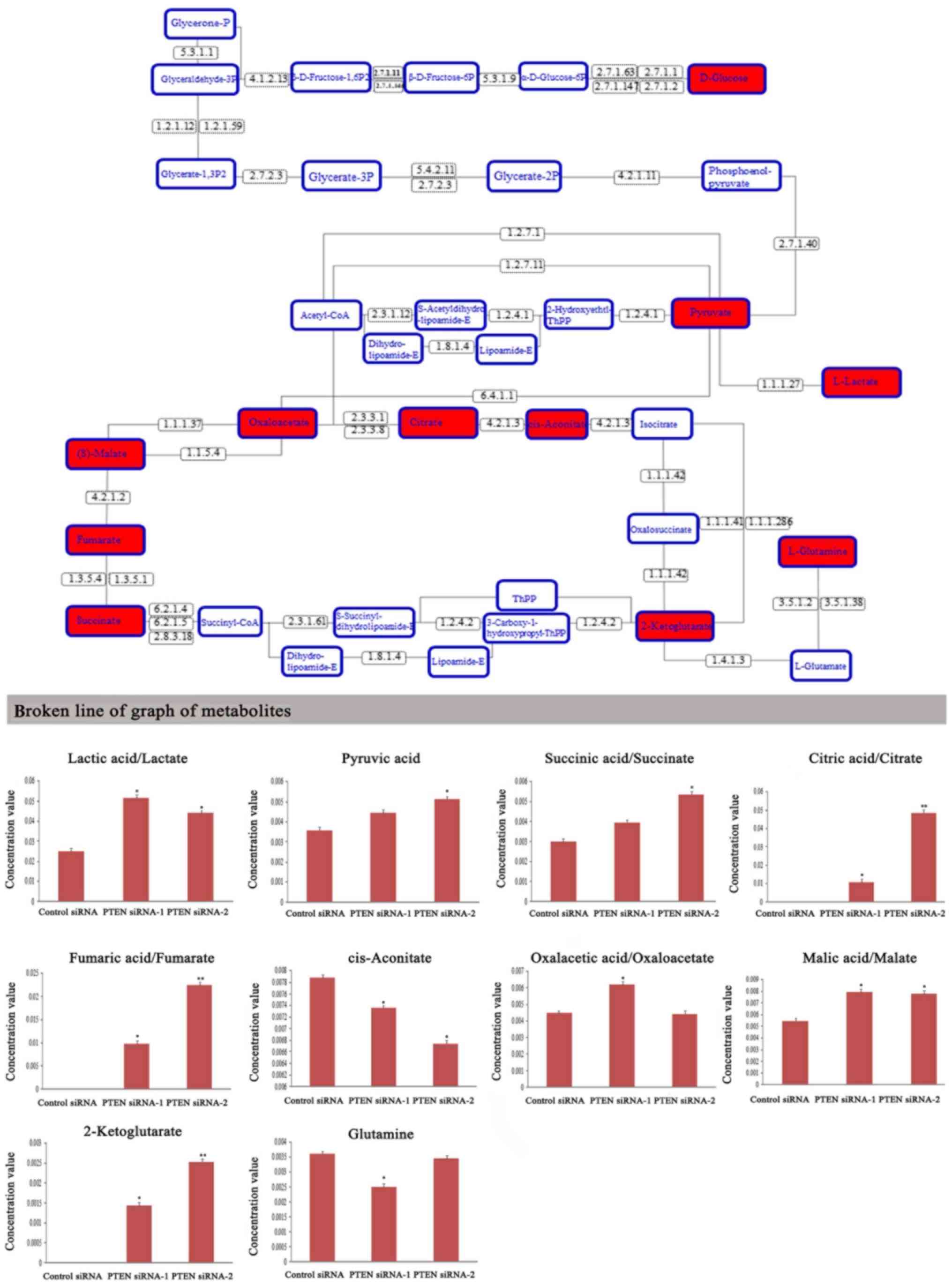

Figure 2. Metabolic profiling of intracellular organic acid involved in the glycolysis and glutaminolysis pathways. GC-MS data revealed the changes of organic acid levels in DU-145 cells which were transfected with PTEN siRNAs for 48 h. The red-labeled metabolites in upper graph were significantly altered in the glycolysis and glutaminolysis pathways. 1.1.1.27, L-lactate dehydrogenase (LDH, ldh); 1.1.1.37, malate dehydrogenase (MDH1); 1.1.1.42, isocitrate dehydrogenase (IDH1, IDH2); 1.1.5.4, malate dehydrogenase (mqo); 1.2.1.12, glyceraldehyde 3-phosphate dehydrogenase (GAPDH, gapA); 1.2.1.59, glyceraldehyde 3-phosphate dehydrogenase (NAD(P), gap2); 1.2.4.1, pyruvate dehydrogenase E1 component; 1.2.4.2, 2-oxoglutarate dehydrogenase E1 component; 1.2.7.1, pyruvate ferredoxin oxidoreductase alpha subunit (porA); 1.2.7.11, 2-oxoglutarate/2-oxoacid ferredoxin oxidoreductase subunit alpha (korA, oforA); 1.3.5.1, succinate dehydrogenase (ubiquinone) flavoprotein subunit; 1.3.5.4, fumarate reductase flavoprotein subunit; 1.4.1.3, glutamate dehydrogenase (NAD(P)+) (GLUD12, gdhA); 1.8.1.4, dihydrolipoamide dehydrogenase (DLD, lpd, pdhD); 2.3.1.12, pyruvate dehydrogenase E2 component (DLAT, aceF, pdhC); 2.3.1.61, 2-oxoglutarate dehydrogenase E2 component; 2.3.3.1, citrate synthase; 2.3.3.8, ATP citrate (pro-S)-lyase; 2.7.1.1, hexokinase (HK); 2.7.1.11, 6-phosphofructokinase 1(pfkA, PFK); 2.7.1.146, ADP-dependent phosphofructokinase/glucokinase (pfkC); 2.7.1.147, ADP-dependent glucokinase (ADPGK); 2.7.1.2, glucokinase (GCK); 2.7.1.40, pyruvate kinase (PK, pyk); 2.7.1.63 polyphosphate glucokinase (ppgK); 2.7.2.3, phosphoglycerate kinase (PGK, pgk); 2.8.3.18, succinyl-CoA:acetate CoA-transferase; 3.5.1.2 glutaminase (glsA, GLS), 3.5.1.38, glutamin-(asparagin-)ase (aspQ, ansB, ansA); 4.1.2.13, fructose-bisohosphate aldolase, class I (ALDO); 4.2.1.11, enolase (ENO, eno); 4.2.1.2, fumarate hydratase, class I; 4.2.1.3, aconitate hydratase; 5.3.1.1, triosephosphate isomerase (TIM) (TPI, tpiA); 5.3.1.9, glucose-6-phosphate isomerase (GPI, pgi); 5.4.2.11, 2,3-bisphosphoglycerate-dependent phosphoglycerate mutase (PGAM, pgmA); 5.4.2.11, 2,3-bisphosphoglycerate-independent phosphoglycerate mutase (pgmI); 6.2.1.4, succinyl-CoA synthetase alpha subunit (LSC1); 6.2.1.5, succinyl-CoA synthetase alpha subunit (sucD); 6.4.1.1, pyruvate carboxylase (PC, pyc). *P<0.05, **P<0.01 vs. the cells transfected with control siRNA.

Fatty acid de novo synthesis and β oxidation

Unlike other epithelial tumors, primary prostate cancer relies on lipid metabolsim more than on aerobic glycolysis (8,9). PTEN loss can lead to the overexpression of fatty acid synthase (FAS) and therefore facilitate cholesterol and fatty acid biosynthesis in prostate cancer (10). To investigate the function of PTEN in lipid metabolism, the metabolite changes in fatty acid de novo synthesis of PTEN knockdown DU-145 cells was analyzed. The results revealed that when PTEN expression was significantly decreased in prostate cancer cells, many fatty acylcarnitines involved in fatty acid de novo synthesis were enhanced, such as decanoyl-carnitine, dodecanoyl-carnitine, tetradecanoyl-carnitine, hexadecanoyl-carnitine, hexadecenoyl-carnitine, octadecanoyl-carnitine (Fig. 3). In parallel with enhanced fatty acid de novo synthesis, fatty acid β-oxidation was also increased in PTEN knockdown prostate cancer DU-145 cells. Compared with the control siRNA-transfected cells, many fatty acylcarnitines involved in fatty acid β-oxidation were significantly increased in DU-145 cells which were transfected with PTEN siRNAs, such as butanoyl-carnitine, hexanoyl-carnitine, hexenoyl-carnitine, hydroxyhexanoyl-carnitine, octenoyl-carnitine, decanoyl-carnitine, dodecanoyl-carnitine, tetradecanoyl-carnitine, hydroxytetradecanoyl-carnitine, hexadecanoyl-carnitine, hexadecenoyl-carnitine, and hydroxyhexadecanoyl-carnitine (Fig. 4). These results confirmed that PTEN loss can lead to the reprogramming of lipid metabolism in prostate cancer cells, including enhancement of fatty acid de novo synthesis and fatty acid β-oxidation, which provides bioenergy and biomolecules to fuel the malignant proliferation of cancer cells.

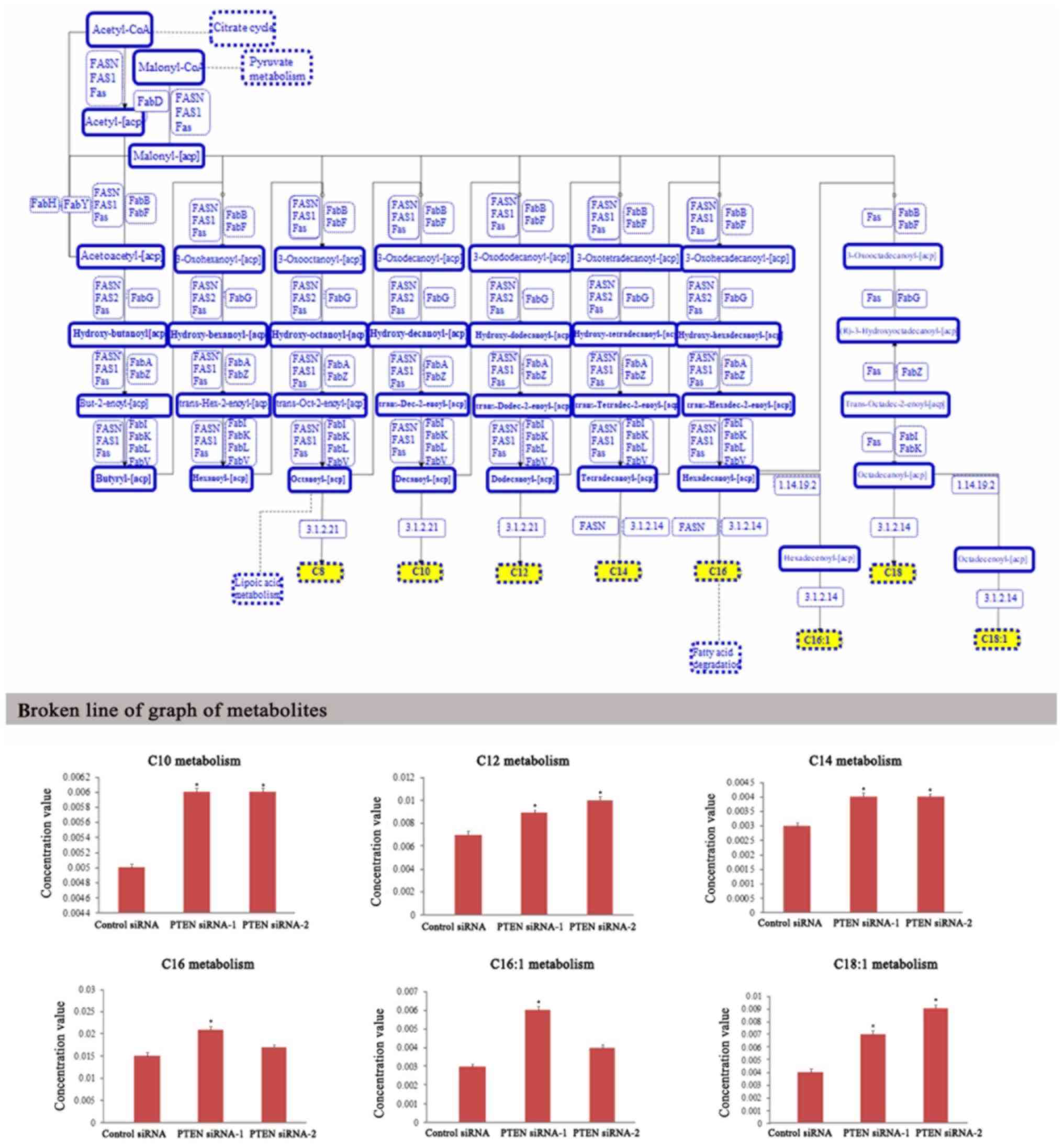

Figure 3. Metabolic profiling of intracellular metabolites involved in fatty acid de novo synthesis. LC-MS data revealed the changes of metabolite levels in DU-145 cells which were transfected with PTEN siRNAs for 48 h. The yellow-labeled metabolites in upper graph were significantly altered in the fatty acid de novo synthesis pathway. 1.14.19.2, acyl-[acyl-carrier-protein] desaturase; 3.1.2.14, fatty acyl-ACP thioesterase B; 3.1.2.21, medium-chain acyl-[acyl-carrier-protein] hydrolase; FabA, 3-hydroxyacyl-[acyl-carrier-protein] dehydratase; FabB, 3-oxoacyl-[acyl-carrier-protein] synthase I; FabD, [acyl-carrier-protein] S-malonyltransferase; FabF, 3-oxoacyl-[acyl-carrier-protein] synthase II; FabG, 3-oxoacyl-[acyl-carrier-protein] reductase; FabH, 3-oxoacyl-[acyl-carrier-protein] synthase III; FabI, enoyl-[acyl-carrier-protein] reductase I; FabK, enoyl-[acyl-carrier-protein] reductase II; FabL, enoyl-[acyl-carrier-protein] reductase III; FabV, enoyl-[acyl-carrier-protein] reductase/trans-2-enoyl-CoA reductase (NAD+); FabY, acetoacetyl-[acyl-carrier-protein] synthase; FabZ, 3-hydroxyacyl-[acyl-carrier-protein] dehydratase; Fas, fatty acid synthase, bacteria type; FAS1, fatty acid synthase subunit beta, fungi type; FAS2, fatty acid synthase subunit alpha, fungi type; FASN, fatty acid synthase, animal type; C10, decanoyl-carnitine; C12, dodecanoyl-carnitine; C14, tetradecanoyl-carnitine; C16, hexadecanoyl-carnitine; C16:1, hexadecenoyl-carnitine; C18:1, octadecanoyl-carnitine. *P<0.05 vs. cells transfected with control siRNA.

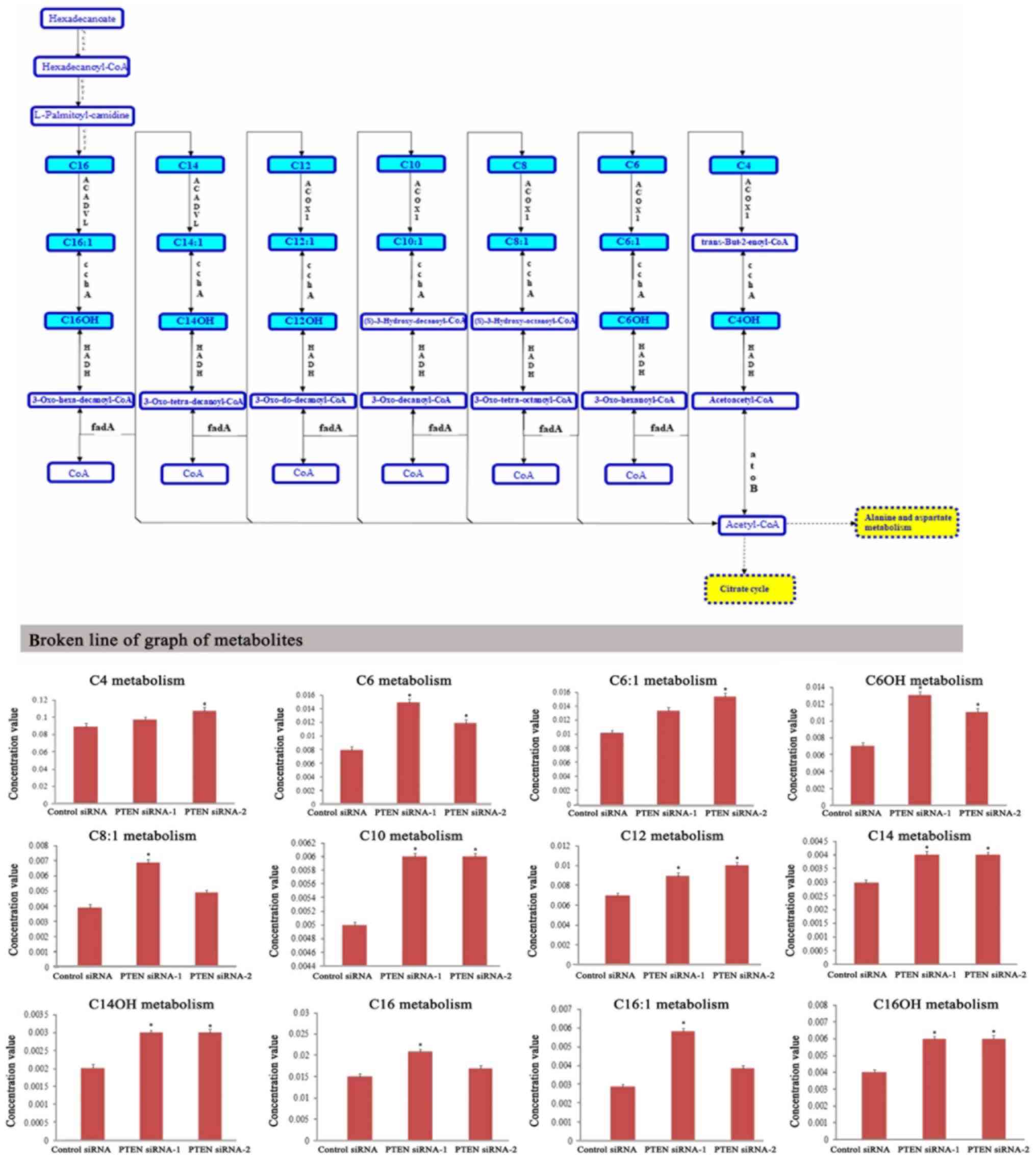

Figure 4. Metabolic profiling of intracellular metabolites involved in fatty acid β-oxidation. LC-MS data revealed the changes of metabolite levels in DU-145 cells which were transfected with PTEN siRNAs for 48 h. The blue-labeled metabolites in upper graph were significantly altered in fatty acid the β-oxidation pathway. ACADVL, very long chain acyl-CoA dehydrogenase; ACOX1, acyl-CoA oxidase; ACSL, long-chain acyl-CoA synthetase; atoB, acetyl-CoA C-acetyltransferase; CPT1, carnitine O-palmitoyltransferase 1; CPT2, carnitine O-palmitoyltransferase 2; echA, enoyl-CoA hydratase; fadA, acetyl-CoA acyltransferase; HADH, 3-hydroxyacyl-CoA dehydrogenase; HIBCH, 3-hydroxyisobutyryl-CoA hydrolase; IVD, isovaleryl-CoA dehydrogenase; mmsA, malonate-semialdehyde dehydrogenase (acetylating); mmsB, 3-hydroxyisobutyrate dehydrogenase vdh valine dehydrogenase; vorA, 2-oxoisovalerate ferredoxin oxidoreductase, alpha subunit; C4, Butanoyl-carnitine; C6, hexanoyl-carnitine; C6:1, hexenoyl-carnitine; C6OH, hydroxyhexanoyl-carnitine; C8:1, octenoyl-carnitine; C10, decanoyl-carnitine; C12, dodecanoyl-carnitine; C14, tetradecanoyl-carnitine; C14OH, hydroxytetradecanoyl-carnitine; C16, hexadecanoyl-carnitine; C16:1, hexadecenoyl-carnitine; C16OH, hydroxyhexadecanoyl-carnitine. *P<0.05 vs. cells transfected with control siRNA.

Branched-chain amino acids catabolism

The key enzyme that initiates the catabolism of branched-chain amino acids is branched-chain amino acid transaminase 1 (BCAT1), which is overexpressed in many types of cancers (20). Compared with healthy tissues, it has been reported that low levels of BCAT activity are present in all models of prostate cancer but the enzymatic levels are significantly altered in prostate cancer (21). Our results revealed that the products of branched-chain amino acid catabolism such as the levels of hydroxyisovaleryl-carnitine, methylbutanoyl-carnitine, and propanoyl-carnitine were increased in DU-145 cells which were transfected with PTEN siRNAs. Therefore, the catabolism of branched-chain amino acids was enhanced in PTEN-loss prostate cancer cell line DU-145 (Fig. 5). Whether the enhancement of BCAA catabolism is related to BCAT1 and the molecular mechanisms driving this still requires further investigation.

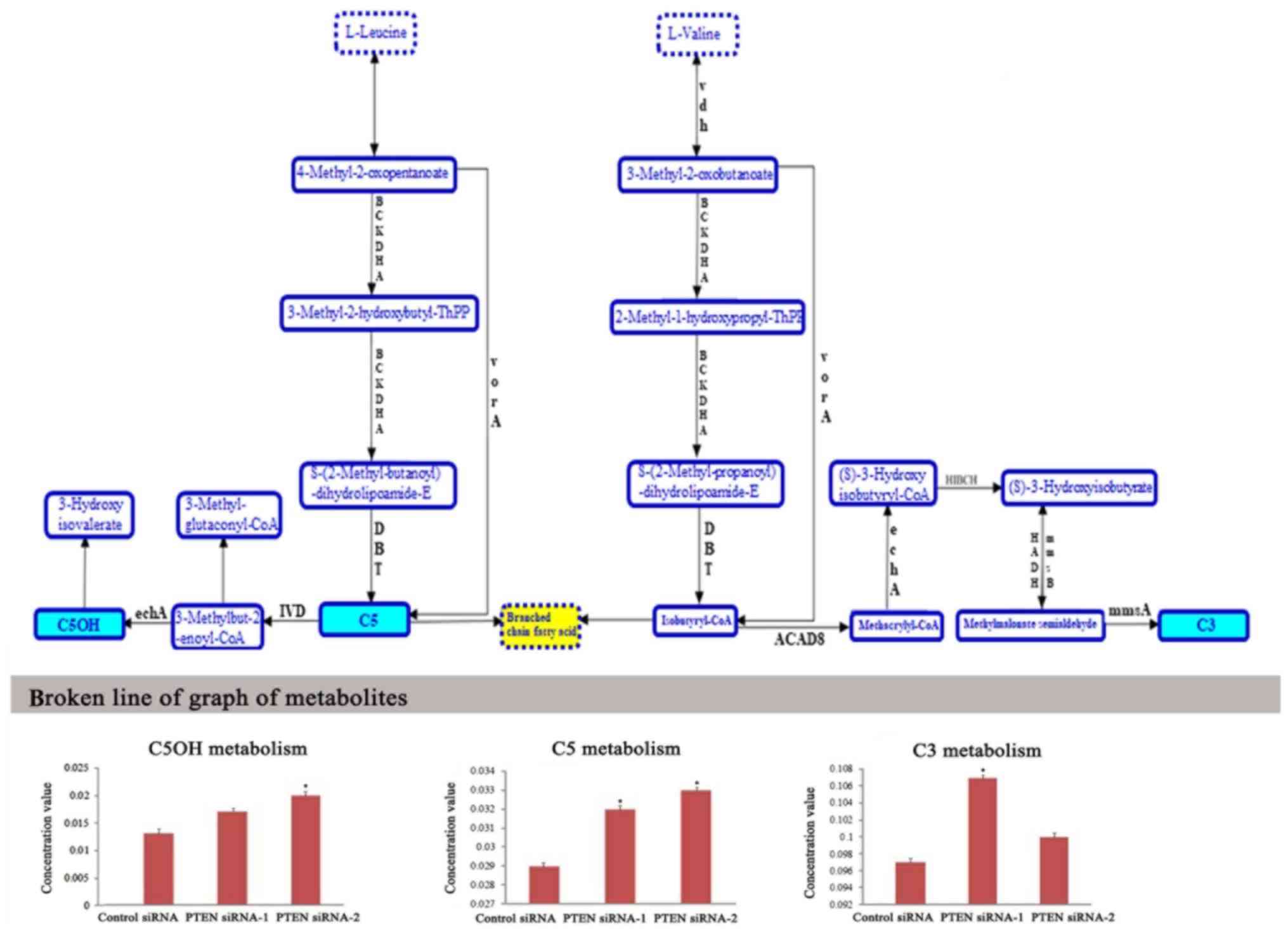

Figure 5. Metabolic profiling of intracellular metabolites involved in branched-chain amino acid catabolism. LC-MS data revealed the changes of metabolite levels in DU-145 cells which were transfected with PTEN siRNAs for 48 h. The blue-labeled metabolites in upper graph were significantly altered in the branched-chain amino acid catabolism pathway. ACAD8, isobutyryl-CoA dehydrogenase; BCKDHA, 2-oxoisovalerate dehydrogenase E1 component alpha subunit; DBT, 2-oxoisovalerate dehydrogenase E2 component (dihydrolipoyl transacylase); echA, enoyl-CoA hydratase; HADH, 3-hydroxyacyl-CoA dehydrogenase; HIBCH, 3-hydroxyisobutyryl-CoA hydrolase; IVD, isovaleryl-CoA dehydrogenase; mmsA, malonate-semialdehyde dehydrogenase (acetylating); mmsB, 3-hydroxyisobutyrate dehydrogenase; vdh, valine dehydrogenase (NAD+); vorA, 2-oxoisovalerate ferredoxin oxidoreductase, alpha subunit; C5OH, hydroxyisovaleryl-carnitine; C5, methylbutanoyl-carnitine; C3, propanoyl-carnitine. *P<0.05 vs. cells transfected with control siRNA.

Discussion

Tumor suppressor gene PTEN deletion or mutation in combination with other genetic alterations can recapitulate the entire spectrum of human prostate cancer, from tumor initiation to metastasis. Metabolic reprogramming induced by PTEN loss is one of the key factors promoting prostate cancer tumorigenesis. The altered metabolism of cancer cells can provide abundant biomaterial and bioenergy for malignant proliferation and can confer a selective advantage for the survival and proliferation of cancer in the unique tumor microenvironment (22). Studies have demonstrated that oncogenes and tumor suppressor genes can drive metabolic reprogramming by regulating the expression or activity of metabolic enzymes (13). It has been reported that loss of PTEN promoted aerobic glycolysis in prostate epithelial cells (17). In addition, cells derived from PTEN transgenic mice revealed reduced glucose and glutamine uptake and increased mitochondrial oxidative phosphorylation (11). Compared with previous studies, we demonstrated that loss of PTEN in prostate cancer cells resulted in enhanced fatty acid de novo synthesis and β-oxidation, and enhanced branched chain amino acid catabolism in addition to enhanced glycolysis and glutaminolysis. Thus, these metabolic characteristics may be new targets for prostate cancer therapy.

The Warburg effect is one of the metabolic characteristics of cancer cells, which exhibits high rates of glycolysis with increased glucose consumption and lactate production (7). Many metabolic molecules are involved in the Warburg effect of PTEN-deficiency-driven prostate tumorigenesis. Firstly, hexokinase HK2, which catalyzes the essentially irreversible first step of the glycolytic pathway, mediated the Warburg effect and malignant growth of PTEN and p53 deficiency-driven prostate cancers. PTEN loss increased HK2 mRNA translation through AKT/mTORC1/4EBP1 signaling (17). Secondly, fructose 2,6-bisphosphate (F2,6BP), the most potent allosteric activator of the glycolytic enzyme phosphofructokinase-1 (PFK-1), promoted the Warburg effect in PTEN-deficient cells. PTEN loss negatively affected the activity of the E3 ligase APC/C-Cdh1, resulting in the stabilization of the enzyme PFKFB3 and increased the synthesis of its product F2,6BP2 (23). Thirdly, PTEN loss resulted in the activation of the PI3K/Akt pathway, which contributed to the phosphorylation of the enzyme PFKFB2 and activation of the glycolytic enzyme phosphofructokinase-2 (PFK-2) in prostate cancer LNCaP cells (24). Finally, Akt activation induced by PTEN deficiency promoted the expression of GluT1 on the plasmamembrane and glycolysis in cancer cells (25). Therefore, PTEN loss enhanced glucose uptake and glycolytic enzymatic activity, which promoted the glycolysis pathway in cancer cells.

Cancer cells utilize glucose and glutamine as primary carbon sources to feed mitochondrial intermediates for biosynthetic precursors. The enhancement of the carbon flux through glycolysis and glutaminolysis fulfills the energetic and biosynthetic demands of cancer cells. In addition to glycolysis, glutamonolysis is also enhanced in PTEN knockdown prostate cancer cells. PTEN can reduce the protein level of glutaminase (GLS) which is the first rate-limiting enzyme in the glutaminolysis pathway. PTEN can promote the activity of the E3 ubiquitin ligase anaphase-promoting complex/cyclosome-Cdh1 (APC/C-Cdh1), which targets GLS for degradation (11). Loss of PTEN stabilized glutaminase and promoted glutaminolysis in prostate cancer cells.

Lipid metabolism reprogramming is a major contributor to sustaining prostate cancer development (9). This lipid metabolism dysregulation is a prominent feature that encompasses elevated de novo lipogenesis including steroid-hormone biosynthesis as well as β-oxidation of fatty acids (26). Deficiency of PTEN and activation of PI3K/Akt can activate the transcriptional factor SREBP1C, which in turn transcribes genes involved in fatty acid and cholesterol biosynthesis (27). PTEN inhibits the synthesis of long-chain saturated fatty acids by inhibiting the expression of fatty acid synthase (FAS) in a lipid phosphatase-dependent manner (10). PTEN deficiency was revealed to play an important role in the overexpression of the FAS protein and the enhancement of fatty acid de novo synthesis in prostate cancer cells (10). It has been reported that lipid production in prostate-specific conditional PTEN−/− mice was enhanced compared with wild-type mice. Furthermore, ATP-citrate lyase (ACLY), the first rate-limiting enzyme involved in de novo lipogenesis, was also revealed to be enhanced in prostate-specific conditional PTEN−/− mice compared with wild-type mice (28). In addition, inactivation of pyruvate dehydrogenase (PDHA1) can inhibit prostate cancer development and block enhancement of lipid biosynthesis induced by PTEN loss (28). Accordingly, our research also discovered that fatty acid de novo synthesis was increased in PTEN knockdown prostate cancer cells. Therefore, loss of PTEN in prostate cancer cells resulted in enhancement of fatty acid de novo synthesis and fatty acid β-oxidation.

The branched-chain amino acids (BCAAs) leucine, isoleucine, and valine can be used for protein synthesis or oxidized as a tumor energy supply. Branched-chain aminotransferase 1 (BCAT1), the enzyme involved in the first step of BCAA catabolism, contributes to the metabolic reprogramming and malignant proliferation of cancer cells (20). It has been reported that BCAT1 is a target gene of c-Myc and induces the cell proliferation of nasopharyngeal carcinoma (29). In addition, microRNA-218 negatively regulated BCAT1 and inhibited the growth of prostate cancer (30). Our research revealed that the catabolism of branched-chain amino acids was upregulated in PTEN-knockdown prostate cancer cells. Whether the enhancement of BCAA catabolism is related to BCAT1 or related to other molecular mechanisms still requires further investigation.

In conclusion, in the present study, using metabolomics analysis it was revealed that PTEN deficiency promoted metabolic reprogramming by enhancing glycolysis, glutaminolysis, fatty acid synthesis and β-oxidation, and branched-chain amino acid catabolism in prostate cancer cells. The metabolic reprogramming induced by PTEN loss provided biomaterials and bioenergy for the proliferation of prostate cancer cells. This study implicates a potential therapeutic target for prostate cancer cells with PTEN mutation or deletion.

Acknowledgements

Not applicable.

Funding

This study was supported by Cancer Biology State Key Laboratory (grant no. CBSKL2014Z09). This study was supported by the National Natural Science Foundation of China (grant nos. 81672542, 81572504 and 81772745); the Natural Science Foundation of Shaanxi Province (grant no. 2017SF-187).

Availability of data and materials

All data generated or analyzed during the present study are included in this published article.

Authors' contributions

XZ and XY contributed to the research conception and design. XX, JW and XS contributed to the data analysis and interpretation. XAL, YG and XL contributed to the statistical analysis. LS designed the study and wrote the manuscript. LY and HW reviewed and edited the manuscript and were also involved in the conception of the study. All authors approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
