Introduction

Acute myeloid leukemia (AML) is a heterogeneous disease resulting from multiple genetic and epigenetic abnormalities that affect differentiation, proliferation and apoptosis of myeloid cells (1). The traditional treatment for leukemia is chemotherapy; however, chemotherapy has serious side effects and may result in treatment failure due to treatment-associated mortality or the emergence of drug resistance (2). Despite recent advances in treatment strategies, AML remains an incurable disease (3). In recent years, traditional Chinese medicine has been extensively used and has demonstrated success in the treatment of leukemia. For example, arsenic trioxide can achieve a high complete remission rate in the treatment of acute promyelocytic leukemia (APL) and is particularly effective for patients with recurrent APL (4–6).

Matrine, an alkaloid extracted from a Chinese herb, has been widely used to treat viral hepatitis, cardiac arrhythmia and skin inflammation, and exhibits chemotherapeutic potential through its ability to trigger caspase-independent programmed cell death (7). Matrine has also been demonstrated to exert potential activities against different types of leukemia by inhibiting cancer cell proliferation, accelerating apoptosis, inducing cell cycle arrest and suppressing metastasis (8,9). A number of studies have reported that matrine inhibits AML cell proliferation via a variety of mechanisms, including cancer cell differentiation and apoptosis, altering the tumor cell cycle and inhibiting telomerase activity (7,10,11).

The phosphoinositide 3-kinase (PI3K)/protein kinase B (Akt)/mechanistic target of rapamycin kinase (mTOR) signaling pathway is involved in cell growth, proliferation and differentiation, and serves important roles in tumor occurrence, development, treatment and outcome (9). A number of studies have reported that there is continuous activation of the PI3K/Akt/mTOR signaling pathway in leukemia cells (12,13). However, to the best of our knowledge, a systematic scientific evaluation of matrine has not been performed for AML and its anticancer mechanisms on AML cell lines remain unclear. The present study investigated the anticancer activity of matrine in THP-1 cells and revealed an induction of apoptosis and inhibition of the PI3K/Akt/mTOR signaling pathway following treatment with matrine.

Materials and methods

Chemicals and reagents

Human AML THP-1 cells were purchased from the Cell Bank of Chinese Academy of Sciences. Matrine was purchased from Tianyuan Biological Agent Plant. The Cell Counting Kit-8 (CCK-8) was purchased from Dojindo Molecular Technologies, Inc. RPMI-1640 medium, fetal bovine serum (FBS), dimethyl sulfoxide dissolving (DMSO), penicillin and streptomycin were purchased from Invitrogen; Thermo Fisher Scientific, Inc. The ELISA reader ELx800 was obtained from Bio-Tek Instruments, Inc. Inverted phase contrast microscope was obtained from Olympus Corporation. LY294002 was purchased from Cell Signaling Technology, Inc. and was dissolved in DMSO according to the manufacturer's instructions. Antibodies, including anti-PI3K, anti-phosphorylated (p)-PI3K, anti-mTOR, anti-p-mTOR, anti-Akt, anti-p-Akt and anti-β-actin were purchased from ABclonal Biotech Co., Ltd. The current study was approved by the Ethics Committee of Bengbu Medical College (Bengbu, China).

Cell culture

THP-1 cell lines were maintained in RPMI-1640 medium supplemented with 10% FBS, 100 U/ml penicillin and 100 µg/ml streptomycin at 37°C with 5% CO2. A total of 5×103 cells in 100 µl RPMI-1640 medium were plated in 96-well plates. When the cell growth reached the log growth phase, the cells were treated with trypsin to obtain a single cell suspension, and were then seeded into different culture plates or dishes for subsequent experiments, according to the experimental requirements.

Morphology change

THP-1 cells, at a density of 2.0×105 cells/well, were equally seeded in 24-well flat bottom microtiter plates at room temperature, and then treated with matrine at the concentration of 0, 0.8, 1.2 and 1.6 g/l. After 24 h of treatment, the morphology of THP-1 cells was observed under an inverted phase contrast microscope (magnification, ×100).

Cell viability assay

THP-1 cells at a density of 2.0×105 cells/well were plated in 96-well microtiter plates and treated with various doses of matrine (0, 0.4, 0.8, 1.2, 1.6 and 2.0 g/l), dissolved in RPMI-1640 medium, for 12, 24 and 48 h at 37°C with 5% CO2. Cell viability was subsequently measured using the CCK-8 assay according to the manufacturer's protocol. Briefly, 20 µl CCK-8 solution was added to the culture medium 24 h following matrine treatment. The cells were incubated for 4 h at 37°C. The absorbance was read at a wavelength of 450 nm using the ELx800 ELISA reader. All experiments were repeated a minimum of four times. The absorbance value was measured and the proliferation inhibition rate (IR) was calculated as: IR=(control group absorbance-experimental group absorbance)/control group absorbance ×100%. The cell viability rate (%)=A450 (matrine)/A450 (control) ×100%.

Apoptosis assay

The ability of matrine to induce apoptosis in AML cells was assessed by Annexin V-fluorescein isothiocyanate (FITC)/propidium iodide (PI) double staining. AML cells were plated at a density of 2.0×105 cells/well in 6-well plates. The cells were then treated with 0, 0.8, 1.2 and 1.6 g/l of matrine or 20 µmol/l LY294002, dissolved in DMSO, for 24 h or 1.2 g/l matrine at 37°C for three different time points (12, 24 and 48 h). The cells in 6-well plates were stained with DAPI (3 µM). The cells were then washed with PBS and fixed with 10% formaldehyde at room temperature for 20 min. The DAPI-stained cells were observed with a fluorescence microscope (magnification, ×100) for estimation of the percentage of cells not undergoing apoptosis. After treatment, the cells were collected and stained at 25°C with Annexin V-FITC and PI using an Annexin V-FITC Apoptosis Detection kit (BD Biosciences). Subsequently, apoptosis analysis was performed using FITC signal detector (FL1) and PI signal detector (FL2) using a flow cytometer (BD Accuri C6) and analyzed using the FACSCalibur system (BD Biosciences). The apoptosis ratio of THP-1 cells contains the percentage of early-phase apoptotic cells and early-phase apoptotic cells. The experiment was repeated three times independently with similar results.

Western blot analysis

To further investigate whether the PI3K/Akt/mTOR signaling pathway is associated with the inhibitory effects of matrine in THP-1 cells, the PI3K-specific inhibitor LY294002 was used to treat THP-1 cells prior to western blot analysis. Following treatment with matrine or 20 µmol/l LY294002, changes in protein expression levels were detected using western blot analysis. THP-1 cells were collected from each group and total protein was extracted using radioimmunoprecipitation assay buffer (cat. no. P0013B; Beyotime Institute of Biotechnology; Haimen, China). Protein concentration was determined by the bicinchoninic acid assay. A total of 20 µg protein was separated by SDS-PAGE on a 10% gel and then transferred to polyvinylidene fluoride (PVDF) membrane. The PVDF membrane was then incubated with anti-p-PI3K (dilution 1:1,000; cat. no. Ap0427), anti-PI3K (dilution 1:2,000; cat. no. A11177), anti-p-Akt (dilution 1:2,000, cat. no. AP0140), anti-Akt (dilution 1:2,000; cat. no. A11016), anti-p-mTOR (dilution 1:2,000; cat. no. AP0094), anti-mTOR (dilution 1:2,000; cat. no. A2445) or anti-β-actin (dilution 1:200,000; cat. no. AC026) (all from ABclonal Biotech Co., Ltd.) at 4°C overnight. Subsequently, the membrane was washed with washing buffer and incubated with secondary antibody goat anti-rabbit IgG (H+L) (1:3,000; cat. no. s0001; Beyotime Institute of Biotechnology) for 1 h at 25°C. The protein bands were visualized by an ECL Advanced Western Blot Detection kit (EMD Millipore).

Statistics analysis

Statistical analysis was performed using SPSS software (version 17; SPSS, Inc., Chicago, IL, USA). Data are presented as the mean ± standard deviation and are representative of at least three independent experiments. One-way analysis of variance followed by the Bonferroni correction was used to assess the differences among the groups treated with different doses of matrine. P<0.05 was considered to indicate a statistically significant difference.

Results

Matrine inhibits the proliferation of AML cells

The effects of matrine or LY294002 on the proliferation of the AML cell line THP-1 cells were examined. Matrine inhibited the proliferation of THP-1 cells in a dose- and time-dependent manner, with a half-maximal inhibitory concentration (IC50) of 1.2 g/l at 24 h (Fig. 1A). Following treatment with different doses of matrine, it was identified that matrine decreased the cell viability in a dose-dependent manner. The cell proliferation rates of the groups treated with 0.8, 1.2, 1.6 and 2.0 g/l matrine were significantly lower compared with the group treated with 0 g/l matrine (treated with DMSO only) for 24 and 48 h (P<0.05). The cell proliferation rates of the 1.6 and 2.0 g/l matrine-treated groups were significantly lower compared with that of the 0.4 g/l matrine-treated group for 48 h (P<0.05). The cell proliferation rate of the 2.0 g/l matrine-treated group was significantly lower compared with the 1.2 g/l matrine-treated group for 48 h (P<0.05). Pair-wise comparisons of the cell proliferation activity were statistically significant among the groups treated with different doses of matrine (P<0.05; Fig. 1A). Compared with the 12 h group, the inhibitory rate of THP-1 cell proliferation of 48 h increased from 22 to 56% following exposure to 1.2 g/l matrine (P<0.05; Fig. 1B). Matrine decreased the proliferation of AML cells. In addition, during the prolonged treatments (24 and 48 h), 1.6 g/l matrine demonstrated a significantly greater inhibitory effect compared with that at 12 h (P<0.05). Furthermore, matrine induced changes in the morphology of the AML THP-1 cells, such as the presence of autophagy vesicles (Fig. 2). The IC50 concentration of AML cells treated with matrine for 24 h was 1.2 g/l. These results indicated that matrine may exert its anticancer effects by decreasing the proliferation of AML cells and affecting their morphology.

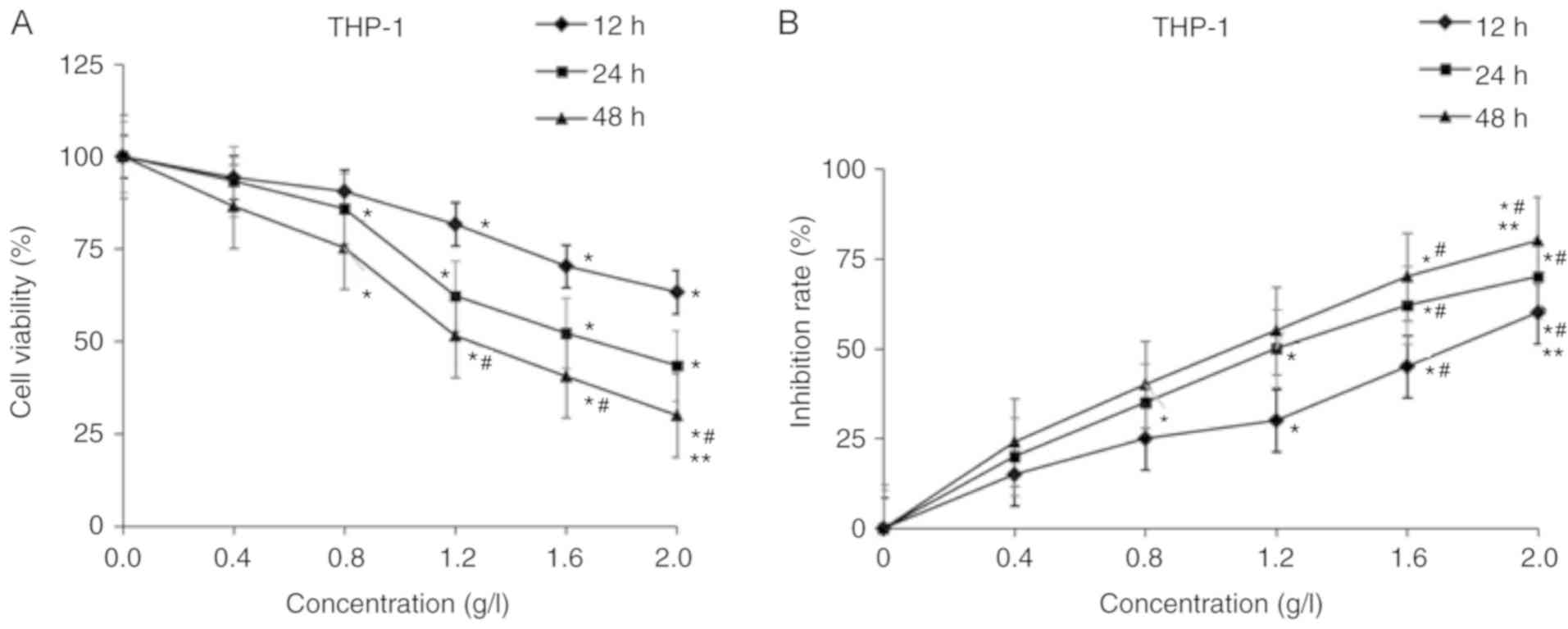

Figure 1. Effects of matrine on the proliferation of acute myeloid leukemia cells. THP-1 cells were treated with 0, 0.4, 0.8, 1.2, 1.6 and 2.0 g/l matrine for 12, 24 and 48 h. Cell viability was assessed by a Cell Counting Kit-8 assay. (A) Cell viability rate. (B) Inhibition rate. Data are presented as the mean of at least three independent experiments. *P<0.05 vs. 0 g/l matrine; #P<0.05 vs. 0.4 g/l matrine; **P<0.05 vs. 1.2 g/l matrine.

Figure 2. Effects of matrine on cell morphology observed using phase contrast microscopy. Matrine induced changes in the morphology of THP-1 cells, such as the presence of autophagic vacuoles, which indicates that the drug exerts cytotoxic effects in these cells. Magnification, ×100.

Matrine induces apoptosis of AML cells

Compared with the blank control group, treatment with various concentrations of matrine (0.8, 1.2 and 1.6 g/l) for 24 h, significantly induced apoptosis of THP-1 cells (Fig. 3A). The apoptosis ratio for 24 h in the control group was 0.037±0.0012, whereas the apoptosis ratios in the 0.8, 1.2 and 1.6 g/l-treated groups were 0.234±0.0011, 0.412±0.0013 and 0.485±0.0010, respectively (P<0.05; Fig. 3A and B). Compared with the control group, the apoptosis of THP-1 cells treated with 1.2 g/l matrine for 12, 24 and 48 h was significantly increased. The apoptosis ratio in the control group was 0.039±0.0013, whereas the apoptosis ratios in the groups treated for 12, 24 and 48 h were 0.305±0.0010, 0.435±0.0015 and 0.513±0.0012, respectively (P<0.05; Fig. 4A and B). The apoptosis ratio of THP-1 cells treated with 20 µmol/l LY294002 was similar to that of 1.2 g/l matrine (Fig. 3B). The annexin V FITC/PI staining revealed that the apoptosis ratio increased in a dose- and time-dependent manner in the matrine-treated THP-1 cells.

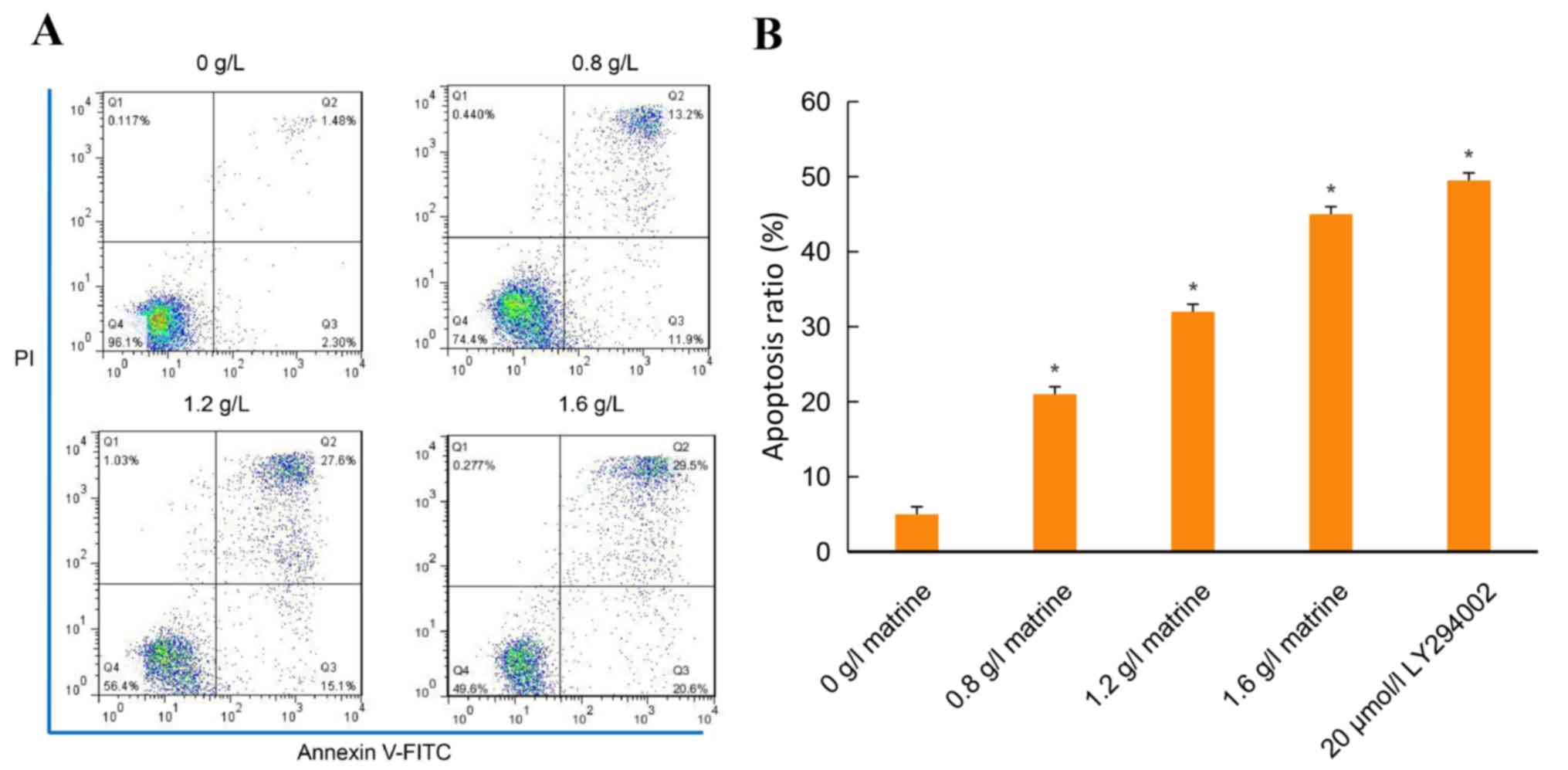

Figure 3. Matrine induces apoptosis in a dose-dependent manner. Annexin V-FITC/PI staining was performed to assess apoptosis. Annexin V-negative/PI-negative (lower left quadrant), Annexin V-positive/PI-negative (lower right quadrant), Annexin V-positive/PI-positive (upper right quadrant) and Annexin V-positive/PI-positive (upper left quadrant) cells were considered as the viable, early-phase apoptotic, late-phase apoptotic and necrotic cells, respectively. The percentage of cells is presented in each quadrant. (A) THP-1 cells. (B) Representative histograms of apoptosis of THP-1 cells induced by matrine or LY294002 are presented. *P<0.05 vs. the control. The data are presented as the mean ± standard deviation of at least three independent experiments. FITC, fluorescein isothiocyanate; PI, propidium iodide.

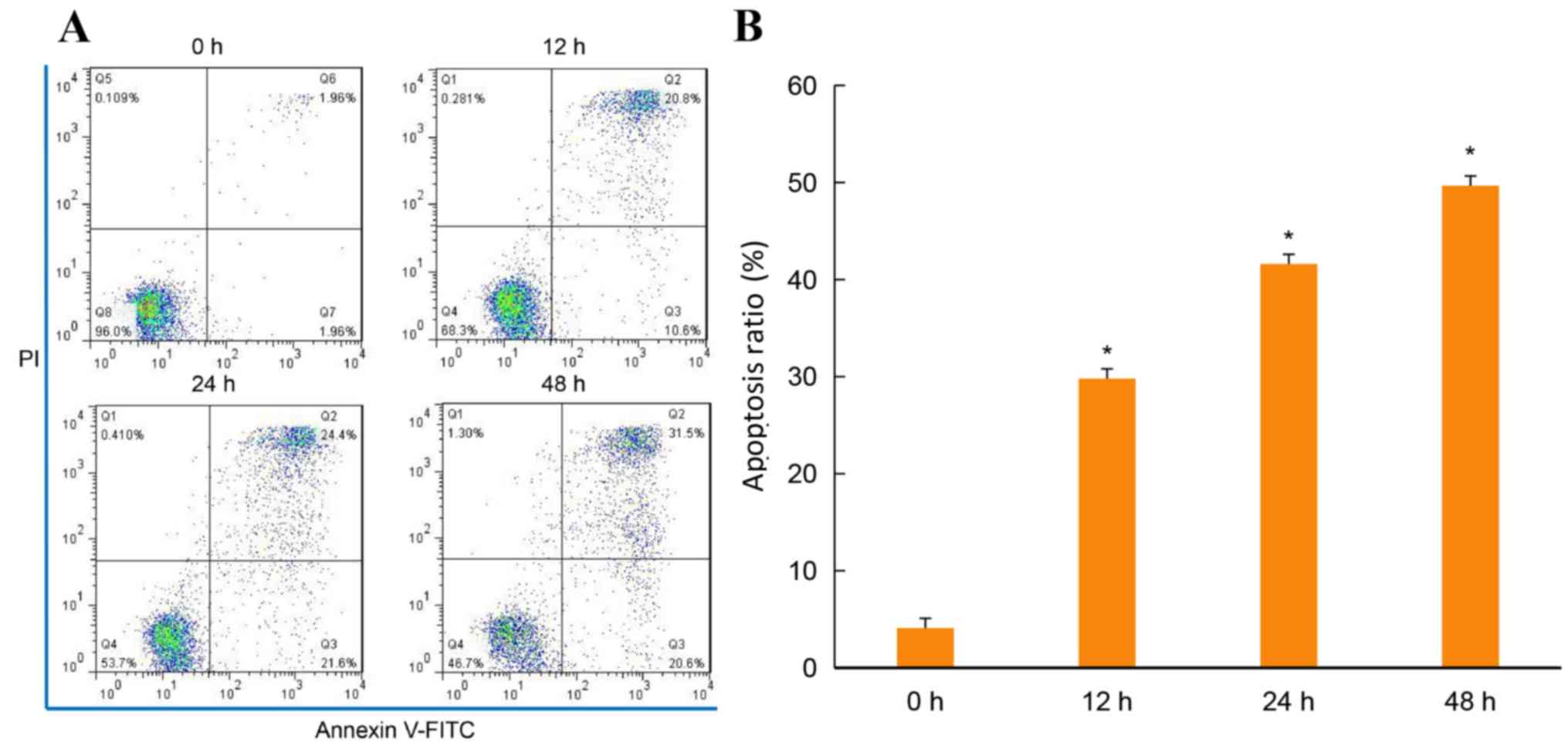

Figure 4. Matrine induces apoptosis in a time-dependent manner. Annexin V-FITC/PI staining was performed to assess apoptosis. Annexin V-negative/PI-negative (lower left quadrant), Annexin V-positive/PI-negative (lower right quadrant), Annexin V-positive/PI-positive (upper right quadrant) and Annexin V-positive/PI-positive (upper left quadrant) cells were considered as the viable, early-phase apoptotic, late-phase apoptotic and necrosis cells, respectively. The percentage of cells is presented in each quadrant. (A) THP-1 cells. (B) Representative histograms of apoptosis of THP-1 cells induced by matrine are presented. *P<0.05 vs. 0 g/l matrine. The data are presented as the mean ± standard deviation of at least three independent experiments. FITC, fluorescein isothiocyanate; PI, propidium iodide.

Matrine inhibits the PI3K/Akt/mTOR signaling pathway

In the present study, the effect of matrine on the PI3K/Akt/mTOR signaling pathway was investigated. Matrine decreased the expression of p-PI3K, p-Akt and p-mTOR in a concentration-dependent manner. The expression of p-PI3K, p-Akt and p-mTOR was higher in the 0 g/l matrine-treated group compared with the groups treated with 20 µmol/l LY294002 or 1.2 g/l matrine. However, no notable differences in the expression levels of PI3K, Akt and mTOR following treatment with matrine or 20 µmol/l LY294002 were revealed (Fig. 5).

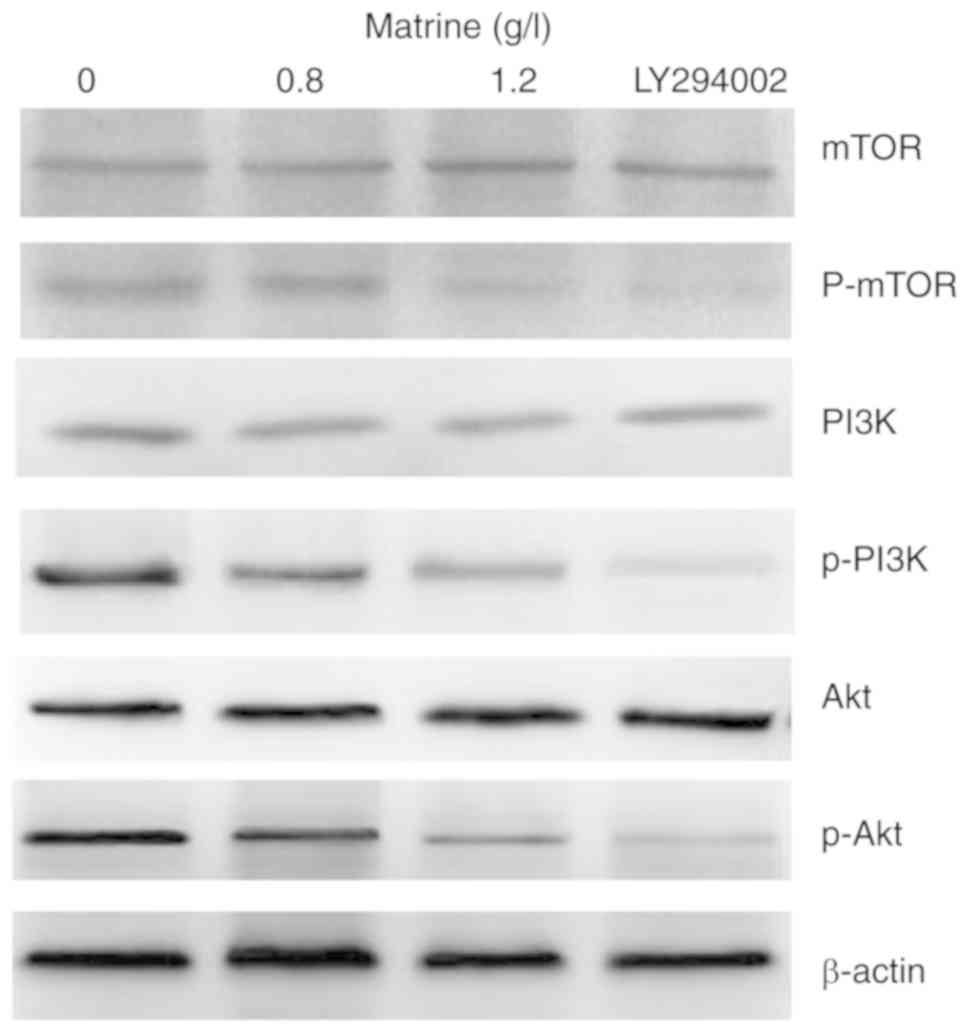

Figure 5. Various concentrations of matrine affect the expression of PI3K/AKT pathway-associated proteins in THP-1 cells. Western blotting was performed in triplicate. Matrine decreased the expression levels of p-PI3K, p-Akt and p-mTOR in a concentration-dependent manner. However, no differences were revealed in the expression levels of PI3K, Akt and mTOR following treatment with matrine. PI3K, phosphoinositide 3-kinase; Akt, protein kinase B; mTOR, mechanistic target of rapamycin kinase; p, phosphorylated.

Discussion

AML is a type of tumor of the blood characterized by an abnormal increase of immature white blood cells (14). Due to the high toxicity and associated side effects of traditional chemotherapy agents commonly used in clinical practice, as well as the high recurrence rates, there is a requirement for the development of novel drugs (15). For decades, matrine, a traditional Chinese herbal medicine, has been demonstrated to possess cytoprotective effects and biological safety, and has been used in the treatment of a number of diseases, including hepatic fibrosis, atherosclerosis, arrhythmias and infectious diseases (16,17). It has also been reported that matrine inhibits hepatocellular carcinoma and leukemia cell proliferation via various mechanisms, including inducing cancer cell differentiation and apoptosis, altering the tumor cell cycle and inhibiting telomerase activity (7,10,11).

Uncontrolled proliferation is a key aspect of tumorigenesis and inhibiting cell proliferation arrests the growth of tumor cells (9,16). To investigate the role of matrine in THP-1 cells, the present study first performed a cell viability assay, which revealed that matrine significantly inhibited THP-1 cell viability in a dose- and time-dependent manner. To observe the cytotoxicity of matrine, concentrations of 0, 0.4, 0.8, 1.2, 1.6 and 2.0 g/l matrine were selected for subsequent experiments. In the current study, the anticancer effects were identified to be dose-dependent and the IC50 value was determined as 1.2 g/l in THP-1 cells. The cell viability results indicated that compared with the control, various concentrations of matrine significantly reduced the viability of THP-1 cells.

To further investigate the mechanisms underlying the anticancer effects of matrine, the present study performed DAPI staining and observed that matrine, may exert its anticancer effects via induction of apoptosis (data not show). It was demonstrated that matrine significantly increased the apoptosis of AML cells in vitro; the rate of apoptosis was 42.70% for AML cells treated with the IC50 concentration of matrine of 1.2 g/l for 24 h. Furthermore, the apoptotic effects of matrine were concentration-dependent and the apoptotic cell populations increased with an increase in the concentration of matrine, as demonstrated by annexin V/PI staining. It has previously been reported that matrine exerts its antitumor effects by inhibiting the proliferation and inducing the apoptosis of AML cells (11,18,19). Consistent with these previous studies, the present study demonstrated that matrine induced AML cell apoptosis in a dose-dependent manner in the range of 0.4–2.0 g/l. Apoptosis is considered one of the important mechanisms that prevents the development of disease, including cancer, as abnormal cells are eliminated via this process (18).

Several signaling pathways such as PI3K/AKT or Notch regulate cell proliferation and apoptosis. Molecular biology studies have been instrumental in deciphering the pathogenesis of AML (13). The inhibition of signaling pathways, such as PI3K/AKT, are considered to be the most important factors in determining the response to chemotherapy and the outcome of AML (20,21). The PI3K/Akt/mTOR signaling pathway is an important pathway that has been reported to be activated in several types of cancer (22–24). PI3K, a signaling protein with catalytic activity within cells, is activated by the action of extracellular cytokines, drugs, stress and other factors. Once activated, PI3K phosphorylates phosphatidylinositol (4,5)-bisphosphate to phosphatidylinositol (3,4,5)-trisphosphate, and promotes Akt activation to regulate the expression of a variety of cell proliferation-associated genes and other genes (12). It has been reported that patients with AML and hyperactivation of Akt signaling in AML cells exhibit a worse prognosis and shorter survival time compared with patients with normal levels of Akt activation (25,26). Therefore, drugs targeting this pathway may prove useful in the treatment of different types of malignancy.

The present study investigated the effect of matrine on the expression of p-PI3K, PI3K, p-Akt, Akt, p-mTOR and mTOR. It was identified that matrine decreased the expression of p-PI3K, p-Akt and p-mTOR in a concentration-dependent manner, indicating that the anticancer effects of matrine may in part be due to inhibition of the PI3K/Akt/mTOR signaling pathway. In the current study, treatment with matrine inhibited the activity of PI3K and Akt in THP-1 cells, as demonstrated by a decrease in their phosphorylated levels, which lowers their downstream kinase activity and inhibits the pathway (19). To further clarify whether the PI3K/Akt signaling pathway is targeted and regulates the inhibitory effects of matrine in THP-1 cells, the PI3K-specific inhibitor LY294002 was used to treat THP-1 cells. The expression of p-PI3K, p-Akt and p-mTOR was markedly lower in the group treated with 20 µmol/l LY294002 compared with the control group. This further suggested that matrine-induced apoptosis may be attributed, at least partially, to PI3K/Akt inactivation. Similarly, previous studies have demonstrated that matrine suppresses the phosphorylation of Akt in AML THP-1 cells (26,27). The identification of matrine as a novel Akt inhibitor may have implications for cancer biology and treatment.

In conclusion, the present study demonstrated that matrine exhibited anticancer effects in THP-1 cells in vitro. The anticancer activity of matrine may be attributed to its inhibition of proliferation, promotion of apoptosis of THP-1 cells by inhibition of the PI3K/Akt/mTOR signaling pathway. Given that matrine has been demonstrated to inhibit proliferation and induce apoptosis of THP-1 cells, matrine may be a useful candidate as a chemotherapeutic agent in the treatment of AML.

Acknowledgements

Not applicable.

Funding

The present study was supported by the Nature Science Key Program of College and University of Anhui Province (grant no. KJ2018A0216).

Availability of data and materials

The analyzed data sets generated during the present study are available from the corresponding authors on reasonable request.

Authors' contributions

YH, NW and DL conceived and designed the study. NZ, HY and YZ were involved in data acquisition. HX, CZ and YZ performed the data analysis. NZ, YH, YZ, NW and DL wrote the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

The Ethics Committee of Bengbu Medical College (Bengbu, China) approved the study protocol.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
