Introduction

Breast cancer is the second most common type of cancer worldwide and the most common cancer type in women. Triple-negative breast cancer (TNBC), accounting for 10–15% (1) of all breast cancer cases, is characterized by the absence of progesterone and estrogen receptor as well as human epidermal growth factor receptor-2 (2). Management of TNBC is challenging due to its aggressive behavior, lack of targeted therapies and relatively poor prognosis (3). At present, only few therapeutic options are available, and conventional chemotherapy is the only effective adjuvant treatment for TNBC patients after surgery (4), which, however, has severe side effects. Therefore, it is important to discover novel therapeutic agents with low toxicity for TNBC treatment. Traditional Chinese Medicine has been used for cancer treatment for a long time either alone or in combination with western medicines (5). It is a promising field providing numerous sources of anticancer agents, which deserve further investigation for being developed into novel clinical treatments.

Xihuang pill (XHP) is a well-known Chinese medicine formula first mentioned in in a document from 1740 in the Qing dynasty period of China (6). XHP contains Niuhuang (Bos Taurus domesticus Gmelin), Shexiang (Moschusmoschiferus Linnaeus), Ruxiang (Boswellia carterii Birdw) and Moyao (Commiphora myrrha Engl.). Its main uses are detoxification as well as relief of swelling and pain. XHP is mainly used for the treatment of furunculosis, scrofula and neoplasms. In the clinical practice, the anticancer activities of XHP have been documented for malignancies including breast and liver cancer as well as leukemia (7). While evidence for the antitumor effects of XHP against TNBC is rare, a recent study by Pan et al (8) was the first to assess the effects of aqueous extract of XHP (AEXHP) on a TNBC cell line, MDA-MB-231, revealing a cytotoxic effect, the possible mechanism of which was indicated to be associated with induction of apoptosis; however, the molecular mechanisms were not further investigated. The aim of the present study was to investigate the effects of AEXHP on another TNBC cell line, namely Hs578T, with the aim of assessing its anti-proliferative activity and the underlying molecular mechanisms. To the best of our knowledge, the present study was the first to demonstrate that the cytotoxic effects of AEXHP in TNBCs may be associated with induction of cell cycle arrest.

Materials and methods

Chemicals and antibodies

XHP was purchased from Tong Ren Tang Technologies Co., Ltd. (Beijing, China). Dimethyl sulfoxide (DMSO) and 3-(4,5-dimethyl-2-thiazolyl)-2, 5-diphenyl-2-H-tetrazolium bromide (MTT) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Caspase-3 monoclonal antibody (cat. no. ab32351; 1:3,000 dilution) was purchased from Abcam (Cambridge, UK). Cyclin dependent kinase 2 (CDK2) (cat. no. 2546; 1:5,000 dilution), cyclin A (cat. no. 4656; 1:5,000 dilution), cyclin E (cat. no. 4129; 1:5,000 dilution), p21Cip1 (cat. no. 2947; 1:5,000 dilution), caspase-8 (cat. no. 9746; 1:4,000 dilution), B-cell lymphoma 2 (Bcl-2; cat. no. 2870; 1:5,000 dilution) and Bcl-2-associated X protein (Bax; ca. no. 5023; 1:5,000 dilution) monoclonal antibodies were purchased from Cell Signaling Technology (Beverly, MA, USA). β-actin rabbit monoclonal antibody (cat. no. TDY051; 1:5,000 dilution) was purchased from TDYbio (Beijing, China). Peroxidase-conjugated goat anti-rabbit immunoglobulin (Ig) G (cat. no. ZB-2306) and goat anti-mouse IgG (cat. no. ZF-0312; both 1:5,000 dilution) were purchased from the Zhongshang Goldenbridge-BIO (Beijing, China).

Extract preparation

XHP (3 g) was immersed in 15 ml cold distilled water and stirred for 2 h at 4°C. Subsequently, XHP was extracted for 2 h at 37°C in an ultrasound oscillator and centrifuged at 1,500 × g for 5 min at 4°C. The supernatant was centrifuged again at 4,800 × g for 15 min at 4°C, and the final supernatant was filtered through a sterile microporous membrane (0.45 µm) and stored at −20°C. For treatment of the cells, AEXHP was diluted with Dulbecco's modified Eagle's medium (DMEM) to the desired concentrations.

Cell culture

The Hs578T human TNBC cell line was obtained from the cell bank of Chinese Academy of Medical Sciences (Shanghai, China). The cells were cultured in DMEM (Gibco, Thermo Fisher Scientific, Inc., Waltham, MA, USA) with 10% fetal bovine serum (Hyclone, Logan, UT, USA) and antibiotics (100 U/ml penicillin and 100 µg/ml streptomycin).

The MCF-10A human breast epithelial cell line also obtained from the cell bank of Chinese Academy of Medical Sciences. The cells were grown, maintained and treated in medium containing DMEM/F-12 (Gibco) 1:1 mix, supplemented with human insulin (10 µg/ml), epidermal growth factor (20 ng/ml), cholera toxin (100 ng/ml), hydrocortisone (0.5 µg/ml), 5% horse serum (Hyclone) and antibiotics (100 U/ml penicillin and 100 µg/ml streptomycin).

The cell lines were incubated in a humidified atmosphere containing 5% CO2 at 37°C.

MTT assay

Cells (7.5×103 or 1×104/well) were seeded in 96-well plates (Corning Inc., Corning, NY, USA) and treated on the following day with various concentrations of AEXHP (0, 4, 8, 12 or 16 mg/ml) for 12, 24 or 48 h [the units ‘weight per volume’ refer to the quantity of solid XHP and the volume of water used for extraction, which was performed according to a previously published procedure (8)]. Subsequently, the cells were subjected to an MTT assay (9) and the optical density (OD) was determined at 570 nm using a 96-well microplate reader (Applied Biosystems; Thermo Fisher Scientific, Inc.). Since reduction of MTT only occurred in metabolically active cells, the OD was a measure of the viability of the cells. The viability rate was calculated according to the following formula: ODtreatment/ODcontrol × 100%.

Apoptosis assay

Hs578T Cells (2.4×105) were seeded in a 30-mm culture dish (Corning Inc.). On the following day, cells were treated with AEXHP (0, 4, 8 or 12 mg/ml). After 24 h of incubation, cells were trypsinized, washed with cold phosphate-buffered saline (PBS) and stained using an annexin V/FITC kit (BestBio, Shanghai, China). The cells were then analyzed on a FACSCalibur flow cytometer (Becton Dickinson, Franklin Lakes, NJ, USA).

Mitochondrial membrane potential (Δψm) assay

Δψm loss was detected using a mitochondrial membrane potential assay kit (Beyotime Institute of Biotechnology, Haimen, China). In brief, Hs578T cells (2.4×105) were seeded into a 30-mm culture dish. On the following day, the cells were treated with AEXHP (0, 4, 8 or 12 mg/ml). After 24 h of incubation, the cells were trypsinized and incubated with JC-1 at 37°C for 15 min. Subsequent to washing with JC-1 staining buffer twice, the cells were immediately analyzed by flow cytometry.

Cell cycle distribution assay

Hs578T cells (6×105) were seeded in a 50-mm culture dish. On the following day, the cells were treated with AEXHP (0, 4, 8 or 12 mg/ml) for 48 h. Subsequent to trypsinization and washing with PBS, cells were fixed in 1 ml ice-cold 70% ethanol overnight at 4°C. The cells were centrifuged (1,000 × g, 5 min, 4°C), washed with cold PBS and treated with propidium iodide (PI)/RNase Staining Buffer (BD Pharmingen, San Diego, CA, USA) for 15 min at room temperature in the dark. The cell cycle distribution was then determined by flow cytometry. The percentage of cells in G1, S and G2/M phase was calculated using ModFit software v 3.2 (Becton Dickinson, San Diego, CA, USA).

Western blot analysis

Hs578T cells (2.25×106) were seeded in a 100-mm culture dish. On the following day, the cells were treated with 0, 4, 8 or 12 mg/ml AEXHP. Following incubation for 24 or 48 h, the cells were harvested, washed with cold PBS and homogenized with radioimmunoprecipitation assay lysis buffer (TDYbio). Total protein was extracted and the protein concentration was determined using a BCA protein assay kit (Thermo Fisher Scientific, Inc.). Subsequently, the proteins were mixed with 5X loading buffer (CWBIO, Beijing, China) and boiled for 5 min. Samples of 35 µg protein were separated by 10% sodium dodecyl sulfate-polyacrylamide gel electrophoresis, and transferred onto polyvinylidene difluoride membranes (Millipore, Billerica, MA, USA). Membranes were blocked for 2 h at room temperature with 5% fat-free milk (YiLi Inc., Huhehaote, China) or 5% bovine serum albumin (Amresco, Inc., Framingham, MA, USA) in 10 mM Tris-HCl, 0.1 M NaCl and 0.1% Tween-20, pH7.4 (TBST), and incubated with specific primary antibodies at 4°C overnight with gentle agitation. The membranes were washed with cold TBST and incubated with peroxidase-conjugated secondary antibody for 1 h. Visualization of the protein bands was accomplished using an Immobilon Western Chemiluminescent HRP Substrate (Millipore). The intensity of protein bands was measured using ImageJ software 1.48 (National Institutes of Health, Bethesda, MD, USA), normalized to that of β-actin and presented as a percentage of the control.

Statistical analysis

Values are expressed as the mean ± standard deviation of at least three independent experiments. Statistical analyses were performed using the two-tailed Student's t-test with SPSS 13.0 (SPSS, Inc., Chicago, IL, USA). P<0.05 was considered to indicate a statistically significant difference.

Results

AEXHP reduces the viability of Hs578T cells

To evaluate the cytotoxic effects of AEXHP on Hs578T cells, the viability of cells (7.5×103/well) treated with various concentrations of AEXHP (0–16 mg/ml) was determined using an MTT assay. The results showed that AEXHP decreased the number of viable cells in a dose- and time-dependent manner (Fig. 1A and B). The inhibition of Hs578T cell viability by AEXHP started relatively early at 12 h. At the highest concentration used (16 mg/ml), incubation with AEXHP for 12, 24 or 48 h significantly decreased the cell viability rate to 74.67±9.63, 52.07±10.89 and 22.21±8.30%, respectively, while there was no statistical difference between the control and the treatment group at the lowest concentration (4 mg/ml) at each time-point.

Figure 1. AEXHP reduces the viability of Hs578T cells. Hs578T cells (7,500/well) were treated with various concentrations of AEXHP (0, 4, 8, 12 or 16 mg/ml) for 12, 24 or 48 h. (A) AEXHP decreased the cell viability in a dose-dependent manner. (B) AEXHP decreased the cell viability in a time-dependent manner. (C) The Hs578T cell line was not more sensitive to AEXHP than the MCF-10A normal breast cell line. Hs578T and MCF-10A were treated with 12 mg/ml XHP for 24 h and the cell viability was compared between the two cell lines at different cell densities. Values are expressed as the mean ± standard deviation (n=3). *P<0.05 vs. control. AEXHP, aqueous extract of Xihuang pill.

In order to investigate the difference in cytotoxicity/anti-proliferative effects of AEXHP on MCF-10A normal breast epithelial cells and Hs578T cells, each cell line was treated with 12 mg/ml AEXHP for 24 h. At a seeding density of 7,500 cells/well, the cell viability rate of Hs578T and MCF-10A decreased to 64.75±3.82 and 43.93±9.96%, respectively (Fig. 1C). There was a significant difference in the viability rate between these two cell lines (P<0.05). However, when the cell density was increased to 10,000 cells/well, the decreases in cell viability were similar between Hs578T and MCF-10A cells (71.67±10.60 and 72.41±9.80%, respectively, vs. control) (Fig. 1C).

AEXHP induces apoptosis in Hs578T cells

In order to assess whether the anti-proliferative effects of AEXHP on Hs578T cells were due to induction of apoptosis, annexin V/PI double staining and flow cytometric analysis were used. After treatment with AEXHP (4, 8 or 12 mg/ml) for 24 h, the percentage of early apoptotic cells increased from 1.6% in the control group to 3.9, 5.4 and 8.6%, respectively, and the percentage of cells in late apoptosis increased from 8.0% in the control group to 12.2, 13.8 and 15.7%, respectively (Fig. 2A). At 8 and 12 mg/ml, AEXHP significantly increased the overall apoptotic rate. In conclusion, AEXHP induced apoptosis in Hs578T cells in a dose-dependent manner (Fig. 2B).

Figure 2. AEXHP induces apoptosis in Hs578T cells. (A) Apoptosis was determined by flow cytometry (dot plot representative of three experiments is shown). Cells were treated with AEXHP (0, 4, 8 or 12 mg/ml) for 24 h. (B) The apoptotic rate was calculated from the early (LR) plus late apoptotic (UR) rate. AEXHP induced apoptosis of Hs578T in a dose-dependent manner. Values are expressed as the mean ± standard deviation (n=3). *P<0.05 vs. control. AEXHP, aqueous extract of Xihuang pill; PI, propidium iodide; FITC, fluorescein isothiocyanate; Q, quadrant; UL, upper left; LR, lower right.

AEXHP treatment leads to depletion of the Δψm in Hs578T cells

To assess whether the apoptosis of Hs578T cells was associated with the depletion of the Δψm, Hs578T treated with various concentrations of AEXHP were assessed by JC-1 staining and flow cytometric analysis. After treatment with AEXHP (4, 8 and 12 mg/ml) for 24 h, the percentage of cells with Δψm loss increased from 4.5% in the control group to 11.8, 14.4 and 19.6%, respectively, which was significant at the highest concentration (P<0.05) (Fig. 3A and B). Thus, AEXHP induced the depletion of the Δψm in Hs578T cells in a dose-dependent manner.

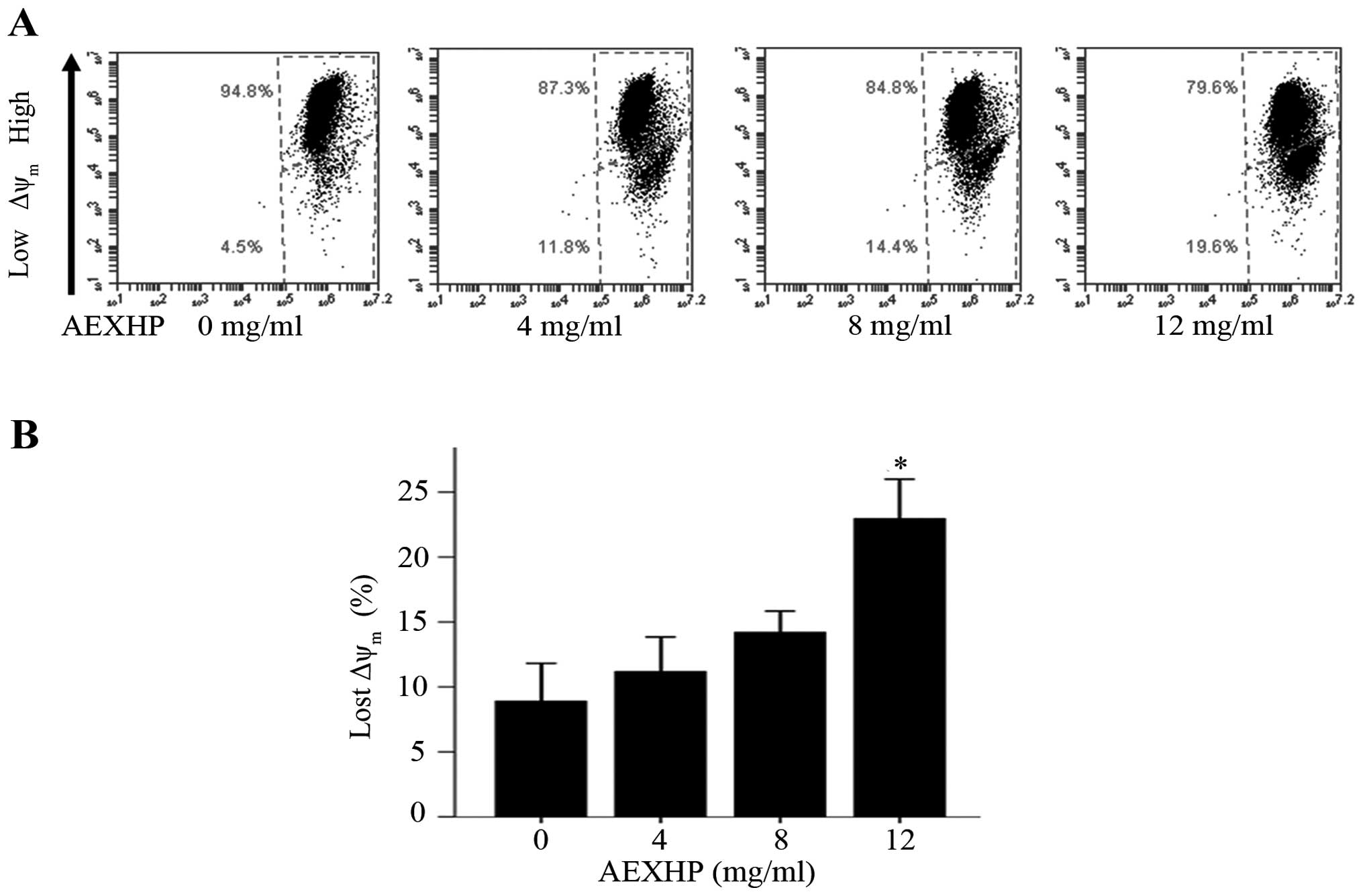

Figure 3. AEXHP induces depletion of Δψm in Hs578T cells. Hs578T cells were treated with various concentrations of AEXHP (0, 4, 8 or 12 mg/ml) for 24 h and the Δψm was analyzed by JC-1 staining followed by flow cytometric analysis. (A) Dot plot representative of three experiments. (B) AEXHP dose-dependent induced the depletion of Δψm. Values are expressed as the mean ± standard deviation (n=3). *P<0.05 vs. control. AEXHP, aqueous extract of Xihuang pill; Δψm, mitochondrial membrane potential.

AEXHP induces apoptosis via the intrinsic pathway

Apoptosis may proceed via two major pathways, namely the intrinsic and the extrinsic pathway (10), each of them leading to caspase-3 activation. The caspase family is the most prominent protease family in apoptosis (11), and is divided into two functional groups, namely the apoptosis initiators (caspase-8, −9 and −10) and the apoptosis executors (caspase-3, −6 and −7) (12).

Bax is a well-known pro-apoptotic protein, while Bcl-2 is an anti-apoptotic protein, and the Bcl-2/Bax ratio has a decisive role regarding the induction of apoptosis (13,14). To determine whether caspase-3, caspase-8, Bax and Bcl-2 proteins were involved in apoptosis of Hs578T cells induced by AEXHP, the levels of these proteins were assessed by western blot analysis. The results showed that after treatment with AEXHP (4, 8 and 12 mg/ml) for 24 h, levels of cleaved caspase-3 were increased to 1.70-, 1.81- and 1.84-fold of that of the control (P<0.05), while no significant impact on the levels of procaspase-3, cleaved caspase-8, procaspase-8, Bcl-2, Bax, and the Bcl-2/Bax ratio was observed (Fig. 4A and B). In conclusion, the results indicated that AEXHP induces apoptosis via the intrinsic pathway, but not the extrinsic pathway, as only an involvement of caspase-3 cleavage but no association with caspase-8, and Bcl-2/Bax ratio was found.

Figure 4. Assessment of apoptosis-associated proteins. Hs578T cells were treated with various concentrations of AEXHP (0, 4, 8 or 12 mg/ml) for 24 h and subjected to western blot analysis. (A) Representative original bands of apoptosis-associated proteins are shown. Cells treated with medium (0 mg/ml) were used as control. (B) Bar graph showing that treatment with AEXHP increased the normalized protein density of cleaved caspase-3, while not affecting cleaved caspase-8 and the density ratio of Bcl-2 to Bax in Hs578T cells. Values are expressed as the mean ± standard deviation (n=3). *P<0.05 vs. control. AEXHP, aqueous extract of Xihuang pill; C, cleaved; Bcl-2, B-cell lymphoma 2; Bax, Bcl-2-associated X protein.

AEXHP induces cell cycle arrest in S phase

Cell cycle regulation is important for cell proliferation, and induction of cell cycle arrest is the major mechanism via which numerous anti-tumor drugs exert their anti-proliferative effects (15,16). To examine whether the anti-proliferative effects of AEXHP on Hs578T cells were associated with cell cycle arrest, their cell cycle distribution was determined. The results showed that AEXHP significantly affected the cell cycle distribution of Hs578T cells, leading to cell cycle arrest at S phase in a dose-dependent manner (Fig. 5B). While the S-phase population was 10.04% in the untreated group, treatment with 4, 8 and 12 mg/ml AEXHP increased it to 17.33, 41.91 (P<0.05 vs. control) and 52.52% (P<0.05 vs. control), respectively. Cell populations in G1 or G2/M phase shifted concomitantly to the changes detected in S phase (Fig. 5A), while there was no AEXHP dose-dependent decrease or increase in the G1- or G2/M-phase populations.

Figure 5. AEXHP causes S-phase arrest of Hs578T cells. Hs578T cells were treated with various concentrations of AEXHP (0, 4, 8 or 12 mg/ml) for 48 h and the cell cycle distribution was determined by flow cytometry. (A) Cell cycle distributions representative of three experiments are shown. The population marked in blue is the sub-G1 population. (B) AEXHP induced cell cycle arrest at S phase in a dose-dependent manner. Values are expressed as the mean ± standard deviation (n=3). *P<0.05 vs. control. AEXHP, aqueous extract of Xihuang pill.

Effects of AEXHP on the expression of cell cycle regulatory proteins

To explore the mechanisms by which AEXHP induced cell cycle arrest of Hs578T cells at S phase, western blot analysis was used to determine the expression of cell cycle regulatory proteins. The results showed that treatment with various concentrations of AEXHP (4, 8 or 12 mg/ml) for 48 h resulted in decreased expression of cyclin A and CDK2, as well as increased expression of cyclin E and p21Cip1, as compared to the control group (Fig. 6A and B). The decreased expression of cyclin A and CDK2, and the increased expression of cyclin E and p21Cip1, may have contributed to S-phase arrest of Hs578T cells induced by AEXHP.

Figure 6. AEXHP affects the expression of cell cycle regulatory proteins in Hs578T cells. Cells were treated with various concentrations of AEXHP (0, 4, 8 or 12 mg/ml) for 48 h, followed by western blot analysis of cell cycle regulatory proteins. (A) Representative original bands of each apoptosis-associated proteins are shown. Cells treated with medium (0 mg/ml) were used as a control. (B) Bar graph showing that treatment with AEXHP dose-dependently decreased the normalized protein density of cyclin A and CDK2, while increasing cyclin E and p21Cip1. Values are expressed as the mean ± standard deviation (n=3). *P<0.05 vs. control. AEXHP, aqueous extract of Xihuang pill; CDK, cyclin dependent kinase.

Discussion

As mentioned above, the aim of the present study was to assess the anti-proliferative effects of AEXHP on the Hs578T TNBC cell line, and to investigate the underlying molecular mechanisms, by performing MTT, apoptosis, cell cycle and western blot assays.

The results of the MTT assay showed that AEXHP inhibited the viability of Hs578T cells in a dose- and time-dependent manner. The difference between the cytotoxic effects of AEXHP on MCF-10A normal breast epithelial cells and Hs578T TNBCs was depended on the cell density, which was mainly due to the cell density-dependent sensitivity of the MCF-10A cells to AEXHP. When the cell density was increased from 7,500 to 10,000 cells/well, the viability of MCF-10A cells treated with 12 mg/ml AEXHP for 24 h increased from 43.93±9.96 to 72.41±9.80%, while that of Hs578T cells only increased marginally. The results of the present study indicated that Hs578T was equally or less sensitive to AEXHP than MCF-10A. However, due to differences in doubling times, it may be impossible to directly compare the cytotoxic effects of AEXHP on the MCF-10A normal breast epithelial cell line and Hs578T TNBCs at identical seeding density, which represents a limitation of the MTT assay performed in the present study. In fact, a previous study by our group on another TNBC cell line, MDA-MB-231, demonstrated cancer cell-specific toxicity in terms of MDA-MB-231 being more sensitive to AEXHP than the MCF-10A cell line (17). It is therefore indicated that the cytotoxic effects of AEXHP are cell type-specific, and whether they are cancer-specific warrants further investigation in a panel of cell lines.

In order to elucidate the mechanisms of the anti-proliferative activity of AEXHP, the apoptotic rate and cell cycle distribution of Hs578T treated with various concentrations of AEXHP were assessed in the present study. The results showed that AEXHP dose-dependently decreased the viability of Hs578T cells, and simultaneously induced apoptosis and S-phase arrest. In order to investigate via which pathways AEXHP induces apoptosis in Hs578T, the protein expression of caspase-8 and caspase-3 were detected by western blot analysis. While procaspase-3 was not significantly affected, the levels of cleaved caspase-3 were significantly increased following AEXHP treatment. However, the protein levels of procaspase-8 and cleaved caspase-8 were not affected, leading to the conclusion that AEXHP induces apoptosis via the intrinsic, but not the extrinsic pathway.

Bax constitutes the ion channel of the mitochondrial membrane in human cells, while Bcl-2 combines with Bax to inhibit it, with the Bcl-2/Bax ratio therefore having a decisive role in the induction of apoptosis (18). In the present study, western blot analysis showed that Bax, Bcl-2 and the Bcl-2/Bax ratio were not affected by AEXHP, leading to the conclusion that the depletion of the Δψm induced by AEXHP was not associated with the Bcl-2/Bax ratio, and was therefore likely to be linked with factors directly destroying the mitochondrial membrane, which requires to be further elucidated.

Cell cycle progression is orchestrated by a complex network of interactions between proteins, including cyclins, CDKs, E3 ubiquitin ligase complexes, CDK activating kinase, CDC25 phosphatases and CDK inhibitors (19). To explore the mechanisms by which AEXHP induces cell cycle arrest in Hs578T cells at S phase, western blot analysis was used to assess the modulation of the expression of cell cycle regulatory proteins by AEXHP. The results showed that AEXHP treatment resulted in decreased expression of cyclin A and CDK2, and increased expression of cyclin E and p21Cip1, which explains for the S-phase arrest observed. Cyclin A and CDK2 are specific S-phase regulatory proteins (19), and the increased cyclin E enhances G1-to-S-phase progression. p21Cip1 not only forms complexes with cyclin D-, cyclin E- or cyclin A-dependent kinase and inhibits their activities, but also binds to and inhibits proliferating cell nuclear antigen to curb the synthesis of DNA (20), which is the main task during S phase. In addition, the expression of cyclin B and CDK1 were assessed in the present study (data not shown). The expression of these two proteins was not significantly affected by AEXHP, which is in line with the observed S-phase arrest, as cyclin B and CDK1 G2/M phase-specific cell cycle regulatory proteins. The limitation of the present study was that the effects of AEXHP were only assessed on one TNBC cell line, Hs578T, in vitro. However, in a previous study by our group, a xenograft tumor model using another TNBC cell line, MDA-MB-231, was established, which proved the anti-tumor effects of AEXHP in vivo (results not shown). Another limitation of the present study was that the active components in the AEXHP may be different from those in the serum of patients taking XHP for the treatment of cancer. Furthermore, the cytotoxic effects of AEXHP on the Hs578T cell line may not be equivalent to those of XHP in TNBC patients. Further studies in the clinical setting are required to confirm the antitumor effects of XHP on TNBC. Furthermore, the active components of AEXHP should be isolated and their structure should be identified in future studies.

In conclusion, the present study revealed that AEXHP significantly inhibited the viability of Hs578T cells in vitro in a dose- and time-dependent manner. The possible underlying mechanisms include induction of apoptosis and cell cycle arrest at S phase. AEXHP was indicated to induce apoptosis in Hs578T cells via the intrinsic, Bcl-2/Bax-independent pathway. S-phase arrest was likely to be due to the combined effects of decreased expression of cyclin A and CDK2 as well as increased expression of cyclin E and p21Cip1. The present study therefore indicated that AEXHP is potent against the Hs578T TNBC cell line, providing in vitro evidence to support the clinical use of XHP as a prescription for TNBC.

Acknowledgements

The present study was supported by the key program foundation of Beijing Administration of Traditional Chinese Medicines (no. 2004-IV15).
