Introduction

Aberrant metabolism in cancer cells, referred to as the Warburg effect, has been demonstrated in various types of tumor, including glioblastoma (GBM). GBM is the most common and aggressive type of brain tumor and is associated with an extremely poor prognosis in adults, with a median survival time of 9-12 months and a 5-year overall survival rate of <5% (1,2). Similar to numerous other malignancies, GBM is a highly metabolically active malignancy, where glycolysis is the major pathway for energy metabolism (3), although both of the two major energy metabolism pathways, mitochondrial oxidative phosphorylation and aerobic glycolysis exist in these cancer cells (4). This metabolic pattern shift or energy metabolism reprogramming towards glycolysis provides cancer cells with not only a sufficient source of energy, but also with numerous metabolic intermediates and products that are essential for biosynthesis and various malignant behaviors (5). Although the mechanism underlying metabolic reprogramming remains incompletely understood, research has indicated the involvement of mutational and epigenetic alterations of glucose transporters (Gluts) (6,7) and key enzymes of glycolysis and associated metabolic pathways in cancer cells as well as damage to mitochondrial structure and function (8).

Metabolic pathways have received increasing attention as promising potential targets for treatment of cancer. A ketogenic diet (KD) consists of high-fat foods and appropriate proteins with only minimal carbohydrate intake, leading to physiological ketosis by lowering blood glucose levels and increasing the levels of blood ketone bodies following administration (5,9). Studies have shown that a KD exhibits promising anti-tumor effects against GBM due to its induction of physiological ketosis (10-12). It is hypothesized that a KD targets the glycolytic phenotype of GBM cells and modulates oxidative stress in tumors (13). However, a complete understanding of the effects, as well as the underlying mechanisms of a KD in GBM have not been well characterized.

GBM is comprised of heterogeneous tumor cell subpopulations including glioma stem-like cells (GSCs), which are tumor cells with stem cell characteristics, including upregulated expression of stem cell markers, enhanced self-renewal and tumorigenic ability, and multi-lineage differentiation potential (14,15). GSCs have been shown to be responsible for drug-resistance and tumor-recurrence in GBM (16), and research has shown that GSCs undergo a unique pattern of metabolic reprogramming that is essential for maintenance of their stemness in processes including proliferation, self-renewal, lineage specification and aging (17). Within this unique pattern, glycolysis is increased notably, suggesting that the Warburg effect may be a driving force in tumor heterogeneity (18,19), and targeting of the metabolic reprogramming of GSCs may be a promising treatment for GBM (20-22). In the present study, GSCs were cultured in a ketogenic environment achieved using glucose-restricted, β-hydroxybutyrate (BHB)-containing medium (BHB-Glow) and investigated the effects of KD treatment on GSCs as well as the underlying mechanisms. In the present study, it was hypothesized that a KD may exhibit inhibitory effects on GSC proliferation and compromise GSC stemness, possibly by disturbing metabolic balance and mitochondrial function.

Materials and methods

Cell culture

The GSC line NCH421k was kindly provided by Professor C. Herold-Mende (Ruprecht Karl University of Heidelberg, Heidelberg-Baden, Germany) (23). Normal neural stem-like cells (NSCs) were isolated from brain cortices of mice at embryonic day 14.5 as described in our previous study (24) and used as the control cells.

For primary culture, tumor tissues (Supplementary methods) were dissociated mechanically, and single-cell suspensions were cultured in serum-free DMEM/F12 medium (Gibco; Thermo Fisher Scientific, Inc.) supplemented with 20 ng/ml epidermal growth factor, 20 ng/ml basic fibroblast growth factor (Pepro Tech, Inc.) and B-27 supplements (1:100; Gibco; Thermo Fisher Scientific, Inc.). To mimic a KD, cells were cultured in low glucose (2.5 mM) medium (Gibco; Thermo Fisher Scientific, Inc.) supplemented with 0, 1, 5 or 10 mM BHB (Sigma-Aldrich; Merck KGaA) and termed BHB-Glow with or without 5 mM (reactive oxygen species) ROS scavenger N-acetylcysteine (NAC) (Sigma-Aldrich; Merck KGaA).

Primary tumor spheres of NCH421k cells and patient derived GSCs were counted under a microscope on day 7 following plating. For re-plating, the primary spheres were mechanically dissociated into single-cell suspensions and re-plated at a density of 1×105 cells/ml for culture as described above for another 7 days until secondary tumor spheres were observed. NCH421k cell culture, tumor spheroid formation and the re-plating assay was performed as described previously (25).

In vivo glioma model

Athymic nude mice (nu/nu), 4-6-weeks-old, were housed in a specific-pathogen-free facility. Nude mice were anesthetized with 3% isoflurane and anesthesia was maintained with 3.5% chloral hydrate, 350 mg/kg. After confirming, anesthesia (lack of pain and blink reflexes), the procedure was performed. To obtain cells for in situ inoculation, NCH421k cells were expanded in culture under low glucose medium with or without 10 mM BHB for 7 days, and 5×105 viable cells were injected intracranially into mice as described previously (23). The mice were observed once every 2 days and maintained until they exhibited neurological symptoms, such as lethargy, ataxia, seizures and/or paralysis, or until their body weight was reduced by 20% compared with the initial value. A total of 8 weeks later, all mice were sacrificed. The mice brains were harvested, fixed in 4% paraformaldehyde (PFA) at room temperature (RT) overnight, and embedded in paraffin for further analyses. All animal procedures were performed in accordance with protocols approved by the Ethics Committee of Fourth Military Medical University (approval no. XJ20151231).

Hematoxylin and eosin staining

The 2-3 µm slides were deparaffinized using xylene and rehydrated with a graded ethanol series (100, 95 and 80%). Subsequently, each slide was incubated with eosin (Thermo Fisher Scientific, Inc.) for a few seconds at RT and washed with ddH2O. Next, the sections were counterstained with hematoxylin (Thermo Fisher Scientific, Inc.) at RT for a few seconds and mounted on cover slips. Brightfield microscopy was used to image the tissues using an Olympus BX51 microscope (Olympus Corporation) at ×4 or ×20 magnification.

Cell viability and proliferation

A Cell Counting Kit-8 (CCK8) assay kit (Dojindo Molecular Technologies, Inc.) was used to examine cell viability. Tumor spheres were seeded in 96-well plates (2×104 cells/well) with medium containing 2.5 mM glucose and 0 or 10 mM BHB. Cells cultured in medium containing 25 mM glucose was used as the control. For analysis of viability at the end of the culture experiments, cells were incubated with 10 µl CCK8 reaction solution (per 100 µl culture medium) at 37°C for 40 min, and the optical density at 450 nm was measured using a Bio-Rad 680 microplate reader (Bio-Rad Laboratories, Inc.).

A 5-ethynyl-2′-deoxyuridine (EdU) assay was used to evaluate cell proliferation. Briefly, cells were incubated with 50 µM EdU (Guangzhou RiboBio Co., Ltd.) in medium for 2 h and then fixed with 4% PFA at room temperature for 30 min, followed by staining with Apollo® 567 (Guangzhou RiboBio Co., Ltd.) at RT for 30 min. Positively stained cells were imaged using fluorescence microscopy (Olympus, BX51) at ×10 or ×20 magnification.

Flow cytometry

For FACS analysis, single-cell suspensions of GSCs were stained with specific antibodies (Table SI) according to the manufacturer’s protocols. Flow cytometry was performed using a FACSCalibur™ flow cytometer (BD Immunocytometry Systems). FlowJo version X.0.6 (FlowJo LLC) was used for data analysis, and dead cells were excluded based on their staining with propidium iodide (PI) (BD Biosciences) at RT for 5 min.

Annexin V-FITC staining (BD Biosciences) was performed to evaluate cell apoptosis. Briefly, single-cell suspensions of GSCs were staining with 5 µl Annexin V-FITC at RT for 15 min. After washing with binding buffer, samples were analyzed using flow cytometry as described above.

For ROS and mitochondrial staining, DCFH-DA (Beyotime Institute of Biotechnology) and MitoTacker (Invitrogen; Thermo Fisher Scientific, Inc.) were used, respectively, according to the manufacturer’s protocols. Samples were analyzed using flow cytometry as described above.

Glucose transport assay

The fluorescent D-glucose analog v2-[N-(7-nitrobenz-2-oxa-1,3-diaxol-4-yl) amino]-2-deoxy-glucose (2-NBDG; BioVision, Inc.) was used as a fluorescence probe for measurement of glucose transport. For evaluation of 2-NBDG uptake, 2×105 cells/well were seeded in 6-well plates and maintained in culture for 5 days. For fluorescence labeling, cells were first pre-incubated in glucose-free Krebs-Ringer bicarbonate (KRB) buffer (Beijing Solarbio Science & Technology Co., Ltd.) for 15 min, and subsequently in fresh KRB buffer supplemented with 50 µM 2-NBDG for 30 min at 37°C in a humidified incubator with 5% CO2/95% air. Stained cells were quantitatively analyzed using flow cytometry.

Mitochondrial function

For mitochondrial membrane potential (ΔΨm) analysis, cells in culture medium were stained at RT with 10 µg/ml JC-1 (Beyotime Institute of Biotechnology) for 30 min before washing with binding buffer, according to the manufacturer’s protocol. Cells were visualized using laser scanning confocal microscopy (FV-1000, Olympus Corporation) at ×10 or ×20 magnification.

The oxygen consumption rate (OCR) was assayed using an OCR assay kit (cat. no. 600800; MitoXpress® Xtra HS; Cayman Chemical Company) according to the manufacturer’s protocol. Briefly, 5×104 cells/well were seeded into a black, clear bottom 96-well plate (Corning, Inc.) and maintained in cell culture medium for 5 days. Subsequently, MitoXpress® Xtra probe, 0.1 mg glucose oxidase and 10 µl antimycin A were added to each well, separately, and overlaid with HS mineral oil (MitoXpress® Xtra HS; Cayman Chemical Company), The signal from the cells was monitored for 100 min in 10 min intervals at 37°C, with 360 nm excitation/645 nm emission wavelengths.

Transmission electron microscopy (TEM)

For examination by TEM, cells were harvested and fixed in 2.5% glutaraldehyde (PBS, pH 7.4) at 4°C overnight. Post-fixation was performed using 1% buffered osmium tetroxide at room temperature for 2 h before dehydration through a graded series of ethanol solutions (30, 50, 90 and 100%) and eventual embedding in Poly/Bed (Polysciences, Inc.) for 24 h at 60°C. Ultra-thin sections (50 nm) were cut using an ultra-microtome and mounted on copper grids (200 meshes; Chemical Laboratory Equipment Co., Ltd.). After double staining of samples with uranyl acetate 20 min and lead citrate 10 min both at RT, TEM was performed using a JEM-2000EX electron microscope (JEOL Ltd.) at ×5,000 and ×30,000 magnification. The size of the mitochondria were calculated and analyzed using the following formula: Mitochondrial size=4/3xπx(axb); where a is the long axis radius and b is the short axis radius. For each sample, three randomly chosen fields of view were used, and three independent experimental repeats were performed.

Reverse transcription-quantitative (RT-q)PCR

From the different groups of cultured GSCs, total RNA was extracted using TRIzol® reagent (Invitrogen; Thermo Fisher Scientific, Inc.). RT was performed using PrimeScript RT Master mix (Takara Bio, Inc.), and qPCR was performed using SYBR Select Master mix (Takara Bio, Inc.) on an ABI Prism 7500 Real-Time PCR system (version 2.0.4; Applied Biosystems; Thermo Fisher Scientific, Inc.), as described previously (25). GAPDH was used as the internal control. All RT-qPCR experiments were repeated at least three times, and the results are presented as a fold difference in the mRNA levels. The sequences of the primers used were: Sox2 forward, 5′-ACA CCA ATC CCA TCC ACA CT-3′ and reverse, 5′-GCA AAC TTC CTG CAA AGC TC-3′; Nanog Sox2 forward, 5′-CAG ATG CAA GAA CTC TCC A-3′ and Sox2 forward, 5′-GTA GGA AGA GTA AAG GCT G-3′; Oct4 forward, 5′-ACA CCA ATC CCA TCC ACA CT-3′ and reverse, Oct4 forward,5′-ACACCAATCCCATCCACACT-3′ and reverse, 5′-GCAAACTTCCTGCAAAGCTC-3′; and GAPDH forward, 5′-GCA CCG TCA AGG CTG AGA AC-3′ and reverse 5′-TGG TGA AGA CGC CAG TGG A-3′.

Western blotting

Whole cell lysates were obtained from cultured GSCs using RIPA lysis buffer (Beyotime Institute of Biotechnology) supplemented with complete protease inhibitor cocktail (Roche Diagnostics) at 4°C for 30 min. A bicinchoninic acid protein assay kit (Thermo Fisher Scientific, Inc.) was used to measure total protein concentration. Protein samples (20 µg) were loaded on 10% SDS gels and resolved using SDS-PAGE. After resolving, proteins were transferred to PVDF membranes and probed with the primary at 4°C for 12 h and subsequently with secondary antibodies at RT for 2 h (Table SI). Signals were visualized using an enhanced chemiluminescence detection system (GE Healthcare). Protein expression was analyzed using ImageJ version 1.45 (National Institutes of Health) and normalized to β-actin.

Biochemical analyses

To measure ATP production, GSCs were seeded in 96-well plates at a density of 2×104 cells/well for treatment with various concentrations of BHB. After treatment, the ATP content of the GSCs was measured using a CellTiter-Glo® assay kit (cat. no. G7570; Promega Corporation) according to the manufacturer’s protocol.

To evaluate metabolic enzyme activity in cultured GSCs, cells were lysed in isolation buffers provided in the respective assay kits for phosphofructokinase (PFK), pyruvate kinase (PK) and lactate dehydrogenase (LDH) activity (all from Nanjing Jiancheng Bioengineering Institute), and the kits were used according to the manufacturer’s protocols. For each enzyme, total enzyme activity was normalized to the concentration of the respective protein in the cell lysate. In addition, lactate production by GSCs was determined using a lactic acid assay kit (Nanjing Jiancheng Bioengineering Institute).

Statistical analysis

Data are expressed as the mean ± standard deviation. GraphPad Prism version 5.0 (GraphPad Software, Inc.) was used for all data analysis. Statistical analysis was performed using repeated measures ANOVA with a post hoc Tukey’s test. Data between two groups were compared using a two-sample t-test. P<0.05 was considered to indicate a statistically significant difference.

Results

BHB inhibits the proliferation of GSCs but not normal NSCs in vitro

To investigate the effect of KD treatment on GSCs, BHB-Glow culture medium which contained a low glucose concentration (2.5 mM, in contrast to 25 mM in normal medium) as well as different concentrations of BHB, the major component of ketone bodies was used. As a control experiment, NSCs derived from E14.5 mouse embryos were cultured in normal medium (Ctrl), low glucose medium (Glow) or BHB-Glow. The number of spheres formed were increased in NSCs grown in Glow. In addition, as the BHB concentration was increased, the number of NSC spheres formed were increased (Fig. 1A). These results suggest that BHB-Glow could support the growth of normal NSCs. NCH421k cells and patient-derived GSCs, both of which expressed the stemness markers CD133 and Nestin (Fig. S1) were cultured in Ctrl, Glow, or BHB-Glow medium with different concentrations of BHB for 7 days. In contrast to the NSCs, the number and size of NCH421k GSC spheres were inversely associated with BHB concentration, decreasing significantly as the BHB concentration was increased (Fig. 1B-D). Furthermore, primary GSCs from glioma biopsies (Supplementary file; Table SII), which stained positively for Nestin and CD133 (Fig. S1B and D), were cultured in the three different mediums. Consistent with the results obtained for the NCH421k cells, the primary GSCs formed significantly fewer and smaller tumor spheres in BHB-Glow medium containing 10 mM BHB compared with Glow medium (Fig. S2A-C). These results suggest that BHB significantly inhibited the growth of GSCs under low glucose conditions.

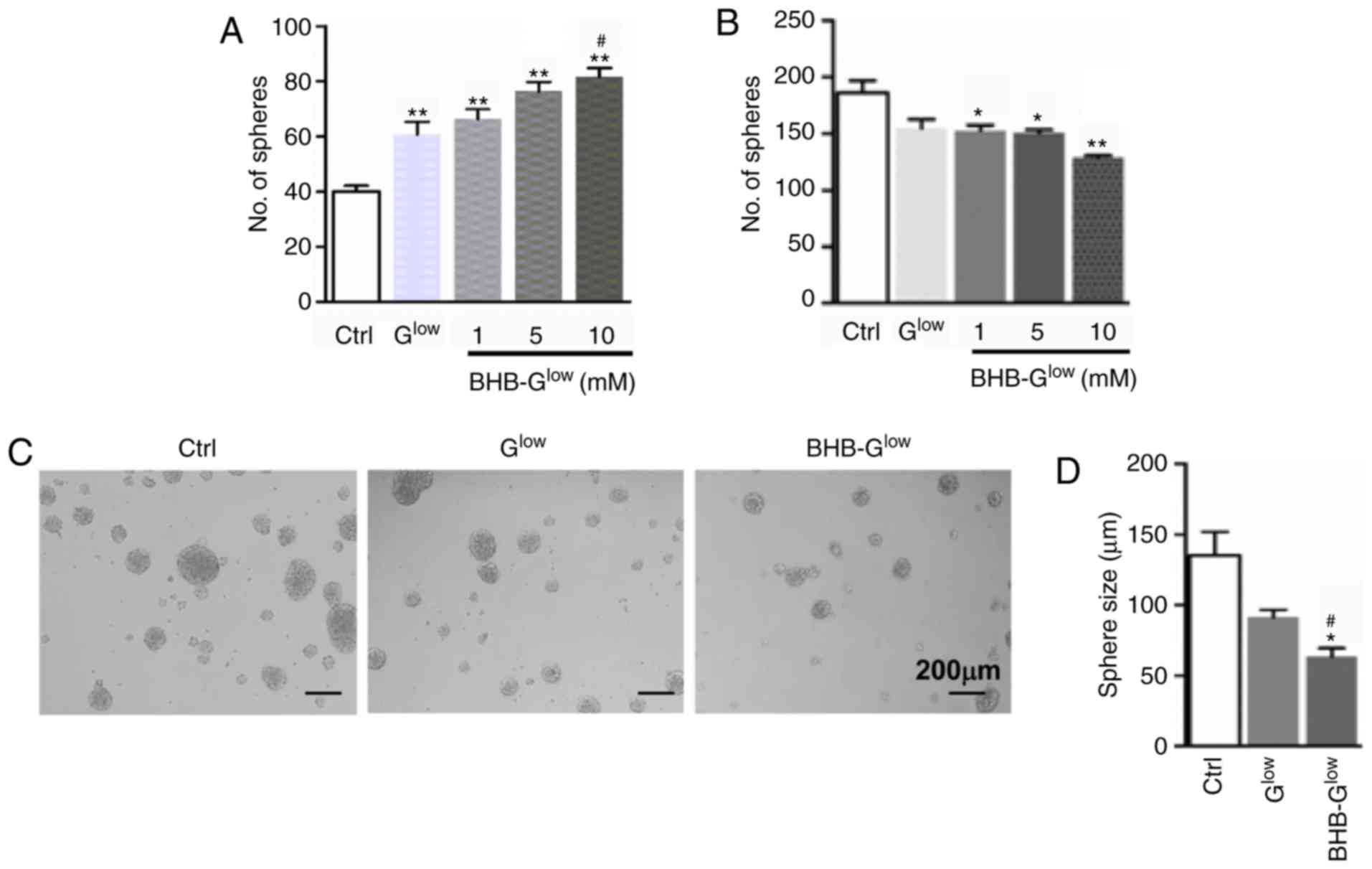

Figure 1 Effect of BHB on normal NSCs and GSCs. (A) NSCs derived from embryonic day 14.5 mouse embryos were cultured in Ctrl, Glow, or BHB-Glow containing either 1, 5 or 10 mM of BHB for 7 days. Neurospheres were counted under a microscope. (B) A patient-derived GSC line NCH421k was cultured in Ctrl, Glow, or BHB-Glow containing either 1, 5 or 10 mM of BHB for 7 days. Tumor spheres were counted and compared. (C and D) NCH421k cells were cultured as in (B) with 10 mM BHB for 7 days. (C) Tumor spheres were imaged using a microscope. Magnification, ×10. Scale bar, 200 µm. Diameters of tumor spheres formed in the different growth media (D). Data are presented as the mean ± standard deviation of three repeats. *P<0.05, **P<0.01 vs. Ctrl; #P<0.05 vs. Glow. BHB, β-hydroxybutyrate; NSC, neural stem-like cell; GSC, glioma stem-like cell; Ctrl, control medium with 25 mM glucose; Glow, medium with 2.5 mM glucose; BHB-Glow, Glow + BHB.

BHB inhibits GSC proliferation and promotes GSC apoptosis

The effects of KD treatment on the proliferation and apoptosis of GSCs was next assessed. Consistent with the reduction in GSC sphere growth, culture medium containing 10 mM BHB resulted in significantly reduced viability of NCH421k cells compared with the control (Fig. 2A). Furthermore, the results of the EdU incorporation assay indicated that BHB inhibited the proliferation of primary GSCs compared with cells grown in the control medium (Fig. S2D-E). In addition, there was a significant time-dependent decrease in the percentage of EdU+ GSCs in the NCH421k cells (Fig. 2B). Annexin V staining of GSCs cultured in BHB-Glow revealed that BHB treatment significantly induced apoptosis in NCH421k cells compared with cells grown in the control medium (Fig. 2C and D). Furthermore, cleaved-caspase 3 expression was significantly increased in the GSCs cultured in BHB-Glow compared with the control group (Fig. 2E). Together, these data suggest that BHB inhibited GSC proliferation whilst increasing GSC apoptosis under glucose deprivation.

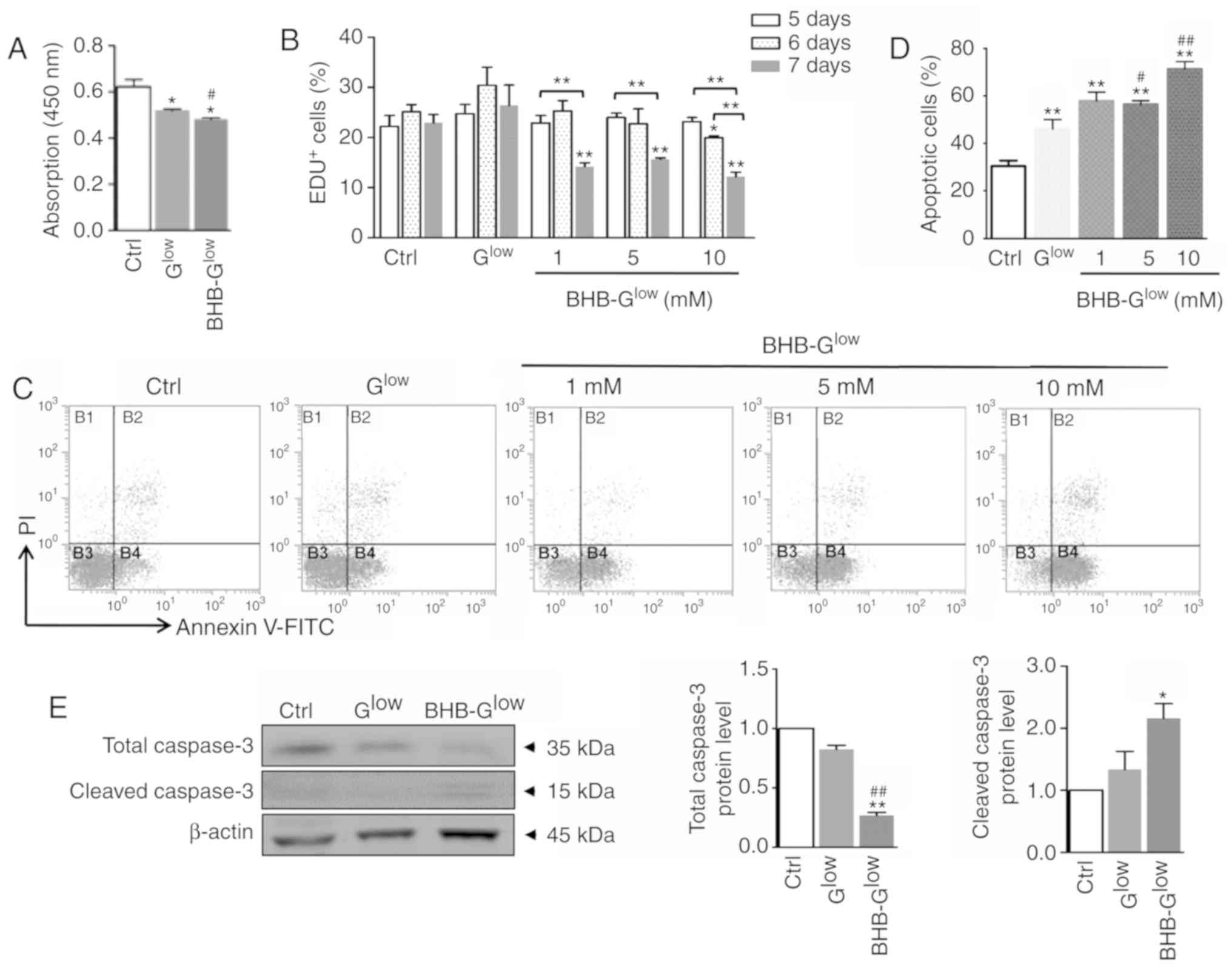

Figure 2 BHB inhibits proliferation of GSCs and promotes GSC apoptosis. (A) Cell viability was determined using Cell Counting Kit-8 analysis. (B) NCH421k cells were cultured in Ctrl, Glow, or BHB-Glow medium with 1, 5 or 10 mM, for either 5, 6 or 7 days. Cell proliferation was determined using an EdU assay. (C) Apoptosis was determined using Annexin V staining followed by FACS analysis and (D) the results were quantitatively compared. (E) Expression levels of total-caspase 3 and cleaved-caspase 3 were determined by western blot analysis (E). Data are presented as the mean ± standard deviation of three repeats. *P<0.05, **P<0.01 vs. Ctrl; #P<0.05, ##P<0.01 vs. Glow. GSC, glioma stem-like cell; EdU, 5-ethynyl-2′-deoxyuridine; BHB, β-hydroxybutyrate; Ctrl, control medium with 25 mM glucose; Glow, medium with 2.5 mM glucose; BHB-Glow, Glow + BHB.

BHB attenuates the stemness of GSCs

The effect of BHB on the stemness of GSCs was assessed. As shown in Fig. 3A-C, BHB treatment reduced the number and size of secondary tumor spheres. The expression of the stemness marker, CD133 was determined following BHB treatment using FACS. The results showed that BHB-Glow significantly decreased CD133 expression compared with the cells grown in the control medium (Fig. 3D). In addition, the expression of stemness regulators, Nanog, Oct4 and Sox2, were assessed following BHB treatment using RT-qPCR and western blotting. The results showed that BHB significantly decreased Nanog, Oct4 and Sox2 expression at the mRNA level, and reduced Sox2 protein expression in NCH421k cells under glucose deprivation (Fig. 3E and F).

Figure 3 BHB attenuates stemness of GSCs. Secondary tumor spheres formed by NCH421k cells were (A) counted, (B) imaged and (C) the diameter of tumor spheres were compared. Scale bar, 200 µm. (D) Secondary tumor spheres formed in Ctrl, Glow and 10 mM BHB-Glow culture medium were dispersed and analyzed by flow cytometry for CD133 and CD133+ cells were quantitatively compared. (E) mRNA expression levels of stemness regulators Nanog, Oct4 and Sox2. (F) Western blot and densitometry analysis of Sox2 expression in the secondary tumor spheres grown in Ctrl, Glow and 10 mM BHB-Glow medium (n=3). (G) Secondary tumor spheres grown in Ctrl, Glow and 10 mM BHB-Glow culture medium were dispersed and orthotopically implanted into the right side of the brain of nude mice (n=4). Tumor tissues were examined by hematoxylin and eosin staining. Scale bar, 200 µm. Data are presented as the mean ± standard deviation. *P<0.05, **P<0.01 vs. Ctrl; #P<0.05, ##P<0.01 vs. Glow. GSC, glioma stem-like cell; BHB, β-hydroxybutyrate; Ctrl, control medium with 25 mM glucose; Glow, medium with 2.5 mM glucose; BHB-Glow, Glow + BHB.

To investigate the effects of BHB on GSC behavior in vivo, NCH421k-derived secondary spheres were cultured in Ctrl, Glow or 10 mM BHB-Glow medium and transplanted into nude mice using an orthotopic xenograft model (Fig. S2F). The tumorigenic capacity of NCH421k cells cultured in BHB-Glow medium was reduced in vivo (4, 2 and 1 total tumors formed in the Ctrl, Glow and 10 mM BHB-Glow groups, respectively; n=4 per group, data not shown). In addition, hematoxylin and eosin staining revealed that the volume of the tumor formed by the BHB-treated GSCs was smaller compared with the tumors formed from cells grown in the Ctrl and Glow media (Fig. 3G). These data suggest that BHB attenuated the stemness of GSCs under glucose deprivation.

BHB treatment inhibits glycolysis

Tumor cells undergo metabolic reprogramming to adopt a metabolic pattern of aerobic glycolysis, a process known as the Warburg effect (5). BHB is oxidized in the mitochondria, and therefore, to investigate the mechanisms of its effects on GSCs, energy metabolism within NCH421k cells treated with BHB was assessed. An upregulation of Glut1 and several glycolysis-associated enzymes including HK2, PKM2 and LDHA in tumor tissues was observed compared with the paratumoral 'normal’ brain tissues (Fig. S3A-B). Expression of pyruvate dehydrogenase (PDH), which is associated with the tricarboxylic acid cycle flux, was decreased significantly. The expression of glycolysis-associated enzymes in GSCs cultured in normal, Glow or BHB-Glow medium was assessed by western blotting. The results showed that BHB significantly reduced the expression of Glut1, HK1/2, PKM2, LDHA and PDH, but the protein levels of PFKP were not altered (Fig. 4A and B). The activity of PFK, PK and LDH were assessed, and it was demonstrated that BHB treatment suppressed the activity of these glycolysis enzymes under glucose deprivation (Fig. 4C). Furthermore, transmembrane glucose transport was assessed using a fluorescent derivative of glucose 2-NBDG (26). Cells cultured in BHB-Glow medium reduced glucose uptake in NCH421k cells as evidenced by the decreased percentage of these cells that exhibited 2-NBDG fluorescence (Fig. 4D). Consistently, BHB treatment significantly reduced ATP production in NCH421k cells under glucose deprivation (Fig. 4E). Taken together, these results suggest that BHB attenuated glycolysis, which likely resulted in an energy crisis in the GSCs.

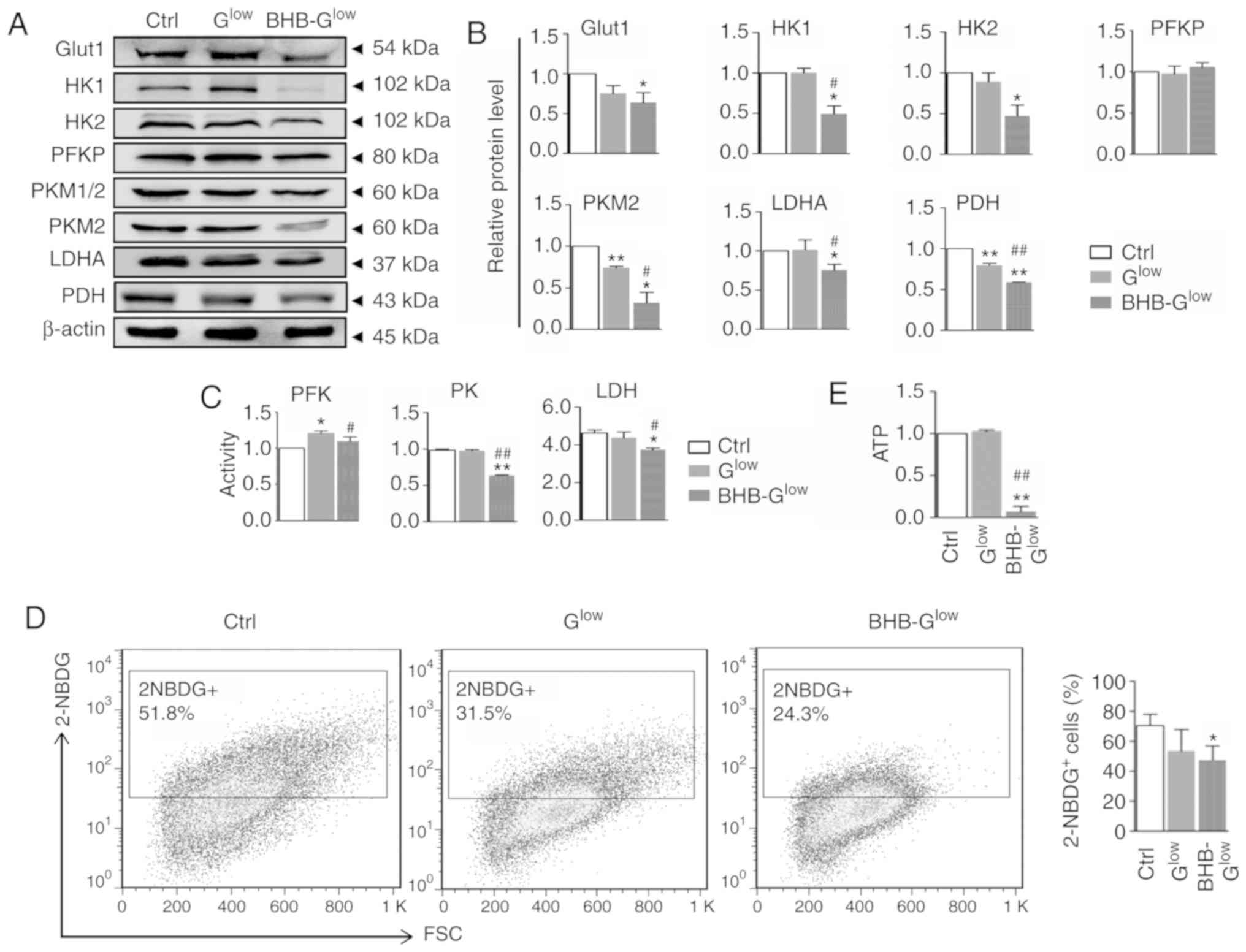

Figure 4 BHB inhibits glycolysis in GSCs. Protein expression levels of Glut1 and glycolysis-related enzymes, HK1 and 2, PFKP, PKM1/2, PKM2, LDHA and PDH, were determined by (A) western blotting and (B) quantitatively compared using β-actin expression for normalization. (C) Activity of PFK, PK and LDH were determined. (D) Glucose transport was determined by 2-NBDG staining followed by FACS and quantitatively compared. (E) ATP production of cells grown in the different culture mediums were compared. Data are presented as the mean ± standard deviation of three repeats. *P<0.05, **P<0.01 vs. Ctrl; #P<0.05, ##P<0.01 vs. Glow; Ctrl, control medium with 25 mM glucose; Glow, medium with 2.5 mM glucose; BHB-Glow, Glow + BHB. GSC, glioma stem-like cell; BHB, β-hydroxybutyrate; Ctrl, control medium with 25 mM glucose; Glow, medium with 2.5 mM glucose; BHB-Glow, Glow + BHB; Glut1, glucose transport 1; HK1/2, hexokinase1/2; PK, pyruvate kinase; PKM1/2, M1/2 isoform of pyruvate kinase; PFKP, phosphofructokinase platelet-type; LDHA, lactate dehydrogenase A; 2-NBDG, v2-[N-(7-nitrobenz-2-oxa-1,3-diaxol-4-yl) amino]-2-deoxyglucose; FSC, forward scatter.

BHB causes mitochondrial damage in GSCs

The Warburg effect is often associated with mitochondrial damage (27,28). Therefore, mitochondrial function and morphology was assessed in NCH421k cells cultured in BHB-Glow medium. BHB treatment increased the OCR and lactate production in GSCs, suggesting impaired oxidative phosphorylation (Fig. 5A and B). TEM revealed decreased mitochondrial size in NCH421k cells treated with BHB under glucose deprivation (Fig. 5C). Furthermore, the alterations in the mitochondrial transmembrane potential was determined using JC-1 staining. The results showed that BHB treatment induced depolarization of the mitochondrial membrane potential in GSCs under glucose deprivation (Fig. 5D). These results suggested that BHB impaired mitochondrial structure and function in glucose deprived GSCs.

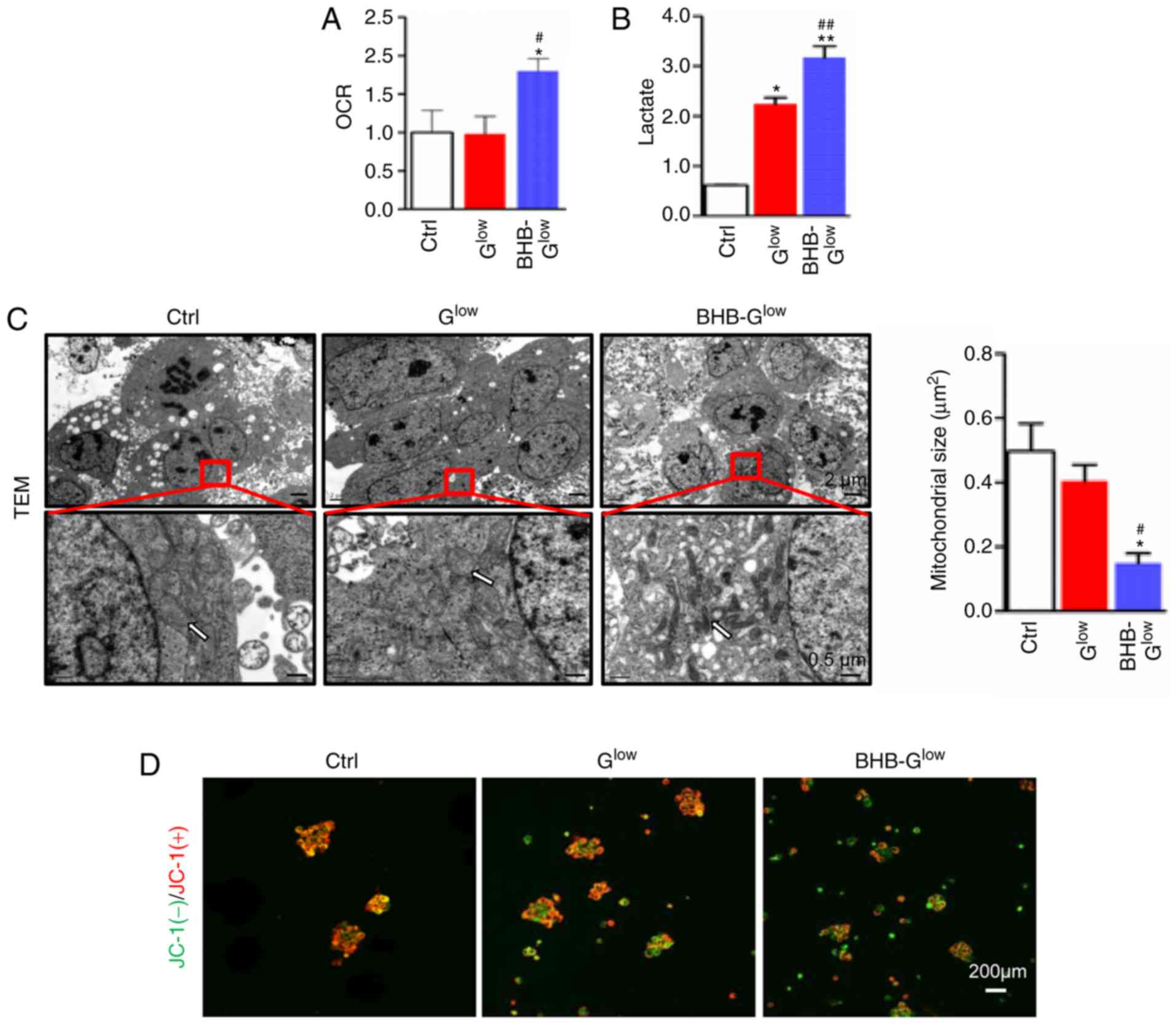

Figure 5 BHB induces mitochondrial damage in GSCs. (A) OCR (fold change relative to the control) and (B) lactate production of NCH421k cells cultured in Ctrl, Glow or 10 mM BHB-Glow medium for 5 days (n=3). (C) Morphology of mitochondria (white arrows) was observed by TEM and (B) mitochondrial size was quantified. Scale bar, 2 µm (top) or 0.5 µm (bottom). (D) Mitochondrial membrane potential was analyzed using JC-1 staining and fluorescence microscopy. Red, JC-1(+); green, JC-1(-). Scale bar, 200 µm. Data are presented as the mean ± standard deviation. *P<0.05, **P<0.01 vs. Ctrl; #P<0.05, ##P<0.01 vs. Glow. GSC, glioma stem-like cell; BHB, β-hydroxybutyrate; Ctrl, control medium with 25 mM glucose; Glow, medium with 2.5 mM glucose; BHB-Glow, Glow + BHB; TEM, transmission electron microscopy.

BHB treatment increases ROS production in GSCs

Mitochondrial dysfunction is often associated with increased ROS production. ROS production was assessed in NCH421k cells cultured in the different media conditions. Culturing cells in Glow and BHB-Glow medium resulted in significantly increased ROS production in GSCs (Fig. 6A). Activity of the anti-oxidative enzymes catalase (CAT) and superoxide dismutase (SOD), as well as the concentration of reduced-glutathione (GSH) and oxidized glutathione (GSSG) were measured. The results showed that BHB significantly decreased the activity of CAT and SOD and the concentration of GSH, in addition to increasing the concentration of GSSG (Fig. S4A). Furthermore, staining with an ROS probe, DCFH-DA, and labeling mitochondria with MitoTracker followed by FACS analysis indicated that the increased ROS levels originated from the mitochondria. In addition, BHB increased mitochondrial-generated ROS levels, compared with Glow (Fig. 6B). NCH421k cells could be separated into two subpopulations using MitoTracker with respect to mitochondrial mass. The number of cells with a larger mitochondrial mass, which were recognized as GSCs (29) and appeared to be major contributors of ROS, were increased in the Glow and BHB-Glow groups (Fig. 6B). Double staining with the ROS probe and CD133 antibody indicated that although the low glucose conditions increased ROS production in CD133+ GSCs, BHB treatment further increased ROS production in CD133+ GSCs compared with Glow (Fig. 6C). The expression levels of mTOR, hypoxia-inducible factor 1α (HIF-1α) and B-cell lymphoma 2 (Bcl2), which are all associated with cell metabolism and survival, were reduced significantly in NCH421k cells following treatment with BHB-Glow (Fig. 6D). Together, these results suggested that BHB promoted ROS production in GSCs, which may serve a critical role in the BHB-induced attenuation of GSC stemness and proliferation as well as in the increase in GSC apoptosis.

Figure 6 ROS production is increased in GSCs treated with BHB. (A) ROS production was evaluated using FACS in cells after staining with DCFH-DA and quantitatively compared. (B) Cells in (A) were stained with MitoTracker and DCFH-DA and analyzed by FACS. The MitoTracker+ROS+ populations were quantitatively compared. (C) Cells in (A) were stained with anti-CD133 and DCFH-DA and analyzed by FACS. The CD133+ROS+ cells were quantitatively compared. (D) Cells in (A) were analyzed by western blotting for p-mTOR, mTOR, HIF-1α and Bcl2, with β-actin used as the internal control. Data are presented as the mean ± standard deviation. *P<0.05, **P<0.01 vs. Ctrl; #P<0.05, ##P<0.01 vs. Glow. GSC, glioma stem-like cell; BHB, β-hydroxybutyrate; Ctrl, control medium with 25 mM glucose; Glow, medium with 2.5 mM glucose; BHB-Glow, Glow + BHB; ROS, reactive oxygen species; DCFH-DA, dichloro-dihydro-fluorescein diacetate; Mito, MitoTracker; p-, phospho; mTOR, mammalian target of rapamycin; FSC, forward scatter; PI, propidium iodide; HIF-1α, hypoxia-inducible factor 1α; Bcl-2, B-cell lymphoma 2.

ROS scavenging reverses the effects of BHB on GSCs

To further demonstrate the role of ROS in BHB-mediated inhibition of GSC proliferation, the effects of the ROS scavenger N-acetylcysteine (NAC) were determined on GSCs treated with BHB. The results showed that NAC reversed the inhibition of BHB on an unidentified anti-oxidative signaling pathway by increasing the activity of SOD, CAT and the concentrations of GSH, as well as decreasing the concentration of GSSG (Fig. S4B). Additionally, NAC increased tumor sphere formation in NCH421k cells at concentrations ≤25 mM (Fig. S3C). In the presence of NAC, the number and size of tumor spheres that were formed from by NCH421k cells treated with BHB, as well as cell viability within the spheres, was increased (Fig. 7A-C). In addition, western blotting revealed that NAC treatment increased the expression of Sox2 in NCH421k cells treated with BHB (Fig. 7D). Subsequently, metabolic changes in cells treated with NAC were determined. Intake of glucose was increased when ROS were scavenged in NCH421k cells cultured in BHB-Glow medium, as shown by the 2-NBDG assay results (Fig. 7E). TEM showed that the size of the mitochondria was increased in NCH421k cells treated with NAC (Fig. 7F). These data suggest that ROS scavenging partly rescued the inhibitory effects of BHB in NCH421k cells.

Figure 7 ROS scavenging rescues BHB-induced GSC inhibition. NCH421k cells were cultured in Ctrl, Glow or 10 mM BHB-Glow medium for 7 days with or without 5 mM NAC. (A) Sphere formation and (B) cell viability were determined. (C) Tumor spheres were imaged, and the diameter of the spheres compared. Scale bar, 200 µm. (D) Expression of Sox2 in cells in (C) was determined by western blotting and quantitatively compared. (E) Glucose transport in cells in (C) for 5 days was determined using 2-NBDG staining followed by FACS. (F) Cells in (C) for 5 days was imaged by transmission electron microscopy and the size of the mitochondria (white arrows) were quantitatively compared. Scale bar, 1 µm. Data are presented as the mean ± standard deviation. *P<0.05, **P<0.01 vs. Ctrl. GSC, glioma stem-like cell; BHB, β-hydroxybutyrate; Ctrl, control medium with 25 mM glucose; Glow, medium with 2.5 mM glucose; BHB-Glow, PBSlow + BHB; ROS, reactive oxygen species; 2-NBDG, v2-[N-(7-nitrobenz-2-oxa-1,3-diaxol-4-yl) amino]-2-deoxyglucose; FSC, forward scatter; NAC, N-acetylcysteine; Mito, MitoTracker.

Discussion

Abnormal metabolism, as represented by the Warburg effect, is one of the hallmarks of cancer and is critically involved in cancer initiation, malignant growth, metastasis and therapy resistance (8,17). It has been reported that mutational and/or epigenetic modifications in cancer cells results in enhanced glycolysis even under aerobic conditions to meet the increased demands for energy, biosynthesis and gene expression regulation in cancer cells (5). Therefore, it is hypothesized, and to certain extent demonstrated, that cancer cells are dependent on glycolysis, and disruption of this glycolysis dependence could serve as potential anti-tumor therapy strategy (3). Ketone bodies, which are composed of acetoacetate, BHB, and acetone, are a degradation product of fatty acids produced in the liver and utilized by neuronal cells. While normal neuronal cells can oxidize ketone bodies in the mitochondria, glioma cells cannot, due to their metabolic reprogramming. Therefore, as a potentially effective therapy against glioma, the objective of a KD is to nourish normal neuronal cells with ketone bodies under glucose deprived conditions. In the brain, BHB is generated from oxidation of fatty acids or catabolism of amino acids in astrocytes, which can be metabolized in the mitochondria of all brain cell types although uptake across the blood brain barrier is a metabolic control point (30). Under glucose deprived conditions, cells will increase BHB usage as an alternative energy resource (31). However, glucose deprived glioma cells will starve, as they cannot not utilize ketone bodies. Glucose deprivation, a basic principle of a KD, is now considered as an adjuvant anti-glioma therapy based on in vitro and in vivo studies of its effectiveness (10,12,32,33). However, the specific molecular mechanisms underlying the effectiveness of this approach against GBM, specifically GSCs, have remained elusive.

In the present study, the effects of a KD model on GSCs, specialized GBM cells with stem-like cell properties that have been shown to be responsible for drug resistance and tumor recurrence, were assessed. As BHB is the major component of ketone bodies under physiological ketosis, GSCs were cultured with BHB in low glucose medium. Based on clinical ketoacidosis and the blood-brain barrier, which restricts molecule exchange between the cerebral and peripheral compartments (5,20), ketosis was mimicked using 2.5 mM glucose and <15 mM BHB in the culture medium. The results showed that BHB supported the growth of normal mouse NSCs but inhibited the formation and growth of tumor spheres derived from GSCs. Additionally, BHB inhibited GSC proliferation and promoted GSC apoptosis under glucose deprived conditions, thus providing an explanation for the reduced sphere formation. The stemness of GSCs was also attenuated by BHB under the low glucose conditions. Together, these data provide further in vitro evidence supporting the therapeutic use of a KD for treatment of glioma; that is, normal NSCs and GSCs respond to a KD differently due to the intrinsic metabolic reprogramming in GSCs, and thus a KD can reduce GSC activity without significantly impairing normal NSC activity.

It is possible that BHB reduces GSC activity under glucose deprived conditions by restricting glycolysis-dependent metabolism (20,34,35), a hallmark of GSCs (36). In the in vitro culture system, BHB reduced the expression and activity of Glut1 and several enzymes critical for glycolysis. This may result in an energy crisis in GSCs due to their dependence on glycolysis (37), as supported by the observed reduction in ATP production. Reduced ATP production hampers proliferation of cells and induces apoptosis in GSCs. Interestingly, inconsistent with the attenuation of glycolysis, lactate production was increased in BHB-treated cells. These findings suggest that BHB not only inhibits glycolysis, but also damages mitochondria in GSCs, and thus further demonstrate the anti-tumor effects of a KD (13). Damage to the mitochondria results in oxidative stress, which disturbs the intracellular balance between antioxidants and the extent of ROS generation, initiating a wide array of cellular responses via multiple signaling pathways, including the anti-oxidative enzymes SOD, CAT, and GSH (38). Consistent with this notion, ROS production was increased alongside the decreased activity and concentration of anti-oxidative enzymes in GSCs treated with BHB. Additionally, morphological changes were observed in the mitochondria, most notably a reduction in mitochondrial size, and the mitochondrial transmembrane potential was reduced. Antioxidant treatment with a ROS scavenger abrogated the inhibition of cell proliferation and self-renewal mediated by BHB, further demonstrating that increased ROS production serves an important role in the BHB-induced inhibition of GSCs. GSCs presented higher levels of ROS compared with NSCs and scavenging ROS under glucose deprived conditions did not significantly affect proliferation (Fig. 7A), indicating that other elements in the microenvironment, not ROS, prolonged cell survival during glucose deprivation in GSCs.

The complete mechanism underlying BHB-induced GSC inhibition may be more complicated. ROS can directly regulate multiple signaling pathways such as the Akt-mTOR-HIF-1α pathway, leading to changes in cell proliferation and apoptosis (39). BHB treatment reduced the levels of mTOR phosphorylation as well as the expression of HIF-1α and Bcl2. Furthermore, previous studies have shown that BHB is an intrinsic histone deacetylase inhibitor, and thus regulates large-scale alterations in gene expression through histone modification, resulting in multiple cellular changes (40,41). BHB-induced ROS production appeared to be greater in CD133+ GSCs compared with those negative for CD133, suggesting that a KD may target different GSC populations with differing efficacies. The pathogenesis of glioma is complicated, and involves numerous signaling pathways (7). Thus, additional studies on the effects of a KD on GSCs are warranted, given the critical roles of GSCs in the progression of glioma. In addition, the present study, the effect of a KD on GSCs in conditions of physiological ketosis in vitro were examined. However, the clinical significance is unknown based on the results of the present study. This is partly because the level of ketone bodies in the circulating blood, or 'ketosis’ limits the concentration in the brain (5,13). Under physiological conditions, the concentration of blood ketone bodies is inversely proportional to the concentration of blood glucose. Generally, cells including GSCs, are have sufficient glucose as an energy resource. If glucose supplies are limited, other metabolites, such as ketone bodies, serve as the energy source. The effective management of the balance between glucose and ketone bodies influences the therapeutic effects of the ketogenic diet in both cell lines and animal experiments (10,42). One limiting factor in the use of a KD is treatment compliance, which is unsatisfactory, particularly in adults. Considering the adherence and ketogenic management in patients (43), in vivo studies are required to further optimize KD treatment for clinical use.

In conclusion, the results of the present study, together with those of published studies, support the hypothesis that GSCs have a unique metabolic profile that differs from that of normal NSCs and is highly dependent on glycolysis as an energy source. A KD which supplies ketone bodies combined with low glucose levels disturbs the metabolic balance in GSCs, leading to an energy crisis and thus, oxidative stress, which in turn reduces cell proliferation and stemness and even induces apoptosis. Therefore, by targeting GSCs, a KD may serve as an adjuvant therapy for treatment of patients with GBM.

Supplementary Data

Funding

The present study was supported by grants from the National Natural Science Foundation (grant nos. 31671523 and 31101054), the Innovation Military Project of China and the First Affiliated Hospital Program (grant no. 2018QN-09).

Availability of data and materials

The datasets used and/or analyzed during the present study are available from the corresponding author on reasonable request.

Authors’ contributions

HH and ZF designed the study. FW supervised the study. CJ, YH, CG, LL and BG performed the GSC in vitro experiments and analyzed the data. CJ, YR and XC performed the GSC in vivo experiments and analyzed the data. CJ, JL, MZ and SL analyzed the immunofluorescence, transmission electron microscopy and hematoxylin and eosin staining data. CJ, LL BG wrote the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

The use of human samples was approved by the Ethics Committee of Xijing Hospital (Xi’an, China) and procedures were performed in accordance with the Declaration of Helsinki. Written informed consent was obtained from all patients involved.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Abbreviations:

Acknowledgments

The authors would like to thank Dr. Kewei Fang of Shenzhen Children’s Hospital (Shenzhen, China) for his assistance with the ketogenic diet treatment protocol.
