Endovascular treatment of brain arteriovenous malformations involving the anterior cerebral artery
- Authors:
- Published online on: November 8, 2021 https://doi.org/10.3892/mi.2021.22
- Article Number: 22
-
Copyright: © Hou et al. This is an open access article distributed under the terms of Creative Commons Attribution License.
Abstract
Introduction

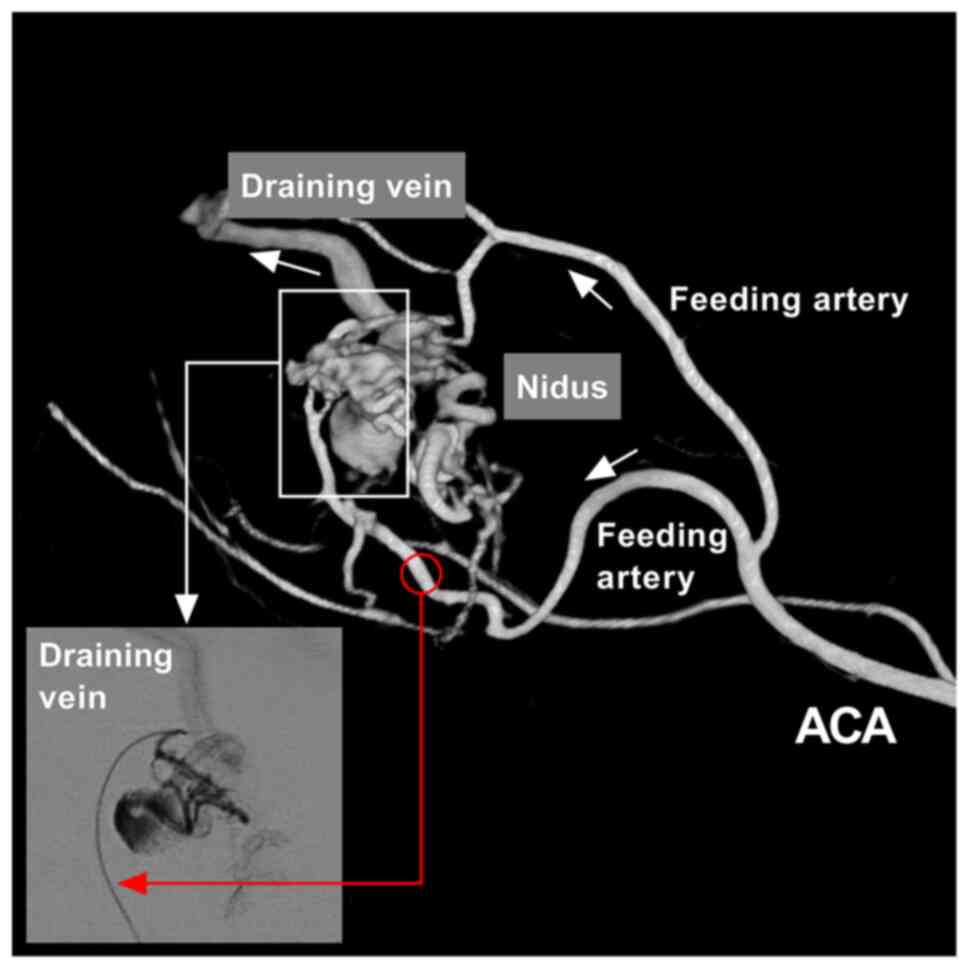

Brain arteriovenous malformation (BAVM) is a common vascular disease. During the progression of BAVM, the feeding artery may become progressively dilated, thinned and tortuous. The nidus undergoes dynamic remodeling, during the process of which thrombosis or rupture can occur. In addition, the draining vein can become thickened and dilatated due to the continuous high pressure of blood from the feeding arteries (1,2). The typical angioarchitecture of BAVM is illustrated in Fig. 1. However, BAVMs at different sites have different characteristics (3).
BAVMs can occur in the supplying area of the anterior cerebral artery (ACA; thus termed ACA-BAVMs), which is located at the para-midline region of the cerebral hemispheres and is close to the medial veins of the frontal lobe. The posterior part of the ACA is closely associated with the deep cerebral venous system (4). ACA-BAVMs are distributed above the corpus callosum and may be supplied by the A2-A5 segments of the ACA (5).
Currently, endovascular treatment (EVT) is the preferred treatment choice for BAVMs, both as a curative or adjunctive treatment. However, to date, to the best of our knowledge, there are only limited studies available evaluating the safety and efficacy of EVT for ACA-BAVMs. Thus, the present study retrospectively examined the safety of EVT for ACA-BAVMs in a total of 60 patients. The results suggest that EVT may be a safe treatment method for ACA-BAVMs.
Patients and methods
A total of 60 patients with ACA-BAVMs treated with EVT from January, 2012 to January, 2020 were retrospectively identified at the First Hospital of Jilin University, Changchun, China, and analyzed. The present study was approved by the Ethics Committee of the First Hospital of Jilin University (approval no. 2020-341). Written informed consent was obtained from the patients or their legal relatives.
Inclusion criteria
The inclusion criteria were as follows: i) The BAVM was located above the corpus callosum, at or close to the midline of the ACA supplied area; ii) the ACA was the main (if not the only) source of blood supply; iii) the patients had not undergone any EVT, open surgery, or radiosurgery prior to admission to the First Hospital of Jilin University.
ACA-BAVM classification

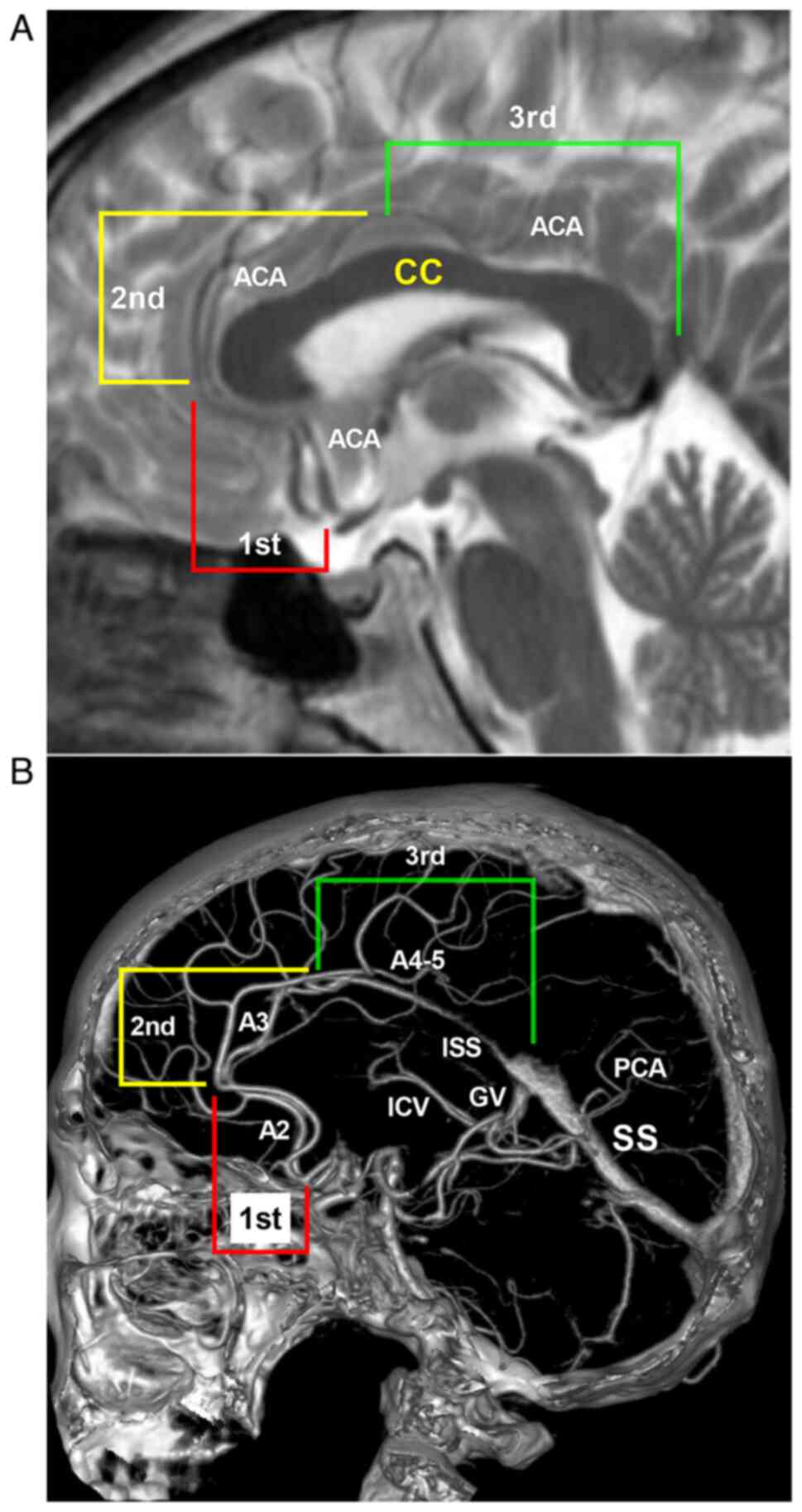

The ACA-BAVMs were classified according to the anatomical association with the corpus callosum and ACA (Fig. 2). Type I BAVMs were defined as those located at the first segment in Fig. 2, which refers to the area below and in front of the corpus callosum genu (the supplying area of the A2 segment of the ACA). Type II BAVMs were defined as those located at the second segment in Fig. 2, which refers to the upper area of the corpus callosum from the genu to the anterior portion of corpus callosum body (the supplying area of the A3 segment of the ACA). Type III BAVMs were defined as those located at the third segment in Fig. 2, which refers to the area from the anterior portion of corpus callosum body to the splenium of the corpus callosum (the supplying area of the A4-5 segment of the ACA).
Scheme and strategy of EVT
All patients were treated under general anesthesia via a transfemoral approach. Based on the angioarchitecture, the main feeding artery was selected to perform the EVT. For the BAVM nidus, a Marathon microcatheter (Lot no. B143380; product no. 105-5056; Medtronic) or Apollo microcatheter (Lot no. B207314; product no. 105-5096-000; Medtronic) was used to access the nidus of the BAVM to obtain the wedge position. Onyx liquid embolic system (Lot no. B176414; product no. 105-7000-060; Medtronic) was then casted. For flow-related aneurysms, an Echelon microcatheter (Lot no. B229779; product no. 105-5091-150; Medtronic) was preferred to perform coiling.
For thin feeding arteries originating at an acute degree from the ACA in type I and II BAVMs, the micro guide wire could be shaped into a ‘J’curve to pass the artery of origin. For type II and III BAVMs with multiple feeding arteries, if satisfactory EVT could not be achieved through the ACA, an additional EVT was performed through other arteries, such as the middle cerebral artery (MCA) and posterior cerebral artery (PCA).
For the EVT of ruptured BAVMs, flow-related aneurysms on the feeding artery or in the nidus of the BAVM were given priority for treatment. In addition, for ruptured BAVMs, if no weak structure was identified, the main purpose of the EVT was to reduce the blood flow of BAVMs. For unruptured BAVMs, the main purpose of the EVT was the targeted embolization of the dangerous structures, such as aneurysms in the feeding artery or dilated structures in the nidus. Conservative management would be recommended for unruptured BAVMs without dangerous structures (6).
Outcome evaluation and follow-up
EVT-related complications, the length of hospital stay and the Glasgow Outcome Scale (GOS) score (1, death; 2, persistent vegetative state; 3, severe disability; 4, moderate disability; 5, good recovery) at the time of discharge were all recorded (7). The angiographic follow-up and the modified Rankin Scale (mRS) score (0: no symptoms; 1, no significant disability despite symptoms; 2, slight disability, independent; 3, moderate disability, requires some assistance, ambulatory; 4, moderately severe disability, requires assistance, not ambulatory; 5, severe disability, bedridden, incontinent, requires constant care) were also recorded (8).
Statistical analysis
GraphPad Software (8.02; GraphPad Software, Inc.) was used for statistical analysis. Continuous variables are expressed as then mean ± standard deviation. Ordinary one-way ANOVA followed by Tukey's multiple comparisons test was used for the comparison of multiple continuous variables. The Chi-squared test was used to compare count data. A P-value <0.05 was considered to indicate a statistically significant difference.
Results
General patient information
The patients were aged between 10 and 72 years (mean age, 35.4±17.0 years), of whom 28 were female (46.7%, 28/60) and 32 were male (53.3%, 32/60). A total of 22 (36.7%, 22/60) patients had unruptured ACA-BAVMs, of whom 21 patients complained of headaches and 1 patient was admitted for epilepsy. In total, 38 (63.3%, 38/60) patients were admitted for intracranial hemorrhage, including 3 patients with subarachnoid hemorrhage, 17 patients with intracerebral hematoma (IH), 1 patient with IH and subdural hematoma, 4 patients with intraventricular hemorrhage (IVH), and 13 patients with IH and IVH. Of the 38 patients with ruptured BAVMs, 18 patients were classified as Hunt-Hess grade I, 8 as grade II and 12 as grade III (9).
Imaging characteristics
The diameter of the ACA-BAVMs was 4.4±2.6 cm (range, 0.75-13.5 cm). The size was <3 cm in 19 cases (31.7%, 19/60), 3-6 cm in 28 cases (46.7%, 28/60) and >6 cm in 13 cases (21.6%, 13/60). In total, 16 cases (26.7%, 16/60) were classified as Spetzler-Martin (SM) grade I, 20 cases (33.3%, 20/60) as SM grade II, 21 cases (35%, 21/60) as SM grade III and 3 cases (5%, 3/60) as SM grade IV (10).
A total of 6 cases (10%, 6/60) had flow-related aneurysms on the feeding artery. In addition, in 42 cases (70%, 42/60), the ACA-BAVMs were drained by the superficial veins, in 14 cases (23.3%, 14/60) they were drained by the deep veins, and in 4 cases (6.7%, 4/60), they were drained by both the superficial and deep veins.
ACA-BAVM types
Type I BAVMs were identified in 9 (15%, 9/60) cases. Among these, five were supplied by the ACA, and four were supplied by the ACA and MCA. Type II BAVMs were identified in 15 cases (25%, 15/60). Among these, nine were supplied by the branches from the ACA, four were supplied by the ACA and MCA, and two were supplied by the ACA, MCA and PCA. Type III BAVMs were identified in 36 cases (60%, 36/60). Among these, 18 were supplied only by the ACA, 11 were supplied by the ACA and PCA, five were supplied by the ACA, MCA and PCA, one was supplied by the ACA and MCA, and one was supplied by the ACA, MCA, PCA and external carotid artery.
Results of EVT
Of the 54 (90%, 54/60) ACA-BAVMs without aneurysms, 48 (80%, 48/60) were embolized with Onyx via the ACA, two (3.3%, 2/60) via the ACA and MCA, two (3.3%, 2/60) via the ACA and PCA, and one (1.7%, 1/60) via the MCA and PCA. In 1 case (1.7%, 1/60) with a diffuse type I BAVM, reducing blood flow was achieved by the coiling of the feeding artery.
Of the 6 (10%, 6/60) patients with aneurysms, 1 patient (1.7%, 1/60) with unruptured aneurysm underwent aneurysm coiling and BAVM embolization with Onyx, 2 patients (3.3%, 2/60) with unruptured aneurysms underwent aneurysm and BAVM embolization with Onyx, and 3 patients (5%, 3/60) with ruptured aneurysms underwent coiling only. For the BAVM nidus, immediate complete or nearly complete embolization was achieved in 34 cases (56.7%, 34/60). Partial embolization was achieved in 22 (36.7%, 22/60) cases. Four (6.7%, 4/60) cases were left untreated (in three cases, after the flow-related aneurysms were embolized, the nidus was treated at a later stage; in one case, the nidus was too diffuse to be embolized, and only the feeding artery was coiled).
During the EVT process, there were 3 cases (5%, 3/60) of intraoperative bleeding, among whom, 2 cases had type I ACA-BAVMs, and 1 case had type II ACA-BAVMs. When intraoperative bleeding occurred, Onyx casting was continued until termination of the bleeding was achieved. Following EVT, 1 patient died and 2 patients had a favorable recovery.
Outcome and follow-up
Outcome at discharge
In total, 1 patient (1.7%, 1/60) died from intraoperative bleeding. At the time of discharge, 8 patients (13.3%, 8/60) had a GOS score of 3, 3 patients (5%, 3/60) had a GOS score of 4, and 48 patients (80%, 48/60) had a GOS score of 5. Of the 59 patients who were discharged, the length of hospital stay ranged from 2-58 days (range, 10.6±9.3 days).
Outcome at follow-up. A total of 49 (81.7%, 49/60) patients could be contacted at the clinical follow-up, which ranged from 12-78 months (mean, 31.1±20.5 months). Among these, 2 patients (4.1%, 2/49) died from non-cerebral disease. Of the remaining 47 (95.9%, 47/49) patients, 39 (83%, 39/47) presented with an mRS score of 0, 3 (6.4%, 3/47) with an mRS score of 1, 3 (6.4%, 3/47) with an mRS score of 2 and 2 (4.2%, 2/47) with an mRS score of 3. In total, 20 (33.3%, 20/60) patients underwent an angiographic follow-up, of whom 18 (90%, 18/20) had satisfactory embolization and two (10%, 2/20) underwent additional EVT (after EVT, they had no new neurological deficit). The main clinical characteristics of the patients are presented in Table I. In addition, images of illustrative cases are presented in Fig. 3, Fig. 4, Fig. 5, Fig. 6, Fig. 7 and Fig. 8.
Results of statistical analysis
The results of statistical analysis are summarized in Table II. No statistically significant differences were noted in the diameter of the BAVMs, IVH presentation and deep vein drainage among the three types of ACA-BAVMs. Intraoperative hemorrhagic complications tended to occur in type I and II BAVMs (P=0.0223). PCA involvement was more commonly involved in type II and III BAVMs (P=0.0052).
Discussion
BAVM is a common congenital vascular disease that is associated with the abnormal connection between arteries and veins, and lacks an intervening capillary network, which can occur in any part of the brain. The architecture depends on the location, recruited arteries and draining veins, and the size of the BAVM nidus (11).
The ACA lies between the bilateral cerebral hemispheres. It runs an anteroposterior course along the lower part of the cerebral falx and the upper part of the corpus callosum. Under normal conditions, the ACA system is relatively independent (12). In the case of chronic persistent ischemia in the ACA supplying area, the ACA can anastomose with the posterior choroidal arteries from the PCA or with the pial branches of the PCA. This anastomosis is often characterized by a direct anastomosis between the blood supply from the PCA system and the distal trunk of the ACA (13). Generally speaking, the MCA only compensates for the pial branches of ACA.
Some of the BAVMs can occur specifically in the supplying area of ACA, exhibiting a variety of vascular architectures (14). However, to date, to the best of our knowledge, there is no detailed classification of this specific type of BAVM. In the present study, based on their anatomical association with surrounding structures, the ACA-BAVMs were divided into three types.
In the present study on ACA-BAVMs, the arteries distributed along the ACA differed. For example, there is a potential collateral circulation between the posterior part of the ACA and the PCA, and the anterior part of the ACA can only be compensated by the pial branches from the MCA. BAVMs occurring in the posterior part of the corpus callosum and ACA are closer to the deep venous system (15).
Therefore, statistical analysis was performed for IVH presentation, deep vein involvement and PCA involvement among the different types of ACA-BAVMs to determine whether the types of ACA-BAVMs are associated with IVH presentation, deep vein involvement and PCA. However, the results revealed no significant differences in IVH presentation and deep vein involvement. This suggests that ACA-BAVMs may have the similar imaging and clinical characteristics. However, the statistical analysis revealed that the PCA tended to provide blood flow to the distal ACA-BAVMs.
The principle of EVT for ACA-BAVMs is the same as that for BAVMs in other areas, which mainly aims to manage flow-related aneurysms and the nidus of BAVMs to reduce blood flow to the draining venous system (6). In the present study, 6 cases had with flow-related aneurysms, with an incidence of 10%, which was lower than that observed in a previous study (16). This type of aneurysm is a definite risk factor of BAVMs and requires treatment (Figs. 3, 4, 5, 7 and 8).
The efficacy and safety of EVT for ACA-BAVMs was satisfactory, with a low complication rate of only 5% in the present study. In the present study, 85% of the cases had a GOS score of 4 or 5 at the time of discharge, and 89.3% of cases had an mRS score of 0 and 1 during the follow-up period, which indicated that EVT was a safe strategy for the treatment of ACA-BAVMs.
In the present study, complete or almost complete embolization was achieved in 56.7% of the cases. The degree of embolization is dependent on a number of factors, such as the size and morphology of the nidus and diameter, and the tortuosity of feeding. Moreover, the degree of embolization is not main treatment goal; the main treatment goal is the management of the weak point posing a risk. Thus, in the present study, the degree of AVM embolization was not pursued.
Following ACA-BAVM classification, EVT becomes strategic. Type I and II BAVMs are supplied by branches of the proximal ACA, and these feeding arteries are commonly slim and multiple. Microcatheter navigation close to the BAVM nidus is difficult, which increases the difficulty in performing EVT and the associated risks. In the present study, intraoperative bleeding tended to occur in patients with type I and II BAVMs. As type II and III BAVMs are supplied by the end of the ACA trunk, performing EVT is relatively simple. However, when they are supplied by multiple regional arteries, particularly from the PCA region, EVT may then be a complex process. In some cases, the PCA has to be used to perform the EVT as the PCA tends to be involved in type II and III BAVMs.
The present study has some limitations which need to be mentioned. One of these limitations is the low rate of angiographic follow-up. The efficacy and safety of EVT were presented as GOS and mRS scores at the time of discharge and clinical follow-up, which proved that EVT was a safe treatment for ACA-BAVMs. However, due to the very low rate of angiographic follow-up, it is inappropriate to compare the pre- and post-operative angiographic characteristics in this series of patients.
In conclusion, ACA-BAVMs can be classified into types I-III according to the position of the BAVMs along the ACA. This classification is helpful. For type I and II BAVMs supplied by slim and multiple branches of the proximal ACA, EVT is difficult to perform, and intraoperative bleeding complications are common. For type II and III BAVMs, as the PCA tends to be involved, in some cases, the PCA has to be used to perform EVT. On the whole, the present study demonstrated that EVT is a safe procedure for the treatment of ACA-BAVMs.
