Introduction

The renin-angiotensin system (RAS) is crucial for cardiovascular regulation (1). In the RAS, angiotensin-converting enzyme (ACE) metabolizes angiotensin I (Ang I) to form angiotensin II (Ang II), which exerts direct trophic actions on cardiac cells through the AT1 receptor, inducing cardiomyocyte hypertrophy and fibroblast proliferation (1). Local Ang II production is of key importance in the pathophysiology of the RAS in the heart (2). Gradual increases in cardiac Ang II levels have been demonstrated in experimental models and clinically during the development of heart failure (3).

In addition to the ACE/Ang II/AT1 receptor axis, the RAS possesses a counter-regulatory axis comprising ACE2, Ang-(1-7) and the Mas receptor (4). Ang-(1-7) is now recognized as a critical component of the RAS, as it exerts a vast array of actions, many of which oppose the actions of Ang II (5). Ang-(1-7) is generated directly from Ang II by ACE2 with high efficiency (5-7) and also directly from Ang I by neutral endopeptidase and prolylendopeptidase (8,9). Recently it was indicated that the heart and blood vessels are the main targets for the actions of Ang-(1-7)(10). These actions include biochemical and functional alterations that result in vasodilation and improved cardiac function (11). It is now well established that the G protein-coupled receptor Mas, is a functional binding site for Ang-(1-7)(10,11). The Mas receptor is present in human cardiomyocytes (12) and mediates most of the known cardioprotective effects of Ang-(1-7), such as vasodilatation, anti-fibrosis, -hypertrophic and -proliferative effects (4). The Ang-(1-7)/Mas axis has been considered a potential target for the development of novel cardiovascular treatment agents (11).

Endothelin-1 (ET-1) is a potent endothelial cell-derived venous and arterial vasoconstrictor peptide that functions as a circulating hormone and a paracrine factor in the regulation of cardiovascular mechanisms (13). ET-1 is responsible for a variety of cell events, such as contraction, proliferation and apoptosis. These effects occur following the activation of the endothelin receptors ETA and ETB, which are present on cardiomyocytes, fibroblasts, smooth muscle cells, endothelial cells, and glomerular and tubular cells of the kidney (13). ET-1 levels are increased in patients with heart disease, particularly in acute myocardial infarction or congestive heart diseases, as well as in renal dysfunction (14). In heart failure, ET-1 levels have been demonstrated to increase in parallel with the functional capacity and severity of the disease (15,16).

According to previous studies (?), ET-1 and the Ang-(1-7)/Mas axis are important for cardiac dysfunction. To the best of our knowledge, the present study examined, for the first time, the effects of ET-1 on Mas expression in cultured human cardiomyocytes, aiming to provide indepth insights into the function of ET-1 and the Ang-(1-7)/Mas axis in cardiac pathophysiology.

Materials and methods

Reagents

ET-1, Ang-(1-7), actinomycin D, and kinase inhibitors LY294002, Go6983, PD098059 and PD169316, were purchased from Sigma (St. Louis, MO, USA). 125I-Sodium iodide (carrier free, 100 mCl/ml) was purchased from Amersham Biosciences (Piscataway, NJ, USA). In addition, TRIzol reagent for RNA isolation and the SYBR-Green Master Mix were purchased from Invitrogen Life Technologies (Carlsbad, CA, USA) and Applied Biosystems (Foster City, CA, USA), respectively. Anti-MAS1 (N-15) antibody was purchased from Santa Cruz Biotechnology, Inc. (sc-54682; Santa Cruz, CA, USA). Furthermore, anti-phospho-p38 (Thr180/Tyr182) (#9212) and anti-p38 (#8690) antibodies were purchased from Cell Signaling Technology, Inc. (Danvers, MA, USA). To silence the p38 MAPK gene expression, siRNA oligonucleotides with the following sequence were designed; p38 siRNA, 5′-GAAGCTCTCCAGACCATTT-3′. Human Mas promoter-luciferase reporter construct (#S718157) and LightSwitch assay reagents were purchased from SwitchGear Genomics (Menlo Park, CA, USA). Lipofectamine 2000 transfection reagent was purchased from Invitrogen.

Cell culture and treatment

Human adult cardiomyocytes (no. 6210) and cardiomyocyte medium (CMM no. 6201), were purchased from ScienCell Research Laboratories (Carlsbad, CA, USA). The cells were treated with ET-1 at different concentrations (1, 5, 10, 20 and 30 nM) for varied time periods (0.5, 1.5, 3, 4.5 or 6 h) in the presence or absence of BQ123 (1 μM) or BQ788 (1 μM). Actinomycin D and all kinase inhibitors were dissolved in dimethyl sulfoxide (DMSO; final concentration, 0.05%). For kinase inhibitor treatment, human cardiomyocytes were pretreated with the kinase inhibitor for 30 min and then incubated with the kinase inhibitor and ET-1 (30 nM) for 4.5 h. Human cardiomyocytes treated with ET-1 (30 nM) and DMSO (0.05%) were used as a control in the experiments. For actinomycin D treatment, the cells were pretreated with actinomycin D (1 mg/ml) for 30 min, and then cultured for 1.5, 3 or 4.5 h in medium containing actinomycin D (1 mg/ml) with or without ET-1 (30 nM). The cells treated with DMSO (0.05%) were used as a control.

qPCR

RNA was prepared using TRIzol reagent followed by purification with TURBO DNA-free ™ kit (Ambion, Austin, TX, USA). The cDNAs were synthesized using SuperScript II reverse transcriptase (Invitrogen). qPCR was performed on an ABI Prism 7700 Sequence Detection System, with use of the fluorescent dye SYBR-Green Master Mix (Applied Biosystems) following the manufacturer’s instructions. The results were normalized against that of the housekeeping gene glyceraldehyde-3-phosphate dehydrogenase (GAPDH) in the same sample. The primers used were as follows: Human Mas, 5′-TTCCGGATGAGAAGAAATCC-3′ (forward) and 5′-ATGGCCAGAAGAAAGCTCAT-3′ (reverse); and human GAPDH, 5′-GTCAGTGGTGGACCTGACCT-3′ (forward) and 5′-TGCTGTAGCCAAATTCGTTG-3′ (reverse). The mRNA level of treated cells was shown as fold changes to that of untreated control cells (designated as 1). Each experiment was repeated three times in triplicate. Results are expressed as the mean ± standard deviation.

Luciferase assay

Human cardiomyocytes were transfected with human Mas promoter-luciferase reporter constructs (SwitchGear Genomics) using Lipofectamine 2000 transfection reagent (Invitrogen) and then treated with ET-1 (10 or 30 nM) for 4.5 h. Luciferase assays were performed 24 h later with LightSwitch assay reagents (SwitchGear Genomics) according to the manufacturer’s instructions. Each experiment was repeated three times in duplicate. Untreated human cardiomyocytes were used as a control.

Western blot analysis

Human cardiomyocytes were lysed in 250 μl of 2X sodium dodecyl sulphate (SDS) loading buffer (62.5 mM Tris HCl, pH 6.8, 2% SDS, 25% glycerol, 0.01% bromphenol blue and 5% 2-mercaptoethanol) and incubated at 95ºC for 10 min. An equal volume of proteins (100 μg) for each sample was separated by 8–15% SDS-polyacrylamide gel and blotted onto a polyvinylidene difluoride microporous membrane (Millipore, Billerica, MA, USA). The membranes were incubated for 1 h at a 1:1000 dilution of the primary antibody and then washed and revealed using secondary antibodies with horseradish peroxidase conjugate (1:5000, 1 h). Peroxidase was revealed with a GE Healthcare enhanced chemiluminescence kit. Proteins were quantified prior to being loaded onto the gel.

(125I)Ang-(1-7) binding assay

Human cardiomyocytes in 12-well plates were rinsed two times with DMEM and equilibrated on ice with incubation buffer (DMEM containing 0.2% bovine serum albumin and a protease inhibitor cocktail, pH 7.4) for 30 min. Subsequently, the plates were incubated at 4ºC for 60 min with incubation buffer containing 0.5 nmol/l 125I-Ang-(1-7)(17). Incubation was stopped by rinsing the cells three times with ice-cold phosphate-buffered saline. Cells were solubilized by incubation with 0.1 mol/l NaOH for 60 min and the radioactivity was measured. Non-specific binding was determined in the presence of 10 μmol/l unlabeled Ang-(1-7), which was no higher than 15%. Specific binding was calculated by the subtraction of non-specific binding from total binding. The disintegrations per min (dpm) data were normalized against the cell number (per 20000 cells) and shown as a percentage of that of untreated control cells (designated as 100%). Each experiment was repeated three times in triplicates. Results are expressed as the mean ± standard deviation.

Statistical analysis

Statistical analysis was performed with SPSS software, for Windows version 10.0 (SPPS, Inc., Chicago, IL, USA). Data values were expressed as the mean ± standard deviation. Comparison of means among multiple groups was performed with one-way analysis of variance (ANOVA) followed by post-hoc pairwise comparisons using Tukey’s tests. The significance level of this study was set at a two-tailed P=0.05.

Results

Relative Mas mRNA levels in human cardiomyocytes in the presence of ET-1 with or without ET receptor blockers

Human cardiomyocytes were treated with ET-1 at different concentrations (1, 5, 10, 20 and 30 nM) for varied time periods (0.5, 1.5, 3, 4.5 or 6 h). The Mas mRNA levels were examined using qPCR. The Mas mRNA level of treated cells was shown as fold changes to that of untreated control cells (designated as 1). As shown in Table I, ET-1 concentration of 5–20 nM, decreased the Mas mRNA level in a statistically significant dose- and time-dependent manner within 4.5 h of treatment, which was completely eliminated by selective ETA receptor blocker BQ123, but not by the selective ETB receptor blocker BQ788. ET-1 at 1 nM had no significant effects on the Mas mRNA levels at all time points. Additionally, treatment for 0.5 h with ET-1 at 1–30 nM also showed no significant effects on the Mas mRNA level.

Table I Relative Mas mRNA levels in human cardiomyocytes in the presence of endothelin-1 (ET-1) with or without ET receptor blockers.

Table I

Relative Mas mRNA levels in human cardiomyocytes in the presence of endothelin-1 (ET-1) with or without ET receptor blockers.

	Time (h)
ET-1 (nm)	0.5	1.5	3	4.5	6
1	0.99±0.02	1.01±0.03	0.98±0.02	0.98±0.03	0.96±0.04
5	0.99±0.02	0.87±0.03a,d	0.59±0.04a,d,e	0.38±0.05a,d,e,f	0.38±0.04a,d,e,f
10	0.98±0.05	0.52±0.05a,b,d	0.37±0.03a,b,d,e	0.26±0.03a,b,d,e,f	0.25±0.02a,b,d,e,f
20	0.97±0.04	0.39±0.05a,b,c,d	0.25±0.03a,b,c,d,e	0.14±0.05a,b,c,d,e,f	0.14±0.03a,b,c,d,e,f
30	0.96±0.03	0.35±0.04a,b,c,d	0.20±0.04a,b,c,d,e	0.11±0.02a,b,c,d,e,f	0.10±0.04a,b,c,d,e,f
30+BQ123 (1 μM)	1.05±0.04	1.05±0.05	1.07±0.03	1.08±0.07	1.10±0.03
30+BQ788 (1 μM)	0.96±0.06	0.38±0.05a,b,c,d	0.25±0.04a,b,c,d,e	0.15±0.03a,b,c,d,e,f	0.13±0.05a,b,c,d,e,f

{ label (or @symbol) needed for fn[@id='tfn1-mmr-08-03-0871'] } Mas mRNA levels of treated cells were shown as fold changes to that of untreated control cells (designated as 1). Comparison of the means among all the experimental groups was performed with one-way analysis of variance followed by post-hoc pairwise comparisons using Tukey’s tests.

a P<0.05 compared with ET-1 treatment at 1 nM or ET-1 (30 nM) and BQ123 (1 μM);

b P<0.05 compared with ET-1 treatment at 5 nM;

c P<0.05 compared with ET-1 treatment at 10 nM;

d P<0.05 compared with 0.5 h of ET-1 treatment at each concentration;

e P<0.05 compared with 1.5 h of ET-1 treatment at each concentration and

f P<0.05 compared with 3 h of ET-1 treatment at each concentration.

Effects of ET-1 on human Mas promoter activities and on Mas mRNA level

To evaluate the effects of ET-1 on Mas mRNA stability, human cardiomyocytes were pretreated with transcription inhibitor actinomycin D (1 mg/ml) for 30 min and then cultured for 1.5, 3 or 4.5 h in medium containing actinomycin D (1 mg/ml), with or without ET-1 (30 nM). qPCR assays showed that the Mas mRNA level significantly decreased with time following actinomycin D treatment (Fig. 1). In the presence of actinomycin D, ET-1 had no significant effects on the Mas mRNA level at any of the time points (Fig. 1). The results suggest that ET-1 decreases Mas expression at the transcriptional level rather than decreasing Mas mRNA stability at the post-transcriptional level. This was confirmed by luciferase assays, which showed that ET-1 had a dose-dependent inhibitory effect on human Mas promoter activity (Fig. 2A).

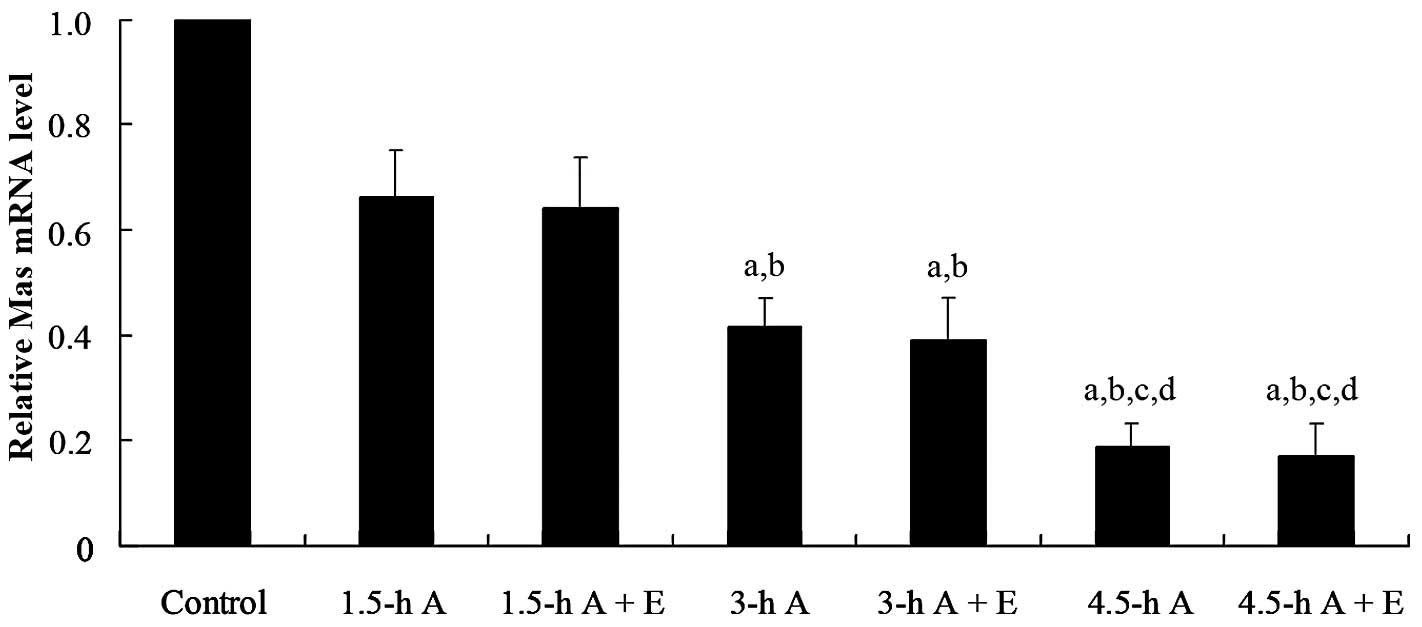

Figure 1 Mas receptor mRNA level in human cardiomyocytes treated with actinomycin D with or without endothelin-1 (ET-1). Human cardiomyocytes were pretreated with actinomycin D (1 mg/ml) for 30 min and then cultured for 1.5, 3 or 4.5 h in medium containing actinomycin D (1 mg/ml) with or without ET-1 (30 nM). Mas receptor mRNA level of treated cells was shown as fold changes to that of untreated control cells (designated as 1). A, actinomycin D and E, ET-1. aP<0.05 compared with 1.5 h A; bP<0.05 compared with 1.5 h A and E; cP<0.05 compared with 3 h A and dP<0.05 compared with 3 h A and E.

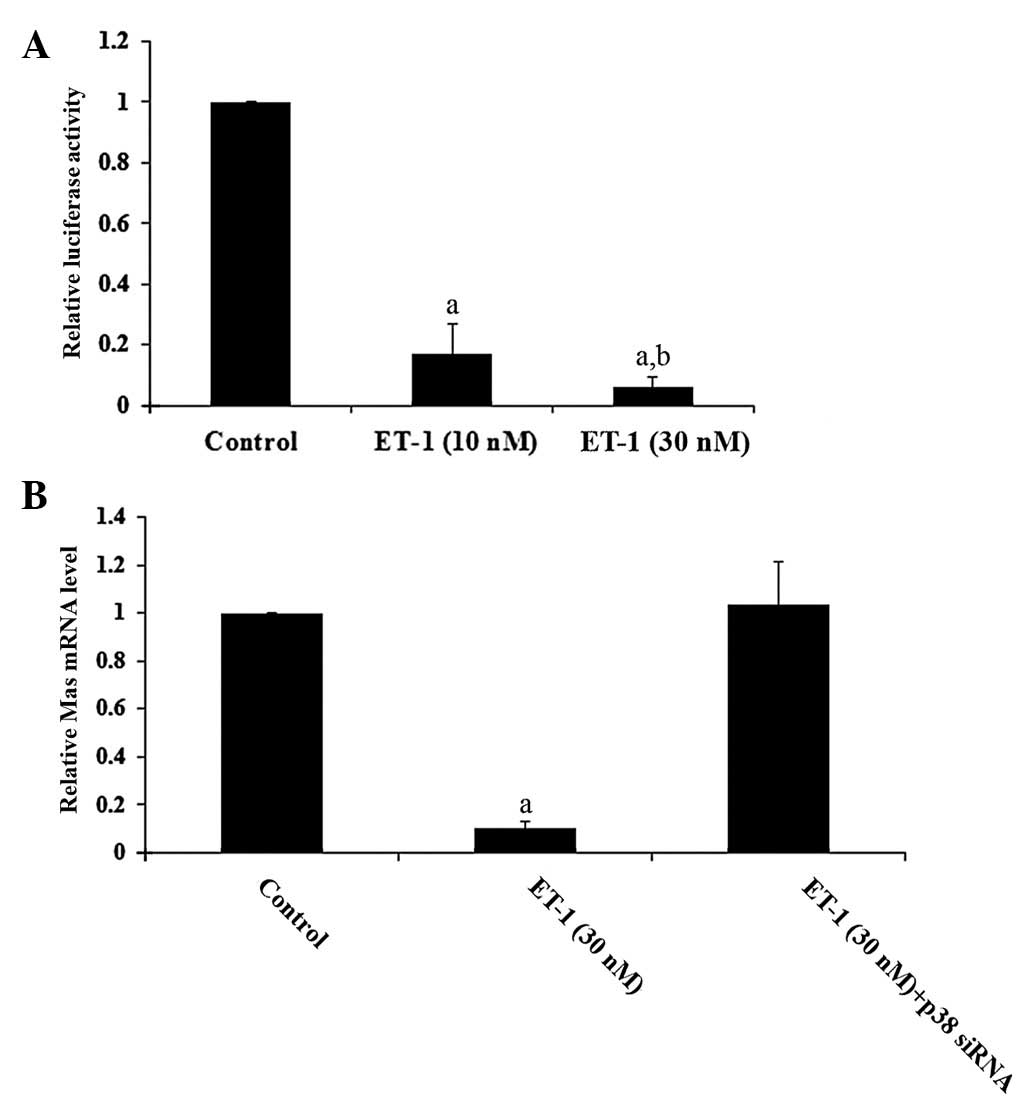

Figure 2 Effects of endothelin-1 (ET-1) on human Mas promoter activities and on Mas mRNA level in human cardiomyocytes treated with siRNA against p38 mitogen-activated protein kinase (MAPK). (A) Human cardiomyocytes were transfected with human Mas promoter-luciferase reporter plasmids and then treated with ET-1 (10 or 30 nM) for 4.5 h. Twenty-four hours later, luciferase assays were performed. Luciferase activities were expressed as fold changes to that of untreated control cells (designated as 1). (B) Human cardiomyocytes with or without transfection of p38 MAPK siRNA were treated with ET-1 (30 nM) for 4.5 h. Mas mRNA level of treated cells was shown as fold changes to that of untreated control cells (designated as 1). aP<0.05 compared with untreated control cells and bP<0.05 compared with 10 nm ET-1 treatment.

To determine the signaling pathways involved in the inhibitory effects of ET-1 on Mas gene transcription, we examined the Mas mRNA levels in human cardiomyocytes treated with ET-1 (30 nM) with or without different kinase inhibitors, for 4.5 h. As shown in Table II, inhibition of protein kinase C (Go6983; 250 nM), MAPK (PD098059; 25 μM) and p38 kinase (LY294002; 25 μM), had no significant effects on the Mas mRNA level. By contrast, the inhibition of p38 MAPK by selective inhibitor PD169316 (25 μM) completely eliminated the inhibitory effects of ET-1 on Mas gene transcription. We also employed siRNA to knock down p38 MAPK in human cardiomyocytes. As shown in Fig. 2B, while ET-1 (30 nM) decreased the Mas mRNA level by >90%, there were no significant effects on cardiomyocytes transfected with p38 (MAPK) siRNA, confirming that p38 MAPK signaling is key to the inhibitory effects of ET-1 on Mas gene transcription.

Table II Relative Mas mRNA levels in human cardiomyocytes in the presence of endothelin-1 (ET-1) with or without kinase inhibitors.

Table II

Relative Mas mRNA levels in human cardiomyocytes in the presence of endothelin-1 (ET-1) with or without kinase inhibitors.

Treatment	Relative Mas mRNA level
Control	0.11±0.02a
+LY294002 (25 μM)	0.21±0.12a
+Go6983 (250 nM)	0.18±0.06a
+PD098059 (25 μM)	0.20±0.08a
+PD169316 (25 μM)	1.11±0.07

{ label (or @symbol) needed for fn[@id='tfn8-mmr-08-03-0871'] } Human cardiomyocytes were pretreated with the kinase inhibitor for 30 min and then incubated with the kinase inhibitor and ET-1 (30 nM) for 4.5 h. The kinase inhibitors were dissolved in dimethyl sulfoxide (DMSO; final concentration of DMSO 0.05%). Human cardiomyocytes treated with ET-1 (30 nM) and DMSO (0.05%) were used as the control. Mas mRNA level of treated cells was shown as fold changes to that of untreated control cells (designated as 1). Comparison of the means among the experimental groups was performed with one-way analysis of variance followed by post-hoc pairwise comparisons using Tukey’s tests.

a P<0.05 compared with the ET-1 (30 nM) and PD169316 (25 μM) treatment.

Western blot analysis

Western blot analysis showed that ET-1 treatment for 4.5 h dose-dependently decreased the Mas protein level in human cardiomyocytes, which was blocked by BQ123 and PD169316, but not by BQ788 (Fig. 3). Similarly, human cardiomyocytes treated with ET-1 (30 nM) for 4.5 h showed a dose-dependent decrease in Ang-(1-7) binding on the cell membrane, which was blocked by BQ123 and PD169316, but not by BQ788 (Fig. 4). A previous study demonstrated that the phosphorylation and activation of p38 MAPK is involved in ET-1-induced biological effects (18). As shown in Fig. 5, western blot analysis showed that ET-1 treatment for 4.5 h, dose-dependently increased phosphorylated p38 MAPK (Thr180/Tyr182) levels in human cardiomyocytes, which was blocked by BQ123, PD169316 and p38 MAPK siRNA, but not by BQ788. Fig. 5 also shows that the p38 siRNA knocked down >70% of endogenous p38 MAPK expression. Taken together, the results suggest that ET-1 significantly decreased the density of ligand-binding Mas receptor on the cell membrane of human cardiomyocytes by downregulating Mas gene transcription via the ETA receptor by a p38 MAPK-dependent mechanism.

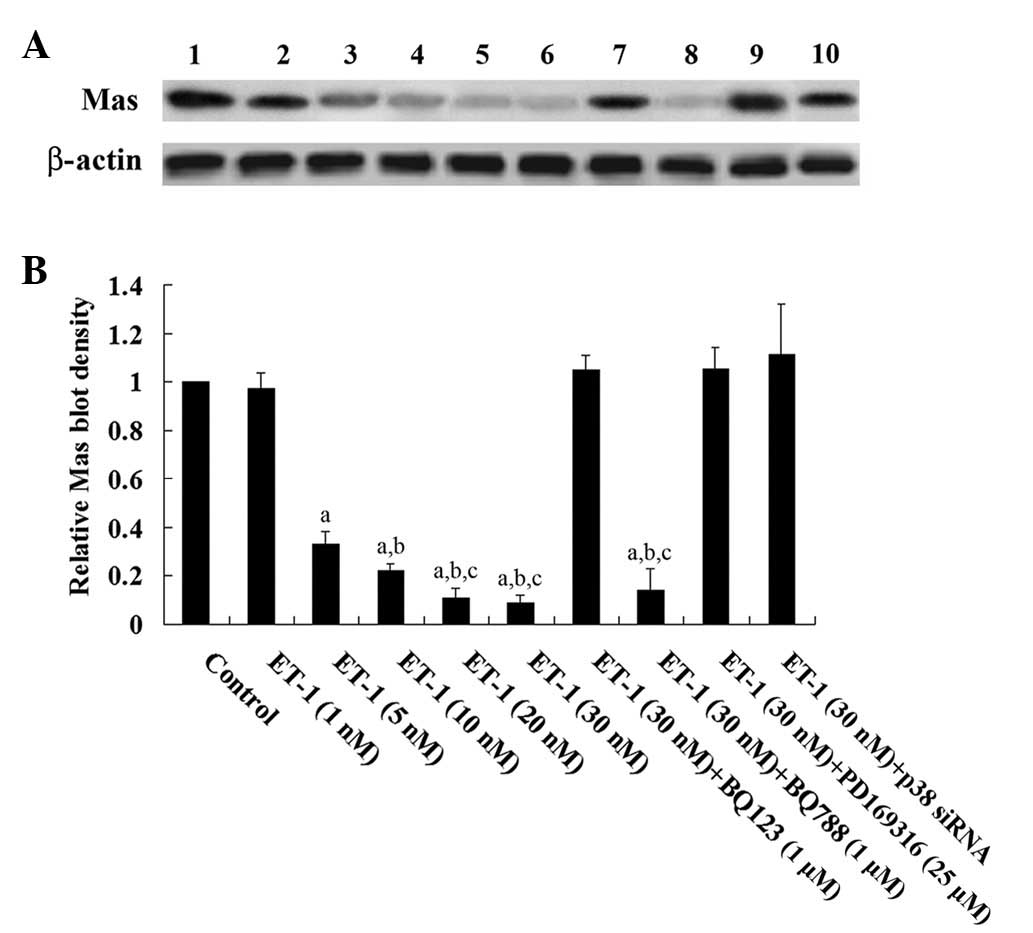

Figure 3 Western blot analysis of Mas expression in human cardiomyocytes. (A) Human cardiomyocytes were treated with ET-1 (1, 5, 10, 20 and 30 nM) with or without BQ123 (1 μM), BQ788 (1 μm), PD169316 (25 μm) or p38 mitogen-activated protein kinase siRNA for 4.5 h. Twenty-four hours later, cell lysates were subject to western blot analysis for Mas expression. Lysates from untreated human cardiomyocytes were used as a control (lane 1). Concentrations of ET-1 were as follows: Lane 2, 1 nM; lane 3, 5 nM; lane 4, 10 nM; lane 5, 20 nM); lane 6, 30 nM; lane 7, 30 nM and BQ123 (1 μM); lane 8, 30 nM and BQ788 (1 μM); lane 9, 30 nM and PD169316 (25 μM) and lane 10, 30 nM and p38 siRNA. β-actin blotting was used as a loading control. (B) Mas and β-actin blots were measured by densitometry. The density of the Mas blot was normalized against that of β-actin to obtain a relative density, which was expressed as fold changes to the relative Mas density of untreated control cells (designated as 1). aP<0.05 compared with untreated control cells; bP<0.05 compared with 5 nm ET-1 treatment andcP<0.05 compared with 10 nm ET-1 treatment.

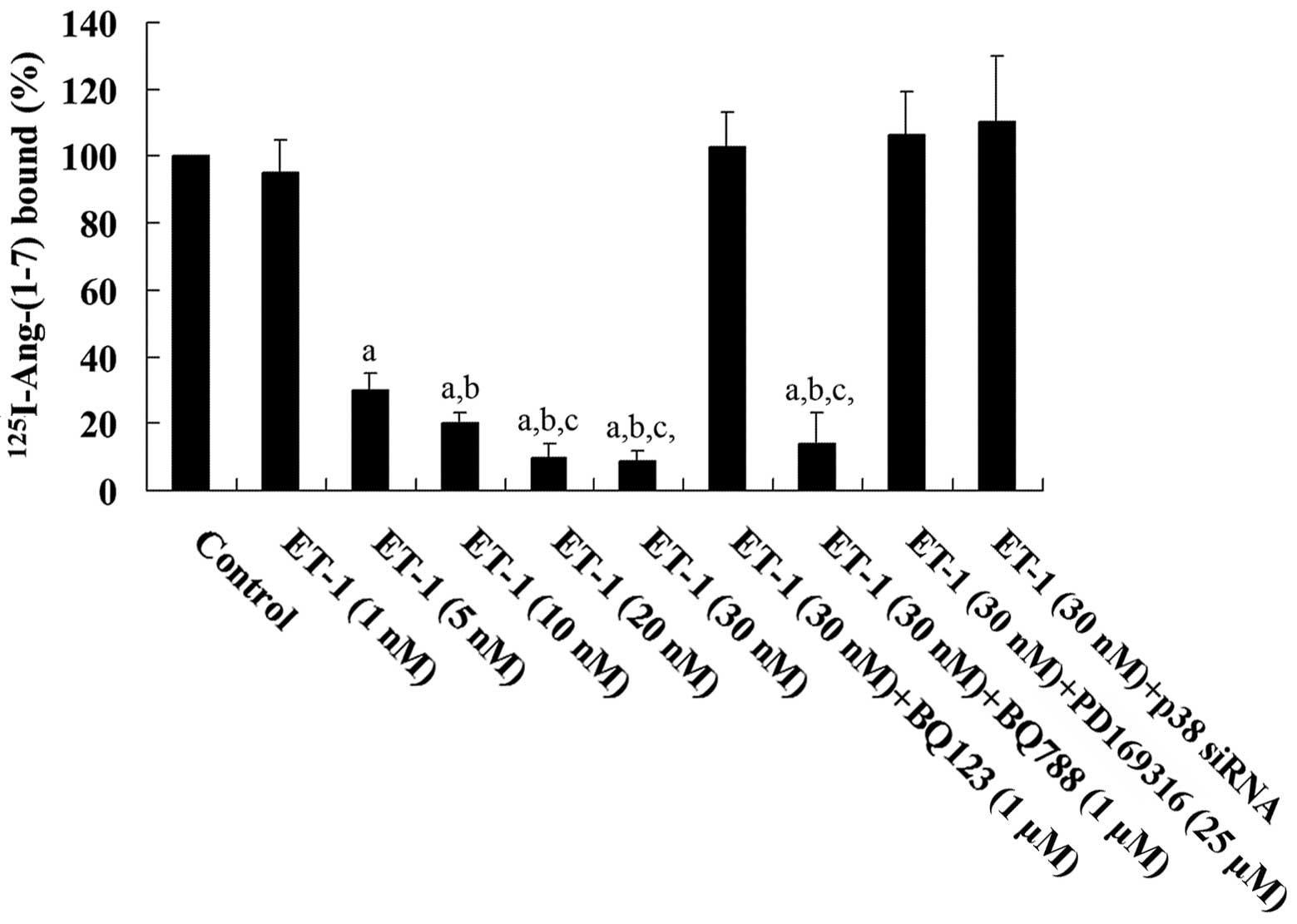

Figure 4 Saturation binding assay of Mas receptor on the cell membrane of human cardiomyocytes. Human cardiomyocytes were treated with ET-1 (1, 5, 10, 20 and 30 nM) with or without BQ123 (1 μM), BQ788 (1 μM), PD169316 (25 μM) or p38 mitogen-activated protein kinase siRNA for 4.5 h. Twenty-four h later, saturation binding assays were conducted using increasing concentrations of 125I-Ang-(1-7) (1–22 nM) on cell membranes. A single-site receptor binding model provided the best fit for data analysis. Disintegrations per min (dpm) data were normalized against the cell number (per 20000 cells) and shown as a percentage of that of untreated control cells (designated as 100%). aP<0.05 compared with untreated control cells; bP<0.05 compared with 5 nM ET-1 treatment and cP<0.05 compared with 10 nM ET-1 treatment.

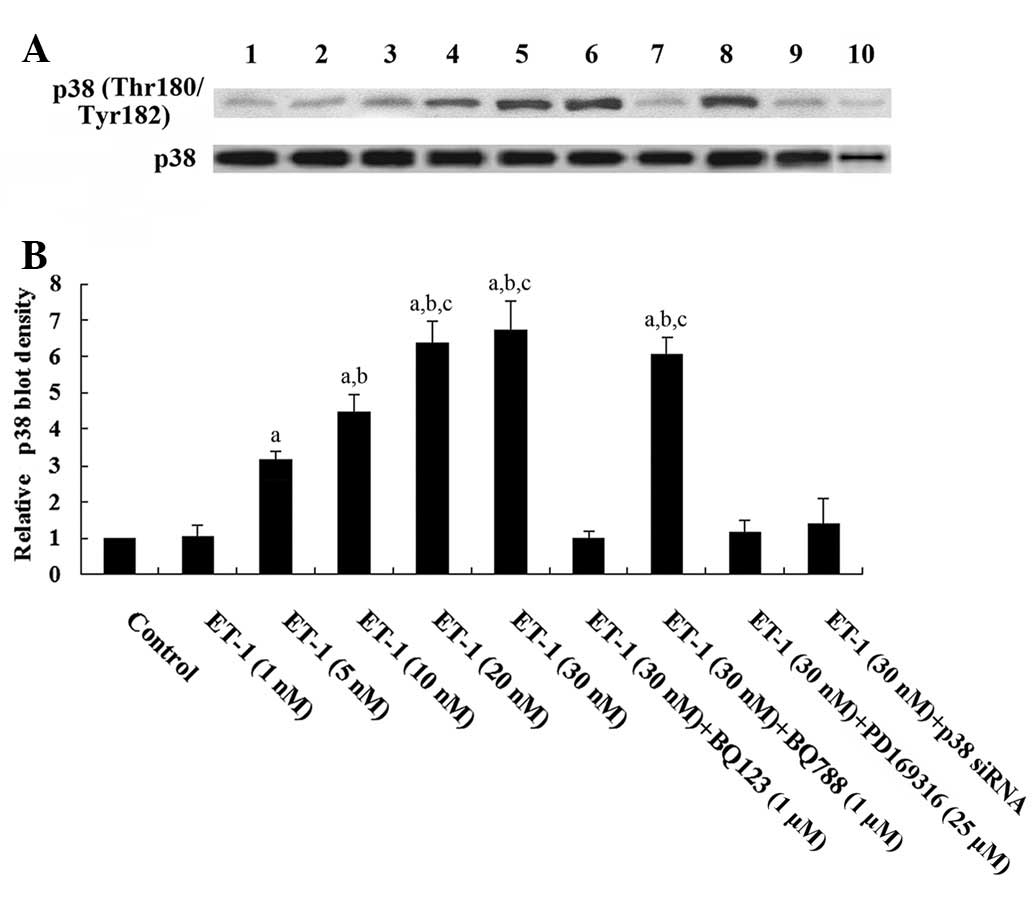

Figure 5 Western blot analysis of phosphorylated p38 mitogen-activated protein kinase (MAPK) levels in human cardiomyocytes. (A) Human cardiomyocytes were treated with ET-1 (1, 5, 10, 20 and 30 nM) with or without BQ123 (1 μM), BQ788 (1 μM), PD169316 (25 μM) or p38 MAPK siRNA for 4.5 h. Lysates from untreated human cardiomyocytes were used as a control (lane 1). Concentrations of ET-1 were as follows: Lane 2, 1 nM; lane 3, 5 nM; lane 4, 10 nM; lane 5, 20 nM; lane 6, 30 nM; lane 7, 30 nM and BQ123 (1 μM); lane 8, 30 nM and BQ788 (1 μM); lane 9, 30 nM and PD169316 (25 μM); lane 10, 30 nM and p38 siRNA. β-actin blotting was used as a loading control. (B) Phosphorylated p38 (Thr180/Tyr182) and total p38 MAPK levels were measured by densitometry. The density of the phosphorylated p38 (Thr180/Tyr182) (pp38) MAPK blot was normalized against that of total p38 MAPK levels to obtain a relative density, which was expressed as fold changes to that of untreated control cells (designated as 1). aP<0.05 compared with untreated control cells; bP<0.05 compared with 5 nM ET-1 treatment and cP<0.05 compared with 10 nM ET-1 treatment.

Discussion

Chronic myocardial stimulation by Ang II, the effector of the RAS, results in cardiac dysfunction (1). It is now accepted that the ACE2/Ang-(1-7)/Mas axis is able to counteract most of the deleterious actions of the ACE/Ang II/AT1 receptor axis, particularly in pathological conditions (11). ET-1, an important circulating hormone and a paracrine factor, is also involved in cardiac dysfunction (19). The present study was the first to demonstrate that ET-1 downregulates Mas expression in human cardiomyocytes.

ET-1 is released from cardiomyocytes and affects cardiac functions by either autocrine or paracrine mechanisms (20). A selective ETA receptor blocker, but not ETB receptor blocker, completely eliminated the effects of ET-1, indicating that ET-1 inhibited Mas expression via the ETA receptor. In addition, a selective p38 MAPK inhibitor or siRNA completely blocked the inhibitory effects of ET-1, indicating that ET-1 downregulates Mas expression by a p38 MAPK-dependent mechanism via the ETA receptor. Additional studies are needed to elaborate on the mechanisms of how ET-1 regulates Mas expression through p38 MAPK signaling.

The present study demonstrated that 10 nM ET-1 inhibited Mas gene transcription by ~75% within 4.5 h, suggesting that ET-1 is a strong negative regulator of the ACE2/Ang-(1-7)/Mas axis. This finding supports results of a previous study whereby ET-1 treatment at 10 nM for 12 h reduced ACE2 mRNA by ~60% in cardiomyocytes (21). According to the findings of the present study, Mas is regulated more readily and may serve as a better therapeutic target compared with ACE2 in cardiomyocytes, as it responds to the ET-1 treatment more rapidly and to a greater extent. Thus alterations in the Mas expression level may be an acute cardiac response to the pathophysiological conditions, such as elevated plasma ET-1 levels.

Mas mediates most of the known cardioprotective effects of Ang-(1-7)(4). Elevated ET-1 levels may promote cardiac dysfunction by inhibiting ACE2 (21) and Mas expression, this will result in an increased concentration of Ang II, a recognized mediator of cardiomyocyte and cardiac dysfunction (1); a decreased concentration of Ang-(1-7), the protective peptide for cardiomyocytes, mainly by antagonizing the effects of Ang II; and a decreased Ang-(1-7)/Mas signaling due to a markedly reduced Mas expression. As the inhibitory effects of ET-1 on Mas expression is mediated through the ETA receptor, a selective ETA blocker may be beneficial for patients with cardiac dysfunction, which would be an interesting topic for future in vivo studies.

A number of studies have substantially supported the importance of the ACE2/Ang-(1-7)/Mas axis in renal function (22). As ET-1 is also involved in renal dysfunction (14), the regulatory effects of ET-1 on Mas expression would constitute an interesting topic in the field of kidney disease.

In conclusion, the present study has demonstrated that ET-1 downregulates Mas expression at the transcription level in human cardiomyocytes via the ETA receptor by a p38 MAPK-dependent mechanism. This study provides novel insights into the function of ET-1 and the Ang-(1-7)/Mas axis in cardiac pathophysiology.
