Introduction

Gastric cancer has high metastasis and recurrence rates following curative resection, and is the second leading cause of cancer-associated mortality worldwide (1–3). Indeed, the majority of gastric cancer cases are identified at the advanced stages and often develop recurrence following curative resection. Thus, the poor prognosis increases the importance of chemotherapy for treating gastric cancer (4). However, in the clinic, chemotherapy drugs often cause serious side-effects, including immunosuppression, gastrointestinal toxicity and body weakness (5,6). Thus, chemotherapeutic drug candidates derived from natural compounds with low toxicity and low adverse effects have attracted increasing attention.

Interleukin-8 (IL-8), a cytokine of the CXC chemokine family (7), is highly expressed in numerous tumor tissues (8). Accumulating evidence has indicated that overexpression of IL-8 is closely associated with increased adhesion and invasion of human gastric cancer cells, whereas inhibition of IL-8 expression reduces relevant risks (7–10). Accordingly, chemical compounds targeting IL-8 may be useful for controlling the metastasis of gastric cancer.

Berberine hydrochloride (BER), a major active alkaloid molecule isolated from Coptis Chinensis Franch. (Huanglian), is typically used to treat infectious gastrointestinal diseases and bacterial diarrhea in the clinic. Previous studies demonstrated that BER exerts anti-tumor activity against various types of cancer cells, including human hepatocellular carcinoma (SMMC-7721 cells), gastric cancer (AGS cells, SGC 7901 cells and BGC-823 cells) and colorectal cancer (SW620 cells and LoVo cells) in vitro and in vivo (11–14). Similarly, previous investigation has demonstrated that BER inhibited proliferation and IL-8 expression in AGS cells, a gastric cancer cell line, in vitro (10,15). However, whether BER can prevent gastric cancer development and IL-8 secretion in vivo has not been demonstrated.

BER has previously been demonstrated to modulate mitogen-activated protein kinase (MAPK) signaling pathways, including the extracellular signal-regulated kinase 1/2 (ERK1/2), p38 MAPK and c-Jun N-terminal kinase (JNK) pathways, to exert anti-cancer effects may be cell-type specific. For instance, BER activates MAPKs in human colonic carcinoma cells (16), human hepatoma (HepG2) and non-small cell lung cancer cells (17–19). Whereas in human cervical carcinoma HeLa cells, BER enhances JNK and ERK1/2 phosphorylation but inhibits p38 MAPK phosphorylation (20). Currently, the effect of BER on MAPK pathways in gastric cancer cells remains poorly understood.

Thus, in present study, the effects of BER on gastric cancer MGC 803 cell proliferation and IL-8 secretion were investigated in vitro and in vivo. Furthermore, the association between MAPK pathway inactivation and the proliferative inhibition of BER, and IL-8 secretion in MGC 803 cells was also examined. The results may provide a novel and safe strategy for the therapy of gastric cancer using BER.

Materials and methods

Materials and chemicals

BER (purity, 98%), evodiamine (EVO; purity, 98%) and 5-fluorouracil (5-Fu; purity, 98%) were obtained from Melonepharma Co., Ltd. (Dalian, China). Trypsin and fetal bovine serum (FBS) were obtained from Gibco (Thermo Fisher Scientific, Inc. Waltham, MA, USA). Cell Counting Kit-8 (CCK-8) was purchased from Dojindo Molecular Technologies, Inc. (Kumamoto, Japan). IL-8 (cat. no. 88-8086-88) and TNF-α (cat. no. 88-7346-88) enzyme-linked immunosorbent assay (ELISA) kits were obtained from eBioscience, Inc., (San Diego, CA, USA). Anti-GAPDH (cat. no. 5174), anti-phospho (p) p38 MAPK (cat. no. 4511), anti-pERK1/2 (cat. no. 9154), anti-pJNK (cat. no. 4668) and anti-β-actin (cat. no. 12413) antibodies were supplied by Cell Signaling Technology, Inc. (Danvers, MA, USA). Enhanced chemiluminescence (ECL) Prime kit was purchased from GE Healthcare Life Sciences (Chalfont, UK). SB202190, SP600125 and PD98059 were purchased from Selleck Chemicals (Houston, TX, USA). Anisomycin was obtained from EMD Millipore (Billerica, MA, USA).

Cell culture

MGC 803 cells obtained from the Type Culture Collection of Chinese Academy of Sciences (Shanghai, China) were cultured in RMPI 1640 medium (Thermo Fisher Scientific, Inc.), supplemented with 10% FBS. The cells were cultured at 37°C in a humidified incubator with 5% CO2.

Proliferation assay

Cells were seeded in 100 µl medium at 1.0×104 cells/ml in 96-well culture plates and cultured overnight. Following pre-incubation with or without inhibitors of p38 MAPK (25 µM SB202190), ERK1/2 (20 µM PD98059), JNK (20 µMSP600125) and the activator of MAPKs (0.05 µg/ml anisomycin) for 1 h, cells were treated with BER (0, 7.5, 15, 30 and 60 µM) for 24 or 48 h. The medium was then removed and replaced with equal volume of fresh medium with additional 10 µl CCK-8 solution and incubated at 37°C for 20 min. Absorbance of the dissolved solutions was detected at 450 nm using a Varioskan Flash microplate reader (Thermo Fisher Scientific, Inc.). Cell viability rate (%) was calculated as follows: (Absorbance of drug-treated sample/absorbance of control sample) ×100.

ELISA assay

For in vitro experiments, MGC 803 cells were seeded in 96-well culture plates and cultured overnight. Following treatment with BER (0, 15, 30 and 60 µM) for 48 h, culture medium was collected and subjected to IL-8 and TNF-α ELISA assay using the respective kits. To identify the involvement of MAPKs in modulation of IL-8 expression, the cells were pre-treated with SB202190 (25 µM), SP600125 (20 µM), PD98059 (20 µM) and anisomycin (0.25 µg/ml) for 1 h, then treated with or without BER (60 µM) for 24 or 48 h. The culture medium was collected for IL-8 ELISA.

For in vivo experiments, serum and the supernatant of tumor homogenates from nude mice xenografts were used for IL-8 ELISA.

Western blotting analysis

Cells or tumor tissues were lysed with CelLytic MT Cell Lysis Reagent (Sigma-Aldrich, St. Louis, MO, USA) and sonicated three times, each for 15 sec. The lysate was centrifuged at 14,000 × g for 15 min at 4°C and the supernatant was collected. Protein concentration was determined by the bicinchoninic acid method. Protein samples (30 µg) were separated by SDS-PAGE and transferred onto polyvinylidene difluoride (PVDF) membrane using the wet transfer method. Then, PVDF membranes were blocked with 5% non-fat milk solution at room temperature for 1 h and incubated with the different primary antibodies (anti-GAPDH, 1:5,000; anti-p-p 38, 1:1,000; anti-p-ERK, 1:1,000; anti-p-JNK, 1:1,000; and anti-β-actin, 1:2,000) overnight at 4°C. After washing with 1X phosphate-buffered saline Tween 20 (PBST), PVDF membranes were incubated with the respective secondary antibodies (1:5,000; cat. no. 111-035-003; Jackson ImmunoResearch Laboratories, Inc., West Grove, PA, USA) for 1 h at room temperature. The protein bands were visualized with the ECL Prime kit and X-ray films.

Reverse transcription-quantitative polymerase chain reaction (RT-qPCR)

Total RNA was extracted from the MGC 803 cells by using TRIzol reagent. RT was performed using a Prime-Script RT reagent kit (Takara Biotechnology Co., Ltd., Dalian, China). Forward and reverse primers used for qPCR are presented in Table I. qPCR reactions were performed using SYBR Premix Ex Taq (Takara Biotechnology Co., Ltd.) under the following cycling conditions: Initial step of 95°C for 30 sec; followed by 95°C for 5 sec and 60°C for 34 sec for 40 cycles; with final steps of 95°C for 15 sec, 60°C for 1 min and 95°C for 15 sec. The relative expression level of IL-8 was normalized to that of GAPDH in the same sample. Relative expression of target genes was normalized to GAPDH, analyzed by 2−ΔΔCq method (21) and presented as a ratio compared with the control.

Table I Sequences of primers used for reverse transcription-quantitative polymerase chain reaction.

Table I

Sequences of primers used for reverse transcription-quantitative polymerase chain reaction.

Gene	Forward primer	Reverse primer
GAPDH	GCACCGTCAAGGCTGAGAAC	TGGTGAAGACGCCAGTGGA
Interleukin-8	CATACTCCAAACCTTTCCACC	AAACTTCTCCACAACCCTCTG

Tumor xenograft model in nude mice

Thirty 4-week-old male BALB/C nude mice were purchased from Shanghai SLAC Laboratory Animal Co., Ltd. (Shanghai, China; license no. SCXK 2014-0008). The tumor xenograft model was established by subcutaneous injection of MGC 803 cells (5×106 cells in 200 µl PBS) into the right flank of the mouse. Animals bearing tumors were randomly divided into five groups (n=6) as follows: i) Control group; ii) EVO group (45 mg/kg); iii) BER group (15 mg/kg); iv) BER + EVO group (EVO 45 mg/kg, BER 15 mg/kg) and v) 5-Fu group (25 mg/kg). Prior to injection of the MGC 803 cells, mice were orally administrated with BER, EVO or 5-Fu, and administration was continued for 23 days. Body weight and two perpendicular tumor diameters (width, a; length, b) were recorded every 4 days. The tumor volume was calculated as ab2/2. Following completion of treatment, the mice were sacrificed using 1% pentobarbital sodium (DingGuo Biotech Co., Ltd., Shanghai, China). The tumors were dissected, weighed, and stored at −80°C for use in ELISA and western blotting.

All animal experiments were performed according to the protocols approved by Animal Care and Use Committee of Shanghai University of Traditional Chinese Medicine, (Shanghai, China) which complies with international rules and policies. All efforts were made to minimize suffering and reduce the number of animals used.

Statistical analysis

Values are presented as the mean ± standard error. Differences among groups were analyzed by one-way analysis of variance with Newman-Keuls test using Prism software (version 5; GraphPad Software, Inc., La Jolla, CA, USA). P<0.05 was considered to indicate a statistically significant difference.

Results

BER suppresses proliferation of MGC 803 cells in vitro

BER demonstrated an inhibitory effect on the viability of MGC 803 cells in a dose- and time-dependent manner. As demonstrated in Fig. 1, BER treatment (7.5–60 µM) significantly decreased the cell viability compared with the control (P<0.001) at 24 and 48 h. Furthermore, prolonged BER treatment (48 h) led to increased injury to the MGC 803 cells as demonstrated by the reduced cell viability.

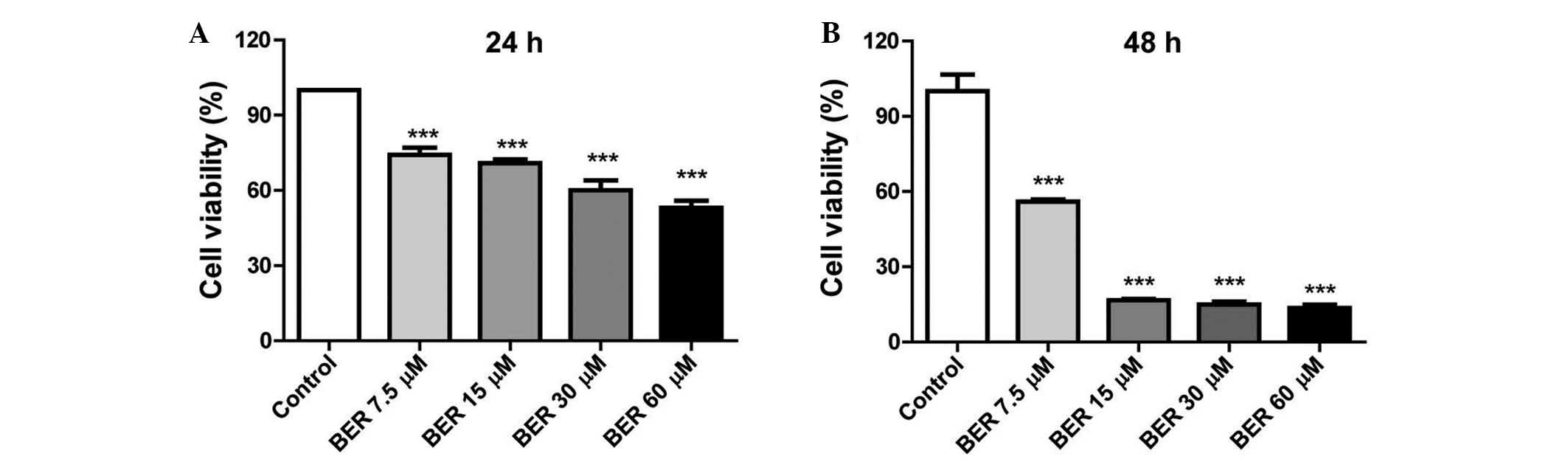

Figure 1 Effect of BER on MGC 803 cell viability. BER treatment for (A) 24 h and (B) 48 h decreased cell viability, which was measured by Cell Counting Kit-8 assay. Data are presented as the mean ± standard error. ***P<0.001 vs. control. BER; berberine hydrochloride.

BER inactivates MAPK pathways in MGC 803 cells

To determine the association between MAPK signaling pathways, including p38 MAPK, ERK1/2 and JNK pathway, and cell survival of MGC 803 cells, western blot analysis was performed. As demonstrated in Fig. 2, BER treatment at 15, 30 and 60 µM for 24 and 48 h reduced the phosphorylation of p38 MAPK, ERK1/2 and JNK in a dose- and time-dependent manner.

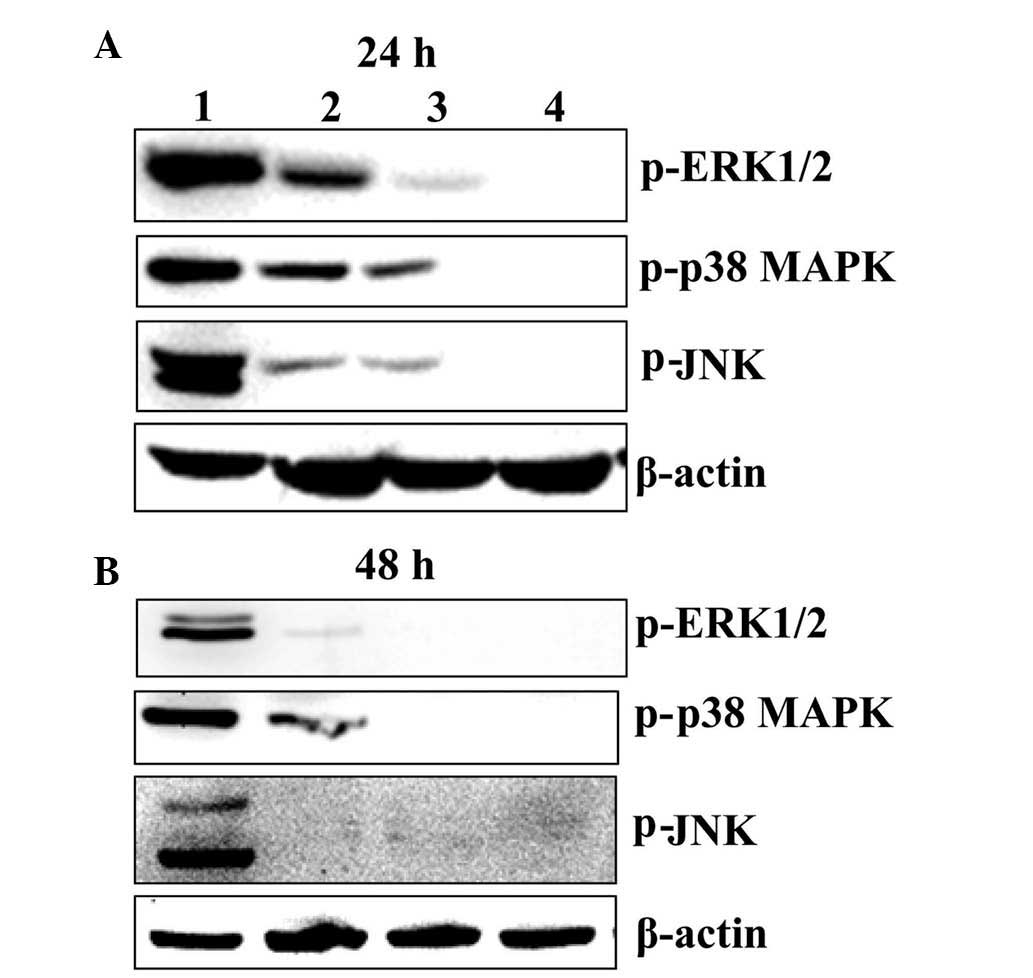

Figure 2 Effect of BER on the phosphorylation of p38 MAPK, ERK1/2 and JNK in MGC 803 cells. BER treatment for (A) 24 h and (B) 48 h inhibited intracellular phosphorylation of p38 MAPK, ERK1/2 and JNK, as measured by western blotting. 1: Control; 2: 15 µM BER; 3: 30 µM BER; 60 µM BER. BER, berberine hydrochloride; MAPK, mitogen-activated protein kinase; ERK, extracellular signal-regulated kinase; JNK, c-Jun N-terminal kinase.

In order to further clarify the importance of MAPK signaling in the cell proliferation, and whether BER inhibited cell proliferation of gastric cancer cells via deactivating MAPKs, the inhibitors of p38 MAPK (SB202190), JNK (SP600125) and ERK1/2 (PD98059) were used in a CCK-8 assay. As demonstrated in Fig. 3A, in MGC 803 cells, these inhibitors enhanced the inhibitory effect of BER on cell proliferation compared with BER treatment (P<0.001, P<0.001 and P<0.05). Notably, anisomycin, an activator of p38 MAPK and JNK, also significantly reduced cell viability of MGC 803 cells compared with controls (Fig. 3C). As demonstrated in Fig. 3B and D, as BER treatment for 48 h killed the majority of the cancer cells, combination of BER with the inhibitors or activator of MAPKs did not demonstrate a synergistic effect at this time point.

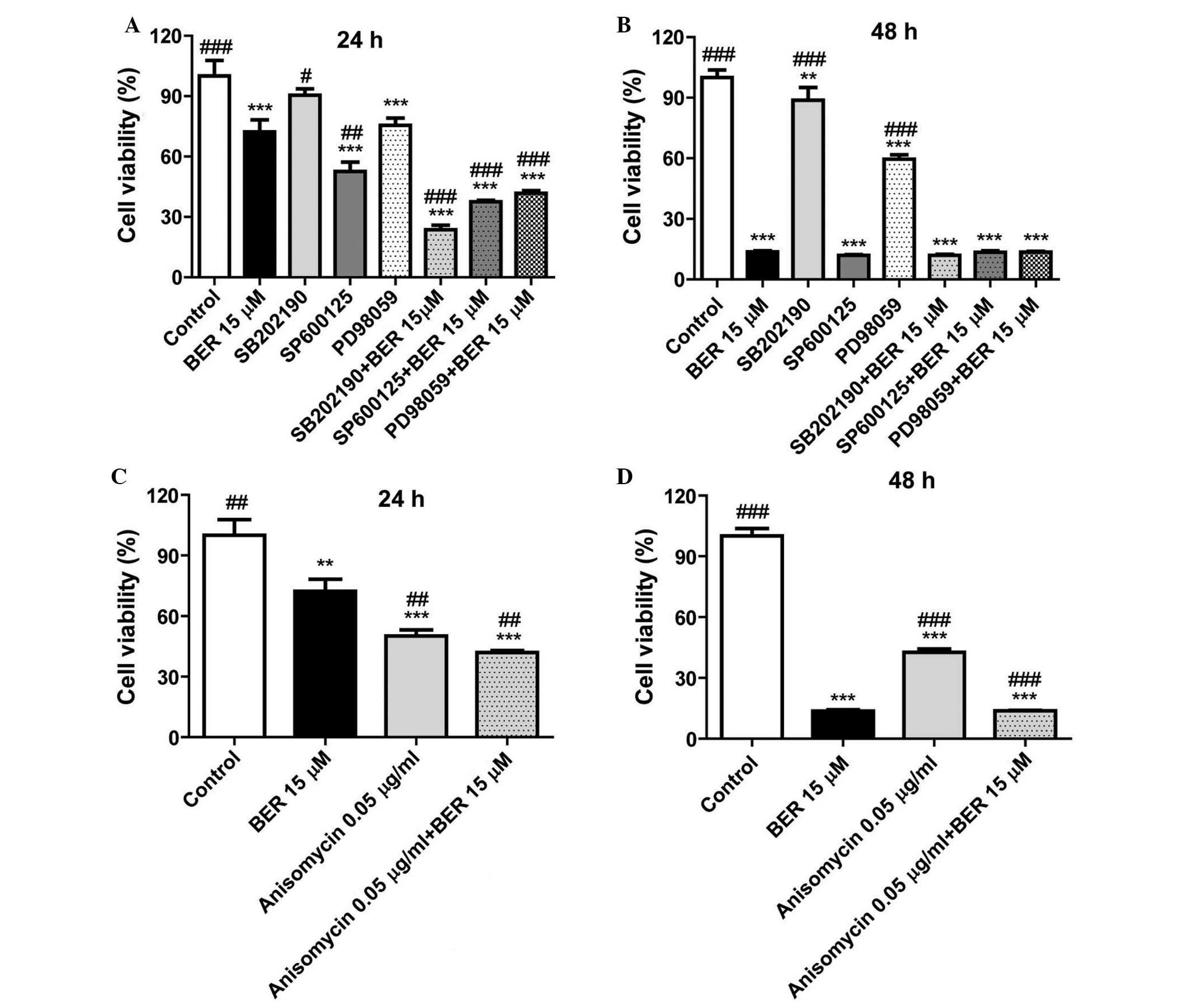

Figure 3 MAPKs are involved in the inhibitory effect of BER on cell proliferation. (A) Cell viability was detected by Cell Counting Kit-8 assay following treatment with 15 µM BER, 25 µM SB202190 (p38 MAPK inhibitor), 20 µM SP600125 (JNK inhibitor) and 20 µM PD98059 (extracellular signal-regulated kinase 1/2 inhibitor) for 24 h and (B) the same conditions for 48 h. (C) Cell viability was detected by Cell Counting Kit-8 assay following treatment with 15 µM BER and 0.05 µg/ml anisomycin (p38 MAPK and JNK activator) for 24 h and (D) under the same conditions for 48 h. Data are presented as the mean ± standard error. **P<0.01, ***P<0.001 vs. control. #P<0.05, ##P<0.01, ###P<0.001 vs. BER 15 µM. BER, berberine hydrochloride; MAPK, mitogen-activated protein kinase; JNK, c-Jun N-terminal kinase.

BER decreases IL-8 secretion and gene expression levels in MGC 803 cells

In previous research, BER was demonstrated to inhibit IL-8 expression in a dose- and time-dependent manner in AGS and MDA-MB-231 cells (10,12). However, whether the inhibitory effect of BER on IL-8 expression is cell-type specific remains unclear. The present study demonstrated that BER also reduces the secretion (P<0.001; Fig. 4A) and gene expression levels (P<0.001; Fig. 4B) of IL-8 in MGC 803 cells compared with controls. Further investigation demonstrated that anisomycin significantly increased the secretion of IL-8 and reduced cell viability of MGC 803 cells compared with controls (P<0.001), which was completely abolished by combination with BER treatment (P<0.001; Fig. 4C and D). Furthermore, as demonstrated in Fig. 4E, treatment with SB202190, SP600125 or PD98059 significantly decreased IL-8 secretion in MGC 803 cells compared with controls (P<0.001). However, BER did not alter TNF-α production of the cells (Fig. 4F). Thus, the results of the present study indicated that BER specifically affects IL-8 production in MGC 803 cells.

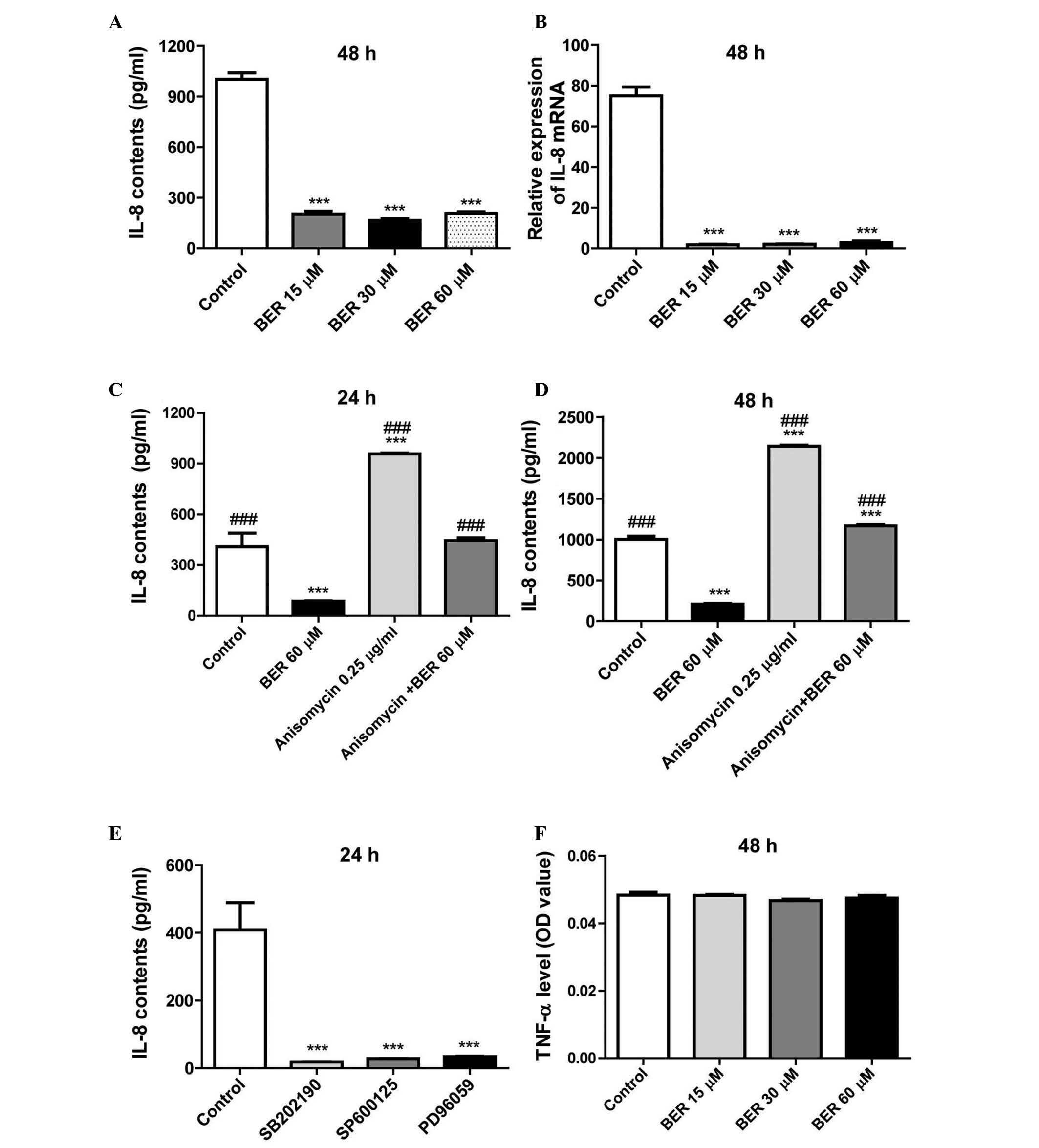

Figure 4 Effect of BER on IL-8 gene expression and secretion of MGC 803 cells. (A) BER treatment (60 µM) for 48 h decreased IL-8 secretion. (B) BER treatment (60 µM) for 48 h reduced the mRNA levels of IL-8. (C) BER treatment (60 µM) for 24 h and (D) 48 h inhibited IL-8 expression through deactivating MAPKs, shown using activator of p38 MAPK and JNK, anisomycin (0.25 µg/ml). (E) Inhibitors of p38 MAPK (SB202190), JNK (SP600125) and extracellular signal-regulated kinase 1/2 (PD98059) prevented IL-8 secretion after treatment with BER (60 µM) for 24 h. (F) BER treatment (60 µM) for 48 h did not affect TNF-α secretion. Data are presented as the mean ± standard error. ***P<0.001 vs. control; ###P<0.001 vs. BER 60 µM. BER, berberine hydrochloride; MAPK, mitogen-activated protein kinase; JNK, c-Jun N-terminal kinase.

BER inhibits tumor development from MGC 803 cells in vivo

To examine the anti-tumor effect of BER in vivo, a human gastric cancer xenograft model was used in BALB/C nude mice. In nude mice transplanted with MGC 803 cells were treated with the drugs for 23 days. 5-Fu (25 mg/kg), was administered as a positive control and significantly prevented the growth of tumor (Fig. 5), with the tumor weight and volume of mice in this group significantly reduced compared with the control group (P<0.001). However, long-term treatment with 5-Fu led to a significant reduction in the body weight compared with control mice (P<0.001). By contrast, BER (15 mg/kg daily) significantly reduced the tumor weight and tumor volume compared with controls (P<0.05 and P<0.001, respectively), and also did not lead to body weight loss. EVO treatment also significantly inhibited tumor weight and size compared with controls (P<0.05 and P<0.01, respectively). Co-administration of EVO and BER demonstrated a trend to inhibit tumor weight and volume compared with BER or EVO alone, but without a statistically significant difference. Both EVO and combination of BER and EVO demonstrated no significant effect on body weight.

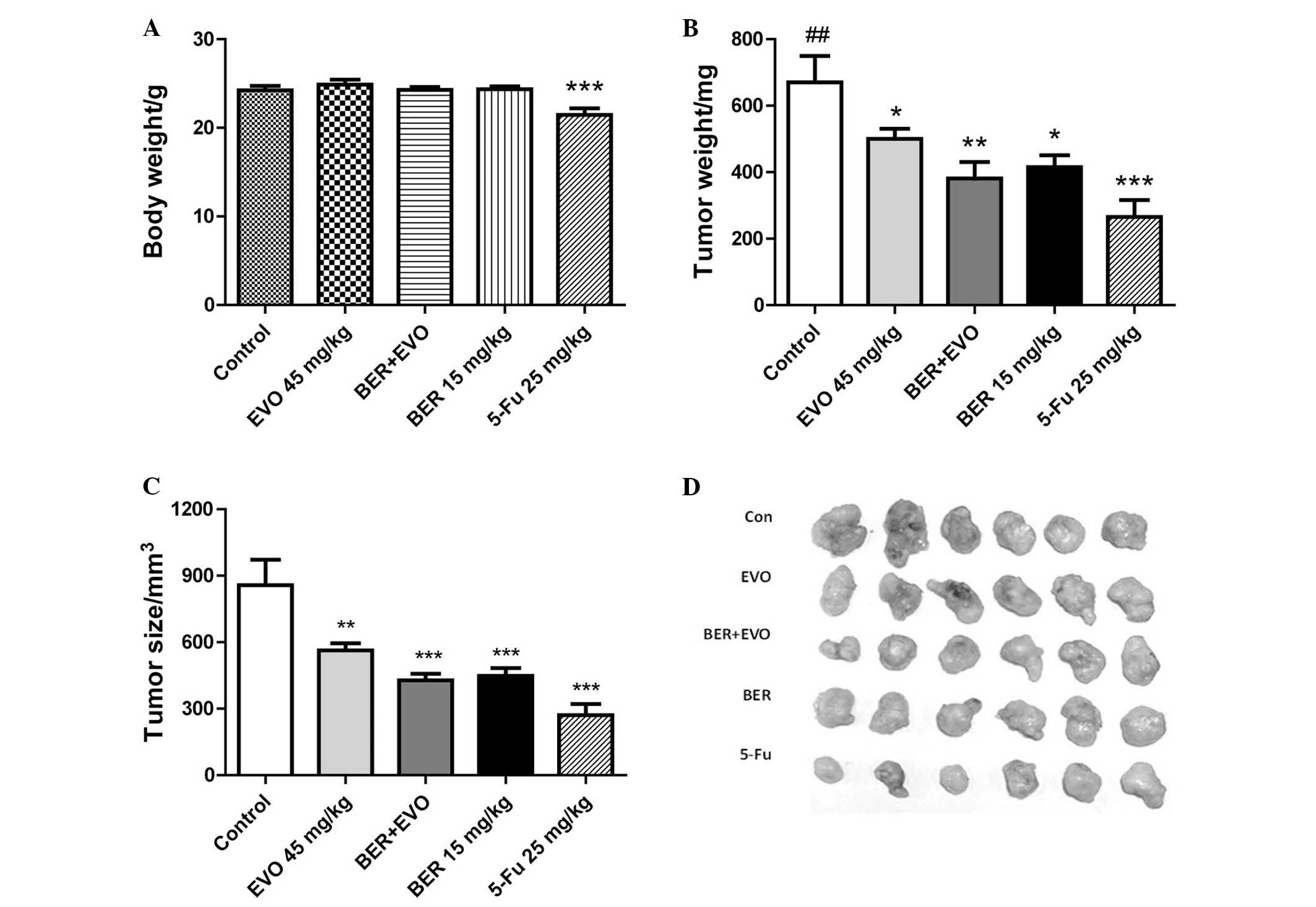

Figure 5 Effect of BER on tumor growth of human gastric cancer xenograft. (A) BER exhibited no obvious effect on body weight of nude mice, while 5-Fu induced a significant weight loss. BER, EVO, 5-Fu and BER + EVO reduced the (B) tumor weight and (C) tumor size following treatment for 23 days, however, there was no obvious synergistic effect between BER and EVO. (D) Comparison of xenograft tumors excised from the mice treated with control, EVO, BER + EVO, BER and 5-Fu. Data are presented as the mean ± standard error. *P<0.05, **P<0.01, ***P<0.001 vs. control; ##P<0.01 vs. BER + EVO. BER, berberine hydrochloride; EVO, evodiamine; 5-Fu, fluorouracil.

BER inhibits upregulation of IL-8 induced by EVO in nude mice xenografted with MGC 803 cells

In a previous study, EVO was demonstrated to upregulate IL-8 expression in AGS cells in vitro (10), whether it induces IL-8 expression in vivo remains to be determined. In the present study, EVO, the alkaloid from Evodia fructus, significantly suppressed MGC 803 tumor development in nude mice compared with controls (Fig. 5), but increased IL-8 production in tumor tissue (P<0.01; Fig. 6A) and serum (P<0.05; Fig. 6B). BER treatment alone, or in combination with EVO significantly attenuated the increase of IL-8 in tumor tissue and serum compared with EVO treatment (P<0.01 and P<0.05, respectively).

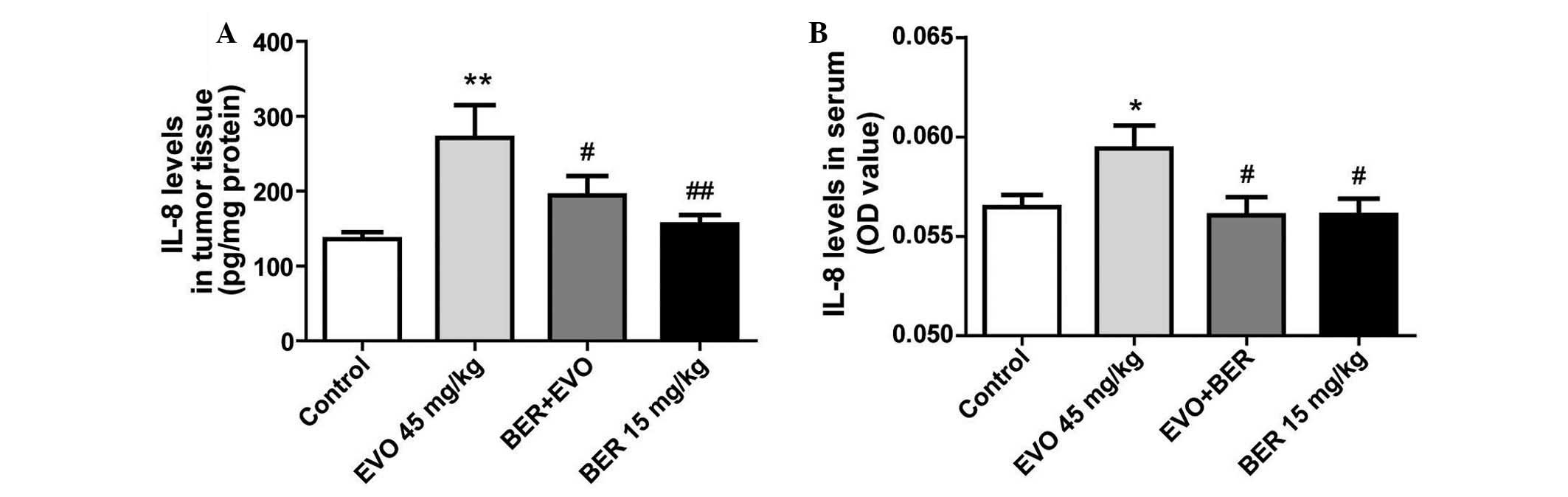

Figure 6 Effect of BER on IL-8 secretion in nude mice with gastric cancer. (A) BER decreased IL-8 level in tumor tissue measured by ELISA assay (B), BER decreased IL-8 secretion in serum measured by ELISA assay. Data are presented as the mean ± standard error. *P<0.05, **P<0.01 vs. control. #P<0.05, ##P<0.01 vs. EVO 45 mg/kg. ELISA, enzyme-linked immunosorbent assay; IL-8, interleukin-8; OD, optical density; BER, berberine hydrochloride; EVO, evodiamine.

BER inactivates MAPKs in the tumor tissue of nude mice xenografted with MGC 803 cells

Following treatment with BER at a dose of 15 mg/kg for 23 days, the phosphorylation levels of p38 MAPK, ERK1/2 and JNK in tumor tissue was significantly reduced compared with controls (Fig. 7). By contrast, EVO alone did not alleviate the phosphorylation of p38 MAPK, ERK1/2 and JNK compared with control levels. However, co-treatment with BER and EVO markedly reduced the phosphorylation of the MAPKs in tumor tissues compared with control and EVO-treated nude mice.

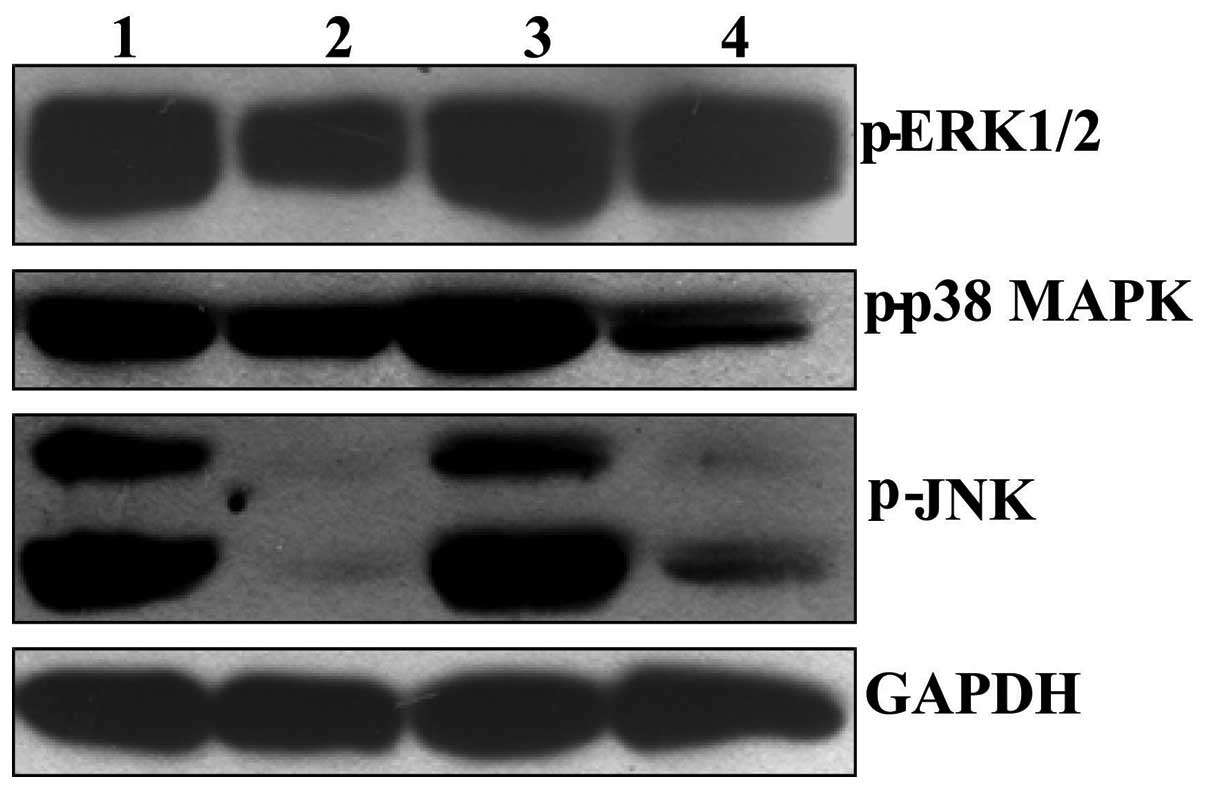

Figure 7 Effect of BER on phosphorylation of p38 MAPK, ERK1/2 and JNK in tumor tissues of nude mice bearing gastric cancer. After treatment with drugs for 23 days, the mice were sacrificed and the tumor were dissected, homogenized and subjected to western blotting assay. 1: Control; 2: BER, 15 mg/kg; 3: EVO, 45 mg/kg; 4: EVO+BER. MAPK, mitogen-activated protein kinase; ERK, extracellular signal-regulated kinase; JNK, c-Jun N-terminal kinase; BER, berberine hydrochloride; EVO, evodiamine.

Discussion

Previous studies have demonstrated the inhibitory effect of BER on the proliferation of cancer cells, and that the effect is predominantly mediated via the inactivation of the phosphatidylinositol 3-kinase/AKT serine/threonine kinase 1 signaling pathway (12,13). MAPK pathways have also previously been indicated to be involved in the anti-cancer effect of BER, however reports vary depending on the cancer cell type (12,16–20). Although BER has previously been demonstrated to exert anti-tumorigenesis functions in various gastric cancer cell lines, including SGC 7901, BGC 823, AGS, SNU-5, SC-M1 and NUGC-3 cells (10,13,22,23), its effect on cell viability, IL-8 expression and MAPK signaling in MGC 803 cells has not been previously investigated. In the current study, BER was demonstrated to significantly decrease the cell viability of MGC 803 cells in a dose- and time-dependent manner. Further analysis demonstrated that the phosphorylation of p38 MAPK, ERK1/2 and JNK were inhibited by BER even at a low concentration (15 µM). Using inhibitors of p38 MAPK (SB202190), ERK1/2 (PD98059) and JNK (SP600125), the present study demonstrated that the downregulated phosphorylation of p38 MAPK, ERK1/2 and JNK were involved in the inhibitory effect of BER on the cell viability of MGC 803 cells. Considering the difference between in vitro and in vivo settings, the effect of BER on gastric tumors developed from xenografted MGC 803 cells was also evaluated. The results demonstrated that 15 mg/kg BER significantly inhibited the tumor growth and reduced the phosphorylation of p38 MAPK, ERK1/2 and JNK. Thus, inactivation of MAPK signaling is indeed involved in the anti-tumor activity of BER on MGC 803 cells in vitro and in vivo. Furthermore, compared with 5-Fu, BER inhibited tumor growth without affecting body weight, which is a general side-effect of chemotherapeutic drugs.

It is well established that various chemotherapeutic agents induce upregulation of IL-8 levels in tumor cells, which is closely associated with chemotherapy resistance and cancer metastasis (7,9,10,12,24–30). Overexpression of IL-8 in cancer cells is known to be important for the tumor microenvironment via binding to CXC motif chemokine receptor 1 (CXCR1) and CXCR2 receptors on tumor cells, neutrophils/tumor-associated macrophages and endothelial cells, and promotes angiogenesis and metastasis (7,9,24,28,31). By contrast, depletion of IL-8 induces cell cycle arrest and increases the efficacy of chemotherapeutic agents in breast cancer cells (32). Thus, chemotherapeutic agents with an inhibitory effect on IL-8 production may have increased efficacy. In the present investigation, BER significantly decreased IL-8 secretion in MGC 803 cells in vitro and in vivo, demonstrating its safety and efficacy in inhibiting gastric cancer cells.

MAPKs have previously been demonstrated to be involved in the modulation of IL-8 production (25,28,33). In accordance with the previous reports, the current results indicated that activation of the ERK1/2, JNK and p38 MAPK signaling pathways was closely associated with constitutive IL-8 secretion in MGC 803 cells. Additionally, inhibitors of p38 MAPK, JNK and ERK significantly decreased IL-8 expression in MGC 803 cells. Whereas, when the MAPK agonist, anisomycin, was applied, IL-8 secretion was upregulated. BER, similarly to the MAPK inhibitors, reduced the phosphorylation of ERK1/2, JNK and p38 MAPK, and counteracted the increased IL-8 secretion induced by anisomycin. Activation of MAPKs by anisomycin also decreased cell viability of MGC 803 cells. However, in accordance with the findings of the current study, curcumin has previously been reported to induce apoptosis through activation of ERK1/2 in AGS cells (34), whereas apoptosis was enhanced by capsaicin through inhibition of MAPKs in AGS cells (35). These results reflect the complex functions of MAPKs in cancer cells.

In a previous study in AGS cells, EVO was demonstrated to significantly enhance IL-8 expression, the effect of which was counteracted by BER (10). Consistent with its in vitro effects, the results of the current study demonstrated that in addition to the inhibition of tumor growth, EVO upregulated IL-8 secretion in serum and tumor tissue of tumor xenografted nude mice, which was also inhibited by BER. As it is not constitutively expressed in mice (36), the levels of IL-8 in nude mouse serum secreted from tumor tissue was relatively low, the optical density value of which was beyond the limit of detection of the ELISA kit. Compared with control mice, EVO-treated mice did not demonstrate significant changes in the levels of phosphorylated p38 MAPK, ERK1/2 and JNK. However, when BER was added, the level of phosphorylation of MAPKs in MGC 803 cell-derived tumors was markedly reduced. These results indicated that co-administration of EVO with BER may be a safer therapy for gastric cancer without reduction of its efficacy.

In conclusion, BER reduced the growth of MGC 803 cells and IL-8 expression levels in vitro and in vivo, which was associated with deactivation of p38 MAPK, ERK1/2 and JNK signaling pathways. Furthermore, BER significantly counteracted the upregulation of IL-8 production induced by EVO in vivo. The findings of the present study demonstrated the potential safety and efficacy of BER in the clinical therapy of gastric cancer.

Acknowledgments

This work was supported by the Educational Commission of Shanghai of China (grant no. 2012JW19), Key Research Innovation Project (grant no. 13ZZ099), Key Project from Department of Education of China (grant no. 20123107130002), Shanghai Eastern Scholar Program (grant no. 2013–59) and Shanghai E-research Institute of Bioactive Constituent in TCM plan.
