Introduction

Liver fibrosis is the common consequence of chronic liver diseases and may progress to cirrhosis and hepatocellular carcinoma (HCC). It is characterized by accumulation of extracellular matrix (ECM) components, including collagen, fibronectin and laminin (1). The mechanisms underlying liver fibrosis are still largely unclear. Hepatic stellate cells (HSCs) are the predominant cell type in the development of liver fibrosis. The activation and transdifferentiation of HSCs are pivotal events in liver fibrosis (2,3). Following liver injury, quiescent HSCs are exposed to different inflammatory cytokines, including transforming growth factor (TGF)-β1, and then undergo a process of activation to a myofibroblastic phenotype, finally resulting in the excess production of ECM components (4). Thus, suppression of HSCs activation is the main approach for the treatment of liver fibrosis.

Follistatin-like 1 (Fstl1), also known as TSC-36, is a secreted glycoprotein that belongs to the follistatin and SPARC (secreted protein, acidic and rich in cysteine) families. Increasing evidences have reported that Fstl1servescritical roles in angiopoiesis, immunomodulation, embryonic development and tumorigenesis (5–8). For example, overexpression of FSTL1 significantly inhibited cell proliferation and invasion in ovarian and endometrial cancers (9). More recently, it was reported that Fstl1 is induced in response to lung injury; and blockage of Fstl1 with a neutralizing antibody attenuated bleomycin-induced lung fibrosis in vivo (10). However, the role of Fstl1 in liver fibrosis remains undefined. Therefore, the aim of the present study was to investigate the role of Fstl1 in liver fibrosis. The results demonstrated that knockdown of Fstl1 inhibited activation of HSCs through the TGF-β1/Smad3 signaling pathway.

Materials and methods

Specimen collection

Liver samples were collected by trans-parietal puncture from 11 healthy individuals and 11 patients with liver fibrosis. Written informed consent was obtained from all patients, and the study was approved by the Medical Ethics Committee of First Teaching Hospital of Tianjin University of Traditional Chinese Medicine (Tianjin, China).

Cell culture

Primary HSCs were isolated as described previously (11). Cells were cultured in Dulbecco's modified Eagle's medium (DMEM; Invitrogen; Thermo Fisher Scientific, Inc., Waltham, MA, USA) supplemented with 10% (v/v) fetal bovine serum (FBS; Gibco; Thermo Fisher Scientific, Inc.), L-glutamine (4 mmol/l; Sigma-Aldrich; Merck KGaA, Darmstadt, Germany), penicillin (100 IU/ml; Sigma-Aldrich; Merck KGaA), and streptomycin (100 µg/ml; Sigma-Aldrich; Merck KGaA) at 37°C in a humidified 5% CO2 atmosphere.

RNA interference and cell transfection

Small-interfering RNA targeting Fstl1 (si-Fstl1) and non-targeting control siRNA (scramble) were synthesized by Guangzhou Ribo Bio Co., Ltd. (Guangzhou, China). HSCs at a density of 5×104 cells/well were seeded in each cell of a 24-well micro-plate, grown for 24 h to reach 30–50% confluence, and then transfected with si-Fstl1 or scramble using Lipofectamine 2000 (Invitrogen; Thermo Fisher Scientific, Inc.) according to the manufacturer's instructions.

Reverse transcription-quantitative polymerase chain reaction (RT-qPCR)

Total RNA of quiescent HSCs and activated HSCs, as well as normal and hepatic fibrosis tissues, was extracted and purified using an RNeasy Mini kit according to the instructions of the manufacturer (Qiagen, Inc., Valencia, CA, USA). Up to 5 µg of the total RNA was reverse-transcribed into cDNA using M-MLV reverse transcriptase (Sigma-Aldrich; Merck KGaA). RT-qPCR was performed with the Applied Biosystems 7900HT Fast Real-Time PCR System (Applied Biosystems; Thermo Fisher Scientific, Inc.) using a SYBR Green Real-Time PCR Master Mix kit (Takara Biotechnology Co., Ltd., Dalian, China). The following primers were used: Fstl1, 5′-CGAGGTGGAGTTGACGAGAAAC-3′ (sense), 5′-AGGACTGGATCATCATGACGTTCT-3′ (antisense); and β-actin 5′-CCGTGAAAAGATGACCCAGATC-3′ (sense), 5′-CACAGCCTGGATGGCTACGT-3′ (antisense). The relative levels of transcript were determined by using the2−∆∆Cq method (12) and normalized by β-actin.

Western blotting

Total protein was extracted from hepatic fibrosis tissues or HSCs using RIPA Cell Lysis buffer (Takara Biotechnology Co., Ltd.). Lysates were sonicated for 5 sec on ice and centrifuged at 6,000 × g for 5 min at 4°C. Supernatants were collected and the protein concentration was detected using a Bio-Rad Protein Assay kit II (cat. no. 500-0002; Bio-Rad Laboratories, Inc., Hercules, CA, USA). The cell lysates (30 µg/lane) were subjected to SDS-PAGE and subsequently transferred to a polyvinylidene difluoride membrane. Then, nonspecific binding was blocked by incubating with 5% non-fat milk in TBS containing 0.1% Tween-20 at room temperature for 1 h. The blots were incubated with primary antibodies: anti-Fstl1 (1:1,000; cat. no. sc-80408), anti-collagen I (1:2,000; cat. no. sc-59772), anti-α-SMA (1:2,000; cat. no. sc-130616), anti-Smad3 (1:2,000; cat. no. sc-101154), anti-p-Smad3 (1:2,000; cat. no. sc-11769) or anti-GAPDH (1:5,000; cat. no. sc-400163; all from Santa Cruz Biotechnology, Inc., Dallas, TX, USA) at 4°C overnight. Subsequently, the membranes were incubated with horseradish peroxidase-conjugated secondary antibodies (1:2,000; cat. no. sc-2789; Santa Cruz Biotechnology, Inc.) for 1 h at room temperature. Following washing, the blots were visualized using an enhanced chemiluminescence detection system (GE Healthcare Life Sciences, Chalfont, UK). Protein expression was analyzed using BandScan software version 5.0 (Glyko; BioMarin Pharmaceutical, Inc., San Rafael, CA, USA). All experiments were repeated ≥3 times.

Cell proliferation assay

Cell proliferation was determined using the Cell Counting kit-8 assay. Briefly, infected HSCs were plated at a density of 1×104 cells/well in a 96-well culture plate and treated with or without TGF-β1 for 24 h. Then, 10 µl CCK-8 reagent was added (Dojindo Molecular Technologies, Inc., Kumamoto, Japan) to each well. Following 1 h of incubation at 37°C, the absorbance was measured with a microplate reader (Bio-Rad Laboratories, Inc.) at a wavelength of 490 nm.

Statistical analysis

All statistical analyses were performed using the SPSS software (version, 13.0; SPSS, Inc., Chicago, IL, USA). Results were presented as mean ± standard deviation for three experiments. Statistical comparisons were performed using one-way analysis of variance followed by the Student's t-test. P<0.05 was considered to indicate a statistically significant difference.

Results

Fstl1 is highly expressed in hepatic fibrosis tissues and activated HSCs

The authors initially measured the expression of Fstl1 in human hepatic fibrosis tissues. As indicated in Fig. 1A, the mRNA expression levels of Fstl1 were significantly upregulated in human hepatic fibrosis tissues, as compared with the normal liver tissues. Moreover, the authors observed that the expression levels of Fstl1 at both mRNA and protein were higher in activated HSCs than that of in the quiescent cells (Fig. 1B and C).

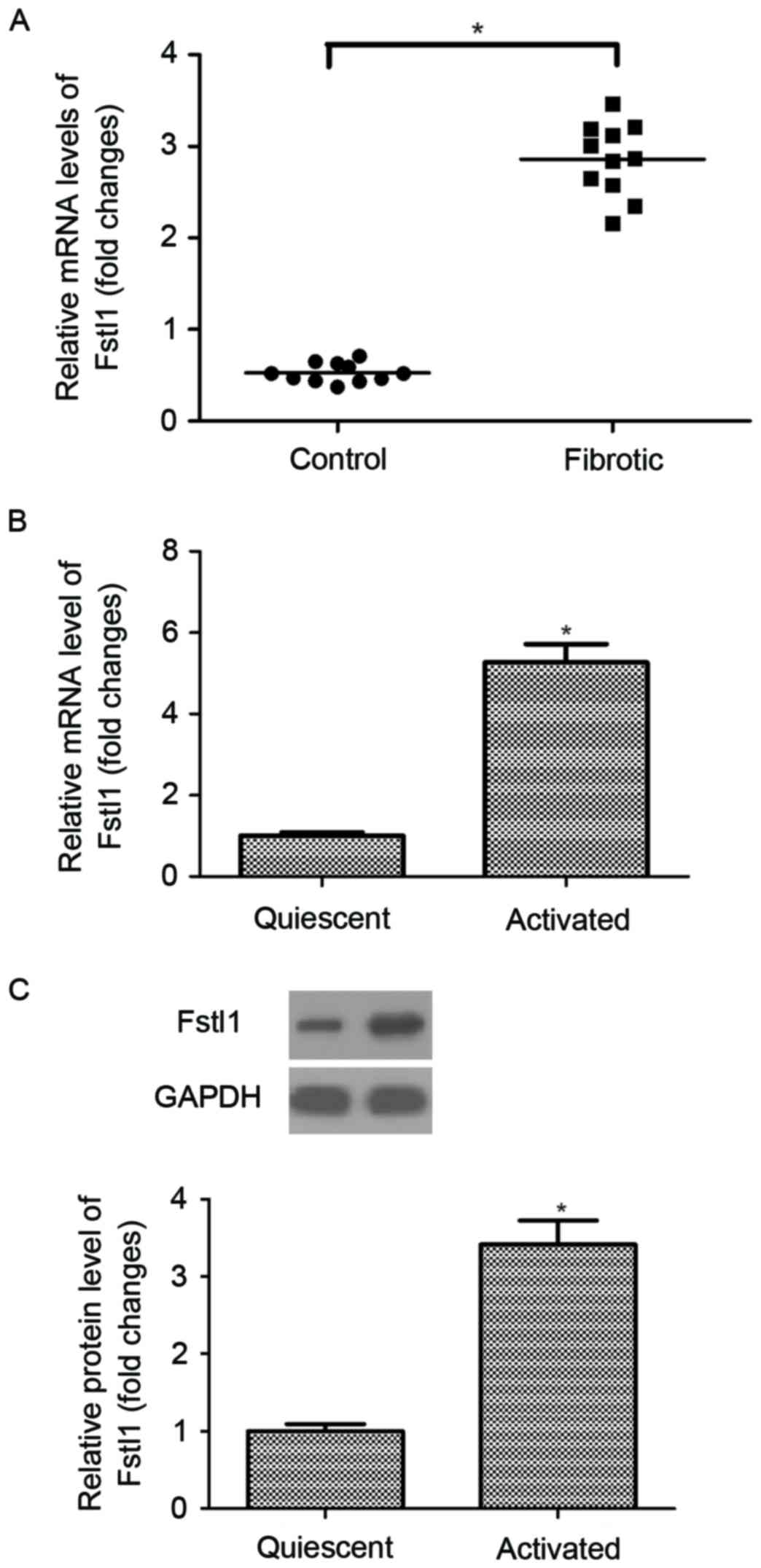

Figure 1. Fstl1 is highly expressed in hepatic fibrosis tissues and activated HSCs. (A) The mRNA levels of Fstl1 were significantly higher in human fibrotic liver tissues compared with human normal liver tissues. *P<0.05 as indicated. (B) The mRNA levels of Fstl1 were detected using reverse transcription-quantitative polymerase chain reaction in quiescent and activated HSCs. (C) The protein levels of Fstl1 were detected using western blotting in quiescent and activated HSCs. *P<0.05 vs. quiescent cells. Data represents the mean ± standard deviation of three independent experiments. Fst1, follistatin-like 1; HSCs, hepatic stellate cells.

Knockdown of Fstl1 inhibits the proliferation of activated HSC

In order to investigate the effect of Fstl1 on HSC proliferation, HSCs were transfected with si-Fstl1 or scramble, respectively. The efficiency of transfection was confirmed by RT-qPCR and western blotting. The results of RT-qPCR analysis indicated that the mRNA expression of Fstl1 was obviously decreased in HSCs transfected with si-Fstl1 (Fig. 2A). Similarly, knockdown of Fstl1 greatly downregulated the protein expression level of Fstl1 in HSCs (Fig. 2B). Then, the authors performed the CCK-8 assay to detect the effect of Fstl1 on HSC proliferation. As indicated in Fig. 2C, TGF-β1 treatment markedly promoted the proliferation of HSCs, compared with the control group. However, knockdown of Fstl1 significantly inhibited HSC proliferation in TGF-β1-induced HSCs.

Figure 2. Knockdown of Fstl1 inhibits the proliferation of activated HSCs. HSCs were transfected with si-Fstl1 or scramble, respectively, for 24 h. (A) The mRNA level of Fstl1 was detected using reverse transcription-quantitative polymerase chain reaction in quiescent and activated HSCs. (B) The protein level of Fstl1 was examined using western blotting assay. Then cells were treated with TGF-β1 (10 ng/ml) for 24 h. (C) Cell proliferation was evaluated by the CCK-8 assay. Data represents the mean of three independent experiments ± standard deviation. *P<0.05 vs. control group; #P<0.05 vs. TGF-β1+scramble group. Fst1, follistatin-like 1; HSCs, hepatic stellate cells; TGF-β1, transforming growth factor-β1.

Knockdown of Fstl1 inhibits the expression levels of α-SMA and collagen I in HSCs

The authors next investigated whether si-Fstl1 attenuated ECM expression in HSCs. The results of western blotting analysis demonstrated that TGF-β1 obviously induced the protein expression levels of α-SMA and type I collagen, as compared with the control group. Meanwhile, knockdown of Fstl1 significantly blunted TGF-β1-induced α-SMA and type I collagen expression in HSCs (Fig. 3).

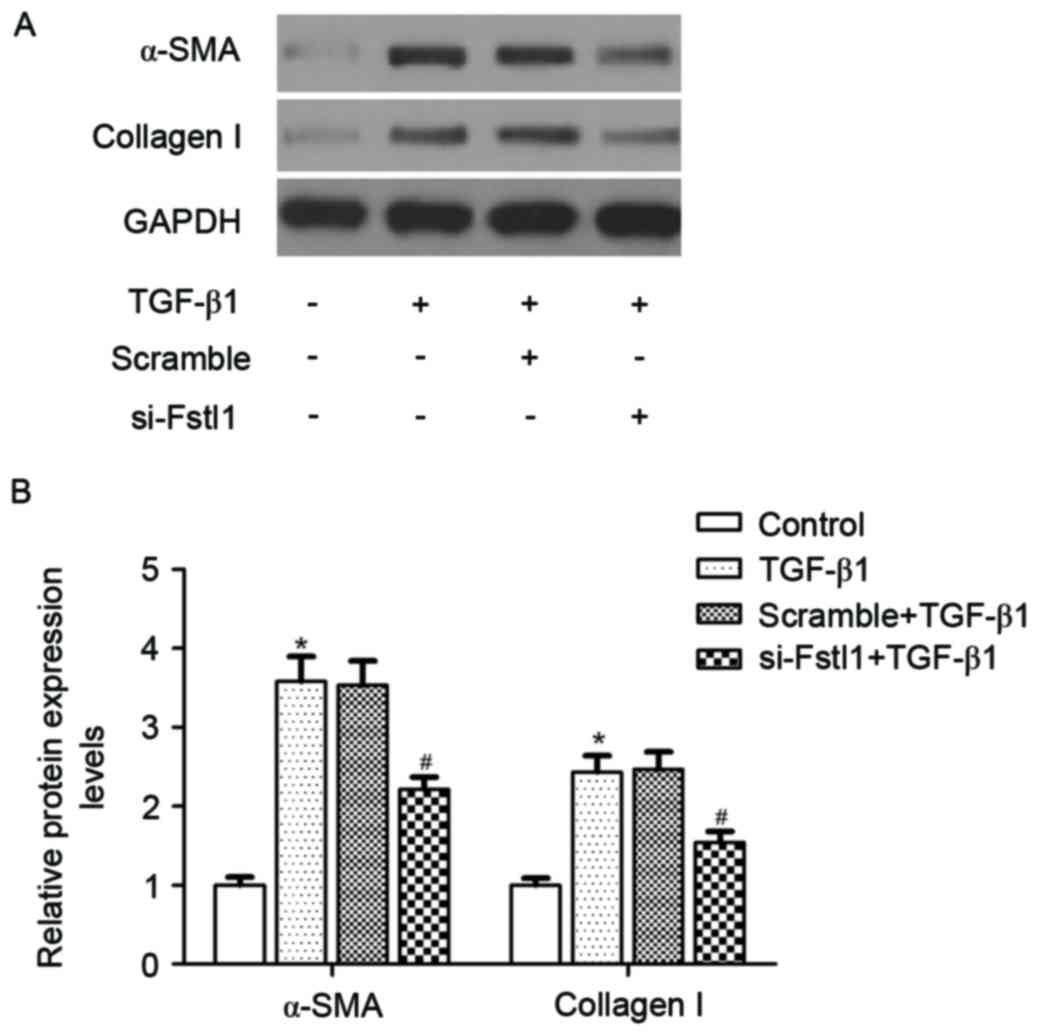

Figure 3. Knockdown of Fstl1 inhibits the expression levels of α-SMA and collagen I in HSCs. HSCs were transfected with si-Fstl1 or scramble, respectively, for 24 h. Then cells were treated with TGF-β1 (10 ng/ml) for 24 h. (A) The protein expression levels of α-SMA and type I collagen were examined using western blotting assay. (B) Quantification analysis was performed using Gel-Pro Analyzer version 4.0 software. Data represents the mean of three independent experiments ± standard deviation. *P<0.05 vs. control group; #P<0.05 vs. TGF-β1+scramble group. Fst1, follistatin-like 1; α-SMA, α-smooth muscle actin; HSCs, hepatic stellate cells; TGF-β1, transforming growth factor-β1.

Fstl1 is involved in the regulation of TGF-β1-mediated Smad3 signaling pathway in HSCs

To determine the molecular mechanism of Fstl1 regulates HSCs activation described above, the effect of Fstl1 on the activation of Smad3 signaling pathway in HSCs was examined. Western blotting indicated that TGF-β1 led to a marked increase in Smad3 phosphorylation; however, knockdown of Fstl1 remarkably decreased the phosphorylation level of Smad2/3 in TGF-β1-induced HSCs (Fig. 4).

Figure 4. Fstl1 is involved in the regulation of TGF-β1-mediated Smad2/3 signaling pathway in HSCs. HSCs were transfected with si-Fstl1 or scramble, respectively, for 24 h. Then cells were treated with TGF-β1 (10 ng/ml) for 30 min. (A) The protein expression levels of p-Smad3 and Smad3 were detected by western blot analysis. (B) Quantification analysis was performed using Gel-Pro Analyzer version 4.0 software. Data represents the mean of three independent experiments ± standard deviation. *P<0.05 vs. control group; #P<0.05 vs. TGF-β1+scramble group. Fst1, follistatin-like 1; TGF-β1, transforming growth factor-β1; HSCs, hepatic stellate cells.

Discussion

In the current study, the results indicated that Fstl1 was highly expressed in human hepatic fibrosis tissues and HSCs. Furthermore, knockdown of Fstl1effectively suppressed HSC proliferation and the protein expression levels of α-SMA and collagen I in TGF-β1-treated HSCs. Mechanistically, knockdown of Fstl1remarkably decreased the phosphorylation level of Smad3 in TGF-β1-induced HSCs.

Prior studies have documented that Fstl1 contributes to the fibrogenesis. Maruyama et al (13) confirmed that the expression of Fstl1 was upregulated in ischemic portions of the myocardium, and the reparative fibrotic response conferred by Fstl1 is the consequence of its early activation of cardiac fibroblasts that leads to myofibroblast accumulation in the infarct area. Murphy et al (14) reported that the protein expression level of Fstl1 was greatly increased in the lungs of bleomycin-treated mice and in the lungs of idiopathic pulmonary fibrosis patients. In agreement with the results above, herein, the authors observed that Fstl1 is overexpressed in human liver fibrotic tissues comparing with the normal liver tissues, and the expression of Fstl1 was higher in activated HSCs than that of quiescent HSCs. These findings suggested that Fstl1 servesa pro-fibrotic role in liver fibrosis.

HSC activation is the primary feature during the progression of liver fibrosis; these activated HSCs increase proliferation and migration, and acquire contractility and pro-inflammatory properties (15). The induction of HSCs proliferation is stimulated by a variety of cytokines (16–18). TGF-β1 is the most potent stimulus for HSC-mediated fibrogenesis (19). Herein, the authors observed that TGF-β1 treatment markedly promoted the proliferation of HSCs. However, knockdown of Fstl1 significantly inhibited HSC proliferation.

Liver fibrosis is characterized by an exacerbated accumulation of deposition of ECM proteins (20). There is extensive evidence demonstrating that TGF-β1 upregulated expression of α-SMA and collagen I in HSCs (21–23). Recently, it was reported that the expression of α-SMA, type I collagen and fibronectin in fibroblasts isolated from bleomycin-treated Fstl1+/− lungs was markedly decreased (10). Similarly, in the present study, knockdown of Fstl1 effectively suppressed the protein expression levels of α-SMA and collagen I in TGF-β1-treated HSCs. These data suggested that knockdown of Fstl1 inhibited HSC activation by downregulating the protein expression levels of α-SMA and collagen I in TGF-β1-treated HSCs.

The TGF-β1/Smad signaling pathway serves an important role in the development of liver fibrosis (24–26). During fibrogenesis, TGF-β1 exerts its biological functions via a heteromeric receptor complex of type II and type I receptor serine-threonine kinases. Subsequently, Smad2/3 is phosphorylated and binds with Smad4 to form multimeric complexes, then activated R-Smads translocate to the nucleus and induce the expression of target genes, including ECM proteins (27). It has been reported that knockdown of Smad3 significantly reduced TGF-β1-induced collagen I production in HSCs (28). In the present study, the authors indicated that TGF-β1 led to a marked increase in Smad3 phosphorylation; however, knockdown of Fstl1 remarkably decreased the phosphorylation level of Smad3 in TGF-β1-induced HSCs. These data suggested that Fstl1 silencing inhibits HSCs activation through suppressing the TGF-β1/Smad3 signaling pathway.

In conclusion, it has been demonstrated that Fstl1servesan important role in liver fibrosis and target deletion of Fstl1 attenuated HSCs activation through suppressing the TGF-β1/Smad3 signaling pathway. Therefore, Fstl1 may be a potential therapeutic target for the treatment of liver fibrosis.
