Introduction

Lung cancer is one of the most prevalent malignant tumors, endangering health and life worldwide. Although the level of medical care has been greatly improved, survival rates remain unsatisfactory (1,2). Hematogenous metastasis is an important pathway of invasion and metastasis for malignancies. At present, anti-angiogenesis therapy is a common strategy for anti-tumor therapy. However, the efficacy of anti-angiogenic drugs is below expectations, and the overall survival rate is not significantly improved (3–5). As an example of a discouraging clinical evidence is the aggressive recurrence of tumors after withdrawal of anti-angiogenic treatment (6). Pa'ez-Ribes et al (7) has reported that although the anti-VEGFR2 antibody DC101 arrested tumor growth, at the same time it increases the rate of tumor invasion and metastasis. There are several reports focusing on the adverse effects of such treatments, such as bleeding, thrombotic events, and others (7–10). The majority of the well-known vascular endothelial markers are expressed in tumor and normal tissues with low specificity, which lead to a series of side effects, susceptibility to drug resistance and the recurrence of tumor growth following short-term administration (11–13). Therefore, finding specific molecular markers is urgently required to improve the efficacy of anti-angiogenic treatment.

The XWLC-05 lung cancer cell line is a human lung adenocarcinoma cell line established by Yan et al (14) and consistent with characteristics of lung adenocarcinoma cells, which is a good model for the invasion and metastasis of lung cancer in vitro. RNA interference may induce highly specific post-transcriptional silencing of genes, and its silencing efficiency is determined by the number and specificity of the transfection efficiency into target cells.

St Croix et al (15) identified a class of genes specifically expressed in tumor-derived vascular endothelial cells, called tumor endothelial markers (TEMs). TEM8 is a member of the TEM family with only a trace of expression in non-vascular endothelium and normal vascular endothelium, although it is highly expressed in tumor vascular endothelium (16). TEM8 is expressed on the surface of tumor vascular endothelial cells with high conservatism, indicating it may be a potential target in the anti-angiogenic therapy of cancer. Currently, the role of TEM8 in the occurrence, development, invasion and metastasis of lung cancer, and its mechanism are poorly understood. The present study observed the effect of TEM8 on the proliferation, apoptosis, cell cycle, migration and invasion of XWLC-05 lung cancer cells in vitro. The association between TEM8 and the biological behavior of lung cancer cells was investigated, laying the foundation for further exploration of the mechanism of TEM8 in lung cancer angiogenesis.

Materials and methods

Subjects

Human lung cancer tissues and adjacent tissues were obtained from 67 patients (57 males and 10 females, male to female ratio 5.7) having undergone lung cancer resection (37 cases with adenocarcinoma, 28 cases with squamous cell carcinoma and 2 cases with large cell carcinoma) in the Third Affiliated Hospital of Kunming Medical University (Kunming, China) between January 2010 and August 2015. All patients were diagnosed with lung cancer by two independent pathologists and were not treated with radiotherapy or chemotherapy prior to surgery. The mean age at diagnosis was 62.4 (standard deviation 5.7). Clinical data of all cases were obtained from the clinical medical history and pathological reports of patients. Written informed consents were obtained from the patients or their guardians. The study was approved by the Ethical Committee of the Third Affiliated Hospital of Kunming Medical University.

Cells

The XWLC-05 human lung adenocarcinoma cell line is archived by the Tumor Research Institute of the Third Affiliated Hospital of Kunming Medical University.

Main reagents and instruments

The following reagents and chemicals were used for the experiments: TEM8-short hairpin (sh)RNA interference vector and negative control (Shanghai GenePharma Co., Ltd., Shanghai, China); fetal bovine serum and 1640 medium (Hyclone; GE Healthcare Life Sciences, Logan, UT, USA); TEM8 antibody (Abcam, Cambridge, UK); Lipofectamine™ 2000 transfection reagent and SYBR Green qPCR SuperMix (Thermo Fisher Scientific Inc., Waltham, MA, USA); Transwell chamber (Corning Incorporated, Corning, NY, USA); vertical electrophoresis and transfer electrophoresis (Bio-Rad Laboratories, Inc., Hercules, CA, USA); ChemiDocTM XRS gel imaging system instrument and TS100 inverted microscope (Nikon Corporation, Tokyo, Japan); fluorescence quantitative polymerase chain reaction (PCR) instrument (Bio-Rad Laboratories, Inc.).

Reverse transcription-quantitative polymerase chain reaction (RT-qPCR)

Total RNA was extracted from human lung cancer and adjacent tissues using TRIzol (Invitrogen; Thermo Scientific, Inc.) according to the manufacturer's protocol. RNA purity and quantification were detected by the UV/VIS spectrophotometer (Alpha 1500, Shanghai Puyuan, Shanghai, China). RT was used to synthesize a cDNA (Thermo Scientific, Inc.) for qPCR analysis (Thermo Scientific, Waltham, MA, USA) according to the manufacturer's protocols. The relative expression of TEM8 in each group was detected by RT-qPCR and calculated with GAPDH as internal reference (17). PCR cycling conditions was that initial denaturation at 95°C for 5 min; followed by 40 cycles of: denaturation at 95°C for 10 sec, annealing at 60°C for 30 sec and extension at 72°C for 30 sec. The primes were as follows: GAPDH forward, 5′-TCTCTGCTCCTCCTGTTCGA-3′ and reverse, 5′-GCGCCCAATACGACCAAATC-3′; TEM8 forward, 5′-GCTGCACCACTGGAATGAAATCT-3′ and reverse, 5′-AGGCCTTGACGGATTTGTTCTCT-3′. The experiment was repeated three times.

Western blot analysis

Lysis buffer (cat. no. C1053+, Beijing PuliLai Gene Technology Co., Ltd, Beijing, China) were added to lung cancer and adjacent tissues. Following 30 min of lysis, the cells were centrifuged at 1,1180 × g for 20 min at 4°C. The supernatant was collected and the total protein was extracted. The concentration of the protein was determined by a bicinchoninic acid assay kit (Beyotime Institute of Biotechnology, Haimen, China), and electrotransferred to a polyvinylidene difluoride membrane following 10% polyacrylamide gel electrophoresis. About 20 µl of protein was loaded per lane. Following blocking for 2 h at room temperature with 5% skimmed milk powder, the primary (1:1,000, cat. no. ab21270, Abcam) and horseradish peroxidase labeled goat anti-rabbit IgG H+L secondary antibodies (1:5,000, cat. no. 7074s, Cell Signaling Technology, Inc.) were added, and incubated at room temperature for 2 h. The chemiluminescence method (cat. no. 34077, Thermo Fisher Scientific, Inc.) was used to develop. The optical density of the immunoblotting zone was measured by laser light density scanner. Quantity-One software version 4.62 (Bio-Rad Laboratories, Inc.) was used to analyze the gray value of each antibody band.

Immunohistochemistry

The 4 µm thick sections of lung cancer and adjacent tissues were fixed by the 4% paraformaldehyde for 6 h at room temperature, dewaxed and dehydrated, washed with water, antigen retrieval was performed in 0.01 mol/l citrate buffer (pH 6.0) in a microwave oven for 20 min at 98–100°C, and blocked using 3% hydrogen peroxide methanol for 10 min at room temperature. Finally, they were washed with PBS, incubated with primary antibody with 1:200 dilution (cat. no. ab21270, Abcam) overnight at 4°C, washed with PBS, which incubated with second antibody with 1:400 dilution (horseradish peroxidase labeled goat anti-rabbit IgG H+L, cat. no. SV2000, Wuhan Boshide health care Biologicals, Co., Ltd., Wuhan, China), washed with PBS, stained with diaminobenzidine for 1 h at 37°C, counterstained with hematoxylin for 1 h at 37°C, dehydrated, cleared and mounted in gum for microscopic examination. Tan or brown coloration indicated that TEM8 was positively expressed.

Cell transfections

When XWLC-05 cells were confluent to 50–70%, they were transfected with empty vector and TEM8-shRNA (shRNA sequence sense 5′-GGCTAATAGGTCTCGAGATTT-3′ and antisense 5′-ATCTCGAGACCTATTAGCCTT-3′) respectively with a Lipofectamine™ 2000 liposome transfection kit (cat. no. 11668027; Thermo Fisher Scientific, Inc.). After 6 h, 1640 medium containing 10% serum was added, and the cells incubated for 48 h in a 5% CO2 incubator. Western blotting and RT-qPCR were used to detect the expression of TEM8 protein and mRNA, as described above.

MTT assay for cell proliferation detection

When cells reached 70% confluency, in 96-well plates were seeded in a 96-well plate 24 h following transfection. Fresh medium supplemented with 10% FBS was added into the plates and to the cells were added 20 µl of 5 mg/ml MTT at 24, 48, 72 and 96 h later, respectively, then the cells were further incubated for 4 h. The supernatant was discarded, 150 µl of DMSO was added per well, and the crystals were dissolved by agitating for 5 min. OD value was measured at 570 nm by a microplate reader.

Annexin V-PI flow cytometry for cell apoptosis detection

Following cell suspension, 2×105 cells were inoculated into 6-well plates. When cell confluency reached 50–70%, the cells were transfected, as described above. After 48 h, cells were collected and stained (Annexin V-FITC/PI, suolaibao, Beijing, China) in the dark for 30 min. Cell apoptosis was detected by flow cytometry according to Annexin V-FITC/PI kit protocols and analyzed by CellQuest Pro software (BD Biosciences, San Jose, CA, US).

Flow cytometry for cell cycle detection

About 2×105 cells were inoculated in 6-well plates and transfected for 48 h. According to the protocols of the cell cycle detection kit (CA1510, suolaibao, Beijing, China), cells were digested by trypsin without EDTA, centrifuged (1,000 × g, 5 min, at room temperature) and suspended. Then 5 µl of 10 mg/ml RNase were added to the cells and they were placed in a water bath at 37°C for 1 h, propidium iodide added, stained for 30 min at room temperature and detected by flow cytometry (FACS Calibur, BD, CA, US) for cell cycle analysis by CellQuest Pro software (BD Biosciences).

Cell scratch assay for cell migration detection

When the cells reached 90% of confluency following 24 h of transfection, a 200 µl pipette was used to scratch the monolayer cells across the diameter of the wells, the medium and non-adherent cells were aspirated and the plate washed twice with serum-free medium. Then serum-free medium was added. Cells were placed at 37°C in 5% CO2 incubator, and images obtained after 12 and 24 h using an inverted microscope.

Transwell assay for cell invasion detection

Matrigel was plated onto the microwell in a Transwell chamber. Then the 2×105 cells were seeded in the 6-well plate and transfected when cell fusion reached to 50–70%. Following 48 h of transfection, the cells were digested and added to Transwell upper chamber and 1640 medium added to the lower chamber. After 48 h, the chamber was removed, fixed with 4% paraformaldehyde for 30 min at room temperature and stained with 0.1% crystal violet for 10 min at room temperature. Finally, the numbers of cells in 5 visual fields were counted by an inverted microscope and their mean was taken, which was deemed the invasion number (magnification ×200).

Statistical analysis

The experiments were repeated 3 times. Mean and standard deviation were used to summarize continuous variables. Student's t-test and one-way analysis of variance were used to determine the differences among groups. Kaplan-Meier method was used to estimate survival rates. P<0.05 was considered to indicate a statistically significant difference. All analyses were performed using SPSS software, version 17.0 (SPSS, Inc., Chicago, IL, USA).

Results

Level of TEM8 mRNA and protein for lung cancer and adjacent tissues

The level of TEM8 mRNA expression in lung cancer tissues was significantly higher compared with adjacent tissues as analyzed by RT-qPCR (P<0.05; Fig. 1). The expression level of TEM8 protein in lung cancer tissues was significantly higher than that in adjacent tissues as analyzed by western blotting (P<0.05; Fig. 2). In Fig. 3, the brown color represented TEM8 protein expression, which seems to be higher in lung cancer tissues compared with adjacent tissues, although this lacks quantification.

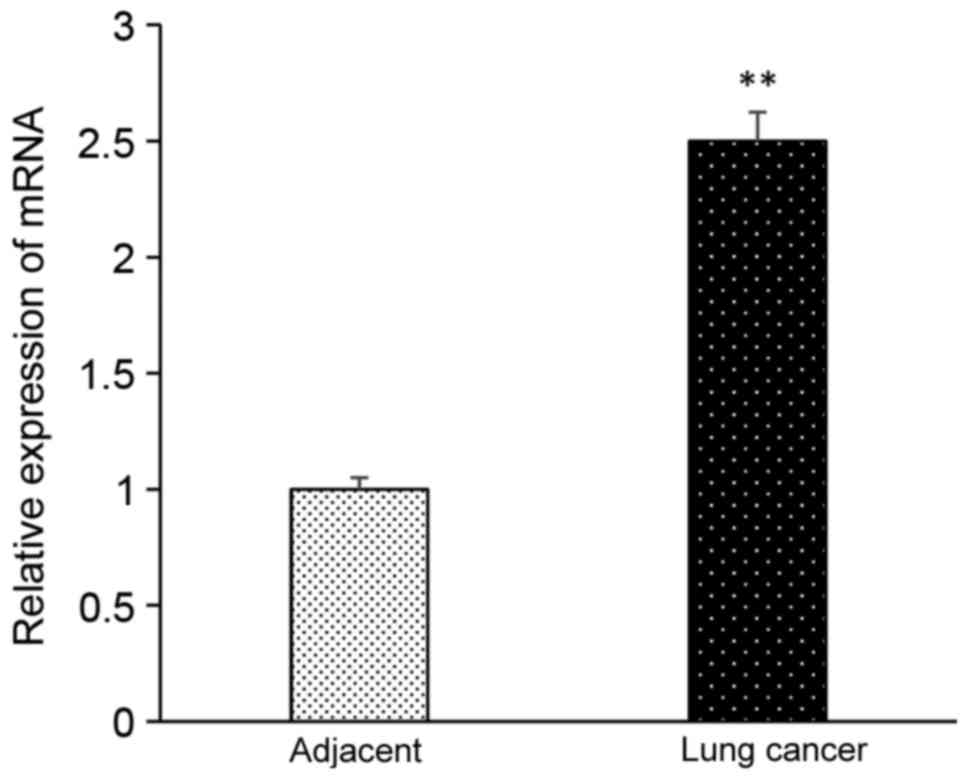

Figure 1. Expression of TEM8 mRNA in adjacent and lung cancer tissues. **P<0.05 vs. adjacent group. TEM8, tumor endothelial marker 8. The experiment was repeated three times.

Figure 2. Expression of TEM8 protein in adjacent and lung cancer tissues. **P<0.05 vs. adjacent group. TEM8, tumor endothelial marker 8. GAPDH was used as loading control. The experiment was repeated three times.

Figure 3. Immunohistochemistry of tumor endothelial marker 8 protein expression of in (A) adjacent and (B) lung cancer tissues. Magnification, ×200.

Level of TEM8 mRNA and protein for XWLC-05 transfection of lung cancer cells

Compared with the control group, the expression level of TEM8 was significantly reduced in XWLC-05 cells transfected with TEM8-shRNA as measured by RT-qPCR (P<0.05; Fig. 4). Compared with the control group, the expression level of TEM8 protein, as presented in Fig. 5, was significantly decreased in the transfected TEM8-shRNA group (P<0.05).

Figure 4. Expression of TEM8 mRNA in the control group, empty vector group and TEM8-shRNA group. **P<0.05 vs. control. TEM8, tumor endothelial marker 8; shRNA, short hairpin RNA. The experiment was repeated three times.

Figure 5. Expression of TEM8 protein in the control group, empty vector group and TEM8-shRNA group. **P<0.05 vs. control. TEM8, tumor endothelial marker 8; shRNA, short hairpin RNA. The experiment was repeated three times.

Effect of silencing TEM8 on the proliferation and apoptosis of XWLC-05 lung cancer cells

MTT results suggested that the proliferation of TEM8-shRNA group was significantly lowered compared with the control group at 48, 72 and 96 h, respectively (P<0.05; Fig. 6). Annexin V-FITC/PI staining revealed that the apoptotic rate of TEM8-shRNA group cells was significantly higher compared with the control group (P<0.05; Fig. 7).

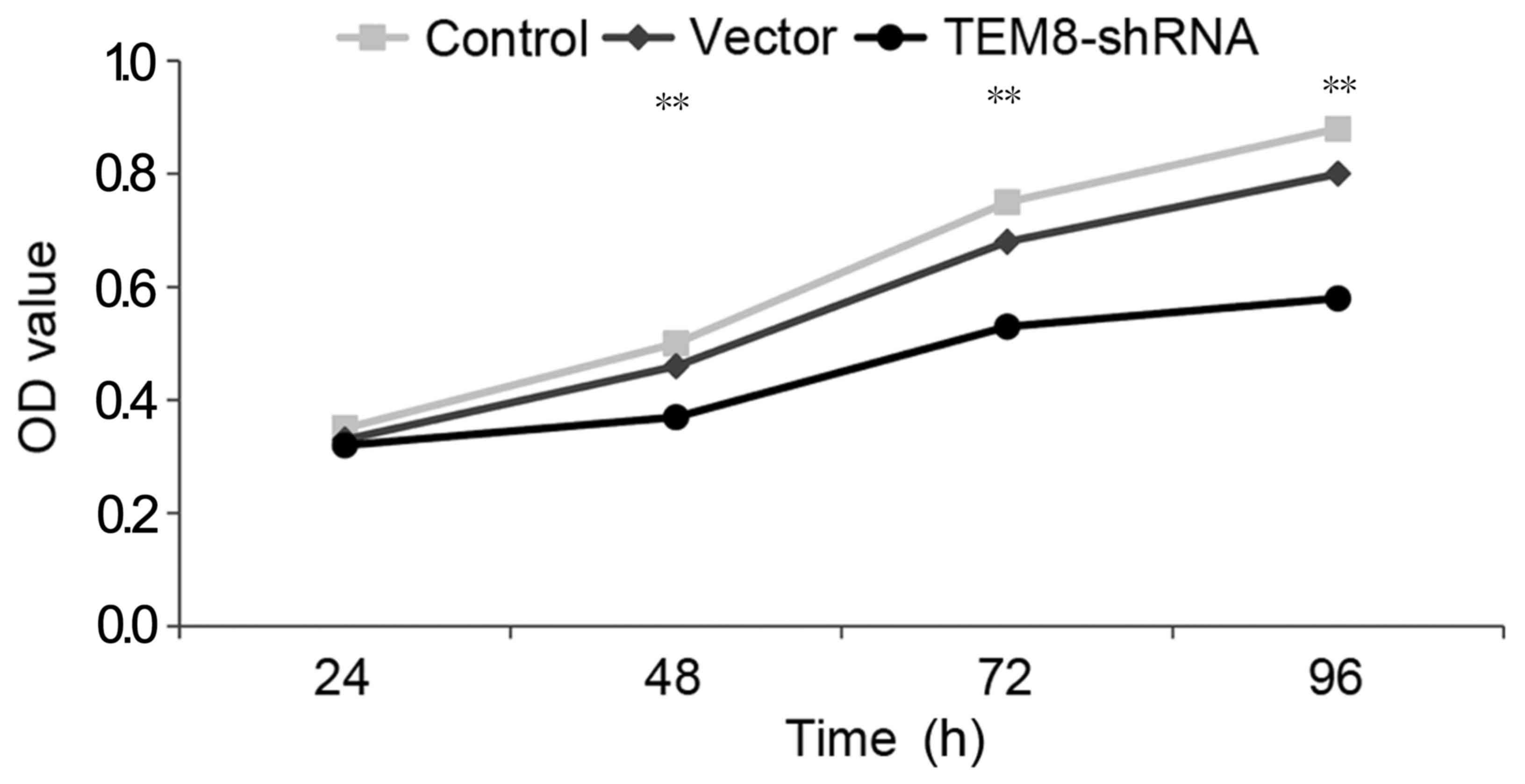

Figure 6. Effect of silencing TEM8 on the viability of lung cancer cell XWLC-05. **P<0.05 vs. control. TEM8, tumor endothelial marker 8; shRNA, short hairpin RNA. The experiment was repeated three times.

Figure 7. The cell apoptosis rate of control group, empty vector group and TEM8-shRNA group. **P<0.05 vs. control group. TEM8, tumor endothelial marker 8; shRNA, short hairpin RNA. The experiment was repeated three times.

Effect of silencing TEM8 on the migration and invasion of XWLC-05 lung cancer cells

As demonstrated in Fig. 8, the result of cell scoring in vitro revealed that following the silencing of TEM8, the migration ability of XWLC-05 cells was significantly decreased compared with the control group. Transwell invasion assay indicated that the invasion number of cells per field in TEM8-shRNA group (40.25±3.02) was significantly lower compared with the control group (129.39±9.69; P<0.05; Fig. 9).

Figure 8. Migration ability of XWLC-05 cells of the (A) control group, (B) empty vector group and (C) TEM8-shRNA group. TEM8, tumor endothelial marker 8; shRNA, short hairpin RNA. Magnification, ×100. The experiment was repeated three times.

Figure 9. Invasion ability of (A) control group, (B) empty vector group and (C) TEM8-shRNA group, as assessed by 0.1% crystal violet staining. TEM 8, tumor endothelial marker 8; shRNA, short hairpin RNA. Magnification, ×200.

Effect of silencing TEM8 on the cell cycle of lung cancer cell XWLC-05

Fig. 10 and Table I demonstrate that more cells were detected in G1 phase and fewer in S phase in the TME-8-shRNA group compared to the control group or empty group (P<0.05) while no significant differences were observed in G2 phase among the three groups, suggesting that silencing TEM8 blocked the cell cycle of XWLC-05 cells at G1 phase.

Figure 10. Cell cycle analysis of (A) control group, (B) empty vector group and (C) TEM8-shRNA group cells. TEM8, tumor endothelial marker 8; shRNA, short hairpin RNA. The experiment was repeated three times.

Table I. Effect of silenced TEM8 on the cell cycle of XWLC-05 lung cancer cells.

Table I.

Effect of silenced TEM8 on the cell cycle of XWLC-05 lung cancer cells.

Group	G1 phase	S phase	G2 phase
Control	36.10±4.12	59.70±5.36	4.20±1.01
Empty vector	37.43±4.23	58.11±5.14	4.45±1.09
TEM8-shRNA	54.10±6.25a	40.80±4.58a	5.10±1.24

a P<0.05. TEM8, tumor endothelial marker 8; shRNA, short hairpin RNA.

Discussion

The incidence of lung cancer is increasing with the aging of populations, pollution of the environment and abuse of tobacco products, and has become a malignancy with the highest mortality (18,19). In the past few decades, although there have been a number of new treatments including new chemotherapy drugs, tyrosine kinase inhibitor medications, immunotherapy and anti-angiogenic therapy, the survival rate of lung cancer has not improved significantly (20,21). In order to make a breakthrough in therapy and overall survival, it is necessary to possess an in depth understanding of the occurrence and development of lung cancer.

Angiogenesis is necessary in physiological processes including embryonic development, wound healing and tissue regeneration. However, angiogenesis also implicated in the pathological process of malignant transformation. Anti-tumor angiogenesis has become an important area in cancer research. Tumor angiogenesis serves an important role in processes of tumorigenesis, tumor progression, invasion and metastasis. Circulation within tumor tissues provides nutrition for tumor cells while excreting metabolic products. Furthermore, the tumor vascular wall is often incomplete, which benefits tumor cells by enabling them to penetrate through the wall into vessels, causing hematogenous metastasis. Considering the important role of angiogenesis in tumor growth, disrupting tumor angiogenesis may starve the tumor of nutrition and halt development (22). The pathway of angiogenesis can be blocked through the regulation of angiogenesis and promoting factors. The inhibition of tumor angiogenesis can control tumor growth, in theory, with tumor endothelial molecular markers or high growth state as the target.

Inhibition of tumor angiogenesis has become one of the main strategies for cancer treatment, with vascular endothelial growth factor (VEGF) as a pro-angiogenic factor of high specificity (23). Compared with the normal tissue, VEGF and its receptor expression level are significantly increased in tumor tissue (24). Various drugs targeted at VEGF and its receptor have been widely applied, including Avastin (25), sorafenib (26), sunitinib (27), Endostar (28) and Apatinib (29). Studies have demonstrated that these drugs can extend the survival time of advance colorectal, gastric, and lung cancers when combined with radiotherapy and/or chemotherapy.

However, the overall efficacy of anti-tumor angiogenesis treatments has not reached the original high expectations. They only minimally improve symptoms and extend the remission, without significant improvement on overall survival rates. The majority of endothelial markers are expressed in tumors and normal tissues, making it difficult to specifically target tumor endothelium, and likely to cause adverse reactions and widespread drug resistance. There tends to be ‘resilient growth’ following discontinuation of short-term anti-angiogenic treatments, which increases the risk of tumor recurrence and metastasis. Therefore, finding more specific markers of tumor blood vessels serves an important role in understanding the mechanism of anti-tumor vascular therapy and clinical application.

The extracellular domain of TEM8 has a von Willebrand factor (vWF) domain, which is high homology with integrin 9α2 (29). As with integrin, vWF has a metal ion dependent adhesion sequence (30). A decline in the expression of integrin increases the invasion ability of tumor cells (31). Studies on colorectal cancer by Rmali et al (32) and St Croix et al (15) identified that TEM8 was expressed highly in cancerous tissue but very low in adjacent and normal tissue, indicating that TEM8 may serve a role in promoting cancer.

The present study used RT-qPCR, western blot analysis and immunohistochemistry to detect the levels of TEM8 mRNA and protein in lung cancer tissue and adjacent tissue, identifying that TEM8 expresses highly in lung cancer tissue and had trace expression in adjacent tissues. A TEM8 interference vector was transfected into XWLC-05 lung cancer cells. Compared with the control group, cells transfected with TEM8-shRNA expressed less TEM8, as measured by RT-qPCR and western blot analysis, demonstrating that the shRNA silenced TEM8. The influence that TEM8 knockdown had on XWLC-05 activity and apoptosis demonstrated that silenced TEM8 could reduce XWLC-05 lung cancer cell viability and increase its rate of apoptosis. The results of the cell cycle experiment demonstrated that TEM8 knockdown blocked cell cycle progression at the G1 phase, and results of the Transwell assay demonstrated that TEM8 silencing decreased the invasion ability of XWLC-05, indicating that silenced TEM8 can reduce the cell viability of XWLC-05, induce apoptosis, block the cell cycle at G1 phase and inhibit the invasive ability.

In summary, TEM8 expression is increased in lung cancer tissues compared with normal tissue. The activity of XWLC-05 cells was decreased and the cell cycle was blocked at G1 phase following silencing of TEM8, inhibiting the cell invasion ability. TEM8 may become a target for antitumor therapy and potentially is involved in tumor angiogenesis.

Acknowledgements

The present study was supported by the National Natural Science Foundation of China (grant nos. 81460358 and 81060177) and Health Science and Technology Project of Yunnan Province (grant nos. 2014NS027 and 2016NS098).
