Introduction

Chronic nasal and sinus inflammatory injury is closely associated with the development of chronic obstructive pulmonary disease (COPD) (1). Furthermore, clinical studies have also confirmed that patients with nasal and sinus inflammation have a greater risk of cardiovascular disease due to chronic airway remodeling and airflow limitations (2). Additionally, anti-inflammatory therapy has been demonstrated to alleviate upper airway symptoms such as rhinorrhea, nasal obstruction and sneezing in patients with COPD (3,4). Thus, this information illustrates that sinonasal inflammation is the pathogenesis responsible for airway damage and COPD development. Accordingly, reducing the excessive inflammatory response and increasing the resistance of nasal epithelial cells to inflammation-induced damage are vital for slowing or preventing COPD progression.

In response to inflammatory injury, Toll-like receptors (TLRs), particularly TLR4, have been demonstrated as the primary downstream effectors of inflammatory responses (5,6). Increased TLR4 expression induces cellular oxidative stress and calcium overload, leading to nasal epithelial cell death (7). Subsequently, TLR4 also promotes transforming growth factor-β and matrix metalloproteinase 9 expression (8,9), the regulators of tissue fibrosis, resulting in airway remodeling. Notably, TLR4 inhibitors exert beneficial effects on nasal epithelial cells under chronic inflammatory injury (10). This evidence indicates that TLR4 modulation is vital for preserving nasal epithelial cell function and reducing airway damage. However, the underlying mechanism by which TLR4 induces nasal epithelial cell damage remains unknown.

Previous studies have demonstrated that mitochondria are the primary target of inflammatory injury (11,12). Activated TLR4, induced by the inflammatory response, promotes mitochondrial membrane potential collapse and mitochondrial energy disorder (10,13). Furthermore, the damaged mitochondria ultimately induce caspase-9-associated apoptotic signaling (14,15), leading to nasal epithelial cell death. Recently, mitophagy has become a research hotspot (16). Mitophagy, a selective type of autophagy for mitochondria, can remove mitochondria via lysosomal degradation (17). Moderate mitophagy has been demonstrated to reduce cellular apoptosis via the timely removal of damaged mitochondria (18,19). By contrast, excessive mitophagy aggravates the cellular damage via aberrant mitochondrial degradation (20,21). Previous studies have demonstrated that mitophagy contributes to endothelial cell apoptosis in ischemia/reperfusion-triggered inflammatory injury (22,23). Furthermore, in cancer cells, mitophagy activation impairs tumor migration via reducing energy production and generating reactive oxygen species (ROS)-associated oxidative stress (24). Based on this knowledge, it is important to investigate whether mitophagy is involved in inflammatory injury in nasal epithelial cells.

In addition to mitophagy, phosphatase and tensin homolog (PTEN) is the intrinsic defender of nasal and sinus inflammatory injury (25,26). PTEN functions as a tumor suppressor involving in the regulation of the cell growth and differentiation (27). Previous studies have demonstrated that PTEN upregulation provides a survival advantage to nasal epithelial cells in asthma (28). Furthermore, pharmacological PTEN inhibition amplifies acute kidney injury (29,30), regulates inflammation-induced migration of myelocytes in zebrafish (31), and impacts nuclear factor-κB inflammatory pathways (32). This information confirms that PTEN is associated with inflammatory response. Notably, whether PTEN can regulate TLR4-associated inflammatory injury in nasal epithelial cells via mitophagy is unknown. The aim of the present study was to investigate the role of PTEN in inflammatory-associated injury of nasal epithelial cells, with a focus on mitophagy and the TLR4-c-Jun kinase (JNK)-Bcl2-interacting protein 3 (Bnip3) signaling pathway.

Materials and methods

Cell experiments and treatment

The human nasal epithelial cell line (RPMI 2650) used in the present study was purchased from the Chinese Academy of Sciences Cell Bank (Shanghai, China). The cells were incubated with L-Dulbecco's modified Eagle's medium (Gibco; Thermo Fisher Scientific, Inc., Waltham, MA, USA) with 10% fetal bovine serum (FBS; Gibco; Thermo Fisher Scientific, Inc.) at 37°C/5% CO2. TNFα (0–20 ng/ml; Selleck Chemicals, Houston, TX, USA) was added into the medium for 12 h to induce inflammatory injury in vitro according to a previous study (33). To inhibit mitophagy, 3-methyladenine (3-MA; 10 mM, Selleck Chemicals) was applied for ~45 min in nasal epithelial cell line (1×106) (34). To activate mitophagy, carbonyl cyanide-p-trifluoromethoxyphenylhydrazone (FCCP; 5 µM, Selleck Chemicals) was applied for ~30 min in nasal epithelial cell line (1×106).

Immunofluorescence staining

The samples were first washed with cold phosphate-buffered saline (PBS), fixed with 4% paraformaldehyde for 30 min at room temperature, and then permeabilized in 0.1% Triton X-100 for 10 min at 4°C. Subsequently, 10% goat serum albumin (Invitrogen; Thermo Fisher Scientific, Inc., Waltham, MA, USA) was used to block the samples for 1 h at room temperature. Subsequently, samples were incubated with primary antibodies overnight at 4°C (35). After three rinses in PBS, secondary antibodies (Alexa Fluor 488 donkey anti-rabbit secondary antibodies (1:1,000; cat. no. A-21206; Invitrogen; Thermo Fisher Scientific, Inc.) were added to the samples for 1 h at room temperature (34). The following primary antibodies were used in the present study: PTEN (1:5,000; cat. no. ab31392), mitochondrial import receptor subunit TOM20 homolog (mitochondrial marker; 1:1,000; cat. no. ab78547), lysosome-associated membrane glycoprotein 1 (lysosome marker, 1:1,000; cat. no. ab24170), and HtrA serine peptidase 2 (1:500; HtrA2/Omi; cat. no. ab32092; all Abcam, Cambridge, UK). Images were observed with an inverted microscope (magnification, ×40; BX51; Olympus Corporation, Tokyo, Japan). Image-Pro Plus 4.5 software (Media Cybernetics, Inc., Rockville, MD, USA) was used to quantify the immunofluorescence according to a previous study (36). Mitophagy is the result of fusion between mitochondria and lysosome. The green mitochondria locate with red lysosome would generate the orange mitophagy. Then, the number of orange dot was measured to quantify the number of mitophagy (37).

Western blotting

Cells were lysed in Laemmli Sample Buffer (Bio-Rad Laboratories, Inc., Hercules, CA, USA). Proteins were isolated and concentrations were determined using the Bicinchoninic Acid Protein Assay kit (Thermo Fisher Scientific, Inc.) according to the manufacturer's protocol (38). Total protein (40–60 µg) was separated by 12–15% SDS-PAGE. Following electrophoresis, the proteins were transferred to a polyvinylidene fluoride membrane (Roche Applied Science, Penzberg, Germany) (39). Bands were detected using an enhanced chemiluminescence substrate (Applygen Technologies, Inc., Beijing, China). Membranes were blocked with 5% nonfat dried milk in Tris-buffered saline containing 0.05% Tween-20 (TBST) for 2 h at room temperature. Band intensities were normalized to the respective internal standard signal intensity (β-actin; 1:2,000; cat. no. ab8226 and GAPDH; 1:2,000; cat. no. ab9485; both Abcam) (40). The experiment was repeated three times. The primary antibodies used in the study were as follows: Sequestome-1 (p62; 1:1,000; cat. no. ab56416), Bnip3 (1:1,000; cat. no. ab109362), Bcl-associated X protein (Bax; 1:1,000; cat. no. ab32503; all Abcam), pro-caspase-3 (1:1,000; cat. no. 9662; Cell Signaling Technology, Inc., Danvers, MA, USA), caspase-9 (1:1,000; cat. no. ab32539; Abcam), Beclin-1 (1:1,000; cat. no. 3495), cleaved caspase-3 (1:1,000; cat. no. 9664; both Cell Signaling Technology, Inc.), TLR4 (1:1,000; cat. no. ab13556; Abcam), microtubule-associated protein light chain (LC)3II (1:1,000; cat. no. 3868; Cell Signaling Technology, Inc.), PTEN (1:1,000; cat. no. ab31392; Abcam), Bcl2 (1:1,000; cat. no. 3498; Cell Signaling Technology, Inc.), Bad (1:1,000; cat. no. ab90435), CXCR4 (1:1,000; cat. no. ab1670), CXCR7 (1:1,000; cat. no. ab38089; all Abcam), t-JNK (1:1,000; cat. no. 4672), p-JNK (1:1,000; cat. no. 9251) and autophagy protein 5 (Atg5; 1:1,000; cat. no. 12994; all Cell Signaling Technology, Inc.). The second antibodies used in the present study were as follows: Horseradish peroxidase-conjugated secondary antibodies (1:2,000; cat. nos. 7076 and 7074; Cell Signaling Technology, Inc.) for 1 h at room temperature. Band intensities were normalized to the respective internal standard signal intensity (β-actin or GAPDH) using Quantity One Software (version 4.6.2; Bio-Rad Laboratories, Inc.).

Flow cytometric analysis of cellular ROS

To observe the cellular ROS levels, flow cytometric analysis was used. In brief, nasal epithelial cell (1×106) was washed with PBS, and the ROS probe (5 mg/ml; dihydroethidium; Molecular Probes; Thermo Fisher Scientific, Inc.) was incubated with the cells for ~30 min at 37°C in the dark. Subsequently, the cells were washed with PBS to remove the ROS probe. Following this, the cells were digested with 0.25% pancreatin (41). Following resuspension in PBS, the cells were immediately analyzed using a flow cytometer (Sysmex Partec GmbH, Görlitz, Germany). The quantification of cellular ROS was performed per 10,000 cells in each group, and the data were analyzed with Flowmax software (Sysmex Partec, Version 2.3, Germany) (42).

Mitochondria permeability transition pore (mPTP) opening assay and ATP production

mPTP opening is an early event in mitochondrial apoptosis (43). In the present study, mPTP opening was measured via tetramethylrhodamine ethyl ester fluorescence. The nasal epithelial cell (1×106) was washed with PBS approximately three times and then were loaded with tetramethylrhodamine ethyl ester. The baseline fluorescence of tetramethylrhodamine ethyl ester was recorded. Following 30 min, the tetramethylrhodamine ethyl ester fluorescence was recorded again. According to a previous study (44), the mPTP opening rate was determined when the fluorescence intensity was decreased to half of the baseline fluorescence intensity. ATP production was detected to reflect mitochondrial function. First, the samples were washed with cold PBS approximately three times. Subsequently, the samples were lysed in Laemmli Sample Buffer, and the luciferase-based ATP assay kit (cat. no. S0026B, Beyotime Institute of Biotechnology, Haimen, China) was used. ATP production was measured via a microplate reader (45).

JC-1 staining and isolation of mitochondrial-enriched fraction

The JC-1 assay was used to investigate mitochondrial potential. Briefly, the MitoProbe™ JC-1 assay kit (Thermo Fisher Scientific Inc.) was applied to cells (1×106) at 37°C in the dark for 15–20 min. Subsequently, PBS was used to wash the cells three times. Finally, mitochondrial potential was determined using a fluorescence microscope and the images were captured (46). To isolate the mitochondrial fraction in order to analyze the expression associated with mitochondrial HtrA2/Omi, cells (1×106) were washed with cold PBS and incubated on ice in lysis buffer (Beyotime Institute of Biotechnology) for 30 min. Then, mitochondria were isolated using a commercial kit (cat. no. C3601, Beyotime Institute of Biotechnology) according to the previous study (47).

RNA isolation and reverse transcription-quantitative polymerase chain reaction (RT-qPCR)

TRIzol reagent (Invitrogen; Thermo Fisher Scientific, Inc.) was used to isolate total RNA from cells (24). Subsequently, the Reverse Transcription kit (Kaneka Eurogentec S.A., Seraing, Belgium) was applied to transcribe RNA (1 µg in each group) into cDNA at room temperature (~25°C) for 30 min. The qPCR was performed with primers and matched probes from the Universal Fluorescence-labeled Probe Library (Roche Applied Science) using SYBR™ Green PCR Master Mix (Thermo Fisher Scientific, Inc.) (48). The primers used in the present study were as follows: PTEN forward, 5′-GACTGGCCCAGTGTTCTTCGCTTC-3′ and reverse, 5′-GCTTCTGACAGAAGGAAAGCCAA-3′; and GAPDH forward, 5′-GCTACAGCTTCACCACCACA-3′ and reverse, 5′-GCCATCTCTTGCTCGAAGTC-3′). The cycling conditions were as follows: 95°C for 8 min, followed by 35 cycles of 95°C for 10 sec and 72°C for 12 sec, for telomere PCR. Fold change of PTEN mRNA expression was normalized by GAPDH as an internal control.

RNA interference assay

In the present study, to inhibit TLR4 expression, small interference (si)RNA against TLR4 was used. The siRNA sequences were as follows: siRNA sense strand, 5′-GCTACTGTAGGAUAGTAU-3′ and antisense strand, 3′-TCTTCUUAGCTGCATAAU-5′. The siRNA was designed and purchased from Yangzhou Ruibo Biotech Co., Ltd. (Yangzhou, China). To transfect the siRNA, Opti-Minimal Essential Medium (Invitrogen; Thermo Fisher Scientific, Inc.) was incubated with nasal epithelial cell (1×106) for at least 24 h. Subsequently, Lipofectamine® 2000 transfection reagent (Thermo Fisher Scientific, Inc.) was used according to the manufacturer's protocol to perform siRNA transfection (70 nM/well of siRNA) (49). Following transfection for 36–48 h, cells were lysed, and the proteins were isolated to measure the TLR4 expression via western blotting.

Cell migration assay

For the cell migration assay, Transwell units with an 8 µm pore size polycarbonate filter were used. Cells (~1×105) were seeded in the upper chamber of the Transwell units with 1% FBS. The lower chamber was filled with 600 µl of L-DMEM supplemented with 1% FBS. After incubating at 37°C for 12 h, the medium was removed, and cells were fixed with 3.7% paraformaldehyde for ~10 min (48). The cells in the upper chamber were removed by a cotton swab. Subsequently, the migrated cells were stained with 0.1% crystal violet for 15 min at room temperature. Subsequently, the samples were observed under a digital microscope system (IX81; Olympus Corporation). The images were captured, and the migrated cells were recorded in at least five fields (50).

Lactate dehydrogenase (LDH) assay and caspase-3/-9 activity detection

LDH is released into the medium when cellular membranes rupture (51). To evaluate the LDH level in the medium, an LDH Release Detection kit (Beyotime Institute of Biotechnology) was used. To analyze changes in caspase-3 and caspase-9, caspase-3/-9 activity kits (Beyotime Institute of Biotechnology) were used according to the manufacturer's protocol (52). To analyze caspase-3 activity, 5 µl DEVD-p-NA substrate (4 mM, 200 µM final concentration) was added to the samples for 2 h at 37°C. To measure caspase-9 activity, 5 µl LEHD-p-NA substrate (4 mM, 200 µM final concentration) was added to the nasal epithelial cell (1×106) for 1 h at 37°C. Subsequently, the wavelength at 400 nm was recorded via a microplate reader to reflect the caspase-3 and caspase-9 activities (53).

Bromodeoxyuridine (BrdU) assay

To evaluate cellular proliferation, a BrdU assay (Guangzhou RiboBio Co., Ltd., Guangzhou, China) was used according to the method of a previous study (54). Firstly, cells with or without PTEN overexpression were fixed in 4% paraformaldehyde at 4°C for 30 min, followed by permeabilization with 0.5% Triton X-100 for ~20 min at room temperature. Subsequently, samples were incubated in 2 N HCl solution for 30 min at 37°C to unmask the antigens, followed by a neutralization step with 0.1 M sodium tetraborate at room temperature for 30 min. Subsequently, a BrdU antibody (1:200; cat. no. ab8152; Abcam) was incubated with the samples overnight 4°C. Following three rinses in PBS, a secondary antibody (1:1,000; cat. no. A-21206; Invitrogen; Thermo Fisher Scientific, Inc.) was added to the samples for 1 h at room temperature (55). Finally, the cells were stained with DAPI (Sigma-Aldrich; Merck KGaA, Darmstadt, Germany) for 5 min at room temperature to identify the nuclei. Subsequently, the samples were observed under a fluorescence microscope. Images were captured, and the number of BrdU-positive cells was measured via counting at least three random separate fields.

MTT and terminal deoxynucleotidyl-transferase-mediated dUTP nick end labeling (TUNEL) assays

MTT experiments were performed in 96-well plates. Nasal epithelial cell (1×106) was washed 3 times with PBS at room temperature, and 50 µl MTT reagent was added to each well. The samples were subsequently incubated for 4 h at 37°C in a humid atmosphere containing 5% CO2. The MTT solution was removed, 200 µl dimethyl sulfoxide was added to each sample, and the samples were incubated for 10 min at room temperature (13,56). Following the addition of Sorensen's buffer, the absorbance at the wavelength of 570 nm was determined. To detect DNA fragmentation in the cell nuclei (a marker of apoptosis in testicular tissue), a TUNEL assay for nasal epithelial cell (1×106) was performed using an In Situ Cell Death Detection kit (Roche Diagnostics GmbH, Mannheim, Germany) according to the manufacturer's protocol (57). DAPI (5 mg/ml) was used to label the nuclei (at room temperature for ~30 min) (58).

Construction of adenovirus for PTEN overexpression

The pDC315-PTEN vector was designed and purchased from Vigene Biosciences, Inc. (Rockville, MD, USA). Briefly, the plasmid (3.0 µg per 1×104 cells/well) was transfected into 1×106 293 cells (CRL-1573™; American Type Culture Collection, Manassas, VA, USA) using Lipofectamine 2000® (Invitrogen; 110 Thermo Fisher Scientific, Inc.). When the cells detached from the plates, the medium supernatant was collected. Subsequently, the viral supernatant was identified and amplified to obtain adenovirus-PTEN. Subsequently, 100 multiplicity of infection adenovirus-PTEN was transduced into the cells to overexpress PTEN (59). Following the transfection of nasal epithelial cells with Ad-PTEN, the overexpression efficiency of Ad-PTEN-transfected nasal epithelial cell was evaluated via western blotting and an immunofluorescence assay using PTEN antibody. The western blotting and immunofluorescence were performed as aforementioned. PTEN fluorescence was observed under an inverted microscope (excitation wavelength, 550 nm; magnification, ×40; BX51; Olympus Corporation).

Statistical analysis

All data are expressed as the mean + standard deviation. Statistical analyses were performed using SPSS software (version 17.0; SPSS, Inc., Chicago, IL, USA). The results from more than two groups were evaluated by one-way analysis of variance followed by the least significant difference test. P<0.05 was considered to indicate a statistically significant difference.

Results

Regaining PTEN expression increases human nasal epithelial cell survival in the context of TNFα-induced inflammatory injury

TNFα was used to induce an inflammatory injury, and nasal epithelial cell viability was detected via MTT assay. As illustrated in Fig. 1A, the TNFα incubation dose-dependently reduced cellular viability. Notably, the minimum cytotoxic concentration of TNFα was 5 ng/ml. These results were similar to a previous study (60). Therefore, based on this data and previous findings (60), a dosage of 5 ng/ml TNFα for ~12 h was used for the subsequent experiments. Additionally, an alteration in PTEN levels was observed following the inflammatory injury. Compared with that of the control cells, PTEN expression was significantly decreased in response to TNFα treatment (Fig. 1B-D). To explain the causal role of PTEN in TNFα-induced inflammatory injury, PTEN was overexpressed in TNFα-treated nasal epithelial cells. The overexpression efficiency in Ad-PTEN-transfected cells was verified via immunofluorescence assay (Fig. 1E) and western blotting (Fig. 1F). Notably, PTEN overexpression significantly reduced caspase-3 activity compared with that in TNFα-treated cells (Fig. 1G), indicating that PTEN overexpression improved nasal epithelial cell survival in the context of TNFα-induced inflammatory injury. The cell morphology with TNFα treatment is presented in Fig. 1H and PTEN overexpression preserved cellular organization and normal cell morphology upon TNFα exposure. To provide more direct, evidence for the anti-apoptotic effect of PTEN in inflammatory injury, a TUNEL assay was conducted. Compared with the number of positive cells in the control group, the TNFα treatment increased the number of TUNEL-positive cells (Fig. 1I), and this effect was inhibited by PTEN overexpression. In summary, these data suggested that PTEN overexpression prevented nasal epithelial cell apoptosis during a TNFα-induced inflammatory injury.

Figure 1. TNFα treatment alleviates PTEN expression in nasal epithelial cells. (A) TNFα treatment reduced nasal epithelial cell viability in a dose-dependent manner, as determined by MTT assay. (B-D) PTEN transcription and expression were downregulated in response to TNFα stimulation. (E) The PTEN overexpression in Ad-PTEN-transfected cell was verified via immunofluorescence assay using PTEN antibody. (F) The overexpression efficiency of Ad-PTEN transfection. Scale bar, 50 µm. (G) PTEN overexpression alleviated the increased caspase-3 activity induced by TNFα stimulation. (H) The cellular morphology of nasal epithelial cells with PTEN overexpression. Scale bar, 200 µm. (I) TUNEL assay was carried out to measure the number of the apoptotic nasal epithelial cells. Scale bar, 50 µm. *P<0.05 vs. Ctrl group or Ad-ctrl group; #P<0.05 vs. TNFα group. TNFα, tumor necrosis factor α; PTEN, phosphatase and tensin homolog; Ad, adenovirus; Ctrl, control; TUNEL, terminal deoxynucleotidyl-transferase-mediated dUTP nick end labeling. The experiment was repeated three times.

PTEN reverses the proliferation and migration of nasal epithelial cells during inflammatory injury

In addition to cellular apoptosis, the protective role of PTEN in cellular proliferation and migration, which are vital for airway repair in response to the inflammatory injury, was also observed. Cyclin D1 and Cyclin E expression levels were significantly decreased in response to TNFα treatment, whereas PTEN overexpression reversed this effect (Fig. 2A). Regarding cellular proliferation, Cyclin D1 and Cyclin E interact with each other and generate the cyclin-dependent kinase (Cdk)4/6-cyclin D and/or Cdk2-cyclin E complexes, which accelerate the transition from the G0/G1 to S stage (38). Subsequently, to observe the number of cells at S-phase, BrdU staining was used. Compared with the control group, TNFα incubation significantly reduced the proportion of BrdU-positive cells (Fig. 2B). In comparison, PTEN overexpression reversed this decrease in the number of BrdU-positive cells.

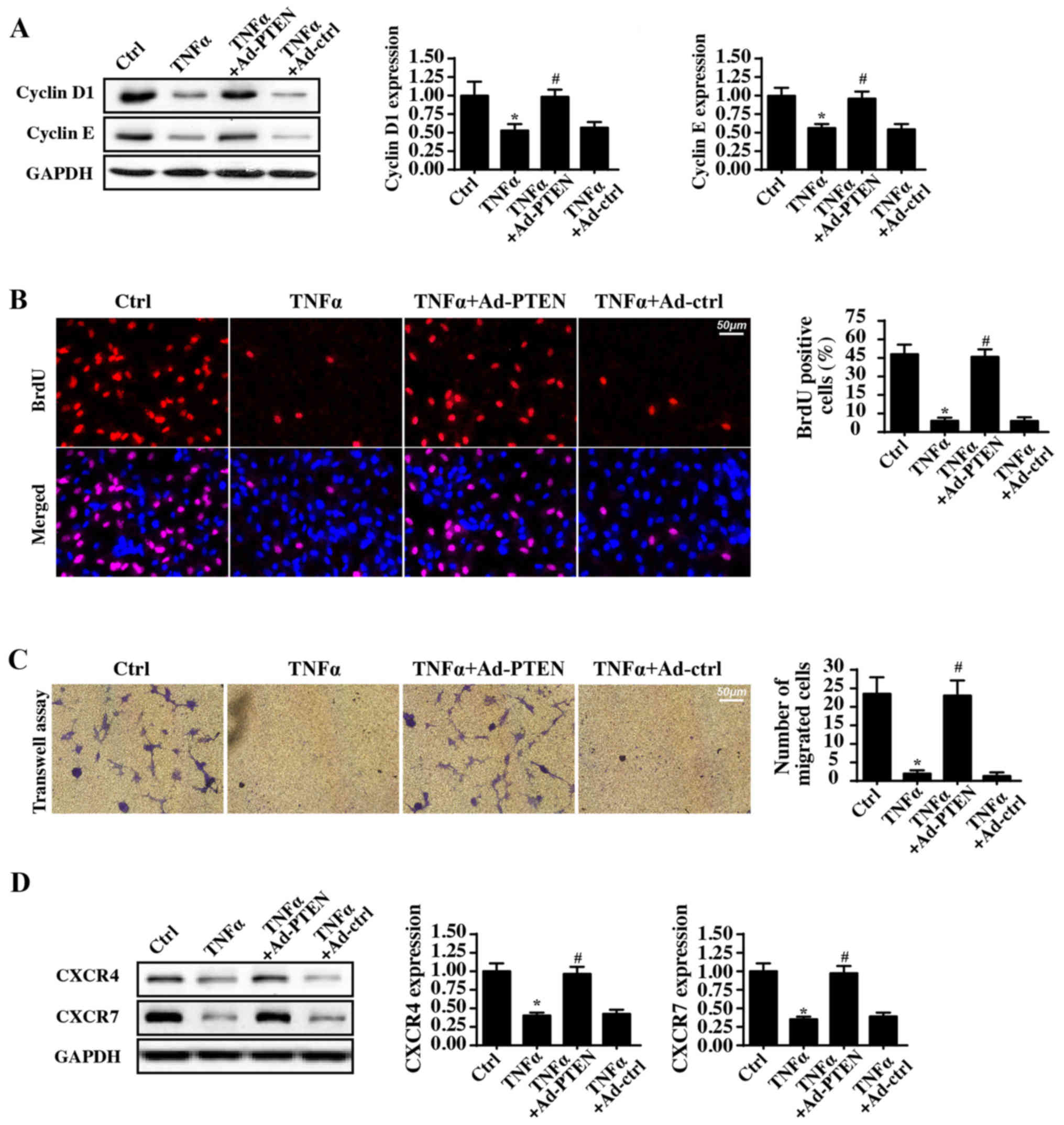

Figure 2. PTEN overexpression sustains nasal epithelial cell proliferation and migration. (A) Cyclin D1 and E expression levels were detected via western blotting. (B) Cell proliferation was observed via BrdU assay. Scale bar, 50 µm. (C) Transwell assays were used to evaluate cell migration. Scale bar, 50 µm. (D) CXCR4 and CXCR7 expression levels were determined following TNFα and PTEN overexpression. *P<0.05 vs. Ctrl group; #P<0.05 vs. TNFα group. Ctrl, control; TNFα, tumor necrosis factor α; Ad, adenovirus; PTEN, phosphatase and tensin homolog; BrdU, bromodeoxyuridine; CXCR, C-X-C chemokine receptor type. The experiment was repeated three times.

Subsequently, the cellular migratory response was also observed. In Transwell assays, the number of migrated cells was decreased by TNFα treatment and was increased to normal levels with PTEN overexpression (Fig. 2C). These data suggested that during TNFα-mediated inflammatory injury, PTEN overexpression increased cellular migration. In addition, the chemotactic factor C-X-C chemokine receptor type (CXCR)4/7 expression level was also measured. Notably, the enriched CXCR4/7 expression was inhibited by the TNFα treatment (Fig. 2D). By contrast, PTEN overexpression restored the intracellular CXCR4/7 levels. Collectively, this information indicated that PTEN is necessary for nasal epithelial cell proliferation and migration during inflammatory injury.

Overexpression of PTEN alleviates mitochondrial damage

Recent studies have suggested that mitochondria are a potential target in inflammatory injury (11,61). Mitochondrial damage leads to energy metabolism disorders (62). Moreover, inflammatory injury also activates mitochondrial apoptosis, resulting in cellular death (63,64). Due to energy deficiencies and apoptosis activation, nasal epithelial cells are unable to survive, migrate and proliferate under inflammatory injury conditions (65). Therefore, whether PTEN protected nasal epithelial cells via maintaining mitochondrial homeostasis was investigated. First, cellular ROS levels were detected via flow cytometry. When compared with the control group, TNFα treatment produced excessive cellular ROS levels (Fig. 3A). Bu contrast, PTEN overexpression almost completely reversed the ROS production induced by TNFα. As a consequence of the cellular oxidative stress, TNFα treatment mediated the opening of the mPTP, and this effect was inhibited by PTEN overexpression (Fig. 3B). mPTP opening is believed to be the primary initiating factor for the mitochondrial death pathway via facilitating HtrA2/Omi leakage from the mitochondria into the cytoplasm/nucleus (66). Immunofluorescence assays of HtrA2/Omi levels demonstrated low levels of HtrA2/Omi expression in the cytoplasm/nucleus (Fig. 3C). By contrast, TNFα treatment promoted HtrA2/Omi expression in the cytoplasm. Furthermore, western blotting also demonstrated that TNFα treatment increased, whereas PTEN overexpression reduced, the expression of cytoplasmic HtrA2/Omi (Fig. 3D), indicating that TNFα-mediated HrtA2/Om2 leakage into cytoplasm may be repressed by PTEN overexpression. Finally, alterations in the proteins associated to the mitochondrial death pathway were investigated. Bax and Bad expression levels were both upregulated, whereas the expression of protective Bcl2 was downregulated in response to the TNFα treatment (Fig. 3D). Bcl2 interacts with and inhibits Bax in order to limit excessive mPTP opening (67). TNFα treatment also increased caspase-9 and caspase-3 expression (Fig. 3D), indicative of mitochondrial death pathway activation. However, PTEN overexpression corrected the imbalance between Bcl2 and Bax expression and thus alleviated caspase-3 and caspase-9 expression. These data indicated that PTEN was capable of repressing TNFα-induced mitochondrial injury.

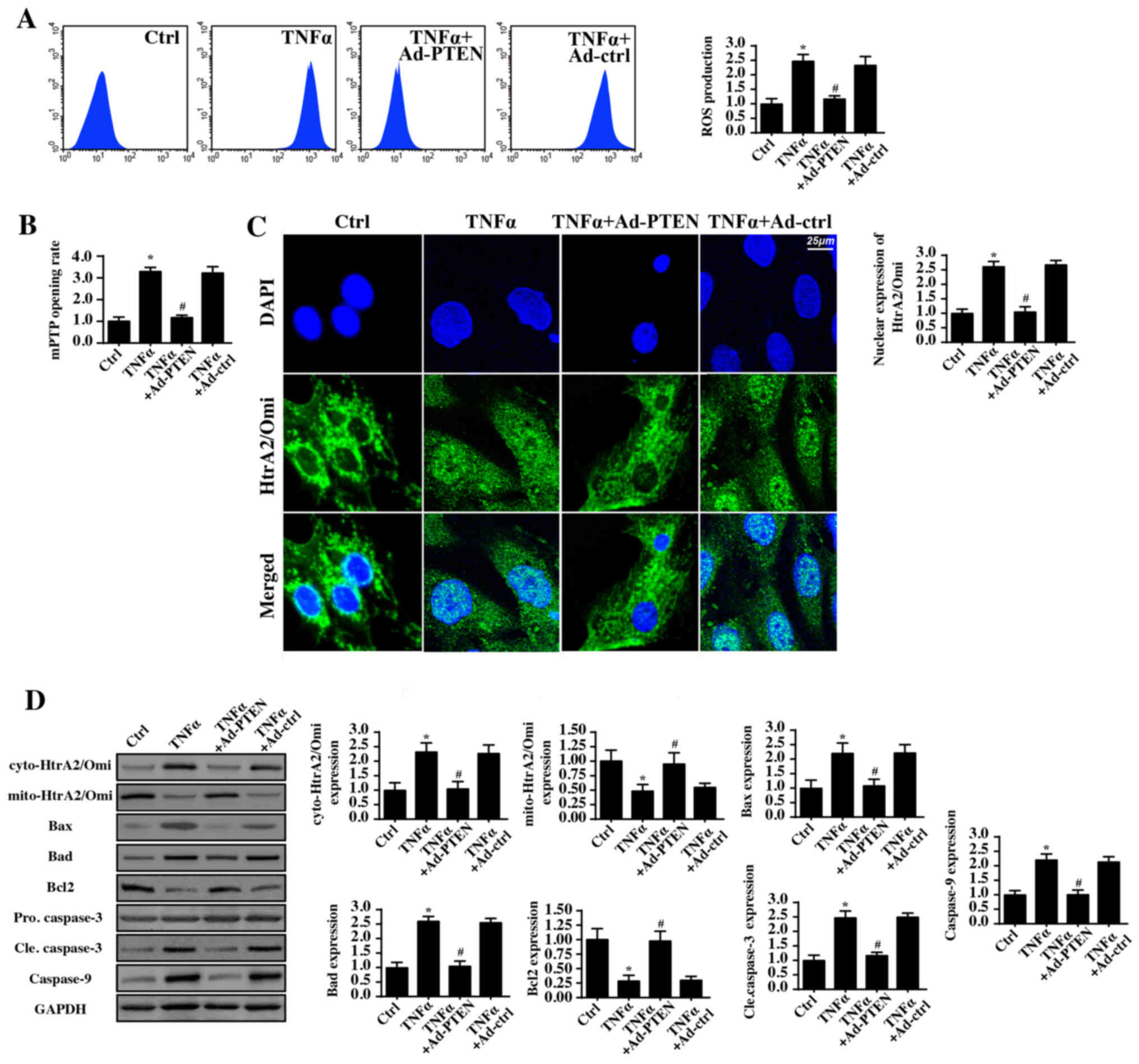

Figure 3. PTEN overexpression protects mitochondria against TNFα-mediated inflammatory injury. (A) The alterations in cellular ROS levels were detected via flow cytometry. (B) The mPTP opening rate. (C) Mitochondrial HtrA2/Omi expression was diffused, as detected via immunofluorescence. Scale bar, 25 µm. (D) Western blotting was used to evaluate the expression of mitochondrial apoptotic proteins following TNFα treatment with or without PTEN overexpression. *P<0.05 vs. Ctrl group; #P<0.05 vs. TNFα group. Ctrl, control; TNFα, tumor necrosis factor α; Ad, adenovirus; PTEN, phosphatase and tensin homolog; ROS, reactive oxygen species; mPTP; mitochondria permeability transition pore; HtrA2/Omi, HtrA serine peptidase 2; cyto, cytoplasmic; mito, mitochondrial; Bax, Bcl-associated X protein; Bad, Bcl-2-associated death promoter; Bcl2, B-cell lymphoma. The experiment was repeated three times.

PTEN reduces mitophagy activity

Previous studies from several researchers have demonstrated that mitochondrial injury results from the mitophagy, a type of autophagy selective for mitochondria. Moderate mitophagy removes poorly structured mitochondria (59). In contrast, excessive mitophagy induces mitochondrial dysfunction via aberrant mitochondrial degradation (22). To test whether PTEN protected mitochondrial function via inhibiting mitophagy, mitophagy activity was investigated via western blotting. Compared to the levels in the control group, TNFα treatment significantly increased the mitochondrial LC3II, Beclin1, p62 and Atg5 levels (Fig. 4A). By contrast, PTEN overexpression significantly alleviated these mitophagy parameters. These data indicated that PTEN inhibited TNFα-mediated mitophagy activation.

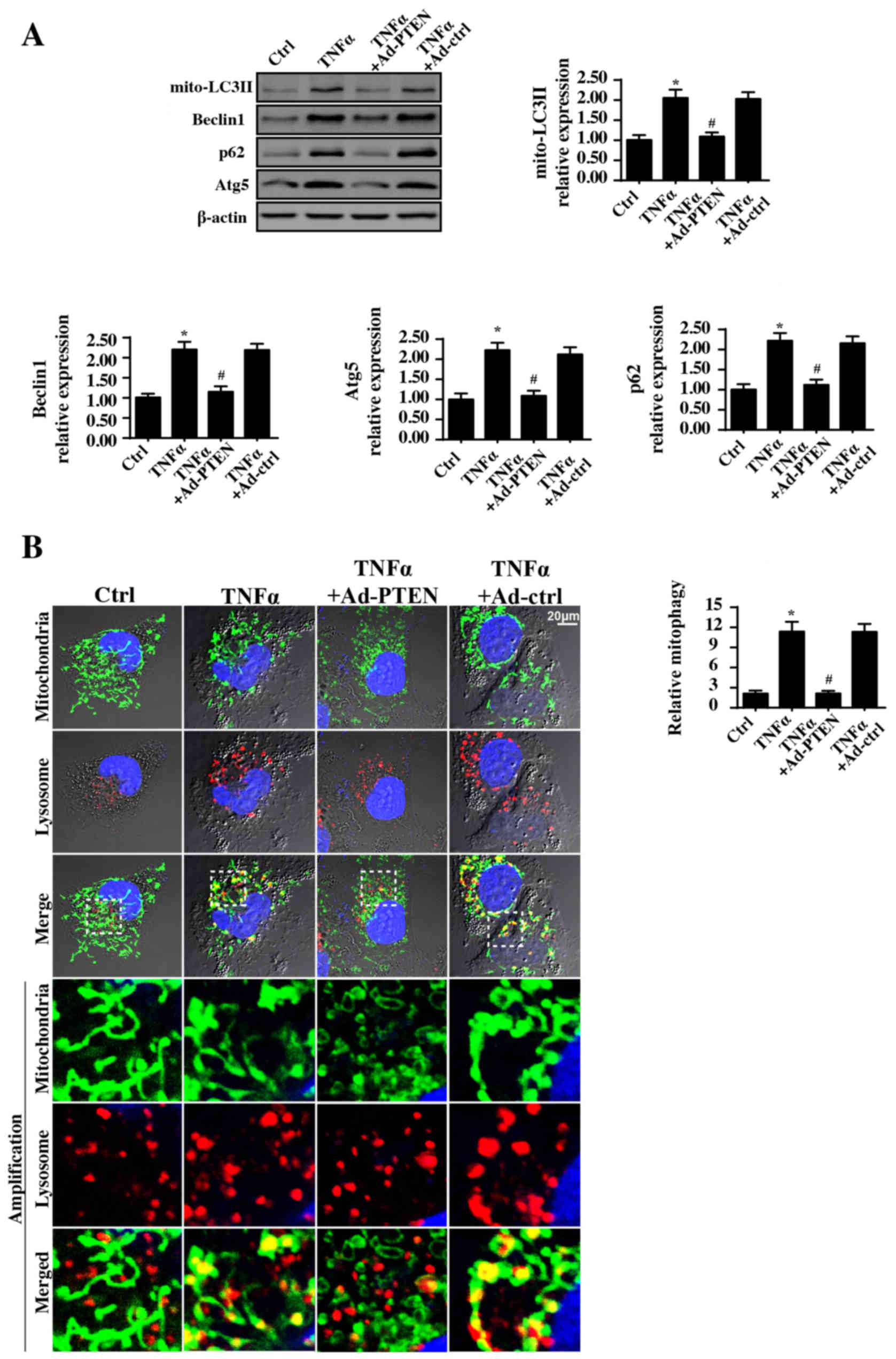

Figure 4. PTEN overexpression inhibits mitophagy activity. (A) Western blotting was used to observe alterations in the mitophagy markers. (B) Immunofluorescence assays of mitophagy was carried out via co-staining of mitochondria and lysosomes and the extent of mitophagy was recorded. Mitophagy is the result of fusion between mitochondria and lysosome. The green mitochondria locates with red lysosome would generate the orange mitophagy. Then, the number of orange dots were measured to quantify the number of mitophagy. Scale bar, 20 µm.*P<0.05 vs. Ctrl group; #P<0.05 vs. TNFα group. Ctrl, control; TNFα, tumor necrosis factor α; Ad, adenovirus; PTEN, phosphatase and tensin homolog; mito, mitochondrial; LC3II, microtubule-associated protein light chain 3 II; p62, Sequestome-1; Atg5, autophagy protein 5. The experiment was repeated three times.

Furthermore, to provide direct evidence for the inhibitory role of PTEN in mitophagy modulation, immunofluorescence assay of mitophagy via mitochondria and lysosome co-staining was performed. Compared with the control group, TNFα promoted fusion between mitochondria and lysosomes (Fig. 4B), indicative of mitophagy activation. By contrast, PTEN overexpression reduced the overlap between mitochondrial and lysosomal staining, suggestive of mitophagy inhibition.

Mitophagy inhibition induced by PTEN overexpression provides mitochondrial protection

To determine whether mitophagy inhibition by PTEN overexpression was responsible for the mitochondrial protection, mitophagy activity in PTEN-overexpressing cells was reactivated via FCCP, a mitophagy activator. Meanwhile, mitophagy activity was also inhibited via 3-MA in TNFα-treated cells, which was used as the negative control group. Subsequently, mitochondrial damage was detected via staining with JC-1, a mitochondrial potential-sensitive dye. Compared with that of the control cells, TNFα treatment reduced the mitochondrial potential (Fig. 5A), and this effect was inhibited by 3-MA or PTEN overexpression, suggesting that mitophagy inhibition reversed mitochondrial function. By contrast, mitophagy activation in PTEN-overexpressing cells disrupted the mitochondrial potential. In addition, the cellular oxidative stress level was also investigated via ROS staining. Compared with that of the control group, the cellular ROS level was increased in the TNFα-treated cells but was decreased to normal levels with 3-MA treatment or with PTEN overexpression (Fig. 5B). Notably, mitophagy activation reversed the inhibitory effects of PTEN-overexpression on ROS overproduction. Furthermore, it was also detected caspase-9 activity, which is activated in response to mitochondrial damage. Notably, caspase-9 activity was upregulated following TNFα treatment. In contrast, 3-MA treatment or PTEN overexpression significantly reduced caspase-9 activity. However, mitophagy reactivation by FCCP in PTEN-overexpressing cells again increased caspase-9 activity (Fig. 5C). Finally, the changes in cellular ATP production were also investigated. Compared with the ATP generated in the control group, TNFα treatment reduced ATP production, and this effect was reversed by 3-MA treatment or PTEN overexpression. Notably, mitophagy activation rescued this decline in cellular ATP production (Fig. 5D). In summary, these data indicated that PTEN overexpression protected mitochondrial homeostasis via suppressing mitophagy activity.

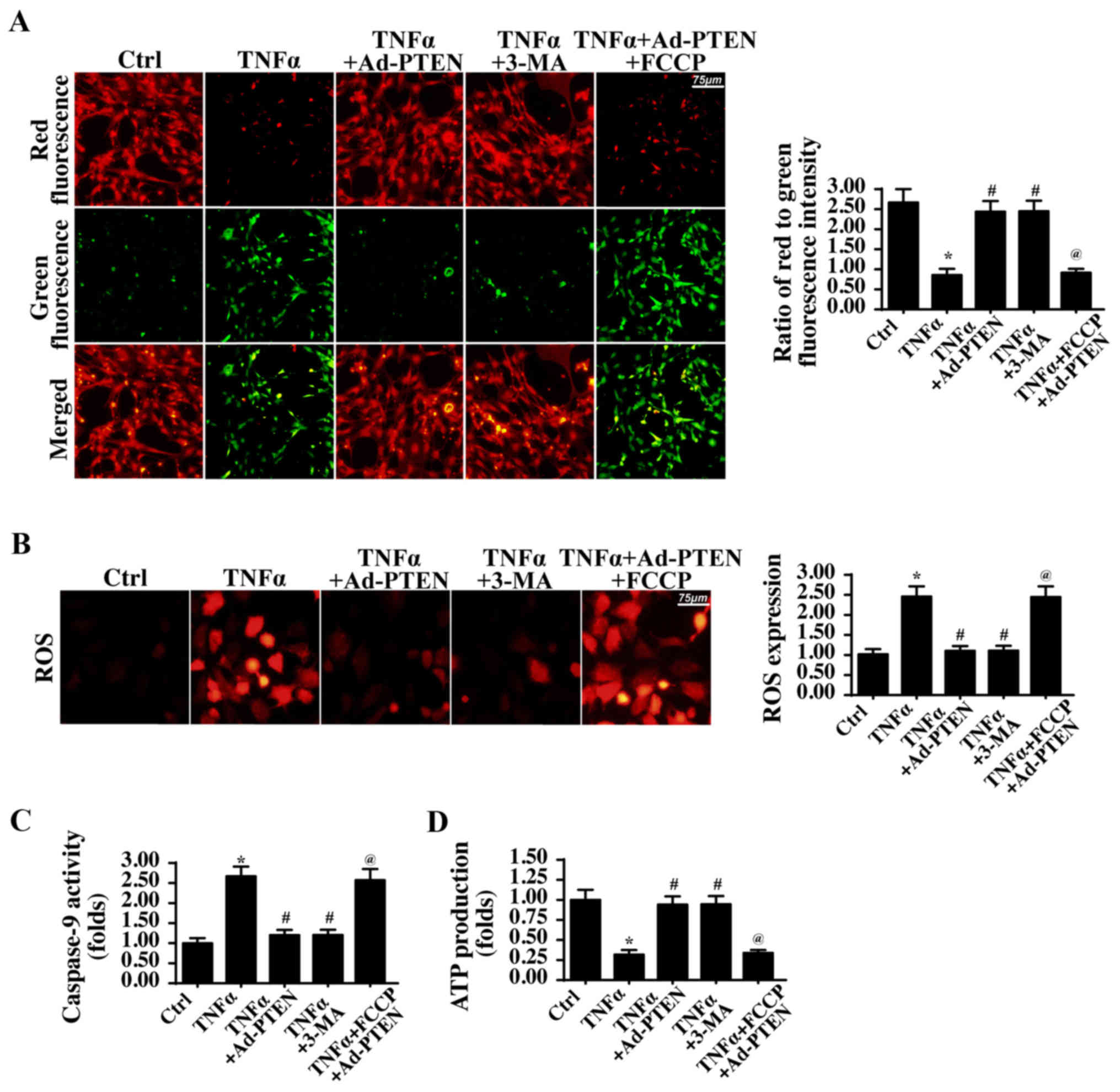

Figure 5. PTEN-regulated mitophagy influences mitochondrial function. (A) Mitochondrial potential was observed via JC1 staining. Red fluorescence indicated a normal mitochondrial potential, whereas green fluorescence suggested a damaged mitochondrial potential. Scale bar, 75 µm. (B) The cellular ROS level was measured using a dihydroethidium probe. Scale bar, 75 µm. (C) Caspase-9 activity was detected to reflect mitochondrial apoptosis during mitophagy activation and/or inactivation. (D) ATP production was evaluated via ELISA. *P<0.05 vs. Ctrl group; #P<0.05 vs. TNFα group; @P<0.05 vs. TNFα+Ad-PTEN group. Ctrl, control; TNFα, tumor necrosis factor α; Ad, adenovirus; PTEN, phosphatase and tensin homolog; 3-MA, 3-methyladenine; FCCP, carbonyl cyanide-p-trifluoromethoxyphenylhydrazone; ROS, ROS, reactive oxygen species; ATP, adenosine triphosphate. The experiment was repeated three times.

PTEN regulates mitophagy via repressing the TLR4-JNK-Bnip3 pathway

To determine the mechanism by which PTEN inhibits mitophagy, the JNK-Bnip3 pathway was investigated. Previous reports have demonstrated that mitophagy is activated via the JNK-Bnip3 axis in fatty liver disease (59), colorectal cancer (68), hepatocellular carcinoma (24) and cardiac reperfusion injury (23). Accordingly, whether PTEN modified mitophagy via the JNK-Bnip3 pathway was investigated. Additionally, to determine whether TLR4 was involved in the JNK-Bnip3 pathway activation, TLR4 expression we knocked down using siRNA (Fig. 6A). In the present study, it was demonstrated that JNK and Bnip3 were both activated in response to the TNFα treatment, via western blotting (Fig. 6B). By contrast, PTEN overexpression significantly reduced JNK phosphorylation levels and Bnip3 expression in TNFα-treated cells.

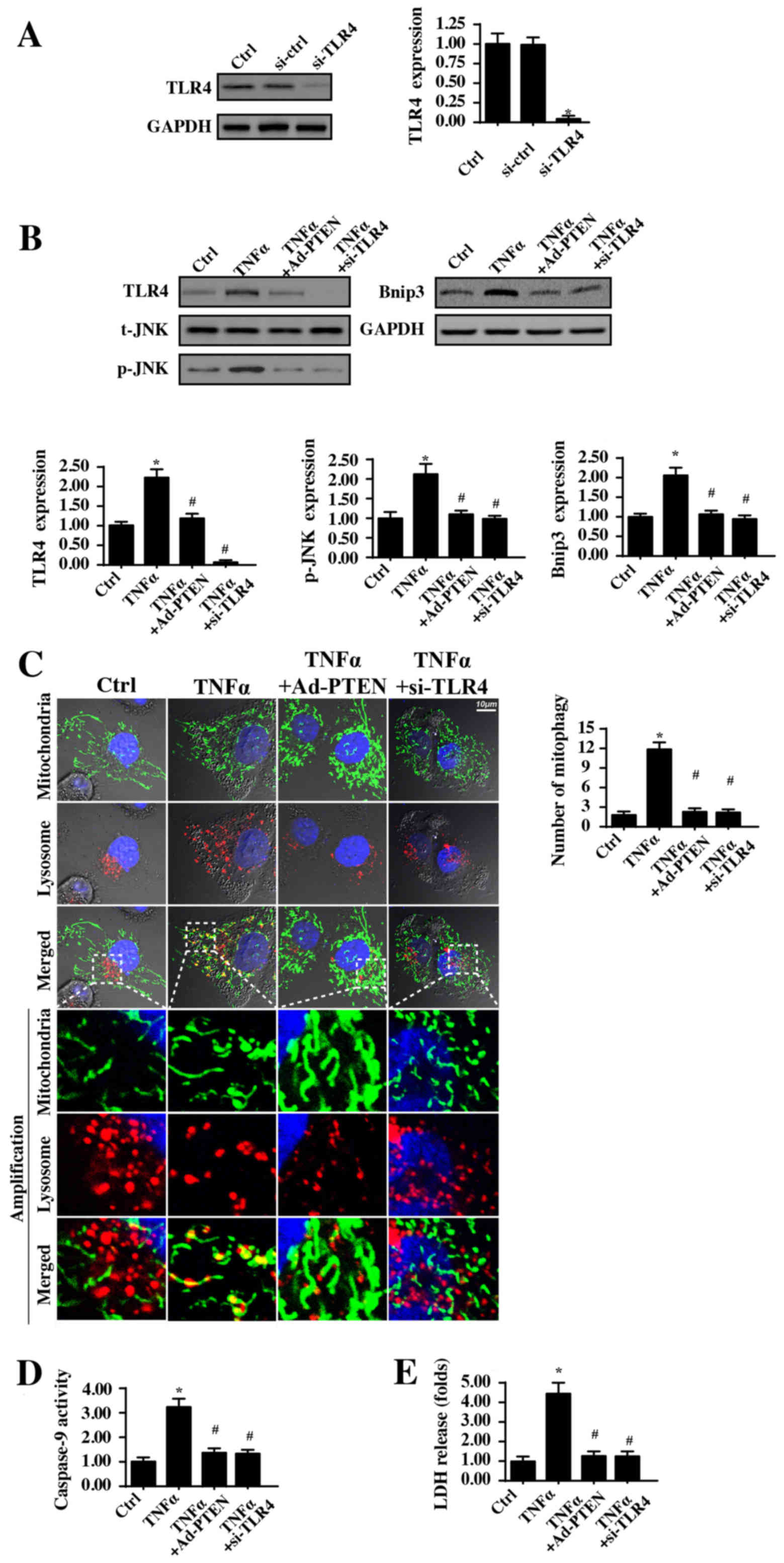

Figure 6. PTEN controls mitophagy activity via the TLR4-JNK-Bnip3 pathway. (A) TLR4 siRNA was used to reduce TLR4 expression. (B) Western blotting was used to analyze the expression of TLR4, phosphorylated JNK and Bnip3 with or without PTEN overexpression and TLR4 silencing. (C) Immunofluorescence assays of mitophagy were carried out via co-staining mitochondria (TOM20 homolog) and lysosomes (lysosome-associated membrane glycoprotein 1). The boxed area under each image represents the amplification of the white square and the amount of mitophagy was recorded. Scale bar, 10 µm. (D) Caspase-9 activity was detected to reflect mitochondrial apoptosis when TLR4 expression was knocked down. (E) LDH release assays were carried to measure cell death when TLR4 expression was silenced. *P<0.05 vs. Ctrl group or si-ctrl group; #P<0.05 vs. TNFα group. Ctrl, control; si, small interfering RNA; TLR4, Toll-like receptor 4; TNFα, tumor necrosis factor α; Ad, adenovirus; PTEN, phosphatase and tensin homolog; t, total; JNK, c-Jun kinase; p, phosphorylated; Bnip3, Bcl2-interacting protein 3; LDH, lactate dehydrogenase. The experiment was repeated three times.

To investigate the upstream signaling responsible for the JNK-Bnip3 pathway activation by TNFα, TLR4 expression was measured. Notably, TLR4 expression was increased in response to the TNFα treatment, and this trend was strongly inhibited by PTEN overexpression (Fig. 6B). Notably, following knockdown of TLR4 expression in TNFα-treated cells, JNK phosphorylation levels and Bnip3 expression were decreased (Fig. 6B). These data indicated that TLR4 functioned upstream of JNK-Bnip3 axis activation. Additionally, whether TLR4 was also associated with mitophagy activation, an immunofluorescence assay of mitophagy was conducted. As demonstrated in Fig. 6C, TNFα-mediated mitochondria-lysosome fusion was inhibited by TLR4 silencing or PTEN overexpression, suggesting that TLR4 was necessary for TNFα-induced mitophagy activation. Furthermore, whether TLR4 was also required for TNFα-associated mitochondrial damage and cellular death, caspase-9 activity was evaluated, and the LDH release assay was conducted. TLR4 knockdown significantly reduced caspase-9 activity (Fig. 6D) and LDH release (Fig. 6E); similar results were also obtained in PTEN-overexpressing cells. In summary, the present data indicated that TNFα activated mitophagy via the TLR4-JNK-Bnip3 pathway, leading to mitochondrial damage and cellular death. However, PTEN overexpression inhibited the TLR4-JNK-Bnip3-mitophagy axis, maintaining mitochondrial homeostasis and providing a survival advantage for nasal epithelial cells under TNFα-induced inflammatory injury (Fig. 7).

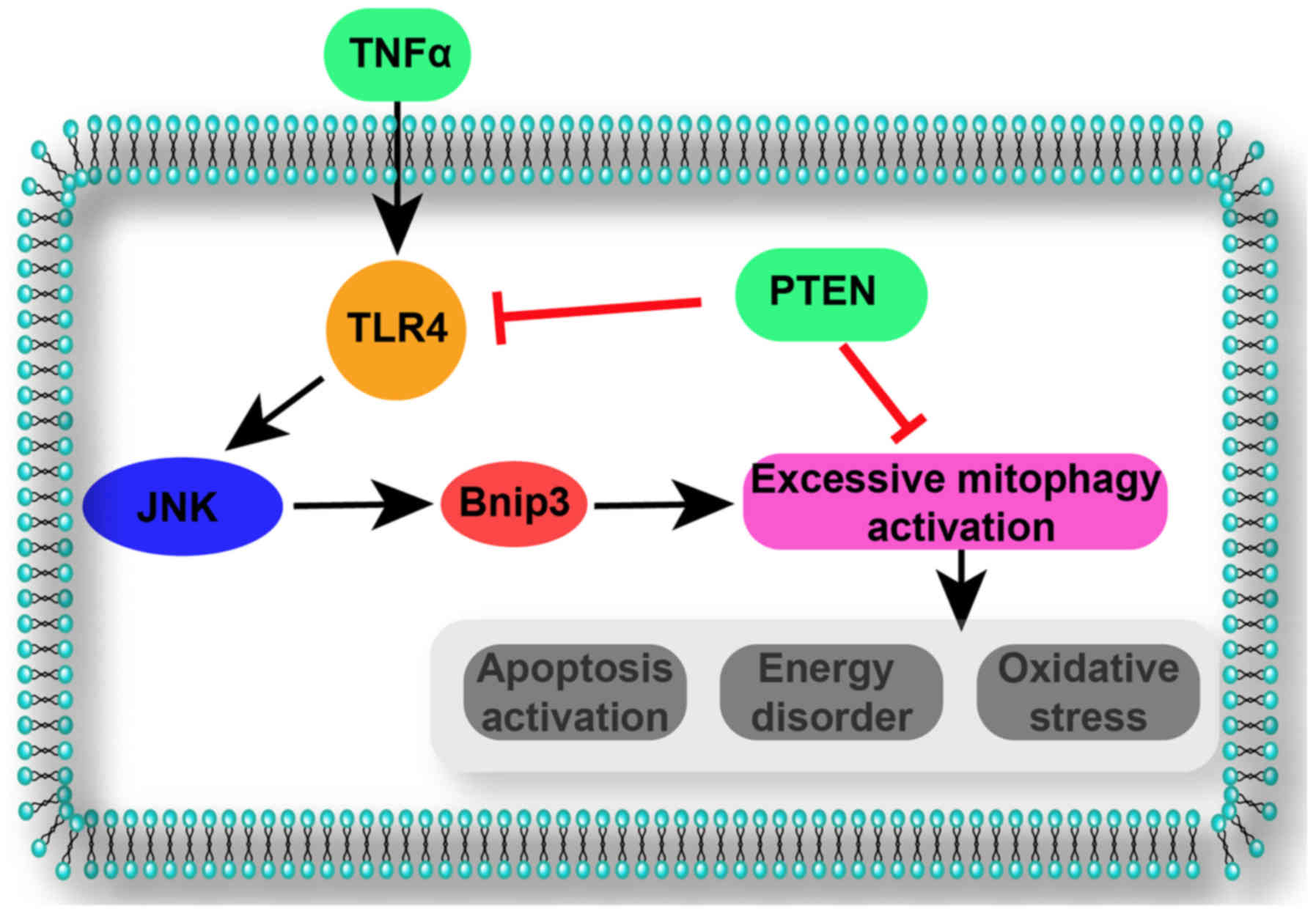

Figure 7. Schematic demonstrating that TNFα may induce mitochondrial dysfunction, energy metabolism disorder and cellular death via mitophagy. Expression of PTEN may inhibit TLR4-JNK-Bnip3 pathways thereby blocking mitophagy activity and increasing the sensitivity of nasal epithelial cell to TNFα-induced cell death. TNFα, tumor necrosis factor α; TLR4, Toll-like receptor 4; PTEN, phosphatase and tensin homolog; JNK, c-Jun kinase; Bnip3, Bcl2-interacting protein 3.

Discussion

In the present study, the following were demonstrated: i) PTEN was downregulated in nasal epithelial cells under TNFα-induced inflammatory injury; ii) regaining PTEN expression alleviated inflammation-mediated cellular apoptosis, proliferation arrest and migration inhibition; iii) mechanistically, PTEN overexpression attenuated mitochondrial dysfunction via repression of mitophagy activity; iv) inflammation-activated mitophagy resulted in aberrant mitochondrial degradation, leading to a reduced energy supply and apoptosis activation; and v) PTEN overexpression abrogated lethal mitophagy via blocking the TLR4-JNK-Bnip3 pathway, maintaining mitochondrial homeostasis and promoting cellular survival in the context of inflammatory injury. Based on the above findings, the mechanism underlying inflammatory injury-induced apoptosis in nasal epithelial cells was investigated; this pathogenesis was associated with PTEN downregulation, mitophagy upregulation and TLR4-JNK-Bnip3 pathway activation. To the best of our knowledge, this is the first study to describe the role of PTEN-associated mitophagy in nasal epithelial cell inflammatory injury.

Several studies have reported that COPD development is associated with chronic nasal and sinus inflammation (69). In addition, anti-inflammation therapy is effective for alleviating upper airway symptoms such as rhinorrhea, nasal obstruction and sneezing (70). Therefore, this information confirmed that chronic nasal and sinus inflammatory injury is the primary pathogenesis for COPD progression. Accordingly, identifying the molecular basis underlying nasal and sinus inflammatory injuries may uncover potential therapeutic targets for clinical practice. In response to TNFα stimulation, PTEN expression was downregulated in nasal epithelial cells. However, reintroduction of PTEN expression rescued nasal epithelial cell viability, growth and mobility. Accordingly, these data identified PTEN as an endogenous defender against inflammation-mediated cellular damage in nasal epithelial cells. Previous studies have also illustrated the beneficial role of PTEN in acute kidney injury (28), diabetes (71), cardiomyopathy (72) and chronic fatty liver disease (73). Therefore, an approach to reverse PTEN activity could be considered as adjuvant therapy to enhance anti-inflammatory treatments in patients with chronic nasal and sinus inflammation, but this needs to be investigated further.

Functional studies have demonstrated that inflammation induced nasal epithelial cell death via mitophagy (74). In response to TNFα stimulation in the current study, the TLR4-JNK-Bnip3 pathway was upregulated and was accompanied by increased mitophagy activity. Excessive mitophagy results in aberrant mitochondrial degradation, leading to a shortage in the energy supply and mitochondrial apoptosis activation (59,63). Notably, several studies have reported the protective role of mitophagy in acute cardiac ischemia reperfusion injury (19), diabetes (75) and non-alcoholic fatty liver disease (59). These studies noted that moderate mitophagy activation removed the damaged mitochondria in a timely manner and maintained mitochondrial homeostasis. Notably, a report has argued that mitophagy is harmful to cell viability (62). Excessive mitophagy activation impaired liver cancer migration and promoted endothelial mitochondrial apoptosis (22,24). This discrepancy may result from the different mitophagy regulatory signaling pathways. Several studies have confirmed that various mitophagy activation pathways distinctly influence mitophagy function and cell fate (59,76). Notably, Bnip3-associated mitophagy is lethal for cardiomyocytes (23,77), liver cancer (24) and colorectal cancer (68), which is similar to the present findings. These findings hinted that modulating Bnip3-mediated mitophagy is vital for nasal epithelial cell survival under inflammatory injury.

Furthermore, the TLR4-JNK-Bnip3 pathway seemed to be responsible for mitophagy activation under inflammatory injury, in vitro. However, PTEN overexpression had the ability to block the TLR4-JNK-Bnip3 pathway. Notably, a previous study reported the inhibitory effects of PTEN overexpression on TLR4 or JNK expression (24). Accordingly, to the best of our knowledge, this is the first study to establish the regulatory role of PTEN in the TLR4-JNK-Bnip3 pathway in chronic nasal and sinus inflammation. Therefore, the present data provided more information about the association between PTEN and the TLR4-JNK-Bnip3 pathway.

Collectively, the present data investigated the molecular mechanism underlying inflammation-associated nasal epithelial cell damage. Inflammation-induced PTEN downregulation resulted in TLR4-JNK-Bnip3-mitophagy pathway activation, which eventually amplified the cellular death signals in nasal epithelial cells. However, rescuing PTEN activity blocked the TLR4-JNK-Bnip3 pathway and halted mitophagy, favoring nasal epithelial cell survival in inflammatory injury.

Acknowledgements

Not applicable.

Funding

No funding was received.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

ML, SW and XY made substantial contributions to the concept and design of the present study, performance of experiments, data analysis and interpretation, and manuscript writing.

Ethics approval and consent to participate

Not applicable.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
