Introduction

Triple-negative breast cancer (TNBC), as a molecular subtype of breast cancer, is susceptible to early recurrence and metastasis. Patients with TNBC have poor prognosis owing to a lack of effective clinical treatment measures (1). Tumor cells receive blood supply by fusion with the host blood vessels, as well as by vascular formation methods, such as constructing new vascular systems, which is called vasculogenic mimicry (VM) (2). This phenomenon was discovered by Maniotis et al (2), who studied the microcirculation of human uveal melanoma and demonstrated a novel manner by which tumor cells obtain blood supply. According to the VM theory, when the tumor diameter is >2 mm, vascular endothelial cells are activated to construct new blood vessels to obtain blood supply to prevent tumor cell necrosis as a result of ischemia and hypoxia (1). The VM theory suggests that tumor cells form tubular structures, and it has been hypothesized that tumor cells exhibit stem cell plasticity, similar to the phenotype and function of endothelial cells, and can differentiate into endothelial cells in the tumor microenvironment (3,4). VM has been reported in melanoma, glioma and bidirectional malignancy, as well as colon, liver, ovarian, bladder and prostate cancer (5–10). A previous study found that VM also exists in TNBC, and that VM formation and high expression levels of CD133+ may be primary reasons for recurrence and progression of TNBC (11).

Epithelial-to-mesenchymal transition (EMT) refers to the process by which epithelial cells lose their polarity and cell-cell contacts to acquire certain characteristics of mesenchymal cells (12). EMT serves an important role in the invasion and the metastasis of numerous types of cancer, including breast and colorectal cancer (13,14). The expression levels of E-cadherin and occludin are downregulated, whereas the expression levels of N-cadherin and vimentin are upregulated during EMT (15).

MicroRNAs (miRNAs or miRs) are non-coding RNAs that serve important roles in regulating the expression levels of mRNAs. Aberrant miRNAs are known to act as promoters or inhibitors of EMT (16). miR-93 is a member of the miR-106b-25 cluster (17). Overexpression of miR-93 has been identified in multiple types of cancer, including hepatocellular, gastric and breast cancer, as well as glioma and endometrial carcinoma, in which it serves as an oncogene (17). The expression levels of miR-93 have been demonstrated to be markedly increased in TNBC tissue compared with non-TNBC tissue, and are associated with clinicopathological features, such as increased lymph node metastasis, higher TNM staging and increased Ki-67 expression (18), indicating that miR-93 contributes to cell proliferation and metastasis. Moreover, miR-93 is involved in the process of EMT in endometrial carcinoma and breast cancer cells (19,20). However, the regulatory mechanism of miR-93 on EMT and VM in TNBC remains unclear. Therefore, the present study investigated the role and underlying mechanism of miR-93 in EMT transformation and VM formation to provide a potential therapeutic target for TNBC.

Materials and methods

Cell culture

Human breast cancer cell lines MDA-MB-231, SK-BR-3 and MCF-7 were donated by The Medical Center Laboratory of Xi'an Jiaotong University (Xi'an, China) and cultured in RPMI-1640 and DMEM (Gibco; Thermo Fisher Scientific, Inc.) at 37°C. Non-tumorigenic MCF-10A cells were purchased from The Cell Bank of Type Culture Collection of the Chinese Academy of Sciences and cultured in McCoy's 5A medium (Gibco; Thermo Fisher Scientific, Inc.). All media were supplemented with 10% FBS (Biological Industries), along with 1% penicillin and streptomycin.

miR-93 RNA interference (RNAi)

MDA-MB-231 cells were seeded in a 6-well plate at 5×104 cells/well for RNAi. Cells were then divided into lentivirus-short hairpin (sh)RNA and negative control (shNC) groups, in which cells were infected with the miR-93 knockdown recombinant (5′-CTACCTGCACGAACAGCACTTTG-3′) and empty green fluorescent protein (GFP) lentivirus (5′-TTCTCCGAACGTGTCACGT-3′), respectively. Lentiviral vectors were constructed by Shanghai GeneChem Co., Ltd. Cells were infected with shNC and shRNA lentiviral particles (multiplicity of infection, 10) and incubated for 8 h at 37°C. The medium containing lentiviruses was then removed, and cells were cultured in normal culture medium for another 12 h. Subsequently, 72 h after infection, the expression levels of GFP were observed through a fluorescent microscope (magnification, ×100; data not shown). Cells with infection efficiency >80% were selected for subsequent analysis.

MTT assay

Following digestion by trypsin, MDA-MB-231 cells in logarithmic growth phase were resuspended in complete medium (RPMI-1640 medium supplemented with 10% FBS and 1% penicillin and streptomycin). Cells were plated at a density of 5×103 cells/well into 96-well plates. Following incubation at 37°C for 48 h, 20 µl MTT reagent (5 mg/ml) was added to each well and incubated at 37°C for 4 h. Finally, 100 µl dimethyl sulfoxide was added to completely dissolve the purple formazan crystals. The absorbance of each well was measured at 492 nm using a multi-functional microplate reader for evaluation of cell viability.

Western blot analysis

Total cellular protein was extracted using RIPA buffer (Beyotime Institute of Biotechnology) and the protein concentrations were determined by a BCA Protein Assay kit (Pierce; Thermo Fisher Scientific, Inc.) according to the manufacturer's instructions. Each sample contain 50 µg of protein was separated by 10% SDS-PAGE, the proteins were transferred to PVDF membrane and blocked with 5% non-fat milk at 37°C for 1 h. The blots were incubated overnight with specific primary antibodies (anti-E-cadherin; cat. no. 4065; Cell Signaling Technology, Inc., anti-N-cadherin; cat. no. ab76057, Abcam, anti-vimentin; cat. no. 5741, Cell Signaling Technology, Inc. and anti-occludin; cat. no. 71-1500, Invitrogen (Thermo Fisher Scientific, Inc.); all at a dilution of 1:1,000) at 4°C and thereafter with the HRP-conjugated secondary antibody (dilution of 1:1,000, goat anti-rabbit, cat. no. sc-2004; goat anti-mouse; cat. no. sc-2005, Santa Cruz Biotechnology, Inc.) for 1 h at room temperature. ECL reagent (EMD Millipore) was used to detect protein expression levels that were analyzed with Quantity One 6.0 software (Bio-Rad Laboratories, Inc), and the protein expression levels were normalized to β-actin.

RNA extraction and reverse transcription-quantitative PCR (RT-qPCR)

Total RNA was extracted from the cell lines using TRIzol® (Thermo Fisher Scientific, Inc.). The RNA samples were diluted with sterile water, and the absorbance values at 260 and 280 nm were detected using a spectrophotometer; a 260/280 value of 1.8–2.0 indicated optimal RNA quality. cDNA was synthesized using the isolated RNA as a template by PrimeScript RT reagent kit (Fermentas; Thermo Fisher Scientific, Inc.) according to the manufacturer's protocol. The SYBR Green PCR kit (Takara Biotechnology Co., Ltd.) was used to perform qPCR. The thermocycling conditions were: 95°C for 10 sec, followed by 40 cycles of 95°C for 5 sec, 60°C for 30 sec, one cycle of 95°C for 15 sec, 60°C for 30 sec. Melting curve analysis was used to confirm specificity of the PCR products. Relative expression levels of the detected genes were assessed using the 2−ΔΔCq method (21). GAPDH was used as an internal control for mRNA, and U6 was an internal control for miRNA. The primers used are listed in Table I.

Table I. Primer sequences used for RT-quantitative PCR.

Table I.

Primer sequences used for RT-quantitative PCR.

Gene	Primer name	Primer sequence (5′→3′)
Hsa-miR-93	miR-93 RT	GTCGTATCCAGTGCA GGGTCCGAGGTATTCGCACTGGATACGACCTACCT
	Forward	ATTCGGCAAAGTGCTGTTCGTGC
	Reverse	ATCCAGTGCAGGGTCCGAGG
U6	U6 RT	GTCGTATCCAGTGCAGGGTCCGAGGTATTCGCACTGGATACGACAAAATA
	Forward	AGAGAAGATTAGCATGGCCCCTG
	Reverse	GTGCAGGGTCCGAGGT
E-cadherin	Forward	GATTCCTTGCCAGTTGGTGT
	Reverse	TTCCTGCCTGGATTGGTATC
N-cadherin	Forward	TTCTGGCTGTTGTGTTGAGG
	Reverse	ATTCCACCGCTACCACTTTG
Vimentin	Forward	TGCCTCAACCTCCCAAGTAG
	Reverse	GGTCAGGAGTTCGAGACCAG
GAPDH	Forward	ATCTGGCACCACACCTTCTACAATGAGCTGCG
	Reverse	CGTCATCCCTGCTTGCTGATCCACATC

[i] RT, reverse transcription.

Cell migration and invasion assay

For the cell migration assay, equal numbers of cells (1×105 cells/ml) were seeded in the top compartment of a 24-well chamber in 200 µl serum-free RPMI-1640. Additionally, 600 µl medium containing 10% FBS was added into the bottom chamber of the system. The cells were incubated at 37°C for 24 h. After carefully removing the non-migrated cells on the upper surface of the Transwell chamber membrane, the cells that had migrated from the membrane were fixed with 4% paraformaldehyde for 30 min followed by staining with 0.1% crystal violet for 10 min, both at room temperature. The number of migrated cells was counted from five random fields of view under an inverted phase-contrast microscope (magnification, ×200). Cell invasion assays were performed in the same way as migration assays except that the cells were seeded in the upper compartment of the chamber and the membrane was pre-coated with diluted Matrigel for 30 min at 37°C.

VM

Matrigel was added into 48-well plates at 100 µl/well, and then incubated at 37°C for 30 min. Cells (2×104 cells/ml) were added to each well. Following incubation at 37°C for 12 h, cells with tubular structure formation were imaged using an inverted microscope, and the number of tubular cells (completely surrounded by a circle) were counted manually from five random visual fields (up, down, left, right and center) to calculate the average. Following incubation at 37°C for 48 h, cells were digested with dispase and recycled with cell recovery solution, which enables recovery of cells cultured on Matrigel for subsequent biochemical analysis of PCR and western blot.

Statistical analysis

All data are presented as the mean ± standard deviation of at least three independent repeats. SPSS 19.0 software (IBM Corp.) was used for statistical analysis. Data were analyzed by unpaired Student's t-test or one-way ANOVA followed by Tukey's or Fisher's least significant difference post hoc test, as appropriate. P<0.05 was considered to indicate a statistically significant difference.

Results

miR-93 expression levels in breast cancer cell lines and knockdown of miR-93 using shRNA

The expression levels of miR-93 in MCF-7, SK-BR3, MDA-MB-231 and non-tumorigenic MCF-10A cell lines were detected by RT-qPCR. The results showed that the expression levels of miR-93 were significantly higher in the three breast cancer cell lines compared with expression in MCF-10A cells (P<0.01 and P<0.001; Fig. 1A), with the highest expression in MDA-MB-231 cells. Hence, the MDA-MB-231 cell line was chosen for subsequent experiments. RT-qPCR confirmed that expression of miR-93 was significantly inhibited by miR-93 shRNA (P<0.001; Fig. 1B).

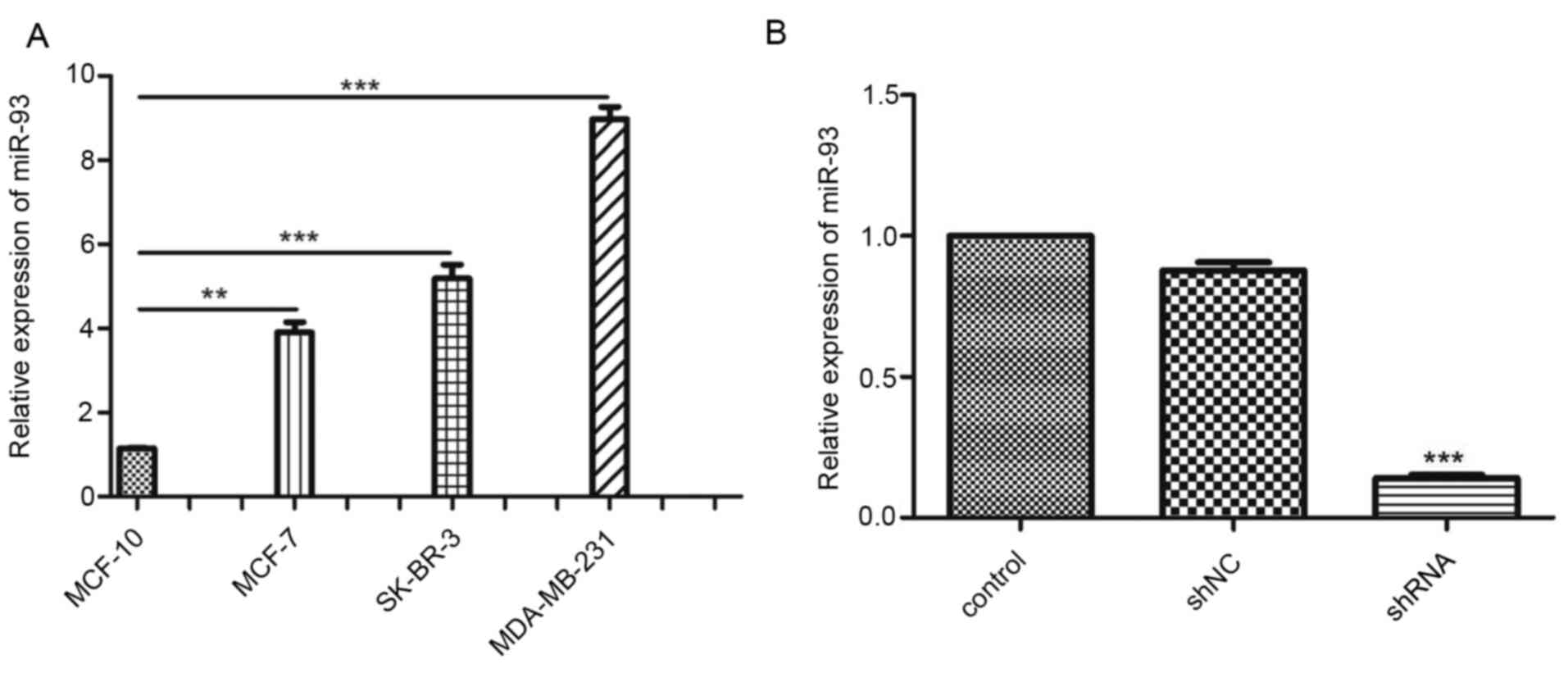

Figure 1. miR-93 expression significantly different in breast cancer cell lines and knockdown of miR-93 using shRNA. (A) Expression levels of miR-93 in breast cancer cell lines was detected by RT-qPCR. **P<0.01, ***P<0.001 vs. MCF-10; (B) RT-qPCR confirmed that expression levels of miR-93 were significantly inhibited by shRNA. ***P<0.001 vs. shNC. miR, microRNA; NC, negative control; RT-qPCR, reverse transcription-quantitative PCR; sh, short hairpin RNA.

miR-93 depletion decreases MDA-MB-231 breast cancer cell viability

The effect of miR-93 on the viability of MDA-MB-231 cells was determined by MTT assay. Results showed a statistically significant decrease in optical density in the shRNA group compared with the shNC group (P<0.001; Fig. 2), suggesting that downregulation of miR-93 suppressed the viability of MDA-MB-231 cells.

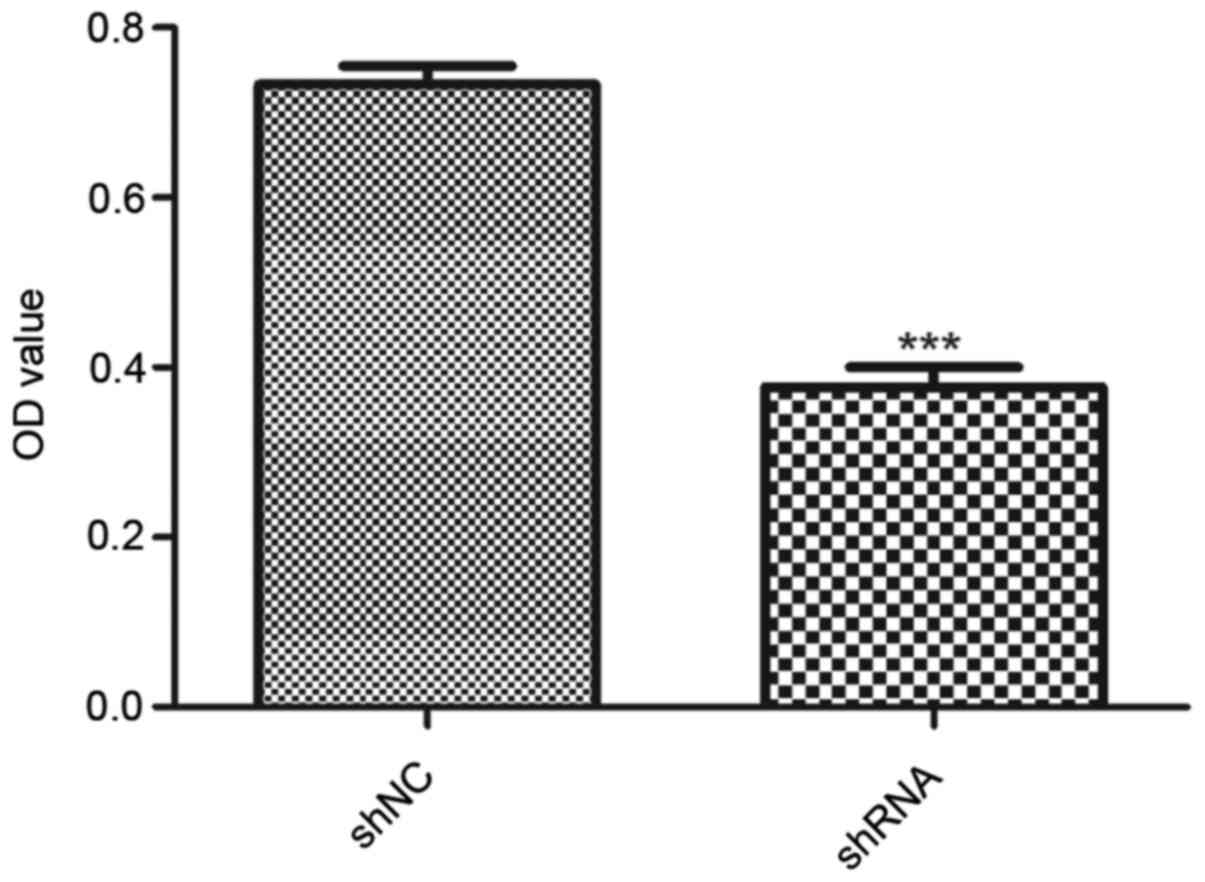

Figure 2. MTT results indicated that the viability of cells in the miR-93 shRNA group was significantly decreased. ***P<0.001 vs. shNC. miR, microRNA; NC, negative control; OD, optical density; sh, short hairpin RNA.

miR-93 depletion contributes to cell migration and invasion

The Transwell assays revealed the effects of miR-93 knockdown on the migratory and invasive activity of MDA-MB-231 cells. Compared with the control (209.3±7.2 cells/field) and shNC groups (202.0±8.7 cells/field), cell migration was significantly decreased in the shRNA group (88.8±5.0 cells/field; both P<0.001; Fig. 3). Compared with the control (129.6±8.4 cells/field) and shNC groups (112.0±4.7 cells/field), cell invasion was also significantly decreased in the shRNA group (68.8±7.0 cells/field; both P<0.001; Fig. 3). Cell migration and invasion were not significantly different between the control and shNC groups (both P>0.05; Fig. 3). These results showed that the migratory and invasive ability of MDA-MB-231 cells decreased following miR-93 depletion.

Figure 3. miR-93 depletion contributes to cell migration and invasion (A) migration and (B) invasion of MDA-MB-231 cells decreased following miR-93 depletion. Magnification, ×200. ***P<0.001 vs. shNC. miR, microRNA; NC, negative control; sh, short hairpin.

miR-93 depletion alters expression levels of EMT-associated markers in MDA-MB-231 breast cancer cells

The association between miR-93 and EMT markers was analyzed. RT-qPCR and western blotting were used to detect changes in the expression levels of EMT-associated markers (E-cadherin, N-cadherin, vimentin and occludin) following miR-93 depletion. RT-qPCR results showed that miR-93-knockdown cells displayed increased mRNA expression levels of E-cadherin and occludin and decreased mRNA expression levels of N-cadherin and vimentin (P<0.001; Fig. 4A). Western blot assay results were consistent with the RT-qPCR and showed that the protein expression levels of E-cadherin and occludin were significantly upregulated, whereas the protein expression levels of N-cadherin and vimentin were significantly downregulated in the shRNA group compared with the respective expression levels in the shNC group (P<0.01; Fig. 4B and C). These results suggested that knockdown of miR-93 may inhibit the EMT process in MDA-MB-231 cells.

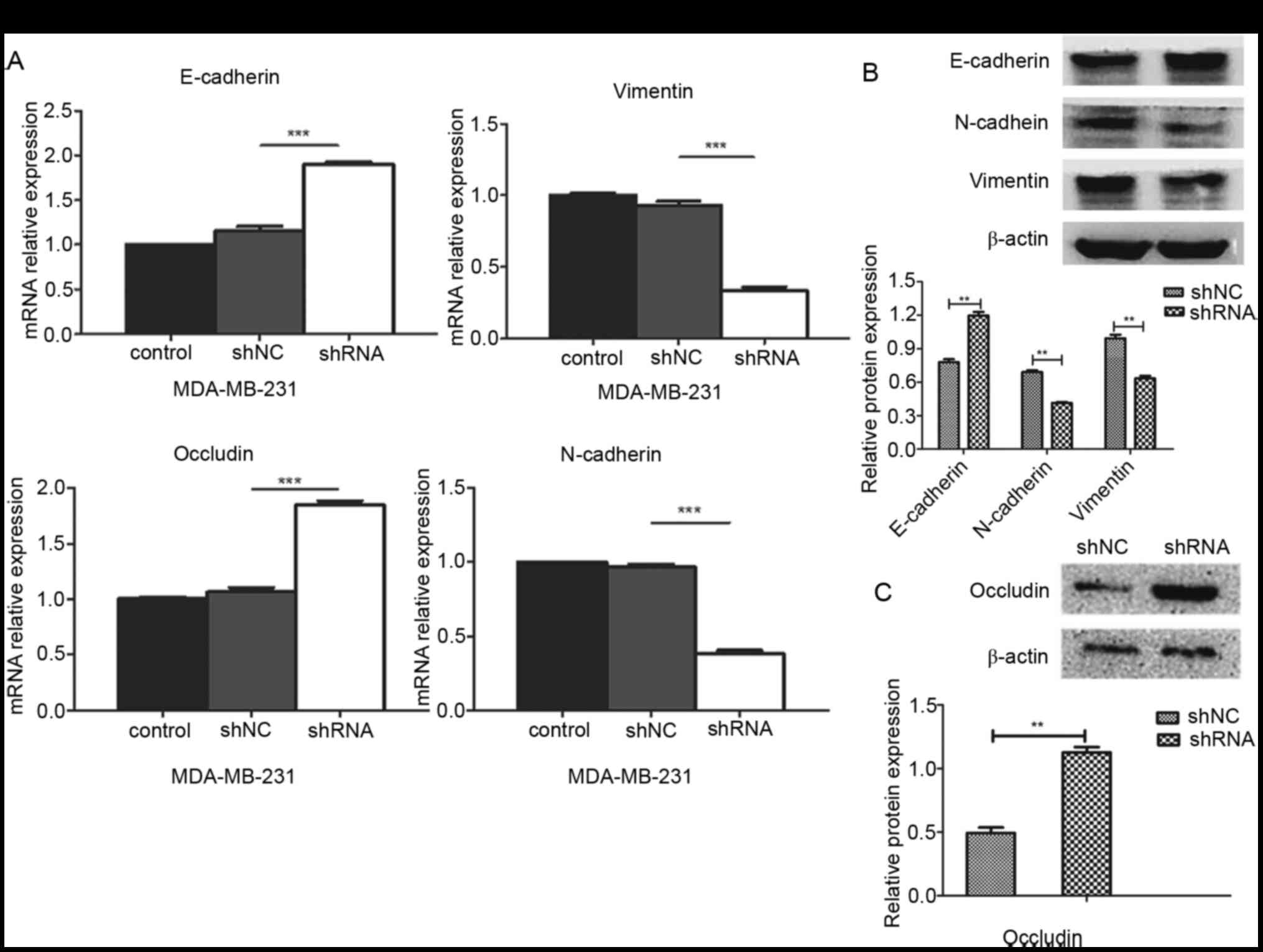

Figure 4. miR-93 depletion alters expression levels of EMT-associated markers. (A) Reverse transcription-quantitative PCR and (B and C) western blotting were performed to measure the expression levels of EMT-related markers E-cadherin, N-cadherin, vimentin and occludin. **P<0.01, ***P<0.001. EMT, epithelial-to-mesenchymal transition; NC, negative control; sh, short hairpin RNA.

miR-93 depletion suppresses VM formation in MDA-MB-231 breast cancer cells

Vascularization was observed with an inverted microscope in three-dimensional culture of MDA-MB-231 cells following miR-93 knockdown. VM was observed in all three groups (Fig. 5A). The results showed that the microtubule-forming ability of cells was significantly decreased in the shRNA group compared with the control and the shNC groups (P<0.01; Fig. 5B), suggesting that miR-93 may serve as a promoter of VM formation in MDA-MB-231 cells.

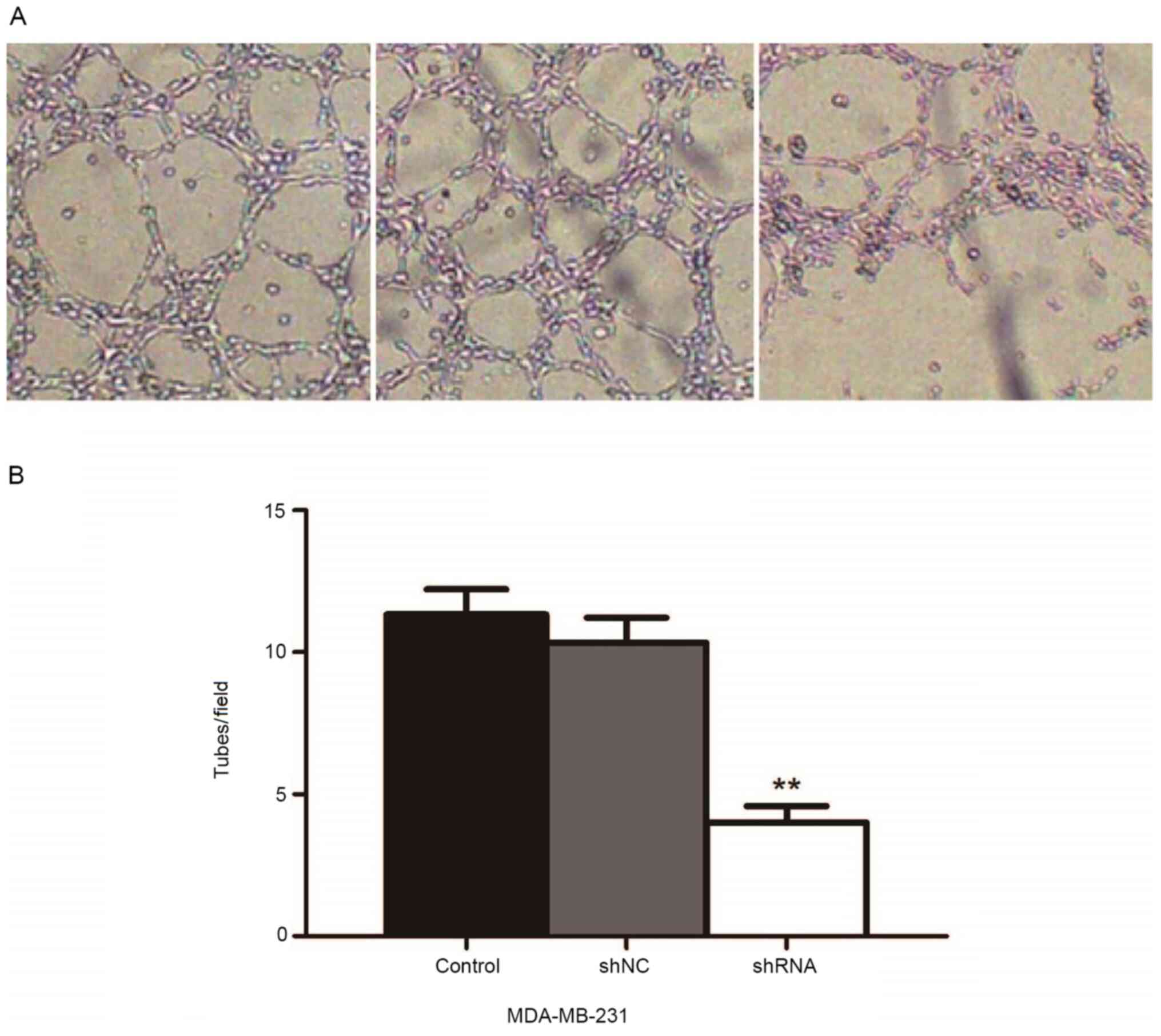

Figure 5. miR-93 depletion suppresses VM formation. (A) VM of MDA-MB-231 cells was observed by microscopy; magnification, ×100. (B) Number of tubular structures in MDA-MB-231 cells following microRNA-93 depletion by shRNA. **P<0.01 vs. shNC. NC, negative control; sh, short hairpin; VM, vasculogenic mimicry.

miR-93 depletion inhibits expression levels of EMT-associated markers in three-dimensional cell culture

To determine whether knockdown of miR-93 affects the EMT process in three-dimensional culture of MDA-MB-231 cells, western blotting (Fig. 6A) and RT-qPCR (Fig. 6B) were performed. The results indicated that the mRNA and protein expression levels of E-cadherin increased, whereas those of vimentin decreased in the shRNA group compared with the shNC group, suggesting that miR-93 may promote VM formation through the EMT process (P<0.01 and P<0.001).

Figure 6. Expression of E-cadherin and vimentin in three-dimensional cell culture following microRNA-93 depletion by shRNA. (A) Western blotting and (B) reverse transcription-quantitative PCR were performed to measure the protein and mRNA expression levels, respectively. **P<0.01, ***P<0.001. NC, negative control; sh, short hairpin RNA.

Discussion

miR-93, a member of the miR-106b-25 cluster, is located on intron 13 of the MCM 7 gene on chromosome 7q22. Studies have previously reported that the miR-106b-25 cluster is highly expressed in esophageal, gastrointestinal, liver, prostate and endometrial cancer, suggesting that it may be a potential proto-oncogene (22–24). Lowery et al (25) showed that the expression profile of miRNAs is associated with the hormone receptor status in breast cancer and may be an important indicator for the molecular classification, clinical diagnosis, treatment choice and prognosis. Cascione et al (26) found that the expression profiles of miRNAs and mRNAs are associated with the survival of patients with TNBC; miR-16, miR-155, miR-125b and miR-374a are associated with survival, and miR-16, miR-125b, miR-374a, miR-374b, miR-421, miR-655 and miR-497 are associated with disease-free survival. Multi-factor analysis has suggested that the aforementioned indicators are independent prognostic factors that affect the survival of patients. Nam et al (27) found that compared with normal ovarian tissue, miR-93 expression levels are significantly increased in ovarian cancer tissue, and that this is associated with worse prognosis. In our previous study (28) gene chip technology was used to investigate the differential expression profiles of miRNAs in TNBC compared with corresponding paracarcinoma tissue; the results demonstrated a significant upregulation of miR-93. The target genes of miR-93 were predicted using bioinformatics and found that these target genes promoted cell viability, invasion and migration (28). Our earlier work confirmed that miR-93 expression is increased in clinical specimens of patients with TNBC and that this is associated with poor prognosis (high TNM staging and lymph node metastasis) (29). The present study confirmed at the cytology level that miR-93 depletion inhibited the viability of TNBC cells, and decreased cell invasion and migration, which was consistent with the results of previous experiments using clinical specimens.

miRNAs are involved in the formation of VM. Weng et al (30) found that miR-409-3p inhibits VM formation in human fibrosarcoma cells. Wu et al (31) demonstrated that miR-26b directly regulates the expression levels of Ephrin type-A receptor 2 to inhibit VM formation in glioma. Shevde et al (32) confirmed that miR-299-5p is associated with VM formation in breast cancer. In the present study, miR-93 depletion was found to inhibit the formation of VM in three-dimensional culture of MDA-MB-231 cells, which was consistent with the results of the aforementioned studies.

EMT refers to the process by which epithelial cells acquire specific characteristics of mesenchymal cells. Mani et al (13) found that mammary epithelial cells that underwent the EMT process acquired certain characteristics of stem cells, such as increased tumorigenesis. Liu et al (14) reported high expression levels of zinc-finger E-box binding homeobox 1 (ZEB1) in VM-positive colon cancer tissue and that expression levels of E-cadherin are decreased, whereas those of vimentin are increased in ZEB1-positive tissue. Moreover, the formation of VM in colon cancer significantly decreases following downregulation of ZEB1 (14). Sun et al (33) observed a significant decrease in VM formation following downregulation of Twist-related protein 1 in liver cancer. The present study showed that miR-93 depletion significantly increased the protein expression levels of E-cadherin and occludin and decreased those of N-cadherin and vimentin in monolayer cell culture, suggesting that miR-93 may promote the occurrence of EMT in TNBC cells. Moreover, in the shRNA group VM was inhibited and the expression levels of E-cadherin were higher, whereas the expression levels of vimentin were lower in three-dimensional cell culture, suggesting that miR-93 may promote the formation of VM through the EMT process.

VM determines the ability of tumor cells to form blood cavities, which is associated with poor prognosis in patients with TNBC (34). Lack of experimentation on non-TNBC cell lines is a limitation of the present study; further investigations involving both TNBC and non-TNBC cell lines are required to determine if the effects of miR-93 specifically act on the TNBC subtype. In summary, the present study demonstrated that knockdown of miR-93 inhibited the formation of VM in MDA-MB-231 TNBC cells and this was associated with the expression levels of EMT markers. Therefore, targeting miR-93 may provide a novel option for the anti-angiogenic treatment of TNBC.

Acknowledgements

The authors would like to thank Professor Xinhan Zhao (Department of Oncology, The First Affiliated Hospital of Xi'an Jiaotong University, Shaanxi, China) for insightful discussion and modification of the paper.

Funding

The present study was supported by grants from the Project of Shaanxi Provincial Health commission fund: Effects and mechanism of miR-93 on EMT and VM in triple-negative breast cancer cells (grant no. 2016D037).

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

GA, FL, SH, YL and LHo performed all the experiments. GA, LHe, JB and LHo designed the experiments. GA and FL analyzed the data. GA, FL and LHo wrote the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
