Introduction

Osteoarthritis (OA), characterized by enhanced cartilage degradation and cartilage cell death, is a degenerative joint disease caused by the progressive erosion of articular cartilage (1,2). It has been suggested that oxidative stress, characterized by excessive production of reactive oxygen species (ROS), serves a significant role in OA pathology (3). ROS can disturb cartilage homeostasis via promoting chondrocyte apoptosis and matrix catabolism (1). Furthermore, lipopolysaccharide (LPS) primes the proinflammatory innate immune response via Toll-like receptor 4 and that progresses to a full-blown inflammatory response and structural damage of the joint, thus it is considered as a key pro-inflammatory factor that serves a crucial role in the pathogenesis of OA (4–7). LPS-induced chondrocytes are used to establish in vitro chondrocyte injury models, which are characterized by increased inflammation and apoptosis (8).

FXYD domain containing ion transport regulator 5 (Fxyd5) is a widely expressed single-pass transmembrane protein that increases the apparent affinity for intracellular Na+/K+-ATPase and serves several roles in different cell types (9). Previous studies demonstrate that Fxyd5 overexpression is associated with tumor progression, including breast cancer and renal cell carcinoma (10,11). In addition, Fxyd5 promotes inflammation in epithelial cells (12). Increased expression of Fxyd5 may be associated with chronic inflammatory responses and the excessive activity of the immune system during human brain aging (13). Another study shows that Fxyd5 is upregulated in the epithelium of patients with cystic fibrosis, accompanied by excessive airway inflammation (14). Fxyd5 overexpression in mice promotes alveolar epithelial cell injury via activating NF-κB signaling and promoting cytokine secretion in response to treatment with LPS (15). However, the effect of Fxdy5 upregulation in chondrocytes on promoting the development of OA has not been previously investigated to the best of the authors' knowledge.

The significant role of NF-κB signaling in the occurrence and progression of OA has been extensively studied (16–19). Emerging evidence suggests that the NF-κB signaling pathway can be activated in response to mechanical stress, pro-inflammatory factors and extracellular matrix (ECM) degradation products, thereby affecting cartilage matrix remodeling and promoting chondrocyte apoptosis and synovial inflammation (20). Therefore, the current treatment approach for OA, specifically targeting NF-κB signaling, is gaining increased attention. The current study aimed to investigate whether Fxyd5 could promote chondrocyte inflammation via activating NF-κB signaling. Therefore, to explore the expression profile of Fxdy5 in OA and its potential regulatory mechanism, murine ATDC5 chondrocytes were treated with LPS to establish an in vitro chondrocyte injury model.

Materials and methods

Cell culture and treatment

The murine ATDC5 chondrocytes were obtained from the American Type Culture Collection and cells were maintained in DMEM/F12 (MilliporeSigma) supplemented with 10% FBS (Gibco; Thermo Fisher Scientific, Inc.) and 1% penicillin/streptomycin solution (Beyotime Institute of Biotechnology) at 37°C in a humidified CO2 (5%) incubator. To construct the OA cell model in vitro, ATDC5 cells were incubated with 5 µg/ml LPS (Shanghai Yuanye Bio. Tech. Co., Ltd.) for 5 h at 37°C (21,22), co-treated or not with 10 nM betulinic acid (BA; MedChemExpress), an NF-κB activator, for 48 h at 37°C.

Cell transfection

Short hairpin RNAs (shRNAs) against mouse Fxyd5 (accession no. NM_001111073; shFxyd5-1 and shFxyd5-2) were designed using the online design software (https://portals.broadinstitute.org/gpp/public/seq/search) and then cloned into the pLKO.1 vector (MilliporeSigma; cat. no. SHC001) to silence Fxyd5 expression. A non-targeting shRNA clone was used as the negative control (shNC). Briefly, ATDC5 cells were seeded into 6-well plates at a density of 1×106 cells/well and cultured overnight at 37°C. Cells were then transfected with 50 pmol shRNAs using Lipofectamine® 3000 (Invitrogen; Thermo Fisher Scientific, Inc.) at 37°C for 24 h according to the manufacturer's recommendation. Transfection efficiency was detected via western blot at 48 h after transfection. The sequences for shRNAs were as follows: shFxyd5-1, forward 5′-CCGGCGCCTGTGTCTCCTCACTATTCTCGAGAATAGTGAGGAGACACAGGCGTTTTTG-3′, reverse 5′-AATTCAAAAACGCCTGTGTCTCCTCACTATTCTCGAGAATAGTGAGGAGACACAGGCG-3′; shFxyd5-2, forward 5′-CCGGGCTGTTCATCACGGGAATTATCTCGAGATAATTCCCGTGATGAACAGCTTTTTG-3′, reverse 5′-AATTCAAAAAGCTGTTCATCACGGGAATTATCTCGAGATAATTCCCGTGATGAACAGC-3′; shNC, forward 5′-CACCGCAATTTTTTTTTTTGATTCACGAATGAATCAAAAAAAAAAAAATGC-3′, reverse 5′-AAAAGCAATTTTTTTTTTTGATTCATTCGTGAATCAAAAAAAAAAAAATGC-3′.

Cell Counting Kit-8 (CCK-8) assay

Following cell treatment or transfection, a total of 2×104 ATDC5 cells/well were seeded into a 96-well and were then incubated with CCK-8 regent for 2 h at 37°C. The absorbance at a wavelength of 450 nm was measured in each well using a microplate reader (Multiskan SkyHigh Microplate Spectrophotometer; Thermo Fisher Scientific, Inc.). Each sample was assessed five times.

Western blot analysis

A total of 1×106 ATDC5 cells were seeded into 6-well plates, washed with PBS and lysed using RIPA Cell lysis buffer (Beyotime Institute of Biotechnology). Following centrifugation at 12,000 × g for 20 min at 4°C, the supernatant was collected to perform western blot analysis. Briefly, total protein concentration was quantified using a BCA kit (Invitrogen; Thermo Fisher Scientific, Inc.), then equal amount of protein (30 µg) was separated through the 10% SDS-PAGE, followed by transfer onto PVDF membranes. After blocking with 5% non-fat milk for 1 h at room temperature, the PVDF membranes were incubated with primary antibodies overnight at 4°C. The primary antibodies were: Rabbit anti-Fxyd5 (1:1,000; cat. no. ABIN2780210), rabbit anti-aggrecan (1:500; cat. no. ABIN6996681; both from antibodies-online), rabbit anti-GAPDH (1:10,000; cat. no. ab181602), rabbit anti-Bcl2 (1:2,000; cat. no. ab182858), rabbit anti-Bax (1:8,000; cat. no. ab32503), rabbit anti-cleaved caspase 3 (1:5,000; cat. no. ab214430), rabbit anti-caspase 3 (1:2,000; cat. no. ab184787), rabbit anti-MMP3 (1:20,000; cat. no. ab52915; all from Abcam), rabbit anti-MMP13 (1:2,000; cat. no. NBP2-66954), rabbit anti-phosphorylated (p)-IκBα (1:800; cat. no. NB100-81987), rabbit anti-IκBα (1:5,000; cat. no. NBP2-67369), rabbit anti-collagen II (1:10,000; cat. no. NBP1-77795; all from Novus Biologicals, Ltd.), rabbit anti-p-p65 (1:1,000; cat. no. 3033S) and rabbit anti-p65 (1:1,000; cat. no. 8242S; Cell Signaling Technology, Inc.). Subsequently, membranes were treated with the goat anti-rabbit IgG (HRP) secondary antibody (1:10,000; cat. no. ab6721; Abcam) at room temperature for 1 h. Then, enhanced chemiluminescence (MilliporeSigma) was used to detect the protein expression levels. Band semi-quantification was performed using Image J software (version 1.54; National Institutes of Health).

Determination of intracellular ROS, superoxide dismutase (SOD) and malondialdehyde (MDA)

Following cell treatment or transfection, ATDC5 cells were seeded into 6-well plates at a density of 1×106 cells/well and the levels of intracellular ROS, SOD and lipid peroxidation product MDA were determined using ROS Assay kit (cat. no. S0033M; Beyotime Institute of Biotechnology), SOD Assay Kit (cat. no. 7500-100-K; R&D systems, Inc.) and TBARS Parameter Assay Kit (cat. no. KGE013; R&D systems, Inc.), respectively, according to the manufacturer's recommendations.

ELISA

Control or transfected ATDC5 cells were seeded into 96-well plates at a density of 2×104 cells/well, following indicated treatment, the secretion levels of IL-1β, IL-6 and IL-18 in the culture supernatants were measured using the Mouse IL-1β (cat. no. ab197742), IL-6 (cat. no. ab222503) and IL-18 (cat. no. ab216165) SimpleStep ELISA kits (Abcam) according to the manufacturer's instructions.

Statistical analysis

All statistical analyses were performed using GraphPad Prism 8.0.1 (GraphPad Software, Inc.). Data were expressed as the mean ± standard deviation from three independent experiments. One-way ANOVA followed by Tukey's multiple comparison test was applied to compare the differences among multiple groups, while those between two groups were compared using an unpaired two-tailed Student's t-test. P<0.05 was considered to indicate a statistically significant difference.

Results

Fxyd5 knockdown enhances cell viability and inhibits apoptosis and ECM degradation in LPS-induced ATDC5 cells

To explore the expression profile of Fxyd5 in the LPS-induced chondrocyte injury model (21), total proteins were extracted from ATDC5 cells treated with 5 µg/ml LPS for 5 h followed by western blot analysis. The results showed that the expression levels of Fxyd5 were significantly increased in LPS-treated cells compared with untreated ones (Fig. 1A). Furthermore, to investigate the cell-specific effect of Fxyd5, ATDC5 cells were transfected with shRNA clones targeting Fxyd5 (shFxyd5-1 and shFxyd5-2) to knockdown its expression. The results showed that shFxyd5-2 clone exhibited a more potent effect on silencing Fxyd5 expression compared with shFxyd5-1, since the protein expression levels of Fxyd5 in ATDC5 cells transfected with shFxyd5-2 were decreased to ~50% compared with cells transfected with shNC (Fig. 1B). Therefore, the shFxyd5-2 clone was used in subsequent experiments. Additionally, cell viability was assessed by CCK-8 assays. Following cell treatment with LPS, cell viability was notably higher in Fxyd5-depleted ATDC5 cells compared with those transfected with shNC (Fig. 1C). Western blot analysis also revealed that the protein expression levels of the apoptosis-related markers (23) Bax and cleaved caspase 3/caspase 3 were markedly reduced, while those of Bcl-2 were increased in Fxyd5-depleted LPS-induced ATDC5 cells compared with cells transfected with shNC (Fig. 1D). Subsequently, the role of Fxyd5 in chondrocyte ECM homeostasis was also evaluated by western blot analysis. The results demonstrated that cell treatment with LPS inhibited ECM-factors production, and promoted ECM degradation, as verified by Aggrecan and collagen II downregulation accompanied by MMP3 and MMP13 upregulation when compared with control cells (Fig. 1E). Fxyd5 silencing reversed these effect caused by LPS (Fig. 1E). Taken together, the aforementioned findings indicated that Fxyd5 knockdown could protect ATDC5 cells against LPS-mediated cell injury via enhancing cell viability and inhibiting cell apoptosis and ECM degradation.

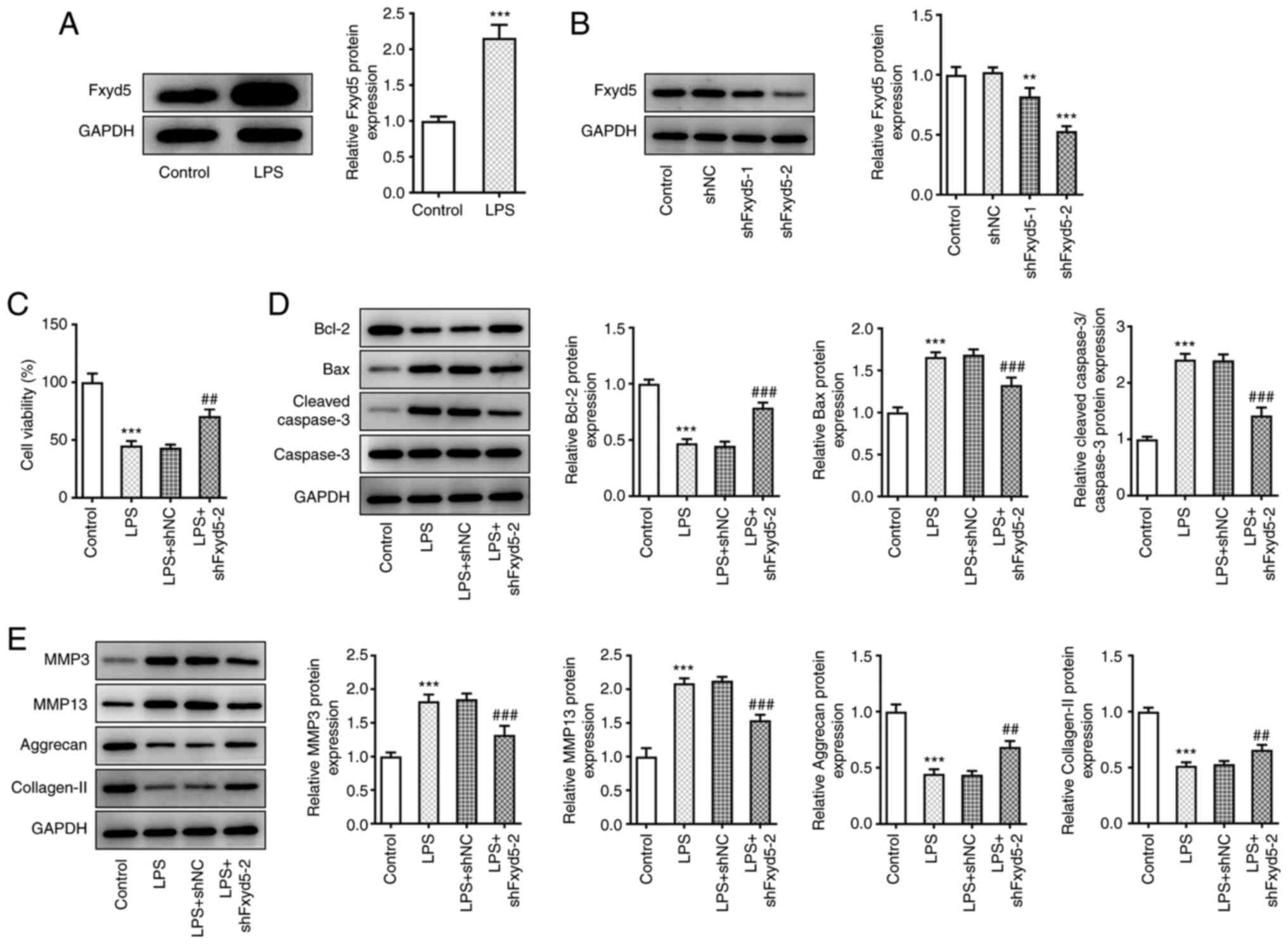

Figure 1. Fxyd5 silencing enhances cell viability and inhibits cell apoptosis and ECM degradation in ATDC5 cells. (A) Western blot analysis showing the upregulated expression levels of Fxyd5 in ATDC5 cells treated with 5 µg/ml LPS for 5 h. ***P<0.001 vs. the control group. (B) shFxyd5-2 exhibited a more potent effect on Fxyd5 silencing compared with shFxyd5-1. Western blot analysis showed that the protein expression levels of Fxyd5 were decreased by ~50% compared with the shNC group. **P<0.01 and ***P<0.001 vs. the shNC group. (C) Cell Counting Kit-8 assay showed that Fxyd5 knockdown reversed the LPS-mediated decreased ATDC5 cell viability. (D) Western blot analysis revealed that Fxyd5 silencing reversed the LPS-induced ATDC5 cell apoptosis, as supported by the decreased expression levels of Bax and cleaved caspase 3 and the increased expression levels of Bcl-2 in Fxyd5-depleted ATDC5 cells compared with the shNC group. The expression levels of caspase 3 remained unchanged. (E) Western blot analysis showed that Fxyd5 knockdown reversed the LPS-induced ECM degradation in ATDC5 cells, as supported by MMP3 and MMP13 downregulation and aggrecan and collagen II upregulation in the shFxyd5 group compared with the shNC group. Untreated and untransfected ATDC5 cells served as the control group. GAPDH served as the loading control. ***P<0.001 vs. the control group; ##P<0.01, ###P<0.001 vs. the LPS + shNC group. Fxyd5, FXYD domain containing ion transport regulator 5; ECM, extracellular matrix; LPS, lipopolysaccharide; sh, short hairpin RNA; NC, negative control.

Fxyd5 silencing attenuates LPS-mediated inflammation and oxidative stress in ATDC5 cells

To further explore the effect of Fxyd5 on LPS-induced chondrocyte inflammation and oxidative stress, ELISA was carried out to determine the secretion levels of pro-inflammatory cytokines and the content of ROS, MDA and SOD in LPS-induced ATDC5 cells. The results revealed that Fxyd5 was involved in LPS-induced cellular inflammation. Therefore, the secretion levels of the inflammatory factors IL-1β, IL-6 and IL-18 were significantly decreased in Fxyd5-depleted ATDC5 cells treated or not with LPS compared with the shNC group (Fig. 2A). Similar results were observed in the levels of ROS, MDA and SOD, suggesting that the increased expression of Fxyd5 could be involved in LPS-induced oxidative stress in ATDC5 cells. Therefore, the levels of ROS and MDA were significantly lower and those of SOD were notably higher in Fxyd5-depleted ATDC5 cells compared with the shNC group (Fig. 2B). These results suggested that Fxyd5 knockdown could alleviate LPS-induced cellular inflammatory responses and oxidative stress in ATDC5 cells.

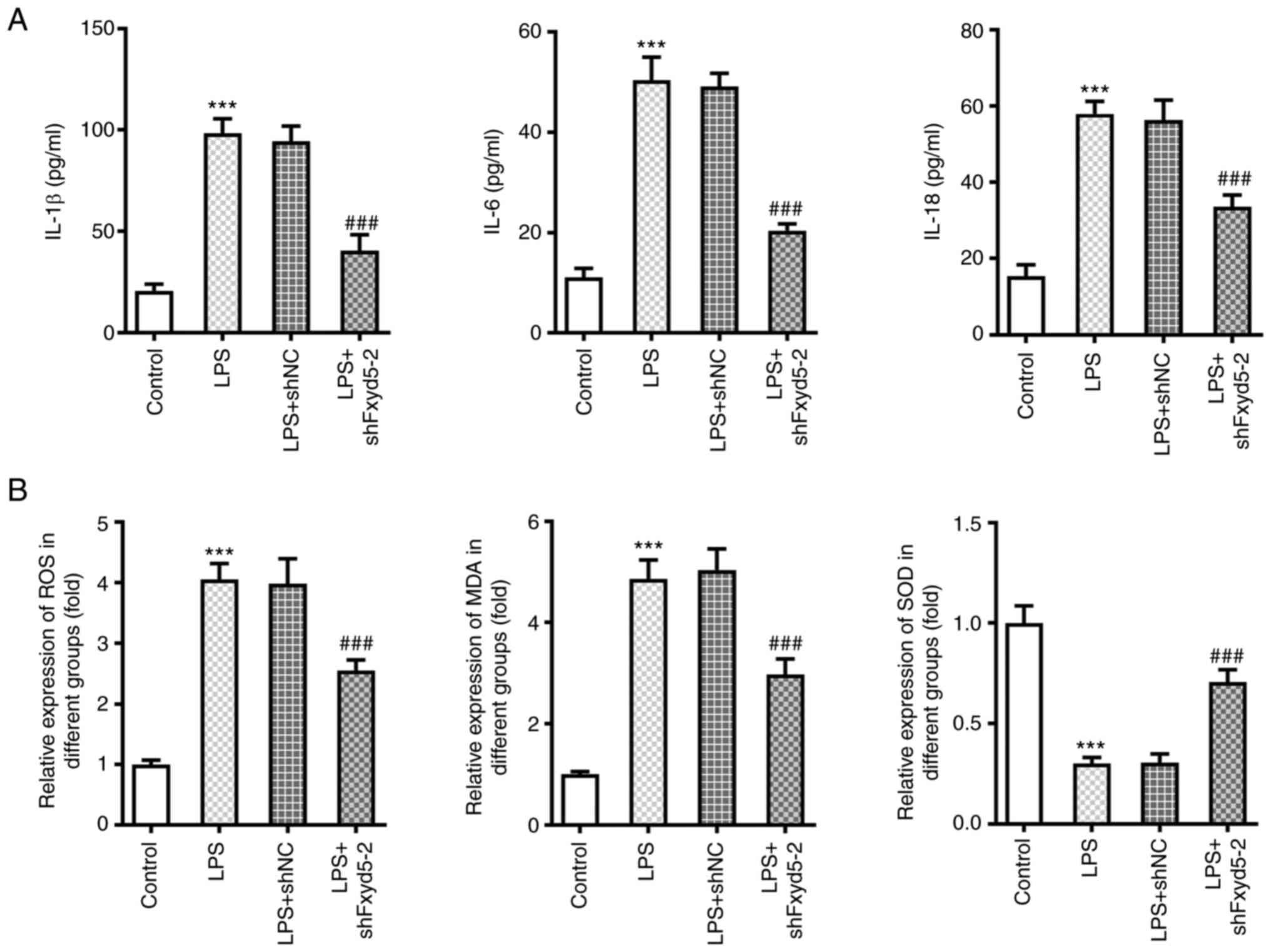

Figure 2. Fxyd5 knockdown attenuates inflammation and oxidative stress in ATDC5 cells. (A) ELISA showed that Fxyd5 knockdown in ATDC5 cells reduced the LPS-mediated release of the pro-inflammatory cytokines IL-1β, IL-6 and IL-18 compared with the shNC group. (B) Fxyd5 silencing alleviated LPS-induced oxidative stress in ATDC5 cells compared with the shNC group, as supported by the decreased levels of ROS and MDA and the increased ones of SOD. Untreated and untransfected ATDC5 cells served as the control group. ***P<0.001 vs. the control group; ###P<0.001 vs. the LPS + shNC group. Fxyd5, FXYD domain containing ion transport regulator 5; LPS, lipopolysaccharide; NC, negative control; shRNA, short hairpin RNA; ROS, reactive oxygen species; MDA, malondialdehyde; SOD, superoxide dismutase.

Fxyd5 activates NF-κB signaling in LPS-induced ATDC5 cells

To investigate whether Fxyd5 was involved in the regulation of NF-κB pathway in the LPS-induced chondrocyte injury model (8), western blot analysis was performed. The results showed that Fxyd5 knockdown in ATDC5 cells restored the increased LPS-mediated p65 and IκBα phosphorylation (Fig. 3). Therefore, the increased expression of Fxyd5 could be involved in LPS-induced chondrocyte injury via activating the NF-κB signaling pathway.

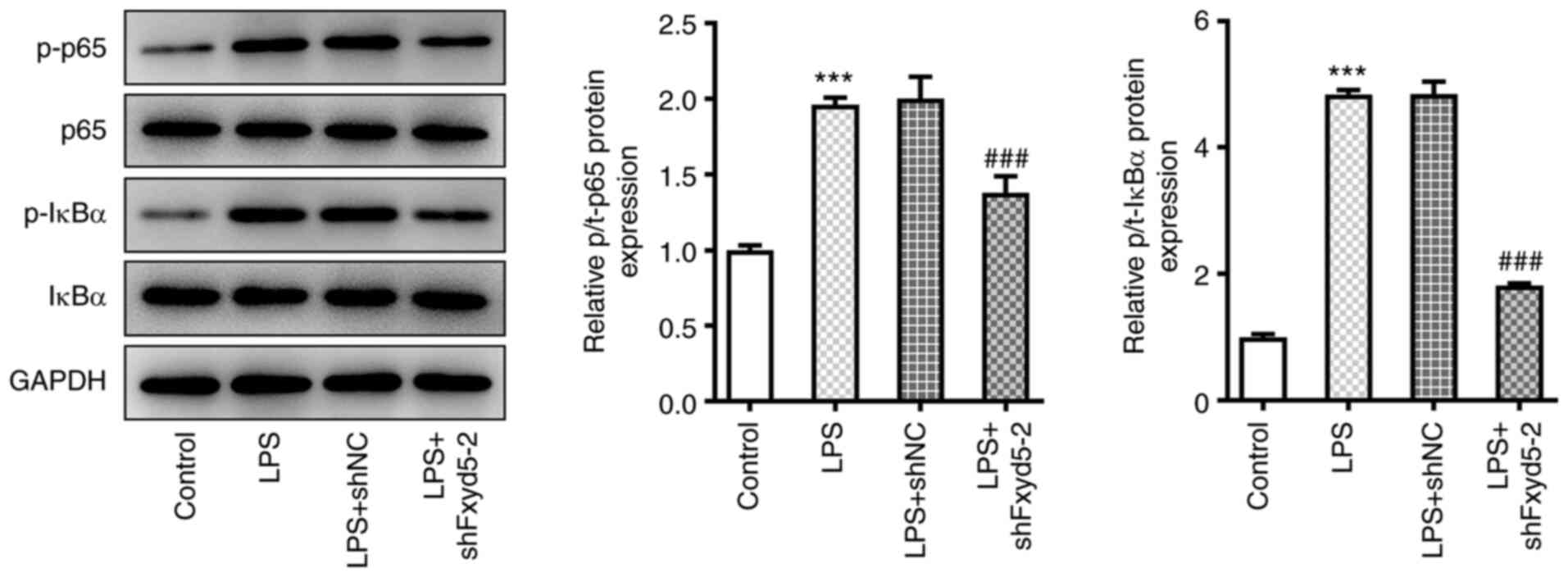

Figure 3. Fxyd5 regulates NF-κB signaling in ATDC5 cells. Western blot analysis revealed that Fxyd5 silencing in ATDC5 cells reduced the LPS-induced phosphorylation levels of p65 and IκBα compared with the shNC group. Untreated and untransfected ATDC5 cells served as the control group. GAPDH served as the loading control. ***P<0.001 vs. the control group; ###P<0.001 vs the. LPS + shNC group. Fxyd5, FXYD domain containing ion transport regulator 5; LPS, lipopolysaccharide; shRNA, short hairpin RNA; NC, negative control short hairpin RNA; p-, phosphorylated; t-, total.

Fxyd5 promotes LPS-induced chondrocyte injury via activating the NF-κB signaling pathway

Since Fxyd5 knockdown in ADTC5 cells could inhibit the activation of the NF-κB pathway (Fig. 3), the present study aimed to verify that Fxyd5 could promote LPS-mediated chondrocyte injury via activating NF-κB signaling. Therefore, LPS-stimulated Fxyd5-depleted ATDC5 cells were treated with 10 nM BA, a NF-κB activator. Western blot analysis showed that the phosphorylation levels of p65 and IκBα were significantly increased in BA-treated Fxyd5-depleted ATDC5 cells compared with BA untreated Fxyd5-depleted ATDC5 cells (Fig. 4A). Additionally, treatment with BA attenuated cell viability and enhanced cell apoptosis and ECM degradation in LPS-induced Fxyd5-depleted ATDC5 cells compared with untreated cells (Fig. 4B-D). To this end, the present study investigated whether Fxyd5 could be also involved in LPS-induced inflammatory responses and oxidative stress in ATDC5 cells via activating the NF-κB signaling pathway. The results demonstrated that cell treatment with BA restored the levels of IL-1β, IL-6, IL-18, ROS and MDA, but not those of SOD, compared with untreated cells (Fig. 5). The above findings indicated that Fxyd5 upregulation could promote LPS-mediated chondrocyte injury via activating NF-κB signaling.

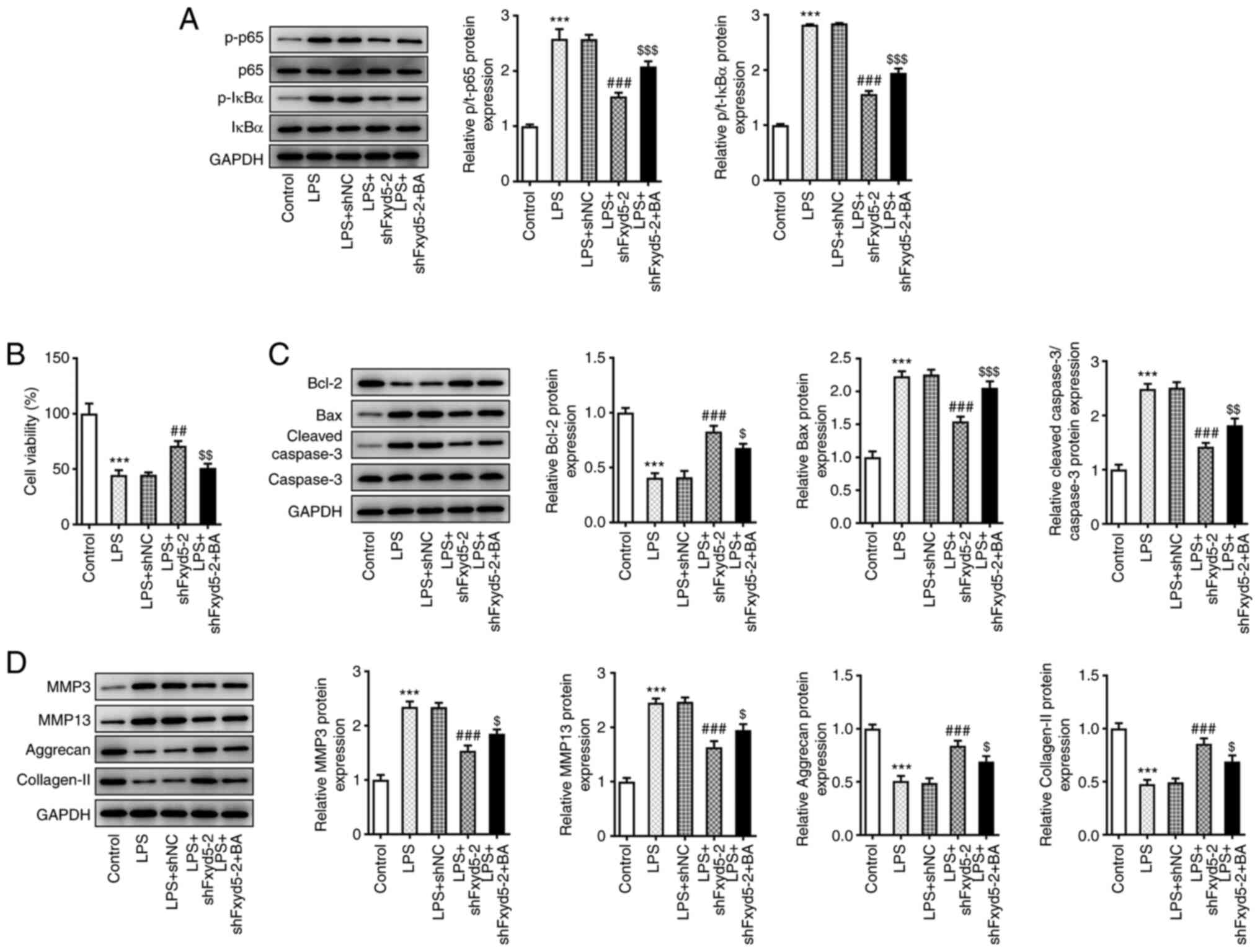

Figure 4. Fxyd5 regulates cell viability, apoptosis and ECM degradation via activating the NF-κB signaling pathway in ATDC5 cells. Following cell treatment with 10 nM BA, a NF-κB activator, for an additional 48 h (A) the phosphorylation levels of p65 and IκBα were increased, as demonstrated by western blot analysis. (B) Cell Counting Kit 8 assay showed that cell viability was increased in Fxyd5-depleted ATDC5 cells co-treated with LPS and BA compared with cells treated only with LPS. (C and D) Western blotting was used to evaluate the expression of proteins involved in cell apoptosis and ECM degradation. Untreated and untransfected ATDC5 cells served as the control group. GAPDH served as the loading control. ***P<0.001 vs. the control group; ##P<0.01 and ###P<0.001 vs. the LPS + shNC group; $P<0.05, $$P<0.01 and $$$P<0.001 vs. the LPS + shFxyd5-2 + BA group. Fxyd5, FXYD domain containing ion transport regulator 5; ECM, extracellular matrix; BA, betulinic acid; LPS, lipopolysaccharide; shRNA, short hairpin RNA; NC, negative control.

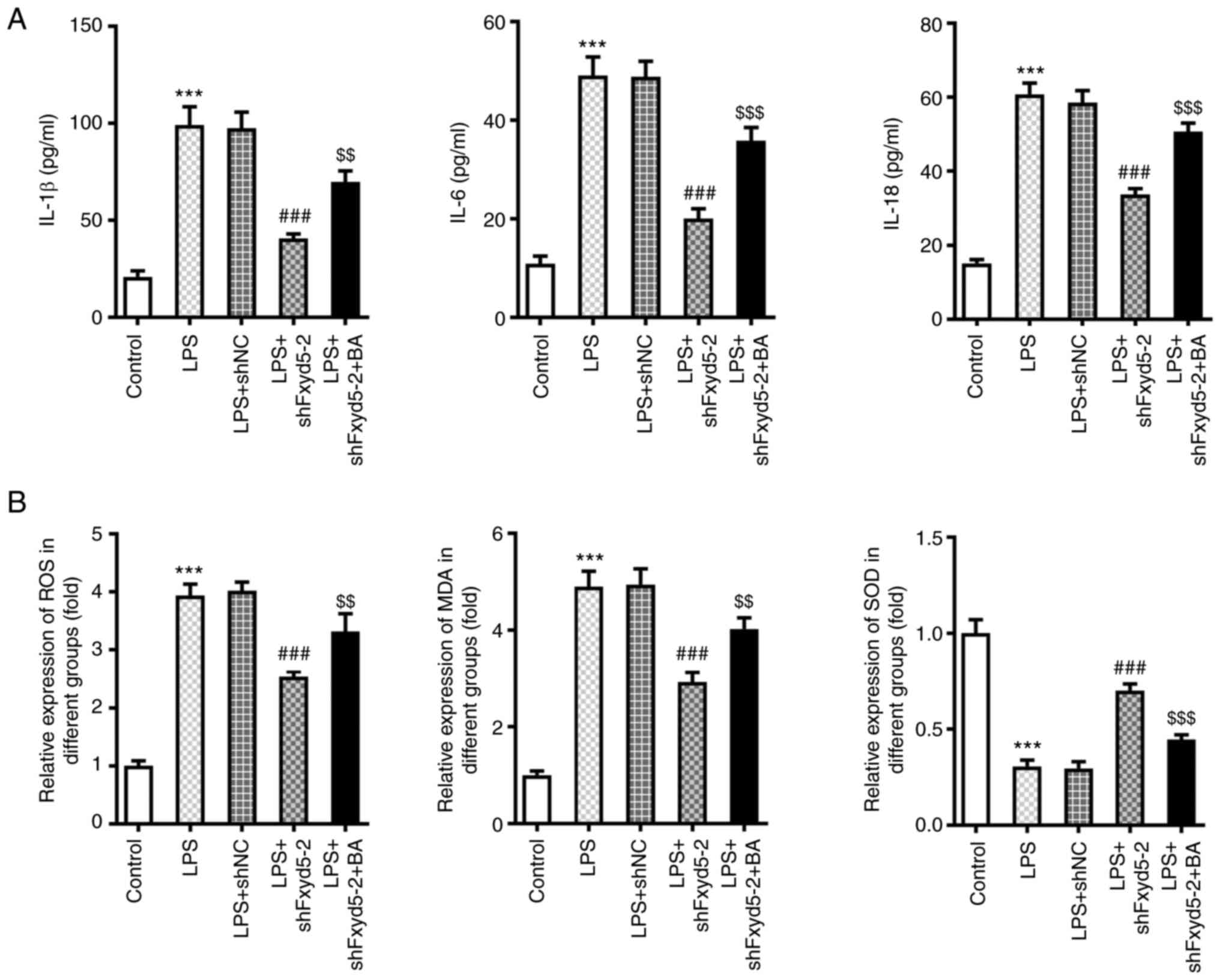

Figure 5. Fxyd5 regulates cellular inflammation and oxidative stress in ATDC5 cells via activating NF-κB signaling. Following cell treatment with 10 nM BA for additional 48 h, the secretion levels of the (A) pro-inflammatory factors IL-1β, IL-6 and IL-18 were increased in ELISA. (B) The content of ROS and MDA was increased and that of SOD was decreased in Fxyd5-depleted ATDC5 cells co-treated with LPS and BA compared with cells treated only with LPS. Untreated and untransfected ATDC5 cells served as the control group. GAPDH served as the loading control. ***P<0.001 vs. the control group; ###P<0.001 vs. the LPS + shNC group; $$P<0.01 and $$$P<0.001 vs. the LPS + shFxyd5-2 + BA group. Fxyd5, FXYD domain containing ion transport regulator 5; BA, betulinic acid; LPS, lipopolysaccharide; shRNA, short hairpin RNA; NC, negative control; ROS, reactive oxygen species MDA, malondialdehyde; SOD, superoxide dismutase.

Discussion

Articular cartilage is a non-self-renewing avascular tissue that lacks inherent repair capability (1). Although, cartilage-derived stem/progenitor cells are involved in the maintenance of tissue homeostasis (2), the gradual loss of chondrocytes still leads to cartilage homeostasis disorders and eventually to OA (24). It has been reported that non-medicinal and non-surgical approaches such as exercise mode and light equipment-assisted training can prevent and delay the deterioration of early OA to a certain extent (25). However, for the treatment of severe OA, symptomatic treatment and joint replacement surgery should be performed (24). Nevertheless, the quality of life remains poor over time.

LPS is used to establish chondrocyte injury models by inducing cell apoptosis, oxidative stress and inflammation (21). In the present study, ATDC5 cell treatment with LPS increased matrix catabolism via upregulating the expression of matrix degradation-related enzymes, including MMP3 and MMP13, and reducing the content of collagen and proteoglycans. Using fast 3D confocal cartilage imaging technology combined with standard histological examination, Zhang et al (26) demonstrate that cartilage cell apoptosis by itself cannot cause articular cartilage injury, which could be mainly triggered by cartilage cell catabolism.

The current study aimed to investigate the effect of transport regulator Fxyd5 on LPS-induced ATDC5 cell injury. Unlike other members of the FXYD family, Fxyd5 exhibits several biological functions in different cell types (12). A previous study revealed that during lung injury, Fxyd5 upregulation is associated with the excessive secretion of cytokines and chemokines by alveolar epithelial cells in response to IFN-α and TNF-α via activating NF-κB signaling (15). Consistent with the aforementioned results, the present study showed that Fxyd5 was upregulated in LPS-induced ATDC5 cells. The increased expression of Fxyd5 further responded to LPS stimulation via promoting the secretion of the inflammatory cytokines IL-1β, IL-6 and IL-18. However, the detection of the mRNA level of these pro-inflammatory cytokines could further support the above findings.

The current study also demonstrated that Fxyd5 silencing could relieve LPS-induced oxidative stress in ATDC5 cells as evidenced by reduced ROS and MDA, while increased SOD levels upon Fxyd5 silencing. Excessive production of ROS contributes to the occurrence of oxidative stress; MDA is a production of lipid peroxidation and SOD belongs to a member of the enzyme antioxidant system (27). Although the combination of the changes in ROS, SOD and MDA levels can illustrate the changes in oxidative stress (28,29), detection of other molecules involved in oxidative stress such as catalase, glutathione peroxidase, 8-hydroxyldeoxyguanosine and nicotinamide adenine dinucleotide phosphate, may further support the findings of the present study. Emerging evidence suggests that ROS-mediated oxidative stress in chondrocytes can affect intracellular signal transduction, chondrocyte life cycle and cartilage matrix metabolism, which may lead to synovial inflammation and subchondral bone dysfunction (1,16). In addition to ECM degradation and cellular inflammation, the increased expression of Fxyd5 could also promote ATDC5 cell apoptosis, possibly via a series of complex and comprehensive reactions. Cellular inflammation can undoubtedly induce cell death, while chondrocyte-specific ECM proteins can also regulate cell proliferation and survival via transmitting cell signals by combining with integrins (30).

It has been reported that LPS binds to and alters the configuration of its associated receptors, promotes IκBα phosphorylation and activates the classic NF-κB pathway (31). In addition, the post-translational modification of p65 can also regulate the activity of NF-kB signaling (31), which is a classic pathway associated with the occurrence and development of OA (20). In the present study, the phosphorylation levels of p65 and IκBα were enhanced in LPS-induced Fxyd5-depleted ATDC5 cells. Combined with the results obtained by the co-treatment of ATDC5 cells with the NF-kB activator, BA, the elevated expression of Fxyd5 promoted chondrocyte injury partially via activating the NF-κB pathway. However, other signaling pathways such as Wnt/β-catenin and MAPK/ERK signaling pathways, which have been reported to regulate OA (32,33), may also be involved in the above process, thus future studies should be performed to investigate. Additionally, further studies should focus on the effect of Fxyd5 on chondrocyte differentiation, as chondrocytes show differentiation plasticity during the healing process (34). Moreover, in vivo studies using IL-1β-induced cell model and animal OA model need to be performed to validate the in vitro findings of the present study.

The results of the current study revealed that Fxyd5 was significantly upregulated in the LPS-induced chondrocyte injury model. Furthermore, the results demonstrated that the increased expression levels of Fxyd5 could promote inflammation, oxidative stress and ECM degradation in ATDC cells via activating the NF-κB signaling pathway. Overall, these findings could provide novel insights to increase our understanding in the role of NF-κB signaling in the pathogenesis of OA.

Acknowledgements

Not applicable.

Funding

Funding: No funding was received.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Authors' contributions

LS guided the project and wrote the manuscript. LS and XL conceived the technical details and designed the experiments. LS, XL and YZ performed the experiments. QS analyzed the data. All authors read and approved the final manuscript. LS and XL confirm the authenticity of all the raw data.

Ethics approval and consent to participate

Not applicable.

Patient consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
