Introduction

Thyroid cancer (TC) is the most common endocrine malignant tumor, ranking ninth in incidence for both sexes and representing the fifth most prevalent cancer in women (1). Most TCs are derived from follicular cells and are classified into three main groups: a) differentiated thyroid carcinoma (DTC) which includes papillary thyroid carcinoma (PTC), follicular thyroid carcinoma (FTC) and Hürthle (oncocytic) cell carcinoma (HCC); b) poorly differentiated thyroid carcinoma (PDTC); and c) anaplastic thyroid carcinoma (ATC) (2).

PTC and FTC are the most common types of TC, have a low overall mortality and are generally curable by surgery with or without radioiodine treatment (3). ATCs are rare undifferentiated cancers with no effective therapy, having almost 100% disease-specific mortality (4–6). PDTCs show limited evidence of follicular cell differentiation and are morphologically and behaviorally intermediate between DTC and ATC (2,7,8). PDTC generally shows a poor response to radioiodine treatment and has an overall 5-year survival rate of about 65%, thus necessitating more effective therapies (2,8–10). Even slight amounts of PDTC areas (≥10%) in a DTC affect the prognosis significantly (11). Some HCCs are also classified as PDTCs and have a worse prognosis than usual HCCs (12,13).

Treatment of ATC must be carried out by a multidisciplinary team generally requiring the combination of surgery (as complete as possible), radiotherapy (intensity-modulated radiotherapy) and conventional chemotherapy using doxorubicin or taxanes (docetaxel or paclitaxel) usually with cisplatin or carboplatin (4–6). Because these treatments are generally not sufficient, newer therapies in development include single or multi-tyrosine kinase inhibitors (MKIs), vascular disruptors, and immunotherapy (6). Regarding MKIs, the Food and Drug Administration have approved the combined treatment with dabrafenib and trametinib for patients with locally advanced or metastatic ATC and somatic BRAFV600E mutation (14). Lenvatinib has demonstrated an acceptable safety profile for Japanese patients with unresectable thyroid tumors including ATC, regardless of mutational status (15). Other therapeutic options could include everolimus when somatic mutations have been detected in the PI3K/mTOR pathway (16,17), imatinib when overexpression of PDGF receptors are detected in advanced ATC (18), and immune checkpoint inhibitor (ICI) drugs targeting PD-1 or PD-L1 (6,19).

Programmed death ligand 1 (PD-L1), also designated as CD274 or B7-H1, is expressed on activated lymphocytes, dendritic cells, macrophages, healthy cells of different tissues and some tumor cells (20,21). Programmed cell-death 1 (PD-1, CD279) is a glycoprotein normally expressed by T lymphoid cells and macrophages. The binding of PD-1 to its ligands PD-L1 and PD-L2 inhibits cytotoxic CD8+ T cell immune response and facilitates the escape of the immune response to cells expressing these ligands (20,21). Blockade of PD-L1 was effective in inhibiting ATC in an in vivo model (BALB/c nude mice with human ATC cells) (22). Using an immunocompetent mouse model of orthotopic ATC, the combination of a BRAFV600E inhibitor and anti-PD1/PD-L1 antibody dramatically improved mouse survival with a tumor reduction along with an increase in cytotoxic CD8+ T cells, NK cells and M1-polarized tumor-associated macrophages (23). Additional studies in a mouse model of orthotopic ATC confirmed that increased efficacy in reducing tumor size and improving survival using an anti-PD1/PD-L1 checkpoint inhibitor combined with an MKI (lenvatinib) was associated with a modification of ATC microenvironment (24). Indoleamine 2,3-dioxygenase (IDO1) has been associated with an altered tumor immune response; therefore IDO1 inhibitors are being investigated in clinical trials in combination with other ICIs (25).

A phase Ib proof-of-concept study of the anti-PD-1 antibody pembrolizumab in patients with advanced, PD-L1-positive PTC or FTC evidenced antitumor activity in a minority of patients treated (26). Another phase 2 trial of pembrolizumab combined with chemoradiotherapy showed good initial tolerance and effectiveness in locoregional disease control but resulted in disappointing survival outcomes (27). A retrospective study of twelve ATC patients, however, showed that in a subset of patients with ATC, pembrolizumab may be an effective salvage therapy added to kinase inhibitors (lenvatinib, dabrafenib + trametinib, trametinib alone) at the time of progression of these drugs, encouraging the incorporation of immunotherapy in patients with ATC (28). Another recent phase II clinical trial to evaluate the efficacy and tolerability of a humanized monoclonal antibody that binds PD-1 and blocks its interaction with PD-L1 (spartalizumab) was carried out in forty-two ATC patients (19). Interestingly, this study evidenced a tumor response of 52.1% in the PD-L1-positive population and that response was independent of BRAF mutational status (19). Several prospective studies are being conducted using ICIs for the treatment of patients with ATC (6), and an improvement in the understanding of the immune microenvironment and the immune biomarkers associated with these highly aggressive thyroid tumors is highly relevant.

Thus, the aim of this study was to evaluate the expression of PD-L1 and the tumor microenvironment in a series of ATCs and PDTCs. We investigated the immunohistochemical expression of PD-L1 in tumor cells, tumor-infiltrating lymphocytes (TILs) and tumor associated macrophages (TAMs), along with the phenotypes of TILs, TAMs and other cells.

Materials and methods

Clinicopathological features

We retrospectively analyzed the clinicopathological data of a series of 26 patients who had undergone total or partial thyroidectomy for ATC and/or PDTC at the Clinical University Hospital of Santiago de Compostela (CHUS) and at the University Hospital Complex of Ourense (CHOU), Spain. The inclusion criteria included having a sufficient excess of tumor tissue fixed in neutral, phosphate-buffered, 10% formalin and included in paraffin blocks for additional immunohistochemical studies. Fifteen patients had ATC and 11 patients had PDTC; PDTC areas coexisted with ATC in two patients and these were also included in the study. The patients consisted of 8 (30.7%) men and 18 (69.2%) women. The age of patients ranged from 47 to 77 years with a mean age of 64.53±11.29 years (range 47–83) for ATC patients and 73.5±6.63 years (range 55–87) for PDTC patients (P=0.018). The patients were followed from the time of histopathological diagnosis until death or the moment of the last clinical follow-up, and clinical data were retrieved from electronic medical records. The original hematoxylin-eosin (H&E) slides from all cases were reviewed by two expert thyroid pathologists (IA-N and JMC-T) and of each case, a paraffin block containing sufficient representative tumor tissue was selected for the additional immunohistochemical analyses of the present study. Tumors were classified according to the criteria of the latest World Health Organization (WHO) thyroid tumor classification (2). All tissue samples were provided by the Biobank of CHUS, integrated in the Spanish National Biobank Network. The study was performed in accordance with the declaration of Helsinki (and subsequent ratifications) and approved by the Santiago-Lugo Medical Research Ethics Committee (code: 2019/275). Written informed consent was obtained.

Immunohistochemical study

Paraffin-embedded tumor tissue sections were stained with H&E, and the immunohistochemical analyses were also performed on 4µm-thick paraffin tissue sections with a peroxidase-conjugated labeled dextran polymer (EnVision FLEX/HRP; Dako), using 3,3′-diaminobenzidine as the chromogen (GC80611-2; Dako). The primary antibodies and the conditions of use (clone, concentration, antigenic recovery treatment and manufacturer) were as follows: Thyroglobulin (TG) (code GA509, polyclonal, ready-to-use, pH 6; Dako); calcitonin (code GA515, polyclonal, ready-to-use, pH 6; Dako); PD-L1 (code GE006, clone 22C3, PD-L1 IHC 22C3 pharmDx, ready-to-use, pH 6; Dako), CD3 (code IR503, polyclonal, ready-to-use, pH 9; Dako); CD4 (code IR649, clone 4B12, ready-to-use, pH 9; Dako); CD8 (code IR623, clone C8/144B, ready-to-use, pH 9; Dako); CD20 (code IR604, clone L26, ready-to-use, pH 9; Dako); CD68 (code IR613, clone PGM1, ready-to-use, pH 9; Dako); CD163 (code CM353AK, clone 10D6, dilution 1:100, pH 9; Biocare Medical); S100 protein (code IR504, polyclonal, ready-to-use, pH 9; Dako); p53 (code IR616, clone DO-7, ready-to-use, pH 9; Dako); MLH1 (code IR079, clone E605, ready-to-use, pH 9; Dako); MLH2 (code IR085, clone FE11, ready-to-use, pH 9; Dako); MSH6 (code IR086, clone EP49, ready-to-use, pH 9; Dako); and PMS2 (IR087, clone EP51, ready-to-use, pH 9s; Dako). Non-tumorous thyroid tissue adjacent to carcinoma (for thyroglobulin, MLH1, MSH2, MSH6 and PMS2), a medullary thyroid carcinoma (for calcitonin), a lung adenocarcinoma (for PD-L1), a colon cancer (for p53), and normal lymphoid tissue of palatal tonsil (for CD3, CD4, CD8, CD20, CD68, CD163, and S100) have been used as positive controls. Non-immune rabbit and mouse serum samples were substituted for the primary antibodies as negative control samples.

All immunostains were evaluated simultaneously by 2 investigators (IA-N and JMC-T) using a double-head optical microscope (BX41TF; Olympus) until consensus was reached. Only PD-L1 membranous staining of viable tumor cells was evaluated and the tumor proportion score (TPS) represented the percentage of PD-L1-positive tumor cells relative to all viable tumor cells. A cutoff score ≥1% was used to define PD-L1 positivity. PD-L1 membranous staining was also scored in TILs and TAMs; stromal immune cells distant from the tumor were excluded. Membranous staining for CD4, CD8, and CD163, membranous/cytoplasmic staining for CD3, CD20, CD68, and cytoplasmic/nuclear staining for S100 were scored as 0 (negative), 1 (positive ≤10% of inflammatory cells), 2 (between 11 and 49%) and 3 (≥50%). Only nuclear staining was considered positive for MLH1, MSH2, MSH6 and PMS2. For p53, diffuse and strong nuclear staining (so-called ‘block staining’) and complete loss of staining (‘null’ phenotype) were considered positive (associated with mutations), while scattered, often weak nuclear positivity was considered a negative (‘wild-type’) normal p53 staining pattern.

Statistical analysis

The chi-square and Fisher's exact tests were, where appropriate, used to investigate the association between categorical variables. Student's t-test was used to evaluate the statistical significance of the difference in the means between the two groups. Survival analysis of differences between groups (ATC vs. PDTC and PD-L1+ vs. PD-L1-) was performed using the Kaplan-Meier method with the log-rank test. Differences with P<0.05 were considered statistically significant. All statistical analyses were performed using R statistical software (version 4.0.3).

Results

The main clinicopathological and immunohistochemical characteristics of the study are shown in Tables I and II. In the ATC group (n=15), 60% of the patients were women and 40% were men. Of the 15 ATC cases, 9 (60%) tumors were morphologically subclassified as giant cell pattern, 3 (20%) as spindled cell pattern, and 3 (20%) as epithelial (squamoid) cell pattern (Table I). In the PDTC group (n=11), 81.8% of the patients were women and 18.2% were men. Survival data appear in Table I and Fig. 1. Significant differences in survival were found when comparing ATC and PDTC (P=0.0001); while 86.6% of patients with ATC had died from the tumor after a mean follow-up of 5 months (range 0.1–16), only 54.5% of the patients with PDTC (without anaplastic component) had died after a mean follow-up of 84.22 months (range 3.3–237) (Fig. 1).

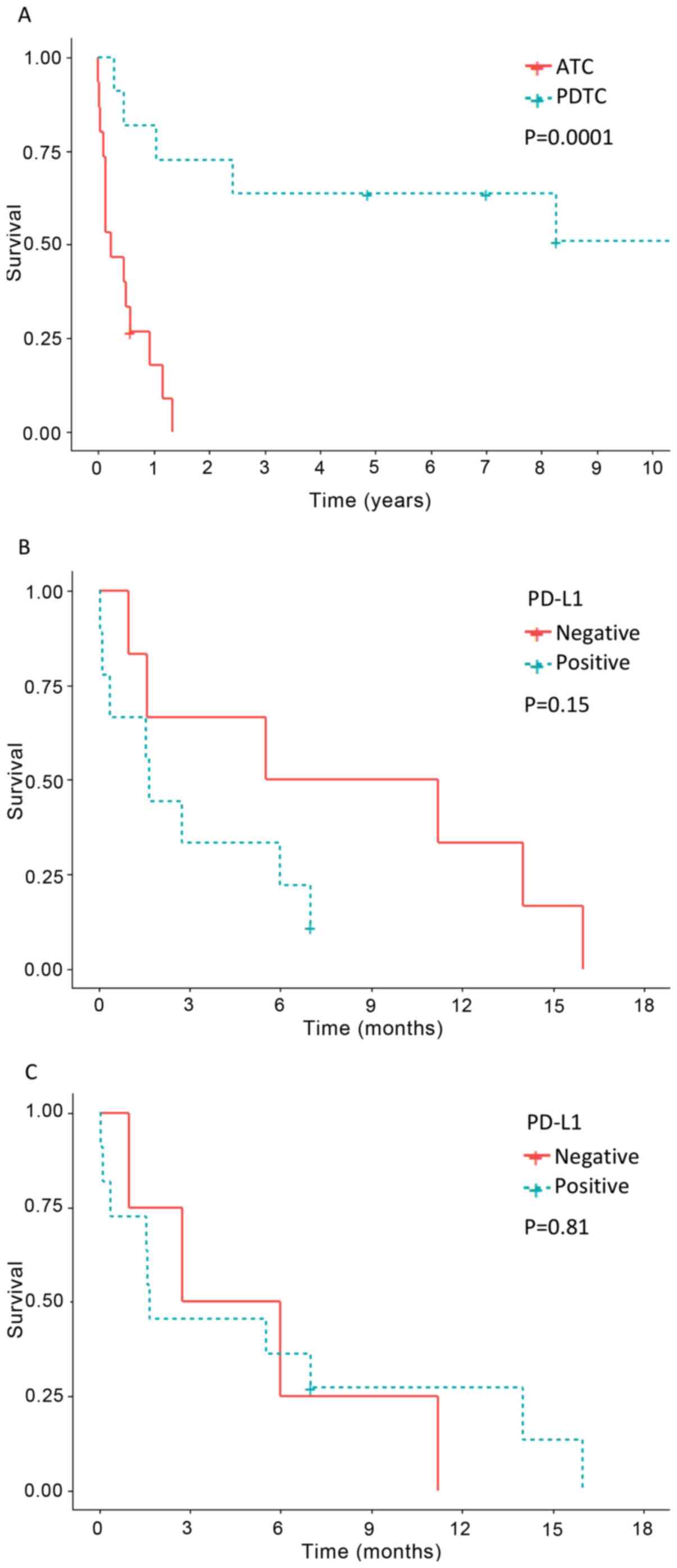

Figure 1. Survival and PD-L1 expression in patients with ATC and PDTC. (A) Kaplan-Meier analysis showing significant differences in survival between patients with ATC and PDTC. (B) Patients with PD-L1-positive ATC showed a trend for worse survival than those with PD-L1-negative tumors, although the difference was not significant. (C) No difference in survival was observed when comparing positive PD-L1 expression with negative PD-L1 expression in ATC lymphocytes and macrophages. ATC, anaplastic thyroid carcinoma; PDTC, poorly differentiated thyroid carcinoma; PD-L1, programmed death ligand 1.

Table I. Clinicopathological and immunohistochemical findings in 15 cases of ATC and 13 cases of PDTC in 26 patients.

Table I.

Clinicopathological and immunohistochemical findings in 15 cases of ATC and 13 cases of PDTC in 26 patients.

Case no.	Age, years	Sex	Diagnosis	Follow-up (months)	PD-L1 TPS, %	PD-L1 TILs, %	CD3	CD3	CD8	CD20	CD68	CD163	S100	p53	MLH1	MSH2	MSH6	PMS2
1	73	F	ATC, Sc	DOD (11.2)	0	0	3	0	1	1	3	3	2	B	+	+	+	+
2	83	F	ATC, Gc	DOD (0.13)	15	20	3	1a	3	0	3	3	1	B	+	+	+	+
3	67	M	ATC, Sc	DOD (5.5)	0	1	3	0	1	0	3	3	3	WT	+	+	+	+
4	75	M	ATC, Gc	DOD (1)	0	0	3	1a	2	1	3	3	1	N	+	+	+	+
5	76	F	ATC, Ec	DOD (0.03)	35	5	3	1a	3	0	3	3	1	WT	+	+	+	+
6b	73	M	ATC, Sc	DOD (1.56)	30	3	3	0	3	0	3	3	1	WT	+	+	+	+
7	68	F	ATC, Gc	DOD (0.36)	15	15	3	1a	3	0	3	3	1	B	+	+	+	+
8	47	M	ATC, Gc	DOD (16)	0	5	3	1a	3	1	3	3	1	WT	+	+	+	+
9	47	F	ATC, Ec	DOD (2.73)	18	0	3	0	2	1	3	3	1	B	+	+	+	+
10	60	F	ATC, Gc	DOD (6)	33	0	3	0	2	0	3	3	1	B	+	+	+	+
11	71	M	ATC, Gc	DOD (1.6)	0	1	3	0	3	1	3	3	1	B	+	+	+	+
12	67	F	ATC, Ec	DOD (1.67)	90	10	3	2a	2	1	3	3	1	B	+	+	+	+
13	54	F	ATC, Gc	DOD (7)	30	20	3	1a	2	1	3	3	2	N	+	+	+	+
14c	52	M	ATC, Gc	AWD (14)	0	10	2	1a	2	0	3	3	1	B	+	+	+	+
15b	55	F	ATC, Gc	AWD (7)	90	80	3	1a	3	0	3	3	2	B	−	+	+	−
15b	55	F	PDTC	AWD (7)	0	0	1	0	0	0	0	1	0	WT	+	+	+	+
6b	73	M	PDTC	DOD (1.56)	0	0	1	0	1	0	0	0	0	WT	+	+	+	+
16	72	F	PDTC	AAW (237)	0	0	0	0	0	0	0	0	0	WT	+	+	+	+
17	75	M	PDTC	DOD (12.6)	0	0	0	0	0	0	0	0	0	WT	+	+	+	+
18	68	F	PDTC	DAD (148.2)	0	0	1	0	1	0	0	0	0	WT	+	+	+	+
19	71	F	PDTC, Oc	DOD (149.88)	35	0	2	0	2	0	2	2	1	B	−	+	+	−
20	78	F	PDTC	DOD (99.24)	0	0	1	0	1	0	1	1	1	WT	+	+	+	+
21	73	F	PDTC	DOD (5.52)	0	0	1	0	1	0	1	1	0	WT	+	+	+	+
22	80	F	PDTC	DOD (3.36)	0	0	1	0	2	0	1	1	1	WT	+	+	+	+
23	75	F	PDTC	DAD (58.32)	0	0	0	0	0	0	1	1	0	WT	+	+	+	+
24	87	F	PDTC	DOD (29.16)	0	0	0	0	0	0	1	1	1	WT	+	+	+	+
25	63	F	PDTC	AWD (99.24)	0	0	1	0	1	0	1	1	1	WT	+	+	+	+
26	67	M	PDTC	AWD (84)	0	0	1	0	0	0	1	1	1a	WT	+	+	+	+

a Positivity exclusively in lymphoid population surrounding the tumor

b These tumors combined areas of ATC and PDTC

c This was the only case with a previous diagnosis as a differentiated thyroid carcinoma (Hürthle cell carcinoma diagnosed 26 months earlier). M, male; F, female; ATC, anaplastic thyroid carcinoma; PDTC, poorly differentiated thyroid carcinoma; Sc, spindle cell sarcoma-like pattern; Gc, giant cell pattern; Ec, epithelial cell pattern; Oc, oncocytic variant (Hürthle cell PDTC); DOD, dead of disease; AWD, alive with disease; AAW, alive and well; DAD, dead from another disease; TPS, tumor proportion score; TILs, tumor-infiltrating lymphocytes; 1, ≤10% positivity of inflammatory cells; 2, 11–49% positivity; 3, ≥50% positivity; B, ‘block’ staining; N, ‘null’ phenotype; WT, wild-type; PD-L1, programmed death ligand 1; MLH1, mutL homolog 1; MSH2, mutS homolog 2; MSH6, mutS homolog 6; PMS2, PMS1 homolog 2.

Table II. Comparison of clinicopathological and immunohistochemical data between 15 cases of ATC and 13 cases of PDTC in 26 patientsa.

Table II.

Comparison of clinicopathological and immunohistochemical data between 15 cases of ATC and 13 cases of PDTC in 26 patientsa.

Characteristics	ATC	PDTC	P-value
Age, years			0.018
Median	67	73
Mean ± SD (range)	64.53±11.29 (47–83)	73.55±6.63 (55–87)
Sex, n/total (%)			0.395
Male	6/15 (40.0)	2/11 (18.2)
Female	9/15 (60.0)	9/11 (81.8)
PD-L1
TPS	9/15 (60.0)	1/13 (7.7)	0.006
TILs	11/15 (73.3)	0/13 (0.0)	<0.001
CD3	15/15 (100.0)	9/13 (69.2)	0.035
CD4	9/15 (60.0)	0/13 (0.0)	0.001
CD8	15/15 (100.0)	7/13 (53.8)	0.005
CD20	7/15 (46.7)	0/13 (0.0)	0.007
CD68	15/15 (100.0)	8/13 (61.5)	0.013
CD163	15/15 (100.0)	9/13 (69.2)	0.035
S100	15/15 (100.0)	6/13 (46.2)	0.001
p53	11/15 (73.3)	1/13 (7.7)	0.001

a Among the 26 patients, coexistence of ATC and PDTC areas was observed in the tumors of 2 patients. ATC, anaplastic thyroid carcinoma; PDTC, poorly differentiated thyroid carcinoma; TPS, tumor proportion score; TILs, tumor-infiltrating lymphocytes; PD-L1, programmed death ligand 1.

The epithelial non-tumorous thyroid tissue adjacent to PDTCs and ATCs showed positivity for thyroglobulin, MLH1, MSH2, MSH6 and PMS2, but negativity for calcitonin, p53, PD-L1, CD3, CD4, CD8, CD20, CD68 and S100 (Figs. S1–S4). All ATC tumors were negative for thyroglobulin (Fig. 2B) and calcitonin while all PDTC tumors were positive for thyroglobulin but negative for calcitonin. In the immunohistochemical evaluation of PDTC areas present in the thyroid tumors of two patients who had ATC, both tumor types were evaluated independently as PDTCs and ATCs. Heterogeneous (focal or multifocal) positivity for PD-L1 in tumor cells was detected in 60% of ATC cases, in which the percentage of positive tumor cells ranged from 15 to 90% (Tables I and II). Positivity for PD-L1 was detected in all cases of ATC with epithelial cell pattern and also in different cases with other ATC patterns (Figs. 2–4). PD-L1expression in ATC tumor cells was significantly higher than that in PDTC cases (60% vs. 7.7%, P=0.006) (Table II). The only case of PDTC with PD-L1 positive tumor cells (35%) was the one case of oncocytic cells, a poorly differentiated Hürthle cell carcinoma (case 19) (Fig. 3). In the ATC group, a slightly higher number of cases showed positivity for PD-L1 in TILs than in tumor cells (73.3% vs. 60%), but neither PD-L1-positive TILs nor TAMs were observed in the PDTC group (P=0.000) (Figs. 2–4). Using TPS, PD-L1-positive ATC patients showed a trend for worse survival than those with PD-L1-negative tumors (Fig. 1B), although the differences were not significant (P=0.15). No difference in relation to survival was found when comparing the expression of PD-L1 in ATC-TILs or TAMs (P=0.81) (Fig. 1C).

Figure 2. Immunohistochemical staining of ATC tissues. (A) H&E staining of ATC with epithelial pattern. (B) All ATC cases were negative for TG; positively stained follicles (arrows) were normal cells entrapped by the tumor cells (internal control). (C) Strong positivity for PD-L1 was detected in some ATC cases. (D) CD3+ lymphocytes were found in all ATC cases. (E) CD4+ lymphocytes (arrows) were found exclusively surrounding the tumor (asterisks). (F) CD8+ lymphocytes, (G) CD68+ and (H) CD163+ macrophages, and (I) S100+ dendritic cells were found in all ATC cases. Positivity for (J) p53, (K) MLH1 and (L) PMS2 was a common finding in ATC. Magnification, ×400. ATC, anaplastic thyroid carcinoma; H&E, hematoxylin and eosin; TG, thyroglobulin; PD-L1, programmed death ligand 1; MLH1, mutL homolog 1; PMS2, PMS1 homolog 2.

Figure 4. ATC with poorly differentiated areas (case 6). (A) Transition between poorly differentiated areas (arrows) and ATC areas (magnification, ×200). Higher magnification shows (B) a poorly differentiated area with a focus of necrosis (asterisks) and (C) another ATC area. (D) Poorly differentiated areas were negative for PD-L1, with (E) positivity for PD-L1 only observed in ATC areas. MLH1 protein expression was detected in both (F) poorly differentiated and (G) ATC areas. (H) A higher density of CD8+ lymphocytes was observed in ATC areas than in poorly differentiated areas. (I) CD163+ macrophages were only found in the ATC areas of the tumor. Magnification, ×400. ATC, anaplastic thyroid carcinoma; H&E, hematoxylin and eosin; PD-L1, programmed death ligand 1; MLH1, mutL homolog 1.

Figure 3. Poorly differentiated thyroid carcinoma (Hürthle cell variant; case 19). (A) H&E staining. (B) Strong positivity for PD-L1 (arrows). (C) Tumor cells were negative for MLH1, but positivity was observed in stromal cells, endothelial cells (arrows) and lymphocytes (arrowheads) (internal control). (D) Strong positivity for p53. Magnification, ×400. H&E, hematoxylin and eosin; PD-L1, programmed death ligand 1; MLH1, mutL homolog 1.

Significant differences were found in the expression of lymphocytic markers in ATC and PDTC (Tables I and II). All ATC cases showed CD3 and CD8 positive cells as well as a higher percentage of CD4 and CD20 positive cells, while no positivity for CD4 and CD20 was detected in PDTC cases; when comparing the expression of all these lymphoid markers in ATC and PDTC, the differences were significant (Table II). All ATCs showed a higher and significant percentage of CD68, CD163 and S100 positive cells compared to the group of PDTCs (Table II) (Figs. 2,3 and 5). While 11/15 (73.3%) of the ATCs showed an abnormal pattern of p53 protein expression, all PDTC cases except the poorly differentiated Hürthle cell carcinoma case (7.7%) showed a p53 wild-type (i.e., normal) staining pattern (P=0.001). Expression of DNA mismatch repair (MMR) proteins was detected in all cases except in one single case with negativity for MLH1 and PMS2 in the ATC areas and concomitant positivity for MLH1 in PDTC areas, as well as in another case of PDTC (case 19) with a complete loss of nuclear MLH1 and PMS2 expression (Fig. 3).

Figure 5. ATC with poorly differentiated areas (case 15). (A) Transition between poorly differentiated areas (asterisks) and ATC areas (arrows) (magnification, ×200). Morphological differences between (B) poorly differentiated and (C) ATC areas at a higher magnification (magnification, ×400). (D) PD-L1 expression was only detected in the ATC areas (arrows), but not in the poorly differentiated component (asterisks) (magnification, ×200). (E) ATC cells showed strong and diffuse positivity for PD-L1 (magnification, ×400). MLH1 expression at magnification (F) ×200 and (G) ×400 was found in the poorly differentiated areas (asterisk), but not in the ATC areas (arrows). CD163+ macrophages were not detected in (H) the poorly differentiated areas, but were heavily detected in (I) the ATC areas (magnification, ×400). ATC, anaplastic thyroid carcinoma; H&E, hematoxylin and eosin; PD-L1, programmed death ligand 1; MLH1, mutL homolog 1.

Discussion

The immunohistochemical expression of PD-L1 is sometimes a prerequisite for the establishment of checkpoint inhibitor therapy and has prognostic value in several types of malignant tumors (21,29). Based on the encouraging results of trials involving immunotherapy in the management of ATC (25), we have investigated PD-L1 expression and tumor microenvironment (TME) in a series of 15 ATCs and 13 PDTCs.

Thyroid carcinogenesis arises and progresses gradually as a result of the accumulation of various genetic and epigenetic alterations (2,30,31). There are early driver mutations shared by more than one category of thyroid tumors (31,32) and DTCs have a relatively low level of somatic mutations compared to cancers from other sites (33,34). The rate of mutations, however, is higher in the PDTC group than in the DTC group (35,36) and is much higher in the ATCs (37,38). This model of tumor progression is also supported, as in cases 6 and 15 of our series, by the coexistence of differentiated and less-differentiated areas in some thyroid tumors (39,40). The existence of cases of patients with DTC whose tumor recurrence and/or metastasis included a PDTC and/or an ATC (41) also supports this model; the possibility of two independent tumors, however, cannot be excluded. The mean age of patients with TC increases in relation with the loss of tumor differentiation (2), further supporting the sequential model of carcinogenesis. The older mean and median age of the 13 patients with PDTC in our series contrasted with the findings of other studies (42,43), but this could be attributed to biases due to pathological diagnostic criteria and/or the limited number of cases. The tumors in our series were classified according to the WHO (2), applying the Turin criteria (and algorithm) (7), which by definition exclude PTCs. Other groups, such as the Memorial Sloan Kettering Cancer Center (MSKCC) group, consider PDTC to be any carcinoma with follicular cell differentiation that shows fresh tumor necrosis and/or presence of ≥5 mitoses/10 high power microscopic fields (×400), thus also including PTC-derived cases (42,44). Given that PTC is more common in young adults, the exclusion of PTCs with a BRAF-like signature from the group of PDTCs in our series could explain the differences (31,32). These different diagnostic criteria (PDTC-Turin vs. PDTC-MSKCC), do, in fact, explain the variations in the prevalence of ‘early’ genomic alterations in PDTC (RAS mutations vs. BRAFV600E mutations, respectively) (36,45).

In our series we found immunohistochemical positivity for PD-L1 in tumor cells (TPS) of more than half of the ATCs (60%) but in only one case of PDTC (7.7%). Similarly, PD-L1 expression was detected in TILs and TAMs from the ATC group (73.3%) but not in the PDTC group, probably related to the higher mutational load of ATCs (37,38). A few studies reported the expression of PD-L1 in TCs. PD-L1 immunoexpression was found in 6.1 to 82.5% of PTCs (46,47), including cases of papillary thyroid microcarcinoma (48) and cases with simultaneous chronic thyroiditis and BRAF mutation (29,49). In PTCs a significant association between PD-L1 expression and BRAFV600E mutation has been reported in several studies (48,49). Positivity for PD-L1 (clone E1L3N) and IDO1 was detected in 7/28 (25%) and 2/28 (7.1%) respectively of a series of PDTCs (50). Positivity for PD-L1 using different antibodies (clones SP142, 5H1, E1L3N, SP142, E1L3N, 22C3, 22C3, SP263 and SP263 respectively) was detected in 2/9 (22.2%) (47), 3/13 (23.1%) (51), 14/49 (28.6%) (52), 6/8 (75%) (53), 13/16 (81.2%) (54), 1/1 (100%) (55), 1/1 (100%) (56), 1/1 (100%) (22), 1/1 (100%) (57), 10/10 (100%) (28) of the ATCs but in none of the 6 (0%) PDTCs studied by Ahn et al (47). Mutation load or tumor mutational burden (TMB) represents the amount of somatic coding, base substitution and indel mutations per megabase of genome studied in each tumor, and high TMB is considered a new biomarker of sensitivity to ICIs (34). It has been postulated that a greater number of mutations would imply more neoantigens and consequently more targets for activated immune cells, which is why these tumors are good candidates for immune checkpoint inhibitor therapy (21,58–60). In human carcinogenesis, high TMB is mainly related to germline or somatic alterations in the DNA MMR complex (61–63), related to defects in genes involved in the recognition and removal of errors during lagging- and leading-strand DNA replication such as POLD1 and POLE genes, respectively (64–66), and/or related to loss of function mutations in the TP53 gene (67), and other alterations (68,69). ATCs are tumors with a high mutational load (37), usually accompanied by mutations of the TP53 gene (31,37), which in our series was detected in 73.3% of ATCs. In the tumor of one of the patients in our series (case 15) (Fig. 5), the ATC areas showed the highest positivity for PD-L1, positivity for p53 and loss of expression of MLH1 and PMS2, while the areas of PDTC showed negativity for PD-L1, a wild type pattern for p53 and conservation of the protein expression of the MMR genes. On the other hand, in the other tumor combining anaplastic and poorly differentiated areas (case 6) (Fig. 4), the expression of PD-L1 was limited to the ATC areas without detecting alterations related to p53 or the MMR genes in any of the different tumor areas. Interestingly, the only PDTC case with PD-L1 expression (case 19) (Fig. 3), also showed positivity for p53, but loss of MLH1 and PMS2 expression, fitting with the proposed hypermutator role of the MLH mismatch-repair genes reported in ATCs (37). In colorectal cancer, a significantly higher expression of PD-L1 was detected in tumors exhibiting MMR deficiency and BRAF mutation (40); this also agrees with the data from our series since BRAF mutation is commonly an early event in the progression from conventional (BRAF-like) PTC to ATC. BRAFV600E mutation does not participate, however, in the development of the PDTC defined by the Turin criteria (31).

Our study evidenced significant differences in TME between the ATC and PDTC groups (Table II). Similar to our data, a recent study using fluorescence multiplex immunohistochemistry found significant differences between ATC and advanced DTC in relation to PD-L1 expression and lymphoid infiltration (70). We found an exclusive presence of CD3+ CD8+ (cytotoxic) T lymphoid population and S100+ dendritic cells infiltrating the tumor cells, with a minority of helper (CD4+) T lymphocytes at the interface of the tumor/normal thyroid tissue in all ATCs but in only one case (case 19) of PDTC. The role of TILs in PTC is controversial since its association with both a favorable (71) and an unfavorable (72,73) prognosis has been described. More specifically, a protumorigenic role of FoxP3+ regulatory T cells (Treg) in DTC has been demonstrated while CD8+ T cells develop an antitumor function (73,74). In fact, exhausted PD-1+ CD8+ T lymphocytes appeared to be a marker of bad prognosis and immunosuppression in DTC (73,74). In PTCs, S100+ dendritic cells were more numerous when compared to normal thyroid tissue (75), and CD1a+ dendritic cell density was associated with better disease-free survival (71). Significant differences between ATCs and PDTCs were also observed in our series in relation to tumor infiltration by TAMs using a histiocytic pan-marker (CD68) as well as CD163, a member of a scavenger receptor cysteine-rich superfamily restricted to the monocyte/macrophage lineage (histiocytic differentiation). Our data confirmed previous observations indicating the over-representation of pro-tumor TAMs in ATC and in advanced DTCs (71). Our images also strongly support the existence of a very dense network of interconnected CD163+ macrophages in direct contact with intermingled cancer cells that may trap cells in the tumor stroma (76), where they correlate with poorer survival (71). Compared with type 1 inflammatory macrophages, type 2 suppressor macrophages (CD163+) promote invasiveness of human TC cell lines (77) and have also been associated with a worse prognosis in cancers of other locations (78,79). Our findings are consistent with a relationship between high TMB of ATC, expression of neoantigens and changes in the immune system (PD-L1 expression and changes in TME).

In a recent meta-analysis the association of PD-L1 and disease-free survival (DFS) remained strong in PTC when compared with dedifferentiated thyroid carcinomas (ATC and PDTC) in which a significant association with PD-L1 was not confirmed (20). In another PDTC series, PD-L1 expression was significantly associated with tumor size and multifocality as well as with a non-significant trend towards older age, metastasis, an increased number of CD8+ T cells and decreased disease-free and overall survival (50). In our series we found a significantly higher expression of PD-L1 in TILs and TAMs in ATC group when compared to the same expression in the PDTC group (P=0.0001). We also found a trend towards worse survival in ATC with PD-L1 expression in tumor cells, but the figures did not reach statistical significance, probably due to the limited number of cases (Fig. 1B). No trend, however, was evidenced when evaluating PD-L1 expression in TILs and TAMs. A meta-analysis of non-medullary TC comprising 721 positive studies showed an association between PD-L1 expression and disease recurrence (49). PD-L1 up-regulation has recently been associated with poor disease-specific survival in patients with ATC or advanced DTC (43). This association between PD-L1 expression and a poor prognosis has also been confirmed in other tumors from different locations such as head and neck (80), breast (81), kidney (81,82), urothelial carcinoma (83), non-small cell lung cancer (84), colorectal cancer (85), and other solid tumors (81,86).

Although this study has several limitations such as its retrospective nature and the limited number of the sample, which could lead to selection biases, there are invaluable data in relation to immunotherapy. In fact, we can conclude that PD-L1 expression and tumor infiltration by CD3+CD8+ T lymphocytes, S100+ dendritic cells and CD68+CD163+ macrophages is common in ATC but rare in PDTC. Our findings also suggest that microsatellite instability may also play a role in both TME as well as in the identification of immunotherapy candidates among PDTC patients.
