Introduction

The success of immune checkpoint inhibitors (ICIs) targeting programmed cell death-1 (PD-1)/programmed cell death-1 ligands (PD-L1) and cytotoxic T lymphocyte-associated antigen-4 (CTLA-4) has highlighted the important role of antitumour immunity in cancer treatment (1). In recent years, there has been increased interest in studies on antitumour immunity for effective cancer treatment (2). Clinically, a combination strategy of ICIs and other cancer therapies that induce local and systemic immune responses achieve an improved response rate compared with ICIs alone (3,4).

Previous studies have suggested stimulation of local and systemic immune responses after radiotherapy; for example, radiotherapy promotes the induction of damage-associated molecular patterns and tumour-associated antigens as well as the release of exosomes containing DNA fragments that activate dendritic cells (5–7). In addition, radiotherapy up-regulates the expression of human leukocyte antigen, a central component of specific immune stimulation (8). Increased serum levels of interferon-β and early dynamic changes of blood T cell clones have been observed in patients who received radiotherapy and demonstrated greater systemic immune responses (9), suggesting that radiotherapy can strongly activate antitumour immunity. Furthermore, DNA damage signalling after irradiation also stimulates innate immune responses via cyclic GMP-AMP synthase (cGAS)/stimulator of IFN genes (STING)- or the melanoma differentiation-associated gene 5/retinoic acid-inducible gene I (RIG-I)/mitochondrial antiviral-signalling protein pathways. These signals promote the release of interferons (10–13). Thus, although radiotherapy can be a promising tool to stimulate the antitumour immune response, positive stimulation may not fully achieve antitumour effects due to the undesired immune-suppressive signal, for example, PD-L1 up-regulation (14); especially if radiotherapy stimulates the immune-suppressive signal. Thus, it is important to understand the regulation of immune response in the context of its ligand expression in each patient to effectively implement this combination therapy.

To date, multiple pathways regarding the regulation of PD-L1 expression in tumours have been suggested. Microsatellite instability induced by defects in mismatch repair (15,16) and PD-L1 expression (17) have been proposed as predictive markers for the efficacy of anti-PD-1/PD-L1 antibodies monotherapy. In the context of DNA damage-dependent regulation of PD-L1 expression, our previous study indicated that PD-L1 expression is up-regulated at the transcriptional level (14). This up-regulation was dependent on STAT1/3-IRF1 after the activation of ataxia telangiectasia mutated/ataxia telangiectasia and Rad3-related (ATR)/checkpoint kinase 1 (Chk1) (14). Our previous study also demonstrated in U2OS cells that PD-L1 up-regulation is enhanced in cells that are deficient in Ku80, a central regulator of non-homologous end joining (NHEJ).

The present study examined the correlation of mRNA expression between PD-L1 and NHEJ factors using The Cancer Genome Atlas (TCGA) dataset analysis. Ku80 mRNA expression was negatively correlated with PD-L1 mRNA expression in all the selected tissues. Moreover, the current study aimed to examine the relationship between Ku80 and PD-L1 expression in patients who received radiotherapy.

Materials and methods

TCGA analysis

Normalised RNA sequences of Ku80 and PD-L1 expression status data provided by the TCGA project were downloaded from the Genomic Data Commons Data Portal (https://portal.gdc.cancer.gov). Datasets for colon adenocarcinoma (COAD), breast invasive carcinoma (BRCA), skin cutaneous melanoma (SKCM), lung adenocarcinoma (LUAD), head and neck squamous cell carcinoma (HNSC), uterine corpus endometrial carcinoma (UCEC) and cervical squamous cell carcinoma and endocervical adenocarcinoma (CESC) were analysed in the present study (18–24). Partial correlations and statistical significance presented as volcano plots were calculated using non-parametric Spearman's formula, shown as the coefficient rho (r) by GraphPad Prism v9.0 software (GraphPad Software, Inc.) and the XLSTAT 2021.1.1 add-in feature in Microsoft Excel v16.46 (Microsoft Corporation). P<0.05 was considered to indicate a statistically significant difference. The total sample numbers for each dataset were 480 (COAD), 109 (BRCA), 470 (SKCM), 1,086 (LUAD), 502 (HNSC), 1,607 (UCEC) and 306 (CESC).

Patients and tumour characteristics

A total of 75 patients with cervical squamous cell carcinoma (median age, 62 years; range, 32–87 years) who met the following criteria were eligible for the present retrospective study: i) Pathologically-confirmed newly diagnosed cervical cancer by pathologists who were not associated with the present study; ii) treated with definitive platinum-based chemoradiotherapy (CRT group) or radiotherapy alone (RT group) at Gunma University Hospital between August 2009 and November 2013; iii) staged as IB1-IVA according to the FIGO classification 2008 (25); and iv) no previous exposure to radiotherapy or cytotoxic agents. Patients with recurrence were excluded from this study. Tumour samples from all patients before radiotherapy (pre-RT) and after 10 Gy of radiotherapy (10 Gy-RT) were used for pathological analysis and immunohistochemical staining. The time between the radiotherapy start date and the biopsy specimen date was 5–11 days. Most samples were collected on days 8–9 (89% in the RT group and 95% in the CRT group). The time between the 10 Gy-RT day and the specimen biopsy day ranged from 0–4 days. The majority of samples (75%) were biopsied on the same day as that of receiving 10 Gy-RT. Patient characteristics were recorded according to tumour stage [stages IB, II, III and IV according to FIGO classification 2008 (25)] and age (Table I). The present study protocol was approved by the Institutional Review Board for clinical trials of Gunma University (Maebashi, Japan; approval no. HS2020-015). All patients provided their informed consent to participate in the study using the opt-out approach by public notice on the internet site of the Institutional Review Board for clinical trials of Gunma University.

Table I. Characteristics of patients (n=75) with cervical squamous cell carcinoma.

Table I.

Characteristics of patients (n=75) with cervical squamous cell carcinoma.

Characteristics	Value
Observation period, months
Median (range)	63 (8–120)
Age, years
Median (range)	62 (32–87)
Treatment, n (%)
RT alone	27 (36%)
Concurrent CRT	48 (64%)
FIGO stage 2008, n (%)
IB	11 (15%)
II	31 (41%)
III	31 (41%)
IVA	2 (3%)
Lymph node metastasis in pelvis, n (%)
Positive	36 (48%)
Negative	39 (52%)
Para-aortic lymph node metastasis, n (%)
Positive	6 (8%)
Negative	69 (92%)

Treatment of patients

All patients received definitive radiotherapy in combination with external body radiotherapy (EBRT) and intracavity brachytherapy (ICBT). EBRT typically used 10 MV X-rays with 4-field irradiation. The most common EBRT dose and fractionation was 50 Gy in 25 fractions (2 Gy/fraction, once per day, five times weekly). EBRT was performed using a combination of total pelvic irradiation (20–40 Gy) followed by a central shielded irradiation at a 3-cm width. The pelvic field was expanded to the metastatic area in patients with paraaortic lymph node metastases. Patients with lymph node metastases received an additional boost of 6–8 Gy in three to four fractions. ICBT was performed once a week with concurrent central shielding EBRT. EBRT was not performed on the day of ICBT administration. Three-dimensional image-guided brachytherapy was performed on all patients using a high-dose-rate 192Ir remote after loading system (microSelectron® Digital; Elekta Instrument AB). The prescription dose for each ICBT was determined to cover 90% of the high-risk clinical target volume, using a total dose of 6 Gy. Bulky and/or asymmetrical tumours were treated using additional interstitial irradiation. ICBT was typically performed four times. Concurrent chemotherapy was given to 64.0% (48/75) of the patients. According to the Japan Society of Gynecologic Oncology (JSGO) Guidelines 2017 for the Treatment of Uterine Cervical Cancer, cisplatin was usually administered weekly at a dose of 40 mg/m2 (26).

Immunohistochemical staining for PD-L1 and Ku80

PD-L1 expression in tumour cells and Ku80 expression in the nuclei of biopsy specimens excised from the cervical squamous cell carcinoma pre-RT and 10 Gy-RT were evaluated using immunohistochemical staining. Biopsied samples were fixed in 10% buffered formalin for 24 h at room temperature and then dehydrated, degreased and paraffin-embedded. Paraffin embedded sections (4-µm thick) were dewaxed in xylene at room temperature and rehydrated using a graded ethanol series. Endogenous peroxidase activity was blocked using a 10-min incubation in 0.3% hydrogen peroxide. After blocking by 10% goat normal serum (cat. no. 5425; Cell Signalling Technology, Inc.) for PD-L1 and Ku80 sections with a 20 min incubation at room temperature, the sections were incubated overnight with primary antibodies at 4°C. The sections were incubated with a commercially available biotin-streptavidin immunoperoxidase kit [Histofine; SAB-PO (rabbit); cat. no. 424032; Nichirei Biosciences, Inc.; Nichirei Corporation] for 20 min at room temperature. Then, the sections were incubated for 5 min with diaminobenzidine at room temperature. The following antibodies were used: Monoclonal anti-PD-L1 antibody (1:100; clone E1L3N rabbit IgG; cat. no. 13684; Cell Signalling Technology, Inc.) and monoclonal anti-Ku80 antibody (1:200; clone C48E7, and rabbit IgG; cat. no. 2180T; Cell Signalling Technology, Inc.). The quality of the tumour samples was carefully evaluated and validated independently by two pathologists who are co-authors of the present study.

Quantification of PD-L1 and Ku80 in immunohistochemical images

All immunostaining images were obtained using the light microscope Leica DM4000 B (Leica Microsystems, GmbH) equipped with a ×20 objective lens. Expression of cytosolic PD-L1 was measured using public domain software ImageJ v1.53a (National Institutes of Health) as follows. In 32-bit colour images, which are commonly used in computers, each pixel has a red, blue and green signal intensity from 0 to 255. Brown, which is composed of a higher red than blue signal, represents PD-L1 labelled by antibody in the immunohistochemical image. The nucleus is shown in blue and the background is shown in white, which consists of high red, blue and green signals. Therefore, brown is the only colour that has much higher red compared with blue signal in the microscopy images. The captured images were split into red, blue and green channels. The PD-L1 signal was enhanced by subtracting the blue signal from the red signal, taking advantage of the fact that all the subtracted values are returned as zero when the subtracted value is zero or less. The mean of the signal intensities in three areas of the tumour tissues were quantified. PD-L1 change was calculated as PD-L1 intensity (10 Gy-RT) subtracted by PD-L1 intensity (pre-RT). Furthermore, the percentages of tumour cells with cell-surface staining for PD-L1 were recorded and expressed as a tumour proportion score (TPS). If the TPS was 1–50%, the sample was classified as PD-L1 1+, whereas samples with TPS >50% were classified as PD-L1 2+. The population of Ku80-positive cells were measured using an opened source software QuPath (v0.1.2; Queen's University Belfast; Northern Ireland). The tumour tissue area was targeted to detect Ku80-positive cells and the Ku80 positivity was quantified.

Cell culture, small interfering (si)RNA-knockdown, flow cytometry and immunoblotting

HeLa cells were obtained from the American Type Culture Collection and cultured in Eagle's Minimum Essential Medium (FUJIFILM Wako Pure Chemical Corporation) with 10% foetal calf serum (Sigma Aldrich; Merck KGaA) at 37°C. siRNA transfection was performed using DharmaFECT (GE Healthcare Dharmacon, Inc.). siRNA was added to suspended HeLa cells after trypsinisation (the final concentration of siRNA is 16 nM). Non-targeting siRNA was used as negative control. The siRNA oligonucleotides used are listed in Table SI. Cells were incubated after transfection for 48 h at 37°C before 10 Gy of irradiation. X-ray irradiation was performed using an MX-160Labo irradiator (160 kVp; 1.06 Gy/min; mediXtec Corporation).

For immunoblotting, cells were harvested at 48 h after transfection with ×1 Sample Buffer [50-mM Tris, 2% sodium dodecyl sulphate, 6% glycerol, 1% (w/w) 3-mercapto-1,2-propanediol and 0.008% bromophenol blue] following PBS wash. Harvested samples were boiled at 95°C for 5 min and sonicated using a Q55 Sonicator Ultrasonic Homogeniser (QSonica LLC; power amplification 15% for 5 sec, twice) (27). The number of cells each condition was confirmed to align the protein amount as the previous study. Subsequently, samples (10 µl/lane) were loaded onto 4–20% Mini-PROTEAN TGX Precast Protein gels (Bio-Rad Laboratories, Inc.) and were run in Mini-PROTEAN Tetra Vertical Electrophoresis Cell (Bio-Rad Laboratories, Inc.) at 200 V for 30 min. They were then transferred onto a BioTrace NT Nitrocellulose Transfer Membrane (Pall Life Sciences) using a Mini-PROTEAN Tetra Vertical Electrophoresis Cell (Bio-Rad Laboratories, Inc.) at 100 V for 1 h. The membrane was incubated overnight at room temperature with anti-Ku80 (Rabbit mAb; 1:2,000; cat. no. 2180; Cell Signaling Technology, Inc.) and anti-Actin antibodies (mouse mAb, 1:5,000; cat. no. 3700; Cell Signaling Technology, Inc.), which served as the primary antibodies. After the membranes were washed trice with ×1 Tris-buffered saline (TBST; 0.05% Tween 20), they were incubated with goat anti-rabbit IgG, horseradish peroxidase-conjugated antibodies (1:4,000; cat. no. 7074; Cell Signalling Technology, Inc.) or anti-mouse IgG, horse anti-mouse horseradish peroxidase-conjugated antibodies (1:4,000; cat. no. 7076; Cell Signalling Technology, Inc.) at room temperature for 1 h. After being washed trice with ×1 TBST, the membrane was reacted with ECL Western Blotting Detection Reagent (GE Healthcare), and chemical luminescence was detected using a LAS-600 Bioimaging Analyser System (Azure Biosystems, Inc.). The signal intensities of Ku80 and Actin were measured using ImageJ. The signal intensity of Ku80 was normalized to that of Actin; subsequently, the Ku80 signal intensity ratio was normalized to the Ku80 signal intensity in HeLa cells transfected with siControl.

Cells were exposed to 10 Gy of irradiation then incubated for 48 h prior to flow cytometry analysis. Harvested cells were washed and collected with ice-cold 1 mM EDTA-phosphate-buffered saline and then stained with anti-PD-L1 antibodies (clone E1L3N rabbit IgG; cat. no. 13684; Cell Signalling Technology, Inc.) for 20 min on ice. The fluorochrome used was APC. Dead cells detected by propidium iodide (Sigma-Aldrich; Merck KGaA) were excluded from the analysis. Flow cytometry analysis was performed on an Attune NxT Flow Cytometer (Thermo Fisher Scientific, Inc.). Mean fluorescence intensity (MFI) of the PD-L1 was calculated as: MFI (PD-L1)-MFI (isotype control).

Statistical analysis

The correlation between Ku80 positivity and PD-L1 signal intensity was evaluated using Spearman's rank correlation coefficient. Clinical outcomes were calculated using the Kaplan-Meier method, and statistically significant differences were confirmed using the log-rank test. Mann-Whitney U test was used to compare Ku80 positivity in pre-RT samples and classification of PD-L1 expression. MFI in flow cytometry analysis was compared using unpaired Student's two-tailed t-test. Results were shown as mean ± error bars, which represent the standard error of three samples in the experiment. P<0.05 was considered to indicate a statistically significant difference. All statistical analyses were performed using SPSS (v24; IBM Corp.).

Results

TCGA analysis demonstrated negative correlation between Ku80 and PD-L1

TCGA datasets were used in the present study to investigate the relationship of gene expression between PD-L1 and DNA double-strand break (DSB) repair factors in tumour cells. Our previous study reported that tumour specimens harbouring mutations in NHEJ genes (Ku70/80) exhibit greater PD-L1 expression after irradiation in several cancer types (14). To determine whether the mRNA expression of NHEJ factors demonstrated a correlation with PD-L1 mRNA expression, TCGA analyses between central NHEJ factors [Ku80, Ku70, DNA-dependent protein kinase catalytic subunit (DNA-PKcs), X-ray repair cross-complementing protein 4 (XRCC4) and DNA ligase 4] and PD-L1 were performed (Table II). Fig. 1 presents the results of the seven cancer tissues, COAD, BRCA, SKCM, LUAD, HNSC, UCEC and CESC. Spearman's rho was <0 for all cancer types in Ku80 (Fig. 1; Table II). Because the high proliferative conditions in cancer cells can induce an unrepairable amount of DNA replication-associated genotoxic stress, including DSBs (28), it is hypothesized that the result of TCGA analysis reflects the situation in cells that are exposed to exogenous DNA damage, such as ionising radiation. Therefore, the present study investigated the correlation between Ku80 and PD-L1 in clinical specimens that received radiotherapy.

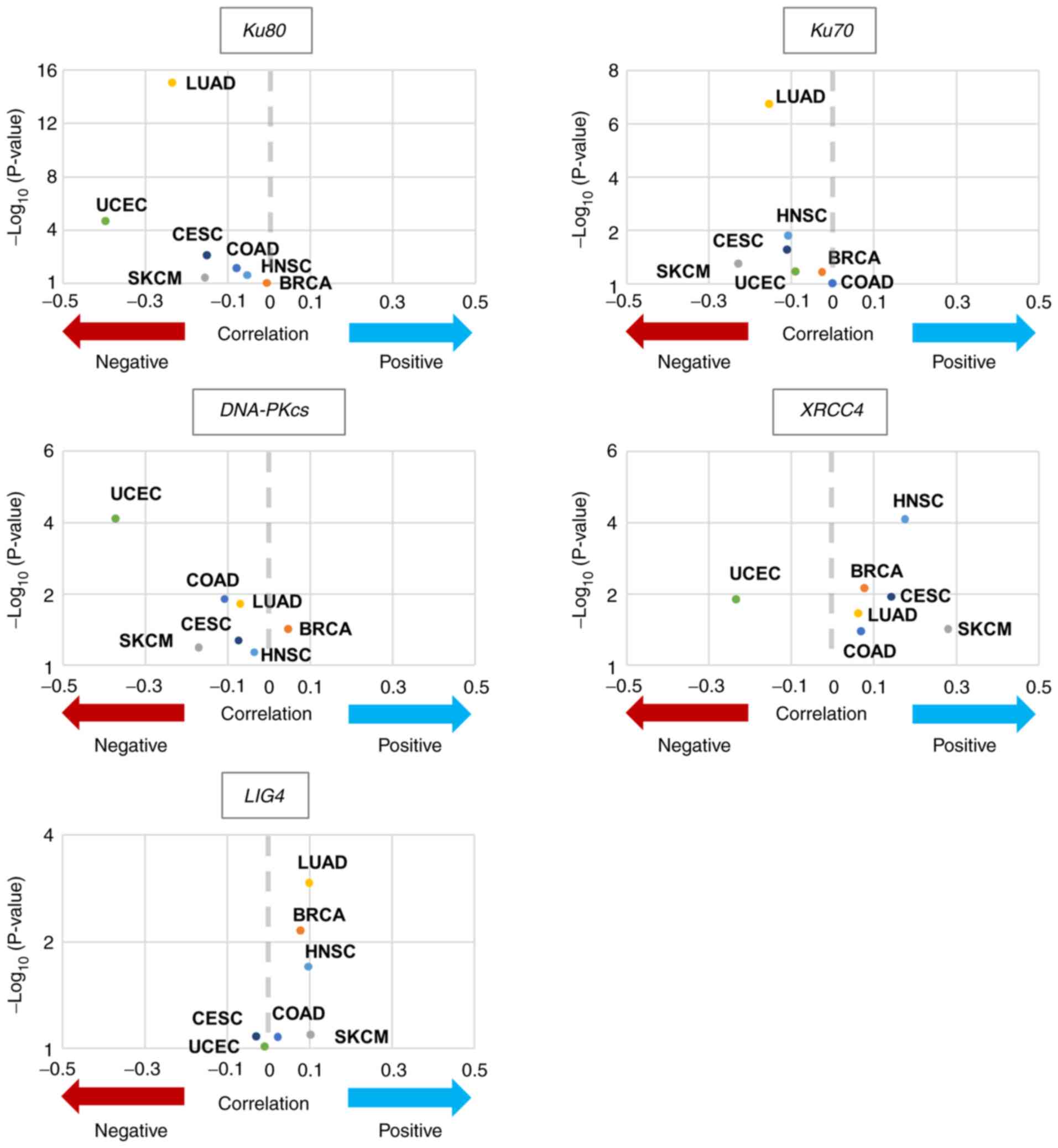

Figure 1. Correlation between PD-L1 gene expression and DNA double-strand break repair factors. Volcano plots indicating the correlation between PD-L1 expression and central non-homologous end joining factors expression levels. Mutation statuses were provided by The Cancer Genome Atlas project were downloaded from the Genomic Data Commons Data Portal. BRCA, breast invasive carcinoma; CESC, cervical squamous cell carcinoma and endocervical adenocarcinoma; COAD, colon adenocarcinoma; HNSC, head and neck squamous cell carcinoma; LUAD, lung adenocarcinoma; SKCM, skin cutaneous melanoma; UCEC, uterine corpus endometrial carcinoma; DNA-PKcs, DNA-dependent protein kinase, catalytic subunit; XRCC4, X-ray repair cross-complementing protein 4; LIG4, DNA ligase 4.

Table II. TCGA analysis.

Table II.

TCGA analysis.

Gene	Study	Correlation	Approximation formula	Spearman's rho (r)	P-value
Ku80	COAD	Negative	y=−0.001536×+32430	-0.079	0.070
	BRCA	Negative	y=−0.003198×+34244	-0.005	0.869
	SKCM	Negative	y=−0.01340×+62900	-0.157	0.360
	LUAD	Negative	y=−0.04393× +181872	-0.236	8.88×10−16
	HNSC	Negative	y=−0.01328×+136161	-0.053	0.232
	UCEC	Negative	y=−0.009837×+30808	-0.397	2.21×10−5
	CESC	Negative	y=−0.0433×+177708	-0.151	0.008
Ku70	COAD	Negative	y=−0.003319×+38104	4.81×10−4	0.991
	BRCA	Positive	y=0.0009455×+26915	-0.025	0.374
	SKCM	Negative	y=−0.01050×+71586	-0.229	0.179
	LUAD	Positive	y=0.001316×+118475	-0.154	1.87 ×10−7
	HNSC	Negative	y=−0.01467×+165072	-0.108	0.016
	UCEC	Positive	y=0.001272× +10171	-0.090	0.353
	CESC	Negative	y=−0.008341×+141397	-0.110	0.054
DNA-PKcs	COAD	Positive	y=0.01038×+25588	-0.108	0.014
	BRCA	Positive	y=0.003123×+27447	0.047	0.098
	SKCM	Negative	y=−0.01111×+45835	-0.171	0.320
	LUAD	Positive	y=0.01127×+117308	-0.069	0.019
	HNSC	Negative	y=−0.03491×+137903	-0.035	0.432
	UCEC	Negative	y=−0.008411×+16815	-0.371	7.98×10−5
	CESC	Negative	y=−0.1111×+163343	-0.074	0.198
XRCC4	COAD	Positive	y=0.1244×+19506	0.069	0.116
	BRCA	Positive	y=0.03546×+26440	0.077	0.007
	SKCM	Positive	y=0.5896×+763.2	0.280	0.098
	LUAD	Positive	y=0.1271×+111566	0.062	0.036
	HNSC	Positive	y=0.3040×+87953	0.175	8.04×10−5
	UCEC	Negative	y=−0.02123× +14814	-0.233	0.014
	CESC	Negative	y=−0.1882×+137753	0.142	0.012
LIG4	COAD	Positive	y=0.07266×+25129	0.022	0.615
	BRCA	Positive	y=0.08249×+23007	0.078	0.006
	SKCM	Positive	y=0.08564×+33814	0.102	0.552
	LUAD	Positive	y=0.1574×+109242	0.099	0.001
	HNSC	Positive	y=0.08293×+110697	0.097	0.029
	UCEC	Negative	y=−0.02302× +14377	-0.009	0.924
	CESC	Negative	y=−0.07419×+122540	-0.029	0.605

[i] COAD, colon adenocarcinoma; BRCA, breast invasive carcinoma; SKCM, skin cutaneous melanoma; LUAD, lung adenocarcinoma; HNSC, head and neck squamous cell carcinoma; UCEC, uterine corpus endometrial carcinoma; CESC, cervical squamous cell carcinoma and endocervical adenocarcinoma; DNA-PKcs, DNA-dependent protein kinase, catalytic subunit; XRCC4, X-ray repair cross-complementing protein 4; LIG4, DNA ligase 4.

PD-L1 expression is negatively correlated with Ku80 expression in cervical squamous cell carcinoma samples treated with radiotherapy

Our previous study reported that PD-L1 expression is up-regulated in cervical squamous cell carcinoma specimens after being treated with 10 Gy of radiotherapy (29). The present study investigated whether Ku80 expression was correlated with PD-L1 expression in the clinical sample sets with or without radiotherapy. Ku80 and PD-L1 expression levels were quantitatively measured in immunohistochemical stained specimens using ImageJ and QuPath (Figs. S1 and S2). Although there was no obvious correlation between Ku80 and PD-L1 in pre-RT specimens [Spearman's rank correlation coefficient (SRCC)=0.167, P=0.152; Fig. 2A], PD-L1 in 10 Gy-RT exhibited a weak negative correlation with Ku80 positivity in pre-RT specimens (SRCC=−0.274, P=0.017; Fig. 2A). Next, to investigate the impact of radiotherapy on PD-L1 expression in the context of Ku80 positivity, PD-L1 changes in 10 Gy-RT were plotted against Ku80 positivity of pre-RT specimens. Notably, a significant negative correlation between Ku80 positivity of pre-RT and PD-L1 changes was revealed (SRCC=−0.379; P<0.001; Fig. 2B). Representative images are shown in Fig. 3. To validate the computational quantification analysis, the same analysis scoring was performed using a manual classification (TPS) in the same specimens. Similar to the results presented in Fig. 2B, a negative correlation was observed between Ku80 positivity of pre-RT and PD-L1 changes after 10 Gy-RT (Fig. S3). In addition, the potential association between Ku80 positivity and clinical outcomes was examined. Overall survival, progression-free survival and local control did not exhibit significant differences with Ku80 expression (Fig. S4). These data suggested that PD-L1 expression after 10 Gy-RT was negatively correlated with Ku80, whereas there was no correlation between PD-L1 expression and patients' outcome.

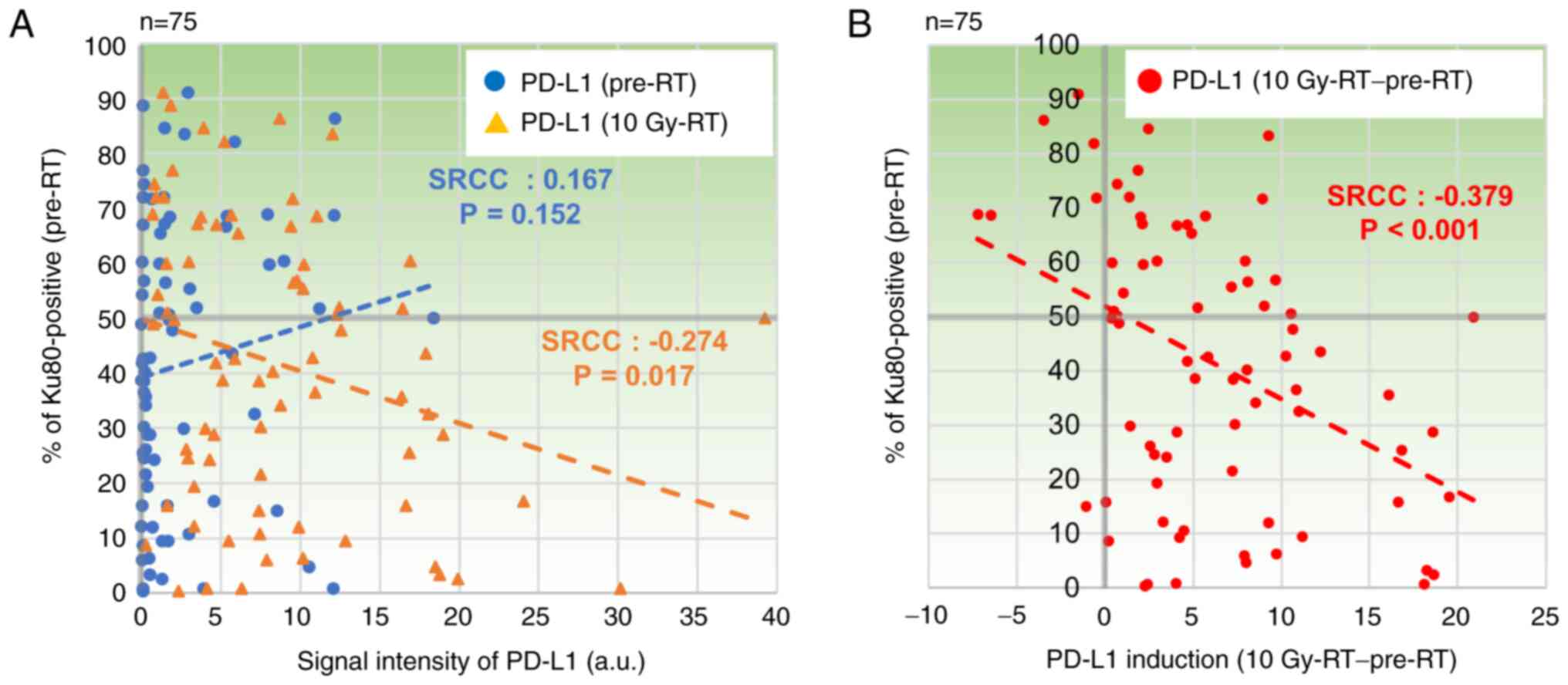

Figure 2. Correlations between PD-L1 expression and Ku80 positivity in cervical squamous cell carcinoma after treatment with radiotherapy. (A) Scatter plot showing the relationship between PD-L1 expression (pre-RT and 10 Gy-RT) and Ku80 positivity using ImageJ and QuPath, respectively. (B) Scatter plot showing the relationship between PD-L1 changes comparing pre-RT and 10 Gy-RT and Ku80 positivity. SRCC, Spearman's rank correlation coefficient; PD-L1, programmed cell death-1 ligands; RT, radiotherapy.

Figure 3. Representative images of immunohistochemical staining. The upper three images show specimens from the same patient with 91.0% Ku80 positivity (relatively high) and low PD-L1 induction following 10 Gy-RT. The lower three images show specimens from another patient with 5.9% Ku80 positivity (relatively low) and high PD-L1 induction following 10 Gy-RT. Scale bar, 50 µm. PD-L1, programmed cell death-1 ligands; RT, radiotherapy.

PD-L1 up-regulation after irradiation is enhanced in Ku80-depleted HeLa cells

To confirm radiation-induced PD-L1 up-regulation in a Ku80-depleted cervical cancer cell line in vitro, flow cytometry analysis was performed in HeLa cells transfected with Ku80 siRNA to examine the levels of cell-surface PD-L1 expression after X-ray irradiation. Consistent with the immunohistochemistry results seen in the tumour specimens, PD-L1 up-regulation induced by 10 Gy X-ray irradiation was significantly increased in Ku80-depleted cells compared with controls treated with X-ray irradiation (Figs. 4, S5 and S6), suggesting that cell-surface PD-L1 expression was enhanced in Ku80-depleted condition.

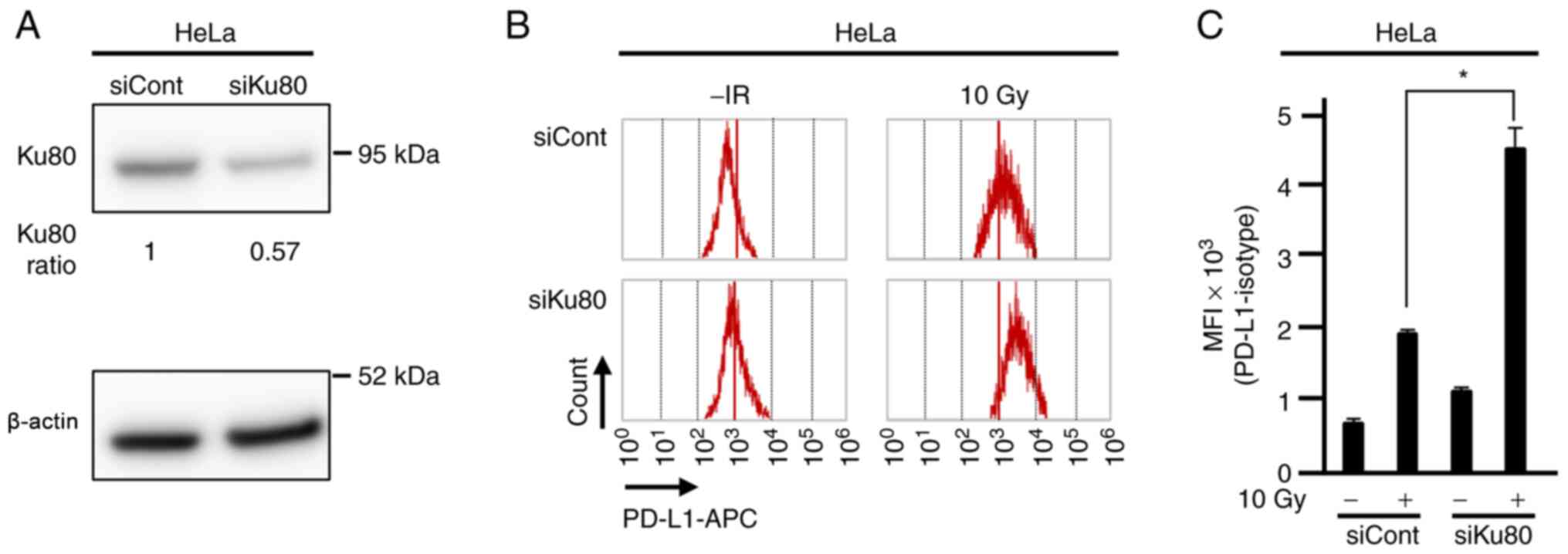

Figure 4. PD-L1 expression is enhanced after irradiation of Ku80-depleted HeLa cells. (A) Immunoblotting of Ku80 in HeLa cells transfected with scrambled siCont RNA or siKu80. (B) Flow cytometry histogram of PD-L1 expression after 10 Gy irradiation of HeLa cells. Cell-surface PD-L1 expression was examined at 48 h after 10 Gy irradiation. (C) Depletion of Ku80 enhanced the up-regulation of cell-surface PD-L1 expression after irradiation. Error bars represent the standard error of three samples in the experiment. *P<0.05. si, short interfering; cont, control; PD-L1, programmed cell death-1 ligands; IR, irradiation; MFI, mean fluorescence intensity.

Discussion

The present study revealed that Ku80 mRNA expression in tumours was negatively correlated with PD-L1 expression using TCGA database analysis. Notably, in the clinical sample sets from the present study, PD-L1 induction after 10 Gy-RT was inversely correlated with Ku80 expression in pre-RT specimens. In addition, significant up-regulation of PD-L1 expression after irradiation was confirmed in Ku80-depleted HeLa cells compared with irradiated controls, supporting supporting the hypothesis that low Ku80 expression can affect PD-L1 up-regulation after radiotherapy.

Our previous studies reported that DNA damage signalling induced by irradiation or oxidative damage up-regulates PD-L1 expression at the transcriptional level (14,30). The increase in PD-L1 mRNA transcription consequently leads to enhanced PD-L1 presentation on the cell surface. This up-regulation is dependent on ATR/Chk1 (14). Since ATR/Chk1 activation is associated with the progression of DSB end resection (high resection causes greater ATR/Chk1 signalling), the magnitude of resection is correlated with PD-L1 expression (31,32). Consistent with this, our previous study revealed that Ku80 depletion, which causes greater DSB end resection, leads to greater ATR/Chk1 signalling and PD-L1 expression in cancer cell lines such as U2OS cells (14).

The present study revealed that Ku80-depleted HeLa cells also expressed greater PD-L1 after irradiation. Together with the findings of TCGA analysis, which demonstrated that low Ku80 mRNA expression was correlated with high PD-L1 expression in all the cancer types analysed in this study (colon adenocarcinoma, breast invasive carcinoma, skin cutaneous melanoma, lung adenocarcinoma, head and neck squamous cell carcinoma, uterine corpus endometrial carcinoma, cervical squamous cell carcinoma and endocervical adenocarcinoma), Ku80 expression levels were associated with PD-L1 expression, particularly when cells were exposed to genotoxic stress. The results also suggested that greater PD-L1 up-regulation can occur in patients who have received radiotherapy if Ku80 expression is low.

To date, multiple pathways regarding PD-L1 expression after DNA damage have been suggested, such as cytosolic sensors cGAS/RIG-I transducing immune-activating signal releasing interferon stimulate genes following the recognition of cytosolic DNA/RNA released from the nucleus (10–12). Since radiotherapy can generate micronuclei that should contain DNA/RNA (33), further studies are required to examine the involvement of this pathway.

The present study quantified the signal intensity of PD-L1 using software. Although the signals from inside the cell or the cell surface were unable to be differentiated, which seems to be important to detect functional PD-L1 on cell surface, the software approach has advantages in measuring an interval scale of their expression. PD-L1 expression was also examined using a manual classification method scored by cell-surface staining for PD-L1. Notably, the present study obtained similar results using both methods. Thus, it was hypothesized that this computational measurement could be a useful tool to quantify PD-L1 expression; however, it must be carefully accessed depending on the type of targets.

Limitations of the present study included the limited number of clinical samples. As there are multiple regulators of PD-L1 expression (34), other regulators may also affect the PD-L1 expression after RT in clinical samples. Data variability may be minimised by analysing the expression of PD-L1 in subgroups classified by regulators of PD-L1 expression other than Ku80. Future studies involving larger cohorts may help in further elucidating the relationship between PD-L1 and Ku80 expression in clinical settings. In addition, clinical trials are required to analyse whether the increase in PD-L1 after RT in clinical tumours with low Ku80 expression affects ICI treatment in the future. Although overexpression of Ku80 was not examined in the present study, it should be examined in future studies to determine the magnitude of Ku80 expression; for example, low Ku80 expression compared with normal levels was associated with PD-L1 up-regulation after X-ray irradiation as indicated in the present study.

Recent radiotherapy technologies are highly developed and enable radiation oncologists to target cancer using high-precision radiotherapy, while also avoiding irradiation to the surrounding normal tissue. These technological developments increase the importance of controlling tumour cells outside the irradiation field for long-term survival of patients (35). For several decades, radiation has been considered a potent inducer of immune activation (36); however, the clinical outcomes of patients treated with combination therapy differ per case, and the mechanisms underlying this difference need to be investigated. Therefore, the radiotherapy-dependent immune stimuli are still unknown.

Notably, the situation of radiotherapy, such as dose fractionation and radiation quality, affects immune responses. For example, hypofractionated radiation at 8–12 Gy per fraction activates the cGAS/STING pathway more effectively compared with a higher single dose of ≥20 Gy (11). Also, our recent study reported that PD-L1 up-regulation is more significantly induced by high linear energy transfer carbon-ion irradiation compared with X-rays (27). Hence, the reaction of the immune system after radiotherapy is comprehensive. To identify the optimal modality for radiation/ICI combination therapy, further research regarding optimal dose/fractionation, field settings, combination timing and type of irradiation are required. By contrast, recent studies have demonstrated that radiotherapy also up-regulates PD-L1 in tumours (34,37–39); therefore, combination therapy with ICIs is promising. Indeed, phase III clinical trials have revealed that combination therapy improves clinical outcomes in patients with locally advanced non-small cell lung cancer or metastatic castration-resistant prostate cancer (40–43). However, this may not be applicable to all patients with cancer from the viewpoint of precision medicine; for example, PD-L1 is not effectively up-regulated in some patients with certain genetic backgrounds, such as those without Ku80 mutation, as indicated in the present study.

The present study demonstrated that PD-L1 expression is induced by radiotherapy and can be affected by the expression levels of Ku80 prior to radiotherapy. The present study did not reveal any differences in Ku80 positivity with patient outcomes, which may be because of the multiple functions of Ku80 that are involved in both tumour immunity and DNA repair (14,44). Furthermore, PD-L1 expression is not significantly correlated with clinical outcomes in the same cohort in our previous study (29). Although whether PD-L1 expression can be a predictive marker of ICIs is still debatable, the findings of the present study suggest that Ku80 may be a potential biomarker for radiation/ICI combination therapy. Further studies into this type of approach will provide important data to determine the best strategy for radiation/ICI combination therapy.
