Introduction

Ischemia-reperfusion injury (IRI) at least partly contributes to the high morbidity and mortality rates of patients with acute kidney injury (AKI) (1). A number of conditions, including kidney transplantation, induce renal IRI; this causes problems for many recipients of kidneys and may therefore negatively impact postoperative consequences (2,3). Ischemic kidneys receive a reduced blood supply that does not meet metabolic demands, triggering severe hypoxia associated with renal tubular dysfunction (4,5). Paradoxically, subsequent reperfusion fails to restore normal levels of perfusion; however, it induces further damage by activating detrimental mechanisms, such as those associated with oxidative stress (6).

Oxidative stress is a condition in which the formation of reactive oxygen species (ROS) exceeds the capacity of the endogenous antioxidant defense system (7,8). In renal tissues, oxidative stress and associated sterile inflammation serve a major role in the pathogenesis of AKI, which occurs by complex mechanisms involving the ROS-mediated generation of vasoconstrictive prostanoids, lipid peroxidation and activation of pro-apoptotic factors (9–12). The increased accumulation of ROS and oxidative stress markers is frequently observed in the kidneys of animals with AKI (13). Under normal conditions, nuclear factor-erythroid-2 (NF-E2)-related factor 2 (Nrf2) serves a important role in combatting oxidative stress and the subsequent induction of >250 genes, including those encoding antioxidant enzymes (14). Attenuating the activation of Nrf2 may amplify cellular oxidative stress and associated pathological events. By contrast, strategies aimed at restoring Nrf2 activity may prevent the induction of IRI-associated renal injury and inhibit progression to AKI.

Despite important advances in understanding the pathological basis of AKI, clinical trials investigating the use of synthetic drugs to treat patients with AKI have been limited thus far (15). Considering the pathological features of AKI, including its rapid progression and involvement of multiple genes, it is understandable that researchers aim to develop multi-target, drug-based preventative strategies to treat this condition.

Traditional medicines often use multi-component extracts of natural products and may be developed as therapeutic strategies to treat AKI due to their multi-target potential and established biosafety (16). Phytochemicals from medicinal plants have attracted increased attention, as they are able to scavenge ROS and inhibit its formation, thereby reducing oxidative stress levels (17,18). Rhus verniciflua Stokes (RVS) is a tree that belongs to the Anacardiaceae family that consists of >250 species primarily cultivated in Asian countries, including Korea and China (19). In Korea, RVS has been traditionally been added to chicken soup and used to treat conditions, including menstrual cycle irregularities, indigestion and high blood pressure (20). Several studies using nuclear magnetic resonance or liquid chromatography/mass spectrometry have revealed that many bioactive compounds exhibiting antioxidant activity are present in RVS, including gallic acid (GA), protocatechuic acid, quercetin, fustin, fisetin, sulfuretin, coumaric acid, kaempferol-3-O-glucoside, kaempferol and butein (21–25). Of these, fisetin has been reported to induce the expression of heme oxygenase-1 (HO-1), a major component of cellular antioxidant enzymes, in human umbilical vein endothelial cells by augmenting the nuclear translocation of Nrf2 (26). Furthermore, in a mouse model of inflammatory bowel disease it was demonstrated that GA activates and upregulates the expression of Nrf2 and associated antioxidant enzymes, including superoxide dismutase and catalase (CAT), thereby inducing a therapeutic effect (27). However, to date, no studies have been conducted to identify whether RVS itself can prevent the progression to AKI by activating the Nrf2-mediated defense mechanism against oxidative stress.

The aim of the current study was to investigate whether oral administration of RVS could prevent the progress of AKI via modulation of the Nrf2/antioxidant enzyme pathway, using in vivo and in vitro IRI-induced AKI models.

Materials and methods

Preparation of RVS extract

The RVS extract was supplied by Lifetree Biotech Co., Ltd. (Suwon, South Korea). The extract was prepared using a previously described protocol (28). Briefly, RVS timber was harvested in Wonju, (Gangwon-do, South Korea) and subsequently cut into pieces measuring 11×1×0.2 cm. The pieces were mixed with water in a 1:10 w/v ratio and eluted with boiling water at 90–110°C for 4 h. The extract was concentrated to yield a solid content of 15%. Subsequently, the concentrated extract was diluted with an equal volume of dextrin and spray-dried. Urushiol, an allergenic constituent of RVS, was extracted. The urushiol-free RVS extract was authenticated by the Korea Advanced Food Research Institute (Seoul, South Korea).

Animals

A total of 32 8-week-old male C57BL/6 weighing 20–22 g were purchased from Samtako Bio Korea, Co., Ltd. (Osan, Korea). Mice were housed in an environmentally controlled room at 23±2°C at a relative humidity of 60±10% under a 12-h light/dark cycle. All mice had ad libitum access to water and food. Experiments were conducted in accordance with the ‘Guide for the Care and Use of Laboratory Animals’ (National Institutes of Health publication, 8th Edition, 2011) (29). All experiments involving mice were approved by the Institutional Animal Care and Use Committee (approved protocol number: P-16-10-A-02) of Konyang University (Daejeon, Korea).

Experimental design

Mice were randomly divided in 4 groups (all n=8): A control group, an RVS-treated group (RVS), an IRI-operation group (IRI) and an IRI-operation group that received pretreatment with RVS (IRI+RVS). Whereas the control group was intraorally administered with 500 µl of distilled water as a vehicle, the RVS group was intraorally administered with RVS (20 mg/kg/day) diluted in the same volume of vehicle over 14 days. For mice in the IRI+RVS group, the same dose of RVS as that administered to mice in the RVS group was applied prior to the IRI operation for the same duration. For mice in the IRI group, the same volume of distilled water was intraorally administered for 14 days prior to the IRI operation.

Operation and tissue sampling

Mice in the IRI and IRI+RVS groups were anesthetized with intraperitoneal injections of xylazine (10 mg/kg, Huons Global Co., Ltd., Seongnam, Korea) and ketamine (80 mg/kg, Bayer AG, Leverkusen, Germany). The abdominal area was sterilized with Betadine (Mundipharma International Ltd., Seoul, Korea) and a laparotomy was made by midline incision. To induce renal ischemia, bilateral renal pedicles were clamped for 60 min with serrated vascular clamps in a sterile operating field. Following removal of the clamp to allow reperfusion, the color of kidney was inspected to confirm the restoration of blood flow. The abdomen was then sutured in two layers. Following surgery, 50 ml/kg normal saline was administered intraperitoneally. Mice were allowed to recover in their home cages until they were fully awake and active. Following 23 h reperfusion, all mice were euthanized. The left kidneys of each group were removed and frozen for immunoblot assays and the right kidneys were fixed with formalin prior to histological study. Arterial blood was collected from the abdominal aorta for serological assays prior to euthanasia.

Serological assay

Following the collection of arterial blood, sera were obtained by centrifugation at a speed of 250 × g for 10 min at 4°C and stored at −70°C prior to assays. Levels of blood urea nitrogen (BUN; cat. no. 9903040; Fujifilm, Tokyo, Japan), creatinine (cat. no. 9903090; Fujifilm) and lactate dehydrogenase (LDH; cat. no. 9903190; Fujifilm) were measured through ELISA using a DRI-CHEM 3000 colorimetric analyzer (Fujifilm) at an excitation wavelength of 625, 600 and 540 nm, respectively.

Histology

Right kidney tissues were excised, fixed in 10% neutral buffered formalin for 48 h at 4°C and embedded in paraffin. Paraffin blocks were sliced into sections 5-µm thick using the Leica RM2255 microtome (Leica Microsystems GmbH, Wetzlar, Germany). Alterations in the histological structures of the kidney were examined by staining with hematoxylin and eosin (H-E). Two microscopic fields of tissue sections taken from every mouse were randomly selected. These fields were photographed at a magnification of ×400 using a digital camera connected to a Leica DM4 light microscope (Leica Microsystems GmbH) and examined by three blinded observers. Renal tubular injury was scored by estimating the percentage of tubules in the corticomedullary junction and outer medulla that exhibited epithelial necrosis or necrotic debris and determined as follows: 0, none; 1+, <10; 2+, 10–25; 3+, 26–45; 4+, 46–75; and 5+, >75%.

Terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) assay

Paraffin-embedded kidney sections were deparaffinized in xylene and rehydrated in a graded series of ethanol solutions. The TUNEL assay was performed using an In Situ Cell Death Detection kit (Roche Diagnostics, Indianapolis, IN, USA), following the manufacturer's protocol. Nuclei were counterstained with DAPI. Among the resulting TUNEL-stained tissue sections, two sections from each mouse were randomly selected and captured using a digital camera connected to a Leica DMI6000 inverted microscope (Leica Microsystems) to detect fluorescence. Images were visualized at a magnification of ×400. The number of TUNEL-positive stained nuclei per high power field (HPF) was counted and averaged by three blind observers.

Cell culture and in vitro hypoxia

Human kidney epithelial cells, HK-2 cells, were obtained from the Korean Cell Line Bank (Seoul, Korea). Cells were cultured for 72 h in 25-cm2 cell culture flasks containing RPMI 1640 culture medium supplemented with 10% fetal bovine serum, 100 U/ml penicillin and 100 mg/ml streptomycin at 37°C in a humidified atmosphere consisting of 5% CO2/95% air. All of the aforementioned chemicals were purchased from Thermo Fisher Scientific, Inc. (Waltham, MA, USA). For in vitro hypoxia conditioning, cobalt chloride (CoCl2), a chemical inducer of hypoxia-inducible factor-1, was used. To determine the approximate values of the median lethal dose (LD50) and the median lethal time (LT50) of CoCl2, dose-dependent and time-dependent changes in the viability of HK-2 cells following treatment with different doses (0, 10, 100, 300, 600 and 900 µl) of CoCl2 for various incubation times (0, 6, 12, 24 and 48 h) were analyzed. The LD50 and LT50 of CoCl2 were 300 µM and 24 h, respectively; this dose of CoCl2 and incubation time was used in all subsequent experiments, apart from the ROS measurement, in which 30 min was selected as the incubation time.

Cell viability assay

HK-2 cells were seeded in a 96-well plate at a density of 1×104 cells/well. After incubation with RVS (0, 40, 80, 120, 160 and 200 µg/ml) with or without 300 µM CoCl2 for 24 h, cell viability was measured by estimating the amount of reduced 3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyltetrazolium bromide (MTT), a pale yellow substrate that is reduced by mitochondrial activity in living cells, following exposure to different conditions. For this, 100 µl culture medium was aspirated and 20 µl MTT (Sigma-Aldrich; Merck KGaA, Darmstadt, Germany) diluted in PBS at a ratio of 5 mg/ml was added to the wells and incubated for 4 h at 37°C. The resulting formazan crystals were dissolved following the addition of dimethyl sulfoxide. Using an Epoch microplate spectrophotometer (BioTek Instruments, Inc., Winooski, VT, USA), cell viability was estimated by detecting color intensity at an excitation wavelength of 570 nm.

ROS measurement

HK-2 cells grown on glass coverslips were split into the following 4 groups, with 5 samples per group (n=5): A control group (cells treated with distilled water), an RVS group (cells treated with 40 µg/ml RVS), a CoCl2 group (cells treated with 300 µM CoCl2) and a CoCl2+RVS group (cells treated with 40 µg/ml RVS and 300 µM CoCl2). Distilled water and RVS were diluted in culture medium and applied to the cells for 24 h. CoCl2 was subsequently added to the culture medium for 30 min. Subsequently, the amount of cellular ROS was measured using the OxiSelect™ Intracellular ROS assay kit (Cell Biolabs Inc., San Diego, CA, USA) following the manufacturer's protocol. 2′,7′-dichlorodihydrofluorescin diacetate (DCFH-DA) is converted to 2′,7′-dichlorodihydrofluorescin (DCFH), which is rapidly oxidized to fluorescent 2′,7′-dichlorodihydrofluorescein (DCF) by ROS. The fluorescence intensity is proportional to ROS levels within the cell cytosol. From each group, ≥5 HPFs were examined using a fluorescence microscope connected to a digital camera at a magnification of ×400. The fluorescent intensities in each HPF were measured and averaged using an image analysis system (ImageJ software; version, 1.49; National Institutes of Health, Bethesda, MD, USA).

Immunofluorescence

HK-2 cell groups (control, RVS, CoCl2 and CoCl2+RVS) were grown on glass coverslips (n=5 per group). Distilled water and RVS were diluted in culture medium and applied to the cells for 24 h. CoCl2 was subsequently added to the culture medium for 24 h. Coverslips were fixed with 4% paraformaldehyde for 30 min at 4°C, blocked with 1% bovine serum albumin (Sigma-Aldrich; Merck KGaA) diluted in PBS for 1 h at 24°C and incubated with anti-Nrf2 rabbit polyclonal antibody (1:1,000, cat. no., sc-722; Santa Cruz Biotechnology, Dallas, TX, USA) for 24 h at 4°C. Subsequently, cells were incubated with Alexa Fluor® 488-conjugated goat anti-rabbit antibody (1:2,000, cat. no., ab150077; Abcam, Cambridge, UK) at room temperature for 1 h. Coverslips were then counterstained for 5 min with DAPI and mounted with ProLong Gold mounting media (cat. no., 8961; Cell Signaling Technology, Danvers, MA, USA) at 24°C and examined using the LSM 700 laser scanning confocal microscope (magnification, ×400; Zeiss AG, Oberkochen, Germany).

Western blot analysis

Total proteins were extracted from the HK-2 cell groups. Total protein extraction and western blot analyses were performed as previously described (15). Cells were harvested, transferred into lysis buffer (Pro-Prep™; intron Biotechnology, Inc., Seoungnam, Korea) and homogenized. The total protein concentration of the supernatant was determined using a BCA protein assay (Pierce Biotechnology, Inc., Rockford, IL, USA). Subsequently, the protein sample (30 µg/ml) was separated by 10% SDS-PAGE and transferred onto a polyvinylidenedifluoride (PVDF) membrane (Bio-Rad Laboratories, Inc., Hercules, CA, USA), which was blocked with 5% nonfat milk in Tris-buffered saline with 0.1% Tween 20 (TBS-T) for 2 h at room temperature. The membranes were incubated with rabbit polyclonal antibodies against HO-1 (1:1,000, cat. no. sc-136960), CAT (1:500, cat. no. sc-271803) and GAPDH (1:2,000, cat. no. sc-25778) for 24 h at 4°C. Proteins were then incubated with horseradish peroxide-conjugated anti-rabbit immunoglobulin G (1:1,000, cat. no. sc-2030) for 1 h at 36°C. To quantify the nuclear translocation of Nrf2, a subcellular protein fractionation kit (cat. no. 87790; Thermo Fisher Scientific, Inc.) was used to isolate nuclear fractions following the manufacturer's protocol. Protocols for the determination of total protein concentration in nuclear fractions, their SDS-PAGE separation and their transfer to PVDF membranes were identical as those aforementioned. The membranes were incubated with the Nrf2 rabbit polyclonal antibody (1:1,000; cat. no. sc-722) for 24 h at 4°C. Proteins were then incubated with horseradish peroxide-conjugated anti-rabbit immunoglobulin G (1:1,000; cat. no., sc-2030) for 1 h at 36°C. The quality of the isolation of nuclear fractions was confirmed by immunoblots using Lamin B rabbit polyclonal antibody (1:1,000; cat. no. sc-3755). All aforementioned antibodies were purchased from Santa Cruz Biotechnology (Dallas, TX, USA). Following five washes with PBS, proteins on the PVDF membranes were detected using a chemiluminescence detection system (Amersham ECL Prime Western Blotting Detection Reagent; GE Healthcare Life Sciences, Little Chalfont, UK) following the manufacturer's protocol. The resulting bands were photographed using a Davinch-Chemi imaging device (Davinch-K, Seoul, Korea) and their intensities were quantified using ImageJ (version, 1.49; National Institutes of Health, Bethesda, MD, USA).

Statistical analysis

All data are presented as the mean ± standard error of the mean. Statistical analysis was conducted using PASW version 18 (SPSS, Inc., Chicago, IL, USA). Comparisons of data from different groups were performed with one-way analysis of variance followed by a Tukey post-hoc test. P<0.05 was considered to indicate a statistically significant difference. Each ‘n’ value refers to the number of separate experiments conducted.

Results

RVS attenuates the IRI-induced decrease of renal function parameters

To clarify the role of RVS in renal IRI, C57BL/6 mice were subjected to IRI (1 h renal artery occlusion followed by 23 h reperfusion) with or without RVS pretreatment (14 days, 20 mg/kg/day). RVS alone did not alter renal function, as indicated by the unchanged levels of serum BUN, creatinine and LDH in the RVS group (Fig. 1). By contrast, compared with the control group, the IRI group clearly exhibited AKI and renal dysfunction, as indicated by significant increases in levels of serum BUN (138.3±4.5 vs. 24.6±5.1, P<0.001), creatinine (2.5±0.8 vs. 0.16±0.05, P<0.001) and LDH (818.8±162.5 vs. 317.8±129.5, P<0.01). However, there were significant reductions in serum BUN (53.2±33.5 vs. 138.3±4.5, P<0.01), creatinine (0.6±0.3 vs. 2.5±0.8, P<0.01) and LDH (491.7±95.2 vs. 818.8±162.5, P<0.05) levels compared with those in the IRI group. These data indicate that RVS may prevent the IRI-induced deterioration of renal function.

Figure 1. Effect of RVS on IRI-induced alterations on serum levels of renal function parameters. Effects of RVS (20 mg/kg/day) intraoral administration for 14 days on (A) serum BUN, (B) creatinine and (C) LDH levels in mice with or without IRI (n=7). Values are expressed as the mean ± standard error of the mean **P<0.01 and ***P<0.001 vs. Cont group; #P<0.05 and ##P<0.01 vs. the IRI group. RVS, Rhus verniciflua Stokes; IRI, ischemia-reperfusion injury; Cont, control; BUN, blood urea nitrogen; LDH, lactate dehydrogenase.

RVS attenuates IRI-induced histological damage

Representative images of H-E stained tissue sections of the corticomedullary junction (Fig. 2A) and outer medulla (Fig. 2B) indicate that renal tissue from the control and RVS groups exhibited normal morphology. Kidneys in the IRI group exhibited acute tubular damage, indicated by tubular swelling, infiltrated inflammatory cells (arrowhead) and loss of the brush border due to apoptosis/necrosis of the tubular epithelium (arrow) in renal tissue. However, RVS treatment markedly attenuated these pathological features, suggesting that RVS protects the tubular epithelium. This hypothesis is supported by the fact that kidney injury scores were significantly lower in the IRI+RVS group compared with the IRI group (3.3±0.7 vs. 2.3±0.7, P<0.001; Fig. 2C).

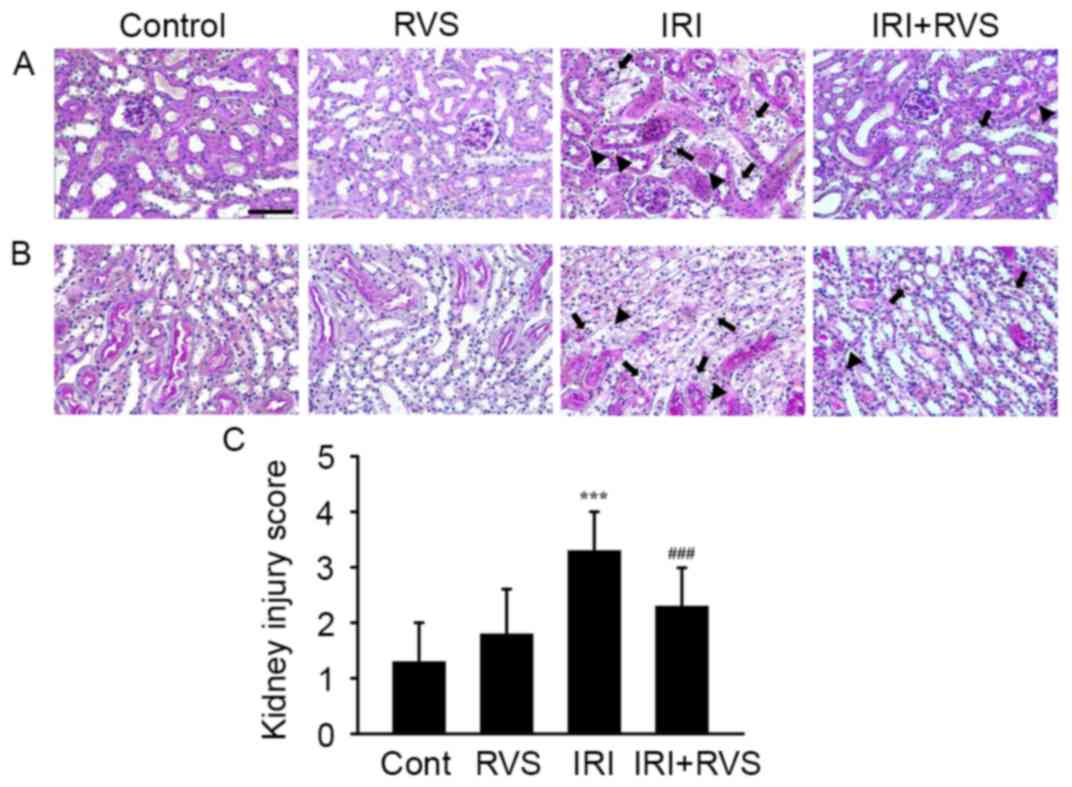

Figure 2. Effect of RVS on IRI-induced alterations on renal histoarchitecture. RVS (20 mg/kg/day) was intraorally administered for 14 days to mice with or without IRI and their kidneys were stained with hematoxylin and eosin for histological examination. Representative images of (A) the corticomedullary junction and (B) the outer medulla of Cont, RVS, IRI and IRI+RVS groups (n=7 per group) are presented. Black arrowheads and black arrows indicate an infiltrated inflammatory cells and necrotic tubules, respectively. Scale bar=200 µm. (C) Renal tubular injury was scored by estimating the percentage of tubules in the corticomedullary junction and outer medulla that exhibited epithelial necrosis or had necrotic debris and were cast as follows: 0, none; 1+, <10; 2+, 10–25; 3+, 26–45; 4+, 46–75; and 5+, >75%. Values are expressed as the mean ± standard error of the mean. ***P<0.001 vs. Cont group; ###P<0.001 vs. IRI group. RVS, Rhus verniciflua Stokes; IRI, ischemia-reperfusion injury; Cont, control.

RVS inhibits renal tubular cell apoptosis

Tubular apoptosis normally precedes/accompanies tubular cell death; therefore, the number of apoptotic cells in the kidney was quantified using a TUNEL assay. As presented in a representative image (Fig. 3A) and in a graph presenting quantified results (Fig. 3B), the number of TUNEL-positive cells was significantly increased in the IRI group compared with the control group (58.3±11.0 vs. 4.0±2.0, P<0.001). However, significantly fewer TUNEL-positive cells were visible in the IRI+RVS group than in the IRI group (12.7±2.5 vs. 58.3±11.0, P<0.001). As expected, the number of TUNEL-positive cells in the RVS group did not differ significantly compared with the control group. Collectively, these data suggest that RVS protects the kidney from the histological deterioration of renal tubules and that this effect was due to the inhibition of apoptosis in the renal tubular epithelium.

Figure 3. Effect of RVS on IRI-induced apoptosis of tubular epithelium. RVS (20 mg/kg/day) was intraorally administered for 14 days to mice with or without IRI and their kidneys were processed for TUNEL-staining. (A) Representative fluorescence images of the outer medulla of the Cont, RVS, IRI and IRI+RVS groups (n=7 per group) indicate the TUNEL-stained nuclei (green) of apoptotic tubular epithelium. DAPI was used to counterstain the nuclei (blue). Scale bar=100 µm. (B) The number of apoptotic tubular epithelial cells in 1 HPF was counted and averaged. Two sections of each mouse (14 sections per group) were randomly selected and ≥5 HPF were examined for each section. Values are expressed as the mean ± standard error of the mean. ***P<0.001 vs. Cont; ###P<0.001 vs. IRI group. RVS, Rhus verniciflua Stokes; IRI, ischemia-reperfusion injury; Cont, control; HPF, high power field.

RVS protects HK-2 cells from CoCl2-induced damage

To confirm the protective effect of RVS on cell damage caused by IRI, hypoxia was chemically induced by the addition of CoCl2, a well-known inducer of in vitro IRI, in the human kidney epithelial cell line HK-2. The approximate LD50 and LT50 values of CoCl2 were identified as 300 µM and 24 h, respectively (rectangular boxes; Fig. 4A and B). There was no significant decrease in cell viability of HK-2 cells incubated with different doses (0–200 µg/ml) of RVS, indicating that RVS does not induce toxicity in this cell line (Fig. 4C). Notably, incubation with 40–160 RVS µg/ml significantly increased the viability of HK-2 cells treated with 300 µM CoCl2 for 24 h (P<0.01; Fig. 4D). Collectively, these results demonstrate that pre-treatment with RVS inhibits the cytotoxic effect of CoCl2 on HK-2 cells.

Figure 4. Effects of RVS on HK-2 cell viability in vitro following IRI. HK-2 cells were pretreated with or without RVS for 24 h and then challenged with CoCl2, a chemical known to imitate hypoxic injury. Cell viability was determined using an MTT assay. (A) Dose-dependent cell viability following incubation with varying concentrations of CoCl2 (0, 10, 100, 300, 600 and 900 µM) and (B) time-dependent cell viability following incubation with 300 µM CoCl2 for different durations (0, 6, 12, 24 and 48 h). (C) Identification of the safe concentration range of RVS by incubating cells with different concentrations of RVS (0, 40, 80, 120, 160 and 200 µg/ml). (D) The effects of 24 h incubation with RVS (0, 40, 80, 120 and 160 µg/ml) and on CoCl2 (300 µM)-induced alteration of HK-2 cell viability were assessed. Values are presented as the mean ± standard error of the mean. **P<0.01 and ***P<0.001 vs. cells incubated with 300 µM CoCl2 alone. RVS, Rhus verniciflua Stokes; IRI, ischemia-reperfusion injury.

RVS inhibits CoCl2-induced ROS generation in HK-2 cells

To determine whether antioxidant properties are involved in the protective effect of RVS against CoCl2-induced damage in HK-2 cells, intracellular ROS levels in different cell groups was detected using DCFH-DA. As RVS significantly elevated cell viability even at a dose of 40 µg/ml, this dose was used in the current study. As indicated in a representative fluorescence image (Fig. 5A) and a quantitative graph (Fig. 5B), cells treated with 40 µg/ml RVS for 24 h exhibited significantly higher ROS intensity compared with those in the control group (3.9±1.3 vs. 1.0±0, P<0.05). Cells incubated with 300 µM CoCl2 for 30 min exhibited an even higher ROS intensity compared with the control (21.4±5.9, P<0.001 vs. control). However, cells treated with 40 µg/ml RVS for 24 h and then incubated with 300 µM CoCl2 for 30 min exhibited significantly lower ROS intensity than the CoCl2 group (6.0±1.4 vs. 21.4±5.9, P<0.001). These data suggest that the RVS-mediated protection of HK-2 cells from CoCl2 is at least partly due to the inhibition of ROS generation.

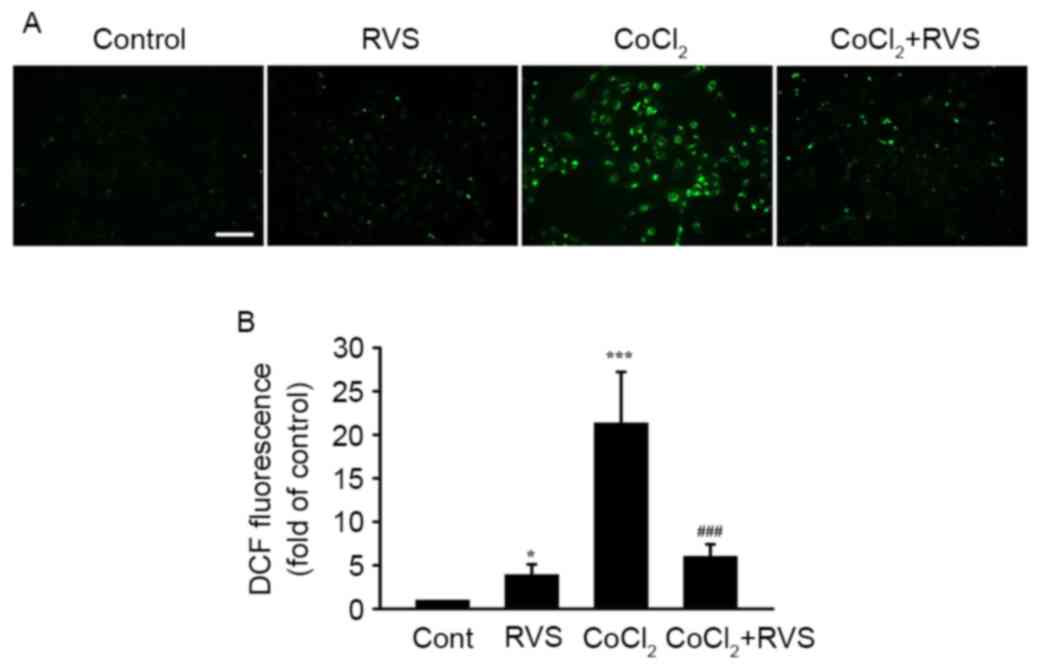

Figure 5. RVS inhibits CoCl2-induced ROS production in HK-2 cells. HK-2 cells were pretreated with 40 µg/ml RVS for 24 h and incubated with or without CoCl2 for 30 min. Intracellular ROS levels were determined by DCF fluorescence. DCF fluorescence results from the oxidation of DCF-DA by ROS were measured. (A) Representative images and (B) quantification of CoCl2-induced DCF fluorescence are presented. Scale bar=100 µm. In the graph, DCF fluorescence of each group is expressed as mean ± standard error of the mean. n=5 per group. *P<0.05 and ***P<0.001 vs. Cont group and ###P<0.001 vs. the CoCl2 group. DCF, dichlorodihydrofluorescin; ROS, reactive oxygen species; RVS, Rhus verniciflua Stokes; IRI, ischemia-reperfusion injury; Cont, control.

RVS increases the nuclear translocation of Nrf2 and expression of HO-1 and CAT

To determine the upstream signaling pathway involved in the RVS-mediated inhibition of ROS generation, the nuclear translocation of Nrf2 and the expression of cellular antioxidant enzymes HO-1 and CAT were assessed, which are encoded by Nrf2 target genes. The translocation of Nrf2 from the cytosol into the nucleus was assessed using confocal microscopy. The results indicated that Nrf2 proteins (green) were primarily distributed in the cytoplasm of the control group (Fig. 6). In the RVS group (40 µg/ml, 24 h), the majority of the cytoplasmic Nrf2 was translocated into the nucleus, as indicated by intense nuclear Nrf2 staining in the immunofluorescence assay. In the CoCl2 group (300 µM, 30 min), Nrf2 fluorescence was decreased compared with that of control group and fluorescence was mostly cytosolic. However, robust nuclear translocation of Nrf2 was detected in the CoCl2+RVS group.

Figure 6. Effect of RVS on the nuclear translocation of Nrf2. Cells were pretreated with or without 40 µg/ml RVS for 24 h and incubated for a further 24 h with or without CoCl2. Cells were fixed and immune-stained with an anti-Nrf2 antibody for 2 h. Nuclei were counter-stained with DAPI and the images were captured by confocal microscopy. Scale bar=100 µm. RVS, Rhus verniciflua Stokes; Nrf2, nuclear factor-erythroid-2-related factor 2.

To confirm the translocation of Nrf2 into the nucleus following RVS treatment with or without CoCl2, cell lysates were separated into cytosolic and nucleic fractions and the expression of Nrf2 in each fraction was measured using western blot analysis. Representative band images (Fig. 7A) and quantification of the results (Fig. 7B) demonstrated that Nrf2 expression was significantly increased in the nuclear fraction of the RVS group compared with the control group (2.5±0.3 vs. 1.1±0.2, P<0.001). As expected, compared with the control group, the CoCl2 group exhibited a reduction in the expression of nuclear Nrf2 (0.8±0.1 vs. 1.1±0.2, P<0.01). However, Nrf2 expression was significantly increased in the CoCl2+RVS group compared with the CoCl2 group (1.2±0.3 vs. 0.8±0.1, P<0.01).

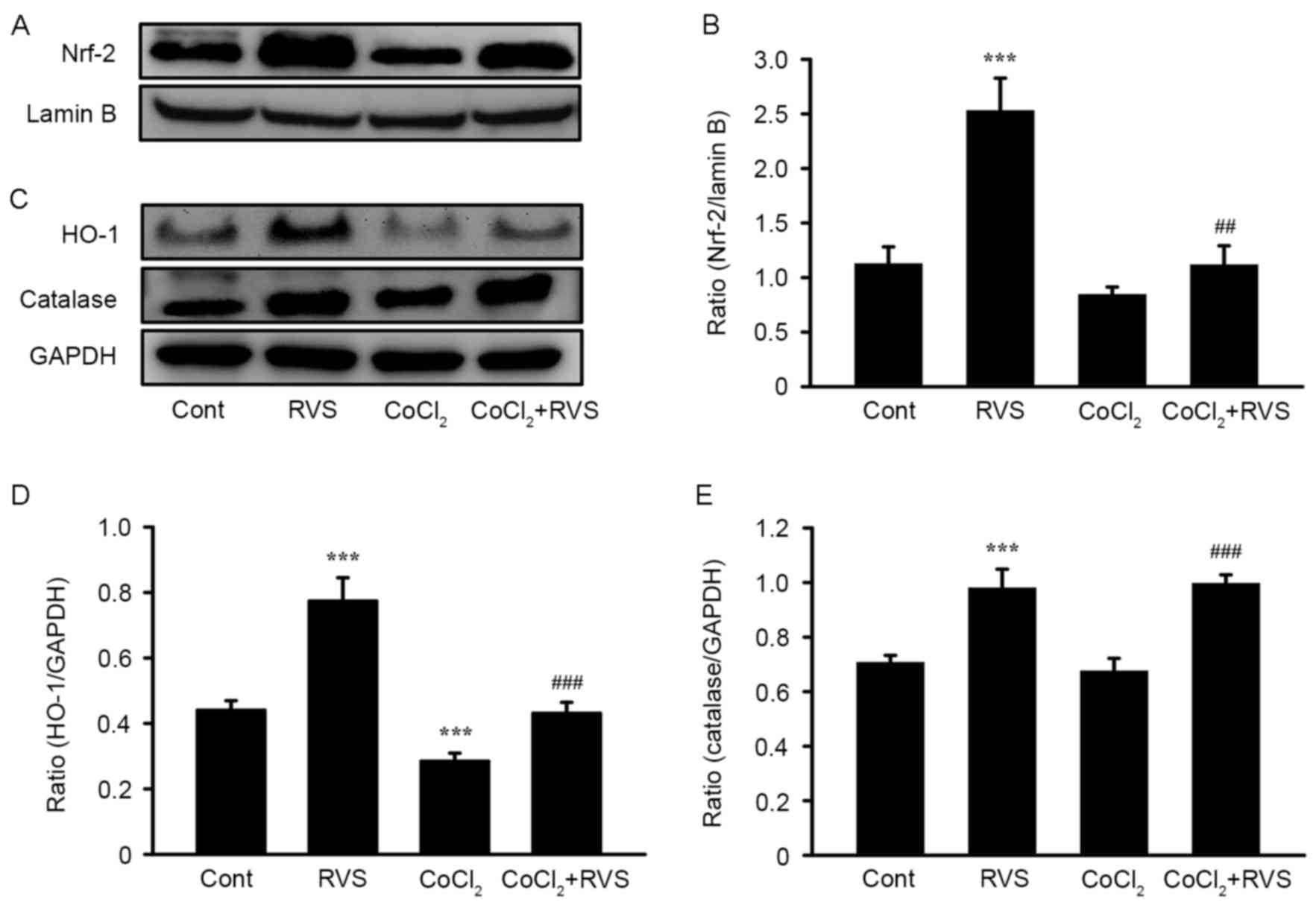

Figure 7. Effect of RVS on Nrf2, HO-1 and CAT expression in cells with or without treatment with CoCl2. Nuclear fractions were prepared and analyzed by western blot analysis with the Nrf2 antibody. (A) Representative immunoblots of Nrf2 expression. (B) Band densities of nuclear Nrf2 were converted to fold change to that of the control group. Lamin B, a nuclear protein, was used as a loading control. (C) Representative western blot images representing the expression of HO-1 and CAT were obtained using the corresponding antibodies. Band densities of (D) HO-1 and (E) CAT expression were converted to the fold change to that of the control group. GAPDH was used as a loading control. n=5. Values are presented as the mean ± standard error of the mean. **P<0.01 and ***P<0.001 vs. Cont group; ###P<0.001 vs. the CoCl2 group. Cont, control; RVS, Rhus verniciflua Stokes; IRI, ischemia-reperfusion injury; Nrf2, nuclear factor-erythroid-2-related factor 2; HO-1, heme oxygenase-1; CAT, catalase.

Subsequently, the expression of HO-1 and CAT in the cell homogenates from each treatment group was measured. These are major cellular antioxidant enzymes that are upregulated following Nrf2 translocation. As presented in the representative band images (Fig. 7C) and quantification graphs for HO-1 (Fig. 7D) and CAT (Fig. 7E), levels of HO-1 and CAT were significantly increased in cell homogenates from the RVS group compared with those of the control group (0.8±0.1 vs. 0.44±0.03 and 1.0±0.06 vs. 0.7±0.02, respectively, both P<0.001). In the CoCl2 group, levels of HO-1 were significantly decreased (P<0.001) but levels of CAT were unchanged, compared with the control group. However, levels of HO-1 and CAT were significantly increased in the CoCl2+RVS group compared with the CoCl2 group (0.43±0.03 vs. 0.28±0.02 and 1.0±0.03 vs. 0.7±0.04, respectively, both P<0.001). Collectively, these data suggest that RVS exerts antioxidant effects by increasing the nuclear translocation of Nrf2 and thereby upregulating the expression of cellular antioxidant enzymes, including HO-1 and CAT.

Discussion

ROS are continuously generated in live cells as a natural product of oxidative metabolism and act as messengers for signal transduction in various cellular processes, including mitosis, gene expression and proliferation (30–33). However, excess ROS are implicated in various pathologies including ageing, cancer, inflammation and renal disease (34–37). Consequently, antioxidants with the potential to reduce ROS may prevent or treat diseases associated with oxidative injury (38). Therefore, various natural products with ROS-scavenging properties may be developed as promising therapeutic strategies to treat oxidative damage-related conditions. Exposure to certain natural products elevates intracellular ROS levels and alleviates mild oxidative stress. Such mild oxidative stress may initiate the signal transduction responsible for the induction and activation of antioxidant enzymes (39). In accordance with this hypothesis, the results of the current study indicate that treatment with RVS induces a significant, elevation of ROS in HK-2 cells. Thus, RVS may increase the expression of HO-1 and CAT by inducing mild oxidative stress.

The current study focused on the modulatory effects of RVS on Nrf2, a redox-sensitive transcription factor, as an upstream regulator of HO-1 and CAT (40). Nrf2 is a member of the NF-E2 family of basic leucine zippers and is able to deactivate ROS (41). Under normal conditions, Nrf2 is located in the cytoplasm and is sequestered by Kelch-like ECH-associated protein 1 (Keap1), which disturbs the nuclear translocation of Nrf2 (42). Following activation of the Nrf2/antioxidant responsive element (ARE) pathway, the expression of various antioxidant enzymes, including HO-1 and CAT, are induced (43). Thus, there is substantial interest in therapeutic candidates that may augment this pathway. To date, in vitro and in vivo experiments have proven that phytochemicals, including curcumin, epigallocatechin-3-gallate, resveratrol and quercetin enhance the Nrf2-ARE pathway, thereby inducing antioxidant enzymes (44–47). Certain constituents of RVS, including sulfuretin and butein, may stimulate this pathway and this has been demonstrated in a human neuronal cell line damaged by amyloid-β (48) and a human dental pulp cell line challenged with hydrogen peroxide (49). However, to the best of our knowledge, it has not yet been reported that RVS or its constituents exert therapeutic effects on IRI-mediated AKI by modulating the Nrf2/ARE pathway.

The results of the current study determined that the activation of Nrf2/ARE-mediated antioxidant enzymes was involved in protecting against AKI. The present study indicates that RVS exhibits protective properties against AKI, for example, in the activation of the antioxidant defence system. However, it should be considered that RVS may exert its therapeutic action using alternate mechanisms, including via anti-inflammatory effects. In fact, many factors that may be possible targets of the anti-inflammatory property of RVS are present during the pathogenesis of IRI-induced AKI. During the development of AKI, resident macrophages in the kidney activate and secrete various chemokines and cytokines (50). Furthermore, lymphocytes infiltrate the damaged kidney and contribute to the inflammatory process (51). Thus, owing to its well-known anti-inflammatory effects (52,53), it was assumed that RVS exerts beneficial effects on AKI through this mechanism.

The present study did not determine the upstream machineries of RVS-mediated Nrf2 mobilization, which should be considered a limitation. As aforementioned, Nrf2 is tightly bound to Keap1 and is anchored in the cytoplasm, resulting in its ubiquitination and subsequent degradation under normal conditions. However, when exposed to sub-lethal oxidative damage or treatment with certain pharmaceuticals, the Nrf2-Keap1 protein-protein interaction (PPI) is inhibited, which may liberate Nrf2 from Keap1, leading to its translocation into the nucleus (54–56). Therefore, using individual compounds within RVS, including, GA, fustin, fisetin, sulfuretin and butein and additional approaches, including a binding activity assay for the identification of Nrf2-Keap1 PPI inhibitory roles in the context of AKI are required to establish the precise action of RVS on AKI.

In conclusion, the present study indicated that the intraoral administration of RVS induces a therapeutic effect on IRI-induced AKD. These effects may be due to the attenuation of ROS production via the upregulation of the antioxidant defense system in renal tubular cells. Using the crude extract of RVS, as well as individual compounds within RVS, novel approaches for unveiling multifunctional therapeutic mechanisms and specific molecular targets may be required to determine the protective effects of RVS on AKI.

Acknowledgements

The current study was supported by the Development of Forest Science and Technology (grant no. S111414L030100) and the Korea Research Foundation (grant nos. NRF-2014R1A1A403005726 and NRF-2016R1C1B2012351).
