Introduction

Guanine (G)-quadruplexes (G-4) are non-canonical nucleic acid conformations formed by G-rich sequences based on the formation of G-quartets, stabilized by Hoogsteen-type hydrogen bonds between G and by interaction with cations located between the tetrads. G-4s may assemble into stacked intra- or inter-molecular four-stranded structures, the latter being more likely to form in vivo (1). G-4s have been shown to possess an extremely high degree of polymorphism. The final adopted structure depends on several factors, including base sequence, strand orientation, loop connectivity and presence and type of cations. DNA strands in G-4 take anti-parallel, parallel, or hybrid conformations, and the nucleotide linkers between G-quartets can adopt a multitude of loop structures (2,3).

These structures were initially identified in telomeres, the G-rich DNA sequence located at the ends of eukaryotic chromosomes (4), and now it is well known that putative G-4-forming sequences are present within regulatory elements (e.g., promoter, untranslated regions) or bodies of several genes, leading to the notion that G-4s may be involved in several aspects of cell biology (5–7). In this context, a bioinformatic analysis identified ~370,000 candidate sequences within the human genome that, at least theoretically, may form G-4 structures. These are frequently found in proto-oncogenes rather than in tumor suppressor genes (2). In particular, the most well structurally and functionally characterized G-4-forming sequences have been found in the promoter region of oncogenes, such as MYC, KIT, BCL2 (8). According to Brooks et al (9) it is possible to recognize one or more factors involved in each hallmark of cancer (10) the gene sequence of which may fold into a G-4. In this context, a G-rich region located at −22 and −90 nucleotides from the transcription start site within the telomerase reverse transcriptase (TERT) gene promoter has been documented to contain 12 consecutive G-tracts, embracing three SP1 binding sites. This sequence is potentially able to fold into G-4 structures (11), the formation of which may exert an inhibitory effect on TERT promoter transcriptional activity and hence resulting in the suppression of telomerase activity.

Although the physiological role of G-4 structures still needs to be intensively investigated, a growing body of evidence suggests that such non-B conformations of DNA may represent attractive targets for broad-spectrum anticancer therapies (12). Indeed, G-4s can be induced and stabilized by small molecules generally presenting large flat aromatic moieties and cationic side chains. Treatment of cells with G-4-stabilizing compounds has been shown to alter expression of many genes harbouring such sequences (5,9,13–16). To date, a diverse array of G-4 stabilizing compounds has been identified (17,18). Among them, numerous tri- and tetra-substituted naphthalene diimides (NDIs) have shown high affinity for telomeric G-4s and good antiproliferative activity in different experimental human tumor models (19–24).

During development of hybrid ligand-alkylating agents, we have recently synthesized a trisubstituted naphtalendiimide compound (H-NDI-NMe2) (Fig. 1A) that displays high affinity and stabilization properties towards the human telomeric sequence (21). In addition, H-NDI-NMe2 was able to significantly impair melanoma cell growth by causing telomere dysfunction and inhibition of telomerase activity, likely as a consequence of its interference with the expression levels of MYC and TERT (21).

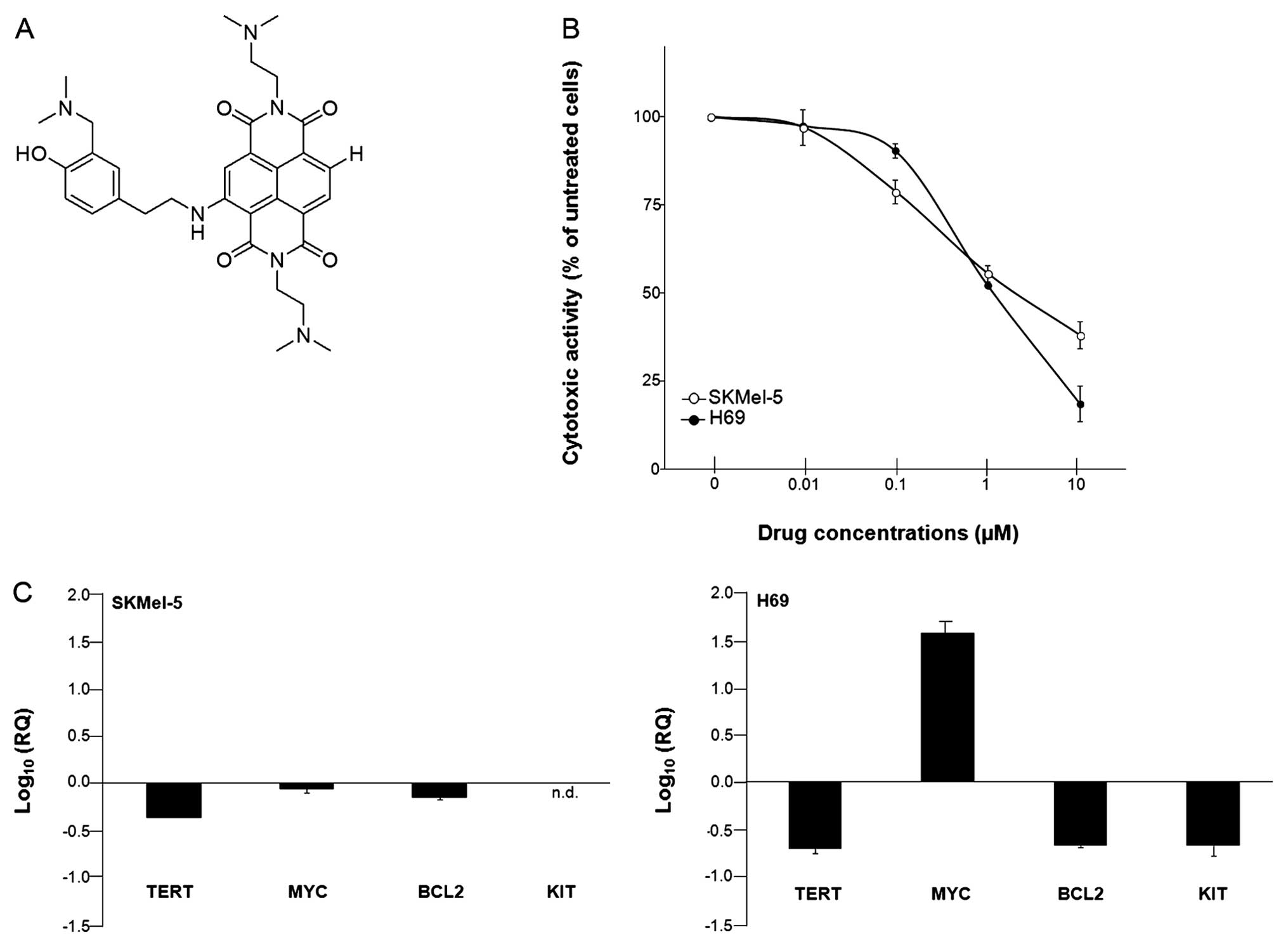

Figure 1 The naphthalene diimide (NDI) derivatives affect tumor cell viability and induce perturbation in the expression levels of selected genes. (A) Chemical structure of the H-NDI-NMe2 compound. (B) Cell growth inhibition curves of human malignant melanoma SKMel-5 (○) and small cell lung cancer H69 (●) cells obtained after a 48-h exposure to increasing concentrations of H-NDI-NMe2. Data are expressed as percentage of growing cells in NDI-treated compared to untreated cells and represent mean values ± SD of at least three independent experiments. (C) Quantification of telomerase reverse transcriptase (TERT), MYC, BCL2 and KIT expression levels by real-time RT-PCR in SKMel-5 (left panel) and H69 cells (right panel) exposed to 0.6 and 0.4 μM H-NDI-NMe2, respectively. Data are reported as Log10-transformed relative quantity (RQ) with respect to untreated cells and represent mean values ± SD from at least three independent experiments. n.d., not detectable.

In the present study, we further investigated the mechanism of action of the H-NDI-NMe2 derivative. In particular, the capability of the molecule to interfere with the expression levels of genes, such as MYC, TERT, KIT and BCL2, known to bear G-4 forming sequences within their promoters, has been investigated in human tumor cell lines of different histological origin. The exposure to H-NDI-NMe2 resulted in a cell type-dependent perturbation of the expression levels of the four selected genes. Biophysical and molecular analyses revealed that H-NDI-NMe2 bound with high affinity and effectively stabilized mainly MYC and BCL2. The mRNA levels of both genes were affected by NDI treatment. Global gene expression analysis showed modulation of genes implicated in telomere function and mechanisms of cancer; however, G-4-mediated regulation of gene expression by H-NDI-NMe2 was largely dependent on the cell context.

Materials and methods

H-NDI-NMe2 synthesis

The functionalized naphthalene diimide H-NDI-NMe2 was synthesized, characterized, and purified according to a published protocol, optimized by our group (21).

Oligonucleotides

All oligonucleotides were purchased from Sigma-Aldrich S.r.l. (Milan, Italy). After an initial dilution at 1 mM in purified water, further dilutions were carried out in the relevant buffer. The sequences of the oligonucleotides used throughout the study are reported in Table I.

Table I G-rich sequences used in this study.

Table I

G-rich sequences used in this study.

Sequence name		Sequence (5′→3′) and G-tracts
		I		II		III		IV		V		VI		VII		VIII		IX		X		XI		XII
MYC	T	GGG	GA	GGG	TG	GGG	A	GGG	TG	GGG	AAGG
BCL2	A	GGG	GC	GGG	CGC	GGG	AGG AA	GGG	GGC	GGG	AGCG	GGG	CTG
KIT1	A	GGG	A	GGG	CGCT	GGG	AGGA	GG
KIT2	C	GGG	C	GGG	CGC GA	GGG	A	GGG	G
TERT	TTT TT	GG GG	A	GGGG	CT	GGG	A	GGG	CCC GGA	GGG GG	CT	GGG	CCA	GGGG	CCC	GGG	A	GGGG	TC	GGG	AC	GGGG	C	GGGG	TTTT TTTT
hTel22	A	GGG	TTA	GGG	TTA	GGG	TTA	GGG
hTel36		GGG	TTA	GGG	TTA	GGG	TTA	GGG	TTA	GGG	TTA	GGG	TTA

[i] Sequences are written from the 5′- to the 3′-end. G-4 repeats are shown in bold and are numbered. Non-bold sequences represent loop regions. TERT, telomerase reverse transcriptase.

Cell lines and culture conditions

Human malignant melanoma (SKMel-5) and small cell lung cancer (H69) cell lines were obtained from the American Type Culture Collection. Cells were tested for the absence of Mycoplasma every 2 weeks and authenticated by the AmpFLSTR Identifiler PCR amplification kit (PN4322288; Applied Biosystems, Monza, Italy), according to the manufacturer’s instructions. Cells were maintained in the logarithmic growth phase at in 5% CO2 at 37°C, in separate incubators, using appropriate culture media supplemented with 10% fetal bovine serum.

Analysis of NDI cytotoxic activity

To assess the cytotoxic activity of NDI, cells were seeded at the appropriate density in 6-well plates and exposed to increasing concentrations (from 0.01 to 10 μM) of freshly dissolved compound for 48 h. Adherent cells were then trypsinized, collected and counted in a particle counter (Coulter Counter; Coulter Electronics Ltd., Luton, UK). The drug concentrations inhibiting cell growth by 50% (IC50) were gauged by the cell growth inhibition curves.

Analysis of the expression levels of individual genes

Total RNA was obtained from cells either untreated or exposed to sub-toxic concentrations of H-NDI-NMe2 by TRIzol® reagent (15596-018; Life Technologies Italia, Monza, Italy), according to the manufacturer’s instructions. cDNA was randomly primed from 0.5 μg RNA and amplified using the GeneAmp RNA PCR Core kit (N8080143; Applied Biosystems), according to the manufacturer’s instructions. Gene expression levels were analyzed by RT-qPCR using specific TaqMan® Assay (TERT, Ms00972656_m1; MYC, Ms00153408_m1; KIT, Hs00174029_m1; BCL2, Hs99999018_m1; Applied Biosystems). Amplifications were run on the 7900HT Fast Real-Time PCR System. Data were analyzed by SDS 2.2.2 software (Applied Biosystems) and reported as relative quantity (RQ) with respect to a calibrator sample (i.e., RNA from untreated cells) according to the 2−ΔΔCt method (25). Ribonuclase P (RNaseP control reagent, PN4316844; Applied Biosystems) was used as normalizer.

Evaluation of telomerase activity

Telomerase activity was measured on 1 μg of protein by the telomeric repeat amplification protocol (TRAP) using the TRAPeze kit (S7700; Millipore S.p.A., Milan, Italy) according to manufacturer’s protocol. Each reaction product was amplified in the presence of a 36-bp internal TRAP assay standard (ITAS). A TSR8 quantitation standard (which serves as a standard to estimate the amount of product extended by telomerase in a given protein extract) was included for each set of TRAP assays. PCR amplification products were then resolved by polyacrylamide gel electrophoresis and visualized by autoradiography.

Western immunoblotting

Total protein extracts were prepared according to standard methods. Protein extracts (40 μg) were fractioned by SDS-PAGE and transferred onto Hybond nitrocellulose filters (RPN 303D; GE Healthcare, Milan, Italy). Filters were blocked in PBS-Tween-20, 5% skim milk and incubated overnight with primary antibodies raised against MYC (mouse monoclonal, 1:500, ab32; Abcam, Cabridge, UK), KIT (mouse monoclonal, 1:100, sc17806; Santa Cruz Biotechnology Inc, Heidelberg, Germany), BCL2 (rabbit monoclonal, 1:1,000, no. 4223; Cell Signaling Technology, Inc., Danvers, MA, USA). The filters were then probed with secondary peroxidase-linked whole antibodies (NA934V/NA931V; GE Healthcare), which were subsequently visualized by SuperSignal West Pico Chemiluminescent detection system. ACTB (mouse monoclonal, 1:1,000, ab8226; Abcam) was used on each blot to ensure equal protein loading.

FRET-melting assays

FRET competition assay was performed with FAM (6-carboxyfluorescein) 5′-end- and Tamra (6-carboxy-tetramethylrhodamine) 3′-end-labelled hTel22 oligonucleotide (0.25 μM) in the presence of 0.8 μM H-NDI-NMe2 and of G-quadruplex competitors, namely MYC, BCL2, KIT (KIT1, KIT2) and TERT (Table I). The ds26 oligomer [5′-d(CAATCGGATCGAATTCGATCCG ATTG)3′] was used as control for duplex DNA. Fluorescence melting curves were determined with a LightCycler II (Roche Diagnostics S.p.A, Monza, Italy) real-time PCR machine, using a total reaction volume of 20 μl, with 0.25 μM of tagged oligo-nucleotide in a buffer containing 10 mM lithium cacodylate pH 7.4, 50 mM KCl. After a first equilibration step at 30°C for 2 min, a stepwise increase of 1°C every minute for 65 cycles to reach 95°C was performed and measurements were made after each cycle with excitation at 470 nm and detection at 530 nm. The melting of the G-quadruplex + H-NDI-NMe2 was monitored alone or in the presence of various concentrations of competitor oligonucleotides. Final analysis of data was carried out using Excel and SigmaPlot software. Emission of FAM was normalized between 0 and 1, and T1/2 was defined as the temperature at which the normalized emission was 0.5. T1/2 values were mean of 2–3 experiments and ΔT1/2 was calculated as T1/2 difference in the presence and absence of H-NDI-NMe2.

SPR study

Surface plasmon resonance (SPR) measurements were performed with Biacore T100 System using streptavidin-coated sensor chips (Series S, Sensor chip SA) (both from GE Healthcare). The 5′-biotinylated sequences (hTel22, TERT, MYC, BCL2) (Table I) were heated to 95°C and annealed by slow cooling to form quadruplex in filtered and degassed 10 mM HEPES buffer with 200 mM KCl with 0.005% surfactant Tween-20, at pH 7.4. Two chips were used; in each chip flow cell 1 was left blank as control to account for any signal generated owing to bulk solvent effect or any other effect not specific to the DNA interaction, which was subtracted from the signal obtained in the sample flow cells. All experiments were performed at 25°C using running buffer (0.22 μm filtered and degassed 10 mM HEPES with 200 mM KCl and 0.005% surfactant Tween-20) at pH 7.4. Oligonucleotide immobilized surface was exposed to the running buffer for at least 2 h at a flow rate of 30 μl min−1 for attaining baseline stability. H-NDI-NMe2 analyte solutions at different concentrations (1×10−9–1×10−6 M) were prepared in the running buffer and were injected (at 30 μl min−1 for 120 sec) in series. Following this, dissociation from the surface was monitored for 300 sec in running buffer. Regeneration was performed with 10 mM glycine. Analysis of the binding sensorgrams was carried out using 1:1 binding sites model in the BIA evaluation software 2.0.3 (GE Healthcare). Experiments were carried out in triplicates and the standard error was calculated.

CD analysis

Circular dichroism (CD) experiments were performed on a Jasco J-810 spectropolarimeter (Jasco Europe S.r.l., Milan, Italy) equipped with a NESLAB temperature controller (Thermo Fisher Scientific, Milan, Italy) and interfaced to a PC100. A quartz cuvette with 5 mm path length was used for spectra recorded from 230 to 350 nm at 2 nm bandwidth, 0.1 nm step size, and 4 sec time per point. The reported spectrum of each sample represents the average of two scans. Observed ellipticities were converted to mean residue ellipticity (θ) = deg × cm2 × dmol−1 (molar ellipticity). The oligomers were diluted from stock to the final concentration (4 μM) in Li cacodylate buffer (10 mM, pH 7.4) with 50 mM KCl and then annealed by heating at 95°C for 5 min, gradually cooled to room temperature, and measured after 24 h. H-NDI-NMe2 was added at 16 μM final concentration.

For thermal unfolding, CD spectra were recorded from 20 to 95°C, with temperature increase of 5°C, and processed as above. Tm values were calculated according to the van’t Hoff equation, applied for a two state transition from a folded to unfolded state, assuming that the heat capacity of the folded and unfolded states are equal (26).

Binding stoichiometry was determined by the continuous variation method (Job plot). Solutions of MYC or BCL2 and H-NDI-NMe2 were mixed in different proportions maintaining a total concentration of DNA + H-NDI-NMe2 of 10 μM. The mole fractions for DNA/(DNA + H-NDI-NMe2) were 0.12, 0.15, 0.20, 0.27, 0.31, 0.35, 0.37, 0.46, 0.50, 0.55, 0.60. The mole fraction of the DNA was plotted against the molar ellipticity at 290 nm of the DNA + H-NDI-NMe2 complex. In the plot, the mole fraction of the DNA at which the molar ellipticity of the DNA + H-NDI-NMe2 complex is maximum, gives the stoichiometry of the complex. The number of H-NDI-NMe2 binding sites is equivalent to (1 - x)/x, where x is the DNA fraction at the intersection of the two fitting straight lines. All samples were allowed to equilibrate overnight. A buffer baseline was collected in the same cuvette and subtracted from the sample spectra.

Taq polymerase stop assay

Primer was labelled with [γ-32P]-ATP (PerkinElmer, Milan, Italy) using T4 polynucleotide kinase (Thermo Fisher Scientific) for 30 min at 37°C and purified with Illustra MicroSpin G-25 Column (GE Healthcare). 5′-end-labeled primer (final concentration 70 nM) [primer MYC Taq 5′-d(ATCGATCGCTTCTCGTCCGCTAACC TTC)-3′; primer BCL2 Taq 5′-d(ATCGATCGCTTCTCGTCAGCCCCGCT)-3′] was annealed to the template bearing the sequence of interest (final concentration 36 nM, in lithium cacodylate buffer, 10 mM, pH 7.4) [MYC wt Taq template 5′-d(CTGGGGAGGGTGGGGAGGGTGGGGAAGGTTAG CGG)-3′; BCL2 wt Taq template 5′-d(AGGGGCGGGCGC GGGAGGAAGGGGGCGGGAGCGGGGCTG)-3′] or a scrambled non-G-quadruplex forming sequence [MYC scrambled Taq template 5′-d(CTGGAAAGAGTGAAGAGAGAGTGAAGAAGGTTAGCGG)-3′; BCL2 scrambled Taq template 5′-d(AGAAGCGAAAGCGAAAGGAAGAAGAAA AAGCGGGGCTG)-3′]. Underlined bases indicate complementary bases in the primer and template strands. Where appropriate, KCl was added and the mixture was let annealed by heating at 95°C for 5 min, gradually cooled to room temperature, and incubated at 4°C overnight. Mixtures were incubated with NDI for 20 min at room temperature in the presence of 100 mM KCl. Primer extension was conducted with 2 U of AmpliTaq Gold DNA Polymerase (2 U/reaction; Applied Biosystems, Carlsbad, CA, USA) at 47°C for 30 min. The reaction was stopped by EtOH precipitation and primer extension products were separated on a 12% denaturing gel and visualized by phosphorimaging (Typhoon FLA 9000; GE Healthcare).

Gene expression analysis

Total RNA was isolated from untreated and NDI-treated cells using Qiagen RNeasy Mini kit (74104; Qiagen S.r.l., Milan, Italy) and digested with 20 U RNase-free DNase I (79254; Qiagen S.r.l.), according to the manufacturer’s instructions. The expression levels of 28 key genes related to telomere replication and maintenance (TRM) and of 92 genes associated with the molecular mechanisms of cancer were assessed using TaqMan® Arrays (PN4418832 and PN4418806; Applied Biosystems). The expression values were assessed by RT-qPCR according to the manufacturer’s instructions. Modulation of gene expression in treated compared to untreated cells was assessed by the 2−ΔΔCt method. The 18S housekeeping gene present in each array was used as norma lizer. Differentially expressed genes in treated vs. untreated cells were sorted based on P<0.05 (Student’s t-test) and consi dered up- or downregulated by set a fold-change of 1.5 as cut-off.

Results and Discussion

Effects of H-NDI-NMe2 on the expression levels of genes known to be affected following G-4 stabilization

Short-term cytotoxic activity of H-NDI-NMe2 (Fig. 1A) was first tested against two cancer cell lines of different histological origin, namely human malignant melanoma SKMel-5 and small cell lung cancer H69 cells. Results showed a dose-dependent inhibition of cell growth in both experimental models after a 48-h exposure to increasing drug concentrations (Fig. 1B). The compound was active in the micromolar range and no significant differences in the sensitivity to H-NDI-NMe2 were observed between the two cell lines, as revealed by the IC50 values (1.75±0.18 μM and 1.18±0.04 μM for SKMel-5 and H69 cells, respectively) obtained from at least three independent experiments.

As previously reported, H-NDI-NMe2 derivative exerted an inhibitory effect on the catalytic activity of telomerase in SKMel-5 cells that seemed to primarily occur as a consequence of drug-mediated decrease of TERT and MYC mRNA expression levels (21). To further investigate the capability of the compound to interfere with the expression of selected genes, we focused on TERT, MYC, KIT and BCL2, which have been reported to undergo inhibition following ligand-mediated stabilization of G-4 structures within their promoters (8).

In this context, dose-response curves were instrumental to guide the choice of H-NDI-NMe2 concentration to be used for the analysis of gene expression levels. A 48-h exposure of cells to sub-toxic concentrations of the ligand (corresponding to ~1/3 of the relative IC50 values) resulted in a cell type-dependent modulation in the expression levels of selected genes (Fig. 1C). Real-time RT-PCR data showed a marked reduction of TERT expression levels (Fig. 1C), which was more pronounced in H69 (RQ, 0.20±0.02) compared to SKMel-5 cells (RQ, 0.44±0.002). A downregulation of BCL2 expression levels (Fig. 1C) was observed in both cell lines. Again, such a decrease was markedly pronounced in H69 with respect to melanoma cells (RQ, 0.21±0.01 and 0.73±0.05, respectively). In addition, small cell lung cancer cells were also characterized by a pronounced decrease in the expression levels of KIT (RQ, 0.22±0.06), which in turn was not detectable in melanoma cells (Fig. 1C).

Taking into account that MYC is involved, at least in part, in the transcriptional control of TERT, its gene expression levels were assessed in both NDI-treated cells. In keeping with our previous findings (21), the exposure of SKMel-5 to H-NDI-NMe2 resulted in a decrease, though minimal, of MYC expression levels (RQ, 0.89±0.08). Conversely, a pronounced increase in the level of MYC gene expression (Fig. 1C) was observed in H69 cells following treatment with H-NDI-NMe2 (RQ, 38.2±8.4). It should be taken into account that the extent to which MYC expression levels were increased in H69 cells upon NDI treatment may simply reflect the fact that its mRNA basal expression levels were almost undetectable in untreated cells. By real-time RT-PCR, MYC was detectable at a threshold cycle (Ct) of ~35. This evidence indeed accounted for the magnification of the differences in the gene expression levels observed in treated (Ct=29) vs. untreated samples following the use of the 2−ΔΔCt method. To note, however, the G-4-mediated increase in MYC expression levels has already been reported. Polyamines (i.e., spermidine and spermine) may stabilize and favor quadruplex formation over duplex within the nuclease hypersensitive element (NHE)III upstream of P1 promoter of MYC (27). The exposure of HeLa cells to increasing concentration of spermidine and spermine resulted in a concentration-dependent increase of MYC transcript levels and abrogated the inhibitory effect of TMPyP4, a non-selective porphyrin-based G-4 ligand, on MYC transcription, suggesting that both polyamines and TMPyP4 stabilize MYC G-4, but cause opposite effects on gene transcription (27). It has been proposed that polyamines induce a structural transition of MYC G-4 toward a transcriptionally active motif (probably the parallel conformer), with likely distinctive molecular recognition properties for transcription factors, which drives MYC expression. Conversely, TMPyP4 does not induce any structural change in MYC G-4 conformation, but it simply masks or competes with the binding of transcription factors, thus resulting in the inhibition of gene transcription (27). Similarly, the perturbation of the equilibrium between quadruplex and duplex structures of MYC induced by a locked nucleic acid trap, which favors duplex over quadruplex structure, resulted in the silencing of MYC expression (28). Moreover, the cellular nucleic-acid-binding protein (CNBP) promotes the formation of a parallel G-4 within the NHEIII region of MYC and favors the activation of gene transcription in vitro (29). A competition between CNBP and TMPyP4 has been documented. This evidence highlights the prevalent role of CNBP in inducing structural transitions that favors parallel G-4 conformers over those stimulated by TMPyP4, even when these measurements were carried out at CNBP:TMPyP4 molar ratio of 1:10 (29). Of note, the basic N-terminal region of CNBP shares biochemical features with polyamines and it is required for the promotion of G-4 folding (29).

H-NDI-NMe2 preferentially binds and greatly stabilizes G-quadruplexes within the promoter of MYC and BCL2

The binding properties of H-NDI-NMe2 were investigated towards a panel of G-4-forming oligonucleotides, corresponding to the promoter regions of MYC, BCL2, KIT (KIT1 and KIT2) and TERT (Table I) and compared to the binding properties against the telomeric sequence (hTel22) (Table I) which have been previously acquired (21).

Initially, a FRET competition experiment was employed to identify the G-4 sequences displaying high affinity for H-NDI-NMe2. The FAM/TAMRA-labelled hTel22 sequence (0.25 μM) (Table I) was incubated with H-NDI-NMe2, in the presence of 50 or 150 mM K+, and exposed to increasing concentrations of competitor G-4 sequences. In both salt conditions the best competing sequence was TERT, followed by MYC and BCL2. The KIT2 sequence resulted to be a poor competitor, whereas both KIT1 and dsDNA were not able to disrupt H-NDI-NMe2 binding to hTel22 (Table II) (Fig. 2A). Since long oligonucleotides (i.e., TERT, MYC, BCL2), likely forming multiple G-4 structures, were the best competitor sequences, a 36-bp-long telomeric sequence (hTel36) (Table I) was additionally tested. However, in this case low competition was obtained (Fig. 2A), indicating that the efficient competition observed with TERT, MYC and BCL2 was sequence specific and not simply dependent on steric features. These data were corroborated by the higher affinity constant (KD) values at 25°C of H-NDI-NMe2 towards TERT (0.42±0.04 μM), MYC (0.39±0.03 μM) and BCL2 (0.33±0.03 μM) with respect to hTel22 (3.12±0.04 μM), obtained by SPR analysis.

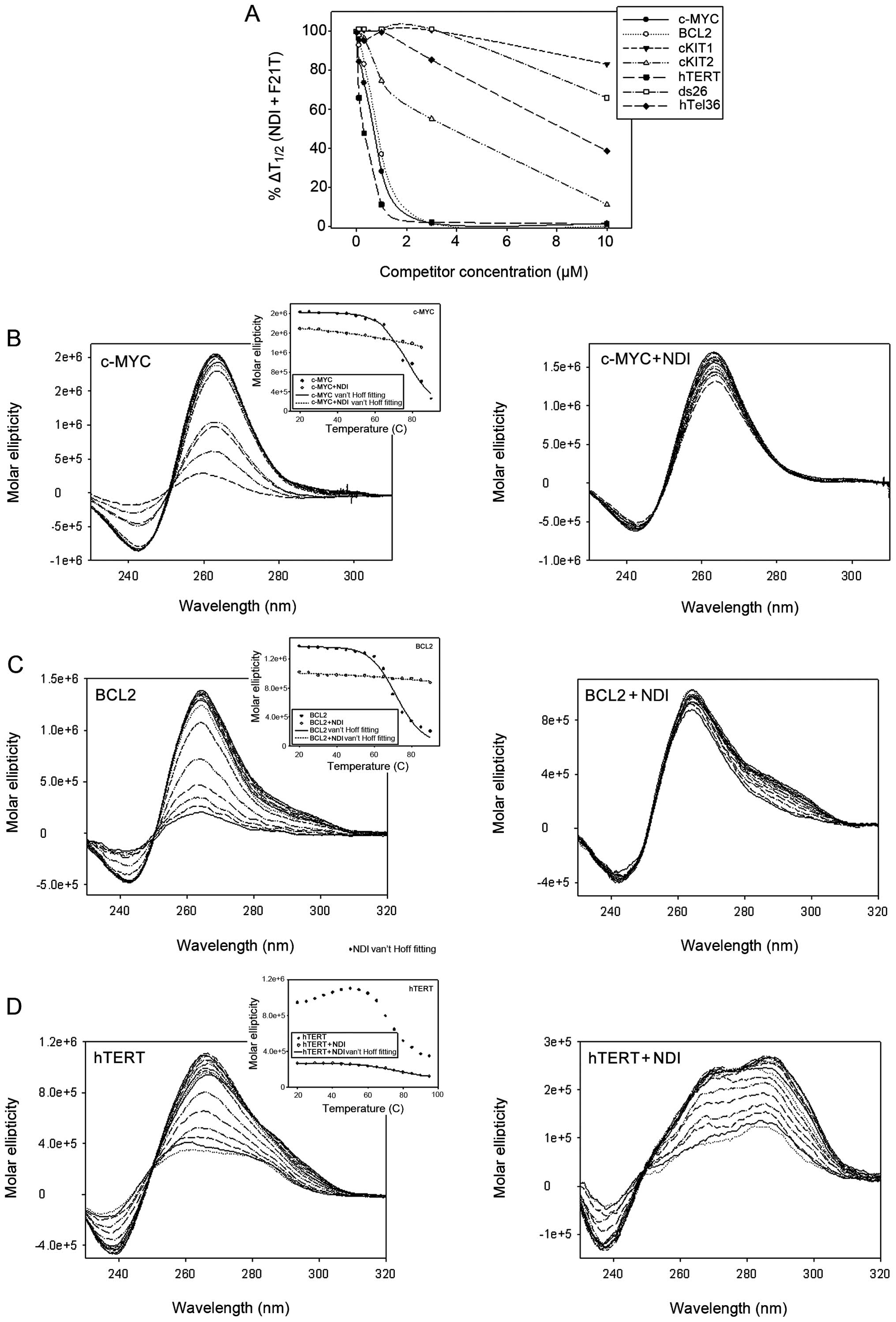

Figure 2 Chemo-physical characterization of naphthalene diimide (NDI)-mediated guanine (G)-4 stabilization within the promoter regions of selected genes. (A) FRET competition assay. The FAM-Tamra dual labelled hTel22 oligonucleotide (0.25 μM) was incubated with H-NDI-NMe2 and with the G-quadruplex competitors, MYC, BCL2, KIT (KIT1, KIT2) and telomerase reverse transcriptase (TERT). Ds26 was used as control for duplex DNA. T1/2 was defined as the temperature at which the normalized emission was 0.5. T1/2 values were mean of 2–3 experiments and T1/2 was calculated as T1/2 difference in the presence and absence of H-NDI-NMe2. (B) MYC, (C) BCL2, (D) TERT oligonucleotide spectra recorded at increasing temperature (25–95°C) in the absence (left panels) and presence (right panel) of H-NDI-NMe2 (16 μM). In the insets, molar ellipticity at the peak wavelength was plotted against temperature and fitted with the van’t Hoff equation, where possible.

Table II Properties of H-NDI-NMe2 binding and stabilization towards G-4 oncogene promoters and the control telomeric sequence hTel22.

Table II

Properties of H-NDI-NMe2 binding and stabilization towards G-4 oncogene promoters and the control telomeric sequence hTel22.

G-4 DNA	FRET CC50 competition (μM)		CD Tm (°C, 260 nm)		CD Tm (°C)
	50 mM K+	150 mM K+	no NDI	NDI (16 μM)
hTel22	-	-	66.1±1.2	84.9±0.3	18.8
MYC	0.21±0.01	0.51±0.03	84.0±0.4	>100	>16
BCL2	0.46±0.02	0.64±0.06	72.0±0.7	>100	>28
KIT1	>10	>10	72.8±1.3	88.0±0.5	15.2
KIT2	2.0±0.8	3.1±0.08	79.0±1.1	97.8±1.7	18.8
TERT	0.08±0.01	0.20±0.03	65.4±0.9	77.6±1.2	12.2
dsDNA	>10	>10	n.d.	n.d.	n.d.

[i] CD, circular dichroism; TERT, telomerase reverse transcriptase; n.d., not detectable.

CD was next employed to analyse both the stability and prevalent conformation of the G-quadruplex forming oligonucleotides in the presence of H-NDI-NMe2. We found that H-NDI-NMe2 maintained a prevalent parallel conformation in MYC, BCL2, KIT1 and KIT2 (Fig. 2B and C, and data not shown), whereas it induced a hybrid-like topology in TERT (Fig. 2D). These data are in keeping with those reported in literature and concerning the biophysical characterization of G-4 conformers of the selected genes in the presence or absence of specific ligands (11,29–31).

The evidence that H-NDI-NMe2 maintained a parallel MYC G-4 conformer deals with the observed increase in the gene expression levels in H69 cells upon NDI exposure, as also suggested by the findings that polyamines and CNBP both stimulate MYC transcriptional activity by favouring the formation of a parallel G-4 structure within the gene promoter (26,28). Conversely, the well-known inhibitory activity of the cationic porphyrin TMPyP4 on MYC expression levels likely resides in the drug-mediated conformational conversion from parallel into either a parallel/anti-parallel mixture or anti-parallel-type MYC G-4 (29).

Downregulation of KIT expression levels by ligand-mediated stabilization of G-4 structures within the gene promoter have been consistently documented (32–35). Conversely, different layers of complexity have been reported regarding the G-4-forming sequences within the BCL2 promoter (36,37). In fact, it has been demonstrated that BCL2 may form diverse G-4 structures with a parallel- or mixed-type conformation, the biological significance of which still need to be disclosed (31). However, the existence of G-4-forming sequences within the BCL2 promoter points towards their possible role in modulating gene expression. Depending on which G-4 conformer is predominant in vivo variable biological consequences may be expected upon stabilization by diverse ligands (37).

In addition, both MYC and BCL2 were highly stabilized by H-NDI-NMe2 binding (Tm>100°C), whereas treatment of TERT, KIT1 and KIT2 G-4-folded oligonucleotides with H-NDI-NMe2-treated resulted in Tm<98°C; these latter values are comparable to the stabilization observed with hTel22 at 260 nm (Table II) (21). It is noteworthy that in the case of MYC and BCL2 the molar ellipticity signal was slightly decreased upon addition of the H-NDI-NMe2 (Fig. 2B and C), whereas a remarkable decrease along with a variation in the spectral features was observed for TERT (Fig. 2D), indicating a significant destabilization of the initial G-4 topology.

Since the best bound and stabilized G-4s are long sequences within MYC and BCL2 composed of 5–6 GGG repeats that may form multiple tetraplexes, H-NDI-NMe2 binding stoichiometry towards these sequences was investigated by CD-monitored Job plot analysis. Results showed that a 1:1 complex was stabilized in both MYC and BCL2 sequences in the presence of high DNA/(DNA + NDI) ratios, whereas up to four NDI molecules bound to the G-4 structure, forming a stable complex at low DNA/(DNA + NDI) ratios (Fig. 3). These data are in line with the binding stoichiometry observed for hTel22 (up to four bound molecules) (21), indicating that the higher affinity of H-NDI-NMe2 for MYC and BCL2 with respect to hTel22 did not rely on the number of NDI molecules bound to the G-4.

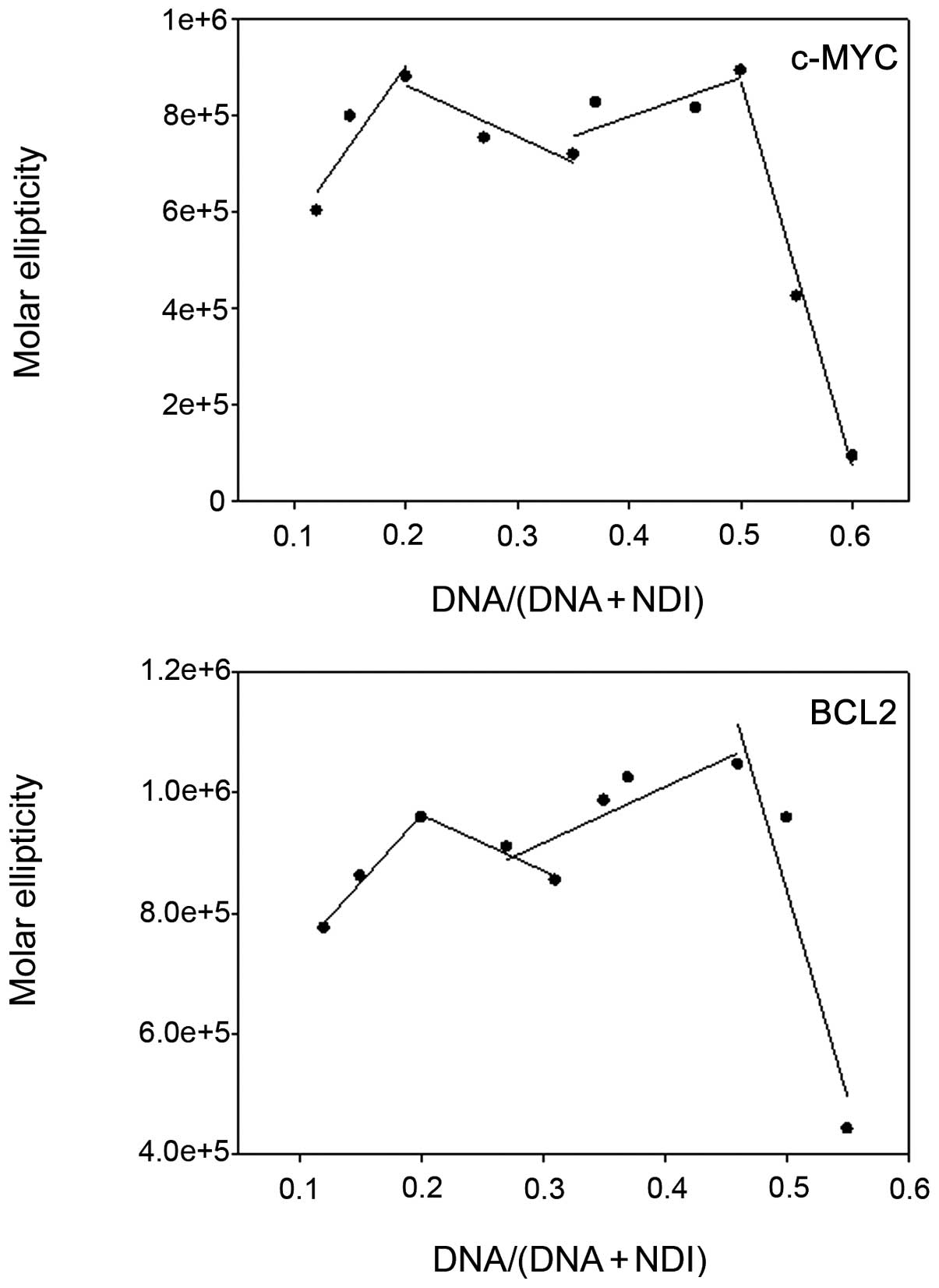

Figure 3 Stoichiometry of oligonucleotide-H-NDI-NMe2 complexes. Job plots performed with a total amount of MYC or BCL2 oligonucleotides of 10 μM, and varying DNA and drug proportions. The two fitting straight lines intersect at DNA fractions of 0.2 and 0.5, which correspond to four and one molecules, respectively, of H-NDI-NMe2 bound to one oligonucleotide molecule.

Further evidence of MYC and BCL2 G-4 stabilization by H-NDI-NMe2 was provided by the Taq polymerase stop assay. Because primers were designed to anneal in part to the G-rich sequence involved in G-4 formation, inhibition of the full-length primer-extended product was expected upon G-4 folding. As shown in Fig. 4, the strong inherent MYC and BCL2 G-4 stability in the presence of K+ partly impaired enzyme processing, even in the absence of NDI. Indeed, MYC and BCL2 full-length products were remarkably less in the wild-type compared to scrambled templates, used as controls to check for the possible G4-independent inhibition of Taq polymerase mediated by H-NDI-NMe2 (Fig. 4A and B, lane 2). Similarly, in the absence of K+, full-length run-offs were less abundant in wild-type than in scrambled templates (Fig. 4A and B, lane 1), even though this effect was more evident for MYC than BCL2, thus confirming the ability of the MYC sequence to fold into G-4 independently of K+. In addition, a dose-dependent inhibition of the full-length products was observed in the G-4-forming templates when the assay was performed in the presence of increasing concentrations of H-NDI-NMe2 (Fig. 4A and B, lanes 1–9/10). Interestingly, at 50 and 100 nM H-NDI-NMe2 no full-length product formed in MYC and BCL2, respectively (Fig. 4A–C), indicating an extremely efficient stabilization of the MYC and BCL2 G-4 topologies upon H-NDI-NMe2 binding.

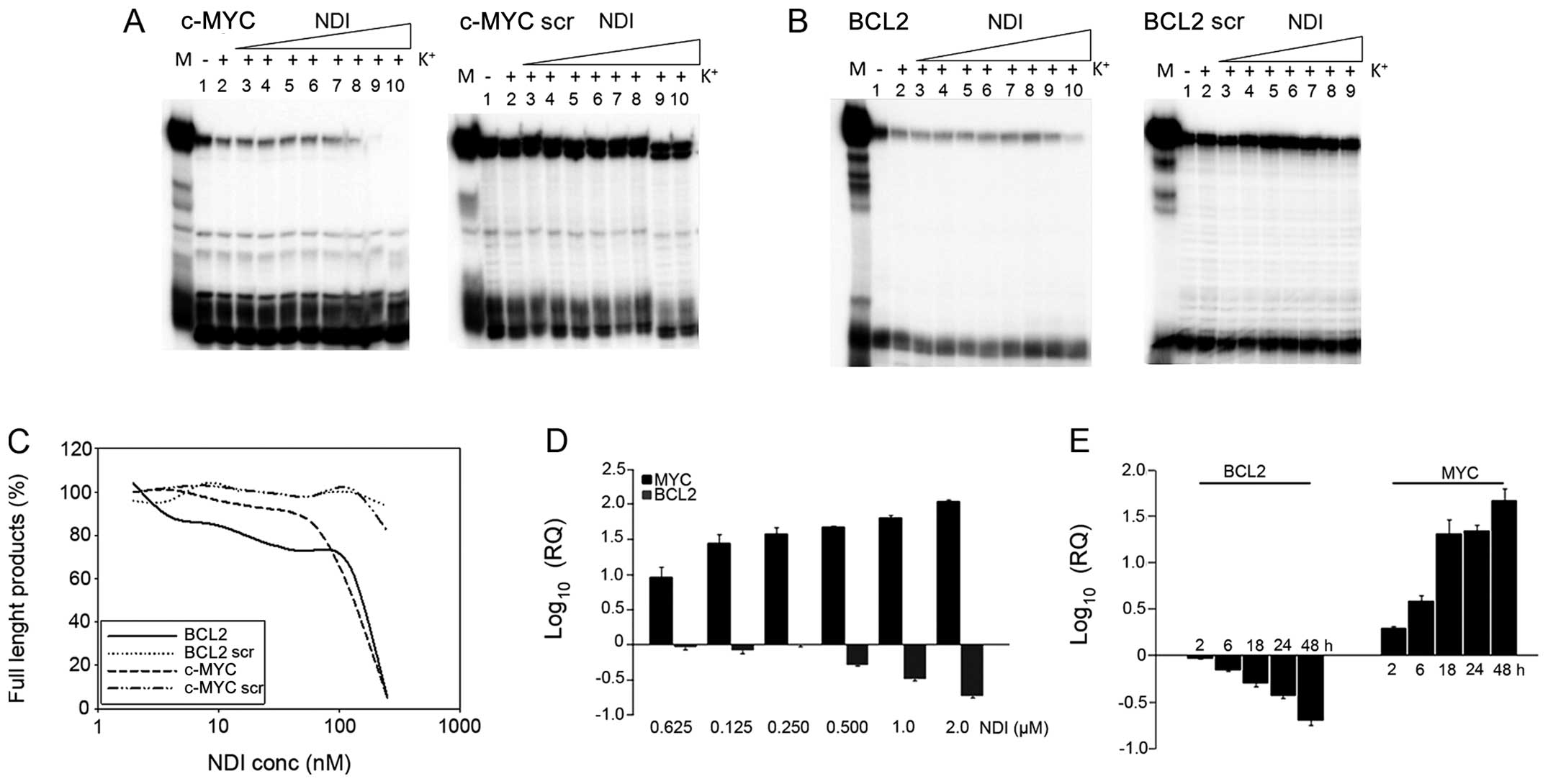

Figure 4 H-NDI-NMe2-treatment effects on MYC and BCL2 DNA and mRNA levels. Taq polymerase stop assay on (A) MYC and (B) BCL2 templates in the presence of increasing concentrations of H-NDI-NMe2 (lanes 3–10 or 3–9). Control lanes are the oligonucleotide templates folded in the presence (lane 2) or absence (lane 1) of K+ 100 mM and treated with Taq polymerase in the absence of the naphthalene diimide (NDI). M is a marker lane that indicates position of the full-length amplified product. Scrambled oligonucleotides are control template oligonucleotides that do not form guanine (G)-4 (right panels). They were designed to contain the same base composition as the corresponding oligonucleotides, but in a different order so that G-4 could not form. (C) Quantification of full-length product bands of the gels shown in panels (A) and (B). (D) Quantification of MYC and BCL2 expression levels by real-time RT-PCR in H69 cells exposed to increasing concentration of H-NDI-NMe2. (E) Time-dependent assessment of MYC and BCL2 expression levels in H69 cells exposed to 0.4 μM H-NDI-NMe2. In panels (D) and (E) data are reported as Log10-transformed relative quantity (RQ) with respect to untreated cells and represent mean values ± SD from at least three independent experiments.

This evidence was also mirrored by the concentration-dependent and the kinetics of the modulation of MYC and BCL2 mRNA expression levels (Fig. 4D and E). A dose-dependent modulation in the expression levels of both genes was observed in H69 cells exposed to increasing concentrations (up to 2 μM) of H-NDI-NMe2 (Fig. 4D). In addition, the increase and the decrease in MYC and BCL2 expression levels, respectively, was already appreciable in cells after a 2-h exposure to 0.4 μM H-NDI-NMe2 and they ranged in a time-dependent manner up to a 48-h exposure to the drug (Fig. 4E).

Effects of the NDI on the protein amounts of selected genes

To verify whether the NDI-mediated G-4 stabilization and the consequent modulation of mRNA expression levels resulted in perturbation in protein amounts of selected genes, further investigations were performed in H69 cell line, which showed the greatest modulation in the expression of selected genes upon exposure to H-NDI-NMe2 (Fig. 1C). Specifically, no changes in MYC and BCL2 protein amounts were evidenced by western immunoblotting in H69 cells after a 48-h exposure to 0.4 μM H-NDI-NMe2, whereas a pronounced decrease in KIT protein levels was observed (Fig. 5A). In addition, consistent with our previous data obtained in SKMel-5 cells (21) we observed in NDI-treated compared to untreated H69 cells a marked inhibition of telomerase activity (Fig. 5B), likely due to drug-induced reduction in TERT expression levels. We cannot exclude that the lack of correlation between the capability of H-NDI-NMe2 to stabilize G-4 structures within the promoter of the selected genes, as assessed by chemo-physical assays, and the modulation of the relative protein amounts may depend on compensatory responses activated by cells to cope with the drug action.

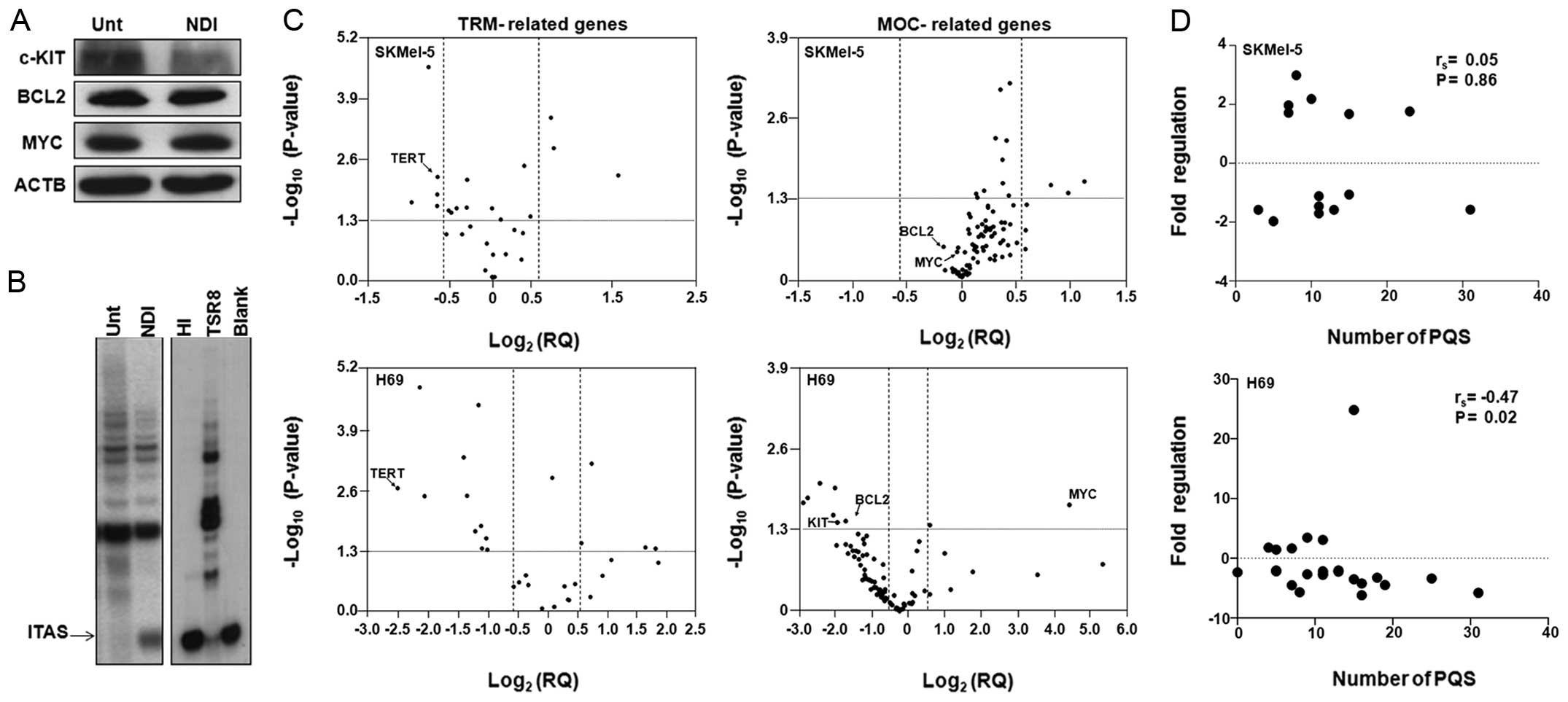

Figure 5 (A) Representative immunoblotting showing the expression levels of MYC, BCL2 and KIT proteins in H69 cells after a 48-h exposure to 0.4 μM H-NDI-NMe2. ACTB, β-actin. (B) Representative telomeric repeat amplification protocol (TRAP) assay showing the inhibition of telomerase activity in naphthalene diimide (NDI)-treated H69 cells. Unt, untreated cells; NDI, cells exposed for 48 h to 0.4 μM H-NDI-NMe2; HI, heat-inactivated sample; TSR8, quantitation standard; Blank, no protein extract. The arrow indicates the 36-bp internal TRAP assay standard (ITAS). (C) Volcano plots showing telomere replication and maintenance (TRM) and molecular mechanisms of cancer (MOC) gene expression patterns in NDI-treated SKMel-5 and H69 cells compared to untreated cells. Gene expression data have been plotted as Log2 [relative quantity (RQ)] vs. -Log10 (P-value) obtained from at least three independent experiments. The level of statistical significance (round-dotted line, P<0.05) and the cut-off (dashed line, 1.5-fold up- or downregulation) used to identify gene differentially expressed in treated- vs. untreated cells have been indicated. (D) Analysis of the correlation between the modulation of gene expression levels and the number of putative quadruplex forming sequences (PQS) within gene promoters in SKMel-5 and H69 cells treated with NDI. rs, Spearman’s correlation coefficient.

The NDI induces a global perturbation in gene expression

To test such a hypothesis, we investigated the gene expression profiles in both tumor cell lines following exposure to H-NDI-NMe2. Specifically, we focused on commercially available TaqMan® Array containing 28 genes related to the TRM and 92 genes associated to the molecular mechanisms of cancer (MOC). Results showed that nine out of 28 (32.1%) TRM-related genes were significantly modulated in SKMel-5 cells (Fig. 5C): three genes, known as components of the shelterin complex (TERF1, TERF2 and TER2IP) were upregulated (Table III) and six genes were downregulated. Among the down-modulated genes we found TERT, thus confirming the data obtained using single assays, as well as GUSB, HMBS, MRE11A, HNRNPA1 and HNRNPA2B1 (Table III). However, a more marked perturbation in gene expression was observed in NDI-treated H69 cells than in SKMel-5 cells, further corroborating our previous observation (Fig. 1). Specifically, we identified 15 out of 28 (53.6%) differentially expressed genes in the panel of TRM-related genes in NDI-treated H69 cells compared to untreated cells. In particular, four (i.e., B2M, POT1, TERF1 and TFRC) and 11 (TERT, NBN, RAD50, HMBS, HNRNPF, HNRNPAB, HNRNPA1, HNRNPD, ACTB, GUSB and RPLPO) genes were found significantly up- and downregulated, respectively, in treated cells. Of note, housekeeping genes present in the array (i.e., ACTB, GUSB and RPLPO) were found modulated after NDI-treatment in both cell lines. This is not surprising since all three housekeeping genes are predicted to contain one or more putative quadruplex forming sequences (PQS) within their promoter region, as evidenced by two different in silico PQS prediction tools (Table III).

Table III The TRM- and MOC-related genes differentially expressed in NDI-treated vs. -untreated tumor cells.

Table III

The TRM- and MOC-related genes differentially expressed in NDI-treated vs. -untreated tumor cells.

		Fold regulationa		No. of PQSb
Detector	Gene name	SKMel-5	H69	EuQuad	GQRS
TRM
TERT	Telomerase reverse transcriptase	−1.6	−5.8	6	25
NBN	Nibrin	-	−4.2	0	16
HNRNPD	Heterogeneous nuclear ribonucleoprotein D	-	−2.0	0	13
ACTB	Actin, β	-	−4.5	7	12
TERF2	Telomeric repeat binding factor 2	1.7	-	3	12
GUSB	Glucuronidase, β	−1.6	−2.3	2	11
RPLP0	Ribosomal protein, large, P0	-	−2.2	0	11
B2M	β-2-microglobulin	-	3.1	1	10
HNRNPF	Heterogeneous nuclear ribonucleoprotein F	-	−2.7	0	9
HMBS	Hydroxymethylbilane synthase	−1.5	−2.6	3	8
MRE11A	MRE11 meiotic recombination 11 homolog A	−1.7	-	3	8
PGK1	Phosphoglycerate kinase 1	-	-	2	8
TERF2IP	Telomeric repeat binding factor 2, interacting protein	3.0	-	0	8
TERF1	Telomeric repeat binding factor (NIMA-interacting) 1	1.7	1.6	0	7
TFRC	Transferrin receptor (p90, CD71)	-	3.5	2	7
HNRNPA1	Heterogeneous nuclear ribonucleoprotein A1	−2.0	−2.1	0	5
POT1	POT1 protection of telomeres 1 homolog	-	1.5	0	5
RAD50	RAD50 homolog	-	−2.2	0	5
HNRNPA2B1	Heterogeneous nuclear ribonucleoprotein A2/B1	−1.6	-	0	3
HNRNPAB	Heterogeneous nuclear ribonucleoprotein A/B	-	−2.3	0	-
MOC
HRAS	v-Ha-ras Harvey rat sarcoma viral oncogene homolog	-	-	20	39
CCNE1	Cyclin E1	-	−6.2	0	16
KIT	v-kit Hardy-Zuckerman 4 feline sarcoma viral oncogene homolog	n.d.	−3.2	3	15
BAX	BCL2-associated X protein	-	−3.5	0	15
AKT1	v-Akt murine thymoma viral oncogene homolog 1	-	−3.4	11	14
BID	BH3-interacting domain death agonist	1.8	-	11	12
BCAR1	Breast cancer antiestrogen resistance 1	-	-	5	12
RAC1	Ras-related C3 botulinum toxin substrate 1	-	-	4	12
BCL2	B-cell CLL/lymphoma 2	−1.1	−2.8	0	11
FGF2	Fibroblast growth factor 2 (basic)	-	-	3	10
MAX	MYC associated factor X	n.d.	-	5	9
TGFBR2	Transforming growth factor, β receptor II	-	-	2	9
MYC	v-MYC myelocytomatosis viral oncogene homolog	−1.1	24.8	7	8
CDK4	Cyclin-dependent kinase 4	-	-	6	8
AKT2	v-Akt murine thymoma viral oncogene homolog 2	-	-	0	8
PIK3R1	Phosphoinositide-3-kinase, regulatory subunit 1	-	-	0	8
FADD	Fas (TNFRSF6)-associated via death domain	-	-	5	7
BCL2L1	BCL2-like 1	2.0	-	0	7
CDKN1A	Cyclin-dependent kinase inhibitor 1A (p21, Cip1)	2.2	-	4	6
CYCS	Cytochrome c, somatic	-	−4.5	1	6
FOS	v-Fos FBJ murine osteosarcoma viral oncogene homolog	-	-	4	5
FAS	Fas (TNF receptor superfamily, member 6)	-	-	0	5
TP53	Tumor protein p53	-	1.8	0	4
CDC42	Cell division cycle 42 (GTP binding protein, 25 kDa)	-	−5.7	5	3

a Differentially expressed genes in treated vs. untreated cells were sorted based on P<0.05 (Student’s t-test) and considered up- or downregulated by set a fold-change of 1.5 as cut-off.

b The number of putative quadruplex forming sequences (PQS) within the promoter of telomere replication and maintenance (TRM)- and molecular mechanisms of cancer (MOC)-related genes has been verified by web-based tools for predicting G-4 in nucleotide sequences: EuQuad (45) and GQRS (46).

{ label (or @symbol) needed for fn[@id='tfn5-ijo-46-01-0369'] } NDI, naphthalene diimide; n.d., not detectable.

The analysis of the expression levels of genes related to the MOC revealed only three out 92 genes (5.4%) significantly up-modulated in NDI-treated compared to untreated SKMel-5 cells (Fig. 5C), which included BID, BCL2L1 and CDKN1A. Interestingly, the observed up-modulation of CDKN1A, which encodes for the cyclin-dependent kinase inhibitor p21WAF1, is in keeping with our previous data showing a marked accumulation of p21WAF1 protein in SKMel-5 cells exposed to NDI (21) or to the G-4 ligand Ant1,5 (38). Conversely, only a modest downregulation of MYC and BCL2 was observed in NDI-treated SKMel-5 cells (Table III), thus corroborating the data obtained by single gene expression assays (Fig. 1).

Similarly to TRM-related genes, the exposure of H69 cells to H-NDI-NMe2 resulted in a greater number of differentially expressed genes compared to SKMel-5 cells undergoing the same treatment (Fig. 5C). Specifically, nine out of 92 genes (9.8%) were modulated in H69-treated cells, of which two (MYC and TP53) were found up-modulated and seven (CCNE1, KIT, BAX, AKT1, BCL2, CYCS, CDC42) were markedly down-regulated (Table III).

Altogether, these data show that the possible G-4-mediated regulation of gene expression is largely dependent on the cell context. Data obtained from both single assays (Fig. 1C) and array analyses (Fig. 5C) showed a lower number of genes the expression levels of which are markedly modulated upon H-NDI-NMe2 exposure in SKMel-5 compared to H69 cells. In addition, a trend toward a correlation between the number of PQS within gene promoters and the modulation of gene expression may be observed in NDI-treated H69 cells only (Fig. 5D). Moreover, the genes that have modulated expression levels in H69 cells upon treatment with the G-4 ligand indicate a drug-mediated perturbation in telomere architecture/function as well as a global defense response activated by cells likely in their attempt to cope with drug-induced stress.

Compelling arguments have been provided on the prominent role of G-4 structures in the modulation of gene expression (39). The first and clearest evidence of G-4 structure involved in the regulation of gene transcription came from studies on MYC. Indeed, the possibility to inhibit MYC transcription through G-4 stabilization has been actively pursued thus far in several human cancer models using specific small molecules (40).

Although G-4 structures have been primarily recognized as transcriptional repressor elements, it is now becoming clear that their formation along the genome may facilitate the maintenance of an open chromatin state, thus allowing gene transcriptional activity (29). Gene promoter regions harboring PQS have indeed the potential to bind a diverse array of factors that may favor or constrain gene transcription. As a consequence, the possibility of generating secondary structures, such as G-4, may influence the interaction between transcription factors and DNA, or vice versa, thus resulting in either activation or repression of gene expression. This evidence suggests that the functional consequences of G-4-interacting agents may depend on the specific mode of their interaction with the G-4 structure, providing fundamental insights into the potential complexity of ligand/G-4 interactions and how they might influence gene expression (30).

Recognition of the biological significance of G-4 structures has put a new wave of interest in the search and development of G-4 interactive compounds. Targeting such secondary nucleic acid structures currently represents a novel, even though challenging, approach to anticancer drug design (12). Nonetheless, there are still several hurdles that need to be overcome before these peculiar compounds will be part of the currently available armamentarium of anti-cancer agents.

The high prevalence of G-4s in the human genome may raise concerns about the specificity of G-4-stabilising agents, even if the great structural variability of G-4 structures stands for their potential selective recognition. Nevertheless, it cannot be excluded that differences in promoter epigenetic modifications, cell proliferation-dependent transcriptional activity, and the presence of single nucleotide polymorphysms as well as protein crowding at the promoter level could account for a possible lower susceptibility to G-4-interacting agents of normal compared to cancer cells.

A point that needs to be urgently addressed deals with the in vivo existence of G-4 structures, which has been a matter of debate for decades. The possible presence of G-4 structures in vivo has been indirectly pointed out by the identification of a variety of proteins able to stabilize or promote the formation of as well as to destabilize or unwind the tetraplex DNA (41). Moreover, the very recent development of G-4 structure-directed antibodies that allow to quantitatively visualizing G-4 structures in human cells has undoubtedly represented a step of paramount importance in the G-4 research field (42,43). Although a large amount of data has been provided concerning the G-4-mediated regulation of gene expression (44), direct evidence for the biological relevance of G-4s in the cell context is still lacking. In this context, deep knowledge of the molecular mechanisms that facilitate the formation of G-4 structures (e.g., protein-nucleic acid interactions) will be instrumental in understanding the role of G-4s in living cells and for the identification of genes that effectively undergo a G-4 motif-dependent transcriptional control and not merely bear PQS. Filling the present gaps between the chemo-physical and the biological assays will help opening new avenues in the continuous fight against human diseases.

Acknowledgements

This study was supported by MIUR, Grant FIRB-Ideas RBID082ATK and by the University of Padova.
