Introduction

Endometriosis refers to the appearance of endometrial tissue with growth function, including glands and mesenchyme, in the endometrium-coated inner membrane and other regions outside the muscle layers of the uterus body (1). As one of the common diseases in gynecology and obstetrics, endometriosis is usually found in women of childbearing age and seriously affects the quality of life of patients (2). This disease is predominantly found in women aged 25–45 years old with an incidence of 10–15% in China, and incidence is significantly increasing with a trend towards younger individuals (3). Although endometriosis is benign in histopathology, it features hyperplasia, infiltration, metastasis, recurrence and other malignant activity, with a malignant transformation rate of 0.7–1.0% (4). It has various clinical manifestations and the primary symptoms include dysmenorrhea, chronic pelvic pain, sexual intercourse pain, infertility and menstrual changes (5). At present, endometriosis is treated medicinally and/or through surgery, however, there is no ideal radical treatment, with the exception of radical surgery, for pharmaceutical therapy or conservative surgery, for which the recurrence rate remains high (6).

Endometriosis is one of the most common diseases in women of childbearing age; however, its pathogenesis remains to be fully elucidated (7). In previous years, it has been shown that chemotaxis is important in the development of epithelial-mesenchymal transition (EMT) (7). The overexpression of regulated on activation, normal T cell expressed and secreted (RANTES) in peritoneal fluid and ectopic foci is found in patients with endometriosis (8). RANTES, as an activating and regulatory factor, is formed on the expression and secretion of normal T cells, has specific chemotactic properties on memory T cells, monocytes and other immune cells, and is involved in the development of EMT though regulation of the immune response and interactions with other cellular factors, including ovarian hormones (8,9).

Widely distributed all over China, whiteflower lagopsis is a herb of Lagopsis, lamiales, also known as small motherwort, floralwhite motherwort, foralwhite horebound and lantern tree (10). It tastes bitter and is neural in nature with marginal toxicity. With functions, including the promotion of blood circulation, removal of blood stasis and regulation of menstruation, it is a form of gynecological medicine predominantly used to treat irregular menstruation, hemiplegia, amenorrhea due to stagnation of blood, anemia dizziness and other diseases (11). In previous years, investigations on its chemical constituents have shown that the herb of whiteflower lagopsis predominantly contains labdane-type diterpene, flavonoids, phenethyl alcohol and other compounds (11). A previous study indicated that marrubiin has several pharmacological activities, including improving disturbances in blood and lymph microcirculation, myocardial protection, anti-inflammation and anti-oxidation (12). The aim of the present study was to evaluate the protective effects of marrubiin on endometriosis, via suppression of inflammation and downregulation of the expression of RANTES.

Materials and methods

Animal endometriosis model

All experiments in the present study were approved by the experimental animal committee of Nanhua Hospital Affiliated to Nanhua University (Hengyang, China). Severe combined immunodeficiency (SCID) female mice (20±2 g, 6–7 weeks) were purchased from the Animal Laboratory of Nanhua University and housed under a 12 h light-dark cycle at 22–24°C, with food and water available ad libitum in pathogen-free conditions. Endometriotic tissue was collected from the endometrium of the mice under anesthesia and placed into sterile PBS, cut into coarse fragments and suspended. The endometriotic cells (105 cell/ml) were intraperitoneally implanted into peritoneal cavity of mice, and these mice were injected with estradiol benzoate (30 µg/kg) once a day for 14 days.

Groups and treatments

All SCID mice were randomly divided into the following groups (n=12 per group): Sham group, endometriosis model group, endometriosis model+12 mg/kg marrubiin treatment, endometriosis model+25 mg/kg marrubiin treatment, endometriosis model+50 mg/kg marrubiin treatment. After treatment with marrubiin, mice were sacrificed using decollation under 30 mg/kg pentobarbital anesthesia.

Extraction

Marrubiin was extracted from Marrubium vulgare and Leonotis leonurus using a procedure described previously with modifications (13). Acetone was added to the plant material (10 ml/g) for organic extraction, and extraction was performed for 1 h at 37°C. Subsequently, the mixture was filtered through Whatman No. 1 filter paper. A rotary evaporator was used to remove solvent, and distilled water was used to concentrate the extract at 60°C.

Cell treatment

U937 cells were acquired from American Type Culture Collection (Manassas, VA, USA) and cultured with RPMI-1640 (Gibco; Thermo Fisher Scientific, Inc., Waltham, MA USA) and 10% FBS (Gibco; Thermo Fisher Scientific, Inc.) supplemented 100 U/ml penicillin and 100 µg/ml streptomycin at 37°C in a 5% CO2 humidified atmosphere.

Hematoxylin and eosin (H&E) staining

The implanted endometrium was fixed in 4% paraformaldehyde for 1–2 days and embedded into paraffin. Histological material was cut into 4 µm sections and stained with H&E, which were visualized using an upright microscope (E600FN; Nikon, Tokyo Japan).

Monocyte chemotaxis

Blood was obtained via cardiac puncture and resuspended in 2 ml mouse monocyte isolation buffer. The layer containing enriched monocytes was carefully removed following centrifugation at 1,500 × g for 10 min at 4°C and washed with Hank's solution. Monocyte purity was determined using flow cytometric experiments as >95%.

Western blot analysis

The implanted endometrium was collected and homogenized in lysis buffer with 1% protease inhibitor cocktail and centrifuged for 15 min at 12,000 × g at 4°C. The protein concentrations were determined using a BCA protein assay kit, and 50 mg total proteins were separated using 10–12% SDS-PAGE and transferred onto nitrocellulose membranes. Following soaking in 5% skim milk powder in TBS-Tween (0.1%), the membrane was incubated with the following primary antibodies: Anti-RANTES (sc-20731; 1:3,00; Santa Cruz Biotechnology, Inc., Dallas, TX, USA), anti-TNF-α (sc-8301; 1:5,00; Santa Cruz Biotechnology, Inc.), anti-prostaglandin E2 (PGE2; sc-514224; 1:2,00; Santa Cruz Biotechnology, Inc.) and β-actin (sc-7210; 1:4,00; Santa Cruz Biotechnology, Inc.) overnight at 4°C. The membrane was developed using the anti-rabbit or anti-mouse HRP-linked secondary antibody (sc-2004 or sc-2005; 1:5,000, Santa Cruz Biotechnology, Inc.) at 37°C for 1 h and a chemiluminescent detection system.

ELISA

Expression levels of RANTES (E-EL-H0023c and E-EL-M0009c; Elabscience Biotechnology Co., Ltd., Bethesda, MD, USA), interleukin (IL)-6 and IL-1β (EM004-96 and EM001-96, both from ExCell Bio Co., Ltd., Taicang, China) were determined by ELISA, according to the manufacturer's protocol. Expression levels were measured using a Tecan microplate reader (Safire2; Tecan, Männedorf, Switzerland).

Calcium mobilization assay

Blood was resuspended in Tyrode's buffer containing no calcium at a density of 3×108 platelets/ml, into which Fura2-AM was added (4 M final concentration) and the mixture was incubated at 37°C for 30 min. Calcium mobilization was measured using a Tecan microplate reader (Safire2; Tecan).

Thromboxane B2 (TXB2) assay

TXB2 was assayed using a commercial enzyme immunoassay kit according to the manufacturer's protocol (E-EL-M1144c, Elabscience Biotechnology Co., Ltd.) and measured using a Tecan microplate reader (Safire2; Tecan).

Statistical analysis

All data are expressed as the mean ± standard error of the mean, unless otherwise indicated. The results were evaluated using the Mann-Whitney test. P<0.05 was considered to indicate a statistically significant difference using SPSS 17.0 (SPSS, Inc., Chicago, IL, USA).

Results

Protective effect of marrubiin inhibits endometrial lesions

The endometrial lesions in each group were verified using H&E staining, the results of which are shown in Fig. 1. The endometrial lesions in the endometriosis model were more marked, compared with those in the control group. Treatment with 25 or 50 mg/kg marrubiin significantly reduced endometrial lesions in the mice with endometriosis (Fig. 1).

Figure 1. Protective effect of Mar inhibits endometrial lesions. Images of hematoxylin and eosin-stained endometrial tissues (magnification, ×10). Mar 12 mg/kg, endometriosis + 12 mg/kg Mar; Mar 25 mg/kg, endometriosis + 25 mg/kg Mar; Mar 50 mg/kg, endometriosis + 50 mg/kg Mar. Sham, sham group; End model, endometriosis model; Mar, marrubiin.

Protective effect of marrubiin inhibits monocyte chemotaxis

As shown in Fig. 2, there was a marked increase in monocyte chemotaxis in the endometriosis model, compared with the sham group. Treatment with 25 or 50 mg/kg marrubiin significantly inhibited monocyte chemotaxis in the mice with endometriosis (Fig. 2).

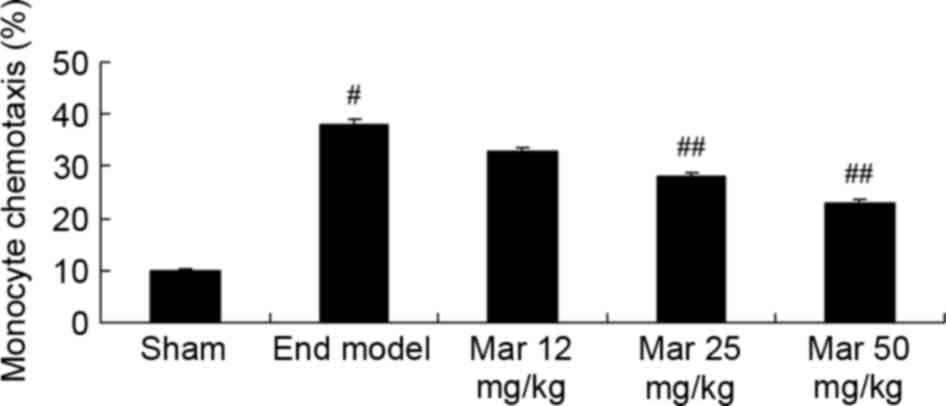

Figure 2. Protective effect of Mar inhibits monocyte chemotaxis. Mar 12 mg/kg, endometriosis + 12 mg/kg Mar; Mar 25 mg/kg, endometriosis + 25 mg/kg Mar; Mar 50 mg/kg, endometriosis + 50 mg/kg Mar. #P<0.01, vs. sham; ##P<0.01, vs. End model. Sham, sham group; End model, endometriosis model; Mar, marrubiin.

Protective effect of marrubiin inhibits U937 migration

Compared with U937 migration in the control group, marrubiin inhibited U937 migration in a dose-dependent manner. In particular, treatment with 10 or 20 µM significantly inhibited U937 migration (Fig. 3).

Figure 3. Protective effect of Mar inhibits U937 cell migration. ##P<0.01, vs. control (0 µM Mar). Mar, marrubiin.

Protective effects of marrubiin inhibit the expression of RANTES

To examine the protective effects of marrubiin on the mRNA expression of RANTES, RT-qPCR analysis was used to determine the mRNA expression of RANTES in the SCID mice or U937 cells. As shown in Fig. 4A, the expression of RANTES in the endometriosis model group was higher, compared with that in the sham group. Marrubiin significantly inhibited the expression of RANTES in the SCID mice and U937 cells (Fig. 4A and B).

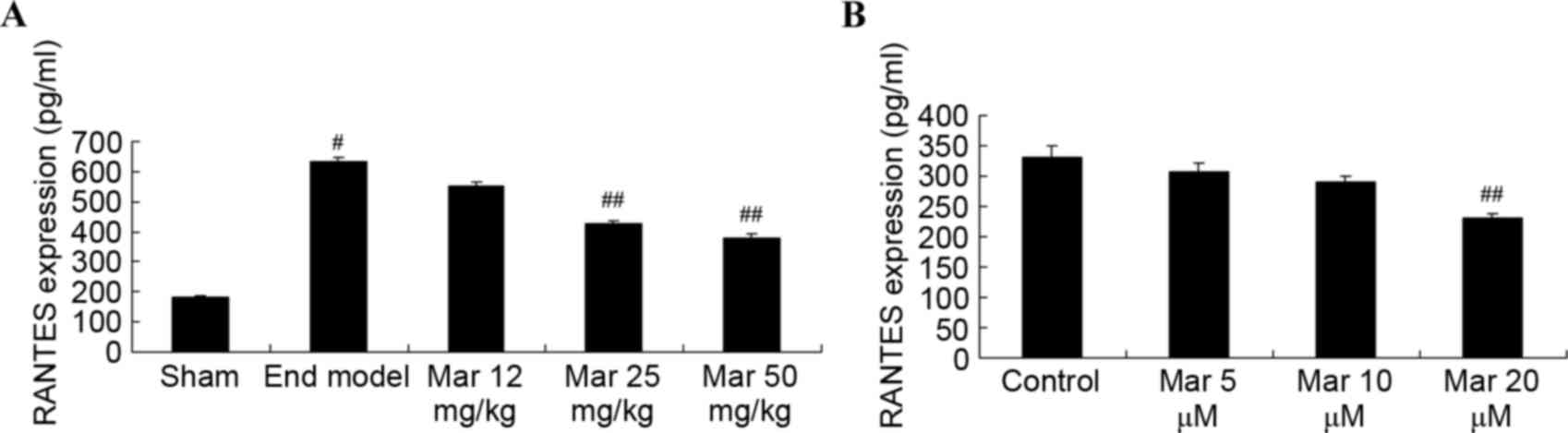

Figure 4. Protective effect of Mar inhibits the expression of RANTES levels. The effects of Mar on the expression of RANTES levels were examined in (A) severe combined immunodeficiency mice. Mar 12 mg/kg, endometriosis + 12 mg/kg Mar; Mar 25 mg/kg, endometriosis + 25 mg/kg Mar; Mar 50 mg/kg, endometriosis + 50 mg/kg Mar. #P<0.01, vs. sham; ##P<0.01, vs. End model. Effects of Mar on the mRNA expression of RANTES were examined in (B) U937 cells. ##P<0.01, vs. control (0 µM Mar). RANTES, regulated on activation, normal T cell expressed and secreted; Sham, sham group; End model, endometriosis model; Mar, marrubiin.

Protective effects of marrubiin inhibit the protein expression of RANTES

To examine the protective effects of marrubiin on the protein expression of RANTES, western blot analysis was used to detect the protein expression of RANTES in the SCID mice and U937 cells. Compared with the protein expression levels of RANTES in the sham and control groups, the protein expression of RANTES in the endometriosis model group was higher (Fig. 5A). Treatment with marrubiin significantly inhibited the protein expression of RANTES in the mice with endometriosis and U937 cells (Fig. 5A and B).

Figure 5. Protective effect of Mar inhibits the protein expression of RANTES. The effects of Mar on the protein expression levels of RANTES were examined in (A and B) severe combined immunodeficiency mice. Mar 12 mg/kg, endometriosis + 12 mg/kg Mar; Mar 25 mg/kg, endometriosis + 25 mg/kg Mar; Mar 50 mg/kg, endometriosis + 50 mg/kg Mar. #P<0.01, vs. sham; ##P<0.01, vs. End model. Effects of Mar on the protein expression levels of RANTES were examined in (C and D) U937 cells. ##P<0.01, vs. control (0 µM Mar). RANTES, regulated on activation, normal T cell expressed and secreted; Sham, sham group; End model, endometriosis model; Mar, marrubiin.

Protective effect of marrubiin inhibits the protein expression of TNF-α

To probe the protective effects of marrubiin on the protein expression of TNF-α, western blot analysis was used to detect the protein expression of TNF-α. The results from the western blot analysis showed that the protein expression of TNF-α in the mouse model of endometriosis was higher, compared with that in the sham group (Fig. 6). Treatment with 25 or 50 mg/kg marrubiin significantly inhibited the protein expression of TNF-α in the mice with endometriosis (Fig. 6).

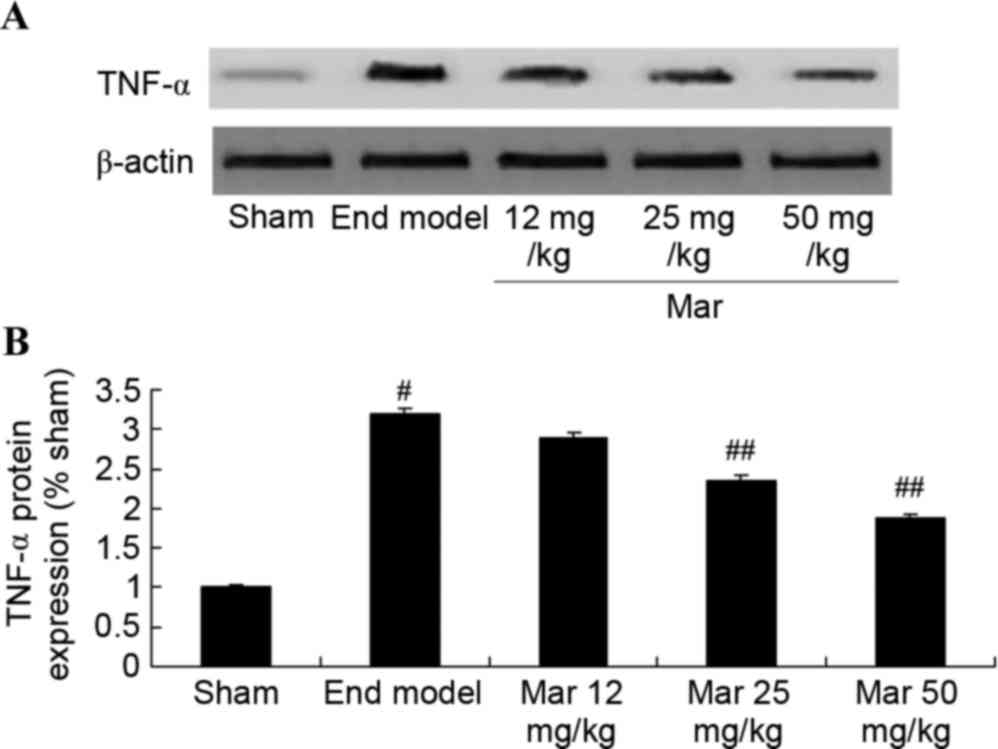

Figure 6. Protective effect of Mar inhibits the protein expression of TNF-α. The effects of Mar on the protein expression of TNF-α were examined using (A) western blot analysis. (B) Statistical analysis of the protein expression of TNF-α. Mar 12 mg/kg, endometriosis + 12 mg/kg Mar; Mar 25 mg/kg, endometriosis + 25 mg/kg Mar; Mar 50 mg/kg, endometriosis + 50 mg/kg Mar. #P<0.01, vs. sham; ##P<0.01, vs. End model. Sham, sham group; End model, endometriosis model; Mar, marrubiin; TNF-α, tumor necrosis factor-α.

Protective effect of marrubiin inhibits the expression levels of IL-6 and IL-1β

To examine the protective effects of marrubiin on the expression levels of IL-6 and IL-1β, the activities of IL-6 and IL-1β was measured using ELISA kits. As shown in Fig. 7, the activities of IL-6 and IL-1β were higher, compared with those in the sham group. Treatment with 25 or 50 mg/kg marrubiin significantly inhibited the activities of IL-6 and IL-1β in the mice with endometriosis (Fig. 7).

Figure 7. Protective effect of Mar inhibits the expression of IL-6 and IL-1β. The effects of Mar on the expression levels of (A) IL-6 and (B) IL-1β. Mar 12 mg/kg, endometriosis + 12 mg/kg Mar; Mar 25 mg/kg, endometriosis + 25 mg/kg Mar; Mar 50 mg/kg, endometriosis + 50 mg/kg Mar. #P<0.01, vs. sham; ##P<0.01, vs. End model. Sham, sham group; End model, endometriosis model; Mar, marrubiin; IL, interleukin.

Protective effect of marrubiin induces calcium levels

To examine the protective effects of marrubiin on calcium levels, the levels of calcium were determined in the sham and endometriosis groups of mice. Compared with level of calcium migration in the sham group, the level in the endometriosis mice was lower (Fig. 8). Treatment with 25 or 50 mg/kg marrubiin significantly increased calcium levels in the mice with endometriosis (Fig. 8).

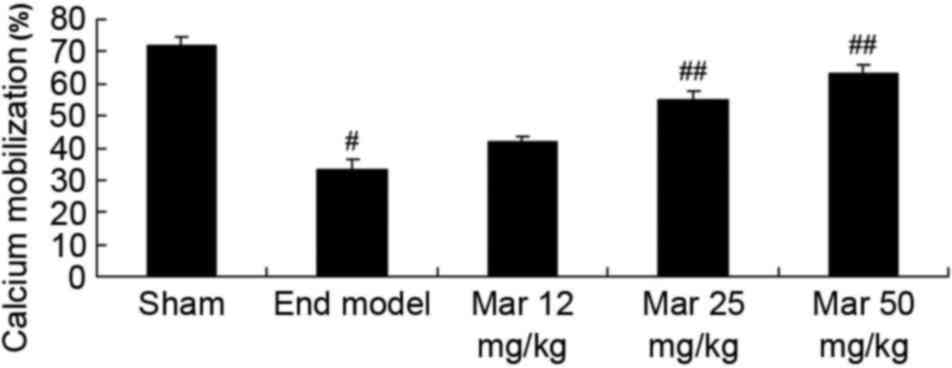

Figure 8. Protective effect of Mar induces calcium levels. Mar 12 mg/kg, endometriosis model + 12 mg/kg Mar; Mar 25 mg/kg, endometriosis + 25 mg/kg Mar; Mar 50 mg/kg, endometriosis + 50 mg/kg Mar. #P<0.01, vs. sham; ##P<0.01, vs. End model. Sham, sham group; End model, endometriosis model; Mar, marrubiin.

Protective effect of marrubiin inhibits the protein expression of PGE2

To investigate the protective effects of marrubiin on the protein expression of PGE2, western blot analysis was used to measure the protein expression of PGE2. The results from the western blot analysis showed that the protein expression of PGE2 in the mouse model of endometriosis was signficantly higher, compared with that in the sham group (Fig. 9). Treatment with 25 or 50 mg/kg marrubiin significantly reduced the protein expression of PGE2 in the mice with endometriosis (Fig. 9).

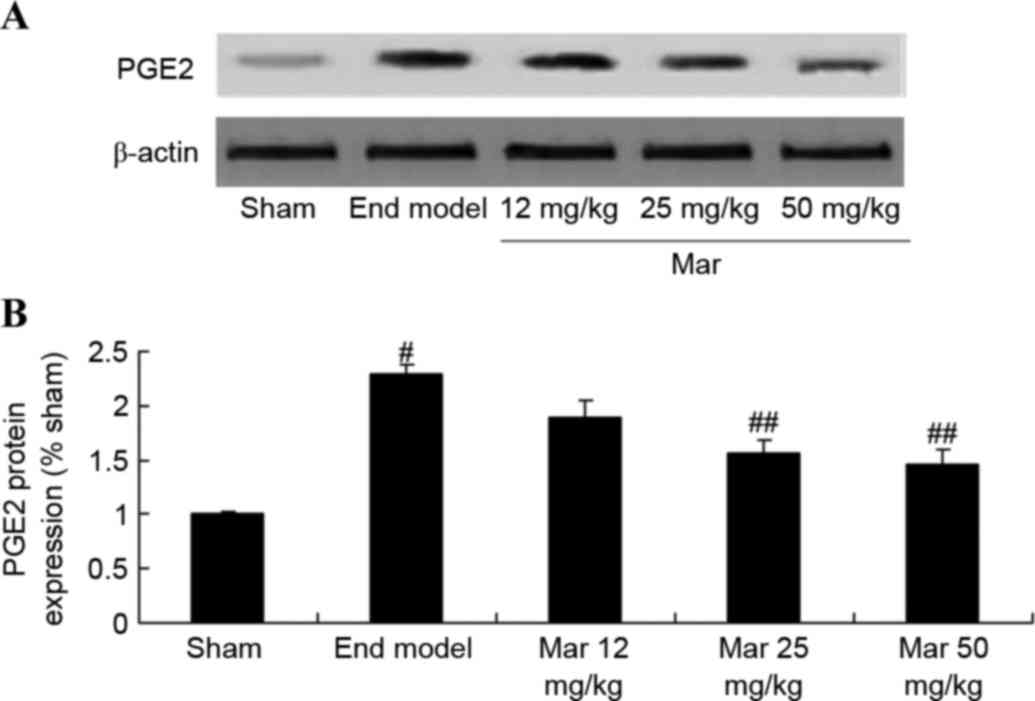

Figure 9. Protective effect of Mar inhibits the protein expression of PGE2. The effect of Mar on the protein expression of PGE2 was examined using (A) western blot analysis. (B) Statistical analysis of the protein expression of PGE2. Sham, sham group; End model, endometriosis model; Mar 12 mg/kg, endometriosis + 12 mg/kg Mar; Mar 25 mg/kg, endometriosis + 25 mg/kg Mar; Mar 50 mg/kg, endometriosis + 50 mg/kg Mar. #P<0.01, vs. sham; ##P<0.01, vs. End model. Sham, sham group; End model, endometriosis model; Mar, marrubiin; PGE2, prostaglandin E2.

Protective effect of marrubiin inhibits the formation of TXB2

The present study also investigated the protective effects of marrubiin on TXB2 formation in mice with endometriosis. The formation of TXB2 in the endometriosis model was higher, compared with that in the sham group (Fig. 10). Treatment with 25 or 50 mg/kg marrubiin significantly reduced the formation of TXB2 in the endometriosis model (Fig. 10).

Figure 10. Protective effect of Mar inhibits the formation of TXB2. Mar 12 mg/kg, endometriosis + 12 mg/kg Mar; Mar 25 mg/kg, endometriosis + 25 mg/kg Mar; Mar 50 mg/kg, endometriosis + 50 mg/kg Mar. #P<0.01, vs. sham; ##P<0.01, vs. End model. Sham, sham group; End model, endometriosis model; Mar, marrubiin; TXB2, thromboxane B2.

Discussion

Endometriosis is one of the common diseases frequently occurring in women of childbearing age, and has a significant impact on quality of life (4). The morbidity rate has increased significantly, however, the etiology and pathogenesis remain to be fully elucidated. The classic Sampson implantation theory has been widely accepted, however, blood reflux is a common phenomenon, whereas only a small proportion of individuals have disease (14). The implantation theory cannot explain this phenomenon, and investigations of endometriosis have shown that the ectopic adhesion, invasion and angiogenesis of endometrial tissue are closely associated with the successful ectopic plantation of the endometrium (6). Therefore, a novel theory of etiology, namely, the angiogenesis theory, has been suggested and has become a focus among obstetricians and gynecologists. In the present study, it was found that marrubiin significantly inhibited endometrial lesions in a mouse model of endometriosis.

The current understanding of the function of ion channel proteins has surpassed the traditional concept that the ion channel is a channel only for the movement of ions into and out of the cell (15). Studies have indicated that potassium channels are widely distributed in various tissues and have different functions, predominantly including effects on cell growth, differentiation and apoptosis, effects on cell volume and shape, the regulation of myocyte contraction and relaxation, regulation of the release of neurotransmitters by neurons, and regulation of hormone secretion by secretory cells (15–17). Based on the physiological and pathological effects of the Ca+-activated K+ pathway, particularly its effects on the growth, differentiation and apoptosis of cells, it is possible to develop Ca+-activated K+ channels with a high level of specificity (17). Channel inhibitors and agonists may offer novel clinical therapeutic options for several diseases (15). In the present study, it was found that marrubiin significantly inhibited monocyte chemotaxis in mice with endometriosis and inhibited U937 cell migration.

A previous study revealed that there is a significant process of angiogenesis during endometriosis plantation, and that the angiogenesis regulatory factors, TNF-α and vascular endothelial growth factor, are important in the formation of blood vessels, however, the mechanism of action in angiogenesis in endometriosis remains to be elucidated (18). TNF-α is a type of cell factor with vascular activity, which may be involved in the angiogenesis of ectopic endometrium plantation (19). Investigations of TNF-α in endometriosis have predominantly focussed on the blood and peritoneal fluid, rather than the systematic investigation of expression in normal and ectopic endometrial tissue (20). It is well known that marrubiin significantly inhibits the protein expression of TNF-α and the activities of IL-6 and IL-1β in mice with endometriosis. Mnonopi et al (10) reported that marrubiin inhibited the levels of IL-1β and IL-6 in a rat model of obesity.

RANTES is an activation regulatory factor from the expression and secretion of normal T cells (21). As an all-round type of chemokine, RANTES belongs to the family of rapid growth chemokines, which are primarily produced by memory T cells, epithelial cells and mesothelial cells (9). RANTES can exert chemotactic effects specifically on memory T cells, monocytes and other immune cells, is involved in the regulation of the immune response, and interacts with other cytokines and ovarian hormones (22). Through its chemotaxic effects, RANTES can amass inflammatory cells into a local lesion for involvement in the inflammatory reaction, which can cause the release of a variety of proinflammatory cytokines and angiogenic factors, leading to a positive feedback effect and peritoneal microenvironment change; this creates favorable conditions for the incidence and development of endometriosis (23). It has been demonstrated that the level of RANTES in the peritoneal fluid of patients with endometriosis is significantly higher, compared with that in patients without endometriosis, and this is positively correlated with disease severity (24). The present study showed that marrubiin significantly inhibited the protein expression of RANTES in the endometriosis model and U937 cells, and induced calcium levels, protein expression levels of PGE2 and the formation of TXB2 in the endometriosis model. Stulzer et al (11) demonstrated that marrubiin exerts pro-inflammatory agent-induced microvascular extravasation of Evans blue in the mouse ear through PGE2.

In conclusion, the present study showed that marrubiin significantly inhibited endometrial lesions and monocyte chemotaxis in mice with endometriosis, and reduced the migration of U937 cells. The mechanism underlying the protective effects of marrubiin may involve the inhibition of inflammation and downregulating the expression of RANTES in the mice with endometriosis, followed by mediating the levels of calcium, PGE2 and TXB2. Further investigations of marrubiin may provide a basis for the development of novel drugs for use in the treatment of endometriosis.
