Introduction

Lung cancer remains a leading cause of cancer-associated mortality worldwide, with an estimated 1.61 million new occurrences and 1.38 million fatalities occurring each year worldwide. In addition, the majority of patients are diagnosed at an advanced stage (1). Therefore, despite therapeutic progress, prognosis remains poor, with a 5-year survival rate of <15% (2).

Cisplatin is a traditional first-line chemotherapy reagent (3) that causes DNA damage and apoptosis (4); however, cisplatin resistance remains an issue that contributes to recurrence and therapeutic failure. Various mechanisms underlying cisplatin resistance have been reported, including activation of DNA repair, decreased drug influx and increased efflux, and resistance to apoptosis (5). Therefore, restoring cisplatin-induced apoptosis may prevent cisplatin-acquired resistance.

Previous studies have suggested that certain chemotherapeutics induce both apoptosis and autophagy in tumor cells, and that the balance between autophagy and apoptosis may determine cell fate (6–8). Autophagy is a homeostatic, cellular process of catabolic degradation, which eliminates damaged organelles and recycles essential components during cellular stress responses (9). Autophagy serves a dual role in the tumorigenesis of lung cancer (7,10); as an adaptive response, autophagy may contribute to the acquisition of cisplatin resistance in lung cancer cells (11), whereas inhibition of autophagy may resensitize tumor cells to diverse cancer therapies (12,13). Conversely, autophagy-mediated cell death and autophagy-induced apoptosis have also been reported under various circumstances and among different cell types (14,15). Therefore, the autophagic response may be associated with cisplatin resistance, or it may be associated with apoptotic or autophagic cell death (16); the function and mechanism of autophagy in cisplatin resistance and apoptosis remain to be elucidated.

In the present study, the function and mechanism of cisplatin-induced autophagy were investigated. Beclin 1, serine/threonine-protein kinase ULK1 (ULK1), autophagy protein (Atg)5, Atg3, Atg7, Atg12 and sequestosome-1 (SQSTM1) transcription and expression were analyzed following cisplatin treatment. Knockdown of Atg5 and Beclin 1 by small interfering (si)RNA transfection was used to determine the association between cisplatin-induced apoptosis and autophagy. The results indicated that specific disruption of the autophagic response may be considered a rationale for the restoration of cisplatin sensitivity, and may provide a target for anti-lung cancer therapy.

Materials and methods

Cell culture and reagents

Human lung cancer A549 cells (ATCC® CCL-185™) were purchased from American Type Culture Collection (Manassas, VA, USA) and cultured as previously described (11). Cisplatin (20 µM) treatment was at 37°C in an atmosphere containing 5% CO2 for the indicated time points in Fig. 1. Cisplatin, MTT and the lactate dehydrogenase (LDH)-dependent Cytotoxic Non-Radioactive Cytotoxicity assay were purchased from Promega Corp. (Madison, WI, USA). The Caspase-3 Fluorometric Assay kit was purchased from BioVision, Inc. (Milpitas, CA, USA). Microtubule-associated protein 1 light chain 3β (LC3B) antibody was obtained from Novus Biologicals, LLC, Littleton, CO, USA (cat. no. NB100-2220), and Beclin 1 (cat. no. 3738), Atg5 (cat. no. 2630), cleaved caspase-3 (cat. no. 9661), Atg3 (cat. no. 3415), Atg7 (cat. no. 2631) and Atg12 (cat. no. 4180) antibodies were from Cell Signaling Technology, Inc. (Danvers, MA, USA). SQSTM1 antibody (cat. no. M217-3) was purchased from MBL International Co. (Woburn, MA, USA), and ULK1 (cat. no. A7481) and β-actin (cat. no. A5441) antibodies were obtained from Sigma-Aldrich (Merck KGaA, Darmstadt, Germany). Goat anti-rabbit secondary antibody (cat. no. A-11037) was from Thermo Fisher Scientific, Inc. (Waltham, MA, USA).

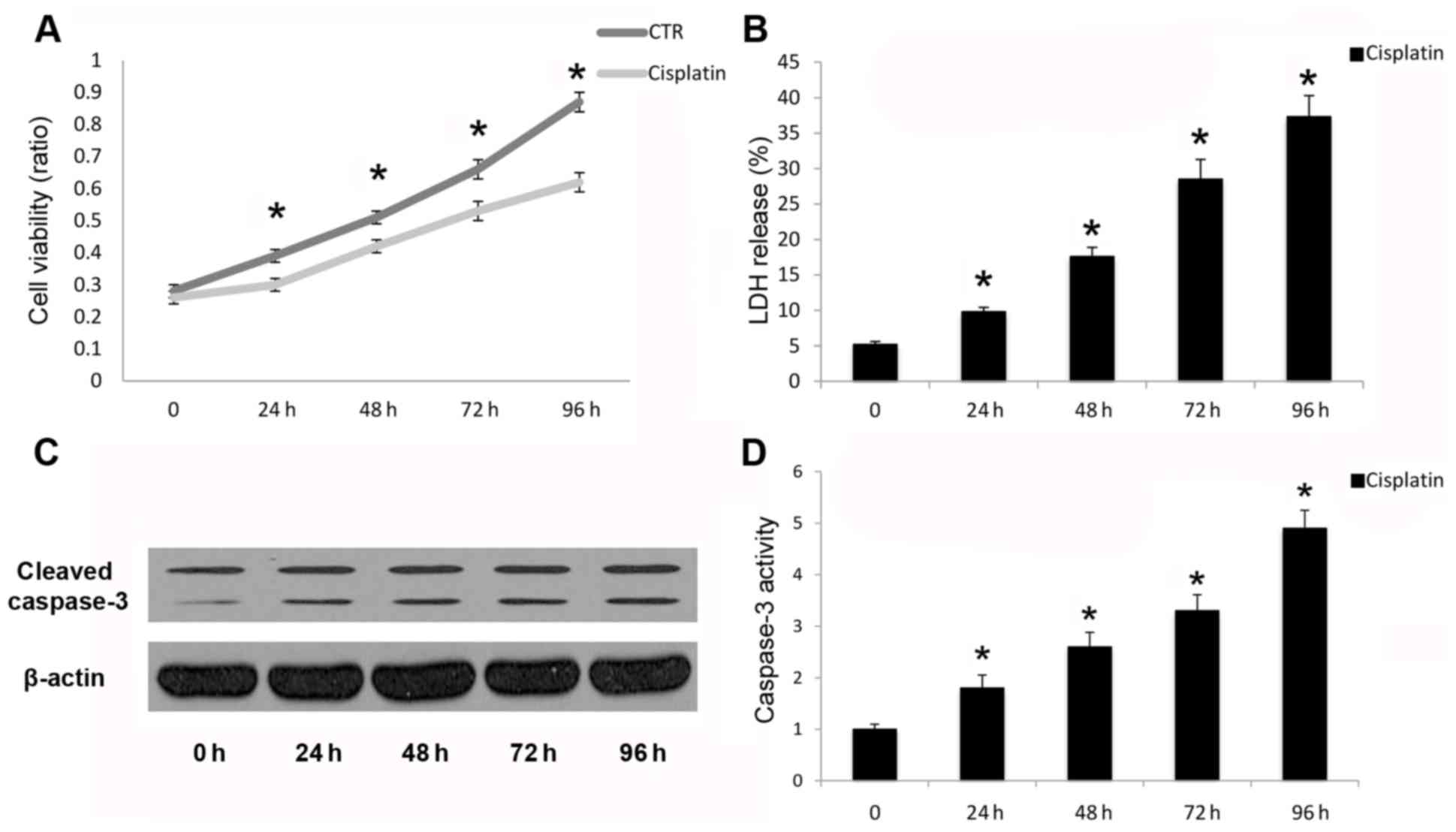

Figure 1. Cisplatin leads to apoptotic cell death in A549 cells. A549 cells were treated with cisplatin (20 µM) for the indicated time periods. (A) Cell viability and (B) LDH release were detected following cisplatin treatment. (C) Caspase-3 cleavage following cisplatin treatment was measured by western blotting. (D) Caspase-3 activity following cisplatin treatment. *P<0.05 vs. the CTR group (0 h). CTR, control; LDH, lactate dehydrogenase.

Reverse transcription-quantitative polymerase chain reaction (RT-qPCR)

Total RNA was extracted by using TRIzol reagent (Invitrogen; Thermo Fisher Scientific, Inc.), according to the manufacturer's protocol. CDNA was synthesized using a PrimeScript RT Reagent kit (Takara Bio, Inc., Otsu, Japan). The PCR reaction was performed with SYBR® Green Master Mix (Ambion; Thermo Fisher Scientific, Inc.) in an ABI 7500 RT-PCR System (Applied Biosystems; Thermo Fisher Scientific, Inc.). Primers were synthesized by Invitrogen (Thermo Fisher Scientific, Inc.; listed in Table I), as described previously (17). Amplification was performed under the following conditions: 95°C for 5 min in the holding stage; 40 cycles of 95°C for 10 sec and 60°C for 30 sec in the cycling stage; and 95°C for 15 sec, 60°C for 1 min and 60°C for 15 sec in the melt curve stage. Relative gene expression was calculated using the comparative 2−ΔΔCq method (18). The mean Cq value of the target gene was normalized to the averaged Cq values of GAPDH to obtain a ΔCq value, which was subsequently normalized to control samples to obtain a ΔΔCq value. Each measurement was assessed in triplicate. The gene expression ratio was presented as the mean ± standard deviation of three independent experiments.

Table I. Primer pairs for quantitative polymerase chain reaction.

Table I.

Primer pairs for quantitative polymerase chain reaction.

	Primer sequence (5′→3′)
Target name	Forward	Reverse
Beclin 1	CAAGATCCTGGACCGTGTACA	TGGCACTTTCTGTGGACATCA
Atg12	TCTATGAGTGTTTTGGCAGTG	ATCACATCTGTTAAGTCTCTTGC
Atg7	AGGAGATTCAACCAGAGACC	GCACAAGCCCAAGAGAGG
Atg5	GGGAAGCAGAACCATACTATTTG	AAATGTACTGTGATGTTCCAAGG
Atg3	TCACAACACAGGTATTACAGG	TCACCGCCAGCATCAG
ULK1	CGCCTGTTCTACGAGAAGAAC	GAAGTCCATGCGGTCCTTGTG
SQSTM1	AAGCCGGGTGGGAATGTTG	GCTTGGCCCTTCGGATTCT
GAPDH	GGGAAGCTTGTCATCAATGG	CATCGCCCCACTTGATTTTG

[i] Atg, autophagy protein; SQSTM1, sequestosome-1; ULK1, serine/threonine-protein kinase ULK1.

Western blot analysis

Cytoplasmic protein expression in cultured cells was detected using western blotting as previously described (19). Membranes were incubated overnight at 4°C using primary antibodies diluted in 1% bovine serum albumin. LC3B, Beclin 1, ULK1, Atg5, cleaved caspase-3, Atg3, Atg7 and Atg12 primary antibodies were diluted at 1:1,000. SQSTM1 primary antibody was diluted at 1:2,000. The secondary antibodies were diluted at 1:5,000 and were incubated at room temperature for 1 h.

siRNA transfection

Beclin 1 and Atg5 siRNA were purchased from Santa Cruz Biotechnology, Inc. (Dallas, TX, USA). The recombinant lentiviral vectors, empty lentiviral vectors and secondary packaging plasmids were co-transfected into the 293T cells using Lipofectamine® 2000 (Invitrogen; Thermo Fisher Scientific, Inc.), according to the manufacturer's protocols. The obtained Beclin 1 and Atg 5 siRNA particle solutions were designated as Lv-si8678 and Lv-si9474 and the Lv-control and were stored at −80°C until use. The sequences of Beclin1, Atg5 and negative control were: 5′-CAGTTTGGCACAATCAATA-3′, 5′-AUCCAUGAGUUUCCGAUUC-3′ and 5′-UUCUCCGAACGUGUCAGUT-3′, respectively. Transfection of cells with 100 nM siRNA was performed using Lipofectamine® 2000 (Invitrogen; Thermo Fisher Scientific, Inc.) according to a previously published method (20).

Cell viability, LDH release and caspase-3 activity assays

Cell viability was measured using the MTT assay according to the manufacturer's protocol (Promega Corp.). LDH release into the culture medium was measured using the LDH-dependent Cytotoxic Non-Radioactive Cytotoxicity Assay and caspase-3 activity was measured with a Caspase-3 Fluorometric Assay kit, both according to manufacturers' protocols.

Transmission electron microscopy (TEM)

For TEM, cells were embedded, sectioned, double stained and analyzed using a JEM-1200EX transmission electron microscope (JEOL, Ltd., Tokyo, Japan), as previously described (20).

Immunofluorescence staining

Human lung cancer A549 cells (ATCC® CCL-185™) were treated with cisplatin (20 µM) for 96 h at 37°C in an atmosphere containing 5% CO2. LC3B puncta were measured using immunofluorescence, as previously described (20).

Statistical analysis

All values are presented as the means ± standard deviation (n=3). Quantitative data were analyzed using a Student's t test or two-way analysis of variance (ANOVA), with a Tukey post hoc test used following ANOVA, by using SPSS software (version 16.0; SPSS, Inc., Chicago, IL, USA). P<0.05 was considered to indicate a statistically significant difference.

Results

Cisplatin leads to apoptotic cell death in A549 cells

Cleavage and activation of caspase-3 is necessary for the execution phase of intrinsic and extrinsic apoptotic signaling pathways (21). In the present study, cisplatin inhibited A549 human cancer cell viability (Fig. 1A) and increased LDH release (Fig. 1B). Cisplatin also promoted cleavage (Fig. 1C) and activation (Fig. 1D) of capase-3 following cisplatin treatment in a time-dependent manner up to 96 h. Reduced cell viability and promotion of cell death were due to the induction of apoptosis, as demonstrated by caspase-3 cleavage and activation. Therefore, cisplatin may induce apoptotic cell death in A549 cells in a time-dependent manner.

Cisplatin initiates the autophagic response in A549 cells

Cellular stress responses, caused by factors including exposure to anticancer drugs, can trigger the autophagic response (22). Kinetic analysis of autophagosome formation in A549 cells demonstrated that cisplatin-induced autophagy occurs in a time-dependent manner. Western blot analysis indicated an increased LC3B-I/II conversion following cisplatin treatment up to 96 h (Fig. 2A). Densitometry was performed by Image J to quantify OD; increased LC3B-I/II conversion indicated that autophagosome formation was upregulated. The ratio of LC3B-I/II conversion for each group was 0.34 (control), 0.45 (24 h), 0.56 (48 h), 0.69 (72 h) and 0.78 (96 h).

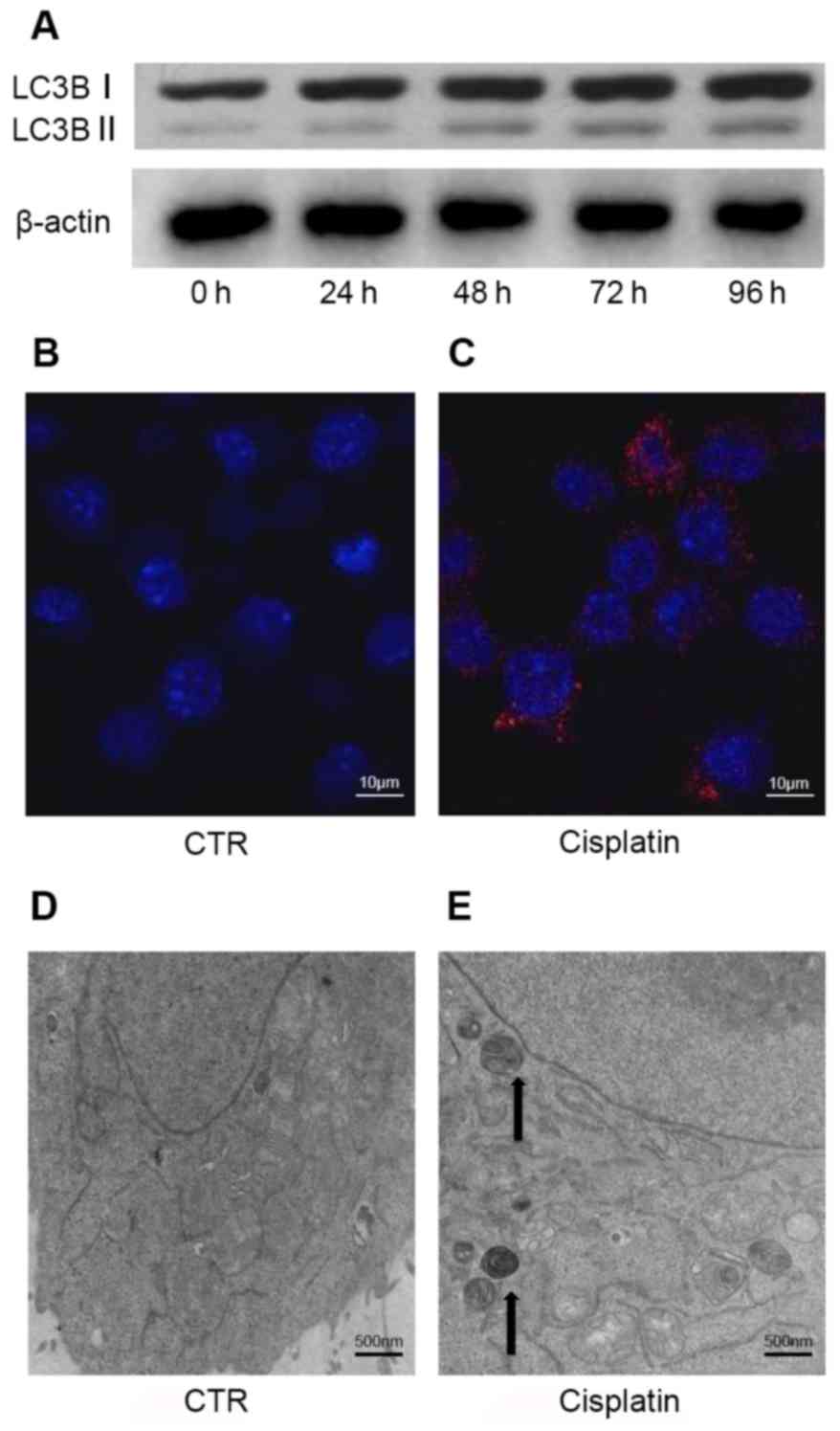

Figure 2. Cisplatin triggers the autophagic response in A549 cells. (A) A549 cells were treated with cisplatin (20 µM) and LC3B-I/II conversion was measured by western blotting. (B and C) A549 cells were treated with cisplatin (20 µM) for 96 h and LC3B puncta were measured using immunofluorescence. The blue is DAPI for DNA staining and the red is LC3B puncta staining for autophagosomes. (D and E) A549 cells were treated with cisplatin (20 µM) for 96 h and morphological alterations of double membrane-bound autophagosomes were assessed with transmission electron microscopy. The arrows indicate the formation of double membrane-bound autophagosomes. CTR, control; LC3B, microtubule-associated protein 1 light chain β.

Autophagy occurred in A549 cells treated with cisplatin, as demonstrated by increased LC3B puncta (Fig. 2B and C). In addition, cisplatin-induced morphological alterations were observed by TEM, including the formation of double membrane-bound autophagosomes and mitochondrial damage (Fig. 2D and E). These specific alterations in LC3B have been characterized as autophagosome markers. Therefore, the results of the present study indicated that cisplatin triggers the autophagic response in A549 cells.

Cisplatin induces the autophagic response in A549 cells by upregulating mRNA and protein levels of Atg5 and Beclin 1

The signaling pathways that mediate autophagic induction differ according to cell type and stimulus (23). The mechanism underlying cisplatin-mediated autophagy in A549 cells remains to be elucidated. Therefore, the present study investigated the mechanism underlying cisplatin-induced autophagy in A549 cells. Beclin 1, Atg5, ULK1, Atg3, Atg7, Atg12 and SQSTM1 mRNA and protein levels were measured following cisplatin treatment. Induction of autophagy following cisplatin treatment resulted in increased transcription of certain autophagy-associated genes, including Atg5 and Beclin 1 (Fig. 3A). However, the expression of other autophagy-associated genes was not significantly altered (Fig. 3A). Autophagy-associated gene expression analysis indicated that cisplatin induced autophagy through upregulation of Beclin 1 and Atg5 (Fig. 3B), without altering the expression of other autophagy-associated proteins (Fig. 3C). Atg5 and Beclin 1 expression levels were continuously increased following cisplatin treatment. Therefore, Atg5 and Beclin1 transcriptional and translational upregulation may be involved in cisplatin-induced autophagy in A549 lung cancer cells.

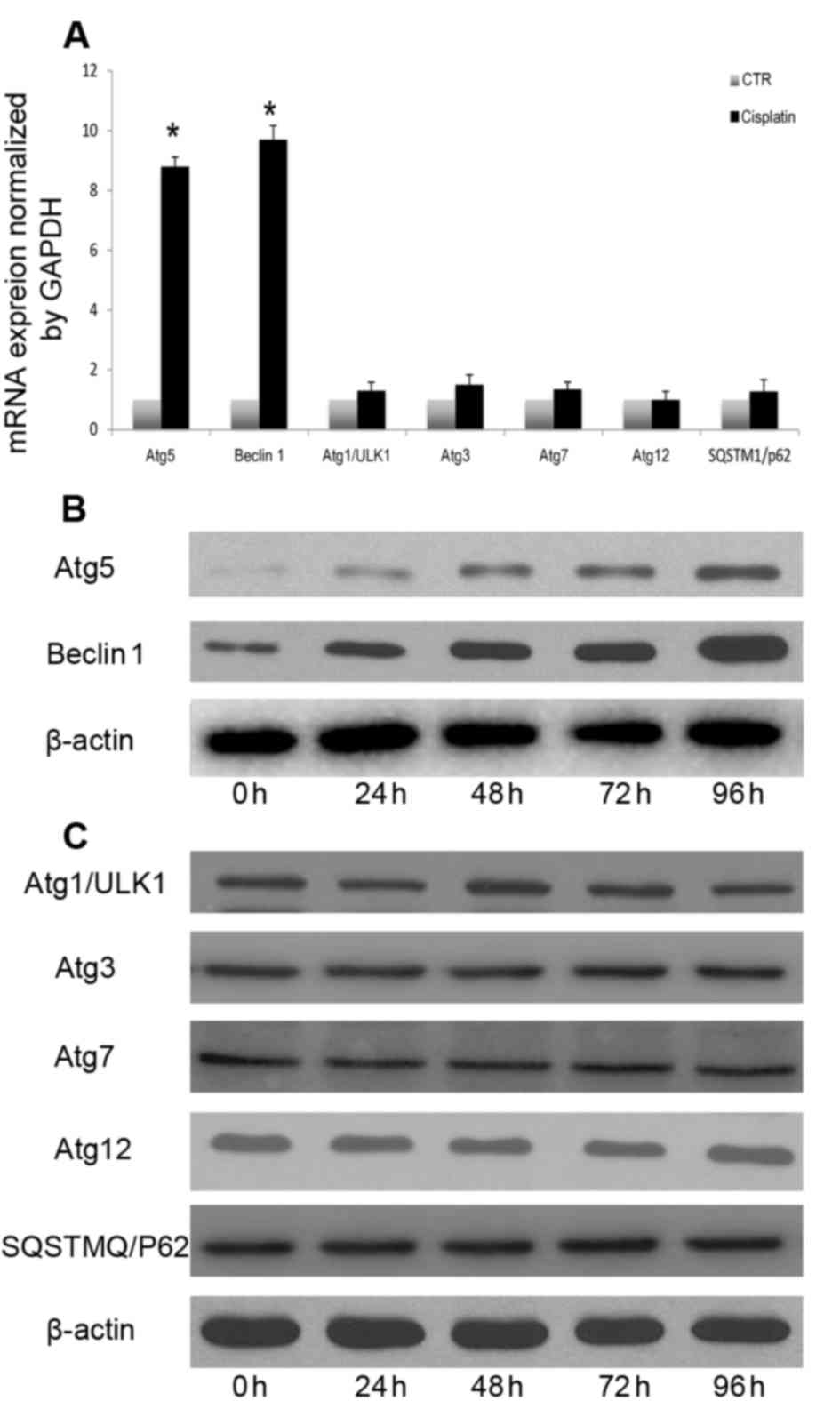

Figure 3. Cisplatin-induced autophagic response involves upregulation of Atg5 and Beclin 1. (A) A549 cells were treated with cisplatin (20 µM) for 24 h, and Beclin 1, Atg5, ULK1, Atg3, Atg7, Atg12 and SQSTM1 transcription were analyzed by reverse transcription-quantitative polymerase chain reaction. A549 cells were treated with cisplatin (20 µM) at the indicated time points, and (B) Beclin 1 and Atg5, and (C) ULK1, Atg3, Atg7, Atg12 and SQSTM1 expression levels were measured by western blotting. *P<0.05 vs. the CTR group. Atg, autophagy protein; CTR, control; SQSTM1, sequestosome-1; ULK1, serine/threonine-protein kinase ULK1.

Inhibition of autophagy by Atg5 and Beclin 1 siRNA transfection promotes cisplatin-induced apoptosis of A549 cells

Subsequently, it was investigated whether autophagy resulted in cell death, or exerted protective effects following cisplatin treatment in A549 cells. Knockdown of Atg5 by siRNA transfection impaired cisplatin-induced Atg5 activation and therefore inhibited the activation of autophagy, and promoted caspase-3 cleavage (Fig. 4A). Inhibition of autophagy through knockdown of Atg5 (Fig. 4B) also inhibited cell viability and led to increased LDH release (Fig. 4C). Similarly, knockdown of Beclin 1 inhibited cisplatin-induced Beclin 1 activation and autophagosome formation (Fig. 5A). Decreased LC3B-I/II conversion indicated that autophagosome formation was inhibited. Beclin 1 knockdown markedly promoted cisplatin-induced caspase-3 cleavage (Fig. 5A), inhibited cell viability (Fig. 5B) and led to increased LDH release (Fig. 5C). Therefore, knockdown of Atg5 and Beclin 1 by siRNA may impair the cisplatin-induced activation of autophagy, promote caspase-3 cleavage and lead to increased cell death. Disruption of autophagy through the knockdown of Atg5 and Beclin 1 may promote cisplatin-induced apoptotic cell death in A549 cells.

Figure 4. Inhibition of autophagy by Atg5 siRNA promotes cisplatin-induced apoptosis of A549 cells. A549 cells were transfected with 100 nM Atg5 siRNA for 16 h and were treated with cisplatin (20 µM) for 48 h. (A) Atg5 expression, caspase-3 cleavage and LC3B-I/II conversion was measured by western blotting. (B) Cell viability and (C) LDH release were measured using commercial kits. *P<0.05. Atg, autophagy protein; LC3B, microtubule-associated protein 1 light chain 3β; LDH, lactate dehydrogenase; NC, negative control; si/siRNA, small interfering RNA.

Figure 5. Inhibition of autophagy by Beclin 1 siRNA promotes cisplatin-induced apoptosis of A549 cells. A549 cells were transfected with 100 nM Beclin 1 siRNA for 16 h and treated with cisplatin (20 µM) for 48 h. (A) Beclin 1 expression, caspase-3 cleavage and LC3B-I/II conversion was measured by western blotting. (B) Cell viability and (C) LDH release were measured using commercial kits. *P<0.05. LC3B, microtubule-associated protein 1 light chain 3β; LDH, lactate dehydrogenase; NC, negative control; si/siRNA, small interfering RNA.

Discussion

A limited number of patients with lung cancer diagnosed at a metastatic stage survive >5 years. Cisplatin-based combination chemotherapy is used to extend the survival of patients with advanced lung cancer; however, the majority of patients relapse within 1 year, primarily due to acquired resistance (24,25). Therefore, increasing the sensitivity of cancer cells to cisplatin is desired. Restoring cisplatin-induced apoptosis may be an effective strategy for overcoming chemotherapeutic resistance. The present study aimed to elucidate the mechanism and function underlying cisplatin-induced autophagy in A549 lung cancer cells, using genetic knockdown of autophagy-associated genes to provide a potential target for improvement of sensitivity to chemotherapeutic drugs.

Previous studies indicated reciprocal regulation between autophagy and apoptosis in tumor cell survival following chemotherapy (11,26). Modulation of autophagy may affect apoptosis of cancer cells. The present study demonstrated that cisplatin induced apoptosis and autophagy in human lung cancer cells. Subsequently, it was further investigated whether inhibition of autophagy would result in an increased rate of apoptosis.

A previous study demonstrated that upregulation of autophagy contributes to cisplatin resistance in human lung cancer cells (11). Inhibition of autophagy, either by pharmacological inhibitors or by genetic knockdown of autophagy-associated genes, may enhance chemotherapy-induced cytotoxicity. In addition, inhibition of autophagy may lead to the accumulation of reactive oxygen species in cisplatin-treated lung cancer cells, and suppression of autophagy may sensitize cells to cisplatin-induced caspase-dependent and -independent apoptosis (27). Combination treatment using autophagic inhibitors can potentiate the efficacy of epidermal growth factor receptor-targeted cancer therapeutics (28). Furthermore, inhibition of autophagy promotes paclitaxel-induced apoptosis (29). In all of these aforementioned cases, autophagy was protective and prevented lung cancer cells from undergoing apoptosis; however, if cellular damage is extensive, or if apoptosis is compromised, autophagic cell death may occur (14,15). Previous studies presented conflicting results regarding the function of autophagy in cancer chemotherapy; in certain studies autophagy promotes cell survival, and in other, induces autophagic cell death (22,30). The present study demonstrated that inhibition of autophagy enhanced the cytotoxicity of cisplatin. The results of the present study indicated that autophagy may serve a protective role and may participate in cisplatin-acquired resistance. Cisplatin upregulated Atg5 and Beclin 1 mRNA and protein expression; however, the expression levels of other autophagy-associated genes were not altered by cisplatin. Therefore, the present study further investigated the role of Atg5 and Beclin 1 in cisplatin-induced autophagy and apoptosis.

Apoptosis and autophagy interact via crosstalk (31) and each may occur simultaneously or sequentially (32,33). Autophagy and apoptosis are distinct processes but an overlapping mechanism may regulate both. Beclin 1, Atg5, Atg7 and high-mobility group box 1 are involved in the regulation of apoptosis and autophagy (17,34). Formation of the Atg12-Atg5 conjugate is necessary for autophagosome formation and autophagy mediates cisplatin resistance under hypoxia through Atg5 (35). Tissue-specific knockdown of Atg5 markedly impairs mitochondrial energy homoeostasis and leads to oxidative stress and constitutively active DNA damage (10). Inhibition of Atg5 sensitizes resistant carcinoma cells to radiotherapy and certain chemotherapeutic reagents (31,36,37). However, Atg5 is not involved in gefitinib- or erlotinib-induced autophagy (38). The present study demonstrated that Atg5 is involved in cisplatin-induced autophagy, and inhibition of autophagy by knocking down Atg5 significantly enhanced cisplatin-induced apoptosis.

Beclin 1 initiates autophagy by forming a Beclin 1-phosphatidylinositol 3-kinase III/Vps34 complex. Previous studies demonstrated that decreased expression of Beclin 1 is associated with tumor progression in lung, colon and ovarian cancer (39–41), and reduced Beclin 1 expression is a predictor of poor prognosis for gastric and lung cancer (42,43). The carcinogenic mechanism of Beclin 1 downregulation in cancer may be associated with apoptosis. In a previous study, eliminating Beclin 1 protein resulted in stimulation of the apoptotic pathway in DNA-damaged breast cancer cells (44). Beclin 1 overexpression may also contribute to inhibition of lung cancer cell growth, angiogenesis and inhibition of apoptosis during radiotherapy (45). Beclin 1 plays a dual role in tumorigenesis. In the present study, Beclin 1 knockdown inhibited cisplatin-induced autophagy and promoted cisplatin-induced apoptotic cell death. However, the function of Beclin 1 overexpression, whether protective or detrimental, is dependent on the specific tumor type, stage and circumstances. The present study demonstrated that knockdown of Beclin 1 promoted sensitivity of lung cancer cells to chemotherapy and increased apoptotic cell death.

Inhibition of autophagy promotes genomic instability, interferes with cellular differentiation, perturbs cellular metabolism, and prevents resistance to chemotherapy or radiotherapy (46). The present study demonstrated that inhibition of autophagy, through knockdown of Atg5 and Beclin 1, may promote cisplatin-induced apoptotic cell death. However, the expression and clinical application of modulation of Atg5 and Beclin 1 in patients with lung cancer should be further confirmed by large sample cohort studies. Furthermore, in vivo studies investigating the functions and downstream effectors of Atg5 and Beclin 1 are required, as are further studies investigating the association between Atg5, Beclin 1 and genomic instability, cellular differentiation, mitochondrial energy homeostasis, and efficacy of chemotherapy and radiotherapy.

In conclusion, the present study demonstrated that cisplatin can induce apoptosis and autophagy in human lung cancer cells in vitro. Inhibition of autophagy via the knockdown of Atg5 and Beclin 1 promoted cisplatin-induced apoptosis. The results of the present study suggested that targeting autophagy-associated pathways may be considered a therapeutic strategy to overcome cisplatin resistance by inducing apoptosis. The present study suggested a rationale for modulating autophagy to treat lung cancer.

Acknowledgements

Not applicable.

Funding

The present study was supported by a grant from the National Natural Science Foundation of China (grant no. 81401631).

Availability of data and materials

All data generated or analyzed during this study are included in this published article.

Authors' contributions

JC and LZ conceived and designed the experiments; HZ, WW and YL performed the experiments and contributed to molecular analysis; HY and H-hY analyzed the data; LZ wrote the manuscript.

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.
