Introduction

Nanomaterials have been widely studied over the past decades, due to their unique chemical and physical properties. At a nanoscale, the properties of materials depend significantly on their particle size and morphology. Silver nanoparticles (AgNPs) are one of the most common commercialized nanomaterials used in key biological and medical studies for applications such as antimicrobial agents, drug and gene delivery vehicles and biosensors. (1,2)

AgNPs have been demonstrated to effectively inhibit the replication of hepatitis B virus (HBV) (3). Injection of 10 and 50 nm diameter AgNPs into patients with HBV reduced the quantity of HBV by 40% within 10 min and by ~90% after 1 h (3). In addition, these nanoparticles have been used to target cancer cells with the controlled uptake into specific cellular compartments. Specifically, nanoparticles may be delivered to specific tissues and subcellular compartments or to malignant cells in circulation via a combination of antibody-based targeting of ligands, changing of surface charge and material composition (4). These studies provided the basis for the prevention and cure of HBV infection and also provided a reference for chronic liver disease, such as hepatic fibrosis.

In the clinic, conventional anti-fibrotic treatments and chemotherapy are of limited success in chronic liver injury, predominantly due to non-specific drug effects and the development of drug tolerance. Thus, AgNPs may provide a more efficacious and safer therapeutic approach. The possibility of this approach is important for hepatic stellate cells (HSCs), which are considered to be targets for the therapy of hepatic fibrosis and liver cirrhosis. Thus, investigation of the cytotoxicity of AgNPs in HSCs may be useful in determining their potential use in clinical applications.

In this study, the cytotoxicity of polyvinylpyrrolidone (PVP)-coated AgNPs in primary HSCs derived from fresh rat livers was determined. The biological responses of HSCs, such as the morphological changes in subcellular structure, proliferation, apoptosis, cell movement and cytokine secretion, were determined following the treatment of cells with AgNPs. Different particle sizes and concentrations of AgNPs were also used to study their effects on the cytotoxicity of AgNPs.

Materials and methods

Preparation and characterization of AgNPs

PVP-coated AgNPs with diameters of 10 and 30–50 nm were received in solution from Dr Jie Liu (Duke University, Durham, NC, USA). The size, morphology and dispersion of the nanoparticles were characterized using a Tecnai™ G2 Twin Transmission Electron Microscope (FEI, Hillsboro, OR, USA) and dynamic light scattering (Compact Goniometer System 3; ALV-GmbH, Langen, Germany). The ζ potential was determined using a Zetasizer Nano ZS (Malvern Instruments, Malrem, UK). X-ray diffraction experiments were performed on powder samples and were analyzed using an X’Pert PRO MRD HR diffractometer with a Cu Kα radiation (1.5405 Å) at 5 kV and 40 mA (PANalytical, Almelo, Netherlands). X-ray photoelectron spectroscopy (Kratos Analytical Inc., Chestnut Ridge, Spring Valley, NY, USA) was used to determine the composition of the surface coating.

Isolation and culture of rat HSCs

HSCs were isolated from the livers of six normal Buffalo rats aquired from the Chinese Academy of Sciences (Shanghai, China) using the improved Friedman method (5). The study was approved by the Ethics Committee of Fudan University, Shanghai, China. Following isolation, the cells were cultured in Dulbecco’s modified Eagle’s medium, supplemented with 10% fetal bovine serum, in a humidified incubator at 37°C with 5% CO2. The morphology and features of HSCs were observed with light and fluorescence microscopes. Cell purity was determined by immunofluorescence staining for desmin and smooth muscle actin (SMA) using anti-α-SMA antibodies from Sigma-Aldrich (St. Louis, MO, USA). Cells were counterstained with fluorescein isothiocyanate (FITC)-conjugated goat anti-mouse IgG (Becton-Dickinson, New York, NY, USA) and nuclei were stained with DAPI. The purity of HSCs (%) was calculated as the number of desmin-positive (or α-SMA-positive) cells divided by the total number of cells multiplied by 100%. HSC activation was determined by α-SMA immunofluorescence staining.

Transmission electron microscopy observation

Transmission electron microscopy (TEM; CM12; Philips, Amsterdam, Netherlands) was used to examine the morphology of HSCs. HSCs were seeded in 100-mm tissue culture dishes, cultured for 2 days and treated with different concentrations of AgNPs for 24 h.

Assessment of in vitro cytotoxicity

Cell proliferation was evaluated with a Cell Counting Kit-8 (CCK-8; Becton Dickinson). Approximately 5×103 cells were plated in each well of a 96-well plate. The cells were divided into seven groups. Group 1 served as a blank control; groups 2, 3, and 4 were treated with 30–50 nm AgNPs at 20, 100 and 250 μg/ml, respectively; and groups 5, 6 and 7 were treated with 10 nm AgNPs at 20, 100 and 250 μg/ml, respectively. Following incubation for 96 h, 10 μl WST-8 was added to the wells and the absorbance at 450 nm was determined using a microplate reader (Thermo Fisher Scientific, Inc., Waltham, MA, USA). The aforementioned samples were analyzed for 24 h.

Apoptosis detection

The FITC-Annexin V and propidium iodide (PI) double staining method was used to detect apoptosis induced by AgNPs. Freshly isolated HSCs were cultured in 96-well plates for 2 days and were divided into seven groups as described previously for the cytotoxicity studies. Following 24 h of nanoparticle treatment, the cells were washed with cold phosphate-buffered saline (4°C) and stained using the FITC-Annexin V Apoptosis Detection kit (ExCell Biology, Inc., Shanghai, China). The stained cells were analyzed by flow cytometry by a trained laboratory technician according to the experimental protocol.

Analysis of AgNP acute toxicity by a lactase dehydrogenase (LDH) activity assay

Rat LDH kits (Sigma-Aldrich) were used to conduct the LDH leakage assay. Two days following seeding in 24-well plates, the cells were divided into two groups. One group was treated with AgNPs of different diameters and different concentrations, and the other group was treated as a control without nanoparticle treatment. The two groups were incubated at 37°C with 5% CO2 for 4 h according to the manufacturer’s instructions. The cell culture medium (50 μl) was collected from each well and analyzed using a spectrometer (UV-Vis-NIR spectrophotometer; Agilent, Santa Clara, CA, USA).

Cell IQ

The cell biological behaviors, including the total cell number, number of dead cells and cell movement, were measured using a real-time cell-monitoring system with a cell-culturing platform (Cell-IQ; Chip-Man Technologies, Tampere, Finland). HSCs were cultured in the Cell-IQ system in 24-well plates (1×104 cells/well) for 72 h. Cells were divided into five groups with two wells per group. One group served as a blank control and the remaining four groups were treated with large and small AgNPs at 20 and 100 μg/ml, respectively.

Cytokine detection

The HSCs were adjusted to a concentration of 5×105 cells/ml and cultured in 24-well plates. The 24 wells were divided into three groups; one group served as the blank control and the other two groups were treated with AgNPs (with diameters of either 10 or 30–50 nm) at a concentration of 20 μg/ml. The conditioned medium was collected after 2 days and the quantity of hepatocyte growth factor (HGF), interleukin (IL)-6, transforming growth factor (TGF)-β1, tumor necrosis factor (TNF)-α, matrix metallopeptidase (MMP)-2 and MMP-9 in the serum-free HSC-conditioned medium was quantified using an enzyme-linked immunosorbent assay (ELISA) kit (ExCell Biology, Inc.) according to the manufacturer’s instructions.

Statistical analysis

All experiments were repeated at least three times, and the data are presented as the mean ± standard deviation. Student’s t-test was performed to determine the statistical significance of the difference between untreated cells (blank control) and cells treated with AgNPs. P<0.05 was considered to indicate a statistically significant difference.

Results

Characterization of AgNPs

TEM images of the AgNPs used in this study are shown in Fig. 1. The nanoparticles were all roughly spherical in shape, although a few aggregates were also observed. The diameters of these two types of AgNPs were 30±10 and 80±40 nm as determined by TEM. The nanoparticles consisted of C, O, N and Ag, were metallic silver with a face-centered cubic lattice and were polydispersed. The broad absorption at wavelengths >500 nm as shown in the ultraviolet-visible absorption spectra also indicated the possible existence of aggregates (Fig. 1). The results of the other characterization experiments are summarized in Table I.

Figure 1 Characterization of silver nanoparticles (AgNPs). (Aa) Transmission electron microscopy (TEM) images for small AgNPs. The mean diameter was 30±10 nm. (Ab) TEM images for large AgNPs. The mean diameter was 80±40 nm. (B) Ultraviolet-visible (UV-Vis) absorption spectra of both AgNPs were acquired with a Cary 500 scan UV-Vis-NIR spectrophotometer. The material was polydispersed, and the broad absorption >500 nm indicated the possible existence of large aggregates. (C) The characteristic X-ray diffraction pattern of the two sizes of AgNPs used was obtained using a X’Pert PRO MRD HR diffractometer. The AgNPs appeared as metallic silver with a face-centered cubic lattice. (D) Axis Ultra X-ray photoelectron spectroscopy was used to evaluate the elemental composition in the two sizes of nanoparticles with respect to C, O, N and Ag, using anode mode and aluminum monochromatic energy sources.

Table I Characterization of silver nanoparticles.

Table I

Characterization of silver nanoparticles.

	Silver nanoparticle
Property	Small	Large
Nominal diameter (nm)	10	30–50
TEM diameter (nm)	30±10	80±40
Hydrodynamic radius using DLS (nm)	28.6±0.61 (PDI: 0.395)	58.74±1.49 (PDI: 0.491)
ζ Potential (mV)	−24.5±17.2	−28.6±5.54
Silver recovery using ICP-MS (%)	85.2	87.3

[i] Data are presented as the mean ± SD. TEM, transmission electron microscopy; DLS, dynamic light scattering; PDI, polydispersity index; ICP-MS, inductively coupled plasma mass spectrometer (Agilent, Santa Clara, CA, USA).

Identification of HSCs

Approximately 2×107 HSCs were isolated from each rat. The morphology of freshly isolated HSCs exhibited no obvious features (Fig. 2A). Abundant lipid droplets were observed with light microscopy and the cyan vitamin A autofluorescence was excited at 328 nm, as observed with fluorescence microscopy (Fig. 2B). However, activated HSCs demonstrated star-like morphology (Fig. 2C) and developed into fibroblast-like cells 7 days following isolation (Fig. 2D). More than 95% of the HSCs showed positive desmin staining, indicating that the population consisted of pure HSCs (Fig. 2E and F). In addition, >95% of the HSCs were positive for α-SMA, also suggesting a pure population (Fig. 2G and H).

Figure 2 Characterization of hepatic stellate cells (HSCs) isolated from rat livers. To identify the HSCs, the newly isolated cells were cultured for 2 days (quiescent HSCs), 4 days and 7 days (activated HSCs). (A) Giemsa staining for the quiescent HSCs. The typical light microscopic appearance of lipid droplets is shown. (B) Fluorescence microscope image depicts the cyan vitamin A auto-fluorescence of quiescent HSCs. (C) Following culture for 4 days, HSCs exhibited a distinct star-like morphology in optical micrographs. (D) Activated HSCs demonstrated fibroblast-like morphology in optical micrographs.(E) Immunofluorescence analysis of desmin expression in qHSCs. Immunofluorescence staining for desmin was performed using an anti-desmin antibody.(G) α-smooth muscle actin (SMA)-positive activated HSCs. Immunofluorescence staining for α-SMA was performed using an anti-α-SMA antibody. (F) Desmin and (H) α-SMA staining for HSC nuclei.

Ultrastructural characteristics of AgNP-treated HSCs

According to the TEM analysis, AgNPs were rapidly internalized by HSCs, although the majority of the nanoparticles were observed on the cell surface and between the cells (Fig. 3A). The TEM images of AgNP-treated cells demonstrated the presence of electron-dense, aggregated regions, which were thought to be AgNPs in the cytoplasm (Fig. 3B). Moreover, AgNP-treated HSCs exhibited karyolysis and ruptured cell membranes (Fig. 3C). The presence of large vacuoles and the swelling of the mitochondria indicated the destruction of organelles in the treated cells (Fig. 3D).

Figure 3 The morphology of hepatic stellate cells (HSCs) incubated with varying concentrations of two different sizes of silver nanoparticles (AgNPs; arrows) indicated that apoptosis or necrosis was induced by the AgNPs. (A) Optical micrographs of HSCs treated with smaller AgNPs at 100 μg/ml for 24 h. AgNPs accumulated on the cell surface and between cells. (B) Transmission electron microscopy (TEM) images of HSCs treated with larger AgNPs at 100 μg/ml for 24 h demonstrated that the AgNPs aggregated in the cytoplasm. (C) HSCs incubated with 250 μg/ml of small nanoparticles for 7 days exhibited karyorrhexis, karyolysis and karyotheca disintegration in TEM images. (D) HSCs treated with 20 μg/ml of large nanoparticles for 2 days exhibited mitochondrial swelling by TEM. (E and F) HSCs without any treatment exhibited a normal cell structure under TEM.

Apoptosis detection

To investigate the mechanism of cell death induced by AgNPs, the treated cells were stained with FITC-Annexin V and PI. The smaller AgNPs exhibited a greater ability to induce apoptosis and necrosis in the HSCs than the larger AgNPs (Fig. 4A). Morever, treatment of HSCs with higher concentrations of AgNPs induced greater rates of apoptosis and necrosis than the lower concentrations of AgNPs. Cell death was primarily due to a size-dependent increase in apoptosis induced by the smaller AgNPs. In addition, the large and small AgNPs induced greater apoptosis than necrosis in treated HSCs (Fig. 4Aa). Notably, AgNPs induced the greatest apoptosis and the least necrosis at the highest concentration tested (250 μg/ml).

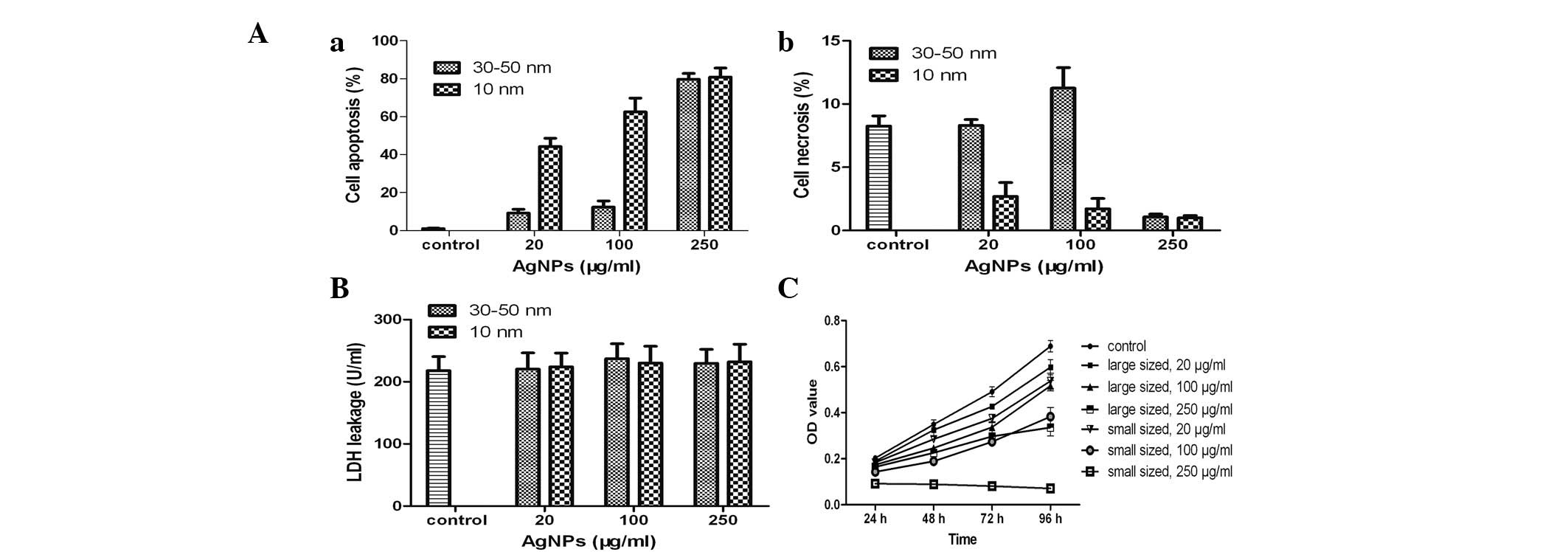

Figure 4 In vitro cytotoxicity of silver nanoparticle (AgNP)-treated hepatic stellate cells (HSCs). AgNPs induced the (Aa) apoptosis and (Ab) necrosis of HSCs. HSCs were incubated with the two sizes of nanoparticles at various concentrations for 24 h. The AgNPs induced apoptosis or necrosis of HSCs in a size- and dose-dependent manner (P<0.05). (B) Acute toxicity of AgNPs on HSCs following incubation for 4 h. The quantity of lactose dehydrogenase (LDH) released into the medium was measured by spectrophotometric analysis. Statistical analysis indicated no significant difference of the treated groups compared with the control group. (C) Cytotoxicity of AgNPs as determined using a CCK-8 kit. HSCs were treated with AgNPs of two different sizes (large and small) at varying concentrations as indicated for different lengths of time (24, 48, 72 and 96 h) and cell toxicity was size- and dose-dependent. Statistical analysis demonstrated significant differences between the treated and untreated control cells (P<0.05).

Acute HSC cytotoxicity and AgNPs

The effect of AgNPs on the plasma membrane was not statistically significant at any of the concentrations tested (P>0.05; Fig. 4B). Thus, the HSC death was not able to be correlated with the acute toxicity of AgNPs. The aforementioned results also indicated the primary cause of HSC death was not due to the acute toxicity of AgNPs.

In vitro cytotoxicity of AgNPs

The time-dependent cytotoxicity of AgNPs was assessed using the CCK-8 assay (Fig. 4C). HSC growth was arrested in the presence of the two sizes of nanoparticles at various concentrations. The influence of particle size and concentration on cell proliferation was determined. Treatment of cells with 100 μg/ml AgNPs resulted in a decrease in cell proliferation after 96 h of exposure. These effects were also dependent on the AgNP diameter size. In particular, the smaller nanoparticles induced a greater decrease in cell viability than larger ones. Furthermore, in cases of treatment with identically sized nanoparticles, there was a greater inhibitory effect with an increased concentration.

Inhibitory effects of AgNPs on cell biological behaviors

Dynamic alterations of the total cell number, number of dead cells and cell movement were measured using a Cell-IQ culturing platform. The increased percentage of the total cell number was significantly lower following incubation with AgNPs, than in untreated cells (P<0.05). The inhibitory effects of AgNPs were dependent on the size and dose (Fig. 5Bc). The number of dead cells as a percentage of total cells in the control group was significantly lower than that in the groups treated with AgNPs (P<0.05), and the effect was dose- and size-dependent (Fig. 5Ba). Similarly, the movement of AgNP-treated HSCs was inhibited (P<0.05). The diameter of the AgNPs, however, was not significantly correlated with cell migration at high concentrations (P>0.05).

Figure 5 Inhibitory effects of silver nanoparticles (AgNPs) on the bio-behaviors of hepatic stellate cells (HSCs). Following culture of HSCs with or without AgNPs of the two sizes at either 20 μg/ml or 100 μg/ml for 72 h, the targets were measured by a real-time cell-monitoring system. Images were captured at 5-min intervals for 12 h. Data are presented as the mean ± SD, and each group comprises eight measurements. (Aa) Control cells (untreated). (Ab) Cells treated with large AgNPs at 100 μg/ml. (Ac) Cells treated with small AgNPs at 100 μg/ml. (Ba) Dead cells as a proportion (%) of total cells were calculated according to the following formula: Rate (%) = number of dead cells/number of primary seeded cells × 100. (Bb) Cell movement was calculated as the sum of the distance of movement of each cell between two images (5-min intervals)/number of primary seeded cells. (Bc) Increased percentage (%) of total cell number was calculated as the following: Rate (%) = (value at each time point-value of primary seeding cells)/value of primary seeding cells ×100.

Effect of AgNPs on various cytokines

Analysis of cytokine levels following treatment of HSCs with AgNPs was performed using ELISA. Production of HGF, IL-6, TGF-β1, and TNF-α was not significantly different between the treated and untreated groups (Fig. 6). The cells treated with AgNPs produced less MMP-2 and MMP-9 than the control cells (P<0.05).

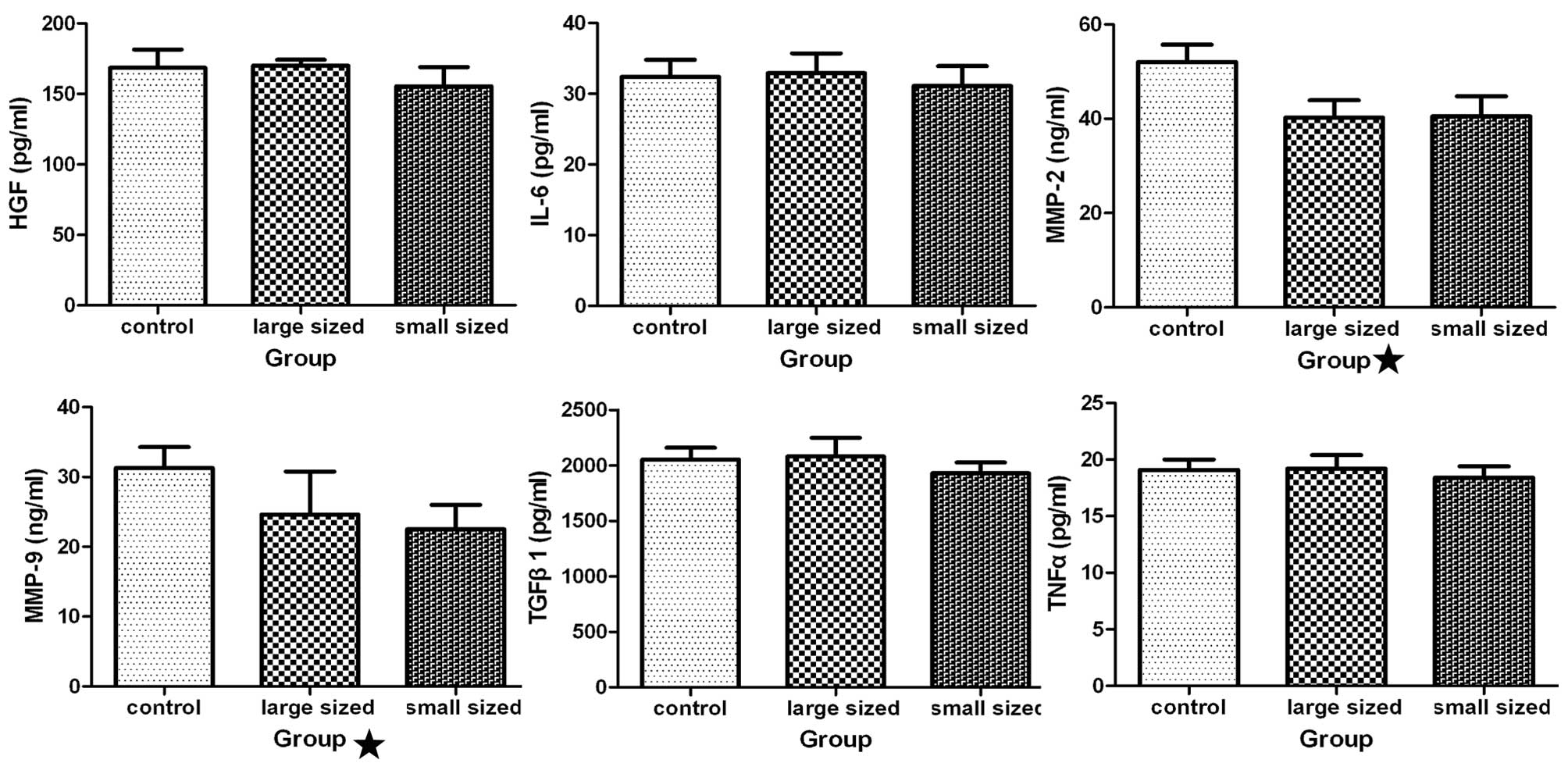

Figure 6 Influence of silver nanoparticles (AgNPs) on cytokine production. Following incubation of hepatic stellate cells (HSCs) with AgNPs of different sizes at 0.2 mg/ml for 48 h, the levels of various cytokines [hepatocyte growth factor (HGF), interleukin (IL)-6, transforming growth factor (TGF)-β1, tumor necrosis factor (TNF)-α, matrix metallopeptidase (MMP-2) and MMP-9] in the medium were measured using an enzyme-linked immunosorbent assay kit. Statistical analysis showed that the levels of MMP-2 and −9 were significantly different in cultures of cells incubated with AgNPs as compared with the medium from the untreated cells (P<0.05), while the other four groups were not significantly different compared with the control group (P>0.05). Control, HSCs treated without AgNPs; large sized, HSCs treated with AgNPs, with a diameter of 30–50 nm; small sized, HSCs treated with AgNPs, with a diameter of 10 nm.

Discussion

Previously, AgNPs have been studied as a result of their ability to inhibit HBV and their function in drug delivery and targeting, which may lead to their application for treating liver diseases (1,6,7). With such considerable interest in the development of AgNPs for medical applications, there is concern regarding their cytotoxicity and its potential mechanism of action. Consequently, this study investigated the cytotoxic effects of AgNPs on HSCs. The study demonstrated three key results: i) the AgNPs exerted a strong negative effect on HSCs, even at low concentration; ii) the particle size of the AgNPs affected the cytotoxicity, as the smaller nanoparticles exerted larger effects on cell bioactivity than the larger nanoparticles; and iii) AgNPs altered the secretion of cytokines by HSCs, which may further affect the microenvironment of HSC activation.

Previous studies have demonstrated the impact of nanoparticle size on cellular uptake and consequent cytotoxicity (8,9). In the present study, the cytotoxic effects of AgNPs, according to their size and concentration, were determined by the investigation of AGNPs of two distinct sizes at various concentrations. The results of the CCK-8 assay demonstrated that the cytotoxic effects exerted by AgNPs on HSCs are size- and dose-dependent. Smaller AgNPs induced greater HSC cytotoxicity than the larger particles, and at higher concentrations, these nanoparticles induced greater apoptosis. The death of HSCs was not due to acute toxicity, according to our studies, which confirmed the relatively safe use of HSCs in vivo. Morever, the mechanism of cell death induced by AgNPs was analyzed and it was demonstrated that the cell death of AgNP-treated HSCs was predominantly due to apoptosis. The induced HSC apoptosis primarily occurred in cells treated with the smaller nanoparticles and the apoptotic behavior was dose dependent. To enter the cell nucleus, nanoparticles must be small enough to pass through the nuclear pore complex on the nuclear membrane. The size of AgNPs is therefore significant in cellular uptake, and thus may impact their bioactivity (10). As a result, consideration of the particle size is required in the design of nanoparticles for biomedical uses.

The changes in HSC morphology were studied using phase contrast microscopy and TEM prior to and following incubation with two sizes of AgNPs at various concentrations. These studies indicated that AgNPs induced HSCs apoptosis or necrosis. The ultrastructural characteristics of apoptosis are cell shrinkage, karyopyknosis, karyorrhexis and karyolysis. Karyorrhexis is a type of destructive fragmentation of the nucleus and is preceded by pyknosis and followed by karyolysis (11). This fragmentation appeared predominantly in HSCs treated with 250 μg/ml of smaller AgNPs (Fig. 3C). Karyotheca disintegration followed by karyolysis is the complete dissolution of the chromatin matter of a dying cell. Cell membrane rupture and the eventual fragmentation of the cell into apoptotic bodies that are engulfed by neighboring cells or phagocytes was observed in HSCs treated with AgNPs (12). The cellular uptake of smaller nanoparticles may be easier than the uptake of larger nanoparticles, although this hypothesis requires additional confirmation by quantitative analysis. Necrosis, however, occurs when the cell is sacrificed and is characterized by cell swelling, cell organelle swelling and the formation of microvesicles (Fig. 3D). This cellular swelling may be accompanied by an increase in intracellular pressure that leads to the breakage of the cell membrane, which allows leakage of the cytoplasm into the intercellular space (13).

The mitochondrial swelling observed following incubation of HSCs with AgNPs indicated that the AgNPs in the cytoplasm primarily reside in the mitochondria, affecting their function and consequently exerting effects on cell metabolism. Mitochondria are important signaling centers during apoptosis, and the loss of mitochondrial integrity is induced and inhibited by numerous regulators of apoptosis (14). For example, Bcl-2 prevents the opening of the mitochondrial membrane pore, whereas Bax accelerates this opening (15). AgNPs have been demonstrated to activate the intrinsic apoptotic pathway, which is characterized by the modulation of Bax and Bcl-2 expression, disruption of the mitochondrial membrane potential, and cytochrome c release from the mitochondria (16). During the apoptotic process, the mitochondrial membrane pores are opened and the mitochondrial membrane potential is disrupted (17). Loss of mitochondrial membrane potential is followed by cytochrome c release from the mitochondria, resulting in the activation of caspase-9 and −3.

Activated HSCs are important in chronic liver disease through the production of various cytokines. The ELISA assay confirmed that AgNPs inhibited the production of MMP-2 and −9, which are known to be crucial in chronic liver injury. During hepatic inflammation and hepatocellular necrosis, MMP-2 and −9 are predominantly produced by myofibroblasts, which transdifferentiate from activated HSCs (18). In chronic liver disease, increases in MMP-2 and −9 are associated with fibrosis and the development of cirrhosis through altered matrix production and degradation (19). In addition, the overexpression of MMP-2 and −9 has been detected in hepatocellular carcinoma (HCC) (20). Moreover, the overexpression of MMP-2 and −9 in HCC tissues is correlated with liver cirrhosis, capsular invasion, the presence of intrahepatic metastasis, vascular invasion and higher tumor-node-metastasis stage (20). Therefore, the inhibitory effects of AgNPs on certain cytokines may destroy the microenvironment in hepatic fibrosis and cirrhosis; however, the detailed mechanisms require further investigation.

In conclusion, the cytotoxicity of AgNPs was investigated by various biochemical approaches and was particle size- and dose-dependent. Morphology alterations may be an indication of metabolic and structural disturbances of HSCs caused by AgNPs. Thus, it was concluded that these alterations were size-dependent, as smaller particles induced greater cellular damage at the same concentrations. The results of the LDH assay confirmed that the necrosis or apoptosis of HSCs was not due to the acute toxicity of AgNPs but due to the effects of the nanoparticles on the physiological activities of the cells. These findings may illustrate the relative safety of AgNP application to the human body. AgNPs also affected the HSC cytokine secretion, as demonstrated by the inhibitory effects of AgNPs on the production of MMP-2 and −9. These results suggested that AgNPs may be used in the treatment of hepatic fibrosis, including HCC; however, the molecular mechanisms of nanoparticle cytotoxicity remain unclear. Therefore, further studies are required to elucidate particle-cell interactions and the metabolic and immunological responses activated in HSCs in the presence of AgNPs.

Acknowledgements

This study was conducted at Duke University and was supported by the National Science Foundation (NSF) and the Environmental Protection Agency (EPA) under NSF Cooperative Agreement EF-0830093, Center for the Environmental Implications of NanoTechnology. Any opinions, findings, conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the NSF or the EPA. This study has not been subjected to EPA review and no official endorsement should be inferred.
